EngineValveLash-Check
SMCS-1102-535;1102-082;1209-082;1209
Note:Aqualifiedservicepersonshouldperformthevalvelashcheckand/orthevalvelash adjustment.Specialtoolsandtrainingarerequired. Refertoyourmachine'sServiceManualforcompleteinstructions.
Copyright1993-2022CaterpillarInc. AllRightsReserved.
TueDec2002:44:45UTC+05302022
Product:BACKHOELOADER
Model:432EBACKHOELOADERBXE
Configuration:432EBackhoeLoaderParallelLiftSideShiftBoomBXE00001-UP(MACHINE)POWEREDBY3054CEngine
EngineOilandFilter-Change
SMCS-1302;1318;1326
Note:Ifthesulfurcontentinthefuelisgreaterthan1.5%byweight,useanoilwithaTBNof30. Withthehighsulfurfuel,changetheoilandthefilterelementafterevery250hoursorafterevery month.IftheAPIcategoryisCF-4orless,changetheoilandchangethefilterelementafterevery 250hoursoraftereverymonth.Otherwise,changetheoilandthefilterelementafterevery500 hoursoraftereverythreemonths.
1.Ifequipped,removethesoundplatefromthebottomofthetransmissionguard.Removethe fourclipsthatsecurethesoundplatetothetransmissionguard.
i02363963
Illustration2g01180759

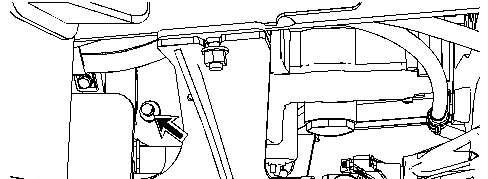

2.Removethecrankcasedrainpluganddraintheoilintoasuitablecontainer.Cleanthe crankcasedrainplugandreplacethecrankcasedrainplug.
Illustration3g01180774

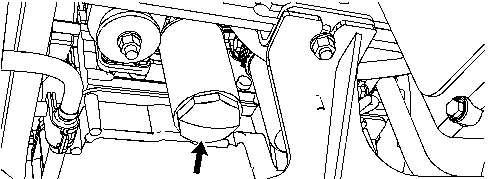

3.Removethefilterelementwithastraptypewrench.
4.Cleanthefiltermountingbasewithacleancloth.Makesurethattheoldfiltergaskethas beenremoved.
5.Applyathinfilmofcleanengineoiltothesealingsurfaceofthenewfilterelement.
6.Installthenewoilfilterbyhand.
InstructionsfortheinstallationofthefilterareprintedonthesideofeachCaterpillarspinonfilter.Fornon-Caterpillarfilters,refertotheinstallationinstructionsthatareprovidedby thesupplierofthefilter.
7.Opentheengineaccessdooronthetopofthemachine.
Illustration4g01180730

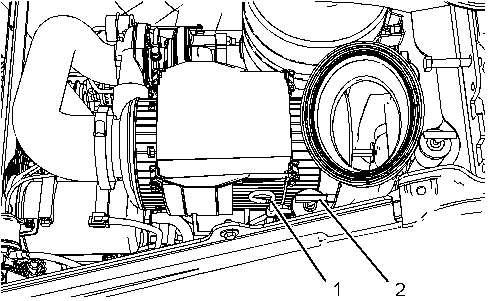

8.Removetheoilfillercap(2).Fillthecrankcasewithnewoil.RefertoOperationand MaintenanceManual,"LubricantViscosities"andOperationandMaintenanceManual, "Capacities(Refill)".Cleantheoilfillercapandinstalltheoilfillercap.
9.Starttheengineandallowtheoiltowarm.Checkforleaks.
10.Stoptheengineandallowtheoiltodrainbackintotheoilpan.Maintaintheoillevelinthe crosshatchedregionoftheengineoildipstick(1).Addoil,ifnecessary.
11.Replacetheengineaccesspanelandclosetheengineaccessdoor.
Copyright1993-2022CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
TueDec2002:44:29UTC+05302022
i06982915
Note:
Note:

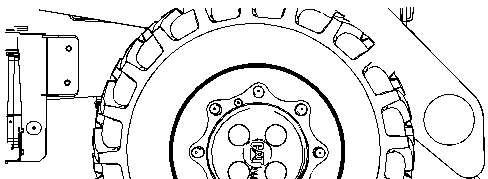

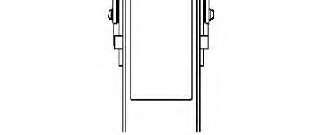

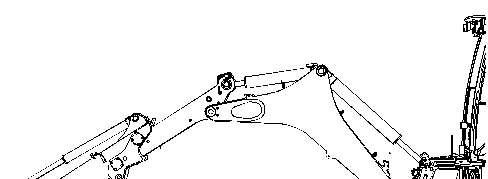

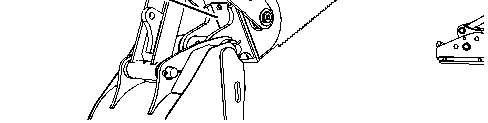

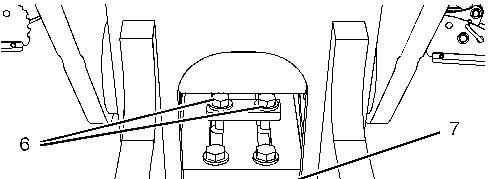

InspecttheGapoftheLowerWearPads
Note:
Note:
TueDec2002:44:25UTC+05302022
Product:BACKHOELOADER
Model:432EBACKHOELOADERBXE
Configuration:432EBackhoeLoaderParallelLiftSideShiftBoomBXE00001-UP(MACHINE)POWEREDBY3054CEngine
OperationandMaintenanceManual
420E,430E,432E,434E,442Eand444EBackhoeLoaders
MediaNumber-SEBU7687-11PublicationDate-01/02/2015DateUpdated-14/03/2019 i05339847
EngineOilSample-Obtain
SMCS-1348-008;7542-008
Usethesamplingvalveinordertoobtainasampleoftheengineoil.Thesamplingvalveislocated onthesideoftheenginenexttotheoilfilterbase.Theenginemustberunninginordertotakea sampleoftheengineoil.
Note:Dependingonmachineconfiguration,asamplingvalvemaynotbeequipped.Ifno samplingvalveispresent,obtainanengineoilsamplefromtheengineoilfillertube.
RefertoSpecialPublication,SEBU6250,"CaterpillarMachineFluidsRecommendations","S·O·S OilAnalysis"forinformationthatpertainstoobtaininganoilsample.RefertoSpecial Publication,PEHP6001,"HowToTakeAGoodOilSample"formoreinformationabout obtaininganoilsample.
Copyright1993-2022CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees. TueDec2002:44:17UTC+05302022
Product:BACKHOELOADER
Model:432EBACKHOELOADERBXE
Configuration:432EBackhoeLoaderParallelLiftSideShiftBoomBXE00001-UP(MACHINE)POWEREDBY3054CEngine
OperationandMaintenanceManual
420E,430E,432E,434E,442Eand444EBackhoeLoaders
MediaNumber-SEBU7687-11PublicationDate-01/02/2015DateUpdated-14/03/2019
EngineOilLevel-Check
SMCS-1302;1318;1326
Donotoverfillthecrankcase.Enginedamagecanresult.
1.Opentheengineaccessdooronthetopofthemachine.
Illustration1g01180730
2.Whiletheengineisstopped,maintaintheoillevelbetweenthe"ADD"markandthe "FULL"markontheengineoildipstick(1).
i02363877
3.Ifnecessary,removetheoilfillercap(2)andaddoil.
4.Cleantheoilfillercapandinstalltheoilfillercap.
5.Closetheengineaccessdoor.
Copyright1993-2022CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees. TueDec2002:43:58UTC+05302022
Product:BACKHOELOADER
Model:432EBACKHOELOADERBXE
Configuration:432EBackhoeLoaderParallelLiftSideShiftBoomBXE00001-UP(MACHINE)POWEREDBY3054CEngine
OperationandMaintenanceManual 420E,430E,432E,434E,442Eand444EBackhoeLoaders MediaNumber-SEBU7687-11PublicationDate-01/02/2015DateUpdated-14/03/2019
EngineCrankcaseBreather-Replace
SMCS-1317-510

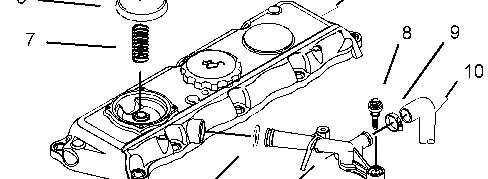

Illustration1g01149576
1.Loosentheclamp(9)andremovethehose(10)fromtheconnector(12).
i02409844
2.Removethesetscrews(8)andremovetheconnector(12)fromthecylinderhead.Remove thegasket(13).RemovetheO-ringseal(11)fromtheconnector.Discardthegasket(13) andtheO-ringseal(11).
3.Removethecover(1)fromthevalvemechanismcover(5).
Personalinjurycanresultfrompartsand/orcoversunderspring pressure.
Springforcewillbereleasedwhencoversareremoved.
Bepreparedtoholdspringloadedcoversastheboltsareloosened.
4.Removethescrews(2).Removetheplate(3).
5.Removethediaphragm(4)andthecap(6).Removethespring(7).Discarddiaphragm(4).
Improperassemblyofpartsthatarespringloadedcancausebodily injury.
Topreventpossibleinjury,followtheestablishedassemblyprocedure andwearprotectiveequipment.
6.Installthespring(7),thecap(6),andanewdiaphragm(4).
7.Installtheplate(3).Installthescrews(2).
8.Installthecover(1)onthevalvemechanismcover.
9.InstallanewO-ringseal(11)ontheconnector(12).Installanewgasket(13)onthe connector(12).Positiontheconnectorinthevalvemechanismcover.
10.Installthesetscrews(8).Tightenthesetscrewstoatorqueof9N·m(80lbin).
11.Installthehose(10)ontheconnector(12).Tightentheclamp(9)toatorqueof5N·m (44lbin).
Copyright1993-2022CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
TueDec2002:43:39UTC+05302022
