Product:BACKHOELOADER
Model:432DBACKHOELOADERBLD
Configuration:432DBackhoeLoaderBLD00001-01594(MACHINE)POWEREDBY3054Engine
OperationandMaintenanceManual 432Dand442DBackhoeLoaders
MediaNumber-SEBU7401-02PublicationDate-01/06/2006DateUpdated-28/06/2006 s00037320
Foreword
LiteratureInformation
Thismanualshouldbestoredintheoperator'scompartmentintheliteratureholderorseatback literaturestoragearea.
Thismanualcontainssafetyinformation,operationinstructions,transportationinformation, lubricationinformationandmaintenanceinformation.
Somephotographsorillustrationsinthispublicationshowdetailsorattachmentsthatcanbedifferent fromyourmachine.Guardsandcoversmighthavebeenremovedforillustrativepurposes.
Continuingimprovementandadvancementofproductdesignmighthavecausedchangestoyour machinewhicharenotincludedinthispublication.Read,studyandkeepthismanualwiththe machine.
Wheneveraquestionarisesregardingyourmachine,orthispublication,pleaseconsultyourCat dealerforthelatestavailableinformation.
Safety
Thesafetysectionlistsbasicsafetyprecautions.Inaddition,thissectionidentifiesthetextand locationsofwarningsignsandlabelsusedonthemachine.
Readandunderstandthebasicprecautionslistedinthesafetysectionbeforeoperatingorperforming lubrication,maintenanceandrepaironthismachine.
Operation
Theoperationsectionisareferenceforthenewoperatorandarefresherfortheexperiencedoperator. Thissectionincludesadiscussionofgauges,switches,machinecontrols,attachmentcontrols, transportationandtowinginformation.
Photographsandillustrationsguidetheoperatorthroughcorrectproceduresofchecking,starting, operatingandstoppingthemachine.
Operatingtechniquesoutlinedinthispublicationarebasic.Skillandtechniquesdevelopasthe operatorgainsknowledgeofthemachineanditscapabilities.
Maintenance
Themaintenancesectionisaguidetoequipmentcare.TheMaintenanceIntervalSchedule(MIS)lists theitemstobemaintainedataspecificserviceinterval.Itemswithoutspecificintervalsarelisted underthe"WhenRequired"serviceinterval.TheMaintenanceIntervalScheduleliststhepage numberforthestep-by-stepinstructionsrequiredtoaccomplishthescheduledmaintenance.Usethe MaintenanceIntervalScheduleasanindexor"onesafesource"forallmaintenanceprocedures.
MaintenanceIntervals
Usetheservicehourmetertodetermineservicingintervals.Calendarintervalsshown(daily,weekly, monthly,etc.)canbeusedinsteadofservicehourmeterintervalsiftheyprovidemoreconvenient servicingschedulesandapproximatetheindicatedservicehourmeterreading.Recommendedservice shouldalwaysbeperformedattheintervalthatoccursfirst.
Underextremelysevere,dustyorwetoperatingconditions,morefrequentlubricationthanisspecified inthemaintenanceintervalschartmightbenecessary.
Performserviceonitemsatmultiplesoftheoriginalrequirement.Forexample,atevery500service hoursor3months,alsoservicethoseitemslistedunderevery250servicehoursormonthlyandevery 10servicehoursordaily.
CaliforniaProposition65Warning
DieselengineexhaustandsomeofitsconstituentsareknowntotheStateofCaliforniatocause cancer,birthdefects,andotherreproductiveharm.
Batteryposts,terminalsandrelatedaccessoriescontainleadandleadcompounds.Washhandsafter handling.
CertifiedEngineMaintenance
Propermaintenanceandrepairisessentialtokeeptheengineandmachinesystemsoperating correctly.Astheheavydutyoff-roaddieselengineowner,youareresponsiblefortheperformanceof therequiredmaintenancelistedintheOwnerManual,OperationandMaintenanceManual,and ServiceManual.
Itisprohibitedforanypersonengagedinthebusinessofrepairing,servicing,selling,leasing,or tradingenginesormachinestoremove,alter,orrenderinoperativeanyemissionrelateddeviceor elementofdesigninstalledonorinanengineormachinethatisincompliancewiththeregulations (40CFRPart89).Certainelementsofthemachineandenginesuchastheexhaustsystem,fuel system,electricalsystem,intakeairsystemandcoolingsystemmaybeemissionrelatedandshould notbealteredunlessapprovedbyCaterpillar.
MachineCapacity
Additionalattachmentsormodificationsmayexceedmachinedesigncapacitywhichcanadversely affectperformancecharacteristics.Includedwouldbestabilityandsystemcertificationssuchas brakes,steering,androlloverprotectivestructures(ROPS).ContactyourCatdealerforfurther information.
CatProductIdentificationNumber
EffectiveFirstQuarter2001theCatProductIdentificationNumber(PIN)haschangedfrom8to17 characters.Inanefforttoprovideuniformequipmentidentification,Caterpillarandotherconstruction equipmentmanufacturersaremovingtocomplywiththelatestversionoftheproductidentification numberingstandard.Non-roadmachinePINsaredefinedbyISO10261.ThenewPINformatwill applytoallCatmachinesandgeneratorsets.ThePINplatesandframemarkingwilldisplaythe17 characterPIN.Thenewformatwilllooklikethefollowing:
This is the sample of the manual if you need complete manual Click Here to download
2.MachineDescriptor(characters4-8)
3.CheckCharacter(character9)
4.MachineIndicatorSection(MIS)orProductSequenceNumber(characters10-17).Thesewere previouslyreferredtoastheSerialNumber.
MachinesandgeneratorsetsproducedbeforeFirstQuarter2001willmaintaintheir8characterPIN format.
Componentssuchasengines,transmissions,axles,etc.andworktoolswillcontinuetousean8 characterSerialNumber(S/N).
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
FriApr2500:39:20UTC+05302025
Product:BACKHOELOADER
Model:432DBACKHOELOADERBLD
Configuration:432DBackhoeLoaderBLD00001-01594(MACHINE)POWEREDBY3054Engine OperationandMaintenanceManual

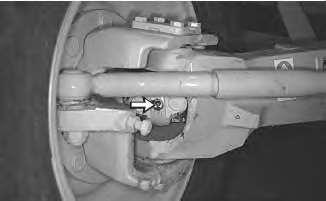

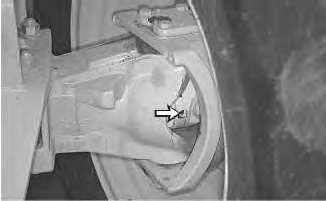

Applylubricanttothegreasefittingsforthedriveshafttothefinaldrives.Therearetwogrease fittingsforeachdriveshaft.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
FriApr2500:44:38UTC+07002025
Product:BACKHOELOADER
Model:432DBACKHOELOADERBLD
Configuration:432DBackhoeLoaderBLD00001-01594(MACHINE)POWEREDBY3054Engine
OperationandMaintenanceManual 432Dand442DBackhoeLoaders
MediaNumber-SEBU7401-02PublicationDate-01/06/2006DateUpdated-28/06/2006 i01432872
BackhoeBoom,Stick,Bucket,andCylinderBearingsLubricate
SMCS-6501;6502;6503;6510;6511;6512;6513;6533

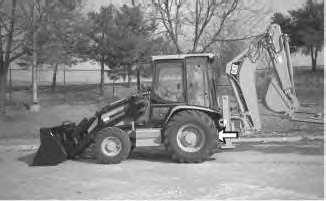

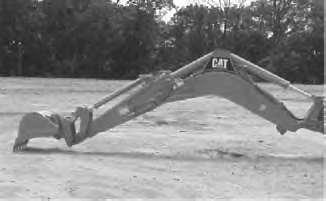

Positionthebackhoeintotheservicepositionthatisshownabove.
Illustration2g00750901

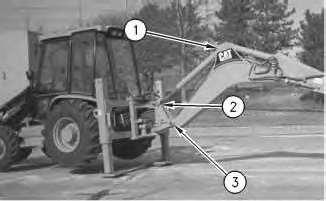

Applylubricanttothegreasefitting(1)fortheheadendoftheboomcylinder.Applylubricantto thegreasefitting(2)fortherodendoftheboomcylinder.
Applylubricanttothegreasefitting(3)fortheboompivot.Thereisonegreasefittingoneach sideofthemachine.
Illustration3g00723265

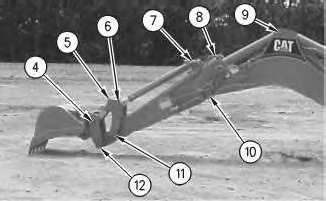

Applylubricanttothegreasefitting(9)fortheheadendofthestickcylinder.Applylubricantto thegreasefitting(8)fortherodendofthestickcylinder.
Applylubricanttothegreasefitting(10)forthepivotpinforthestick.
Applylubricanttothegreasefitting(7)fortheheadendofthebucketcylinder.Applylubricantto thegreasefitting(6)fortherodendofthebucketcylinder.
Applylubricanttothegreasefitting(11)forthepivotpin.Thereisonegreasefittingoneachside ofthemachine.
Applylubricanttothegreasefitting(4)forthebucketpivotpin.
Applylubricanttothegreasefitting(5)forthelink.
Applylubricanttothegreasefitting(12)forthepivotpin. Thereisatotalofthirteengreasefittings.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
FriApr2500:45:05UTC+07002025
Product:BACKHOELOADER
Model:432DBACKHOELOADERBLD
Configuration:432DBackhoeLoaderBLD00001-01594(MACHINE)POWEREDBY3054Engine
OperationandMaintenanceManual 432Dand442DBackhoeLoaders
MediaNumber-SEBU7401-02PublicationDate-01/06/2006DateUpdated-28/06/2006
BackupAlarm-Test
SMCS-7406
TurntheenginestartswitchkeytoONinordertoperformthetest.
Applytheservicebrake.MovethetransmissiondirectioncontrollevertoREVERSEposition. Thebackupalarmshouldimmediatelysound.Thebackupalarmwillcontinuetosounduntilthe transmissiondirectioncontrolleverismovedtotheNEUTRALpositionortotheFORWARD position.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
FriApr2500:45:21UTC+07002025
Product:BACKHOELOADER
Model:432DBACKHOELOADERBLD
Configuration:432DBackhoeLoaderBLD00001-01594(MACHINE)POWEREDBY3054Engine
OperationandMaintenanceManual 432Dand442DBackhoeLoaders
MediaNumber-SEBU7401-02PublicationDate-01/06/2006DateUpdated-28/06/2006 i01833495
BatteryorBatteryCable-Inspect/Replace
SMCS-1401
1.TurntheenginestartswitchtotheOFFposition.TurnallswitchestotheOFFposition.
2.Disconnectthenegativebatterycablefromtheframe.
Note:Donotallowthedisconnectedbatterycabletocontacttheframeofthemachine.
3.Disconnectthenegativebatterycableatthebattery.
4.Inspectthebatteryterminalsandinspectthebatterycables.Keeptheterminalscleanand keeptheterminalscoatedwithpetroleumjelly.
5.Performthenecessaryrepairs.Replacethecableorthebattery,asneeded.
6.Connectthenegativebatterycableatthebattery.
7.Connectthebatterycabletotheframeofthemachine.
8.Installtheenginestartswitchkey.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
FriApr2500:45:33UTC+07002025
Product:BACKHOELOADER
Model:432DBACKHOELOADERBLD
Configuration:432DBackhoeLoaderBLD00001-01594(MACHINE)POWEREDBY3054Engine
OperationandMaintenanceManual 432Dand442DBackhoeLoaders
MediaNumber-SEBU7401-02PublicationDate-01/06/2006DateUpdated-28/06/2006
Belts-Inspect/Adjust/Replace
SMCS-1357-025;1357-040;1357-510
Ifnewbeltsareinstalled,checkbeltadjustmentafter30minutesofoperation.Formultiplebelt driveapplications,alwaysreplacethebeltsinmatchedsets.Replacingonlyonebeltofamatched setwillcausethenewbelttocarrymoreloadbecausetheolderbeltsarestretched.Theadditional loadonthenewbeltcouldcausethenewbelttobreak.

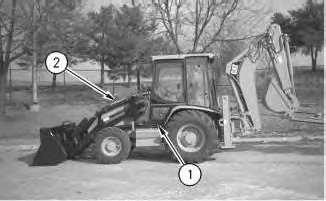

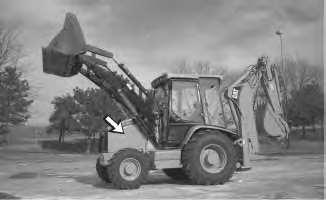

1.Emptythebucket.Removethepinthatsecurestheloaderliftarmbracetotheleftloaderlift arm.Raisetheloaderarmtothemaximumheight.
2.Positiontheloaderliftarmbraceovertheleftliftcylinderrodwiththeflatendagainstthe cylinderend.
3.Pushthepinthroughtheholesoftheloaderliftarmbraceandinstallthecotterpin.
4.Slowlylowertheloaderarmsuntiltheloaderliftarmbracecontactsthetopofthelift cylinderandthebossesontheloaderarm.
5.Stoptheengineinordertoinspectthebelts.
Illustration1g00751273
6.Removetheengineaccesspanelontheleftsideofthemachine.
Illustration2g00287234

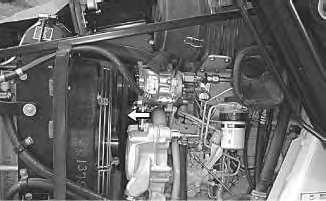

7.Inspecttheconditionoftheairconditionerbeltandtheadjustmentoftheairconditioner belt.Theairconditionerbeltshoulddeflect10mm(0.38inch)under110N(25lb)offorce.
Illustration3g00287235

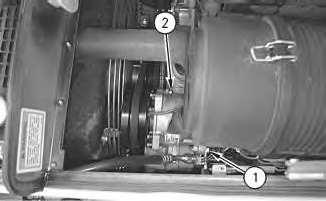

8.Loosentheadjustinglocknut(1).Loosenthecompressorbracketmountingbolt(2).
9.Movethecompressoruntilthecorrectbelttensionisreached.
10.Tightentheadjustinglocknut(1).Tightenthecompressorbracketmountingbolt(2).
11.Recheckthebeltdeflection.Iftheamountofdeflectionisincorrect,repeatStep8toStep 10.
12.Installtheengineaccesspanelontheleftsideofthemachine.
13.Removetheengineaccesspanelontherightsideofthemachine.

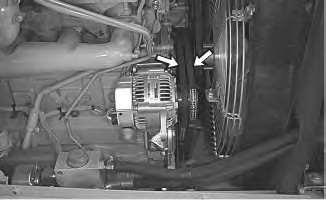

14.Inspecttheconditionofthealternatorbeltsandtheadjustmentofthealternatorbelts.The alternatorbeltsshoulddeflect10mm(0.38inch)under110N(25lb)offorce.
Illustration5g00287243

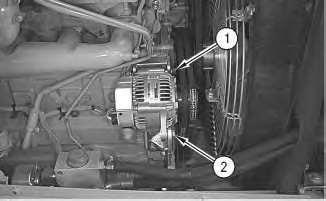

15.Loosenthemountingbolt(1).Loosentheadjustinglocknut(2).
16.Movethealternatoruntilthecorrecttensionisreached.
17.Tightentheadjustinglocknut(2).Tightenthemountingbolt(1).
18.Recheckthebeltdeflection.Iftheamountofdeflectionisincorrect,repeatStep15toStep 17.
19.Installtheengineaccesspanel.
20.Starttheengine.Raisetheloaderarmstothemaximumheight.
21.Removethepinandreplacetheloaderliftarmbracetothestoredpositionontheloaderlift arm.
22.Lowerthebuckettotheground.
Product:BACKHOELOADER
Model:432DBACKHOELOADERBLD
Configuration:432DBackhoeLoaderBLD00001-01594(MACHINE)POWEREDBY3054Engine
OperationandMaintenanceManual 432Dand442DBackhoeLoaders
MediaNumber-SEBU7401-02PublicationDate-01/06/2006DateUpdated-28/06/2006
BrakeReservoirOilLevel-Check
SMCS-4291-535
Illustration1g00751131
Pullthehoodreleaselever(1)inordertoopentheengineaccessdoor(2)onthetopofthe machine.Thehoodreleaseleverislocatedunderthecabdoorontheleftsideofthemachine.

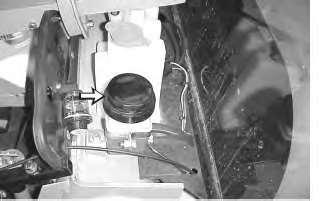

Maintaintheoillevelbetweenthe"MIN"markand"MAX"markonthebrakereservoir.Addoil, ifnecessary.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
FriApr2500:46:01UTC+07002025
Product:BACKHOELOADER
Model:432DBACKHOELOADERBLD
Configuration:432DBackhoeLoaderBLD00001-01594(MACHINE)POWEREDBY3054Engine
OperationandMaintenanceManual 432Dand442DBackhoeLoaders
MediaNumber-SEBU7401-02PublicationDate-01/06/2006DateUpdated-28/06/2006
BrakingSystem-Test
SMCS-4251;4267;7000
ServiceBrakeHoldingAbilityTest
Checktheareaaroundthemachine.Makesurethatthemachineisclearofpersonnelandclearof obstacles.
Testthebrakesonadry,levelsurface.
Fastentheseatbeltbeforeyoutestthebrakes.
Thefollowingtestsareusedtodetermineiftheservicebrakeisfunctional.Thesetestsarenot intendedtomeasurethemaximumbrakeholdingeffort.Thebrakeholdingeffortthatisrequired tosustainamachineataspecificenginerpmvariesdependingonthemachine.Thevariationsare thedifferencesintheenginesetting,inthepowertrainefficiency,andinthebrakeholdingability, etc.
1.Starttheengine.Raisethebucketslightly.
2.Applytheservicebrake.Releasetheparkingbrake.
3.MovethetransmissioncontrollevertoTHIRDSPEEDFORWARD.
4.Graduallyincreasetheenginespeedtohighidle.Themachineshouldnotmove.
Ifthemachinebeginstomove,reducetheenginespeedimmediatelyand engagetheparkingbrake.
5.Reducetheenginespeedtolowidle.MovethetransmissiontoNEUTRAL.Engagethe parkingbrake.Lowerthebuckettotheground.Stoptheengine.
NOTICE
Ifthemachinemovedwhiletestingthebrakes,contactyour Caterpillardealer.Havethedealerinspectand,ifnecessary,repairthe servicebrakebeforereturningthemachinetooperation.
