LiteratureInformation
Thismanualshouldbestoredintheoperator'scompartmentintheliteratureholderorseatback literaturestoragearea.
Thismanualcontainssafetyinformation,operationinstructions,transportationinformation, lubricationinformation,andmaintenanceinformation.
Somephotographsorillustrationsinthispublicationshowdetailsorattachmentsthatcanbedifferent fromyourmachine.Guardsandcoversmighthavebeenremovedforillustrativepurposes.
Continuingimprovementandadvancementofproductdesignmighthavecausedchangestoyour machinewhicharenotincludedinthispublication.Read,study,andkeepthismanualwiththe machine.
Wheneveraquestionarisesregardingyourmachine,orthispublication,pleaseconsultyourCat dealerforthelatestavailableinformation.
Safety
Thesafetysectionlistsbasicsafetyprecautions.Inaddition,thissectionidentifiesthetextand locationsofwarningsignsandlabelsusedonthemachine.
Readandunderstandthebasicprecautionslistedinthesafetysectionbeforeoperatingorperforming lubrication,maintenance,andrepaironthismachine.
Operation
Theoperationsectionisareferenceforthenewoperatorandarefresherfortheexperiencedoperator. Thissectionincludesadiscussionofgauges,switches,machinecontrols,attachmentcontrols, transportation,andtowinginformation.
Photographsandillustrationsguidetheoperatorthroughcorrectproceduresofchecking,starting, operating,andstoppingthemachine.
Operatingtechniquesoutlinedinthispublicationarebasic.Skillandtechniquesdevelopasthe operatorgainsknowledgeofthemachineanditscapabilities.
Maintenance
Themaintenancesectionisaguidetoequipmentcare.TheMaintenanceIntervalSchedule(MIS)lists theitemstobemaintainedataspecificserviceinterval.Itemswithoutspecificintervalsarelisted underthe"WhenRequired"serviceinterval.TheMaintenanceIntervalScheduleliststhepage numberforthestep-by-stepinstructionsrequiredtoaccomplishthescheduledmaintenance.Usethe MaintenanceIntervalScheduleasanindexor"onesafesource"forallmaintenanceprocedures.
MaintenanceIntervals
Usetheservicehourmetertodetermineservicingintervals.Calendarintervalsshown(daily,weekly, monthly,etc.)canbeusedinsteadofservicehourmeterintervalsifthecalendarintervalsprovide moreconvenientservicingschedulesandapproximatetheindicatedservicehourmeterreading. Performtherecommendedserviceattheintervalthatoccursfirst.
Undersevere,dusty,orwetoperatingconditions,morefrequentlubricationthanisspecifiedinthe maintenanceintervalschartmightbenecessary.
Performserviceonitemsatmultiplesoftheoriginalrequirement.Forexample,atevery500service hoursor3months,alsoservicethoseitemslistedunderevery250servicehoursormonthlyandevery 10servicehoursordaily.
CertifiedEngineMaintenance
Propermaintenanceandrepairareessentialtokeeptheengineandmachinesystemsoperating correctly.Astheheavy-dutyoff-roaddieselengineowner,youareresponsiblefortheperformanceof therequiredmaintenancelistedintheOwnerManual,OperationandMaintenanceManual,and ServiceManual.
Itisprohibitedforanypersonengagedinthebusinessofrepairing,servicing,selling,leasing,or tradingenginesormachinestoremove,alter,ortorenderinoperative,anyemission-relateddeviceor elementofdesigninstalledonorinanengineormachinethatisincompliancewithallapplicable regulationsoftheintendedcountrytowhichithasbeenshipped.Certainelementsofthemachineand enginesuchastheexhaustsystem,fuelsystem,electricalsystem,intakeairsystem,andcooling systemmaybeemission-relatedandshouldnotbealteredunlessapprovedbyCaterpillar.
MachineCapacity
Additionalattachmentsormodificationsmayexceedmachinedesigncapacitywhichcanadversely affectperformancecharacteristics.Includedwouldbestabilityandsystemcertificationssuchas brakes,steering,androlloverprotectivestructures(ROPS).ContactyourCatdealerforfurther information.
ProductIdentificationNumber
EffectiveFirstQuarter2001theProductIdentificationNumber(PIN)haschangedfrom8to17 characters.Toprovideuniformequipmentidentification,constructionequipmentmanufacturersare movingtocomplywiththelatestversionoftheproductidentificationnumberingstandard.Non-road machinePINsaredefinedbyISO10261.ThenewPINformatwillapplytoallmachinesand generatorsets.ThePINplatesandframemarkingwilldisplaythe17characterPIN.Thenewformat willlooklikethefollowing:
This is the sample of the manual if you need complete manual Click Here to download
Illustration1g03891925
Where:
1.WorldManufacturingCode(characters1-3)
2.MachineDescriptor(characters4-8)
3.CheckCharacter(character9)
4.MachineIndicatorSection(MIS)orProductSequenceNumber(characters10-17).Thesewere previouslyreferredtoastheSerialNumber.
MachinesandgeneratorsetsproducedbeforeFirstQuarter2001willmaintaintheir8characterPIN format.
Componentssuchasengines,transmissions,axles,andworktoolswillcontinuetousean8character SerialNumber(S/N).
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
TueOct1722:28:49UTC+05302023
Product:BACKHOELOADER
Model:430DBACKHOELOADERBML
Configuration:430DBackhoeLoaderBML02281-04799(MACHINE)POWEREDBY3054Engine
OperationandMaintenanceManual 420Dand430DBackhoeLoaders
MediaNumber-SEBU7399-09PublicationDate-01/03/2015DateUpdated-02/04/2019 i01588280
AxleBreathers-Clean/Replace
SMCS-3278-510-BRE;3278-070-BRE
S/N-BLN7966-10299
S/N-BML3503-4799
S/N-BNK4367-5899
S/N-FDP14496-18399

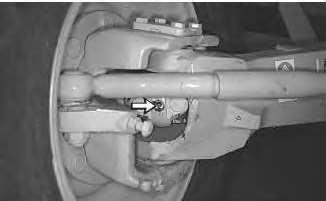

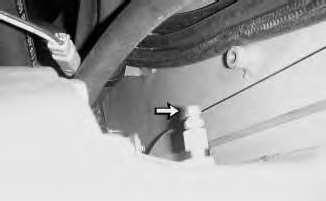

Illustration2g00833321 Therearaxlebreatherislocatedonthetopleftsideofthedifferentialhousing.
1.Cleantheareaaroundthebreathers.Removethebreathersfromthefrontandrearaxles.
Note:Donotturntheadapterwhenyouremovethebreather.
2.Washthebreathersincleannonflammablesolvent.Wipethebreathersdryandcheckthe breathersfordamage.
3.Installthecleanbreathersbackintotheaxles.Replacethebreathersifthebreathersare damaged.
Note:Iftheadapteristurnedmakesurethattheslotintheadapterisparalleltotheaxle housing.
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
TueOct1722:42:16UTC+05302023
Product:BACKHOELOADER
Model:430DBACKHOELOADERBML
Configuration:430DBackhoeLoaderBML02281-04799(MACHINE)POWEREDBY3054Engine
OperationandMaintenanceManual 420Dand430DBackhoeLoaders
MediaNumber-SEBU7399-09PublicationDate-01/03/2015DateUpdated-02/04/2019 i01375369
AxleUniversalJoint(Front)-Lubricate
SMCS-3251
S/N-BKC1-919
S/N-BLN1-7965
S/N-BMC1-1059
S/N-BML1-3502
S/N-BNK1-4366
S/N-FDP1-14495

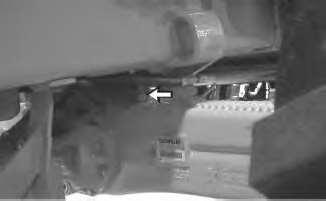

Applylubricanttothegreasefittingsforthedriveshafttothefinaldrives.Therearetwogrease fittingsforeachdriveshaft.
Copyright1993-2023CaterpillarInc.
AllRightsReserved. PrivateNetworkForSISLicensees.
TueOct1722:42:32UTC+05302023
Product:BACKHOELOADER
Model:430DBACKHOELOADERBML
Configuration:430DBackhoeLoaderBML02281-04799(MACHINE)POWEREDBY3054Engine
OperationandMaintenanceManual 420Dand430DBackhoeLoaders
MediaNumber-SEBU7399-09PublicationDate-01/03/2015DateUpdated-02/04/2019
BackhoeBoom,Stick,Bucket,andCylinderBearingsLubricate

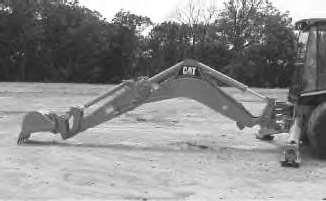

SMCS-6501;6502;6503;6510;6511;6512;6513;6533 Illustration1g00723263
Positionthebackhoeintotheservicepositionthatisshownabove.

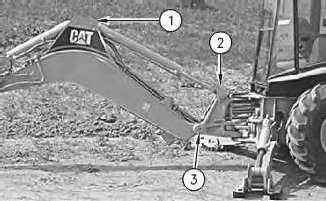

Illustration2g00287247
Applylubricanttothegreasefitting(1)fortheheadendoftheboomcylinder.Applylubricanttothe greasefitting(2)fortherodendoftheboomcylinder.
Applylubricanttothegreasefitting(3)fortheboompivot.Thereisonegreasefittingoneachsideof themachine.
Illustration3g00723265
Applylubricanttothegreasefitting(9)fortheheadendofthestickcylinder.Applylubricanttothe greasefitting(8)fortherodendofthestickcylinder.
Applylubricanttothegreasefitting(10)forthepivotpinforthestick.
Applylubricanttothegreasefitting(7)fortheheadendofthebucketcylinder.Applylubricanttothe greasefitting(6)fortherodendofthebucketcylinder.
Applylubricanttothegreasefitting(11)forthepivotpin.Thereisonegreasefittingoneachsideof themachine.
Applylubricanttothegreasefitting(4)forthebucketpivotpin.
Applylubricanttothegreasefitting(5)forthelink.
Applylubricanttothegreasefitting(12)forthepivotpin.
Thereisatotalofthirteengreasefittings.
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
TueOct1722:42:47UTC+05302023
Product:BACKHOELOADER
Model:430DBACKHOELOADERBML
Configuration:430DBackhoeLoaderBML02281-04799(MACHINE)POWEREDBY3054Engine
OperationandMaintenanceManual 420Dand430DBackhoeLoaders
MediaNumber-SEBU7399-09PublicationDate-01/03/2015DateUpdated-02/04/2019
BackupAlarm-Test
SMCS-7406
TurntheenginestartswitchkeytoONinordertoperformthetest. Applytheservicebrake.MovethetransmissiondirectioncontrollevertoREVERSEposition.
Thebackupalarmshouldimmediatelysound.Thebackupalarmwillcontinuetosounduntilthe transmissiondirectioncontrolleverismovedtotheNEUTRALpositionortotheFORWARD position.
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees. TueOct1722:42:57UTC+05302023
Product:BACKHOELOADER
Model:430DBACKHOELOADERBML
Configuration:430DBackhoeLoaderBML02281-04799(MACHINE)POWEREDBY3054Engine
OperationandMaintenanceManual 420Dand430DBackhoeLoaders
MediaNumber-SEBU7399-09PublicationDate-01/03/2015DateUpdated-02/04/2019 i01833495
BatteryorBatteryCable-Inspect/Replace
SMCS-1401
1.TurntheenginestartswitchtotheOFFposition.TurnallswitchestotheOFFposition.
2.Disconnectthenegativebatterycablefromtheframe.
Note:Donotallowthedisconnectedbatterycabletocontacttheframeofthemachine.
3.Disconnectthenegativebatterycableatthebattery.
4.Inspectthebatteryterminalsandinspectthebatterycables.Keeptheterminalscleanandkeep theterminalscoatedwithpetroleumjelly.
5.Performthenecessaryrepairs.Replacethecableorthebattery,asneeded.
6.Connectthenegativebatterycableatthebattery.
7.Connectthebatterycabletotheframeofthemachine.
8.Installtheenginestartswitchkey.
TueOct1722:43:06UTC+05302023
Product:BACKHOELOADER
Model:430DBACKHOELOADERBML
Configuration:430DBackhoeLoaderBML02281-04799(MACHINE)POWEREDBY3054Engine
OperationandMaintenanceManual 420Dand430DBackhoeLoaders
MediaNumber-SEBU7399-09PublicationDate-01/03/2015DateUpdated-02/04/2019
Belts-Inspect/Adjust/Replace
SMCS-1357-040;1357-510;1357-025
i01878173
Ifnewbeltsareinstalled,checkbeltadjustmentafter30minutesofoperation.Formultiplebeltdrive applications,alwaysreplacethebeltsinmatchedsets.Replacingonlyonebeltofamatchedsetwill causethenewbelttocarrymoreloadbecausetheolderbeltsarestretched.Theadditionalloadonthe newbeltcouldcausethenewbelttobreak.
1.Emptythebucket.Removethepinthatsecuresthebracefortheloaderliftarmtotheleftloader liftarm.Raisetheloaderarmtothemaximumheight.
2.Positionthebracefortheloaderliftarmovertheleftliftcylinderrodwiththeflatendagainst thecylinderend.
3.Pushthepinthroughtheholesofthebracefortheloaderliftarmandinstallthecotterpin.
4.Slowlylowertheloaderarmsuntilthebracefortheloaderliftarmcontactsthetopofthelift cylinderandthebossesontheloaderarm.
5.Stoptheengineinordertoinspectthebelts.

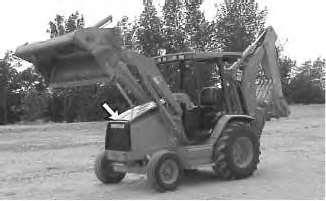

Illustration1g00731568
6.Removetheengineaccesspanelontheleftsideofthemachine.

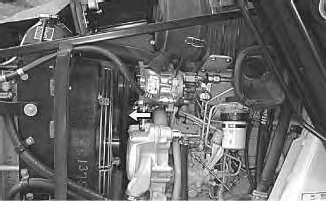

Illustration2g00287234
7.Inspecttheconditionoftheairconditionerbeltandtheadjustmentoftheairconditionerbelt. Theairconditionerbeltshoulddeflect10mm(0.38inch)under110N(25lb)offorce.

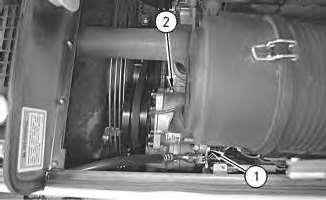

Illustration3g00287235
8.Loosentheadjustinglocknut(1).Loosenthecompressorbracketmountingbolt(2).
9.Movethecompressoruntilthecorrectbelttensionisreached.
10.Tightentheadjustinglocknut(1).Tightenthecompressorbracketmountingbolt(2).
11.Recheckthebeltdeflection.Iftheamountofdeflectionisincorrect,repeatStep8toStep10.
12.Installtheengineaccesspanel.

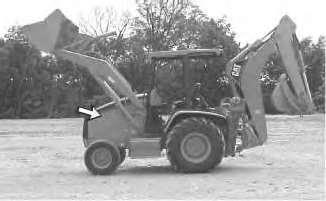

Illustration4g00731569
13.Removetheengineaccesspanelontherightsideofthemachine.

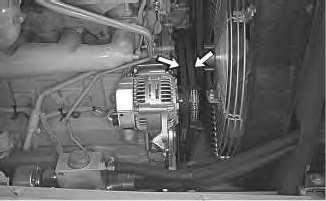

Illustration5g00287242
14.Inspecttheconditionofthealternatorbeltsandtheadjustmentofthealternatorbelts.The alternatorbeltsshoulddeflect10mm(0.38inch)under110N(25lb)offorce.
Illustration6g00287243
15.Loosenthemountingbolt(1).Loosentheadjustinglocknut(2).
16.Movethealternatoruntilthecorrecttensionisreached.
17.Tightentheadjustinglocknut(2).Tightenthemountingbolt(1).
18.Recheckthebeltdeflection.Iftheamountofdeflectionisincorrect,repeatStep15toStep17.
19.Installtheengineaccesspanel.
20.Starttheengine.Raisetheloaderarmstothemaximumheight.
21.Removethepinandreplacethebracefortheloaderliftarmtothestoredpositionontheloader liftarm.
22.Lowerthebuckettotheground.
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
TueOct1722:43:30UTC+05302023
Product:BACKHOELOADER
Model:430DBACKHOELOADERBML
Configuration:430DBackhoeLoaderBML02281-04799(MACHINE)POWEREDBY3054Engine
OperationandMaintenanceManual 420Dand430DBackhoeLoaders
MediaNumber-SEBU7399-09PublicationDate-01/03/2015DateUpdated-02/04/2019 i01354984
BrakeReservoirOilLevel-Check
SMCS-4291-535

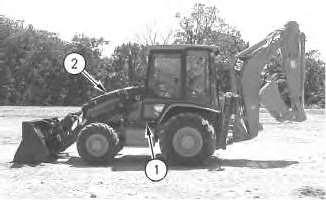

Illustration1g00723507
Pullthehoodreleaselever(1)inordertoopentheengineaccessdoor(2)onthetopofthemachine. Thehoodreleaseleverislocatedunderthecabdoorontheleftsideofthemachine.

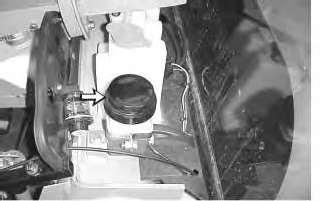

Maintaintheoillevelbetweenthe"MIN"markand"MAX"markonthebrakereservoir.Addoil,if necessary.
Copyright1993-2023CaterpillarInc.
AllRightsReserved. PrivateNetworkForSISLicensees.
TueOct1722:43:47UTC+05302023
Product:BACKHOELOADER
Model:430DBACKHOELOADERBML
Configuration:430DBackhoeLoaderBML02281-04799(MACHINE)POWEREDBY3054Engine
OperationandMaintenanceManual 420Dand430DBackhoeLoaders
MediaNumber-SEBU7399-09PublicationDate-01/03/2015DateUpdated-02/04/2019
BrakingSystem-Test
SMCS-4251;4267;7000
ServiceBrakeHoldingAbilityTest
i02291147
Checktheareaaroundthemachine.Makesurethatthemachineisclearofpersonnelandclearof obstacles.
Testthebrakesonadry,levelsurface.
Fastentheseatbeltbeforeyoutestthebrakes.
Thefollowingtestsareusedtodetermineiftheservicebrakeisfunctional.Thesetestsarenot intendedtomeasurethemaximumbrakeholdingeffort.Thebrakeholdingeffortthatisrequiredto sustainamachineataspecificenginerpmvariesdependingonthemachine.Thevariationsarethe differencesintheenginesetting,inthepowertrainefficiency,andinthebrakeholdingability,etc.
1.Starttheengine.Raisethebucketslightly.
2.Applytheservicebrake.Releasetheparkingbrake.
3.Ifthemachineisequippedwiththestandardtransmission,movethetransmissionspeedshift levertoTHIRDgear.MovethetransmissiondirectioncontrollevertoFORWARD,to NEUTRAL,andbacktoFORWARD.Ifthemachineisequippedwithapowershift transmissionmovethetransmissioncontrollevertoFOURTHSPEEDFORWARD,to NEUTRAL,andbacktoFOURTHSPEEDFORWARD.Thisisdoneinordertooverridethe transmissionneutralizerforthistest.
Note:Placemachinesthatareequippedwithallwheeldriveintotwo-wheeldrivemode.
4.Graduallyincreasetheenginespeedtohighidle.Themachineshouldnotmove.
Ifthemachinebeginstomove,reducetheenginespeedimmediatelyand engagetheparkingbrake.
5.Reducetheenginespeedtolowidle.MovethetransmissiontoNEUTRAL.Engagetheparking brake.Lowerthebuckettotheground.Stoptheengine.
NOTICE
Ifthemachinemovedwhiletestingthebrakes,contactyour Caterpillardealer.Havethedealerinspectand,ifnecessary,repairthe servicebrakebeforereturningthemachinetooperation.
SecondaryBrakeHoldingAbilityTest
Checktheareaaroundthemachine.Makesurethatthemachineisclearofpersonnelandclearof obstacles.
Testthebrakesonadry,levelsurface.
Fastentheseatbeltbeforeyoutestthebrakes.
Thefollowingtestsareusedtodetermineiftheparkingbrakeisfunctional.Thesetestsarenot intendedtomeasurethemaximumbrakeholdingeffort.Thebrakeholdingeffortthatisrequiredto sustainamachineataspecificenginerpmvariesdependingonthemachine.Thevariationsarethe differencesintheenginesetting,inthepowertrainefficiency,andinthebrakeholdingability,etc.
1.Starttheengine.Raisethebucketslightly.
2.Engagetheparkingbrake.
3.Ifthemachineisequippedwiththestandardtransmission,movethetransmissionspeedshift levertoTHIRDgear.MovethetransmissiondirectioncontrollevertoFORWARD,to NEUTRAL,andbacktoFORWARD.Ifthemachineisequippedwithapowershift transmissionmovethetransmissioncontrollevertoFOURTHSPEEDFORWARD,to NEUTRAL,andbacktoFOURTHSPEEDFORWARD.Thisisdoneinordertooverridethe transmissionneutralizerforthistest.
Note:Placemachinesthatareequippedwithallwheeldriveintotwo-wheeldrivemode.
Note:Theparkingbrakeindicatorlightshouldcomeonandtheparkingbrakealarmshould sound.
4.Graduallyincreasetheenginespeedtohighidle.Themachineshouldnotmove.
Ifthemachinebeginstomove,reducetheenginespeedimmediatelyand applytheservicebrakepedal.
5.Reducetheenginespeed.MovethetransmissiontoNEUTRAL.Lowerthebuckettothe ground.Stoptheengine.
NOTICE
Ifthemachinemovedwhiletestingthebrakes,contactyour Caterpillardealer.
Havethedealerinspectand,ifnecessary,repairtheparkingbrakes beforereturningthemachinetooperation.
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
TueOct1722:44:04UTC+05302023
Product:BACKHOELOADER
Model:430DBACKHOELOADERBML
Configuration:430DBackhoeLoaderBML02281-04799(MACHINE)POWEREDBY3054Engine
OperationandMaintenanceManual 420Dand430DBackhoeLoaders
MediaNumber-SEBU7399-09PublicationDate-01/03/2015DateUpdated-02/04/2019
BucketCuttingEdges-Inspect/Replace
SMCS-6801
Personalinjuryordeathcanresultfrombucketfalling. Blockthebucketbeforechangingbucketcuttingedges.
1.Raisethebucket.Placeablockunderthebucket.
2.Lowerthebuckettotheblocking.
Donotblockupthebuckettoohigh.Blockupthebucketsothatthebucketishighenoughto removethecuttingedgesandtheendbits.
3.Removethebolts.Removethecuttingedgeandtheendbits.
4.Cleanthecontactsurfaces.
5.Usetheoppositesideofthecuttingedge,ifthissideisnotworn.
6.Installanewcuttingedge,ifbothedgesareworn.
7.Installthebolts.Tightentheboltstothespecifiedtorque.
8.Raisethebucket.Removetheblocks.
9.Lowerthebuckettotheground.
10.Afterafewhoursofoperation,checktheboltsforpropertorque.
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
TueOct1722:44:17UTC+05302023
This is the sample of the manual if you need complete manual Click Here to download
