AftercoolerCore-Inspect/Clean

SMCS-1063-040;1064-571

i02828620

1.Removethecore.RefertotheDisassemblyandAssemblyManual,"Aftercooler-Removeand Install"fortheprocedure.

2.Turntheaftercoolercoreononesideinordertoremovedebris.Removethedebristhatis accessible.

NOTICE

Donotuseahighconcentrationofcausticcleanertocleanthecore.A highconcentrationofcausticcleanercanattacktheinternalmetalsof thecoreandcauseleakage.Onlyusetherecommendedconcentration ofcleaner.

3.Backflushthecorewithcleaner.

CaterpillarrecommendstheuseofHydrosolvliquidcleaner.Table1listsHydrosolvliquid cleanersthatareavailablefromyourCaterpillardealer.

Table1

HydrosolvLiquidCleaners(1)

PartNumberDescriptionSize 1U-5490Hydrosolv4165

19L(5USgallon)

174-6854Hydrosolv10019L(5USgallon)

(1)Useatwotofivepercentconcentrationofthecleanerattemperaturesupto93°C(200°F).Consultyour Caterpillardealerformoreinformation.

4.Removethedrainplug.

5.Steamcleanthecoreinordertoremoveanyresidue.Flushthefinsoftheaftercoolercore. Removeanyothertrappeddebrisfromtheinsideandfromtheoutsideofthecore.

Note:Donotusehighpressurewhenthefinsarecleaned.Highpressurecandamagethefins.

6.Washthecorewithhot,soapywater.

7.Flushthecorethoroughlyinordertoremoveresidueandremainingdebris.Flushthecorewith clean,freshwateruntilthewaterthatisexitingthecoreisclearandfreeofdebris.

Personalinjurycanresultfromairpressure.

Personalinjurycanresultwithoutfollowingproperprocedure.When usingpressureair,wearaprotectivefaceshieldandprotectiveclothing.

Maximumairpressureatthenozzlemustbelessthan205kPa(30psi) forcleaningpurposes.

8.Drythecorewithcompressedair.Directtheairinthereversedirectionofthenormalflow.

9.Priortoinstallation,inspectanyO-ringsorsealsfordamage.Ifnecessary,replacetheO-rings orseals.

10.Inspectthecorefortrappeddebrisandcleanliness.Ifitisnecessary,removethedebrisand repeatthecleaningprocedure.

11.Inspectthecorefordamageandperformapressuretestinordertodetectleaks.Manyshops thatserviceradiatorsareequippedtoperformpressuretests.

12.Installthecore.RefertoDisassemblyandAssemblyManual,"Aftercooler-Removeand Install"fortheprocedure.

Formoreinformationoncleaningthecore,consultyourCaterpillardealer.

Product:MARINEENGINE

Model:3512BMARINEENGINE7HM

Configuration:3512BMarineEngine7HM00001-UP

OperationandMaintenanceManual

3500Band3500MarinePropulsionEngineswithEUIOption MediaNumber-SEBU6917-08PublicationDate-01/07/2013DateUpdated-15/07/2013 i02566367

AirShutoff-Test-EnginesThatAreEquippedwithADEMII orADEMIIIEngineControlModules

SMCS-1078-081

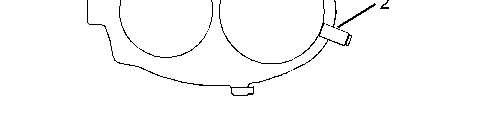

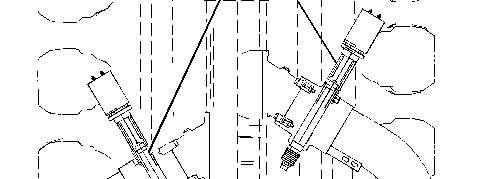

Illustration1g01285348

Typicalairshutoffsona3500Bengine (1)Airshutoffs

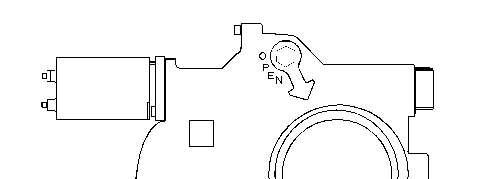

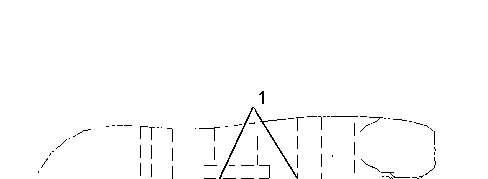

Illustration2g01285609

LefthandsideairshutoffintheOPENposition

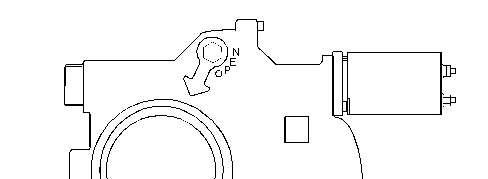

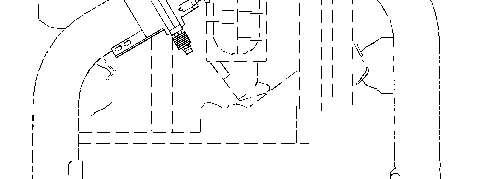

Illustration3g01285610

RighthandsideairshutoffintheOPENposition

RefertotheTroubleshootingGuide,"AirShutoffSystem"informationinyourServiceManualfor furtherinformationabouttheelectricalsystemfortheairshutoffsystem.

Note:Donotstarttheengine.Ensurethattheenginecontrolisinthe"OFF"position.

1.EnsurethatbothairshutoffgatesarelatchedintheOPENpositionandensurethatbothair shutoffswitchesareconnected.Turnonthepowertotheenginecontrolpanel.Bothairshutoff gatesshouldremainopen.Ifbothairshutoffgatesdonotremainopen,checkthewiringforthe airshutoffswitches.

2.WiththepowerfortheenginecontrolpanelintheONposition,activatethe"EMERGENCY STOP"switch.Bothoftheairshutoffgatesshouldclose.Ifbothairshutoffgatesclose,proceed tostep3.Ifbothairshutoffgatesdonotclose,checkthewiringfortheairshutoffswitchesand checkthewiringforthesolenoids.Activatethe"EMERGENCYSTOP"switchagain.When bothairshutoffgatesclose,proceedtostep3.

3.TurnthepowertotheenginecontrolpaneltotheOFFposition.Ensurethatthe "EMERGENCYSTOP"switchisintheRUNposition.Latchonlytherightsideairshutoffgate totheOPENposition.TurnthepowerfortheenginecontrolpaneltotheONposition.Theright sideairshutoffgateshouldclose.Iftherightsideairshutoffcloses,proceedtostep4.Ifthe rightsideairshutoffgatedoesnotclose,checktheairshutoffswitchfortherightsideair shutoffandcheckthewiringfortherightsideairshutoff.Whentherightsideairshutoff closes,proceedtostep4.

4.TurnthepowerfortheenginecontrolpaneltotheOFFposition.Latchonlytheleftsideair shutoffgatetotheOPENposition.TurnthepowerfortheenginecontrolpaneltotheON position.Theleftsideairshutoffgateshouldclose.Iftheleftsideairshutoffgateclosesthetest iscomplete.Iftheleftsideairshutoffgatedoesnotclose,checktheswitchandthewiringfor theleftsideairshutoff.

Note:Testingisonlycompletewhentheenginesuccessfullypassesstep1throughstep4.

5.Operatetheenginenormally.Ensurethattheairshutoffgatescontinuetobelatched.

EnginesThatAreEquippedwithADEMIIIEngineControl Modules

Note:Donotstarttheengine.Ensurethattheenginecontrolisinthe"OFF"position.

1.EnsurethatbothairshutoffgatesarelatchedintheOPENposition.Ensurethatbothairshutoff switchesareconnected.TurnthepowerfortheenginecontrolpaneltotheONposition.Theair shutoffgatesshouldremainintheOPENpositions.Iftheairshutoffgatesdonotremaininthe OPENpositions,checkthewiringfortheairshutoffs.Whenstep1hasbeensuccessfully completed,proceedtostep2.

2.WhilethepowerfortheenginecontrolpanelisintheONposition,activatethe "EMERGENCYSTOP"switch.Bothairshutoffgatesshouldclose.Iftheairshutoffgatesdo notclose,checkthewiringfortheairshutoffsandthewiringforthesolenoids.Bothairshutoff gatesmustclosebeforeproceedingtostep3.

3.TurnthepowerfortheenginecontrolpaneltotheOFFposition.Resetthe"EMERGENCY STOP"switchtotheRUNposition.ResettherightsideairshutofftotheOPENposition.Turn

thepowerfortheenginecontrolpaneltotheONposition.Select"Run/Start"ontheengine controlpanel.Theengineshouldfailtostart.Iftheenginedoesnotstart,proceedto4.Ifthe enginestarts,turnofftheengine.Checktherightsideairshutoff.Checkthewiringfortheright sideairshutoff.Retesttheairshutoff.Whentheprocedurein3isfollowedandtheenginefails tostart,proceedto4.

4.Resetthe"EMERGENCYSTOP"switchtotheRUNposition.Setthepowerfortheengine controlpaneltotheONposition.Activatethe"EMERGENCYSTOP"switch.Bothairshutoff gatesshouldclose.SetpowerfortheenginecontrolpaneltotheOFFposition.Resetthe "EMERGENCYSTOP"switchtotheRUNposition.ResettheleftsideairshutofftotheOPEN position.TurnthepowerfortheenginecontrolpaneltotheONposition.Select"START/RUN" ontheenginecontrolpanel.Theengineshouldfailtostart.Iftheenginedoesnotstart, proceedto5.Iftheenginestarts,turnofftheengine.Checktheleftsideairshutoff.Checkthe wiringfortheleftsideairshutoff.Retesttheleftsideairshutoff.Whentheprocedureinstep4 isfollowedandtheenginefailstostart,proceedto5.

5.TurnthepowerfortheenginecontrolpaneltotheONposition.Resetbothairshutoffs.Start theengine.Disconnectonlytherightsideairshutoff.Bothairshutoffgatesshouldclose.The engineshouldshutdown.Iftheenginedoesnotshutdown,usethe"EMERGENCYSTOP" switchtostoptheengine.Checkthewiringforbothairshutoffs.Usetheaboveprocedurein ordertoretesttherightsideairshutoff.Whentheprocedureinstep5isfollowedandresultsof thetestaresuccessful,reconnecttherightsideairshutoff.Resetbothairshutoffs.

6.TurnthepowerfortheenginecontrolpaneltotheONposition.Resetbothairshutoffs.Start theengine.Disconnectonlytheleftsideairshutoff.Bothairshutoffgatesshouldclose.The engineshouldshutdown.Iftheenginedoesnotshutdown,usethe"EMERGENCYSTOP" switchtostoptheengine.Checkthewiringforbothairshutoffs.Usetheaboveprocedurein ordertoretesttheleftsideairshutoff.Whentheprocedurein6isfollowedandtheresultsof thetestaresuccessful,reconnecttherightsideairshutoff.Resetbothairshutoffs.

7.Testingiscompleteonlywhentheenginesuccessfullypassessteps1through6.

SatJun2910:26:10UTC+05302024

Product:MARINEENGINE

Model:3512BMARINEENGINE7HM

Configuration:3512BMarineEngine7HM00001-UP

OperationandMaintenanceManual

3500Band3500MarinePropulsionEngineswithEUIOption

MediaNumber-SEBU6917-08PublicationDate-01/07/2013DateUpdated-15/07/2013 i02567801

AirShutoffDamper-Remove/Check

SMCS-1078-011;1078-535

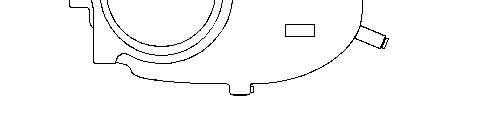

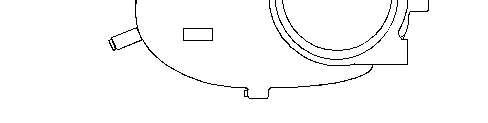

Illustration1g01286554

Typicalairshutoff(backview)

(1)Airshutoffgate

(2)Damperassembly

Thevibrationdamperontheairshutoffminimizesthevibrationoftheairshutoffgatewhenthe engineisoperatingandtheairshutoffgateisinthelatchedposition.Thecomponentsofthedamper assemblymustberemovedinordertoensurecorrectperformanceofthedamper.

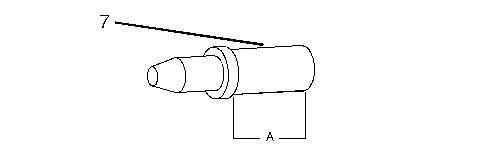

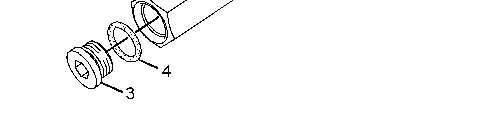

Illustration2g01286567

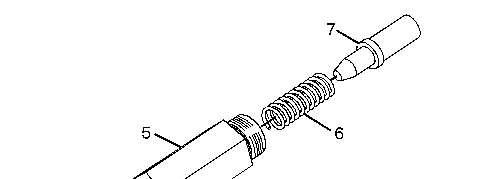

Damperassembly (3)Plug (4)Sealring (5)Housing (6)Spring (7)Plunger

1.Thebodyofthedampershouldnotbeloosenedorremovedfromtheairshutoffwhenthe plungerisremoved.Inordertoremovetheplungerwithoutlooseningorremovingthedamper, unscrewtheplugwiththefollowingtools:a6.35mm(0.25inch)Allenwrenchandanopen endwrench.

2.Checkthesealringfordamageorwear.Ifnecessary,replacethesealring.

3.Inspecttheinternalpartsofthevibrationdamperforwearordamage.Cleanthecomponents with138-8440componentcleaner.

Illustration3g01286606

Damperplunger

4.Removetheplungerfromthespring.Visuallyinspecttheexposedendoftheplungerfordirt, fouling,damage,andwear.Ifdistance"A"islessthan18.3mm(0.72inch)orifavisual inspectionrevealsdirt,fouling,damage,orwearontheactiveendoftheplunger,replacethe plunger.Insertthetaperedendofaclean,undamagedplungerintothespring.Installtheopen endofthespringintotheplug.Apply9S-3263threadlockorapply9S-4030threadlockonto thethreadsoftheplug.Screwtheassemblyintothedamperbody.Thethreadlockshouldcure foraminimumof1hourbeforetheairshutoffisused.

SatJun2910:26:56UTC+05302024

Product:MARINEENGINE

Model:3512BMARINEENGINE7HM

Configuration:3512BMarineEngine7HM00001-UP

OperationandMaintenanceManual

3500Band3500MarinePropulsionEngineswithEUIOption

MediaNumber-SEBU6917-08PublicationDate-01/07/2013DateUpdated-15/07/2013 i06049302

AirStartingMotorLubricatorBowl-Clean

SMCS-1451-070

Iftheengineisequippedwithanairstartingmotor,usethefollowingprocedure:

Personalinjurycanresultfromremovinghosesorfittingsinapressure system.

Failuretorelievepressurecancausepersonalinjury.

Donotdisconnectorremovehosesorfittingsuntilallpressureinthe systemhasbeenrelieved.

1.EnsurethattheairsupplytothelubricatorisOFF.

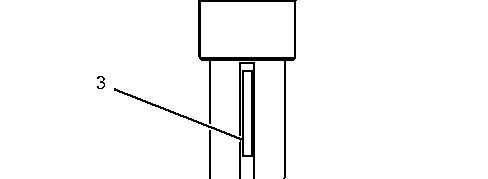

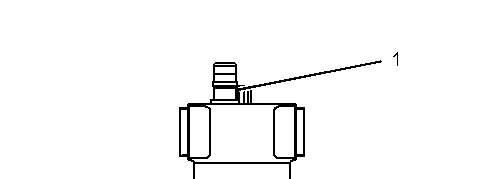

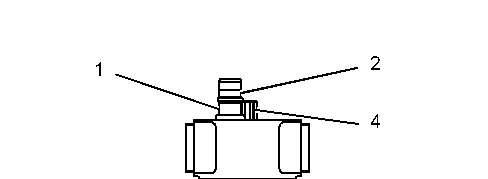

Illustration1g03789898

(1)Fillerplug (2)Bowl

(3)Drainvalve

2.Slowlyloosenfillerplug(1)inordertoreleasethepressurefromthelubricator.

NOTICE

Caremustbetakentoensurethatfluidsarecontainedduring performanceofinspection,maintenance,testing,adjusting,andrepair oftheproduct.Bepreparedtocollectthefluidwithsuitablecontainers beforeopeninganycompartmentordisassemblinganycomponent containingfluids.

RefertoSpecialPublication,NENG2500,"DealerServiceTool Catalog"fortoolsandsuppliessuitabletocollectandcontainfluidson Catproducts.

https://127.0.0.1/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/sisweb/6/29/2024 ...

Disposeofallfluidsaccordingtolocalregulationsandmandates.

3.Placeasuitablecontainerunderbowl(2)andopendrainvalve(3)inordertodraintheoilfrom thebowl.

4.Removebowl(2).Cleanthebowlwithwarmwater.

5.Drythebowl.Inspectthebowlforcracks.Ifthebowliscracked,replacethedamagedbowl withanewbowl.Inspectthegasket.Ifthegasketisdamaged,replacethegasket.

6.Installthebowl.

7.Makesurethatdrainvalve(3)isclosed.

8.Forinstructionsonfillingthelubricator,seethisOperationandMaintenanceManual,"Air StartingMotorLubricatorOilLevel-Check"topic.

SatJun2910:27:12UTC+05302024

Product:MARINEENGINE

Model:3512BMARINEENGINE7HM

Configuration:3512BMarineEngine7HM00001-UP

OperationandMaintenanceManual

3500Band3500MarinePropulsionEngineswithEUIOption MediaNumber-SEBU6917-08PublicationDate-01/07/2013DateUpdated-15/07/2013

AirStartingMotorLubricatorOilLevel-Check

SMCS-1451-535

NOTICE

Neverallowthelubricatorbowltobecomeempty.Theairstarting motorwillbedamagedbyalackoflubrication.Ensurethatsufficient oilisinthelubricatorbowl.

i06049122

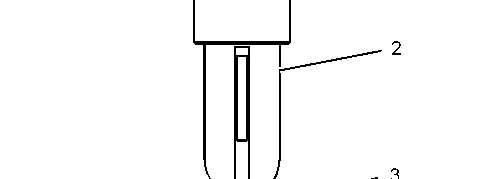

Illustration1g03789862

1.Observetheoillevelinsightgauge(3).Iftheoillevelislessthan1/2,addoiltothelubricator bowl.

Personalinjurycanresultfromremovinghosesorfittingsinapressure system.

Failuretorelievepressurecancausepersonalinjury.

Donotdisconnectorremovehosesorfittingsuntilallpressureinthe systemhasbeenrelieved.

2.EnsurethattheairsupplytothelubricatorisOFF.Slowlyloosenfillerplug(4)inorderto releasepressurefromthelubricatorbowl.

3.Removefillerplug(4).Pouroilintothelubricatorbowl.UsenondetergentSAE10Woilfor temperaturesthataregreaterthan0°C(32°F).Useairtooloilfortemperaturesthatarebelow 0°C(32°F).

4.Installfillerplug(4).

AdjusttheLubricator

Note:Adjustthelubricatorwithaconstantrateofairflow.Aftertheadjustment,thelubricatorwill releaseoilinproportiontovariationsoftheairflow.

1.EnsurethatthefuelsupplytotheengineisOFF.

NOTICE

Donotcranktheenginecontinuouslyformorethan30seconds.Allow thestartingmotortocoolfortwominutesbeforecrankingtheengine again.

2.Operatetheairstartingmotor.Observethedropsofoilthatarereleasedindome(1).

Note:Somelubricatorshaveanadjustmentscrewratherthanaknob.

3.Ifnecessary,adjustthelubricatorinordertoreleasefromonetothreedropsofoilpersecond. Toincreasetherate,turnknob(2)counterclockwise.Todecreasetherate,turntheknob clockwise.

SatJun2910:27:25UTC+05302024

Product:MARINEENGINE

Model:3512BMARINEENGINE7HM

Configuration:3512BMarineEngine7HM00001-UP

OperationandMaintenanceManual

3500Band3500MarinePropulsionEngineswithEUIOption

MediaNumber-SEBU6917-08PublicationDate-01/07/2013DateUpdated-15/07/2013 i04534752

AirTankMoistureandSediment-Drain

SMCS-1466-543-M&S

Moistureandsedimentintheairstartingsystemcancausethefollowingconditions:

•Freezing

•Corrosionofinternalparts

•Malfunctionoftheairstartingsystem

Whenopeningthedrainvalve,wearprotectivegloves,aprotectiveface shield,protectiveclothing,andprotectiveshoes.Pressurizedaircould causedebristobeblownandresultinpersonalinjury.

NOTICE

RefertoSpecialPublication,NENG2500,"CatDealerServiceTool Catalog"orrefertoSpecialPublication,PECJ0003,"CatShop

SuppliesandToolsCatalog"fortoolsandsuppliessuitabletocollect andcontainfluidsonCatproducts.

Disposeofallfluidsaccordingtolocalregulationsandmandates.

1.Openthedrainvalvethatisonthebottomoftheairtank.Allowthemoistureandsedimentto drain.

2.Closethedrainvalve.

SatJun2910:27:38UTC+05302024

Product:MARINEENGINE

Model:3512BMARINEENGINE7HM

Configuration:3512BMarineEngine7HM00001-UP

OperationandMaintenanceManual

3500Band3500MarinePropulsionEngineswithEUIOption

MediaNumber-SEBU6917-08PublicationDate-01/07/2013DateUpdated-15/07/2013

Alternator-Inspect

SMCS-1405-040

Inspectthealternatorforthefollowingconditions:

•Properconnections

•Cleanportsforcoolingairflow

•Properchargingofthebattery

i04342909

Observetheammeterduringengineoperationinordertoensureproperbatteryperformanceand/or properperformanceoftheelectricalsystem.

Makerepairs,ifnecessary.SeetheServiceManualforserviceprocedures.ConsultyourCatdealer forassistance.

SatJun2910:27:51UTC+05302024

Product:MARINEENGINE

Model:3512BMARINEENGINE7HM

Configuration:3512BMarineEngine7HM00001-UP

OperationandMaintenanceManual

3500Band3500MarinePropulsionEngineswithEUIOption MediaNumber-SEBU6917-08PublicationDate-01/07/2013DateUpdated-15/07/2013 i01041029

Batteries-Replace

SMCS-1401-510

Batteriesgiveoffcombustiblegaseswhichcanexplode.Asparkcan causethecombustiblegasestoignite.Thiscanresultinseverepersonal injuryordeath.

Ensureproperventilationforbatteriesthatareinanenclosure.Follow theproperproceduresinordertohelppreventelectricalarcsand/or sparksnearbatteries.Donotsmokewhenbatteriesareserviced.

1.TurnthekeystartswitchtotheOFFposition.Removethekeyandallelectricalloads.

2.TurnOFFthebatterycharger.Disconnectthecharger.

3.TheNEGATIVE"-"cableconnectstheNEGATIVE"-"batteryterminaltothegroundplane. DisconnectthecablefromtheNEGATIVE"-"batteryterminal.

4.ThePOSITIVE"+"cableconnectsthePOSITIVE"+"batteryterminaltothestartingmotor. DisconnectthecablefromthePOSITIVE"+"batteryterminal.

Note:Alwaysrecycleabattery.Neverdiscardabattery.Returnusedbatteriestoanappropriate recyclingfacility.

5.Removetheusedbattery.

6.Installthenewbattery.
