CAT + Caterpillar 349E L Excavator Service Repair Manual by Heavy Equipment Manual

Note: Use Bookmarks panel to navigate









Product: EXCAVATOR

Model: 349E L EXCAVATOR MPZ

Configuration: 349E L Excavators MPZ00001-UP (MACHINE) POWERED BY C13 Engine

Disassembly and Assembly C13

Engines for Caterpillar Built Machines

i03543781

Accessory Drive - Remove and Install - Bracket and Pulleys

SMCS - 1207-010

Removal Procedure

Start By:

A. Remove the alternator.

B. Remove the refrigerant compressor.

Illustration 1

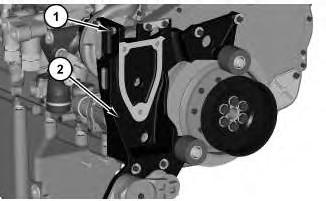

1. Remove bolts (1) and bracket (2) .

g01871955

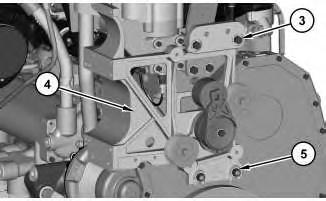

2. Remove bolts (3) and nuts (5). Remove support assembly (4) .

Installation Procedure

1. Install support assembly (4) and bracket (2) in reverse order of removal.

Product: EXCAVATOR

Model: 349E L EXCAVATOR MPZ

Configuration: 349E L Excavators MPZ00001-UP (MACHINE) POWERED BY C13 Engine

Disassembly and Assembly

C13

Engines for Caterpillar Built Machines

Media Number -KENR8150-05

Air Cleaner - Remove and Install

SMCS - 1051-010-HG

Removal Procedure

Illustration 1

Updated -22/01/2014

i03589042

g01916039

1. Remove cover (1), primary filter element (2), and secondary filter element (3) from air cleaner housing (4).

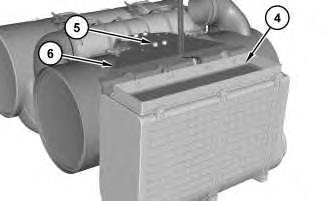

2. Attach a suitable lifting device to bracket (6) and air cleaner (4). The weight of bracket (6) and air cleaner (4) is approximately 43 kg (95 lb).

3. Remove bolts (5).

Illustration 3

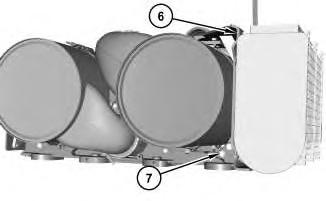

4. Remove bolts (7). Remove bracket (6).

g01916113

Illustration 4

g01916041

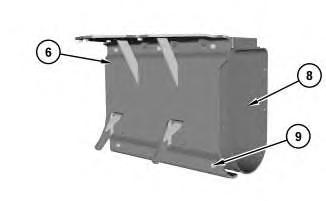

5. Remove bolts (9). Remove air filter housing (8) from bracket (6).

Illustration

g01916073

Installation Procedure

1. Install air filter housing (8) in reverse order of removal.

a. Tighten bolts (9) to a torque of 17 ± 2 N·m (150 ± 18 lb in).

Sat Jul 22 22:31:57 UTC+0530 2023

Product: EXCAVATOR

Model: 349E L EXCAVATOR MPZ

Configuration: 349E L Excavators MPZ00001-UP (MACHINE) POWERED BY C13 Engine

Disassembly and Assembly C13

Engines for Caterpillar Built Machines Media

-KENR8150-05

-01/01/2014

i03571267

Air Control Valve - Remove and Install - ARD Combustion, Clean Emissions Module

SMCS - 108A-010

Removal Procedure

Illustration 1

g02323318

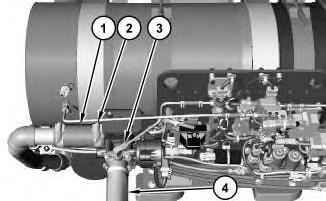

1. Loosen clamp assemblies (2) and disconnect hose assembly (1).

2. Disconnect tube assembly (3) and disconnect hose assembly (4).

Illustration 2

3. Disconnect harness assembly (7).

g02323360

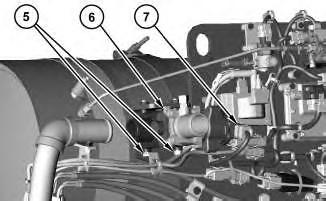

4. Remove bolts (5) and remove air control valve (6).

Illustration 3

Typical Example

g02323873

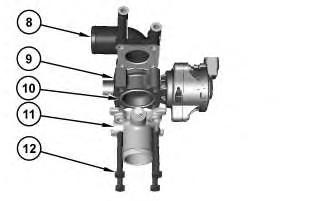

5. Remove bolts (12). Separate housings (11) and (8) from the air control valve actuator (9). Remove both seals (10) from the housings.

Installation Procedure

1. Install the air control valve in the reverse order.

Product: EXCAVATOR

Model: 349E L EXCAVATOR MPZ

Configuration: 349E L Excavators MPZ00001-UP (MACHINE) POWERED BY C13 Engine

Disassembly and Assembly

C13

Engines for Caterpillar Built Machines

Media Number -KENR8150-05

-01/01/2014

i04140431

Air Control

Valve

- Remove and Install - Control Module, Clean Emissions Module

SMCS - 108A-010

Removal Procedure

Illustration 1

View of the Clean Emissions Module

g02338496

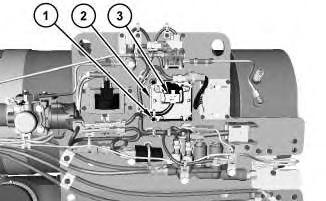

1. Disconnect harness assembly (3). Remove bolts (1) and remove control module (2).

Installation Procedure

1. Install control module (2) in the reverse order.

Product: EXCAVATOR

Model: 349E L EXCAVATOR MPZ

Configuration: 349E L Excavators MPZ00001-UP (MACHINE) POWERED BY C13 Engine

Disassembly and Assembly

C13

Engines for Caterpillar Built Machines

Alternator - Remove and Install

SMCS - 1405-010

Removal Procedure

Personal injury can result from failure to disconnect the battery.

First, disconnect the negative battery cable. Then, disconnect the positive battery cable.

A positive power lead can cause sparks if the battery is not disconnected. Sparks can possibly result in battery explosion or fire.

1. Disconnect the battery cables.

2. Remove the belt. Refer to Operation and Maintenance Manual, "BeltInspect/Adjust/Replace".

i03543101

Illustration 1

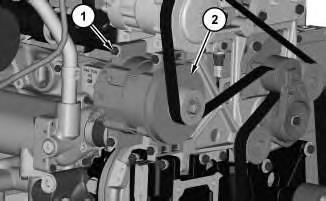

3. Remove bolts (1) and alternator (2).

Installation Procedure

g01871219

1. Install alternator (2) in reverse order of removal.

Illustration 2

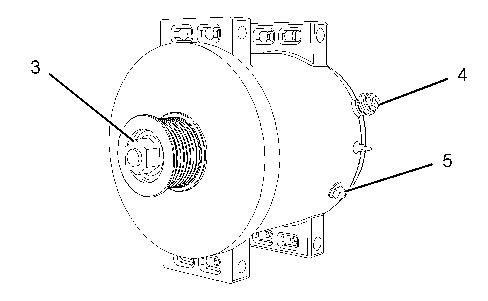

a. Tighten nut (3) to a torque of 127 ± 10 N·m (94 ± 8 lb ft).

b. Tighten nut (4) to a torque of 18 ± 2 N·m (161 ± 21 lb in).

g01872415

Product: EXCAVATOR

Model: 349E L EXCAVATOR MPZ

Configuration: 349E L Excavators MPZ00001-UP (MACHINE) POWERED BY C13 Engine

Disassembly and Assembly

C13

Engines for Caterpillar Built Machines

Atmospheric Pressure Sensor - Remove and Install

SMCS - 1923-010

Removal Procedure

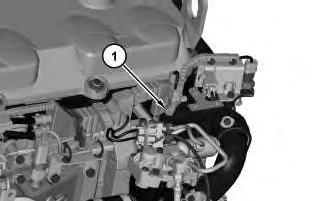

Illustration 1

i04823628

g01880618

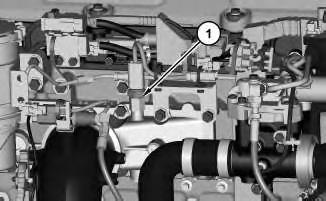

1. Disconnect harness assembly and remove atmospheric pressure sensor (1) .

Installation Procedure

1. Install atmospheric pressure sensor (1) in reverse order of removal.

Note: Do not pre-tighten the sensor using the plastic portion of the sensor. Pre-tighten the sensor using the metal hex portion of the sensor. Damage can occur to the sensor if pre-tightened using the plastic portion of the sensor.

a. Tighten atmospheric pressure sensor (1) to a torque of 10 ± 2 N·m (89 ± 18 lb in).

Rights Reserved.

Product: EXCAVATOR

Model: 349E L EXCAVATOR MPZ

Configuration: 349E L Excavators MPZ00001-UP (MACHINE) POWERED BY C13 Engine

Disassembly and Assembly

C13

Engines for Caterpillar Built Machines

Bearing Clearance - Check

SMCS - 1203-535; 1219-535

Measurement Procedure

Table 1

Required Tools

198-9142

198-9145

Plastic Gauge (Green)

0.025 to 0.076 mm (0.001 to 0.003 inch)

Plastic Gauge (Red) 0.051 to 0.152 mm (0.002 to 0.006 inch)

Plastic Gauge (Blue) 0.102 to 0.229 mm (0.004 to 0.009 inch)

Plastic Gauge (Yellow)

0.230 to 0.510 mm (0.009 to 0.020 inch)

Note: Plastic gauge may not be necessary when the engine is in the chassis.

Note: Caterpillar does not recommend the checking of the actual bearing clearances particularly on small engines. This is because of the possibility of obtaining inaccurate results and the possibility of damaging the bearing or the journal surfaces. Each Caterpillar engine bearing is quality checked for specific wall thickness.

Note: The measurements should be within specifications and the correct bearings should be used. If the crankshaft journals and the bores for the block and the rods were measured during

i03555148

disassembly, no further checks are necessary. However, if the technician still wants to measure the bearing clearances, Tooling (A) is an acceptable method. Tooling (A) is less accurate on journals with small diameters if clearances are less than 0.10 mm (0.004 inch).

NOTICE

Lead wire, shim stock or a dial bore gauge can damage the bearing surfaces.

The technician must be very careful to use Tooling (A) correctly. The following points must be remembered:

• Ensure that the backs of the bearings and the bores are clean and dry.

• Ensure that the bearing locking tabs are properly seated in the tab grooves.

• The crankshaft must be free of oil at the contact points of Tooling (A).

1. Put a piece of Tooling (A) on the crown of the bearing that is in the cap.

Note: Do not allow Tooling (A) to extend over the edge of the bearing.

2. Use the correct torque-turn specifications in order to install the bearing cap. Do not use an impact wrench. Be careful not to dislodge the bearing when the cap is installed.

Note: Do not turn the crankshaft when Tooling (A) is installed.

3. Carefully remove the cap, but do not remove Tooling (A). Measure the width of Tooling (A) while Tooling (A) is in the bearing cap or on the crankshaft journal. Refer to Illustration 1.

Illustration 1 g01152855

Typical Example

4. Remove all of Tooling (A) before you install the bearing cap.

Note: When Tooling (A) is used, the readings can sometimes be unclear. For example, all parts of Tooling (A) are not the same width. Measure the major width in order to ensure that the parts are within the specification range. Refer to Specifications Manual, "Connecting Rod Bearing Journal" and Specifications Manual, "Main Bearing Journal" for the correct clearances. Copyright 1993 - 2023 Caterpillar Inc. All Rights Reserved.

Product: EXCAVATOR

Model: 349E L EXCAVATOR MPZ

Configuration: 349E L Excavators MPZ00001-UP (MACHINE) POWERED BY C13 Engine

Disassembly and Assembly

C13

Engines for Caterpillar Built Machines

Belt Tensioner - Remove and Install

SMCS - 1358-010

Removal Procedure

1. Remove the belt. Refer to Operation and Maintenance Manual, "BeltInspect/Adjust/Replace".

Illustration 1 g01872001

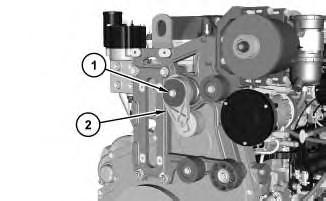

2. Remove bolt (1) and belt tensioner (2) .

Installation Procedure

1. Install belt tensioner (2) in reverse order of removal.

i03543922

Product: EXCAVATOR

Model: 349E L EXCAVATOR MPZ

Configuration: 349E L Excavators MPZ00001-UP (MACHINE) POWERED BY C13 Engine

Disassembly and Assembly

C13

Engines for Caterpillar Built Machines

Media Number -KENR8150-05

Boost Pressure Sensor - Remove and Install

SMCS - 1917-010

Removal Procedure

Illustration 1

g01880574

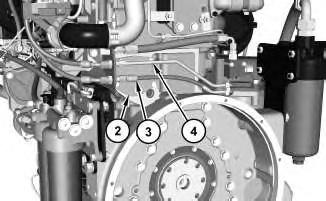

1. Disconnect harness assembly (1) and remove boost pressure sensor (2).

Installation Procedure

1. Install boost pressure sensor (2) in reverse order of removal.

a. Tighten boost pressure sensor (2) to a torque of 10 ± 2 N·m (89 ± 18 lb in).

i03555524

Sat Jul 22 23:20:31 UTC+0530 2023

Product: EXCAVATOR

Model: 349E L EXCAVATOR MPZ

Configuration: 349E L Excavators MPZ00001-UP (MACHINE) POWERED BY C13 Engine

Disassembly and Assembly

C13

Engines for Caterpillar Built Machines

Media Number -KENR8150-05

i03551630

Camshaft - Install

SMCS - 1210-012

Installation Procedure

Table 1 Required Tools

Illustration 1 g01292428

1. Install Tooling (B).

Note: Ensure that camshaft (6) and Tooling (B) are clean. Apply clean engine oil to the lobes and journals of camshaft (6) and Tooling (B).

Note: During installation of camshaft (6), rotate the camshaft in both directions in order to prevent binding in the camshaft bearing bores.

2. Carefully install camshaft (6) in the engine.

NOTICE

When installing the camshaft, make sure the number one cylinder is at top center of the compression stroke with the timing bolt installed in the flywheel. The camshaft timing is very important. The timing mark on the camshaft drive gear must line up with the timing mark on the idler gear. Refer to the Specifications Manual for more information.

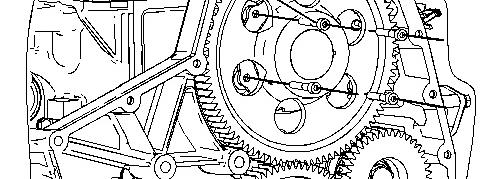

Illustration 2 g01292427

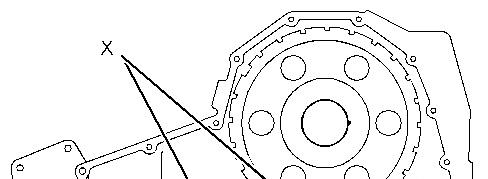

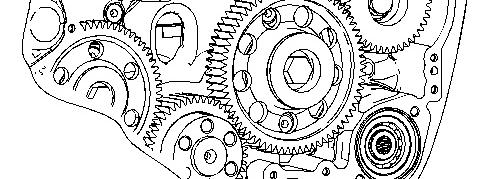

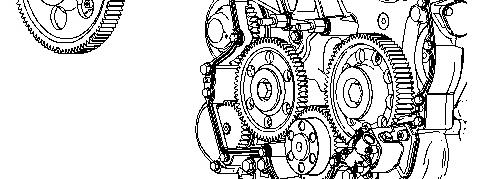

3. Ensure that the timing Marks (X) on the idler gear aligned with the timing marks on the crankshaft gear and the camshaft drive gear.

4. Remove Tooling (A) and Tooling (B).

3 g01878141

5. Install cover (2). Install hose assembly (3) and tube assembly (4).

Illustration

Illustration 4

6. Install bolts (1).

End By:

a. Install the camshaft position sensor.

b. Install the front cover.

c. Install the rocker arm and shaft.

Network For SIS Licensees. Sat Jul 22 22:59:42 UTC+0530 2023

Product: EXCAVATOR

Model: 349E L EXCAVATOR MPZ

Configuration: 349E L Excavators MPZ00001-UP (MACHINE) POWERED BY C13 Engine

Disassembly and Assembly

C13

Engines for Caterpillar Built Machines

i03551160

Camshaft - Remove

SMCS - 1210-011

Removal Procedure

Table 1

Required Tools

Start By:

a. Remove the rocker arms and shafts.

b. Remove the front cover.

c. Remove the camshaft position sensor.

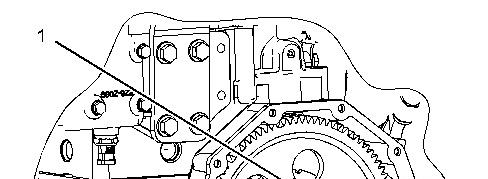

1. Turn the crankshaft to top center compression stroke for the No. 1 piston. Install the timing bolt in the flywheel.

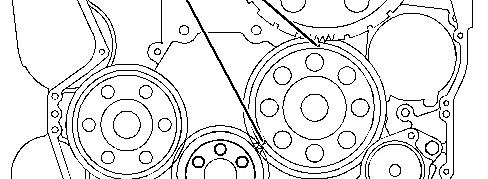

2. Ensure that the timing marks on the following gears are aligned: the camshaft drive gear, the idler gear and the crankshaft gear.
