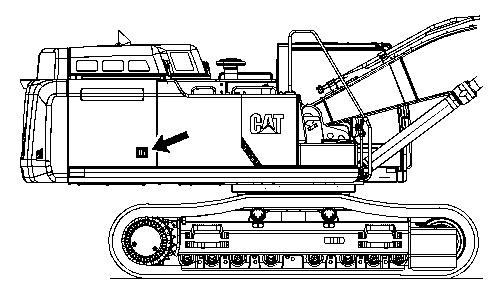

Product Identification Number
Product: EXCAVATOR
Model: 349E L EXCAVATOR TFG
Configuration: 349E L Excavators TFG00001-UP (MACHINE) POWERED BY C13 Engine
Operation and Maintenance Manual
349E Excavator
Media Number -SEBU8560-14
Access Door and Cover Locations

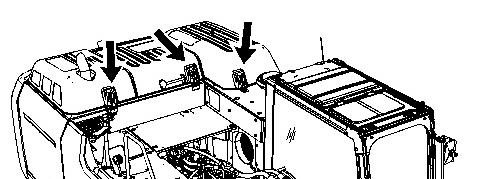

Engine Hood
Operation of the Push Button Release for the Engine Hood
When closing the engine hood, only operate the push-button release by hand.
Failure to remove hands from the push-button release before closing the engine hood could result in personal injury.
Be sure to remove hands from the push-button release before completely closing the engine hood.
Do not add pressure to the engine hood when open.
When closing the engine hood, Do Not operate the push-button release by foot.
Operation of the push-button release by foot could result in damage to the gas spring of the closing mechanism and/or personal injury.
Only operate the push-button release for closing the engine hood by hand.

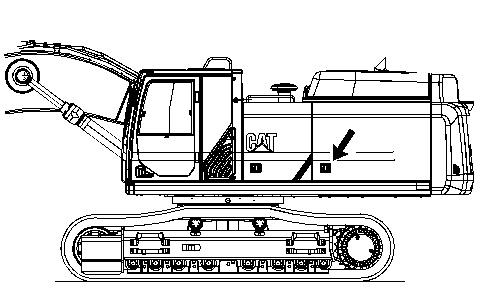

Left Rear Access Door

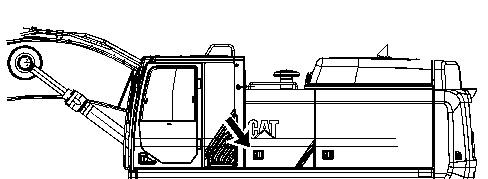

Left Front Access Door
Right Access Door
