Product: EXCAVATOR
Model: 345C MH EXCAVATOR M2R
Configuration: 345C Fixed Cab Riser Material Handler M2R00001-UP (MACHINE) POWERED BY C13 Engine
Disassembly and Assembly
345C Material Handler Machine Systems
Media Number -RENR8610-00
Publication Date -01/03/2006 Date Updated -22/03/2006

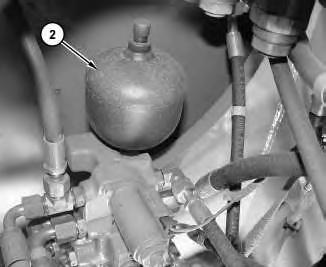

Accumulator (Hydraulic Pilot) - Remove and Install
SMCS - 5077-011-PS; 5077-012-PS
Removal Procedure
Table 1 RequiredTools
A FT-2674 Vacuum Cap 1
Start By:
i02424486
A. Release the hydraulic system pressure. Refer to Disassembly and Assembly, "Hydraulic System Pressure - Release".
Note: Put identification marks on all hoses, on all hose assemblies, on all wires, and on all tube assemblies for installation purposes. Plug all hose assembliesand all tube assemblies. This helps to prevent fluid loss, and this helpsto keep contaminantsfrom entering the system.
NOTICE
Care must be taken to ensure that fluids are containedduring performance of inspection, maintenance, testing, adjusting and repair of the product. Be preparedto collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids.
Refer to Special Publication, NENG2500, "Caterpillar Dealer Service Tool Catalog" for toolsand supplies suitable to collect and contain fluids on Caterpillar products.
Dispose of all fluids according to local regulations and mandates.
NOTICE
Keep all parts clean from contaminants.
Contaminationof the hydraulic system with foreign material will reduce the service life of the hydraulic system components.
To prevent contaminants from entering the hydraulic system, always plug or cap the lines, fittings, or hoses as they are disconnected. Cover any disassembled componentsand clean them properly before assembly.
Clean the hydraulic system properly after any major component exchange or especially after a component failure, to remove any contamination.
Illustration 1 g01196137
1. Install Tooling (A) onto the hydraulic tank. Attach an air supply hose onto Tooling (A). Apply 276 to 414 kPa (40 to 60 psi) of air. This procedure will pull vacuum on the hydraulic system.
2

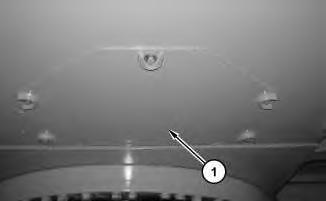

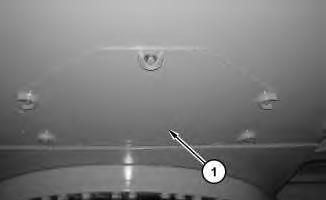

Remove guard (1) .
3
.

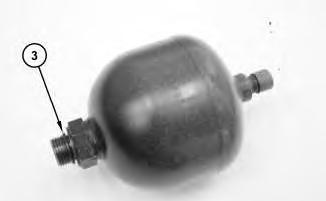

Illustration 4 g01211488
4. Remove O-ring seal (3) .
Installation Procedure
Table 2 RequiredTools
Tool Part Number Part Description Qty A FT-2674 Vacuum Cap 1

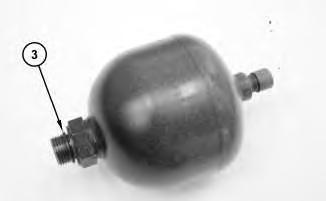

Illustration 5 g01211488
1. Install O-ring seal (3) .
8
4. Remove Tooling (A) from the hydraulic tank.
Copyright 1993 - 2021 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Sat May 1 10:19:31 UTC+0530 2021
Product: EXCAVATOR
Model: 345C MH EXCAVATOR M2R
Configuration: 345C Fixed Cab Riser Material Handler M2R00001-UP (MACHINE) POWERED BY C13 Engine
Disassembly and Assembly
345C Material Handler Machine Systems
Media Number -RENR8610-00
Actuator Motor (Air Distributor) - Remove and Install
SMCS - 7304-010-MQ; 7309-010-MQ; 7320-010-MQ
Removal Procedure
Start By:
-22/03/2006
i02872413
a. Remove the storage box and covers. Refer to Disassembly and Assembly, "Storage Box and Covers(Cab) - Remove and Install".
Note: Cleanliness is an important factor. Before the disassembly procedure, the exterior of the component should be thoroughly cleaned. This will help to prevent dirt from entering the internal mechanism.
Illustration 1

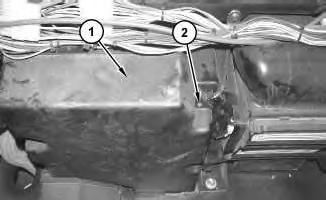

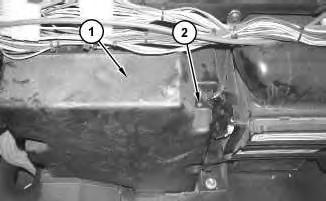

1. Remove screws (2) and cover (1).
g01207911
2

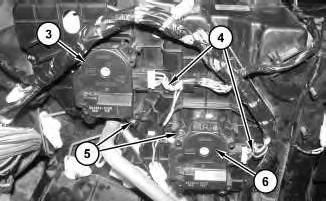

2. Disconnect harnessassemblies(4).
3. Remove screws (5) and actuator motor (3).
4. Remove screws (5) and actuator motor (6).
Illustration 3

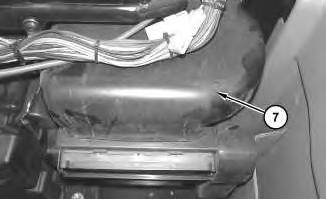

5. Remove cover (7).
Illustration 4 g01207927

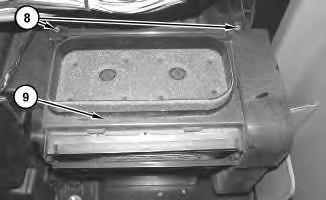

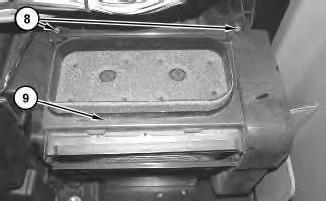

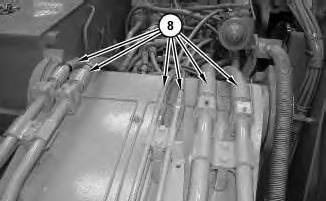

6. Remove screws (8). Repeat for the bottom.
7. Position filter cover assembly (9) forward.
5

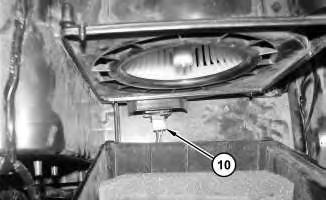

8. Disconnect harnessassembly (10).
Illustration 6

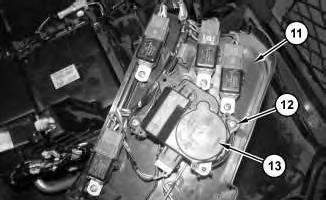

9. Reposition filter cover assembly (11) on the side, as shown.

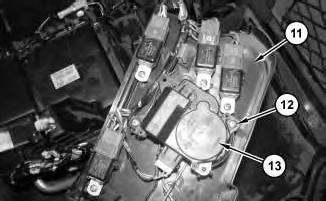

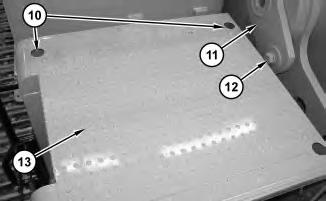

10. Remove screws (12) and actuator motor (13).
Installation Procedure
7
1. Position filter cover assembly (11) onto the side. Position actuator motor (13) and install screws (12).
8
2. Connect harness assembly (10).
9
3. Slide filter cover assembly (9) into position and install screws(8). Repeat for the bottom.
10
Install cover (7).
Illustration 11
5. Position actuator motor (3) and install screws(5).
6. Position actuator motor (6) and install screws(5).
7. Connect harness assemblies(4).
8. Position cover (1) and install screws (2).
End By:
a. Install the storage box and covers. Refer to Disassembly and Assembly, "Storage Box and Covers(Cab) - Remove and Install".
Copyright 1993 - 2021 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Sat May 1 10:16:45 UTC+0530 2021
Product: EXCAVATOR
Model: 345C MH EXCAVATOR M2R
Configuration: 345C Fixed Cab Riser Material Handler M2R00001-UP (MACHINE) POWERED BY C13 Engine
Disassembly and Assembly 345C Material Handler Machine Systems Media Number -RENR8610-00
i02553425
Blower Motor (Air Conditioner, Heater) - Remove and Install
SMCS - 7304-010-BW; 7309-010-BW; 7320-010-BW
Removal Procedure
Start By:
a. Remove the storage box and covers. Refer to Disassembly and Assembly, "Storage box and covers - Remove".

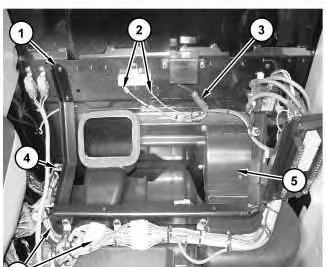

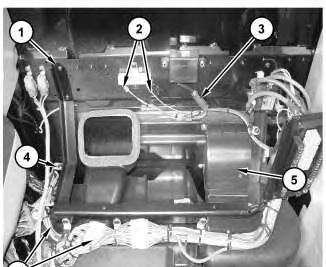

1. Disconnect harnessassemblies(2) and (3). Disconnect harness assembly (6) from clips(4). Remove bolts (1) and position support assembly (5) and harness assembly (6) to the side.
Illustration 2

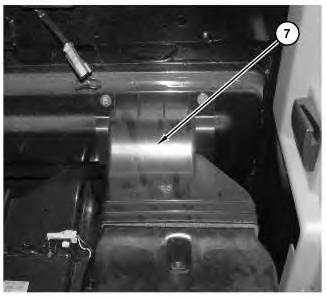

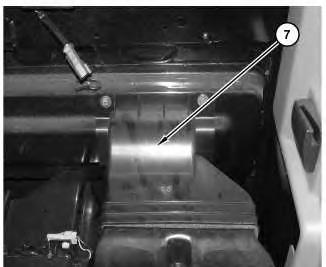

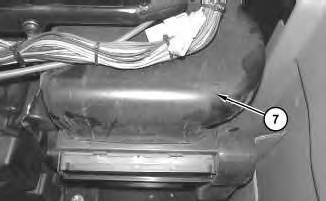

2. Remove cover (7).
Illustration 3

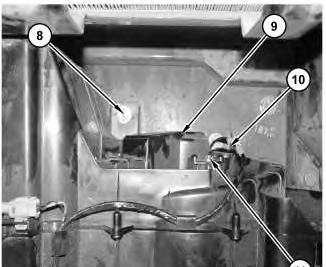

3. Loosen bolts (8). Disconnect harness assembly (10). Remove bolts (11) and blower motor (9).
Installation Procedure
4
1. Install blower motor (9). Install bolts (11). Connect harness assembly (10). Tighten bolts (8).
5
2. Install cover (7).
3. Position support assembly (5) and harness assembly (6). Install bolts (1). Connect harness assembly (6) onto clips (4). Connect harness assembly (3) and (2).
End By:
a. Install the storage box and covers. Refer to Disassembly and Assembly, "Storage box and covers - Install". Copyright 1993 - 2021 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Sat May 1 10:20:36 UTC+0530 2021
Product: EXCAVATOR
Model: 345C MH EXCAVATOR M2R
Configuration: 345C Fixed Cab Riser Material Handler M2R00001-UP (MACHINE) POWERED BY C13 Engine
Disassembly and Assembly 345C Material Handler Machine Systems
Boom - Install
SMCS - 6501-012
Installation Procedure
Table 1 Required Tools
Note: Cleanliness is an important factor. Before assembly, all partsshould be thoroughly cleaned in cleaning fluid. Allow the parts to air dry. Wiping clothsor ragsshould not be used to dry parts. Lint
may be deposited on the partswhich may cause later trouble. Inspect all parts. If any parts are worn or damaged, use new parts for replacement.
Illustration 1
g01258532

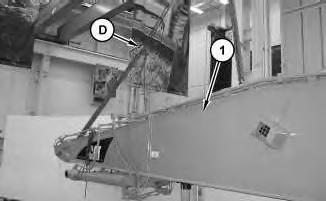

1. Use Tooling (D) and a suitable lifting device in order to position boom (1) on the machine. The weight of boom (1) isapproximately 5216 kg (11500 lb).
Illustration 2
3

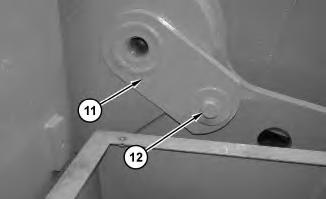

2. Use a suitable lifting device in order to position pin assembly (11) on the machine. The weight of pin assembly (11) isapproximately 122 kg (270 lb).
3. Align pin assembly (11) with the pin bore in the boom and install pin assembly (11) .
4. Install bolt (12) .
5. Install platform (11) and bolts(10) .
Illustration 4

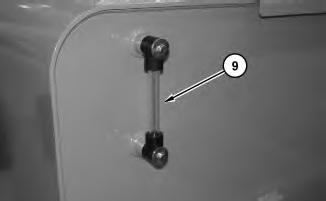

6. Install sight glass (9) .
5
6
Illustration 7 g01258523

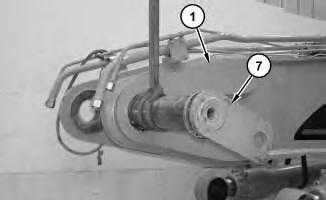

9. Use a suitable lifting device to remove pin assembly (7) from boom (1). The weight of pin assembly (7) is approximately 59 kg (130 lb).
Illustration 8
Illustration 9

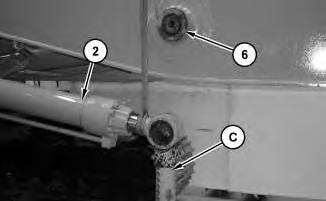

10. Use a suitable lifting device in order to raise boom cylinder (2) off Tooling (C) into position. The weight of boom cylinder (2) isapproximately 454 kg (1000 lb).

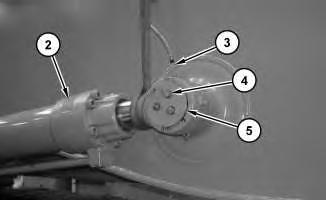

11. Use Tooling (B) in order to drive pin (6) through the rod eye of boom cylinder (2) .
12. Install plate (5) and bolts(4) .
13. Connect grease hose assembly (3) .
14. Repeat Steps 10 through 13 for the other boom cylinder.

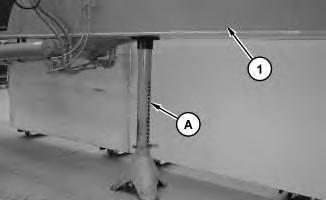

15. Raise boom (1) in order to remove Tooling (A) .
End By: Install the stick. Refer to Disassembly and Assembly, "Stick - Install".
