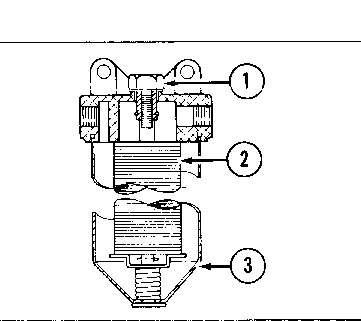

ChangingSecondaryFilter
Donotfillfuelfilterswithfuelbeforeinstallingthem. Contaminatedfuelwillcauseacceleratedweartofuelsystem parts.
Fuelleakedorspilledontohotsurfacesorelectrical componentscancauseafire.
Disconnectthebattery(turndisconnectswitchOFF)when changingfuelfilters.
NOTICE
Donotfillfuelfilterswithfuelbeforeinstallingthem. Contaminatedfuelwillcauseacceleratedweartofuelsystem parts.
Product:GENSETENGINE
Model:3406BGENSETENGINE2WB
Configuration:3406CGeneratorSet2WB11476-UP
OperationandMaintenanceManual
StartingtheEngine
StartingFromExternalElectricalSource
Alwayswearprotectiveglasseswhenworkingwithbatteries.
Donotallowthefreeendofboostercablestomakecontactwith eachotherortouchtheengine.Thiswillhelppreventsparks nearthebatteries.
Batteriesgiveoffflammablefumesthatcanexplode.
Donotsmokewhenobservingthebatteryelectrolytelevels.
Electrolyteisanacidandcancausepersonalinjuryifitcontacts skinoreyes.
NOTICE
BesurethemainpowerswitchisintheOFFpositionbefore attachingtheboostercablestotheenginebeingstarted.
Whenusingboostercables,besuretoconnectinparallel: POSITIVE(+)toPOSITIVE(+)andNEGATIVE(-)toNEGATIVE().
Useonlyequalvoltageforbooststarting.Theuseofawelder orhighervoltagewilldamagetheelectricalsystem.
MonApr1822:44:48UTC+05302022
Donotcranktheengineformorethan30seconds.Allow2 minutesforthestartertocoolbeforecrankingagain.
Ifoilpressuredoesnotrisewithin15secondsaftertheengine starts,stoptheengineandmakenecessarycorrections.
Donotstorereplacementcylindersinlivingareasorinthe operator'scompartment.
Donotsmokewhilechangingethercylinders.
Useetheronlyinwellventilatedareas.
NOTE:
Useitwithcaretoavoidfires.
Avoidbreathingofthevaporsorrepeatedcontactofetherwith skin.
Donotpunctureorburncylinders.
Discardcylindersinasafeplace.
Keepethercontainerawayfromheat,sparks,openflame,or opensunlight.Itmayexplode.
Donotstorereplacementcylindersattemperaturesabove49°C (120°F).
Donotusecylindersinenvironmentsabove93°C(200°F).
NOTICE
Donotuseexcessivestartingfluidduringstartingorafterthe engineisrunning.
Donotcranktheengineformorethan30seconds.Allow2 minutesforthestartermotortocoolbeforecrankingagain.
Ifoilpressuredoesnotrisewithin15secondsaftertheengine starts,stoptheengineandmakenecessarycorrections.
Product:GENSETENGINE
Model:3406BGENSETENGINE2WB
Configuration:3406CGeneratorSet2WB11476-UP
Stoppingtheengineimmediatelyafterithasbeenworking underload,canresultinoverheatingandacceleratedwearof theenginecomponents.Followthestoppingprocedure, outlinedbelow,toallowtheenginetocool.Excessive temperaturesintheturbochargercenterhousingwillcauseoil cokingproblems.
MonApr1822:45:42UTC+05302022

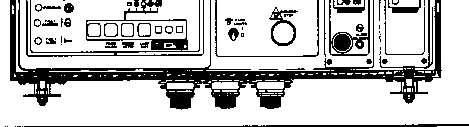

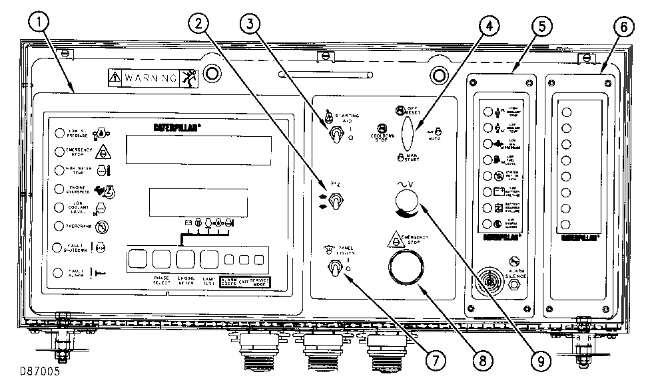

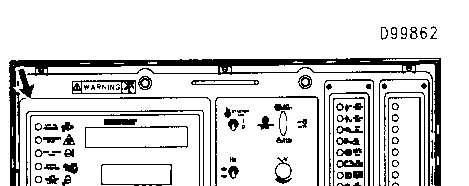

Generatorsetcontrol(GSC)(1)-
Speedpotentiometer(SP)orgovernorswitch(GS)(2)-optional-
Startingaidswitch(SAS)(3)-optional-
NOTICE
Cranktheenginebeforeactivating(keepSASinOFFposition) themeteredshotstartaidsystem.Damagetotheengineis possiblebyactivatingthesystemwhentheengineisnot turning.
Enginecontrolswitch(ECS)(4)-
Alarmmodule(ALM)(5)-optional-
Customalarmmodule(CAM)(6)-optional-
Panellightswitch(PLS)(7)-
Emergencystoppushbutton(ESPB)(8)-

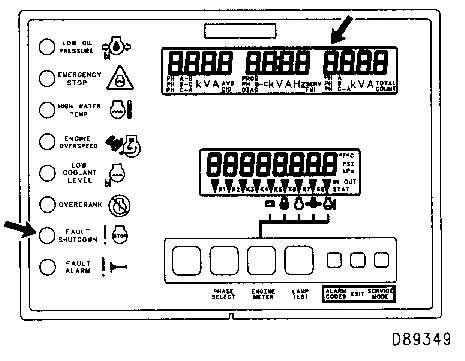

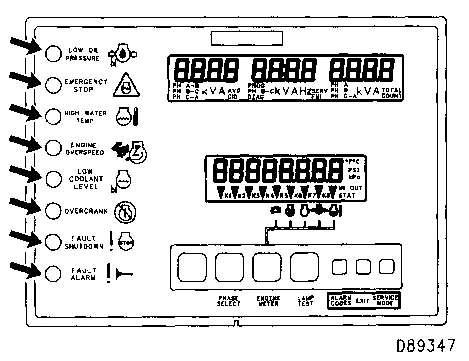

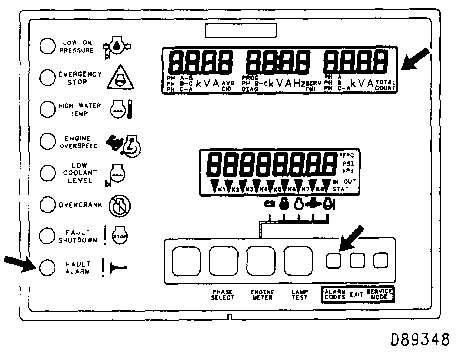

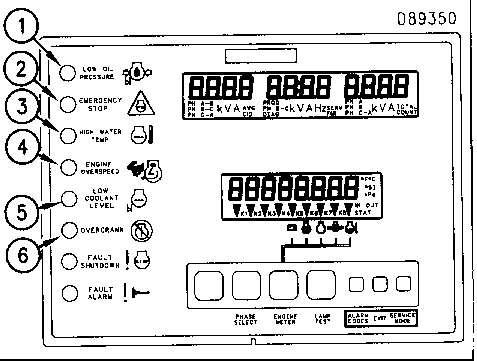

FaultIndicators
