Note: Use Bookmarks panel to navigate
Product: EXCAVATOR
Model: 336D LN EXCAVATOR MYG
Configuration: 336D L & 336D LN Excavators MYG00001-UP (MACHINE) POWERED BY C9 Engine
Disassembly and Assembly
330D, 336D, 336D2, 340D and 340D2 Excavators and 336D MHPU Mobile Hydraulic Power Unit C9 Engine Supplement
Hydraulic System Pressure - Release
Personal injury can result from hydraulic oil pressure and hot oil.
Hydraulic oil pressure can remain in the hydraulic system after the engine has been stopped. Serious injury can be caused if this pressure is not released before any service is done on the hydraulic system.
Make sure all of the work tools have been lowered to the ground, and the oil is cool before performing any service. Remove the oil filler cap only when the engine is stopped, and the filler cap is cool enough to touch with your bare hand.
Product: EXCAVATOR
Model: 336D LN EXCAVATOR MYG
Configuration: 336D L & 336D LN Excavators MYG00001-UP (MACHINE) POWERED BY C9 Engine
Disassembly and Assembly
330D, 336D, 336D2, 340D and 340D2 Excavators and 336D MHPU Mobile Hydraulic Power Unit C9 Engine Supplement

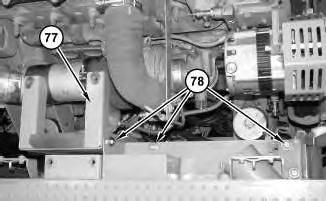

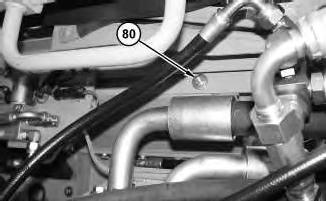

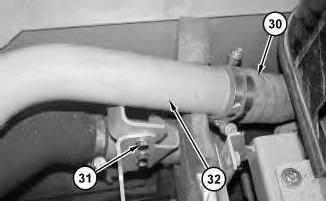

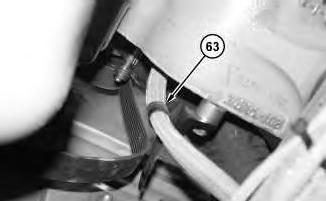

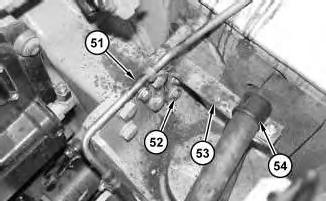

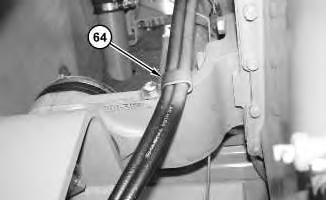

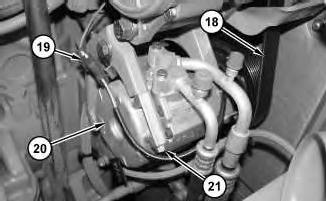

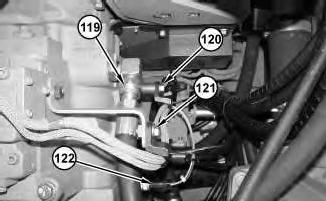

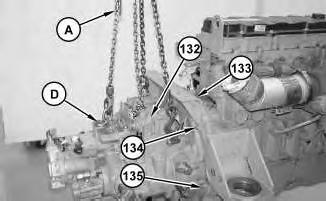

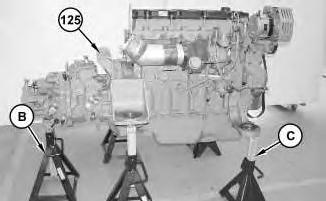

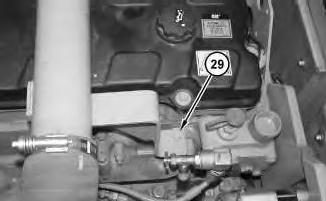

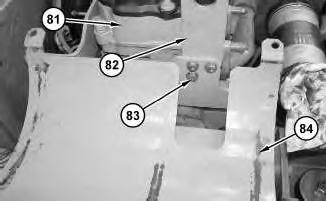

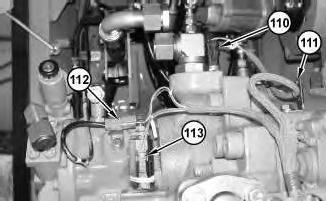

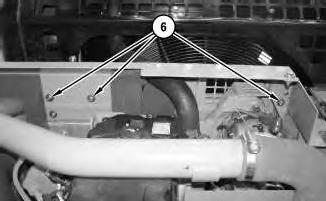

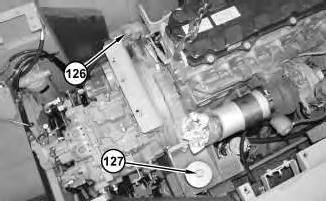

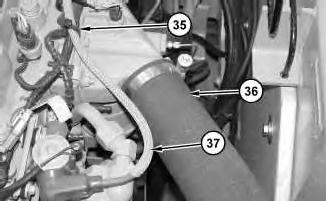

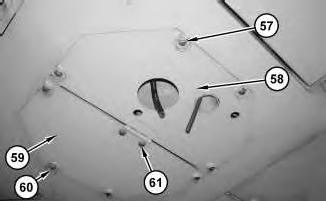

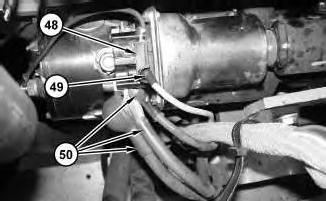

Engine and Main Hydraulic Pump - Install
Installation Procedure
