Product: EXCAVATOR
Model: 330D L EXCAVATOR JLP
Configuration: 330D L Excavators JLP00001-UP (MACHINE) POWERED BY C9 Engine
Disassembly and Assembly
330D, 336D, 336D2, 340D and 340D2 Excavators and 336D MHPU Mobile Hydraulic Power Unit C9 Engine Supplement Media
Aftercooler - Install
SMCS - 1063-012
Installation Procedure
Table 1
Required Tools
i02414156
Note: Cleanliness is an important factor. Before assembly, all parts should be thoroughly cleaned in cleaning fluid. Allow the parts to air dry. Wiping cloths or rags should not be used to dry parts. Lint may be deposited on the parts which may cause later trouble. Inspect all parts. If any parts are worn or damaged, use new parts for replacement.
Illustration 2
g01207083
Illustration 3
g01207082

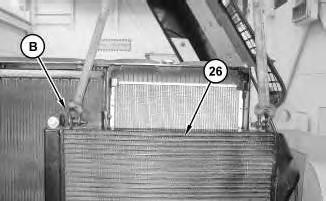

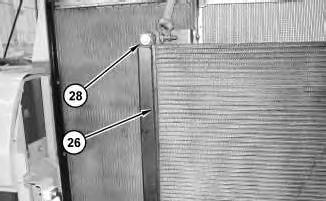

1. Use Tooling (B) and a suitable lifting device to place aftercooler (26) into position. The weight of aftercooler (26) is approximately 34 kg (75 lb).

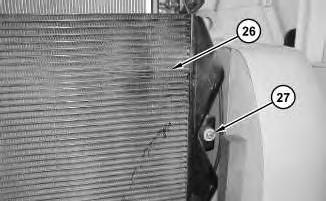

2. Install bolt (27) and bolts (28).
Illustration 4
g01207080

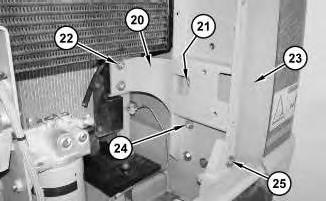

3. Install bracket (23), bracket (20), bolt (25), bolts (24), bolts (22), and bolt (21).
Illustration 5
g01207078

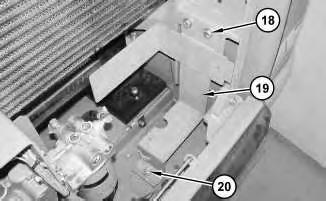

4. Install bracket (19), bolt (20), and bolts (18).
Illustration 6
g01207077
Illustration 7
g01207076

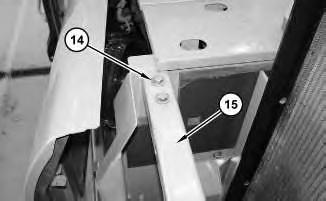

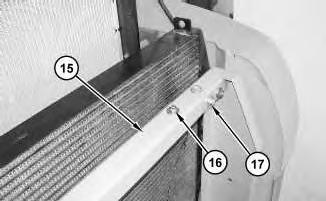

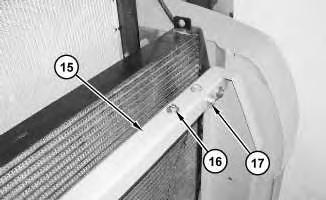

5. Install brace (15), bolts (17), bolts (16), and bolts (14).
8
6. Install expansion tank (10).

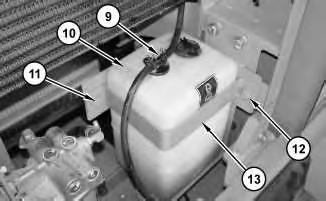

7. Install bracket (13), bolt (12), and bolt (11).
8. Connect hose (9).
9

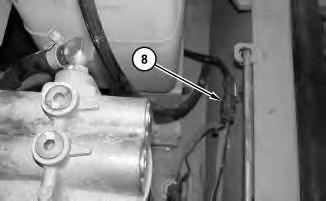

9. Connect harness assembly (8).
10
Position
11
11. Connect hoses (5).
Illustration 12
12. Use Tooling (A) and a suitable lifting device to position door (3). The weight of door (3) is approximately 41 kg (90 lb).
13. Install bolts (4).
13
14. Install guard (2) and bolts (1).
End By:
a. Install cooling system package enclosure. Refer to Disassembly and Assembly, "Enclosure (Cooling System Package) - Install".
Copyright 1993 - 2025 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.
Wed Jan 29 00:06:13 UTC+0700 2025
Product: EXCAVATOR
Model: 330D L EXCAVATOR JLP
Configuration: 330D L Excavators JLP00001-UP (MACHINE) POWERED BY C9 Engine
Disassembly and Assembly
330D, 336D, 336D2, 340D and 340D2 Excavators and 336D MHPU Mobile Hydraulic Power Unit C9 Engine Supplement
i02414155
Aftercooler - Remove
SMCS - 1063-011
Removal Procedure
Table 1
Required Tools
Start By:
a. Remove the cooling system package enclosure. Refer to Disassembly and Assembly, "Enclosure (Cooling System Package) - Remove".
Note: Cleanliness is an important factor. Before the disassembly procedure, the exterior of the component should be thoroughly cleaned. This will help to prevent dirt from entering the internal mechanism.
Note: Put identification marks on all lines, on all hoses, on all wires, and on all tubes for installation purposes. Plug all lines, hoses, and tubes. This helps to prevent fluid loss and this helps to keep contaminants from entering the system.
Illustration 1
1. Remove bolts (1) and guard (2).
Illustration 2

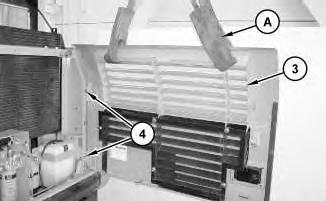

2. Attach Tooling (A) and a suitable lifting device to door (3). The weight of door (3) is approximately 41 kg (90 lb).
3. Remove bolts (4) and door (3).
Illustration 3

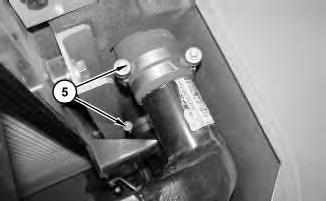

4. Disconnect hoses (5).
4

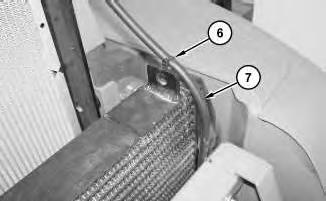

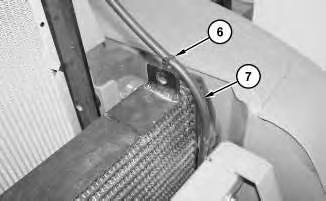

5. Cut cable straps (6) and place hose (7) aside.
5
6. Disconnect harness assembly (8).
6
7. Disconnect hose (9).
8. Remove bolt (11), bolt (12), and bracket (13).
9. Remove expansion tank (10).
8
10.
10
12. Remove bolt (21), bolts (22), bolts (24), bolt (25), bracket (20), and bracket (23).
11
13. Attach Tooling (B) and a suitable lifting device to aftercooler (26). The weight of aftercooler (26) is approximately 34 kg (75 lb).
12
13
14. Remove bolt (27), bolts (28), and aftercooler (26).
Copyright 1993 - 2025 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.
Wed Jan 29 00:05:44 UTC+0700 2025
Product: EXCAVATOR
Model: 330D L EXCAVATOR JLP
Configuration: 330D L Excavators JLP00001-UP (MACHINE) POWERED BY C9 Engine
Disassembly and Assembly
330D, 336D, 336D2, 340D and 340D2 Excavators and 336D MHPU Mobile Hydraulic Power Unit C9 Engine Supplement
Media Number -RENR8647-16
Date -01/10/2015
Air Cleaner - Remove and Install
SMCS - 1051-010; 1054-010
Removal Procedure
Updated -26/10/2015
i02412726
Note: Cleanliness is an important factor. Before the disassembly procedure, the exterior of the component should be thoroughly cleaned. This will help to prevent dirt from entering the internal mechanism.
2

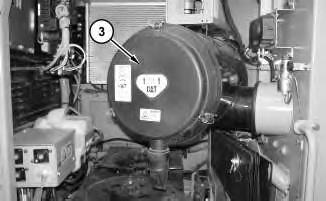

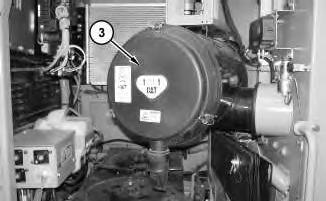

Remove cover (3).
3
Illustration 4

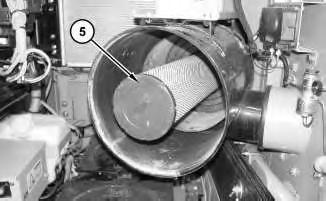

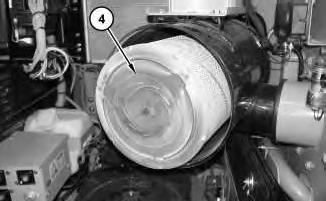

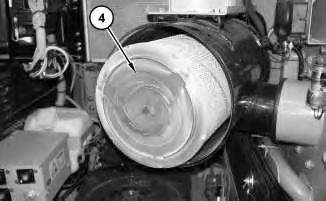

3. Remove primary filter element (4) and secondary filter element (5).
5

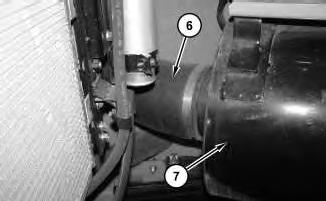

4. Disconnect hose (6) from the back of air cleaner assembly (7).
6
5. Remove bolts (8) and air cleaner assembly (7).
Installation Procedure
Note: Cleanliness is an important factor. Before assembly, all parts should be thoroughly cleaned in cleaning fluid. Allow the parts to air dry. Wiping cloths or rags should not be used to dry parts Lint may be deposited on the parts which may cause later trouble. Inspect all parts. If any parts are worn or damaged, use new parts for replacement.
1. Install air cleaner assembly (7) and bolts (8).
8
2. Connect hose (6) to the back of air cleaner assembly (7).
9
10
3. Install secondary filter element (5) and primary filter element (4).
11
Install cover (3).
12
5. Close doors (1) and (2).
Copyright 1993 - 2025 Caterpillar Inc.
Rights Reserved. Wed Jan 29 00:04:46 UTC+0700 2025
Product: EXCAVATOR
Model: 330D L EXCAVATOR JLP
Configuration: 330D L Excavators JLP00001-UP (MACHINE) POWERED BY C9 Engine
Disassembly and Assembly
330D, 336D, 336D2, 340D and 340D2 Excavators and 336D MHPU Mobile Hydraulic Power Unit C9 Engine Supplement Media Number -RENR8647-16
Updated -26/10/2015
Alternator - Remove and Install
SMCS - 1405-010
Removal Procedure
i02412728
Note: Cleanliness is an important factor. Before the disassembly procedure, the exterior of the component should be thoroughly cleaned. This will help to prevent dirt from entering the internal mechanism.
Note: Put identification marks on all lines, on all hoses, on all wires, and on all tubes for installation purposes. Plug all lines, hoses, and tubes. This helps to prevent fluid loss and this helps to keep contaminants from entering the system.
Illustration 1

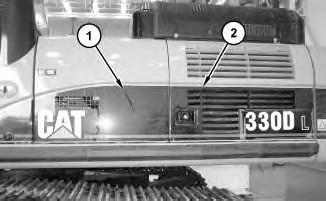

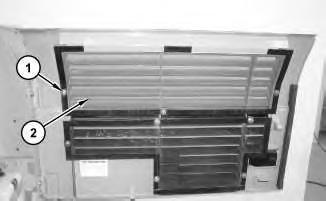

1. Open doors (2) and (1).
g01205948
Illustration 2

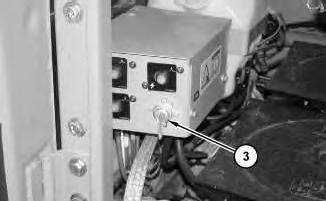

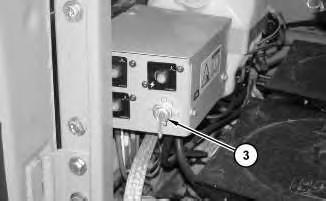

2. Turn battery disconnect switch (3) to the OFF position.
Illustration 3

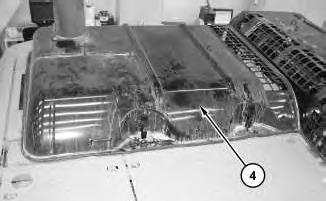

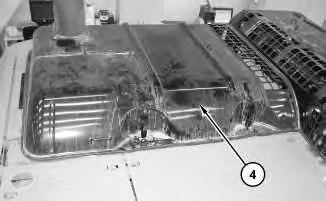

3. Open engine hood (4).
4
4. Remove the belt from alternator (9). Refer to Operation and Maintenance Manual, "BeltsInspect / Adjust / Replace".

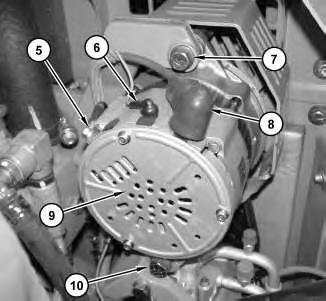

5. Disconnect harness assemblies (5), (6), and (8).
6. Remove bolt (7), bolt (10), and alternator (9).
Installation Procedure
Note: Cleanliness is an important factor. Before assembly, all parts should be thoroughly cleaned in cleaning fluid. Allow the parts to air dry. Wiping cloths or rags should not be used to dry parts. Lint may be deposited on the parts which may cause later trouble. Inspect all parts. If any parts are worn or damaged, use new parts for replacement.
1. Install alternator (9), bolt (7), and bolt (10).
2. Connect harness assemblies (5), (6), and (8).
3. Install the belt to alternator (9). Refer to Operation and Maintenance Manual, "BeltsInspect / Adjust / Replace".
Illustration 6
4. Close engine hood (4).
Illustration 7
5. Turn battery disconnect switch (3) to the ON position.
Illustration 8
6. Close doors (1) and (2).
Copyright 1993 - 2025 Caterpillar Inc.
Rights Reserved.
Jan 29 00:00:07 UTC+0700 2025
Product: EXCAVATOR
Model: 330D L EXCAVATOR JLP
Configuration: 330D L Excavators JLP00001-UP (MACHINE) POWERED BY C9 Engine
Disassembly and Assembly
330D, 336D, 336D2, 340D and 340D2 Excavators and 336D MHPU Mobile Hydraulic Power Unit C9 Engine Supplement
Media Number -RENR8647-16
Date -01/10/2015 Date Updated -26/10/2015
i02412731
Battery - Remove and Install
SMCS - 1401-010
Removal Procedure
Note: Put identification marks on all lines, on all hoses, on all wires, and on all tubes for installation purposes. Plug all lines, hoses, and tubes. This helps to prevent fluid loss and this helps to keep contaminants from entering the system.
