Product: EXCAVATOR
Model: 329F L EXCAVATOR ERL
Configuration: 329F L Excavator ERL00001-UP (MACHINE) POWERED BY C7.1 Engine
Operation and Maintenance Manual 329F and 330F Excavators
Media Number -SEBU8094-12
Foreword
California Proposition 65 Warning
-26/02/2019
Diesel engine exhaust and some of its constituents are known to the State of California to cause cancer, birth defects, and other reproductive harm.
WARNING - This product can expose you to chemicals including ethylene glycol, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to:
www.P65Warnings.ca.gov
Do not ingest this chemical. Wash hands after handling to avoid incidental ingestion.
WARNING - This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to:
www.P65Warnings.ca.gov
Wash hands after handling components that may contain lead.
Literature Information
This manual should be stored in the operator's compartment in the literature holder or seat back literature storage area.
This manual contains safety information, operation instructions, transportation information, lubrication information, and maintenance information.
Some photographs or illustrations in this publication show details or attachments that can be different from your machine. Guards and covers might have been removed for illustrative purposes.
Continuing improvement and advancement of product design might have caused changes to your machine which are not included in this publication. Read, study, and keep this manual with the machine.
Whenever a question arises regarding your machine, or this publication, please consult your Cat dealer for the latest available information.
Safety
The safety section lists basic safety precautions. In addition, this section identifies the text and locations of warning signs and labels used on the machine.
Read and understand the basic precautions listed in the safety section before operating or performing lubrication, maintenance, and repair on this machine.
Operation
The operation section is a reference for the new operator and a refresher for the experienced operator. This section includes a discussion of gauges, switches, machine controls, attachment controls, transportation, and towing information.
Photographs and illustrations guide the operator through correct procedures of checking, starting, operating, and stopping the machine.
Operating techniques outlined in this publication are basic. Skill and techniques develop as the operator gains knowledge of the machine and its capabilities.
Maintenance
The maintenance section is a guide to equipment care. The Maintenance Interval Schedule (MIS) lists the items to be maintained at a specific service interval. Items without specific intervals are listed under the "When Required" service interval. The Maintenance Interval Schedule lists the page number for the step-by-step instructions required to accomplish the scheduled maintenance. Use the Maintenance Interval Schedule as an index or "one safe source" for all maintenance procedures.
Maintenance Intervals
Use the service hour meter to determine servicing intervals. Calendar intervals shown (daily, weekly, monthly, etc.) can be used instead of service hour meter intervals if the calendar intervals
provide more convenient servicing schedules and approximate the indicated service hour meter reading. Perform the recommended service at the interval that occurs first.
Under severe, dusty, or wet operating conditions, more frequent lubrication than is specified in the maintenance intervals chart might be necessary.
Perform service on items at multiples of the original requirement. For example, at every 500 service hours or 3 months, also service those items listed under every 250 service hours or monthly and every 10 service hours or daily.
Certified Engine Maintenance
Proper maintenance and repair are essential to keep the engine and machine systems operating correctly. As the heavy-duty off-road diesel engine owner, you are responsible for the performance of the required maintenance listed in the Owner Manual, Operation and Maintenance Manual, and Service Manual.
It is prohibited for any person engaged in the business of repairing, servicing, selling, leasing, or trading engines or machines to remove, alter, or to render inoperative, any emission-related device or element of design installed on or in an engine or machine that is in compliance with all applicable regulations of the intended country to which it has been shipped. Certain elements of the machine and engine such as the exhaust system, fuel system, electrical system, intake air system, and cooling system may be emission-related and should not be altered unless approved by Caterpillar.
Machine Capacity
Additional attachments or modifications may exceed machine design capacity which can adversely affect performance characteristics. Included would be stability and system certifications such as brakes, steering, and rollover protective structures (ROPS). Contact your Cat dealer for further information.
Product Identification Number
Effective First Quarter 2001 the Product Identification Number (PIN) has changed from 8 to 17 characters. To provide uniform equipment identification, construction equipment manufacturers are moving to comply with the latest version of the product identification numbering standard. Non-road machine PINs are defined by ISO 10261. The new PIN format will apply to all machines and generator sets. The PIN plates and frame marking will display the 17 character PIN. The new format will look like the following:
Illustration 1 g03891925
Where:
1. World Manufacturing Code (characters 1-3)
2. Machine Descriptor (characters 4-8)
3. Check Character (character 9)
4. Machine Indicator Section (MIS) or Product Sequence Number (characters 10-17). These were previously referred to as the Serial Number.
Machines and generator sets produced before First Quarter 2001 will maintain their 8 character PIN format.
Components such as engines, transmissions, axles, and work tools will continue to use an 8 character Serial Number (S/N).
Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Thu Jan 4 20:03:22 UTC+0530 2024
This is the sample of the manual click on the download link for complete manual
DOWNLOAD LINK
For some reason if link does not work download this pdf and then click
Product: EXCAVATOR
Model: 329F L EXCAVATOR ERL
Configuration: 329F L Excavator ERL00001-UP (MACHINE) POWERED BY C7.1 Engine
Operation and Maintenance Manual
329F and 330F Excavators
Media Number -SEBU8094-12
Additional Messages
SMCS - 7000; 7405
-01/06/2015
-26/02/2019
i06893797

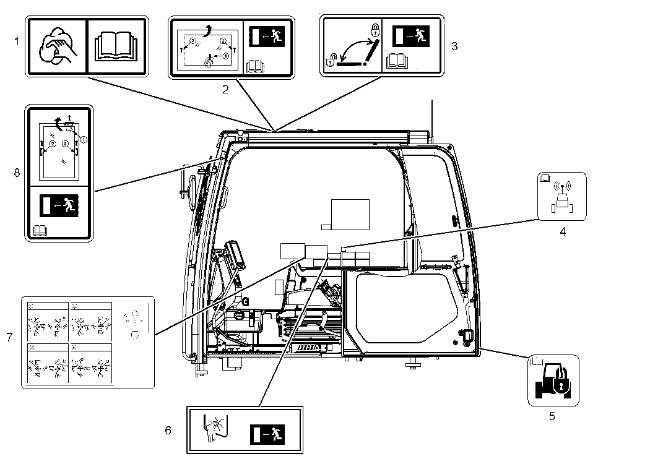

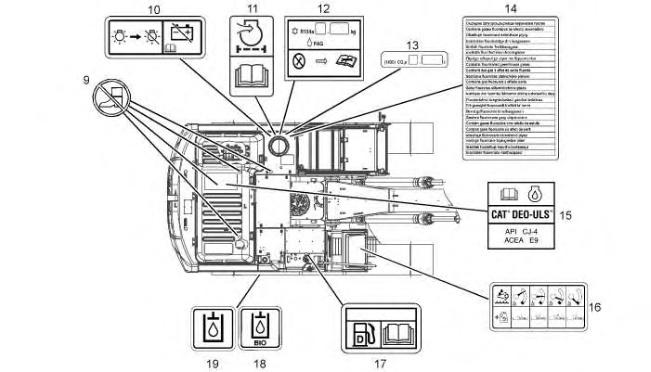

There are several specific messages on this machine. The exact location of the messages and the description of the information are reviewed in this section. Please become familiar with all messages.
Make sure that all of the messages are legible. Clean the messages or replace the messages if you cannot read the words. Replace the illustrations if the illustrations are not legible. When you clean the messages, use a cloth, water, and soap. Do not use solvent, gasoline, or other harsh chemicals to clean the messages. Solvents, gasoline, or harsh chemicals could loosen the adhesive that secures the messages. Loose adhesive will allow the messages to fall.
Replace any message that is damaged, or missing. If a message is attached to a part that is replaced, install a message on the replacement part. Any Cat dealer can provide new messages.
This message is located in the cab on the polycarbonate windows.
Illustration 3
g01134495
NOTICE
Clean windows with a wet cloth or sponge. Dry cloth or sponge may scratch window material.
Alternate Exit (2)
If equipped, this message is located on the roof hatch.
Illustration 4
g02052833
If the Primary exits are blocked, exit the machine through the opening.
For more information, refer to Operation and Maintenance Manual, "Alternate Exit".

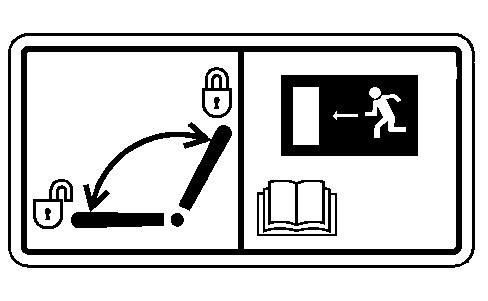

Alternate Exit Lock/Unlock (3)
If equipped, this message is located on the roof hatch.
5 g02052873
NOTICE
Unlock alternate exit window during machine operations.
Move the lever to the left to the UNLOCK position. Move the lever to the right to the LOCK position. Exit through the opening.
For more information, refer to Operation and Maintenance Manual, "Alternate Exit".

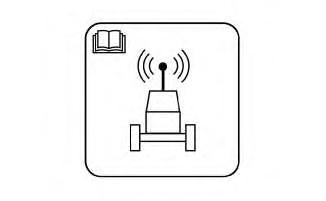

Data Privacy (4)
Illustration 6 g01418953
The Product Link System is a satellite communication device that transmits information regarding the machine back to Caterpillar and Cat dealers and customers. All logged events and diagnostic codes that are available to the Cat Electronic Technician (ET) on the Cat data link can be sent to the
satellite. Information can also be sent to the Product Link System. The information is used to improve Cat products and Cat services.
Refer to Operation and Maintenance Manual, "Product Link" for more information.
Machine Security System (5)
This message is located on the bottom corner of the cab door.
Illustration 7 g00951606
This machine may be equipped with a security system. Read the Operation and Maintenance Manual before you operate the machine.
Refer to Operation and Maintenance Manual, "Machine Security System" for more information.

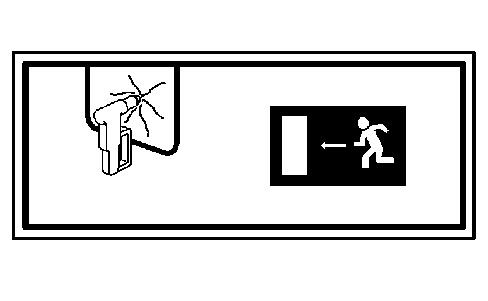

Alternate Exit (6)
If equipped, this message is located on the right side window of the cab.
Illustration 8 g01069768
Break glass in order to exit.
Refer to Operation and Maintenance Manual, "Alternate Exit" for further information.

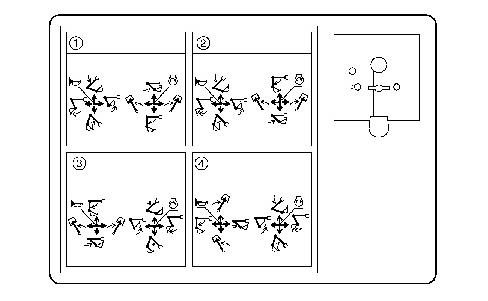

Joystick Controls Alternate Patterns (7)
If equipped, this message is located on the right side window of the cab.
Illustration 9 g03094696
Refer to Operation and Maintenance Manual, "Joystick Controls Alternate Patterns" for further information.

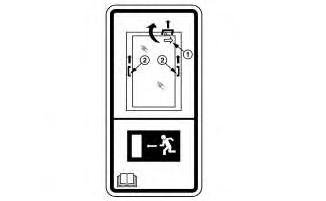

Alternate Exit (8)
If equipped, this message is located on the front window of the cab in the upper left-hand corner.
10 g02052913
Move the lever to the right in order to unlock the front window. Raise the window into the storage position. Exit through the opening.
Refer to Operation and Maintenance Manual, "Alternate Exit" for further information.

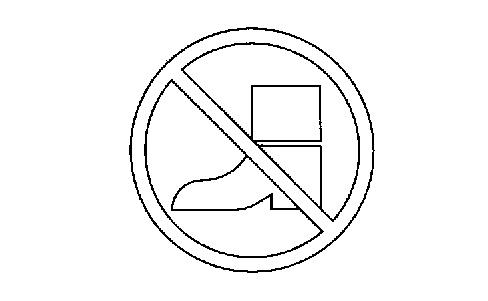

No Step (9)
This message is located on the engine hood on the top of the machine. This message is also located on the left side of the machine behind the cab, as well as on the engine valve cover.
Illustration 11
Do not step in this area.
DEF Purge Indicator Lamp (10)
This message is located behind the cab near the disconnect switch.
g00911158
NOTICE
After the engine is shutdown apply the battery disconnect switch. Applying the battery disconnect too soon will prevent the DEF system from being purged and could cause DEF to freeze in the lines.
Radial Seal Air Filters (11)
This message is located on the air cleaner.
13
To avoid engine damage, use only Cat radial seal air filters. Other filters will not seal properly. Read the Operation and Maintenance Manual.
Refer to Operation and Maintenance Manual, "Engine Air Filter Primary Element - Clean/Replace".

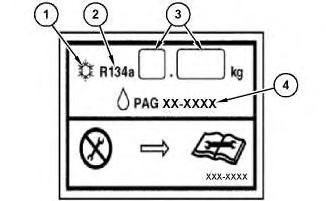

Air Conditioner (12), (13), (14)
These messages are positioned on the left door behind the cab.
Illustration 14
g06155396
(1) Air conditioning symbol (2) R134a (Refrigerant type common name) (3) The system contains 0.9 kg of refrigerant (4) The lubricating oil type for this system is PAG (polyalkylene glycol)
Illustration 15
g06155409
If equipped, this plate provides the below additional European Union required greenhouse gas information. (5) (1430) - This is the Global Warming Potential of R134a (6) CO2 equivalent
(7) The system contains 1.287 metric tonne of CO2 equivalent

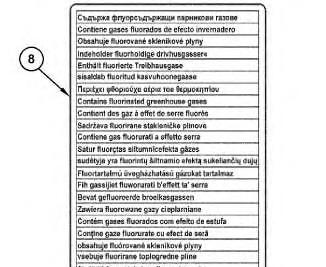

Illustration 16 g06155418 (8) If equipped, this film provides the required language translations of the text "Contains fluorinated greenhouse gases" for the European Union greenhouse gas regulation.
These messages for the air conditioner system have the appropriate information for the following services: the air conditioner lubricant, the refrigerant charge, and the refrigerant capacity.

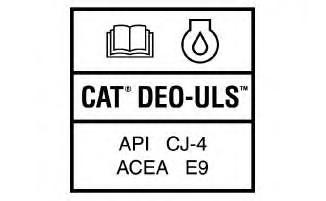

Engine Oil Requirements (15)
This message is located on top of the engine.
Illustration 17
g02176761
Refer to Operation and Maintenance Manual, "Lubricant Viscosities".
Diesel Exhaust Fluid Fill (16)
This message is located on the right side of the machine near the storage box.
Illustration 18
This film provides an estimate of diesel exhaust fluid needed to fill the DEF tank.
Refer to Operation and Maintenance Manual, "Lubricant Viscosities" and Operation and Maintenance Manual, "Diesel Exhaust Fluid - Fill" for more information.

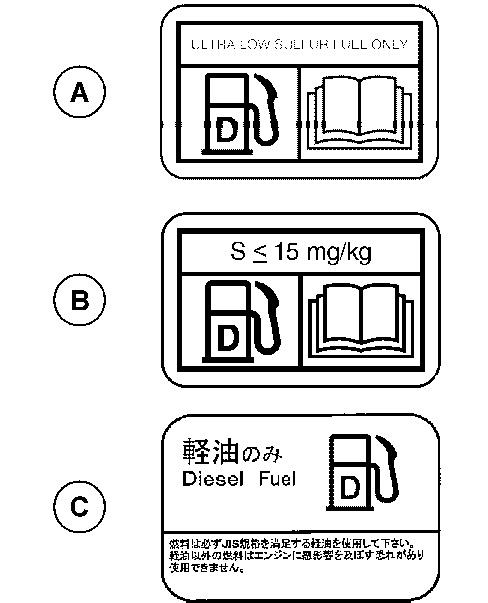

Diesel Fuel Requirements (17)
This message is located by the fuel tank.
Illustration 19 g03218956

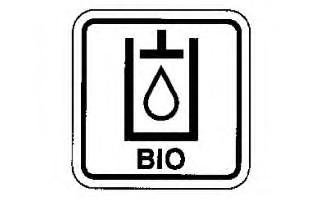

Oil Biodegradable (18)
This message is located on the left side of the machine by the fuel tank.
Illustration 20 g03621717
Refer to Operation and Maintenance Manual, "Lubricant Viscosities" for more information about the oil.

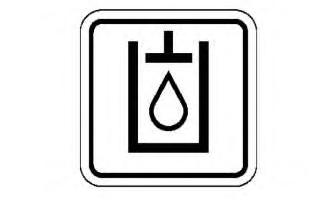

Hydraulic Oil (19)
This message is located on the left side of the machine by the fuel tank.
Illustration 21 g03621736
Refer to Operation and Maintenance Manual, "Lubricant Viscosities" for more information about the oil.
Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Thu Jan 4 20:05:22 UTC+0530 2024
Product: EXCAVATOR
Model: 329F L EXCAVATOR ERL
Configuration: 329F L Excavator ERL00001-UP (MACHINE) POWERED BY C7.1 Engine
Operation and Maintenance Manual
329F and 330F Excavators
Media Number -SEBU8094-12
Before Operation
SMCS - 7000
-01/06/2015
Clear all personnel from the machine and from the area.
Updated -26/02/2019
i01340061
Clear all obstacles from the machine's path. Beware of hazards (wires, ditches, etc).
Be sure that all windows are clean. Secure the doors and the windows in the open position or in the shut position.
Adjust the rearview mirrors (if equipped) for the best visibility close to the machine. Make sure that the horn, the travel alarm (if equipped), and all other warning devices are working properly.
Fasten the seat belt securely.
Warm up the engine and the hydraulic oil before operating the machine.
Before moving the machine, check the position of the undercarriage. The normal travel position is with the idler wheels to the front under the cab and the drive sprockets to the rear. When the undercarriage is in the reversed position, the directional controls must be operated in opposite directions.
Copyright 1993 - 2024 Caterpillar Inc.
All Rights Reserved.
Private Network For SIS Licensees. Thu Jan 4 20:13:29 UTC+0530 2024
Product: EXCAVATOR
Model: 329F L EXCAVATOR ERL
Configuration: 329F L Excavator ERL00001-UP (MACHINE) POWERED BY C7.1 Engine
Operation and Maintenance Manual
329F and 330F Excavators
Media Number -SEBU8094-12
Before Starting Engine
SMCS - 1000; 7000
-01/06/2015
-26/02/2019
Start the engine only from the operator compartment. Never short across the starter terminals or across the batteries. Shorting could damage the electrical system by bypassing the engine neutral start system.
Inspect the condition of the seat belt and of the mounting hardware. Replace any parts that are worn or damaged. Regardless of appearance, replace the seat belt after three years of use. Do not use a seat belt extension on a retractable seat belt.
Adjust the seat so that full pedal travel can be achieved with the operator's back against the back of the seat.
Make sure that the machine is equipped with a lighting system that is adequate for the job conditions. Make sure that all machine lights are working properly.
Before you start the engine and before you move the machine, make sure that no one is underneath the machine, around the machine, or on the machine. Make sure that the area is free of personnel.
Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Thu Jan 4 20:12:10 UTC+0530 2024
Product: EXCAVATOR
Model: 329F L EXCAVATOR ERL
Configuration: 329F L Excavator ERL00001-UP (MACHINE) POWERED BY C7.1 Engine
Operation and Maintenance Manual
329F and 330F Excavators
Media Number -SEBU8094-12
Burn
Prevention
SMCS - 7000
-01/06/2015
Do not touch any part of an operating engine. Allow machine systems to cool before any maintenance is performed. Relieve all pressure in the air system, in the oil system, in the lubrication system, in the fuel system, or in the cooling system before any lines, fittings, or related items are disconnected.
Induction System
Sulfuric Acid Burn Hazard may cause serious personal injury or death.
The exhaust gas cooler may contain a small amount of sulfuric acid. The use of fuel with sulfur levels greater than 15 ppm may increase the amount of sulfuric acid formed. The sulfuric acid may spill from the cooler during service of the engine. The sulfuric acid will burn the eyes, skin and clothing on contact. Always wear the appropriate personal protective equipment (PPE) that is noted on a material safety data sheet (MSDS) for sulfuric acid. Always follow the directions for first aid that are noted on a material safety data sheet (MSDS) for sulfuric acid.
Coolant
When the engine is at operating temperature, the engine coolant is hot. The coolant is also under pressure. The radiator and all lines to the heaters or to the engine contain hot coolant.
Any contact with hot coolant or with steam can cause severe burns. Allow cooling system components to cool before the cooling system is drained.
Check the coolant level only after the engine has been stopped.
Ensure that the filler cap is cool before removing the filler cap. The filler cap must be cool enough to touch with a bare hand. Remove the filler cap slowly to relieve pressure.
Cooling system conditioner contains alkali. Alkali can cause personal injury. Do not allow alkali to contact the skin, the eyes, or the mouth.
Oils
Hot oil and hot components can cause personal injury. Do not allow hot oil to contact the skin. Also, do not allow hot components to contact the skin.
Remove the hydraulic tank filler cap only after the engine has been stopped. The filler cap must be cool enough to touch with a bare hand. Follow the standard procedure in this manual to remove the hydraulic tank filler cap.
Batteries
The liquid in a battery is an electrolyte. Electrolyte is an acid that can cause personal injury. Do not allow electrolyte to contact the skin or the eyes.
Do not smoke while checking the battery electrolyte levels. Batteries give off flammable fumes which can explode.
Always wear protective glasses when you work with batteries. Wash hands after touching batteries. The use of gloves is recommended.
Product: EXCAVATOR
Model: 329F L EXCAVATOR ERL
Configuration: 329F L Excavator ERL00001-UP (MACHINE) POWERED BY C7.1 Engine
Operation and Maintenance Manual
329F and 330F Excavators
Media Number -SEBU8094-12
Crushing Prevention and Cutting Prevention
SMCS - 7000
Updated -26/02/2019
Support the equipment properly before you perform any work or maintenance beneath that equipment. Do not depend on the hydraulic cylinders to hold up the equipment. Equipment can fall if a control is moved, or if a hydraulic line breaks.
Do not work beneath the cab of the machine unless the cab is properly supported.
Unless you are instructed otherwise, never attempt adjustments while the machine is moving or while the engine is running.
Never jump across the starter solenoid terminals in order to start the engine. Unexpected machine movement could result.
Whenever there are equipment control linkages the clearance in the linkage area will change with the movement of the equipment or the machine. Stay clear of areas that may have a sudden change in clearance with machine movement or equipment movement.
Stay clear of all rotating and moving parts.
If it is necessary to remove guards in order to perform maintenance, always install the guards after the maintenance is performed.
Keep objects away from moving fan blades. The fan blade will throw objects or cut objects.
Do not use a kinked wire cable or a frayed wire cable. Wear gloves when you handle wire cable.
When you strike a retainer pin with force, the retainer pin can fly out. The loose retainer pin can injure personnel. Make sure that the area is clear of people when you strike a retainer pin. To avoid injury to your eyes, wear protective glasses when you strike a retainer pin.
Chips or other debris can fly off an object when you strike the object. Make sure that no one can be injured by flying debris before striking any object. Thu Jan 4 20:07:55 UTC+0530 2024
Product: EXCAVATOR
Model: 329F L EXCAVATOR ERL
Configuration: 329F L Excavator ERL00001-UP (MACHINE) POWERED BY C7.1 Engine
Operation and Maintenance Manual
329F and 330F Excavators
Media Number -SEBU8094-12
Demolition
SMCS - 6700
There maybe local regulations and/or government regulations that govern the use of machines which are designed and used as demolition machinery.
Note: Obey all local and government regulations.
Demolition machinery is designed for demolishing by pushing or pulling, or fragmenting. Demolition is done by crushing or shearing, buildings and/or other civil engineering structures and component parts and/or separating the resultant debris.
If this machine is used for demolition within an area that is controlled by the European Directive 2006/42/EC, the machine must be equipped with:
• Rollover Protective Structure (ROPS, not required for demolition excavators)
• Boom Lowering Control Valve (BLCV) / Stick Lowering Control Valve (SLCV)
• Top Guard / Front Guard
• Bottom / Motor / Swivel Guard
• EN 356 class P5A front window glass
• If a roof window is used to provide visibility to the working area, then roof window shall be equipped with motorized windscreen wipers and washers.
Demolition applications may generate flying debris. Ensure that there are no personnel in the area around the machine where flying debris may travel.
Demolition applications may generate airborne dust that can be hazardous to your health. If you operate the machine in a dust generating applications, use appropriate safeguarding or adequate ventilation to minimize risk. Thu Jan 4 20:14:49 UTC+0530 2024
Product: EXCAVATOR
Model: 329F L EXCAVATOR ERL
Configuration: 329F L Excavator ERL00001-UP (MACHINE) POWERED BY C7.1 Engine
Operation and Maintenance Manual
329F and 330F Excavators
Media Number -SEBU8094-12
Electrical Storm Injury Prevention
SMCS - 7000
-26/02/2019
i01122596
When lightning is striking in the vicinity of the machine, the operator should never attempt the following procedures:
• Mount the machine.
• Dismount the machine.
If you are in the operator's station during an electrical storm, stay in the operator's station. If you are on the ground during an electrical storm, stay away from the vicinity of the machine.
1993 - 2024 Caterpillar Inc.
Thu Jan 4 20:11:56 UTC+0530 2024
This is the sample of the manual click on the download link for complete manual
DOWNLOAD LINK
For some reason if link does not work download this pdf and then click
