PARTS MANUAL
322 FM L EXCAVATOR
9RL00001-UP
Tip: Use Bookmarks panel to navigate
Previous Screen
Product: EXCAVATOR
Model: 322 FM L EXCAVATOR 9RL
Configuration: 322L EXCAVATOR 9RL00001-UP (MACHINE) POWERED BY 3116 ENGINE
GRAPHIC #1 c609080
322L EXCAVATOR 3116 ENGINE
Media Number - SEBP2267-02 | Publication Date - 09/04/1997 | Date Updated - 24/02/2014 1N4877 COVER GP-INLET MANIFOLD
ENTIRE GROUP
INDIVIDUAL PARTS
Previous Screen
Product: EXCAVATOR
Model: 322 FM L EXCAVATOR 9RL
Configuration: 322L EXCAVATOR 9RL00001-UP (MACHINE) POWERED BY 3116 ENGINE
GRAPHIC #1 c567354

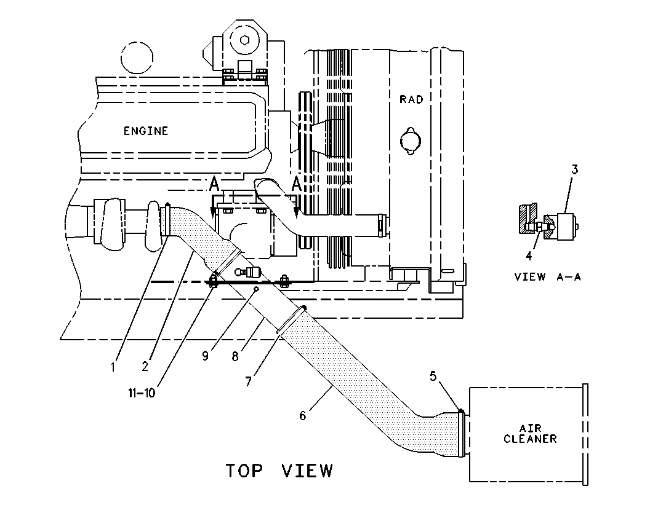

322L EXCAVATOR 3116 ENGINE Media Number - SEBP2267-02 | Publication Date - 09/04/1997 | Date Updated - 24/02/2014 4I7582 LINES GP-AIR
ENTIRE GROUP
Ref. Qty. NPR Note Part No. Part Name Grp NPR 4I-7582 LINES GP-AIR
INDIVIDUAL PARTS
Ref. Qty. NPR Note Part No. Req. Qty. Part Name 1 NPR 9M-7959 1 CLAMP 2 NPR 7I-7690 1 HOSE
Previous Screen
Product: EXCAVATOR
Model: 322 FM L EXCAVATOR 9RL
Configuration: 322L EXCAVATOR 9RL00001-UP (MACHINE) POWERED BY 3116 ENGINE
GRAPHIC #1 c454566
322L EXCAVATOR 3116 ENGINE
Media Number - SEBP2267-02 | Publication Date - 09/04/1997 | Date Updated - 24/02/2014
4P5863 TURBOCHARGER GP 4P7709-PAGE 52
ENTIRE GROUP
INDIVIDUAL PARTS
Ref. Qty. NPR Note Part No. Req. Qty. Part Name 1 NPR YR 4P-7709 1 TURBOCHARGER GP
This is the sample of the manual click on the download link for complete manual
DOWNLOAD LINK
For some reason if link does not work download this pdf and then click
Previous Screen
Product: EXCAVATOR
Model: 322 FM L EXCAVATOR 9RL
Configuration: 322L EXCAVATOR 9RL00001-UP (MACHINE) POWERED BY 3116 ENGINE
GRAPHIC #1 c567561
322L EXCAVATOR 3116 ENGINE
Media Number - SEBP2267-02 | Publication Date - 09/04/1997 | Date Updated - 24/02/2014

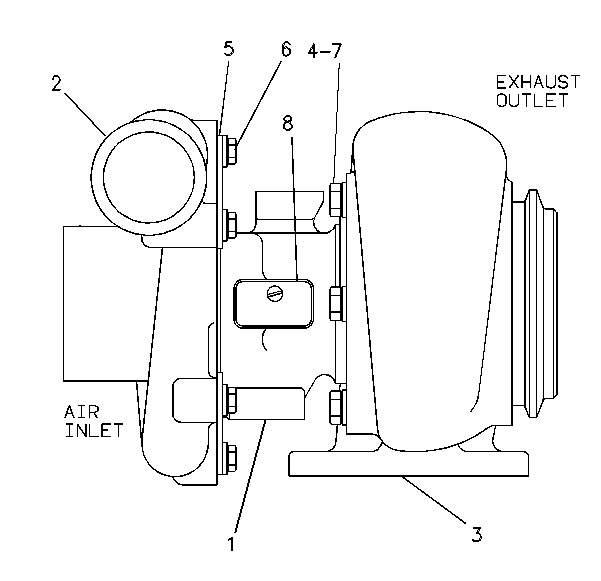

4P7709 TURBOCHARGER GP*R
6I2259-PAGE 44
PART OF 4P5863 TURBOCHARGER
ENTIRE GROUP
Previous Screen
Product: EXCAVATOR
Model: 322 FM L EXCAVATOR 9RL
Configuration: 322L EXCAVATOR 9RL00001-UP (MACHINE) POWERED BY 3116 ENGINE
GRAPHIC #1
c564167
322L EXCAVATOR 3116 ENGINE
Media Number - SEBP2267-02 | Publication Date - 09/04/1997 | Date Updated - 24/02/2014
4W3480 MANIFOLD GP-INLET
ENTIRE GROUP
Ref. Qty. NPR Note Part No. Part Name Grp NPR 4W-3480 MANIFOLD GP-INLET
INDIVIDUAL PARTS
Ref. Qty. NPR Note Part No. Req. Qty. Part Name 1 NPR M 5P-8347 13 BOLT 2 NPR 9M-1974 18 WASHER-HARD
Previous Screen
Product: EXCAVATOR
Model: 322 FM L EXCAVATOR 9RL
Configuration: 322L EXCAVATOR 9RL00001-UP (MACHINE) POWERED BY 3116 ENGINE
322L EXCAVATOR 3116 ENGINE
Media Number - SEBP2267-02 | Publication Date - 09/04/1997 | Date Updated - 24/02/2014

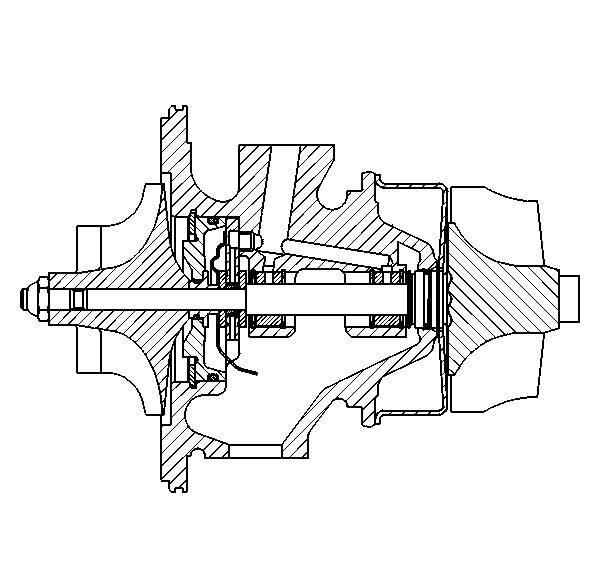

6I2259 CARTRIDGE GP-TURBOCHARGER*R PART OF 4P7709 TURBOCHARGER
ENTIRE GROUP
Ref. Qty. NPR Note Part No. Part Name
Grp NPR 6I-2259
CARTRIDGE GP-TURBOCHARGER
R NPR 0R-6475 CARTRIDGE GP -A
INDIVIDUAL PARTS
Ref. Qty. NPR Note Part No. Req. Qty. Part Name
NPR 0R-6475 1 CARTRIDGE GP-TURBOCHARGER (REBUILT)
NPR 101-3441 1 KIT-TURBOCHARGER CARTRIDGE
SMCS Codes 1052 1053
Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.
Sun May 19 2024 23:33:33 GMT+0530 (India Standard Time)
Previous Screen
Product: EXCAVATOR
Model: 322 FM L EXCAVATOR 9RL
Configuration: 322L EXCAVATOR 9RL00001-UP (MACHINE) POWERED BY 3116 ENGINE
GRAPHIC #1
322L EXCAVATOR 3116 ENGINE Media Number - SEBP2267-02 | Publication Date - 09/04/1997 | Date Updated - 24/02/2014
6I2298 MANIFOLD GP-EXHAUST
ENTIRE
INDIVIDUAL PARTS
Previous Screen
Product: EXCAVATOR
Model: 322 FM L EXCAVATOR 9RL
Configuration: 322L EXCAVATOR 9RL00001-UP (MACHINE) POWERED BY 3116 ENGINE
GRAPHIC #1 c580289
322L EXCAVATOR 3116 ENGINE
Media Number - SEBP2267-02 | Publication Date - 09/04/1997 | Date Updated - 24/02/2014

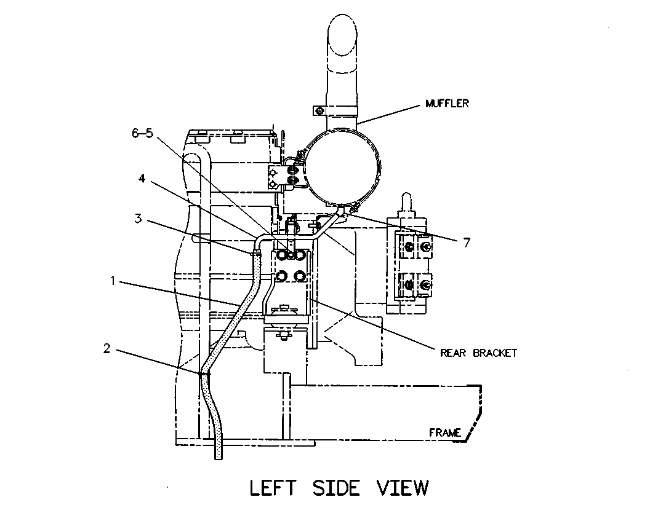

7C3335 LINES GP-AIR
ENTIRE GROUP
Ref.
INDIVIDUAL PARTS
Qty.
SMCS Codes 1058 1071
Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Sun May 19 2024 23:34:42 GMT+0530 (India Standard Time)
Previous Screen
Product: EXCAVATOR
Model: 322 FM L EXCAVATOR 9RL
Configuration: 322L EXCAVATOR 9RL00001-UP (MACHINE) POWERED BY 3116 ENGINE
GRAPHIC #1 c522890
322L EXCAVATOR 3116 ENGINE Media Number - SEBP2267-02 | Publication Date - 09/04/1997 | Date Updated - 24/02/2014

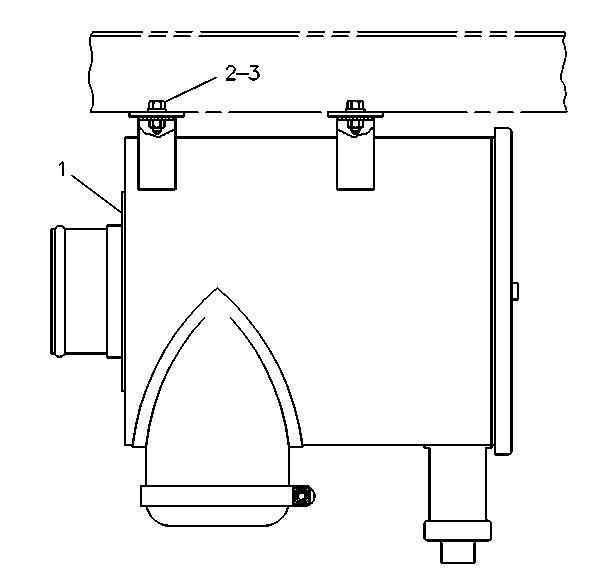

7Y0413 AIR CLEANER GP PART OF 7Y1591 AIR CLEANER ENTIRE GROUP
Previous Screen
Product: EXCAVATOR
Model: 322 FM L EXCAVATOR 9RL
Configuration: 322L EXCAVATOR 9RL00001-UP (MACHINE) POWERED BY 3116 ENGINE
GRAPHIC #1 c522894

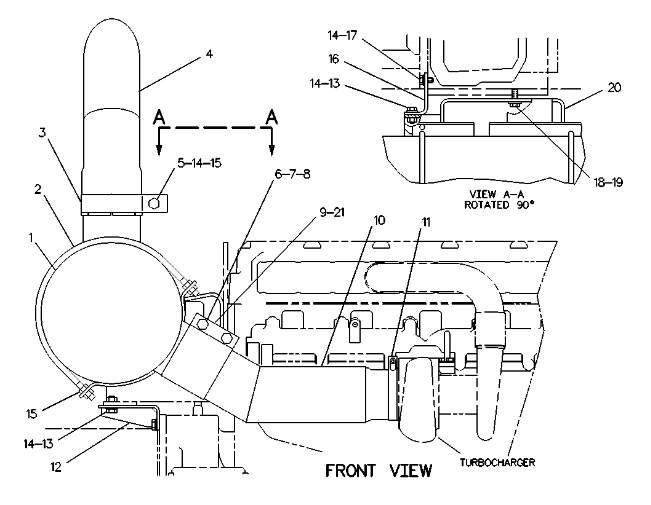

322L EXCAVATOR 3116 ENGINE Media Number - SEBP2267-02 | Publication Date - 09/04/1997 | Date Updated - 24/02/2014 7Y1534 MUFFLER GP
ENTIRE GROUP
Ref. Qty. NPR Note Part No. Part Name Grp NPR 7Y-1534 MUFFLER GP
INDIVIDUAL PARTS
Ref. Qty. NPR Note Part No. Req. Qty. Part Name 1 NPR CL 7Y-1508 1 MUFFLER AS CL NPR 395-1303 1 MUFFLER-CLA
Previous Screen
Product: EXCAVATOR
Model: 322 FM L EXCAVATOR 9RL
Configuration: 322L EXCAVATOR 9RL00001-UP (MACHINE) POWERED BY 3116 ENGINE
GRAPHIC #1 c532845
322L EXCAVATOR 3116 ENGINE
Media Number - SEBP2267-02 | Publication Date - 09/04/1997 | Date Updated - 24/02/2014

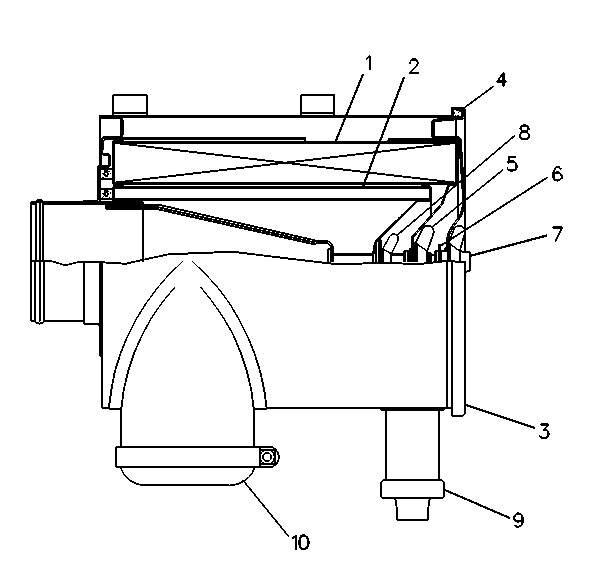

7Y1591 AIR CLEANER GP
