Product:COMPACTTRACKLOADER
Model:299DCOMPACTTRACKLOADERGTC
Configuration:299DCompactTrackLoaderGTC00001-UP(MACHINE)POWEREDBYC3.8Engine
OperationandMaintenanceManual
Foreword
LiteratureInformation
Thismanualshouldbestoredintheoperator'scompartmentintheliteratureholderorseatback literaturestoragearea.
Thismanualcontainssafetyinformation,operationinstructions,transportationinformation, lubricationinformationandmaintenanceinformation.
Somephotographsorillustrationsinthispublicationshowdetailsthatcanbedifferentfromyour worktool.Guardsandcoversmighthavebeenremovedforillustrativepurposes.
Continuingimprovementandadvancementofproductdesignmighthavecausedchangestoyour worktoolwhicharenotincludedinthispublication.Read,studyandkeepthismanualwiththe machinethatyourworktoolisinstalledon.
Wheneveraquestionarisesregardingyourworktool,orthispublication,pleaseconsultyour Caterpillardealerforthelatestavailableinformation.
Safety
Thesafetysectionlistsbasicsafetyprecautions.Inaddition,thissectionidentifiesthetextand locationsofsafetysignsandlabelsusedontheworktool.
Readandunderstandthebasicprecautionslistedinthesafetysectionbeforeoperatingor performinglubrication,maintenanceandrepaironthisworktool.
Operation
Theoperationsectionisareferenceforthenewoperatorandarefresherfortheexperienced operator.Thissectionincludesadiscussionofgauges,switches,machinecontrols,worktool controls,transportationandtowinginformation.
Photographsandillustrationsguidetheoperatorthroughcorrectproceduresofchecking,starting, operatingandstoppingtheworktool.
Operatingtechniquesoutlinedinthispublicationarebasic.Skillandtechniquesdevelopasthe operatorgainsknowledgeoftheworktoolanditscapabilities.
Maintenance
Themaintenancesectionisaguidetoequipmentcare.Theillustrated,step-by-stepinstructionsare groupedbyserviceintervals.Itemswithoutspecificintervalsarelistedunderthewhenrequired interval.Itemsinthemaintenanceintervalsschedulearereferencedtodetailedinstructionsthat follow.
MaintenanceIntervals
Calendarintervalsshown(daily,weekly,monthly,etc)canbeusedinsteadofservicehourmeter intervalsiftheyprovidemoreconvenientservicingschedulesandapproximatetheindicated servicehourmeterreading.Recommendedserviceshouldalwaysbeperformedattheintervalthat occursfirst.
Underextremelysevere,dustyorwetoperatingconditions,morefrequentlubricationthanis specifiedinthemaintenanceintervalsschedulemightbenecessary.
Performserviceonitemsatmultiplesoftheoriginalrequirement.Forexample,atevery500 servicehoursor3months,alsoservicethoseitemslistedunderevery250servicehoursor monthlyandevery10servicehoursordaily.
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedJan2512:01:38UTC+05302023
This is the sample of the manual if you need complete manual Click Here to download
Product:COMPACTTRACKLOADER
Model:299DCOMPACTTRACKLOADERGTC
Configuration:299DCompactTrackLoaderGTC00001-UP(MACHINE)POWEREDBYC3.8Engine

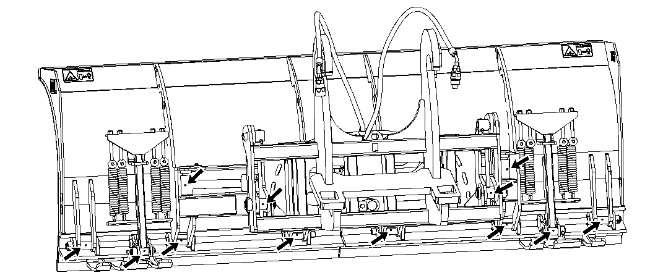

Snowplowgreasefittings
Applylubricanttoallgreasefittings.
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedJan2512:05:56UTC+05302023
Product:COMPACTTRACKLOADER
Model:299DCOMPACTTRACKLOADERGTC
Configuration:299DCompactTrackLoaderGTC00001-UP(MACHINE)POWEREDBYC3.8Engine OperationandMaintenanceManual
MaintenanceIntervalSchedule
i07430446
SMCS-1000;1400;3030;4450;4469;4480;4490;4491;5612;6282-041;6319;6320;6345; 6346;6461;6700-041-KH;6700-041;6700;6901;7000;7007;7220;7312;7327;7490;7500; 7519;7615;7730
Ensurethatallsafetyinformation,warnings,andinstructionsarereadandunderstoodbeforeany operationoranymaintenanceproceduresareperformed.
Theuserisresponsiblefortheperformanceofmaintenance.Alladjustmentsandthereplacement ofcomponentsduetonormalwearandagingareincluded.Failuretoadheretoproper maintenanceintervalsandproceduresmayresultindiminishedperformanceoftheproductand/or acceleratedwearofcomponents.
Usemileage,fuelconsumption,servicehours,orcalendartime,WHICHEVEROCCURSFIRST, inordertodeterminethemaintenanceintervals.Productsthatoperateinsevereoperating conditionsmayrequiremorefrequentmaintenance.Refertothemaintenanceprocedureforany otherexceptionsthatmaychangethemaintenanceintervals.
WhenRequired
Product:COMPACTTRACKLOADER
Model:299DCOMPACTTRACKLOADERGTC
Configuration:299DCompactTrackLoaderGTC00001-UP(MACHINE)POWEREDBYC3.8Engine
OperationandMaintenanceManual
SidePlateSkidPlate-Inspect/Replace
SMCS-6820
Personalinjuryordeathcanresultfromthebladefalling. Blockthebladebeforechangingbladetips.

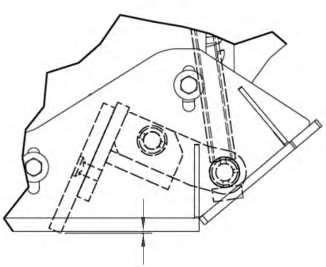

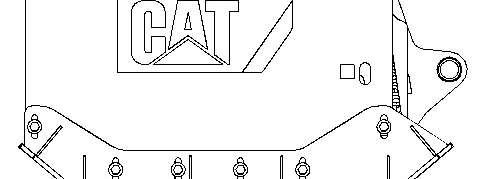

Illustration1g06310200
1.Raiseliftarmstoaheightthatwillrelievepressureonthesidepanelskidplates.Blocking shouldbeplacedundertheframeandmoldboardsectionstopreventunexpectedmovement.
2.Removenutsfromskidplate.
3.Removeskidplate.
4.Installnewskidplate.
Illustration2g06315254
(A)Heightofthesteeledgeis8mm(0.3inch) (A)Heightoftherubberedgeis16mm(0.6inch)
5.Raisethesnowpushandremovetheblocking.
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedJan2512:06:17UTC+05302023
Product:COMPACTTRACKLOADER
Model:299DCOMPACTTRACKLOADERGTC
Configuration:299DCompactTrackLoaderGTC00001-UP(MACHINE)POWEREDBYC3.8Engine
OperationandMaintenanceManual
Springs-Inspect/Replace
SMCS-6262 Illustration1g06310201

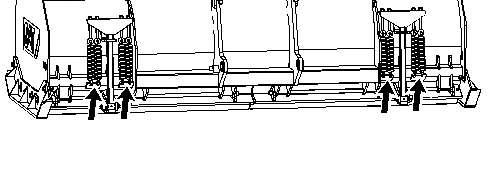

Springlocationsofsnowpush
Typicalexample
Illustration2g06310202

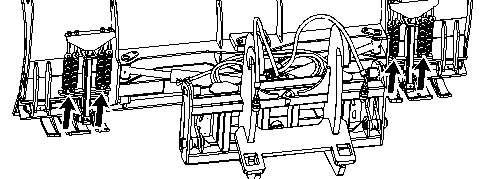

Springlocationsofsnowplow
Typicalexample

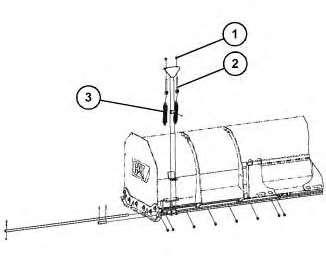

Illustration3g06315287
Explodedviewofcuttingedgegroup
Typicalexample
1.Removelocknut(1)fromtherod(2).
2.Removespring(3).
3.Installnewspring.
4.Installlocknut(1)ontherod(2).
5.Stretchthenewreplacedspringto25mm(1.0inch)equallyonallsprings.
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedJan2512:06:43UTC+05302023
Product:COMPACTTRACKLOADER
Model:299DCOMPACTTRACKLOADERGTC
Configuration:299DCompactTrackLoaderGTC00001-UP(MACHINE)POWEREDBYC3.8Engine
OperationandMaintenanceManual
LiftingandTyingDowntheMachine
SMCS-7000;7500
NOTICE
Donotusetheliftingeyesontheworktoolinordertoliftthehost machine.Damagetotheworktoolandhostmachinemayresult.
NOTICE
Improperliftingortiedownscanallowloadtoshiftandcauseinjuryor damage.
i07369038
Reference:RefertoOperationandMaintenanceManual,"Specifications"forthedimensionsand weightoftheworktool.
Illustration1g06309856
TypicalexampleofSnowPush

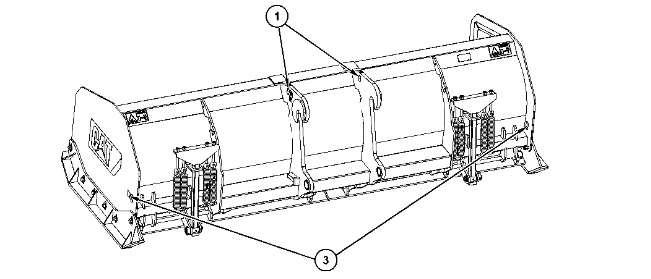

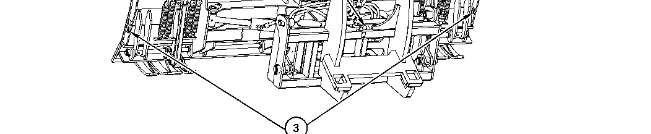

Illustration2g06309859
TypicalexampleofSnowPlow
Useproperlyratedcablesorslingsinordertolifttheworktoolorsecuretheworktool.
LiftingandTieDownPoint(1)-In ordertoliftthesnowpushandsnow plow,attachtheliftingdevicetothe frontliftingpointsthatarelocatedon eachsideofthesnowpushandsnow plow.Inordertotiedownthesnow pushorplow,attachthetie-downsto thefronttie-downpointsthatare locatedoneachsideofthesnowpush andsnowplow.
LiftingPoint(2)-Inordertoliftthe snowpushandsnowplow,attachthe liftingdevicetotherearliftingpoint thatislocatedoncenterandrearofthe snowpushandsnowplow.
TieDownPoint(3)-Inordertotie downthesnowpushandsnowplow, attachthetie-downstothereartiedownpointsthatarelocatedoneach sideofthesnowpushandsnowplow.
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedJan2512:04:46UTC+05302023
Product:COMPACTTRACKLOADER
Model:299DCOMPACTTRACKLOADERGTC
Configuration:299DCompactTrackLoaderGTC00001-UP(MACHINE)POWEREDBYC3.8Engine
PlateLocationsandFilmLocations
SMCS-1000;3030;4450;6000;6319;6320;6461;6700;7000;7405;7557
SnowPush

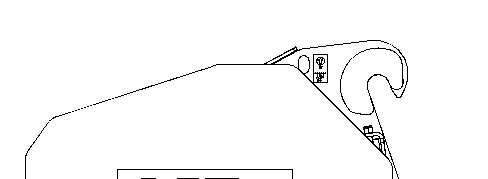

Theproductidentificationplate(1)islocatedonthetoprailofthebackframe.
Forquickreference,recordtheidentificationnumbersinthespacesthatareprovidedin Illustration2.

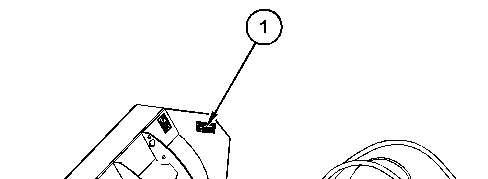

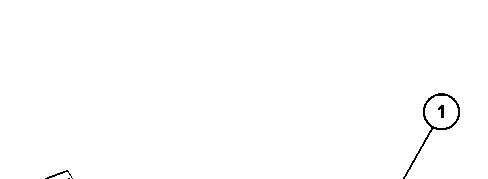

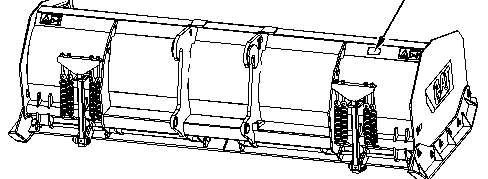

Illustration3g06310204
Typicalexample
Theproductidentificationplate(1)islocatedonthetoprailofthebackframe.

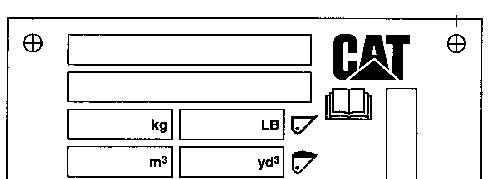

Illustration4g06310199

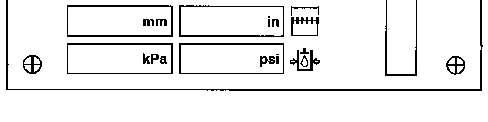

SerialnumberplateandCEmark
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedJan2512:03:57UTC+05302023
Product: COMPACT TRACK LOADER
Model: 299D COMPACT TRACK LOADER GTC
Configuration: 299D Compact Track Loader GTC00001-UP (MACHINE) POWERED BY C3.8 Engine
OperationandMaintenanceManual SnowPushandPlowsWorkToolSupplement MediaNumber-M0090409-00
PublicationDate-01/06/2018
DateUpdated-21/06/2018
i07430264
Specifications
SMCS-1000;3030;4480;5070;6319;6320;6461;6700-KH;6700;7000;7426;7451;7490;7541;7605;7615
StraightPush
Specifications
2.4m (7.87ft)SSL4798115
3.0m (9.84ft)SSL4798086
3.6m (11.81ft)SSL4798089 3658mm (144.0inch)
2.4m (7.87ft)SSL4798120
(1347lb)
(1082lb)
3.0m (9.84ft)SSL4798096 3048mm (120.0inch) 545kg (1202lb)
(4.7inch)
(45.0inch)1Steel
3.6m (11.81ft)
8099
(144.0inch)
(45.0inch)
Table2
BHLandCWLStraightSnowPushes
StraightPushInterfacePartNumberWorkingwidthWeightTripedge
3.0m (9.84ft)IT4798087
3.6m (11.81ft)IT4798091
3.0m (9.84ft)
3.6m (11.81ft)
(144.0inch)
8088
Receiver 4798092
Table3
SWLStraightSnowPushes StraightPushInterfacePartNumberWorking
3.6m (11.81ft)
4.2m (13.78ft)
4.9m (16.08ft)
(4.7inch) 1128mm (44.4inch) 1572mm (62.0inch)2Steel
3.6m (11.81ft) Bucket Receiver 4779892 3658mm (144.0inch) 1264kg (2787lb) 119mm (4.7inch)
4.2m (13.78ft)
4.9m (16.08ft)
(42.8inch)
(76.6inch)2Steel
Bucket Receiver 4779894 4267mm (168.0inch) 1375kg (3031lb) 119mm (4.7inch) 1086mm (42.8inch) 1945mm (76.6inch)2Steel
Bucket Receiver 4779898 4877mm (192.0inch) 1486kg (3276lb) 119mm (4.7inch)
Compatibility
(42.8inch)
Table4
PartNumberStraightPushMachineCompatibility
(76.6inch)2Steel
479-81152.4m(7.87ft)-Rubber226D-299D2-XHP,903C,906-908H2,906-908M 479-80863.0m(9.84ft)-Rubber226D-299D2-XHP,903C,906-908H2,906-908M 479-80893.6m(11.81ft)-Rubber226D-299D2-XHP,903C,906-908H2,906-908M 479-81202.4m(7.87ft)226D-299D2-XHP,903C,906-908H2,906-908M 479-80963.0m(9.84ft)226D-299D2-XHP,903C,906-908H2,906-908M 479-80993.6m(11.81ft)226D-299D2-XHP,903C,906-908H2,906-908M 479-80873.0m(9.84ft)415F2-430F2,910K-914K 479-80913.6m(11.81ft)415F2-430F2,910K-914K 479-80883.0m(9.84ft)415F2-430F2,910K-914K 479-80923.6m(11.81ft)415F2-430F2,910K-914K
477-98913.6m(11.81ft)924K-938K,926M-938M
477-98934.2m(13.78ft)924K-938K,926M-938M
477-98974.9m(16.08ft)924K-938K,926M-938M 477-98923.6m(11.81ft)924K-938K,926M-938M 477-98944.2m(13.78ft)924K-938K,926M-938M 477-98984.9m(16.08ft)924K-938K,926M-938M
StraightPushWithoutTrip
Specifications
Table5
SSLandCWLStraightpusheswithouttrip StraightPushInterfacePartNumberWorkingwidthWeightOverall
2.4m (7.87ft)SSL509-37052438mm (96.0inch)
(778lb)
3.0m (9.84ft)SSL509-37063048mm (120.0inch) 393kg (866lb)
3.6m (11.81ft)SSL509-37073658mm (144.0inch)
Compatibility
(35.3inch)
(952lb)
(35.3inch)
(45.0inch)Rubber
(45.0inch)Rubber
(45.0inch)Rubber
Table6
PartNumberStraightPushMachineCompatibility
509-37052.4m(7.87ft)216B3-299D2-XHP,903C/903C2,906-908K,906-908M
509-37063.0m(9.84ft)216B3-299D2-XHP,903C/903C2,906-908K,906-908M
509-37073.6m(11.81ft)216B3-299D2-XHP,903C/903C2,906-908K,906-908M
SnowPlow
Specifications
SSL,Fusion-SWLandIT-CWLSnowPlow
1.8m (5.91ft)SSL1829mm (72.0inch)
2.1m (6.89ft)SSL2134mm (84.0inch)
2.4m (7.87ft)SSL2438mm (96.0inch)
2.7m (8.86ft)SSL2743mm (108.0inch)
3.0m (9.84ft)SSL3048mm (120.0inch)
2.7m (8.86ft)IT-BHL2743mm (108.0inch)
3.0m (9.84ft)IT-BHL3048mm (120.0inch)
3.6m (11.81ft)IT-BHL3658mm (144.0inch)
3.0m (9.84ft) FusionSWL
3.6m (11.81ft) FusionSWL
4.2m (13.78ft) FusionSWL
Compatibility
(120.0inch)
(144.0inch)
(168.0inch)
(59.0inch)8
(69.0inch)
(79.0inch)
(88.5inch)
(98.3inch)
(88.5inch)
(98.3inch)
(118.0inch)
(98.3inch)
(118.0inch)
(138.0inch)
Table8
(31.5inch)
(31.5inch)
(31.5inch)
(31.5inch)
(31.5inch)
(31.5inch)
(31.5inch)
(31.5inch)
(42.0inch)
(42.0inch)
(992lb)
(1052lb)
(1107lb)
(1162lb)
(1217lb)
(1885lb)
(1989lb)
(2180lb)
(1989lb)
(2180lb)
(3633.2lb)
(6.0inch)1
(6.0inch)1
(6.0inch)1
(6.0inch)1
(6.0inch)1
(9.0inch)2
(9.0inch)2
(9.0inch)2
(9.0inch)2
(9.0inch)2
(9.0inch)2
PartNumberSnowPlowMachineCompatibility
481-36661.8m(5.91ft)226D-299D2-XHP,903C,906-908H2,906K-908K,906-908M
481-36672.1m(6.89ft)226D-299D2-XHP,903C,906-908H2,906K-908K,906-908M 481-36682.4m(7.87ft)226D-299D2-XHP,903C,906-908H2,906K-908K,906-908M 481-36692.7m(8.86ft)226D-299D2-XHP,903C,906-908H2,906K-908K,906-908M 481-36703.0m(9.84ft)226D-299D2-XHP,903C,906-908H2,906K-908K,906-908M
481-36712.7m(8.86ft)
481-36723.0m(9.84ft)
481-36733.6m(11.81ft)
415F2-430F2
415F2-430F2
415F2-430F2
479-80983.0m(9.84ft)924K/930K/938K,926M/930M/938M 479-81083.6m(11.81ft)924K/930K/938K,926M/930M/938M 479-81184.2m(13.78ft)924K/930K/938K,926M/930M/938M
Copyright 1993 - 2023 Caterpillar Inc.
Product:COMPACTTRACKLOADER
Model:299DCOMPACTTRACKLOADERGTC
Configuration:299DCompactTrackLoaderGTC00001-UP(MACHINE)POWEREDBYC3.8Engine
OperationandMaintenanceManual
CaterpillarApprovedWorkTools
SMCS-6700;7007
Table1
SWL
Partnumber Description
4779891SNOWPUSH3657.6mm(12ft)FUSION
4779892SNOWPUSH3657.6mm(12ft)BKTREC
4779893SNOWPUSH4267.2mm(14ft)FUSION
4779894SNOWPUSH4267.2mm(14ft)BKTREC
4779897SNOWPUSH4876.8mm(16ft)FUSION
4779898SNOWPUSH4876.8mm(16ft)BKTREC
5088310SNOWPUSH3657.6mm(12ft)FUS,R.TRIP
5088315SNOWPUSH4267.2mm(14ft)FUS,R.TRIP
5088320SNOWPUSH4876.8mm(16ft)FUS,R.TRIP
5088325SNOWPUSH3657.6mm(12ft)REC,R.TRIP
5088330SNOWPUSH4267.2mm(14ft)REC,R.TRIP
5088335SNOWPUSH4876.8mm(16ft)REC,R.TRIP
4798118SNOWPLOW4267.2mm(14ft)SWL
4798098SNOWPLOW3048.0mm(10ft)SWL
4798108SNOWPLOW3657.6mm(12ft)SWL
Table2
i07286693
SSL
Partnumber Description
4798086SNOWPUSH3048.0mm(10ft)SSL,RUBBER
4798089SNOWPUSH3657.6mm(12ft)SSL,RUBBER
4798096SNOWPUSH3048.0mm(10ft)SSL,STEEL
4798099SNOWPUSH3657.6mm(12ft)SSL,STEEL
4798115SNOWPUSH2438.4mm(8ft)SSL,RUBBER
4798120SNOWPUSH2438.4mm(8ft)SSL,STEEL
5093705SNOWPUSH2438.4mm(8ft)RUB.NOTRIP
5093706SNOWPUSH3048.0mm(10ft)RUB.NOTRIP
5093707SNOWPUSH3657.6mm(12ft)RUB.NOTRIP
4813666SNOWPLOW1828.8mm(6ft)SSL
4813667SNOWPLOW2133.6mm(7ft)SSL
4813668SNOWPLOW2438.4mm(8ft)SSL
4813669SNOWPLOW2743.2mm(9ft)SSL
4813670SNOWPLOW3048.0mm(10ft)SSL
4813675BACKDRAG2438.4mm(8ft)RUBBER
4813676BACKDRAG3048.0mm(10ft)RUBBER
4813679BACKDRAG3657.6mm(12ft)RUBBER
4813680BACKDRAG2438.4mm(8ft)STEEL
4813686BACKDRAG3048.0mm(10ft)STEEL
4813689EDGE,BACKDRAG3657.6mm(12ft)
Table3
BHL
Partnumber Description
4798087SNOWPUSH3048.0mm(10ft)IT
4798088SNOWPUSH3048.0mm(10ft)BKTREC
4798091SNOWPUSH3657.6mm(12ft)IT
4798092SNOWPUSH3657.6mm(12ft)BKTREC
5088290SNOWPUSH3048.0mm(10ft)IT,R.TRIP
5088295SNOWPUSH3657.6mm(12ft)IT,R.TRIP
5088300SNOWPUSH3048.0mm(10ft)REC,R.TRIP
5088305SNOWPUSH3657.6mm(12ft)REC,R.TRIP
4813671SNOWPLOW2743.2mm(9ft)BHL
4813672SNOWPLOW3048.0mm(10ft)BHL
4813673SNOWPLOW3657.6mm(12ft)BHL
Table4 CWL
Partnumber Description
4813661SNOWPLOW2743.2mm(9ft)CWL
4813662SNOWPLOW3048.0mm(10ft)CWL
4813663SNOWPLOW3657.6mm(12ft)CWL
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
WedJan2512:07:26UTC+05302023
This is the sample of the manual if you need complete manual Click Here to download
