287B MULTI TERRAIN LOADER
Product: MULTI TERRAIN LOADER
Model: 287B MULTI TERRAIN LOADER ZSA
Configuration: 267B 277B 287B Multi Terrain Loader ZSA00001-UP (MACHINE) POWERED BY 3044C Engine
Disassembly and Assembly
267B, 277B and 287B Multi Terrain Loaders Engine Supplement
Media Number -RENR4883-01
Publication Date -01/11/2009
Air Cleaner - Remove and Install
SMCS - 1051-010
Removal Procedure
Date Updated -17/11/2009
i02049815
1. Tilt the radiator. Refer to Operation and Maintenance Manual, "Radiator Tilting".
1 g01038364
Illustration

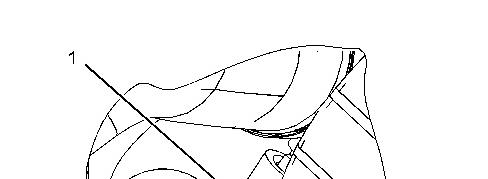

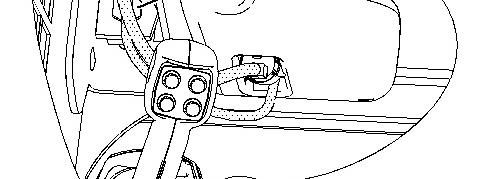

2. Disconnect harnessassembly (1) .

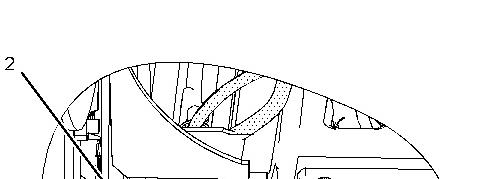

Illustration 2 g01038365

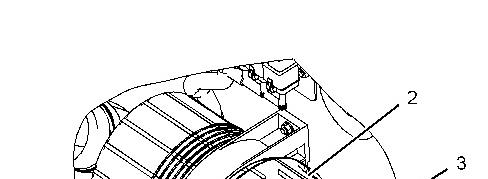

3. Release clamps (2). Remove cover (3) for the air cleaner.
This is the sample of the manual click on the download link for complete manual
DOWNLOAD LINK
For some reason if link does not work download this pdf and then click

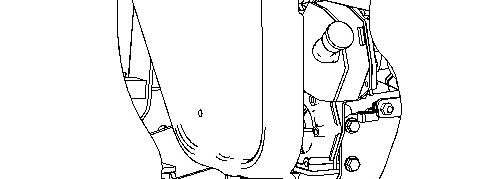

Illustration 3 g01038368
Illustration 4 g01038369

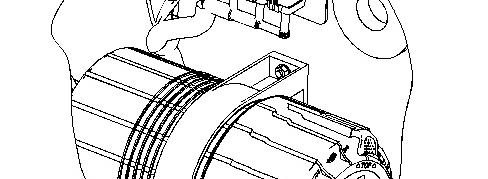

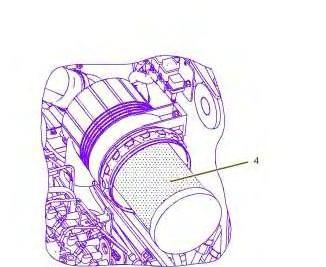

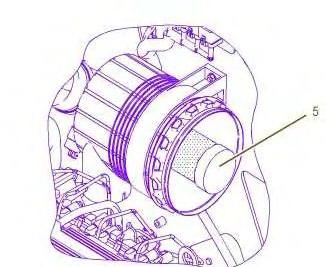

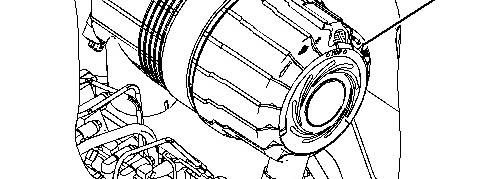

4. Remove primary air cleaner (4) and secondary air cleaner (5) .

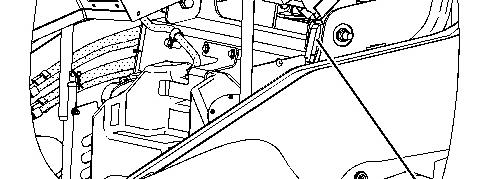

Illustration 5 g01038372

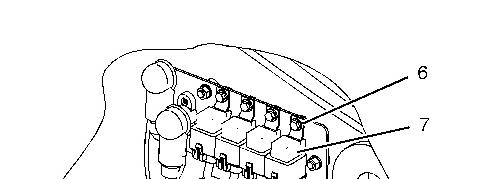

5. Remove bolt (6) and move fuse (7) out of the way.
Illustration 6
g01038385

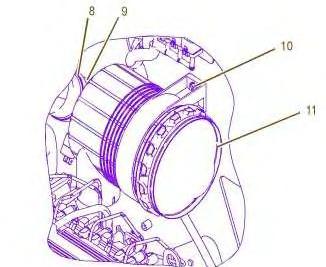

6. Loosen clamp (8) and disconnect hose (9). Remove bolts (10) and remove air cleaner housing (11) .
Installation Procedure
Illustration 7
g01038385
1. Install air cleaner housing (11) and install bolts (10). Connect hose (9) and tighten clamp (8) .
Illustration 8 g01038372
2. Move fuse (7) into position and install bolt (6) .
Illustration 9 g01038369
Illustration 10 g01038368
3. Install secondary air cleaner (5) and install primary air cleaner (4) .
Illustration 11 g01038365
4. Install cover (3) for the air cleaner. Secure clamps (2) .
Illustration 12 g01038364
5. Connect harness assembly (1) .
6. Tilt the radiator back to the original position. Refer to Operation and Maintenance Manual, "Radiator Tilting".
Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Sat Jul 11 10:52:40 UTC+0530 2020
Product: MULTI TERRAIN LOADER
Model: 287B MULTI TERRAIN LOADER ZSA
Configuration: 267B 277B 287B Multi Terrain Loader ZSA00001-UP (MACHINE) POWERED BY 3044C Engine
Disassembly and Assembly
267B, 277B and 287B Multi Terrain Loaders Engine Supplement
Media Number -RENR4883-01
Publication Date -01/11/2009
Alternator - Remove and Install
SMCS - 1405-010
Removal Procedure
Start By:
Date Updated -17/11/2009
i02045531
A. Disconnect the battery. Refer to Disassembly and Assembly, "Battery and Battery Cable - Separate and Connect".
Note: The muffler has been removed for clarity.

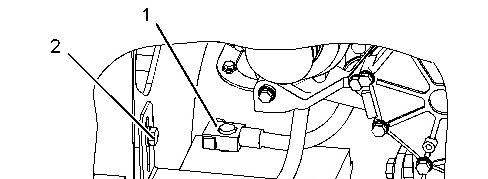

Illustration 1 g01050334

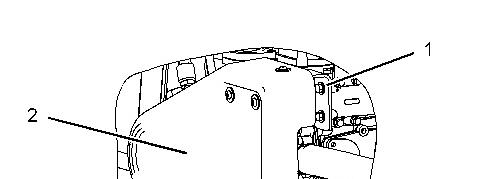

1. Remove bolts (1) and remove cover (2) .
Illustration 2 g01038433

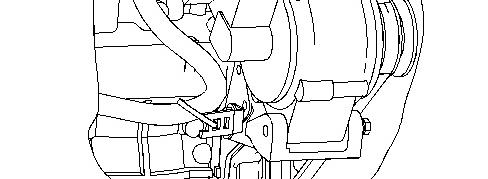

2. Disconnect harnessassembly (3). Raise the boot and disconnect harnessassembly (4) .

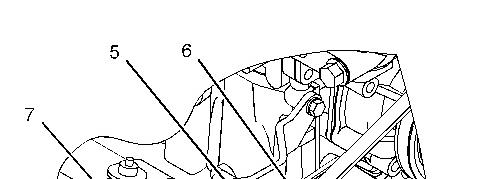

Illustration 3 g01038438
Installation Procedure

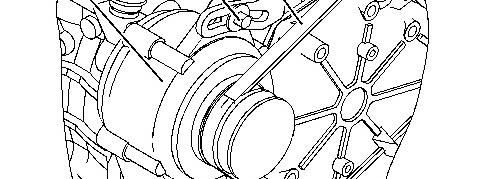

3. Loosen bolts (5) and (8). Remove belt (6) and remove alternator (7) .
Illustration 4 g01038438
1. Install alternator (7). Install belt (6). Refer to Operation and Maintenance Manual, "BeltInspect/Adjust/Replace" for more information. Tighten bolts(5) and (8) .
Illustration 5 g01038433
2. Connect harness assembly (3). Raise the boot and connect harnessassembly (4) .
3. Install cover (2) and install bolts (1) .
End By: Connect the battery. Refer to Disassembly and Assembly, "Battery and Battery Cable - Separate and Connect".
Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Sat Jul 11 10:50:23 UTC+0530 2020
Product: MULTI TERRAIN LOADER
Model: 287B MULTI TERRAIN LOADER ZSA
Configuration: 267B 277B 287B Multi Terrain Loader ZSA00001-UP (MACHINE) POWERED BY 3044C Engine
Disassembly and Assembly
267B, 277B and 287B Multi Terrain Loaders Engine Supplement
Media Number -RENR4883-01
Publication Date -01/11/2009
Battery and Battery Cable - Separate and Connect
SMCS - 1401-029-KA
Removal Procedure
1. disconnect negative battery cable (4) .
2. Disconnect positive battery cable (1) .
Date Updated -17/11/2009
i02045347
Illustration 1 g01041274
3. Remove battery (5) and remove clamp (3). Remove bolts (2) and (6) .
Installation Procedure
Illustration 2 g01041274
1. Install battery (5) and install clamp (3). Install bolts (2) and (6) .
2. Connect positive battery cable (1) .
3. Connect negative battery cable (4) .
Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Sat Jul 11 10:50:10 UTC+0530 2020
Product: MULTI TERRAIN LOADER
Model: 287B MULTI TERRAIN LOADER ZSA
Configuration: 267B 277B 287B Multi Terrain Loader ZSA00001-UP (MACHINE) POWERED BY 3044C Engine
Disassembly and Assembly
267B, 277B and 287B Multi Terrain Loaders Engine Supplement Media Number -RENR4883-01 Publication Date -01/11/2009 Date Updated -17/11/2009
i02046831
Cab - Tilt
SMCS - 7301-084
Procedure to Tilt the Cab
Start By:
A. Release the hydraulic system pressure. Refer to Disassembly and Assembly, "Hydraulic System Pressure - Release".
Do not go beneath cab unlesscab isempty and support lever is engaged.
Failure to follow the instructionsor heed the warnings could result in injury or death.
Note: Empty the water tank (if equipped) before you tilt the cab.
Illustration 1 g01049069
Note: Bolt (1) will be retained in the cab.

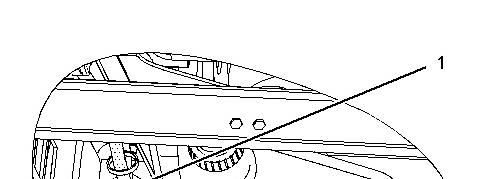

1. Loosen bolt (1) .
Illustration 2 g01049070
2. Remove nut (2) and large washer (3) from the inside of the cab.
3. Repeat Steps 1 and 2 on the opposite side of the cab.
3 g01049074
Illustration

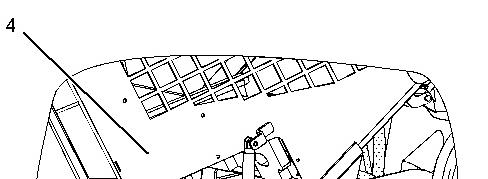

4. Raise cab (4) .

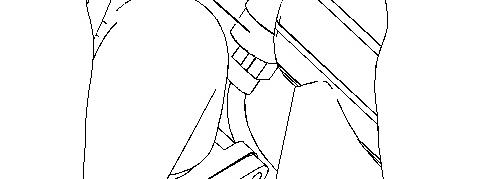

Illustration 4 g00563598

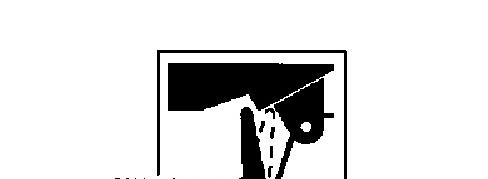

5. Engage cab support lever (5) .
Lower Procedure
Illustration 5 g01049074
Illustration 6 g00563674
1. Tilt the cab upward.

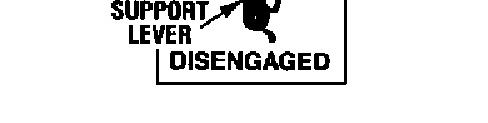

2. Disengage cab support lever (5) .
3. Lower cab (4) .
7 g01049069
Illustration
4. Align bolt (1) .
