i04790222
AirConditioner/CabHeaterFilter(Recirculation)Inspect/Replace
SMCS-1054-510-A/C;1054-040-A/C
NOTICE
Anairrecirculationfilterelementpluggedwithdustwillresultin decreasedperformanceandservicelifetotheairconditionerorcab heater.
Topreventdecreasedperformance,cleanthefilterelement,as required.

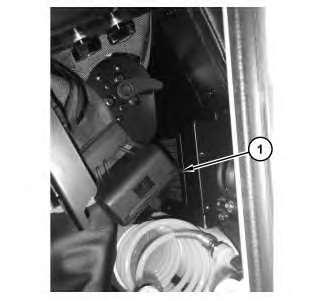

Illustration2g02906760
Theairconditionerfilterislocatedbehindtheseatofthecab.
1.Slidetheoperatorseatforward.
2.Loosentworetainingknobs(1)onfilter.
3.Removefilterguard
4.Removefilter.
5.Taptheairfilterinordertoremovethedirt.Donotusecompressedairtocleanthefilter.
6.Afteryoucleanthefilterelement,inspectthefilterelement.Ifthefilterelementisdamaged orbadlycontaminated,useanewfilterelement.Makesurethatthefilterelementisdry.
7.Installthefilterelement.
8.Replacefilterguard
9.Tightenfilterguardretainingknobs
10.Readjustseattodesiredposition.
NOTICE
Failuretoreinstallthefilterelementfortheairconditioningsystem willcontaminateanddamagethesystemcomponents.
Product:SITEPREPTRACTOR
Model:2864CSITEPREPTRACTORSP4
Configuration:2864CSITEPREPTRACTORSP400001-UP(MACHINE)POWEREDBYC9Engine
OperationandMaintenanceManual
2864CSitePrepTractor
MediaNumber-SEBU9024-04PublicationDate-01/11/2017DateUpdated-17/11/2017
ARDSparkPlug-Clean
SMCS-1555-070
NOTICE
IftheengineisrunningorthekeyisintheONposition,theARDplug willcontinuetofire.TurnthekeytotheOFFpositionbeforeservicing theARDplug.

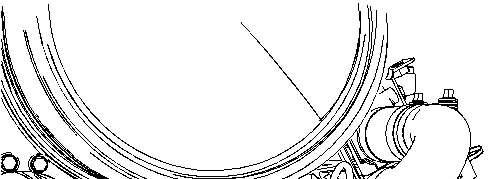

Illustration1g02140195
1.Removethewireharnessfromthesparkplug.
2.Useadeepwellsocketandabreakerbartoloosenthesparkplug.Ifnecessary,consultyour Caterpillardealerforthepartnumberofthesocket.Afterthesparkplughasbeenloosened, usethesockettoremovethesparkplugbyhandinordertodetectproblemswiththe threads.
3.Afterremovingsparkplug,cleanthegroundprobeinsidetheARDcombustionheadby runninga305-2389PlugBoreBrushthroughtheholeintheARDcombustionhead.Run thebrushthroughtheholeseveraltimes.
4.Carefullycleanthesparkplugusinganonmetalliccleaningpad.Iftheprobeappearstobe bent,replacethesparkplug.Otherwise,installtheoriginalsparkplug.Refertothe Specificationsmanualforthecorrecttorquevalue.
Note:Thesparkplugmaybedamagedifthesparkplugisdropped.Donotinstallaspark plugthathasbeendropped.
NOTICE
Donotovertightenthesparkplug.Theshellcanbecrackedandthe gasketcanbedeformed.Themetalcandeformandthegasketcanbe damaged.Theshellcanbestretched.Thiswillloosenthesealthatis
betweentheshellandtheinsulator,allowingcombustionpressureto blowpasttheseal.Seriousdamagetotheenginecanoccur.
Usethepropertorque.
5.InstallthesparkplugbyhanduntilthesparkplugcontactstheARD.Torquethesparkplug totheproperspecification.
6.Connectthewiringharness.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
FriJul1116:47:12UTC+05302025
Product:SITEPREPTRACTOR
Model:2864CSITEPREPTRACTORSP4
Configuration:2864CSITEPREPTRACTORSP400001-UP(MACHINE)POWEREDBYC9Engine
OperationandMaintenanceManual
2864CSitePrepTractor MediaNumber-SEBU9024-04PublicationDate-01/11/2017DateUpdated-17/11/2017
ArticulationBearings-Lubricate

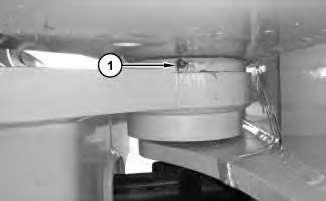

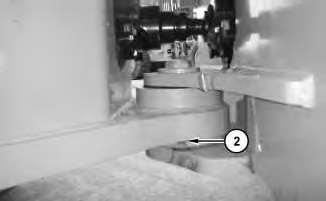

2.Applylubricantthroughonefittingontheupperhitch(1)andthroughonefittingonthe lowerhitch(2).
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
FriJul1116:47:27UTC+05302025
Product:SITEPREPTRACTOR
Model:2864CSITEPREPTRACTORSP4
Configuration:2864CSITEPREPTRACTORSP400001-UP(MACHINE)POWEREDBYC9Engine
OperationandMaintenanceManual
2864CSitePrepTractor
MediaNumber-SEBU9024-04PublicationDate-01/11/2017DateUpdated-17/11/2017
AxleOscillationBearings-Lubricate
SMCS-3278-086-BD
CrushingHazard.Connectthesteeringframelockbetweenfrontand rearframesbeforeservicingthemachineinthearticulationarea. Disconnectthesteeringframelockandsecureitinthestoredposition beforeresumingoperation.Failuretodosocouldresultinserious injuryordeath.
i05748470
EnsurethatthemachineignitionswitchisintheOFFpositionandthattheparkingbrakeis engagedbeforeenteringthearticulationarea.
RefertoOperationandMaintenanceManual,"SteeringFrameLock" beforeenteringthearticulationjoint.

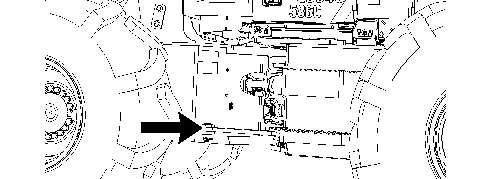

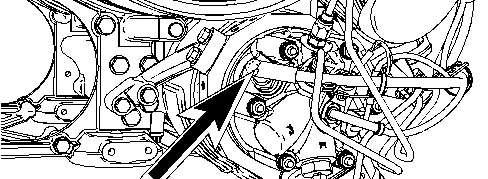

Illustration1g03656244 Theremotegreasefittingsareontheleftsideofthemachineinthearticulationjoint.
Illustration2g03656702 Wipeallfittingsbeforelubricating.
Note:RefertoOperationandMaintenanceManual,"LubricantViscosities"forthepropergrease.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
FriJul1116:47:41UTC+05302025
Product:SITEPREPTRACTOR
Model:2864CSITEPREPTRACTORSP4
Configuration:2864CSITEPREPTRACTORSP400001-UP(MACHINE)POWEREDBYC9Engine
OperationandMaintenanceManual
2864CSitePrepTractor
MediaNumber-SEBU9024-04PublicationDate-01/11/2017DateUpdated-17/11/2017
BackupAlarm-Test-IfEquipped
SMCS-7406-081
Thebackupalarmisontherearofthemachine.
Illustration1g01043892
TurntheenginestartswitchtotheONpositioninordertoperformthetest. Applytheservicebrake.PlacethetransmissionintoREVERSE.
Thebackupalarmshouldsoundimmediately.Thebackupalarmwillcontinuetosounduntilthe transmissionisplacedintoNEUTRALorintoFORWARD.
Copyright1993-2025CaterpillarInc. AllRightsReserved. FriJul1116:47:56UTC+05302025
Product:SITEPREPTRACTOR
Model:²864CSITEPREPTRACTORSP4
Configuration:2864CSITEPREPTRACTORSP400001-UP(MACHINE)POWEREDBYC9Engine
OperationandMaintenanceManual

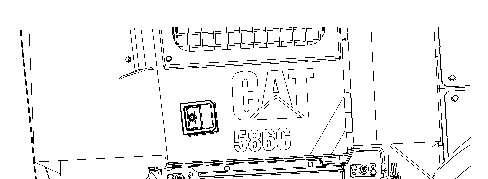

Illustration1g03414266

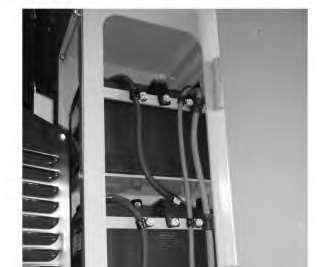

1.Removetwoboltsfromthebatteryaccessdoorthatislocatedontheleft-handsideofthe machine.
2.Cleanthebatteryterminalsandthesurfacesofthebatterieswithacleancloth.Makesure thatthebatterycablesareinstalledsecurely.
3.Carefullyreplacethetwobolts.
Product:SITEPREPTRACTOR
Model:2864CSITEPREPTRACTORSP4
Configuration:2864CSITEPREPTRACTORSP400001-UP(MACHINE)POWEREDBYC9Engine
OperationandMaintenanceManual
2864CSitePrepTractor
MediaNumber-SEBU9024-04PublicationDate-01/11/2017DateUpdated-17/11/2017
Battery-Recycle
SMCS-1401-561
i02039199
Alwaysrecycleabattery.Neverdiscardabattery.Returnusedbatteriestooneofthefollowing locations:
•Abatterysupplier
•Anauthorizedbatterycollectionfacility
•Arecyclingfacility
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
FriJul1116:48:26UTC+05302025
Product:SITEPREPTRACTOR
Model:2864CSITEPREPTRACTORSP4
Configuration:2864CSITEPREPTRACTORSP400001-UP(MACHINE)POWEREDBYC9Engine
OperationandMaintenanceManual
BatteryHold-Down-Tighten
SMCS-7257-527
Illustration1g02662516

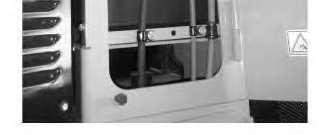

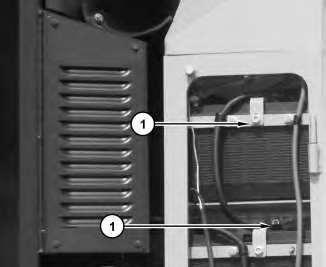

Thebatteriesarelocatedontheleft-handsideofthemachine.Theaccessdoorforthebatteriesis locatedontheleft-handsideofthemachine.
Removethetwoboltsfromthebatteryaccessdoorinordertoaccessthebatterycompartment.

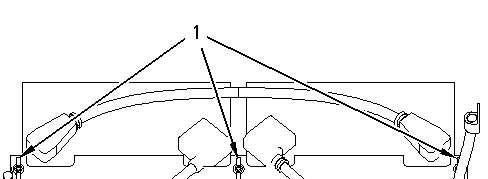

Illustration2g00783781
Overtime,thevibrationofanoperatingmachinecancausethebatteryhold-downtoloosen.To helppreventloosebatteriesandthepossibilityofloosecableconnections,tightenallfastening hardware(1).
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
FriJul1116:48:40UTC+05302025
Product:SITEPREPTRACTOR
Model:2864CSITEPREPTRACTORSP4
Configuration:2864CSITEPREPTRACTORSP400001-UP(MACHINE)POWEREDBYC9Engine
OperationandMaintenanceManual
2864CSitePrepTractor
MediaNumber-SEBU9024-04PublicationDate-01/11/2017DateUpdated-17/11/2017
i03657099
BatteryorBatteryCable-Inspect/Replace
SMCS-1401-510;1402-510
Personalinjurymayoccurfromfailuretoproperlyservicethebatteries.
Batteriesgiveoffflammablefumesthatcanexplode.Electrolyteisan acidandcancausepersonalinjuryifitcontactstheskinoreyes.
Preventsparksnearthebatteries.Sparkscouldcausevaporstoexplode. Donotallowjumpercableendstocontacteachotherortheengine. Improperjumpercableconnectionscancauseanexplosion. Alwayswearprotectiveglasseswhenworkingwithbatteries.
1.TurntheenginestartswitchkeyOFF.TurnalloftheswitchesOFF.
2.TurnthebatterydisconnectswitchOFF.Removethekey.
3.Disconnectthenegativebatterycablefromthedisconnectswitch.
Note:Donotallowthedisconnectedbatterycabletocontactthedisconnectswitch.
4.Disconnectthenegativebatterycableatthebattery.
5.Disconnectthepositivebatterycableatthebattery.
6.Inspectthebatteryterminalsforcorrosion.Inspectthebatterycablesforwearordamage.
7.Makeanynecessaryrepairs.Ifnecessary,replacethebatterycablesorthebattery.
8.Connectthepositivebatterycableatthebattery.
9.Connectthenegativebatterycableatthebattery.
10.Connectthebatterycableatthebatterydisconnectswitch.
11.InstallthekeyandturnthebatterydisconnectswitchON.
RecycletheBattery
Alwaysrecycleabattery.Neverdiscardabattery.
Alwaysreturnusedbatteriestooneofthefollowinglocations:
•Abatterysupplier
•Anauthorizedbatterycollectionfacility
•Recyclingfacility
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
FriJul1116:48:55UTC+05302025
Product:SITEPREPTRACTOR
Model:2864CSITEPREPTRACTORSP4
Configuration:2864CSITEPREPTRACTORSP400001-UP(MACHINE)POWEREDBYC9Engine
OperationandMaintenanceManual
2864CSitePrepTractor
MediaNumber-SEBU9024-04PublicationDate-01/11/2017DateUpdated-17/11/2017
Belts-Inspect/Adjust/Replace
SMCS-1357-040;1357-510;1357-025
SerpentineBelt

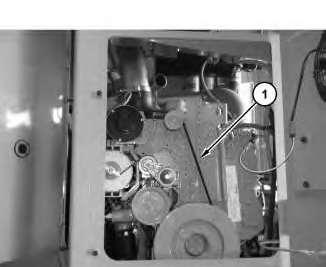

1.Stoptheengine.Opentheengineaccessdoorthatislocatedontheleftrearsideofthe machine.
2.Inspecttheconditionoftheserpentinebelt(1).Ifthebeltiscrackedorfrayed,replacethe belt.
3.CaterpillarC9.3enginesareequippedwithabelttensioner.RefertotheCaterpillarC9.3 EngineOMMformaintenanceprocedures.
This is the sample of the manual if you need complete manual Click Here to download
