Warnings and Compliance
Thank you for purchasing this product, read the manual carefully before operating, and reserve manual for future reference.
Precaution
• Use only in a 12-volt DC negative- ground electrical system.
• Disconnect the vehiclesnegative battery terminal while mounting and connecting the unit.
• When replacing the fuse, be sure to use one with an identical amperage rating.
• Using a fuse with a higher amperage rating may cause serious damage to the unit.
• Make sure that pins or obstacles do not get inside the unit, pins and obstacles may cause malfunctions, or create safety hazards such as electrical shock.
• If you have parked the vehicle for a long time in hot or cold weather, wait until the temperature in the vehicle becomes normal before operating the unit.
Before Operation
Do not raise the volume level too high. Keep the volume at a level at which you can hear outside warning sounds (horns sirens, and so on).
Stop the vehicle before performing any complicated operations.
Caution
Do not open the cover and do not repair. Ask your authorized dealer for help.
Note: According to models with different wiring harness to connect the definition of the specific content, refer to the model label.
Note: Specificationsand the design are subject to change without notice due to improvements in technology.
Operation and Maintenance Manuals(OMM) are currently available at: www.cat.com/radio-ownersmanual
For mobile equipment or equipment that is located in areaswhere direct internet accessisnot available while the product is in use, a paper copy of the OMM must be printed and kept with the product.
For more information or for a paper copy of the OMMcontact your nearest Cat Dealer: www.cat.com/en_US/support/dealer-locator.html
Copyright 1993 - 2020 Caterpillar Inc.
Product: COMPACT TRACK LOADER
Model: 279C COMPACT TRACK LOADER MBT
Configuration: 279C Compact Track Loader MBT00001-UP (MACHINE) POWERED BY 3044C Engine
Operation and Maintenance Manual
Caterpillar Corporate Radio
Media Number -M0085473-03 Publication Date -01/02/2018 Date Updated -14/02/2018
Declaration of Conformity
SMCS - 7606
Table 1
CATERPILLAR®
EU Declaration of Conformity
This Declaration of Conformity is issued under the sole responsibility of the manufacturer.
The undersigned, representing the manufacturer: Caterpillar, Inc.
100 N.E. Adams Peoria, IL 61629
USA
hereby declares that the product, object of this description:
Caterpillar DEA500 model entertainment radios
Brand: Caterpillar
Model: DEA500
Part Numbers: 462-9618, 462-9619, 462-9620, 462-9621, 439-1562, 439-1563, 439-1564
Is in conformity withthe relevant Union harmonization legislation: Directive 2014/53/EU
i07214449
Conformity is shownby compliance with the applicable requirements of the following documents:
Conformity Assessment Procedure: ____Annex II, ___ X ___Annex III, _______Annex IV
2014/53/EU
LVD (Sec 3.1a):
EN 60950-1:2006 + A11:2009 + A12:2011 + AC:2011 + A2:2013
EN 62479:2010
EMC (Sec 3.1b): EN 301 489-1 V2.2.0
EN 301 489-17 V3.2.0
EN 55020:2007+ A11:2011
EN 55032:2015
EN61000–3–2:2006 +A1:2009 + A2:2009
EN 61000–3–3:2008
RF (Sec 3.2) EN 300 328 V2.1.1
Final Draft EN 303 345 V1.1.7
Table 2
Notified Body Name: Dekra Testing and Certification, S.A.U.
Notified Body Number: 1909
Feb 12 13:35:35 UTC+0530 2020
Examination Certificate #: 53627RNB.001 Illustration 1 g06233980 Copyright 1993 - 2020 Caterpillar Inc.
Product: COMPACT TRACK LOADER
Model: 279C COMPACT TRACK LOADER MBT
Configuration: 279C Compact Track Loader MBT00001-UP (MACHINE) POWERED BY 3044C Engine
Operation and Maintenance Manual
Caterpillar Corporate Radio
Media Number -M0085473-03
-01/02/2018
-14/02/2018
i07214447
Regulatory Compliance
SMCS - 7606
FCC Notice
The following notices are provided.
Modification Statement
Caterpillar has not approved any changes or modifications to thisdevice by the user. Any changes or modificationscould void the users authority to operate the equipment.
Interference
This device complieswith Part 15 of the FCC Rules and Industry Canada license - exempt RSS standards. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) thisdevice must accept any interference, including interference that may cause undesired operation of the device.
Radiation Exposure
This device complieswith FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. RF Exposure guidelines can be found in Supplement C to OET65. The device also complies with RSS-102 of the IC radio frequency (RF) Exposure rules. Do not locate the transmitter near an antenna or operating with any other antenna or transmitter.
FCC Class B digital device notice
This equipment hasbeen tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limitsare designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. if the equipment is not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there isno guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on. The user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications to thisdevice without the express approval may void the usersauthority to use this device.
CAN ICES-3 (B) / NMB (B)
This Class B digital apparatuscomplies with Canadian ICES-003.
Simplified EU Declaration of Conformity/RED 2014/53/ EU Directive
This device has been evaluated against the essential requirements of the 2014/53/EU Directive.
Radio Frequency Range
The following Driver Safety System communication device specifications are provided to aid in conducting any related hazard assessment and to ensure compliance with all local regulations:
Table 1
Bluetooth
Frequency Range: 2402–2480 MHz carrier frequencies
Maximum RF output power: +4dBm
Modulations:
Channel Spacing: 1 MHz
Number of channels: 79
Channel bandwidth: 1 MHz for GFSK,
Type of Antenna:
Brand Amotech part number: AL.A321C3 chip antenna/Gain
2.3dbi
Antenna gain: +2.3dBi Max
Note: The DEA 500 radio can operate in Belgium without infringing on applicable requirements on the use of Belgiums radio spectrum.
Table 2 AM
Frequency Range: 531 kHz to 1602 kHz
Maximum RF output power: +/- 6dBi typical
Modulations: Amplitude modulation
Channel Spacing: 9kHz
Type of Antenna: 0.75m typical monopole
Antenna gain: 0dBuV to 130dBuV
Table 3 FM
Frequency Range: 87 MHz to 108 MHz
Maximum RF output power: +/- 6dBi typical
Modulations: Frequency modulation
Channel Spacing: 100 kHz
Type of Antenna: 0.75m typical monopole
Antenna gain: 0dBuV to 130dBuV
Table 4
English Hereby, Caterpillar declaresthat this DEA500 isin compliance with the essential requirements and other relevant provisions of Directive 2014/53/EC.
To satisfy the essential requirements of 2014/53/EC Directive, the product is compliant with the following standards:
Caterpillar declares on our sole responsibility that the following product is in compliance with Directive 2014/53/EU and the essential requirements of Car Radio.
Type Designation:
• DEA500
• HW Rev ASW Rev B Services
• Frequency range and max output power: Bluetooth 2402 - 2480 Mhz 4dBm (2.5 mW) EIRP
• AM 531–1602 kHz
• FM 87.5–108.0 MHz
The conformity assessment per Directive 2014/53/EC has been followed with the involvement of the following Notified Body: DEKRA Testing and Certification no: 1909, S.A.U. Parque Technologico de Andalucla C/Servero Ochoa 2 29590 Campanillas - Malaga SPAIN performed an EU type examination and issued the certificate: 53627NRB.001.
Table 5
3.1 (a): Health and Safety of the User EN60950-1:2006 +A11:2009 + A12:2011 + AC:2011 + A2:2013
3.1 (b): Electromagnetic Compatibility EN301 489-1 V2.2.0, EN 301 489-17 V3.2.0, EN 55020:2007+A11:2011
3.2: Effective use of spectrum allocated EN300 328 V2.1.1, EN 303 345 V1.1.1
There isno restriction for the commercialization of this device in all the countries of the European Union.
Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Wed Feb 12 13:35:20 UTC+0530 2020
Product: COMPACT TRACK LOADER
Model: 279C COMPACT TRACK LOADER MBT
Configuration: 279C Compact Track Loader MBT00001-UP (MACHINE) POWERED BY 3044C Engine
Operation and Maintenance Manual
Caterpillar Corporate Radio
Media Number -M0085473-03 Publication Date -01/02/2018 Date Updated -14/02/2018
Radio - Entertainment If Equipped
SMCS - 7338
i07316460
When driving, always keep your eyes on the road and hands on the steering wheel, paying careful attention to normal driving tasks. As always, the driver is responsible for safe vehicle operation. Not keeping your eyes on the road andhands on the wheel while driving could result in injury to you or others.
Introduction
Information included in this ownersmanual wasaccurate at the time of publication. Caterpillar, however, reserves the right to and performance without prior notice. Check with your dealer for details regarding changesthat may have occurred since time of printing.
The Radio system is controlled by using the buttons, RSA, or steering wheel controls.
Stereo Receivers

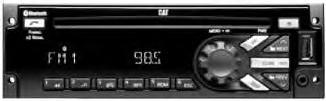

Illustration 1
MP3/USB/iPod/Aux/Bluetooth Receiver
g03566500

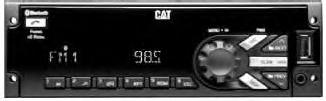

Illustration 2 g03566527
MP3/USB/iPod/Aux/Bluetooth/CDReceiver

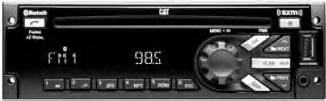

Illustration 3
g03566571
MP3/USB/iPod/Aux/Bluetooth/CD/SAT Receiver

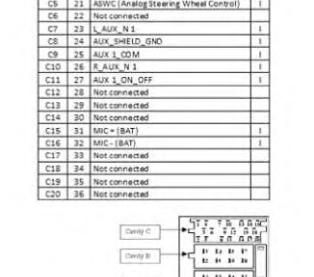

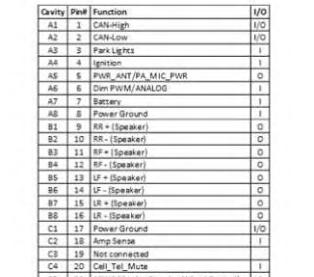

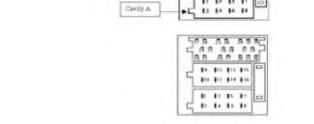

Radio Pin out
Radio pinout is shown below
Illustration 4 g03566584

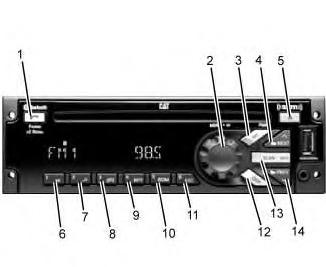

General Radio Receiver Functions
Illustration 5 g03566592
(1) Phone
(2) Knob (3) SRC/PWR (Source/Power) (4) Next (5) Eject (6) Play/Pause (7) Browse (8) Clock/Alarm (9) RPT (Repeat) (10) RDM (Random) (11) ESC (Escape) (12) DISP (Display) (13) SCAN/ASCN (Scan/Autoscan) (14) PREV (Previous)
Options
• An AMband with 6 AMpresets
• Three FM bands with a total of 18 FM presets
• One weather band with six WX presets
SRC/PWR (Source/Power)
Press to switch to FM -> AM-> WX -> SXM -> CD-> USB/iPod ->AUX-> Bluetooth Audio (if equipped) and to turn Radio ON. Press and hold to turn radio OFF.
One Hour Timer
With the ignition off, pressing the SRC/PWR button will turn on the receiver and activate the receivers one-hour timer. The receiver will turn off after 1 hour or by pressing and hold the SRC/PWR button.
VOLUME KNOB/OK
Press for less than 3 secondsto display Audio Control Menu. Pressfor more than 3 seconds to show the user menu. Rotate to increase/decrease volume or during a menu for navigation. Press while in a menu to confirm the selected action.
PREV (Previous/Reverse)
Press to select previous track or station. Press and hold for FR or Tune Down
NEXT (Next/Forward)
Press to select next track or station. Pressand hold for FFor Tune Up
EJECT
Press to eject the CD
Phone (if equipped)
Press the Phone button for more than 3 secondsto show the Bluetooth Menu. When Bluetooth is enabled, pressthe button to display the Dial Menu or to accept an Incoming Call (if a Phone is paired). During a call press the button for more than 3 secondsto transfer the call from the radio to the Phone.
CLOCK/ALARM
Press during Alarm activation to cancel the Alarm.
SCAN/ASCAN
Scansstations/CD tracks/MP3/WMAfiles and folder and in tuner, storesstations to presets
PLAY/PAUSE
Press to pause / un pause current Media.
RPT (Repeat)
Press to repeat current track. Press again to stop repeat. Look for the RPT icon in the radio display to turn this feature ON or OFF.
BROWSE
Press to navigate on the device and select a specific song or play context (Applicable to USB sticks, CDMP3 discsand iPod).
RDM (Random)
Press to play the tracks randomly. Pressagain to stop random mode. Look for the RDM icon to turn on in the radio display.
ESC (ESCAPE)
Press to exit one Menu Level.
If the system is equipped with Bluetooth, press the ESC button during Bluetooth call operation to reject or cancel a call.
DISP (DISPLAY)
If vehicle ignition is ON: Pressto change source display
Press for more than 3 seconds to show the Clock for a short time.
Radio (Audio source)
To accessAM, FM, WX, SXM (if equipped), iPod, USB, Rear Aux, Front Aux, CD, or BT Audio do one of the following:
1. Press the SRC radio button to scroll through the options and select desired option.
2. Press the SRC radio button and then scroll the source menu by knob rotation or NEXT/PREV short presses and then select by short-pressing the knob.
The CD/MP3, USB/iPod, Front AUX, and BT Audio shall be accessed only if the radio model supports those options and a device is connected/inserted for that specific source.
Note, if a device is connected through different sources at the same time, the functionality cannot be guaranteed (Device Dependent). Example: Device connected through Front Aux and Bluetooth or USB and Bluetooth at the same time.
AM-FM-WX Radio
Tuning: Set the desired "Tuner Configuration" following the steps in the Menu section.
If the radio is set to manual, the radio will allowfor execution of the following functions:
• Execute manual tuning when the NEXT or PREVbuttons are short pressed.
• Execute Seek when the NEXT or PREV buttons are long pressed.
If the radio is set to Auto, the radio will allow for execution of the following functions:
• Execute Seek when the NEXT or PREV buttons are short pressed.
• Execute manual tuning when the NEXT or PREVbuttons are long pressed.
Manual tuning
The current frequency will be increased/ decreased by 1 step of 0.2MHz (USA FM mode), 10 kHz (USAAM mode) and one channel (25 kHz) in WX mode.
Seeking a Station
When the Seek function is activated, the radio increments/decrementsthe frequency until a tunable station is found.
If a tunable station is not found, the radio will display "NOSTATION FOUND".
Presets
Storing Radio Station Presets:
1. Tune the desired frequency, and then long press any of the Preset(1-6) buttons until the radio produces a beep.
Tuning Radio Station Presets
1. Short press any of the Preset(1-6) buttons. The frequency stored at the preset location istuned when the button is released.
Scan
To initiate the Scan function, short press the SCAN/ASCN button. When SCAN is initiated, the radio seeksup in frequency and stops on the next strong frequency for 8 seconds before continuing to seek for the next strong station.
If no station isfound in two passesthrough the band, the radio will display “NO STATIONFOUND” and then tune to the starting frequency.
Autoscan
This function temporally stores the strongest 6 stationsof the current band in the presets until the radio is powered off or the source ischanged.
AUTOSCAN does not store the frequencies on the presetson numerical order. Frequencies are stored based on the order they were found and on the quality of the frequency.
To initiate the AUTOSCAN function, long press the SCAN/ASCAN button until the radio performs a beep. Then the "AUTO SCAN" icon will blink while the radio is storing the temporary presets.
When the Autoscan process finishes, the radio will tune to the station stored in Preset 1 and the "AUTO SCAN" icon shall be illuminated while the mode is active.
To tune any of the 6 frequencies or to store newpresets, follow the steps defined in the Presets section.
To exit this mode and return to the original presetsexecute any of the following actions:
1. Press and hold the SCAN/ASCAN button
2. Press the SCR/PWR button.
3. Turn off the radio.
4. Perform an ignition cycle
5. Disconnect the battery.
WX
The WX band is for the Governmental weather radio services frequencies. The radio can tune to the seven weather channels following the steps in Tuning, Presets, and SCANsections.
SXM (If Equipped)
Vehicles with a valid SiriusXM® satellite radio subscription can receive SiriusXM programming. SiriusXM satellite radio has a wide variety of programming and commercial-free music, coast to coast, and in digital-quality sound.
SiriusXM®
SXM Display
When SiriusXM is active, the channel number, channel name, artist name/content info, song title, or category name could be displayed on the screen. SiriusXMmay update the information at any time.
To change the current display view, short press the DISP button.
When a newchannel is selected, a song change occurs, SXM source is selected (from power-up or source change) or the information is updated, all the elements will be displayed using paging. The paging can be stopped by short pressing the DISP button.
Display labels
To recognize the displayed text, the radio uses the following convention :
• Channel Number: CH
• Channel Name: CH
• Artist Name: ART
• Content Info: INFO
• Song Title: SONG
• Category name: CAT
SXM Categories
SiriusXM stationsare organized in categories.
The category list for SXM is in the following webpage: "http://www.siriusxm.com/sxm/pdf/sirius/channelguide.pdf"
To change the current category, long press the NEXT/PREVbutton and the radio will tune the first channel on next or previous category.
Category mode Enable/Disabled
Category Search Mode Enabled means that only channels in the current Category are searched. When enabled, the CATEGORY icon isturned on.
Category Search Mode Disabled meansthat all channelsare searched. When disabled, the CATEGORY icon isturned off.
To enable/disable the category browse mode, follow the steps in the User Menu section
The default after a power-up is Category Disabled.
SXM Channel Selection
Presetsand SCAN functionswork the same as defined in the SCANsubsection of AM-FM-WX Radio.
NEXT button
While in SXM the radio will scroll to the next channel available in numerical order.
PREV button
While in SXM the radio will scroll to the previous channel available in numerical order
Note: If the SXM service is not activated, only the free-to-air channels will be present.
SXM Radio ID
If tuned to channel 0, "RADIO ID" label alternates with the SXMradio eight-digit code. This code is needed to activate the service.
DISP button does not work in channel 0. Channel 0 is not available in category mode enabled.
SXM Messages
SXM BUSY- The audio system is acquiring and/or processing audio and/or text data. No action is needed.
ART UNAVAIL - There is not Artist Name related with the current song.
SONG UNAVAIL - There is not Song Title related with the current song.
CHAN UNAVAIL - There is no Channel Name related with the current channel.
CHECK ANTENNA - SXM antenna or antenna cable is not connected to the radio or the antenna is shorted.
NO SIGNAL - SXM tuner module reports the No Signal condition. Under this condition only Channel 0 will work as stated in this manual.
CHAN UNSUB -Active channel has become unsubscribed or the requested channel isnot unsubscribed.
SUBSCRIPTION UPDATED - PRESS OK TO CONTINUE - The subscription of the radio was updated. To remove the message and return to the previous state pres "OK"(Knob).
CH UNAVAIL - Requested channel is reported unavailable for a newly selected channel or the currently selected channel. Unavailable channels are in the legal channel range but are not currently available for display or subscription as a broadcast service. After 3 seconds the previous channel (if available) or channel 1 will be tuned.
iPod
This radio supports the following iPod models:
• iPod classic (sixth generation)
• iPod nano (6G)
• iPod touch (4G)
• iPhone (3G, 3GS, 4, and 4S)
Other iPodsmay be played, but functionality is not guaranteed.
Radio provides up to 1Aof charge, so any device connected to the USB that requireslessthan 1 A will be charged.
There may be problems with the operation and function in the following situations:
• When, connecting an iPod on which a more recent version of the firmware is installed than is supported by the Radio
• When, connecting an iPod with firmware from other providers is installed
Playing from an iPod
To connect an iPod:
1. Connect one end of the standard iPod USB cable to the iPods dock connector.
2. Connect the other end to the USB port in the front radio display.
1. Radio will start playing the USB and shows the track number, Song, Artist, elapsed time, and Album information when available.
2. iPod music information displays on the radios display and beginsplaying through the vehicles audio system.
3. If the iPod is an unsupported model, it can be listened to in the vehicle by connecting to the auxiliary input jack using a standard 3.5mm (1/8 in) stereo cable.
Expected behavior when iPod is connected:
• The iPod battery rechargesautomatically while the vehicle is on.
• The iPod shuts off and stops charging when the vehicle is shut off.
iPod Menu
Use the following stepsto navigate the iPod Menu:
1. Press the magnifying glass (preset 1) button while USB source (iPod connected) is active to access the iPod Menu.
2. Use the Volume Knob or Next/Prev button to navigate through the different options.
3. Use the iPod Menu to select.
Playlists
Use the following stepsto navigate playlists:
1. Press to viewthe playlists on the iPod.
2. Select a playlist name to view a list of all songsin the playlist.
3. Select the song from the list to begin playback.
Artists
Use the following stepsto navigate artists:
1. Press to viewthe artists on the iPod.
2. Select an artist name to view a list of all albumswith songs by the artist.
3. Select an album.
4. Select the song from the list to begin playback.
Albums
Use the following stepsto navigate albums:
1. Press to viewthe albums on the iPod.
2. Select an album name to view a list of all songs on the album or select All Songs to viewall songs on the iPod.
3. Select the song from the list to begin playback.
Genres
Use the following stepsto navigate genres:
1. Press to viewthe genreson the iPod.
2. Select a genre name to viewa list of artists of that genre.
3. Select an artist to view albumsor All Albums to viewall albums of that genre.
4. Select Artist to view albums.
5. Select Album to view songs.
6. Select the song from the list to begin playback.
Podcasts
Use the following stepsto navigate podcasts:
1. Press to viewthe podcastson the iPod.
2. Select a podcast name to begin playback.
Songs
Use the following stepsto navigate songs:
1. Press to viewa list of all songs on the iPod.
2. Select the song from the list to begin playback.
Composers
Use the following stepsto navigate composers:
1. Press to viewthe composerson the iPod.
2. Select the composer to view a list of songs by that composer.
3. Select a song from the list to begin playback.
Audio Books
Use the following stepsto navigate audio books:
1. Press to viewthe audio bookson the iPod.
2. Select the audio book from the list to begin playback.
When an iPhone or iPod Touch with iOSlower than iOS 5.0 is connected through USB or Bluetooth, the audio may not be heard when the iPod source is selected. To correct thissituation, select either the dock connector in the phone or disconnect and reconnect the Apple device.
Note: iOS is the Apple Operative System.
Use the following controls to play the iPod:
PREV (Previous)- Press to seek to the beginning of the current or previous track.
Note: If the track has been playing for less than 10 seconds, it will seek for the previous track. If longer than 10 seconds, the current track starts from the beginning.
NEXT (Next) - Press to seek to the next track.
FF/FR(Fast Forward/Fast Reverse) - To fast forward or reverse through a track, pressand hold Next or PREVbutton.
RDM (Random) - Pressto play the tracks randomly. Press again to stop shuffle mode. Look for the RDM icon to turn on in the radio display.
RPT (Repeat) - Press to repeat current track. Press again to stop repeat. Look for the RPT icon to turn on in the radio display.
Error Messages- If an "UNSUPPORTED"message is displayed, it could be for one of the following reasons:
• When, the iPod connected isnot supported (look at page Xfor the list of iPodssupported).
• The iPod does not respond to the radio commands, in this case reset the iPod, and try again the connection.
If an "NO MUSIC"message is displayed, it could be for one of the following reasons:
• There are not any playable files in the iPod.
USB
Playing from a USB
A USB massstorage device can be connected to the USB port.
The USB port is in the front of the radio display.
Five volts DC power is limited to1 amp from thisport. Devicessuch asiPad that require greater current will not charge from this port.
USB MP3 Player and USB Drives. The USB MP3 players and USB drive connected must comply with the USB Mass with the USB Mass Storage specification:
• MS-DOS partition only
• Classspecification (ESB MSC) and supports formats of FAT32, FAT16, NTFS, and HFS+.
• Hard disk drives may be played, but are not supported.
• The radio will not be able to play write-protected music.
• MTP players are not supported.
The following guidelines must be met when creating MP3 files, otherwise the filesmight not play:
For MP3 Files:
• Bit rates: 32, 40, 48, 56, 64, 80, 96, 112, 124, 160, 192, 224, 256, 320 kbps for MPEG-1 Audio Layer 3.
• Sampling frequencies: 32, 44.1 and 48 kHz for MPEG-1 Audio Layer 3.
• Maximum number of folders: Eight folders with 255 files per folder.
• Maximum of 1,000 files on a disc.
• M3u and pls playlist versions supported
• Recorded on a CD-R or CD-RW with a maximum capacity of 700 MB.
For Unprotected WMA Files:
• Versions: 1, 2, 7, 8, 9 and 9.1.
• Bit rates: 32 - 320 kbps.
• Sampling frequencies: 32 - 48 kHz.
