Illustration 3 g01038368

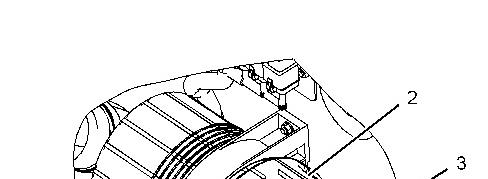

Illustration 4 g01038369

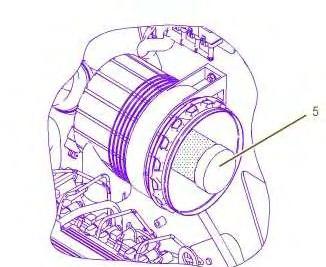

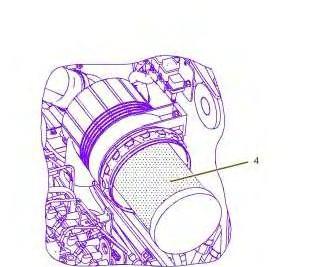

4. Remove primary air cleaner (4) and secondary air cleaner (5) .

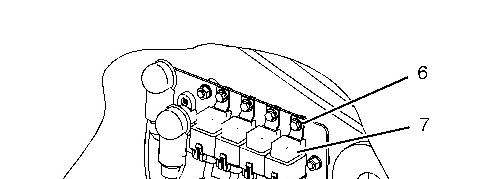

Illustration 5 g01038372

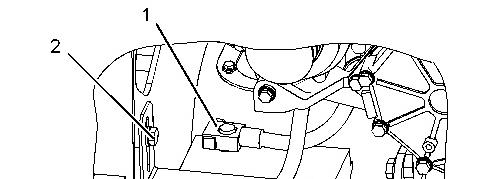

5. Remove bolt (6) and move fuse (7) out of the way.
Illustration 6 g01038385

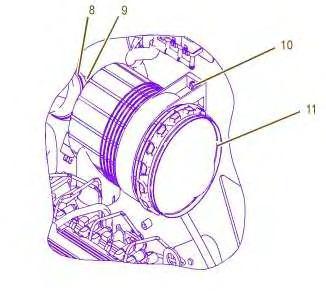

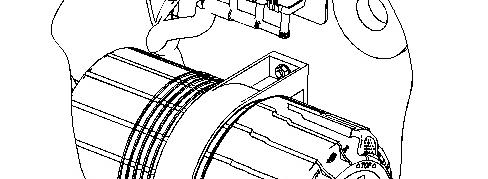

6. Loosen clamp (8) and disconnect hose (9). Remove bolts (10) and remove air cleaner housing (11) .
Installation Procedure
Illustration 7
g01038385
1. Install air cleaner housing (11) and install bolts (10). Connect hose (9) and tighten clamp (8) .
Illustration 8 g01038372
2. Move fuse (7) into position and install bolt (6) .
Illustration 9 g01038369
Illustration 10 g01038368

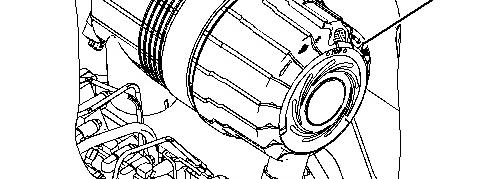

3. Install secondary air cleaner (5) and install primary air cleaner (4) .
Illustration 11 g01038365
4. Install cover (3) for the air cleaner. Secure clamps (2) .
Illustration 12 g01038364
5. Connect harness assembly (1) .
6. Tilt the radiator back to the original position. Refer to Operation and Maintenance Manual, "Radiator Tilting". Copyright 1993 - 2019 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Tue Nov 12 12:41:25 UTC+0530 2019
Product: MULTI TERRAIN LOADER
Model: 277B MULTI TERRAIN LOADER MDH
Configuration: 267B, 277B and 287B Multi Terrain Loader MDH00001-UP (MACHINE) POWERED BY 3044C Engine
Disassembly and Assembly
267B, 277B and 287B Multi Terrain Loaders Engine Supplement
Media Number -RENR4883-01 Publication Date -01/11/2009 Date Updated -17/11/2009
Alternator - Remove and Install
SMCS - 1405-010
Removal Procedure
Start By:
A. Disconnect the battery. Refer to Disassembly and Assembly, "Battery and Battery CableSeparate and Connect".
Note: The muffler has been removed for clarity.
i02045531

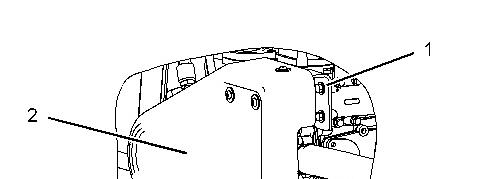

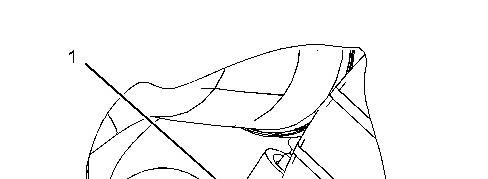

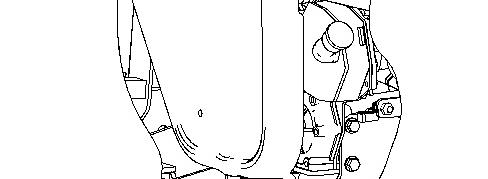

Illustration 1 g01050334
1. Remove bolts (1) and remove cover (2) .

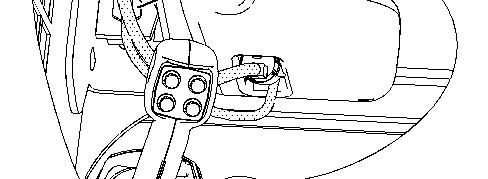

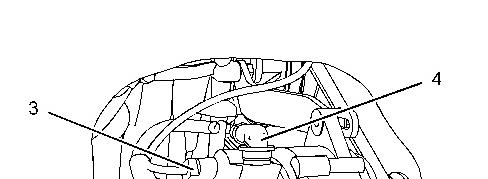

Illustration 2 g01038433

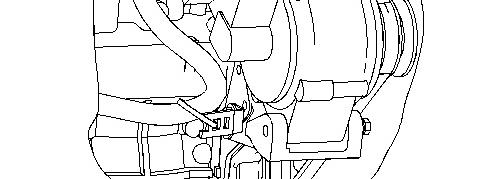

2. Disconnect harnessassembly (3). Raise the boot and disconnect harnessassembly (4) .

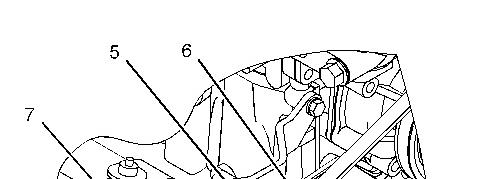

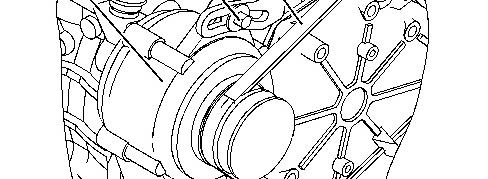

Illustration 3 g01038438
3. Loosen bolts (5) and (8). Remove belt (6) and remove alternator (7) .
Installation Procedure
Illustration 4 g01038438
1. Install alternator (7). Install belt (6). Refer to Operation and Maintenance Manual, "BeltInspect/Adjust/Replace" for more information. Tighten bolts (5) and (8) .
Illustration 5 g01038433
2. Connect harness assembly (3). Raise the boot and connect harnessassembly (4) .
3. Install cover (2) and install bolts (1) .
End By: Connect the battery. Refer to Disassembly and Assembly, "Battery and Battery CableSeparate and Connect".
Copyright 1993 - 2019 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Tue Nov 12 12:38:24 UTC+0530 2019
Product: MULTI TERRAIN LOADER
Model: 277B MULTI TERRAIN LOADER MDH
Configuration: 267B, 277B and 287B Multi Terrain Loader MDH00001-UP (MACHINE) POWERED BY 3044C Engine
Disassembly and Assembly
267B, 277B and 287B Multi Terrain Loaders Engine Supplement
Media Number -RENR4883-01
Publication Date -01/11/2009
Date Updated -17/11/2009
Battery and Battery Cable - Separate and Connect
SMCS - 1401-029-KA
Removal Procedure

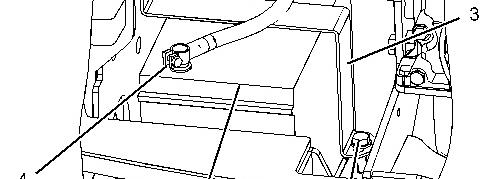

1. disconnect negative battery cable (4) .
2. Disconnect positive battery cable (1) .
i02045347
Illustration 1 g01041274
3. Remove battery (5) and remove clamp (3). Remove bolts (2) and (6) .
Installation Procedure
Illustration 2 g01041274
1. Install battery (5) and install clamp (3). Install bolts (2) and (6) .
2. Connect positive battery cable (1) .
3. Connect negative battery cable (4) . Copyright 1993 - 2019 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Tue Nov 12 12:38:04 UTC+0530 2019
Product: MULTI TERRAIN LOADER
Model: 277B MULTI TERRAIN LOADER MDH
Configuration: 267B, 277B and 287B Multi Terrain Loader MDH00001-UP (MACHINE) POWERED BY 3044C Engine
Disassembly and Assembly
267B, 277B and 287B Multi Terrain Loaders Engine Supplement Media
Cab - Tilt
SMCS - 7301-084
Procedure to Tilt the Cab
Start By:
A. Release the hydraulic system pressure. Refer to Disassembly and Assembly, "Hydraulic System Pressure - Release".
Do not go beneath cab unlesscabisempty and support lever is engaged.
Failure to follow the instructionsor heed the warnings could result in injury or death.
Note: Empty the water tank (if equipped) before you tilt the cab.
i02046831

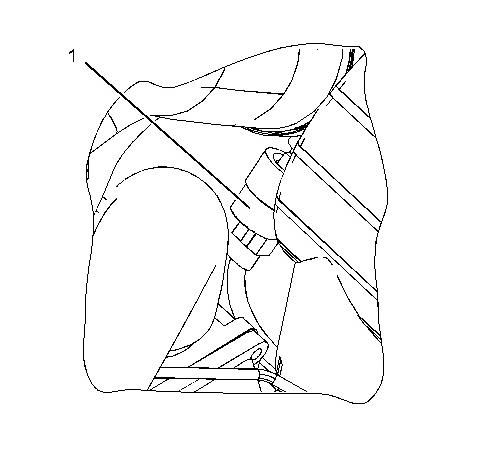

Illustration 1 g01049069
.
Note: Bolt (1) will be retained in the cab.

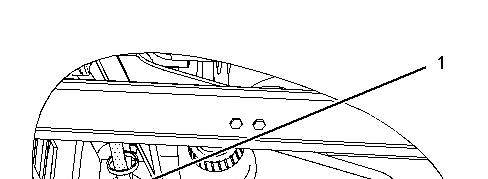

1. Loosen bolt (1)
Illustration 2 g01049070

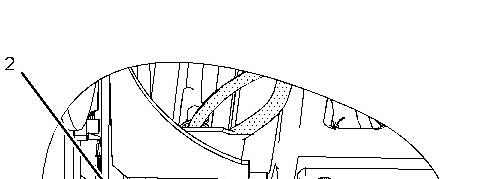

2. Remove nut (2) and large washer (3) from the inside of the cab.
3. Repeat Steps 1 and 2 on the opposite side of the cab.
Illustration 3 g01049074

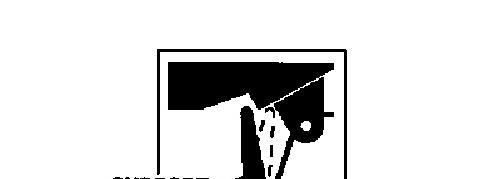

Illustration 4 g00563598
4. Raise cab (4) .
Lower Procedure

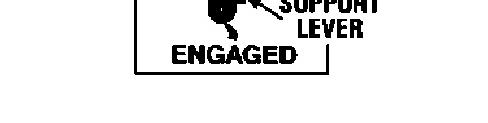

5. Engage cab support lever (5) .
Illustration 5 g01049074
Illustration 6 g00563674
1. Tilt the cab upward.

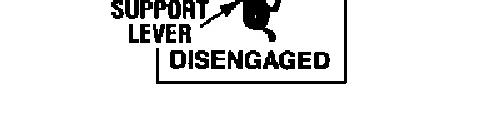

2. Disengage cab support lever (5) .
3. Lower cab (4) .
Illustration 7 g01049069
.
4. Align bolt (1)
Illustration 8 g01049070
Note: Ensure that the large washer isbetween the nut and the rubber mounting.

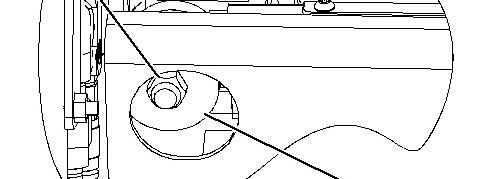

5. Install large washer (3) and nut (2) from the inside of the cab. Tighten the nuts to a torque of 125 ± 10 N·m (92 ± 7 lb ft).
6. Repeat Steps 4 and 5 on the opposite side of the cab.
Copyright 1993 - 2019 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Tue Nov 12 12:42:04 UTC+0530 2019
Product: MULTI TERRAIN LOADER
Model: 277B MULTI TERRAIN LOADER MDH
Configuration: 267B, 277B and 287B Multi Terrain Loader MDH00001-UP (MACHINE) POWERED BY 3044C Engine
Disassembly and Assembly
267B, 277B and 287B Multi Terrain Loaders Engine Supplement
Media Number -RENR4883-01 Publication Date -01/11/2009 Date Updated -17/11/2009
Electric Starting Motor - Remove and Install
SMCS - 1453-010
Removal Procedure
Start By:
i02048964
A. Disconnect the battery. Refer to Disassembly and Assembly, "Battery and Battery CableSeparate and Connect".
Illustration 1 g01051380

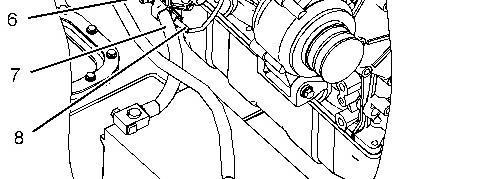

1. Disconnect cable assemblies (5), (6) and (7) .
2. Cut cable strap (1). Disconnect harness assembly (8).
3. Remove bolts (4) and remove electric starting motor (3) and heat shield (2) .
Installation Procedure
