AccessDoorsandCovers
SMCS-7273-572;7273-573
EngineAccessDoor
Note:Apinchpointexistsbetweenthetopoftheengineaccessdoorandtheradiatorguard.Keep handsawayfromthisareawhenyouclosetheengineaccessdoor. Theengineaccessdoorislocatedonthebackofthemachine.
Illustration1g06408722
(1)EngineAccessDoor (2)ReleaseLeverAccess
1.Pullthereleaselevertoopentheengineaccessdoor.
Illustration2g06408720
2.Movetheretainingpinfromthestoredposition(3)andputtheretainingpininthe LOCKEDposition(4).Theengineaccessdoorislockedintheopenposition.
3.Inordertoclosetheengineaccessdoor,puttheretainingpinintheSTOREDposition.
4.Closetheengineaccessdoor.Ensurethatthelatchisengaged.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
SatJun1413:27:15UTC+05302025
Product:SKIDSTEERLOADER
Model:246D3SKIDSTEERLOADERAH6
Configuration:246D3SkidSteerLoaderAH600001-UP(MACHINE)POWEREDBYC3.3BEngine
OperationandMaintenanceManual
D3-SeriesCompactTrackLoaders(CTL),Multi-TerrainLoaders(MTL),andSkid SteerLoaders(SSL)
MediaNumber-M0091175-04PublicationDate-01/05/2015DateUpdated-01/10/2020 i07638254
AirCleanerDustValve-Clean/Inspect
SMCS-1051-571-VL
Servicetheairfilterelementswhenthealertindicatorforairfilterrestrictionlights.Referto OperationandMaintenanceManual,"AlertIndicators" forinformationabouttheindicator.
1.Opentheengineaccessdoor.
2.Theairfilterhousingislocatedontherightsideoftheenginecompartment.

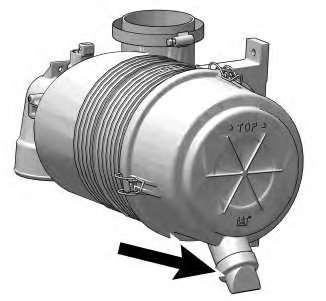

3.Checkthedustvalveafterevery10servicehoursorattheendofeachday.Actuatethe valvebysqueezingthelipsofthevalvetoremoveanyaccumulateddebris.
SatJun1413:32:21UTC+05302025
Product:SKIDSTEERLOADER
Model:246D3SKIDSTEERLOADERAH6
Configuration:246D3SkidSteerLoaderAH600001-UP(MACHINE)POWEREDBYC3.3BEngine
OperationandMaintenanceManual
D3-SeriesCompactTrackLoaders(CTL),Multi-TerrainLoaders(MTL),andSkid SteerLoaders(SSL)
MediaNumber-M0091175-04PublicationDate-01/05/2015DateUpdated-01/10/2020
SMCS-1805-070
Personalinjurycanresultfromairpressure.
Personalinjurycanresultwithoutfollowingproperprocedure.When usingpressureair,wearaprotectivefaceshieldandprotectiveclothing.
Maximumairpressureatthenozzlemustbelessthan205kPa(30psi) forcleaningpurposes.
Theairconditionercondenserisattachedtotheengineaccessdoor.
Note:Blowcompressedairthroughthecoreintheoppositedirectionofairflowtoclean condenser.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
SatJun1413:32:40UTC+05302025
Product:SKIDSTEERLOADER
Model:246D3SKIDSTEERLOADERAH6
Configuration:246D3SkidSteerLoaderAH600001-UP(MACHINE)POWEREDBYC3.3BEngine
OperationandMaintenanceManual
D3-SeriesCompactTrackLoaders(CTL),Multi-TerrainLoaders(MTL),andSkid SteerLoaders(SSL)
MediaNumber-M0091175-04PublicationDate-01/05/2015DateUpdated-01/10/2020
SMCS-3282-086-BD
Illustration1g06405526
Applylubricanttoallgreasefittings.
(1)Frontpivot
(2)Rearpivot
Repeattheprocessfortheoppositesideofthemachine.

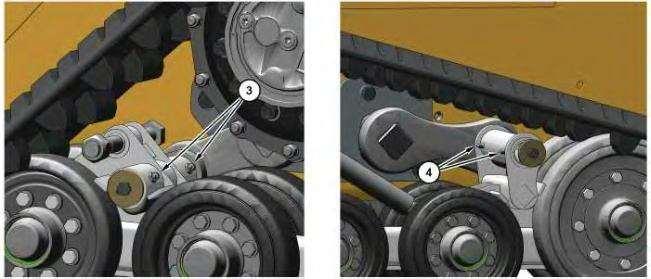

Illustration2g06410401
(1)FrontPivot (2)RearPivot
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
SatJun1413:33:21UTC+05302025
Product:SKIDSTEERLOADER
Model:246D3SKIDSTEERLOADERAH6
Configuration:246D3SkidSteerLoaderAH600001-UP(MACHINE)POWEREDBYC3.3BEngine
OperationandMaintenanceManual
D3-SeriesCompactTrackLoaders(CTL),Multi-TerrainLoaders(MTL),andSkidSteer Loaders(SSL)
MediaNumber-M0091175-04PublicationDate-01/05/2015DateUpdated-01/10/2020
AxleBearings-Lubricate-MTLOnly
SMCS-3282-086-BD
Illustration1g06383471

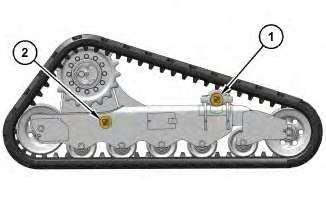

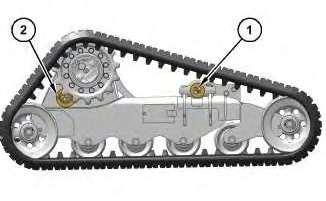

SingleLevelSuspension(SLS)undercarriage (1)Rearpivot (2)Frontpivot
(3)Reargreasezerks (4)Frontgreasezerks
Applylubricanttoallgreasefittings.
Repeattheprocessfortheoppositesideofthemachine.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
SatJun1413:33:03UTC+05302025
Product:SKIDSTEERLOADER
Model:246D3SKIDSTEERLOADERAH6
Configuration:246D3SkidSteerLoaderAH600001-UP(MACHINE)POWEREDBYC3.3BEngine
OperationandMaintenanceManual
D3-SeriesCompactTrackLoaders(CTL),Multi-TerrainLoaders(MTL),andSkid SteerLoaders(SSL)
MediaNumber-M0091175-04PublicationDate-01/05/2015DateUpdated-01/10/2020 i02580453
BackupAlarm-Test
SMCS-7406-081
Topreventinjury,makesurethatnopeopleareworkingonthemachineornearthemachine.To preventinjury,keepthemachineundercontrolatalltimes.
1.Getintotheoperator'sseat.Fastentheseatbeltandpullthearmrestsdownward.
2.Starttheengine.
3.Disengagetheparkingbrake.
4.MovethejoystickcontroltotheREVERSEposition.
Thebackupalarmshouldsoundimmediately.Thebackupalarmshouldcontinuetosound untilthejoystickcontrolisreturnedtotheNEUTRALpositionortotheFORWARD position.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
SatJun1413:33:38UTC+05302025
Product:SKIDSTEERLOADER
Model:246D3SKIDSTEERLOADERAH6
Configuration:246D3SkidSteerLoaderAH600001-UP(MACHINE)POWEREDBYC3.3BEngine
OperationandMaintenanceManual
D3-SeriesCompactTrackLoaders(CTL),Multi-TerrainLoaders(MTL),andSkid SteerLoaders(SSL)
MediaNumber-M0091175-04PublicationDate-01/05/2015DateUpdated-01/10/2020 i06607826
BatteryorBatteryCable-Inspect/Replace
SMCS-1401-561;1401-040;1401-510;1402-040;1402-510
BatteryLifeandRecommendedPractices
Batterylifeisverydifficulttopredictandcanvarygreatlybasedonanumberoffactorsincluding:
•Batteryage
•Machineconfiguration
•Enginestartingfrequency
•Ambientconditions
•Storagepractices
Thereareanumberofcomponentsthatdrawsmallamountsofelectricalcurrentevenwhenthe keyswitchisOFF.Someoftheseinclude:
•Electroniccontrolmodulesforthemachine,engine,emissionssystem,etc
•Radiosordisplayswithmemoryfeatures
•ProductLinkorotherGPS-basedsystems
Itisrecommendedtostartandoperateyourmachinenormallyforatleast15minuteseveryfew weekstopreventbatterydischargewhichmaydamagethebatterybeyondsimplerecharge.This timeshouldbeextendedduringthewinterastheloadonthebatteryincreasewithextendedheater usage,heatedseatusage,andtypicallyincreasedusageoftheworklights.
Theuseofabatterydisconnectswitchordisconnectionofthebatterycablesisrecommendedif themachinewillsitlongerthanafewweeksundernormalconditions.Theuseofabattery disconnectswitchmaybeadvisableattheendofeachworkingdayinextremeambientconditions.
Additionalreferences:
•"OperationandMaintenanceManual",MachineStorageProcedure
•"OperationandMaintenanceManual",DEFGuidelines
•"OperationandMaintenanceManual",BatteryDisconnectSwitch
•"OperationandMaintenanceManual",EngineStarting
Inspect/Replace
1.TurntheenginestartswitchtotheOFFposition.TurnallswitchestotheOFFposition.
2.Thebatteryislocatedintheenginecompartmentandmayeitherbeontheleft-handsideor right-handside.Opentheengineaccessdoor.
3.Disconnectthenegativebatterycableatthebattery.
Note:Donotallowthedisconnectedbatterycabletocontactthenegativebatterypost.
4.Disconnectthenegativebatterycablefromtheframeinordertoinspectthecable.
5.Disconnectthepositivebatterycableatthebattery.
6.Performthenecessaryrepairs.Replacethecablesorthebattery,asneeded.
7.Connectthepositivebatterycableatthebattery.
8.Connectthenegativebatterycabletotheframeofthemachine.
9.Connectthenegativebatterycableatthebattery.
10.Closetheengineaccessdoor.
RecycletheBattery
Alwaysrecycleabattery.Neverdiscardabattery.
Alwaysreturnusedbatteriestooneofthefollowinglocations:
•Abatterysupplier
•Anauthorizedbatterycollectionfacility
•Recyclingfacility
Copyright1993-2025CaterpillarInc.
SatJun1413:33:55UTC+05302025
Product:SKIDSTEERLOADER
Model:246D3SKIDSTEERLOADERAH6
Configuration:246D3SkidSteerLoaderAH600001-UP(MACHINE)POWEREDBYC3.3BEngine
OperationandMaintenanceManual
D3-SeriesCompactTrackLoaders(CTL),Multi-TerrainLoaders(MTL),andSkid SteerLoaders(SSL)
MediaNumber-M0091175-04PublicationDate-01/05/2015DateUpdated-01/10/2020
Belts-Inspect/Adjust
SMCS-1357-025;1357-040;1397-025;1397-040
Ifanewbeltisinstalled,checkthebeltadjustmentafter30minutesofoperation.Abeltis consideredusedafter30minutesofoperation.
Belts
1.Stoptheengineinordertoinspectthebelt.
2.Opentheengineaccessdoor.RefertoOperationandMaintenanceManual,"AccessDoors andCovers".

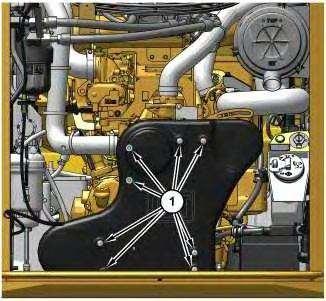

3.Loosenthequarter-turnfasteners(1)onthefrontoftheguard.
4.RemovetheguardfortheV-belt.
Illustration2g06387503
C2.2

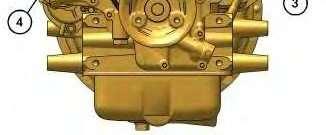

(3)V-belt (4)Alternatormountingbolt (5)Adjustingbolt
Illustration3g06387492

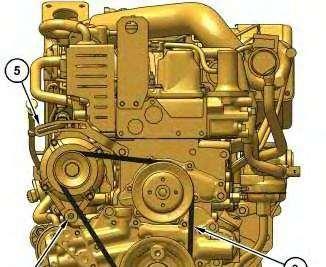

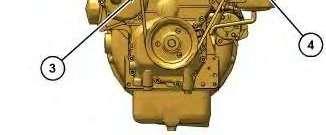

C3.3B (3)V-belt (4)Alternatormountingbolt (5)Adjustingbolt
Illustration4g06387486
C3.8

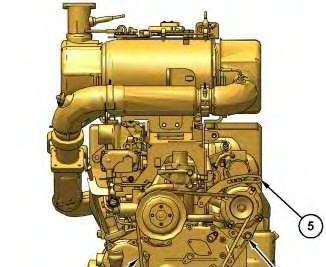

(3)V-belt (4)Alternatormountingbolt (5)Adjustingbolt
Illustration5g03821106 (1)C3.3B (2)C2.2andC3.8

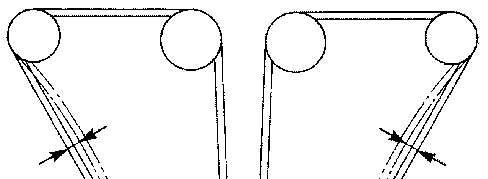

5.Inspecttheconditionofthebeltandtheadjustmentofthebelt.Thebeltshoulddeflect 10mm(0.39inch)to12mm(0.47inch)underastraightpullof10kg(22lb).This measurementshouldbetakenbetweenthealternatorpulleyandthecrankshaftpulley.
Note:A144-0235BorroughsBeltTensionGaugemaybeusedtomeasurebelttension. Thismeasurementshouldbetakenbetweenthealternatorpulleyandthecrankshaftpulley. Refertothefollowingtableforbelttension.
Table1
BeltTension Initial
BeltTension Used 534±22N(120±5lb)400±44N(90±10lb)
6.Loosenthemountingbolt(4).Loosentheadjustingbolt(5).
7.Movethealternatoruntilthecorrecttensionisreached.
8.Tightentheadjustingbolt.Tightenthemountingbolt.
9.Recheckthebeltdeflection.Iftheamountofdeflectionisincorrect,repeatstep5tostep8.
AirConditioner(ifequipped)
Note:Ifyourmachineisequippedwithanairconditioner,usethesameprocedureandthesame measurementsforthebelttension.

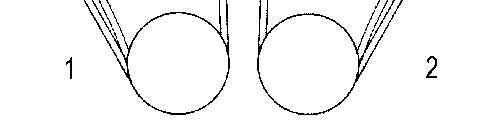

1.Inspecttheconditionofthebeltandtheadjustmentofthebelt.Thebeltshoulddeflect 10mm(0.39inch)to12mm(0.47inch)underastraightpullof10kg(22lb).This measurementshouldbetakenbetweentheairconditionercompressorpulleyandthe crankshaftpulley.
Illustration6g06387511
C2.2

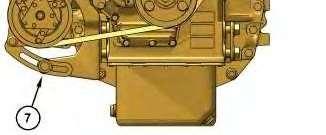

(6)Mountingbolt
(7)Adjustingbolt
Illustration7g06387497
C3.3B

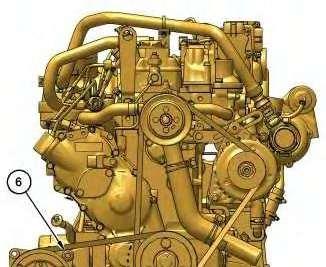

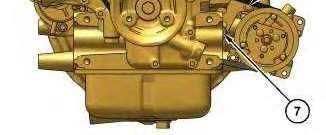

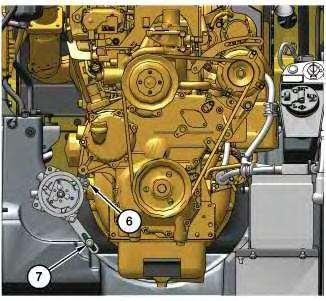

(6)Mountingbolt (7)Adjustingbolt
Illustration8g06387520
C3.8

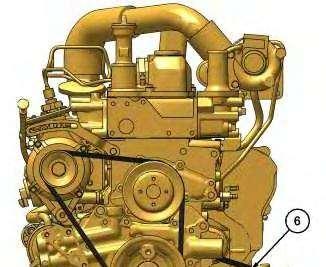

(6)Mountingbolt (7)Adjustingbolt
2.Loosenthemountingbolt(6)fortheairconditionercompressor.Loosentheadjustingbolt (7)fortheairconditionercompressor.
3.Movetheairconditionercompressoruntilthecorrecttensionisreached.
4.Tightentheadjustinglocknut.Tightenthemountingbolt.
5.Recheckthebeltdeflection.Iftheamountofdeflectionisincorrect,repeatstep2tostep4.
Finish
1.InstalltheguardfortheV-belt.
Illustration9g06387483 TypicalExample
2.Tightenthequarter-turnfasteners(1)
3.Closetheengineaccessdoor.
Copyright1993-2025CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
SatJun1413:34:12UTC+05302025
Product:SKIDSTEERLOADER
Model:246D3SKIDSTEERLOADERAH6
Configuration:246D3SkidSteerLoaderAH600001-UP(MACHINE)POWEREDBYC3.3BEngine
OperationandMaintenanceManual
D3-SeriesCompactTrackLoaders(CTL),Multi-TerrainLoaders(MTL),andSkid SteerLoaders(SSL)
MediaNumber-M0091175-04PublicationDate-01/05/2015DateUpdated-01/10/2020
Belts-Replace
SMCS-1357-510;1397-510
1.Stoptheenginetoreplacebelt.
2.Opentheengineaccessdoor.RefertoOperationandMaintenanceManual,AccessDoors andCovers.
Illustration1g06387483 TypicalExample
3.Loosenthequarter-turnfasteners(1)onthefrontofthebeltprotectionguard,andremove guardtoaccessbelt.
4.Loosenthemountingboltandadjustingbolt,decreasetensioninbelt.
This is the sample of the manual if you need complete manual Click Here to download
