Product: SKID STEER LOADER
Model: 242B3 SKID STEER LOADER SRS
Configuration: 242B3 Skid Steer Loader SRS00001-UP (MACHINE) POWERED BY C3.4 IND Engine
Disassembly and Assembly
C3.4 Engines for Caterpillar Built Machines
Media Number -KENR6941-04
Publication Date -01/03/2012
Alternator - Remove and Install
SMCS - 1405-010
Removal Procedure
Start By:
Date Updated -01/03/2012
i02639317
A. Remove the V-Belt. Refer to Disassembly and Assembly, "V-Belts - Remove and Install".
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened component life.
1. Turn the battery disconnect switch to the OFF position.
2. Make temporary identification marks on the connections of the harness assembly.

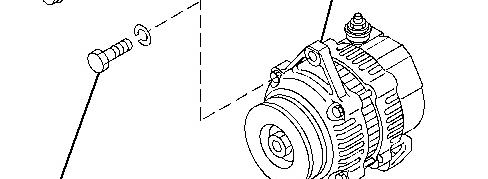

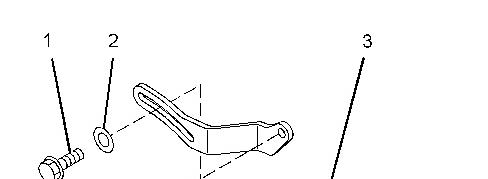

Illustration 1 g01343570
Typical Example
3. Disconnect the harness assembly from alternator (3) .
4. Loosen bolt (4). Remove bolt (1) and washer (2) from alternator (3) .
5. Remove bolt (5) from alternator (3). Remove the alternator from alternator bracket (6) .
Installation Procedure

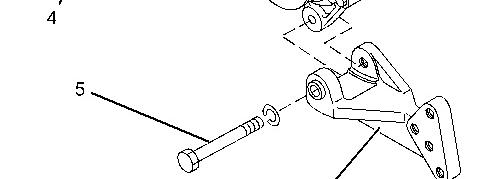

Illustration 2 g01343570
Typical example
1. Position alternator (3) on bracket (6) and install bolt (5) finger tight.
2. Install bolt (1) and washer (2) finger tight.
3. Install the V-belt. Refer to Disassembly and assembly, "V-belts - Remove and Install" for the correct procedure.
4. Tighten bolts (1) and (4) to a torque of 11 N·m (97 lb in). Tighten bolt (5) to a torque of 35 N·m (26 lb ft).
5. Connect the harness assembly to alternator (3) .
6. Turn the battery disconnect switch to the ON position.
Product: SKID STEER LOADER
Model: 242B3 SKID STEER LOADER SRS
Configuration: 242B3 Skid Steer Loader SRS00001-UP (MACHINE) POWERED BY C3.4 IND Engine
Disassembly and Assembly
C3.4 Engines for Caterpillar Built Machines
Media Number -KENR6941-04
Balancer - Assemble
SMCS - 1220-016
Assembly Procedure
Table 1
Required Tools
Publication Date -01/03/2012 Date Updated -01/03/2012
i02744463
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened component life.
1. Ensure that all components of the balancer are clean and free from damage.

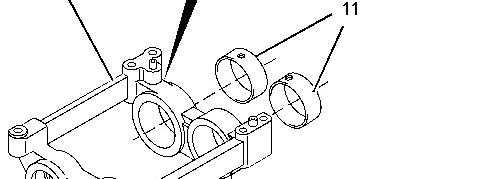

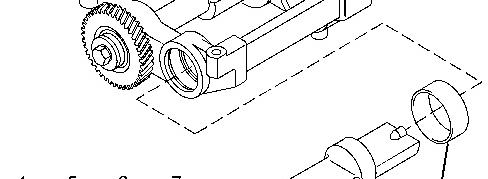

Illustration 1 g01344574

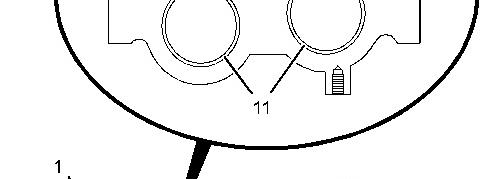

2. If new bushing (11) is installed to the balancer, follow Steps 2.a and 2.b.

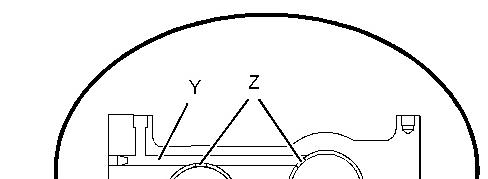

a. Align oil holes (Z) in bushing (11) to drilling (Y) in balancer (1) .
b. Use Tooling (C) to install bushing (11) to balancer (1). Ensure that the oil holes (Z) are correctly aligned to drilling (Y) .

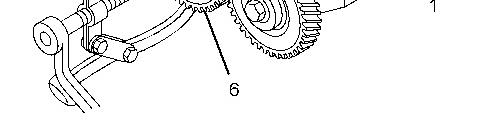

Illustration 2 g01344515
3. Use Tooling (C) in order to press bearings (9) into balancer (1) .
Note: Do not press on the inner race of the bearing as this could result in damage to the bearing.
4. Use Tooling (B) to install retaining rings (8) .
Note: Ensure that the retaining rings are fully located into the grooves in the balancer.
5. Lubricate balancer shafts (10) and bushing (11) with clean engine oil. Carefully install the balancer shafts to balancer (1) .
6. Install keys (7) .

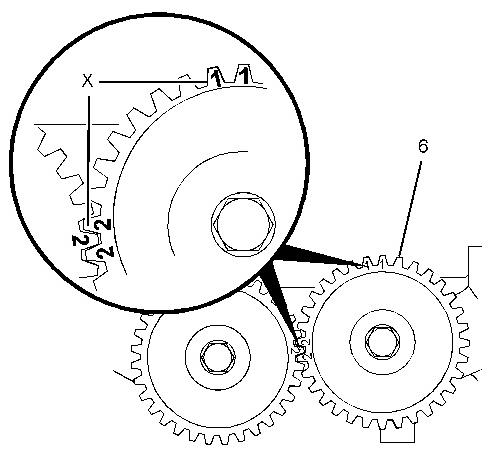

Illustration 3 g01344665
Timing marks
7. Align gears (6) with keys (7) and install the gears to balancer shafts (10). Ensure that the gears are installed in the correct position.
Note: The gears have different Markings (X). The right hand gear is marked 1,1 and 2,2. The left hand gear is marked 2. Refer to Illustration 3.

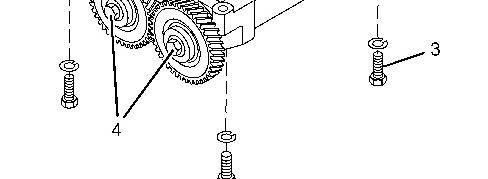

8. Apply Tooling (D) to the threads of bolts (4). Install bolts (4) and washers (5). Tighten the bolts to a torque of 33 N·m (24 lb ft).
Copyright 1993 - 2020 Caterpillar Inc.
Rights Reserved.
Network For SIS Licensees. Wed Jun 24 13:48:03 UTC+0530 2020
Product: SKID STEER LOADER
Model: 242B3 SKID STEER LOADER SRS
Configuration: 242B3 Skid Steer Loader SRS00001-UP (MACHINE) POWERED BY C3.4 IND Engine
Disassembly and Assembly
C3.4 Engines for Caterpillar Built Machines
Media Number -KENR6941-04
Balancer - Disassemble
SMCS - 1220-015
Disassembly Procedure
Table 1 Required Tools
Publication Date -01/03/2012 Date Updated -01/03/2012 i02744461
Keep all parts clean from contaminants. Contaminants may cause rapid wear and shortened component life.

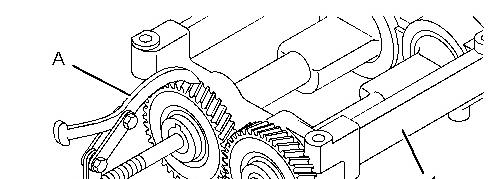

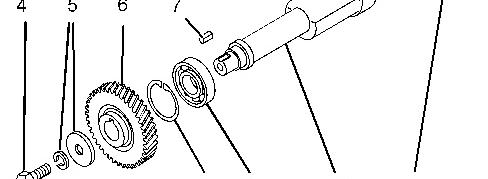

1 g01344515
2 g01344528

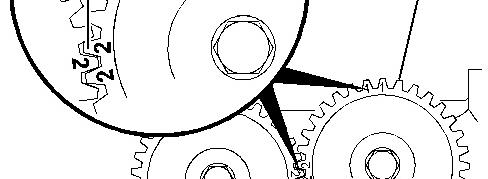

Illustration 3 g01344665
Timing marks
1. Remove bolts (4) and washers (5). Use Tooling (A) in order to remove gears (6). Ensure that balancer shaft (10) is protected from damage.
Note: Gears (6) have different Markings (X). Refer to Illustration 3. Identify the position of the gears for installation.
2. Remove keys (7). Use Tooling (B) in order to remove retaining rings (8) .

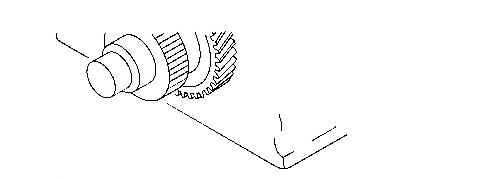

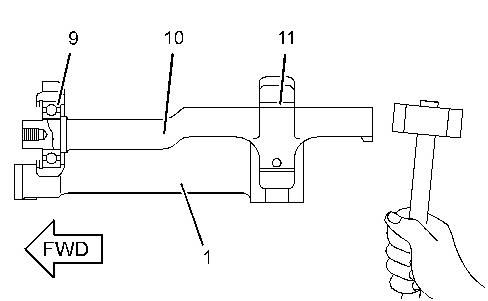

Illustration 4
g01344533
3. Carefully tap the assembly of bearing (9) and balancer shaft (10) forward until the shaft is clear of bushing (11). Refer to Illustration 4.
4. Use Tooling (A) in order to remove bearing (9) from balancer shaft (10) .
Note: Ensure that the balancer shaft is protected from damage.
5. Slide balancer shaft (10) back through bushing (11) until the shaft is clear of the balancer.
6. If necessary, use Tooling (C) in order to remove bushing (11) from balancer (1) .
1993 - 2020 Caterpillar Inc.
Product: SKID STEER LOADER
Model: 242B3 SKID STEER LOADER SRS
Configuration: 242B3 Skid Steer Loader SRS00001-UP (MACHINE) POWERED BY C3.4 IND Engine
Disassembly and Assembly
C3.4 Engines for Caterpillar Built Machines
Media Number -KENR6941-04
Publication Date -01/03/2012
Date Updated -01/03/2012
i02639299
Balancer - Install
SMCS - 1220-012
Installation Procedure
Table 1
Required Tools
9U-7324 Indicator Bracket 1
7H-1942 Dial Indicator 1
3S-3268 Indicator Contact Point 1
7H-1940 Universal Attachment 1
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened component life.

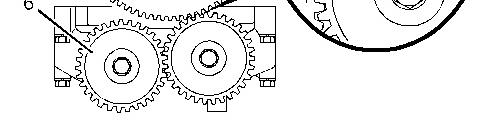

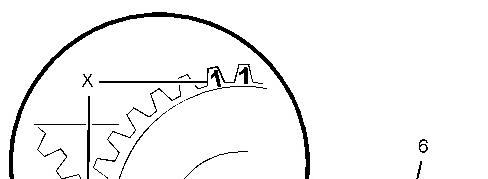

Illustration 1 g01344665
Timing marks

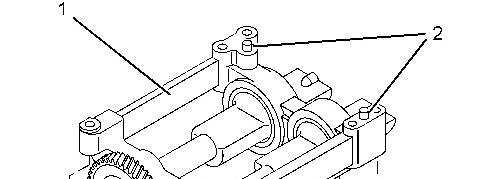

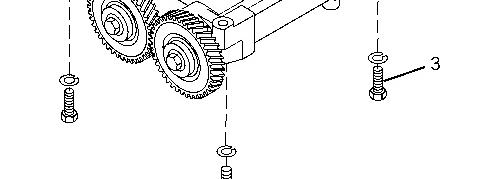

Illustration 2 g01344983
1. Ensure that dowels (2) are seated in balancer (1). Ensure that marks 2,2 and 2 on gears (6) are aligned. Refer to Illustration 1.

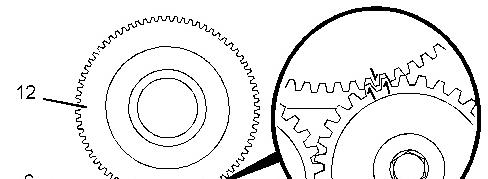

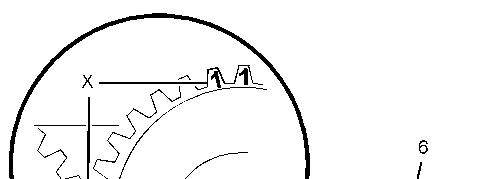

Illustration 3 g01344971
Alignment of the timing marks
2. Align dowels (2) with the holes in the cylinder block. Align mark 1,1 on gear (6) to mark 1 on crankshaft gear (12). Refer to Illustration 3. Position balancer (1) on the engine. The balancer weighs approximately 23 kg (51 lb).
3. Install bolts (3). Tighten the bolts to a torque of 30 N·m (22 lb ft).
4. Use Tooling (F) in order to check the backlash between gears (6). Refer to Specifications, "Gear Group (Front)".
5. Use Tooling (F) in order to check the backlash between gears (6) and (12). Refer to Specifications, "Gear Group - Front" for further information.
End By: Install the engine oil pan. Refer to Disassembly and Assembly, " Engine Oil Pan - Remove and Install".
1993 - 2020 Caterpillar Inc.
Product: SKID STEER LOADER
Model: 242B3 SKID STEER LOADER SRS
Configuration: 242B3 Skid Steer Loader SRS00001-UP (MACHINE) POWERED BY C3.4 IND Engine
Disassembly and Assembly
C3.4 Engines for Caterpillar Built Machines
Media Number -KENR6941-04
Publication Date -01/03/2012
Date Updated -01/03/2012
i02639298
Balancer - Remove
SMCS - 1220-011
Removal Procedure
Start By:
A. Remove the engine oil pan and remove the oil strainer. Refer to Disassembly and Assembly, "Engine Oil Pan - Remove and Install".
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened component life.
NOTICE
Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting and repair of the product. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids.
Dispose of all fluids according to local regulations and mandates.
1. Ensure that number one piston is at the top center position on the compression stroke. Refer to Systems Operation, Testing and Adjusting, "Finding Top Center Position for No. 1 Piston".

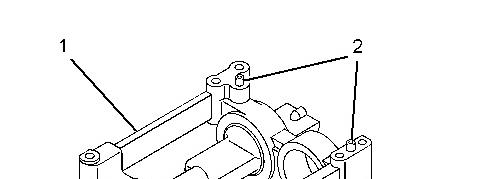

Illustration 1 g01344508
Note: If the balancer will be disassembled, loosen bolts (4) before the balancer is removed from the engine.
2. Support the weight of the balancer. The balancer weighs approximately 23 kg (51 lb). Remove bolts (3) and remove balancer (1) from the engine.
3. Do not remove dowels (2) unless the dowels are damaged.
Product: SKID STEER LOADER
Model: 242B3 SKID STEER LOADER SRS
Configuration: 242B3 Skid Steer Loader SRS00001-UP (MACHINE) POWERED BY C3.4 IND Engine
Disassembly and Assembly
C3.4 Engines for Caterpillar Built Machines
Media Number -KENR6941-04 Publication Date -01/03/2012 Date Updated -01/03/2012
Bearing Clearance - Check
SMCS - 1203-535; 1219-535
Measurement Procedure
Table 1 Required Tools Tool
Plastic Gauge (Green)
to 0.076 mm (0.001 to 0.003 inch)
Plastic Gauge (Red)
to 0.152 mm (0.002 to 0.006 inch)
Plastic Gauge (Blue) 0.102 to 0.229 mm (0.004 to 0.009 inch)
Plastic Gauge (Yellow)
198-9145
0.230 to 0.510 mm (0.009 to 0.020 inch)
Note: Plastic gauge may not be necessary when the engine is in the chassis.
i05977048
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened component life.
Note: Cat does not recommend the checking of the actual bearing clearances particularly on small engines. This is because of the possibility of obtaining inaccurate results and the possibility of damaging the bearing or the journal surfaces. Each Cat engine bearing is quality checked for specific wall thickness.
Note: The measurements should be within specifications and the correct bearings should be used. If the crankshaft journals and the bores for the block and the rods were measured during disassembly, no further checks are necessary. However, if the technician still wants to measure the bearing clearances, Tooling (A) is an acceptable method. Tooling (A) is less accurate on journals with small diameters if clearances are less than 0.10 mm (0.004 inch).
NOTICE
Lead wire, shim stock or a dial bore gauge can damage the bearing surfaces.
The technician must be very careful to use Tooling (A) correctly. The following points must be remembered:
• Ensure that the backs of the bearings and the bores are clean and dry.
• Ensure that the bearing locking tabs are properly seated in the tab grooves.
• The crankshaft must be free of oil at the contact points of Tooling (A).
1. Put a piece of Tooling (A) on the crown of the bearing that is in the cap.
Note: Do not allow Tooling (A) to extend over the edge of the bearing.
2. Use the correct torque-turn specifications in order to install the bearing cap. Do not use an impact wrench. Be careful not to dislodge the bearing when the cap is installed.
Note: Do not turn the crankshaft when Tooling (A) is installed.
3. Carefully remove the cap, but do not remove Tooling (A). Measure the width of Tooling (A) while Tooling (A) is in the bearing cap or on the crankshaft journal. Refer to Illustration 1.
Illustration 1 g01152855
Typical Example
4. Remove all of Tooling (A) before you install the bearing cap.
Note: When Tooling (A) is used, the readings can sometimes be unclear. For example, all parts of Tooling (A) are not the same width. Measure the major width in order to ensure that the parts are within the specification range. Refer to Specifications Manual, "Connecting Rod Bearing Journal" and Specifications Manual, "Main Bearing Journal" for the correct clearances.
Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Wed Jun 24 13:52:05 UTC+0530 2020
Product: SKID STEER LOADER
Model: 242B3 SKID STEER LOADER SRS
Configuration: 242B3 Skid Steer Loader SRS00001-UP (MACHINE) POWERED BY C3.4 IND Engine
Disassembly
and Assembly
C3.4 Engines for Caterpillar Built Machines
Media Number -KENR6941-04
Publication Date -01/03/2012
Camshaft - Remove and Install
SMCS - 1210-010
Removal Procedure
Start By:
Date Updated -01/03/2012
i02639294
A. Remove the front housing. Refer to Disassembly and Assembly, "Housing (Front) - Remove and Install".
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened component life.
1. The engine should be mounted on a suitable stand and placed in the inverted position.
2. Rotate the crankshaft so that number one piston is at the top center position on the compression stroke. Refer to Systems Operation, Testing and Adjusting, "Finding Top Center Position for No.1 Piston".
3. Remove the rocker shaft and pushrods. Refer to Disassembly and Assembly, "Rocker Shaft and Pushrod - Remove".

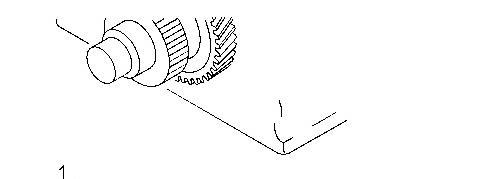

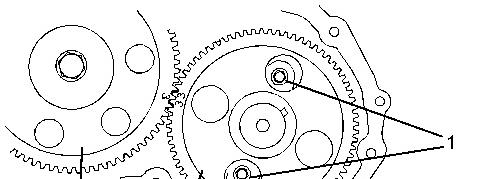

Illustration 1 g01349741
Typical example
4. Ensure that gears (2) and (3) are marked in order to show alignment. Refer to Illustration 1.
Note: Identification will ensure that the camshaft can be installed in the original position.
5. Remove bolts (1) .

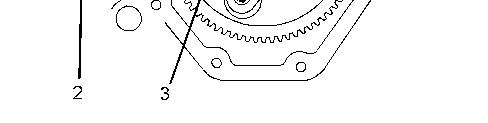

Illustration 2 g01350309
Typical example
NOTICE
Do not damage the lobes or the bearings when the camshaft is removed or installed.
6. Carefully remove camshaft assembly (4) from the cylinder block.
7. If necessary, remove the camshaft gear. Refer to Disassembly and Assembly, "Camshaft Gear.Remove and Install".
Installation
Procedure
1
9U-7324 Indicator Bracket 1
7H-1942 Dial Indicator 1
3S-3268 Indicator Contact Point 1
7H-1940 Universal Attachment 1
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened component life.
1. Ensure that the camshaft assembly is clean and free from wear or damage. If necessary, install the camshaft gear. Refer to Disassembly and Assembly, "Camshaft Gear.- Remove and Install".
2. Lubricate the camshaft assembly with clean engine oil prior to installation.
