Installation Procedure
1. Tilt the radiator. Refer to Operation and Maintenance Manual, "Radiator Tilting".

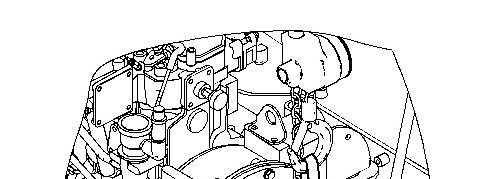

Illustration 2
g01340815

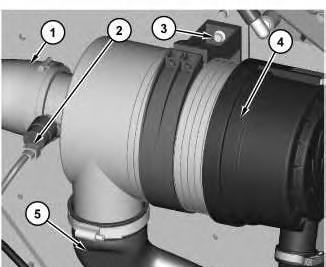

2. Position air cleaner (4) and install bolts (3). Connect hoses (1) and (5). Connect harness assembly (2) .
3. Tilt the radiator back to the original position. Refer to Operation and Maintenance Manual, "Radiator Tilting". Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved.
Network For SIS Licensees. Tue Apr 21 21:32:44 UTC+0530 2020
PreviousScreen
Product: SKID STEER LOADER
Model: 236B SKID STEER LOADER HEN07630
Configuration: 236B2 Skid Steer Loader HEN06750-UP (MACHINE) POWERED BY 3044C Engine
Disassembly and Assembly
236B, 246B, 246C, 252B, 256C, 262B, 262C, 262C2 and 272C
Skid Steer Loaders Engine Supplement
Media
Alternator - Remove and Install
SMCS - 1405-010
S/N- HEN1-UP
S/N- PAT1-UP
S/N- PDT1-UP
S/N- SCP1-UP
Removal Procedure
Start By:
A. Disconnect the battery. Refer to Disassembly and Assembly, "Battery and Battery CableSeparate and Connect".
Note: The muffler has been removed for clarity.
i03037625

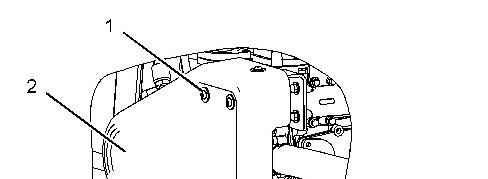

Illustration 1 g01541413
1. Remove bolts (1A) and screws(1) . Remove cover (2) .

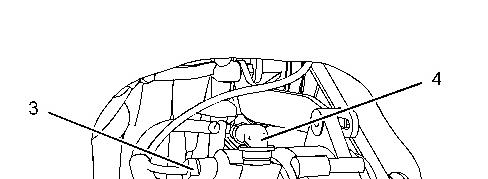

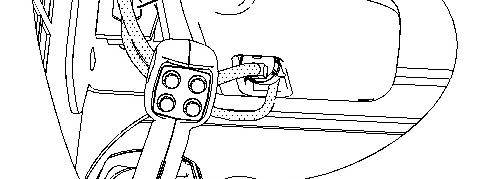

Illustration 2 g01038433
2. Disconnect harnessassembly (3) . Raise the boot and disconnect harnessassembly (4) .

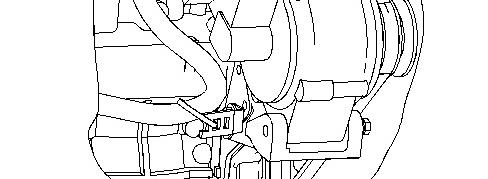

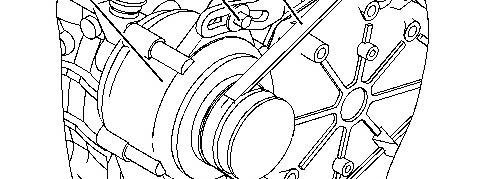

Illustration 3 g01038438

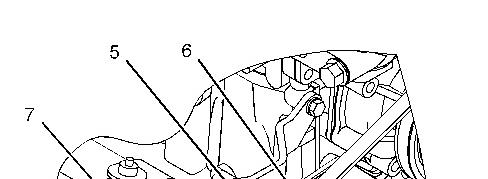

3. Loosen bolts (5) and (8) . Remove belt (6) and remove alternator (7) .
Installation Procedure
Illustration 4 g01038438
1. Install alternator (7) . Install belt (6) . Refer to Operation and Maintenance Manual, "BeltInspect/Adjust/Replace" for more information. Tighten bolts(5) and (8) .
Illustration 5 g01038433
2. Connect harness assembly (3) . Raise the boot and connect harnessassembly (4) .
Illustration 6 g01541413
3. Install cover (2) and install screws(1) . Tighten screws(1) to a torque of 6 ±1 N·m (53 ± 9 lb in).
4. Install bolts (1A) . Tighten bolts (1A) to a torque of 15 ± 3 N·m (11 ± 2 lb ft).
End By: Connect the battery. Refer to Disassembly and Assembly, "Battery and Battery CableSeparate and Connect".
Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Tue Apr 21 21:30:01 UTC+0530 2020
PreviousScreen
Product: SKID STEER LOADER
Model: 236B SKID STEER LOADER HEN07630
Configuration: 236B2 Skid Steer Loader HEN06750-UP (MACHINE) POWERED BY 3044C Engine
Disassembly and Assembly
236B, 246B, 246C, 252B, 256C, 262B, 262C, 262C2 and 272C
Skid Steer Loaders Engine Supplement Media
Battery and Battery Cable - Separate and Connect
SMCS - 1401-029-KA
S/N- HEN1-UP
S/N- PAT1-UP
S/N- PDT1-UP
S/N- SCP1-UP
Removal Procedure
i02156742

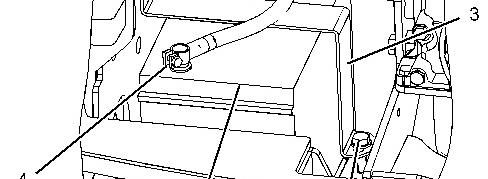

Illustration 1 g01041274

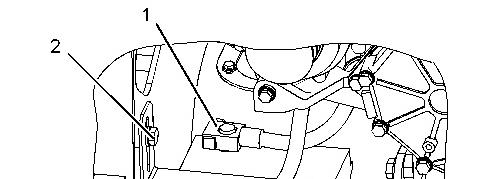

1. Disconnect negative battery cable (4) .
2. Disconnect positive battery cable (1) .
3. Remove bolts (2) and (6). Remove clamp (3) and remove battery (5). The weight of the battery is approximately 18 kg (40 lb).
Installation Procedure
Illustration 2 g01041274
1. Install battery (5). The weight of the battery is approximately 18 kg (40 lb). Install clamp (3). Install bolts (2) and (6) .
2. Connect positive battery cable (1) .
3. Connect negative battery cable (4) . Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Tue Apr 21 21:29:39 UTC+0530 2020
PreviousScreen
Product: SKID STEER LOADER
Model: 236B SKID STEER LOADER HEN07630
Configuration: 236B2 Skid Steer Loader HEN06750-UP (MACHINE) POWERED BY 3044C Engine
Disassembly and Assembly
236B, 246B, 246C, 252B, 256C, 262B, 262C, 262C2 and 272C
Skid Steer Loaders Engine Supplement
Media Number -KENR5114-03
Cab - Tilt
SMCS - 7301-084
S/N- HEN1-UP
S/N- PAT1-UP
S/N- PDT1-UP
S/N- SCP1-UP
Procedure to Tilt the Cab
Start By:
A. Release the hydraulic system pressure. Refer to Disassembly and Assembly, "Hydraulic System Pressure - Release".
Do not go beneath cab unlesscab isempty and support lever is engaged.
Failure to follow the instructionsor heed the warnings could result in injury or death.
Note: Empty the water tank (if equipped) before you tilt the cab.
i02038431

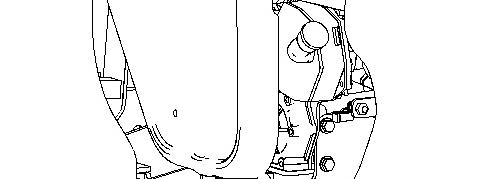

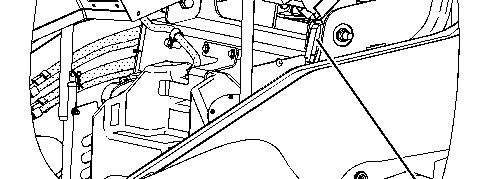

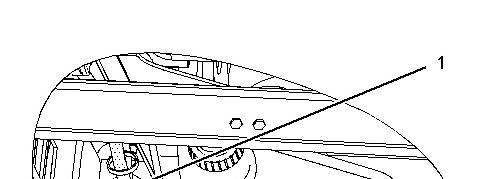

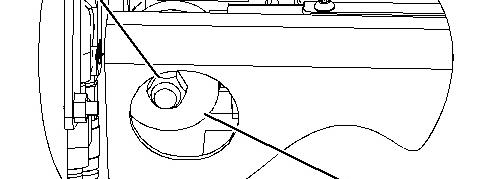

Illustration 1 g01049069
.
Note: Bolt (1) will be retained in the cab.
1. Loosen bolt (1)

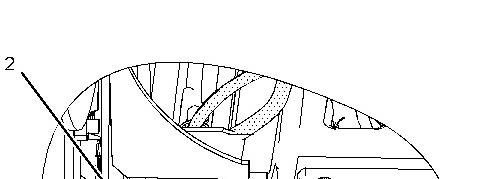

Illustration 2 g01049070
2. Remove nut (2) and large washer (3) from the inside of the cab.
3. Repeat Steps 1 and 2 on the opposite side of the cab.
Illustration 3 g01049074
Illustration 4 g00563598

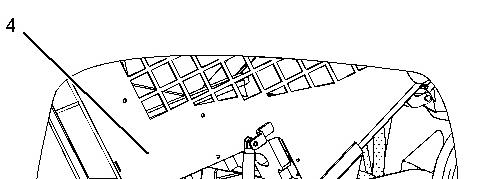

4. Raise cab (4) .
Lower Procedure

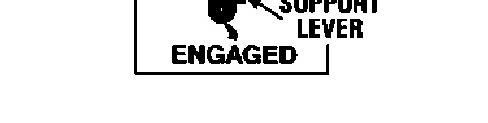

5. Engage cab support lever (5) .
Illustration 5 g01049074

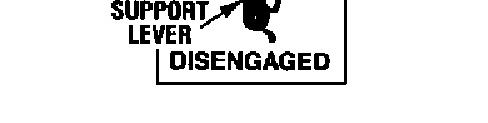

Illustration 6 g00563674
1. Tilt the cab upward.
2. Disengage cab support lever (5) .
3. Lower cab (4) .
Illustration 7 g01049069
.
4. Align bolt (1)
Illustration 8 g01049070
Note: Ensure that the large washer isbetween the nut and the rubber mounting.
5. Install large washer (3) and nut (2) from the inside of the cab. Tighten the nuts to a torque of 125 ± 10 N·m (92 ± 7 lb ft).
6. Repeat Steps 4 and 5 on the opposite side of the cab.
Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Tue Apr 21 21:33:13 UTC+0530 2020
PreviousScreen
Product: SKID STEER LOADER
Model: 236B SKID STEER LOADER HEN07630
Configuration: 236B2 Skid Steer Loader HEN06750-UP (MACHINE) POWERED BY 3044C Engine
Disassembly and Assembly
236B, 246B, 246C, 252B, 256C, 262B, 262C, 262C2 and 272C
Skid Steer Loaders Engine Supplement
Media
Electric Starting Motor - Remove and Install
SMCS - 1453-010
S/N- HEN1-UP
S/N- PAT1-UP
S/N- PDT1-UP
S/N- SCP1-UP
Removal Procedure
Start By:
A. Disconnect the battery. Refer to Disassembly and Assembly, "Battery and Battery CableSeparate and Connect".
i02014524

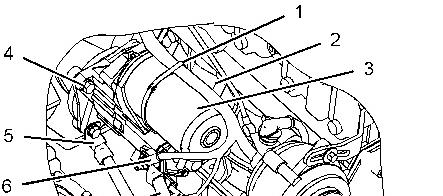

Illustration 1 g01041496
1. Disconnect cable assemblies (5), (6) and (7) .
2. Disconnect harnessassembly (8) and cut cable strap (1) .
3. Remove bolts (4) and remove electric starting motor (3) and heat shield (2) .
Installation Procedure
Illustration 2
1. Install electric starting motor (3) and heat shield (2). Install bolts (4).
2. Connect harness assembly (8) and install cable strap (1) .
3. Connect cable assemblies (5), (6) and (7) .
End By: Connect the battery. Refer to Disassembly and Assembly, "Battery and Battery CableSeparate and Connect".
Copyright 1993 - 2020 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Tue Apr 21 21:30:26 UTC+0530 2020
PreviousScreen
Product: SKID STEER LOADER
Model: 236B SKID STEER LOADER HEN07630
Configuration: 236B2 Skid Steer Loader HEN06750-UP (MACHINE) POWERED BY 3044C Engine
Disassembly and Assembly
236B, 246B, 246C, 252B, 256C, 262B, 262C, 262C2 and 272C
Skid Steer Loaders Engine Supplement Media
Engine - Install
SMCS - 1000-012
S/N- HEN1-UP
S/N- PAT1-UP
S/N- PDT1-UP
S/N- SCP1-UP
Installation Procedure
Table 1 Required Tools
i04351952
1 g01040665
Illustration

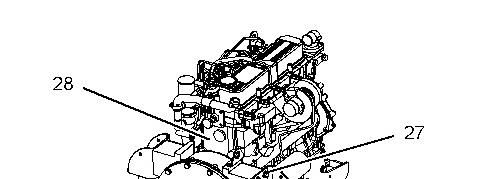

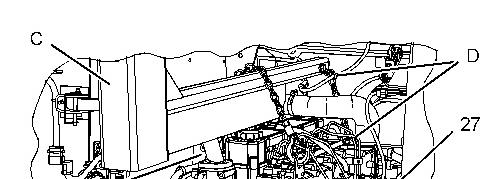

Illustration 2 g02024973
Illustration 3 g01040657

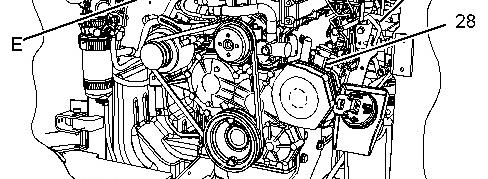

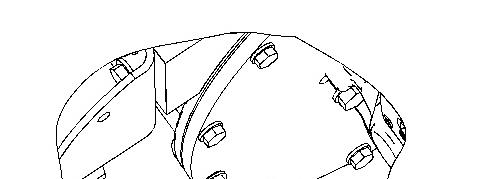

1. Attach Tooling (C) , Tooling (D) , Tooling (E) , and a suitable lifting device to engine (28) . The approximate weight of engine (28) is 320 kg (700 lb). Remove both brackets(31) that are used for mounting the engine.

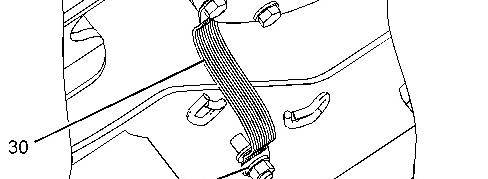

2. Install the engine. Install the engine far enough so that ground strap (30) can be connected. Connect ground strap (30) and install the nut and washer (30A) . Reposition brackets(31) onto the machine and install bolts (27) . Install bolt (29) . Tighten bolt (29) to a torque of 90 ± 10 N·m (66 ± 7 lb ft).
Illustration 4 g01040557
3. Install two bolts (26) by using Tooling (C) .

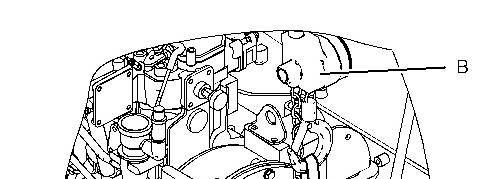

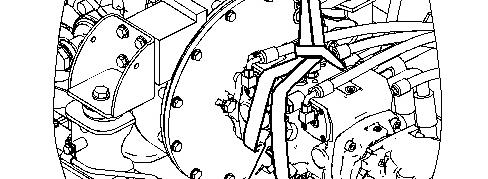

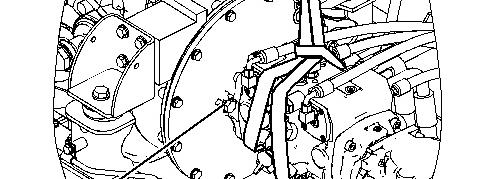

Illustration 5 g01040555
4. Remove the suitable lifting device from pump (25) . Remove Tooling (A) and Tooling (B) .
Illustration 6 g01040545

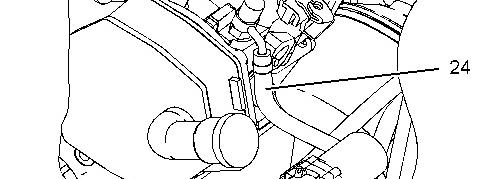

5. Connect hose assembly (24) .
