Product:MOTORGRADER
Model:150MOTORGRADERB56
Configuration:150AWDMotorGraderB5600001-UP(MACHINE)POWEREDBYC9Engine
OperationandMaintenanceManual 140Mand150MotorGrader
MediaNumber-SEBU7881-31PublicationDate-01/06/2015DateUpdated-03/11/2020
Foreword
CaliforniaProposition65Warning
DieselengineexhaustandsomeofitsconstituentsareknowntotheStateofCaliforniato causecancer,birthdefects,andotherreproductiveharm.
WARNING-Thisproductcanexpose youtochemicalsincludingethylene glycol,whichisknowntotheStateof Californiatocausebirthdefectsorother reproductiveharm.Formoreinformation goto:
www.P65Warnings.ca.gov
Donotingestthischemical.Washhandsafterhandlingtoavoidincidentalingestion.
WARNING-Thisproductcanexpose youtochemicalsincludingleadandlead compounds,whichareknowntothe StateofCaliforniatocausecancer,birth defects,orotherreproductiveharm.For moreinformationgoto:
www.P65Warnings.ca.gov
Washhandsafterhandlingcomponentsthatmaycontainlead.
LiteratureInformation
Thismanualshouldbestoredintheoperator'scompartmentintheliteratureholderorseatback literaturestoragearea.
Thismanualcontainssafetyinformation,operationinstructions,transportationinformation, lubricationinformation,andmaintenanceinformation.
Somephotographsorillustrationsinthispublicationshowdetailsorattachmentsthatcanbe differentfromyourmachine.Guardsandcoversmighthavebeenremovedforillustrative purposes.
Continuingimprovementandadvancementofproductdesignmighthavecausedchangestoyour machinewhicharenotincludedinthispublication.Read,study,andkeepthismanualwiththe machine.
Wheneveraquestionarisesregardingyourmachine,orthispublication,pleaseconsultyourCat dealerforthelatestavailableinformation.
Safety
Thesafetysectionlistsbasicsafetyprecautions.Inaddition,thissectionidentifiesthetextand locationsofwarningsignsandlabelsusedonthemachine.
Readandunderstandthebasicprecautionslistedinthesafetysectionbeforeoperatingor performinglubrication,maintenance,andrepaironthismachine.
Operation
Theoperationsectionisareferenceforthenewoperatorandarefresherfortheexperienced operator.Thissectionincludesadiscussionofgauges,switches,machinecontrols,attachment controls,transportation,andtowinginformation.
Photographsandillustrationsguidetheoperatorthroughcorrectproceduresofchecking,starting, operating,andstoppingthemachine.
Operatingtechniquesoutlinedinthispublicationarebasic.Skillandtechniquesdevelopasthe operatorgainsknowledgeofthemachineanditscapabilities.
Maintenance
Themaintenancesectionisaguidetoequipmentcare.TheMaintenanceIntervalSchedule(MIS) liststheitemstobemaintainedataspecificserviceinterval.Itemswithoutspecificintervalsare listedunderthe"WhenRequired"serviceinterval.TheMaintenanceIntervalScheduleliststhe pagenumberforthestep-by-stepinstructionsrequiredtoaccomplishthescheduledmaintenance. UsetheMaintenanceIntervalScheduleasanindexor"onesafesource"forallmaintenance procedures.
MaintenanceIntervals
Usetheservicehourmetertodetermineservicingintervals.Calendarintervalsshown(daily, weekly,monthly,etc.)canbeusedinsteadofservicehourmeterintervalsifthecalendarintervals
providemoreconvenientservicingschedulesandapproximatetheindicatedservicehourmeter reading.Performtherecommendedserviceattheintervalthatoccursfirst.
Undersevere,dusty,orwetoperatingconditions,morefrequentlubricationthanisspecifiedinthe maintenanceintervalschartmightbenecessary.
Performserviceonitemsatmultiplesoftheoriginalrequirement.Forexample,atevery500 servicehoursor3months,alsoservicethoseitemslistedunderevery250servicehoursor monthlyandevery10servicehoursordaily.
CertifiedEngineMaintenance
Propermaintenanceandrepairareessentialtokeeptheengineandmachinesystemsoperating correctly.Astheheavy-dutyoff-roaddieselengineowner,youareresponsibleforthe performanceoftherequiredmaintenancelistedintheOwnerManual,OperationandMaintenance Manual,andServiceManual.
Itisprohibitedforanypersonengagedinthebusinessofrepairing,servicing,selling,leasing,or tradingenginesormachinestoremove,alter,ortorenderinoperative,anyemission-relateddevice orelementofdesigninstalledonorinanengineormachinethatisincompliancewithall applicableregulationsoftheintendedcountrytowhichithasbeenshipped.Certainelementsof themachineandenginesuchastheexhaustsystem,fuelsystem,electricalsystem,intakeair system,andcoolingsystemmaybeemission-relatedandshouldnotbealteredunlessapprovedby Caterpillar.
MachineCapacity
Additionalattachmentsormodificationsmayexceedmachinedesigncapacitywhichcan adverselyaffectperformancecharacteristics.Includedwouldbestabilityandsystemcertifications suchasbrakes,steering,androlloverprotectivestructures(ROPS).ContactyourCatdealerfor furtherinformation.
ProductIdentificationNumber
EffectiveFirstQuarter2001theProductIdentificationNumber(PIN)haschangedfrom8to17 characters.Toprovideuniformequipmentidentification,constructionequipmentmanufacturers aremovingtocomplywiththelatestversionoftheproductidentificationnumberingstandard. Non-roadmachinePINsaredefinedbyISO10261.ThenewPINformatwillapplytoall machinesandgeneratorsets.ThePINplatesandframemarkingwilldisplaythe17characterPIN. Thenewformatwilllooklikethefollowing:
Where:
1.WorldManufacturingCode(characters1-3)
2.MachineDescriptor(characters4-8)
3.CheckCharacter(character9)
4.MachineIndicatorSection(MIS)orProductSequenceNumber(characters10-17).Thesewere previouslyreferredtoastheSerialNumber.
MachinesandgeneratorsetsproducedbeforeFirstQuarter2001willmaintaintheir8character PINformat.
Componentssuchasengines,transmissions,axles,andworktoolswillcontinuetousean8 characterSerialNumber(S/N).
Copyright1993-2024CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
MonJul2210:18:05UTC+05302024
This is the sample of the manual if you need complete manual Click Here to download
Product:MOTORGRADER
Model:150MOTORGRADERB56
Configuration:150AWDMotorGraderB5600001-UP(MACHINE)POWEREDBYC9Engine
i07746359
Guards-OperatorProtection
SMCS-7000
Therearedifferenttypesofguardsthatareusedtoprotecttheoperator.Themachineandthe machineapplicationdeterminethetypeofguardthatshouldbeused.
Adailyinspectionoftheguardsisrequiredinordertocheckforstructuresthatarebent,cracked, orloose.Neveroperateamachinewithadamagedstructure.
Theoperatorbecomesexposedtoahazardoussituationifthemachineisusedimproperlyorif pooroperatingtechniquesareused.Thissituationcanoccureventhoughamachineisequipped withanappropriateprotectiveguard.Followtheestablishedoperatingproceduresthatare recommendedforyourmachine.
RolloverProtectiveStructure(ROPS),FallingObject ProtectiveStructure(FOPS)orTipOverProtection Structure(TOPS)
TheROPS/FOPSStructure(ifequipped)onyourmachineisspecificallydesigned,testedand certifiedforthatmachine.AnyalterationoranymodificationtotheROPS/FOPSStructurecould weakenthestructure.Thisplacestheoperatorintoanunprotectedenvironment.Modificationsor attachmentsthatcausethemachinetoexceedtheweightthatisstampedonthecertificationplate alsoplacetheoperatorintoanunprotectedenvironment.Excessiveweightmayinhibitthebrake performance,thesteeringperformanceandtheROPS.Theprotectionthatisofferedbythe ROPS/FOPSStructurewillbeimpairediftheROPS/FOPSStructurehasstructuraldamage. Damagetothestructurecanbecausedbyanoverturn,afallingobject,acollision,etc.
Donotmountitems(fireextinguishers,firstaidkits,worklights,etc)byweldingbracketstothe ROPS/FOPSStructureorbydrillingholesintheROPS/FOPSStructure.Weldingbracketsor drillingholesintheROPS/FOPSStructurescanweakenthestructures.ConsultyourCatdealerfor mountingguidelines.
TheTipOverProtectionStructure(TOPS)isanothertypeofguardthatisusedonminihydraulic excavators.Thisstructureprotectstheoperatorintheeventofatipover.Thesameguidelinesfor
theinspection,themaintenanceandthemodificationoftheROPS/FOPSStructurearerequiredfor theTipOverProtectionStructure.
OtherGuards(IfEquipped)
Protectionfromflyingobjectsand/orfallingobjectsisrequiredforspecialapplications.Logging applicationsanddemolitionapplicationsaretwoexamplesthatrequirespecialprotection.
Afrontguardneedstobeinstalledwhenaworktoolthatcreatesflyingobjectsisused.Meshfront guardsthatareapprovedbyCaterpillarorpolycarbonatefrontguardsthatareapprovedby Caterpillarareavailableformachineswithacaboranopencanopy.Onmachinesthatare equippedwithcabs,thewindowsshouldalsobeclosed.Safetyglassesarerecommendedwhen flyinghazardsexistformachineswithcabsandmachineswithopencanopies.
Iftheworkmaterialextendsabovethecab,topguardsandfrontguardsshouldbeused.Typical examplesofthistypeofapplicationarelistedbelow:
•Demolitionapplications
•Rockquarries
•Forestryproducts
Additionalguardsmayberequiredforspecificapplicationsorworktools.TheOperationand MaintenanceManualforyourmachineoryourworktoolwillprovidespecificrequirementsfor theguards.RefertoOperationMaintenancemanual,"Demolition"foradditionalinformation. ConsultyourCatdealerforadditionalinformation.
Copyright1993-2024CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
MonJul2210:26:39UTC+05302024
Product:MOTORGRADER
Model:150MOTORGRADERB56
Configuration:150AWDMotorGraderB5600001-UP(MACHINE)POWEREDBYC9Engine
OperatorStation
SMCS-7000
i07746362
Anymodificationstotheinsideoftheoperatorstationshouldnotprojectintotheoperatorspaceor intothespaceforthecompanionseat(ifequipped).Theadditionofaradio,fireextinguisher,and otherequipmentmustbeinstalledsothatthedefinedoperatorspaceandthespaceforthe companionseat(ifequipped)ismaintained.Anyitemthatisbroughtintothecabshouldnot projectintothedefinedoperatorspaceorthespaceforthecompanionseat(ifequipped).Alunch boxorotherlooseitemsmustbesecured.Objectsmustnotposeanimpacthazardinroughterrain orintheeventofarollover. Copyright1993-2024CaterpillarInc.
MonJul2210:26:21UTC+05302024
Product:MOTORGRADER
Model:150MOTORGRADERB56
Configuration:150AWDMotorGraderB5600001-UP(MACHINE)POWEREDBYC9Engine OperationandMaintenanceManual
SoundInformationandVibrationInformation
SMCS-7000
SoundLevelInformation
ThedeclaredoperatorEquivalentSoundPressureLevel(Leq)is70dB(A)when"ANSI/SAE J1166FEB2008"isusedtomeasurethevalueforanenclosedcab.Thisvalueisaworkcycle soundexposurelevel.Thecabwasproperlyinstalledandmaintained.Thetestwasconductedwith thecabdoorsandthecabwindowsclosed.
Note:Whenworkinginhighambientconditionsandheavyworkcycleconditions,thedeclared operatorEquivalentSoundPressureLevel(Leq)is75dB(A)when"ANSI/SAEJ1166FEB2008" isusedtomeasurethevalueforanenclosedcab.
Hearingprotectionmaybeneededwhenthemachineisoperatedwithanopenoperatorstationfor extendedperiodsorinanoisyenvironment.Hearingprotectionmaybeneededwhenthemachine isoperatedwithacabthatisnotproperlymaintainedorwhenthedoorsandwindowsareopenfor extendedperiodsorinanoisyenvironment.
Thedeclaredaverageexteriorsoundpressurelevelis78dB(A)whenthe"SAEJ88FEB2006ConstantSpeedMovingTest"procedureisusedtomeasurethevalueforthestandardmachine. Themeasurementwasconductedunderthefollowingconditions:distanceof15m(49.2ft)and “themachinemovingforwardinanintermediategearratio”.
Thedeclaredsoundlevelslistedaboveincludebothmeasurementuncertaintyanduncertaintydue toproductionvariation.
SoundLevelInformationforMachinesinEuropeanUnion CountriesandinCountriesthatAdoptthe"EuropeanUnion Directives"
Thestaticoperatorsoundpressurelevelis74dB(A)when"ISO6394:2008"isusedtomeasure thevalueforanenclosedcab.Themeasurementwasconductedwiththecabdoorsandthecab windowsclosed.Thecabwasproperlyinstalledandmaintained.
Thedynamicoperatorsoundpressurelevelis74dB(A)when"ISO6396:2008"isusedtomeasure thevalueforanenclosedcab.Themeasurementwasconductedwiththecabdoorsandthecab windowsclosed.Thecabwasproperlyinstalledandmaintained.
Thedynamicspectatorsoundpressurelevelfornon-AWDmachinesis106dB(A)andforAWD machinesis107dB(Awhen"ISO6395:2008"isusedtomeasurethevalueforanenclosedcab. Themeasurementwasconductedat70%ofthemaximumenginecoolingfanspeed.
Thedeclaredsoundlevelslistedaboveincludebothmeasurementuncertaintyanduncertaintydue toproductionvariation.
SoundLevelInformationforMachinesinEurasianEconomic UnionCountries
Thedeclareddynamicoperatorsoundpressurelevelis74dB(A)when"ISO6396:2008"isusedto measurethevalueforanenclosedcab.Themeasurementwasconductedat70%ofthemaximum enginecoolingfanspeed.Thesoundlevelmayvaryatdifferentenginecoolingfanspeeds.The measurementwasconductedwiththecabdoorsandthecabwindowsclosed.
Thedeclaredexteriorsoundpowerlevel(LWA)is110dB(A)whenthevalueismeasured accordingtothedynamictestproceduresandtheconditionsthatarespecifiedin"ISO6395:2008". Themeasurementwasconductedat70%ofthemaximumenginecoolingfanspeed.Thesound levelmayvaryatdifferentenginecoolingspeeds.
Thedeclaredsoundlevelslistedaboveincludebothmeasurementuncertaintyanduncertaintydue toproductionvariation.
"TheEuropeanUnionPhysicalAgents(Vibration)Directive 2002/44/EC"
VibrationDataforMotorGraders
InformationConcerningHand/ArmVibrationLevel
Whenthemachineisoperatedaccordingtotheintendeduse,thehand/armvibrationofthis machineisbelow2.5m/s2.
InformationConcerningWholeBodyVibrationLevel
Thissectionprovidesvibrationdataandamethodforestimatingthevibrationlevelformotor graders.
TheexpectedvibrationlevelscanbeestimatedwiththeinformationinTable1inorderto calculatethedailyvibrationexposure.Asimpleevaluationofthemachineapplicationcanbe used.Fortypicaloperatingconditions,usetheaveragevibrationlevelsastheestimatedlevel. Withanexperiencedoperatorandsmoothterrain,subtracttheScenarioFactorsfromtheaverage vibrationlevelinordertoobtaintheestimatedvibrationlevel.Foraggressiveoperationsand severeterrain,addtheScenarioFactorstotheaveragevibrationlevelinordertoobtainthe estimatedvibrationlevel.
"ISOReferenceTableA-Equivalentvibrationlevelsofwholebodyvibrationemission forearthmovingequipment."
Machine Type TypicalOperating Activity
VibrationLevels (m/s2)
ScenarioFactors (m/s2)
Motor Graders finishgrading0,410,480,380,220,260,14 hardgrading0,610,640,780,210,210,30 transfer0,390,360,580,250,250,34
Note:Referto"ISO/TR25398MechanicalVibration-Guidelinefortheassessmentofexposure towholebodyvibrationofrideonoperatedearthmovingmachines"formoreinformationabout vibration.
GuidelinesforReducingVibrationLevelsonEarthmovingEquipment
Vibrationlevelsareinfluencedbymanydifferentparameters,suchas:operatortraining,operator behavior,operatormodeandstress,jobsiteorganization,jobsitepreparation,jobsite environment,jobsiteweather,jobsitematerial,machinetype,qualityoftheseat,qualityofthe suspensionsystem,attachmentsandconditionoftheequipment.
Properlyadjustmachines.Properlymaintainmachines.Operatemachinessmoothly.Maintainthe conditionsoftheterrain.Thefollowingguidelinescanhelpreducethewholebodyvibrationlevel:
1.Usetherighttypeandsizeofmachine,equipment,andattachments.
2.Maintainmachinesaccordingtothemanufacturersrecommendations:tirepressuresand brakeandsteeringsystems,controls,hydraulicsystem,andlinkages.
3.Keeptheterrainingoodconditionbyperformingthefollowingitems:removeanylarge rocksorobstacles,fillanyditchesandholesandprovidemachinesandscheduletimein ordertomaintaintheconditionsoftheterrain.
4.Keeptheseatmaintainedandadjustedbydoingthefollowing:adjusttheseatand suspensionfortheweightandthesizeoftheoperatorandinspectandmaintaintheseat suspensionandadjustmentmechanisms.
5.Performthefollowingoperationssmoothly:steer,brake,accelerateandshiftthegears.
6.Movetheattachmentssmoothly.
7.Adjustthemachinespeedandtherouteinordertominimizethevibrationlevelbydoingthe following:drivearoundobstaclesandroughterrainandslowdownwhennecessarytogo overroughterrain.
8.Minimizevibrationsforalongworkcycleoralongtraveldistancebydoingthefollowing: usemachinesthatareequippedwithsuspensionsystems,ifnoridecontrolsystemis
available,reducespeedinordertopreventbounceandhaulthemachinesbetween workplaces.
9.Lessoperatorcomfortmaybecausedbyotherriskfactors.Thefollowingguidelinescanbe effectiveinordertoprovidebetteroperatorcomfort:adjusttheseatandadjustthecontrols inordertoachievegoodposture,adjustthemirrorsinordertominimizetwistedposture, providebreaksinordertoreducelongperiodsofsitting,avoidjumpingfromthecab, minimizerepeatedhandlingofloadsandliftingofloadsandminimizeanyshocksand impactsduringsportsandleisureactivities.
ConsultyourlocalCatdealerformoreinformationaboutmachinefeaturesthatminimize vibrationlevels.ConsultyourlocalCatdealeraboutsafemachineoperation.
Usethefollowingwebsiteinordertofindyourlocaldealer: Caterpillar,Inc. www.cat.com
Copyright1993-2024CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
MonJul2210:26:03UTC+05302024
Product:MOTORGRADER
Model:150MOTORGRADERB56
Configuration:150AWDMotorGraderB5600001-UP(MACHINE)POWEREDBYC9Engine
MediaNumber-SEBU7881-31PublicationDate-01/06/2015DateUpdated-03/11/2020
EquipmentLoweringwithEngineStopped
SMCS-7000
Beforeloweringanyequipmentwiththeenginestopped,cleartheareaaroundtheequipmentof allpersonnel.Theproceduretousewillvarywiththetypeofequipmenttobelowered.Keepin mindmostsystemsuseahighpressurefluidorairtoraiseorlowerequipment.Theprocedurewill causehighpressureair,hydraulic,orsomeothermediatobereleasedinordertolowerthe equipment.Wearappropriatepersonalprotectiveequipmentandfollowtheestablishedprocedure intheOperationandMaintenanceManual,"EquipmentLoweringwithEngineStopped"inthe OperationSectionofthemanual.
MonJul2210:25:43UTC+05302024
Product:MOTORGRADER
Model:150MOTORGRADERB56
Configuration:150AWDMotorGraderB5600001-UP(MACHINE)POWEREDBYC9Engine OperationandMaintenanceManual
SlopeOperation
SMCS-7000
i07746366
Machinesthatareoperatingsafelyinvariousapplicationsdependonthesecriteria:themachine model,configuration,machinemaintenance,operatingspeedofthemachine,conditionsofthe terrain,fluidlevels,andtireinflationpressures.Themostimportantcriteriaaretheskilland judgmentoftheoperator.
AwelltrainedoperatorthatfollowstheinstructionsintheOperationandMaintenanceManualhas thegreatestimpactonstability.Operatortrainingprovidesapersonwiththefollowingabilities: observationofworkingandenvironmentalconditions,feelforthemachine,identificationof potentialhazardsandoperatingthemachinesafelybymakingappropriatedecisions.
Whenyouworkonsidehillsandwhenyouworkonslopes,considerthefollowingimportant points:
Speedoftravel-Athigherspeeds,forcesofinertiatendtomakethemachinelessstable.
Roughnessofterrainorsurface-Themachinemaybelessstablewithuneventerrain.
Directionoftravel-Avoidoperatingthemachineacrosstheslope.Whenpossible,operatethe machineuptheslopesandoperatethemachinedowntheslopes.Placetheheaviestendofthe machineuphillwhenyouareworkingonanincline.
Mountedequipment-Balanceofthemachinemaybeimpededbythefollowingcomponents: equipmentthatismountedonthemachine,machineconfiguration,weights,andcounterweights.
Natureofsurface-Groundthathasbeennewlyfilledwithearthmaycollapsefromtheweightof themachine.
Surfacematerial-Rocksandmoistureofthesurfacematerialmaydrasticallyaffectthe machine'stractionandmachine'sstability.Rockysurfacesmaypromotesideslippingofthe machine.
Slippageduetoexcessiveloads-Thismaycausedownhilltracksordownhilltirestodigintothe ground,whichwillincreasetheangleofthemachine.
Widthoftracksortires-Narrowertracksornarrowertiresfurtherincreasethediggingintothe groundwhichcausesthemachinetobelessstable.
Implementsattachedtothedrawbar-Thismaydecreasetheweightontheuphilltracks.This mayalsodecreasetheweightontheuphilltires.Thedecreasedweightwillcausethemachineto belessstable.
Heightoftheworkingloadofthemachine-Whentheworkingloadsareinhigherpositions,the stabilityofthemachineisreduced.
Operatedequipment-Beawareofperformancefeaturesoftheequipmentinoperationandthe effectsonmachinestability.
Operatingtechniques-Keepallattachmentsorpulledloadslowtothegroundforoptimum stability.
Machinesystemshavelimitationsonslopes-Slopescanaffecttheproperfunctionand operationofthevariousmachinesystems.Thesemachinesystemsareneededformachinecontrol.
Note:Operatorswithlotsofexperienceandproperequipmentforspecificapplicationsarealso required.Safeoperationonsteepslopesmayalsorequirespecialmachinemaintenance.Referto LubricantViscositiesandRefillCapacitiesinthismanualfortheproperfluidlevelrequirements andintendedmachineuse.Fluidsmustbeatthecorrectlevelstoensurethatsystemswilloperate properlyonaslope.
Copyright1993-2024CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
MonJul2210:24:59UTC+05302024
Product:MOTORGRADER
Model:150MOTORGRADERB56
Configuration:150AWDMotorGraderB5600001-UP(MACHINE)POWEREDBYC9Engine
OperationandMaintenanceManual 140Mand150MotorGrader
MediaNumber-SEBU7881-31PublicationDate-01/06/2015DateUpdated-03/11/2020
Parking
SMCS-7000
Parkthemachineonalevelsurface.Ifyoumustparkonagrade,chockthewheelsofthe machine.
Applythetransmissionmodulatorcontrol(inchingpedal),forthe12M,120M,140M,160M, 14M,and16M,inordertostopthemachine.Applytheservicebrakeinordertostopthemachine. MovethetransmissioncontrolswitchtotheNEUTRALposition.Movethethrottlecontroltothe LOWIDLEposition.
Engagetheparkingbrake.
Lowerallequipmenttotheground.Activateanycontrollocks.
TurntheenginestartswitchtotheOFFpositionandremovetheenginestartswitchkey.
AlwaysturnthebatterydisconnectswitchtotheOFFpositionbeforeleavingthemachine.
Ifthemachinewillnotbeoperatedforamonthormore,removethebatterydisconnectswitch key.
Copyright1993-2024CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
MonJul2210:24:26UTC+05302024
Product:MOTORGRADER
Model:150MOTORGRADERB56
Configuration:150AWDMotorGraderB5600001-UP(MACHINE)POWEREDBYC9Engine
OperationandMaintenanceManual
Operation
SMCS-7000;7600
MachineOperatingTemperatureRange
Thestandardmachineconfigurationisintendedforusewithinanambienttemperaturerangeof required.ConsultyourCaterpillardealerforadditionalinformationonspecialconfigurationsof yourmachine.
MachineOperation

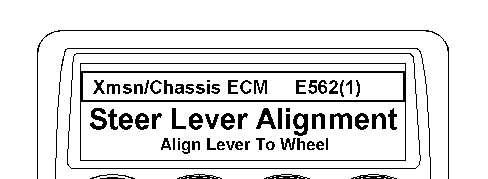

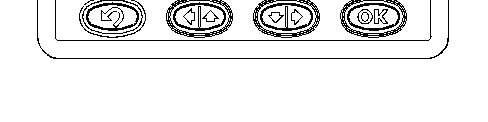

Illustration2g01717143
Note:ForinformationonsteeringalignmentrefertoOperationandMaintenanceManual, "OperatorControls-JoystickSteeringAlignment".
Onlyoperatethemachinewhileyouareintheseat.Theseatbeltmustbefastenedwhileyou operatethemachine.Onlyoperatethecontrolswhiletheengineisrunning.
Beforeyouoperatethemachine,removethewheelleanlockingboltfromthewheelleanlock bracket.Makesurethattheframelockpinisstoredintheunlockedposition.Articulatethe machine.Theframelocklinkmustberemovedinordertoarticulatethemachine.
Note:Withjoysticksteering,thepositionsensorsforthesteeringcylinderslimitthesteeringangle oftheaxle.Thiscausestheaxlestopstonotmakecontact.
Donotusethewheelleanlockingboltandthewheelleanlockbracketinordertocenterthewheel leanofthemachine.
Whilethegroundisbeinggraded,donotoperatethemachinewiththedoorsopen.
Whileyouoperatethemachineslowlyinanopenarea,checkforproperoperationofallcontrols andallprotectivedevices.
Beforeyoumaneuverthemachine,makesurethatnopersonnelarebetweenthemachineand attachments.
Beforeyoumovethemachine,makesurethatnoonewillbeendangered.
Whenyouoperatethemachineandtheworktoolinanopenarea,checkforproperoperationofthe controlsandcheckforoperationoftheprotectivedevices.
Donotallowridersonthemachinewhilethemachineisbeingoperated.
Neverusetheworktoolforaworkplatform.
Reduceenginespeedwhenyoumaneuverintightquartersorwhenyouaregoingoverahill.
Donotoperatethemachineclosetoacliff.Donotoperatethemachinenearanexcavation.Donot operatethemachinenearanoverhang.
Whenyouoperatethemachinedownhill,usetwotransmissiongearslessthanthetransmission gearthatisusedwhenyouoperatethemachineupthesamehill.
Note:CaterpillardoesnotrecommendthatyoushifttotheNEUTRALpositionwhenyouoperate themachinedownhill.IfyoushifttotheNEUTRALpositionthemachinemayrequireadditional brakingeffortthatcouldacceleratewearoftheservicebrakecomponents.
Donotallowtheenginetooverspeedwhenyouoperatethemachinedownhill.Ifoverspeedexists, usetheservicebrakecontroltodecreasethespeedtoalevelthatwillallowyoutodownshift. Repeatthisprocessuntilastablespeedisobtained.Beforetheengineispushedbeyonda dangerousspeedlevel,thetransmissionwillautomaticallyupshiftinordertokeeptheengine speedwithinasafespeedrange.However,whenthemaximumgearisreached,theservicebrakes mustbeusedtocontrolthemachinespeedandtheservicebrakesmustbeusedtopreventthe enginefromoverspeeding.
Carryattachmentsapproximately40cm(15inches)abovegroundlevel.Donotgoclosetothe edgeofacliff,anexcavation,oranoverhang.
Ifthemachinebeginstosideslipdownwardonagrade,immediatelyremovetheloadandturnthe machinedownhill.
Avoidanyconditionsthatcanleadtotippingthemachine.Themachinecantipwhenyouworkon hills,onbanksandonslopes.Also,themachinecantipwhenyoucrossditches,ridges,orother unexpectedobstructions.
Avoidoperatingthemachineacrosstheslope.Whenpossible,operatethemachineuptheslopes anddowntheslopes.
Whenyouoperatethemachineonaslope,usealowgroundspeedformaximumcontrolofthe machine.Whenyoureleasetheaccelerator,therewillbeimmediatereductioninenginerpmand groundspeed.
Whenyouoperateonaslope,engagethedifferentiallockcontrol.Whenyouoperateonaslope, usethethrottlelockandusetheacceleratorcontrol.
Onsteeperslopes,shiftthebladedrawbaruphilltowardthetoeofthemoldboard.Articulatethe rearframesotheheavyengineframeisonthedownhillsideoftheslopeforaddedstability.
Whenyouoperateonaslopelessthan2.5:1startatthetopoftheslope.Castthewithdrawn materialoutsideofthereartandemtirestopreventthereartiresfromsliding.
Maintaincontrolofthemachine.Donotoverloadthemachinebeyondthemachinecapacity. Neverstraddleawirecable.Neverallowotherpersonneltostraddleawirecable.
Knowthemaximumdimensionsofyourmachine.
AlwayskeeptheRolloverProtectiveStructure(ROPS)installedduringmachineoperation.
Noteanyneededrepairsduringmachineoperation.Reportanyneededrepairs.
ParkBrakeOverride
Youcanoverridethesteeringalignmentandyoucanoverridetheparkingbrakeinterlocksin ordertomovethemachineoutofdanger.
Note:AWarningCategory2Swilloccurduringaparkbrakeoverride.Thealarmwilldeactivate oncethetransmissionisreturnedtotheNEUTRALpositionormachinespeedhasbeendetected andthefrontwheelshavebeenalignedtotheleft-handjoystickandthesteeringhasbecome active.
Inordertoactivatetheparkbrakeoverride,followthesesteps:
•Pushinthebottomoftheparkingbrakeswitchinordertodisengagetheparkingbrake.
•Depressthetransmissionmodulatorcontrol(inchingpedal).Iftheleft-handjoystickhasnot beenalignedwiththefrontwheels,thesteeringwillnotactivate.Theparkbrakewillnot release.
•Bringthemachinetohighidlebydepressingtheacceleratorcontrol.
•Positiontheleft-handjoystickinthepositionyouwantthefrontwheelstoalign.
•Selectthepreferreddirectiononthetransmissioncontrolswitch.
•Slowlyreleasethetransmissionmodulatorcontrol(inchingpedal).Theparkbrakewillnow disengageandthemachinewillmoveinthedirectionthathasbeenselected.
•Thefrontwheelswillautomaticallyaligntothesameangleastheleft-handjoystickwhen machinespeedisdetected.Thesteeringwillthenbecomeactive.
Note:"1F"and"1R"aretheonlygearsthatareavailabletooverridetheparkingbrake.Upshifting willnotchangetheselectedgearuntilthefrontwheelshavebeenalignedtotheleft-handjoystick andthesteeringhasbecomeactive.
