Cat + Caterpillar 140M Motor Grader Operation & Maintenance Manual by Heavy Equipment Manual

Product:MOTORGRADER

Model:140MMOTORGRADERB9D

Configuration:140MMotorGraderB9D00001-UP(MACHINE)

OperationandMaintenanceManual

Foreword

LiteratureInformation

Thismanualshouldbereadcarefullybeforeusingthisproductforthefirsttimeandbefore performingmaintenance.Thismanualshouldbestoredintheproductliteratureholderorinthe productliteraturestoragearea.Immediatelyreplacethismanualiflost,damaged,orunreadable. Thismanualmaycontainsafetyinformation,operationinstructions,transportationinformation, lubricationinformation,andmaintenanceinformation.Somephotographsorillustrationsinthis publicationshowdetailsorattachmentsthatcanbedifferentfromyourproduct.Guardsand coversmighthavebeenremovedforillustrativepurposes.Continuingimprovementand advancementofproductdesignmighthavecausedchangestoyourproduct,whicharenot includedinthispublication.Wheneveraquestionarisesregardingyourproduct,orthis publication,consultyourdealerforthelatestavailableinformation.

Safety

Thesafetysection,ifpresent,listsbasicsafetyprecautions.Inaddition,thissectionidentifiesthe textandlocationsofsafetymessagesusedontheproduct.Readandunderstandthebasic precautionslistedinthesafetysectionbeforeoperatingorperforminglubrication,maintenance, andrepaironthisproduct.

Operation

Theoperationsection,ifpresent,isareferenceforthenewoperatorandarefresherforthe experiencedoperator.Thissectionincludesadiscussionofgauges,switches,controls,attachment controls,transportation,andtowinginformation(ifapplicable).Photographsandillustrations guidetheoperatorthroughcorrectproceduresofchecking,starting,operating,andstoppingthe product.Operatingtechniquesoutlinedinthispublicationarebasic.Skillandtechniquesdevelop astheoperatorgainsknowledgeoftheproductanditscapabilities.

ProductInformation

s02590205

Theproductinformationsection,ifpresent,mayprovidespecificationdata,productintendeduse, productidentificationplatelocations,andcertificationinformation.

Maintenance

Themaintenancesection,ifpresent,isaguidetoequipmentcare.Propermaintenanceandrepair areessentialtokeeptheequipmentandsystemsoperatingcorrectly.Astheowner,youare responsiblefortheperformanceoftherequiredmaintenancelistedintheOwnerManual, OperationandMaintenanceManual,andServiceManual.TheMaintenanceIntervalSchedulelists theitemstobemaintainedataspecificserviceinterval.Itemswithoutspecificintervalsarelisted underthe"WhenRequired"serviceinterval.TheMaintenanceIntervalScheduleliststhepage numberforthestep-by-stepinstructionsrequiredtoaccomplishthescheduledmaintenance.Use theMaintenanceIntervalScheduleasanindexor"onesafesource"forallmaintenance procedures.

MaintenanceIntervals

Usetheservicehourmetertodetermineservicingintervals.Calendarintervalsshown(daily, weekly,monthly,etc.)canbeusedinsteadofservicehourmeterintervalsiftheyprovidemore convenientservicingschedulesandapproximatetheindicatedservicehourmeterreading. Recommendedserviceshouldalwaysbeperformedattheintervalthatoccursfirst.Under extremelysevere,dusty,orwetoperatingconditions,morefrequentlubricationthanisspecifiedin themaintenanceintervalschartmightbenecessary.Performserviceonitemsatmultiplesofthe originalrequirement.Forexample,atevery500servicehoursor3months,alsoservicethose itemslistedunderevery250servicehoursormonthlyandevery10servicehoursordaily.

ProductCapacity

Additionalattachmentsormodificationsmayexceedproductdesigncapacity,whichcanadversely affectproductperformancecharacteristics,safety,reliability,andapplicablecertifications.Contact yourdealerforfurtherinformation.

ThuAug1912:06:08UTC+05302021

Product:MOTORGRADER

Model:140MMOTORGRADERB9D

Configuration:140MMotorGraderB9D00001-UP(MACHINE)

OperationandMaintenanceManual CaterpillarCorporateRadio

MediaNumber-M0085473-05PublicationDate-01/11/2020DateUpdated-13/07/2020 i07316460

Radio-EntertainmentIfEquipped

SMCS-7338

Whendriving,alwayskeepyoureyesontheroadandhandsonthe steeringwheel,payingcarefulattentiontonormaldrivingtasks.As always,thedriverisresponsibleforsafevehicleoperation.Notkeeping youreyesontheroadandhandsonthewheelwhiledrivingcouldresult ininjurytoyouorothers.

Introduction

Informationincludedinthisownersmanualwasaccurateatthetimeofpublication.Caterpillar, however,reservestherighttoandperformancewithoutpriornotice.Checkwithyourdealerfor detailsregardingchangesthatmayhaveoccurredsincetimeofprinting.

TheRadiosystemiscontrolledbyusingthebuttons,RSA,orsteeringwheelcontrols.

StereoReceivers

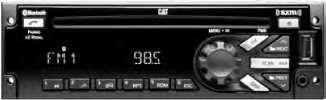

Illustration2g03566527

MP3/USB/iPod/Aux/Bluetooth/CDReceiver

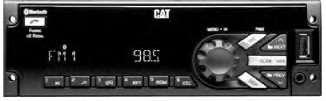

Illustration3g03566571

MP3/USB/iPod/Aux/Bluetooth/CD/SATReceiver

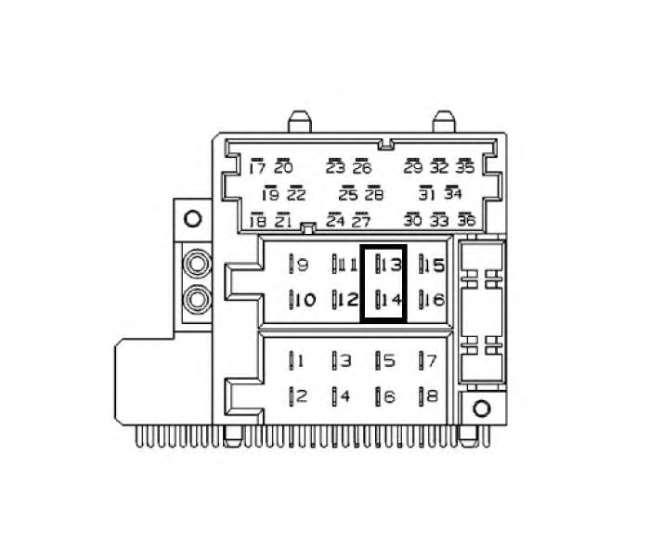

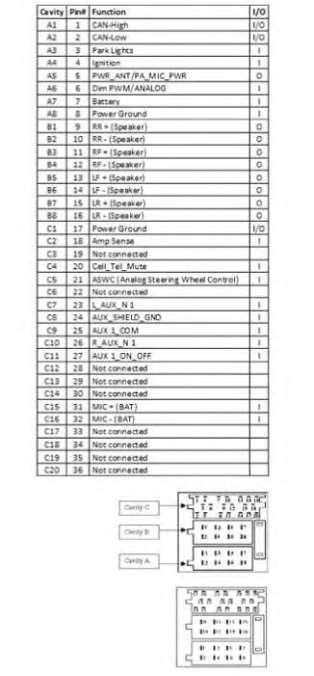

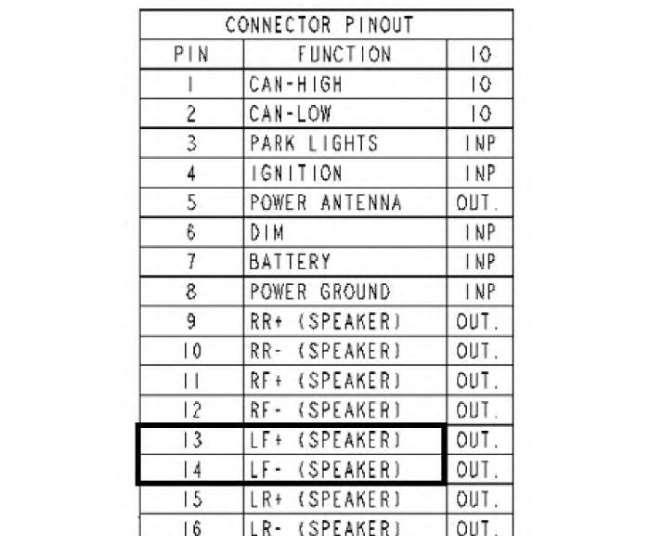

RadioPinout

Radiopinoutisshownbelow

This is the sample of the manual if you need complete manual Click Here to download

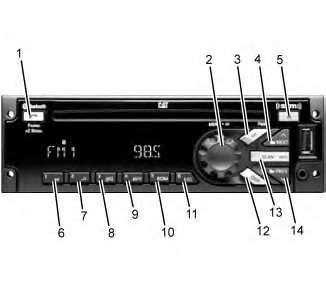

Illustration5g03566592 (1)Phone (2)Knob (3)SRC/PWR(Source/Power) (4)Next (5)Eject (6)Play/Pause (7)Browse (8)Clock/Alarm (9)RPT(Repeat) (10)RDM(Random) (11)ESC(Escape) (12)DISP(Display) (13)SCAN/ASCN(Scan/Autoscan) (14)PREV(Previous)

Options

•AnAMbandwith6AMpresets

•ThreeFMbandswithatotalof18FMpresets

•OneweatherbandwithsixWXpresets

SRC/PWR(Source/Power)

PresstoswitchtoFM->AM->WX->SXM->CD->USB/iPod->AUX->BluetoothAudio(if equipped)andtoturnRadioON.PressandholdtoturnradioOFF.

OneHourTimer

Withtheignitionoff,pressingtheSRC/PWRbuttonwillturnonthereceiverandactivatethe receiversone-hourtimer.Thereceiverwillturnoffafter1hourorbypressingandholdthe SRC/PWRbutton.

VOLUMEKNOB/OK

Pressforlessthan3secondstodisplayAudioControlMenu.Pressformorethan3secondstoshow theusermenu.Rotatetoincrease/decreasevolumeorduringamenufornavigation.Presswhileina menutoconfirmtheselectedaction.

PREV(Previous/Reverse)

Presstoselectprevioustrackorstation.PressandholdforFRorTuneDown

NEXT(Next/Forward)

Presstoselectnexttrackorstation.PressandholdforFForTuneUp

EJECT

PresstoejecttheCD

Phone(ifequipped)

PressthePhonebuttonformorethan3secondstoshowtheBluetoothMenu.WhenBluetoothis enabled,pressthebuttontodisplaytheDialMenuortoacceptanIncomingCall(ifaPhoneis paired).Duringacallpressthebuttonformorethan3secondstotransferthecallfromtheradioto thePhone.

CLOCK/ALARM

PressduringAlarmactivationtocanceltheAlarm.

SCAN/ASCAN

Scansstations/CDtracks/MP3/WMAfilesandfolderandintuner,storesstationstopresets

PLAY/PAUSE

Presstopause/unpausecurrentMedia.

RPT(Repeat)

Presstorepeatcurrenttrack.Pressagaintostoprepeat.LookfortheRPTiconintheradiodisplayto turnthisfeatureONorOFF.

BROWSE

Presstonavigateonthedeviceandselectaspecificsongorplaycontext(ApplicabletoUSBsticks, CDMP3discsandiPod).

RDM(Random)

Presstoplaythetracksrandomly.Pressagaintostoprandommode.LookfortheRDMicontoturn onintheradiodisplay.

ESC(ESCAPE)

PresstoexitoneMenuLevel.

IfthesystemisequippedwithBluetooth,presstheESCbuttonduringBluetoothcalloperationto rejectorcancelacall.

DISP(DISPLAY)

IfvehicleignitionisON:Presstochangesourcedisplay

Pressformorethan3secondstoshowtheClockforashorttime.

Radio(Audiosource)

ToaccessAM,FM,WX,SXM(ifequipped),iPod,USB,RearAux,FrontAux,CD,orBTAudiodo oneofthefollowing:

1.PresstheSRCradiobuttontoscrollthroughtheoptionsandselectdesiredoption.

2.PresstheSRCradiobuttonandthenscrollthesourcemenubyknobrotationorNEXT/PREV shortpressesandthenselectbyshort-pressingtheknob.

TheCD/MP3,USB/iPod,FrontAUX,andBTAudioshallbeaccessedonlyiftheradiomodel supportsthoseoptionsandadeviceisconnected/insertedforthatspecificsource.

Note,ifadeviceisconnectedthroughdifferentsourcesatthesametime,thefunctionalitycannotbe guaranteed(DeviceDependent).Example:DeviceconnectedthroughFrontAuxandBluetoothor USBandBluetoothatthesametime.

AM-FM-WXRadio

Tuning:Setthedesired"TunerConfiguration"followingthestepsintheMenusection.

Iftheradioissettomanual,theradiowillallowforexecutionofthefollowingfunctions:

•ExecutemanualtuningwhentheNEXTorPREVbuttonsareshortpressed.

•ExecuteSeekwhentheNEXTorPREVbuttonsarelongpressed.

IftheradioissettoAuto,theradiowillallowforexecutionofthefollowingfunctions:

•ExecuteSeekwhentheNEXTorPREVbuttonsareshortpressed.

•ExecutemanualtuningwhentheNEXTorPREVbuttonsarelongpressed.

Manualtuning

Thecurrentfrequencywillbeincreased/decreasedby1stepof0.2MHz(USAFMmode),10kHz (USAAMmode)andonechannel(25kHz)inWXmode.

SeekingaStation

WhentheSeekfunctionisactivated,theradioincrements/decrementsthefrequencyuntilatunable stationisfound.

Ifatunablestationisnotfound,theradiowilldisplay"NOSTATIONFOUND".

Presets

StoringRadioStationPresets:

1.Tunethedesiredfrequency,andthenlongpressanyofthePreset(1-6)buttonsuntiltheradio producesabeep.

TuningRadioStationPresets

1.ShortpressanyofthePreset(1-6)buttons.Thefrequencystoredatthepresetlocationistuned whenthebuttonisreleased.

Scan

ToinitiatetheScanfunction,shortpresstheSCAN/ASCNbutton.WhenSCANisinitiated,theradio seeksupinfrequencyandstopsonthenextstrongfrequencyfor8secondsbeforecontinuingtoseek forthenextstrongstation.

Ifnostationisfoundintwopassesthroughtheband,theradiowilldisplay“NOSTATIONFOUND” andthentunetothestartingfrequency.

Autoscan

Thisfunctiontemporallystoresthestrongest6stationsofthecurrentbandinthepresetsuntilthe radioispoweredofforthesourceischanged.

AUTOSCANdoesnotstorethefrequenciesonthepresetsonnumericalorder.Frequenciesarestored basedontheordertheywerefoundandonthequalityofthefrequency.

ToinitiatetheAUTOSCANfunction,longpresstheSCAN/ASCANbuttonuntiltheradioperformsa beep.Thenthe"AUTOSCAN"iconwillblinkwhiletheradioisstoringthetemporarypresets.

WhentheAutoscanprocessfinishes,theradiowilltunetothestationstoredinPreset1andthe "AUTOSCAN"iconshallbeilluminatedwhilethemodeisactive.

Totuneanyofthe6frequenciesortostorenewpresets,followthestepsdefinedinthePresets section.

Toexitthismodeandreturntotheoriginalpresetsexecuteanyofthefollowingactions:

1.PressandholdtheSCAN/ASCANbutton

2.PresstheSCR/PWRbutton.

3.Turnofftheradio.

4.Performanignitioncycle

5.Disconnectthebattery.

TheWXbandisfortheGovernmentalweatherradioservicesfrequencies.Theradiocantunetothe sevenweatherchannelsfollowingthestepsinTuning,Presets,andSCANsections.

SXM(IfEquipped)

VehicleswithavalidSiriusXM®satelliteradiosubscriptioncanreceiveSiriusXMprogramming. SiriusXMsatelliteradiohasawidevarietyofprogrammingandcommercial-freemusic,coastto coast,andindigital-qualitysound.

SiriusXM®

SXMDisplay

WhenSiriusXMisactive,thechannelnumber,channelname,artistname/contentinfo,songtitle,or categorynamecouldbedisplayedonthescreen.SiriusXMmayupdatetheinformationatanytime.

Tochangethecurrentdisplayview,shortpresstheDISPbutton.

Whenanewchannelisselected,asongchangeoccurs,SXMsourceisselected(frompower-upor sourcechange)ortheinformationisupdated,alltheelementswillbedisplayedusingpaging.The pagingcanbestoppedbyshortpressingtheDISPbutton.

Displaylabels

Torecognizethedisplayedtext,theradiousesthefollowingconvention:

•ChannelNumber:CH

•ChannelName:CH

•ArtistName:ART

•ContentInfo:INFO

•SongTitle:SONG

•Categoryname:CAT

SXMCategories

SiriusXMstationsareorganizedincategories.

ThecategorylistforSXMisinthefollowingwebpage: "http://www.siriusxm.com/sxm/pdf/sirius/channelguide.pdf"

Tochangethecurrentcategory,longpresstheNEXT/PREVbuttonandtheradiowilltunethefirst channelonnextorpreviouscategory.

CategorymodeEnable/Disabled

CategorySearchModeEnabledmeansthatonlychannelsinthecurrentCategoryaresearched.When enabled,theCATEGORYiconisturnedon.

CategorySearchModeDisabledmeansthatallchannelsaresearched.Whendisabled,the CATEGORYiconisturnedoff.

Toenable/disablethecategorybrowsemode,followthestepsintheUserMenusection

Thedefaultafterapower-upisCategoryDisabled.

SXMChannelSelection

PresetsandSCANfunctionsworkthesameasdefinedintheSCANsubsectionofAM-FM-WX Radio.

NEXTbutton

WhileinSXMtheradiowillscrolltothenextchannelavailableinnumericalorder.

PREVbutton

WhileinSXMtheradiowillscrolltothepreviouschannelavailableinnumericalorder

Note:IftheSXMserviceisnotactivated,onlythefree-to-airchannelswillbepresent.

SXMRadioID

Iftunedtochannel0,"RADIOID"labelalternateswiththeSXMradioeight-digitcode.Thiscodeis neededtoactivatetheservice.

DISPbuttondoesnotworkinchannel0.Channel0isnotavailableincategorymodeenabled.

SXMMessages

SXMBUSY-Theaudiosystemisacquiringand/orprocessingaudioand/ortextdata.Noactionis needed.

ARTUNAVAIL-ThereisnotArtistNamerelatedwiththecurrentsong.

SONGUNAVAIL-ThereisnotSongTitlerelatedwiththecurrentsong.

CHANUNAVAIL-ThereisnoChannelNamerelatedwiththecurrentchannel.

CHECKANTENNA-SXMantennaorantennacableisnotconnectedtotheradioortheantennais shorted.

NOSIGNAL-SXMtunermodulereportstheNoSignalcondition.Underthisconditiononly Channel0willworkasstatedinthismanual.

CHANUNSUB-Activechannelhasbecomeunsubscribedortherequestedchannelisnot unsubscribed.

SUBSCRIPTIONUPDATED-PRESSOKTOCONTINUE-Thesubscriptionoftheradiowas updated.Toremovethemessageandreturntothepreviousstatepres"OK"(Knob).

CHUNAVAIL-Requestedchannelisreportedunavailableforanewlyselectedchannelorthe currentlyselectedchannel.Unavailablechannelsareinthelegalchannelrangebutarenotcurrently

availablefordisplayorsubscriptionasabroadcastservice.After3secondsthepreviouschannel(if available)orchannel1willbetuned.

iPod

ThisradiosupportsthefollowingiPodmodels:

•iPodclassic(sixthgeneration)

•iPodnano(6G)

•iPodtouch(4G)

•iPhone(3G,3GS,4,and4S)

OtheriPodsmaybeplayed,butfunctionalityisnotguaranteed.

Radioprovidesupto1Aofcharge,soanydeviceconnectedtotheUSBthatrequireslessthan1A willbecharged.

Theremaybeproblemswiththeoperationandfunctioninthefollowingsituations:

•When,connectinganiPodonwhichamorerecentversionofthefirmwareisinstalledthanis supportedbytheRadio

•When,connectinganiPodwithfirmwarefromotherprovidersisinstalled

PlayingfromaniPod

ToconnectaniPod:

1.ConnectoneendofthestandardiPodUSBcabletotheiPodsdockconnector.

2.ConnecttheotherendtotheUSBportinthefrontradiodisplay.

1.RadiowillstartplayingtheUSBandshowsthetracknumber,Song,Artist,elapsedtime,and Albuminformationwhenavailable.

2.iPodmusicinformationdisplaysontheradiosdisplayandbeginsplayingthroughthevehicles audiosystem.

3.IftheiPodisanunsupportedmodel,itcanbelistenedtointhevehiclebyconnectingtothe auxiliaryinputjackusingastandard3.5mm(1/8in)stereocable.

ExpectedbehaviorwheniPodisconnected:

•TheiPodbatteryrechargesautomaticallywhilethevehicleison.

•TheiPodshutsoffandstopschargingwhenthevehicleisshutoff.

iPodMenu

UsethefollowingstepstonavigatetheiPodMenu:

1.Pressthemagnifyingglass(preset1)buttonwhileUSBsource(iPodconnected)isactiveto accesstheiPodMenu.

2.UsetheVolumeKnoborNext/Prevbuttontonavigatethroughthedifferentoptions.

3.UsetheiPodMenutoselect.

Playlists

Usethefollowingstepstonavigateplaylists:

1.PresstoviewtheplaylistsontheiPod.

2.Selectaplaylistnametoviewalistofallsongsintheplaylist.

3.Selectthesongfromthelisttobeginplayback.

Artists

Usethefollowingstepstonavigateartists:

1.PresstoviewtheartistsontheiPod.

2.Selectanartistnametoviewalistofallalbumswithsongsbytheartist.

3.Selectanalbum.

4.Selectthesongfromthelisttobeginplayback.

Albums

Usethefollowingstepstonavigatealbums:

1.PresstoviewthealbumsontheiPod.

2.SelectanalbumnametoviewalistofallsongsonthealbumorselectAllSongstoviewall songsontheiPod.

3.Selectthesongfromthelisttobeginplayback.

Genres

Usethefollowingstepstonavigategenres:

1.PresstoviewthegenresontheiPod.

2.Selectagenrenametoviewalistofartistsofthatgenre.

3.SelectanartisttoviewalbumsorAllAlbumstoviewallalbumsofthatgenre.

4.SelectArtisttoviewalbums.

5.SelectAlbumtoviewsongs.

6.Selectthesongfromthelisttobeginplayback.

Podcasts

Usethefollowingstepstonavigatepodcasts:

1.PresstoviewthepodcastsontheiPod.

2.Selectapodcastnametobeginplayback.

Songs

Usethefollowingstepstonavigatesongs:

1.PresstoviewalistofallsongsontheiPod.

2.Selectthesongfromthelisttobeginplayback.

Composers

Usethefollowingstepstonavigatecomposers:

1.PresstoviewthecomposersontheiPod.

2.Selectthecomposertoviewalistofsongsbythatcomposer.

3.Selectasongfromthelisttobeginplayback.

AudioBooks

Usethefollowingstepstonavigateaudiobooks:

1.PresstoviewtheaudiobooksontheiPod.

2.Selecttheaudiobookfromthelisttobeginplayback.

WhenaniPhoneoriPodTouchwithiOSlowerthaniOS5.0isconnectedthroughUSBorBluetooth, theaudiomaynotbeheardwhentheiPodsourceisselected.Tocorrectthissituation,selecteither thedockconnectorinthephoneordisconnectandreconnecttheAppledevice.

Note:iOSistheAppleOperativeSystem.

UsethefollowingcontrolstoplaytheiPod:

PREV(Previous)-Presstoseektothebeginningofthecurrentorprevioustrack.

Note:Ifthetrackhasbeenplayingforlessthan10seconds,itwillseekfortheprevioustrack.If longerthan10seconds,thecurrenttrackstartsfromthebeginning.

NEXT(Next)-Presstoseektothenexttrack.

FF/FR(FastForward/FastReverse)-Tofastforwardorreversethroughatrack,pressandhold NextorPREVbutton.

RDM(Random)-Presstoplaythetracksrandomly.Pressagaintostopshufflemode.Lookforthe RDMicontoturnonintheradiodisplay.

RPT(Repeat)-Presstorepeatcurrenttrack.Pressagaintostoprepeat.LookfortheRPTiconto turnonintheradiodisplay.

ErrorMessages-Ifan"UNSUPPORTED"messageisdisplayed,itcouldbeforoneofthe followingreasons:

•When,theiPodconnectedisnotsupported(lookatpageXforthelistofiPodssupported).

•TheiPoddoesnotrespondtotheradiocommands,inthiscaseresettheiPod,andtryagainthe connection.

Ifan"NOMUSIC"messageisdisplayed,itcouldbeforoneofthefollowingreasons:

•TherearenotanyplayablefilesintheiPod.

USB

PlayingfromaUSB

AUSBmassstoragedevicecanbeconnectedtotheUSBport.

TheUSBportisinthefrontoftheradiodisplay.

FivevoltsDCpowerislimitedto1ampfromthisport.DevicessuchasiPadthatrequiregreater currentwillnotchargefromthisport.

USBMP3PlayerandUSBDrives.TheUSBMP3playersandUSBdriveconnectedmustcomply withtheUSBMasswiththeUSBMassStoragespecification:

•MS-DOSpartitiononly

•Classspecification(ESBMSC)andsupportsformatsofFAT32,FAT16,NTFS,andHFS+.

•Harddiskdrivesmaybeplayed,butarenotsupported.

•Theradiowillnotbeabletoplaywrite-protectedmusic.

•MTPplayersarenotsupported.

ThefollowingguidelinesmustbemetwhencreatingMP3files,otherwisethefilesmightnotplay:

ForMP3Files:

•Bitrates:32,40,48,56,64,80,96,112,124,160,192,224,256,320kbpsforMPEG-1Audio Layer3.

•Samplingfrequencies:32,44.1and48kHzforMPEG-1AudioLayer3.

•Maximumnumberoffolders:Eightfolderswith255filesperfolder.

•Maximumof1,000filesonadisc.

•M3uandplsplaylistversionssupported

•RecordedonaCD-RorCD-RWwithamaximumcapacityof700MB.

ForUnprotectedWMAFiles:

•Versions:1,2,7,8,9and9.1.

•Bitrates:32-320kbps.

•Samplingfrequencies:32-48kHz.

PlayingaUSBDevice

UsethefollowingstepstonavigateandplayaUSBdevice:

1.ConnecttheUSBanditbeginstoplay.

2.UsingtheSRCButtonselectstheUSBsource.

3.RadiowillstartplayingtheUSBandwillshowthetracknumber,Song,Artist,elapsedtime, andAlbuminformationwhenavailable.

Usethefollowingcontrolstoplaythedisc:

PREV(Previous)-Presstoseektothebeginningofthecurrentorprevioustrack.

Note:Ifthetrackhasbeenplayingforlessthan10seconds,itseekstotheprevioustrack.Iflonger than10seconds,thecurrenttrackstartsfromthebeginning.

NEXT(Next)-Presstoseektothenexttrack.

FF/FR(FastForward/FastReverse)-Tofastforwardorreversethroughatrack,pressandhold NextorPREVbutton.

RDM(Random)-Presstoplaythetracksrandomly.Pressagaintostopshufflemode.Lookforthe RDMicontoturnonintheradiodisplay.

RPT(Repeat)-Presstorepeatcurrenttrack.Pressagaintostoprepeat.LookfortheRPTiconto turnonintheradiodisplay.

FolderUp-Presstoselectnextfolder.

Note:Ifplayingaspecificplayablescope,whenpressedtheradiowilljumpandstartsplayingtrack1 asnewlyinsertedUSB.

FolderDown-PresstoselectpreviousFolder.

Note:Ifplayingaspecificplayablescope,whenpressedtheradiowilljumpandstartsplayingtrack1 asnewlyinsertedUSB.

SCAN:

•ShortpresstostarttheSCANofthecurrentplayingcontext.

•LongpresstoSCANthewholedevicestartingontrack1.

ErrorMessages-Ifan"UNSUPPORTED"messageisdisplayed,theerrorcouldbeforoneofthe followingreasons:

•WhenanMTPPlayeroraUSBdevicewithunsupportedformatorpartitionisconnected.

•Whenthedeviceisdamaged.

•Whentheconnecteddevicewasnotconnectedasmassstoragedevice.

Ifan"NOMUSIC"messageisdisplayed,itcouldbebecausetherearenotMP3orunprotected WMAfilesthatcanbeplayed.

FrontAuxiliary

Inthefrontauxiliarymode,youcanplayanexternaldevicesuchasaniPod®orMP3playerviathe auxiliaryinputjackonthefrontofthereceiver.

Touseanexternaldevice,simplyconnectthedeviceviatheauxiliaryinputjack.

Frontauxiliarymodewillnotbeavailableifnodeviceisconnectedtotheauxiliaryinputjackonthe frontofthereceiver

RearAuxiliary

Inrearauxiliarymode,youcanplayanexternaldevicethatyouhaveconnectedviathereceiversrear powerauxiliaryinputlines.

Touseanexternaldevice,simplyconnectthedeviceviatheauxiliaryinputjackandselectitusing thesourcebutton.

RearAuxsourcewillbeavailableevenwhennodeviceisattachedtotherearinput.

Bluetooth(IfEquipped)

TheradiocanconnecttoaBluetoothDevice.TousethisfunctionalityyourdevicerequiresBluetooth andtobepairedandconnectedtotheradio.

SupportsmostBluetoothdevices.

Youcanconnectupto10devicestotheradio,theradiowillconnecttothefirstavailablepaired device,startingfromthelastpaired/connecteddevice.

TheBluetoothMenuisavailablewhenthePhonebuttonispressedformorethan3seconds.To navigatethroughit,rotatetheknob.

TheBluetoothMenuconsistsofthefollowingoptions:BTENABLE,CONNECTPH, DISCONNECTPH,ADDPHONE,andDELETEPH(someoptionsareonlyavailablewhena devicehasbeenpairedpreviously).

Enabling/DisablingBluetooth

ToEnable/DisableBluetoothinyourRadio(ifitisnotalreadyactivated):

•Pressthephonebuttonformorethan3secondswhiletheRadioisON.TheBluetoothMenu willbeshown.

•Rotatethevolumeknobuntilthedisplayshows:"BTDisable"or"BTEnable".Pressthe volumeknobtoEnableorDisabletheBluetooth.

•PresstheVolumeKnowtoEnableorDisabletheBluetooth.

Whenthedevicewaspreviouslypaired,thePhoneIconwillbeactiveandthearrowiconswillblink untilthereconnectionofthepreviouslypairedphonesisattempted(eachphonewillbeattempted threetimes).

PairingaBluetoothDevice

Tocompletepairingthefollowingstepsmustbefollowed:

1.EnableBluetoothontheradioandonthedevice.RefertoyourdevicesManualformore information.

2.PairtheDevicetotheRadio:

PressthePhonebuttonformorethan3secondsTheBluetoothMenuwillbeshown.

RotatetheVolumeKnobuntilthedisplayshows:ADDPHONE.

PresstheVolumeKnobtoconfirmtheaction.

TheradiowilldisplayADDINGPHfor3seconds.Inthisdiscoverablemode,theBluetoothstatus iconwillblinkforupto3minutes.Ifnophonewasfound,theradiowilldisplayNOPHFOUNDand thePhoneandarrowsiconwillbedisabled.

Duringthediscoverablemode,setyourcellphonetoaddaBluetoothdeviceandlookforthename "DEA500RADIO":

•Followtheinstructionsonyourphonetoaddaconnection.Whennecessary,usethe4-number PIN0000toconnecttotheradio.

•Whenthecellphonehasbeensuccessfullyadded,theradiowilldisplayPHCONNECTEDand thentheBluetoothdevicename.ThePhoneIconwillbeactiveonthedisplayandthearrows willbedisabled.

•Whentheradioconnects,theBluetoothiconwillblink.Theblinkingiconsignifiesthatthe receiverisattemptingtodownloadthecellphonesCONTACTS(fortheDIALCONTACTS function).Theiconwillceasetoblinkifallcontactshavebeendownloadedoriftheradio timesoutfromreceivingcontactsfromthecellphone.Seeyourphonesuserguideformore information.

Note:Ifadeviceisconnectedthroughdifferentsourcesatthesametime,thefunctionalitycannotbe guaranteed(DeviceDependent).Example:DeviceconnectedthroughFrontAuxandBluetoothor USBandBluetoothatthesametime.

Note:TheiOSistheAppleOperativeSystem.

Note:Ifthetrackhasbeenplayingforlessthan10seconds,itseekstotheprevioustrack.Iflonger than10seconds,thecurrenttrackstartsfromthebeginning.

ConnectingaDevice

Ifyourdevicewaspreviouslypaired,youcansimplyconnecttothedevice:

1.PressthePhonebuttonformorethan3seconds.TheBluetoothMenuwillbeshown

2.RotatetheVolumeKnobuntilthedisplayshowsCONNECTPH.

3.Presstheknobtoconfirmtheaction.SelectthedesiredDevice(rotatetheknobandconfirmby pressingtheknob).TheradiowillshowCONNECTINGfor3seconds.

4.Whentheradioconnects,theradiowilldisplayPHCONNECTEDandtheDeviceFriendly Name,theBluetoothiconwillblink.Theblinkingiconsignifiesthatthereceiverisattempting todownloadthecellphonesCONTACTS(fortheDIALCONTACTSfunction).Theiconwill

ceasetoblinkifallcontactshavebeendownloadedoriftheradiotimesoutfromreceiving contactsfromthecellphonedevice.PhoneIconwillbeactiveonthedisplay.

DisconnectingaDevice

Ifyourdeviceisconnectedandyourequireddisconnectingitfromtheradio,followthenextactions:

1.PressthePhonebuttonformorethan3seconds.TheBluetoothMenuwillbeshown.

2.RotatetheVolumeKnobuntilthedisplayshowsDISCONNECTPH.

3.Presstheknobtoconfirmtheaction.TheradiowillshowDISCONNECTPHforashorttime. Once,thePhoneisdisconnectedtheradiowilldisplayDISCONNECTEDandthenthe Bluetoothdevicename.ThePhoneIconwillbeinactive.

DeletingoneorallDevices

Todeleteadevicefromtheradio,oneoralldevicespreviouslypaired:

1.PressthePhonebuttonformorethan3seconds.TheBluetoothMenuwillbeshown.

2.RotatetheVolumeKnobuntilthedisplayshowsDELETEPH.

3.Presstheknobtoenterthesubmenu.

4.Theradiowillshowadevicelist(navigatethroughitbyrotatingtheknob).Selectthedeviceto bedeletedorselectDELETEALLtoeraseallthepaireddevicesinthelistbypressingthe VolumeKnob.TheradiowillshowPHDELETED.

HandsFree/BluetoothFeatures

Onceyourdeviceisproperlypaired(seeParingaBluetoothDevice)andconnected(seeConnectinga Device),theradiosupportsthefollowingHandsFreefeaturesiftheconnecteddevicehashandsfree functionality.

DialMenu

Theradiocanretrievethelastcallsandcontactinformationfromthedevice(HandsFreeprofilemust beavailableinthedeviceandsometimestheactionmustbeacceptedbytheuser).

ThedialmenuisaccessedwhenthedeviceisnotinacallandthePhonebuttonispressed.

Dial/Redial

Theusercanretrievethelastphonenumbercalledandplaceacall.PressthePhonebuttonandthe lastphonenumbercalledwillbedialed.

QuickDial

Theradiocanstorephonenumbersinanyoftheavailablepresetbuttons.

Tosaveaphonenumber,youcanselectthecontactusingeithertheDIALCONTACTSfeatureorthe LASTCALLSfeature.Whenthedesiredcontactphonenumberisdisplayed,pressandholdanyof thePRESETbuttonsuntilyouhearabeepconfirmingthephonenumberhasbeensaved.

Todialasavedphonenumber,selectQUICKDIALfromthemenuandrotatetheknobtoselectthe appropriatePRESETnumber.Presstheknobtoplaceacalltosavedphonenumber.

Tochangepresetssimplyrepeattheprocesswiththedesiredphonenumber.Presetsareoverwritten.

DialContact

Theradioisabletoreadanddisplaycellphonecontacts.PressthePhonebuttontoshowtheDIAL MENUandrotatetheknobuntilDIALCONTACTSisshown,presstheknobtoselectthisfeature. Rotatetheknobtoselectbetweenthedifferentstoredcontacts(upto500numbersfromthephone and250contactsfromtheSIM).PresstheOKbuttonifyouwanttodialtothelistedcontact.

Theradiowilldownloadthefollowingphonenumbersfromeachcontact(ifavailable):HOME, WORK,MOBILE,OTHER,andPREFERRED.Withinthemenuphonenumberswillbedisplayed aseither:H,W,M,O,orPplusthe10-digitnumber(XXXXXXXXXX).

Whenthetransferissuccessful,theradiowillshowtheDIALCONTACTSsubmenu.Eachtimethe radioconnectstoyourphone,theDIALCONTACTSsubmenuisupdated,soyoumayneedtorepeat thismanualoperationasneeded.

LastCalls

Theradioiscapableoflistingthelast10calls(DIALED,RECEIVEDANDMISSED).Rotatingthe knobwillnavigatetheuserthroughtheselectedcalllist.PresstheOKbuttontoplacethecall.

Note:Ifadeviceisconnectedthroughdifferentsourcesatthesametime,thefunctionalitycannotbe guaranteed(DeviceDependent).Example:DeviceconnectedthroughFrontAuxandBluetoothor USBandBluetoothatthesametime.

CallOptions

ThefollowingoptionsareavailableduringaHandsFreecall.

AcceptingaCall

Whenanincomingcallisreceived,theradiowillplaytheinbangringtoneifthedevicesupportsthis feature,otherwiseadefaultringtonewillbeplayed,theusercanadjusttheVolumeoftheringtone, whiletheringtoneisplayed.Anyvolumelowerthan13,willnotbeconsideredforthenextincoming call.Volumeabove13willbestoredforthenextcall.

Whenanincomingcallisreceived,theradiowilldisplaythename(ifavailable)andnumberofthe caller.Toacceptthecall,pressanyofthefollowingradiobuttons:Phone,Knob,orNEXT.

RejectingaCall

Whenanincomingcallisreceived,theradiowilldisplaythename(ifavailable)andnumberofthe caller.Torejectthecall,pressanyofthefollowingradiobuttons:ESCorPREV.

EndingaCall

WhenaHandsFreecallisinprogress,theradiowilldisplaythecallersnumberandtheelapsedtime. Toendacall,pressanyofthefollowingradiobuttons:Phone,ESC,orPREV.

MicrophoneMute

WhenaHandsFreecallisinprogress,pressingPause/Playwillmutetheradiosmicrophone.Press againtodeactivatemute.

BluetoothMicrophone

ProcedurefortroubleshootingtheBluetoothCabMicrophonewhentheotherpartiescallreception audioisunclear.

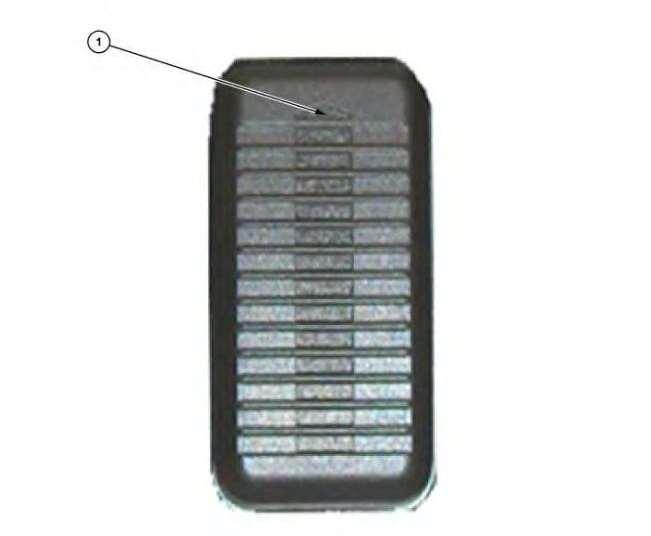

Illustration6g06281504 (1)UPArrow

Therearecommonconditionsthatcanaffecttheaudiovolumeofacallreceiverthatisnotthe machineoperator.

1.TheUParrow(1)oftheBluetoothMicrophoneshouldalwaysbepointeduporawayfromthe operator.(SeeIllustration7)

2.Ifnot,attempttoremoveandrotatethemicrophoneandseeifthisimprovestheaudiovolume oftheotherparty.

Iftheaudiodoesnotimprovebyspeakingclosertothemicrophone,thenitispossiblethecellwas notpickedupbytheradio.Testforaudioimprovementbytalkingintothecellphonemicrophone.

TheBluetoothMicrophoneisnotwireless,alsochecktomakesurethattheharnessisintactand connectedtotheEntertainmentRadio.

Note:SomeBluetoothcapabilitiesarenotavailableinallcountries.Contactthedesigncontrolfora listofunregulatedregions.

CallTransfer

Ifacallisinprogress,presstheradioPhonebuttonformorethan3secondstotransferthecalltothe cellphoneforprivateconversations.RepeatthisprocessifyouwanttoreturntoHandsFreemode again.

Note:Ifplayingaspecificplayablescope,whenpressedtheradiowilljumpandstartsplayingtrack1 asnewlyinsertedUSB.

BluetoothCallOutput

ProcedurefortroubleshootingtheEntertainmentRadiosettingsfornoaudiooutput.

BluetoothcallsareonlyaudibleovertheFrontLeftspeakeroutput.Thespeakeritselfcouldbe behindtheoperator.ThisisassumingthephoneisproperlypairedwiththeradiooverBluetooth already.RefertotheOwner’sManualprovidedwiththeEntertainmentRadioforassistancewith setupandpairingofaBluetoothdevice.

TherearethreecommonsetupsthatcanaffectBluetoothcallsbeingheardoverthecabspeakers.The EntertainmentRadiospeakerbalancesetting,thecabwiring,andcallvolumeoftheradioorcell phone.

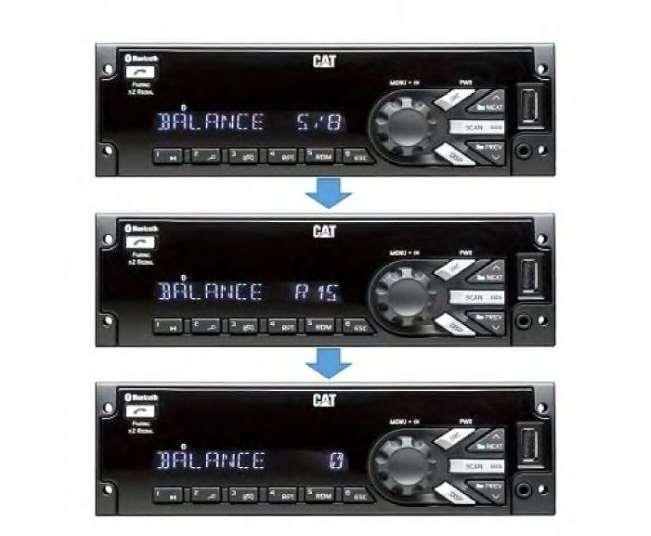

1.FirstchecktheBalancesettingstomakesurethattheyaresetto0.(SeeIllustration8)

2.WiththeignitionturnedtotheONpositionandtheradioturnedON,pressthevolumeknobfor 2secondsorlongertogettotheAudioControlMenu.

3.ThefirstitemthatisdisplayedisBass1/8.AdjustthevolumeknobuntilBalance5/8isseen.

4.PressthevolumeknobtoselecttheBalanceoptionwhenitisdisplayed.IftheBalanceshows anyothersettingsthan0,adjustthevolumeknobclockwiseorcounter-clockwiseuntilBalance 0isdisplayed.Thenpressthevolumeknobagaintoconfirmtheselection.

5.Waitforthemenutotimeoutbeforeadjustinganyothersettings.Theradiowillgotothe previousmediasettingbeforethemenuwasentered.

Illustration8g06280481

Illustration9g06281286

Thewiringcanalsobecheckedtomakesurethatthespeakeroutputisconnectedproperly.Review theimagesaboveforproperleftspeakerwireconnections.(SeeIllustration9and10)

Iftheaudioisabletobequietlyheardintheleftspeakeraftertheabovesettingsarereviewed.Make surethatthevolumeoftheradioisturnedupifneeded,andcheckthephonecallvolume.

BluetoothPlayer

Ifyourconnecteddevicesupportsthisfeature,itcanbeusedasanaudiosourceinputtotheradio, allowingyoutoenjoythemusicfilesstoredonyourphone.

Thisfeatureisrecommendedtobeusedwiththedevicedefaultplayer.Functionalitycannotbe warranted,whenathird-partyplayerisusedintheconnecteddevice.Theradiocanbeoutof synchronyiftheuseraltersorcommandtheplayerwithinthephone.

ToaccessmusicfilesonyourphonepresstheSRCbuttonandselectBTAUDIO.

InBTAUDIOyoucanusethefollowingradiobuttons:Play,Pause,NEXT,PREV,FastForwardand FastReverse,RepeatandRandom,ifthedevicesupportsthem.

BTAudio

Note: If a device is connected through different sources at the same time, the functionality cannot be guaranteed (Device Dependent). Example: Device connected through Front Aux and Bluetooth or USB and Bluetooth at the same time.

Note: If the track has been playing for less than 10 seconds, it will seek for the previous track. If longer than 10 seconds, the current track starts from the beginning.

Play/Pause - Press to play the current track. Press again to pause the audio.

Note: If playing a specific playable scope, when pressed the radio will jump and starts playing track 1 as newly inserted USB.

PREV (Previous)- Press to seek to the beginning of the current or previous track.

Note: If the track has been playing for less than 10 seconds, it seeks to the previous track. If this is longer than 10 seconds, the current track starts from the beginning.

NEXT (Next) - Press to seek to the next track.

FF/FR (Fast Forward/Fast Reverse) - To fast forward or reverse through a track, press and hold Next or PREV button.

RDM (Random) - Press to play the tracks randomly. Press again to stop shuffle mode. Look for the RDM icon to turn on in the radio display.

RPT (Repeat) - Press to repeat current track. Press again to stop repeat. RPT icon will be turned "ON"or "OFF" when the feature is enabled or disabled.

Note: This function will only be shown if the cell phone supports this feature.

Note: The contacts shown on the radio display will depend on the information received by the radio from the phone device used.

Note: Function may differ depending on the phone.

Note: Some cell phones may require enabling this feature through their own applications. Consult your cell phone user guide regarding how to enable it.

Note: Some phones will make the radio display BT AUDIO PAUSE while audio is available. This is normal on phones that do not have full compatibility with this radio Bluetooth remote control commands.

Note: Some devices will disconnect Bluetooth when a transfer is performed.

Radio Systems Settings

The radio contains two menus for settings adjustment:

• Audio Control Menu

• User Menu

These menus are defined in the following sections.

Audio Control Menu

This is the sample of the manual if you need complete manual Click Here to download
