Literature Information
This manual should be stored in the operator's compartment in the literature holder or seat back literature storage area.
This manual contains safety information, operation instructions, transportation information, lubrication information, and maintenance information.
Some photographs or illustrations in this publication show details or attachments that can be different from your machine. Guards and covers might have been removed for illustrative purposes.
Continuing improvement and advancement of product design might have caused changes to your machine which are not included in this publication. Read, study, and keep this manual with the machine.
Whenever a question arises regarding your machine, or this publication, please consult your Cat dealer for the latest available information.
Safety
The safety section lists basic safety precautions. In addition, this section identifies the text and locations of warning signs and labels used on the machine.
Read and understand the basic precautions listed in the safety section before operating or performing lubrication, maintenance, and repair on this machine.
Operation
The operation section is a reference for the new operator and a refresher for the experienced operator. This section includes a discussion of gauges, switches, machine controls, attachment controls, transportation, and towing information.
Photographs and illustrations guide the operator through correct procedures of checking, starting, operating, and stopping the machine.
Operating techniques outlined in this publication are basic. Skill and techniques develop as the operator gains knowledge of the machine and its capabilities.
Maintenance
The maintenance section is a guide to equipment care. The Maintenance Interval Schedule (MIS) lists the items to be maintained at a specific service interval. Items without specific intervals are listed under the "When Required" service interval. The Maintenance Interval Schedule lists the page number for the step-by-step instructions required to accomplish the scheduled maintenance. Use the Maintenance Interval Schedule as an index or "one safe source" for all maintenance procedures.
Maintenance Intervals
Use the service hour meter to determine servicing intervals. Calendar intervals shown (daily, weekly, monthly, etc.) can be used instead of service hour meter intervals if the calendar intervals provide more convenient servicing schedules and approximate the indicated service hour meter reading. Perform the recommended service at the interval that occurs first.
Under severe, dusty, or wet operating conditions, more frequent lubrication than is specified in the maintenance intervals chart might be necessary.
Perform service on items at multiples of the original requirement. For example, at every 500 service hours or 3 months, also service those items listed under every 250 service hours or monthly and every 10 service hours or daily.
Certified Engine Maintenance
Proper maintenance and repair are essential to keep the engine and machine systems operating correctly. As the heavy-duty off-road diesel engine owner, you are responsible for the performance of the required maintenance listed in the Owner Manual, Operation and Maintenance Manual, and Service Manual.
It is prohibited for any person engaged in the business of repairing, servicing, selling, leasing, or trading engines or machines to remove, alter, or to render inoperative, any emission-related device or element of design installed on or in an engine or machine that is in compliance with all applicable regulations of the intended country to which it has been shipped. Certain elements of the machine and engine such as the exhaust system, fuel system, electrical system, intake air system, and cooling system may be emission-related and should not be altered unless approved by Caterpillar.
Machine Capacity
Additional attachments or modifications may exceed machine design capacity which can adversely affect performance characteristics. Included would be stability and system certifications such as brakes, steering, and rollover protective structures (ROPS). Contact your Cat dealer for further information.
Product Identification Number
Effective First Quarter 2001 the Product Identification Number (PIN) has changed from 8 to 17 characters. To provide uniform equipment identification, construction equipment manufacturers are moving to comply with the latest version of the product identification numbering standard. Non-road machine PINs are defined by ISO 10261. The new PIN format will apply to all machines and generator sets. The PIN plates and frame marking will display the 17 character PIN. The new format will look like the following:
This is the sample of the manual click on the download link for complete manual
DOWNLOAD LINK
For some reason if link does not work download this pdf and then click
Illustration 1 g03891925
Where:
1. World Manufacturing Code (characters 1-3)
2. Machine Descriptor (characters 4-8)
3. Check Character (character 9)
4. Machine Indicator Section (MIS) or Product Sequence Number (characters 10-17). These were previously referred to as the Serial Number.
Machines and generator sets produced before First Quarter 2001 will maintain their 8 character PIN format.
Components such as engines, transmissions, axles, and work tools will continue to use an 8 character Serial Number (S/N).
Product: MOTOR GRADER
Model: 140H MOTOR GRADER APM
Configuration: 140H Motor Grader APM00001-UP (MACHINE) POWERED BY 3176C Engine
Operation and Maintenance Manual
140H and 160H Motor Graders
Media Number -SEBU7471-10
Access Doors and Covers
SMCS - 7251; 7263; 7273

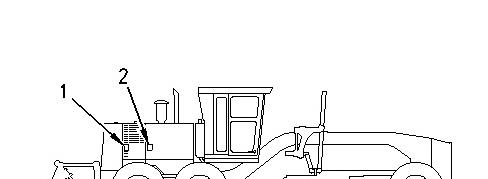

Illustration 1 g00803853 Right Side View
Opening access door (1) will allow access to the following items:
• The batteries
• The coolant sampling valve
• The circuit breakers
Updated -21/02/2019
i01555525
Opening access door (2) will allow access to the following item :
• The engine drive belt

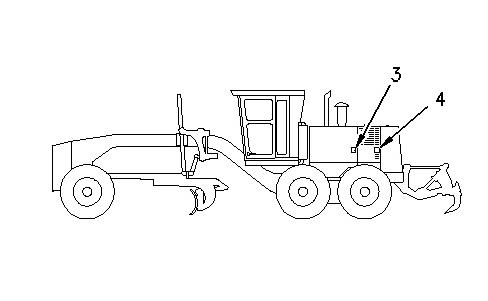

Illustration 2 g00803856 Left Side View
Opening access door (3) will allow access to the following items:
• The engine oil filter
• The primary fuel filter
• The fuel and water separator
• The secondary fuel filter
• The engine air filters
• The engine oil filler
• The transmission oil filler tube
• The engine air filter service indicator
• The transmission dipstick
• The engine crankcase breather
• The fuel priming pump (if equipped)
• The refrigerant compressor
• The sampling port for the engine oil
Opening access door (4) will allow access to the following items:
• The air dryer
• The transmission and differential oil filter
• The battery disconnect switch
• The drain valves for the air tanks
• The fuel filler
• The sampling port for the transmission and differential oil
• The ether cylinder (if equipped)
Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved.
Private Network For SIS Licensees.
Product: MOTOR GRADER
Model: 140H MOTOR GRADER APM
Configuration: 140H Motor Grader APM00001-UP (MACHINE) POWERED BY 3176C Engine
Operation and Maintenance Manual
140H and 160H Motor Graders
-SEBU7471-10
Air Dryer - Check
SMCS - 4285-535
The air lines to and from the air dryer must be at atmospheric pressure. If the air lines are not at atmospheric pressure, personal injury could result. Release the air pressure from the air system completely before performing maintenance.
i01862160
Refer to the Operation and Maintenance Manual, "Access Doors and Covers" for the location of the service points.
The air dryer is positioned on the left side at the rear of the machine.
1. Open the access door in order to service the air dryer.

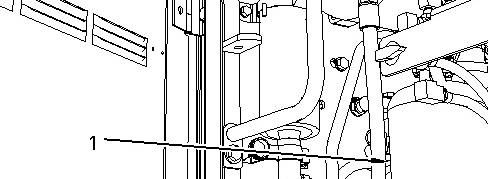

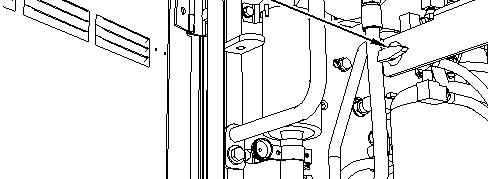

Illustration 1 g00949269
2. Turn drain valve (1) to the 3:00 position in order to drain one air tank. Turn drain valve (1) to the 9:00 position in order to drain the other air tank. The air tanks are positioned in the service center at the rear of the machine.
3. Check for moisture in the air tanks. Close the drain valve for the air tanks.
4. If moisture is present in the air tanks, replace the desiccant cartridge for air dryer (2). Consult your Caterpillar dealer for information about replacing the desiccant cartridge.
5. Close the access door.
Note: Small amounts of moisture may be in the system due to condensation in the system. Moisture may also be in the system if an air dryer is installed on a machine that has been operating without an air dryer. Several weeks may be required in order to completely dry the system.
Fri Apr 5 22:26:37 UTC+0530 2024
Product: MOTOR GRADER
Model: 140H MOTOR GRADER APM
Configuration: 140H Motor Grader APM00001-UP (MACHINE) POWERED BY 3176C Engine
Operation
and Maintenance Manual
140H and 160H Motor Graders
i01862178
Air Dryer Desiccant - Replace
SMCS - 4285-510
The air lines to and from the air dryer must be at atmospheric pressure. If the air lines are not at atmospheric pressure, personal injury could result. Release the air pressure from the air system completely before performing maintenance.
Refer to the Operation and Maintenance Manual, "Access Doors and Covers" for the location of the service points.

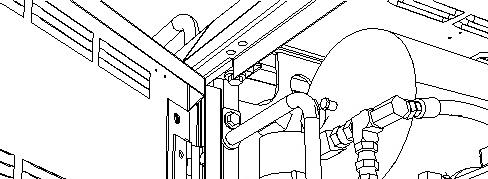

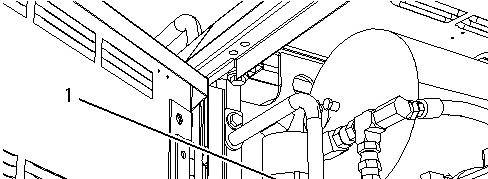

Illustration 1 g00949272
Air dryer (1) is positioned on the left side at the rear of the machine.
1. Open the access door in order to service the air dryer.
2. Replace the air dryer desiccant cartridge when the water can not be absorbed. Consult your Caterpillar dealer for service or for replacement parts.
3. Close the access door.
Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Fri Apr 5 22:26:58 UTC+0530 2024
Product: MOTOR GRADER
Model: 140H MOTOR GRADER APM
Configuration: 140H Motor Grader APM00001-UP (MACHINE) POWERED BY 3176C Engine
Operation and Maintenance Manual
140H and 160H Motor Graders
-SEBU7471-10
Air Tank Moisture and Sediment - Drain
SMCS - 4272-543-M&S; 5505-543
-21/02/2019
i01862632
Refer to the Operation and Maintenance Manual, "Access Doors and Covers" for the location of the access doors.
1. Open the access door in order to service the drain valve for moisture and sediment.

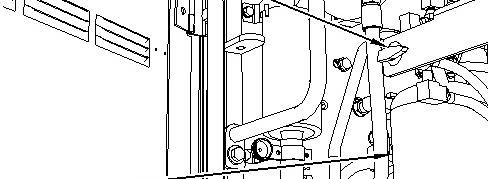

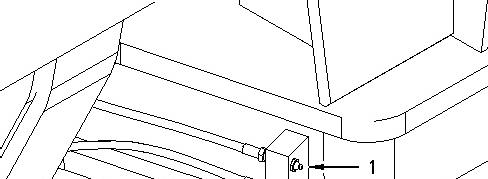

Illustration 1 g00949522
2. The air tanks are located in the rear compartment of the machine behind the left side of the engine. Turn drain valve (1) to the 3:00 position in order to drain one air tank. Turn drain valve (1) to the 9:00 position in order to drain the other air tank. Close the drain valve.
3. Close the access door.
Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Fri Apr 5 22:27:11 UTC+0530 2024
Product: MOTOR GRADER
Model: 140H MOTOR GRADER APM
Configuration: 140H Motor Grader APM00001-UP (MACHINE) POWERED BY 3176C Engine
Operation and Maintenance Manual
140H and 160H Motor Graders
i01671010
Articulation Bearings - Lubricate
SMCS - 7057-086-BD
Wipe all the fittings before you apply lubricant through the fittings. The fittings for the articulation bearings are located under the cab on the left side of the machine.
Illustration 1 g00811301
The upper articulation bearing has one fitting (1). In order to lubricate the upper articulation bearing, use 183-3424 Grease Cartridge to apply lubricant through fitting (1).
The lower articulation bearing has one fitting (2). In order to lubricate the lower articulation bearing, use 183-3424 Grease Cartridge to apply lubricant through fitting (2).
Copyright 1993 - 2024 Caterpillar Inc.
Rights Reserved.
Network For SIS Licensees. Fri Apr 5 22:27:27 UTC+0530 2024
Product: MOTOR GRADER
Model: 140H MOTOR GRADER APM
Configuration: 140H Motor Grader APM00001-UP (MACHINE) POWERED BY 3176C Engine
Operation and Maintenance Manual
140H and 160H Motor Graders
-SEBU7471-10
Axle Oscillation Bearings - Lubricate
SMCS - 3268; 4313
-21/02/2019
i01671028
The lubrication fitting is located in the middle of the front axle. Wipe the fitting before you apply lubricant to the fitting.

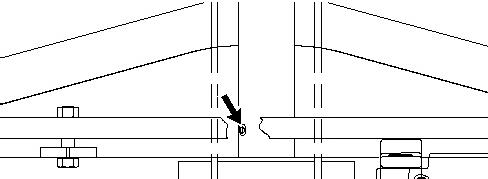

Illustration 1 g00811688
In order to lubricate the axle oscillation bearings, use 183-3424 Grease Cartridge to apply lubricant to the one fitting. Fri Apr 5 22:27:40 UTC+0530 2024
Product: MOTOR GRADER
Model: 140H MOTOR GRADER APM
Configuration: 140H Motor Grader APM00001-UP (MACHINE) POWERED BY 3176C Engine
Operation and Maintenance Manual
140H and 160H Motor Graders
Media Number -SEBU7471-10
Date -01/02/2007
Backup Alarm - Test
SMCS - 7406-081
Turn the engine start switch to the ON position in order to perform the test.
Updated -21/02/2019
i02307698
Apply the service brake. Move the transmission control (lever) to the REVERSE position.
The backup alarm should sound immediately. The backup alarm should continue to sound until the transmission control (lever) is moved to the NEUTRAL position or to any FORWARD position.
The backup alarm is located at the rear of the machine.
Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Fri Apr 5 22:27:58 UTC+0530 2024
Product: MOTOR GRADER
Model: 140H MOTOR GRADER APM
Configuration: 140H Motor Grader APM00001-UP (MACHINE) POWERED BY 3176C Engine
Operation and Maintenance Manual
140H
and 160H Motor Graders
Media Number -SEBU7471-10
Battery - Recycle
SMCS - 1401-561
Always recycle a battery. Never discard a battery.
Date -01/02/2007
Updated -21/02/2019
i07746330
Always return used batteries to one of the following locations:
• A battery supplier
• An authorized battery collection facility
• Recycling facility
Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Fri Apr 5 22:28:08 UTC+0530 2024
Product: MOTOR GRADER
Model: 140H MOTOR GRADER APM
Configuration: 140H Motor Grader APM00001-UP (MACHINE) POWERED BY 3176C Engine
Operation and Maintenance Manual
140H
and 160H Motor Graders
Battery or Battery Cable - Inspect/Replace
SMCS - 1401-510; 1402-510
1. Turn the engine start switch key to the OFF position. Turn all the switches to the OFF position.
2. Turn the key for the battery disconnect switch to the OFF position. Remove the key.
3. Disconnect the negative battery cable at the battery disconnect switch. The battery disconnect switch is connected to the machine frame.
Note: Do not allow the disconnected battery cable to contact the battery disconnect switch or the machine.
4. Disconnect the negative battery cable from the battery.
5. Disconnect the positive battery cable from the battery.
6. Inspect the battery terminals for corrosion. Inspect the battery cables for wear or damage.
7. If necessary, make repairs. If necessary, replace the battery cable or the battery.
8. Connect the positive battery cable at the battery.
9. Connect the negative battery cable at the battery.
10. Connect the battery cable at the battery disconnect switch.
11. Install the key for the battery disconnect switch. Turn the battery disconnect switch to the ON position. Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Fri Apr 5 22:28:18 UTC+0530 2024
Product: MOTOR GRADER
Model: 140H MOTOR GRADER APM
Configuration: 140H Motor Grader APM00001-UP (MACHINE) POWERED BY 3176C Engine
Operation and Maintenance Manual
140H and 160H Motor Graders
Belt - Inspect
SMCS - 1357-040; 1397-040
-21/02/2019
i01562079
Refer to the Operation and Maintenance Manual, "Access Doors and Covers" for the location of the service points.
Note: If a new belt is installed, check the film on belt tightener (2) after 30 minutes of operation. A belt is considered to be used after 30 minutes of operation.
1. Stop the engine in order to inspect the belt.
2. Open the engine access door.

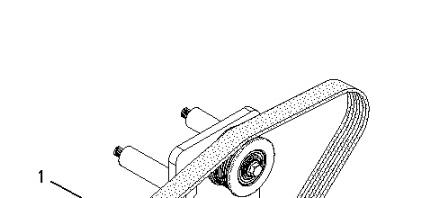

Illustration 1 g00780234
3. Inspect the condition of the belt (1).
4. Replace the belt if any of the following conditions exist:
excessive cracking
excessive wear
excessive damage

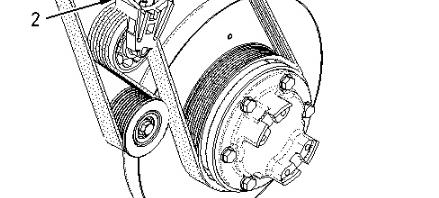

5. Inspect the free arm stop part of belt tightener (2). The free arm stop must be aligned with the black line which is on the decal of belt tightener (2). If the free arm stop is in the red area, replace the belt.
Copyright 1993 - 2024 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees.
Fri Apr 5 22:28:29 UTC+0530 2024
