Contents
PROFESSIONAL
Looking for our other catalogues? Scan or Click Here
Royal Series
| Dual
L3-Array | Dual 12-Inch Passive 2-Way Line Array Loudspeaker
L4-Array | Dual 10-Inch Passive 3-Way Line Array Loudspeaker
F1-Array | Single 15-Inch Passive 3-Way Line Array Loudspeaker
F2-Array | Single 12-Inch Passive 2-Way Line Array Loudspeaker
|
GSE-H | Single 18-Inch Passive Line Array Sub Enclosure
P2-Array | Dual 12-Inch 3-Way Passive Array Point Source Loudspeaker
P3-Array | 15-Inch 3-Way Passive Array Point Source Loudspeaker
H8 | 8-Inch 2-Way Passive Point Source Loudspeaker
H10 | 10-Inch 2-Way Passive Point
TNA-2051-G3 | Dual 5-Inch 2-Way Passive Line Array Loudspeaker
TNA-1200S-G3 | 12-Inch Passive Subwoofer, Bass Reflex
TNA-2120SA-G3 | Dual 12-Inch Active Subwoofer, Bass Reflex
TNA-1800S | 18-Inch Passive Subwoofer, Bass Reflex
TNA-1800SA | 18-Inch Active Subwoofer, Direct Radiating, Bass Reflex
TNA-2800S |Dual 18-Inch Passive Subwoofer, Direct Radiating, Bass Reflex
TNA-2800SA | Dual 18-Inch Active Subwoofer, Direct Radiating, Bass Reflex

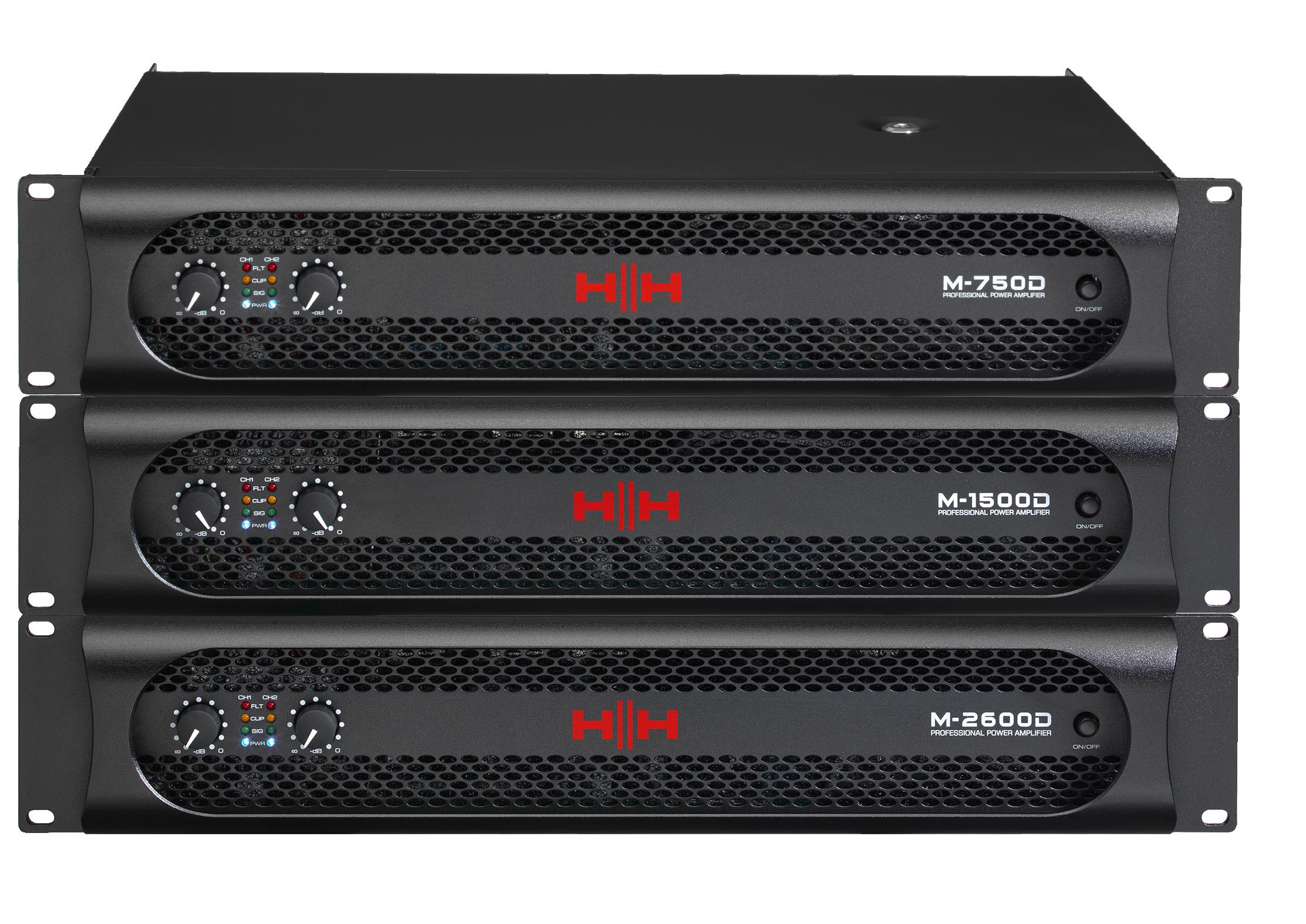

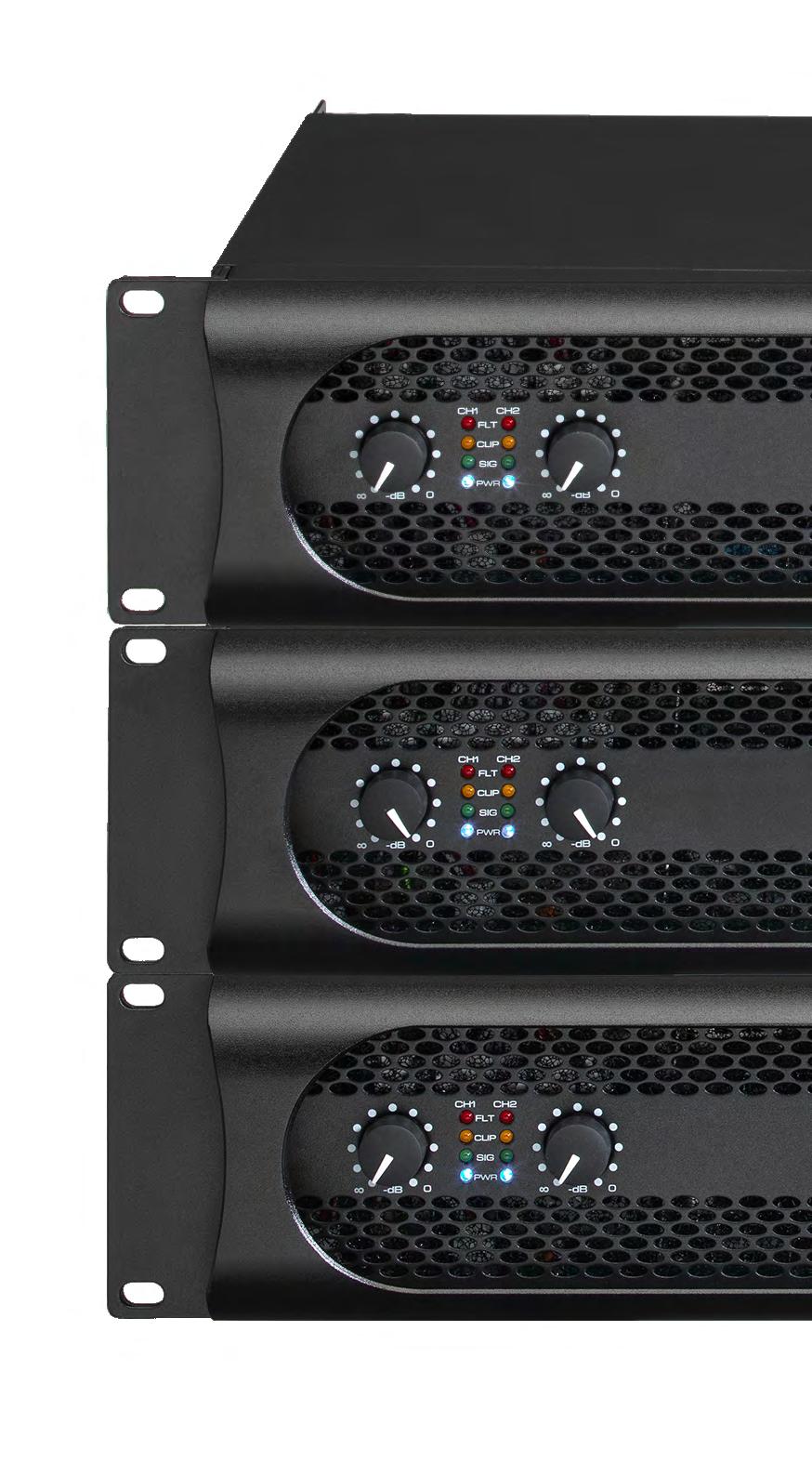

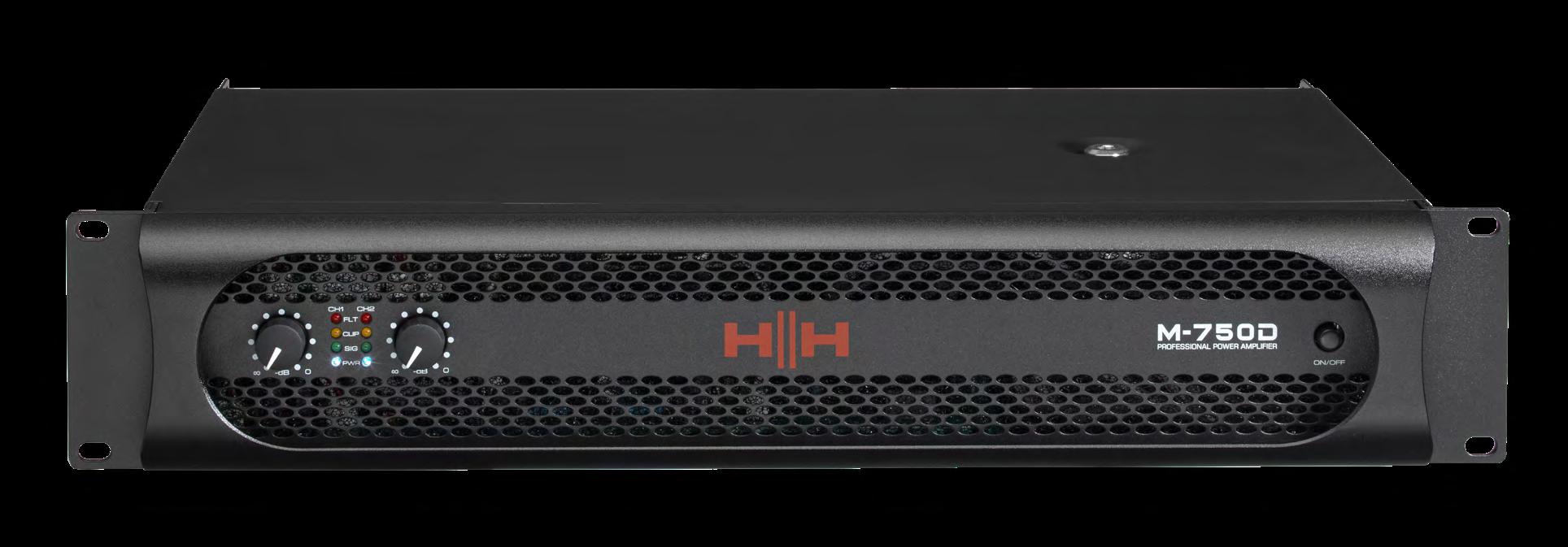

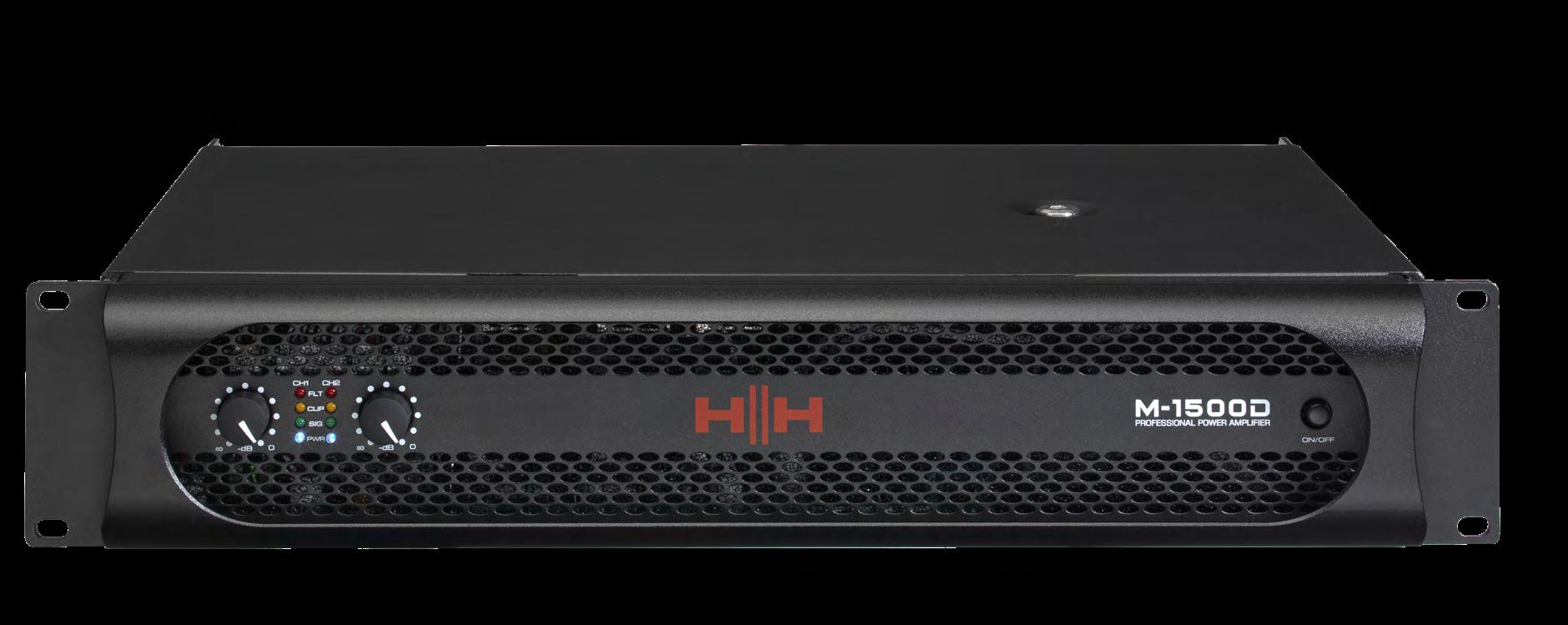

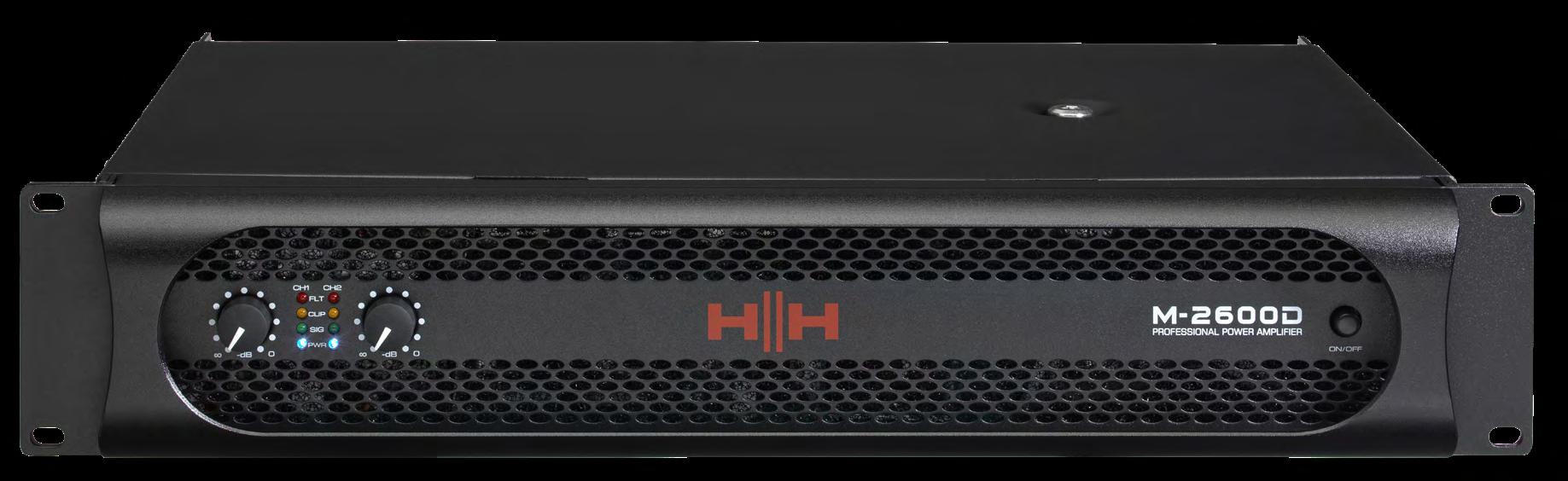

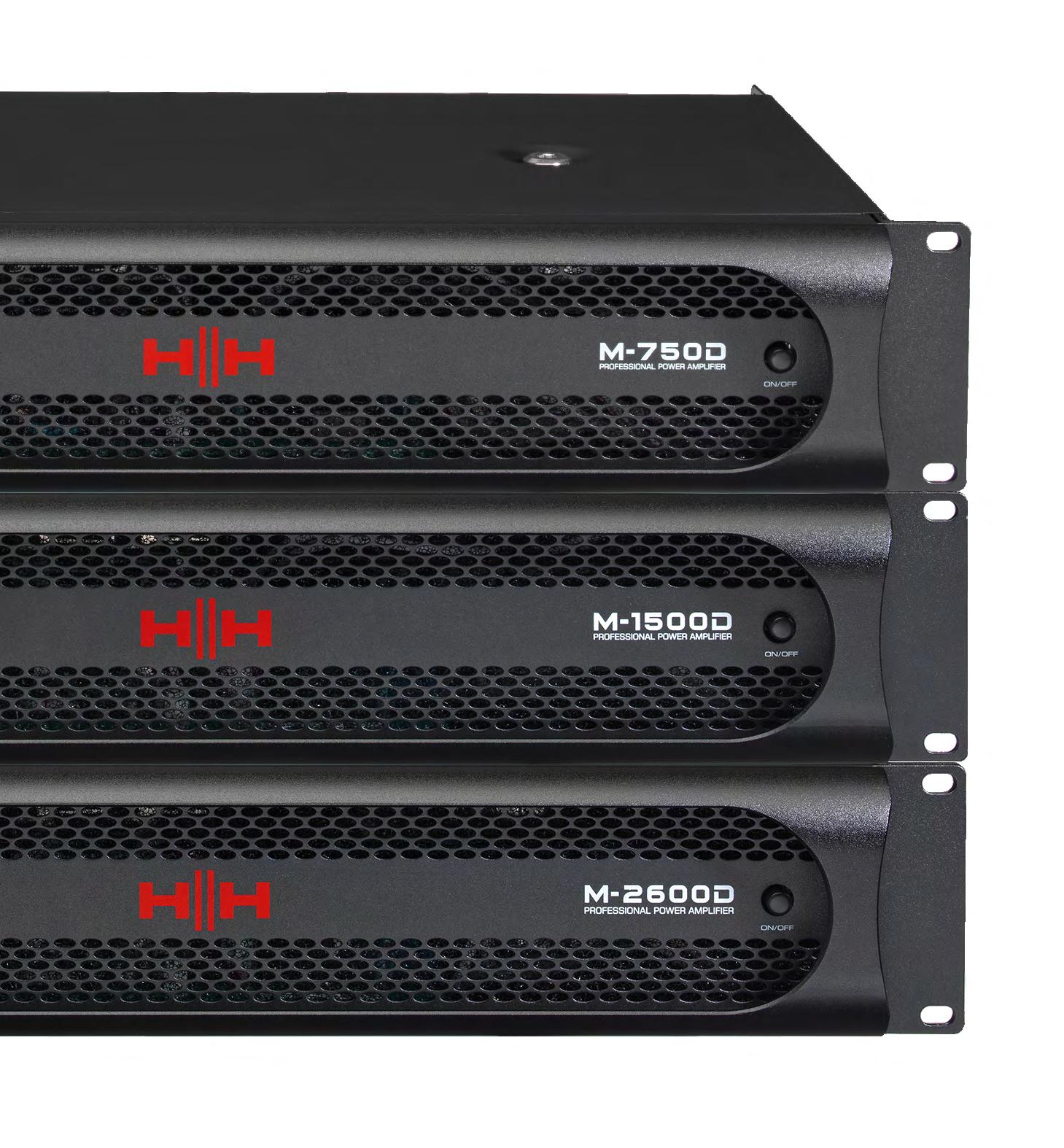

| 2 x 1500W Professional Power Amplifier
PS6 | 6.5-Inch Passive 2-Way Point Source Loudspeaker
PS8 | 8-Inch Passive 2-Way Point Source Loudspeaker
PS10 | 10-Inch Passive 2-Way Point Source Loudspeaker
PS12 | 12-Inch Passive 2-Way Point
PS15 |

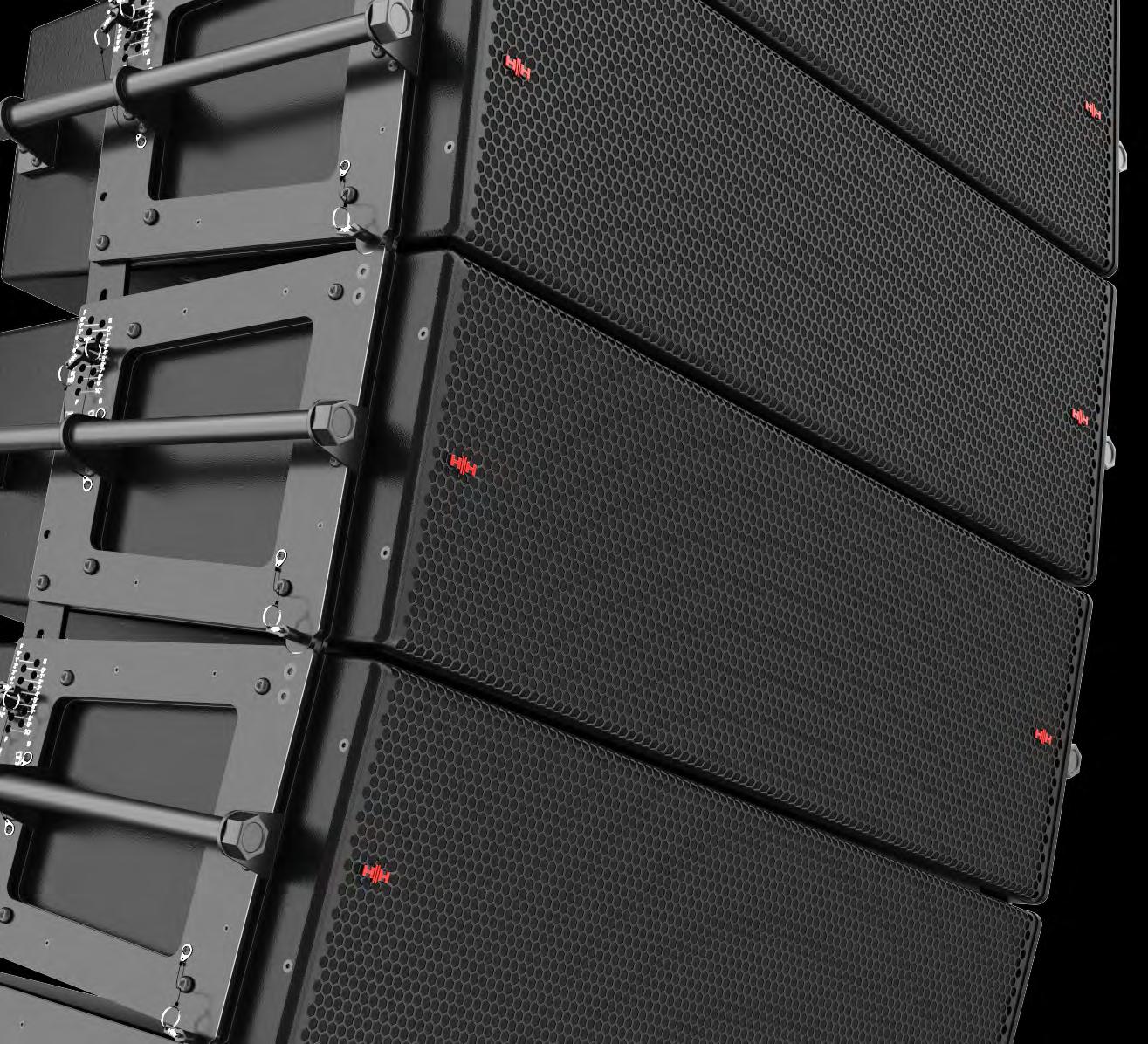

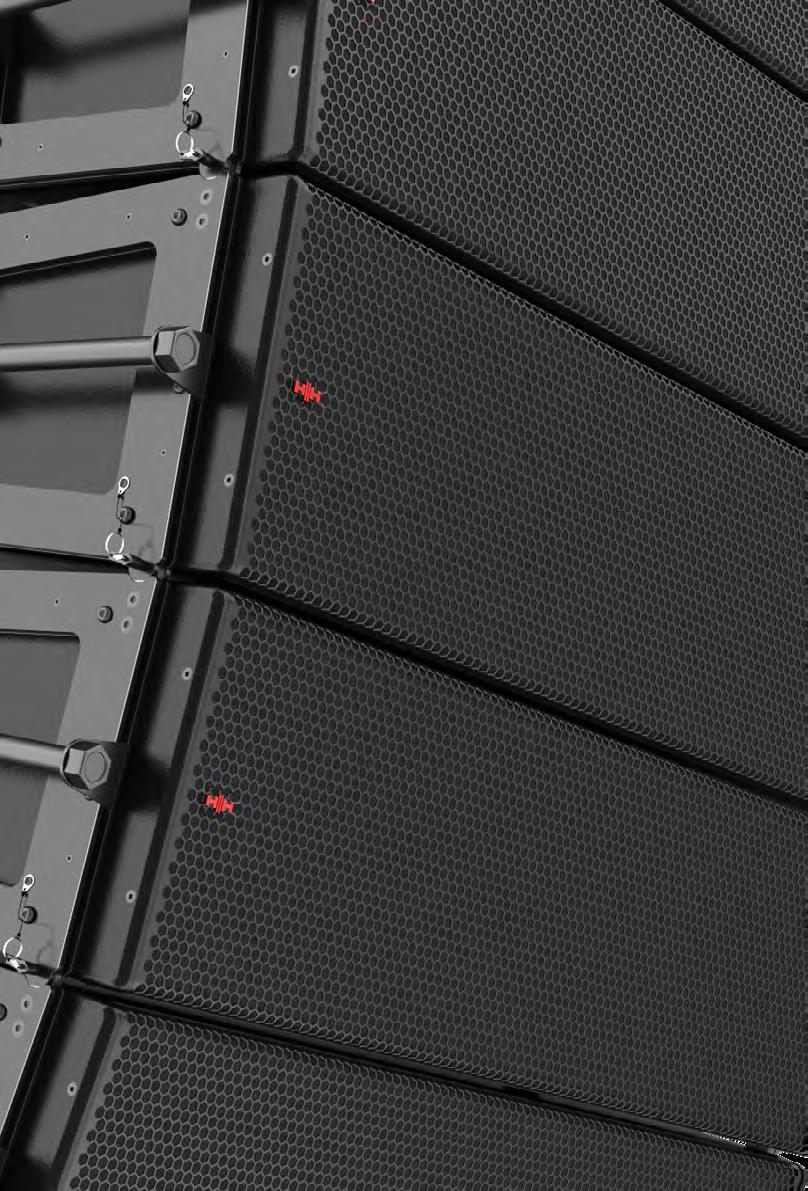

Royal Series
Royal Series represents the pinnacle of audio engineering and performance from HH Audio. A range of products finely crafted to offer reliable and scalable live sound systems for the most demanding applications. The combination of cutting-edge acoustic technology and fine craftsmanship sets a new standard for large-scale systems with numerous configurations to suit a multitude of live sound requirements.
The series comprises passive line array enclosures (L2-Array, L3-Array, and L4-Array), passive subwoofer enclosures (GSE, GSE-H, GSS and GSD), passive 2-way point source loudspeakers (H8, H10, H12 and H15), constant curvature arrays (F1-Array, F2-Array), passive array point source loudspeakers (P2-Array and P3-Array) and a passive 2-way stage monitor (UM1).
Royal Series drive units are engineered to provide exquisite transient and phase response, utilising unique combinations of materials including Kevlar fibre and carbon fibre to drastically improve cone rigidity enabling an unbelievably high-power, low-distortion output well suited to large-scale touring and outdoor applications.

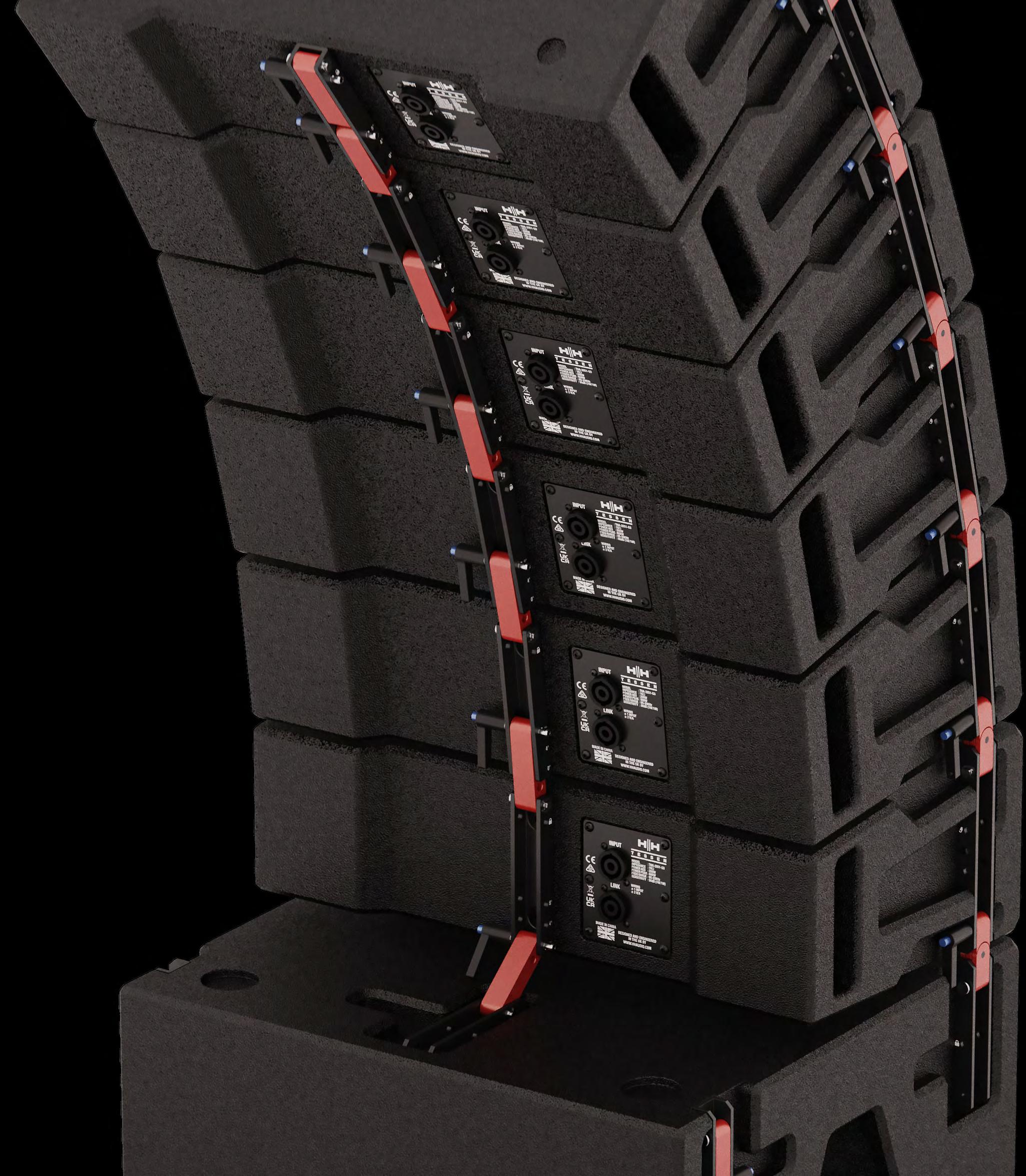

Royal Series systems are road-ready, with integrated rigging hardware and flexible flying options to make configuring a system of this scale as simple as possible. Each enclosure is finished with black polyurea to ensure that each product can withstand the toughest touring conditions.
Whether the application is live concerts, theatres, arenas, or large houses of worship, Royal Series systems guarantee reliability, scalability, and precise audio that engineers can confidently trust.
Scan Here to view on the HH Audio Website

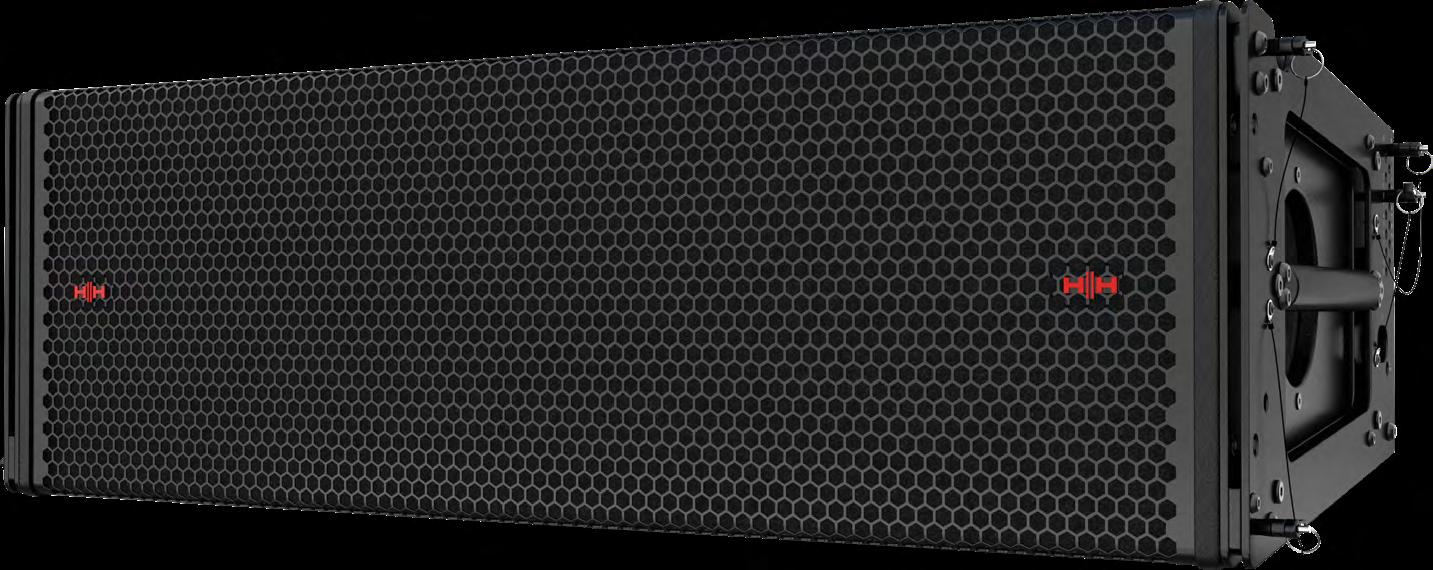

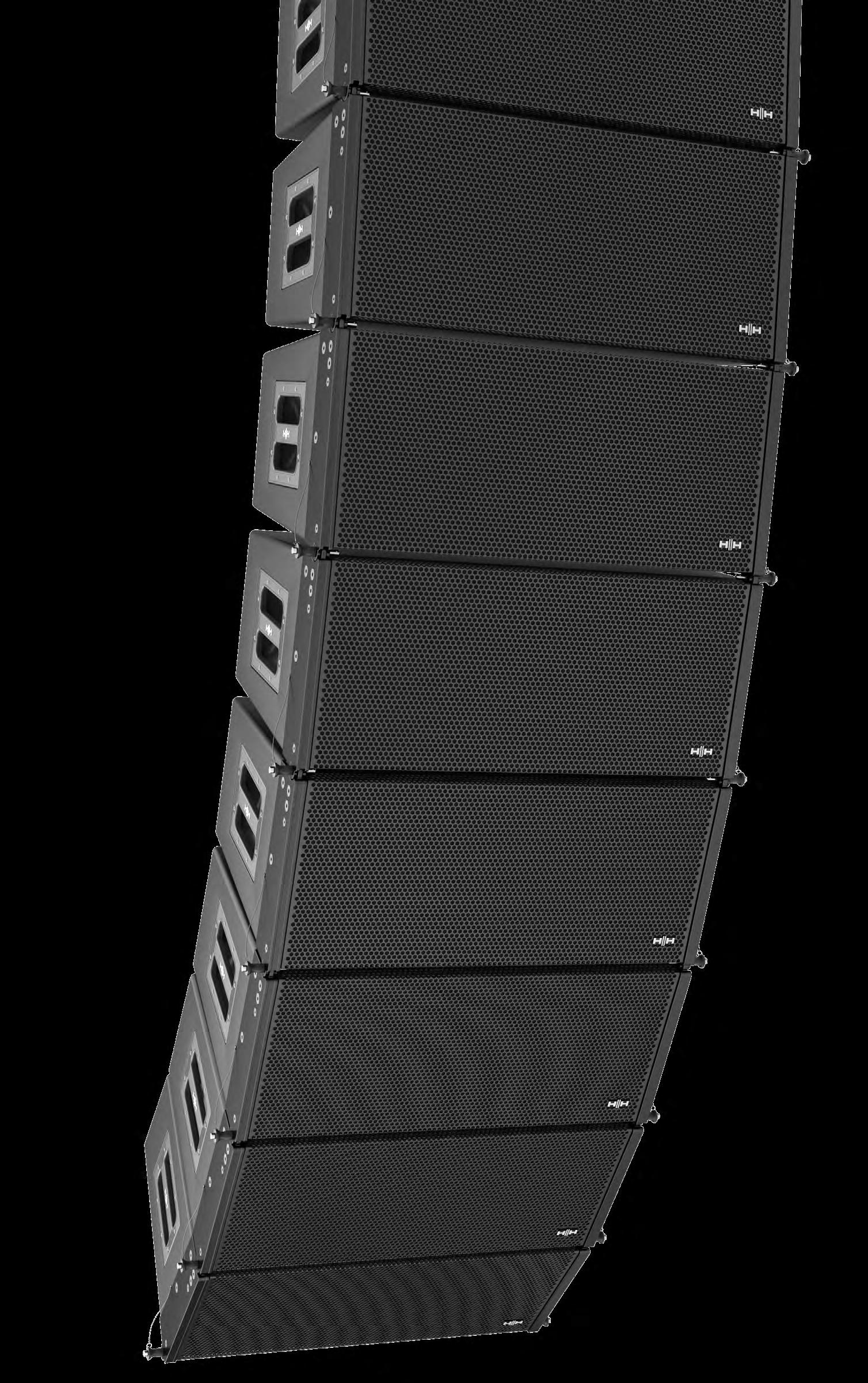

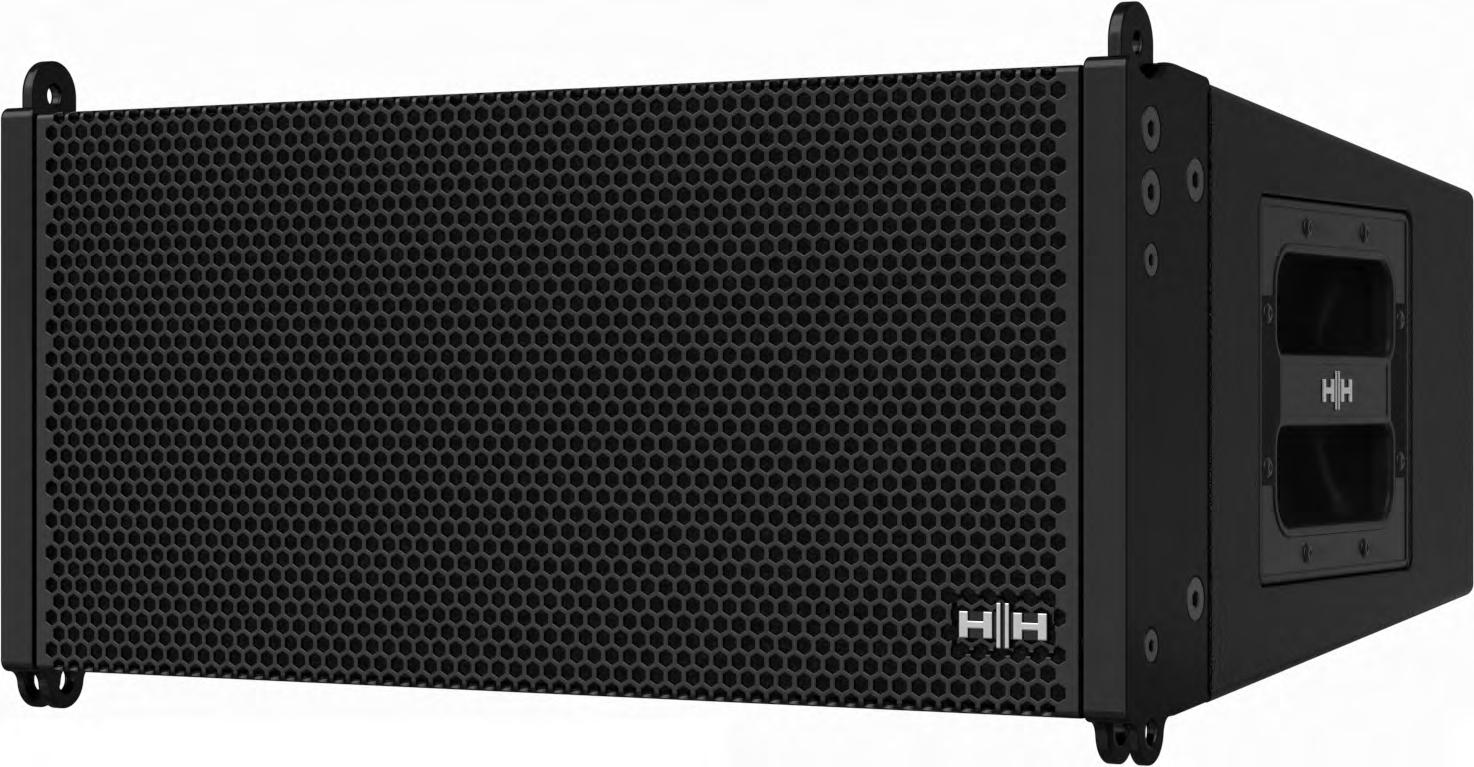

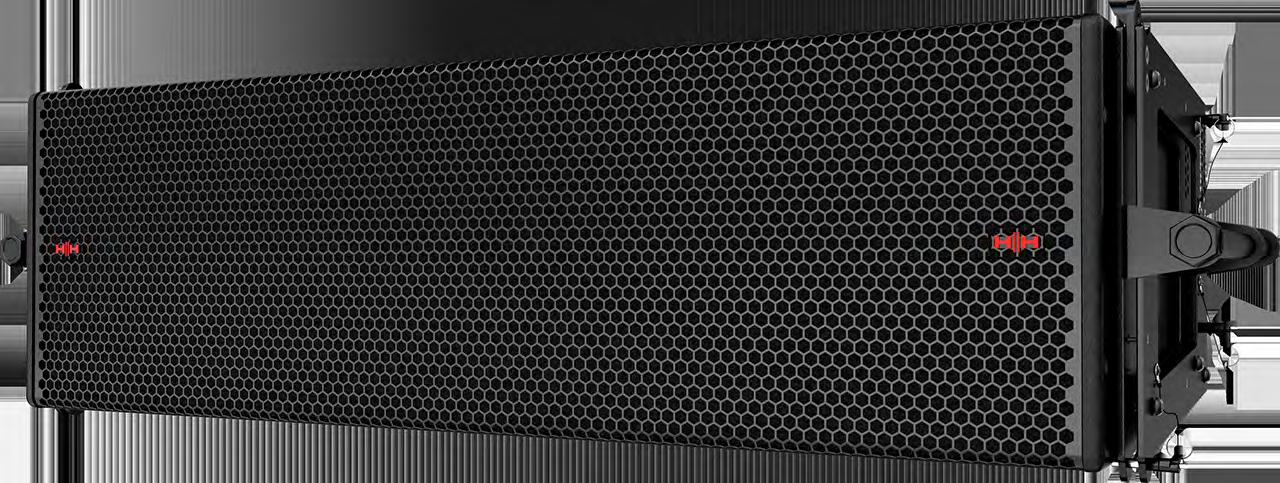

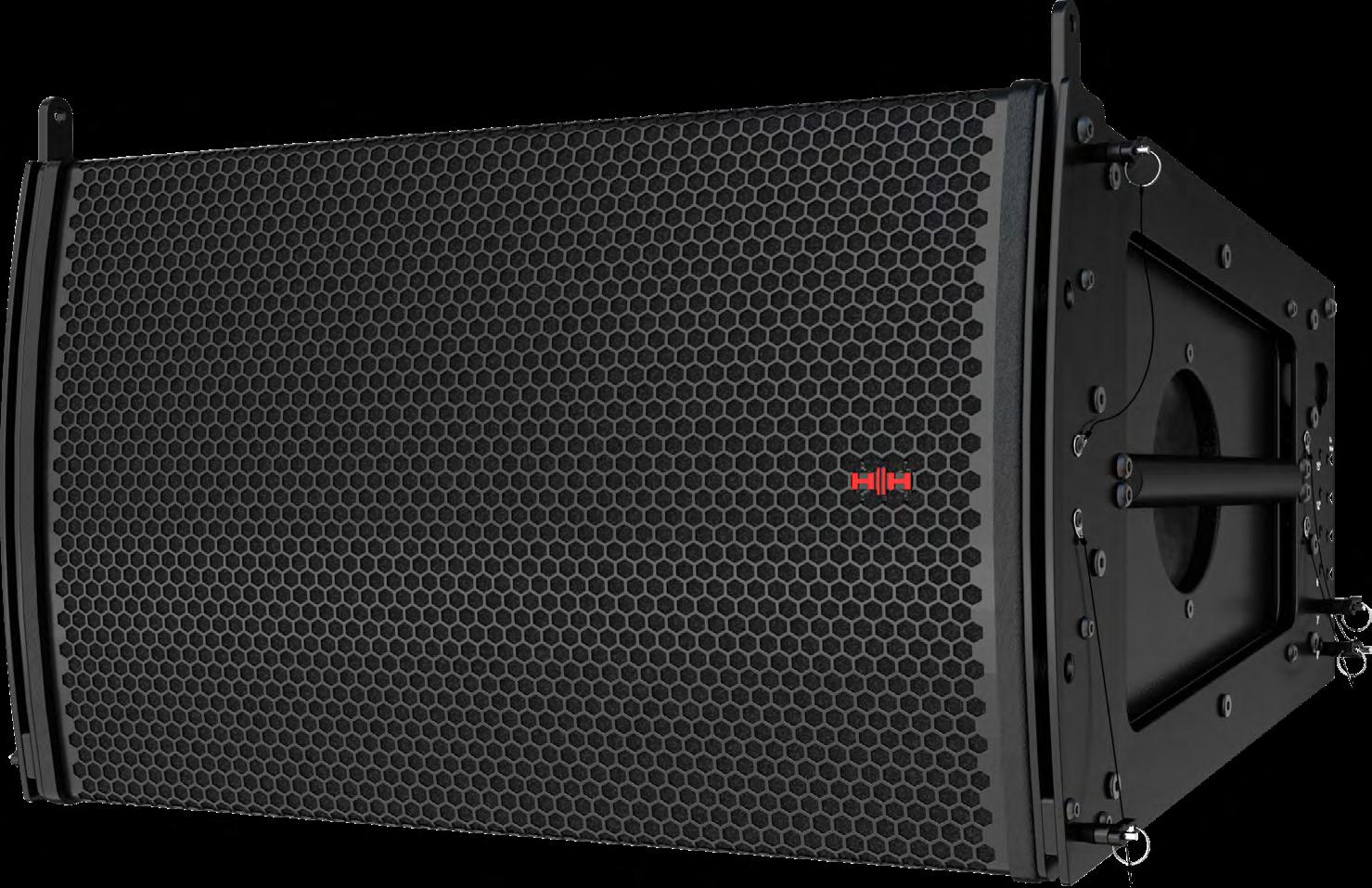

L2-Array
Passive 3-Way Dual 12-Inch Line Array Loudspeaker
KEY FEATURES
• Dual 12-Inch low-frequency drivers, Dual 10-Inch mid-frequency drivers, Dual 3-Inch high-frequency compression drivers.
• 148dB Max SPL (Peak).
• Frequency Response of 43Hz - 19kHz (±3dB).
• 90° (H) x 10° (V) dispersion angle.
• Integrated 4-point pin-based rigging system.
• Robust wooden enclosure with a wear-resistant finish.
APPLICATIONS
Frequency Response
Coverage
Power Rating
Maximum SPL
Sensitivity
Nominal Impedance
LF Driver
MF Driver
HF Driver
43Hz - 19kHz(±3dB) | 36Hz - 20kHz(-10dB)
90° Horizontal | 10° Vertical
LF: 600W Continuous, 2400W Peak
MF: 700W Continuous, 2800W Peak
HF: 300W Continuous, 1200W Peak
142dB Continuous, 148dB Peak
LF1:99dB (1W@1m) LF2:99dB (1W@1m)
MF:109dB (1W@1m)
HF:115dB (1W@1m)
LF1:8Ω, LF2:8Ω, MF:8Ω, HF:8Ω
Dual 12-Inch low-frequency driver
Dual 10-Inch mid-frequency driver
Dual 3-Inch high-frequency compression driver
Cabinet
Finish
Mounting Bracket
Grille
Fittings
Rigging
Connectors
Pin Connectors (Input)
Pin Connectors (Link)
Dimensions (HWD)
Weight
Robust all wood construction.
Hard wearing black painted.
L2-Array-FLB for suspended mounting.
Hexagonal mesh black perforated steel with acoustic foam backing. 1+/- , 2+/- , 3+/- and 4+/-
Dual Side handles, 4-point pin-based rigging system.
4-point rigging system with inter cabinet angle adjustments from 0° to 10°.
Dual Speakon NL8
1+/-(LF1), 2+/-(LF2), 3+/-(MF) and 4+/-(HF)
366 x 1379 x 590mm
85kg

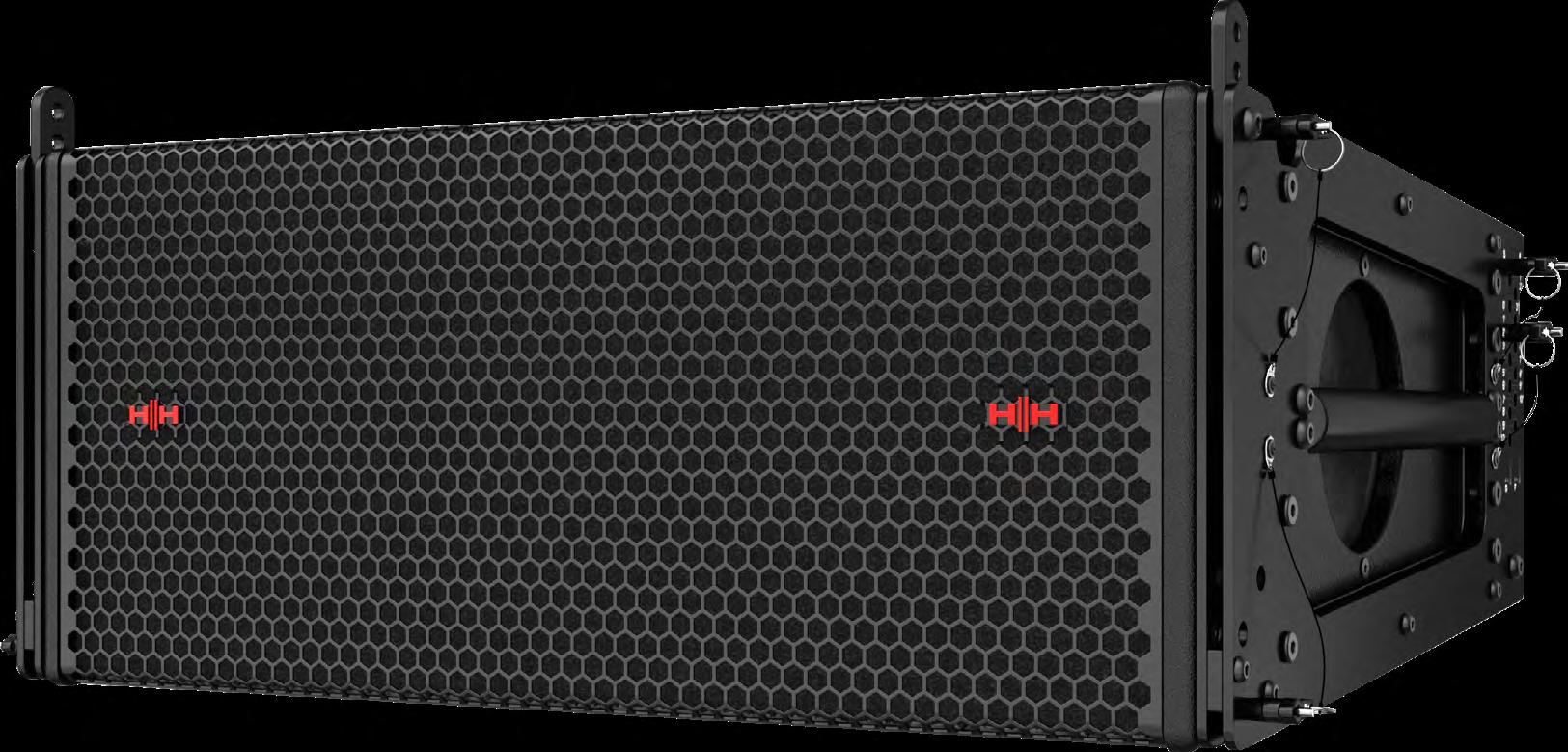

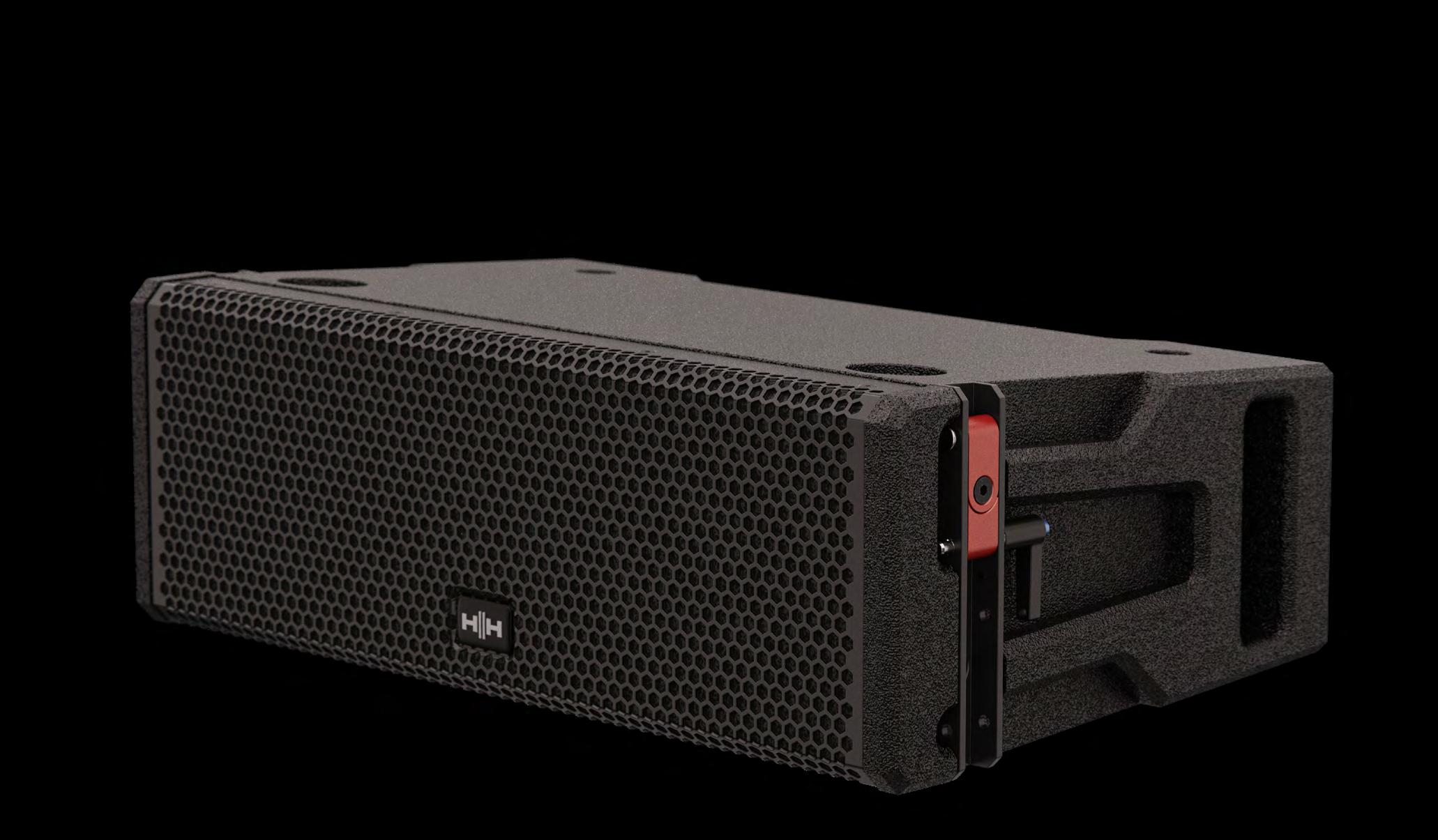

L3-Array
Passive 2-Way Dual 12-Inch Line Array Loudspeaker
KEY FEATURES
• Dual 12-Inch low-frequency drivers, Dual 3-Inch highfrequency compression drivers.
• 146dB Max SPL (Peak).
• Frequency Response of 60Hz - 19kHz (±3dB).
• 90° (H) x 10° (V) dispersion angle.
• Integrated 4-point pin-based rigging system.
• Robust wooden enclosure with a wear-resistant finish.
APPLICATIONS
Frequency Response
Coverage
Power Rating
Maximum SPL
Sensitivity
Nominal Impedance
LF Driver
HF Driver
60Hz - 19kHz (±3dB) | 55Hz - 20kHz (-10dB)
90° Horizontal | 10° Vertical
LF: 900W Continuous, 3600W Peak
HF: 300W Continuous, 1200W Peak
140dB Continuous, 146dB Peak
LF:105dB (1W@1m)
HF:114dB (1W@1m)
LF:8Ω, HF:8Ω
Dual 12-Inch low-frequency driver
Dual 3-Inch high-frequency compression driver
Finish
Mounting Bracket
Grille
Fittings
Rigging
Connectors
Pin Connectors (Input)
Pin Connectors (Link)
Dimensions (HWD)
Weight
Hard wearing black painted.
Dual Side handles, 4-point pin-based rigging system.
Dual Speakon NL4
L3-Array-FLB for suspended mounting. 1+/-(LF) and 2+/-(HF)
Hexagonal mesh black perforated steel with acoustic foam backing. 1+/- and 2+/-
4-point rigging system with inter cabinet angle adjustments from 0° to 10°.
360 x 109Dual 500mm
70kg

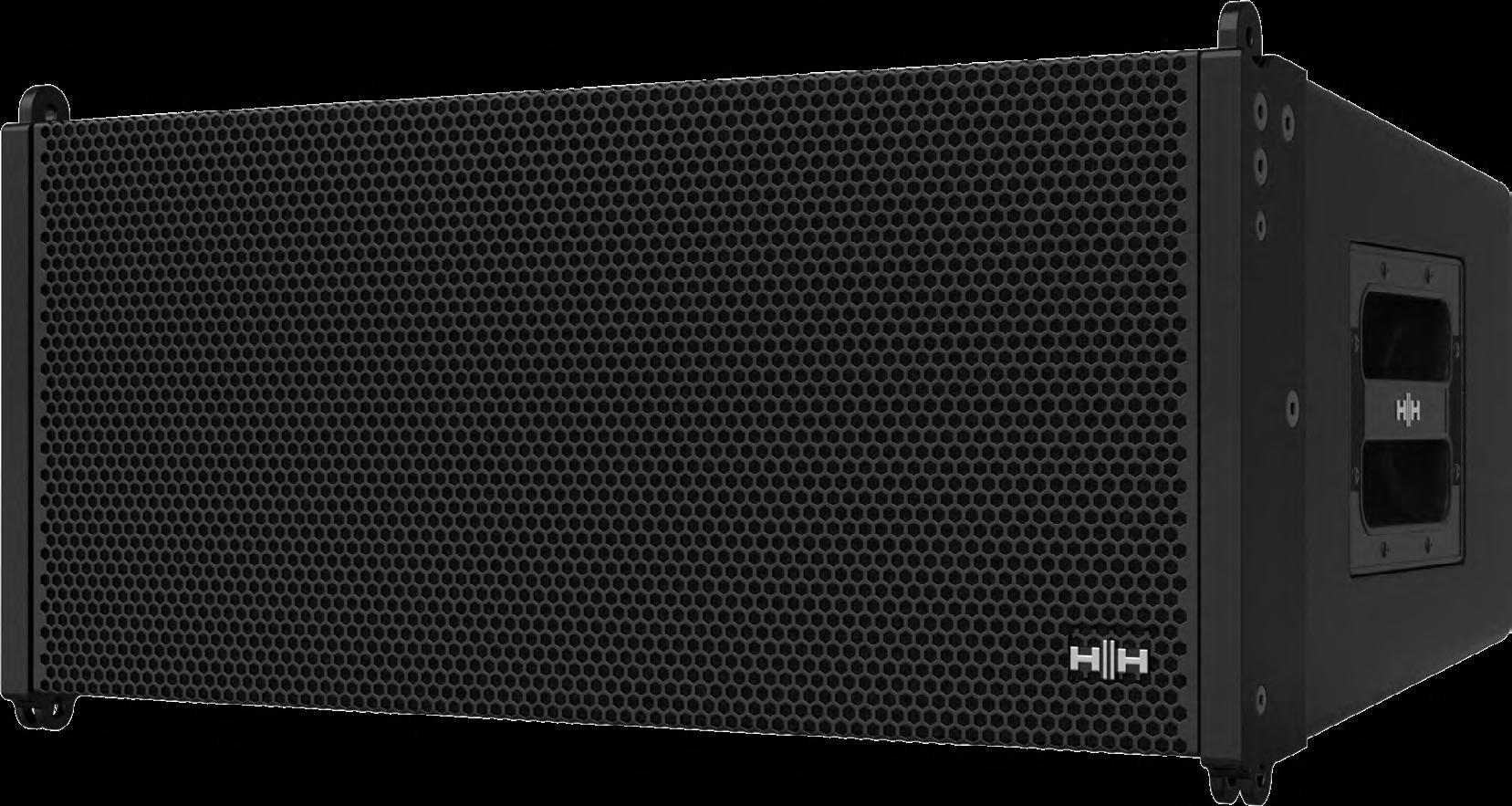

L4-Array
Passive 3-Way Dual 10-Inch Line Array Loudspeaker
KEY FEATURES
• Dual 10-Inch low-frequency drivers, 1 x 6.5-Inch midfrequency driver, 1 x 2-Inch high-frequency compression driver.
• 142dB Max SPL (Peak).
• Frequency Response of 55Hz - 20kHz (±3dB).
• 90° (H) (optional 120°) x 10° (V) dispersion angle.
• Integrated 4-point pin-based rigging system.
• Robust wooden enclosure with a wear-resistant finish.
APPLICATIONS
Frequency Response
Coverage
Power Rating
Maximum SPL
Sensitivity
Nominal Impedance
LF Driver
MF Driver
HF Driver
55Hz - 20kHz (±3dB) | 43Hz - 20kHz (-10dB)
90° Horizontal (Optional 120°) | 10° Vertical
LF: 380W Continuous, 1520W Peak
MF: 250W Continuous, 1000W Peak
HF: 80W Continuous, 320W Peak
136dB Continuous, 142dB Peak
LF: 103dB (1W@1m)
MF: 106dB (1W@1m)
HF: 113dB (1W@1m)
LF1:8Ω, LF2:8Ω, MF:8Ω, HF:8Ω
Dual 10-Inch low-frequency driver
1 x 6.5-Inch mid-frequency driver
1 x 2-Inch high-frequency compression driver
Cabinet
Finish
Mounting Bracket
Grille
Fittings
Rigging
Connectors
Pin Connectors (Input)
Pin Connectors (Link)
Dimensions (HWD)
Weight
Robust all wood construction.
Hard wearing black painted.
L4-Array-FLB for suspended mounting.
Hexagonal mesh black perforated steel with acoustic foam backing.
Dual Side handles, 4-point pin-based rigging system.
4-point rigging system with inter cabinet angle adjustments from 0° to 10°.
Dual Speakon NL8
1+/-(LF1), 2+/-(LF2), 3+/-(MF) and 4+/-(HF)
1+/- , 2+/- , 3+/- and 4+/-
310 x 746 x 505mm
33kg
F1-Array
Passive 3-Way Dual 15-Inch Line Array Loudspeaker
KEY FEATURES
• 1 x 15-Inch low-frequency driver, 1 x 8-Inch mid-frequency driver, 1 x 3-Inch high-frequency compression driver.
• 145dB Max SPL (Peak).
• Frequency Response of 40Hz - 20kHz (±3dB).
• 90° (H) (optional 120°) x 15° (V) dispersion angle.
• Robust wooden enclosure with a wear-resistant finish.
APPLICATIONS
Frequency Response
Coverage
Power Rating
Maximum SPL
Sensitivity
Nominal Impedance
LF Driver
MF Driver
HF Driver
40Hz - 20kHz(±3dB) | 33Hz - 21kHz(-10dB)
90° Horizontal (Optional 120°) | 15° Vertical
LF:600W Continuous, 2400W Peak
MF:300W Continuous, 1200W Peak
HF:150W Continuous, 600W Peak
139dB Continuous, 145dB Peak
LF: 105dB (1W@1m)
MF: 107dB (1W@1m)
HF: 114dB (1W@1m)
LF: 8Ω, MF: 8Ω, HF: 8Ω
1 x 15-Inch low-frequency driver
1 x 8-Inch mid-frequency driver
1 x 3-Inch high-frequency compression driver
Cabinet
Finish
Mounting Bracket
Grille
Fittings
Rigging
Connectors
Pin Connectors (Input)
Pin Connectors (Link)
Dimensions (HWD)
Weight
Robust all wood construction.
Hard wearing black painted.
F1-Array-FLB for suspended mounting.
Hexagonal mesh black perforated steel with acoustic foam backing. 1+/- , 2+/- , 3+/- and 4+/-
Dual Side handles, 4-point pin-based rigging system.
4-point rigging system with inter cabinet angle adjustments from 0° to 15°.
Dual Speakon NL8
1+/-(LF), 2+/-(MF) and 3+/-(HF)
438.4 x 710 x 585mm
40kg
F2-Array
Passive 12-Inch Line Array Loudspeaker
KEY FEATURES
• 1 x 12-Inch low-frequency driver, 1 x 3-Inch highfrequency compression driver.
• 143dB Max SPL (Peak).
• Frequency Response of 50Hz - 18kHz (±3dB).
• 90° (H) (optional 120°) x 15° (V) dispersion angle.
• Robust wooden enclosure with a wear-resistant finish.
APPLICATIONS
Frequency Response
Coverage
Power Rating
Maximum SPL
Sensitivity
Nominal Impedance
LF Driver
HF Driver
Cabinet
50Hz - 18kHz (±3dB) | 40Hz - 20kHz (-10dB)
90° Horizontal (Optional 120°) | 15° Vertical
LF: 380W Continuous, 1520W Peak
MF: 250W Continuous, 1000W Peak
HF: 80W Continuous, 320W Peak
137dB Continuous, 143dB Peak
LF: 105dB (1W@1m)
HF: 114dB (1W@1m)
LF: 16Ω, HF: 16Ω
1 x 12-Inch low-frequency driver
1 x 3-Inch high-frequency compression driver
Robust all wood construction.
Finish
Mounting Bracket
Grille
Fittings
Rigging
Connectors
Pin Connectors (Input)
Pin Connectors (Link)
Dimensions (HWD)
Weight
Hard wearing black painted.
F2-Array-FLB for suspended mounting.
Hexagonal mesh black perforated steel with acoustic foam backing.
Dual Side handles, 4-point pin-based rigging system.
4-point rigging system with inter cabinet angle adjustments from 0° to 15°.
Dual Speakon NL4
1+/- (LF) and 2+/- (HF)
1+/- and 2+/-
395.4 x 646 x 435mm
29kg

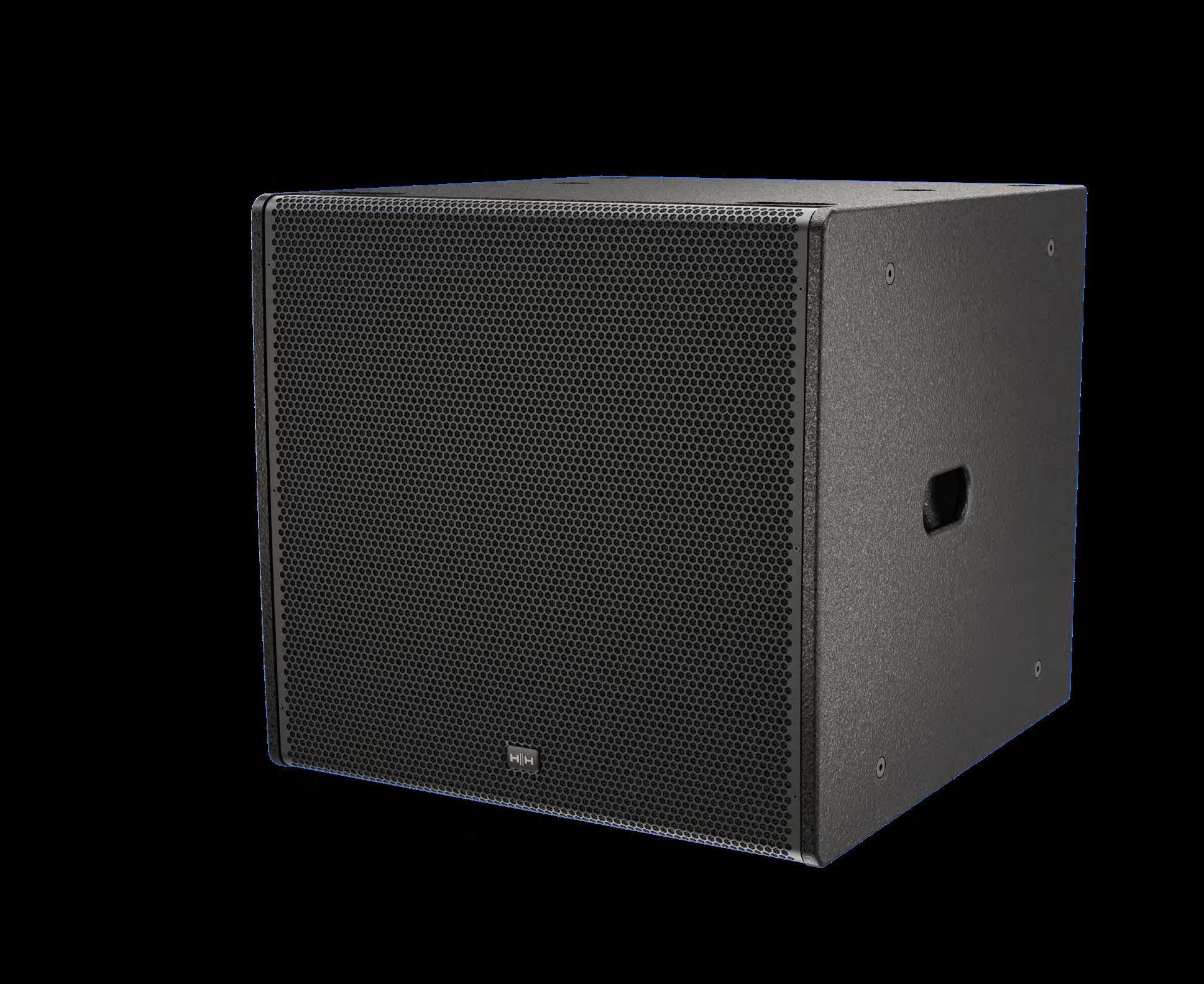

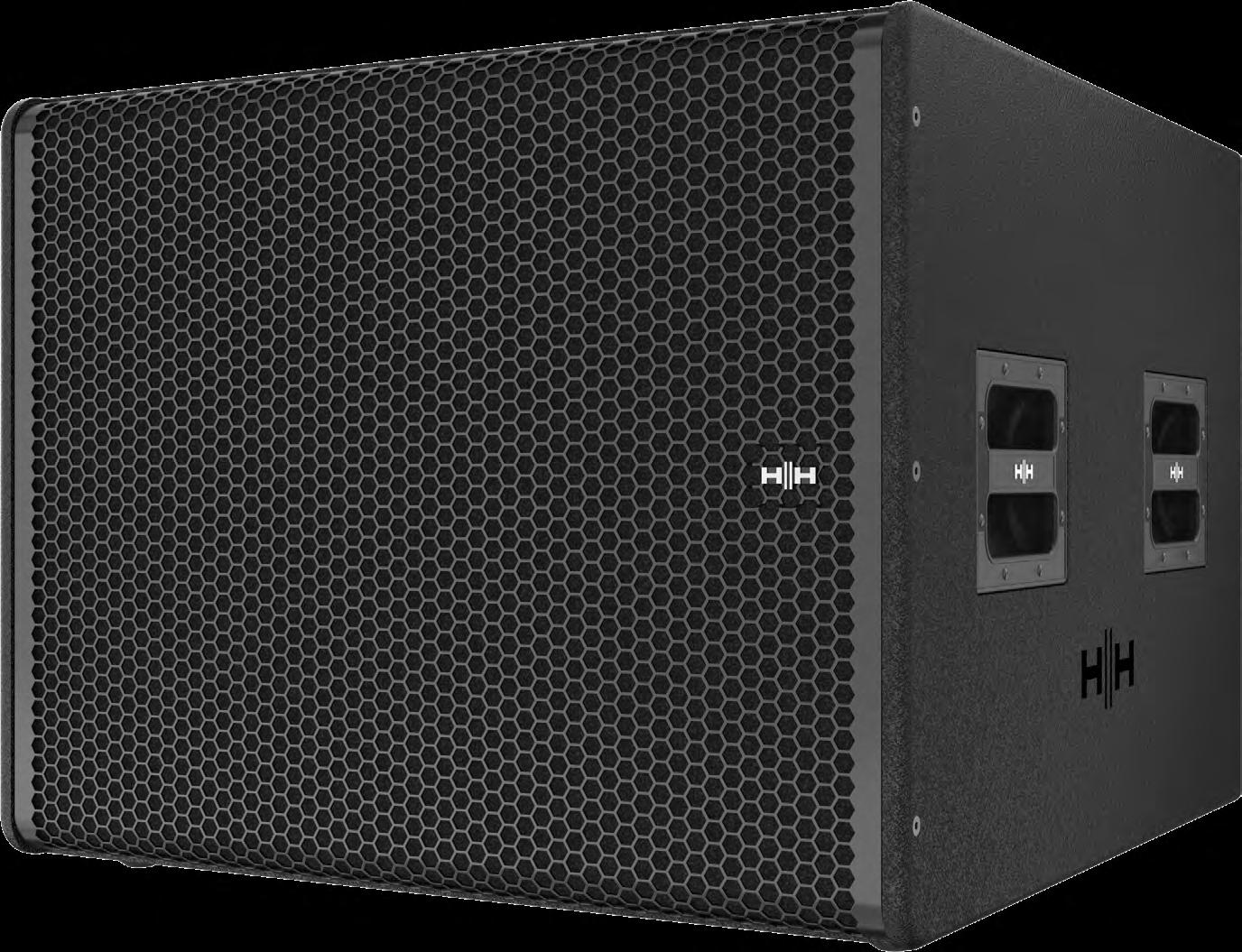

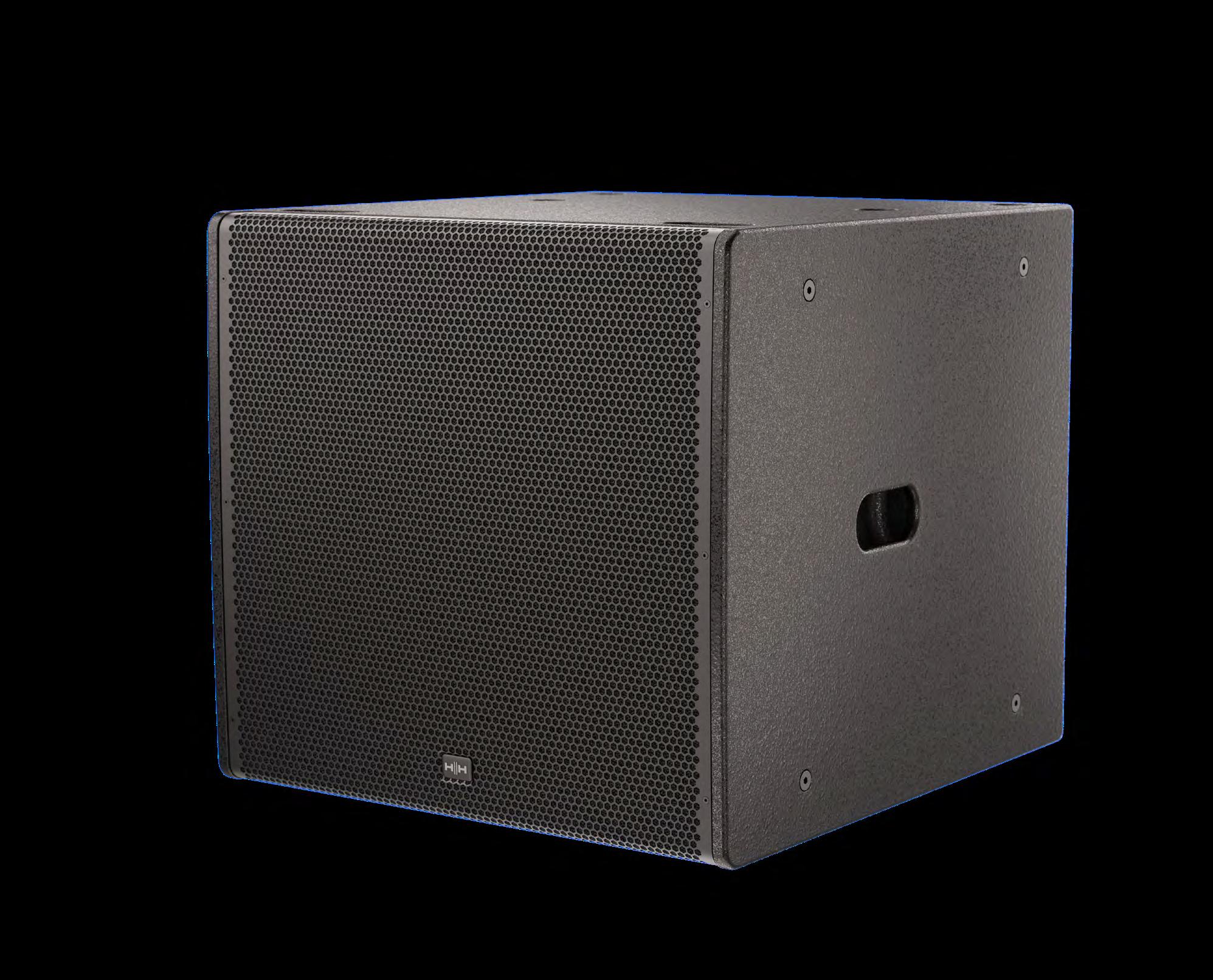

Single 18-Inch Passive Sub Enclosure
KEY FEATURES
• 1 x 18-Inch low-frequency driver.
• 141dB Max SPL (Peak).
• Frequency Response of 33Hz - 300Hz (±3dB).
• Advanced carbon fibre cone to provide low-distortion output under high power conditions
• Robust wooden enclosure with extensive internal bracing finished with black polyurea paint.
APPLICATIONS
Frequency Response
Power Rating
Maximum SPL
Sensitivity
Nominal Impedance
LF Driver
Cabinet
33Hz - 300Hz (±3dB) | 28Hz - 300Hz (-10dB)
1000W Continuous, 4000W Peak
135dB Continuous, 141dB Peak
1 x 18-Inch low-frequency driver 105dB (1W@1m)
8Ω
Acoustically optimised plywood cabinet with extensive internal bracing to eliminate vibrational modes
Finish
Grille
Fittings
Connectors
Pin Connectors (Input)
Pin Connectors (Link)
Dimensions (HWD)
Weight
Hard wearing black painted.
Hexagonal mesh black perforated steel with acoustic foam backing. 1+/- and 2+/-
4 x Side handles, pole-mount socket, provision for castors.
Dual Speakon NL4
1+/-
530 x 710 x 750mm
40kg

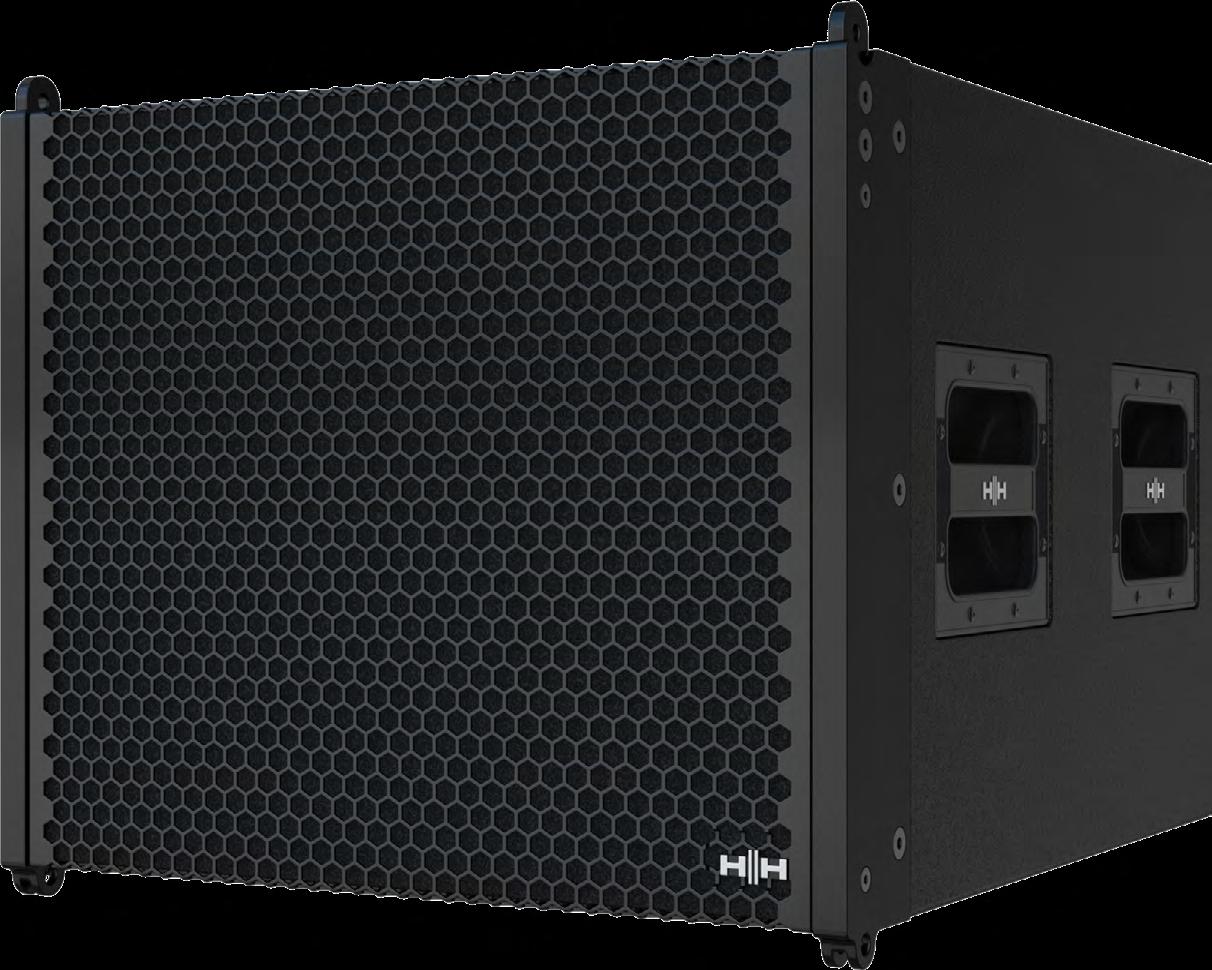

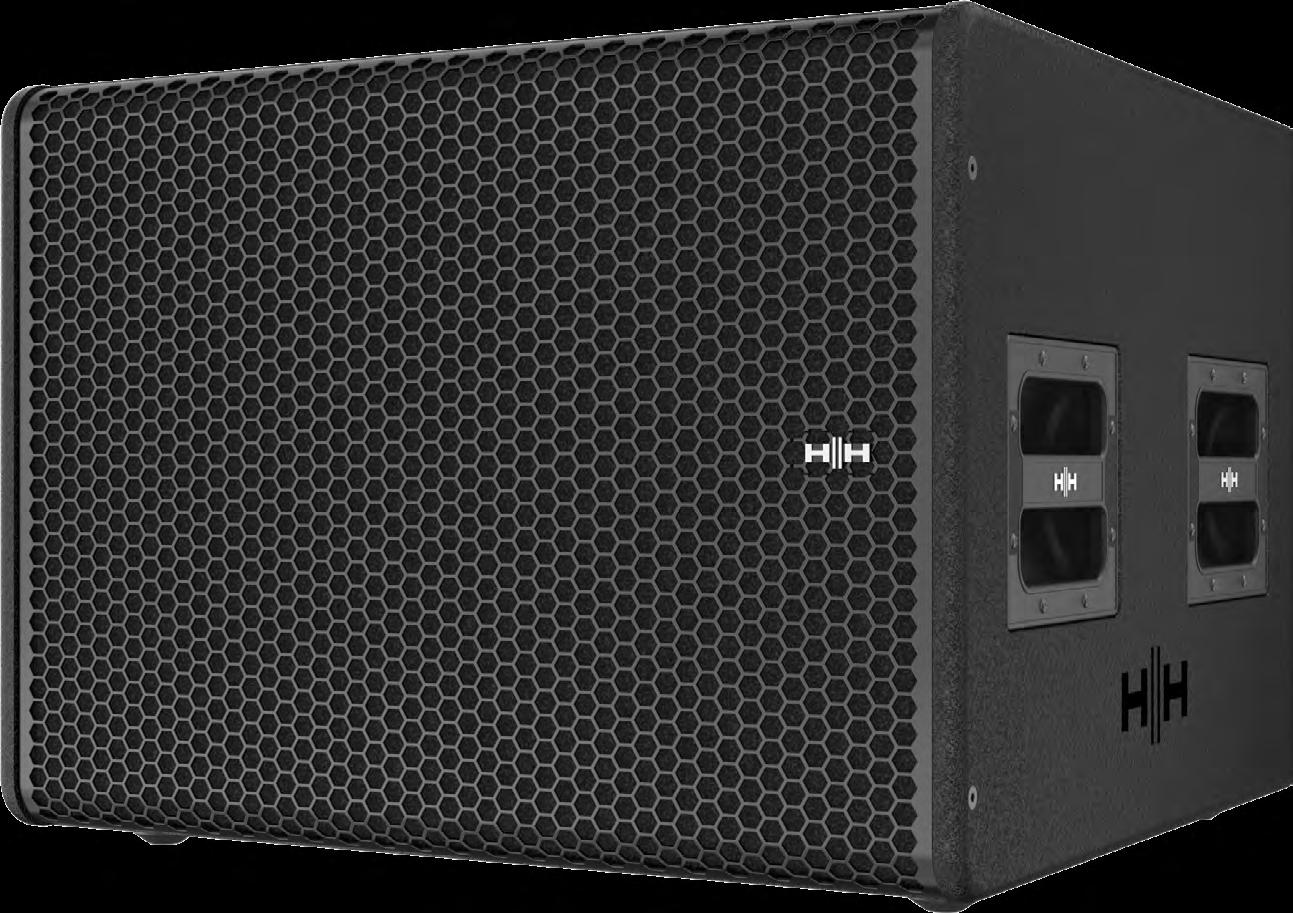

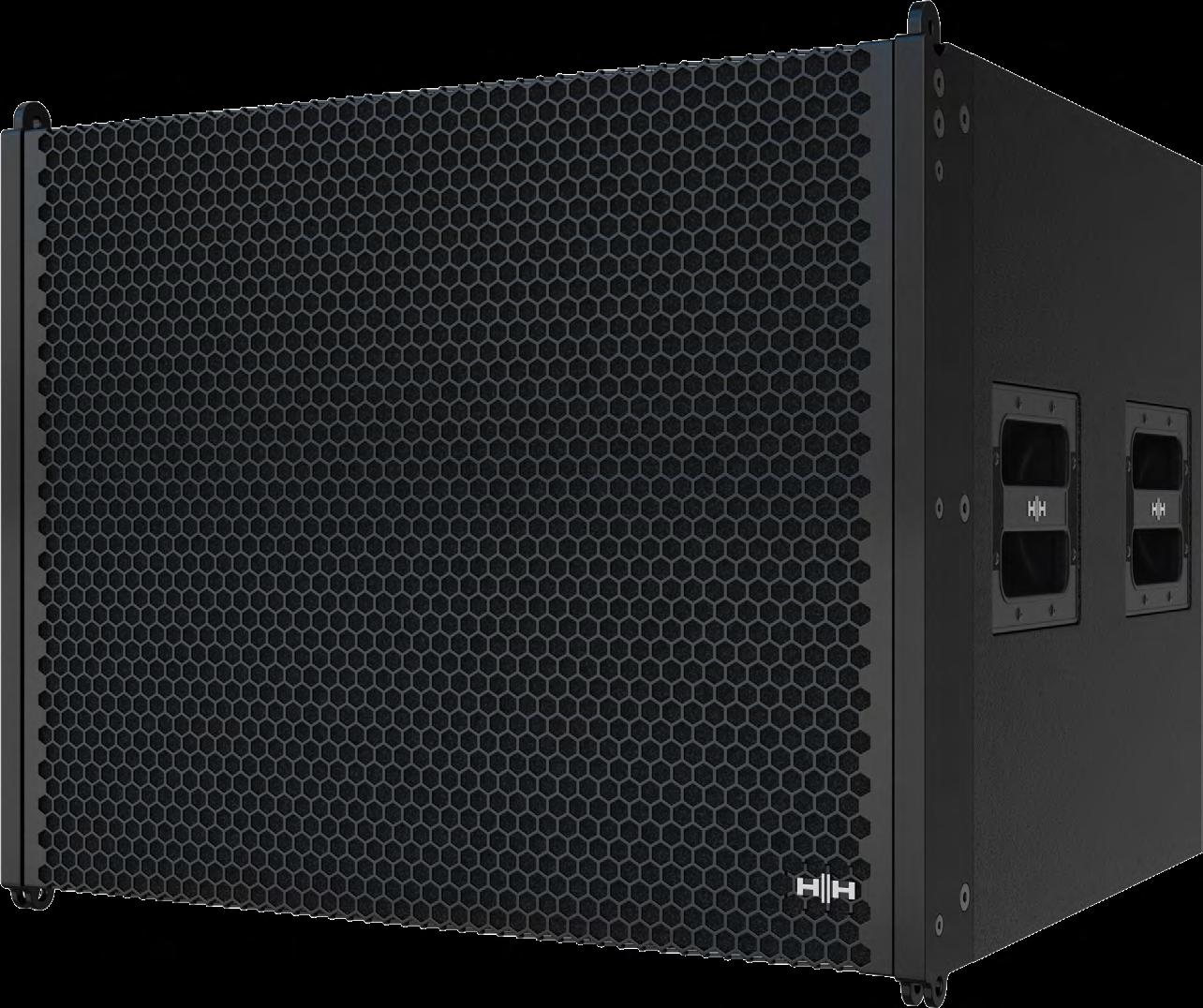

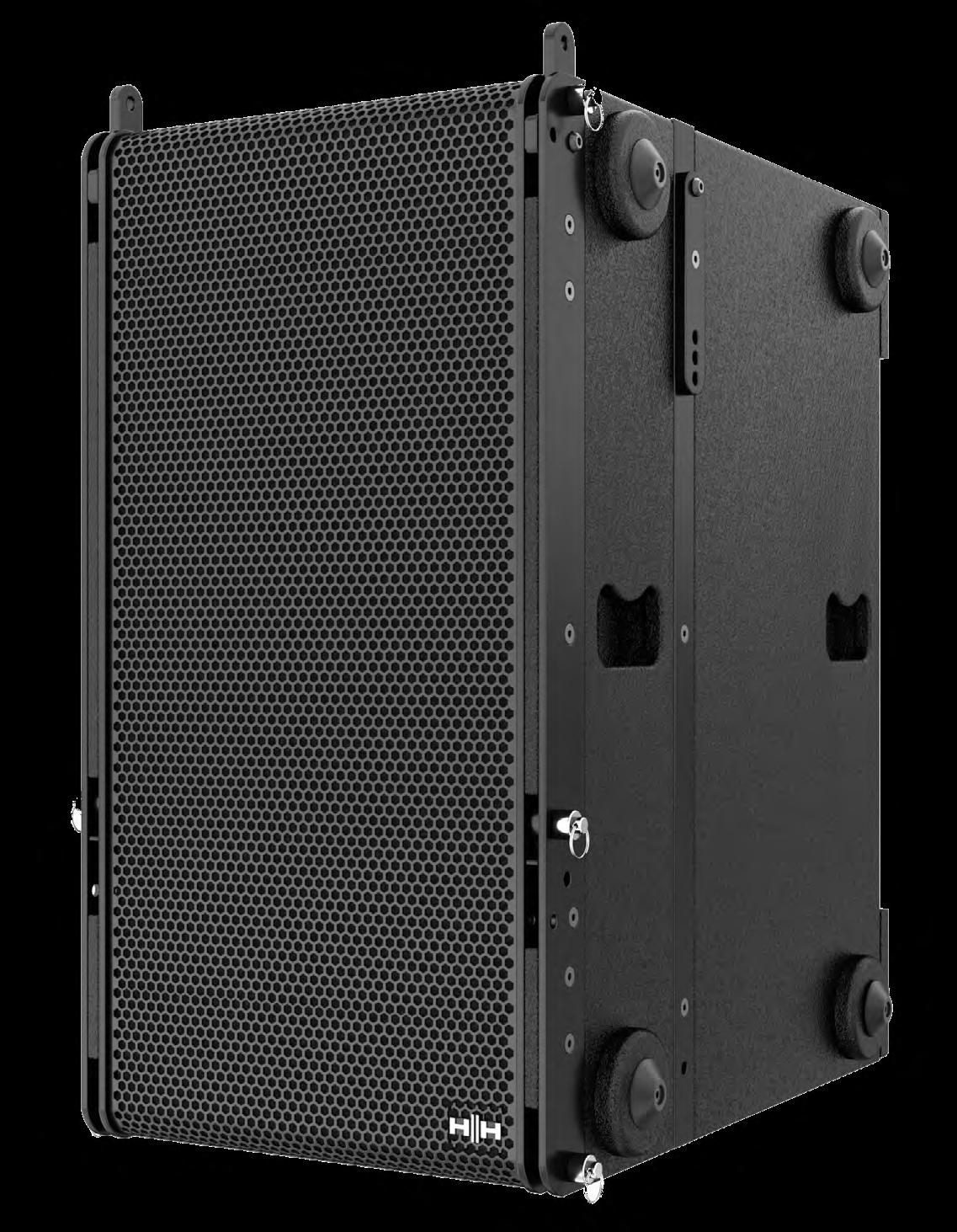

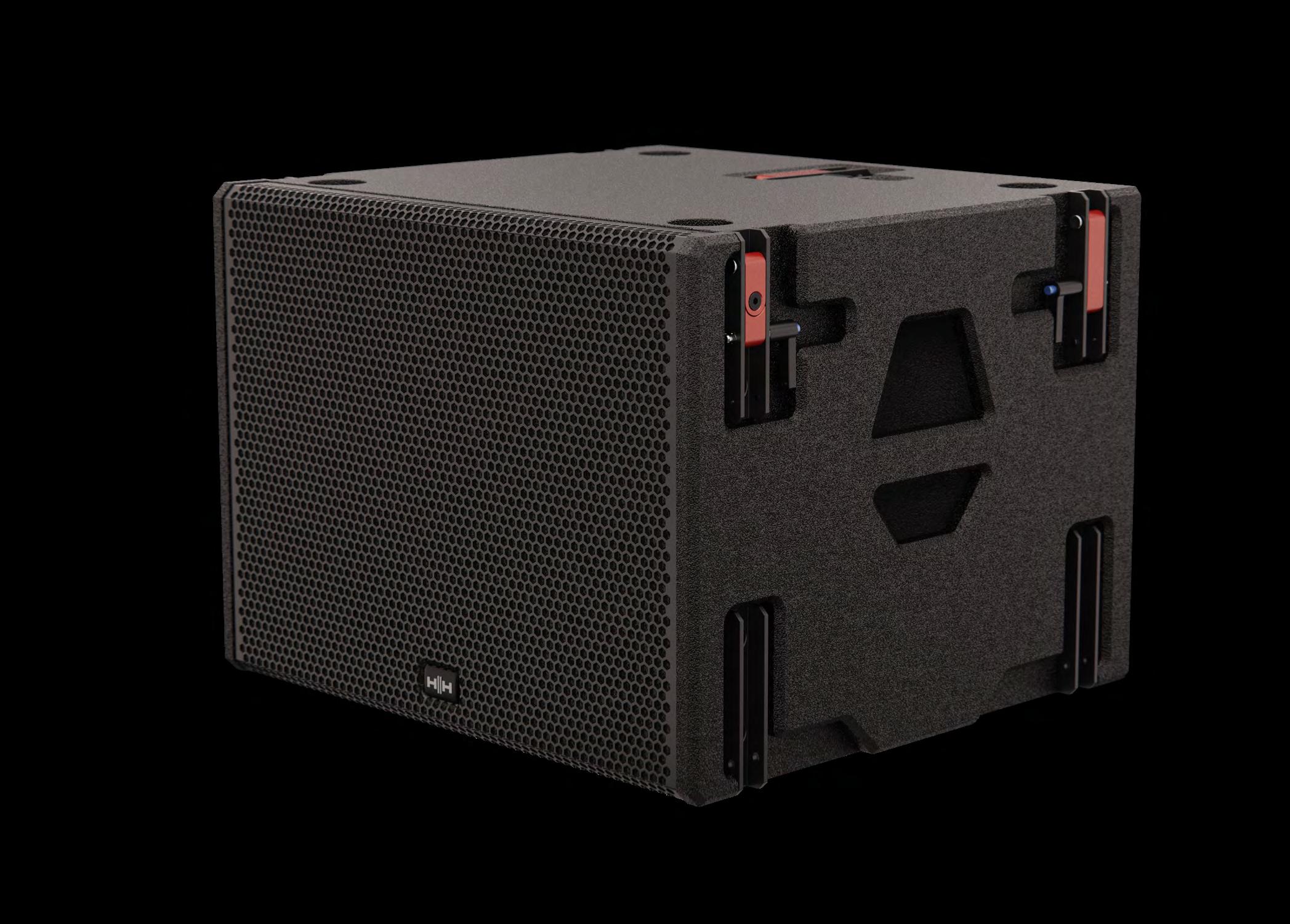

Single 18-Inch Passive Line Array Sub Enclosure
KEY FEATURES
• 1 x 18-Inch low-frequency driver.
• 141dB Max SPL (Peak).
• Frequency Response of 33Hz - 300Hz (±3dB).
• Advanced carbon fibre cone to provide low-distortion output under high power conditions
• Integrated 4-point pin-based rigging system for seamlessly linking to L4-Array cabinets.
• Robust wooden enclosure with extensive internal bracing finished with black polyurea paint.
APPLICATIONS
Frequency Response
Power Rating
Maximum SPL
Sensitivity
Nominal Impedance
LF Driver 33Hz - 300Hz (±3dB) | 28Hz - 300Hz (-10dB)
Cabinet
Finish
1000W Continuous, 4000W Peak
135dB Continuous, 141dB Peak
8Ω 1 x 18-Inch low-frequency driver 105dB (1W@1m)
Acoustically optimised plywood cabinet with extensive internal bracing to eliminate vibrational modes
Hard wearing black painted.
Grille
Fittings
Mounting Bracket
Rigging
Connectors
Pin Connectors (Input)
Pin Connectors (Link)
Dimensions (HWD)
Weight
4 x Side handles, rigging system, provision for castors. GSE-FLB for suspended mounting. 4-point pin-based rigging system
Dual Speakon NL4 1+/-
Hexagonal mesh black perforated steel with acoustic foam backing. 1+/- and 2+/-
530 x 710 x 750mm
42kg

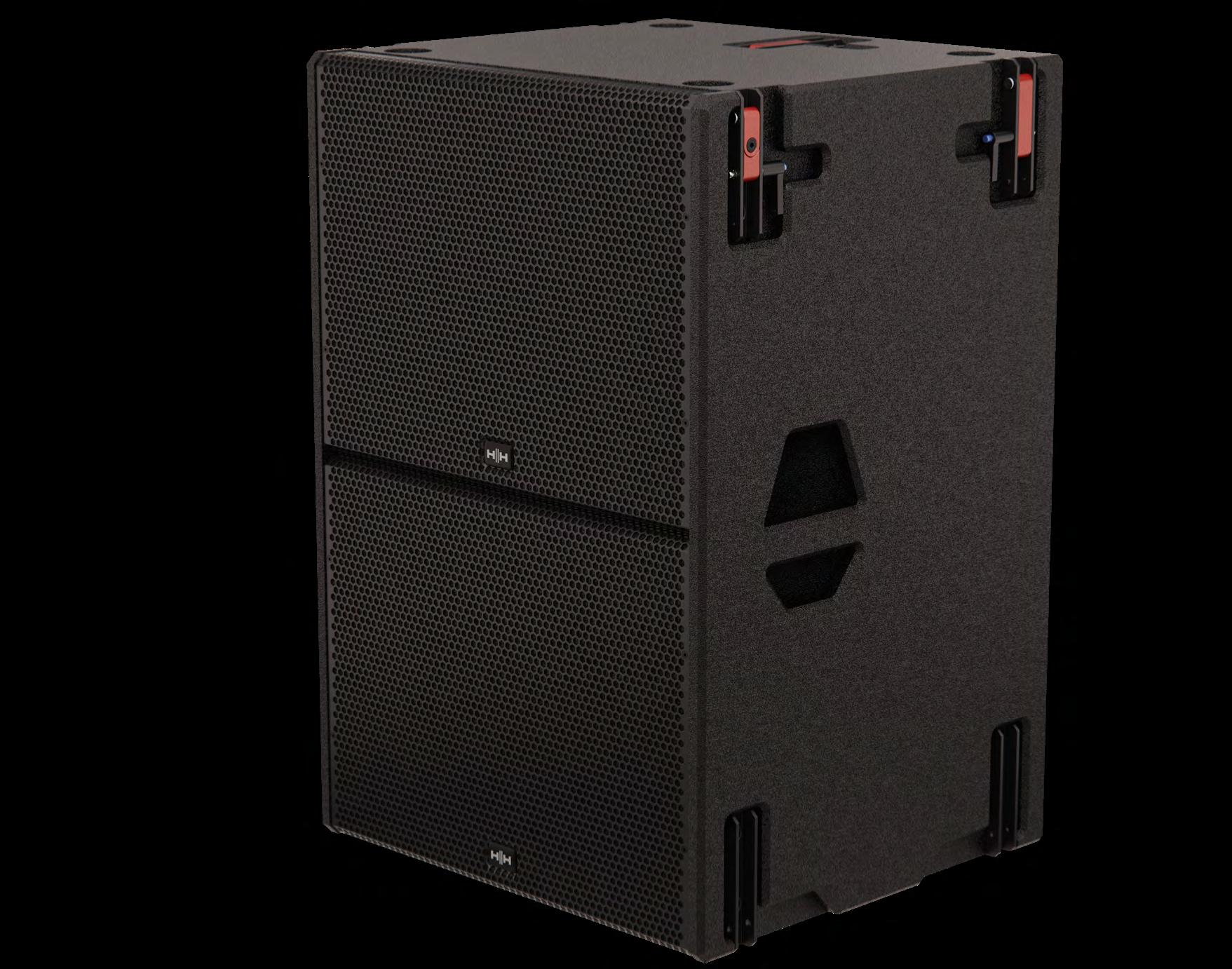

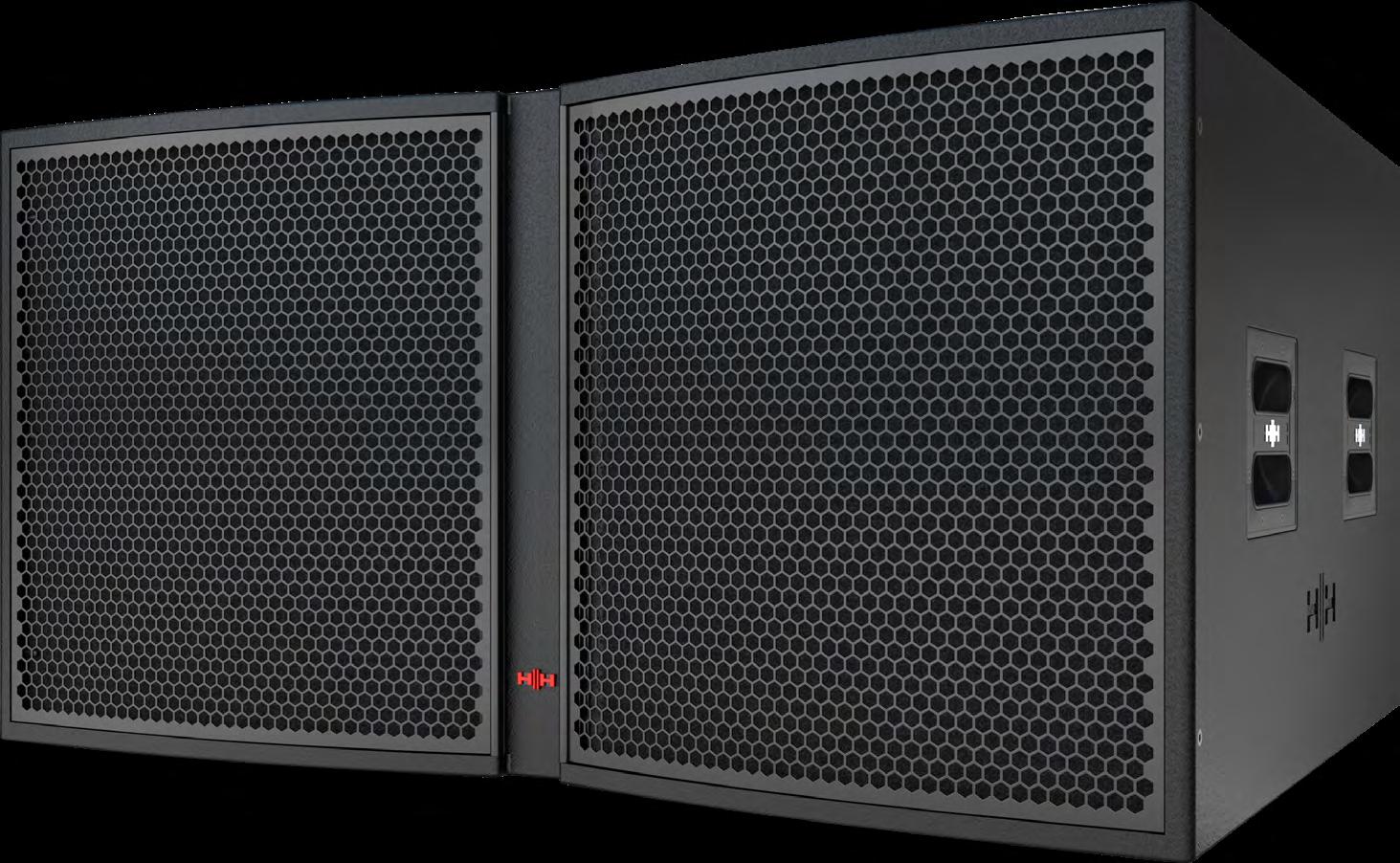

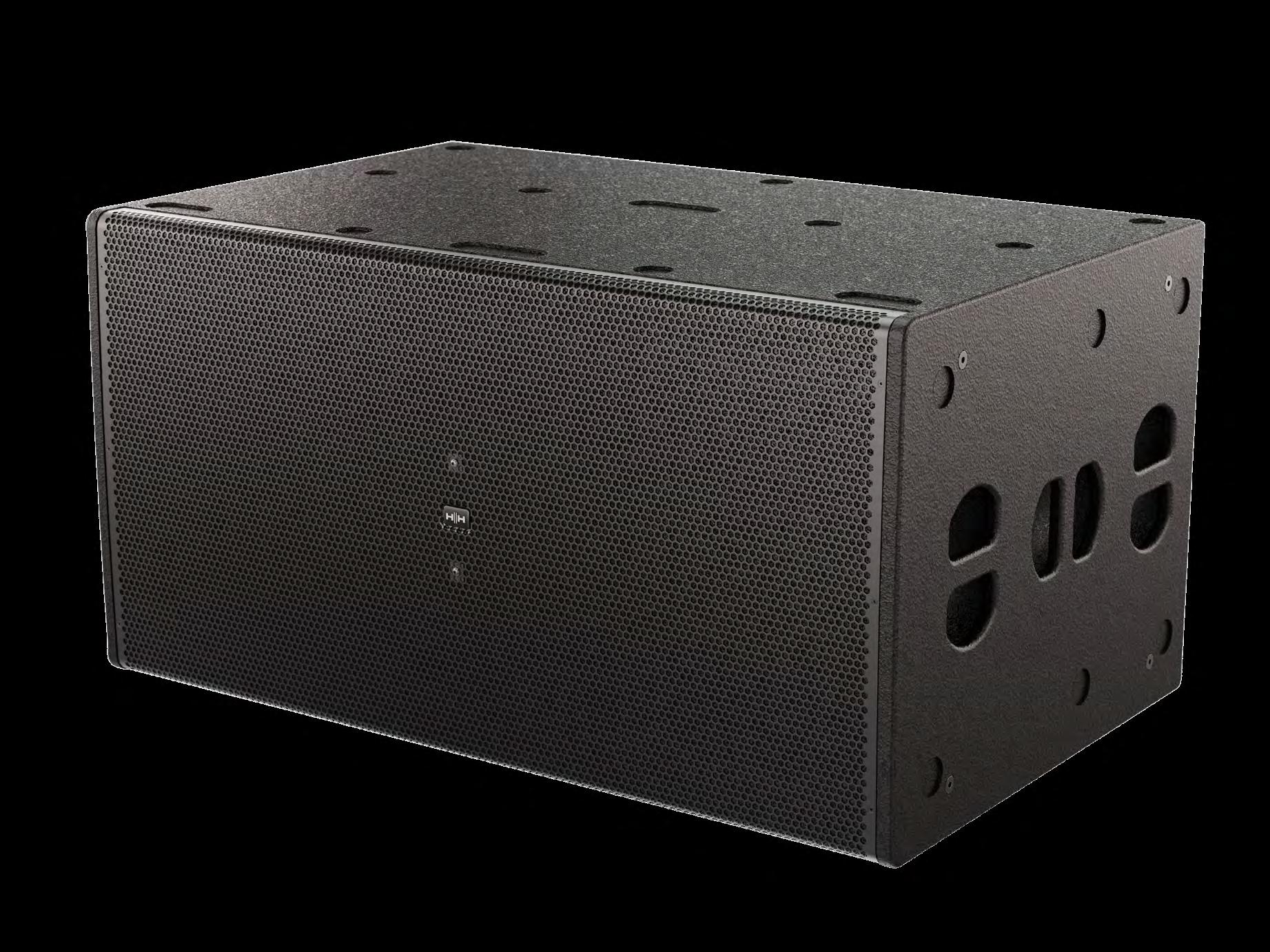

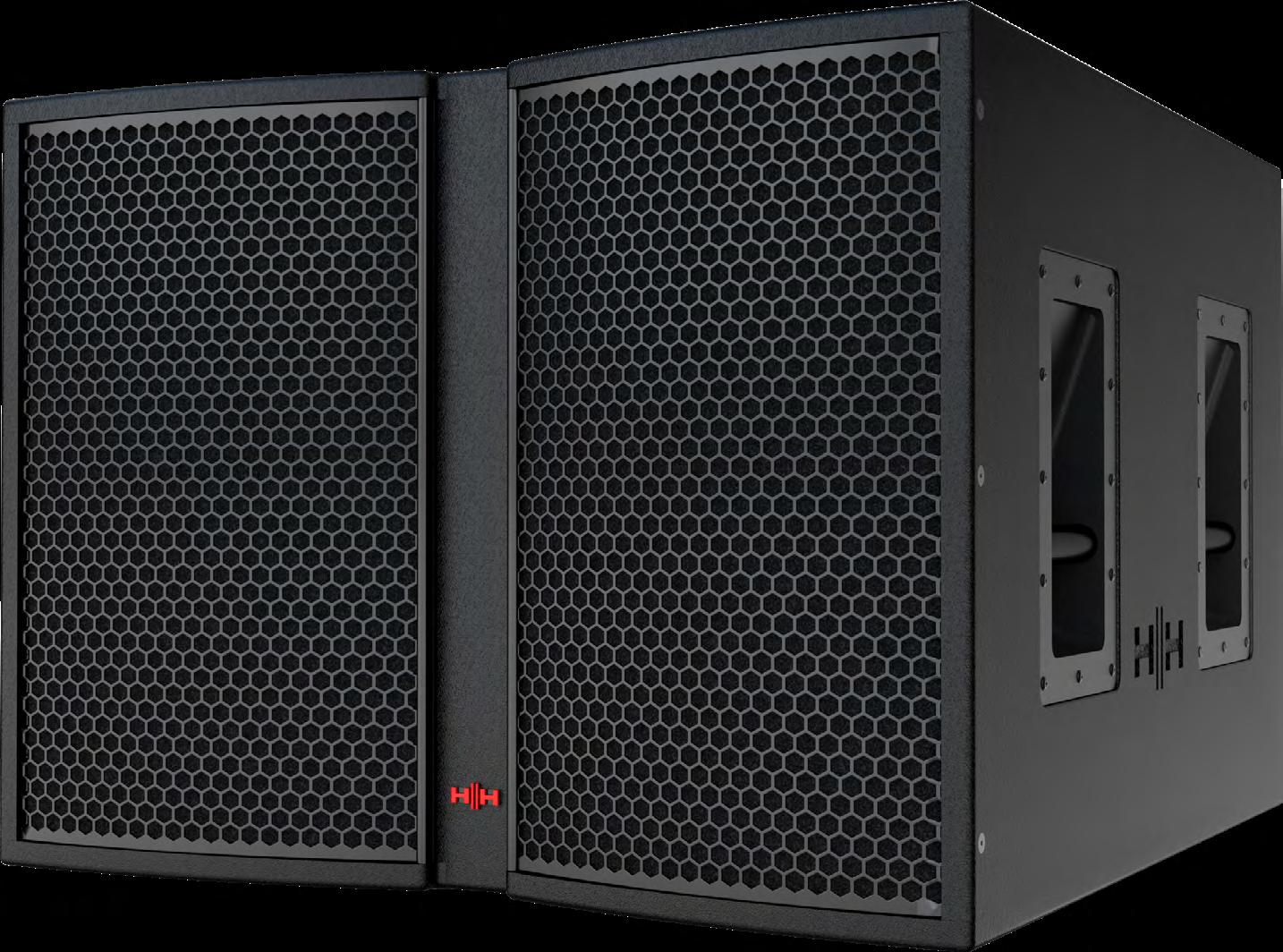

Dual 18-Inch Passive Sub Enclosure
KEY FEATURES
• Dual 18-Inch high performance low-frequency drivers.
• 144dB Max SPL (Peak).
• Frequency Response of 30Hz - 95Hz (±3dB).
• Robust wooden enclosure with extensive internal bracing finished with black polyurea paint.
APPLICATIONS
Frequency Response
Power Rating
Maximum SPL
Sensitivity
Nominal Impedance
LF Driver
Cabinet
30Hz - 95Hz (±3dB) | 25Hz - 115Hz (-10dB)
2000W Continuous, 8000W Peak
138dB Continuous, 144dB Peak
Dual 18-Inch low-frequency driver 105dB (1W@1m)
4Ω
Acoustically optimised plywood cabinet with extensive internal bracing to eliminate vibrational modes
Finish
Grille
Fittings
Connectors
Pin Connectors (Input)
Pin Connectors (Link)
Dimensions (HWD)
Weight
Hard wearing black painted.
Hexagonal mesh black perforated steel with acoustic foam backing.
4 x Side handles, provision for castors.
Dual Speakon NL4 1+/-
1+/- and 2+/-
560 x 1100 x 855mm
82kg

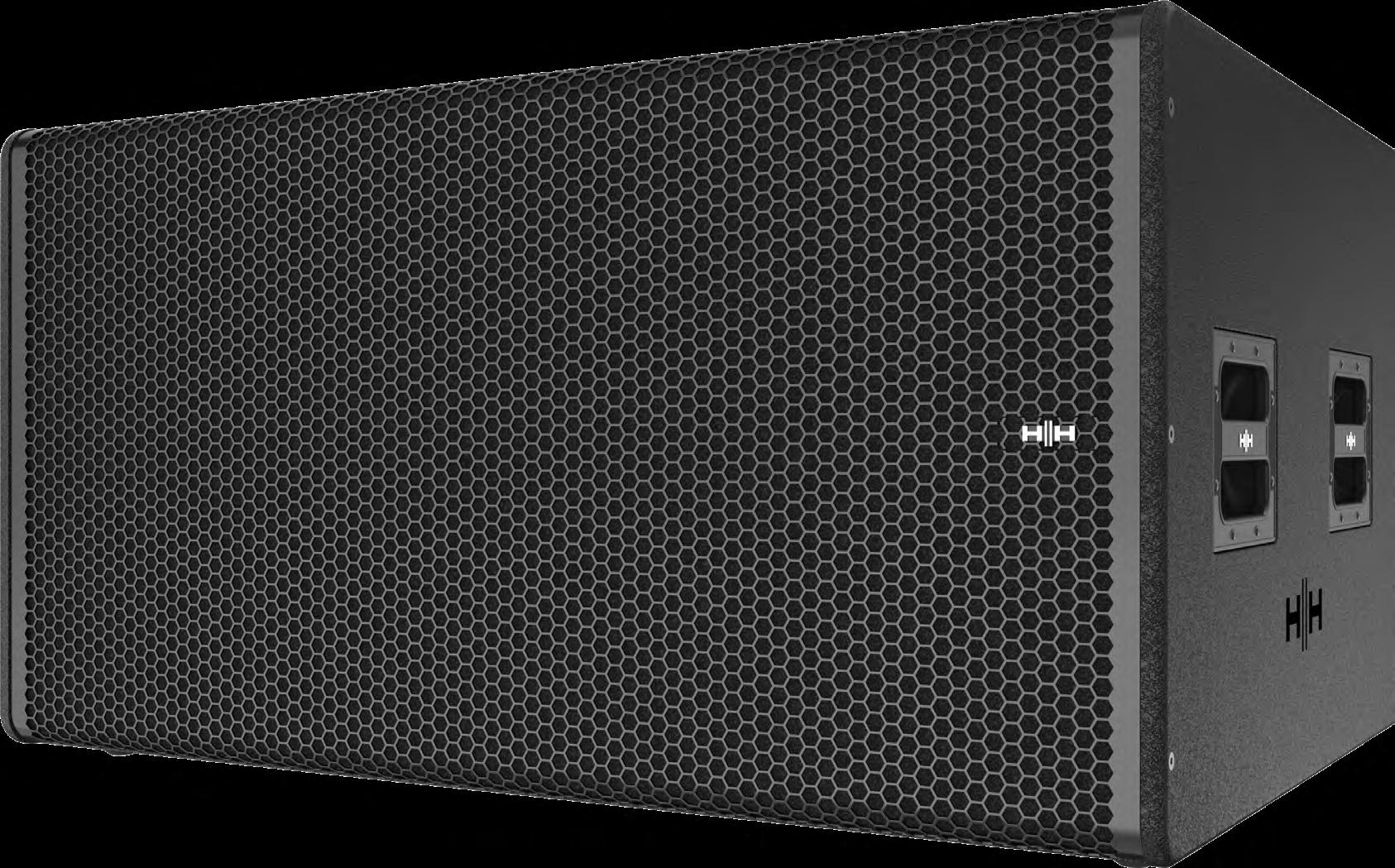

Dual 18-Inch Passive Sub Enclosure
KEY FEATURES
• Dual 18-Inch low-frequency drivers.
• 145dB Max SPL (Peak).
• Frequency Response of 32Hz - 290Hz (±3dB).
• Advanced carbon fibre cone to provide low-distortion output under high power conditions
• Robust wooden enclosure with extensive internal bracing finished with black polyurea paint.
APPLICATIONS
Frequency Response
Power Rating
Maximum SPL
Sensitivity
Nominal Impedance
LF Driver
Cabinet
Finish
Grille
Acoustically optimised plywood cabinet with extensive internal bracing to eliminate vibrational modes Hard wearing black painted.
Fittings
Connectors
Pin Connectors (Input)
Pin Connectors (Link)
Dimensions (HWD)
Weight
x Side handles and provision for castors.
550 x 1200 x 790mm 80kg

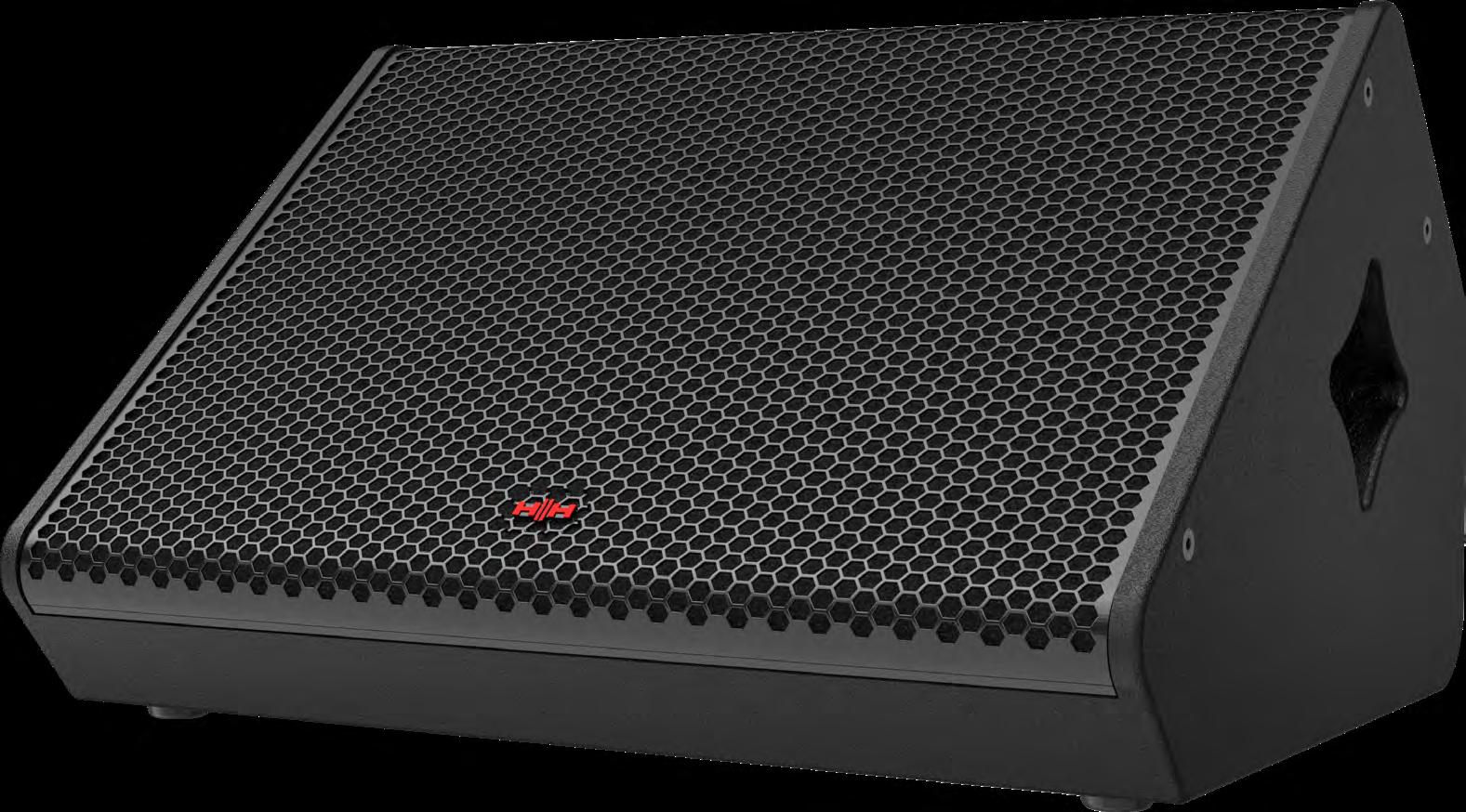

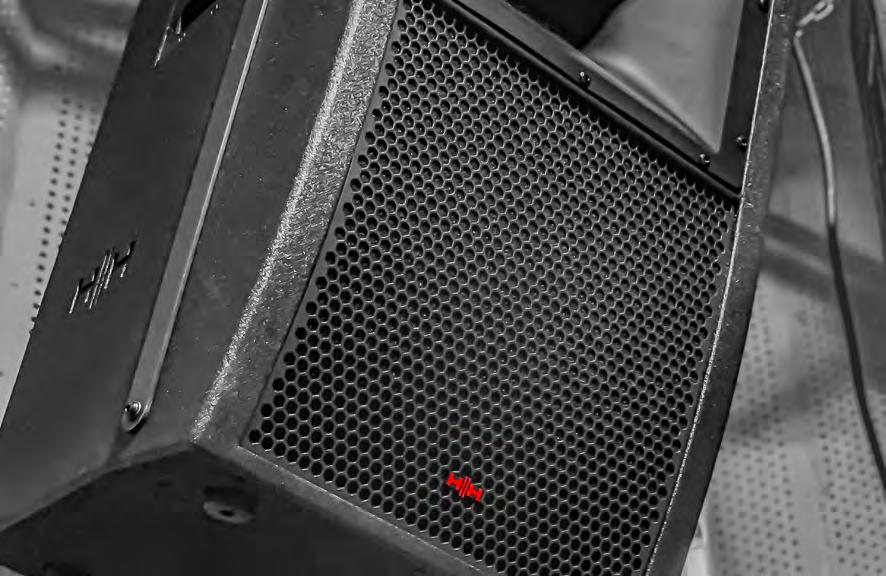

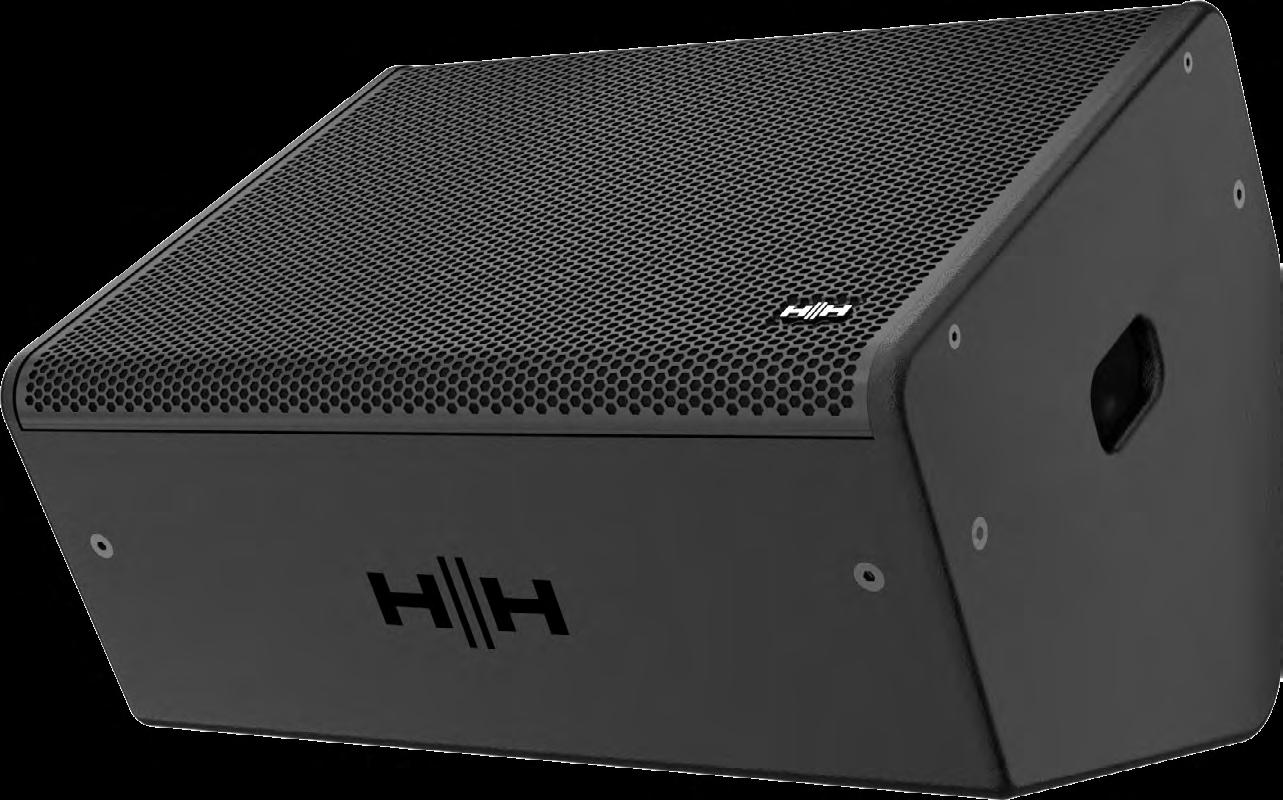

Dual 12-Inch Passive Stage Monitor
KEY FEATURES
• Dual 12-Inch low frequency driver, 1 x 3-Inch highfrequency compression driver.
• 139dB Max SPL (Peak).
• Frequency Response of 45Hz - 18kHz (±3dB).
• 60° (H) x 40° (V) dispersion angle.
• Robust wooden enclosure finished with black polyurea paint.
APPLICATIONS
Frequency Response
Coverage
Power Rating
Maximum SPL
Sensitivity
Nominal Impedance
LF Driver
HF Driver
Drive Mode
45Hz - 18kHz (±3dB) | 30Hz - 20kHz (-10dB) Horizontal 60°, Vertical 40°
900W Continuous, 3600W Peak
133dB Continuous, 139dB Peak 4Ω
Cabinet
Finish
Grille
Fittings
Connectors
Robust all wood construction.
Hexagonal mesh black perforated steel with acoustic foam backing.
Dual 12-Inch low-frequency driver
1 x 3-Inch high-frequency compression driver
Two-Way Passive 103dB (1W@1m)
Pin Connectors (Input)
Pin Connectors (Link)
Dimensions (HWD)
Weight
Hard wearing black painted. Dual Speakon NL4 1+/-
and 2+/4 x Side handles and M8 mounting points.
399.5 x 69Dual 510mm 38kg

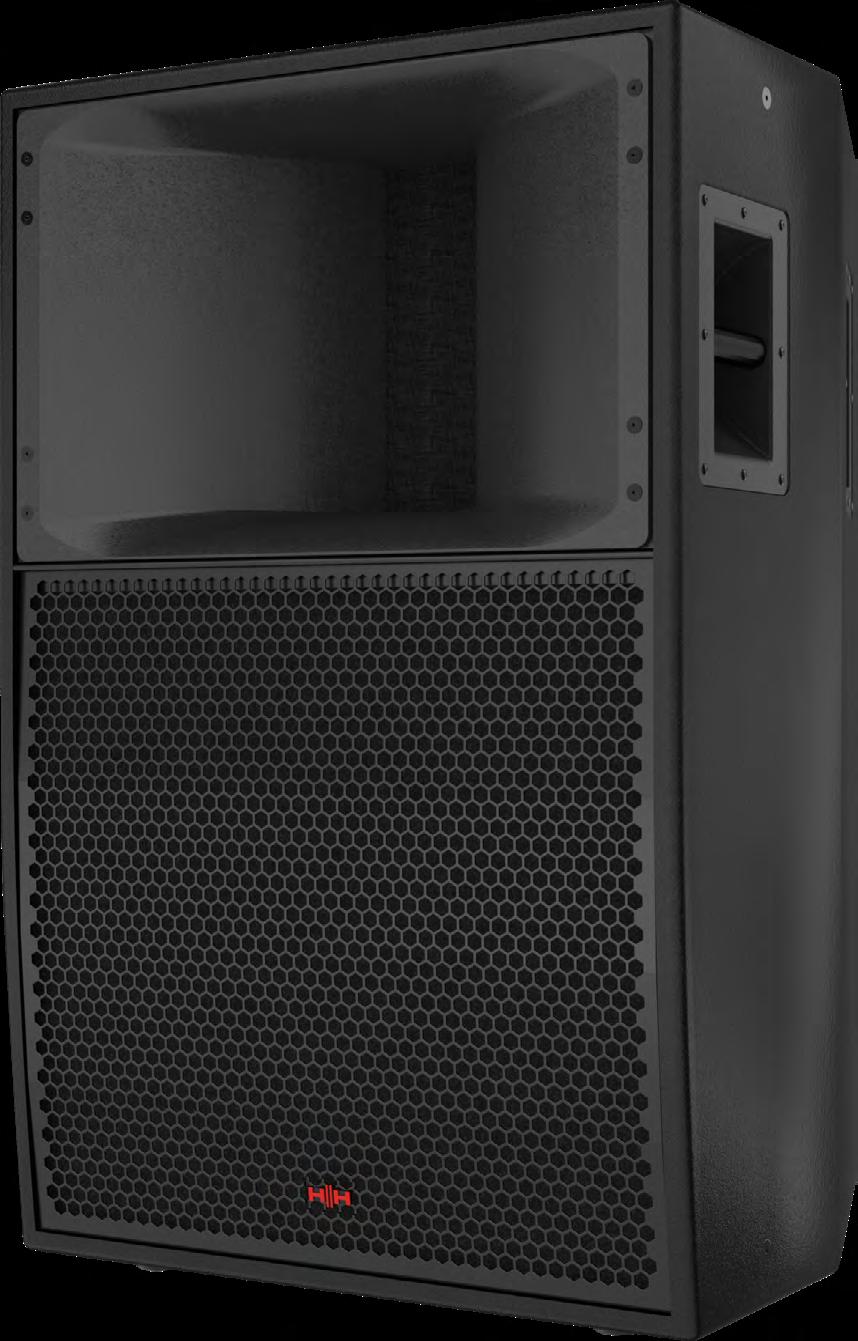

P2-Array
Dual 12-Inch Passive Point Source Loudspeaker
KEY FEATURES
• 3 Way, High SPL, Long Throw Point Source Loudspeaker
• Dual 12-Inch low-frequency driver, Dual 10-Inch mid-frequency driver, 1 x4-Inch high-frequency compression driver.
• 146dB Max SPL (Peak).
• 90° (H) x 40° (V) coverage angles.
• Frequency Response of 60Hz - 18Hz (±3dB).
• Robust wooden enclosure finished with black polyurea paint.
APPLICATIONS
Frequency Response
Coverage
Power Rating
Maximum SPL
Sensitivity
Nominal Impedance
LF Driver
MF Driver
HF Driver
60Hz - 18kHz (±3dB) | 50Hz - 20kHz (-10dB)
Horizontal 90°, Vertical 40°
LF: 1 200W Continuous, 4800W Peak
MHF: 700W Continuous, 2800W Peak
140dB Continuous, 146dB Peak
LF: 103dB (1W@1m), MHF: 112dB (1W@1m)
LF: 4Ω, MHF: 8Ω
Dual 12-Inch low-frequency driver
Dual 10-Inch mid-frequency driver 1 x 4-Inch high-frequency compression driver
Cabinet
Finish
Grille
Fittings
Mounting Points
Connectors
Pin Connectors (Input)
Pin Connectors (Link)
Dimensions (HWD)
Weight
Robust all wood construction.
Hard wearing black painted.
Hexagonal mesh black perforated steel with acoustic foam backing. 1+/- and 2+/Dual side handles, mounting points. 10 x M8 (6 on top, 4 on sides).
Dual Speakon NL4 1+/-(LF) and 2+/-(MHF)
900 x 580 x 655mm
80kg

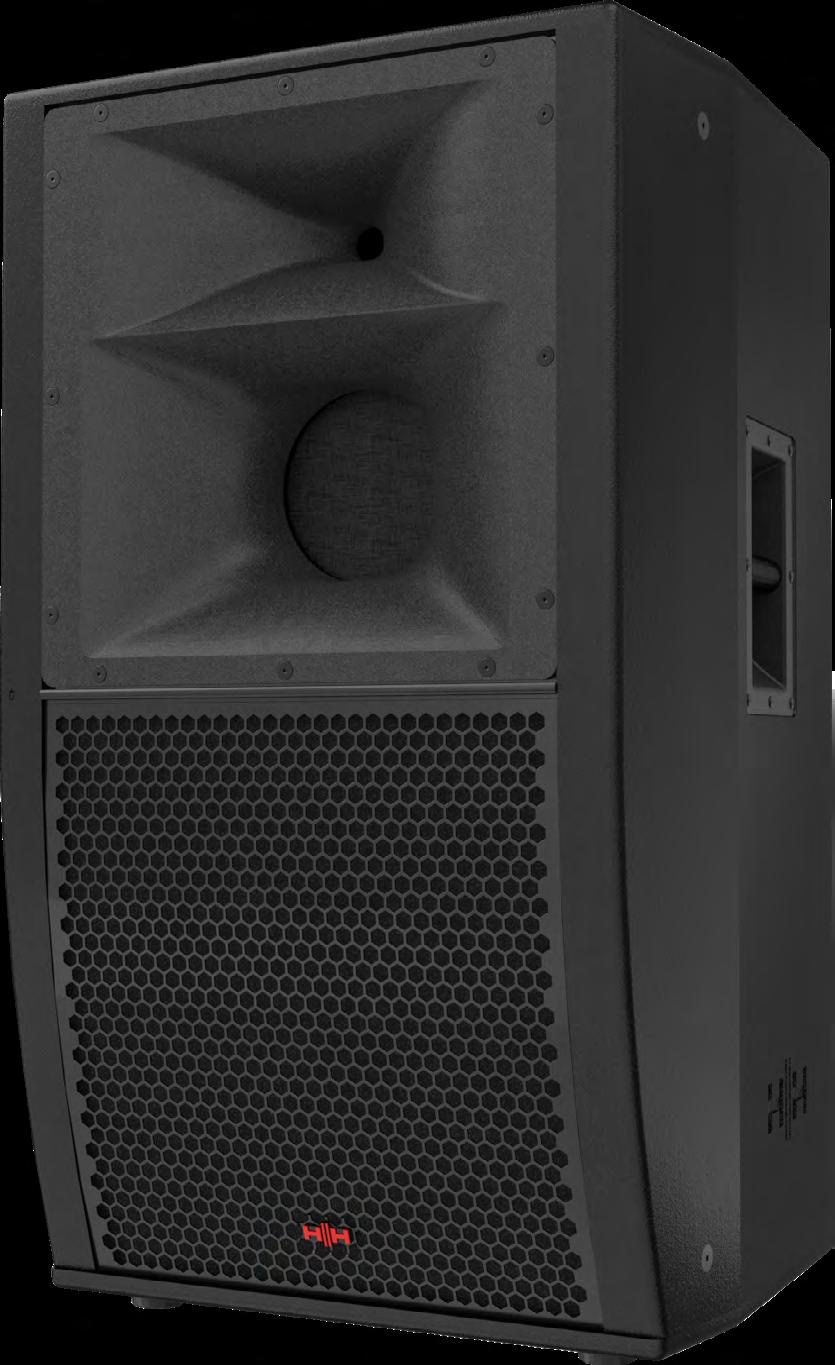

P3-Array
15-Inch Passive Point Source Loudspeaker
KEY FEATURES
• 3 Way, High SPL, Long Throw Point Source Loudspeaker
• 1 x 15-Inch low-frequency driver, 1 x 8-Inch mid-frequency driver, 1 x 3-Inch high-frequency compression driver.
• 140dB Max SPL (Peak).
• Rotatable horn with 90° (H) x 40° (V) coverage angles.
• Frequency Response of 50Hz - 20Hz (±3dB).
• Robust wooden enclosure finished with black polyurea paint.
APPLICATIONS
Frequency Response
Coverage
Power Rating
Maximum SPL
Sensitivity
Nominal Impedance
LF Driver
MF Driver
HF Driver 50Hz - 20kHz (±3dB) | 40Hz - 21kHz (-10dB)
Horizontal 80° or 60° (Rotatable), Vertical 60° or 80° (Rotatable)
LF:600W Continuous, 2400W Peak
MHF:250W Continuous, 1000W Peak
134dB Continuous, 140dB Peak
LF: 99dB (1W@1m) MHF: 108dB (1W@1m)
LF: 8Ω, MHF: 8Ω
1 x 15-Inch low-frequency driver
1 x 8-Inch mid-frequency driver
1 x 3-Inch high-frequency compression driver
Cabinet
Finish
Grille
Fittings
Mounting Points
Connectors
Pin Connectors (Input)
Pin Connectors (Link)
Dimensions (HWD)
Weight
Robust all wood construction. Hard wearing black painted.
Hexagonal mesh black perforated steel with acoustic foam backing. 1+/- and 2+/-
Dual side handles, mounting points. 7 x M8 (3 on top, 4 on sides).
Dual Speakon NL4
1+/-(LF) and 2+/-(MHF)
840 x 480 x 480mm 40kg

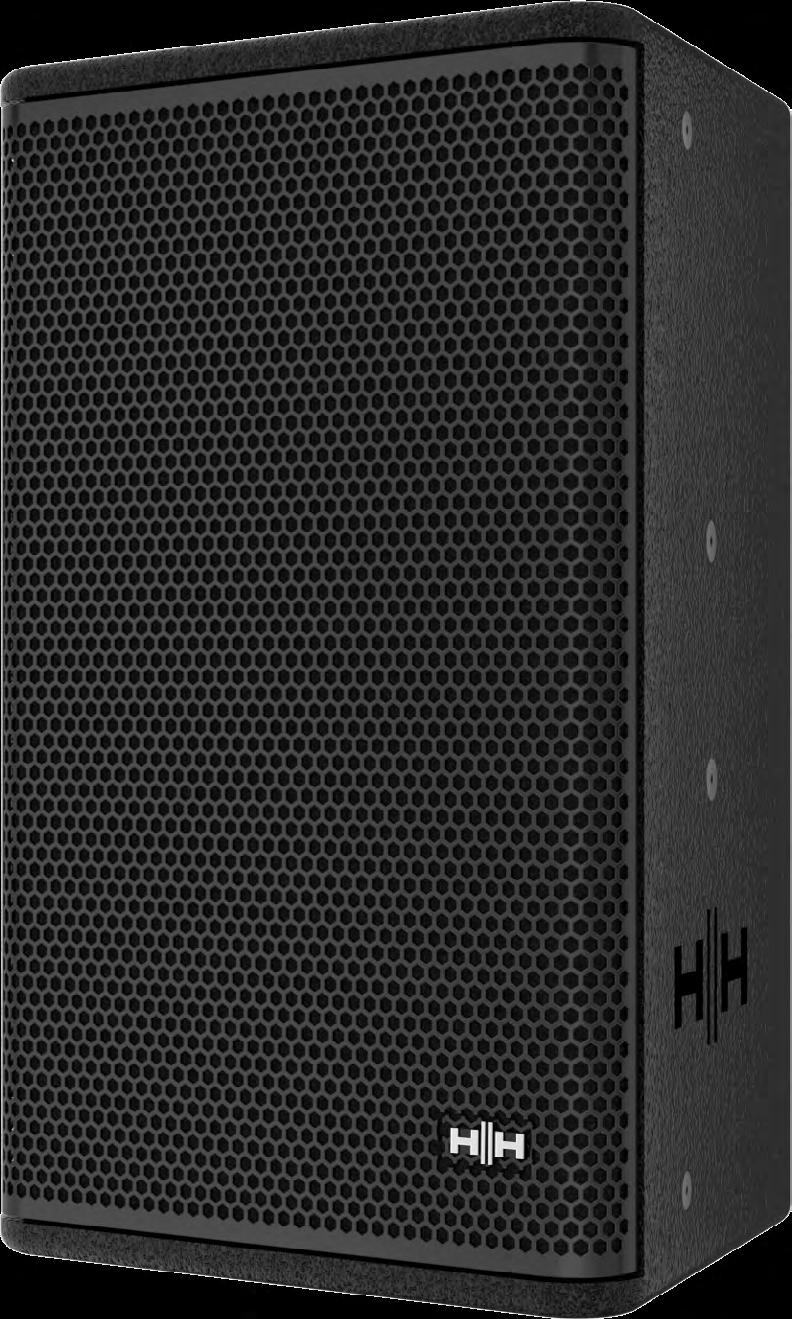

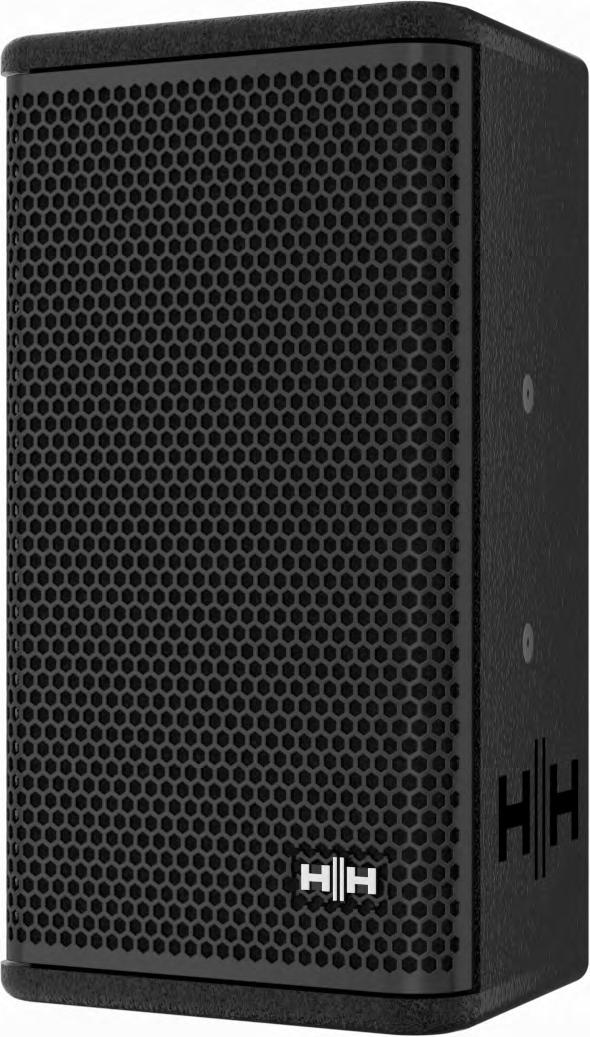

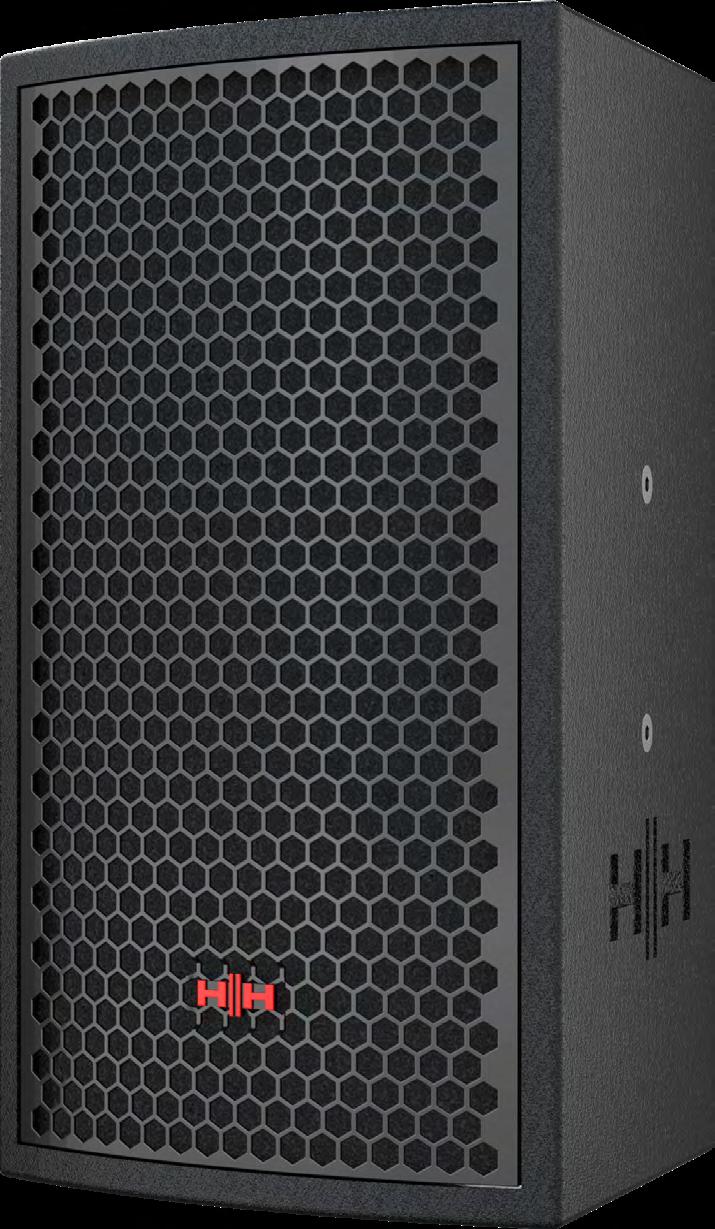

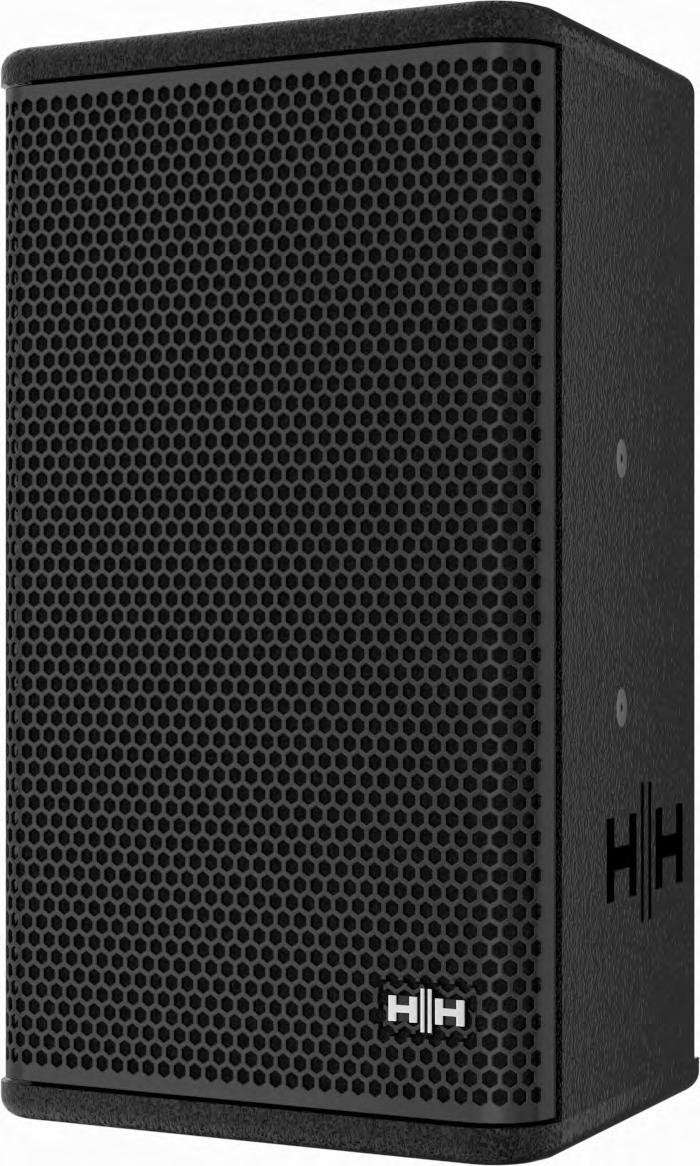

8-Inch Passive Point Source Loudspeaker
KEY FEATURES
• 1 x 8-Inch low-frequency driver, 1 x 1.4-Inch highfrequency compression driver.
• 128dB Max SPL (Peak).
• Rotatable horn with 90° (H) x 70° (V) coverage angles.
• Frequency Response of 60Hz - 18Hz (±3dB).
• Robust wooden enclosure finished with black polyurea paint.
APPLICATIONS
Frequency Response
Coverage
Power Rating
Maximum SPL
Sensitivity
Nominal Impedance
LF Driver
HF Driver
Cabinet
60Hz - 18kHz (±3dB) | 50Hz - 20kHz (-10dB)
Horizontal 90° (Rotatable) Vertical 70° (Rotatable)
Finish
Grille
Fittings
Hard wearing black painted.
Pole-mount socket, M8 mounting points.
122dB Continuous, 128dB Peak 8Ω 1 x 8-Inch low-frequency driver
1 x 1.4-Inch high-frequency compression driver 97dB (1W@1m)
300W Continuous, 1200W Peak Robust all wood construction.
Mounting Points
Connectors
Pin Connectors (Input)
Pin Connectors (Link)
Dimensions (HWD)
Weight
10 x M8 (2 on top, 4 on sides, 2 on rear, 2 on base).
Dual Speakon NL4 1+/-(LF) and 2+/-(MHF)
Hexagonal mesh black perforated steel with acoustic foam backing. 1+/- and 2+/-
460 x 265 x 250mm 12kg

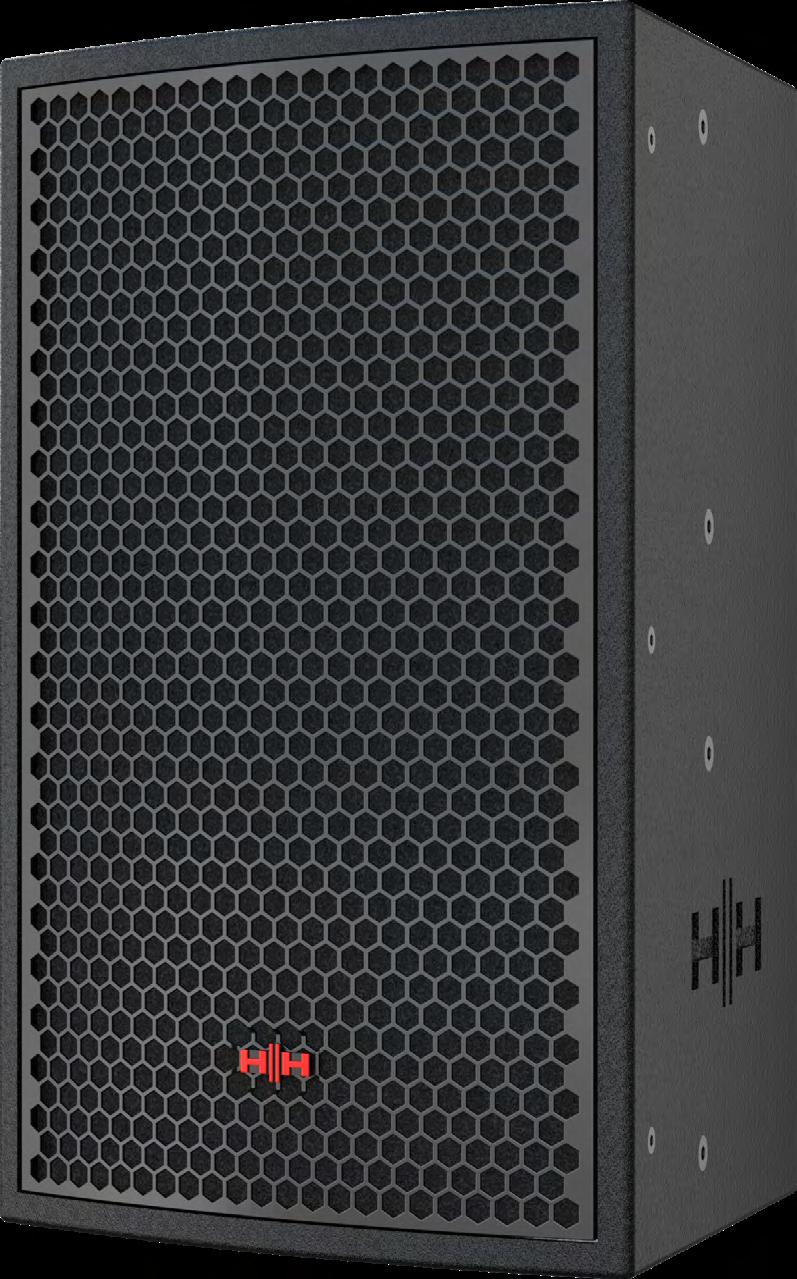

10-Inch Passive Point Source Loudspeaker
KEY FEATURES
• 1 x 10-Inch low-frequency driver, 1 x 1.4-Inch highfrequency compression driver.
• 130dB Max SPL (Peak).
• Rotatable horn with 90° (H) x 70° (V) coverage angles.
• Frequency Response of 58Hz - 18Hz (±3dB).
• Robust wooden enclosure finished with black polyurea paint.
APPLICATIONS
Frequency Response
Coverage
Power Rating
Maximum SPL
Sensitivity
Nominal Impedance
LF Driver
HF Driver
Cabinet
58Hz - 18kHz (±3dB) | 48Hz - 20kHz (-10dB)
Horizontal 90° (Rotatable) Vertical 70° (Rotatable)
Finish
Grille
Fittings
Hard wearing black painted.
1 x Top handle, dual pole-mount sockets (0° and -10°), M8 mounting points.
124dB Continuous, 130dB Peak
8Ω
1 x 1.4-Inch high-frequency compression driver 98dB (1W@1m)
1 x 10-Inch low-frequency driver
400W Continuous, 1600W Peak Robust all wood construction.
Mounting Points
Connectors
Pin Connectors (Input)
Pin Connectors (Link)
Dimensions (HWD)
Weight
6 x M8 (3 on top, 8 on sides, 2 on rear, 3 on base).
Dual Speakon NL4 1+/-
Hexagonal mesh black perforated steel with acoustic foam backing. 1+/- and 2+/-
530 x 330 x 300mm
15kg

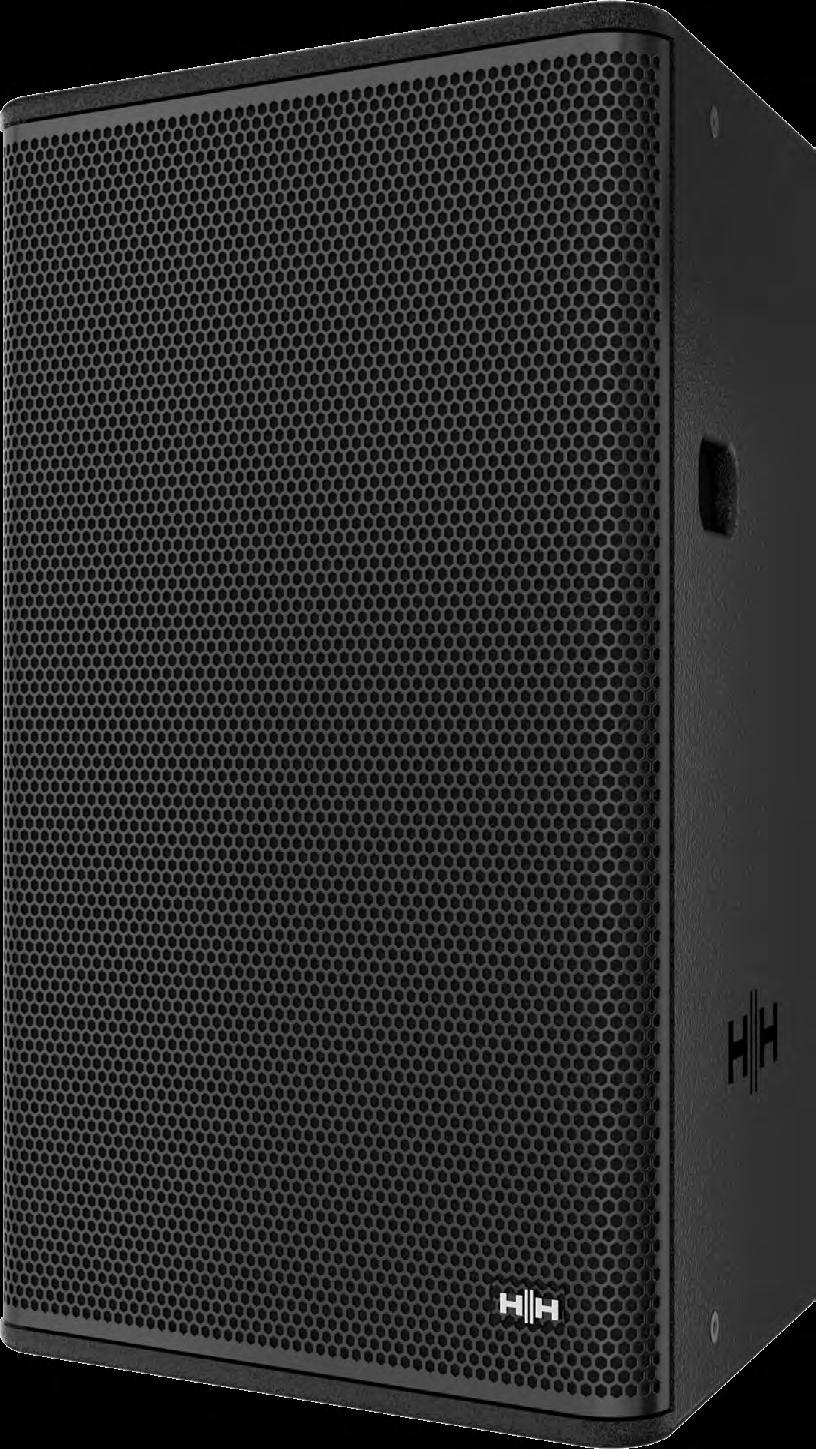

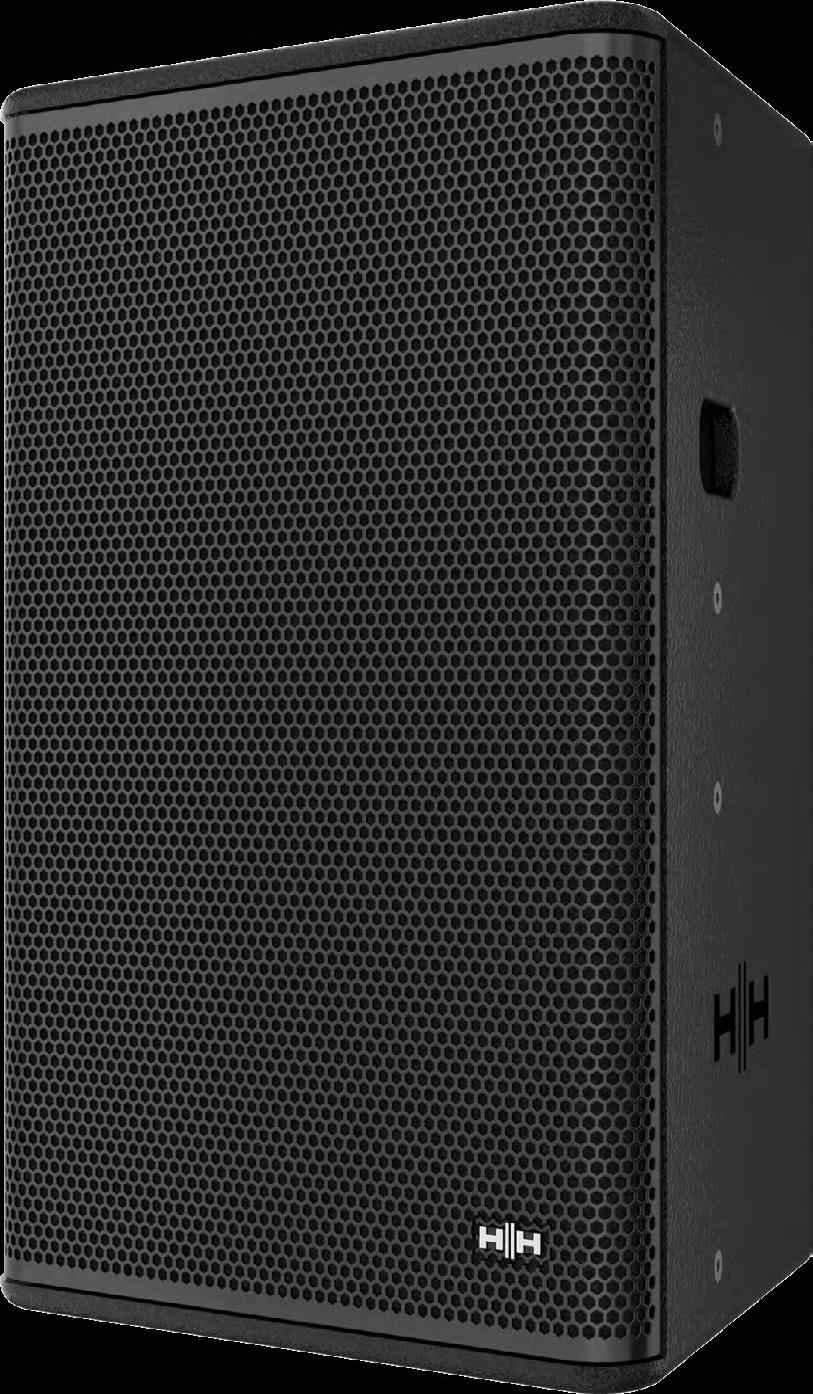

12-Inch Passive Point Source Loudspeaker
KEY FEATURES
• 1 x 12-Inch low-frequency driver, 1 x 3-Inch highfrequency compression driver.
• 132dB Max SPL (Peak).
• Rotatable horn with 90° (H) x 60° (V) coverage angles.
• Frequency Response of 42Hz - 18Hz (±3dB).
• Robust wooden enclosure finished with black polyurea paint.
APPLICATIONS
Frequency Response
Coverage
Power Rating
Maximum SPL
Sensitivity
Nominal Impedance
LF Driver
HF Driver
Cabinet
42Hz - 18kHz (±3dB) | 31Hz - 20kHz (-10dB)
Horizontal 90° (Rotatable)
Vertical 60° (Rotatable)
500W Continuous, 2000W Peak
126dB Continuous, 132dB Peak
1 x 3-Inch high-frequency compression driver 99dB (1W@1m)
8Ω
1 x 12-Inch low-frequency driver
Robust all wood construction.
Finish
Grille
Fittings
Mounting Points
Connectors
Pin Connectors (Input)
Pin Connectors (Link)
Dimensions (HWD)
Weight
Hard wearing black painted.
Hexagonal mesh black perforated steel with acoustic foam backing. 1+/- and 2+/-
Dual Side handles, dual pole-mount socket (0° and -10°), M8 mounting points.
1Dual M8 (3 on top, 4 on sides, 2 on rear, 3 on base).
Dual Speakon NL4 1+/-
670 x 405 x 385mm
23kg

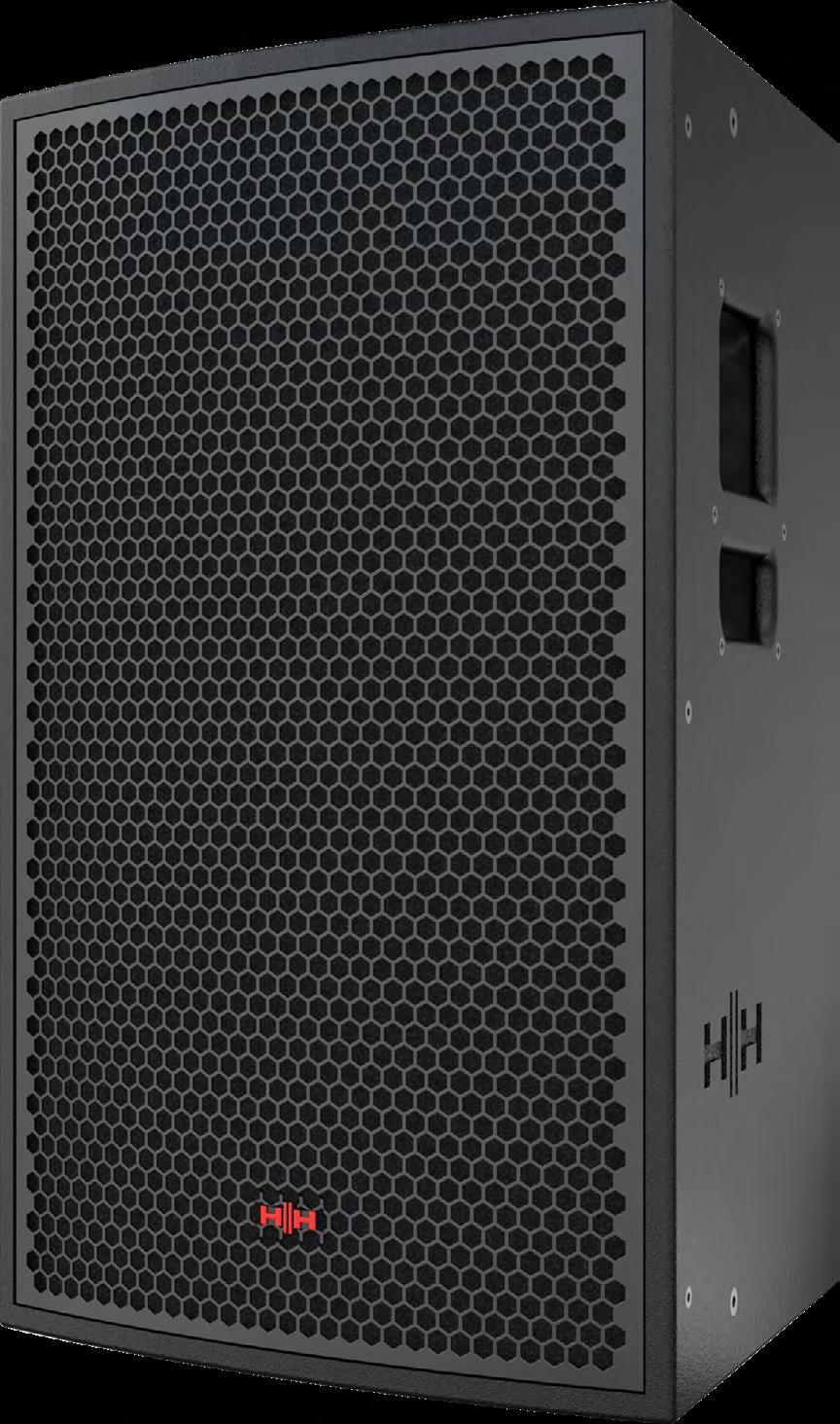

15-Inch Passive Point Source Loudspeaker
KEY FEATURES
• 1 x 15-Inch low-frequency driver, 1 x 3-Inch highfrequency compression driver.
• 133dB Max SPL (Peak).
• Rotatable horn with 90° (H) x 60° (V) coverage angles.
• Frequency Response of 40Hz - 18Hz (±3dB).
• Robust wooden enclosure finished with black polyurea paint.
APPLICATIONS
Frequency Response
Coverage
Power Rating
Maximum SPL
Sensitivity
Nominal Impedance
LF Driver
HF Driver
Cabinet
40Hz - 18kHz (±3dB) | 28Hz - 20kHz (-10dB)
Horizontal 90° (Rotatable)
Vertical 60° (Rotatable)
650W Continuous, 2600W Peak
129dB Continuous, 133dB Peak
1 x 3-Inch high-frequency compression driver 101dB (1W@1m)
8Ω
1 x 15-Inch low-frequency driver
Robust all wood construction.
Finish
Grille
Fittings
Mounting Points
Connectors
Pin Connectors (Input)
Pin Connectors (Link)
Dimensions (HWD)
Weight
Hard wearing black painted.
Hexagonal mesh black perforated steel with acoustic foam backing. 1+/- and 2+/-
Dual Side handles, dual pole-mount socket (0° and -10°), mounting points
1Dual M8 (3 on top, 4 on sides, 2 on rear, 3 on base).
Dual Speakon NL4 1+/-
720 x 440 x 400mm
30kg
Prince Series
The Prince Series is a comprehensive range of passive loudspeakers designed to deliver exceptional audio clarity and coverage. The series consists of a selection of line array, point source, and subwoofer enclosures configurable to the requirements of a wide range of use cases.
Prince Series products feature meticulously crafted high-sensitivity drive units housed in robust plywood enclosures with rigging systems and hardware suited to fixed installation and portable applications.

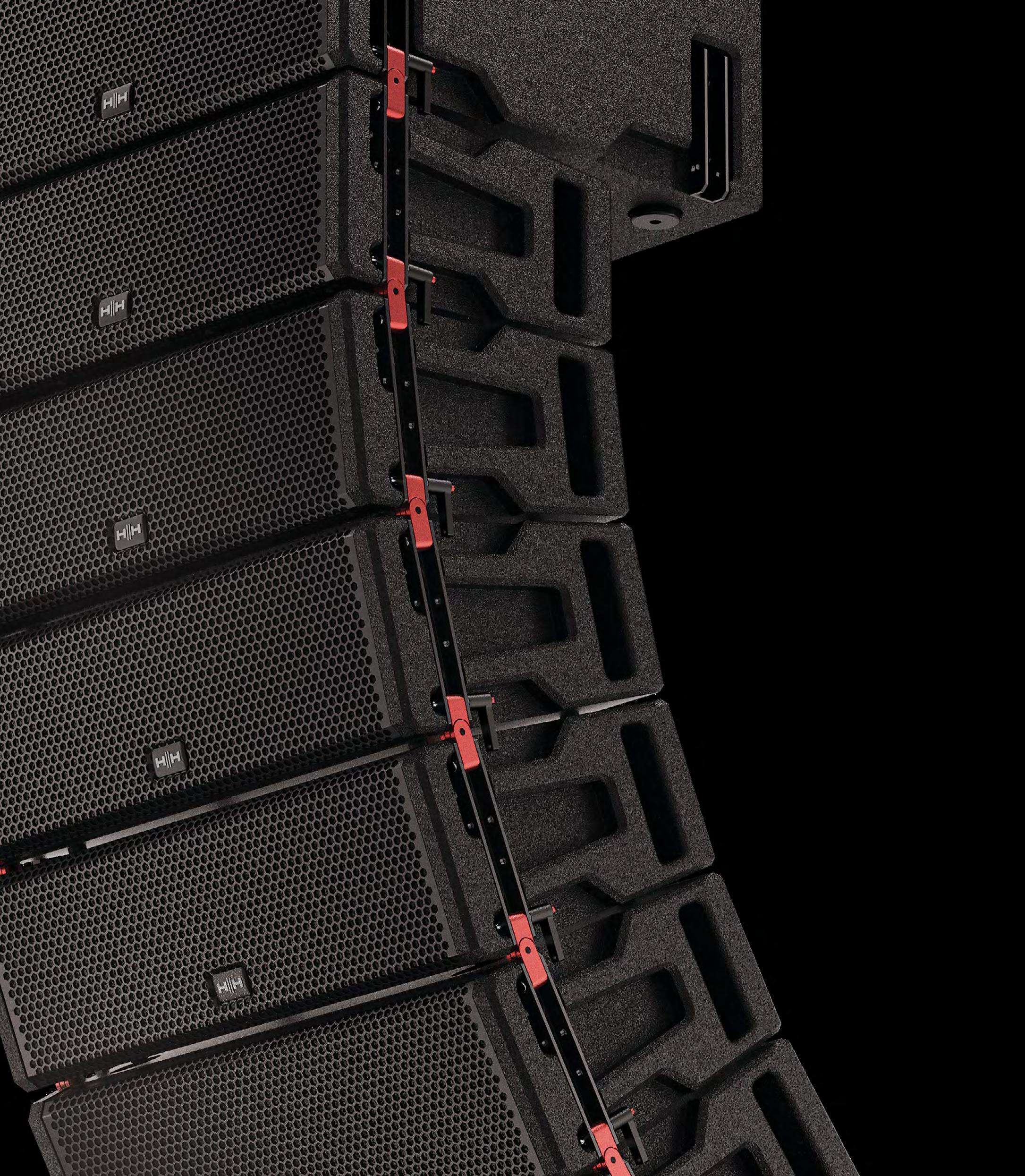

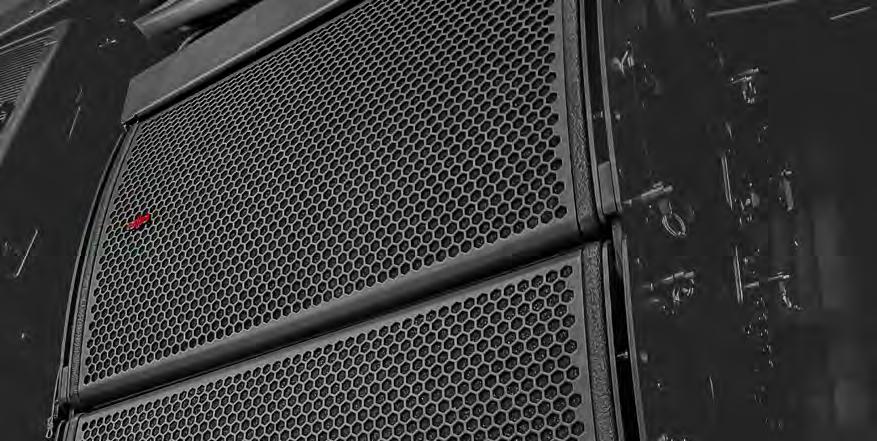

LA8D and LA10D line array loudspeakers utilise symmetrical phase alignment technology optimising the coupling characteristics of the drive units to improve overall system efficiency. The all-neodymium structure of the high-frequency compression driver combined phase plug technology provides pinpoint directional control.
Drive unit cones in the S15, S18, and S28 sub enclosures are reinforced with a nano-coating improving the structural integrity of the cone. This improved rigidity allows the drive unit to maintain low distortion and continuous energy output under high power conditions.
While PS point source loudspeakers are optimised to work in harmony with Prince Series line array and sub enclosure products the use cases of these high SPL point source boxes span much further. Suited to a wide range of applications including cafés, restaurants, and bars plus environments requiring a higher SPL such as bars, wedding venues, houses of worship, and large conference spaces.
SERIES
Scan Here to view on the HH Audio Website

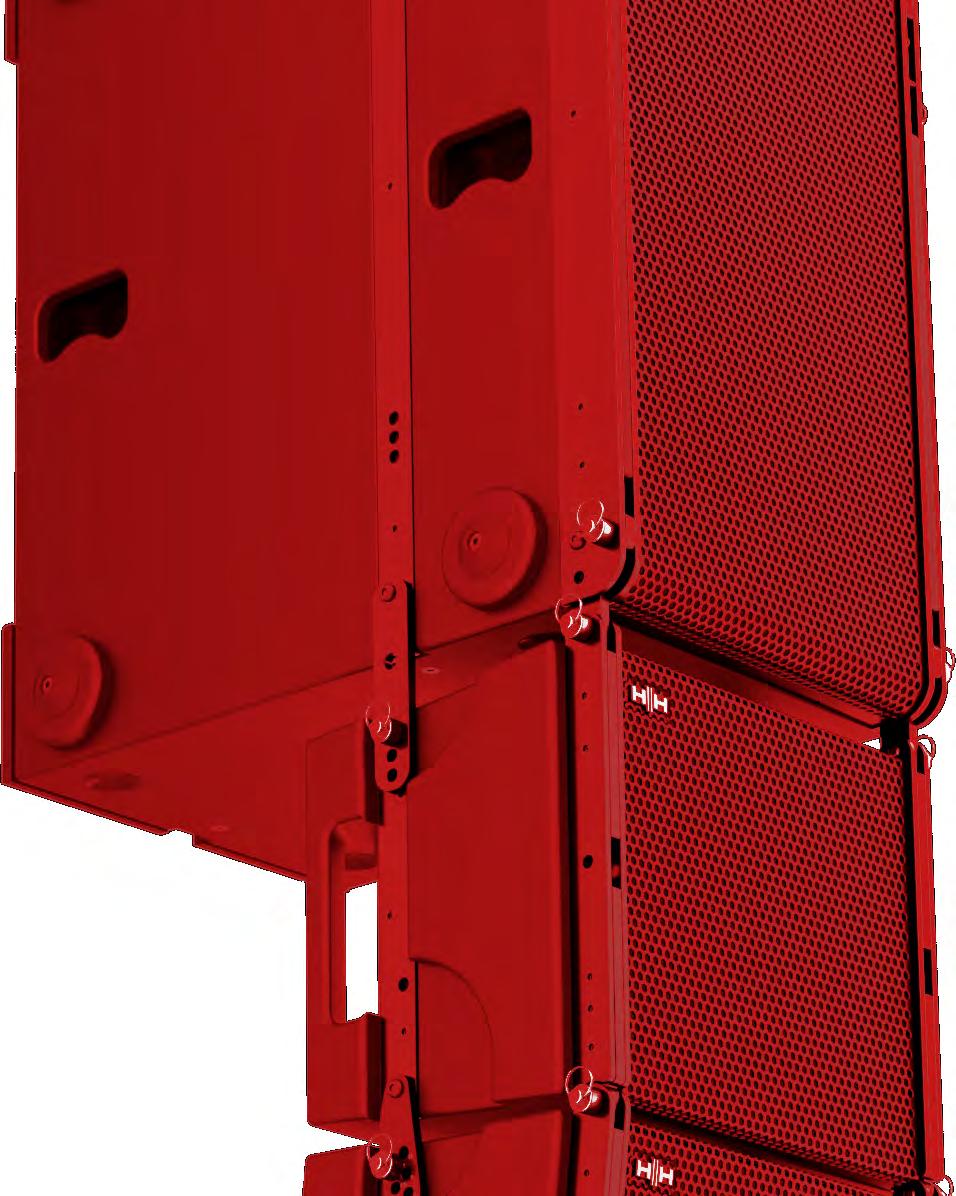

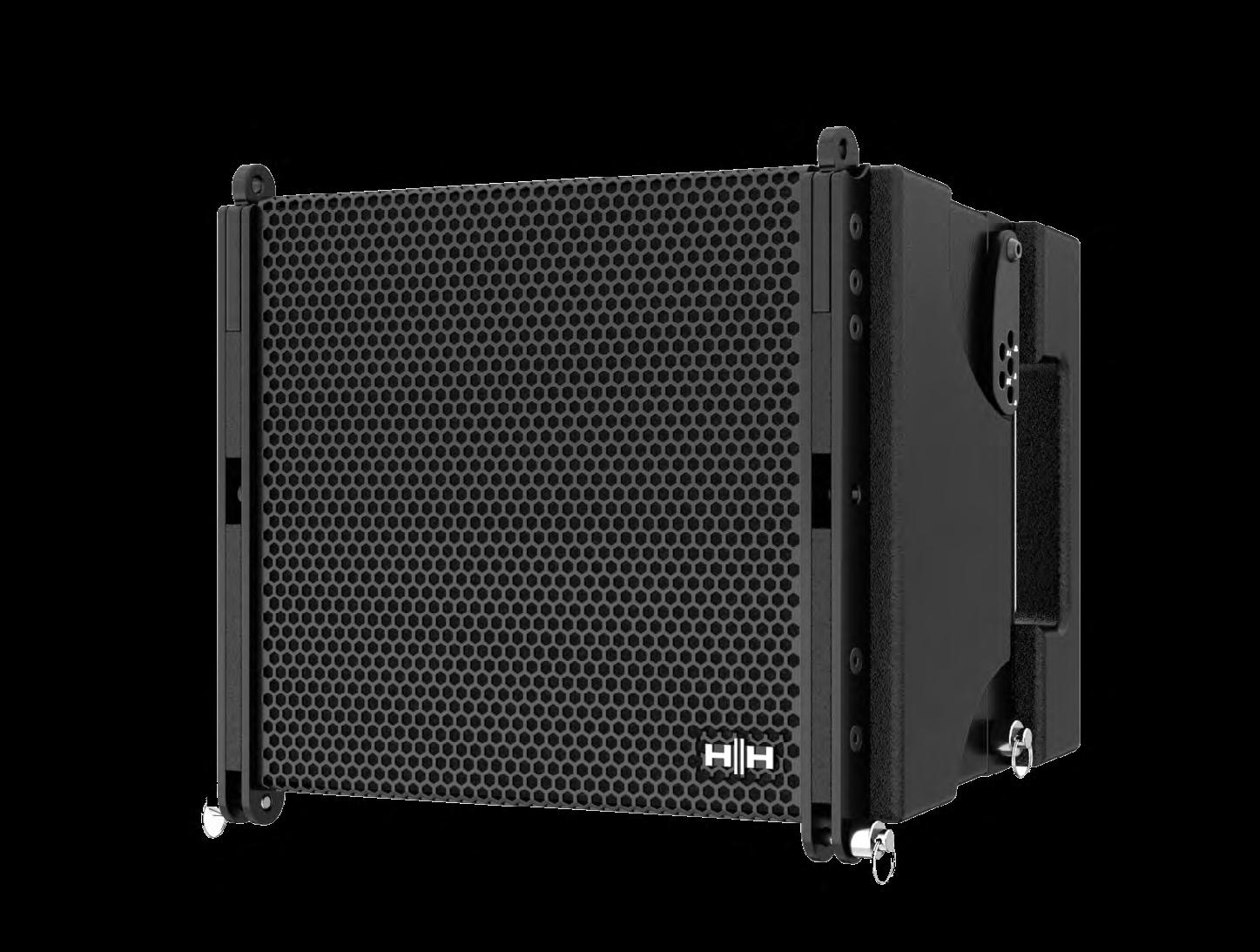

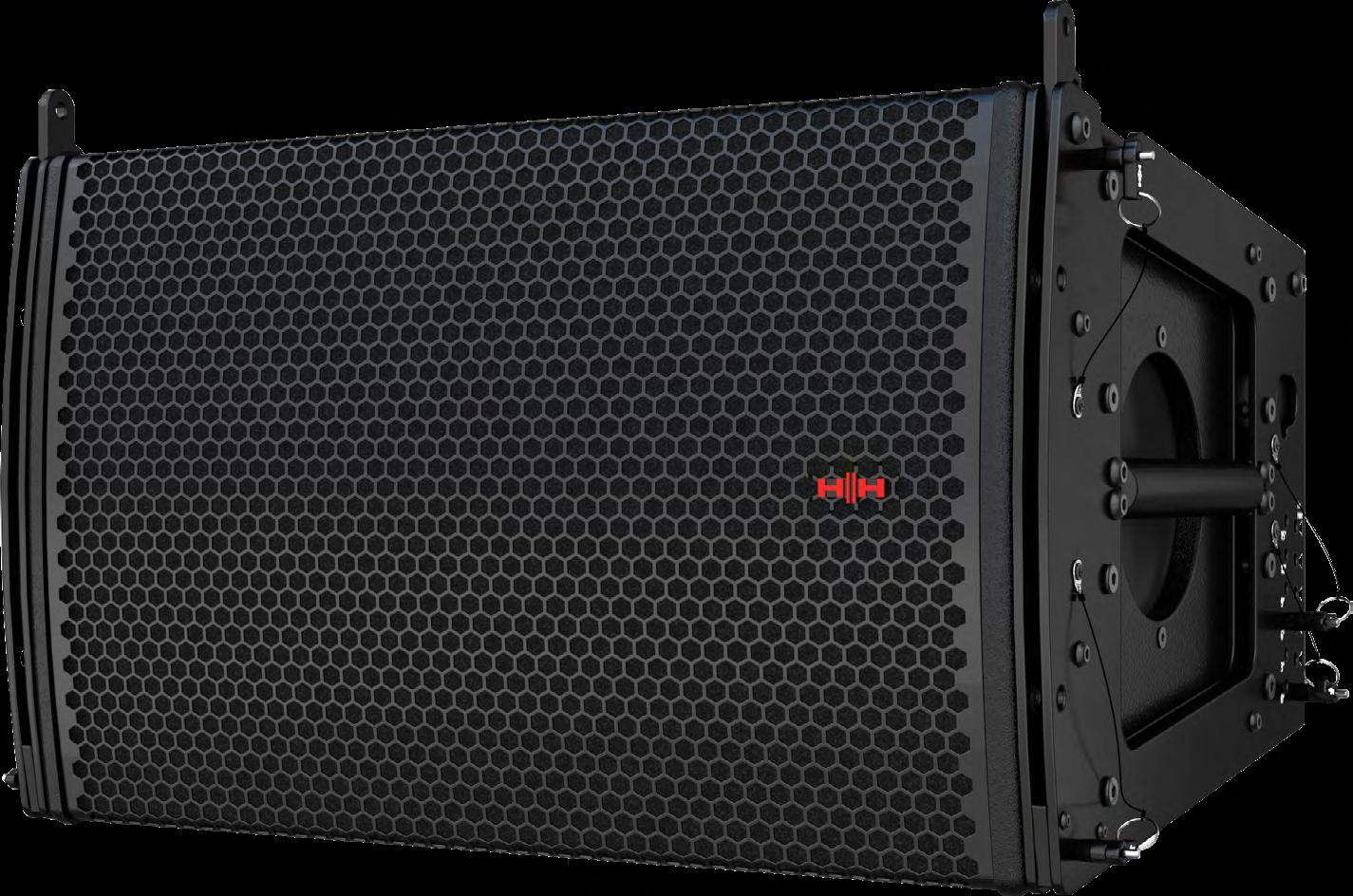

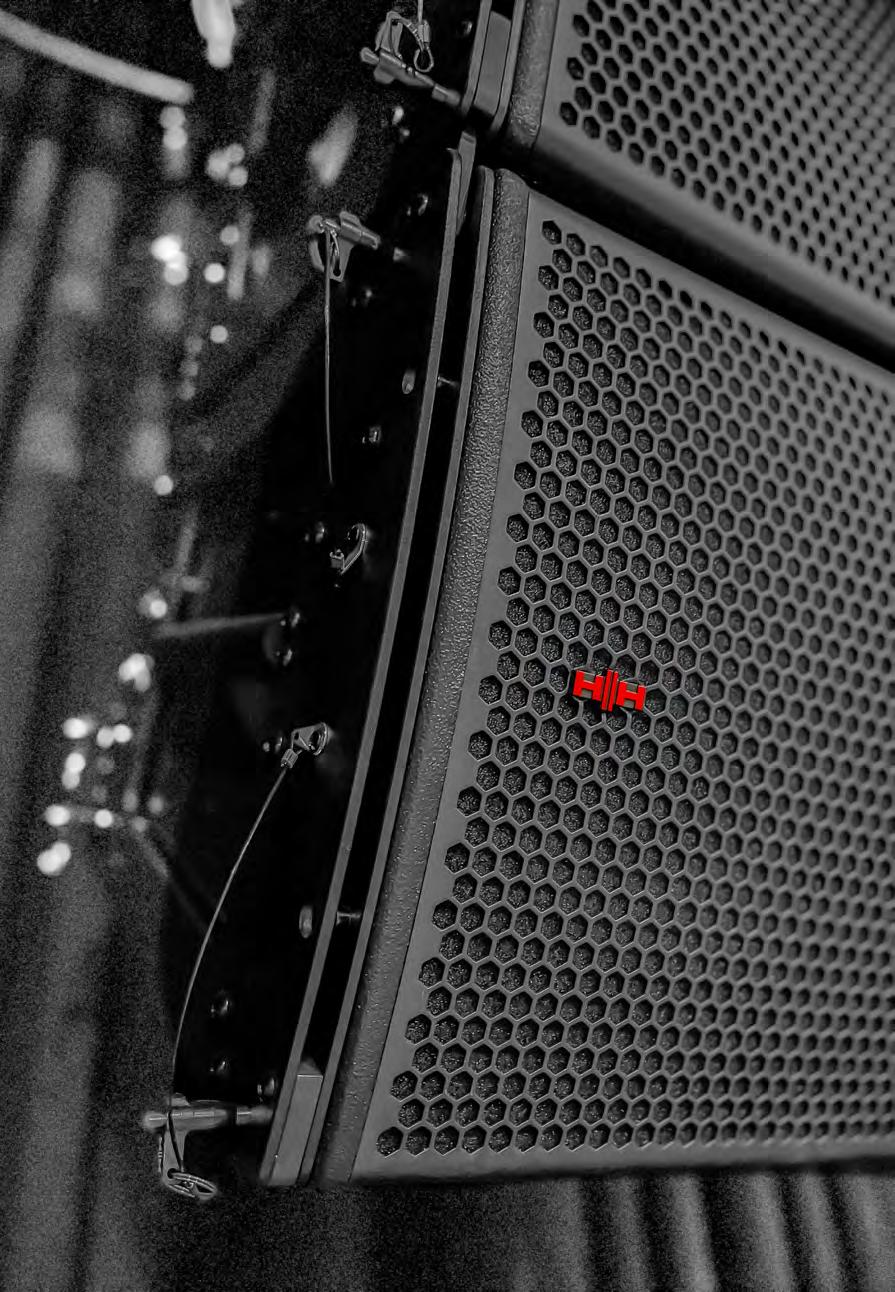

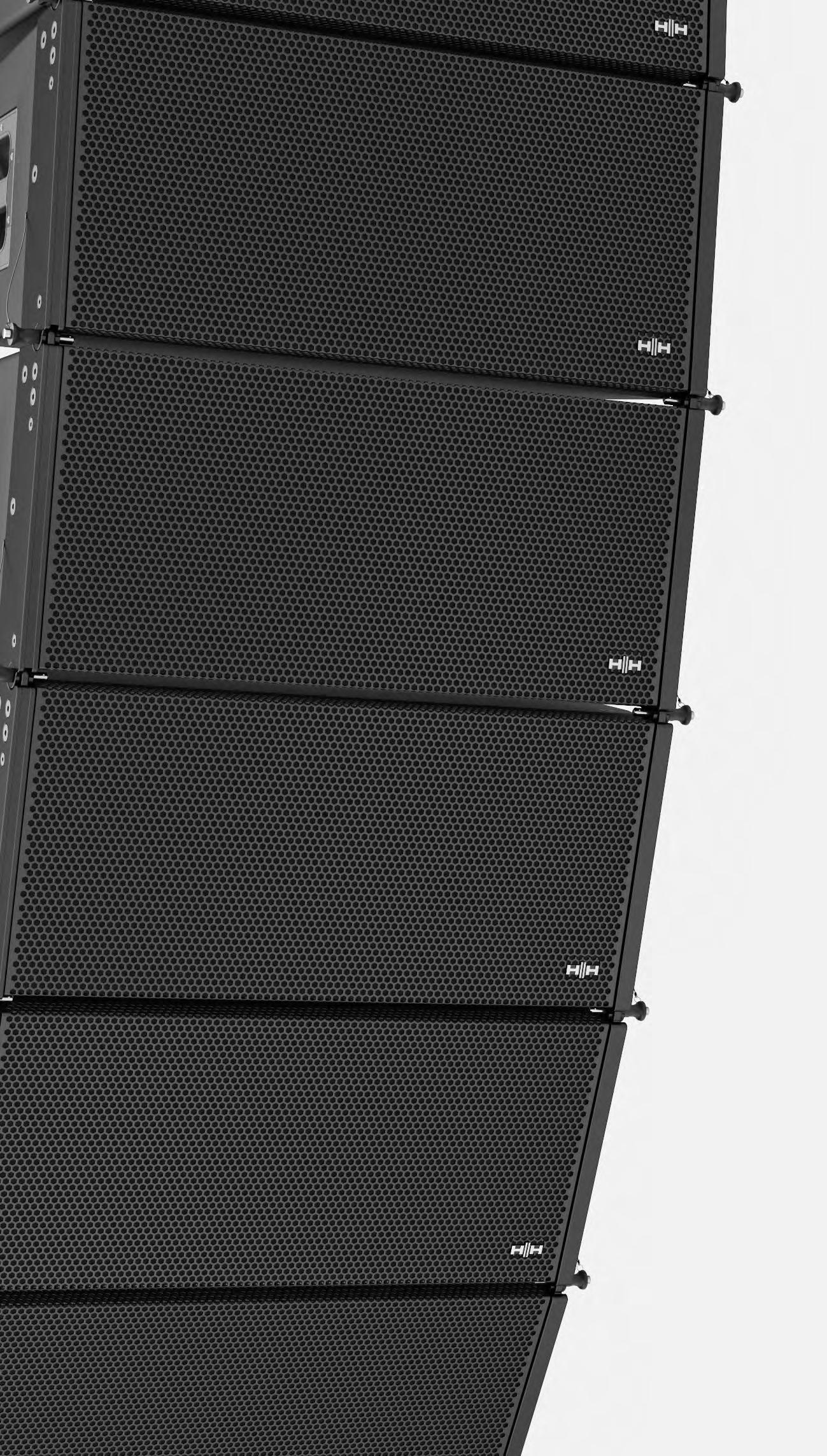

Passive Dual 8-Inch Line Array Loudspeaker
KEY FEATURES
• Dual 8-Inch mid-low frequency drivers, 1 x 2-Inch highfrequency compression driver.
• 134dB Max SPL (Peak).
• Frequency Response of 80Hz - 18kHz (±3dB).
• 120° (H) x 10° (V) dispersion angle.
• Robust wooden enclosure with a wear-resistant finish.
APPLICATIONS
Frequency Response
Coverage
Power Rating
Maximum SPL
Sensitivity
Nominal Impedance
LF Driver
HF Driver
Cabinet
80Hz–18kHz(±3dB) | 70Hz–20kHz(-10dB)
120° Horizontal | 10° Vertical
LF:400W Continuous,1600W Peak
HF:50W Continuous, 200W Peak
128dB Continuous, 134dB Peak
102dB (1W@1m)
LF:16 Ohms, HF: 16 Ohms
Dual 8-Inch low-frequency driver
1 x 2-Inch high-frequency compression driver
Plywood
Finish
Mounting Bracket
Grille
Fittings
Rigging
Connectors
Pin Connectors (Input)
Pin Connectors (Link)
Dimensions (HWD)
Weight
Painted Black
LA8D-FLB for suspended mounting.
Hexagonal mesh black perforated steel with acoustic foam backing.
Dual Side Handles, Rigging System
3-point rigging system
Dual Speakon NL4
1+/-(LF) and 2+/-(HF)
1+/- and 2+/-
240×520×390mm
16kg

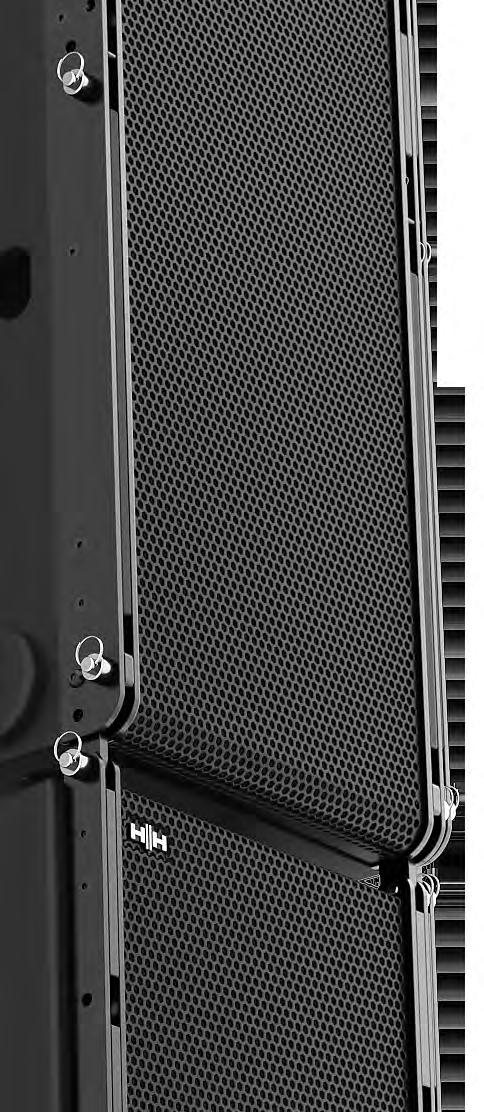

LA10D
Passive Dual 10-Inch Line Array Loudspeaker
KEY FEATURES
• Dual 10-Inch mid-low frequency drivers, 1 x 3-Inch highfrequency compression driver.
• 138dB Max SPL (Peak).
• Frequency Response of 70Hz - 18kHz (±3dB).
• 90° (H) x 10° (V) dispersion angle.
• Robust wooden enclosure with a wear-resistant finish.
APPLICATIONS
Frequency Response
Coverage
Power Rating
Maximum SPL
Sensitivity
Nominal Impedance
LF Driver
HF Driver
Cabinet
70Hz–18kHz(±3dB) | 65Hz–20kHz(-10dB)
90° Horizontal | 10° Vertical
LF: 600W Continuous, 2400W Peak
HF: 75W Continuous, 300W Peak
132dB Continuous, 138dB Peak
104dB (1W@1m)
LF: 8 Ohms, HF: 16 Ohms
Dual 10-Inch low-frequency driver
1 x 3-Inch high-frequency compression driver
Plywood
Finish
Mounting Bracket
Grille
Fittings
Rigging
Connectors
Pin Connectors (Input)
Pin Connectors (Link)
Dimensions (HWD)
Weight
Painted Black
LA10D-FLB for suspended mounting.
Hexagonal mesh black perforated steel with acoustic foam backing.
Dual Side Handles, Rigging System
3-point rigging system
Dual Speakon NL4
1+/-(LF) and 2+/-(HF)
1+/- and 2+/-
300×680×400mm
32kg
S15-H
Passive 15-Inch Line Array Sub Enclosure
KEY FEATURES
• Pairs seamlessly when flown with the LA8D
• 15-Inch low-frequency driver.
• 134dB Max SPL (Peak).
• Frequency Response of 50Hz - 180Hz (±3dB).
• Maintains low distortion under high-power conditions.
• Integrated 3-point rigging system
• Hard wearing paint finish.
APPLICATIONS
Frequency Response
Power Rating
Maximum SPL
Sensitivity
Nominal Impedance
LF Driver
Cabinet
Finish
50Hz–180Hz(±3dB) | 40Hz–400Hz(-10dB)
600W Continuous, 2400W Peak
128dB Continuous, 134dB Peak
100dB(1W@1m)
8 Ohms
1 x 15-Inch low-frequency driver
Plywood
Hard-wearing black paint
Grille
Mounting Bracket
Fittings
Connectors
Pin Connectors (Input)
Pin Connectors (Link)
Dimensions (HWD)
Weight
Hexagonal mesh black perforated steel with acoustic foam backing.
S15-FLB for suspended mounting.
1+/- and 2+/4 x Side handles. Provision for castors
Dual Speakon NL4
1+/-
430×520×600mm
30kg
S18-H
Passive 18-Inch Line Array Sub Enclosure
KEY FEATURES
• Pairs seamlessly when flown with the LA10D
• 18-Inch low-frequency driver.
• 136dB Max SPL (Peak).
• Frequency Response of 40Hz - 260Hz (±3dB).
• Maintains low distortion under high-power conditions.
• Hard wearing paint finish.
APPLICATIONS
Frequency Response
Power Rating
Maximum SPL
Sensitivity
Nominal Impedance
LF Driver
Cabinet
Finish
40Hz–260Hz (±3dB) | 35Hz–300Hz (-10dB)
900W Continuous, 3600W Peak
130dB Continuous, 136dB Peak
102dB (1W@1m)
8 Ohms
1 x 18-Inch low-frequency driver
Plywood
Hard-wearing black paint
Grille
Mounting Bracket
Rigging
Fittings
Connectors
Pin Connectors (Input)
Pin Connectors (Link)
Dimensions (HWD)
Weight
Hexagonal mesh black perforated steel with acoustic foam backing.
S18-FLB for suspended mounting.
3-point rigging system
4 x Side handles, Rigging system, Provision for castors
Dual Speakon NL4
1+/-
1+/- and 2+/-
530×680×600mm
44kg
Passive 15-Inch Sub Enclosure
KEY FEATURES
• 15-Inch low-frequency driver.
• 134dB Max SPL (Peak).
• Frequency Response of 50Hz - 180Hz (±3dB).
• Maintains low distortion under high-power conditions.
• Hard wearing paint finish.
APPLICATIONS
Frequency Response
Power Rating
Maximum SPL
Sensitivity
Nominal Impedance
LF Driver
Cabinet
Finish
50Hz–180Hz(±3dB) | 40Hz–400Hz(-10dB)
600W Continuous, 2400W Peak
128dB Continuous, 134dB Peak
100dB(1W@1m)
8 Ohms
1 x 15-Inch low-frequency driver
Plywood
Hard-wearing black paint
Grille
Fittings
Connectors
Pin Connectors (Input)
Pin Connectors (Link)
Dimensions (HWD)
Weight
Hexagonal mesh black perforated steel with acoustic foam backing.
4 x Side handles. Provision for castors
Dual Speakon NL4
1+/-
1+/- and 2+/-
450×620×600mm
30kg
S18
Passive 18-Inch Sub Enclosure
KEY FEATURES
• 18-Inch low-frequency driver.
• 36dB Max SPL (Peak).
• Frequency Response of 40Hz - 260Hz (±3dB).
• Maintains low distortion under high-power conditions.
• Hard wearing paint finish.
APPLICATIONS
Frequency Response
Power Rating
Maximum SPL
Sensitivity
Nominal Impedance
LF Driver
Cabinet
Finish
40Hz–260Hz(±3dB) | 35Hz–300Hz(-10dB)
900W Continuous, 3600W Peak
130dB Continuous, 136dB Peak
102dB(1W@1m)
8 Ohms
1 x 18-Inch low-frequency driver
Plywood
Hard-wearing black paint
Grille
Fittings
Connectors
Pin Connectors (Input)
Pin Connectors (Link)
Dimensions (HWD)
Weight
Hexagonal mesh black perforated steel with acoustic foam backing.
4 x Side handles. Provision for castors
1+/-
1+/- and 2+/-
550×710×750mm
44kg
Dual Speakon NL4
Passive Dual 18-Inch Sub Enclosure
KEY FEATURES
• Dual 18-Inch low-frequency drivers
• 145dB Max SPL (Peak).
• Frequency Response of 35Hz - 130Hz (±3dB).
• Maintains low distortion under high-power conditions.
• Hard wearing paint finish.
APPLICATIONS
Frequency Response
Power Rating
Maximum SPL
Sensitivity
Nominal Impedance
LF Driver
Cabinet
Finish
35Hz–130Hz(±3dB) | 28Hz–200Hz(-10dB)
1800W Continuous, 5400W Peak
139dB Continuous, 145dB Peak
106dB(1W@1m)
4 Ohms
Dual 18-Inch Low-Frequency Driver
Plywood
Hard-wearing black paint
Grille
Fittings
Connectors
Pin Connectors (Input)
Pin Connectors (Link)
Dimensions (HWD)
Weight
Hexagonal mesh black perforated steel with acoustic foam backing.
4 x Side handles. Provision for castors
Dual Speakon NL4
1+/-
1+/- and 2+/-
550×1050×750mm
80kg
Passive 15-Inch Stage Monitor
KEY FEATURES
• 1 x 15-Inch low frequency driver, 1 x 3-Inch high-frequency compression driver.
• 133dB Max SPL (Peak).
• Frequency Response of 45Hz - 18kHz (±3dB).
• 90° (H) x 60° (V) dispersion angle.
• Robust wooden enclosure with a wear-resistant finish.
APPLICATIONS
Frequency Response
Coverage
Power Rating
Maximum SPL
Sensitivity
Nominal Impedance
LF Driver
HF Driver
Cabinet
45Hz–18Hz(±3dB) | 35Hz–20Hz(-10dB)
Horizontal 90° | Vertical 60°
500W Continuous, 2400W Peak
27dB Continuous, 133dB Peak
100dB(1W@1m)
8 Ohms
1 x 15-Inch low-frequency driver
1×3-Inch high-frequency compression driver
Robust all wood construction
Finish
Grille
Mounting Points
Fittings
Connectors
Pin Connectors (Input)
Pin Connectors (Link)
Dimensions (HWD)
Weight
Hexagonal mesh black perforated steel with acoustic foam backing.
Dual Side handles, Mounting points
Hard-wearing black paint Dual Speakon NL4
and 2+/-
390×580×430mm
35kg

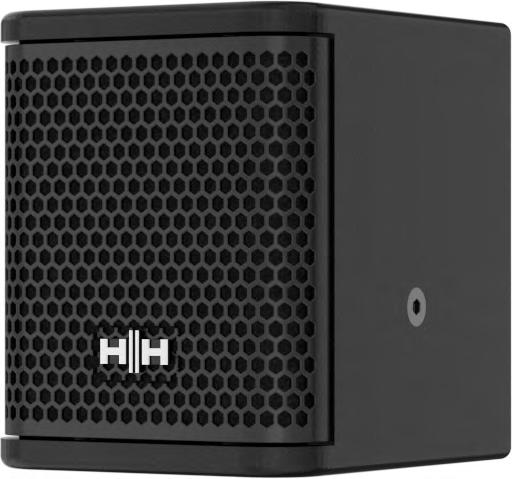

Passive 5-Inch Point Source Loudspeaker
KEY FEATURES
• 1 x 5-Inch low-frequency driver, 1 x 0.75-Inch high-frequency driver.
• 122dB Max SPL (Peak).
• Frequency Response of 90Hz - 20kHz (±3dB).
• 90° (H) x 60° (V) dispersion angle.
• Robust wooden enclosure with a wear-resistant finish.
• Mounting bracket included.
APPLICATIONS
Frequency Response
Coverage
Power Rating
Maximum SPL
Sensitivity
Nominal Impedance
LF Driver
HF Driver
Cabinet
(±3dB) | 85Hz–22kHz (-10dB)
90° | Vertical 60°
Finish
Grille
Mounting Points
116dB Continuous, 122dB Peak
93dB (1W@1m) 150W Continuous, 600W Peak
8 Ohms 1×5-Inch low-frequency driver
1×0.75-Inch high-frequency compression driver
Plywood
Connectors
Pin Connectors (Input)
Pin Connectors (Link)
Dimensions (HWD)
Weight
Passive 6-Inch Point Source Loudspeaker
KEY FEATURES
• 1 x 6.5-Inch low-frequency driver, 1 x 2-Inch highfrequency driver.
• 122dB Max SPL (Peak).
• Frequency Response of 90Hz - 20kHz (±3dB).
• 90° (H) x 60° (V) dispersion angle.
• Robust wooden enclosure with a wear-resistant finish.
APPLICATIONS
Frequency Response
Coverage
Power Rating
Maximum SPL
Sensitivity
Nominal Impedance
LF Driver
HF Driver
Cabinet
90Hz–20kHz (±3dB) | 85Hz–22kHz (-10dB)
Horizontal 90° | Vertical 60°
150W Continuous, 600W Peak
116dB Continuous, 122dB Peak
93dB (1W@1m)
8 Ohms
1×6.5-Inch low-frequency driver
1×2-Inch high-frequency compression driver
Plywood
Finish
Grille
Mounting Points
Connectors
Pin Connectors (Input)
Pin Connectors (Link)
Dimensions (HWD)
Weight
Hard-wearing black paint
Hexagonal mesh black perforated steel with acoustic foam backing
8 x M8
Dual Speakon NL4
1+/-
1+/- and 2+/-
395×220×200mm
8kg
Passive 8-Inch Point Source Loudspeaker
KEY FEATURES
• 1 x 8-Inch low-frequency driver, 1 x 2-Inch high-frequency driver.
• 126dB Max SPL (Peak).
• Frequency Response of 85Hz - 20kHz (±3dB).
• 90° (H) x 60° (V) dispersion angle.
• Robust wooden enclosure with a wear-resistant finish.
APPLICATIONS
Frequency Response
Coverage
Power Rating
Maximum SPL
Sensitivity
Nominal Impedance
LF Driver
HF Driver
Cabinet
Finish
85Hz–20kHz(±3dB)70Hz–22kHz (-10dB)
Horizontal 90° | Vertical 60°
200W Continuous, 800W Peak
120dB Continuous, 126dB Peak
95dB (1W@1m)
8 Ohms
1×8-Inch low-frequency driver
1×2-Inch high-frequency compression driver
Plywood
Grille Fittings
Mounting Points
Connectors
Pin Connectors (Input)
Pin Connectors (Link)
Dimensions (HWD)
Weight
Hexagonal mesh black perforated steel with acoustic foam backing
Pole-mount socket, M8 mounting points.
8 x M8
and 2+/-
440×260×240mm
10kg
Hard-wearing black paint Dual Speakon NL4
PS10
Passive 10-Inch Point Source Loudspeaker
KEY FEATURES
• 1 x 10-Inch low-frequency driver, 1 x 1.4-Inch high-frequency driver.
• 127dB Max SPL (Peak).
• Frequency Response of 70Hz - 18kHz (±3dB).
• 90° (H) x 60° (V) dispersion angle.
• Robust wooden enclosure with a wear-resistant finish.
APPLICATIONS
Frequency Response
Coverage
Power Rating
Maximum SPL
Sensitivity
Nominal Impedance
LF Driver
HF Driver
Cabinet
Finish
70Hz–18kHz (±3dB) 60Hz–20kHz (-10dB)
Horizontal 90° | Vertical 60°
300W Continuous, 1200W Peak
121dB Continuous, 127dB Peak
96dB (1W@1m)
8 Ohms
1×10-Inch low-frequency driver
1×1.4-Inch high-frequency compression driver
Plywood
Grille
Fittings
Mounting Points
Connectors
Pin Connectors (Input)
Pin Connectors (Link)
Dimensions (HWD)
Weight
Hexagonal mesh black perforated steel with acoustic foam backing
Pole-mount socket, M8 Mounting points 14 x M8
and 2+/-
515×320×280mm
15kg
Hard-wearing black paint Dual Speakon NL4
PS12
Passive 12-Inch Point Source Loudspeaker
KEY FEATURES
• 1 x 12-Inch low-frequency driver, 1 x 3-Inch highfrequency driver.
• 131dB Max SPL (Peak).
• Frequency Response of 50Hz - 18kHz (±3dB).
• 90° (H) x 60° (V) dispersion angle.
• Robust wooden enclosure with a wear-resistant finish.
APPLICATIONS
Frequency Response
Coverage
Power Rating
Maximum SPL
Sensitivity
Nominal Impedance
LF Driver
HF Driver
Cabinet
Finish
45Hz–18kHz (±3dB) | 35Hz–18kHz (-10dB)
Horizontal 90° | Vertical 60°
400W Continuous, 1600W Peak
125dB Continuous, 131dB Peak
99dB (1W@1m)
8 Ohms
1×15-Inch low-frequency driver
1×3-Inch high-frequency compression driver
Plywood
Hard-wearing black paint
Grille
Fittings
Mounting Points
Connectors
Pin Connectors (Input)
Pin Connectors (Link)
Dimensions (HWD)
Weight
Hexagonal mesh black perforated steel with acoustic foam backing
Dual Side handles, Dual pole-mount socket (0° and -10°), M8 Mounting points 14 x M8
PS15
Passive 15-Inch Point Source Loudspeaker
KEY FEATURES
• 1 x 15-Inch low-frequency driver, 1 x 3-Inch highfrequency driver.
• 133dB Max SPL (Peak).
• Frequency Response of 45Hz - 18kHz (±3dB).
• 90° (H) x 60° (V) dispersion angle.
• Robust wooden enclosure with a wear-resistant finish.
APPLICATIONS
Frequency Response
Coverage
Power Rating
Maximum SPL
Sensitivity
Nominal Impedance
LF Driver
HF Driver
Cabinet
Finish
45Hz–18kHz (±3dB) | 35Hz–18kHz (-10dB)
Horizontal 90° | Vertical 60°
500W Continuous, 2000W Peak
127dB Continuous, 133dB Peak
100dB (1W@1m)
8 Ohms
1×15-Inch low-frequency driver
1×3-Inch high-frequency compression driver
Plywood
Grille
Fittings
Mounting Points
Connectors
Pin Connectors (Input)
Pin Connectors (Link)
Dimensions (HWD)
Hexagonal mesh black perforated steel with acoustic foam backing
Dual Side handles, Dual pole-mount socket (0° and -10°), M8 Mounting points
10 x M8
and 2+/-
710×430×380mm
Hard-wearing black paint Dual Speakon NL4
Weight
30kg
Mini Power
The Mini Power series compact line array is the perfect solution for small scale touring and fixed installation sound. Designed to deliver high SPL sound in a portable and simple to set up format. The Mini Power Series consists of two models the MP42 4 x 5-Inch 2-way passive line array loudspeaker and the MP2P Dual 12-Inch passive subwoofer.
The MP42 and MP2P pair together seamlessly via either the integrated pin-based rigging system or pole mount socket making the Mini Power a versatile solution to suit a wider variety of applications than a traditional line array system.
MP42
Passive 4 X 5-Inch Line Array Loudspeaker
KEY FEATURES
• 4 x 5-Inch low-frequency drivers, Dual 2-Inch highfrequency drivers.
• 131dB Max SPL (Peak).
• Frequency Response of 88Hz - 20kHz (±3dB).
• 100° (H) x 10° (V) dispersion angle.
• Integrated pin based rigging system for linking and splaying.
• Lightweight compact design.
APPLICATIONS
Frequency Response
Coverage
Power Rating
Maximum SPL
Sensitivity
Nominal Impedance
LF Driver
HF Driver
Cabinet
Finish
Grille
88Hz - 20kHz(±3dB) | 60Hz - 20kHz(-10dB)
Horizontal 100° | Vertical 10°
320W Continuous, 1280W Peak
125dB Continuous, 131dB Peak
100dB (1W@1m)
8 Ohms
4 x 5-Inch low-frequency driver
Dual 1.75-Inch high-frequency compression driver Plywood
Hard-wearing black paint
Hexagonal mesh black perforated steel with acoustic foam backing
Fittings
Mounting Points
Mounting Bracket
Rigging
Connectors
Pin Connectors (Input)
Pin Connectors (Link)
Dimensions (HWD)
Weight
Dual Rear handles, rigging system, provision for pole-mount socket.
4-point rigging system, splay angle adjustments from 0° to 10° M6 side mounting for integrated brackets
MINI POWER-FLB for suspended mounting
300 x 350 x 245mm 12kg
MP2P
Passive Dual 12-Inch Line Array Sub Enclosure
KEY FEATURES
• Compact sub enclosure equipped with dual 12-Inch lowfrequency drivers.
• 137dB Max SPL (Peak).
• Frequency Response of 38Hz - 300Hz (±3dB).
• Integrated pin based rigging system for linking to MP42.
• Provision for mounting MP42 via integrated pole mount socket.
APPLICATIONS
Frequency Response
Power Rating
Maximum SPL
Sensitivity
Nominal Impedance
LF Driver
Cabinet
Finish
Grille
38Hz - 300Hz(±3dB) | 30Hz - 350Hz(-10dB)
800W Continuous, 3200W Peak
131dB Continuous, 137dB Peak
102dB (1W@1m)
4 Ohms
Dual 12-Inch low-frequency driver
Plywood
Hard-wearing black paint
Fittings
Mounting Bracket
Rigging
Accessories
Connectors
Pin Connectors (Input)
Pin Connectors (Link)
Dimensions (HWD)
Weight
4 x Side handles, 1 x Top handle, 1 x Bottom handle, Rigging system, Pole-mount socket, Provision for castors
MINI POWER-FLB for suspended mounting
5-point rigging system
Dolly, Flight case, Cover, Castors
Dual Speakon NL4 1+/-
Hexagonal mesh black perforated steel with acoustic foam backing 1+/- and 2+/-
670 x 350 x 550mm
41kg

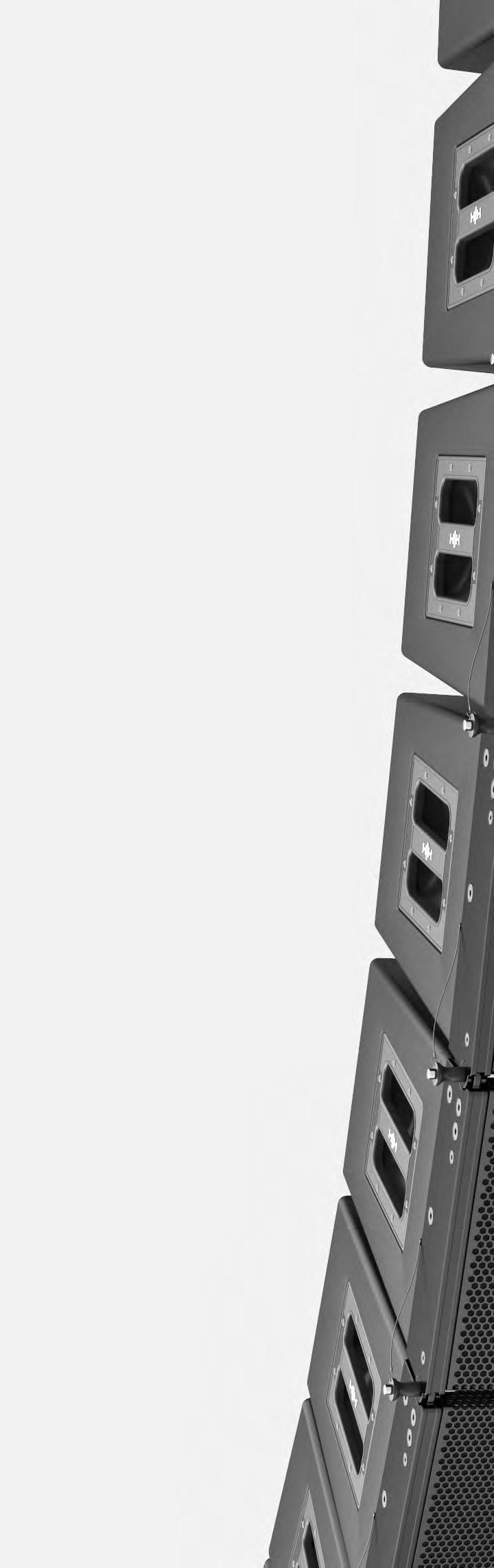

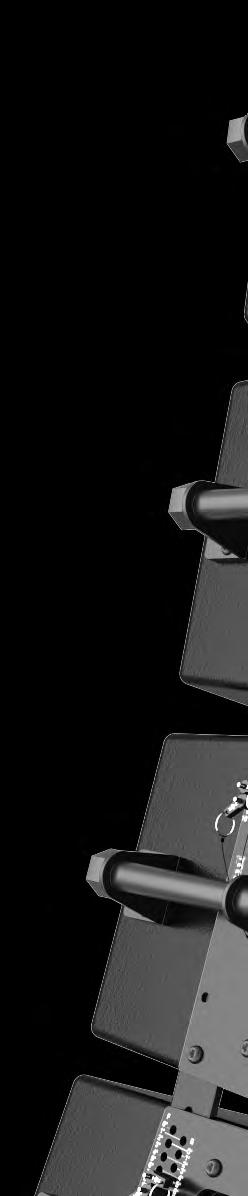

Tessen Line Array
The HH Tessen Array offers clear and powerful sound, suitable for medium sized venues, corporate events, and live performance applications. Road ready construction with hard wearing sand paint finish brings improved durability and reduces light reflectivity enabling the compact line array system to be integrated into any chosen environment with minimal obtrusion.
The Tessen Array has been fine-tuned to refine the overall acoustic performance and engineered to improve usability with upgraded mechanical design to streamline set-up and tear down, all housed in enclosures that have a sharp and aesthetically pleasing appearance.
Engineered for seamless integration, the TNA-2051-G3 pairs effortlessly with either the TNA-1200S-G3 passive subwoofer or the TNA-2120SA-G3 active subwoofer. The integrated 3-point pin-based rigging system simplifies set up and tear down time for TNA-G3, offering significant efficiency improvements over previous generations. Whether the system is flown or ground stacked, this mechanical upgrade minimises set-up time while expanding the range of use cases from fixed installations to small-to-medium scale touring applications.
What’s New
This generation of TNA benefits from several key acoustic, mechanical, and aesthetic upgrades including:
Acoustic optimisation to improve overall system performance
Simple setup and tear down via the integrated pin-based rigging system
Enhanced durability with an upgraded hard-wearing black paint finish
Improved aesthetic with an updated cabinet design
TNA-2051-G3
Passive Dual 5-Inch Line Array Loudspeaker
KEY FEATURES
• Dual HH-Designed 5-Inch LF drivers.
• 1 x Celestion CDX1-10WG compression driver.
• Custom Celestion-designed waveguide and horn flare.
• Integrated 3-point pin-based rigging system.
• Hard-wearing black paint finish.
APPLICATIONS
Frequency Response
Power Rating
Maximum SPL
Sensitivity
Nominal Impedance
LF Driver
HF Driver Cabinet
Finish
Grille
65Hz - 20KHz (-10dB) | 100Hz - 18KHz (-3dB)
Dual 5-Inch HH-designed driver. 94 dB SPL 200W AES, 800W Peak
123dB SPL, 132dB SPL (Peak)
16 Ohms
1 x 1.33-Inch Celestion Compression Driver, mounted to Celestion Designed waveguide and horn.
Robust all wood construction
Black paint
1.5mm Thickness Steel, Hexagonal mesh, acoustic foam lined
Splay Angle Settings
Mounting Points
Mounting Bracket
Rigging
Connectors
Connectors (Input)
Connectors (Link)
Dimensions (HWD)
Weight
0°, 4° and 8° (between enclosures)
6 x M8 mounting points for integrated rigging system
TNA-BRK1-G3 for suspended mounting 3-point rigging system w/removable locking pin for linking and adjusting splay angle
Dual Speakon NL4
NL4 ±1 Twist Lock Connector
NL4 ±1 Twist Lock Connector
163 x 496 x 288mm, 6.4-Inch x 19.5-Inch x 11.3-Inch 9Kg, 19.8 lbs

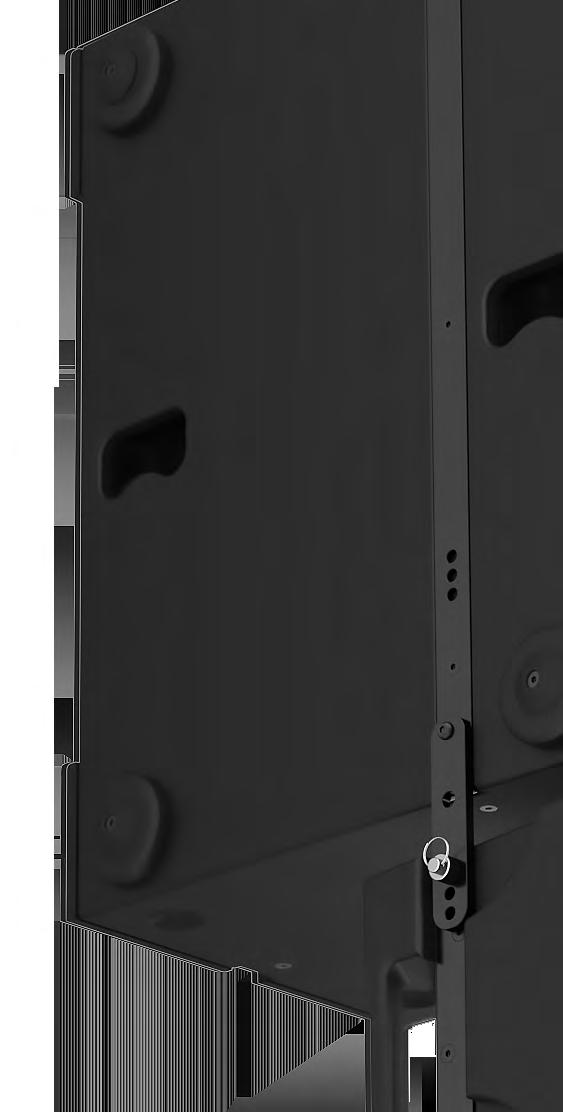

TNA-2120SA-G3
Active Dual 12-Inch Line Array Sub Enclosure
KEY FEATURES
• Dual 12-Inch HH-Designed LF Drivers.
• Integrated 3-channel Class-D amplifier.
• System Power: 1200RMS, 4800W Peak.
• Integrated pin-based rigging system.
• 56-bit DSP controlling crossover, EQ, phase and time optimisation.
• 6 built in DSP presets.
• Universal switched mode power supply with power factor correction and global mains voltage operation.
APPLICATIONS
Frequency Response
Power Rating
Maximum SPL
Sensitivity
Nominal Impedance
LF Driver
System Amplifier
Power Rating
Subwoofer Amplifier
Power Rating
Satellite Amplifier
Power Rating
Signal Indicators
DSP
Protection
52Hz - 200Hz (-10dB) 52Hz - 150Hz (-3dB)
134dB SPL Continuous, 137dB SPL Peak
104dB SPL
8 Ohms
Controls
Master Volume, DSP Preset Switch
Cabinet
Finish
Grille
Fittings
Dual 12-Inch HH designed high performance driver
4800W Peak, 2400W Continuous, 1200W RMS
2400W Peak, 1200W Continuous, 600W RMS
Two Channels Each of 1200W Peak, 600W Continuous, 300W RMS
320W Continuous, 1280W Peak Power, Mute/Protect, Clip Indicator, Preset Mode
56-bit DSP controlling Crossover, EQ, phase and time optimisation for array cabinets. Six built in DSP presets for typical use cases
Comprehensive protection and clip free limiting + clip indicator.
Mounting Points
Mounting Bracket
Rigging
Input Connectors
Output Connectors
Dimensions (HWD)
Weight
Robust all wood construction
Hard-wearing black paint
1.5mm Thickness, Hexagonal mesh
Dual Rear handles, rigging system, provision for pole-mount socket.
20 x M8 Mounting Points for rigging system. (2 top, 2 bottom, 8 left, 8 right).
TNA-BRK1-G3
4-point rigging system, splay angle adjustments from 0° to 10°
Balanced XLR Connector
1x Balanced XLR Link Out, 1x Balanced XLR Sub out with 2 way/3 way mode switch and Ground Lift Switch. Dual locking speakON™ connectors for external TNA-2051 cabinets.
727 x 496 x 455mm, 28.6-Inch x 19.5-Inch x 17.9-Inch
37Kg, 81.6 lbs
TNA-1200S-G3
Passive 12-Inch Line Array Sub Enclosure
KEY FEATURES
• 12-Inch HH-Designed high-performance LF driver.
• Integrated pin-based rigging system.
• Hard wearing black paint finish.
• Robust plywood enclosure.
APPLICATIONS
Frequency Response
Nominal Impedance
Power Rating
Maximum SPL
Sensitivity
Nominal Impedance
LF Driver
Cabinet
Finish
Grille
300W AES, 1200W Peak
Robust all wood construction Hard-wearing black paint
Powder-coated steel with acoustic foam backing
Fittings
Mounting Points
Mounting Bracket
Rigging
Input Connector
Link Connector
Dimensions (HWD)
Weight
Dual Rear handles, rigging system, provision for pole-mount socket.
16 x M8 Side mounting points for rigging system, 4 x M8 top/ bottom mounting points for rigging system.
TNA-BRK1-G3
4-point rigging system, splay angle adjustments from 0° to 10°
NL4 ±1 Twist Lock Connector
NL4 ±1 Twist Lock Connector
367 x 496 x 455mm, 14.4-Inch x 19.5-Inch x 17.9-Inch 19Kg, 41.9 lbs
TNA-1800S
Passive 18-Inch Sub Enclosure
KEY FEATURES
• 18-Inch bass reflex passive subwoofer
• High sensitivity HH LF driver
• High power capacity to ensure impressive coverage without compression
• Robust all wood construction, hard wearing finish
• Multiple connection options
APPLICATIONS
Frequency Response
Power Rating
Maximum SPL
Sensitivity
Nominal Impedance
LF Driver
NL4 ±1 Twist Lock Connector and M4 Barrier Strip Terminal (10mm Pitch) Powder coated steel with acoustic foam backing NL4 ±1 Twist Lock Connector and M4 Barrier Strip Terminal (10mm Pitch) 8x M10 Penn Elcom tie down/flying points for optional
Grille
TNA-1800SA
Active 18-Inch Sub Enclosure
• High performance 18-Inch active sub enclosure
• High power Class-D amplifier
• Universal switched mode supply and global mains operation
• Adjustable input sensitivity, crossover and delay settings
• Balanced XLR output with switchable full-range and crossover modes Frequency Response Power Rating
Maximum SPL
Sensitivity
Input Sensitivity
LF Driver
TNA-2800S
Passive Dual 18-Inch Sub Enclosure
KEY FEATURES
• High performance Dual 18 Inch woofers for extended lowfrequency output
• High power capacity to ensure impressive coverage without compression
• Robust all wood construction, hard wearing finish 4pcs Heavy duty 100mm PU castors included Large front ports reduced distortion
• Ergonomic Side Carry Handles
APPLICATIONS
Frequency Response
Power Rating
Maximum SPL
Sensitivity
Nominal Impedance
LF Driver
Cabinet
Finish
32Hz - 120Hz (-10dB) | 37Hz - 120Hz (-3dB)
8000W Peak, 4000W Continuous, 2000W RMS
138 dB SPL Peak, 132 dB SPL
Grille
Mounting Points
8 Ohms
2x18’’ High sensitivity HH designed driver. 4-Inch
Voice Coils 99dB (1W@1m)
Acoustically optimised 18mm plywood cabinet with extensive internal bracing
Hard-wearing black paint
Fittings Transport Wheels
Connectors
Input Connector
Link Connector
Dimensions (HWD)
Weight
Hexagonal mesh black perforated steel with acoustic foam backing Dual Rear handles, rigging system, provision for pole-mount socket.
8x M10 Penn Elcom tie down/flying points. 16x M8 inserts for included transport wheels
4pcs Heavy duty 100mm PU castors included in the box
Dual Speakon NL4
NL4 ± 1 Twist Lock Connector and M4 Barrier Strip Terminal (10mm Pitch)
56Dual 1080 x 685mm, (22.1-Inch x 42.5-Inch x 27-Inch)
74.7Kg, 165 lbs
TNA-2800SA
Active Dual 18-Inch Sub Enclosure
KEY FEATURES
• High performance dual 18 Inch active subwoofer
• High power Class-D amplifier
• Universal switched mode supply and global mains operation
• Adjustable input sensitivity, crossover and delay settings
• Balanced XLR output with switchable full-range and crossover modes
• 4pcs Heavy duty 100mm PU castors included
APPLICATIONS
Frequency Response
Power Rating
Maximum SPL
Input Sensitivity
Crossover
LF Driver
AC Power
AC Power Consumption
AC Power Inlet
-
(-3dB)
2x18’’ High sensitivity HH designed driver. 4-Inch Voice Coils 0dBu to +10dBu Adjustable 8000W Peak, 4000W Continuous, 2000W RMS
SPL Active - 70Hz to 120Hz
Mounting Points
Transport Wheels
Input Connector
Output Connector
Hard-wearing black paint
Hexagonal mesh black perforated steel with acoustic foam backing
8x M10 Penn Elcom tie down/flying points. 16x M8 inserts for included transport wheels
4pcs Heavy duty 100mm PU castors included in the box
Balanced Female XLR
Balanced Male XLR(Switchable Full Range/Xover)
Acoustically optimised 18mm plywood cabinet with extensive internal bracing Twist Lock Power Socket. (Plug included, to be wired by installer) 700W Typical, 1500W Max
Dimensions (HWD)
Weight
56Dual 1080 x 685mm, (22.1-Inch x 42.5-Inch x 27-Inch)
171 lbs Cabinet
Finish
Grille
M-Series
HH M-Series power amplifiers are high power, 2U rack amplifiers designed to provide maximum performance for demanding applications. Three models are available all featuring heavy duty linear toroidal power supply units and rugged construction. Suitable for bars, pubs, clubs, houses of worship, musicians, or indeed anywhere you need high power amplification. HH has over five decades of experience designing quality power amplifiers, and indeed was one of the pioneers in this area.
M-750D
Two Channel Audio Power Amplifier
KEY FEATURES
• 2x 750W into 4 ohms
• 2x 500W into 8 ohms
• Direct Drive Hi-Z 70V (100V in bridged)
• Heavy Gauge 2U chassis
• Ultra-reliable Toroidal Linear Power Supply
• Comprehensive Protection System
APPLICATIONS
Output Power RMS
Output Power Bridge
RMS : 8 Ohm Mono
Direct Drive High
Impedance
Frequency Response
THD%
IMD2
8
70V (100V in Bridge)
20Hz - 20KHz (+0, -1dB)
≤0.5% 20Hz-20kHz
=/<0.35%
PSU Type
Amplifier Type
Input Connector
Output Connector
Variable Speed Fan, Air flow from front to rear
Soft start, VHF, RF, short circuit, over load, clip limit, over heat
Low Noise Toroidal Transformer, fixed voltage (Factory Set)
Class H High Performance Professional linear design
Balanced XLR-F
NL4 SpeakON® per channel, 4mm Binding posts with safety cover, Balanced XLR-M link out
220-240V~ 10A Removable IEC Power Cord C14 (3x1.5mm2) 100-130V~ 15A Removable IEC Power Cord C20 (3x14AWG / 2mm2) ≥100dB
Damping Factor Power
Slew Rate
Crosstalk (1kHz/20kHz)
Input Sensitivity
Input Impedance (Bal/ Unbal)
500W Typical, 2700W Maximum >200 (8 ohms, 10Hz-400Hz)
≥20V/μS
Input Sensitivity Switch, Bridge/Routing Mode Switch
Volume Control knobs (per channel), Power switch -75dB/-58dB
0.775V/1.4V
Voltage Gain (8Ω) (1kHz/20kHz) Unit
Signal/Clip/Protection/Power LEDs
88 x 48Dual 239mm, 3.5 x 19 x 9.4-Inch 20KΩ/10KΩ 12.5Kg, 27.6 lbs 36dB
M-1500D
Two Channel Audio Power Amplifier
KEY FEATURES
• 2x 1500W into 4 ohms
• 2x 1250W into 8 ohms
• Direct Drive Hi-Z 70V / 100V
• Heavy Gauge 2U chassis
• Ultra-reliable Toroidal Linear Power Supply
• Comprehensive Protection System
APPLICATIONS
Output Power RMS Cooling
Output Power Bridge
RMS : 8 Ohm Mono
Direct Drive High
Impedance
Frequency Response
THD%
IMD2
8 Ohm Stereo: Dual 1250W | 4 Ohm Stereo: Dual 1500W
Variable Speed Fan, Air flow from front to rear 2900W Soft start, VHF, RF, short circuit, over load, clip limit, over heat
PSU Type
Amplifier Type
70/100V
20Hz - 20KHz (+0, -1dB)
≤0.5% 20Hz-20kHz
=/<0.35%
Input Connector
Output Connector
S/N Power Connector
Damping Factor
Low Noise Toroidal Transformer, fixed voltage (Factory Set)
Class H High Performance Professional linear design
Balanced XLR-F
NL4 SpeakON® per channel, 4mm Binding posts with safety cover, Balanced XLR-M link out
220-240V~ 10A Removable IEC Power Cord C14 (3x1.5mm2) 100-130V~ 15A Removable IEC Power Cord C20 (3x14AWG / 2mm2) ≥100dB
1250W Typical, 5700W Maximum >200 (8 ohms, 10Hz-400Hz)
Power Consumption
Slew Rate Other
Crosstalk (1kHz/20kHz) Controls
Input Sensitivity
Input Sensitivity Switch, Bridge/Routing Mode Switch ≥20V/μS
Volume Control knobs (per channel), Power switch -75dB/-58dB
Signal/Clip/Protection/Power LEDs 0.775V/1.4V
Input Impedance (Bal/ Unbal) Unit Dimensions (HWD)
88 x 48Dual 297mm, 3.5 x 3.5 x 11.7-Inch 20KΩ/10KΩ 19.2Kg, 42.3 lbs 37dB
Voltage Gain (8Ω) (1kHz/20kHz) Unit Weight
M-2600D
Two Channel Audio Power Amplifier
KEY FEATURES
• 2x 2600W into 4 ohms
• 2x 1500W into 8 ohms
• Direct Drive Hi-Z 70V / 100V
• Heavy Gauge 2U chassis
• Ultra-reliable Toroidal Linear Power Supply
• Comprehensive Protection System
APPLICATIONS
Output Power RMS Cooling
Output Power Bridge
RMS : 8 Ohm Mono
Direct Drive High
Impedance
Frequency Response
THD%
IMD2
8 Ohm Stereo: Dual 1500W | 4 Ohm Stereo: Dual 2600W
Variable Speed Fan, Air flow from front to rear 5150W Soft start, VHF, RF, short circuit, over load, clip limit, over heat
70/100V
20Hz - 20KHz (+0, -1dB)
≤0.5% 20Hz-20kHz
=/<0.35%
PSU Type
Amplifier Type
Input Connector
Output Connector
Low Noise Toroidal Transformer, fixed voltage (Factory Set)
Class H High Performance Professional linear design
Balanced XLR-F
NL4 SpeakON® per channel, 4mm Binding posts with safety cover, Balanced XLR-M link out
S/N Power Connector
Damping Factor
≥100dB
>200 (8 ohms, 10Hz-400Hz)
≥20V/μS
Power Consumption
Slew Rate Other
Crosstalk (1kHz/20kHz)
Input Sensitivity
Input Impedance (Bal/ Unbal)
Voltage Gain (8Ω) (1kHz/20kHz)
220-240V~ 10A Removable IEC Power Cord C14 (3x1.5mm2) 100-130V~ 15A Removable IEC Power Cord C20 (3x14AWG / 2mm2)
1500W Typical, 6700W Maximum
Input Sensitivity Switch, Bridge/Routing Mode Switch
Volume Control knobs (per channel), Power switch -75dB/-58dB
0.775V/1.4V
Signal/Clip/Protection/Power LEDs
88 x 48Dual 297mm, 3.5 x 19 x 11.7-Inch 20KΩ/10KΩ 24.2Kg, 53.4 lbs 37dB
Unit Dimensions (HWD)
Unit Weight
SP Series
The SP series comes equipped with high quality 24bit AD/DA audi a 96bit DSPs to ensure your sound is clear, accurate a perfectl feature input and output channel EQ, delays, and limiters.
Both models feature a dedicated PC control interface for remote configuration via USB or RS485 and dedicated control software. T presets for use with the HH TNA system.
SP26
2 x 6 Speaker Management System
KEY FEATURES
• High performance 2 input, 6 output loudspeaker processor
• High quality 24bit AD/DA audio converters and 96bit DSP processor precision
• Max input delay of 900ms and max output delay of 340ms
• USB port for simple programming and setup
• Linkable inputs and outputs for easy stereo configuration
• Switched mode power supply with 100-240V worldwide operation
• 1U rack height
Inputs
Outputs
Minimum Load
THD%N
S/N
Frequency Response
AD/DA Converters
Presets
Other
Remote
DSP Engine
DSP Resolution
Parametric
Equalisation
Filter Type
Filter Gain
Centre Frequency
Filter Q/BW
Input Gain
Two Electronically Balanced XLR Inputs
Six Electronically Balanced XLR Outputs
150 Ohms
0.001% at 1kHz 0d Bu
>106dBA
20Hz-20kHz; -0.5d By at 20Hz and 20kHz
24bit, 96kHz (48kHz on models pre-October 2023)
48 user presets (16 pre-loaded TNA examples, may be erased)
Audio Ground Lift switch, USB/RS485 ground lift switch
RS485 in/out XLR connectors for remote monitoring
DSP, 24bit (data) x 96 bit (coeff.)
24bit (data) x 24 bit (coeff.), 54 bit acc registers. 96 bit precision on intermediate processing data
11 filters per input,7 filters per output
Bell, Shelving
From -12dBu up to +12dBu by 0.5dBu resolution steps
From 20Hz up to 20kHz with 1Hz resolution steps
From -12dB to +12dB by 0.1dBu resolution steps; Qfrom0.4upto128
Output Gain
Crossover Section HPF/LPF
Internal Noise
Generator
Input Noise Gate
Input/Output RMS Compressor
Output Peak Limiter
Dynamic Loudness
Filter
Delay
Residual Noise
AC Power
AC Power Consumption
Unit dimensions (HWD)
Unit weight
From -18dB to +12dB by 0.1dBu resolution steps;
Butterworth 6/12/18/24/36/48 dB per octave. Bessel 12/24 dB per octave. Linkwitz-Riley 12/24/36/48 dB per octave
White/ Pink Noise; Level from -30dBu to 0dBu
Threshold from -90dBu up to -60dBu. Attack time from 1ms up to 1000ms;Release time from 10ms up to 1000ms
Threshold from -14dBu up to +16dBu and Bypass. Ratio 2:1~100:1; Knee: 0% ~ 100%. Attack time from 5ms up to 200ms;Release time from 0.1 sec up to 3 sec
Input: Boost Filter from 0% to 100%;Frequency from 20Hz to 20kHz. Output(Only for output 1,3,5): Attenuation Filter from 0dBu to -6dBu;Frequency. 20Hz to 1kHz Q from 1 to 9.9 step 0.1
900 ms 10.4us increment/decrement steps per input channel. 340 ms 10.4us increment/decrement steps per output channel
<-90dBu
Universal voltage 100V-240V~ 50/60Hz, three pin IEC socket
Threshold from -14dBu up to +16dBu and Bypass. Attack time from 5ms up to 200ms;Release time from 0.1 sec up to 3 sec. < 30W
SP48
4 x 8 Speaker Management System
KEY FEATURES
• High performance 4 input, 8 output loudspeaker processor
• High quality 24bit AD/DA audio converters 96bit DSP processor precision
• Max input delay of 420ms and max output delay of 129ms
• USB port for simple programming and setup.
• Linkable inputs and outputs for easy stereo configuration
• Switched mode power supply with 100-240V worldwide operation
• 1U rack height
Inputs
Outputs
Minimum Load
THD%N
S/N
Frequency Response
AD/DA Converters
Presets
Other
Remote
DSP Engine
DSP Resolution
Parametric Equalisation
Filter Type
Filter Gain
Centre Frequency
Filter Q/BW
Four Electronically Balanced XLR Inputs
Eight Electronically Balanced XLR Outputs
150 Ohms
0.001% at 1kHz 0d Bu
>106dBA
20Hz-20kHz; -0.5d By at 20Hz and 20kHz
24bit, 48kHz
24 User presets
Audio Ground Lift switch, USB/RS485 ground lift switch
RS485 in/out XLR connectors for remote monitoring
DSP, 24bit (data) x 96 bit (coeff.)
24bit (data) x 24 bit (coeff.), 54 bit acc registers. 96 bit precision on intermediate processing data
30 filters per input,7 filters per output
Bell, Hi/Lo Shelving, HP/LP Bandpass, Notch, All Pass
From -15dBu up to +15dBu by 0.5dBu resolution steps
From 20Hz up to 20kHz with 1Hz resolution steps
Bell Q: 0.4~128, Shelving/HP/LP Q:0.1~5.1, BP/Notch/All Pass Q:4~104
Input Gain
Output Gain
Crossover Section HPF/LPF
Input Noise Gate
Input RMS
Compressor
Output RMS Compressor
Output Peak Limiter
Delay
Residual Noise
AC Power
AC Power Consumption
Unit dimensions (HWD)
Unit weight
From -18dB to +12dB by 0.1dBu resolution steps;
From -18dB to +12dB by 0.1dBu resolution steps;
Butterworth 6/12/18/24/36/48 dB per octave. Bessel 12/24 dB per octave. Linkwitz-Riley 12/24/36/48 dB per octave
Threshold from -80dBu up to -50dBu. Attack time from 1ms up to 1000ms;Release time from 10ms up to 1000ms
Threshold from -14dBu up to +16dBu and Bypass. Ratio 2:1~32:1; Knee: 0% ~ 100%. Makeup from -12dB to +12dB. Attack time from 5ms up to 200ms;Release time from 0.1 sec up to 3 sec
Threshold from -14dBu up to +16dBu and Bypass. Attack time from 1ms up to 900ms;Release time from 0.1 sec up to 5 sec.
420ms per input channel. 129ms per output channel
<-90dBu
Universal voltage 100V-240V~ 50/60Hz, three pin IEC socket
Threshold from -14dBu up to +16dBu and Bypass. Attack time from 1ms up to 900ms;Release time from 0.1 sec up to 5 sec. < 30W
44 x 482 x 225mm, 1.7” x 19” x 8.9”
3.5Kg, 7.7 lbs
