Case IH expands its Farmlift lineup with the compact Farmlift 626, alongside the 633 636, 737 742, and 935 models. The Farmlift 626 offers a lift capacity of up to 2,600 kg and is tailored for tight spaces like poultry farms and orchards.
and advanced hydraulics for efficient performance.

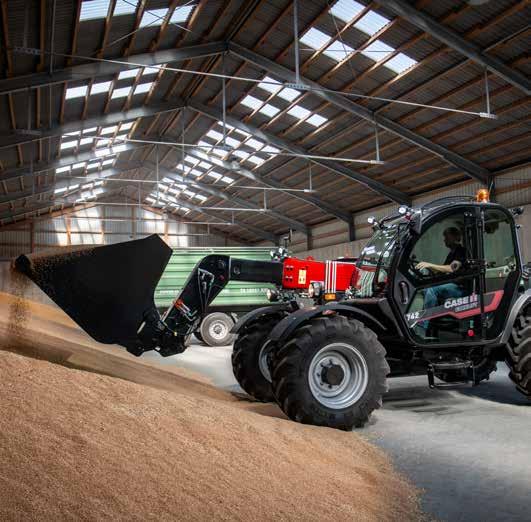

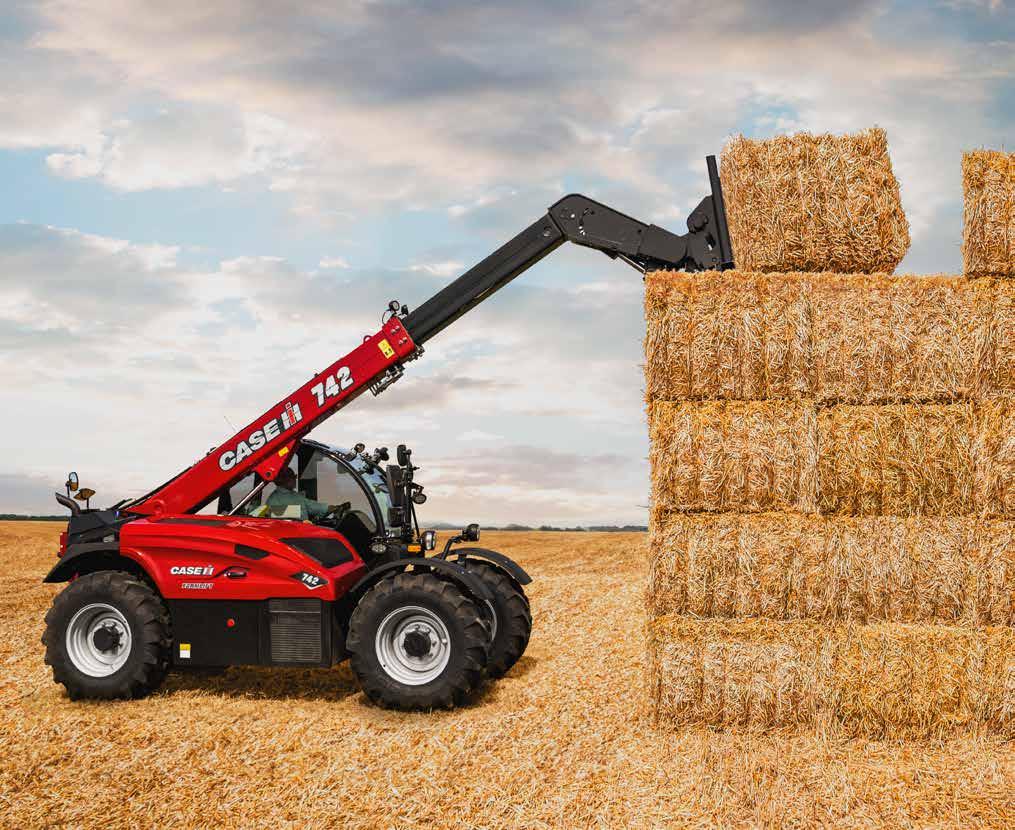

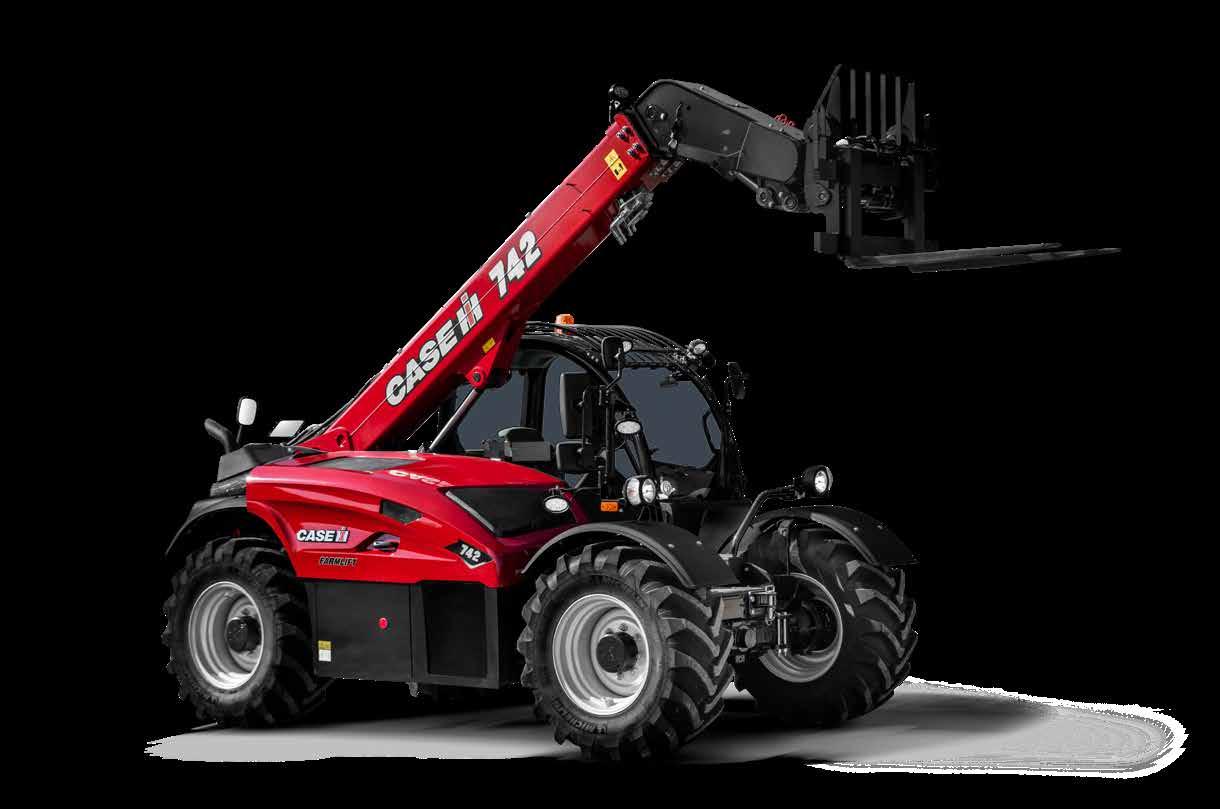

From the 626 with 6.1 m reach, to the work-hungry 4,200 kg max capacity of the 742 and the enormous 9.1 m reach of the 935, and plenty of models in between, there’s a machine to meet every need in the Farmlift range. We designed and built the range to meet the varied needs of today’s agriculture – from small farms to the largest operations. Whatever model you choose, you know you can count on superior operating comfort, short loading times and quick vehicle response.

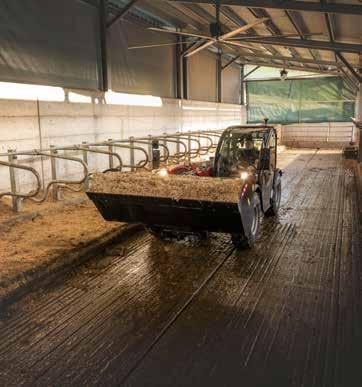

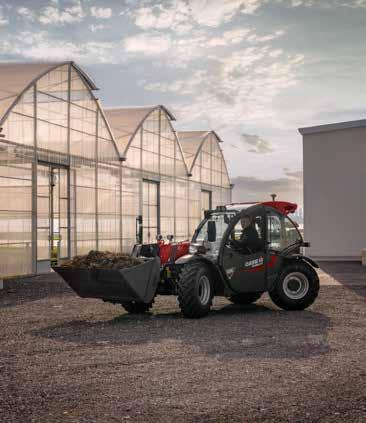

Compact and versatile, ideal for tight spaces and specialized tasks such as livestock farming, orchards, and greenhouses.
Perfect for businesses with light to medium material handling volumes and diverse applications.
Suited for businesses with extensive material volumes and strict requirements concerning efficiency, dependability, and convenience.

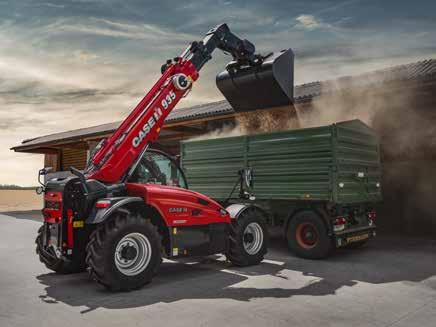

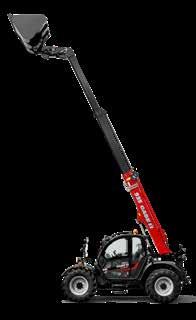

The Farmlift 935 is the perfect choice for those seeking high lift heights.

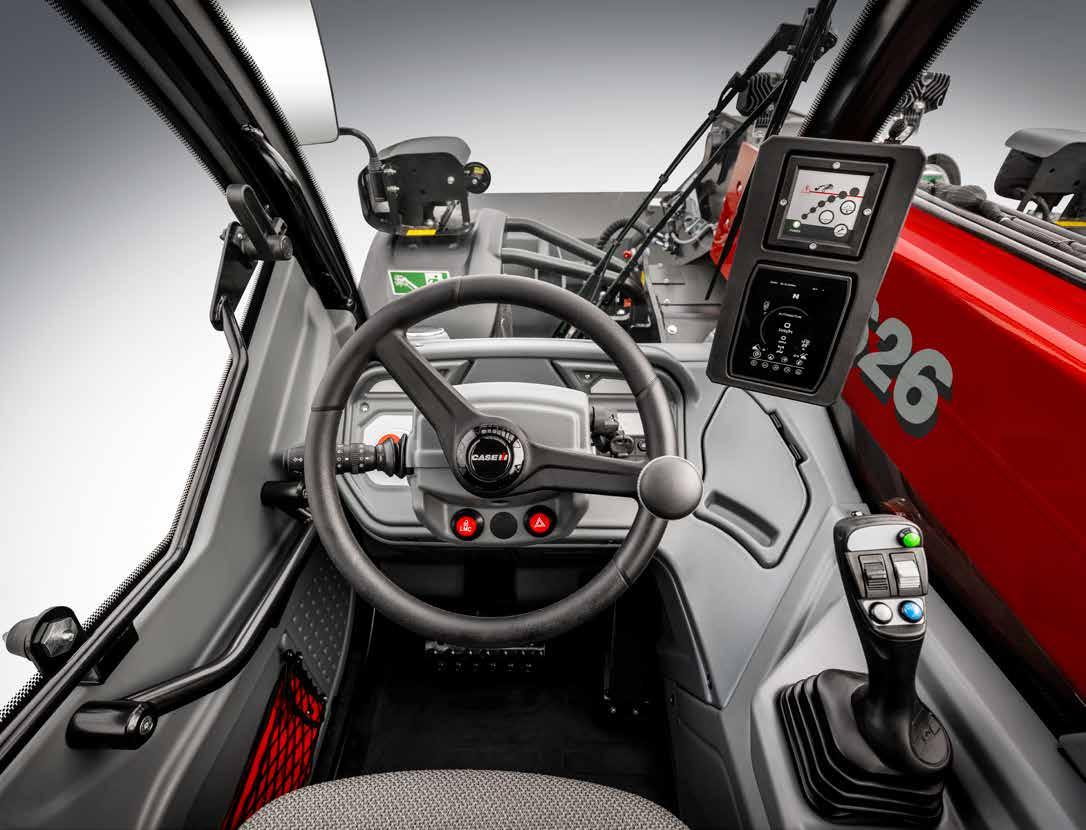

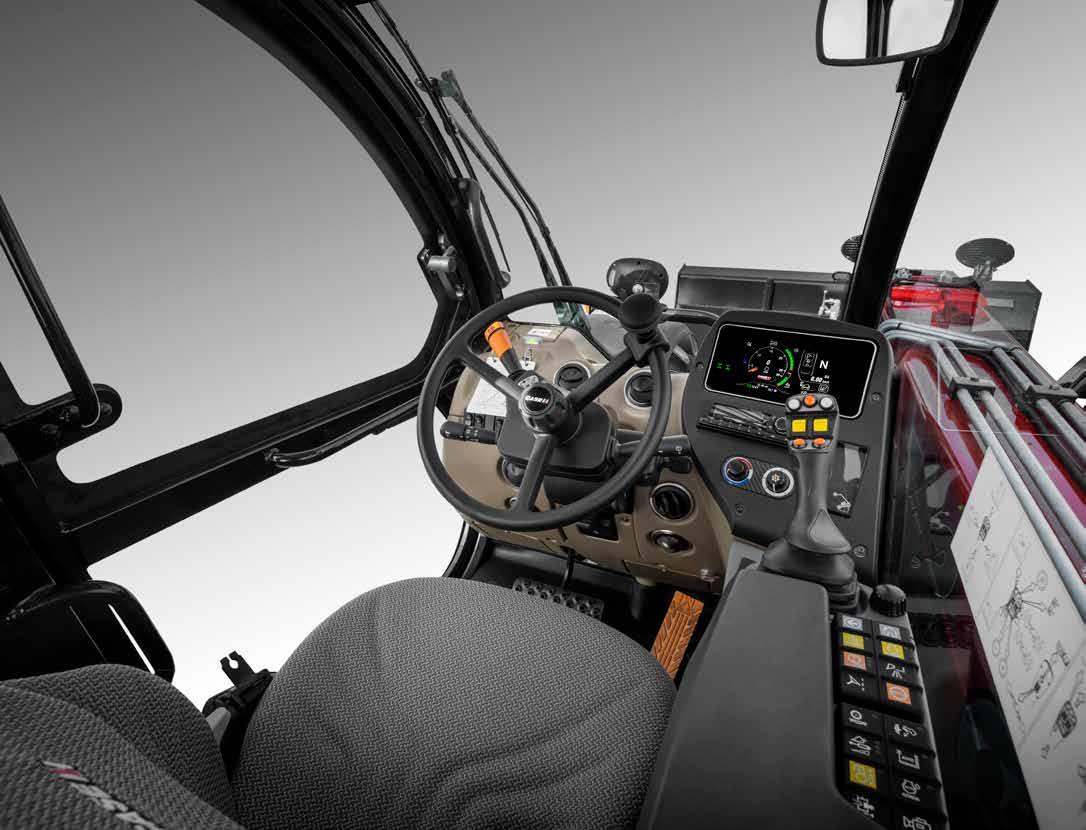

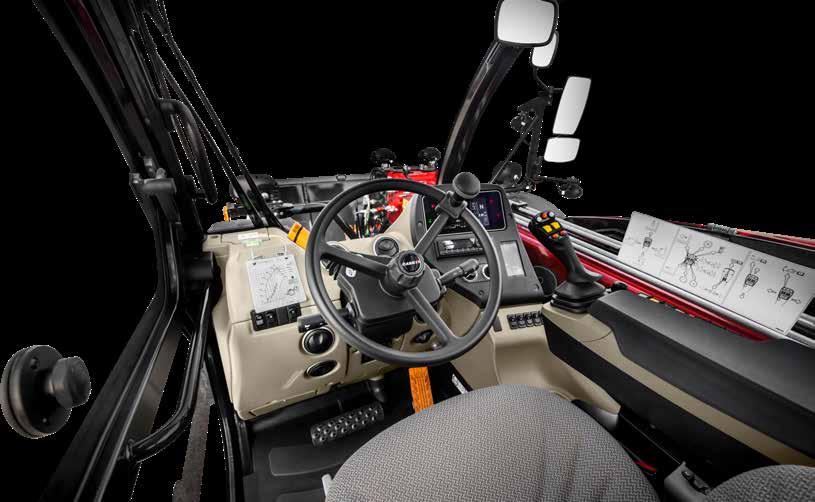

Step into the Farmlift 626 and enjoy a spacious cab with 360° visibility, intuitive controls, and advanced comfort features. Built to optimize productivity, it’s designed for long, demanding workdays in any environment.
The cab’s raised position and large windows provide full 360° visibility, while the redesigned windscreen ensures a clear overhead view for precision handling of high attachments.
The integrated anti-tilt system (LMC) with LED load indicators and an emergency stop button provides enhanced safety during heavy lifting. Focus on the job knowing the Farmlift 626 has your back.

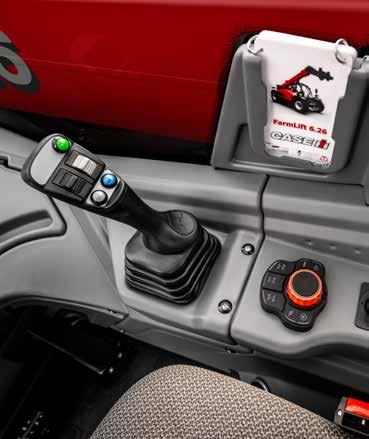

The electro-proportional joystick ensures smooth boom movements, while the new 5-inch touchscreen display provides real-time diagnostics and easy access to essential functions – all intuitively at your fingertips.
A full LED lighting system ensures excellent visibility, day or night. Two front and rear road lights, two boom work lights, and LED beacon lights provide maximum illumination for safe operation in low-light conditions.
The cab features suspended seating, with both pneumatic and mechanical options, adjustable for height and weight. Vibration-damping mounts reduce fatigue, while integrated USB charging ports and generous storage compartments enhance convenience.
Optional carbon filters meet ISO Category 2 or optional Category 4 standards, protecting you from dust and harmful particles. The climate control system ensures a healthier workspace, even in demanding conditions like poultry houses.
Setting new standards in confined spaces

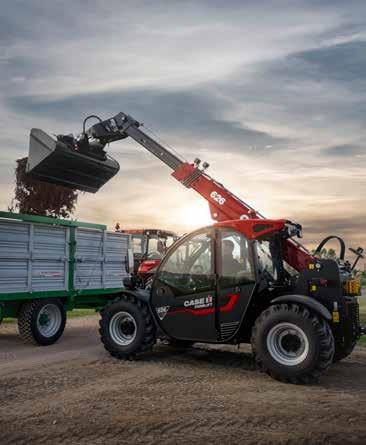

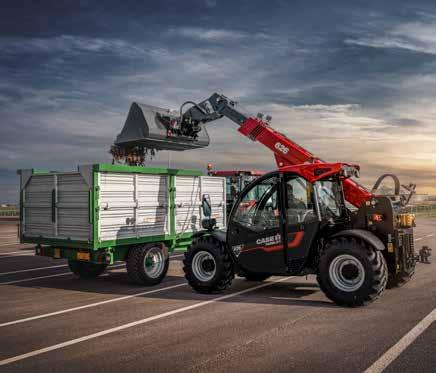

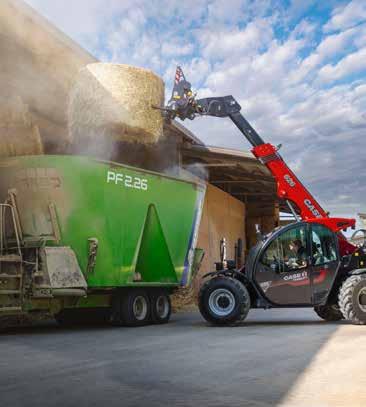

The new Case IH Farmlift 626 sets a new benchmark in the compact telehandler segment.
With a 74 hp Stage V engine delivering 300 Nm torque, a turning radius of just 3.25 meters, and a lift capacity of 2.6 tons up to 5.8 meters, the Farmlift 626 ensures unmatched productivity. Its 30 km/h EcoSmart mode saves up to 30 % fuel, while 360° cab visibility and vibration-damping mounts keep operators comfortable during long times and quick vehicle response.

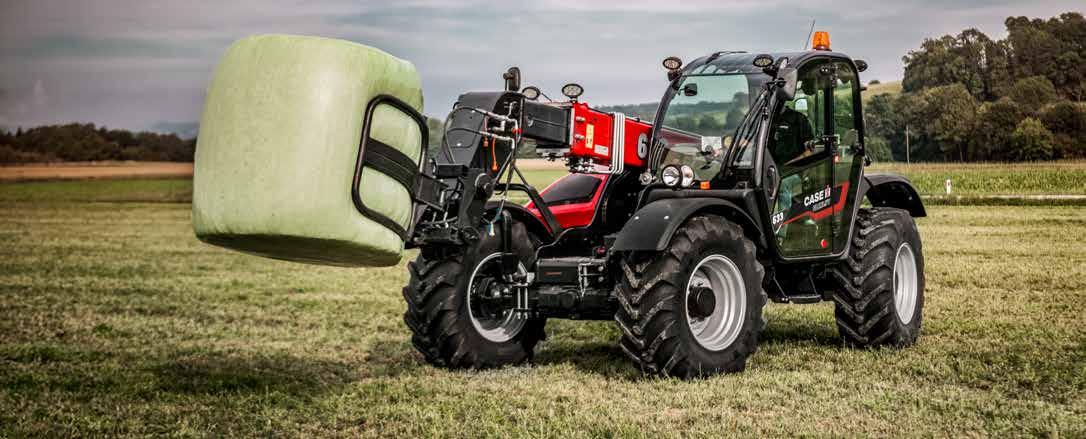

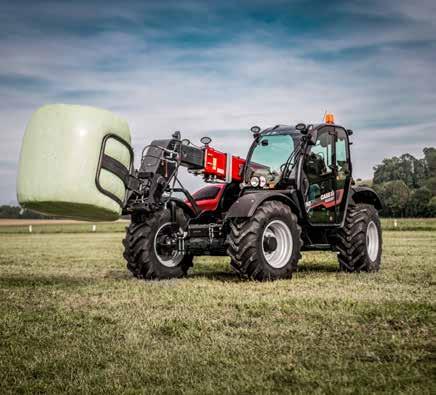

Lift loads up to 2.6 tons to a maximum height of 5.8 meters. Designed for high stacking efficiency, the Farmlift 626 handles bales, pallets, and other heavy materials with ease and precision.
• Low boom hinge improves weight distribution
• High torsional rigidity for stable lifts
• Precise electro-hydraulic controls
FARMLIFT 626
The 80 l/min gear pump operates at 210 bar, powering the electro-proportional joystick for smooth boom movement.
Constant-flow hydraulics enable seamless operation of demanding attachments like sweepers and snowblowers.
• Proportional joystick ensures precise boom control
• Constant-flow function supports continuous hydraulic operation
• High-pressure system enhances efficiency and performance
With a turning radius of just 3.25 meters and a height under 2 meters, the Farmlift 626 effortlessly handles narrow barn entrances and confined yards, making it ideal for livestock and horticultural operations.
• Short wheelbase enhances agility in confined areas
• Three steering modes include crab steering for sideways movement
• High ground clearance ensures smooth operation on uneven surfaces
The 74 hp (54.6 kW) Stage V engine delivers 300 Nm of torque, paired with a hydrostatic transmission offering smooth power delivery and speeds up to 30 km/h. Built for heavy-duty tasks and efficiency.
• Smart engine layout for better cooling and power transmission
• Integrated reversible fan keeps the radiator clean automatically
• PowerCore® air intake system enhances engine efficiency
• Electro-hydraulic controls for simultaneous boom and attachment movements
• Hydraulic preheating ensures reliable performance in cold conditions
The Farmlift’s transformation isn’t merely an upgrade; it’s a game-changing breakthrough. This remarkable evolution embodies power, all while setting new standards in efficiency and productivity. With improved ergonomics, unparalleled comfort, enhanced visibility, and accelerated cycle times, the Farmlift promises an intuitive, high-tech experience that elevates farming operations to new heights.
NEW STYLING AND VISIBILITY
• New bonnet design
• 9 % better visibility to the right-hand side
• Excellent 360° visibility all-round

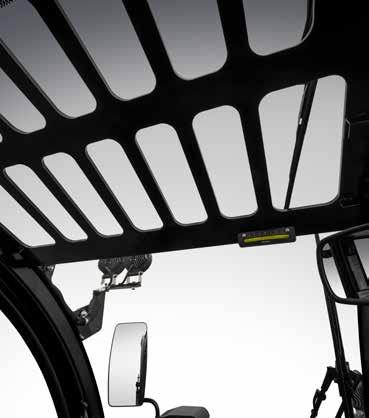

• High visibility roof ensures a perfect view of the loader ELECTRO-HYDRAULIC SELFLEVELLING OF TOOL CARRIER
• Perfect accuracy in self levelling
• Less maintenance cost and time
l/min piston pump
• Manage your machines, data and fleet with Case IH FieldOps
• Proactive business and maintenance decisions thanks to near real-time notifications on machine data and position
• Choose your preferred telematics connectivity option
MAXIMUM STABILITY
• Low centre of gravity
• Rear mounted boom acts as a counter balance
• Longer wheelbase of 3 m
Take command in comfort

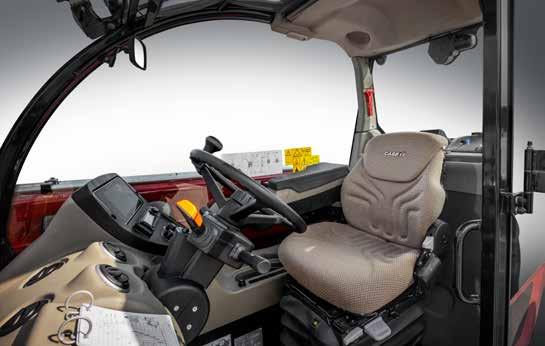

Upon entering the expansive and updated cab of our latest range, you’ll instantly appreciate the enhanced right-side visibility, courtesy of a streamlined bonnet design, and a quieter environment. This comprehensive revamp offers unobstructed operator visibility and pairs it with our newly designed ergonomic controls and instruments for intuitive operation.
The advanced 7-inch display offers an at-a-glance view of all machine parameters, simplifying the setup of all machine functions. Additionally, the display incorporates the feed from a reverse camera, enhancing safety and maneuverability.

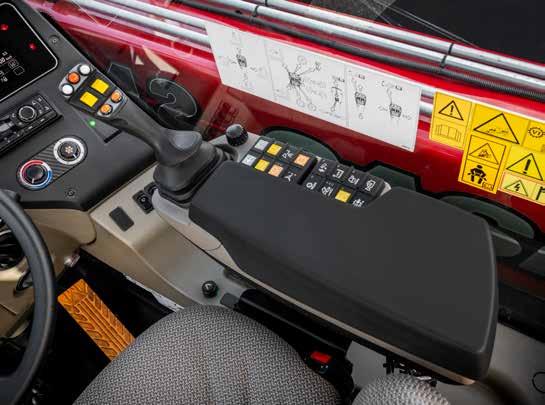

The advanced joystick, mounted on the seat, offers adjustable sensitivity for precision in controlling boom movements, managing both transmission and hydraulics. Positioned conveniently on the armrest, the new keypad puts critical functions within easy reach, ensuring clear visibility and accessibility from the operator’s seat.
Enhanced Visibility: The new full-length design of the Case IH Telehandler incorporates a new bonnet design that increases right-hand visibility by 9 %. It also features a high-visibility roof, providing an optimal upward view when working at height and a clear forward view over the dashboard for convenient attachment changes.
A wide door, accompanying steps, and rails ensure effortless entry into the climate-controlled cab. Emphasizing comfort, an air-suspended seat is provided, while an adjustable steering column simplifies accessibility. A rear-view camera is optional.
The LED lights clearly indicate the machine’s current load level to the operator.

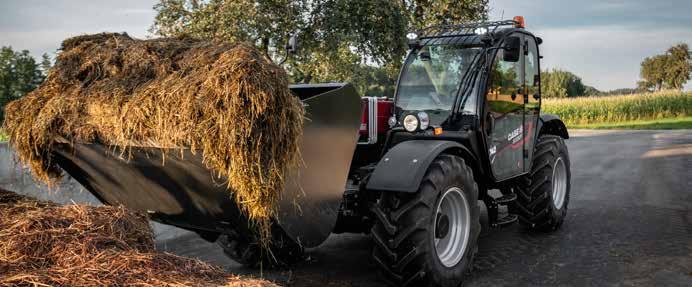

For any application
Engineered for exceptional fuel efficiency and high-level performance, Case IH Farmlifts incorporate trusted components for reliable operation. These are your dependable worktools, ready to tackle critical and demanding tasks.
TIME-EFFICIENT. COST-EFFICIENT

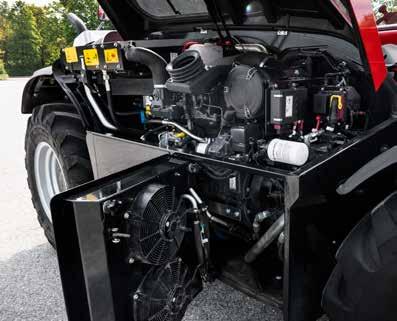

Daily maintenance is easily managed thanks to the wide opening one piece bonnet and side panels. And with 1,000-hour service intervals, Farmlift telehandlers require the minimum of regular scheduled care.
All Farmlift models boast a 4.5 l NEF engine with HIeSCR2 for Stage V compliance. Farmlift 636 and 742 deliver 146 hp at impressive fuel efficient 1,800 rpm. Maximum torque levels of up to 591 Nm at 1,500 rpm keep the machine pushing in the most arduous of conditions. The 133 hp maximum power engine in the 633, 737 and 935 models ensure there is always sufficient power to delivering fast cycle times and full job versatility.
Courtesy of a compact design of the engine, the bonnet has become a fresh styling that significantly improves right hand visibility for the oeprator. It also facilitates daily checks as oil level dipstick and radiators that can be easily accessed and thoroughly cleaned.
economic driving
The compact HI-eSCR2 system adopts an aftertreatment system “for life”. In other words, no replacing components or mechanical cleaning during its whole lifecycle.
• Powerful Stage V engines
• Hi-eSCR 2 after-treatment system
• Engine offer matches the requirements of each Farmlift
• Impressive torque even at lower engine speeds
• 1,000-hour oil change intervals
Every Farmlift model comes standard with an electronically controlled 6x3 fullpowershift transmission, promising outstanding performance. Models equipped with a 145 hp engine feature a 40 kph transmission, providing best performance for road transport.
The standard 6x3 Autoshift is fully automatic through the forward speeds and can also be operated with the semiautomatic through forward gears 2-3-4. These models benefit from 40 kph top speed for faster travel between jobs, and a memory shuttle feature, where the power shuttle selects the last-used forward and reverse gear when changing direction.
Leveraging an innovative torque converter design, Farmlift delivers unparalleled response and immediate start-up. With wet multi-disc clutches, smooth gear transitions are ensured. A declutch button and an electronic modulation system further optimize operations, enhancing gear ratios for efficient loading applications.
Powershuttle commands are ergonomically positioned on the joystick, facilitating smooth directional shifts without letting go of the joystick. Moreover, advanced customization options are available, permitting the tailoring of Powershuttle’s responsiveness to match personal preferences.
All Farmlifts are fitted with high dynamic load capability axles with limited slip differential (LSD) on the front axle, another can be specified for the rear axle. Inboard wet disc service brakes offer excellent stopping power whilst being well-protected and simple to service.
Boosted productivity at any height

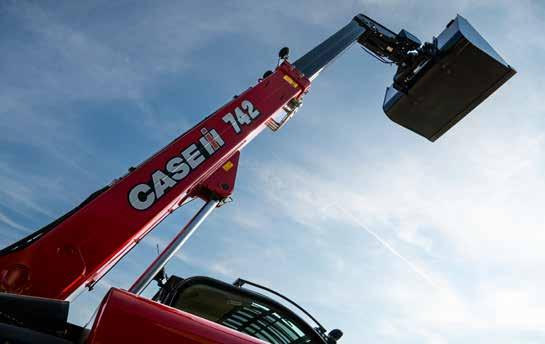

Operators of Case IH Farmlift can trust in a sturdy telescopic boom that offers exceptional torsion resistance and payload capacity.
Boom suspension enhances safety and comfort, delivering a smoother ride and improved stability.
Using electronic sensors, this unique feature accomplishes automatic attachment levelling, bypassing the need for a telehandler’s compensation cylinder. The benefits include full bucket capacity with no losses, great attachment levelling accuracy, less operator effort, and reduced maintenance time and cost.
With a rear-mounted boom and a long wheelbase, it guarantees stability. Its under 4 m turning radius coupled with three steering modes ensures exceptional agility, even in tight spots. All these are made possible by a robust H-shaped ladder chassis, making it a specialist of handling high payloads.
The Farmlift’s hydraulic system offers electro-hydraulic, proportional functions through a CCLS load-sensing system, ensuring precise control and fast response. It also includes smart features such as bucket return, adjustable boom reactivity, and shaking function to boost productivity thanks to shorter cycle times.
Two Farmlift models can come with a new variable displacement piston pump that delivers 160 l/min of hydraulic power for improved hydraulic multi-functioning.
All hydraulic features are electro-proportionally controlled by the integrated multifunction electronic joystick, located on the end of the seat armrest, offering ergonomic excellence. Furthermore, the system supports the simultaneous use of three functions, boosting efficiency while reducing downtime.
TWO ANGLE SENSORS
PROVIDE MORE PRECISE MOVEMENT AND LEVELING OF ATTACHMENTS

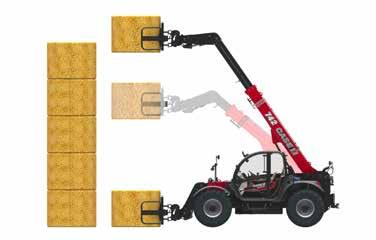

The SMART HYDRAULIC FEATURES package offers intelligent systems for enhanced operator comfort, convenience, and task efficiency. One notable feature is the bucket shaking function, which efficiently empties sticky materials and accurately portions straw or silage.
Additionally, the automatic ‘return to position’ feature allows for seamless movement of attachments to a pre-set target position from any initial situation.
• Adjustable boom responsiveness
• Adujustable continous flow w/engine speed control
• Vertical lift
The optional quick coupling/uncoupling system option available on all Farmlifts makes changing attachments as fast and safe as possible.
• CCLS 160 l/min. pump for shorter cycle times
• Auxiliary pressure release (APR) switch simplifies connecting attachments
Our professional dealer network backed up by local Case IH teams, industry-leading Case IH support tools, modern training methods, best-in-class replacement parts, support and logistics performance. All you need for an excellent all-encompassing after-sales service to keep you farming.

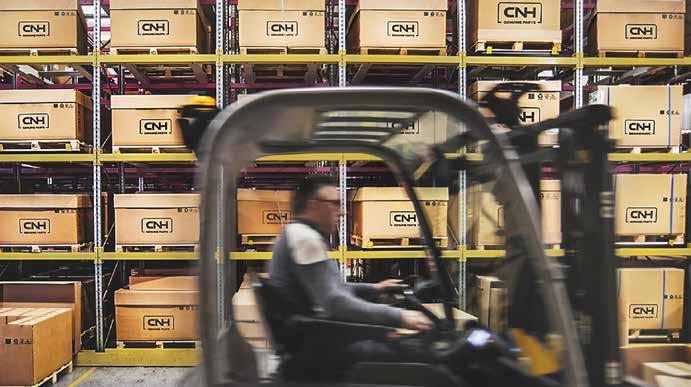

Our wide range of top quality genuine parts can help maintain the full potential of your machine, season after season, guaranteeing top performance, utmost productivity and high residual value.
