Lighting

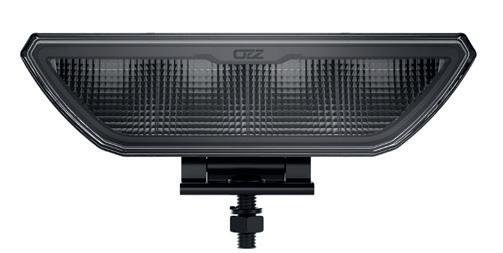

OZZ WR1 REVERSE LIGHT
OZZ WR1 65 combines powerful reverse lighting with an integrated warning light for enhanced safety. Delivers 2700 lumens and 1 lux at 65 m for clear rear visibility. Available in black. ECE approved, IP68/IP69K rated and backed by a 3-year warranty.
88501

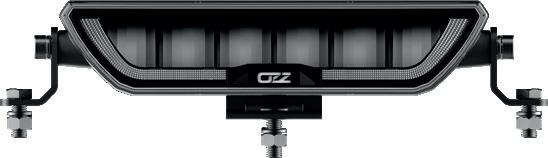

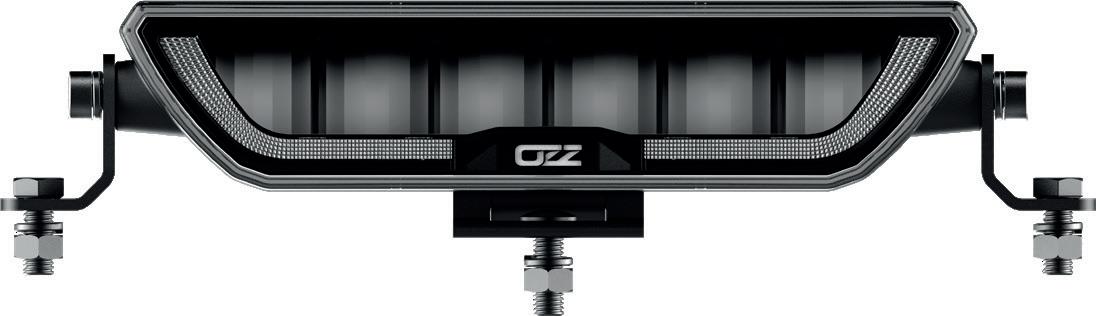

OZZ XB1 LIGHT BAR P9”
OZZ XB1 P9” combines a dynamic start-up position light in white and amber with a compact design. The light bar delivers 3100 lumens and 1 lux at 315 m. Available in black and white. ECE approved, IP68/IP69K rated and backed by a 3-year warranty.
88203

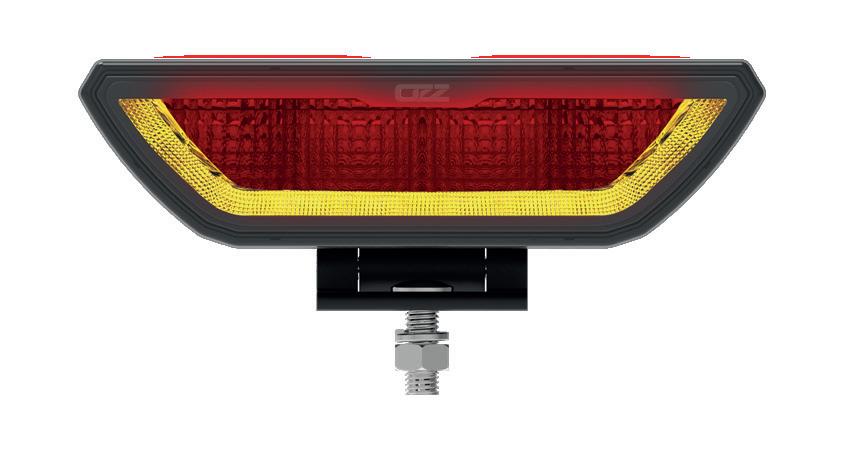

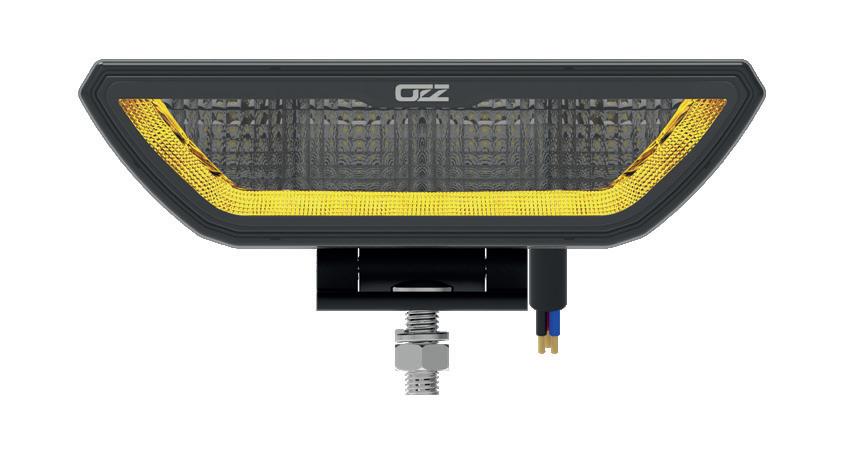

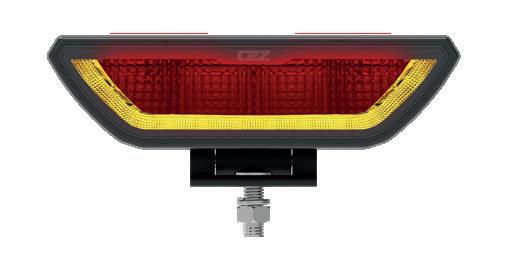

OZZ WR2 WORK LIGHT
Combines powerful flood illumination with an integrated warning light and red position light for enhanced safety. Delivers 3600 lumens and 1 lux at 65 m. Available in black. ECE approved, IP68/IP69K rated and backed by a 3-year warranty.
88507
REFINITY NIX WORK LIGHT 22 W
Compact work/reverse light delivering 2500 lumens. Innovative lens technology provides a wide and even beam pattern. ECE R148 approved, DT connector, 5-year warranty.
A0202101
BRUISER 8” DRIVING LIGHT 80 W
Delivers 5070 lumens and 1 lux at 460 m. Robust IP67/IP69K construction, wide driving beam pattern, DT connector, ECE R10/R7/R112 approved. 3-year warranty.
587380

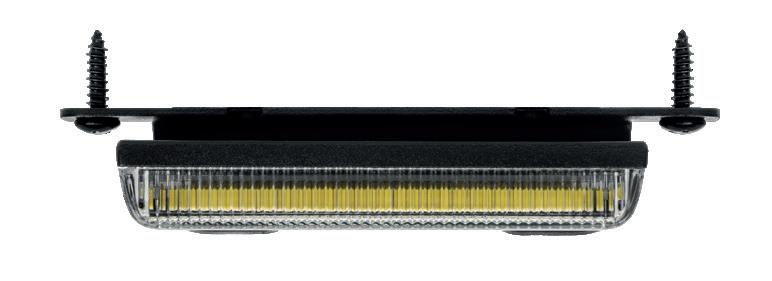

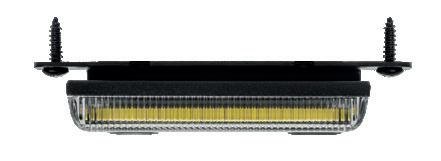

REFINITY SLIM WORK LIGHT 34 W
Ultra-slim design combined with powerful performance. Delivers 1384 lumens. Durable aluminium housing and impact-resistant polycarbonate lens ensure long service life. ECE R148 approved as a reverse light. 5-year warranty. 18-11823
REFINITY NIX WORK LIGHT 30 W 3800LM R148
The Nix work/reverse light delivers powerful illumination in a compact design. With 2500 lumens and innovative lens technology, it provides a wide and uniform beam pattern for all types of working conditions. ECE R148 approved and equipped with a DT connector for easy and secure installation. Backed by a 5-year warranty. A0202102

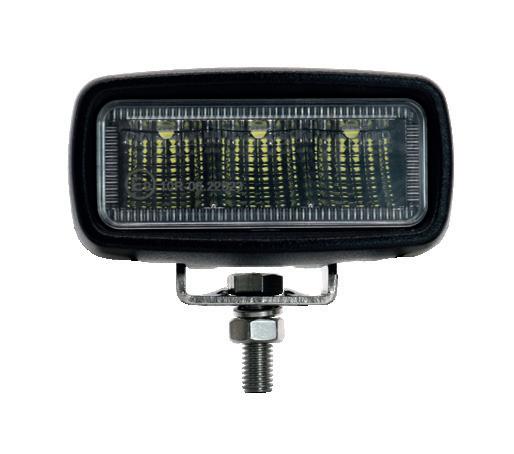

WORK LIGHT 15 W
A compact rectangular 15 W work light designed for demanding applications. The powder-coated aluminium housing provides excellent durability and resistance to harsh environments. The lamp delivers a wide and uniform beam pattern for reliable illumination. Approved as a reverse light according to ECE R148. CISPR 25 Class 5. 1120 lumens. IP67 rated. 3-year warranty. 18-3229

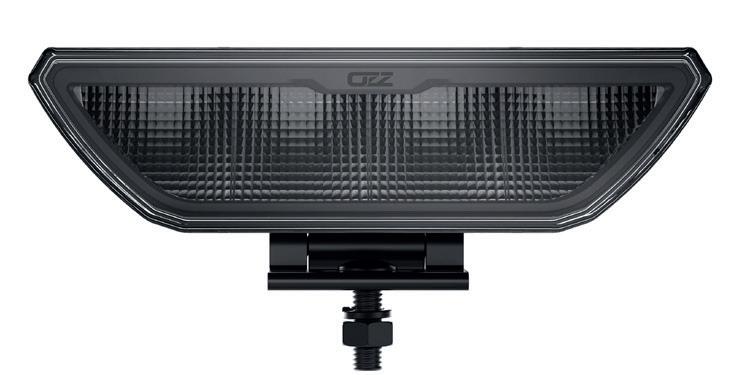

OZZ WR1 WORK/REVERSE LIGHT
This reverse light gives your vehicle an innovative and modern appearance. Delivering 2220 actual lumens and 1 lux at 95 m, it ensures excellent visibility with its wide flood beam pattern. The 5,000 K colour temperature provides a comfortable and natural light output. ECE approved, IP68/IP69K rated and backed by a 3-year warranty.
88502
Article No Description
A0202101 REFINITY NIX WORK LIGHT 22 W 2500 lumens. ECE R148. CISPR 25:5. IP69K. 5-year warranty.
587380 BRUISER 8” DRIVING LIGHT 80 W
5070 lumens with 1 lux at 460 m. EMC ECE R10, R7 and R112 approved. 3-year warranty.
18-11823 REFINITY SLIM WORK LIGHT 34 W 1384 lumens. ECE R148, CISPR 25:3. IP67. 5-year warranty.
88506 OZZ RL2 REVERSE / WARNING LIGHT
1207 lumens with 1 lux at 30 m. ECE R148/R10 and R65 Class 1 & 2 approved. IP68/IP69K rated. 3-year warranty.
A0202102 REFINITY NIX WORK LIGHT 30 W
Work light providing a wide and even beam pattern. Approved as a reverse light according to ECE R148. 3800 lumens. IP69K. 5-year warranty.
18-3229 WORK LIGHT 15 W
Provides a wide and uniform beam pattern. Approved as a reverse light according to ECE R148. CISPR 25:5. 1120 lumens. IP67. 3-year warranty.
88502 OZZ WR1 REVERSE LIGHT
3600 lumens with 1 lux at 95 m. ECE R148/R10 approved. IP68/IP69K rated. 3-year warranty.
88503 OZZ RL1 REVERSE LIGHT
3100 lumens with 1 lux at 315 m. ECE R148/R10 approved. IP68/IP69K rated. 3-year warranty.
Article No. Description
2-2064
2-2065
2-20561

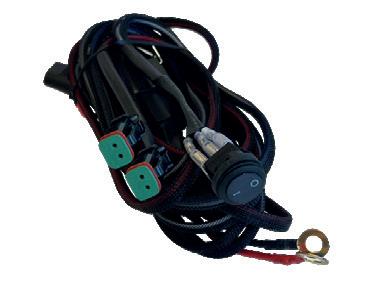

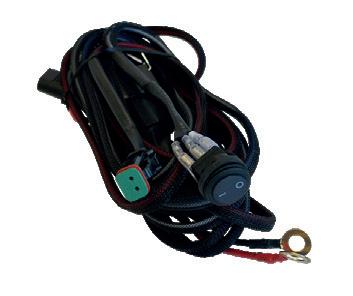

WIRING HARNESS WITH 1 DT CONNECTOR, RELAY, FUSE AND PUSH BUTTON
2-20563
WIRING HARNESS WITH 2 DT CONNECTORS, RELAY, FUSE AND PUSH BUTTON

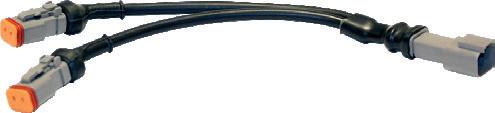

Y-CABLE 40 CM WITH DT CONNECTORS
DT splitter cable for connecting two products to one relay wiring harness. One DT male connector and two DT female connectors (40 cm between connectors).

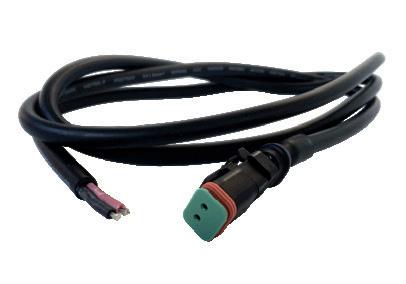

EXTENSION CABLE 1.5 M WITH 2-PIN DT CONNECTOR
Cable cross-section: 1.5 mm².
2-20562

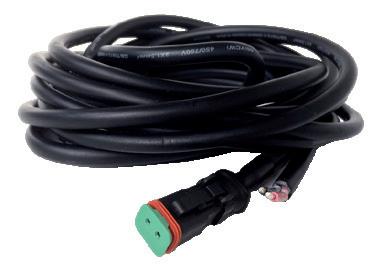

EXTENSION CABLE 5 M WITH 2-PIN DT CONNECTOR
Cable cross-section: 1.5 mm².
5877017 1.75” TUBE MOUNT BRACKET FOR FRONT DRIVING LIGHT INSTALLATION
Accessories for 2-pin Lights
5877010 1” TUBE MOUNT BRACKET FOR FRONT WORK LIGHT INSTALLATION
Article No. Description
88205 Black 88206 White
88203 Black 88210 White
OZZ XB1 P 27” LIGHT BAR
9780 lumens with 1 lux at 695 m. ECE R149/ R148/R10 approved. IP68/IP69K rated. 3-year warranty.
OZZ XB1 9” LIGHT BAR
3100 lumens with 1 lux at 315 m. ECE R149/ R148/R10 approved. IP68/IP69K rated. 3-year warranty.
88118 Black 88119 White
OZZ SQR 3” DRIVING LIGHT
3500 lumens with 1 lux at 375 m. ECE R149/ R148/R10 approved. IP68/IP69K rated. 3-year warranty.
88510 OZZ SQR 3” WORK LIGHT
3500 lumens with 1 lux at 75 m. ECE R149/ R148/R10 approved. IP68/IP69K rated. 3-year warranty.
88501 OZZ WR1 REVERSE LIGHT
3600 lumens with 1 lux at 65 m. ECE R148/ R10 and R65 Class 1 & 2 approved. IP68/IP69K rated. 3-year warranty.
88507 OZZ WR2 WORK LIGHT
3600 lumens with 1 lux at 65 m. ECE R148/ R10 and R65 Class 1 & 2 approved. IP68/IP69K rated. 3-year warranty.

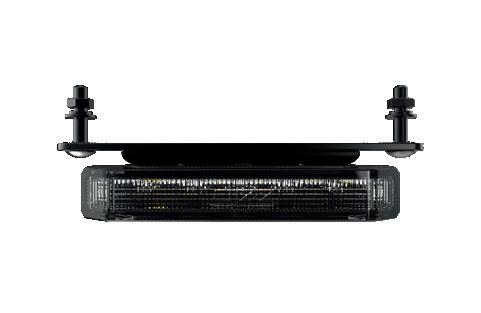

18-11823AW REFINITY SLIM REVERSE LIGHT 16 W
582 lumens. ECE R65/XA1 and R148 approved. 5-year warranty.
2-3
4-5
Article No. Description
88912 DRIVING LIGHT WIRING HARNESS ADAPTER DT4 TO DT2
2-20561 Y-CABLE 40 CM WITH DT CONNECTORS
DT splitter cable for connecting two products to a relay wiring harness. One DT male connector and two DT female connectors (40 cm between the connectors).
2-20563
EXTENSION CABLE 1.5 M WITH 2-PIN DT CONNECTOR
Cable cross-section: 1.5 mm².
2-20562
EXTENSION CABLE 5 M WITH 2-PIN DT CONNECTOR
Cable cross-section: 1.5 mm².
5877017 1.75” TUBE MOUNT BRACKET FOR FRONT DRIVING LIGHT INSTALLATION
Accessories for 4-pin Lights
5877010 1” TUBE MOUNT BRACKET FOR FRONT WORK LIGHT INSTALLATION
585900 MOUNTING BRACKET FOR LAMP 88203
Used when the lamp needs to be mounted from the rear.
