LAYOUT COLLECTION
Design by Julien Renault
Content
Content
Layout Collection Overview
Designer Introduction
Product Sustainability
Designed for Disassembly
Removable Cover
Layout Chair
Layout Armchair
Dimensions
Downloads

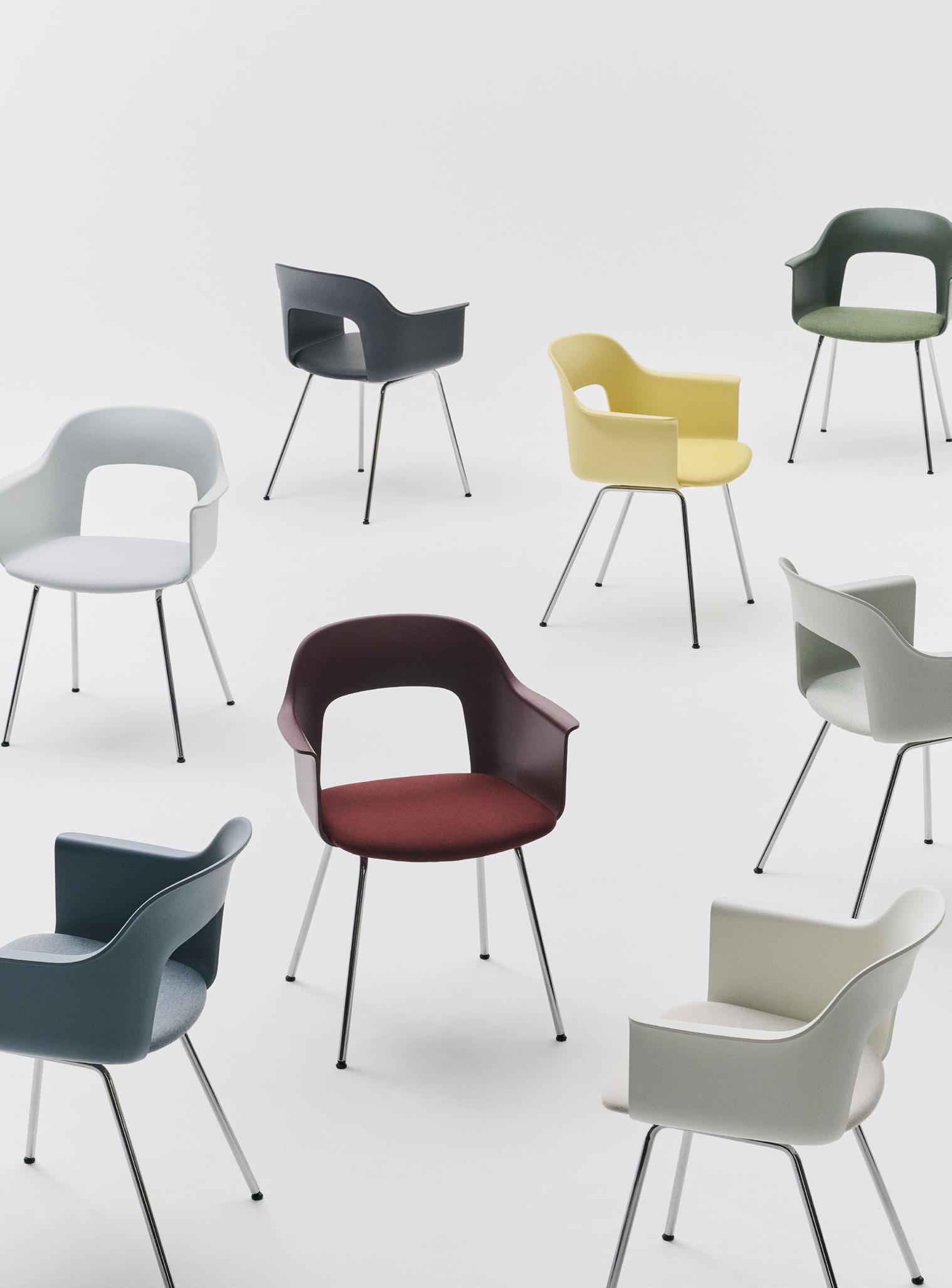

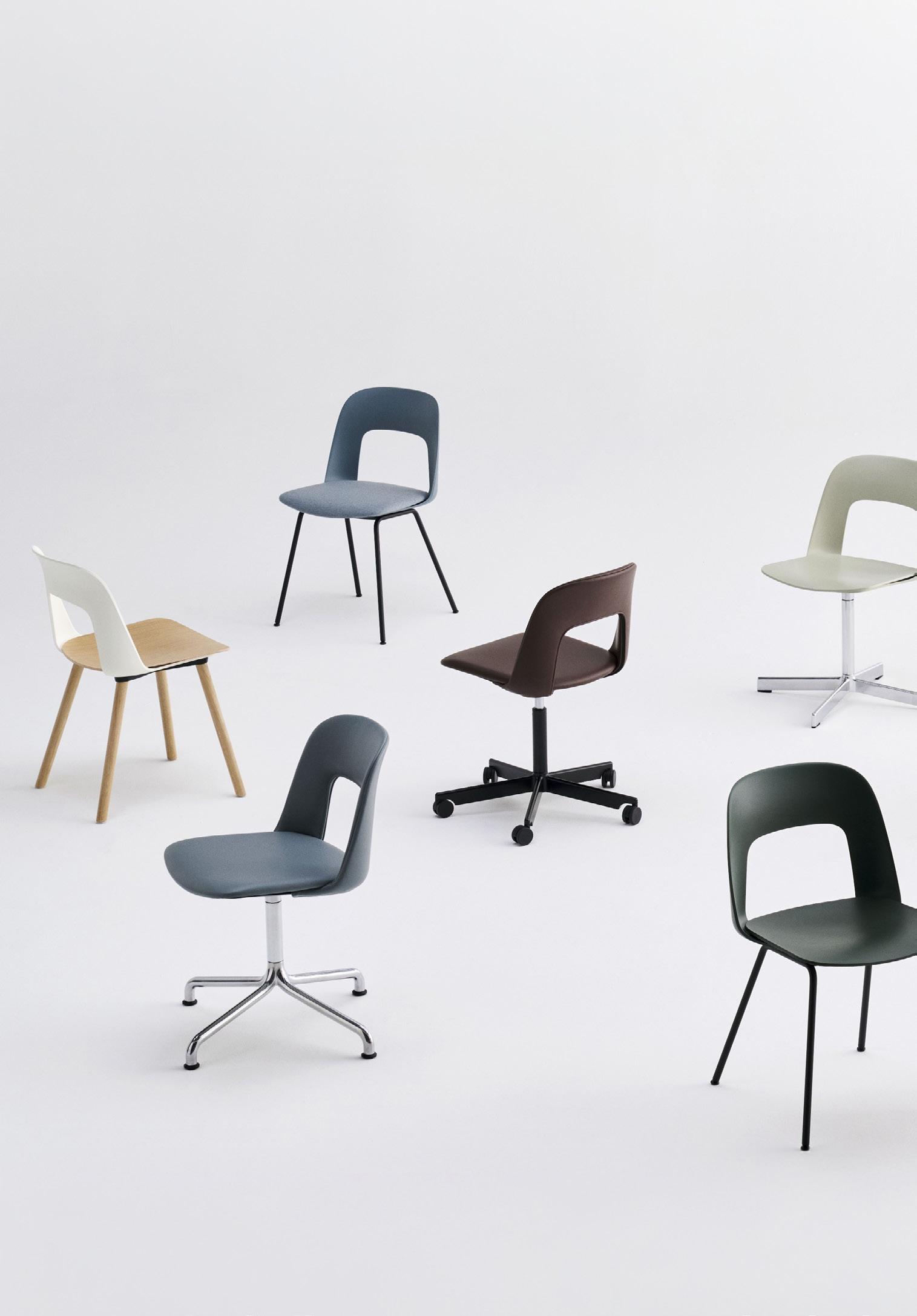

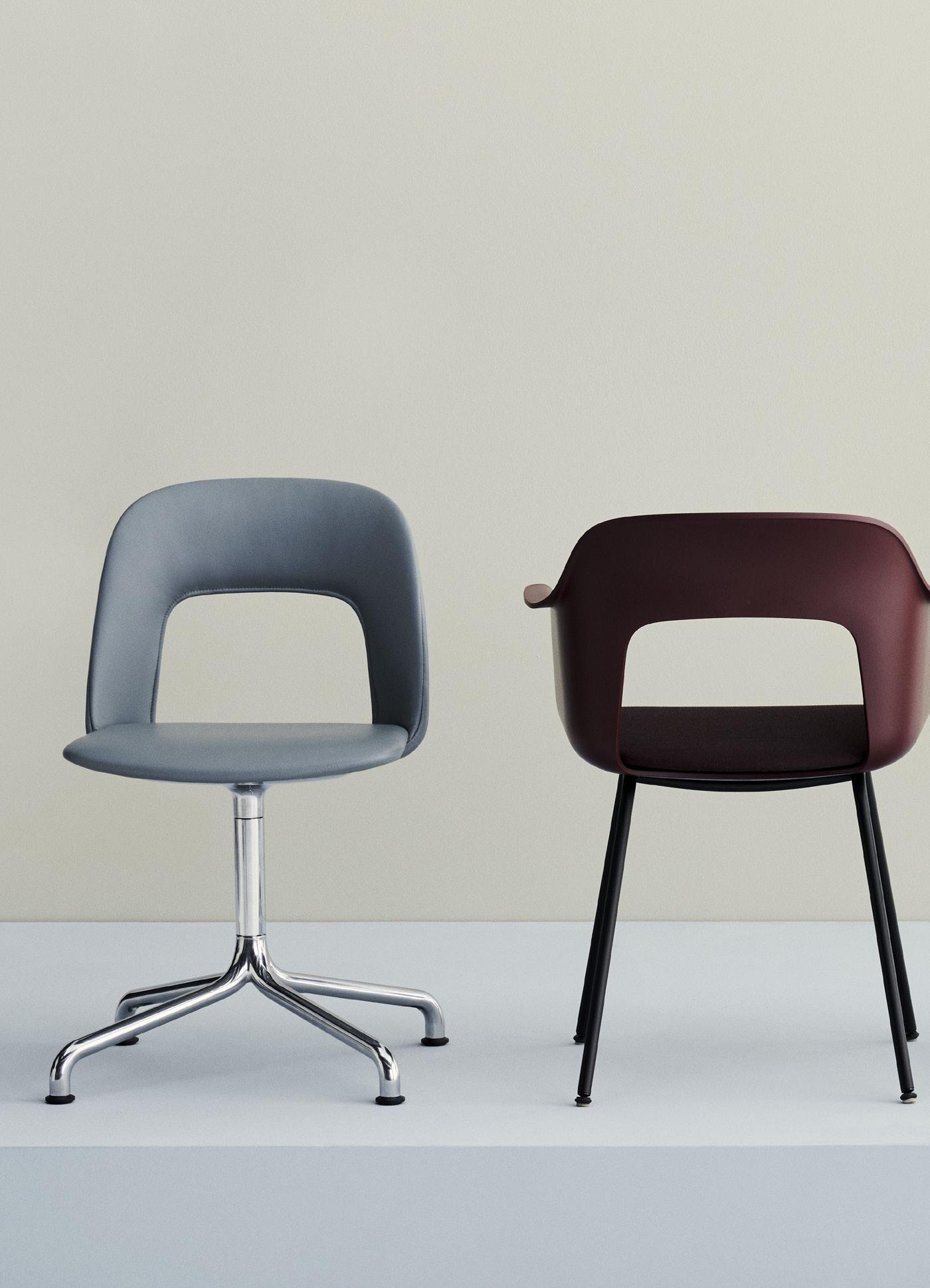

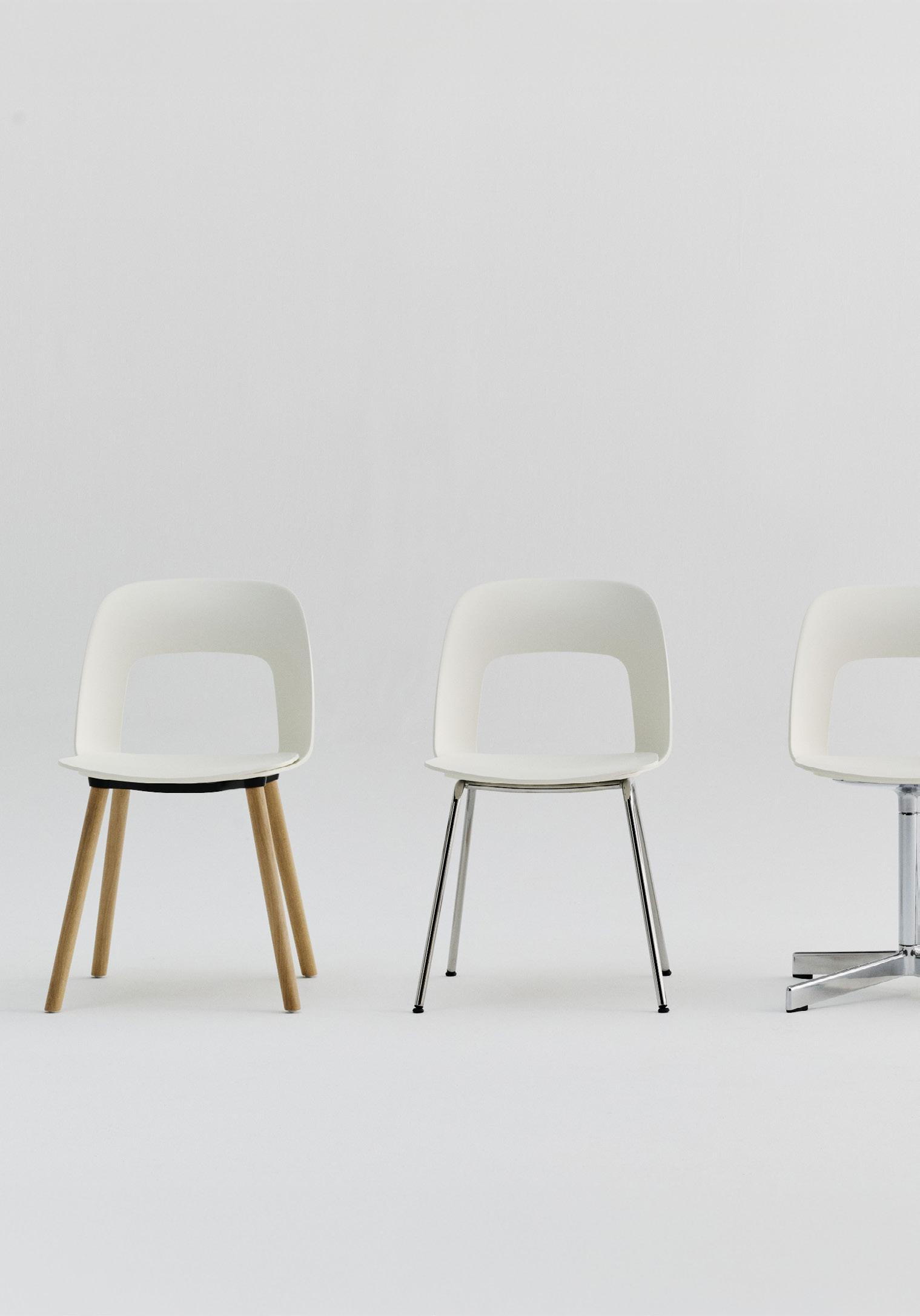

Layout Collection

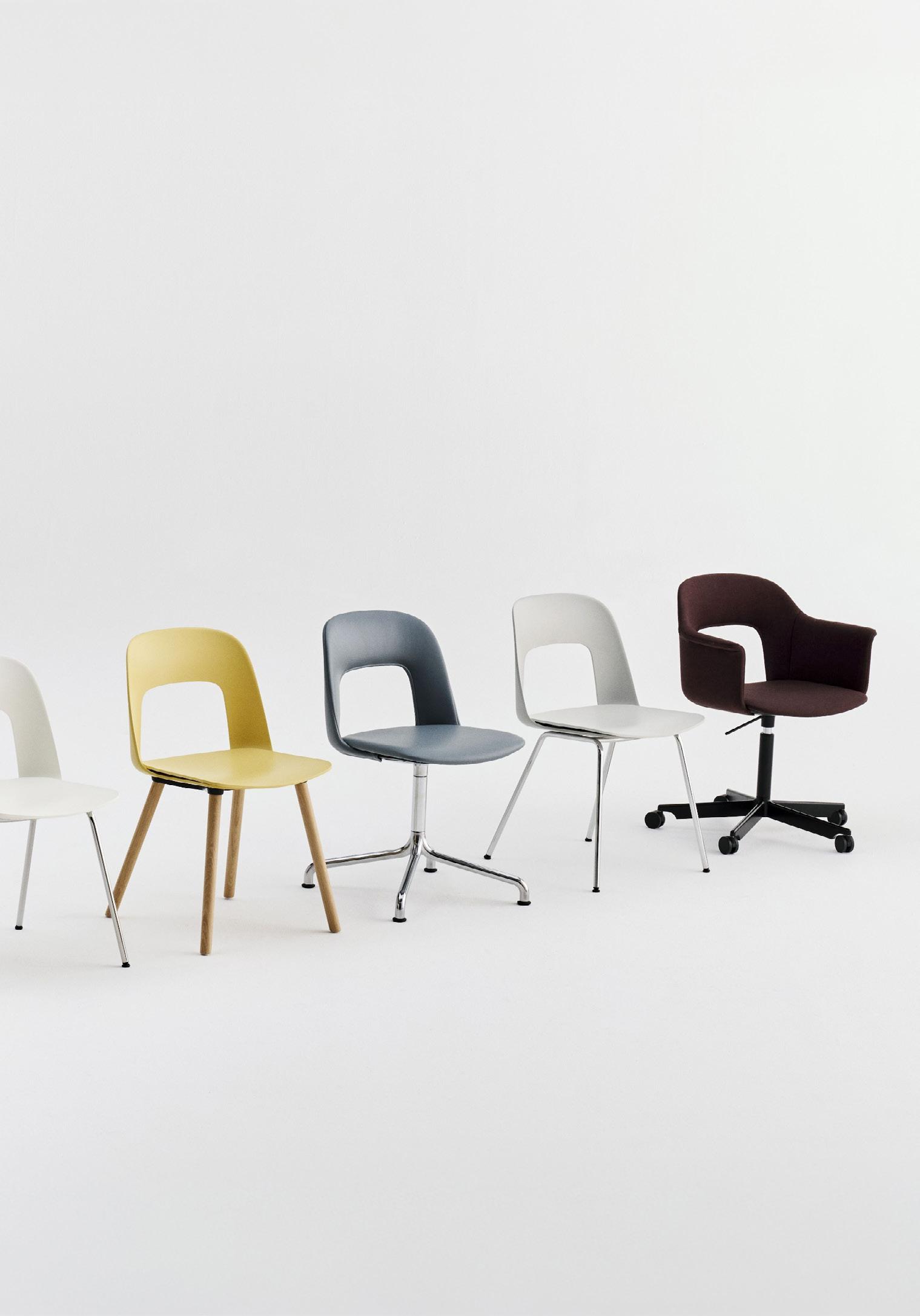

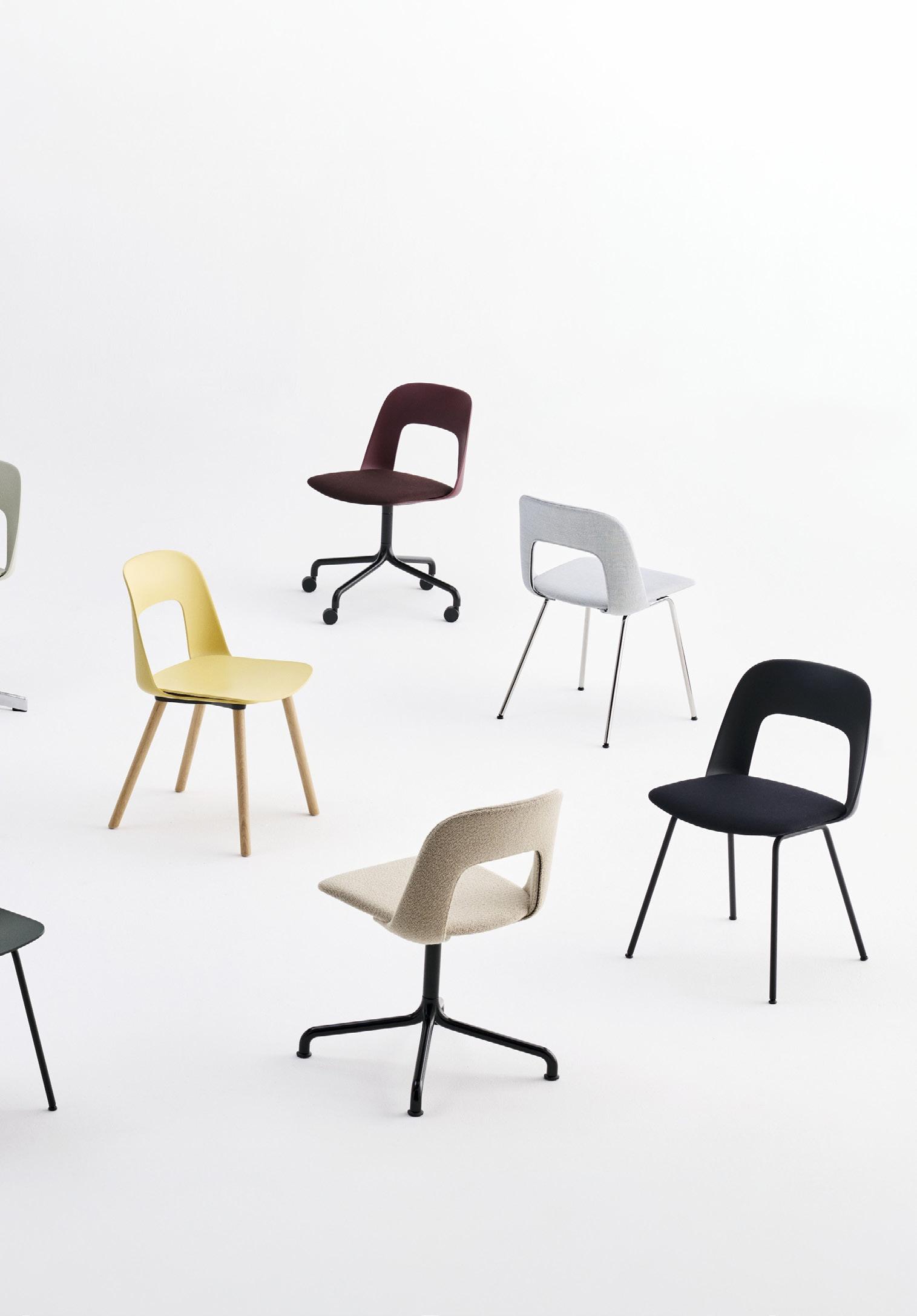

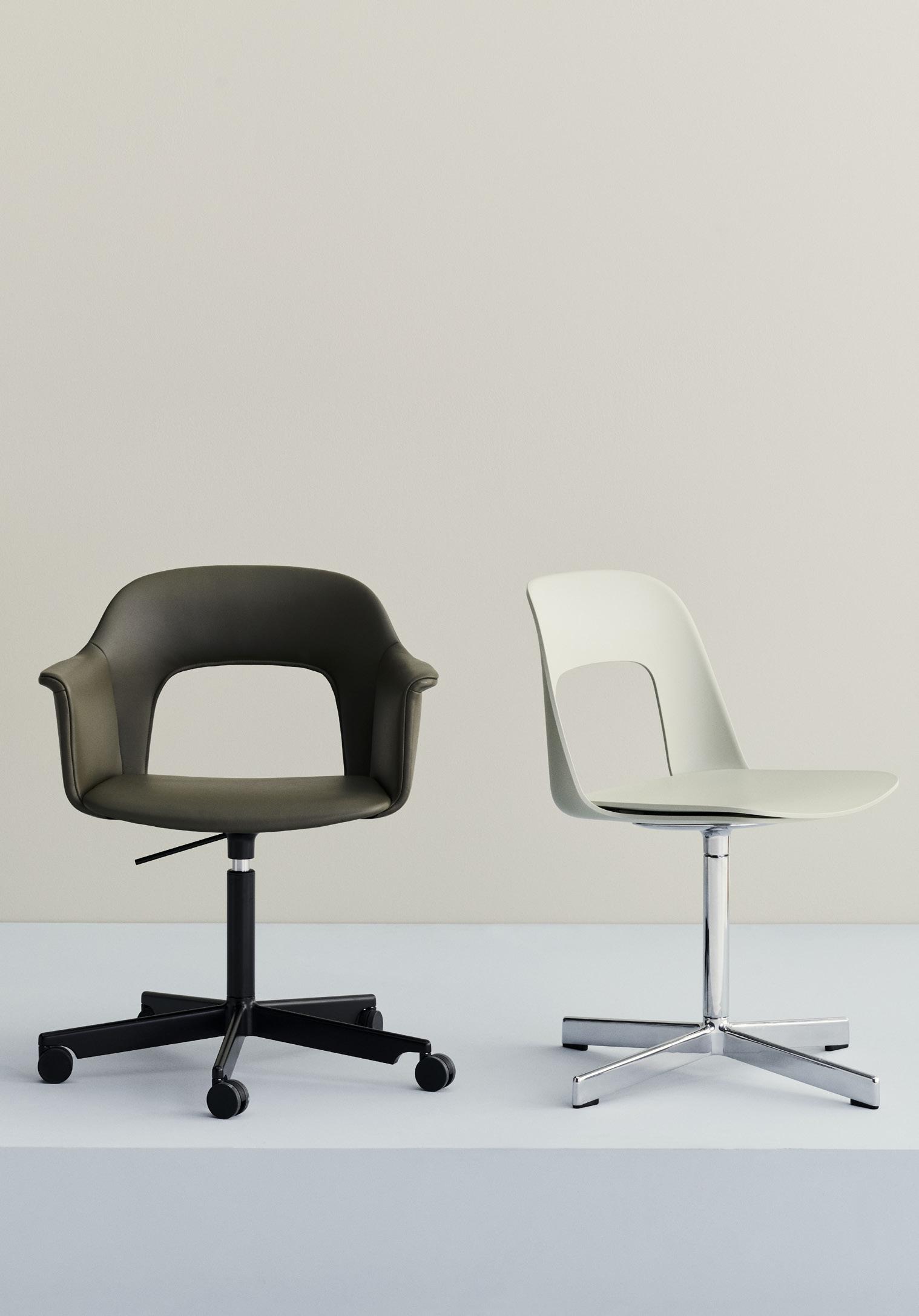

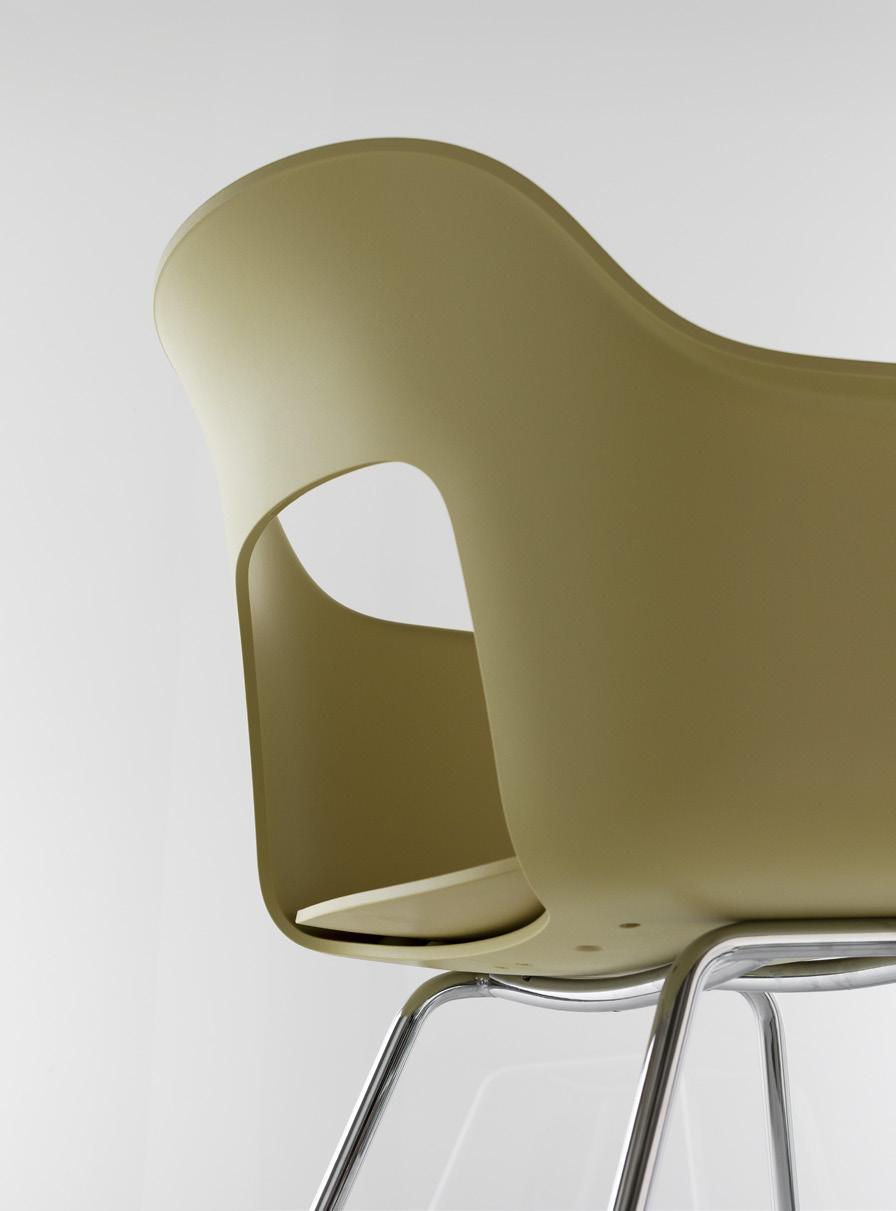

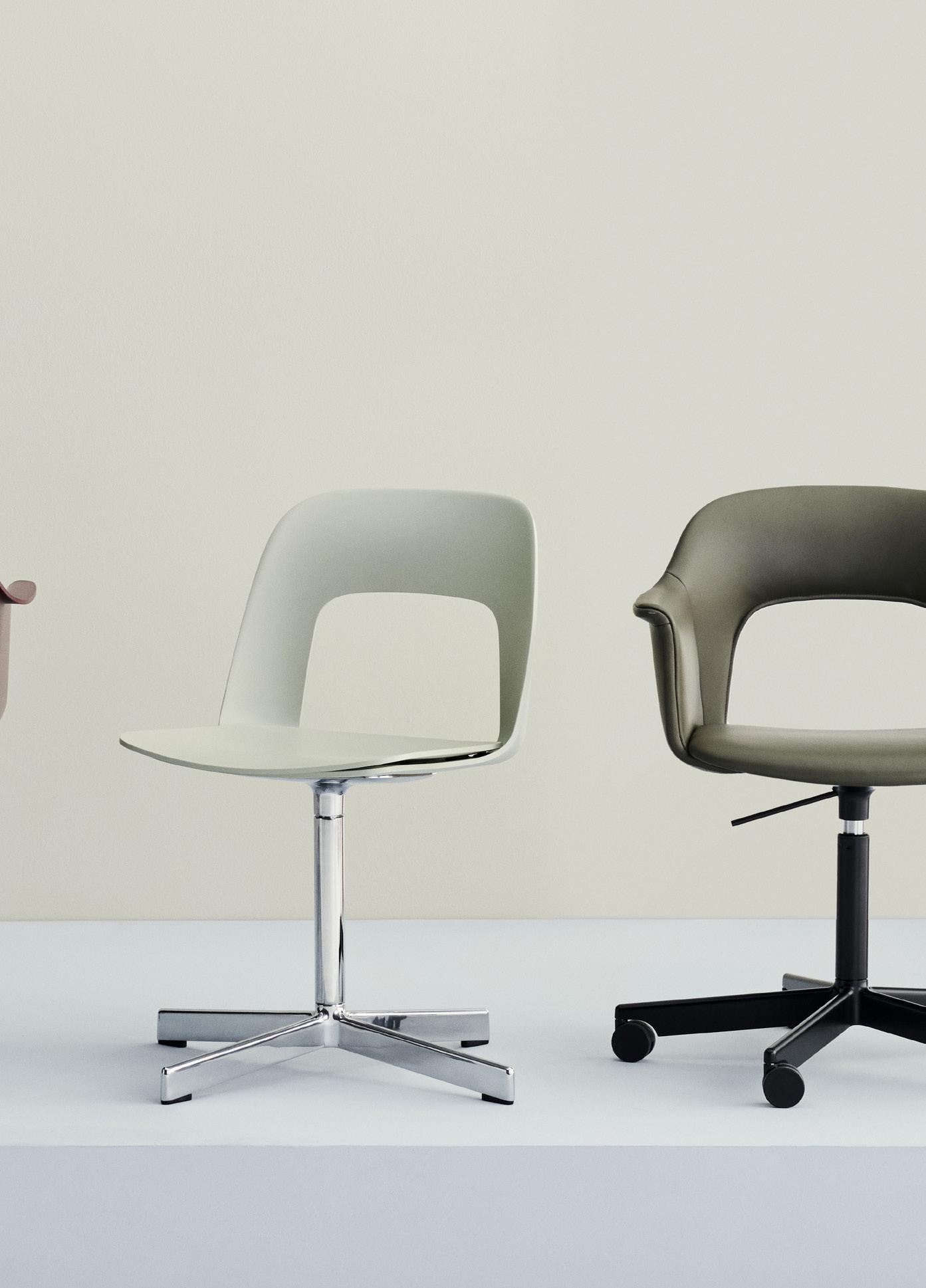

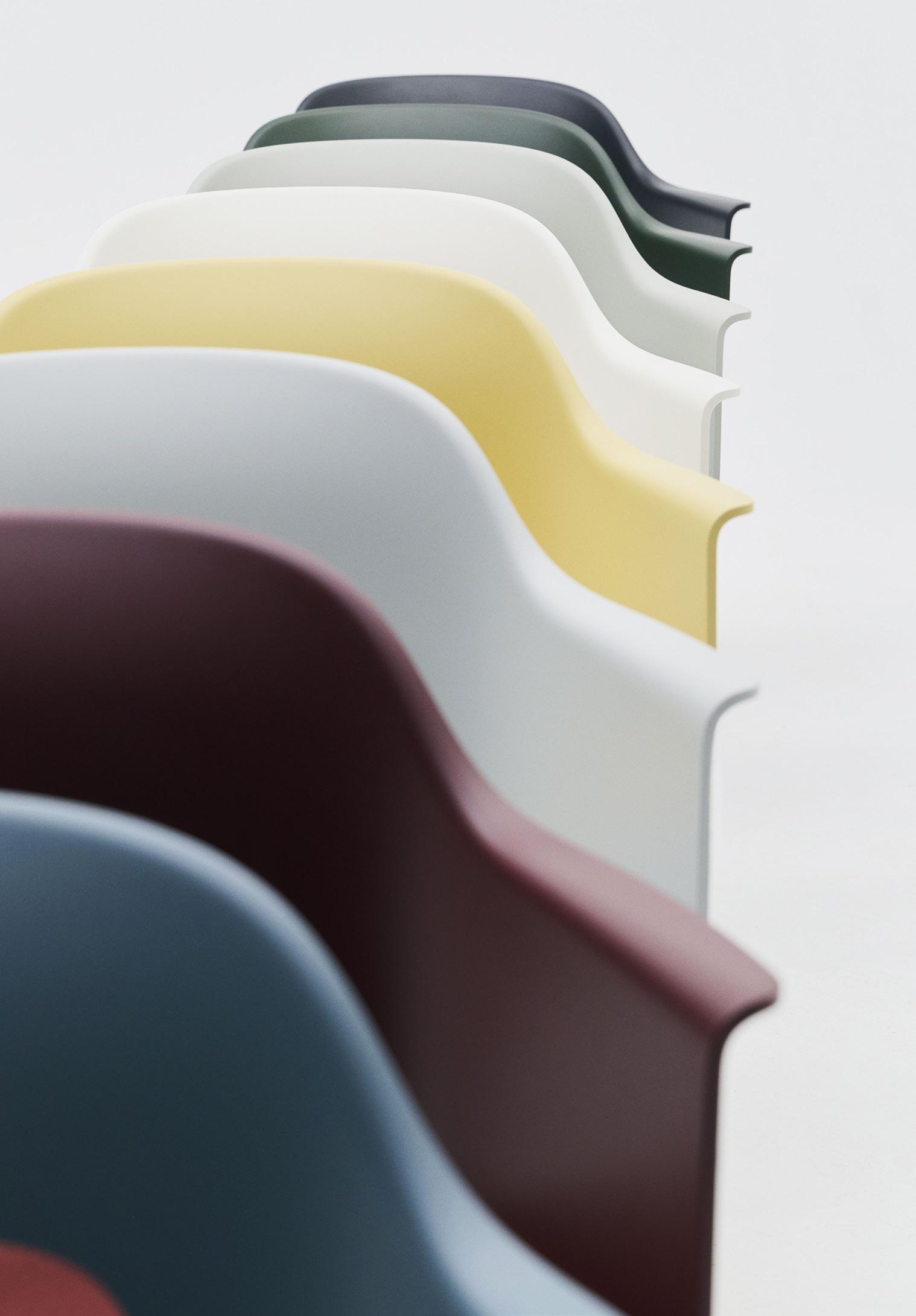

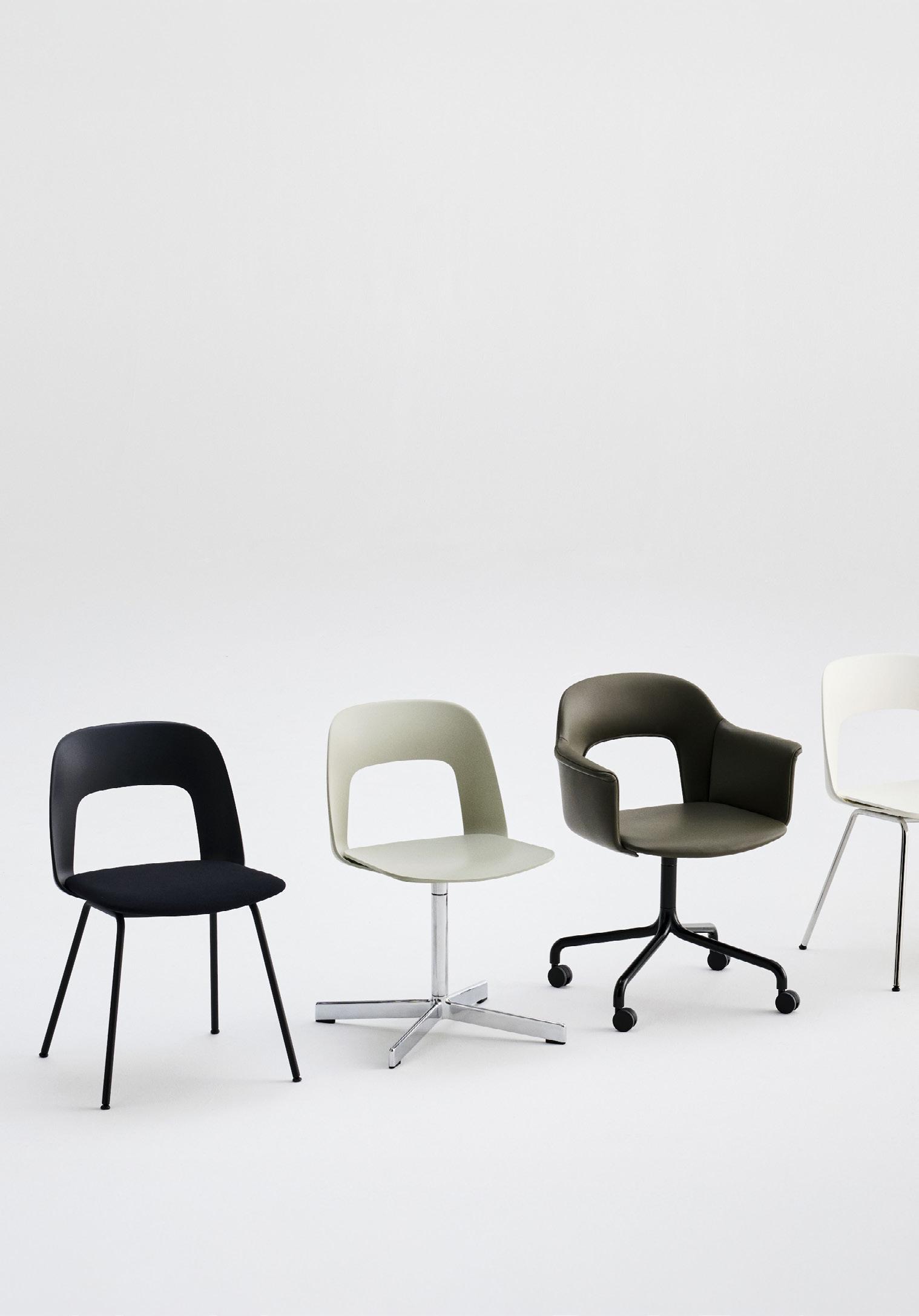

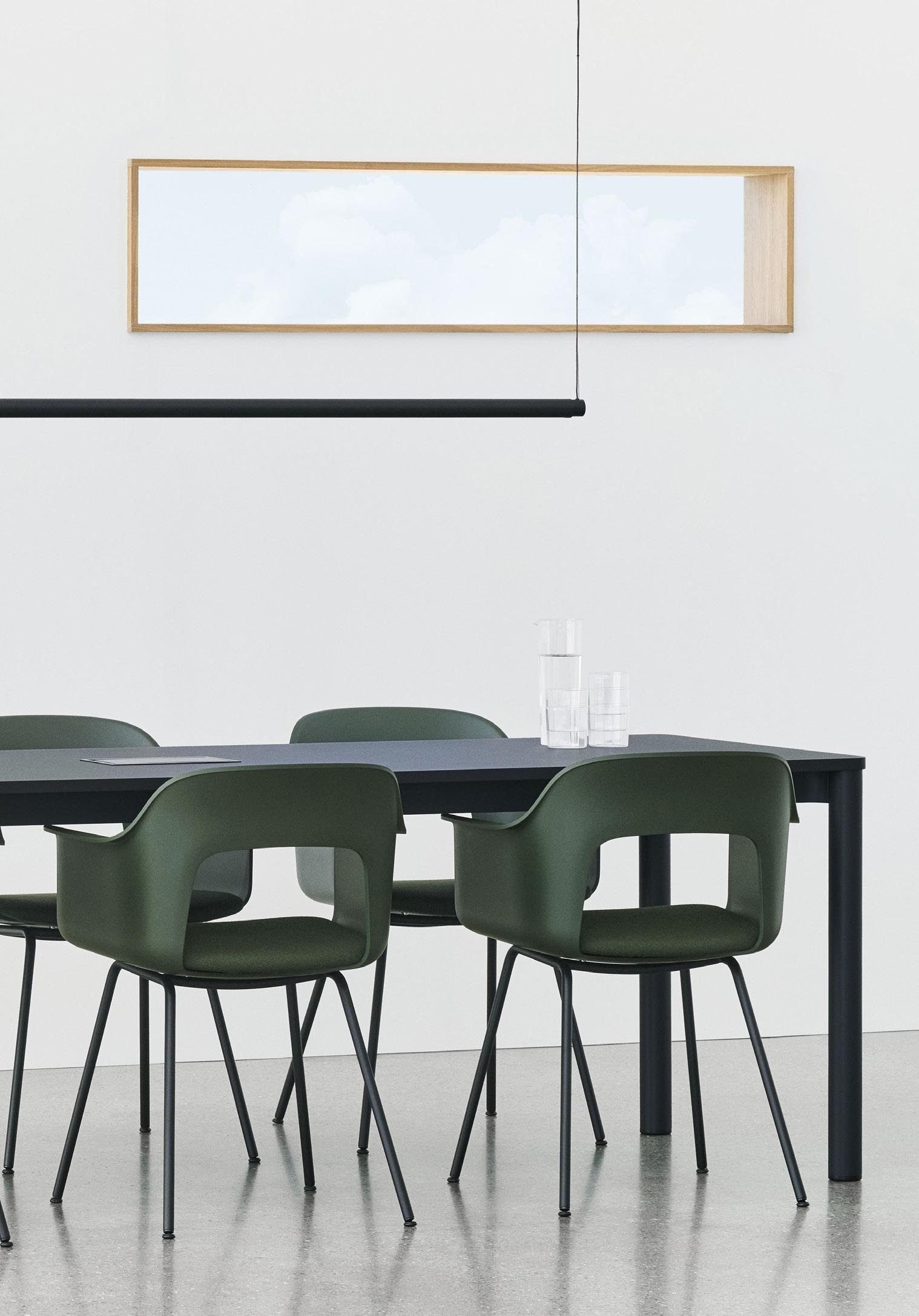

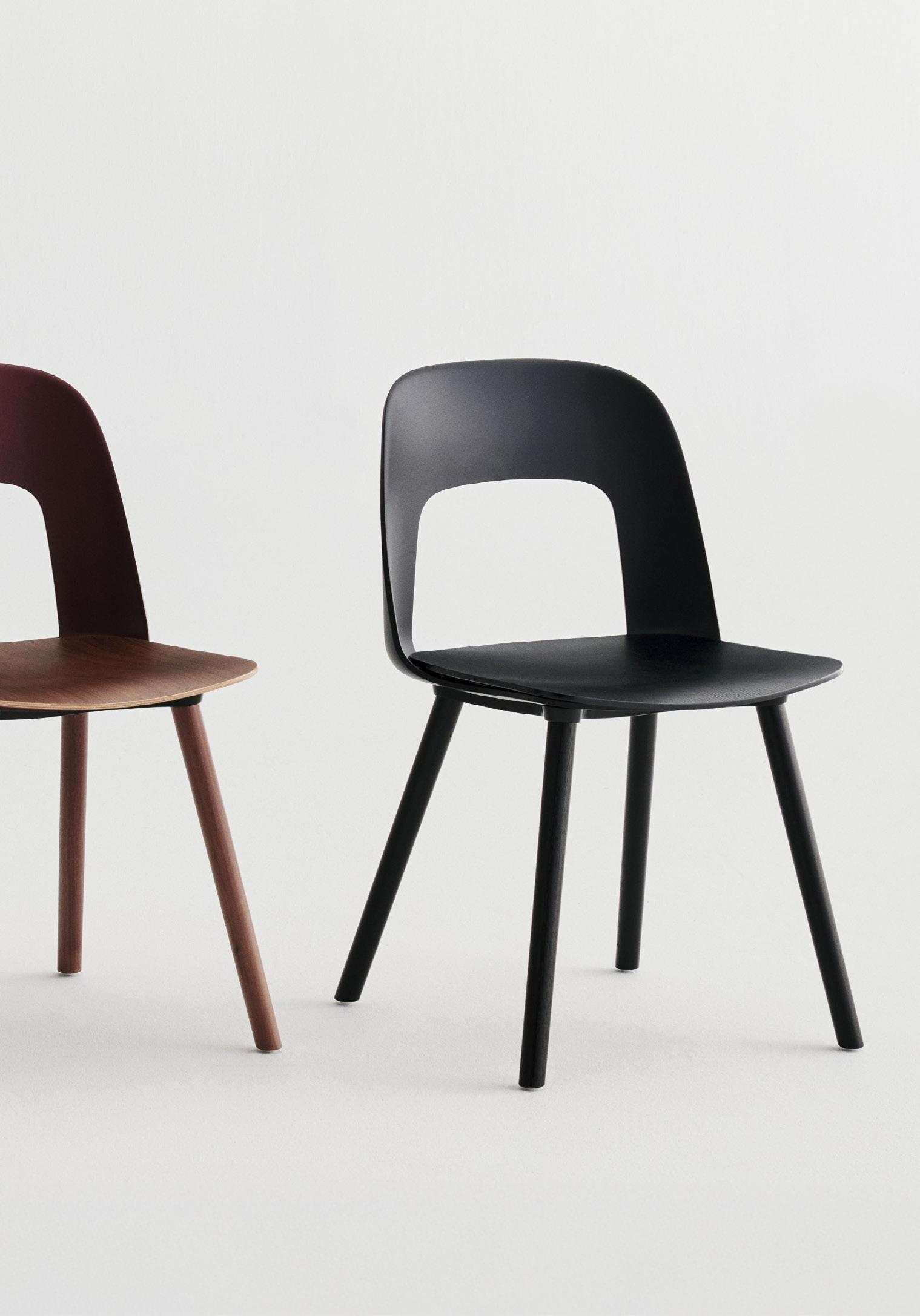

Layout Chair demonstrates a flexible and innovative design, offering a fully customisable range shaped by a commitment to comfort and functionality. Characterised by the opening in the backrest, the design provides greater comfort while giving its appearance a sense of lightness and transparency. Defined by its open-back shell, Layout offers a sense of lightness – both visually and physically –while offering natural, responsive support. With countless combinations of shells, bases, and legs, it transitions effortlessly between offices, public spaces, and domestic settings – delivering comfort, flexibility, and a refined expression wherever it is placed.
Layout Chair
Layout Armchair
Covers for Layout
Biscotti

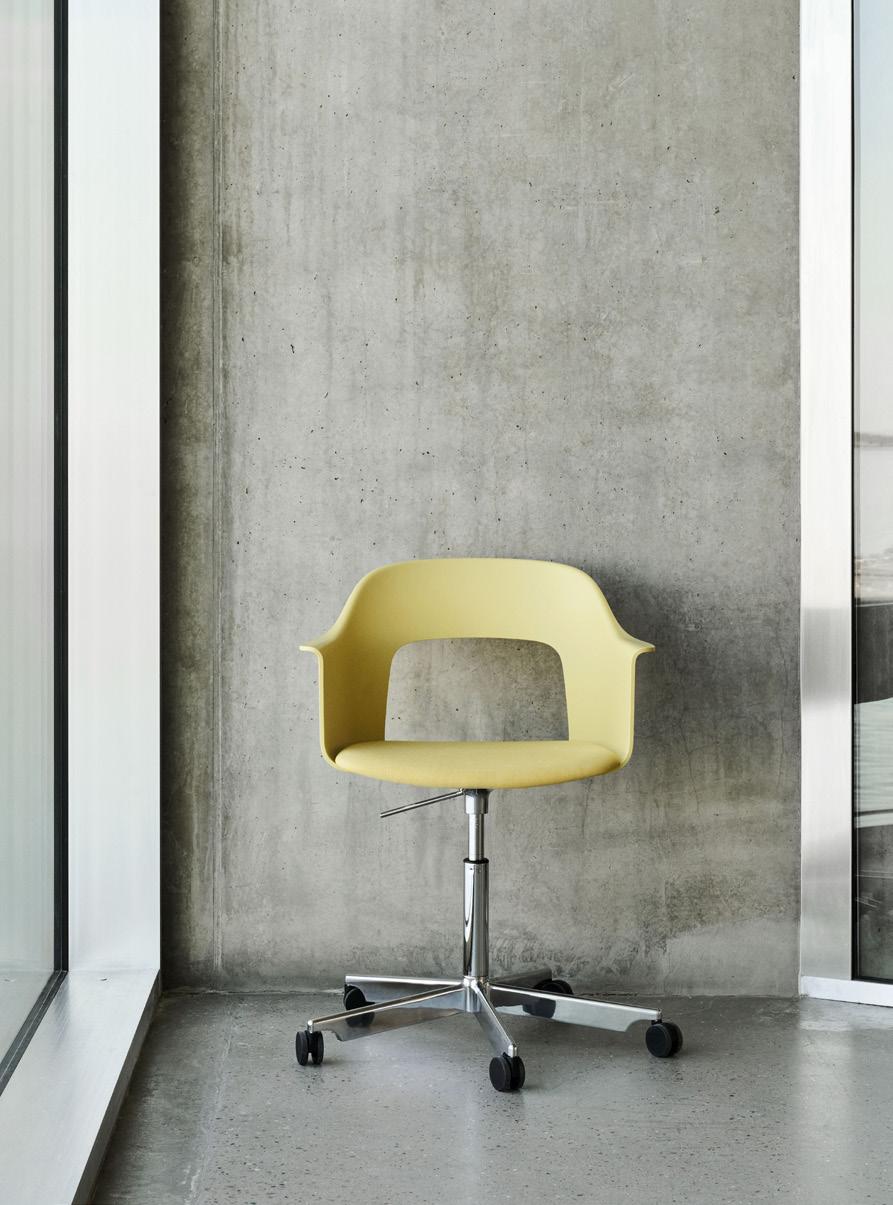

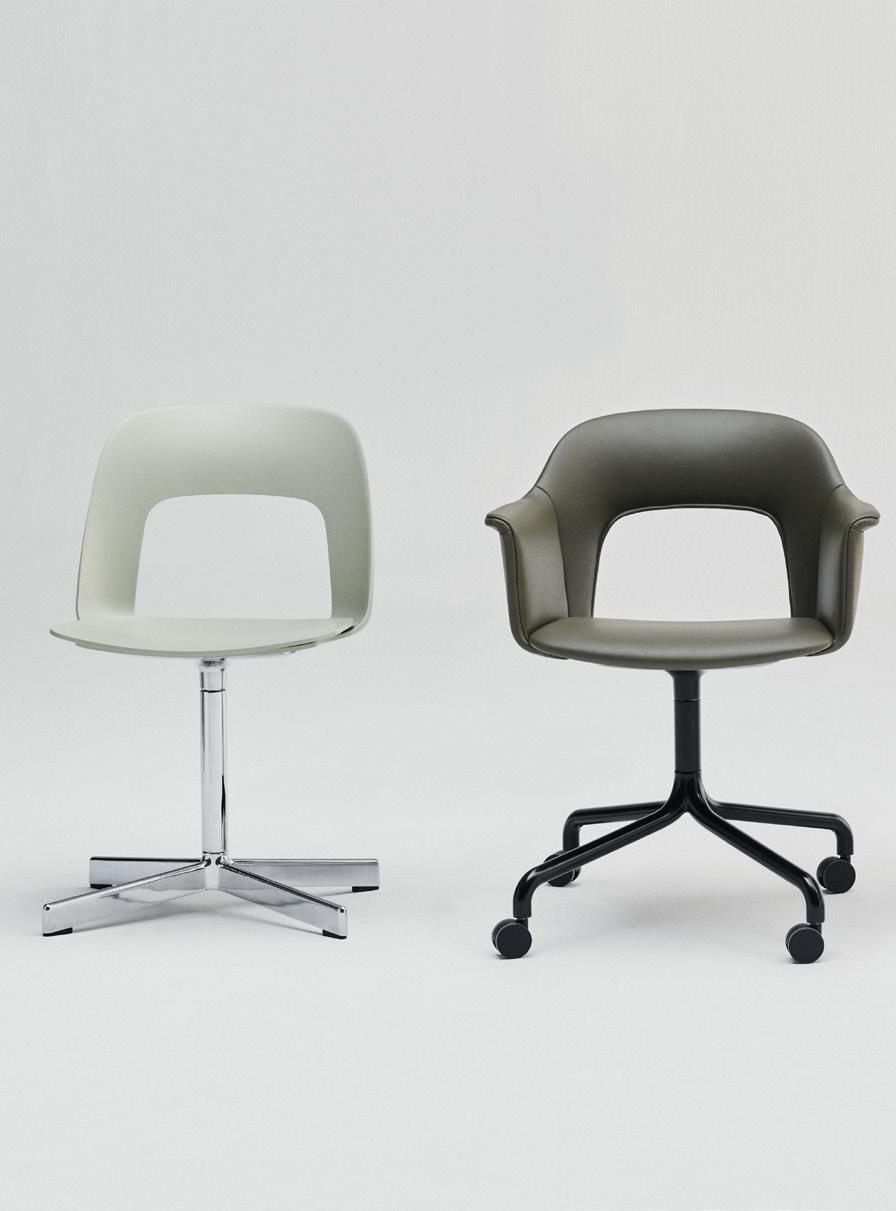

5-Star Swivel Base
5-Star
Bordeaux Bottle green Ocean Pastel green

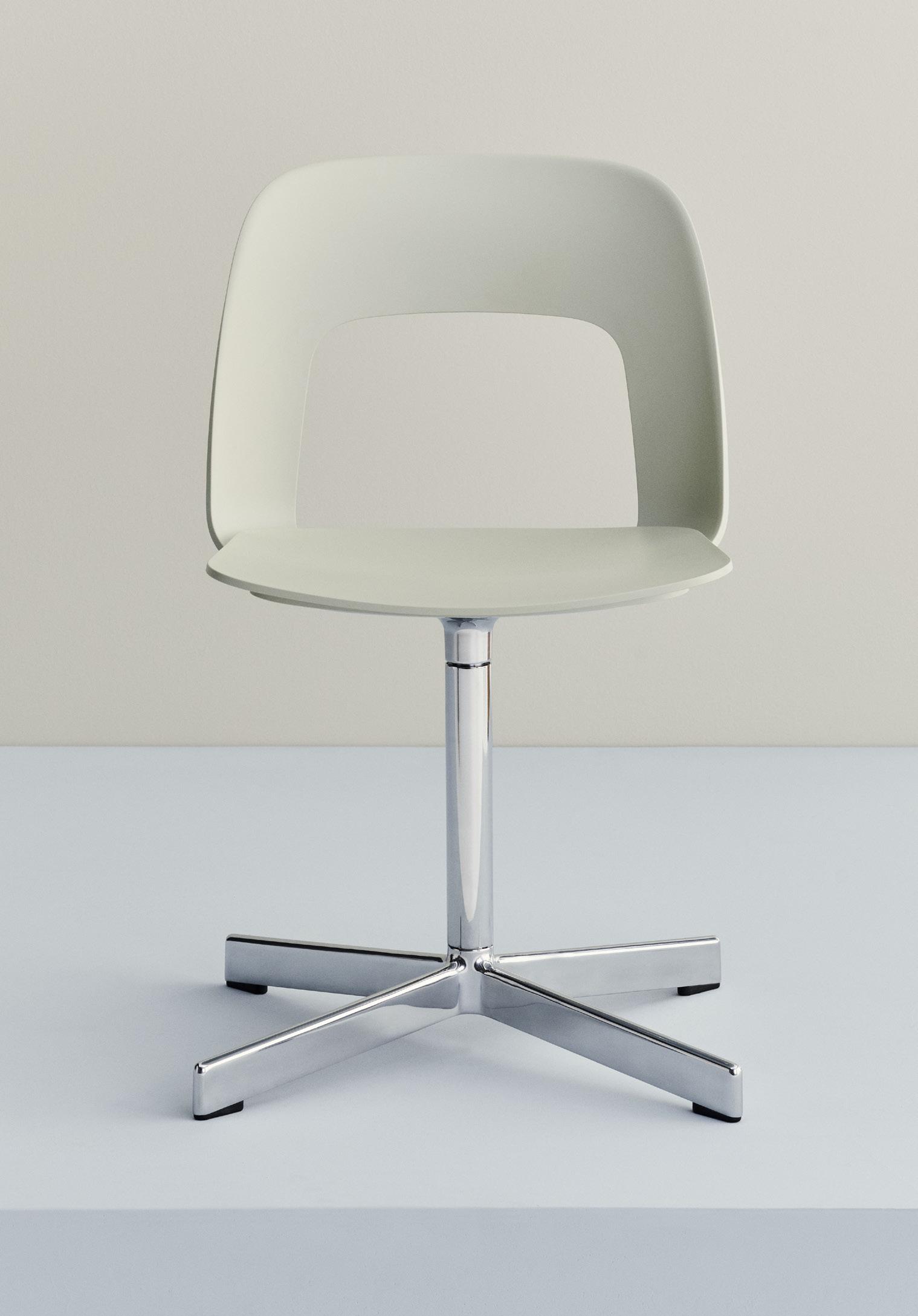

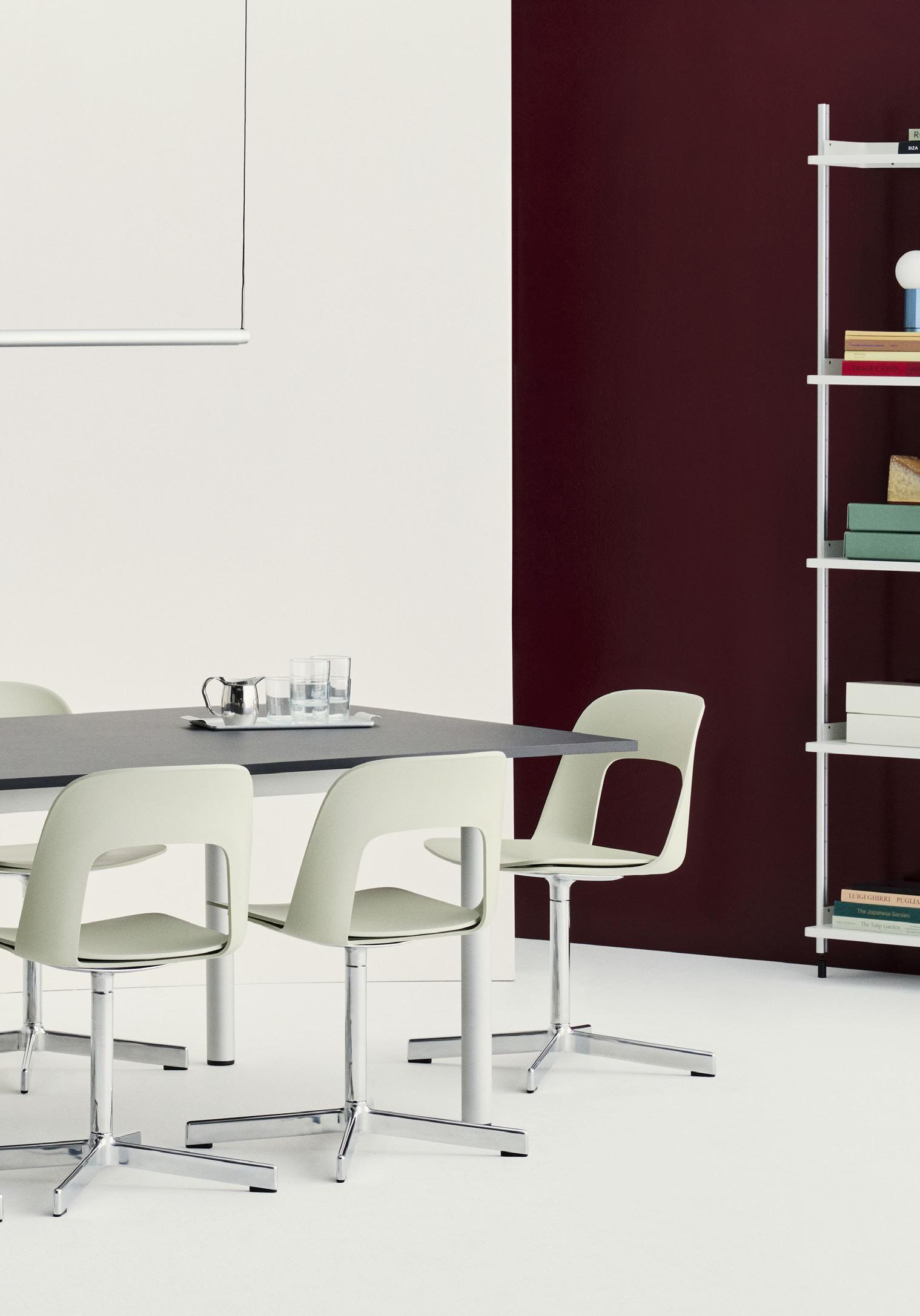

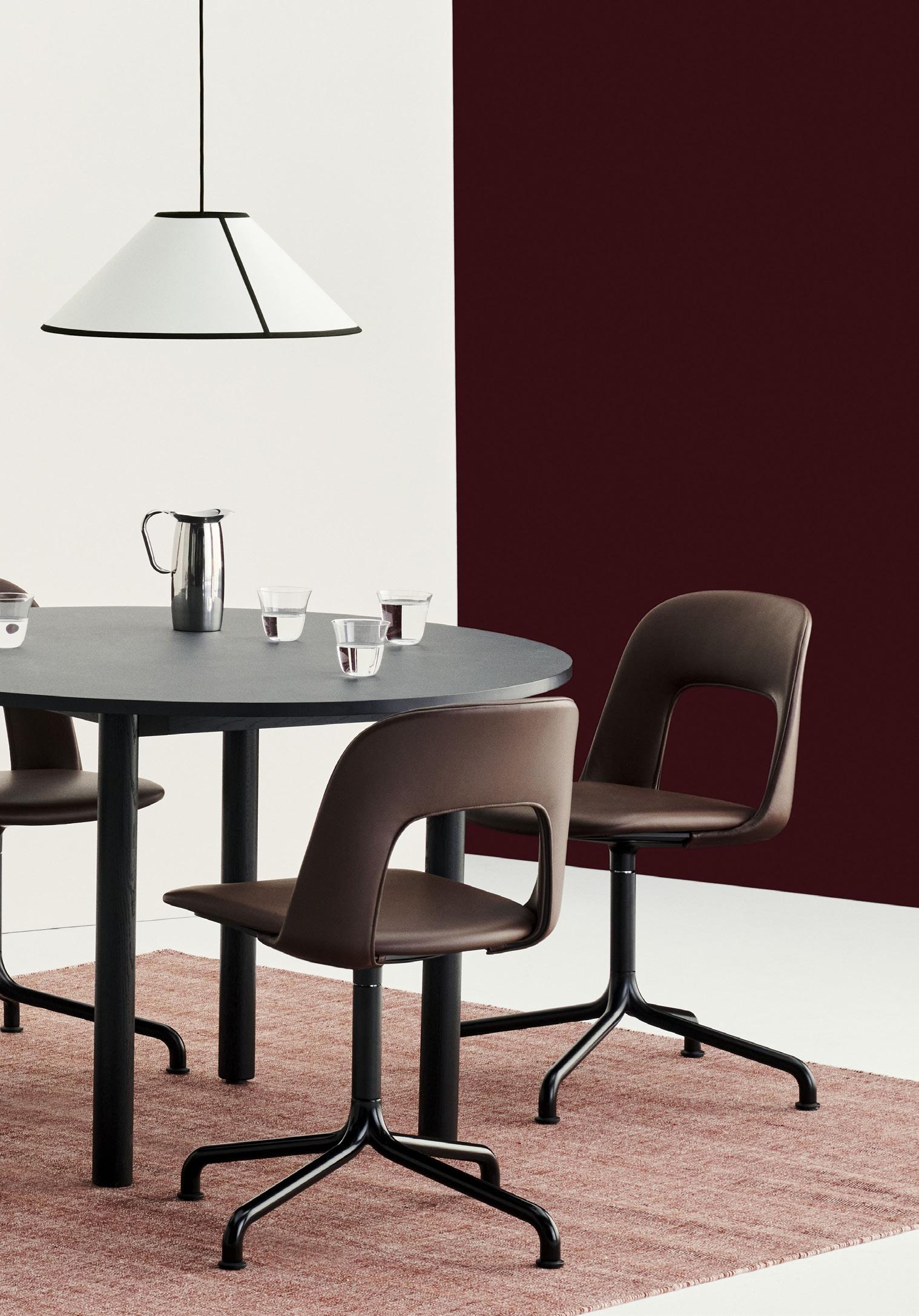

4-Star Swivel Base
4-Star Swivel Base
Arc Base With Wheels
Arc Base With Wheels
Design by Julien Renault
French designer Julien Renault blends rational methods with artistic freedom in his approach to design. Based in Brussels, he draws inspiration from everyday life, transforming the ordinary into something beautiful. His work for numerous international brands reflects the deep connection between objects and their environments. For HAY, Julien has designed the Pastis Table and Chair series, the Layout Chair series, the Compass Lamp collection, and the Deville collection.
Product Sustainability

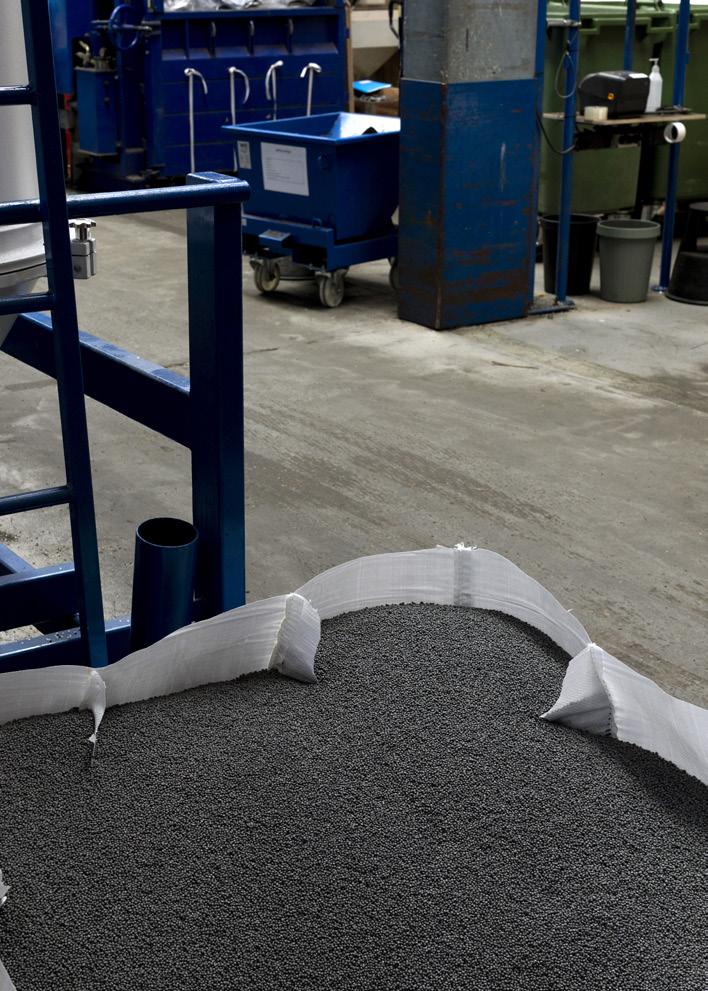

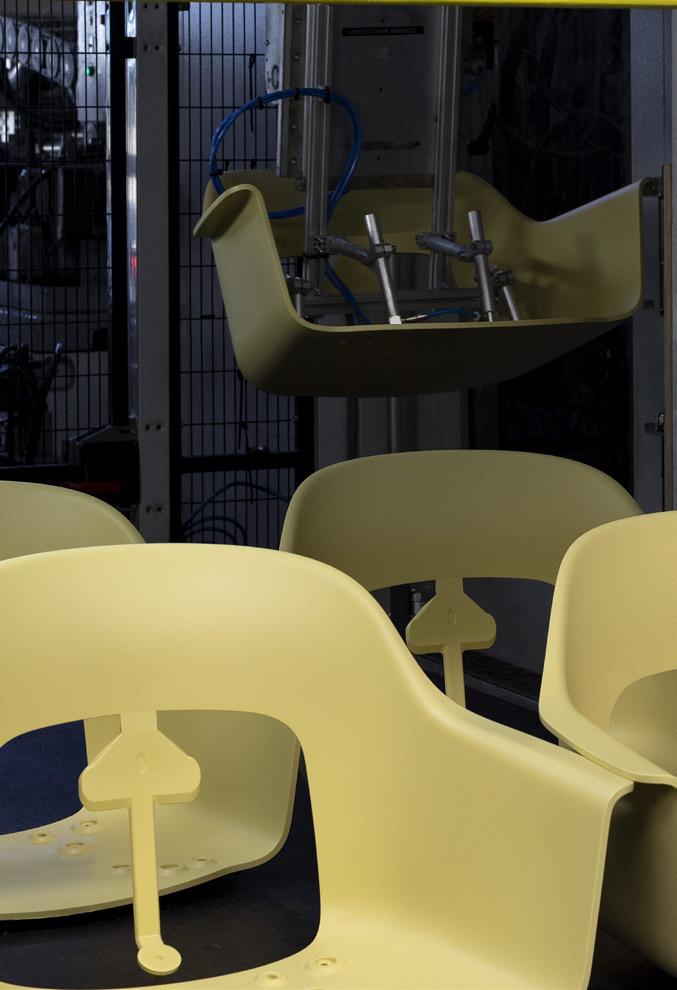

Made from at least 96% post-consumer recycled plastic sourced from European household waste. The plastic is processed into recycled pellets and reused in the production of the chair’s shell.
Link to Sustainability Product Attributes Overview
EU Ecolabel
The Layout Collection carries the EU Ecolabel – one of Europe’s most rigorous environmental certifications, evaluating products across the full product life cycle, including materials, chemicals, durability, and repairability. For upholstered versions, full certification is achieved when specified with an EU Ecolabel-certified textile.
FSC certification
Layout Chairs with wooden parts are FSC™-certified (FSC-C148805). FSC™ certification ensures responsible forestry with environmental, social, and economic safeguards throughout the supply chain, covering the wooden components of the chair.

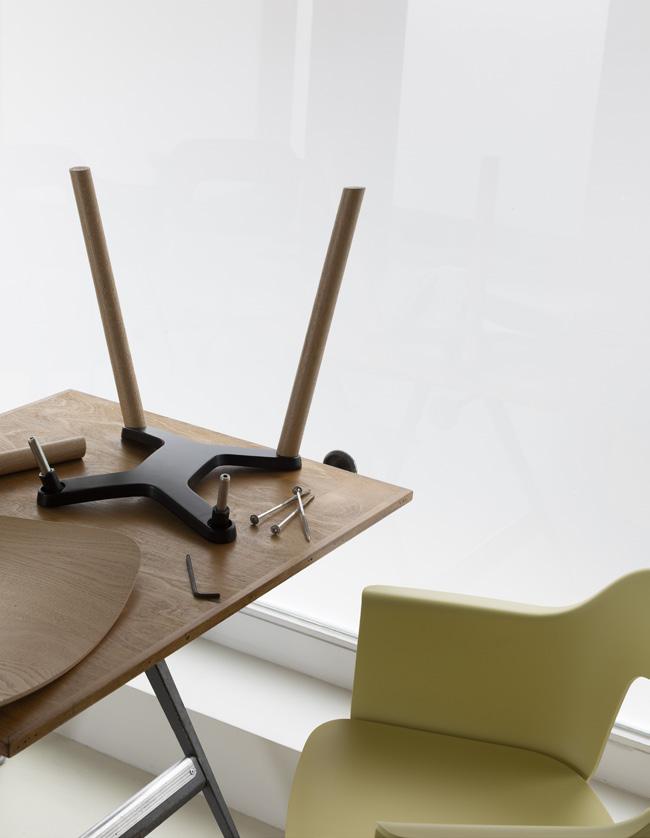

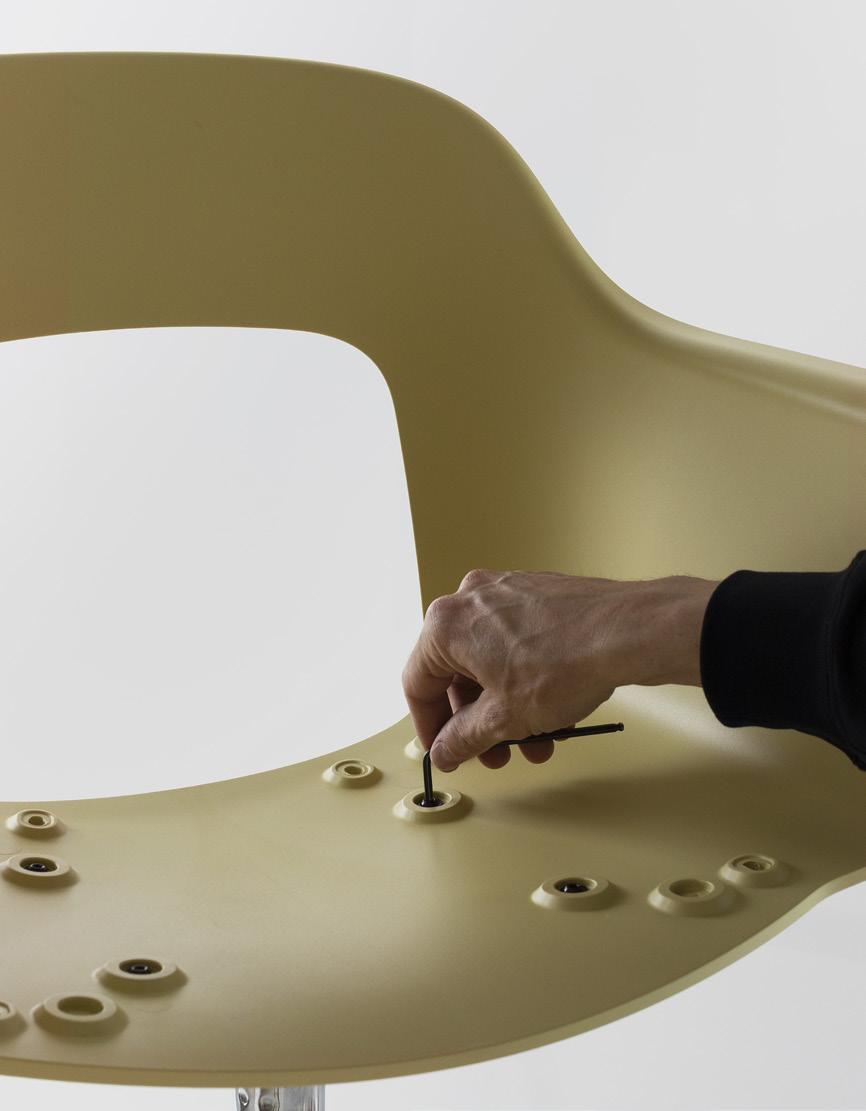

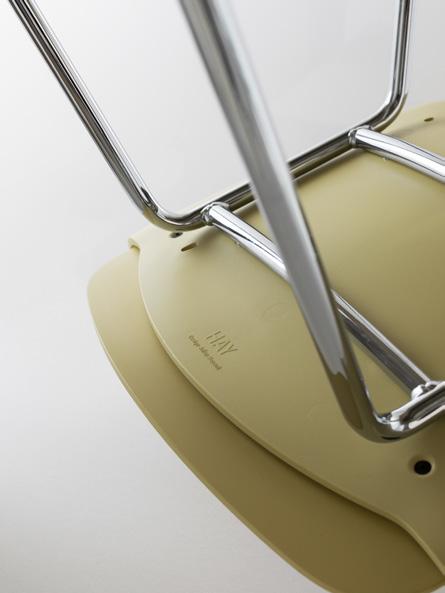

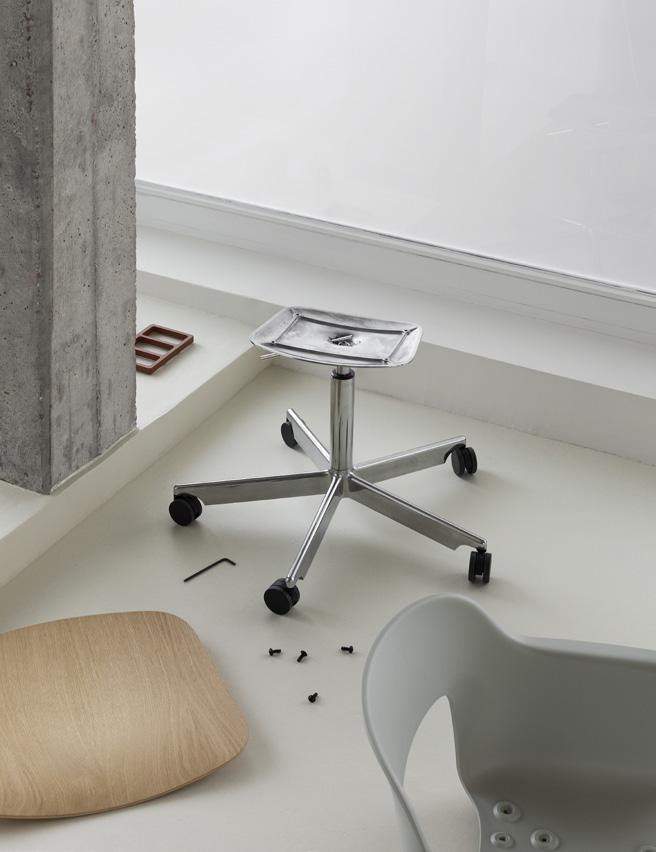

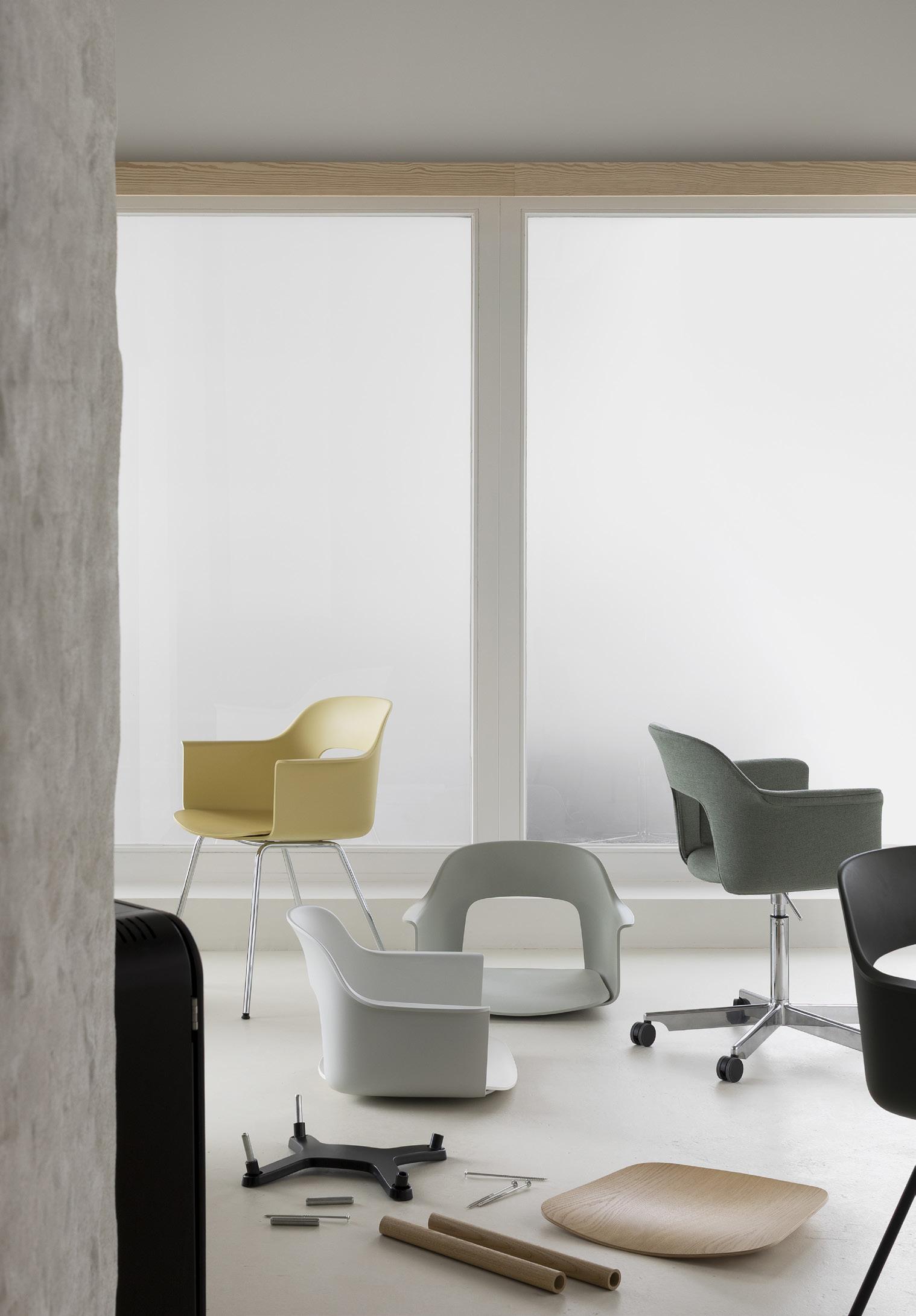

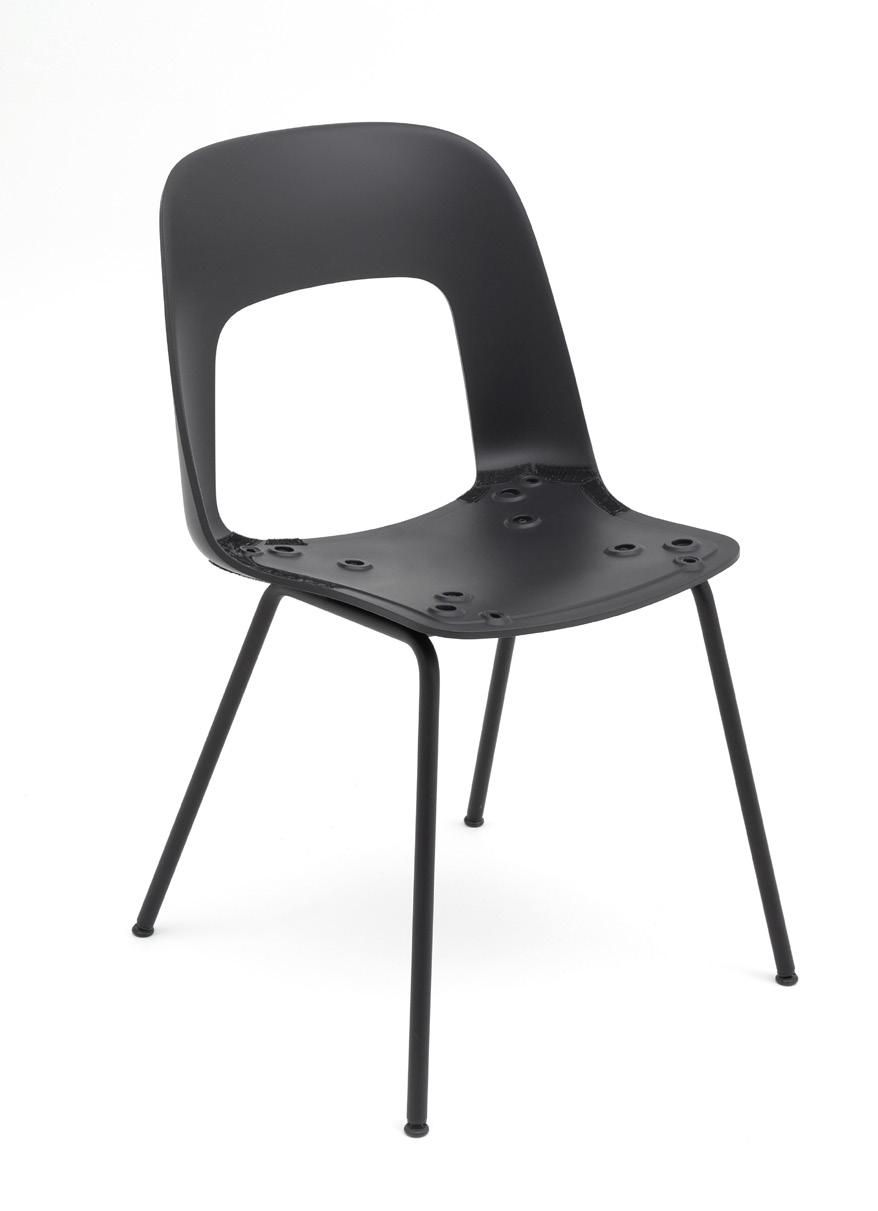

Designed for Disassembly
True to design for disassembly principles, all Layout designs can be renewed and refurbished throughout their lifecycle. All components can be removed and replaced to extend the product’s usable lifespan well into the future.
Link to Dissasembly and Instruction Videos

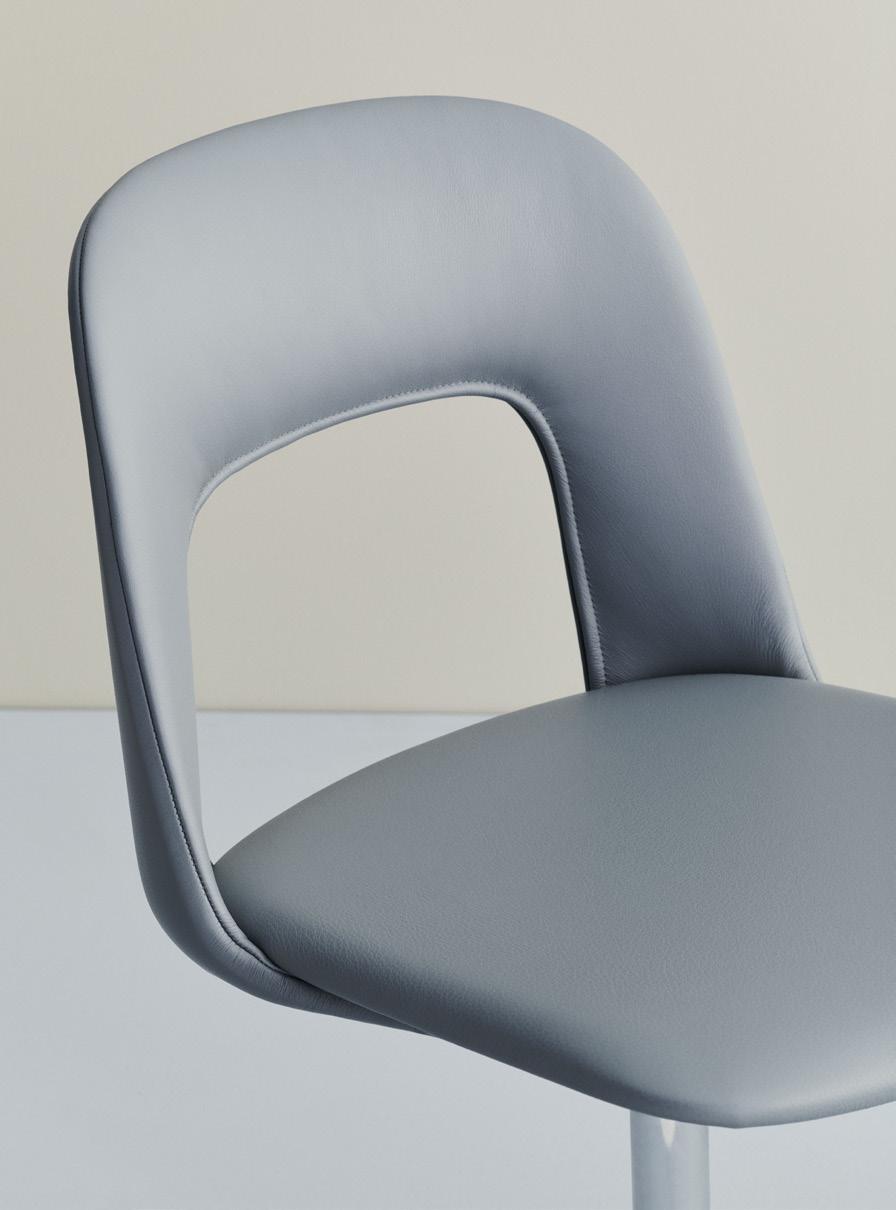

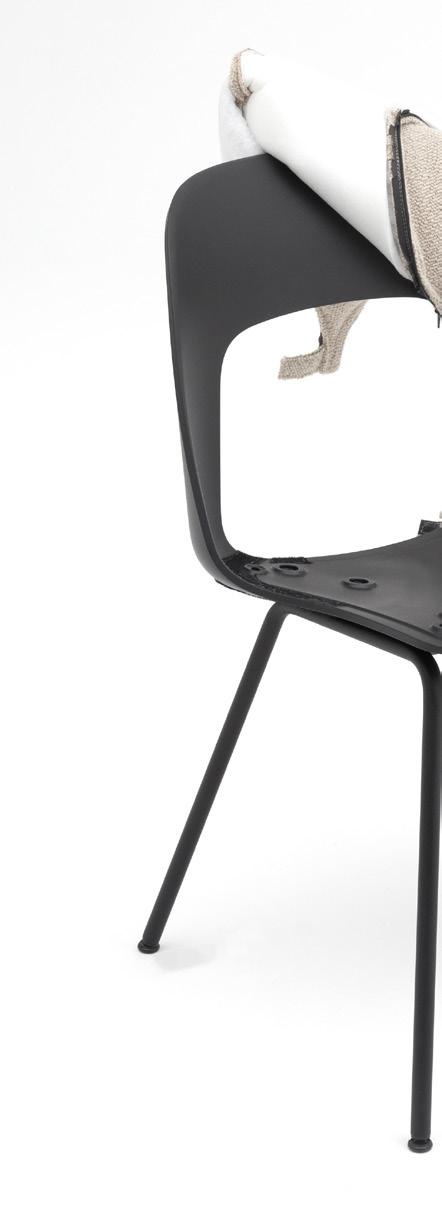

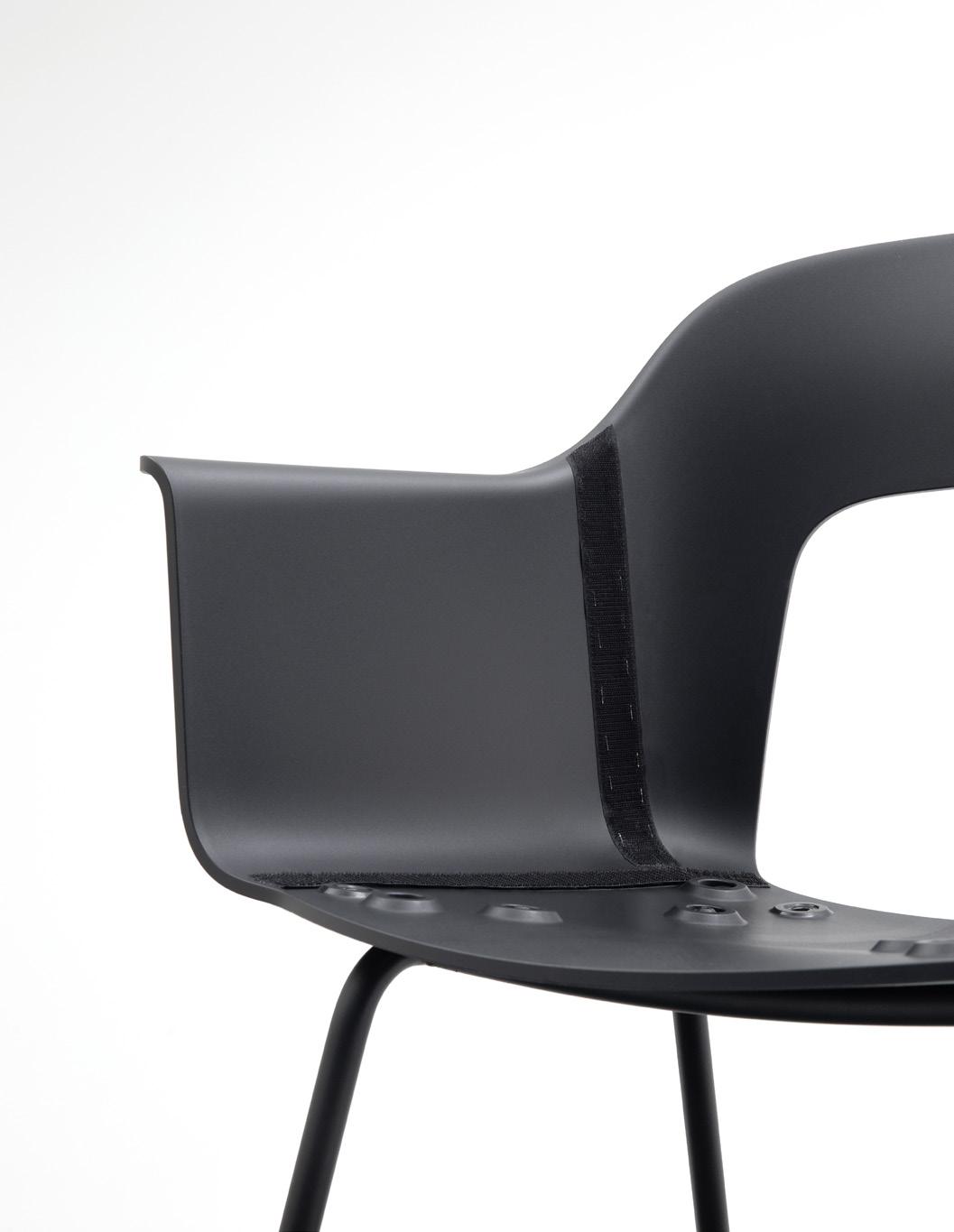

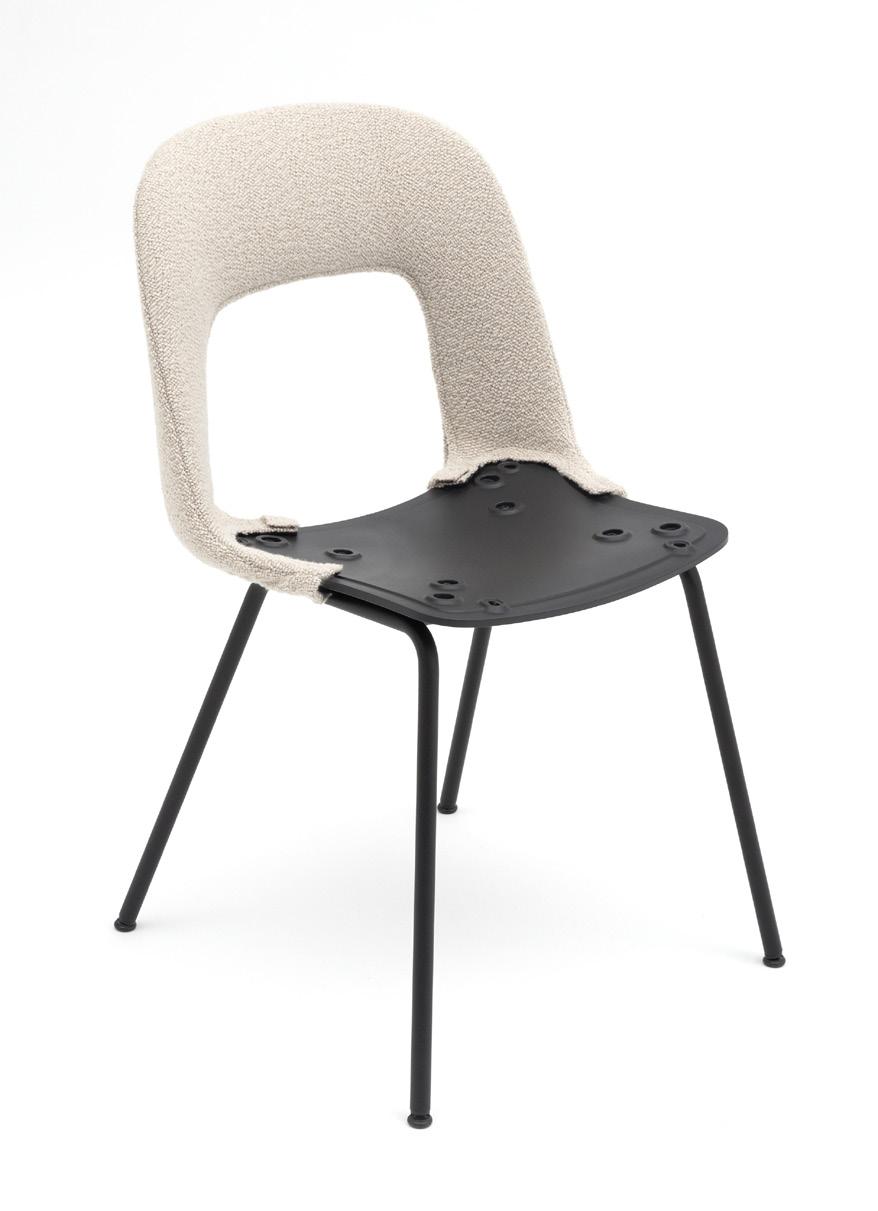

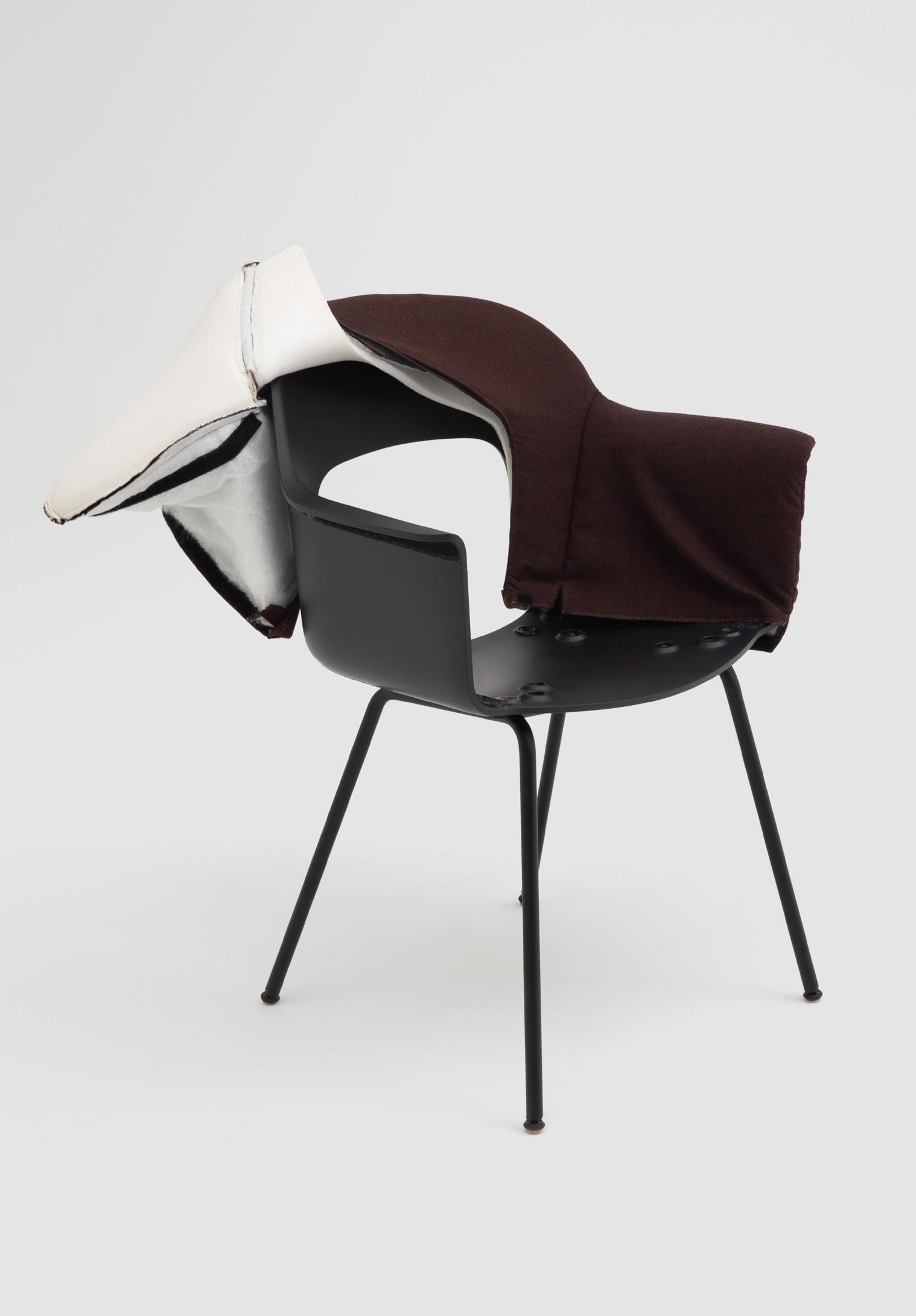

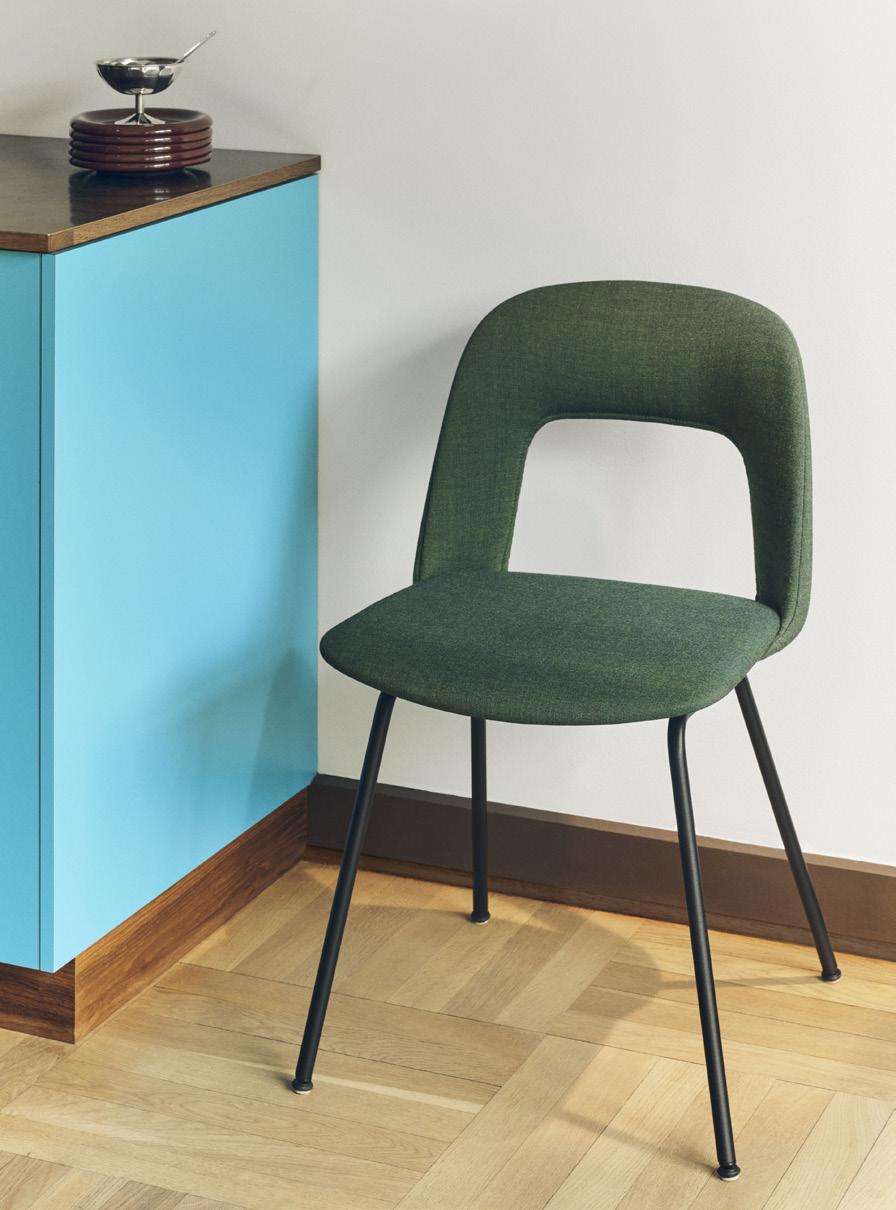

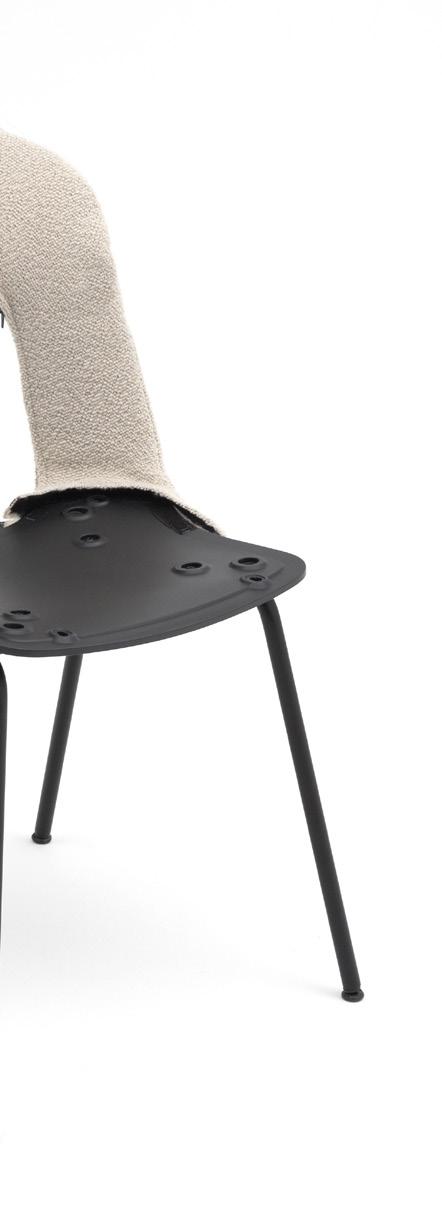

Removable Cover
The replaceable cover enables replacement to refresh and prolong the product’s functional life, making refurbishment simple and extending its lifespan. Upholstered versions feature a replaceable cover that enables EU Ecolabel certification when specified with a wide range of approved textiles.
and
concealed zipper beneath the seat allow the cover to be removed from the shell for cleaning or replacement.*
Velcro fastenings
a
Link to Dissasembly and Instruction Videos

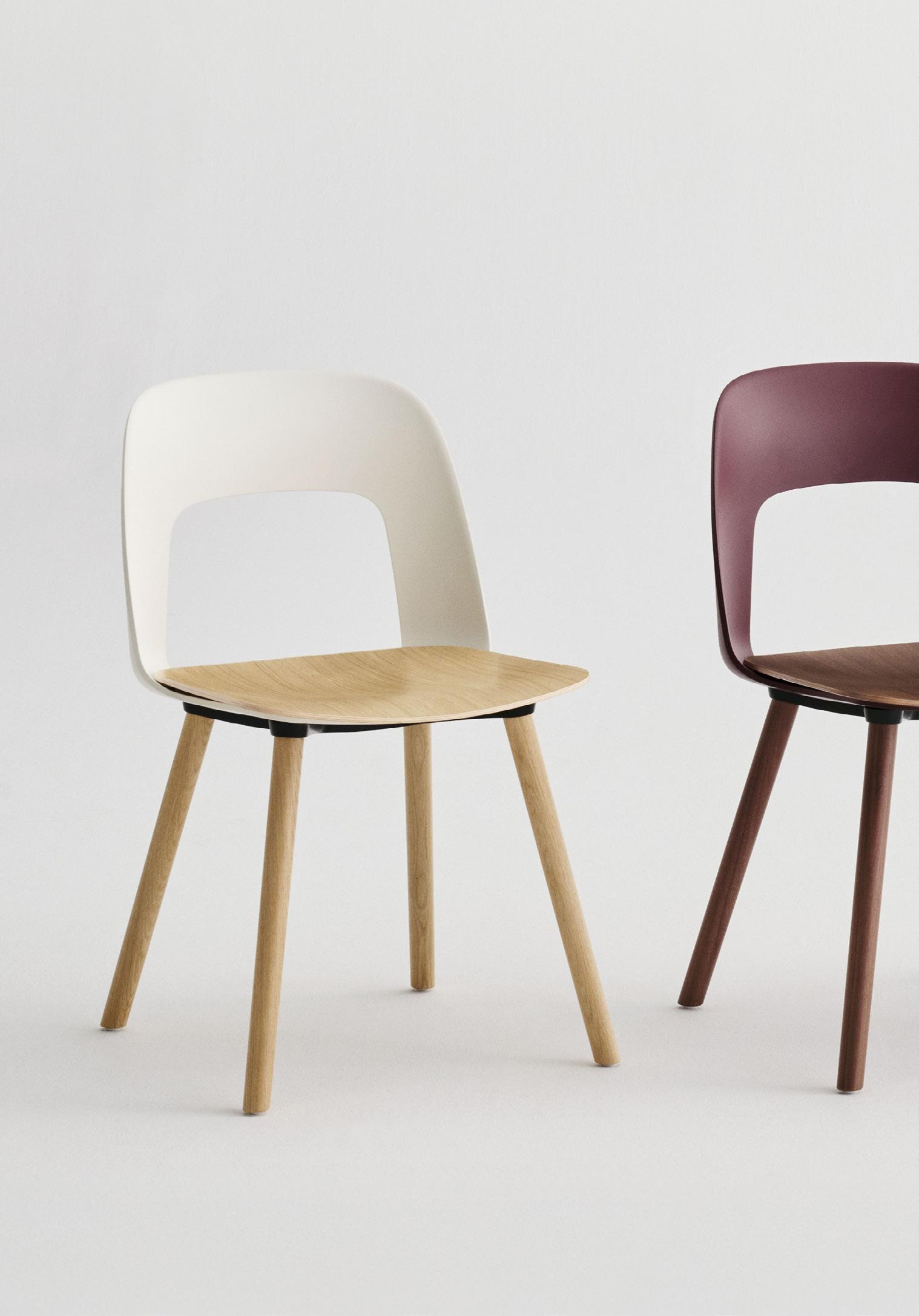

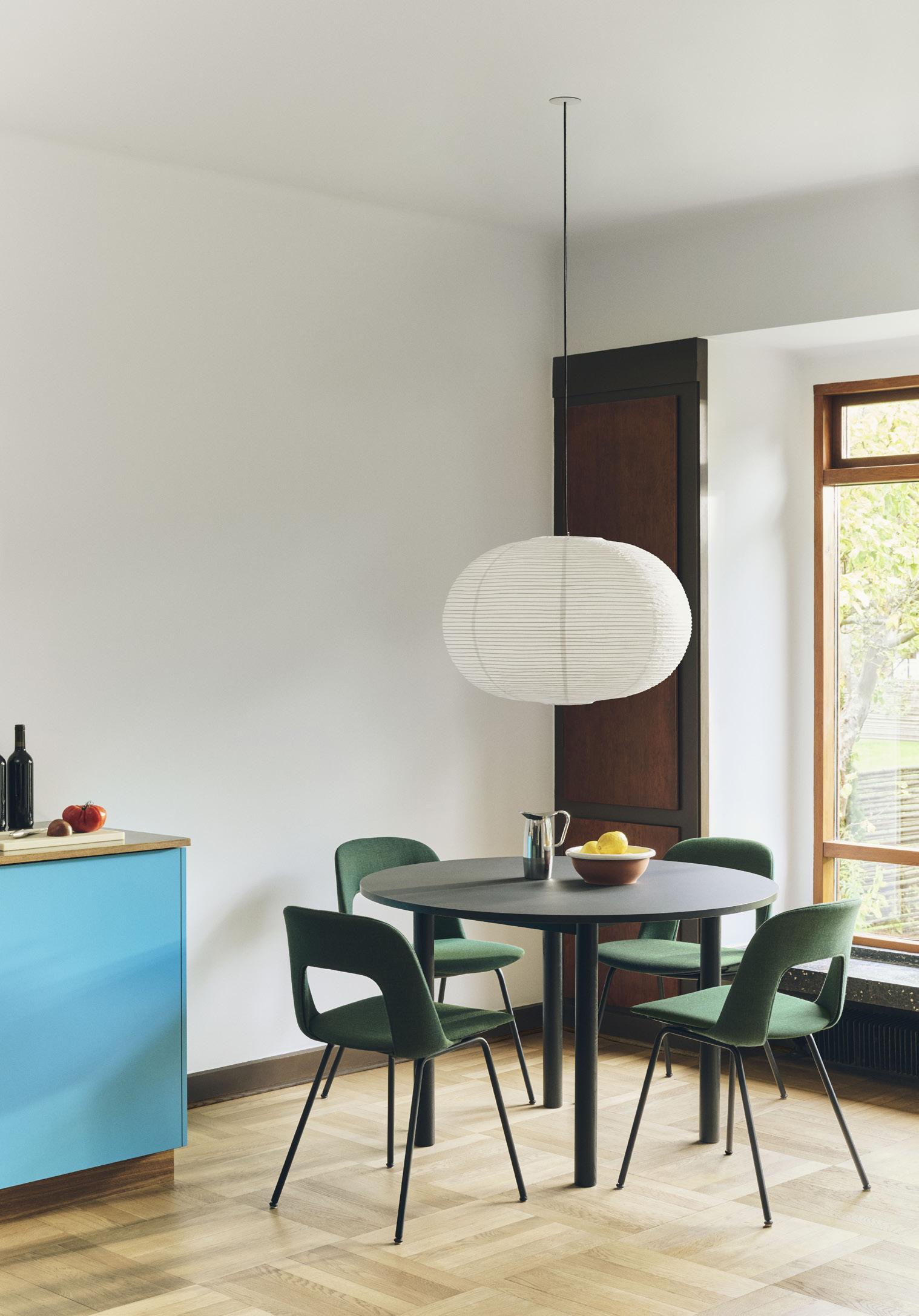

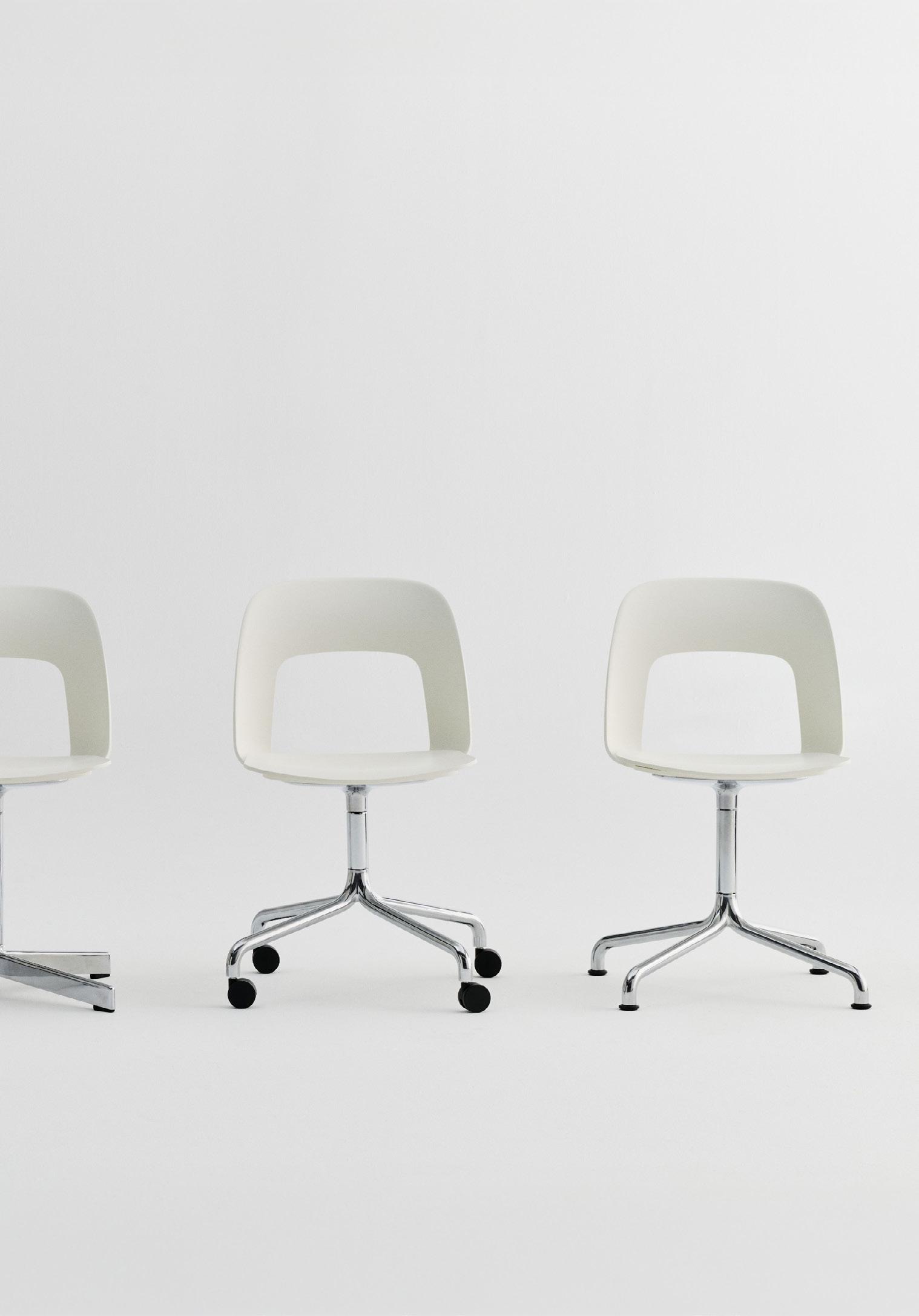

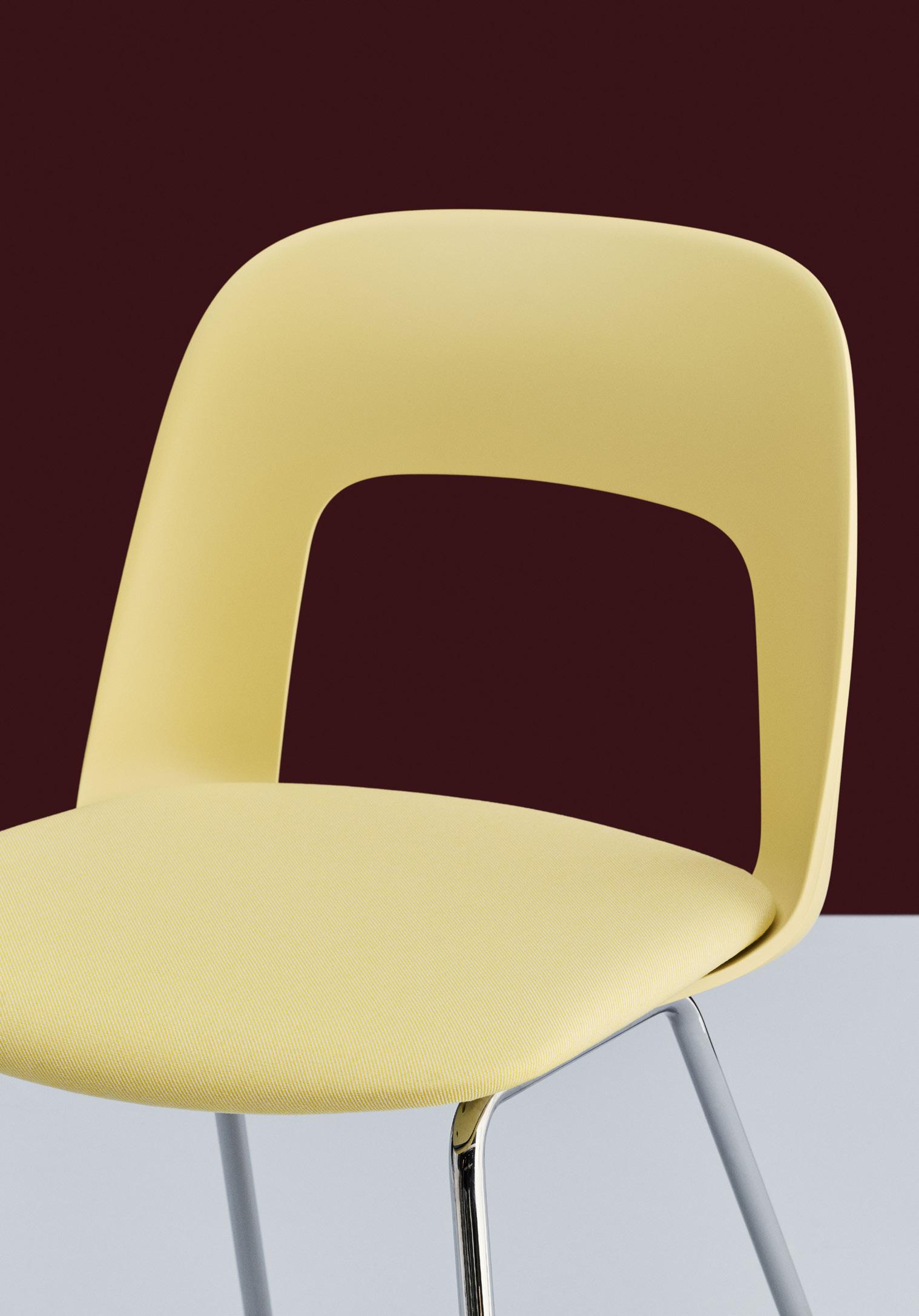

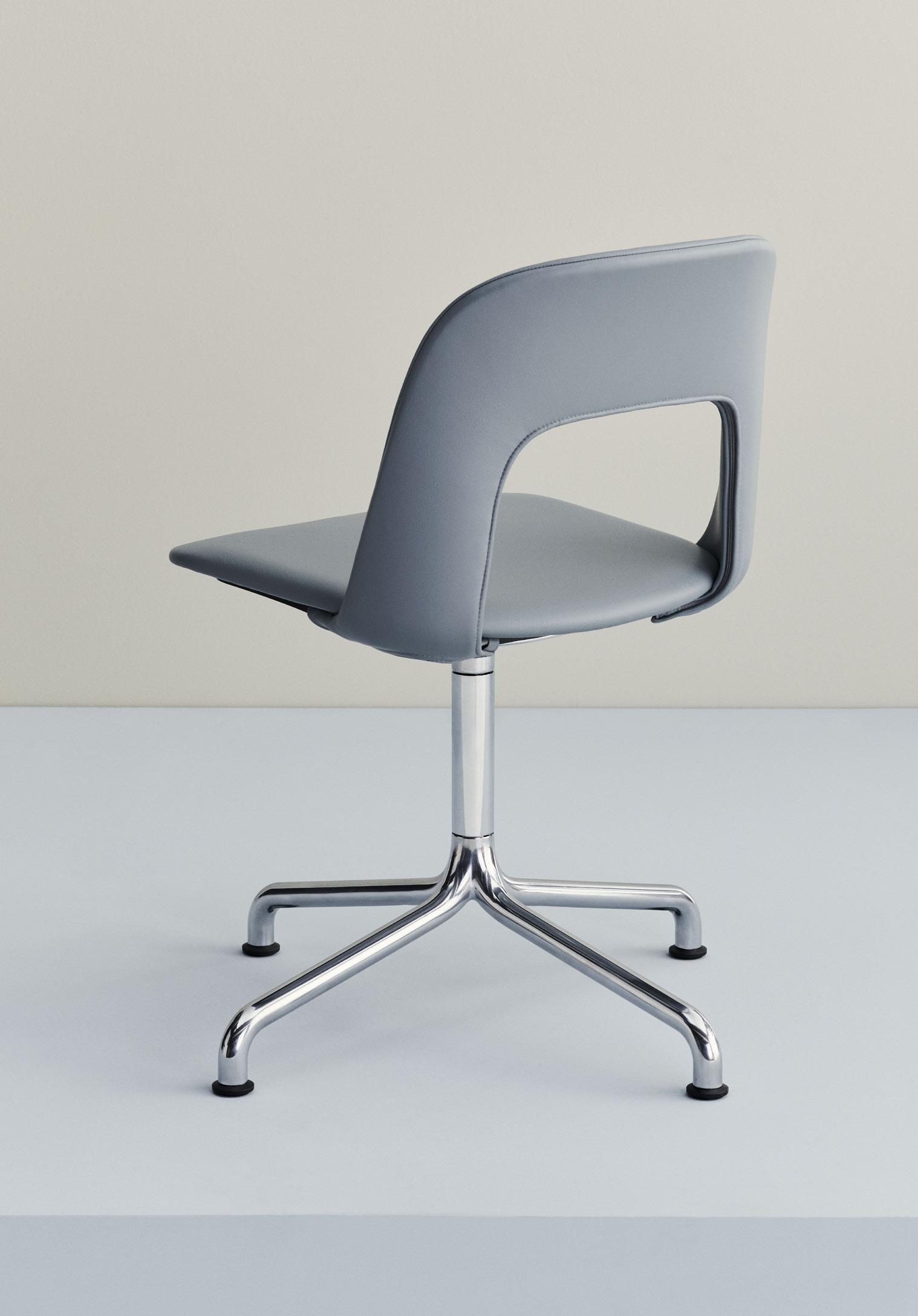

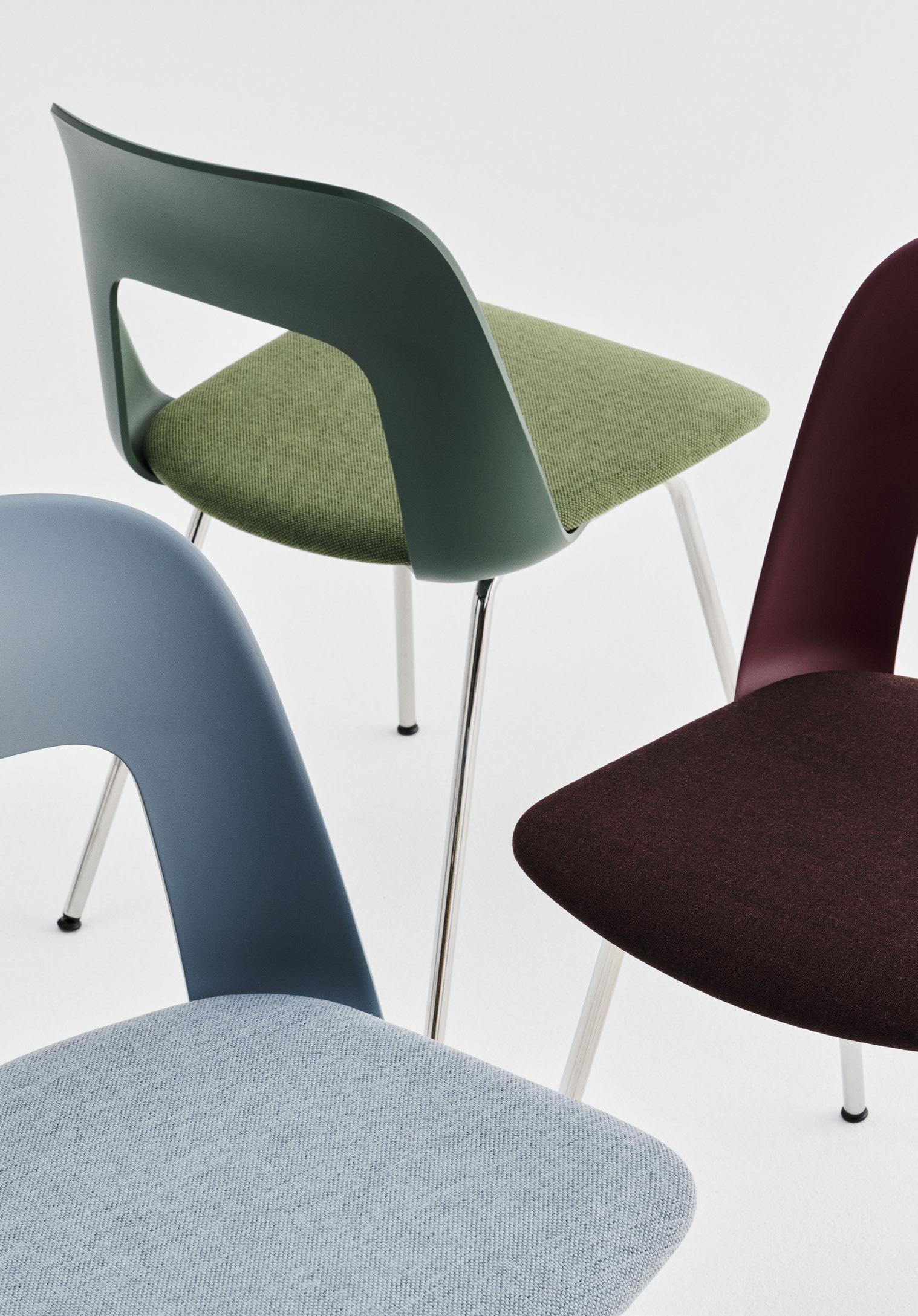

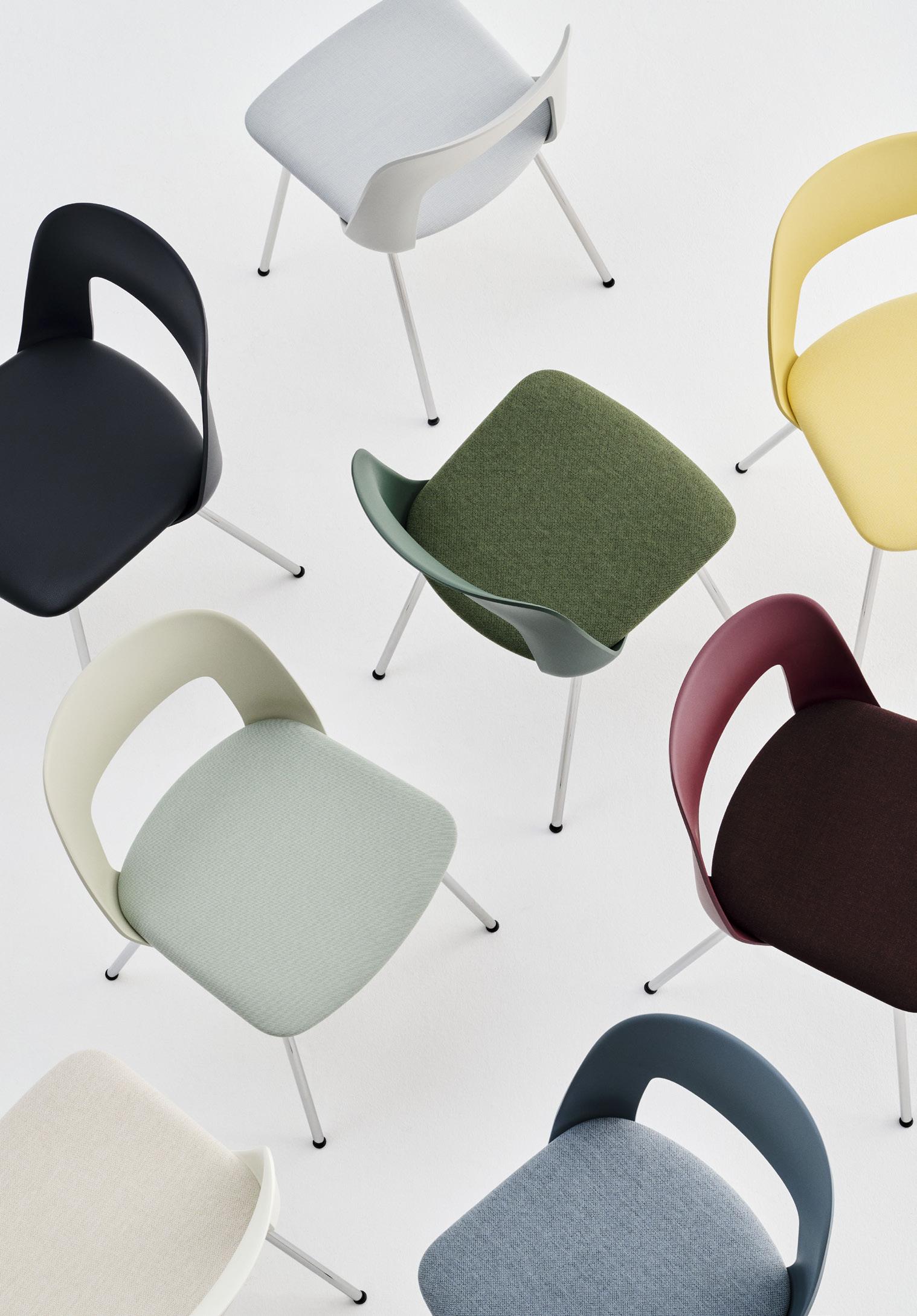

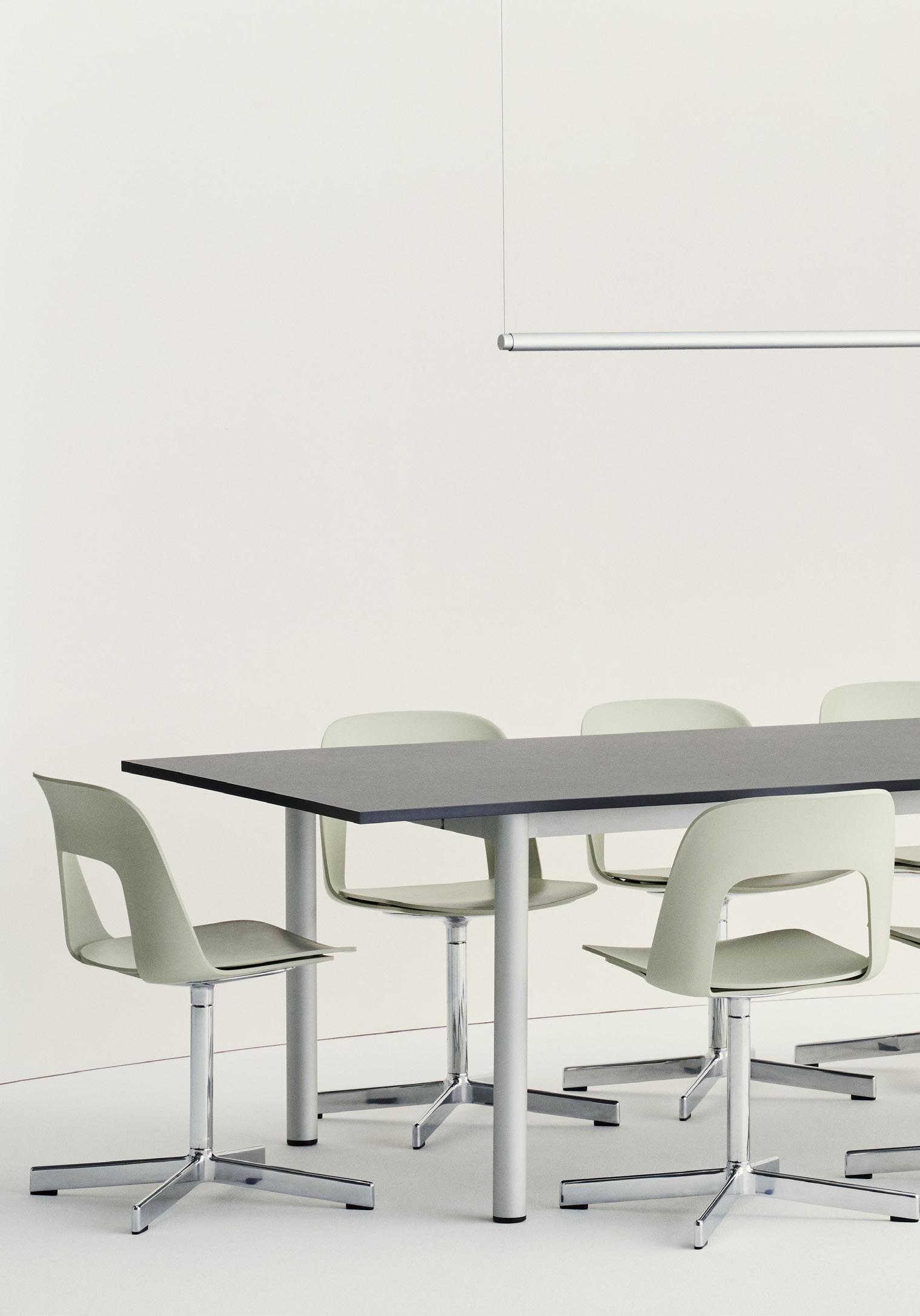

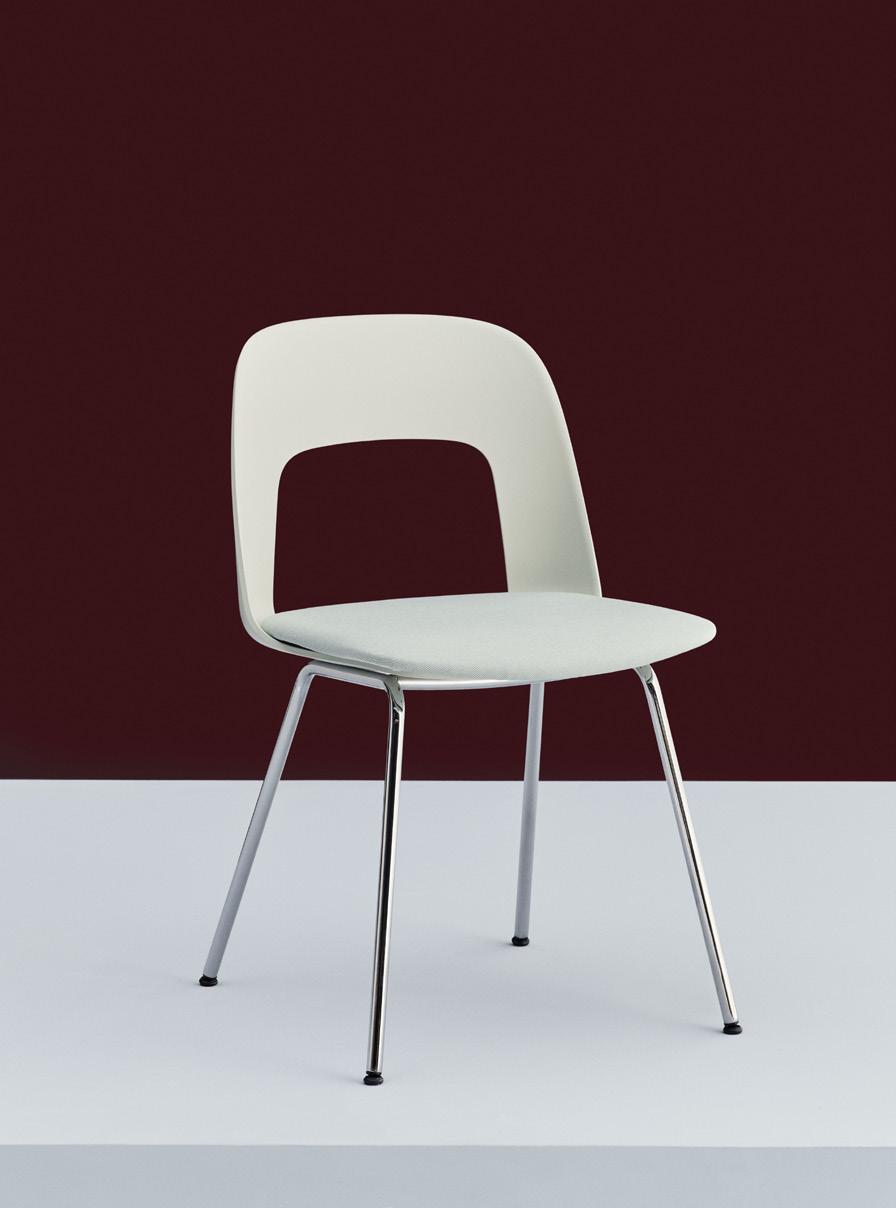

Layout Chair

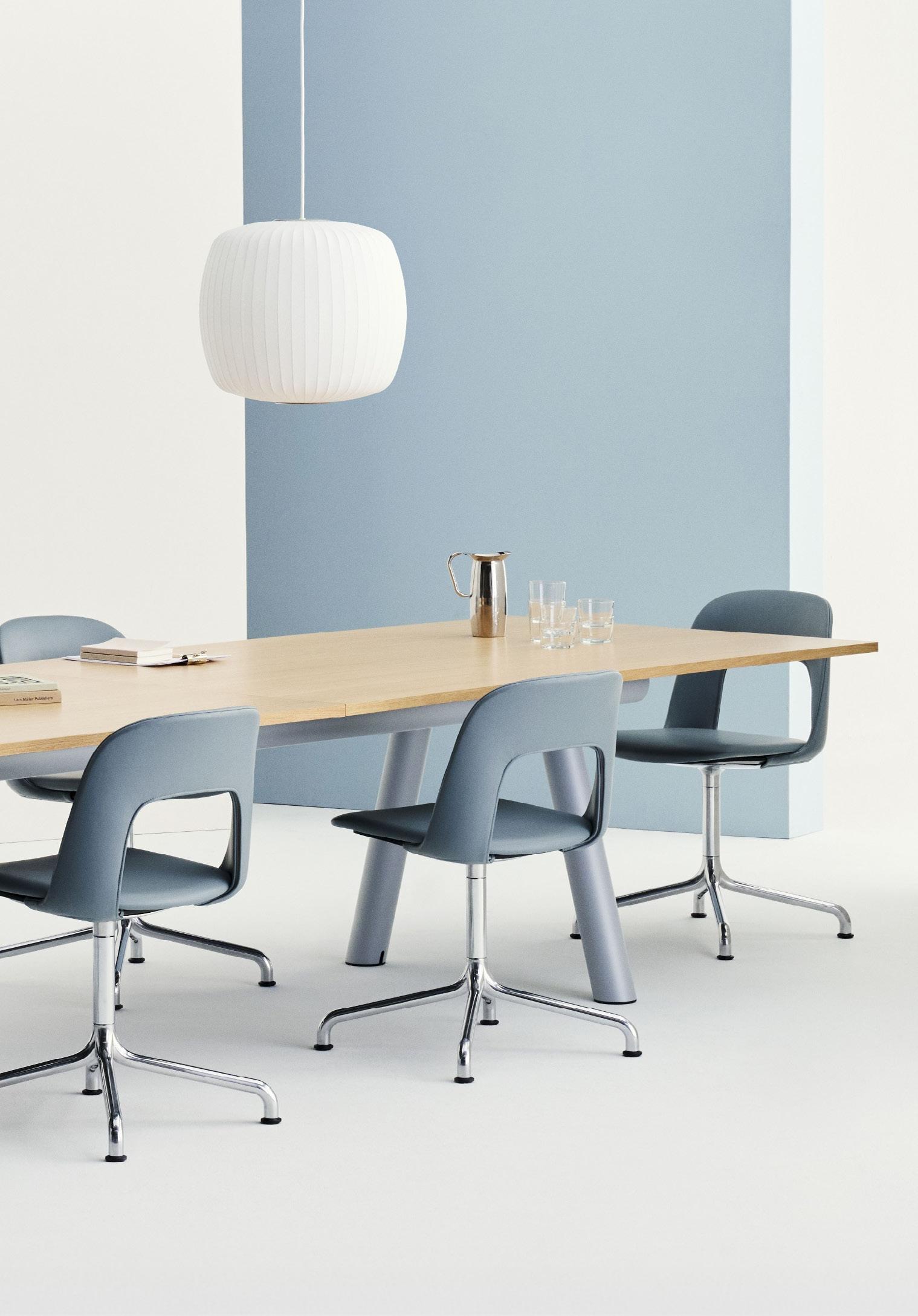

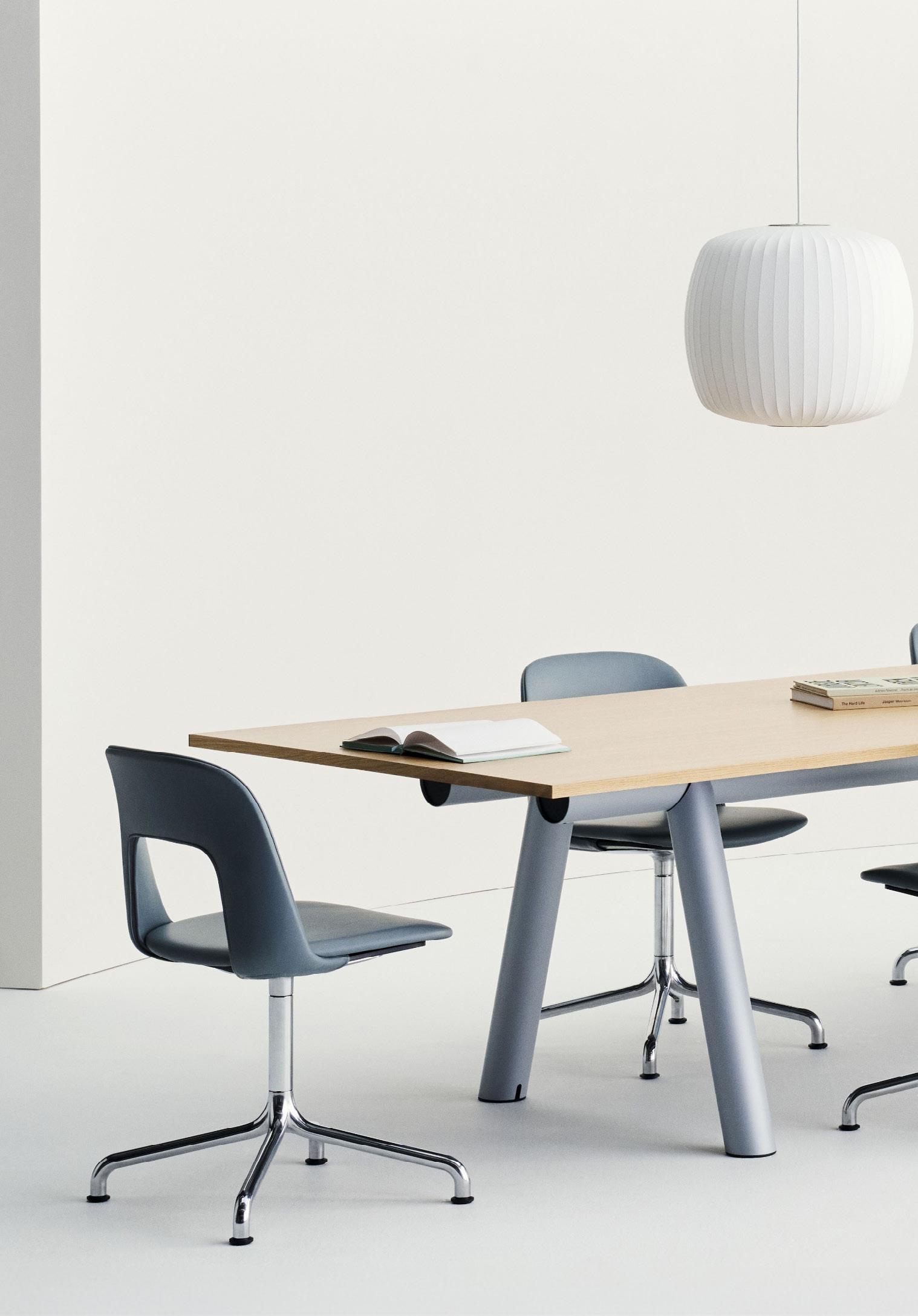

Characterised by the opening in the backrest, the chair combines visual lightness with a compact, space-efficient form. Offering natural support and flexibility, it is well suited to cafés, canteens, conference halls, and a variety of domestic settings.
Layout Chair 114 Relate 431
Layout Chair 113 Relate 921
Layout Chair 154 Grano Pigeon blue

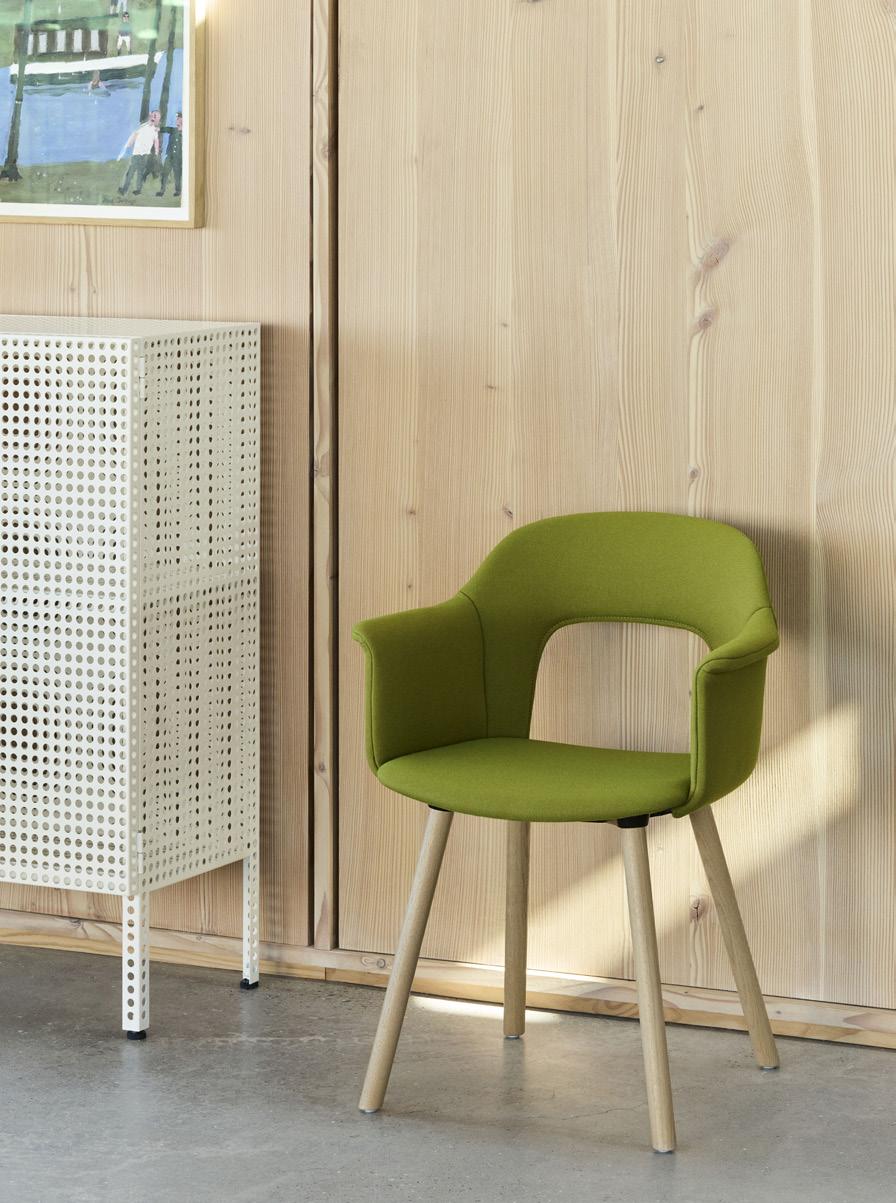

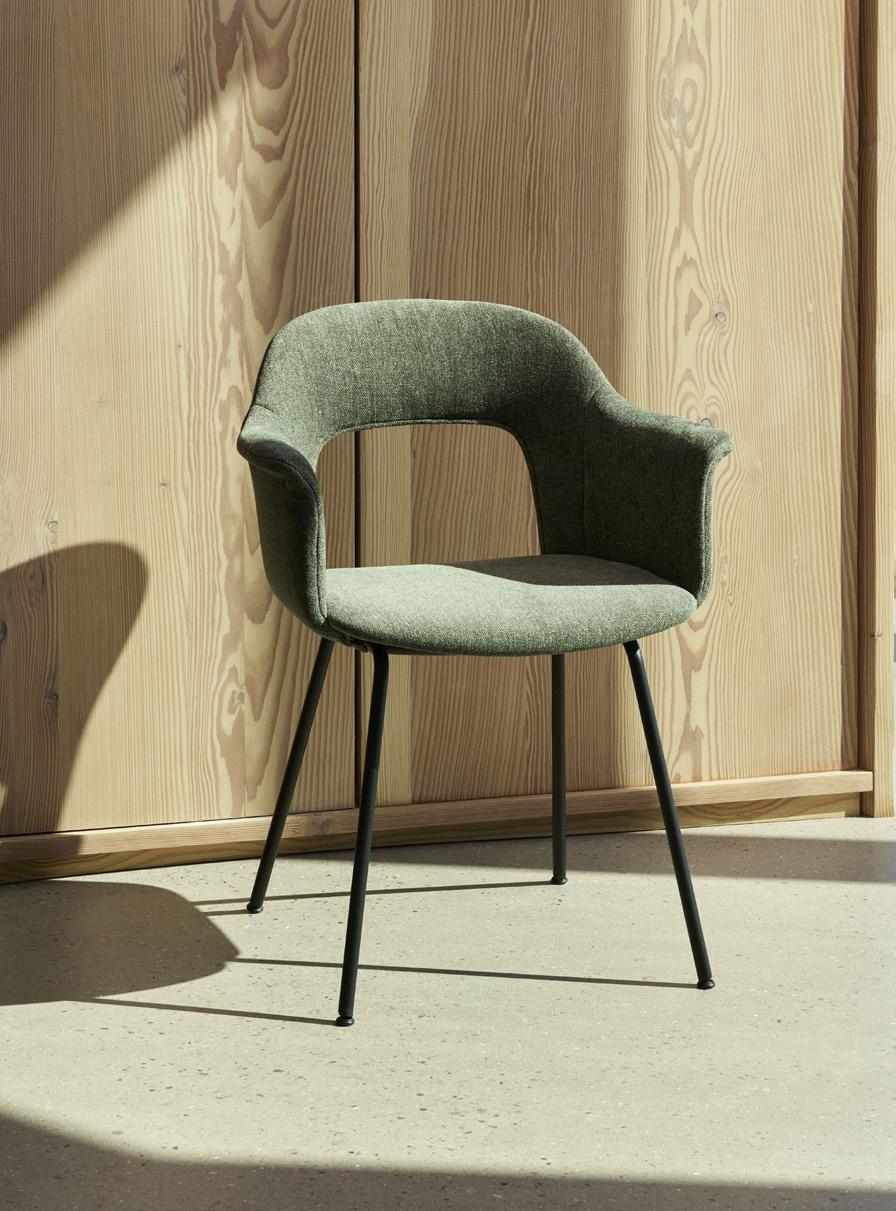

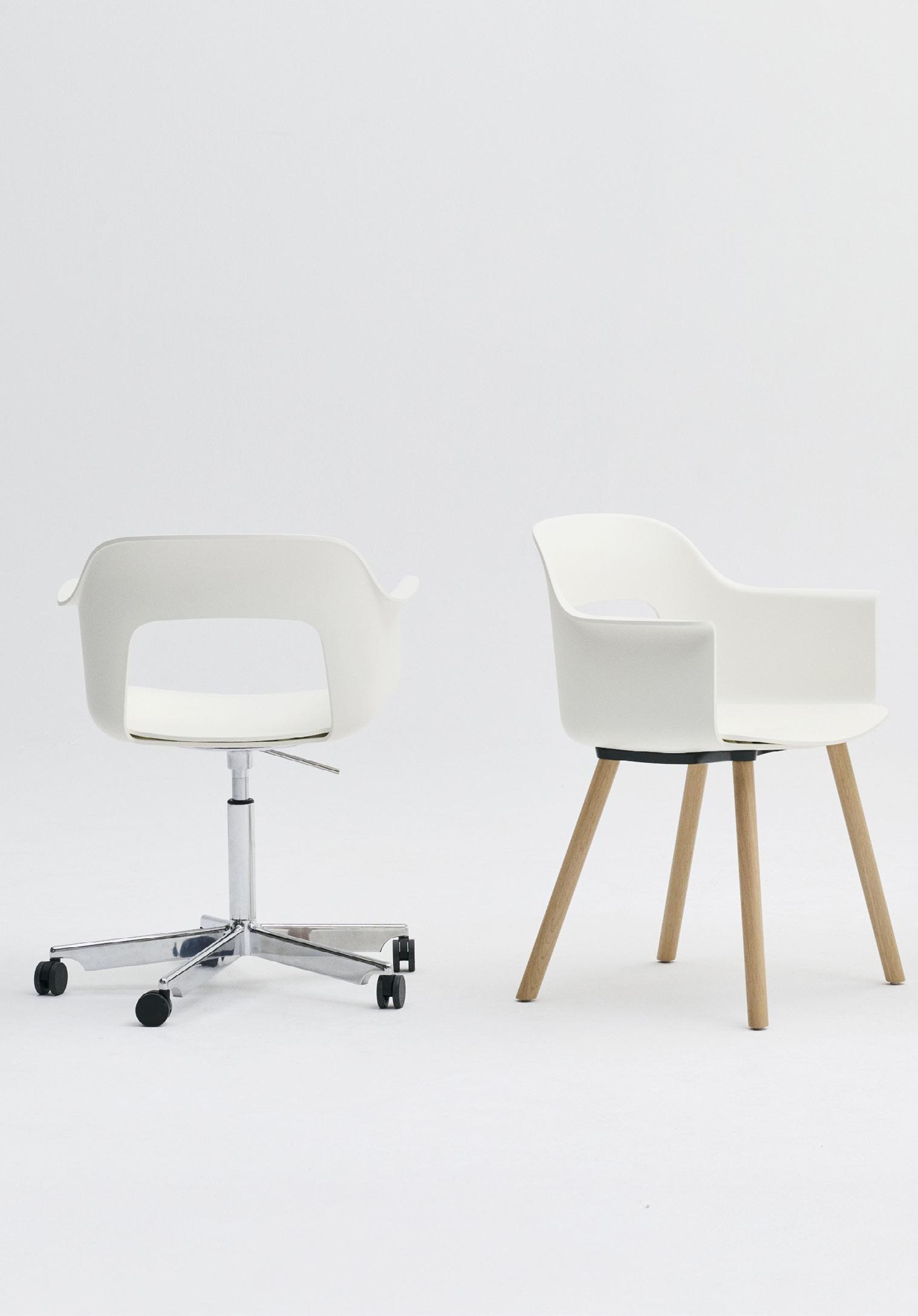

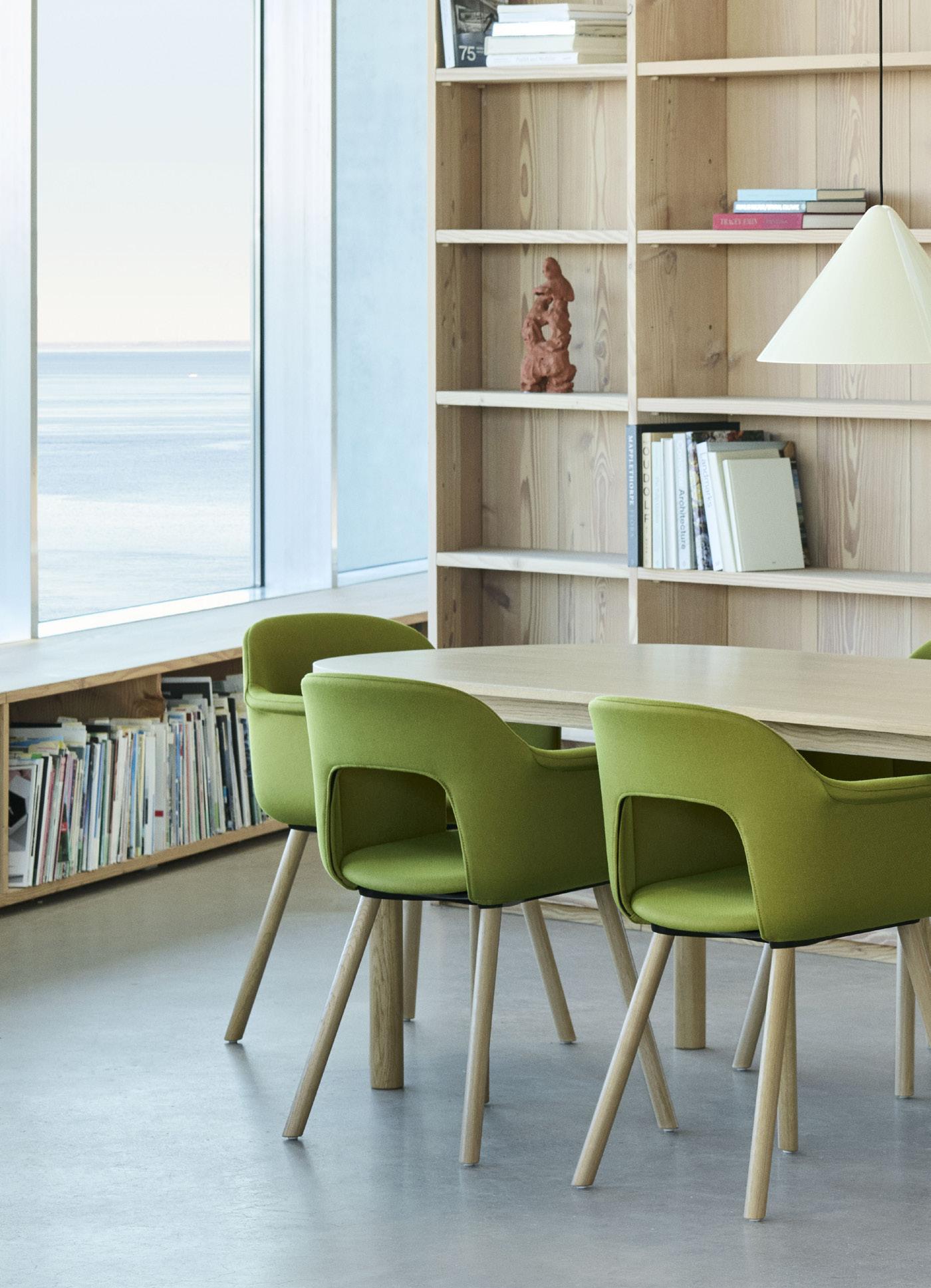

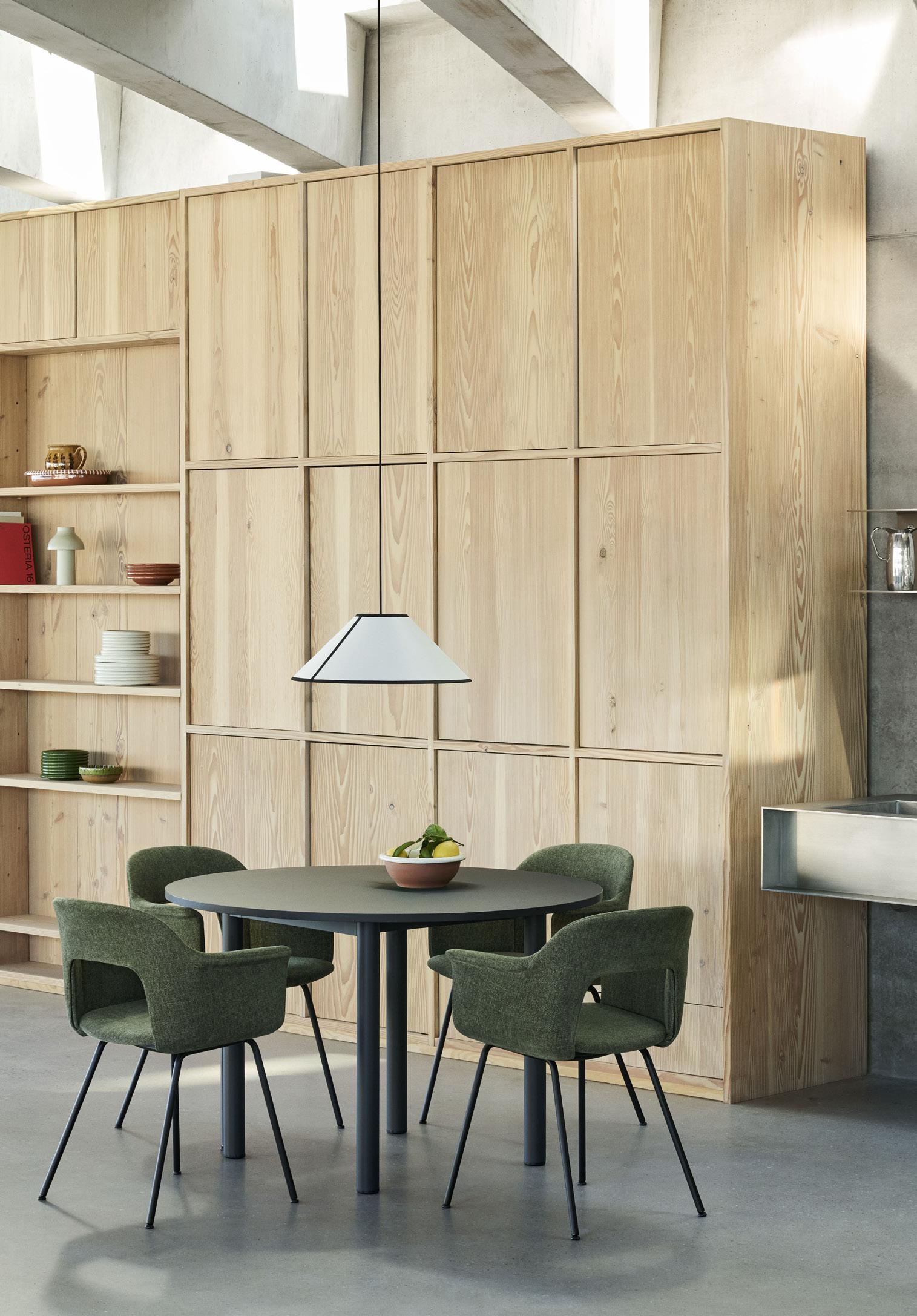

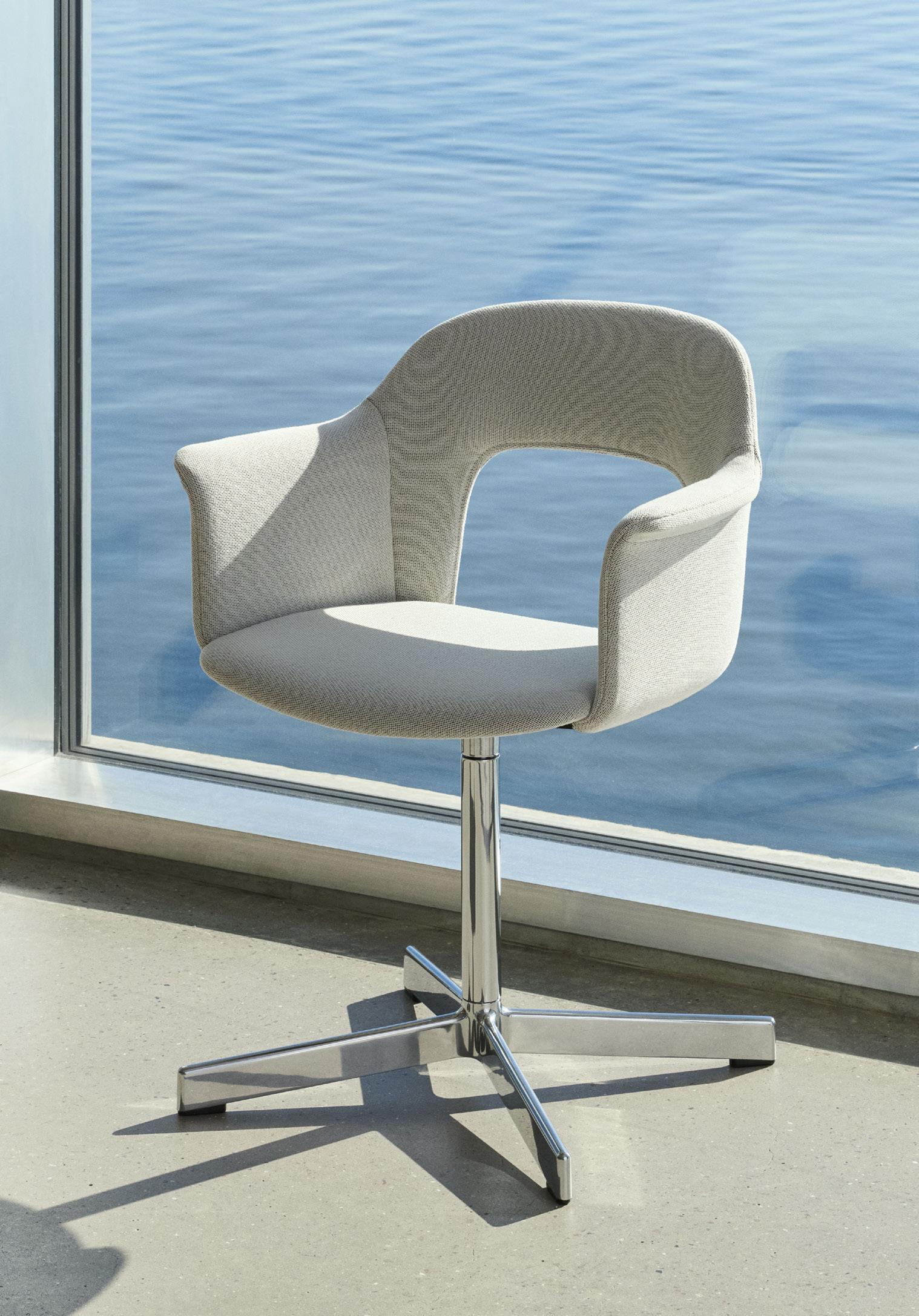

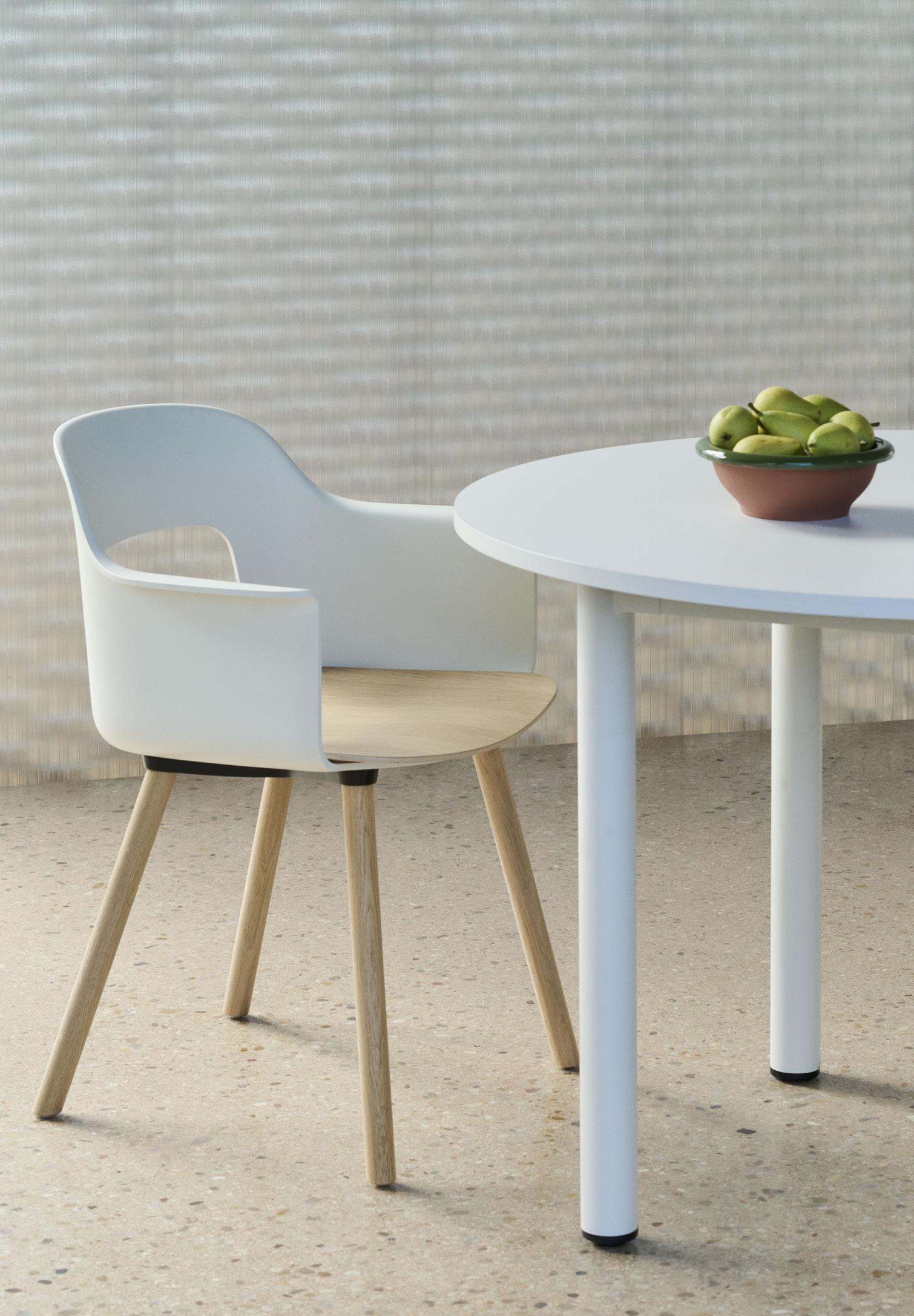

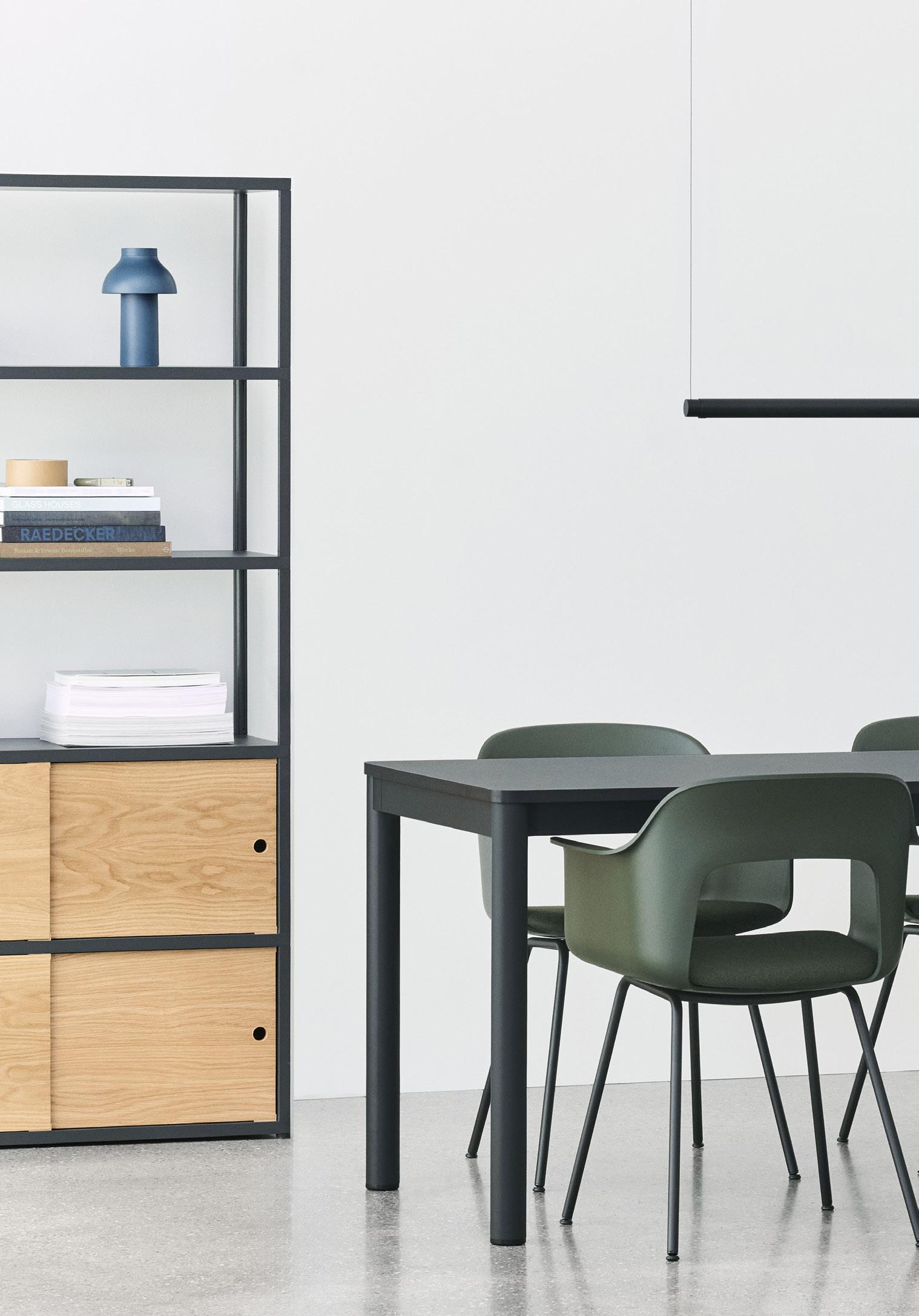

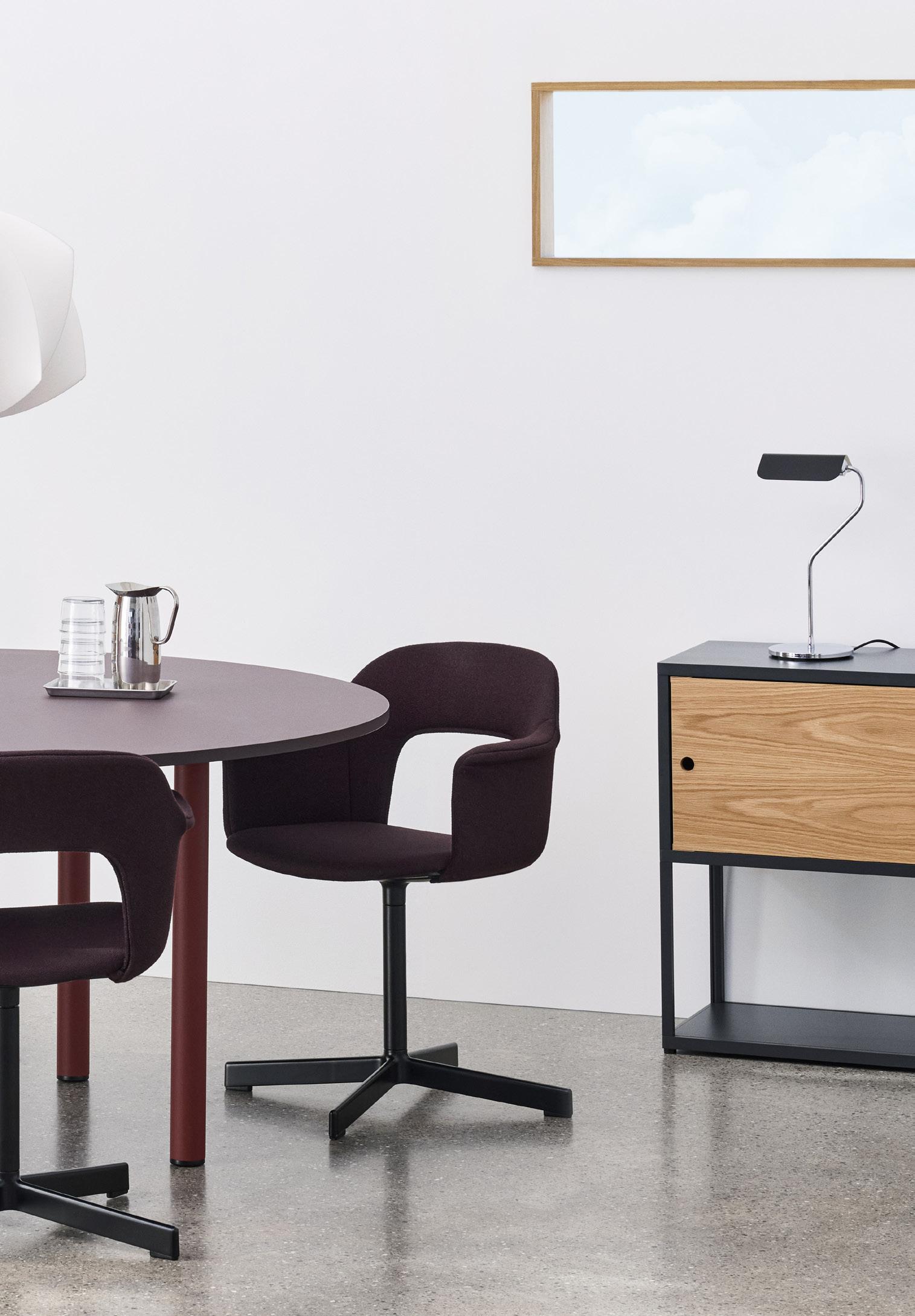

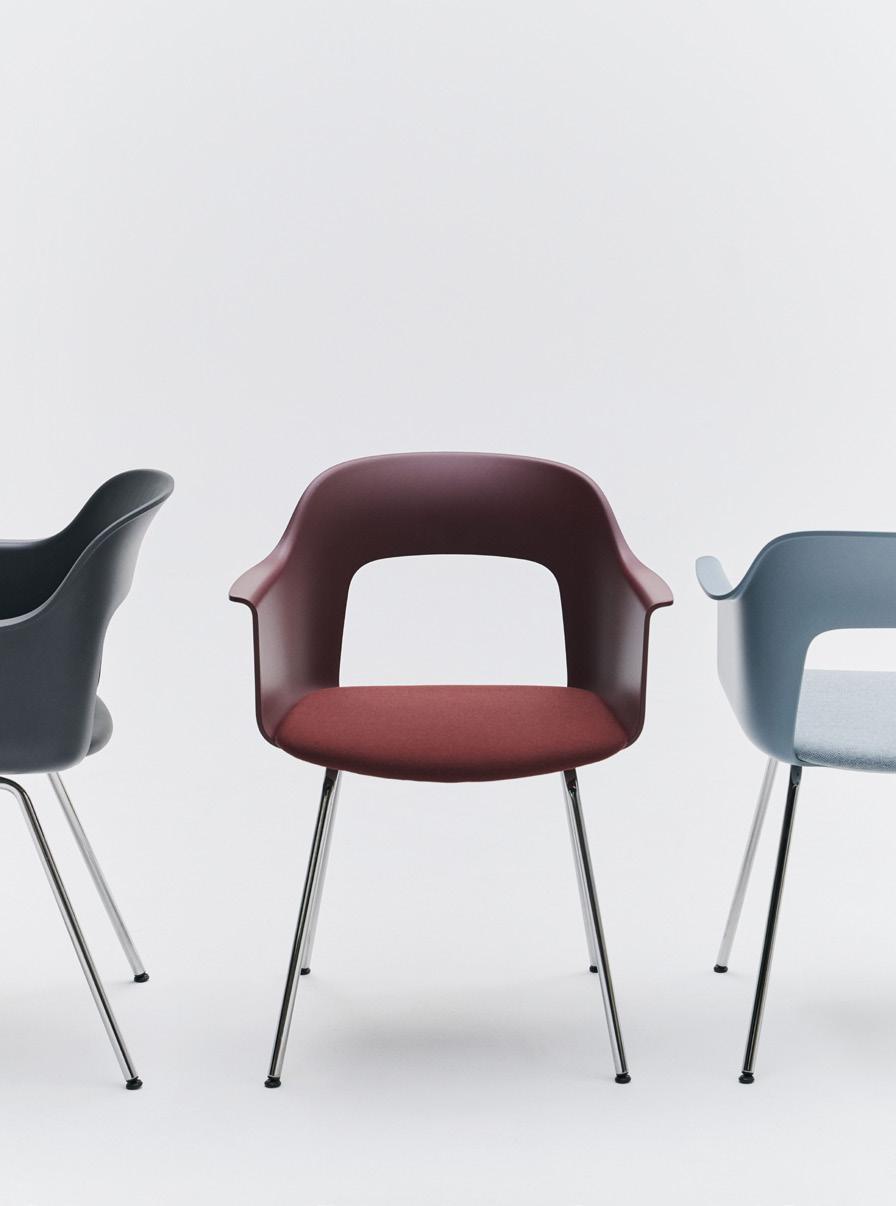

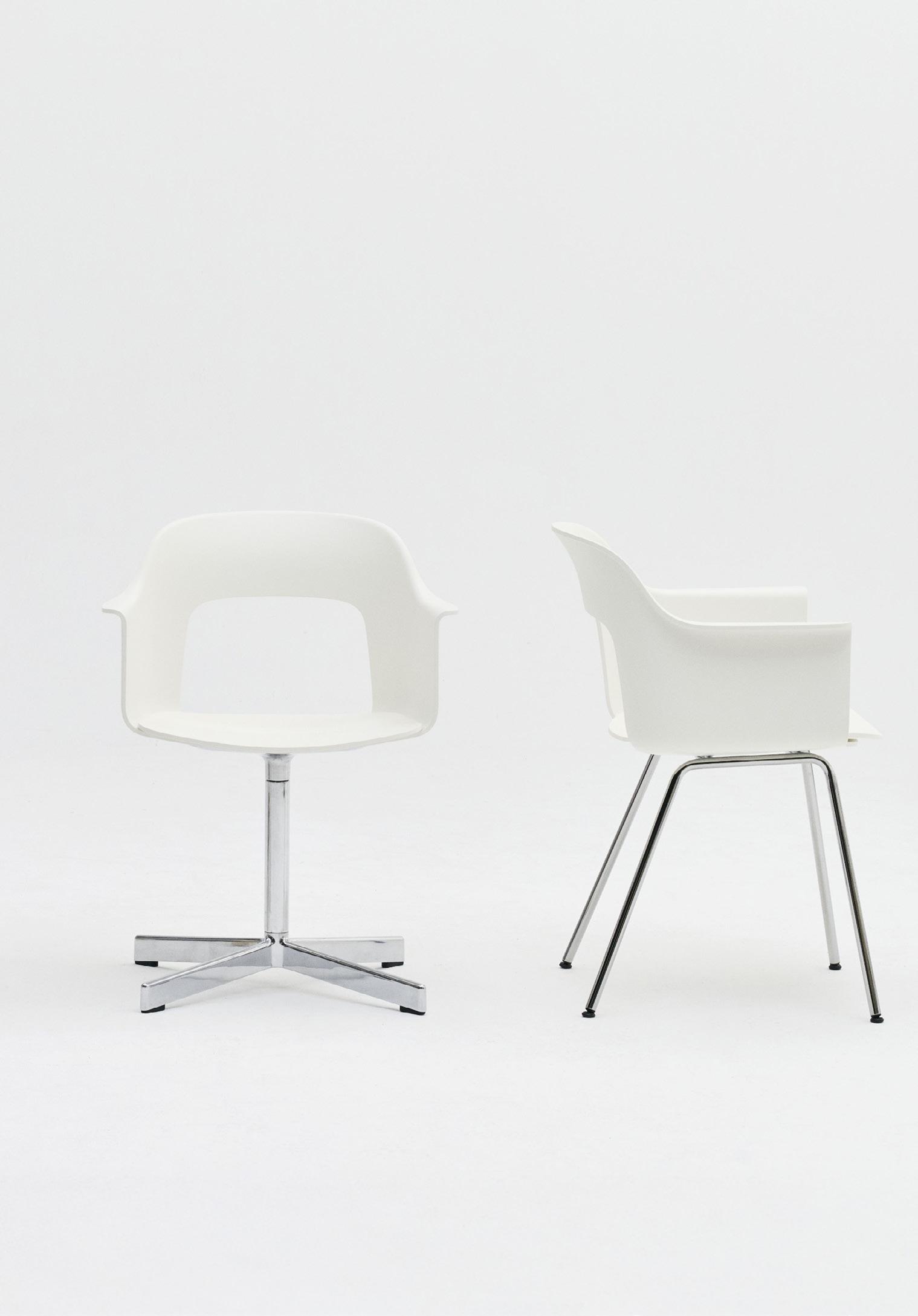

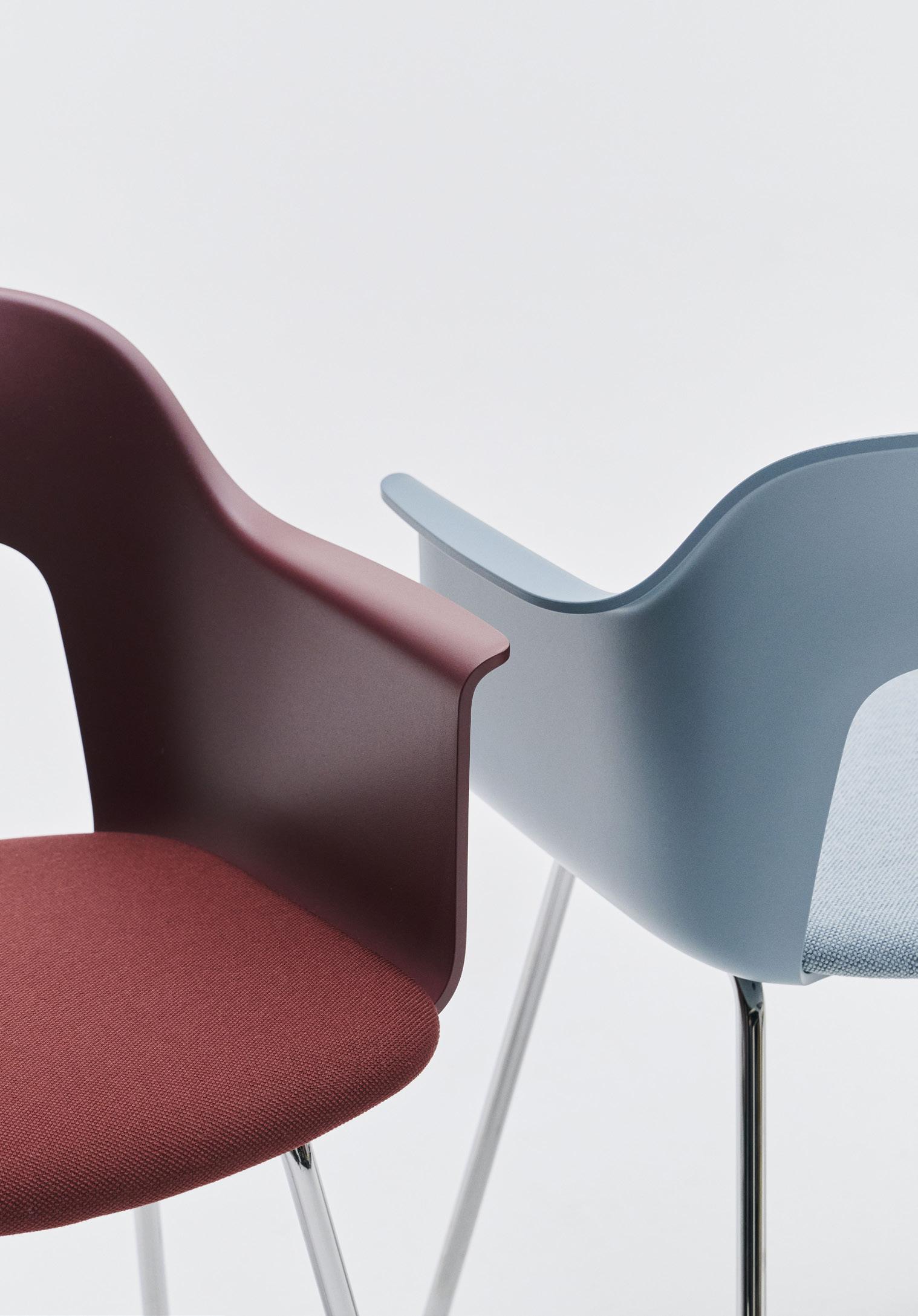

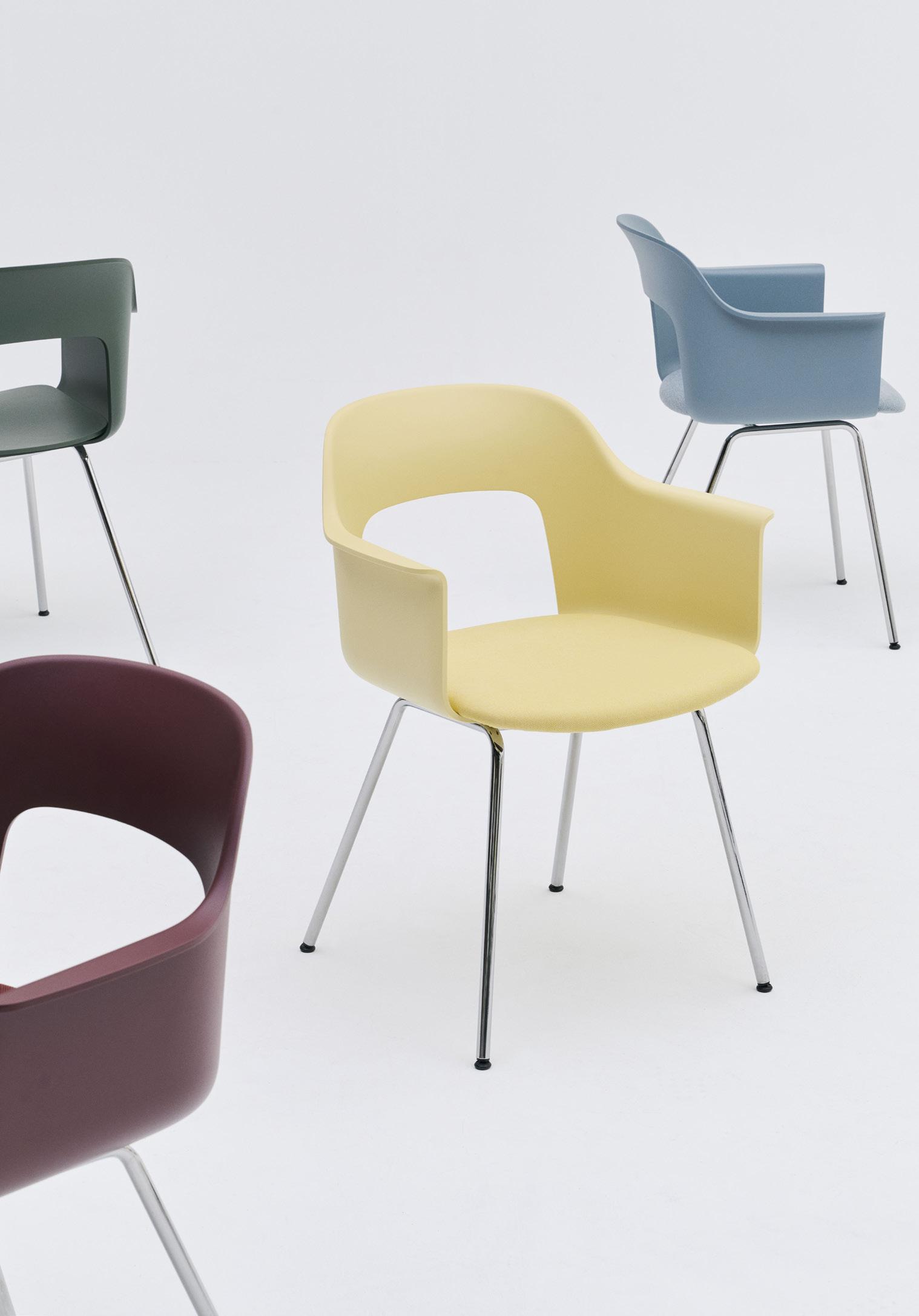

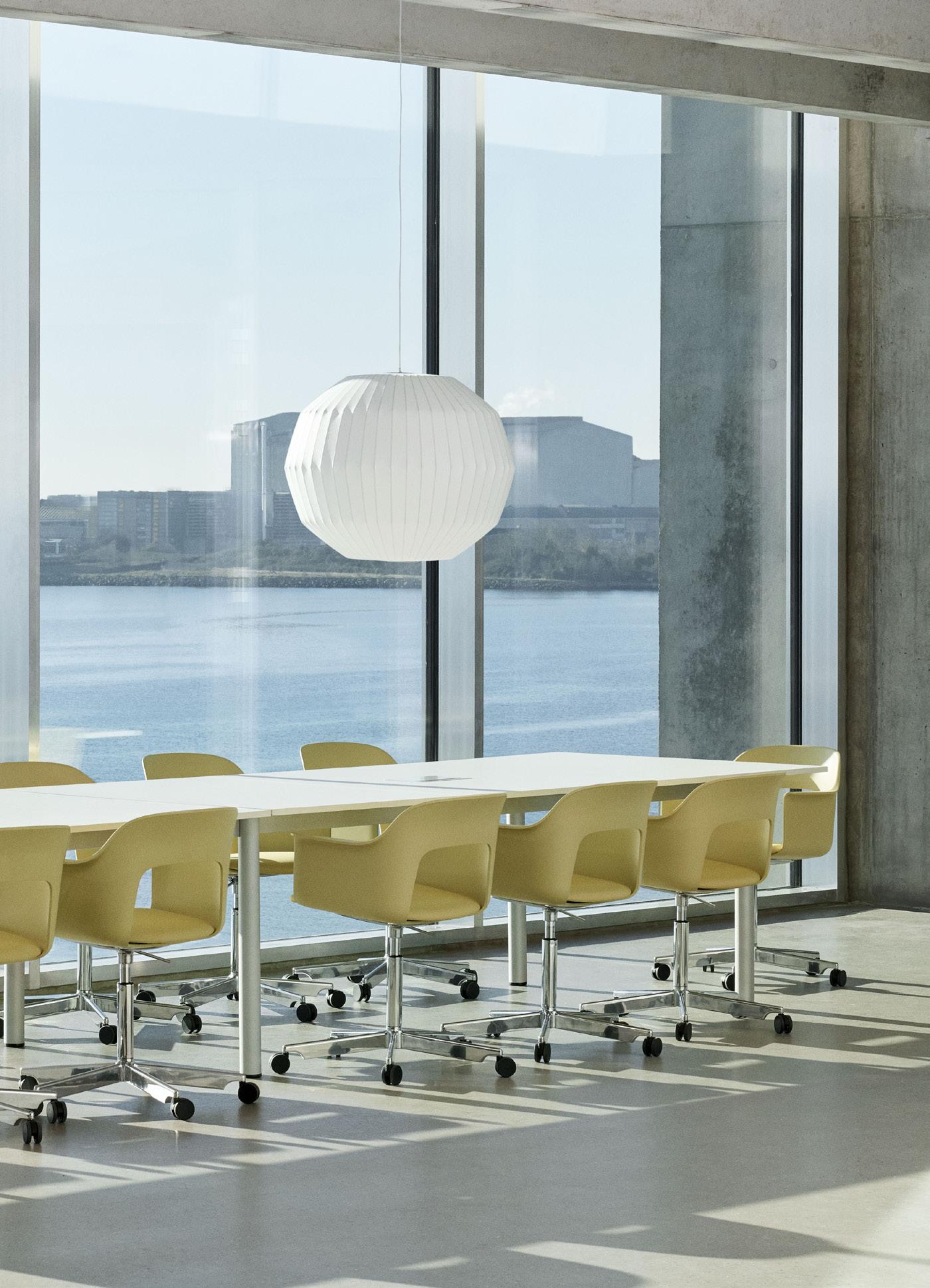

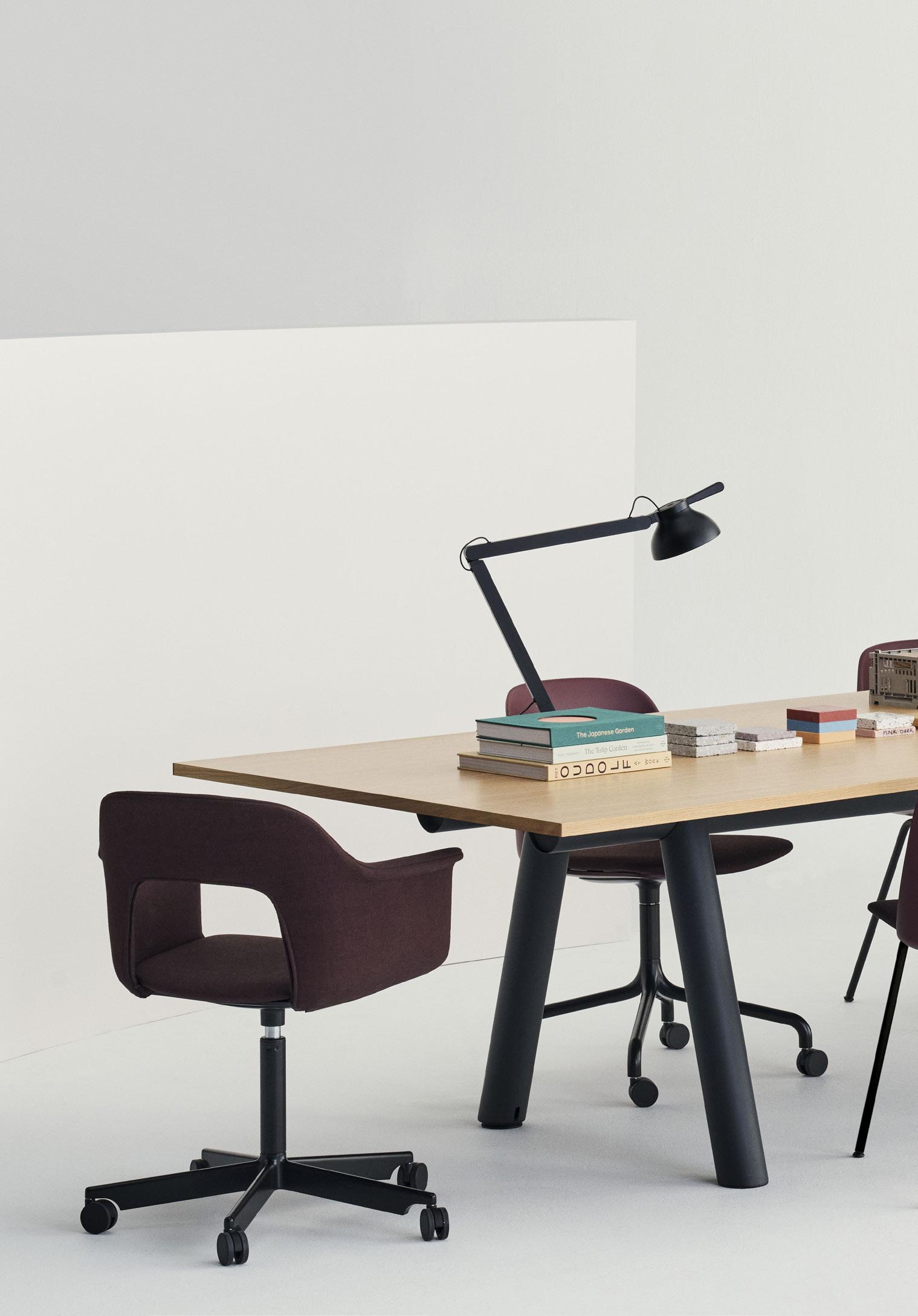

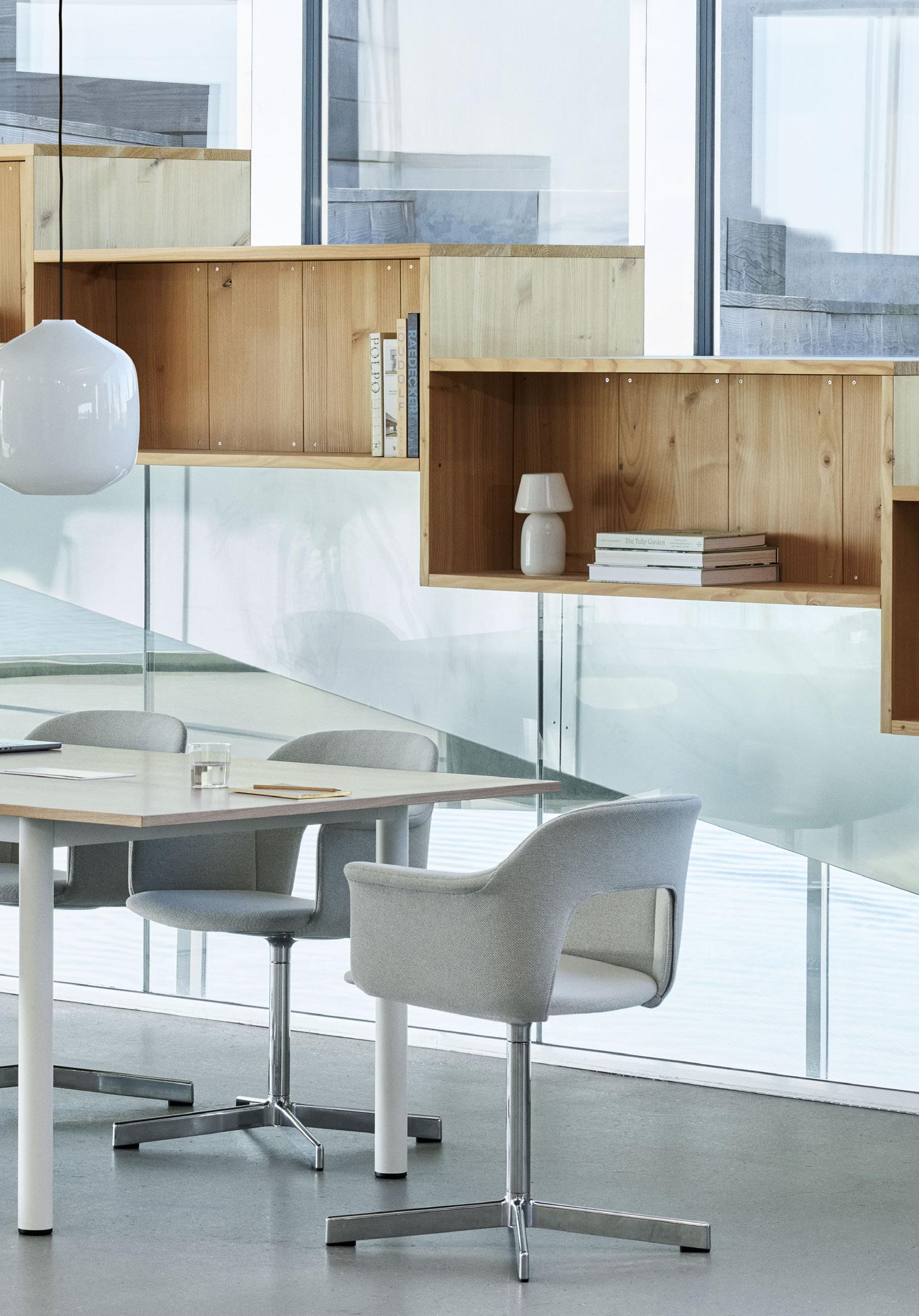

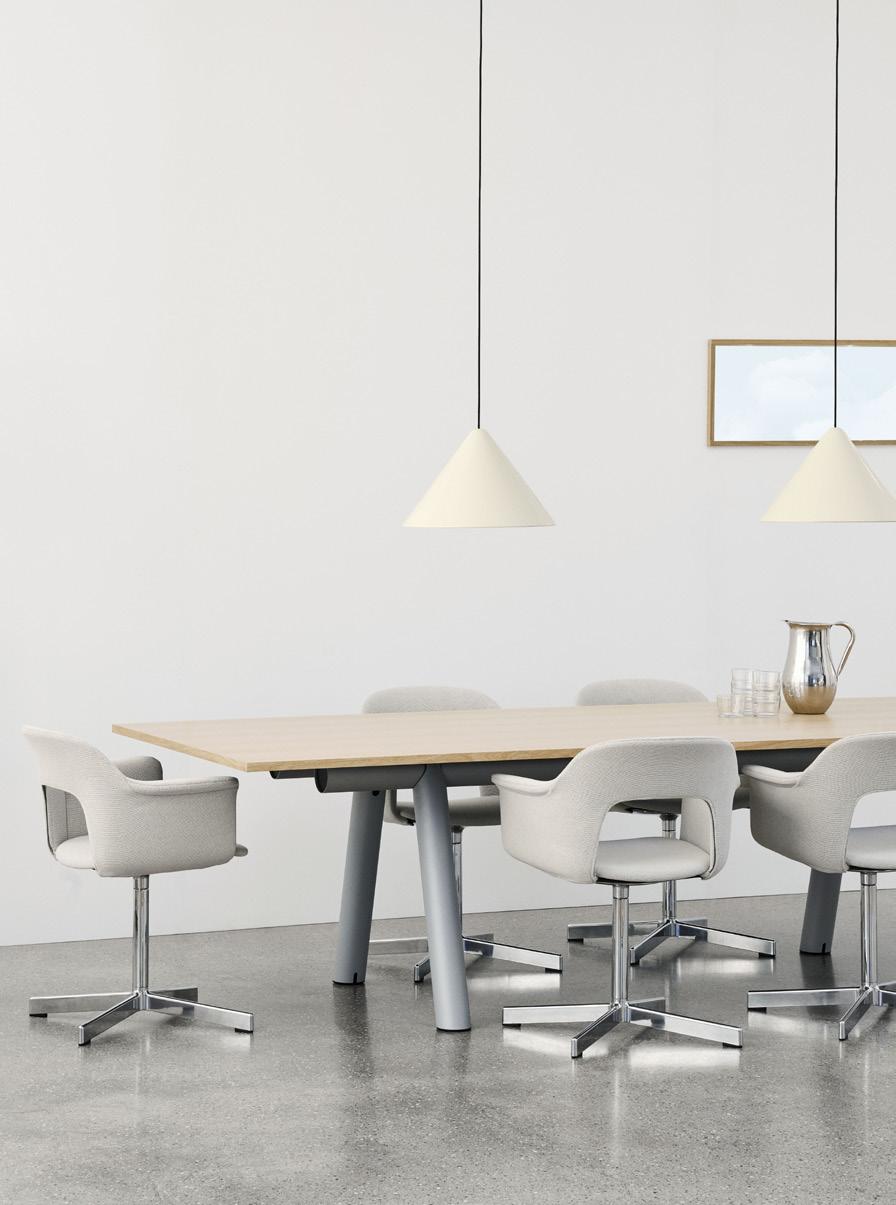

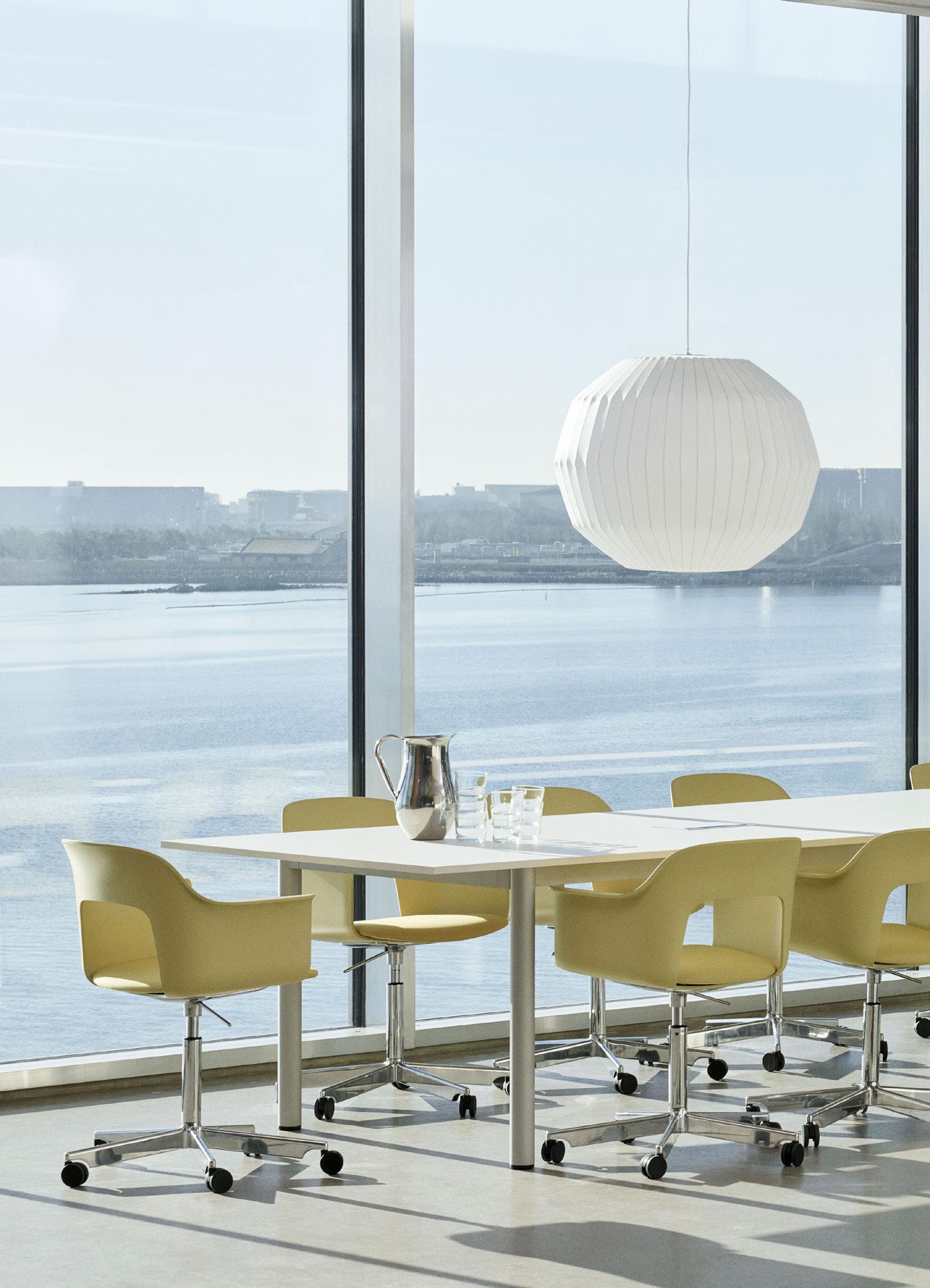

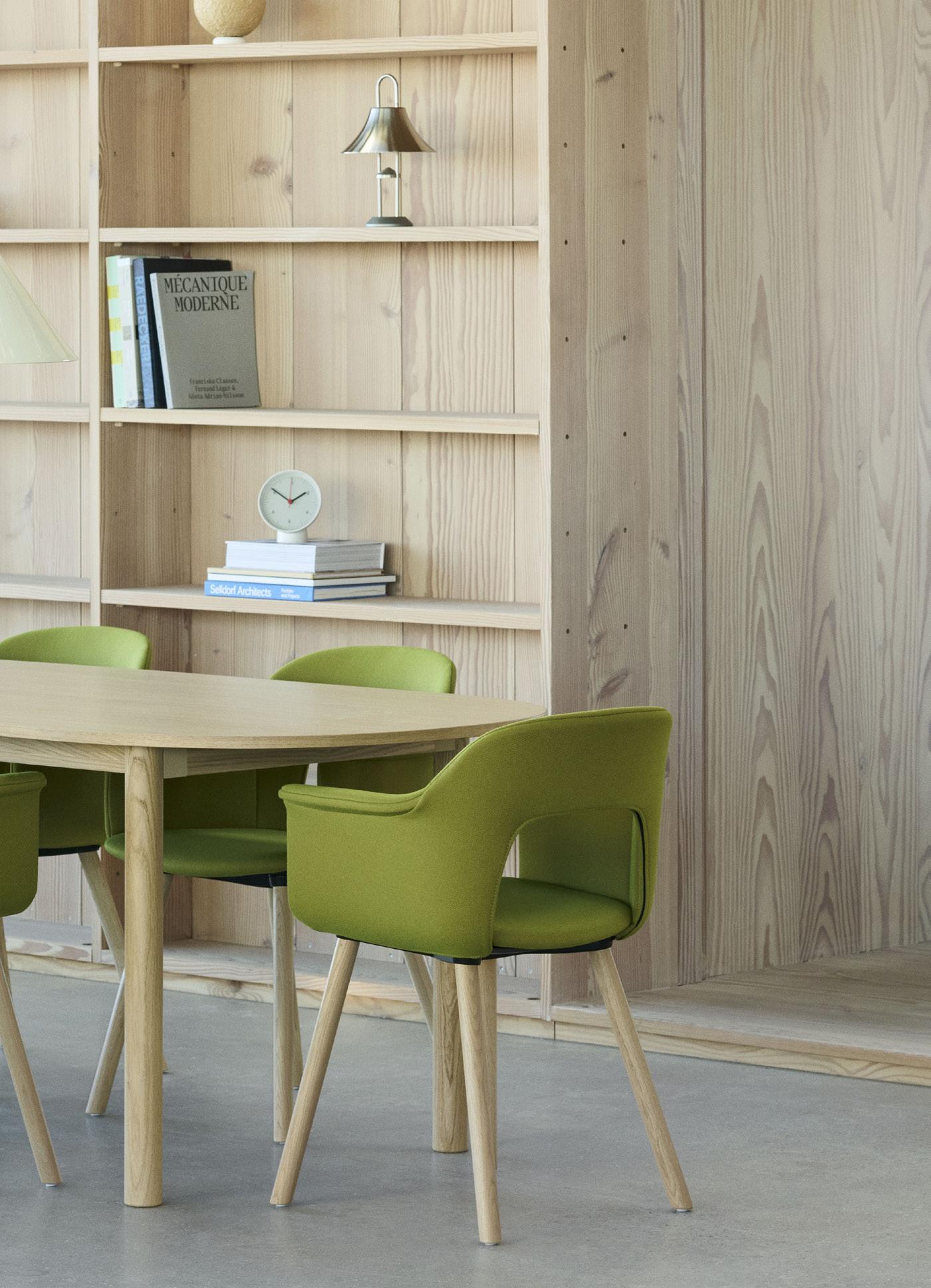

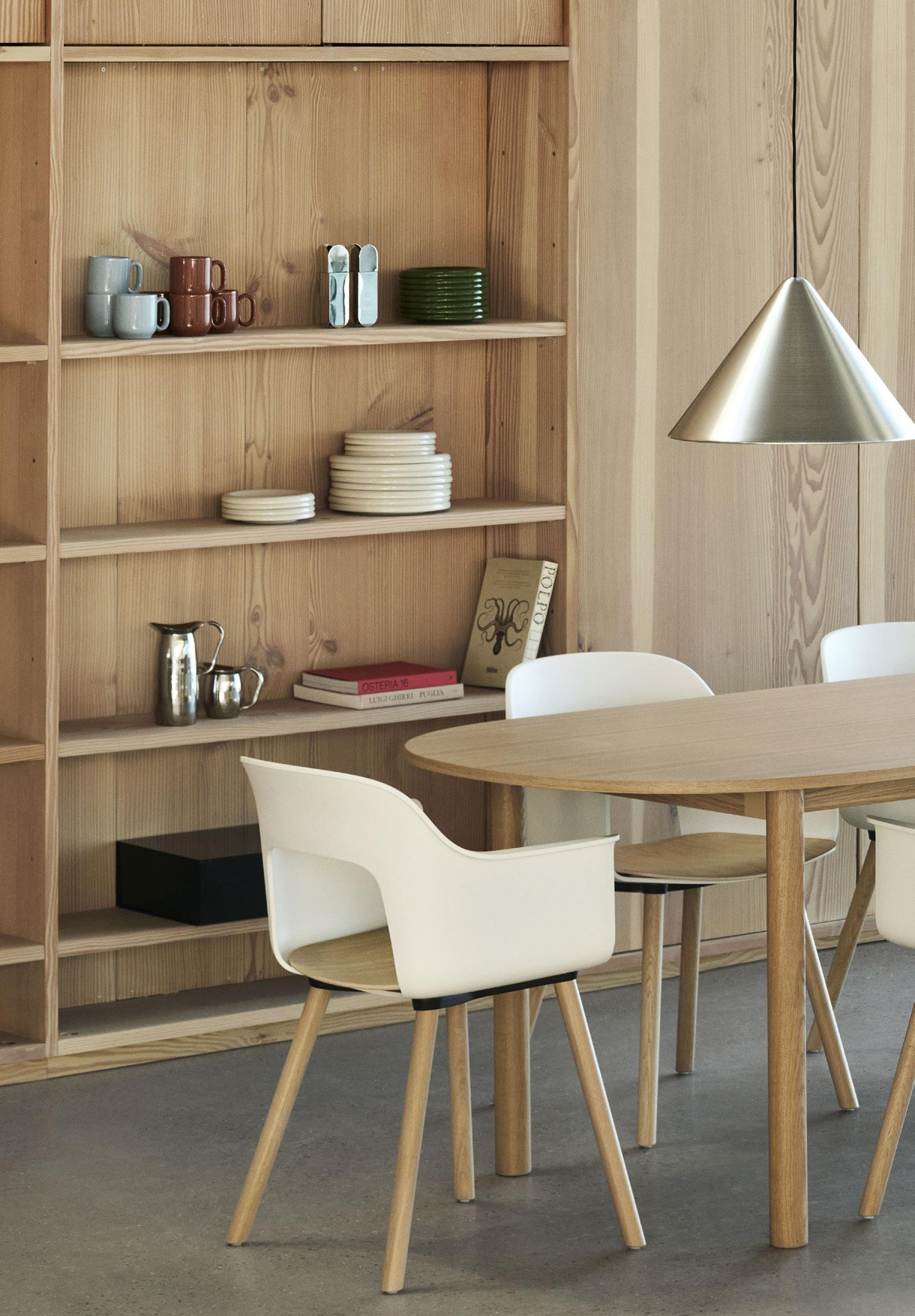

Layout Armchair

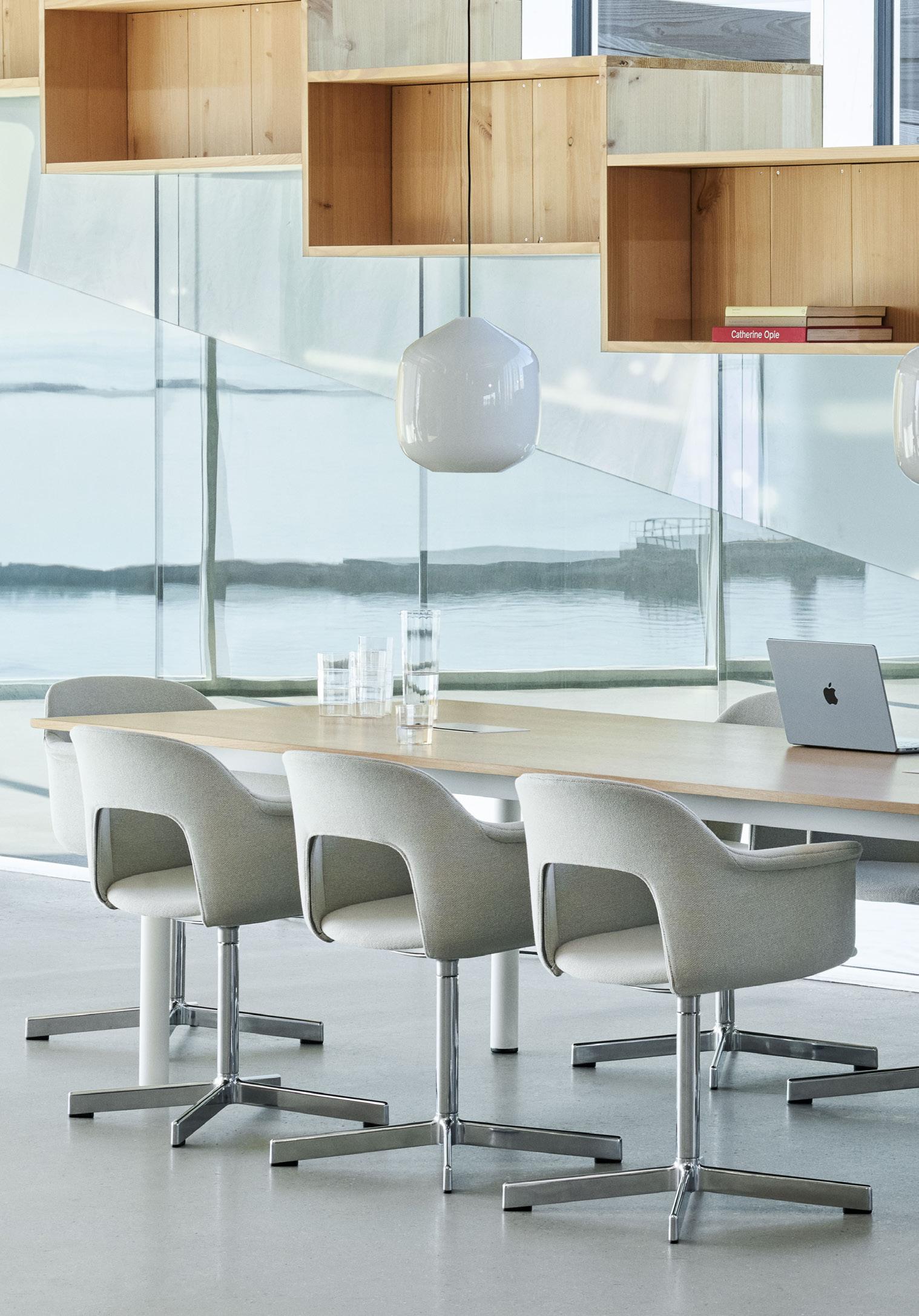

Defined by the opening in the backrest, the armchair has a light, transparent expression, while the integrated armrests provide added comfort and support. Generous yet versatile, it is well suited to meeting rooms, workspaces, and hospitality environments.
Layout Armchair 214 Overlap 11
Layout Armchair 214 Turf Cream melange
Layout Armchair 213
Layout Armchair 234 Autumn 0101
Layout Armchair 222
Layout Armchair 224 Remix 912
Layout Armchair 243 Relate 431
Layout Chair 131
Layout Armchair 264 Grano Caper green
Layout Chair Dimensions
Layout Chair 111
W50 x D55 x H79/SH45,5 cm
Layout Chair 112
W50 x D55 x H79/SH45,5 cm
Layout Chair 113
W50 x D55 x H79/SH48 cm
Layout Chair 114
W50 x D56 x H80/SH48 cm
Layout Chair 121
W49,5 x D55 x H79/SH45,5 cm
Layout Chair 122
W49,5 x D55 x H79/SH45,5 cm
Layout Chair 123
W49,5 x D55 x H79/SH48 cm
Layout Chair 124
W49,5 x D56 x H80/SH48 cm
Layout Chair 131
W47,5 x D55 x H79/SH45,5 cm
Layout Chair 132
W47,5 x D55 x H79/SH45,5 cm
Layout Chair 133
W47,5 x D55 x H79/SH48 cm
Layout Chair 134
W47,5 x D56 x H80/SH48 cm
Tube Base
Wood Base
4-Star Swivel Base
Layout Chair 141
W69 x D69 x H77-86,5/ SH44-53 cm
Arc Base
Layout Chair 142
W69 x D69 x H77-86,5/ SH44-53 cm
Layout Chair 143
W69 x D69 x H77-86,5/ SH46,5-55,5 cm
Layout Chair 144 W69 x D69 x H78-87,5/ SH46,5-55,5 cm
Layout Chair 151
W48,5 x D55 x H79/SH45,5 cm
Arc Base With Wheels
Layout Chair 152
W48,5 x D55 x H79/SH45,5 cm
Layout Chair 153
W48,5 x D55 x H79/SH48 cm
Layout Chair 154
W48,5 x D56 x H80/SH48 cm
Layout Chair 161
W48,5 x D55 x H79/SH45,5 cm
Layout Chair 161
W48,5 x D55 x H79/SH45,5 cm
Layout Chair 163
W48,5 x D55 x H79/SH48 cm
Layout Chair 164
W48,5 x D56 x H80/SH48 cm
5-Star Swivel Base With Wheels
Layout Armchair Dimensions
Layout Armchair 211
W61,5 x D55 x H79/SH45,5 cm
Layout Armchair 212
W61,5 x D55 x H79/SH45,5 cm
Layout Armchair 213
W61,5 x D55 x H79/SH48 cm
Layout Armchair 214
W62 x D56 x H80/SH48 cm
Layout Armchair 221
W61,5 x D55 x H79/SH45,5 cm
Layout Armchair 222
W61,5 x D55 x H79/SH45,5 cm
Layout Chair 223
W61,5 x D55 x H79/SH48 cm
Layout Chair 224
W62 x D56 x H80/SH48 cm
Layout Armchair 231
W61,5 x D55 x H79/SH45,5 cm
Layout Armchair 232
W61,5 x D55 x H79/SH45,5 cm
Layout Armchair 233
W61,5 x D55 x H79/SH48 cm
Layout Armchair 234
W62 x D56 x H80/SH48 cm
Tube Base
Wood Base
4-Star Swivel Base
Layout Armchair 241
W69 x D69 x H77-86,5/ SH44-53 cm
Layout Armchair 242
W69 x D69 x H77-86,5/ SH44-53 cm
Layout Armchair 243
W69 x D69 x H77-86,5/ SH46,5-55,5 cm
Layout Armchair 244
W69 x D69 x H78-87,5/ SH46,5-55,5 cm
Layout Armchair 251
W61,5 x D55 x H79/SH45,5 cm
Layout Armchair 252
W61,5 x D55 x H79/SH45,5 cm
Layout Armchair 253
W61,5 x D55 x H79/SH48 cm
Layout Armchair 254 W62 x D56 x H80/SH48 cm
Layout Armchair 261
W61,5 x D55 x H79/SH45,5 cm
Layout Armchair 262
W61,5 x D55 x H79/SH45,5 cm
Layout Armchair 263
W61,5 x D55 x H79/SH48 cm
Layout Armchair 264 W62 x D56 x H80/SH48 cm
5-Star Swivel Base With Wheels
Arc Base
Arc Base With Wheels
Packshots and lifestyle photos, 2D / 3D files, care and maintenance, instructions, certificates, product fact sheets are available in our Digital Library at hay.com.
LINK TO DIGITAL LIBRARY | LAYOUT CHAIR
LINK TO DIGITAL LIBRARY | LAYOUT ARMCHAIR
