Way of light 2016/2017

WAY OF LIGHT

INTRODUCTION

ABOUT US

HALLA was founded in 1992 by friends Jiří Jelínek and Karel Květoň. From the beginning, HALLA has been engaged in the production and sale of luminaires and has gained a reputation for its quality products, philosophy, and for being a reliable business partner and leading producer of technical design lighting that sensitively and tastefully resonates with interior spaces. Today, HALLA exports its luminaires to more than 40 countries all over the world.

More about us in our Qr code.

DEVELOPMENT

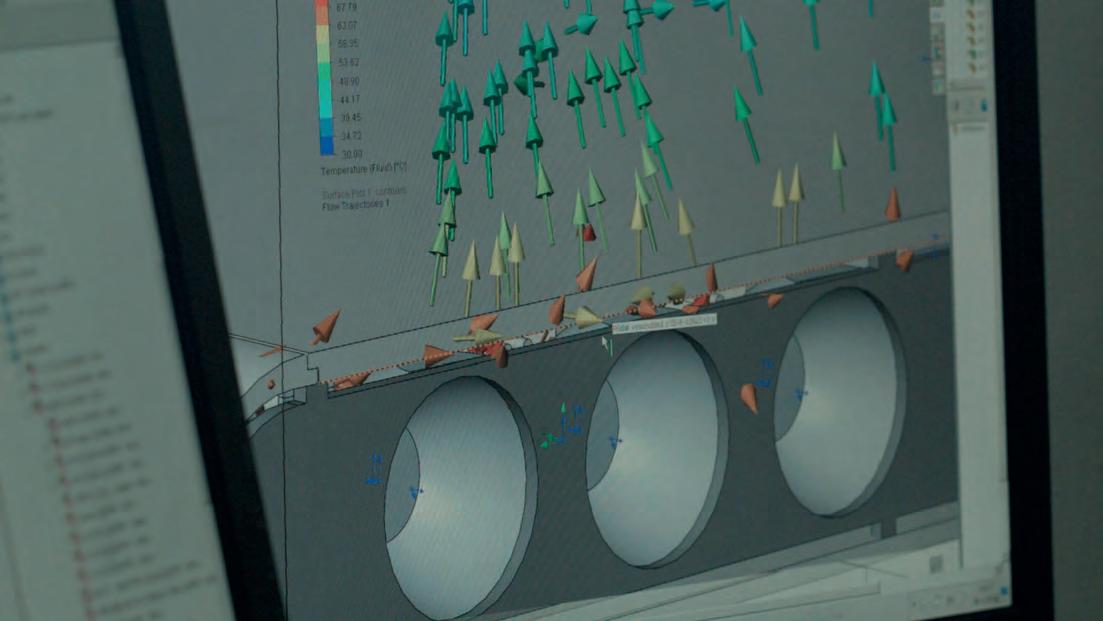

As we develop our luminaires we always look for new ways that lead to progress and innovation. We use modern software tools for modelling and simulation, calibration, and methods of measurement to accelerate the development of new products. The uniqueness of our production comprises perfect process control, and traceability of all operations and components. Our design and modelling software provides functions that help us in the fields of thermal management and lighting specification during the luminaires creation process. Our new development laboratory provides with an integrating sphere and goniophotometer, allowing lighting parameters to be verified during individual stages of development.

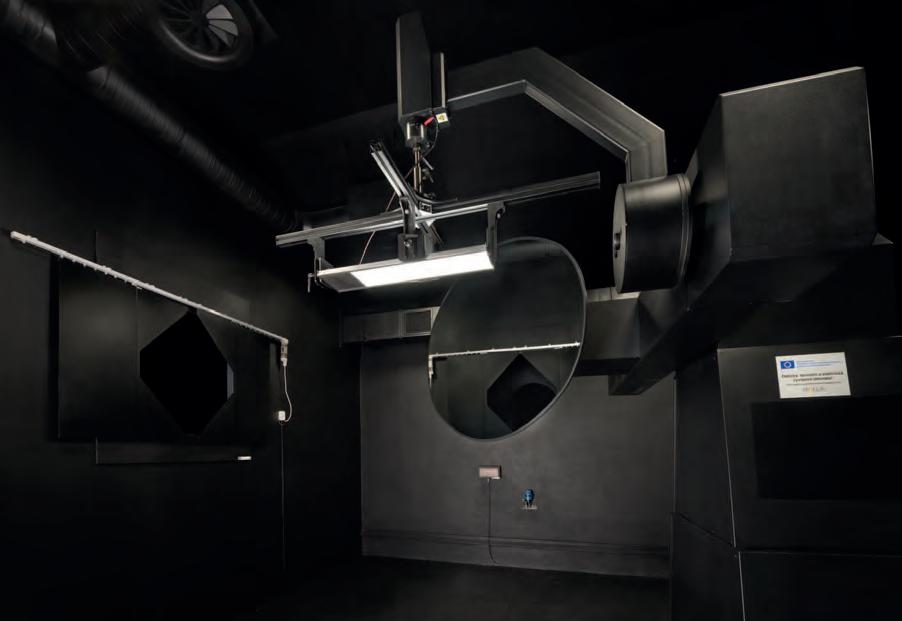

RESEARCH

The future of lighting in everyday life lies in complete user confidence in lights, control systems, automatic lighting settings as well as being able to control colour temperature. Just like scientific teams all over the world, we also study the influences of light on the human body. Human centric Lighting addresses the selection of light sources, the light spectrum, and adjustment to light intensity and colour temperature during the daily cycle. Along with quality luminaires, we also provide information about how to light properly, since even correct lighting in daily life influences our health. We are proud that we bring light into the life of millions of users all over the world.

D ES ig N

Our luminaires designs improve every year. We are open to new technologies, ideas, and trends. This is why we cooperate with both experienced designers and design students. The bottom line for us is mutual understanding and this harmony results in our characteristic luminaires. design awards such as the red dot design Award, IF design Award, the German design Award, Lighting design Awards and a prestigious 5th place in the red dot design ranking 2016 prove that we have chosen the right way.

Our luminaires designers include:

• rob van Beek. dutch designer and architect. The SAnT luminaire was awarded the red design Award 2015, German design Award 2015, and Lighting design Award 2015.

• Serge cornelissen. Belgian lighting designer and architect. For the VIMA luminaire design, he was awarded the German design Award 2017.

• Matúš Opálka. A young Slovak designer, founder of the OPALKA dESIGn studio. For the IndI luminaire design, he was awarded the red dot design Award 2014, IF design Award 2016, German design Award 2016, and Lighting design Award 2016.

• Simona Hrušková. As part of the HALLA design Team project in 2014, she designed the BEnT luminaire and she was awarded the German design Award 2017.

• Eva Petříková and Matyáš Kočnar. For their commercial property luminaire designs they were awarded the red dot design Award 2015.

HUMAN CENTRIC LIGHTING

THE C i RCAD i AN RHYTHM

In any one place, light changes its appearance over the 24-hour period of rotation of the Earth around its axis. Via the eyes, the human body records these changes in ganglion cells containing a photosensitive protein called melanopsin, which affects the production of melatonin hormones. The melatonin hormone influences other hormones and organs in the body. The production of individual hormones can be significantly altered in people who remain indoors with limited access to natural daylight or are exposed to artificial light during the night. One of our goals is to replicate daylight in interiors with artificial lighting using Tunable White luminaires.

With Tunable White we can influence the intensity as well as colour temperature of light and adjust it to specific human activities. Well-chosen lighting for a given activity and the time of the day can help maximize feelings of comfort. Suitable lighting conditions lead to higher efficiency, work accuracy, and quicker recovery. Importantly, it may also help reduce the risk of certain diseases. We know that we cannot replace the Sun, however by using Tunable White luminaires we can promote a more natural feeling for people in their environment.

Daylight intensity

Light intensity changes over the course of a day

Overcast 200 – 10 000 lx

c loudy 10 000 – 100 000 lx

c lear – around 100 000 lx

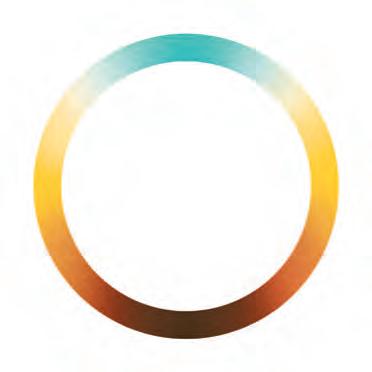

Colour temperature

c olour temperature over the course of a day

At sunrise 1900K

One hour after sunrise or before sunset 3500K

In the middle of the day 4500 – 7000K i nfluences La titude

Altitude

Environmental factors (shadows, reflective surfaces)

High alertness

12:00 PM2:30 PM Best coordination 3:30

d eepest sleep and body regeneration 00:00 AM 6:00 AM Waking up

d rowsiness and fatigue

Recommended adjustment of colour temperature and light intensity

Morning c ool light

High intensity

Afternoon

White light High intensity

1800K / 4700K

2000K / 5500K

3500K / 6600K

4500K / 6800K

5000K / 7000K

Evening

Warm light

Low intensity

Night n o light

4500K / 6800K

3500K / 5600K

2000K / 5500K

1800K / 4700K

Our Tunable White luminaires achieve colour

SPECIAL LED SOURCES

REALWH i TE

Currently:

The luminaires using standard LEd sources demonstrate problems accurately displaying the colours of objects combined with white. White colour will often be tinted with a particular shade making it impossible to display correctly.

Our solution:

For displaying colour satisfactorily on illuminated objects as well as accurately preserving the appearance of white, we have special LEd sources. Their typical use is in business premises for products such as those found in pharmacies, perfume stores, and stationery and book shops.

STRON g COLOUR

Currently:

under standard luminaires, product quality is often disguised or obscured because its illuminating light absorbs the colour, brightness, shade, and structure of the product.

Our solution:

We give customers the opportunity to illuminate special situations with a light source that can highlight a particular colour of the illuminated object. Their typical application includes illuminating meat, pastries, jewellery, or glass.

REALCOLOUR

Currently:

The luminaires using standard light sources do not render colour faithfully and so objects will appear different under normal daylight. In some cases, the differences seen can be significant.

Our solution:

At HALLA, we have light sources available for The luminaires that render colour very closely to daylight illumination. These are suitable, for example, in galleries.

VIMA TULPI IXYO

LIGHTING APPLICATIONS

AND KEY TO SYMBOLS

We have prepared a system of icons that will guide you through our realisations. Our goal is to clearly illustrate how our luminaires are used in different interiors and circumstances. You can find these symbols to the right of each image. On the next page are some images depicting our showroom in Prague. We hope this will assist in guiding you through our catalogue.

HALLA SHOWROOM

c zech r epublic / Prague

Architect: Ing. arch. Luka Križek / r ealization: 2015 Showrooms

WAY OF LIGHT

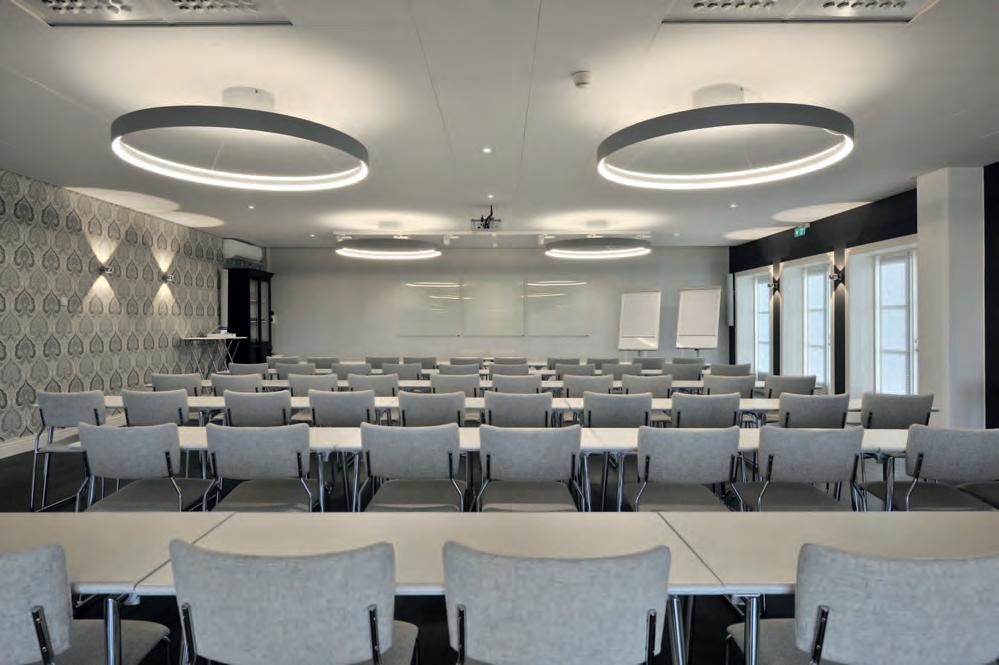

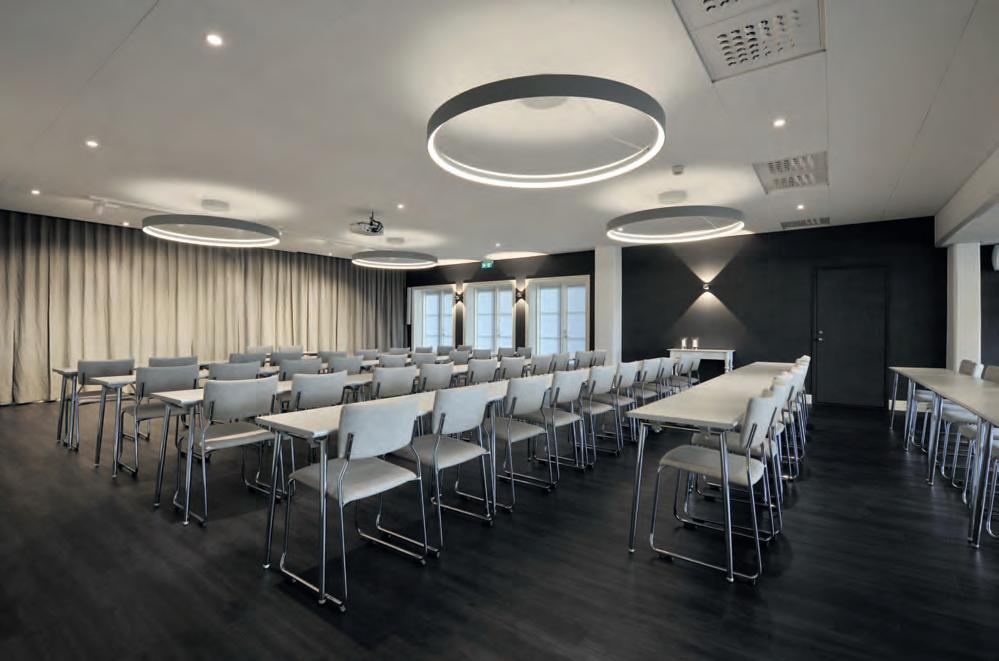

BåsenBerga

Sweden / Vingåker

Architect: Helena Andersson å kerberg, Lighthouse AB / Realisation: 2015 Hotels

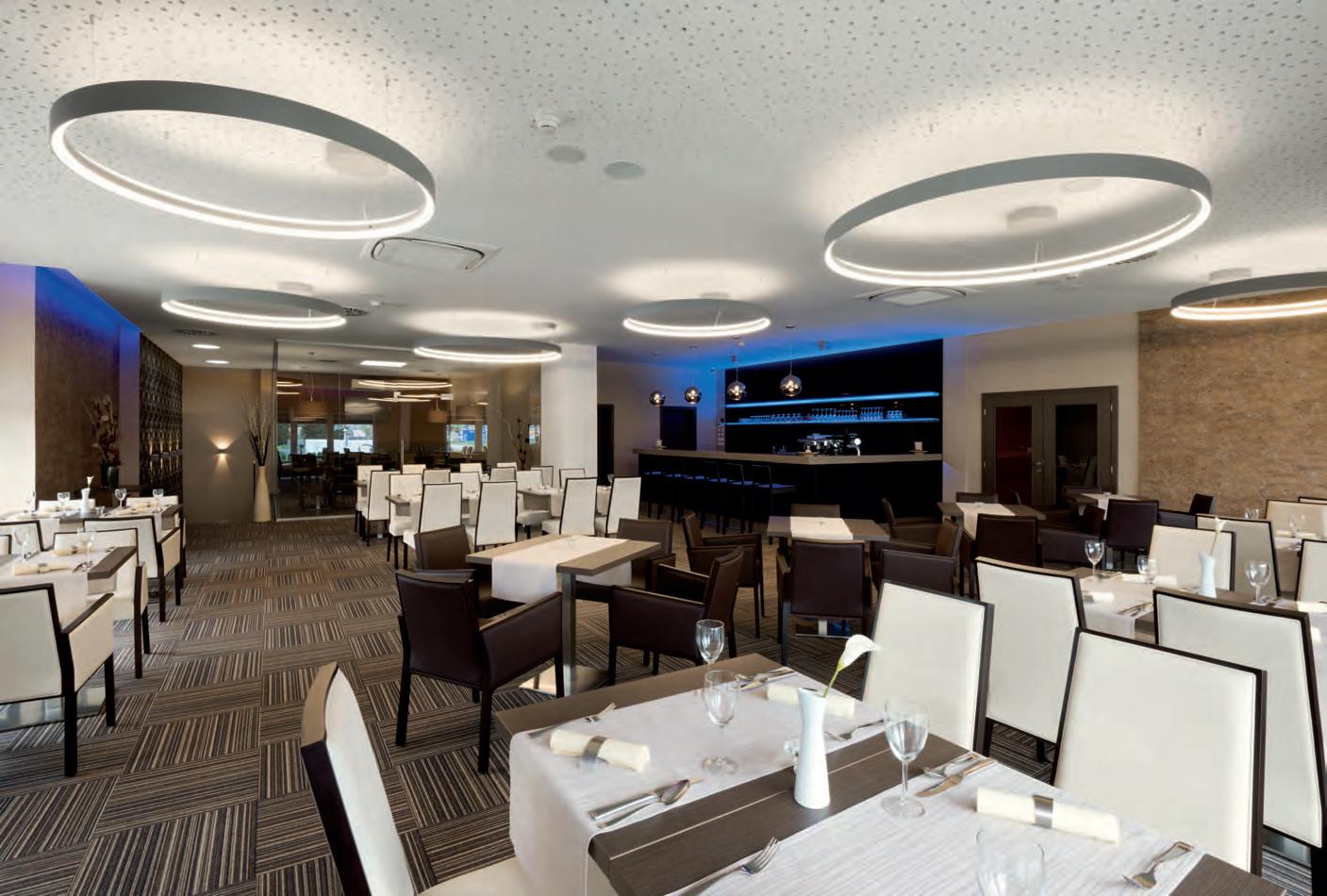

resTaUranT Tenis HoTel

Slovak Republic / Zvolen

Architect: Ing. arch. Pavol Pavelka / Realisation: 2015

gloBUs resTaUranT

Czech Republic / Prague

Architect: Ing. arch. Tomáš Andrle / Realisation: 2016

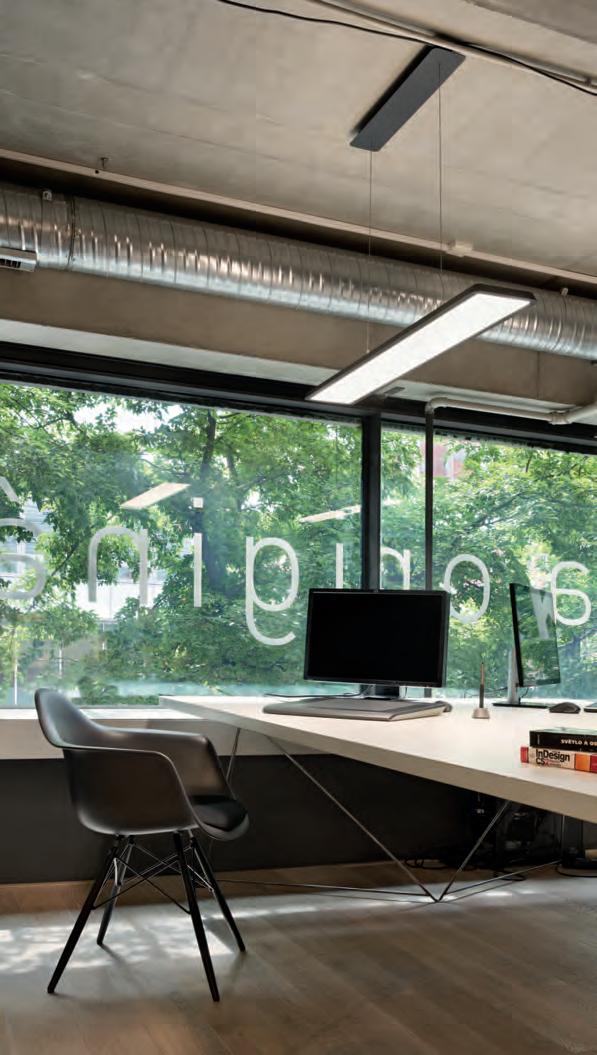

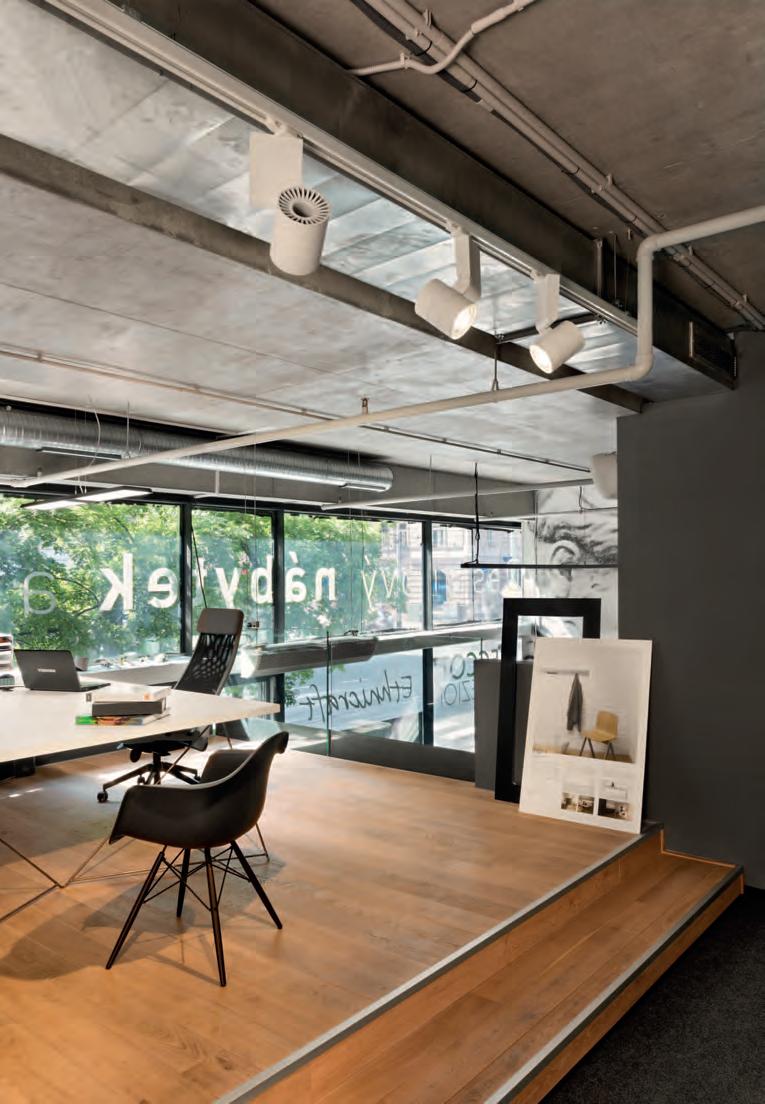

opálka Design sTUDio

Czech Republic / Prague

Architect: Matúš Opálka / Realisation: 2016

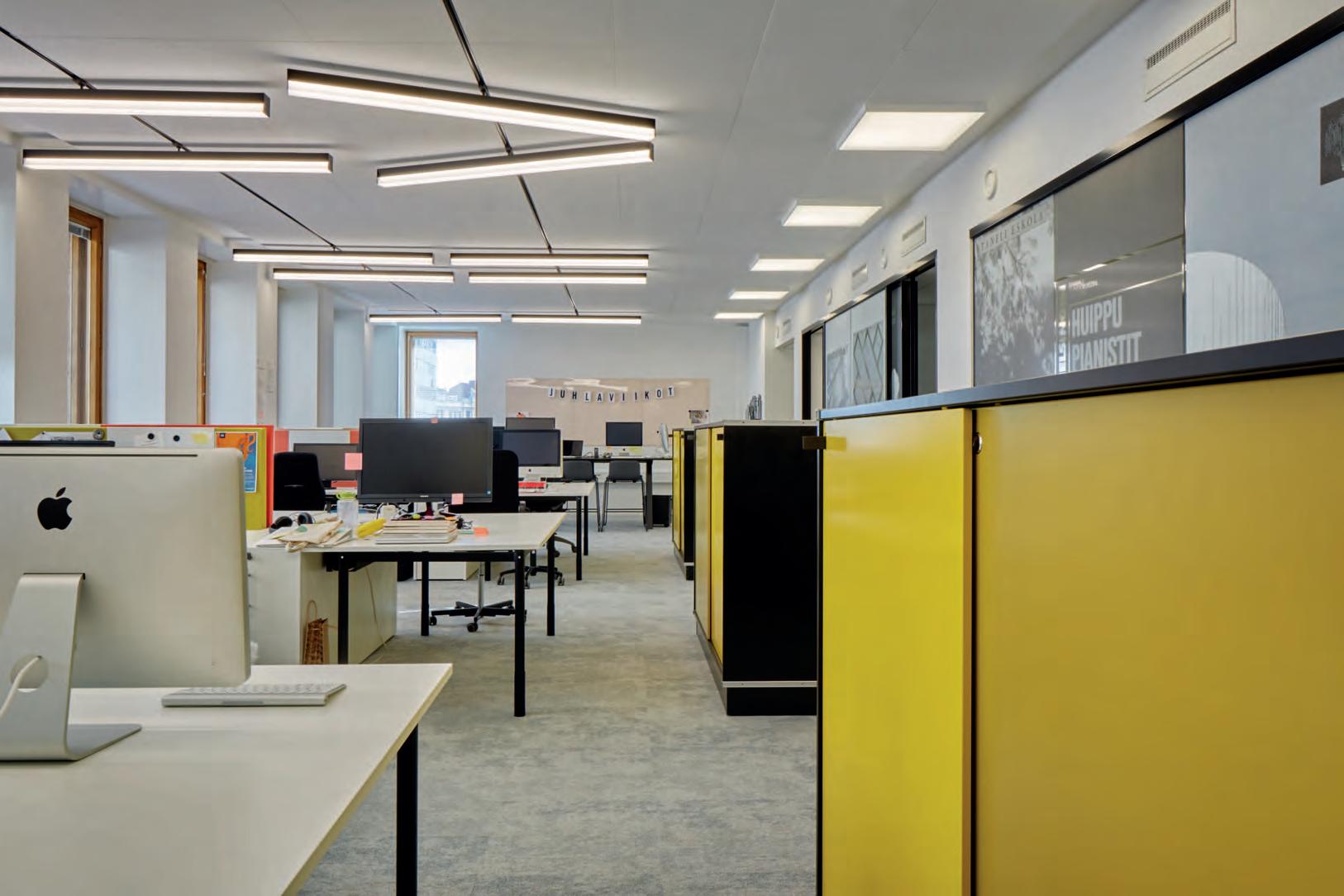

Helsingin JUHlaviikoT

Finland / Helsinki

Architect: k O k O3 office / Realisation: 2016 Offices

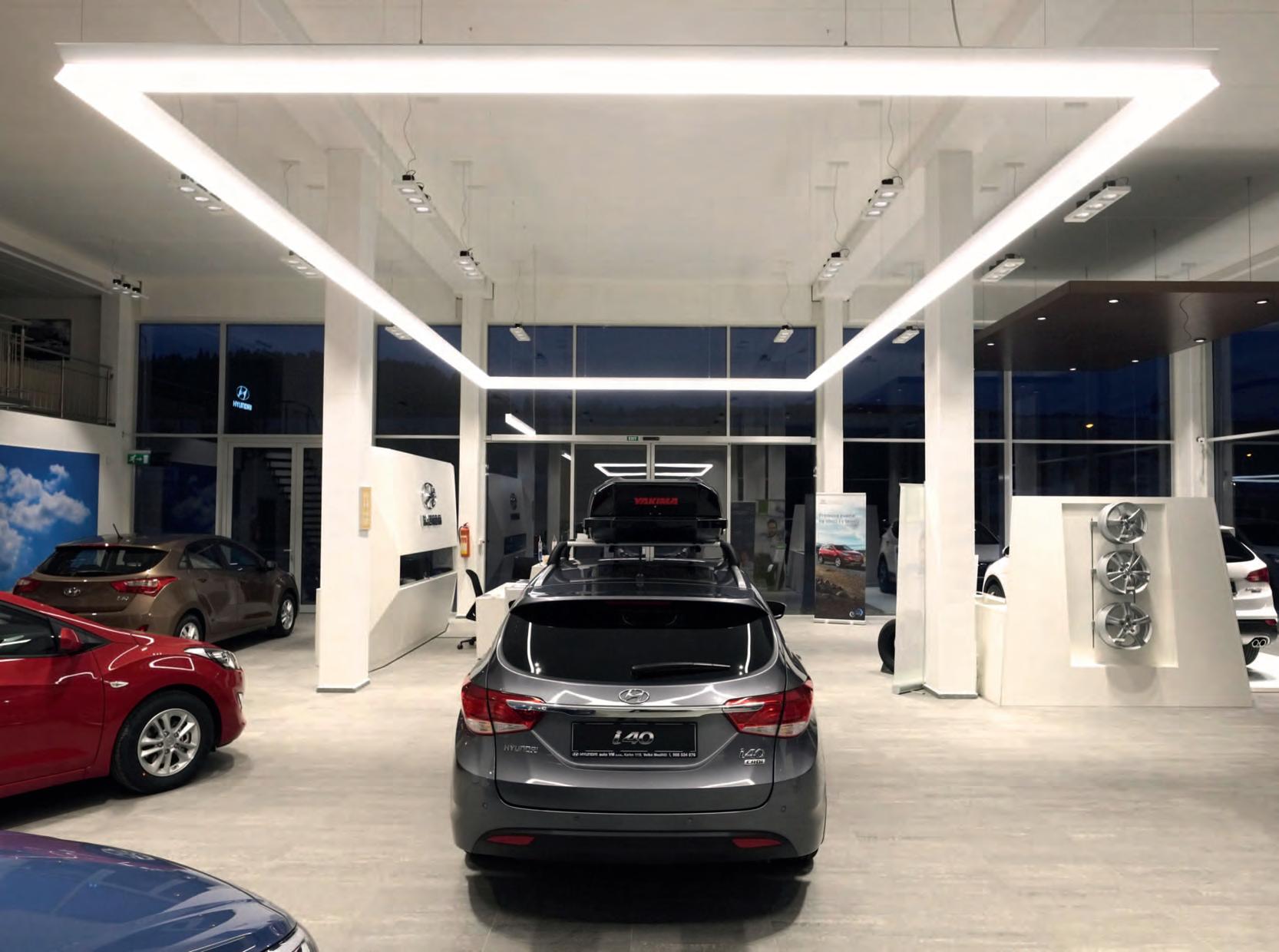

HyUnDai

Czech Republic / Valašské Meziříčí

Architect: Ing. arch. Martin kozák (ATANAMI44 s.r.o.) / Realisation: 2014

Showrooms

ČsoB Bank

Czech Republic / Prague

Architect: Ing. arch. Luka k rižek / Realisation: 2016

Banks

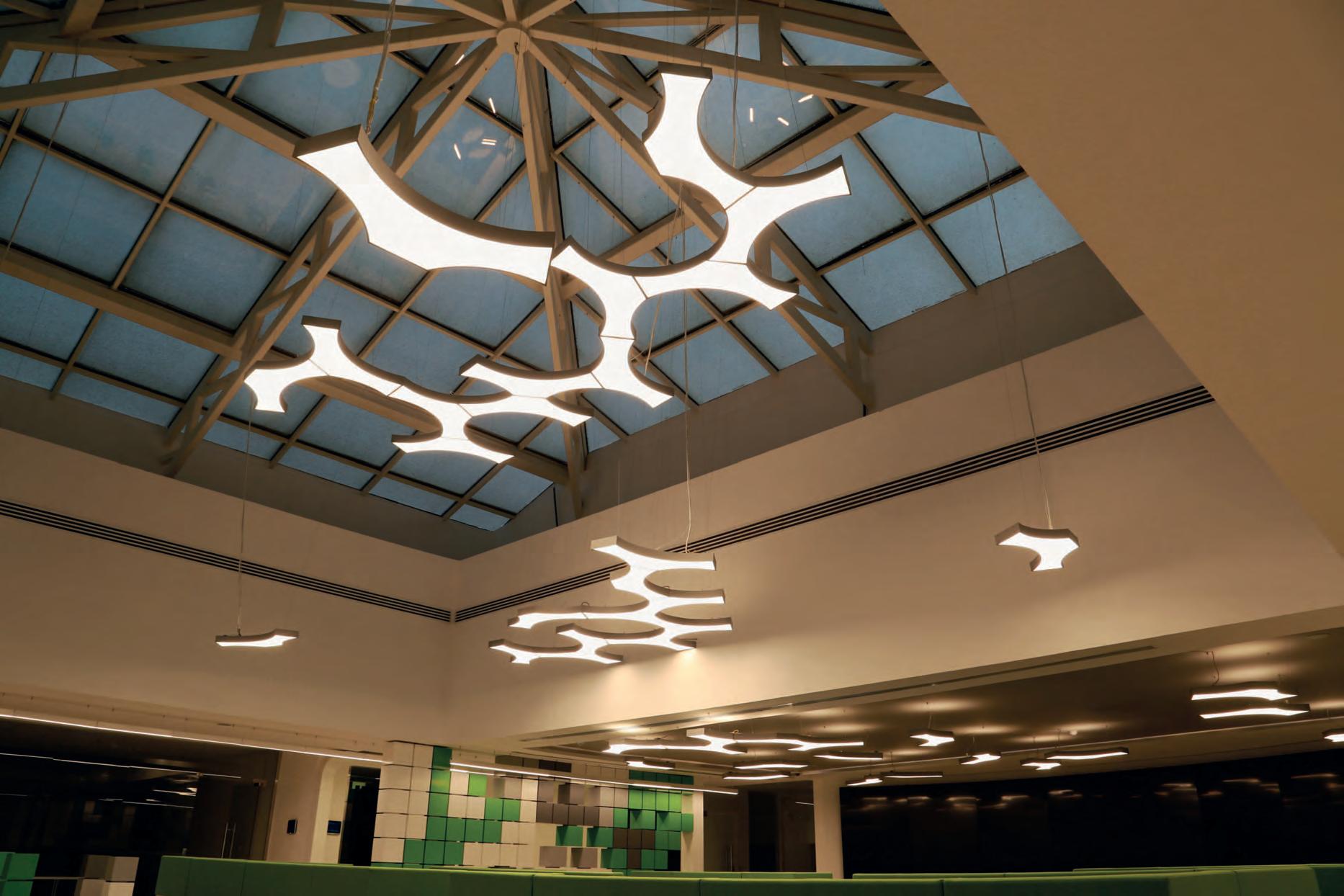

office DUBai

United Arab Emirates / Dubai

Architect: Jonathon Heppenstall / Realisation: 2015

k ingdom of Saudi Arabia / Riyadh

Architect: Q Design / Realisation: 2015

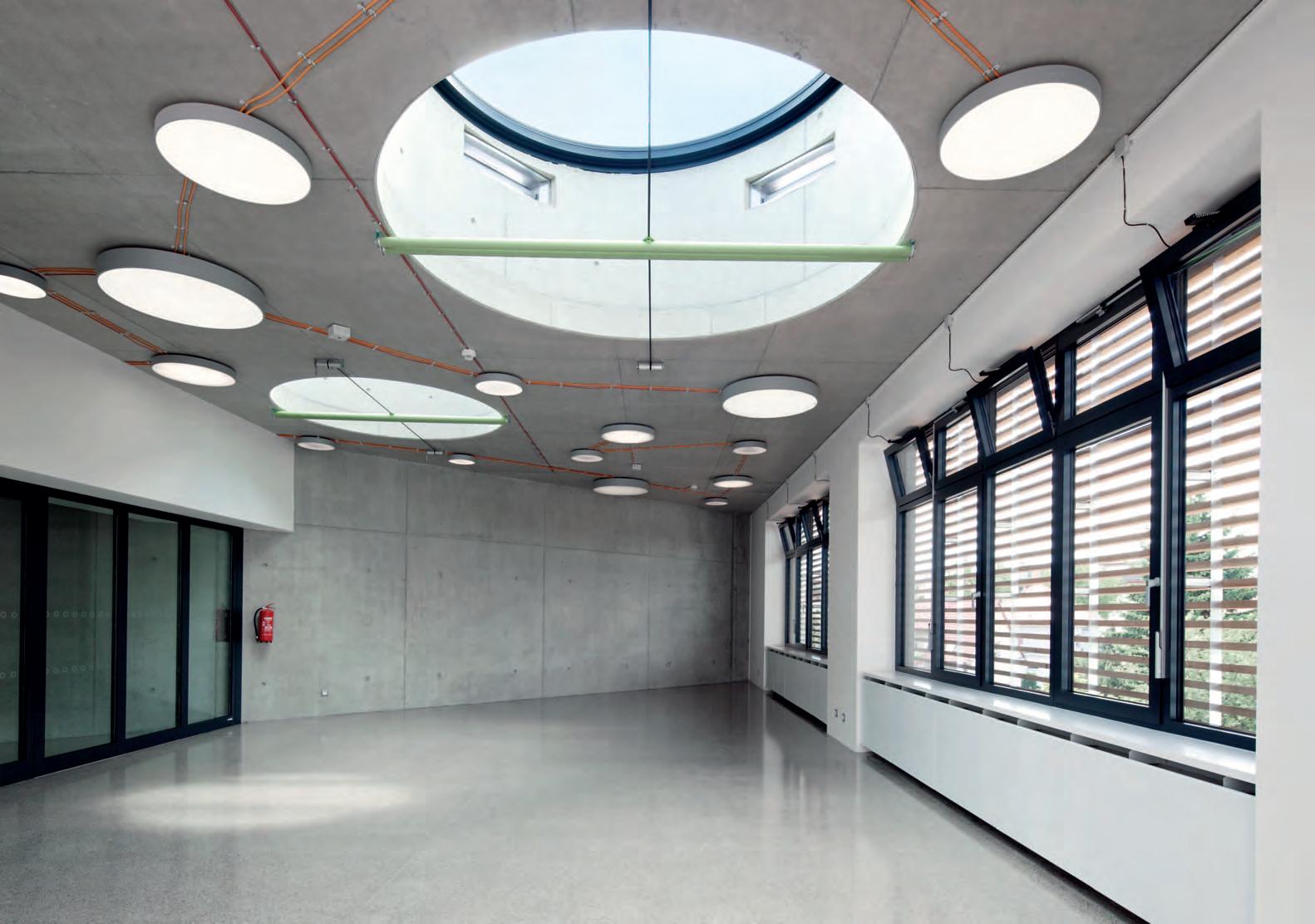

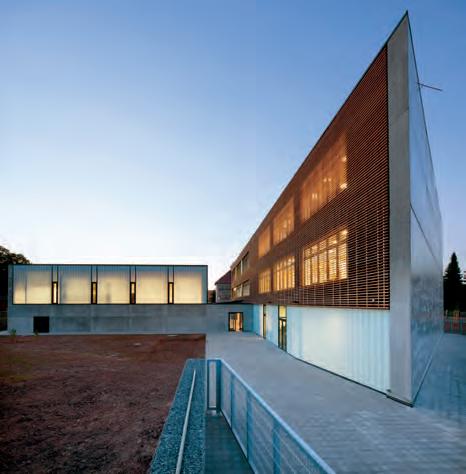

roZToky priMary scHool

Czech Republic / Roztoky

Architect: Obermeyer Helika a. s. / Realisation: 2015

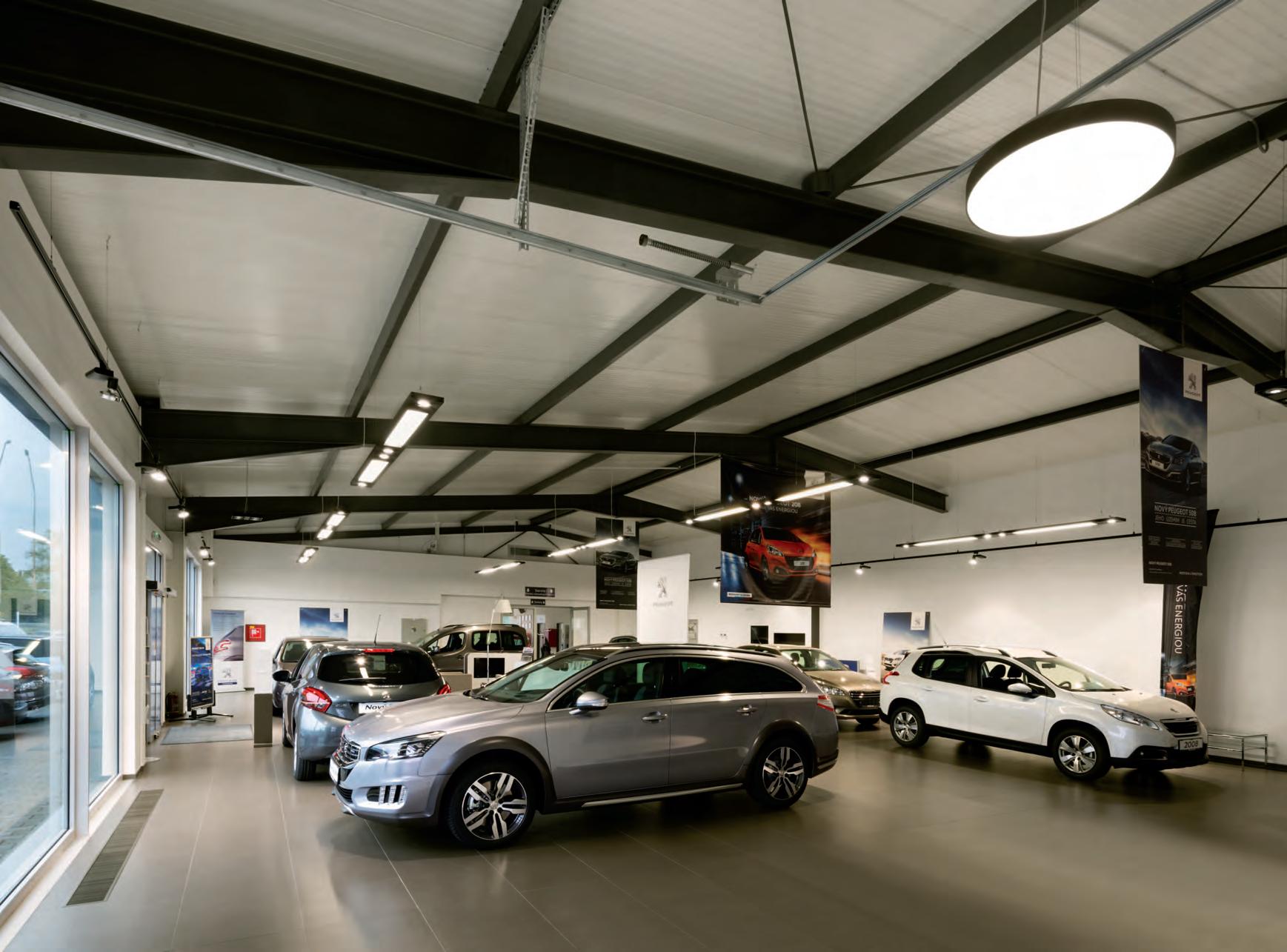

peUgeoT

Slovak Republic / Lučenec

Realisation: 2016

Showrooms

Slovak Republic / Bratislava

Architect: Ing. arch. Pavol Čechvala / Realisation: 2014

Offices

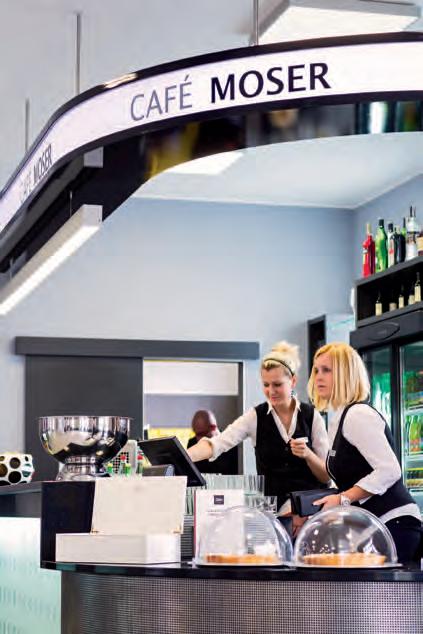

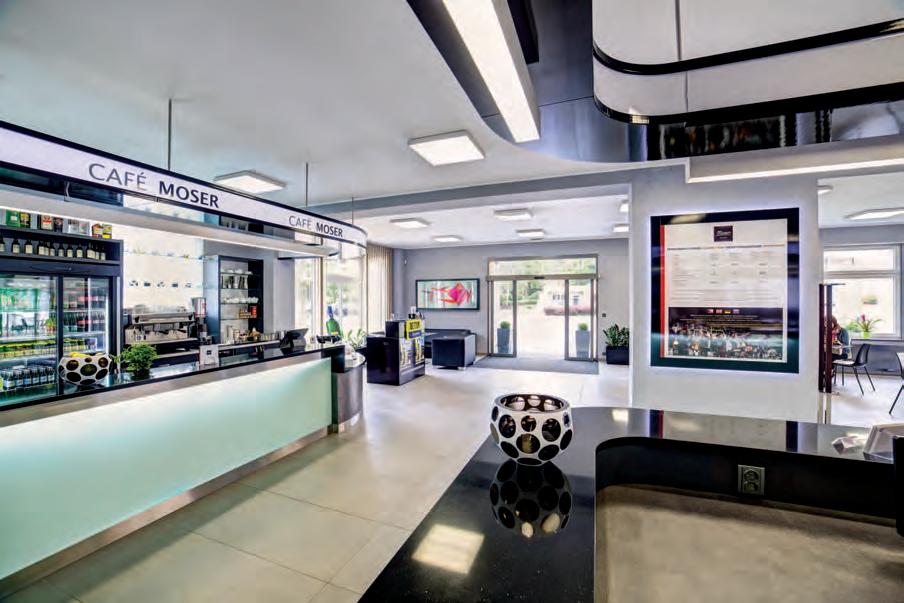

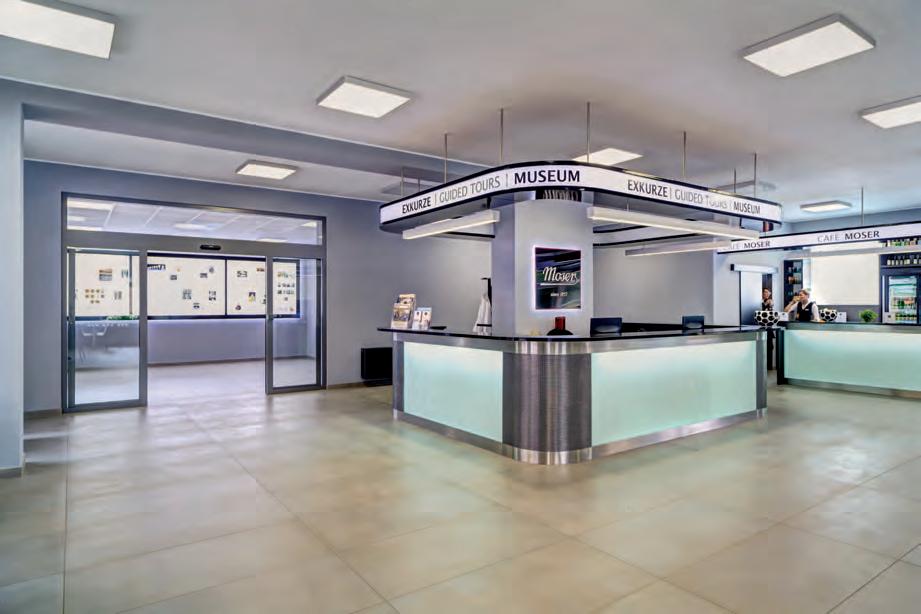

Moser cafÉ

Czech Republic / k arlovy Vary

Architect: Ing. arch. Martin Perlík, AP STUDIO PERLÍ k & k NYTL / Realisation: 2014

alBerT HeiJn sleeUwiJk

Netherlands / Sleeuwijk

Realisation: 2014

Terresa resTaUranT

Czech Republic / Čestlice

Architect: Mackovič architecture / Realisation: 2016

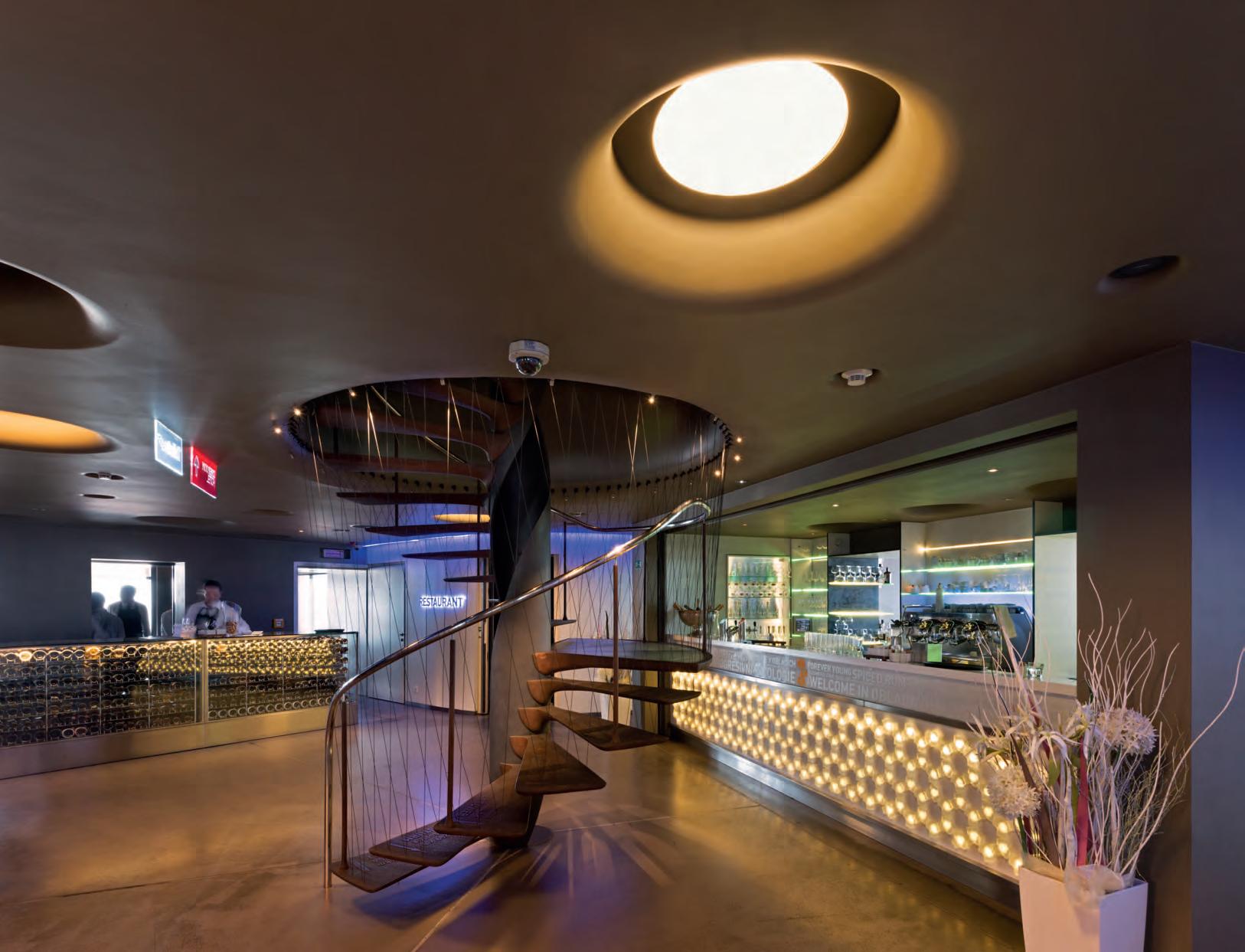

oBlaca resTaUranT Žižkov Tower

Czech Republic / Prague

Architect: Architects atelier SAD, arch. koza / Realisa tion: 2012

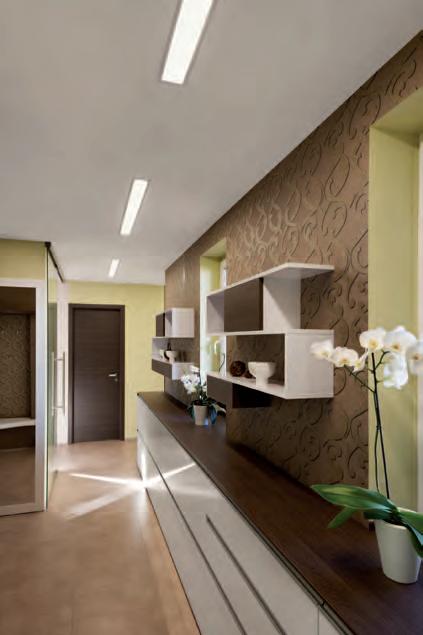

prosTĚJov resiDence

Czech Republic / Prostějov

Architect: STYLE STUDIO s.r.o. Ing. arch. Petr Gottwald / Realisation: 2014

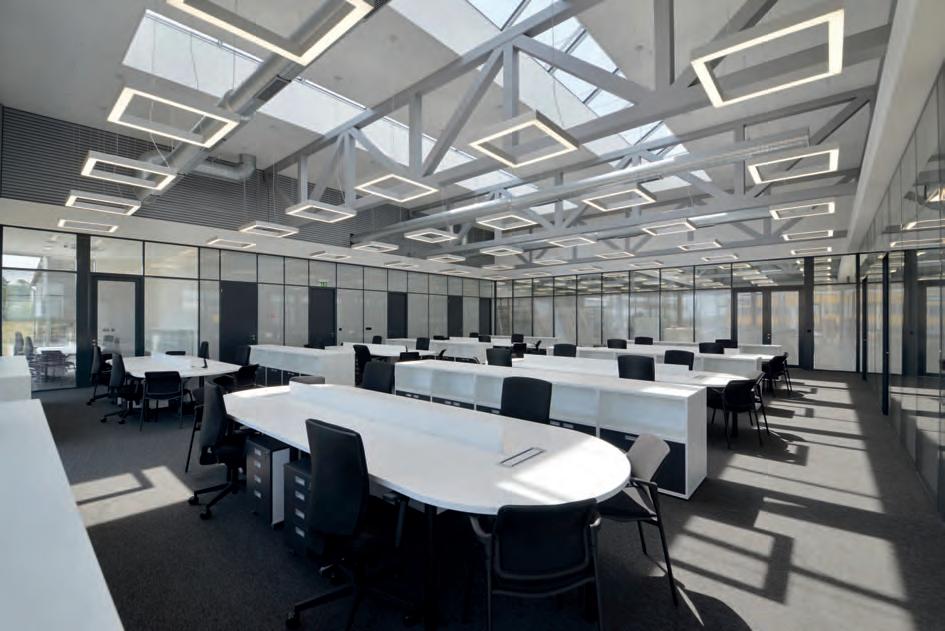

niTrogen works offices

Hungary / Budapest

Architect: Öbölyös k ristóf / Realisation: 2014

nak Zofingen

Switzerland / Zofingen

Architect: Visione Licht GmbH / Realisation: 2016

Dek consTrUcTion sUpplies

Czech Republic / Vestec

Architect: Ing. arch. Viktor Černý and Ing. Robert Černý / Realisation: 2013 Commercial property

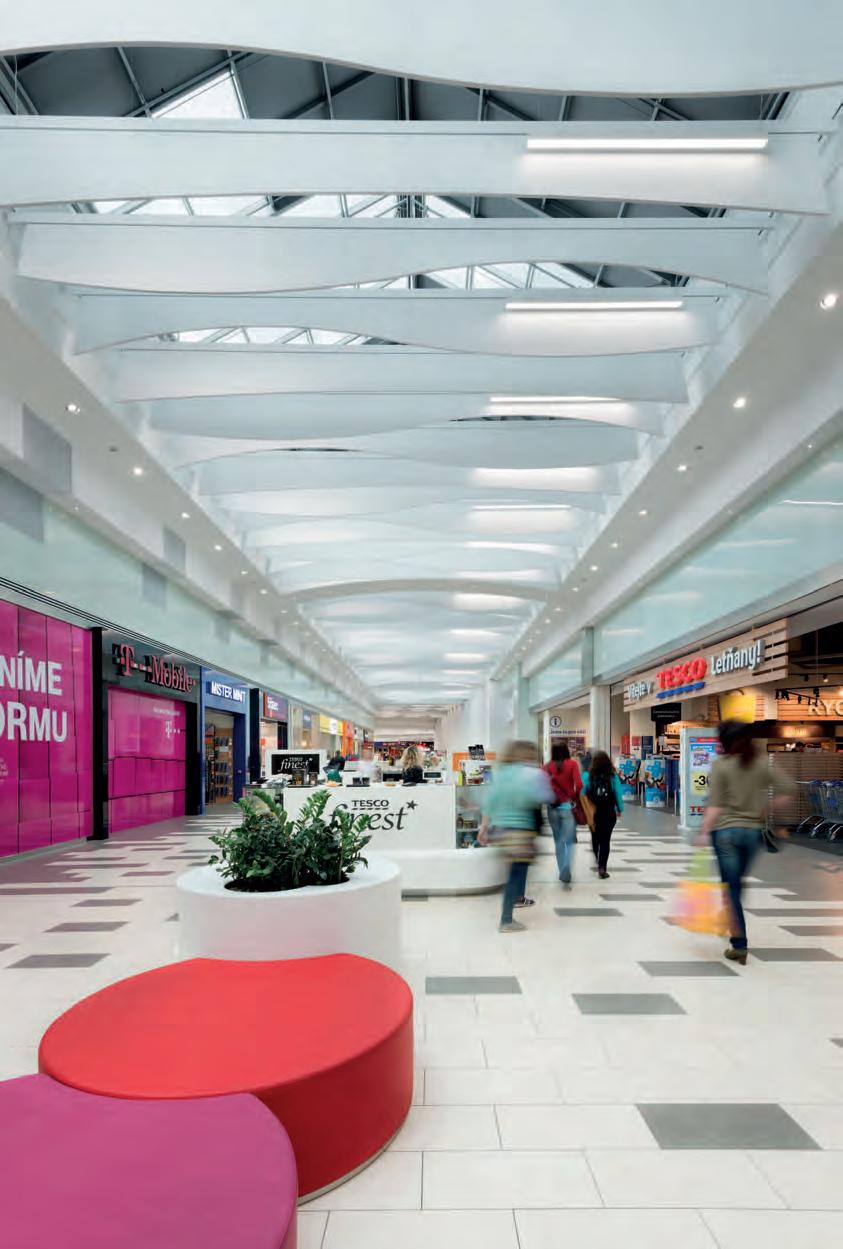

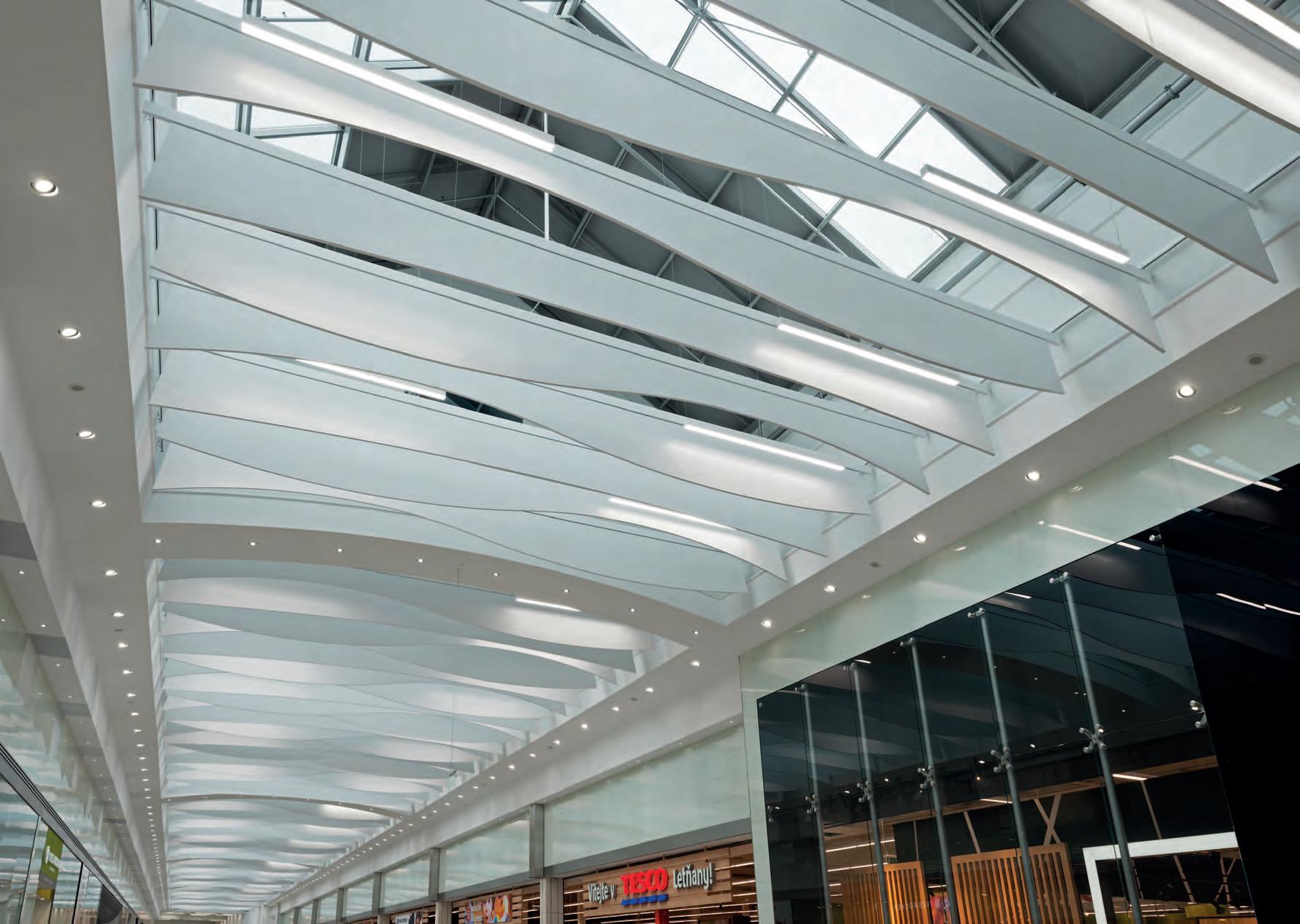

leTŇany sHopping cenTre

Czech Republic / Prague

Architect: Chapman Taylor s.r.o. / Realisation: 2015

lenovo

Slovak Republic / košice

Architect: Ing. arch. Rudolf Lesňák / Realisation: 2015 Showrooms

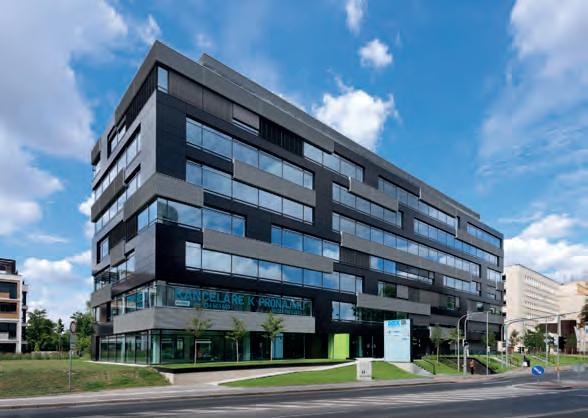

Dock office park

Czech Republic / Prague

Architect: S.H.S Architekti s.r.o. / Realisation: 2014 Offices

Slovak Republic / Bratislava

Realisation: 2014

TeTa cHeMisTs

Czech Republic / Březiněves

Architect: MORIS design s.r.o. / Realisation: 2015

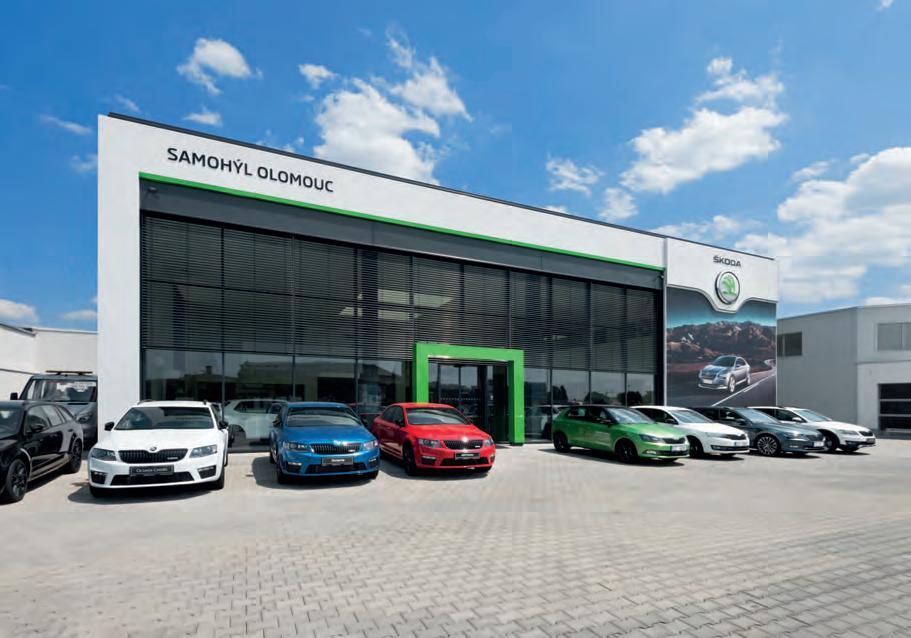

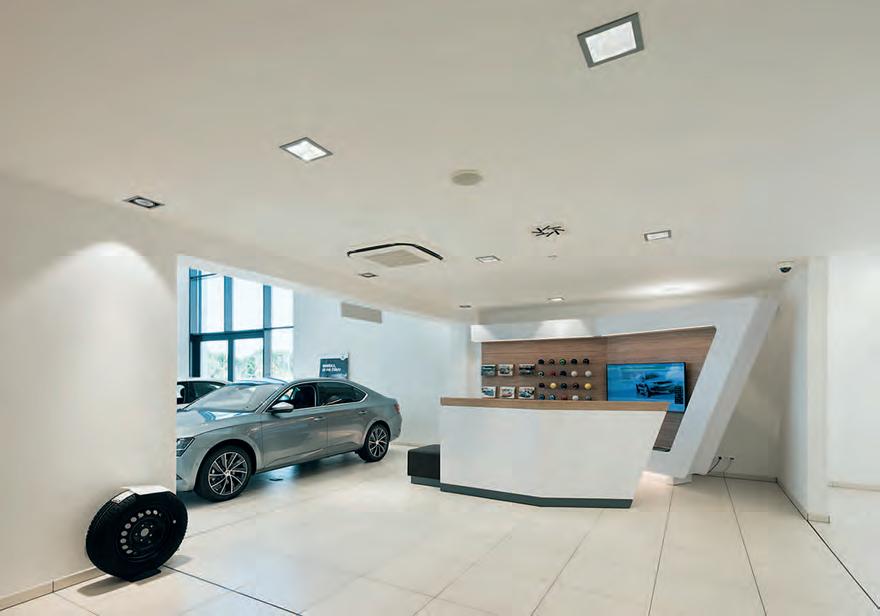

ŠkoDa saMoHÝl

Czech Republic / Olomouc

Architect: Ing. arch. Štěpán koníček, arch. koza / Realisa tion: 2015

Showrooms

DESCRIPTION

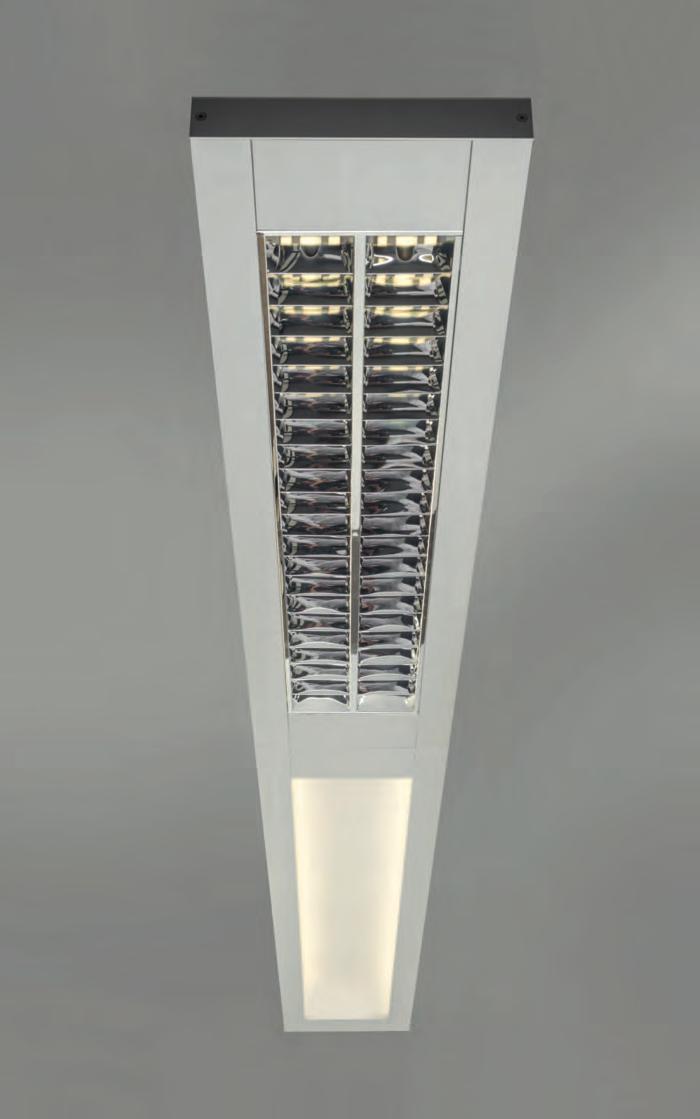

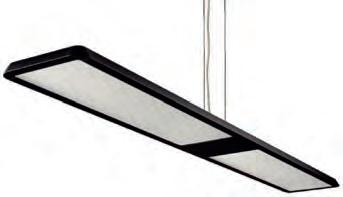

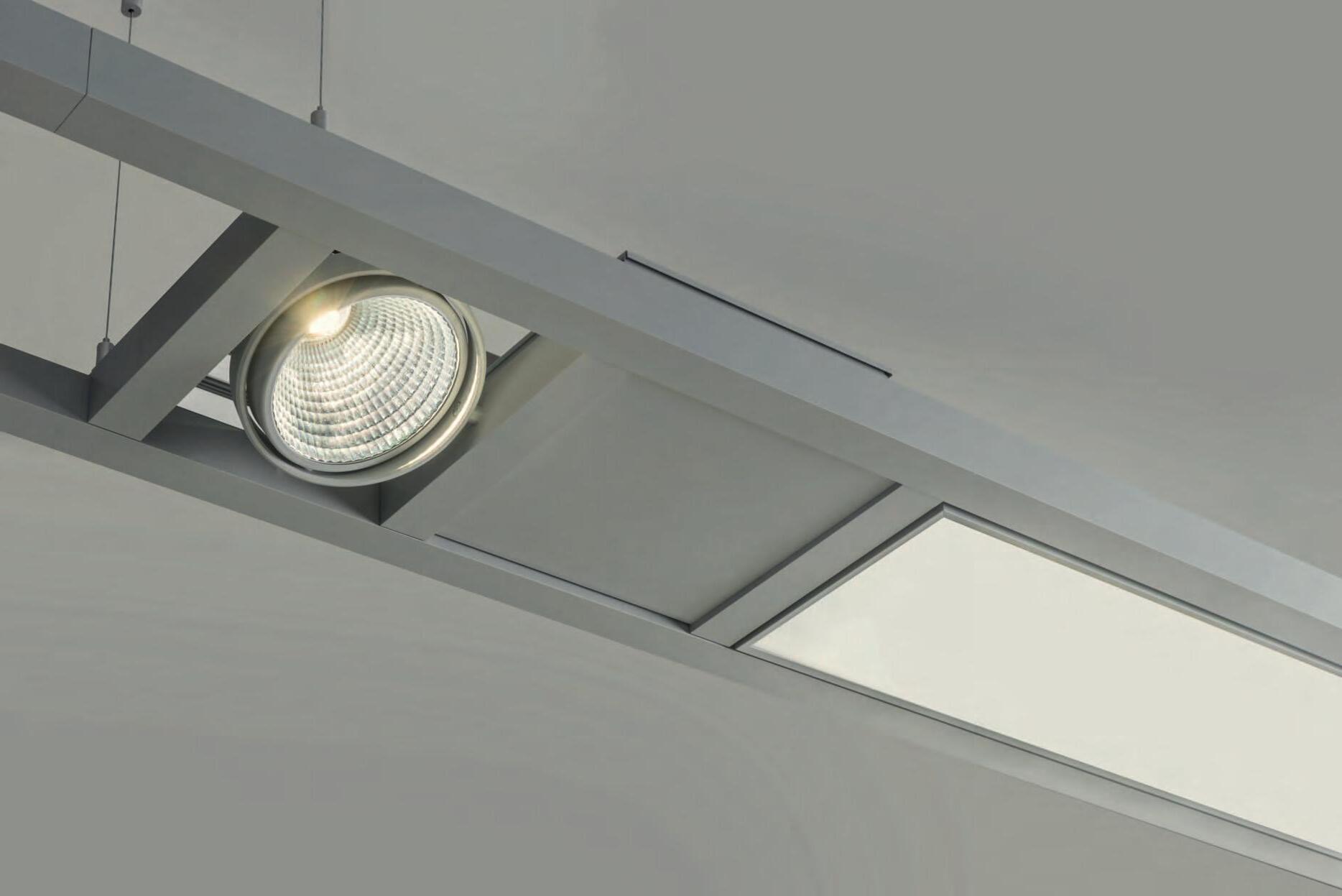

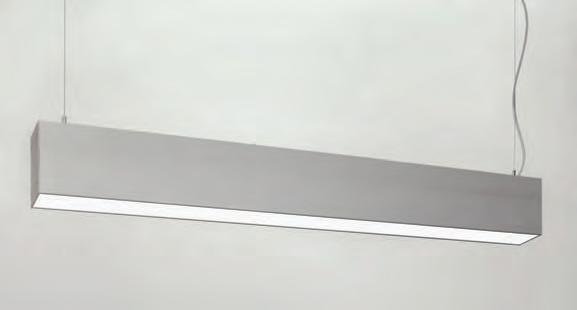

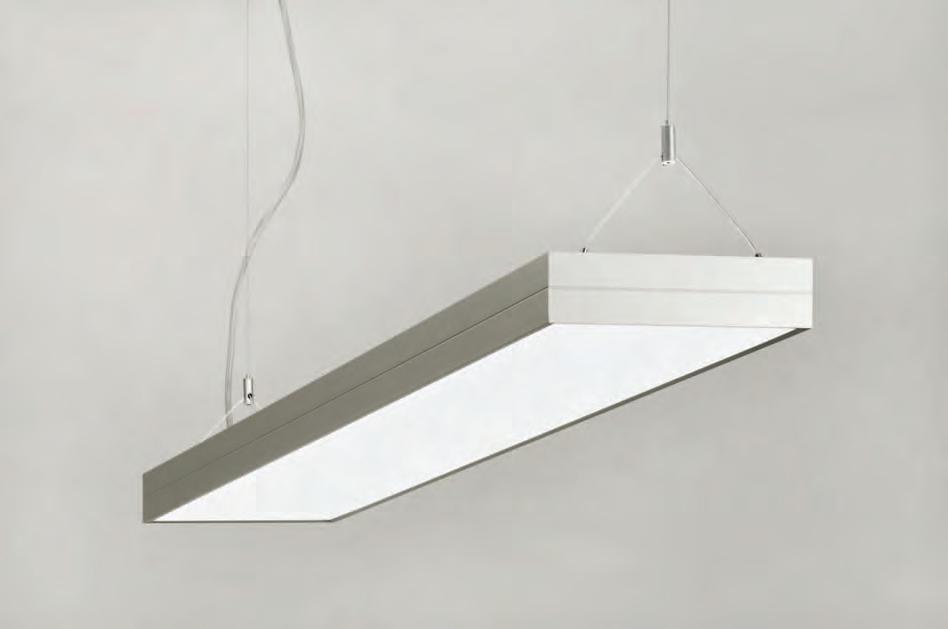

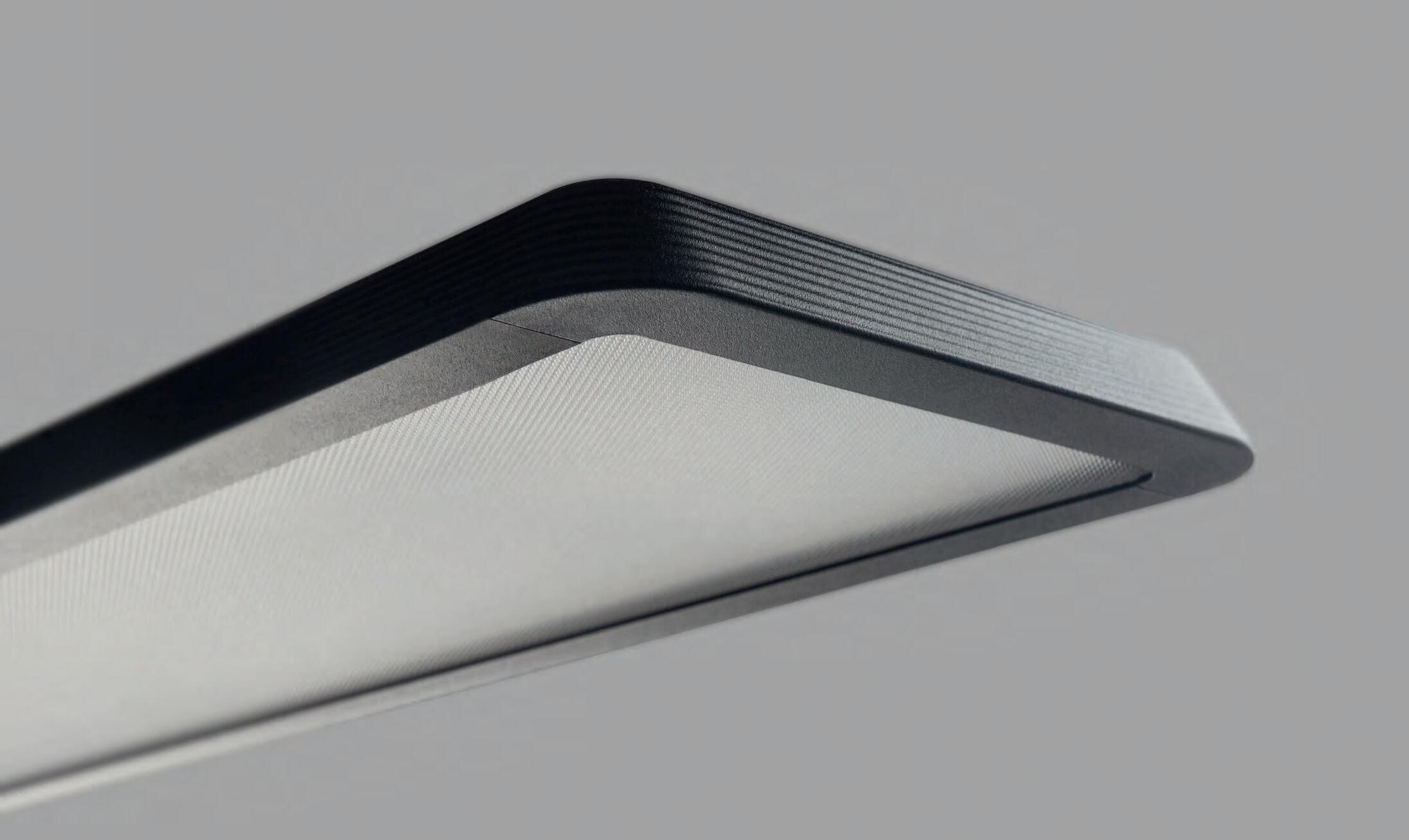

INLIO is a luminaire for office premises with direct-indirect light distribution, and UGR <17. It uses the latest LED, the Edge Lighting Technology and Tunable White.The luminaire has two variants according to the placement of the cup. Luminaire power supply is feed through the wire suspension assembly. The luminaire has a minimalist design. Throughout the entire circumference it is only 24 mm high, with bevelled edges so it seems to be even optically thiner. Rounded edges and wavy structure give the luminaire the characteristic features and significant differentiation. Design Matúš Opálka.

SuspendedBody

Optical system

Aluminium profile finished in epoxy powder coating

Microprismatic optical system

Opal diffuser

LED

230V, 50Hz

Luminaires are equipped with electronic transformer

Other possible options are specified below product codes

Dimensions l/w/h (mm)

1330x183x24

1890x183x24

Dimensions l/w/h (mm)

1180x183x24

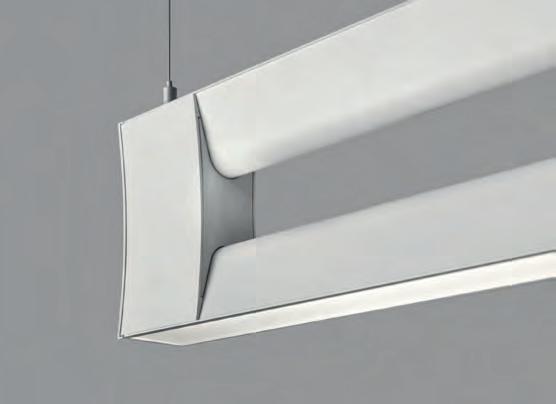

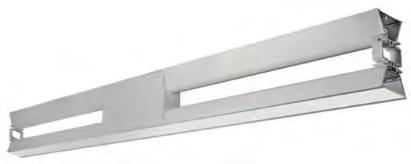

DESCRIPTION

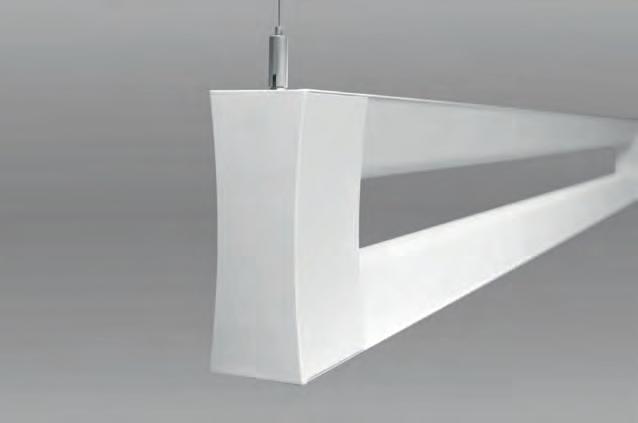

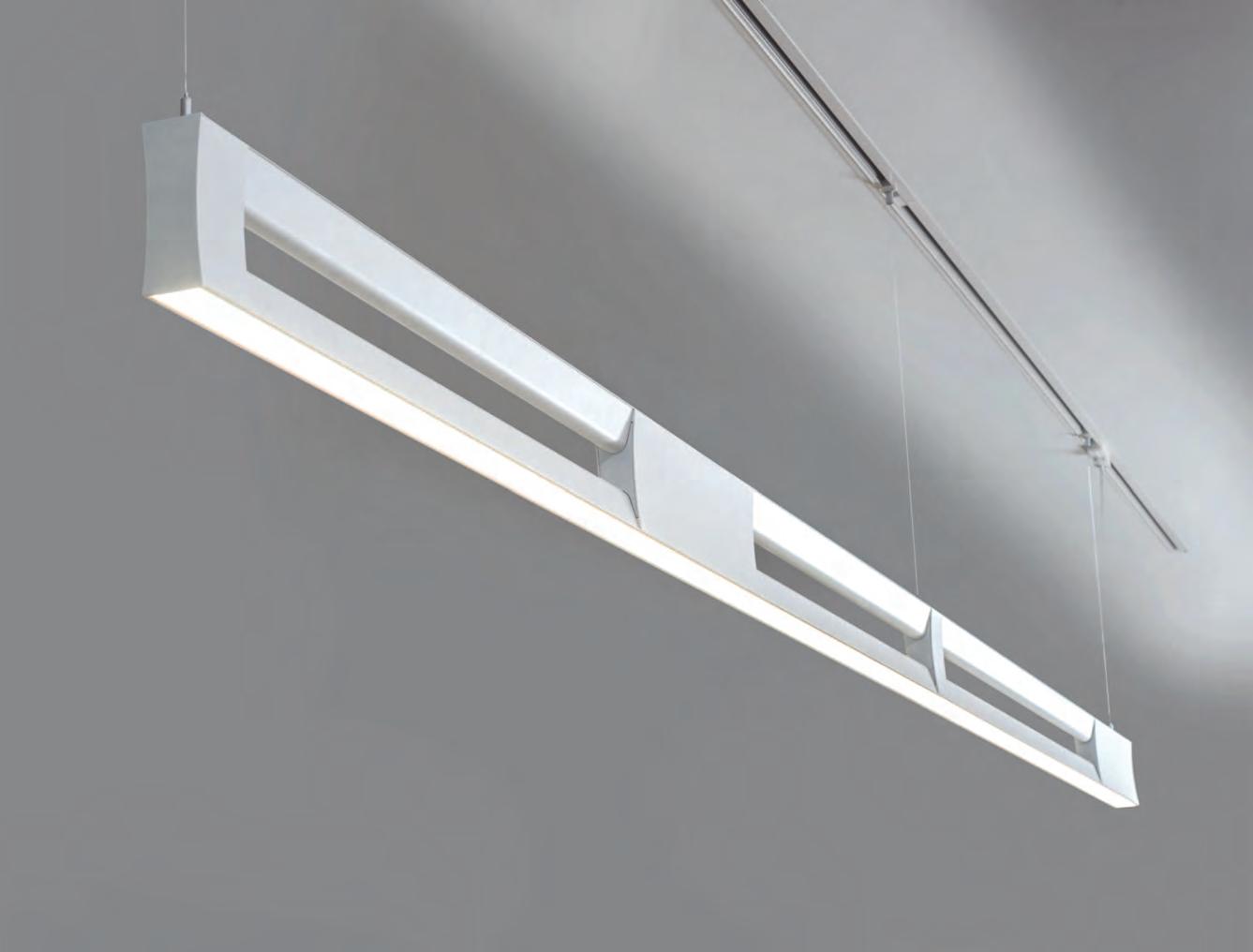

TRES luminaires consist of two optically optimised LED lighting profiles, for direct and indirect light. The electronic ballast for the LEDs is placed in a gearbox where these two LED profiles connect. There is an pen space between the two LED profiles which gives TRES a transparent, clear look. TRES luminaires may be used separately or connected to other systems TRES LED luminaires have a very high efficiency, meeting the UGR under 19. Design Rob van Beek.

SuspendedBody

Optical system

Aluminium profile finished in epoxy powder coating

Microprismatic optical system

Opal diffuser

LED

230V, 50Hz

Luminaires are equipped with electronic transformer

Other possible options are specified below product codes

Dimensions l/w/h (mm)

1122x135x50

1682x135x50

Dimensions l/w/h (mm)

2242x135x50

2802x135x50

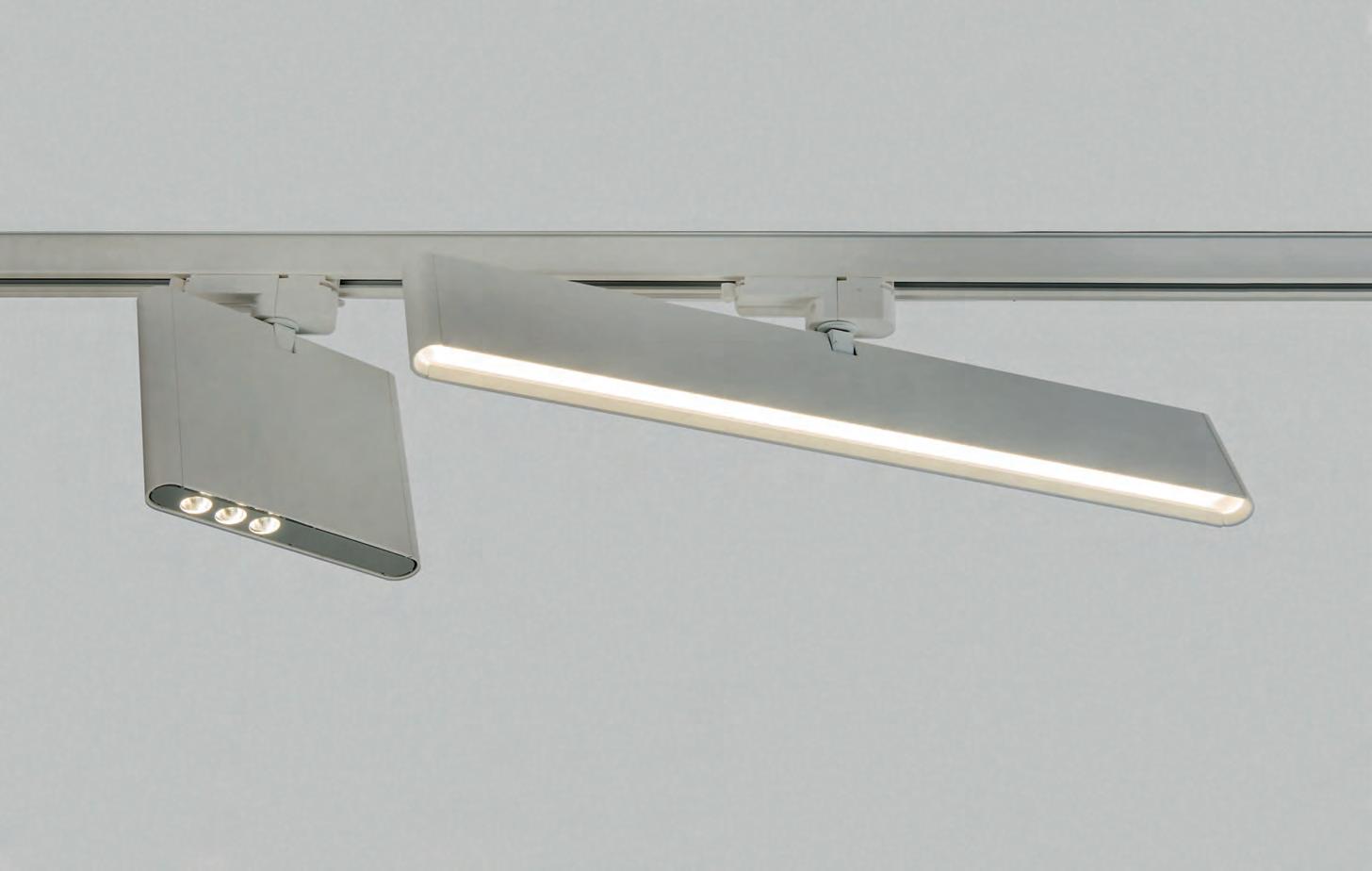

DESCRIPTION

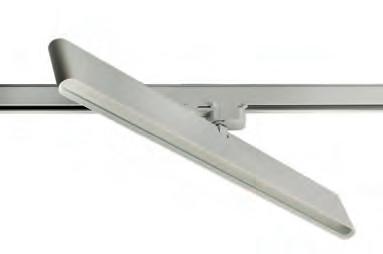

A LED moulding luminaire designed especially for lighting of commercial premises. The luminaire has a clean, minimalist design and an interesting detail of the grip – fitted in the hoop which is an elegant part of the body. The luminaire is rotable by 360°. The luminaires can be equipped in addition to highly luminous LED with colour rendering index Ra>80 or Ra>90 also with LED sources with RealColour technology ensuring extremely high rendering index Ra>97. RealWhite technology for white colour or a wider range of StrongColour variants for specific requirements. Design Serge Cornelissen.

3 circuit trackBody

Optical system

Aluminium profile finished in epoxy powder coating

Aluminium reflector Opal diffuser LED

230V, 50Hz

Luminaires are equipped with electronic transformer

Other possible options are specified below product codes

Dimensions l/w/h (mm)

202x150x28

Dimensions l/w/h (mm)

590x80x28

875x80x28

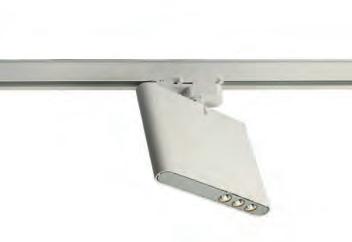

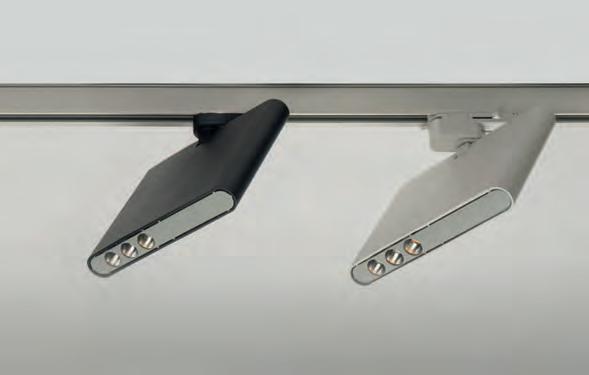

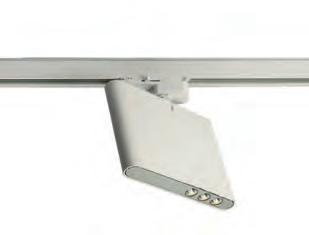

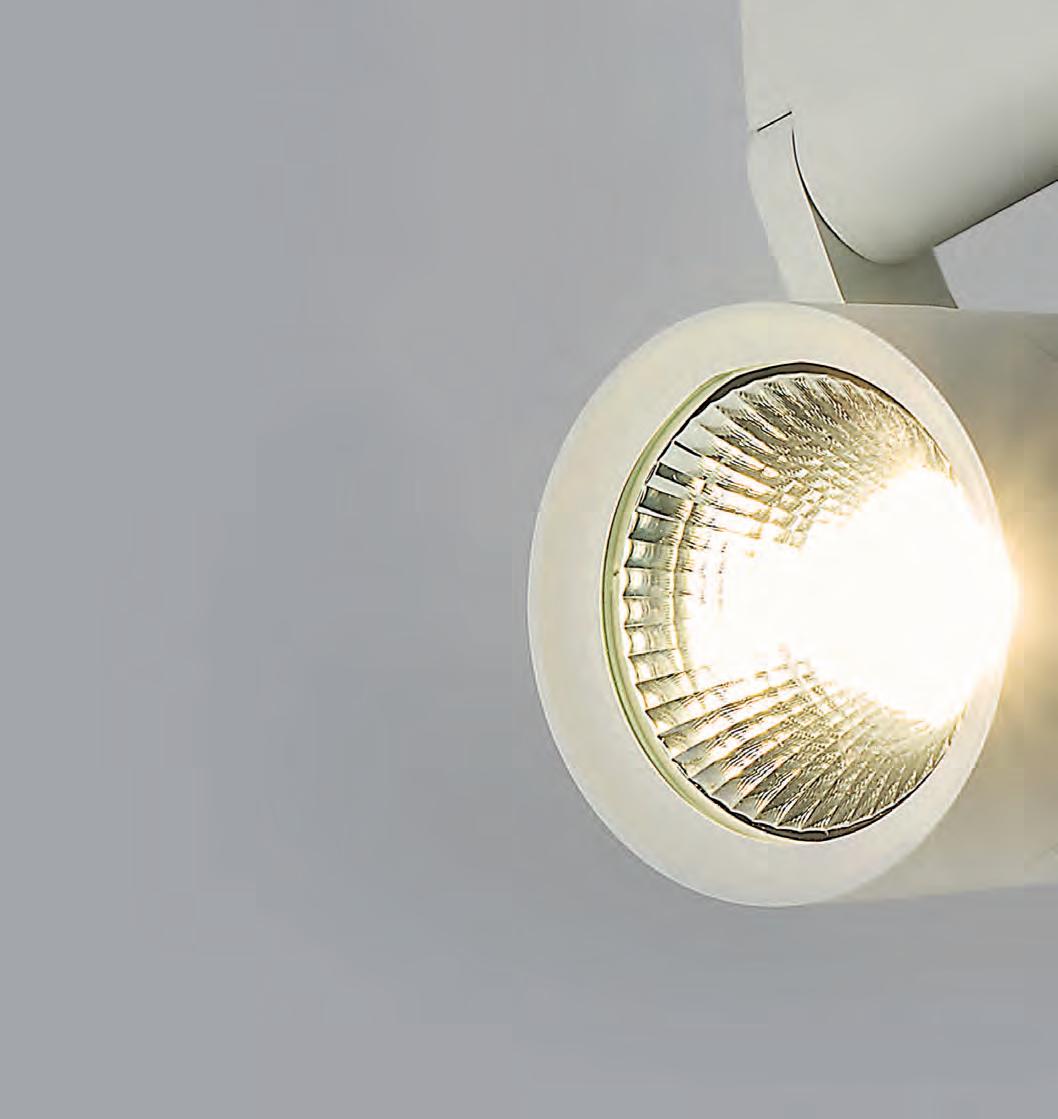

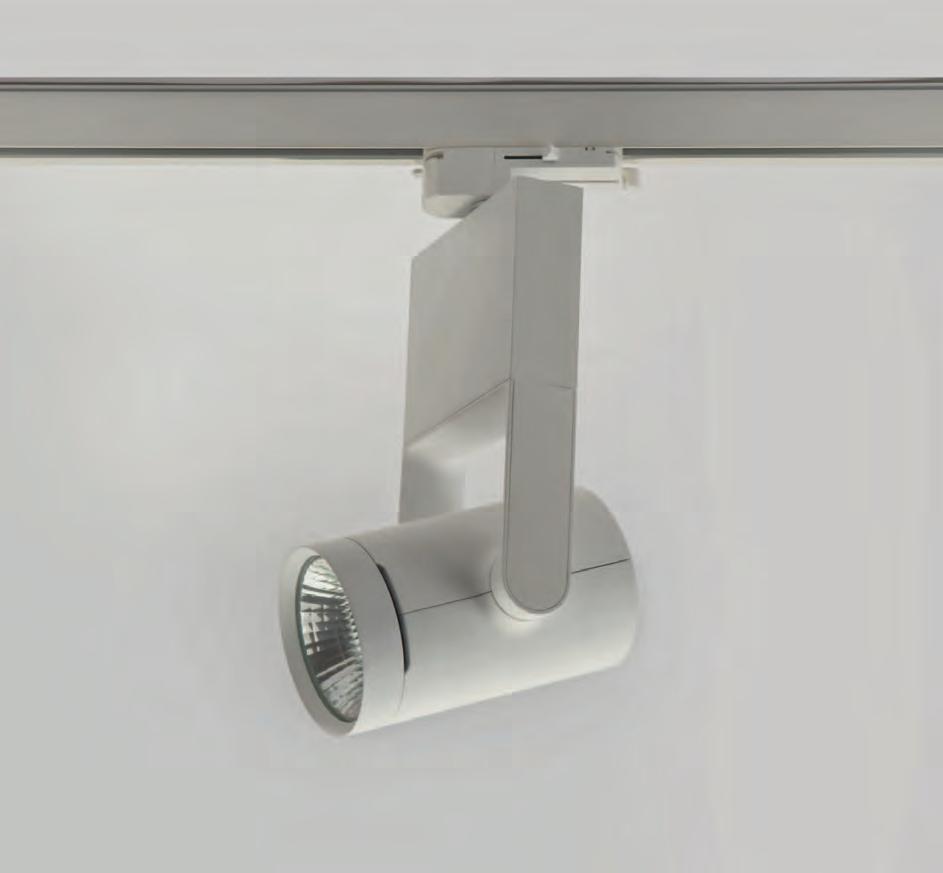

DESCRIPTION

A LED moulding luminaire designed especially for lighting of commercial premises. The luminaire has a clean, minimalist design and an interesting detail of the grip – fitted in the hoop which is an elegant part of the body. The luminaire is rotable by 360°. The luminaires can be equipped in addition to highly luminous LED with colour rendering index Ra>80 or Ra>90 also with LED sources with RealColour technology ensuring extremely high rendering index Ra>97. RealWhite technology for white colour or a wider range of StrongColour variants for specific requirements. Design Matúš Opálka.

3 circuit trackBody

Optical system

Die-cast aluminium finished in epoxy powder coating

Aluminium reflector LED

Design: Matúš Opálka

Dimensions l/w/h (mm) 102x146x180

230V, 50Hz

Luminaires are equipped with electronic transformer

Other possible options are specified below product codes

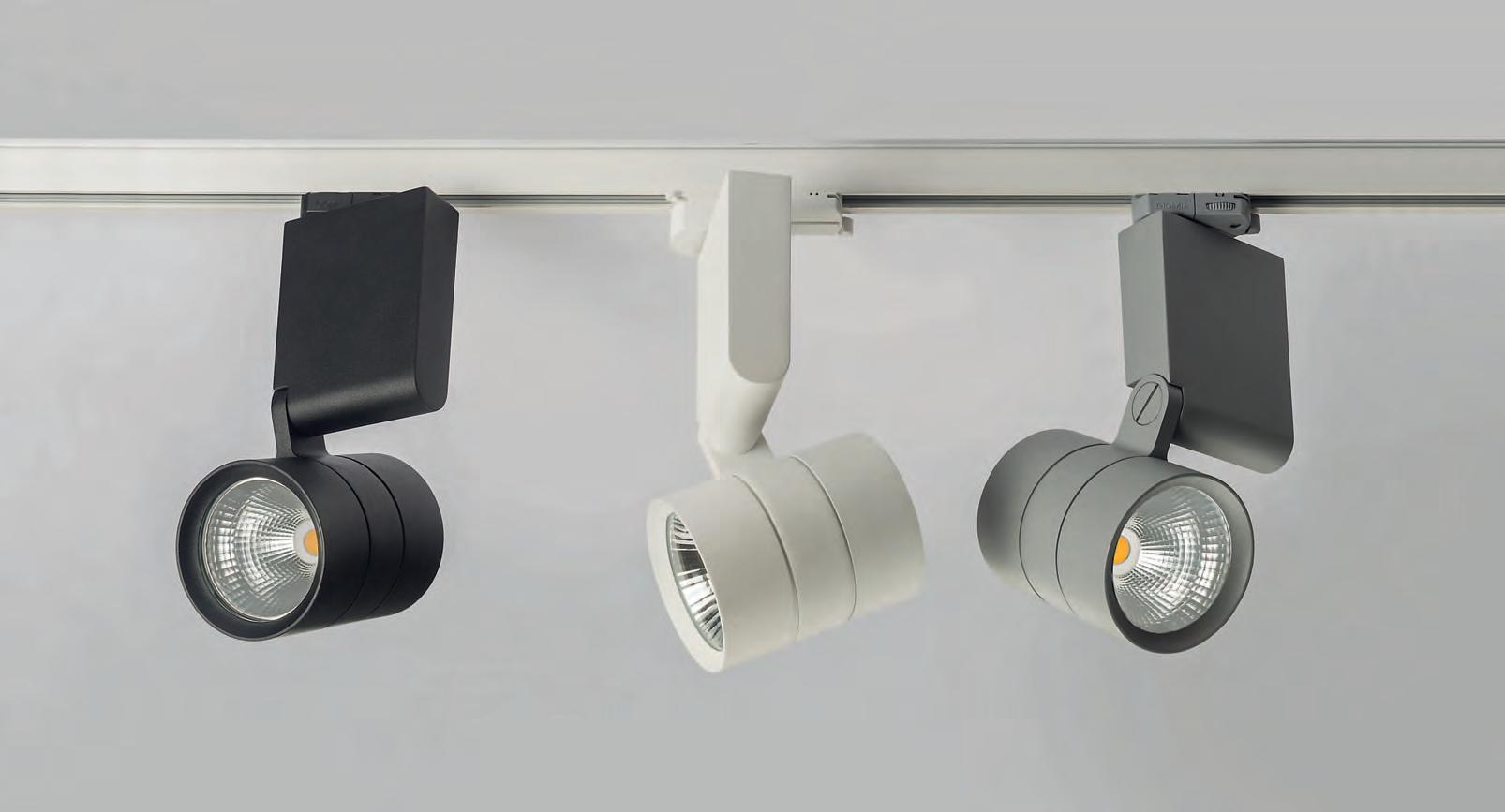

3 circuit trackBody

Optical system

Die-cast aluminium finished in epoxy powder coating

Aluminium reflector

LED 230V, 50Hz

Luminaires are equipped with electronic transformer

Other possible options are specified below product codes

Dimensions l/w/h (mm) 210x93x200

3 circuit trackBody

Optical system

Die-cast aluminium finished in epoxy powder coating

Aluminium reflector

LED 230V, 50Hz

Luminaires are equipped with electronic transformer

Other possible options are specified below product codes

Dimensions l/w/h (mm) 135x93x308

3 circuit trackBody

Optical system

Die-cast aluminium finished in epoxy powder coating

Aluminium reflector

LED 230V, 50Hz

Luminaires are equipped with electronic transformer

Design: Eva Petříková

Dimensions l/w/h (mm) 102x102x260

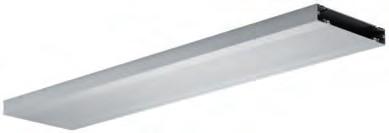

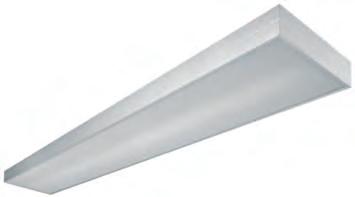

TYPE MATERIAL

SuspendedBody

Optical system

Aluminium sheet finished in epoxy powder coating

Opal diffuser

LIGHT SOURCEPOWER SUPPLY

LED 230V, 50Hz

Luminaires are equipped with electronic transformer

Dimensions l/w/h (mm)

980x98x155

Other possible options are specified below product codes

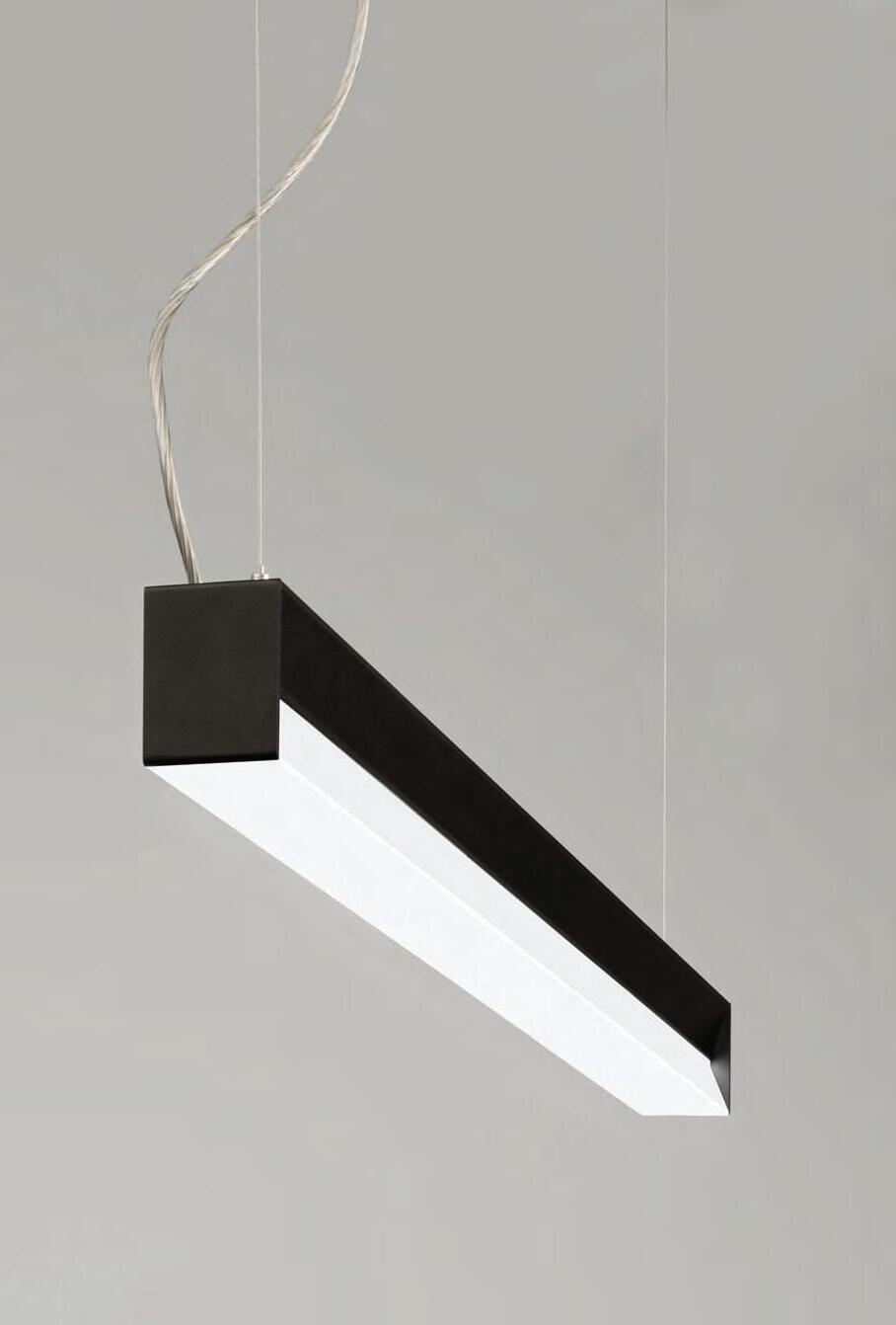

DESCRIPTION

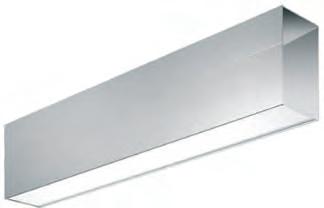

INDI family luminaires have a minimalist and simple design. They consist of aluminium profile and they are fitted with LED boards with high performance. They are distinguished by pleasant soft light the intensity of which can be set. They may be used separately or attached to long lines and other shapes. The luminaire can be mounted as pendant, surface or wall. Design Matúš Opálka.

Luminaires are equipped with non-dimmable electronic ballast

Other possible options are specified below product codes

(mm)

Dimensions l/w/h (mm)

616x37x106

896x37x106

1176x37x106

1456x37x106

1736x37x106

2016x37x106

2296x37x106

Dimensions l/w/h (mm)

564x37x106

844x37x106

1124x37x106

1150x37x106

1404x37x106

1684x37x106

1964x37x106

2244x37x106

Dimensions l/w/h (mm)

600x106x600 www.halla.eu/indi

640x37x640

www.halla.eu/indi

Dimensions l/w/h (mm)

Dimensions l/w/h (mm)

585x106x585

Dimensions l/w/h (mm)

635x37x635

635x37x1205

1205x37x1205

DESCRIPTION

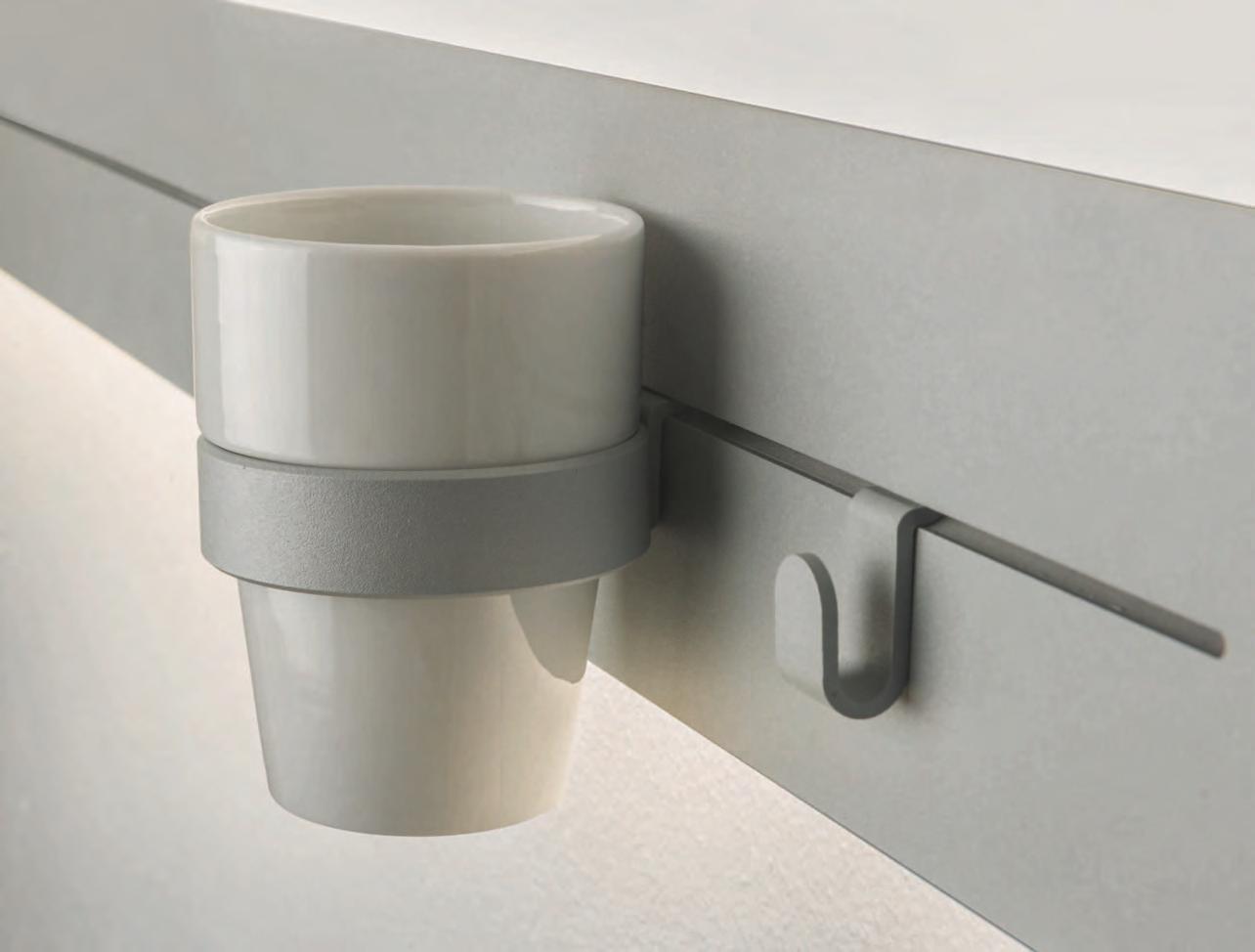

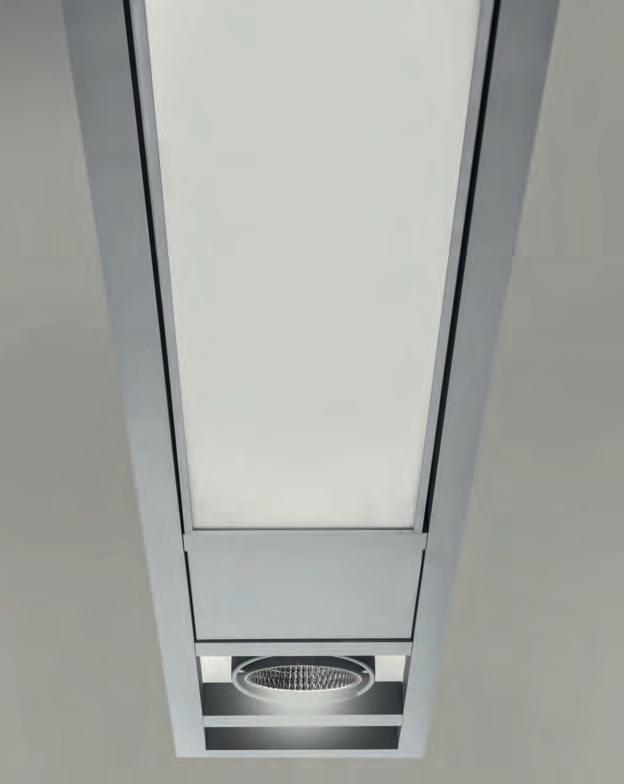

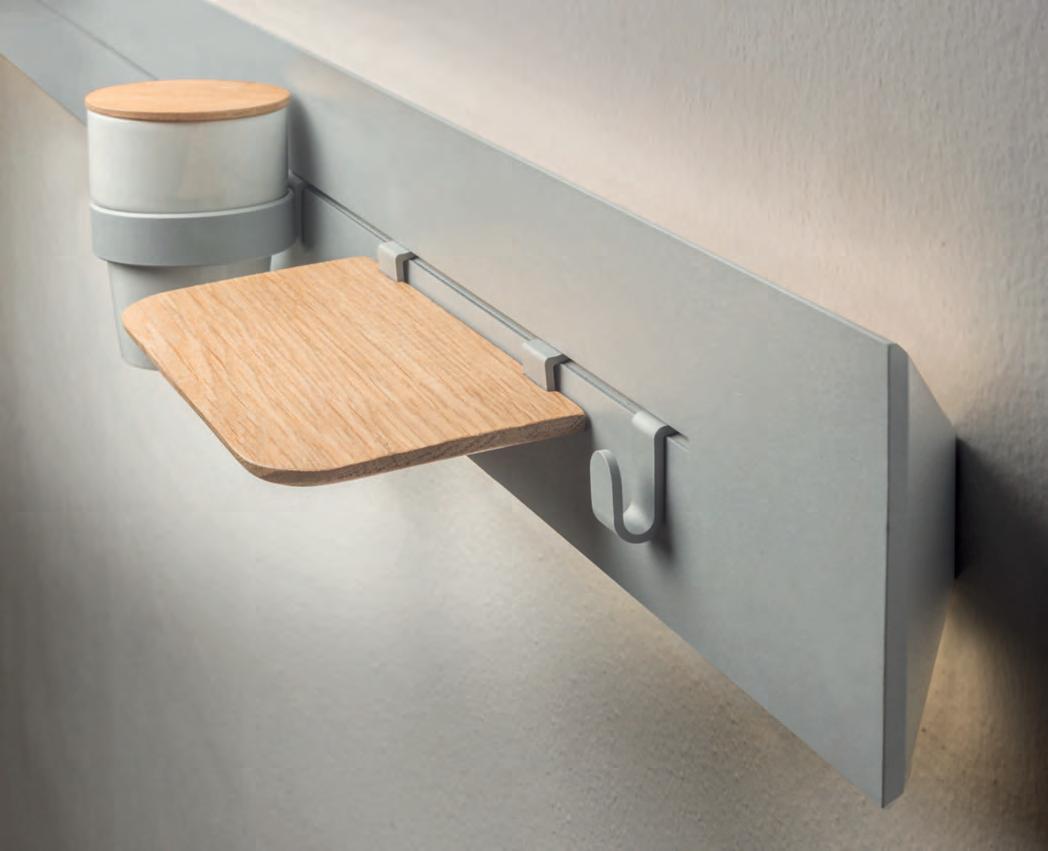

INDI+ luminaires have been supplemented by a second function. There is a pendant system built into the luminaire into which different components as hooks, shelves and the like can be inserted. The luminaire can therefore be used as a shelf, hanger or holder while still fulfilling the function of lighting. The luminaire fits wherever you want to take advantage of its dual function. In the kitchen, hallway, bedroom, bar and so on. Due to the offer of two types of electrical protection IP20 and IP44, the device can be used also in bathrooms of swimming areas. Design by Matuš Opálka.

l/w/h (mm)

616x37x106

896x37x106

1176x37x106

l/w/h (mm)

Wall mountedBody Optical system

Aluminium profile finished in epoxy powder coating

Luminaires are equipped with electronic transformer

Dimensions l/w/h (mm)

896x37x106

1176x37x106

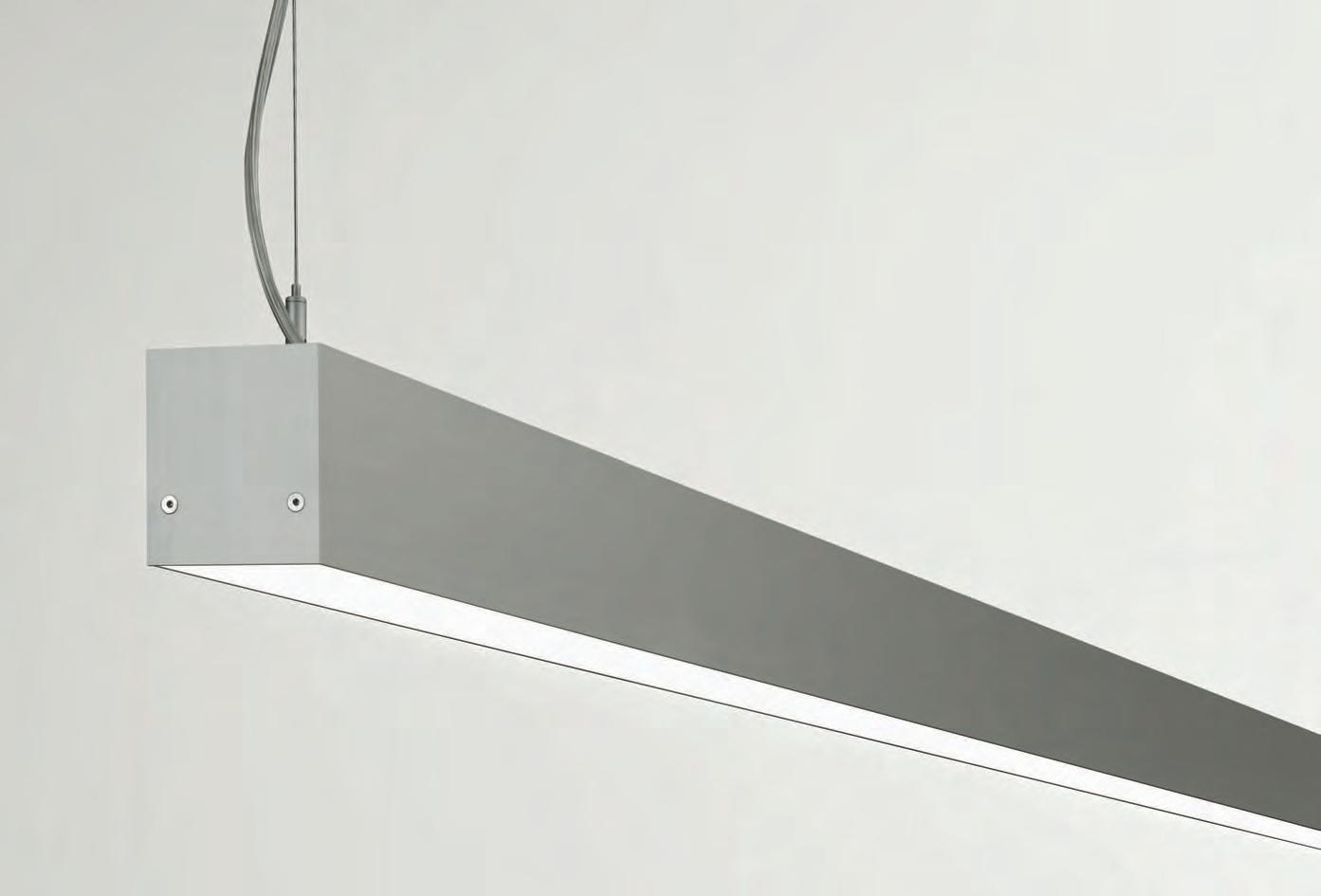

DESCRIPTION

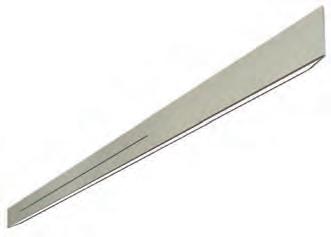

An aluminium linear LED luminaires with an opal diffuser and a unique design. The SANT luminaires has an excellent performance, the embedded LED light sources achieve the operational efficiency of up to 150lm/W. The luminaires can be dimmable with direct-indirect lighting and the possibility of tunable white LED temperature as currently needed (2700K – 6500K). SANT is an ideal solution when low power consumption, high efficiency and attractive design are required. SANT may be used as a single standing or as a continuous lighting system.

Dimensions l/w/h (mm)

562x66x92

842x66x92

1122x66x92

1402x66x92

1682x66x92

1962x66x92

2242x66x92

Dimensions l/w/h (mm)

600x600x92

l/w/h (mm)

1122x66x92

1402x66x92

1682x66x92

DESCRIPTION

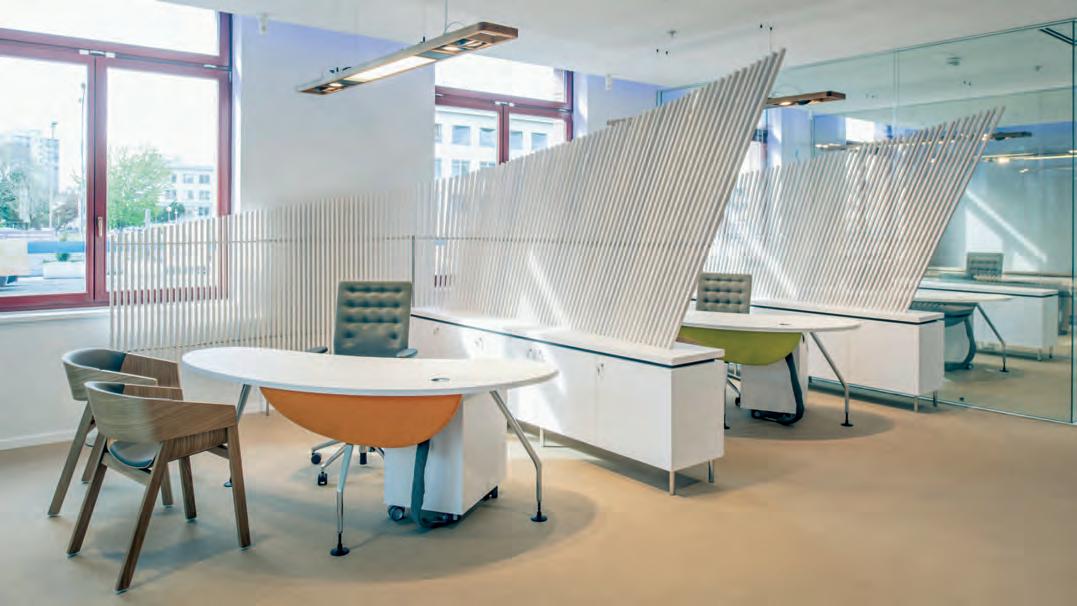

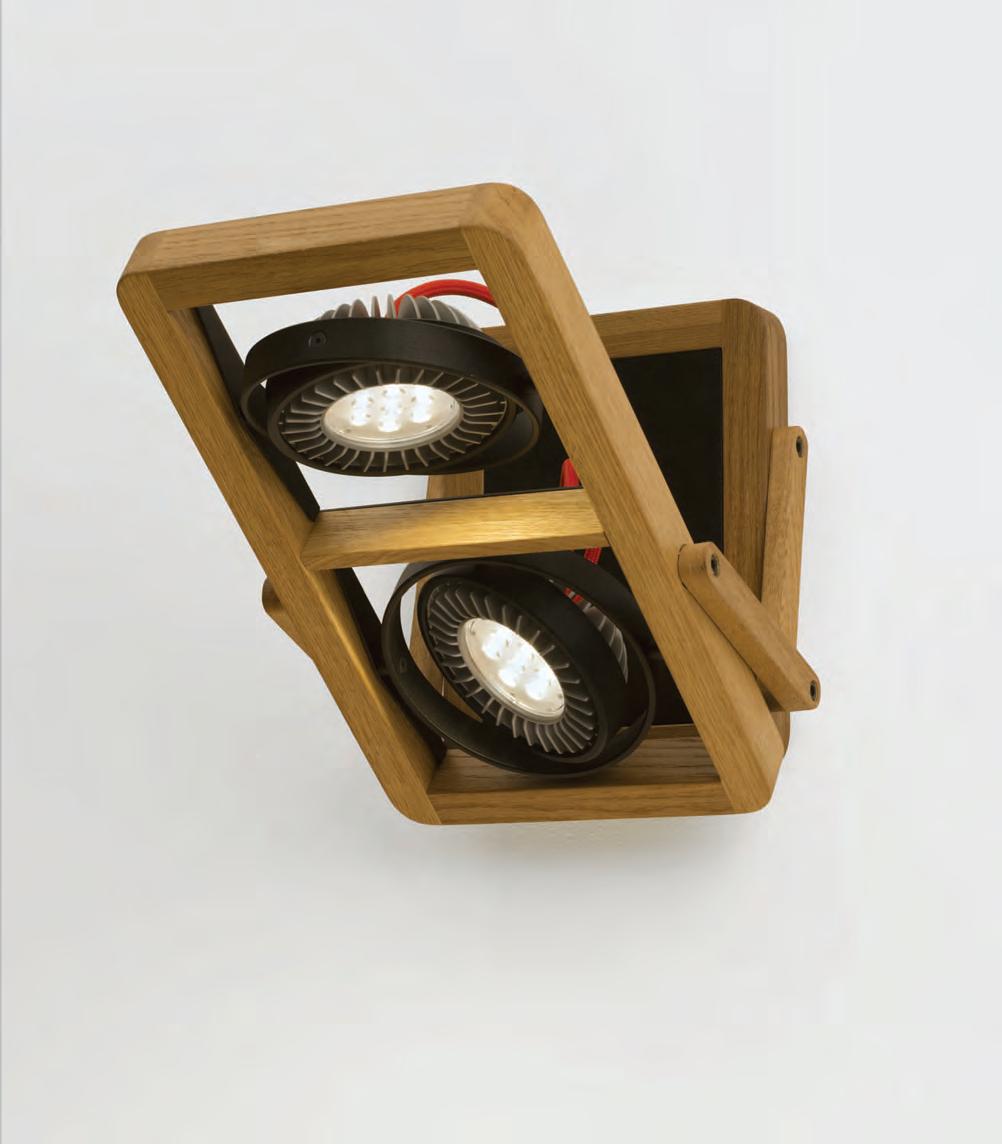

Wooden luminaires ARBO bring the possibilities of functional lighting into other types of interiors. Even when using wood, the luminaires maintain high efficiency (up to 120lm/W) thanks to LED light sources. Their shape diversity and rotation options provide creativity and playfulness. For their ability to give the room a friendly feel, wooden luminaires are suitable for e.g. cafés, studios, restaurants, schools and residential space, as well as offices, retail space and meeting rooms. The product family consists of three luminaires.

Luminaires are equipped with non-dimmable electronic ballast

Other possible options are specified below product codes

DESCRIPTION

UNDA is a lighting system combining two types of individual luminaires. Combining these types a wide range of three-dimensional configurations of different shapes may be arranged (circle, wave, etc.). Both types of modules different in their horizontally eased edges are made from a bent aluminium profile complemented by diffusers with a high permeability of light and fitted with LED lights. Frames are available in white, black or silver colour with a structured finish. Renowned Dutch architect and designer Rob van Beek designed these lights.

SuspendedBody

Optical system

Aluminium profile finished in epoxy powder coating

Special opal PMMA diffusor LED

230V, 50Hz

Luminaires are equipped with electronic transformer Other possible options are specified below product codes

DESCRIPTION

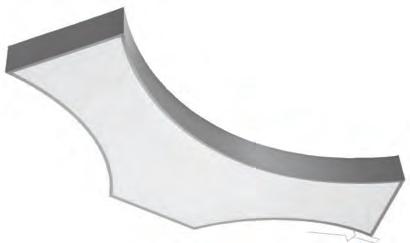

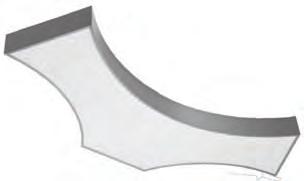

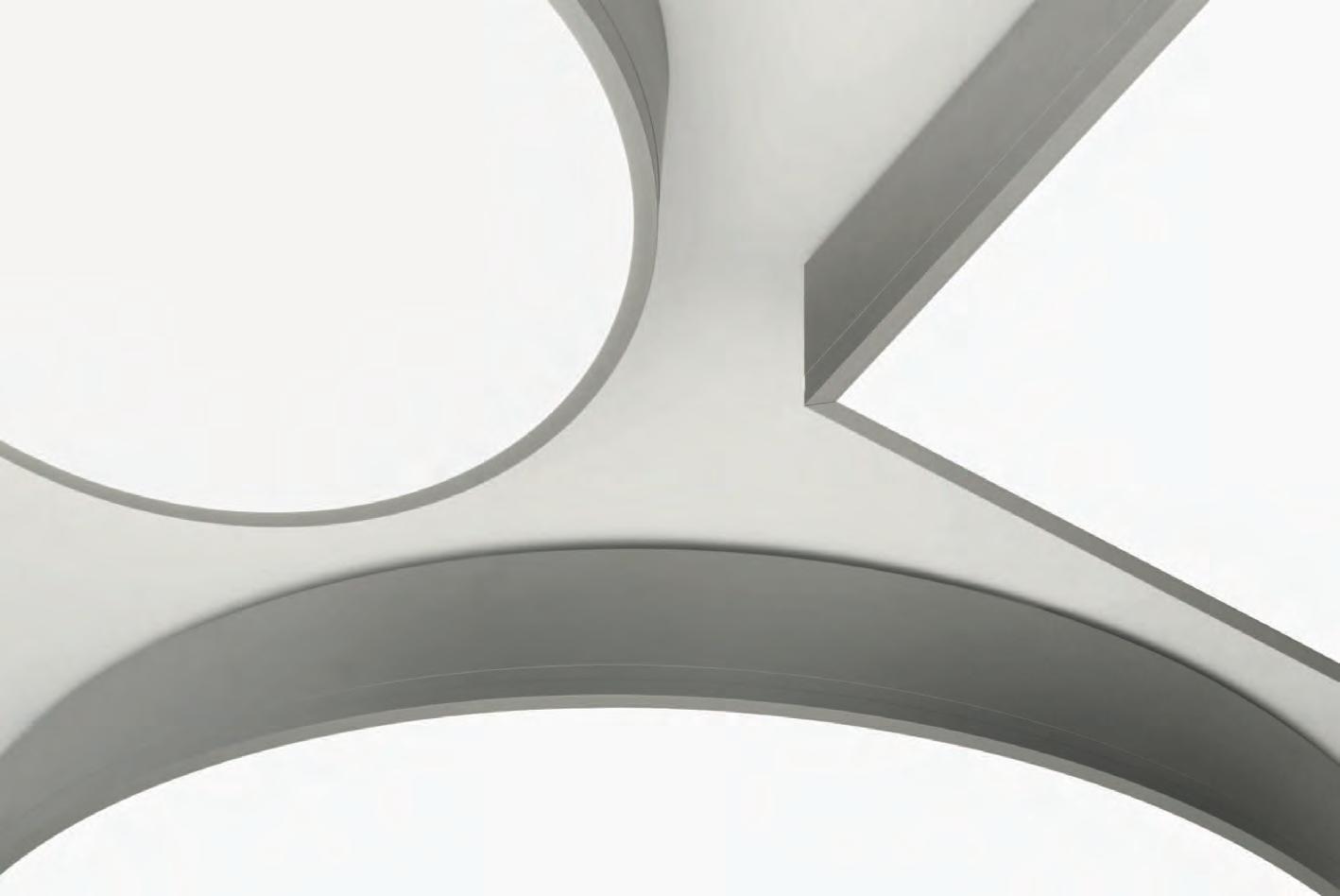

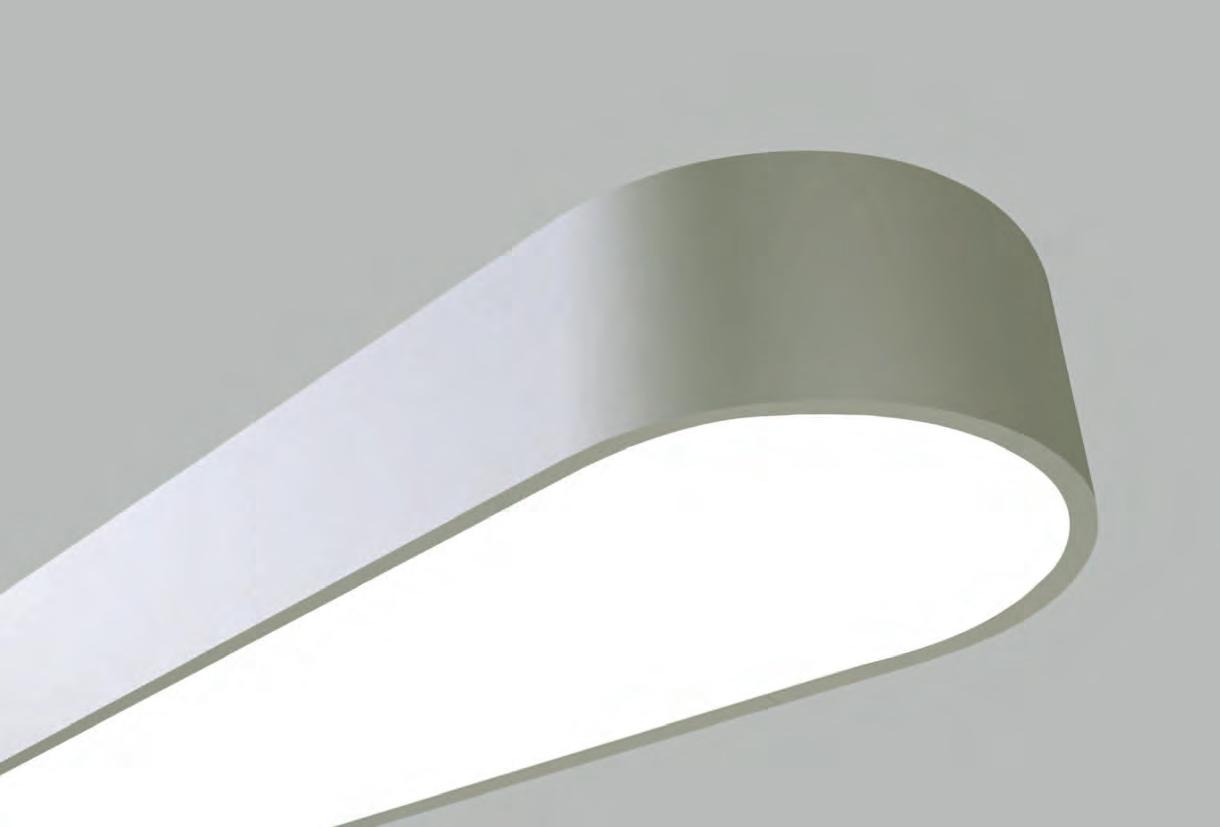

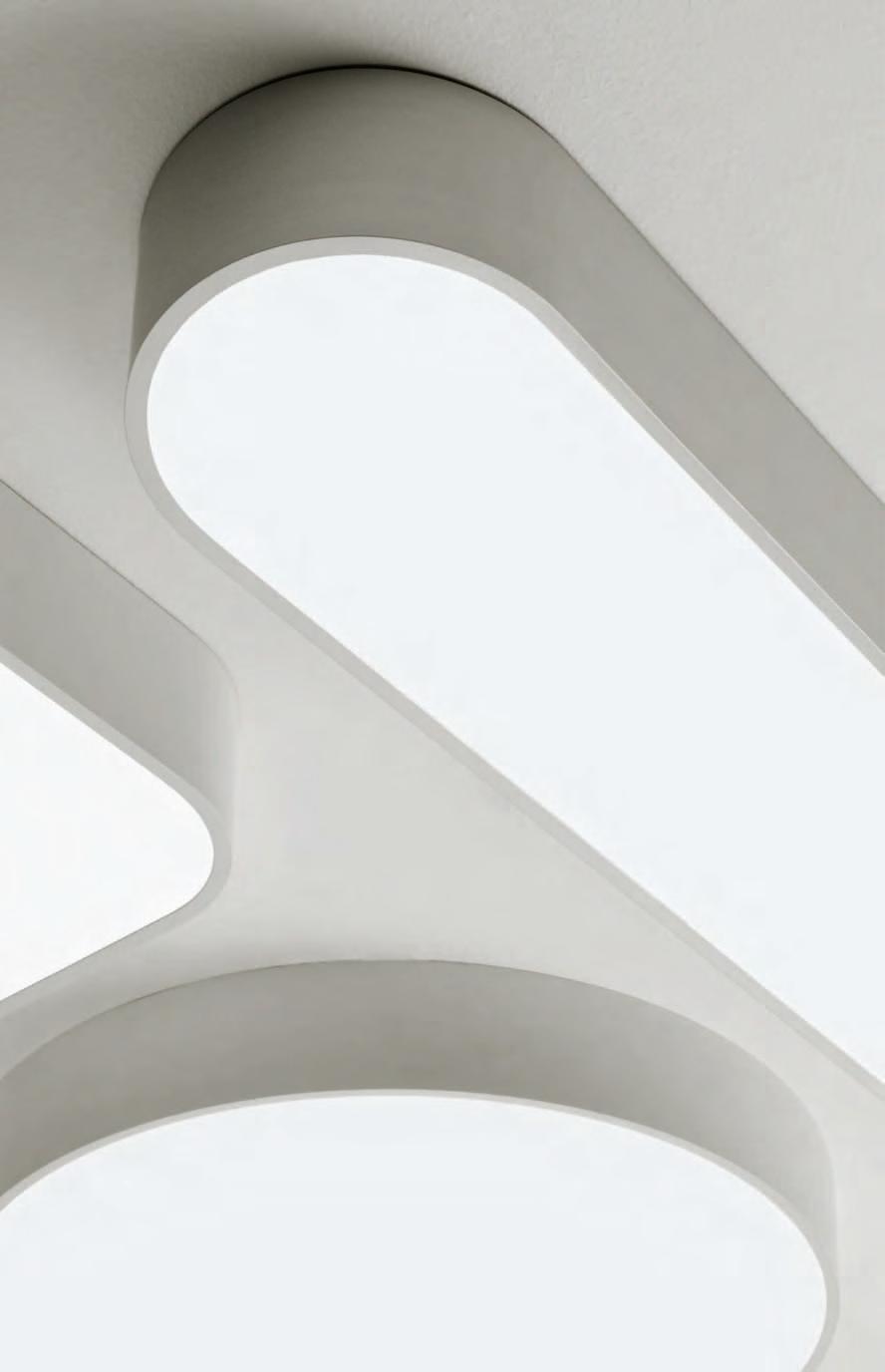

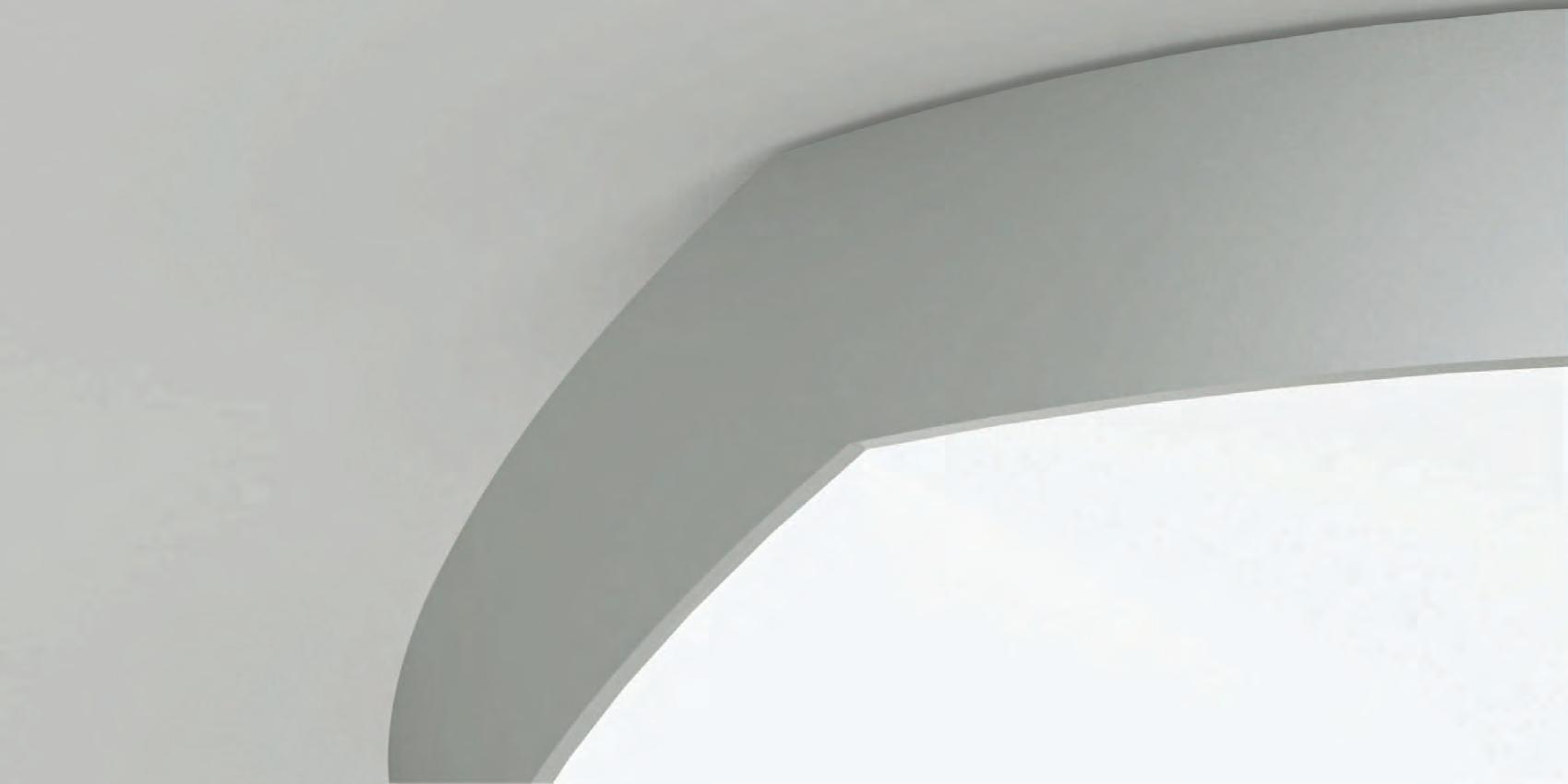

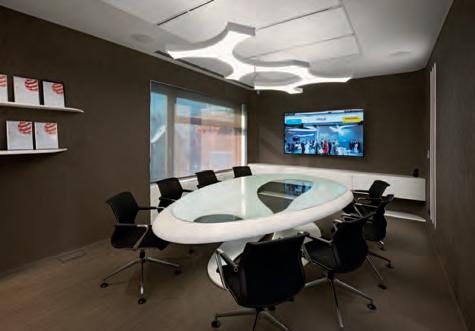

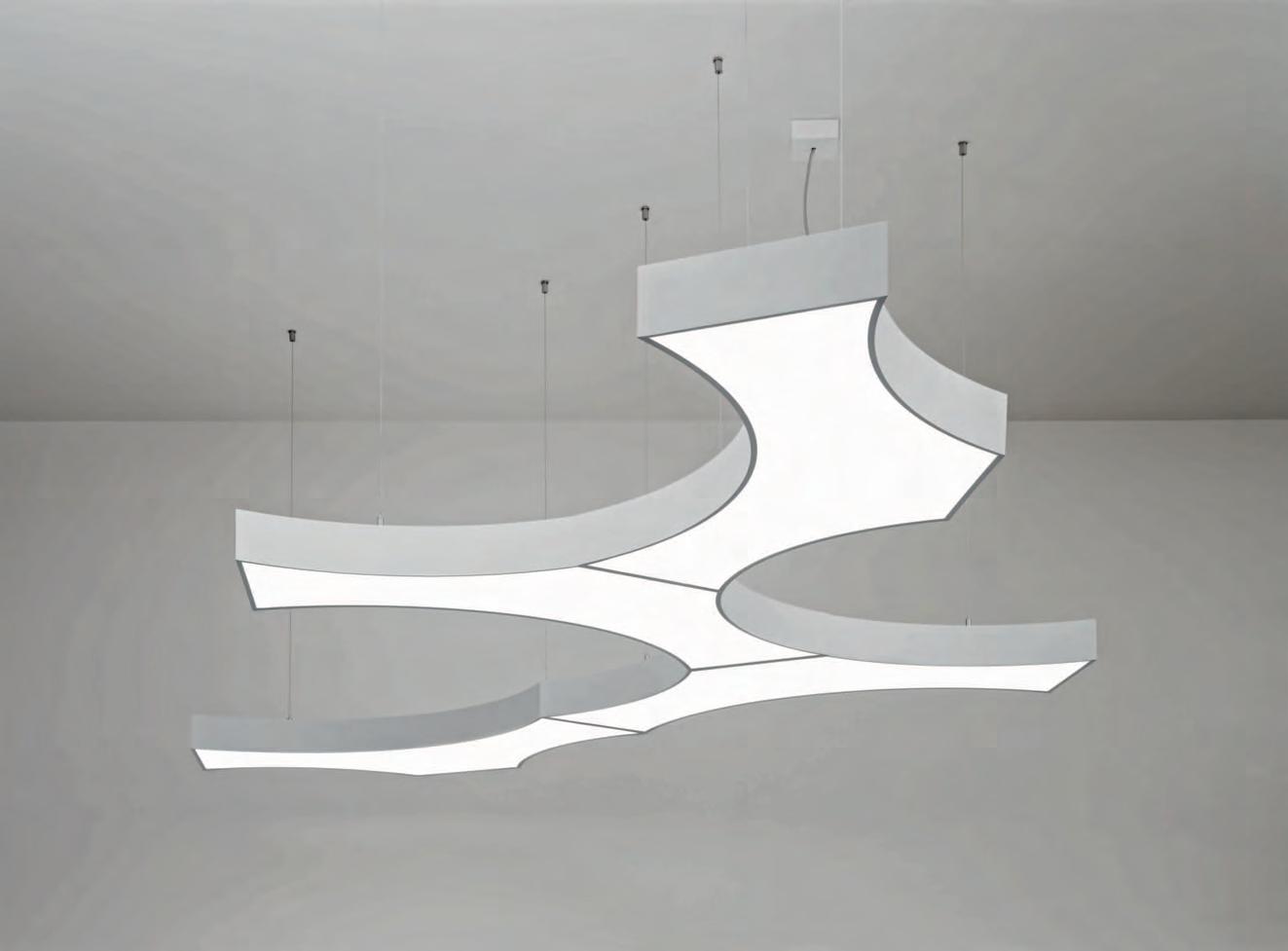

The MILA lighting system offers an unlimited freedom of various shapes by combining just one luminaire. Individual luminaires are coupled by a unique magnetic system without using other tools; this is why assembling the lighting system is very simple, allowing many alternatives in respect of the shape. Luminaires are fitted with up-to-date LED modules and available also in Tunable White. Design by Rob van Beek.

Luminaires are equipped with electronic

are

SuspendedBody

Optical system

Aluminium profile finished in epoxy powder coating

Opal PMMA diffuser

Dimensions l/w/h (mm)

1222x152x70

Suspended Surface Body Optical system

Aluminium profile finished in epoxy powder coating

Opal PMMA diffuser

Dimensions /h (mm) 450x70

Surface Body Optical system

Aluminium profile finished in epoxy powder coating Opal PMMA diffuser

Dimensions /h (mm)

650x70

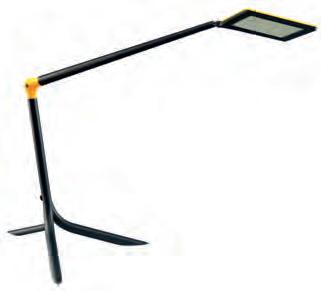

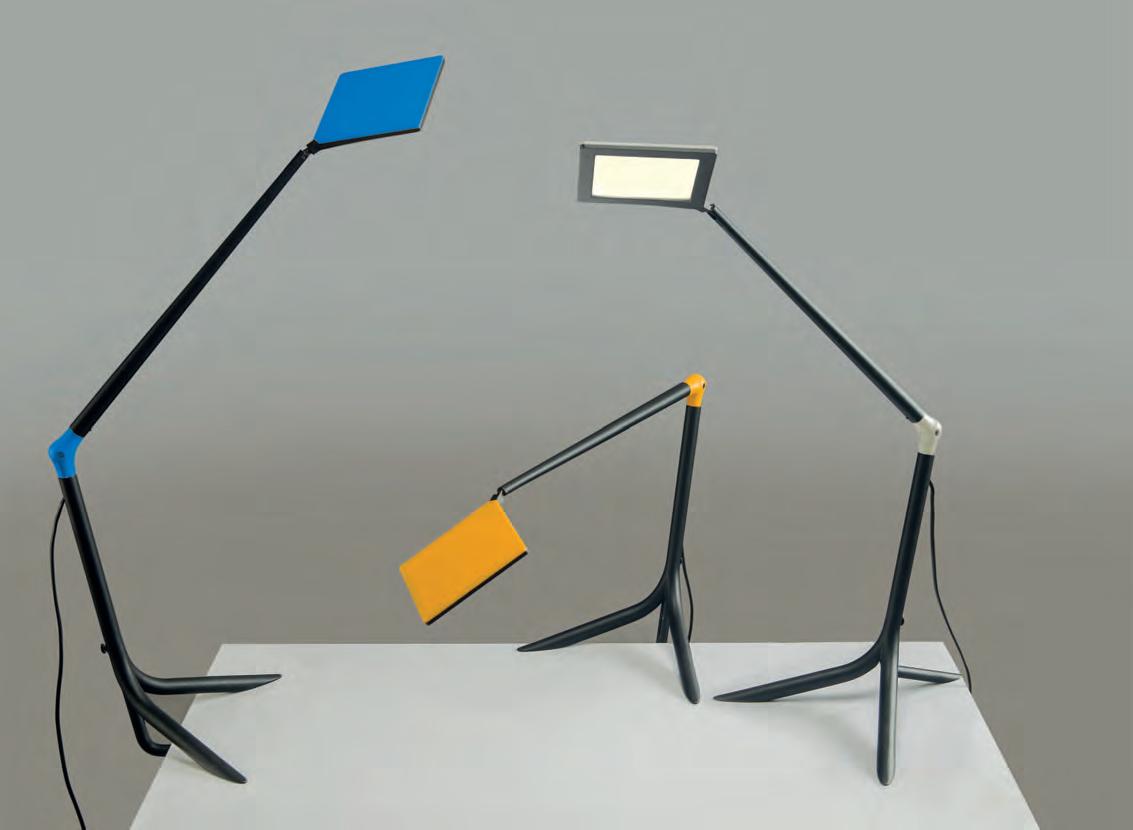

Table lampBody

Optical system

Aluminium profile finished in epoxy powder coating

According to used light source

Dimensions l/w/h (mm)

300x400x800

DESCRIPTION

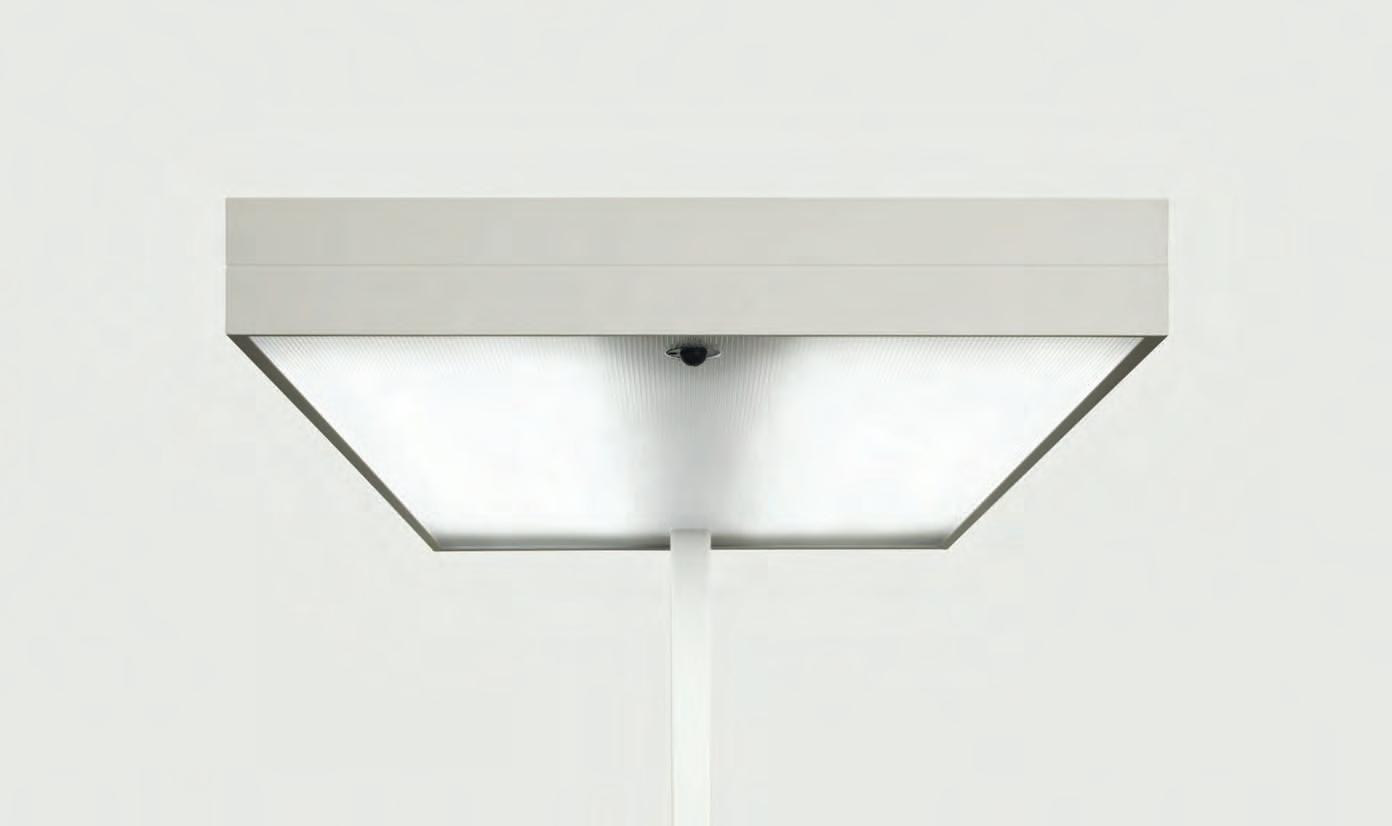

LEIRA floor lamps exist in different versions, dimmable by means of a pushbutton, or automatically controlled by a presence and movement sensor, and luminaires can be Tunable White. The lamps are fitted with LED or TC-L sources and a micro-prismatic optical system with high optical effectiveness. We also offer a base for desk installation. The lamps are suitable for the lighting of offices and social areas or meeting and conference rooms.

Free-standing

Table lamp Body Optical system

Aluminium profile finished in epoxy powder coating

Microprismatic optical system

Compact fluorescent lamps LED 230V, 50Hz

Luminaires are equipped with nondimmable or dimmable electronic ballast

Dimensions l/w/h (mm)

615x325x1840

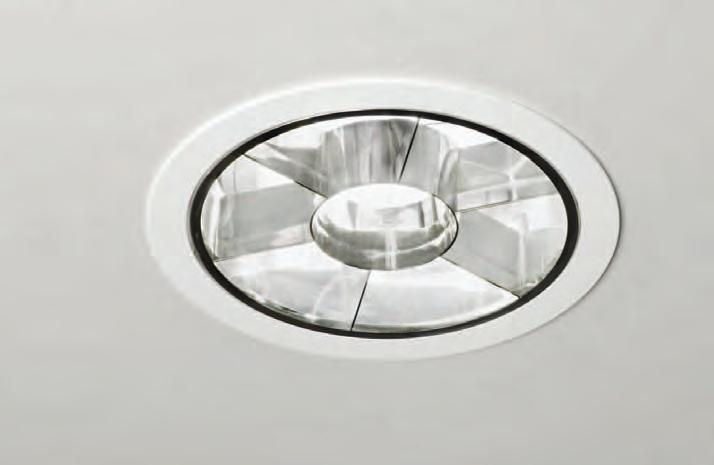

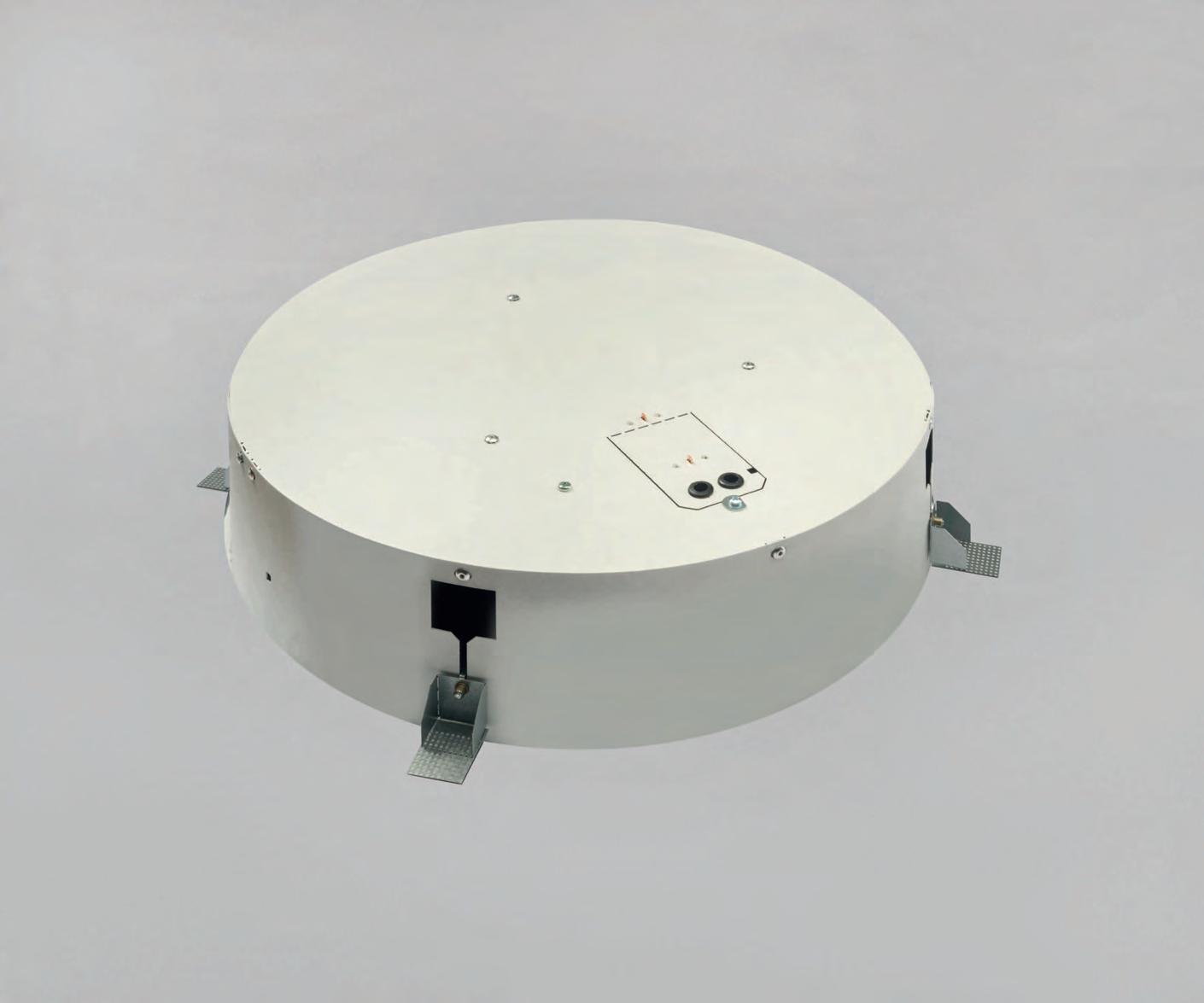

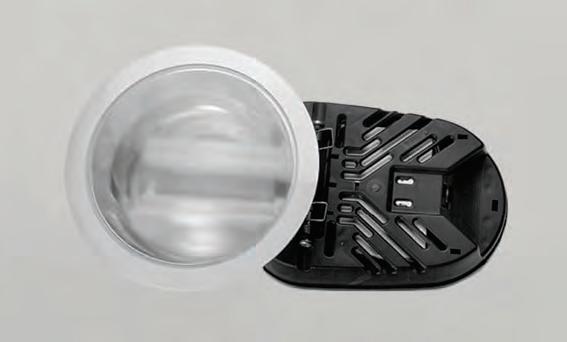

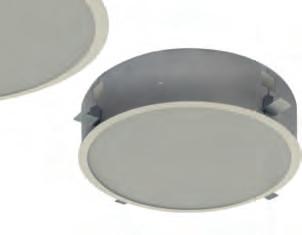

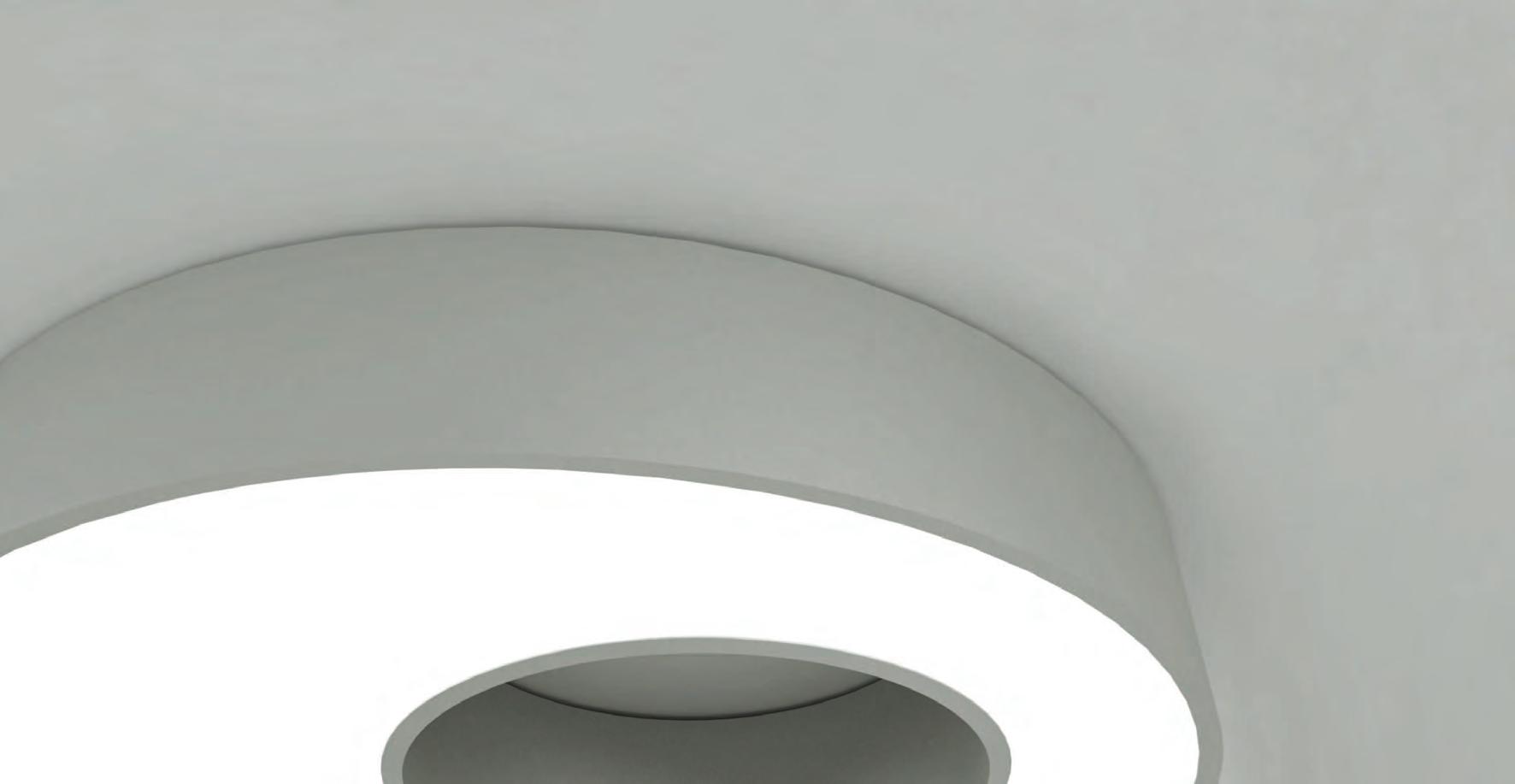

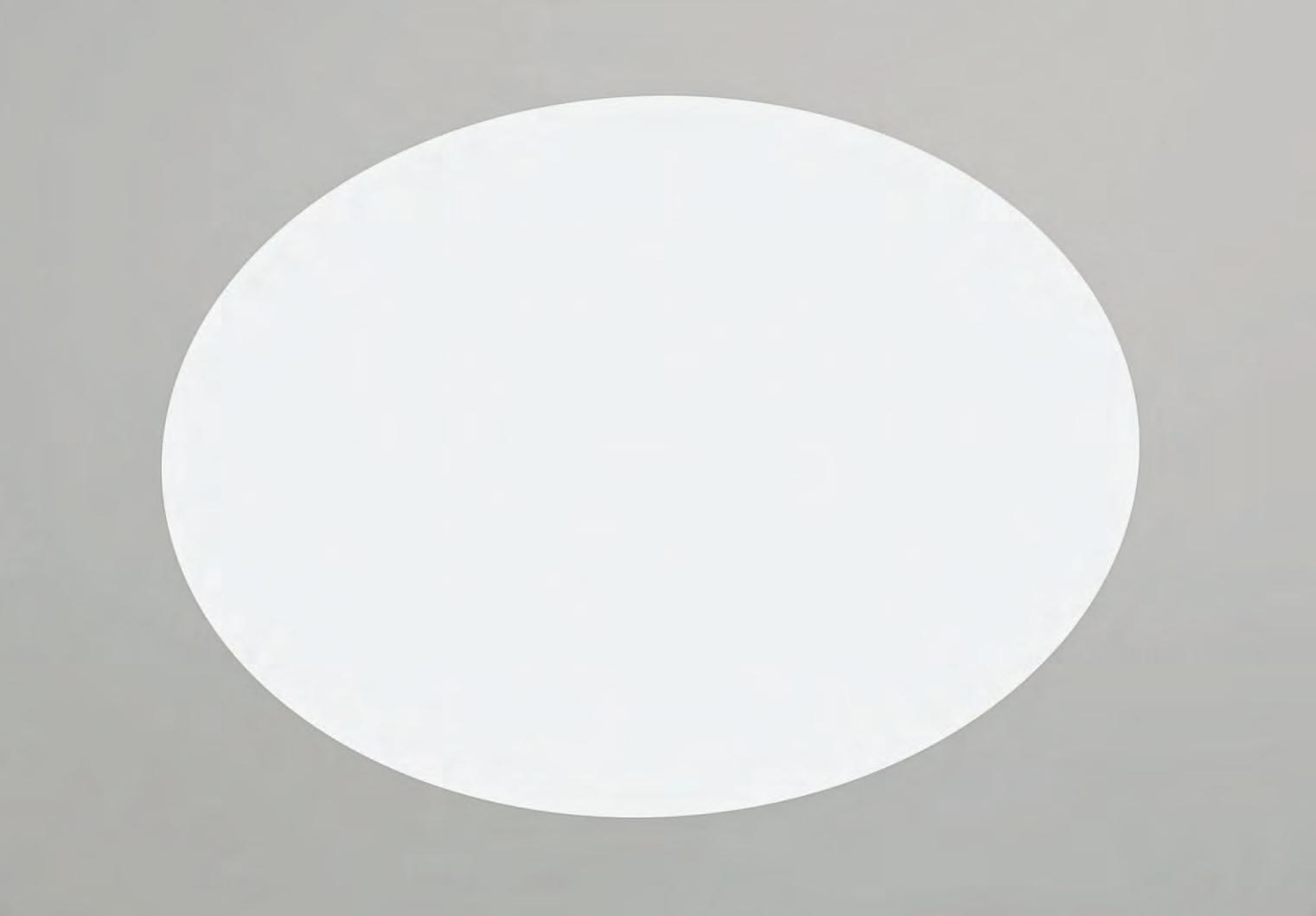

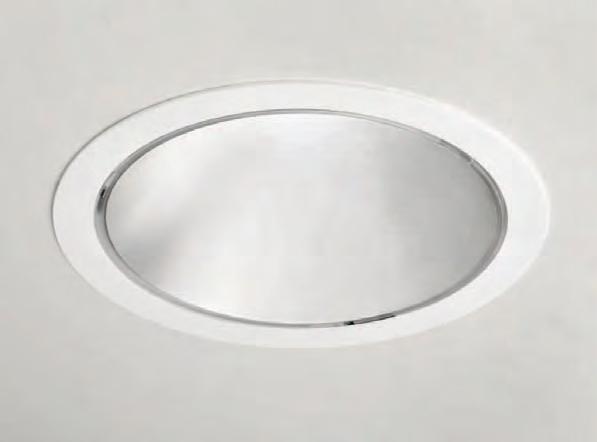

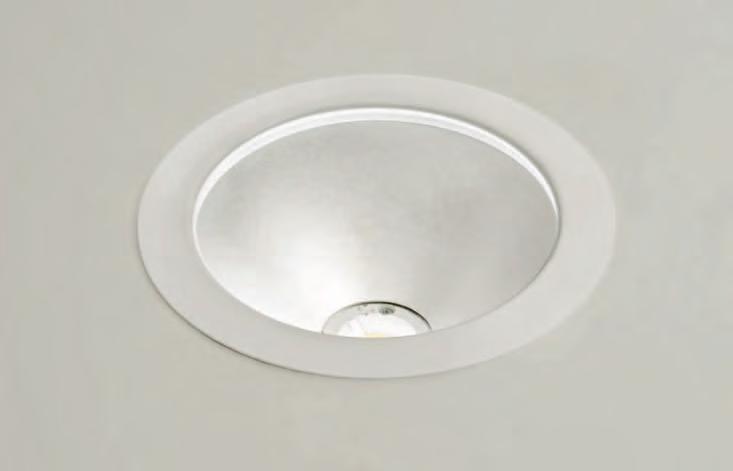

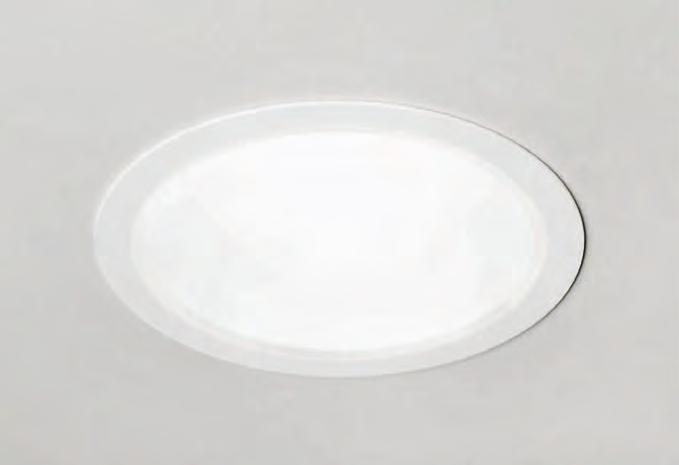

The circular light fixtures of the PURI family are to be built-in ceiling-mounted system. They are distinguished by a simple form, application and in particular by excellent uniformity of the luminous area. There is also a frame and frameless version and six different diameters available to achieve the maximum clear effect of illuminated areas. With their simple design PURI luminaires perfectly merge in interiors and this is why they are suitable for shopping centres, social and cultural amenities or representation areas. DESCRIPTION

Recessed Body

Optical system

Aluminium finished in epoxy powder coating

Opal PMMA diffuser

Microprismatic optical system

Linear fluorescent lamps

Circular fluorescent lamps

Compact fluorescent lamps LED

230V, 50Hz

Luminaires are equipped with non dimmable electronic ballast

Other possible options are specified below product codes

Dimensions /h (mm)

Dimensions /h (mm)

250x162

384x125

464x125

664x125

964x125

1254x125

The KVADO family luminaires can be solitary pendant or ceiling mounted with direct-indirect Light distribution, everything in the LED variant. KVADO luminaires consist of aluminium profile with an inserted opal diffuser. Considering different colour options and many shape and power versions, KVADO luminaires are suitable for public, representative or business areas.

Dimensions l/w/h (mm)

350x350x70

600x600x70

900x900x70

Dimensions l/w/h (mm)

1200x320x70

1500x320x70

Anodised extruded aluminium profile

Aluminium profile finished in epoxy powder coating

Opal diffuser

Microprismatic optical system

Linear fluorescent lamps LED 230V, 50Hz

Luminaires are equipped with non-dimmable electronic ballast

Other possible options are specified below product codes

DESCRIPTION

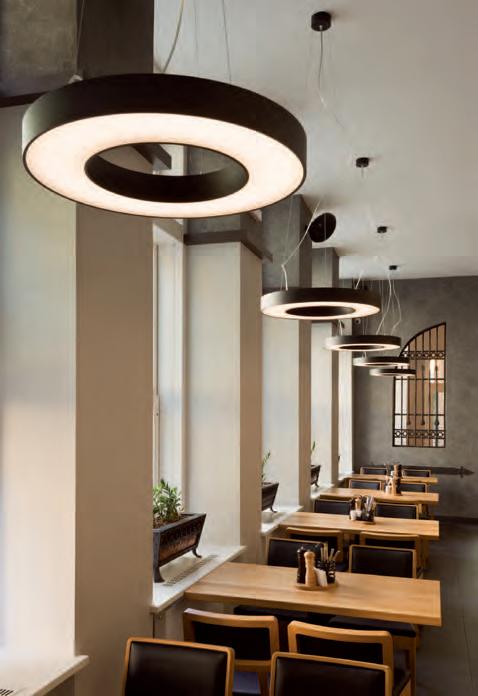

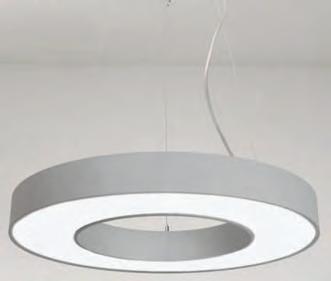

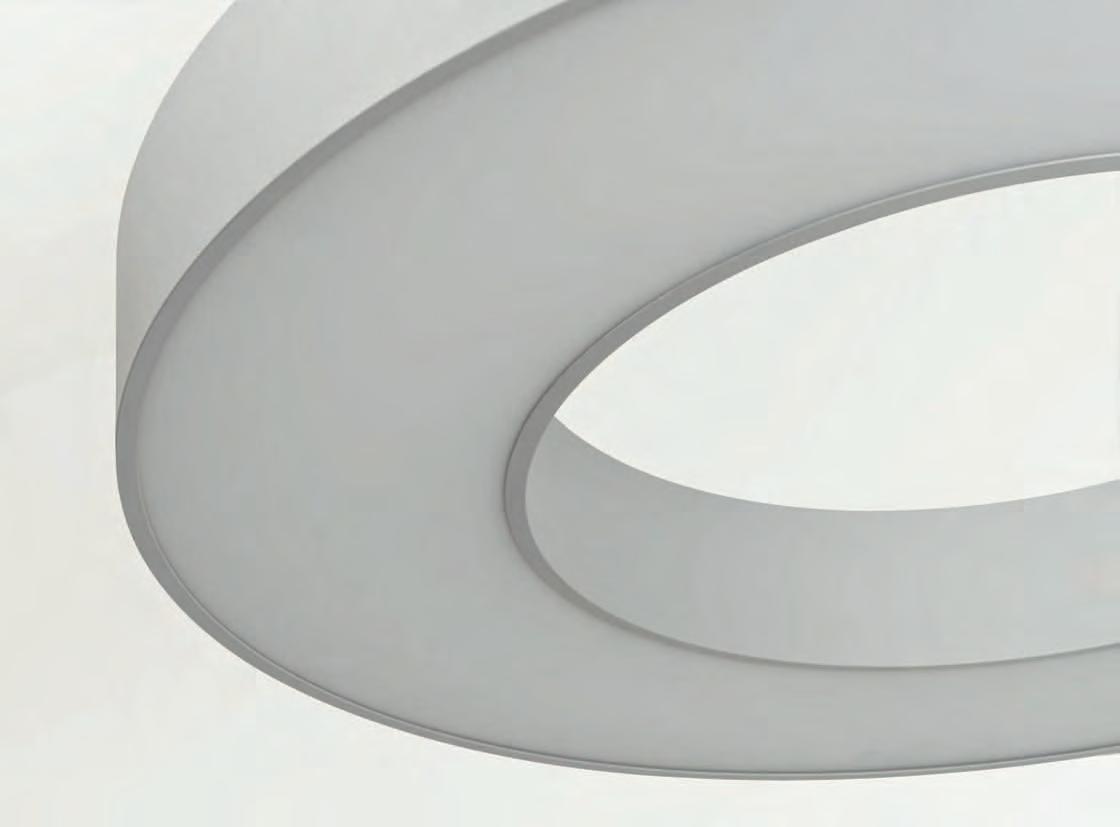

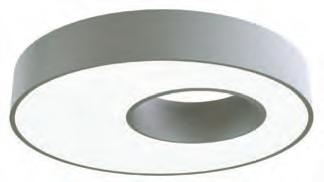

The RUNDO family is characterized by the aluminium frame and the shape of their light fixtures. The luminaires are available in the shapes of circle, rounded circle and oval. Available accessories are spacers allowing for the mounting the light fixture on the face of a ceiling; this arrangement in combination with direct-indirect lighting creates the very interesting effect. Various alternatives of suspending or mounting extend the range of countless applications. The Rundo luminaires are suitable for commercial, office and cultural areas, very popular are also at households.

Suspended

Surface

Wall mounted Body Optical system

Anodised extruded aluminium profile

Aluminium profile finished in epoxy powder coating

Opal PMMA diffuser

Microprismatic optical system

Linear fluorescent lamps

Circular fluorescent lamps

Compact fluorescent lamps

LED

230V, 50Hz

Luminaires are equipped with non-dimmable electronic ballast

Other possible options are specified below product codes

Dimensions l/w/h (mm)

922x155x70

1222x155x70

1522x155x70

Dimensions l/w/h (mm)

350x350x70

600x600x70

Dimensions /h (mm) 370x70

Dimensions l/w/h (mm) 250x250x70

Dimensions /h (mm) 250x70

Distance for circular luminaires

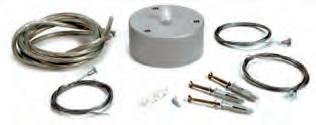

Wire suspension for oval luminaires

www.halla.eu/rundo

Distance for oval luminaires

Distance for square and circular luminaires

Wire suspension, 4 wires

Wire suspension, 3 wires

DESCRIPTION

Luminaires from the ELUMI family are solitary pendant, ceiling- or wall-mounted luminaires with direct-indirect or direct light distribution. They consist of a very thin aluminium frame with an inserted opal diffuser. Luminaires are produced in many shapes and sizes. Thanks to a pleasant diffusion of light and a considerable variety of shapes the ELUMI family of luminaires may be used in various types of social, representation and shopping facilities.

Suspended

Anodised extruded aluminium profile

Aluminium profile finished in epoxy powder coating

Opal PMMA diffuser

Linear fluorescent lamps

Circular fluorescent lamps

Compact fluorescent lamps

230V, 50Hz

Fluorescent lamp luminaires are equipped with non-dimmable electronic ballast

Other possible options are specified below product codes

Dimensions l/w/h (mm)

900x180x46

1200x180x46

1500x180x46

Dimensions l/w/h (mm)

600x600x55

900x900x55

Dimensions l/w/h (mm)

600x180x55

900x180x55

1200x180x55

1500x180x55

Dimensions l/w/h (mm)

340x340x55

600x600x55

900x900x55

Dimensions l/w/h (mm)

600x80x46

600x120x46

900x80x46

900x120x46

1200x80x46

1200x120x46

1500x80x46

1500x120x46

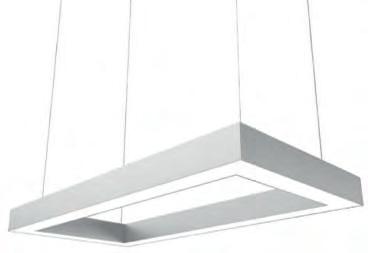

The HUGE family is defined by its specific aluminium frame. It includes pendant and ceiling-mounted types. It contains also LED luminaires with direct-indirect light distribution. Thanks to various shapes and a broad range of light sources that may be arbitrarily arranged and combined, luminaires of the HUGE family will create a pleasant atmosphere particularly in shopping, social and cultural areas.

Body Optical system

Anodised extruded aluminium profile

Aluminium profile finished in epoxy powder coating

Opal PMMA diffuser

Microprismatic optical system

Linear fluorescent lamps

Circular fluorescent lamps

Compact fluorescent lamps

LED

230V, 50Hz

Luminaires are equipped with electronic ballast Other possible options are specified below product codes

Dimensions l/w/h (mm)

600x600x129

900x900x129

1200x1200x129

1500x1500x129

Dimensions /h (mm)

450x129

650x129

950x129

1240x129

1500x129

Dimensions l/w/h (mm)

600x600x129

900x900x129

1200x1200x129

1500x1500x129

Dimensions /h (mm)

450x129

650x129

950x129

1240x129

1500x129

Suspended Body

Optical system

Aluminium profile finished in epoxy powder coating

Opal PMMA diffuser LED

Dimensions /h (mm)

700x70

950x70

ALUMO

TYPE MATERIAL

Suspended Body

Optical system

Anodised extruded aluminium profile

Opal diffuser

Linear fluorescent lamps LED 230V, 50Hz Luminaires are equipped with a nondimmable electronic ballast

Dimensions l/w/h (mm)

1200x600x90

1220x660x90

Dimensions l/w/h (mm)

600x600x90

900x900x90

660x660x90

940x940x90

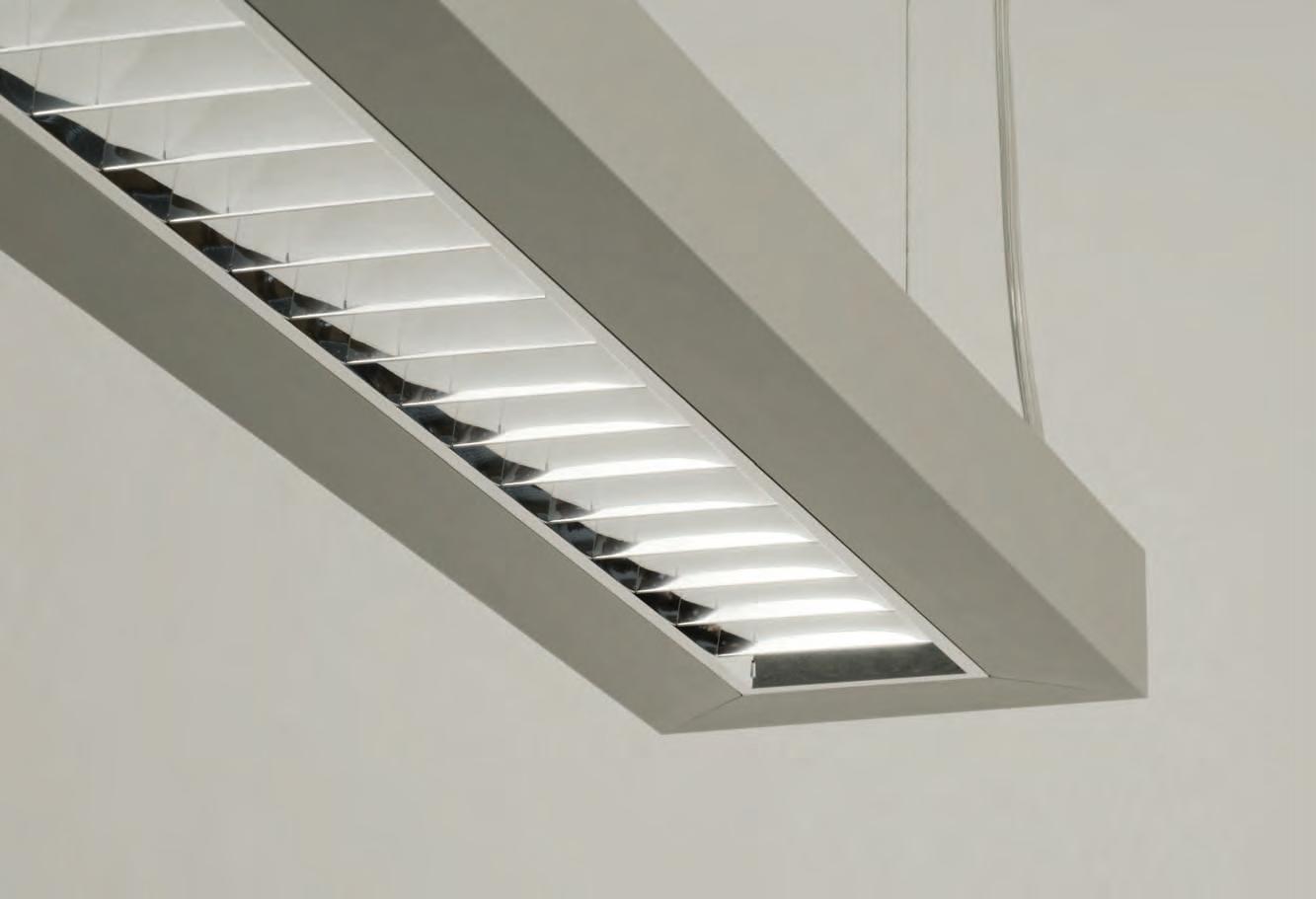

The ZULI family of light fixtures comprises independent pendant luminaires, eye-catchers by their clear and modern design. Luminaires are produced with direct-indirect light distribution. To produce ZULI luminaires a special polished parabolic louver is used by which may be achieved a light efficiency as high as 92%. These luminaires may be widely used especially in office buildings but also in social and representative or cultural areas. DESCRIPTION

SuspendedBody

Optical system

Anodised extruded aluminium profile

Parabolic louvre made of highly polished louvre

Linear fluorescent lamps230V, 50Hz

Fluorescent lamp luminaires are equipped with non-dimmable electronic ballast

Other possible options are specified below product codes

Dimensions l/w/h (mm)

1234x170x50

1534x170x50

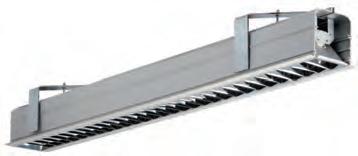

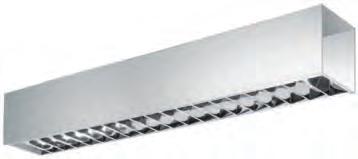

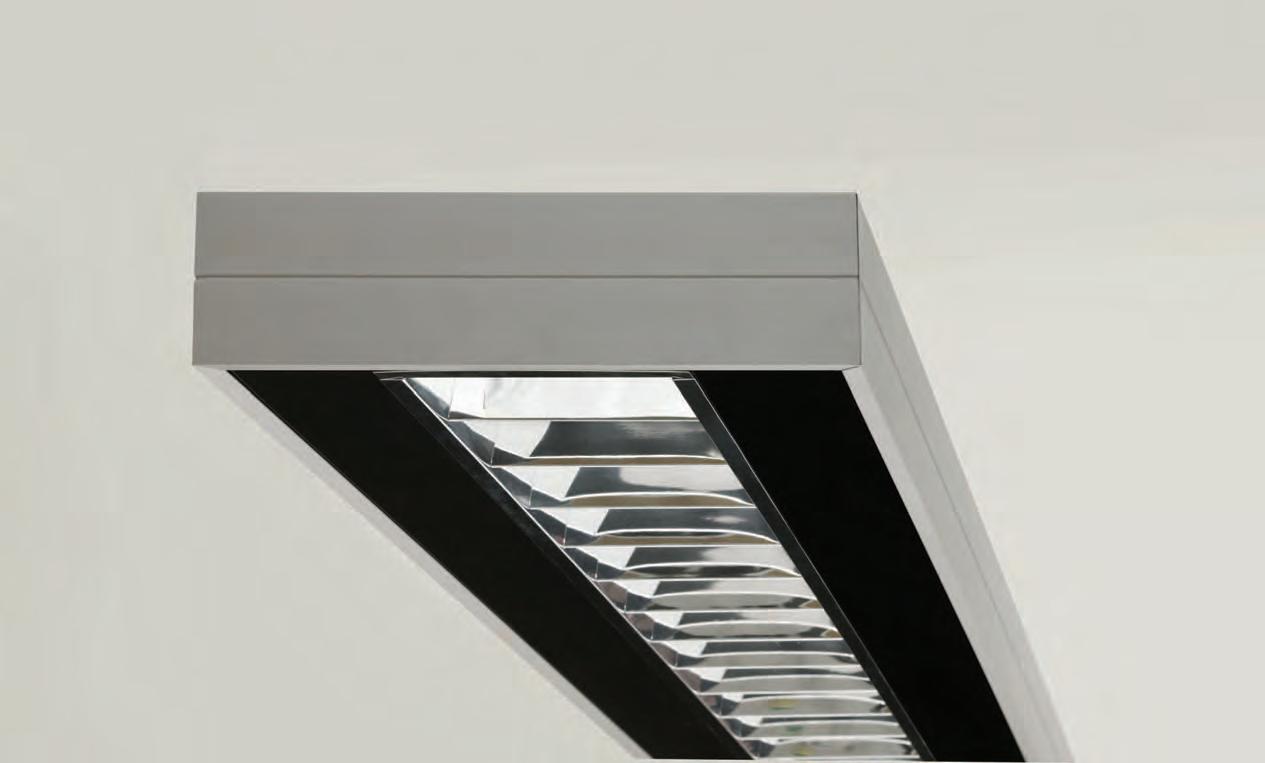

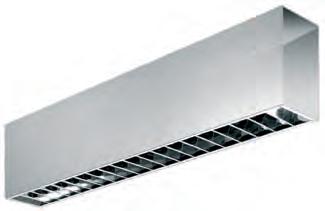

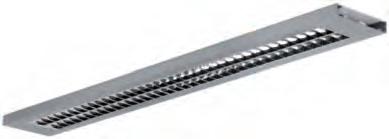

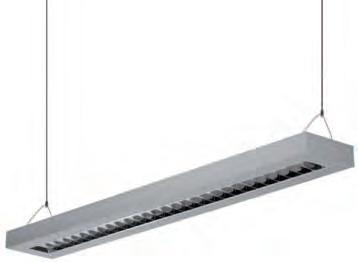

The LUNCI system of luminaires are lights with a louver of a simple rectangular shape. Lights are pendant or mounted and thus may be used in variety of rooms. Thanks to a parabolic louver they are fit for lighting of office buildings where they will enliven the classical appearance of their interiors due to replaceable coloured Plexiglas panels. DESCRIPTION

Surface Suspended Body Optical system

Anodised extruded, aluminium profile finished in epoxy powder coating

Parabolic louvre made of highly polished louvre

Linear fluorescent lamps230V, 50Hz

Fluorescent lamp luminaires are equipped with non-dimmable electronic ballast

Other possible options are specified below product codes

Dimensions l/w/h (mm)

1200x180x46

1500x180x46

Dimensions l/w/h (mm)

1200x180x46

1500x180x46

DESCRIPTION

The lighting system of the DELI family comprises pendant surface and recessed luminaires that may be used as single or may be connected to direct lines or sets of various shapes thanks to the accessories. Due to their subtle dimensions, minimalist elegance and variability the DELI luminaires easily become an inseparable part of an interior. They may be broadly used in representative and social areas, shops or cultural areas.

Anodised extruded aluminium profile

Aluminium profile finished in epoxy powder coating

Specular aluminium reflector

Opal diffuser

Anodised extruded aluminium profile

Dimensions l/w/h (mm)

562x38x64

1122x38x64

1682x38x64

2242x38x64

230V, 50Hz

Luminaires are equipped with electronic ballast

Other possible options are specified below product codes

Dimensions l/w/h (mm)

562x56x117

1122x56x117

1682x56x117

2242x56x117

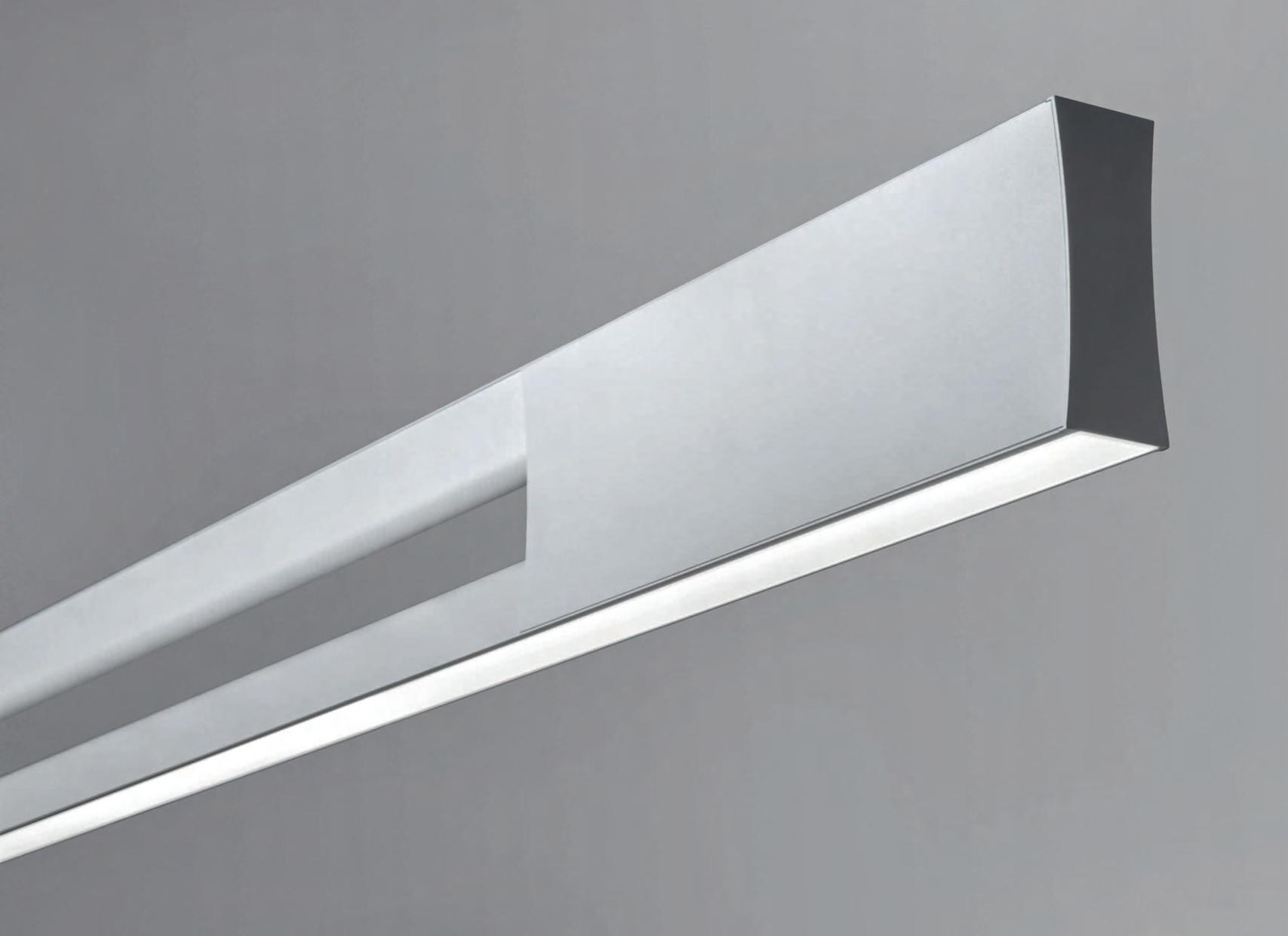

The SURA family are pendant luminaires that may be used on their own or by means of accessories connected to direct lines or sets of various shapes. Luminaires are direct-indirect or indirect light distribution with a 3-circuit profile that may be by means of an appropriate adaptor fitted with any light. Luminaires are suitable for office buildings, social areas and galleries. DESCRIPTION

Couplers

Anodised extruded aluminium profile

Specular aluminium reflector

Opal diffuser

Parabolic louvre made of highly specular aluminium

Anodised extruded aluminium profile

Dimensions l/w/h (mm)

920x79x146

1220x79x146

1520x79x146

1840x79x146

2440x79x146

3040x79x146

Linear fluorescent lamps230V, 50Hz

Fluorescent lamp luminaires are equipped with non-dimmable electronic ballast

Other possible options are specified below product codes

Dimensions l/w/h (mm)

920x79x146

1220x79x146

1520x79x146

1840x79x146

2440x79x146

3040x79x146

Dimensions l/w/h (mm)

920x79x146

1220x79x146

1520x79x146

DESCRIPTION

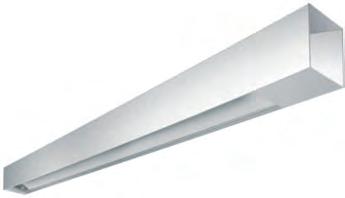

The SAZA family of luminaires is made from an anodised aluminium profile. Built-in and pendant luminaires may be connected to sets of various shapes and dimensions. These luminaires are rather variable and particularly suitable for offices, schools and rooms with a greater demand for quality lighting.

Anodised extruded aluminium profile

Aluminium profile finished in epoxy powder coating

Parabolic louvre made of highly specular aluminium Asymmetric specular aluminium reflector

Linear fluorescent lamps LED 230V, 50Hz

Fluorescent lamp luminaires are equipped with non-dimmable electronic ballast

Other possible options are specified below product codes

Dimensions l/w/h (mm)

620x104x91

920x104x91

1220x104x91

1520x104x91

1840x104x91

2440x104x91

3040x104x91

Dimensions l/w/h (mm)

620x104x91

920x104x91

1220x104x91

1520x104x91

Dimensions

620x79x90

920x79x90

1220x79x90

1520x79x90

1840x79x90

2440x79x90

3040x79x90

Dimensions l/w/h (mm)

620x79x90

920x79x90

1220x79x90

1520x79x90

DESCRIPTION

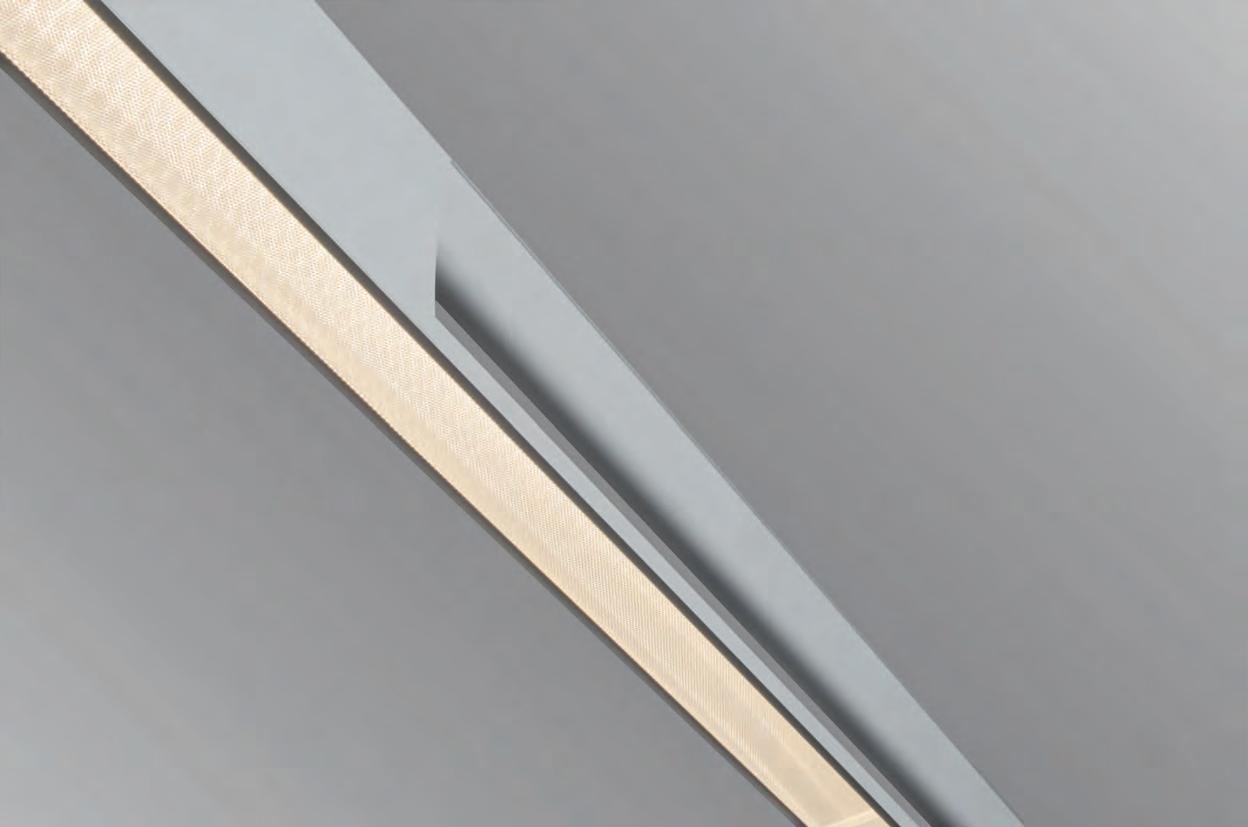

The LINA family features luminaires with covered linear fluorescent lamps or LED sources. The family contains Tunable White luminaires. The LINA may be connected to long lines of any length or shape. Thanks to luminous corners various interesting shaped sets may also be put together. Pendant luminaires may be built in by means of accessories so that the frame is concealed. Luminaires from the LINA family are suitable for retail, social or cultural areas.

Anodised extruded aluminium profile

Aluminium profile finished in epoxy powder coating

White reflector

Specular aluminium reflector

Opal diffuser / Microprismatic optical system

Anodised extruded aluminium profile

Linear fluorescent lamps

230V, 50Hz

Luminaires are equipped with non-dimmable electronic ballast

Other possible options are specified below product codes

Dimensions l/w/h (mm)

562x104x91

842x104x91

1122x104x91

1402x104x91

1682x104x91

1962x104x91

2242x104x91

Dimensions l/w/h (mm)

513x513x91

623x623x91

578x104x91

878x104x91

1178x104x91

1478x104x91

1656x104x91

2256x104x91

2856x104x91

2434x104x91

3334x104x91

4234x104x91

Dimensions l/w/h (mm)

478x104x91

778x104x91

1078x104x91

1378x104x91

1556x104x91

2156x104x91

2756x104x91

2334x104x91

3234x104x91

4134x104x91

Dimensions l/w/h (mm)

562x79x90

842x79x90

1122x79x90

1402x79x90

1682x79x90

1962x79x90

2242x79x90

Dimensions l/w/h (mm)

500x500x90 610x610x90

Dimensions l/w/h (mm)

578x79x90

878x79x90

1178x79x90

1478x79x90

1656x79x90

2256x79x90

2856x79x90

2434x79x90

3334x79x90

4234x79x90

Dimensions l/w/h (mm)

478x79x90

778x79x90

1078x79x90

1378x79x90

1556x79x90

2156x79x90

2756x79x90

2334x79x90

3234x79x90

4134x79x90

The LUMIA family is composed with very low luminaires. The light fixtures with direct, direct-indirect or indirect light distribution may be combined and complemented by luminaires with LED spotlights and thereby arbitrarily created with various lighting elements. Thanks to a great flexibility of the system these luminaires may be used in many environments and particularly in offices, representation and social areas. DESCRIPTION

SuspendedBody

Optical system

Couplers

Anodised extruded aluminium profile

According to used lamp source

Microprismatic optical system

Opal PMMA diffuser

Parabolic louvre made of highly specular aluminium

Anodised extruded aluminium profile

Linear fluorescent lamps LED 230V, 50Hz

Luminaires are equipped with non-dimmable electronic ballast

Other possible options are specified below product codes

Dimensions l/w/h (mm)

720x230x36

1020x230x36

1320x230x36

1620x230x36

Dimensions l/w/h (mm)

720x230x36

1020x230x36

1320x230x36

1620x230x36

www.halla.eu/lumia

Dimensions l/w/h (mm)

720x230x36

1020x230x36

1320x230x36

1620x230x36

www.halla.eu/lumia

Dimensions l/w/h (mm)

1320x230x36

1620x230x36

Dimensions l/w/h (mm))

240x230x36

340x230x36

DESCRIPTION

The VARI modular system of pendant luminaires consists of aluminium bearing profiles with individual modules inserted. A broad variety of these modules and accessories allows for the combining of surface and accent lighting. Thanks to the high rate of flexibility the system may be easily adapted to the illuminated space. VARI luminaires will find their place in shops, social and cultural areas.

SuspendedBody

Optical system

Aluminium profile finished in epoxy powder coating

Opal PMMA diffuser

Parabolic cover made of highly specular aluminium

Linear fluorescent lamps LED 230V, 50Hz Luminaires are equipped with non-dimmable electronic ballast

Dimensions l/w/h (mm)

635x250x60

935x250x60

1235x250x60

1535x250x60

Dimensions l/w/h (mm)

423x250x170

Dimensions l/w/h (mm)

900x250x60

1200x250x60

1500x250x60

Dimensions l/w/h (mm)

600x250x170

DESCRIPTION

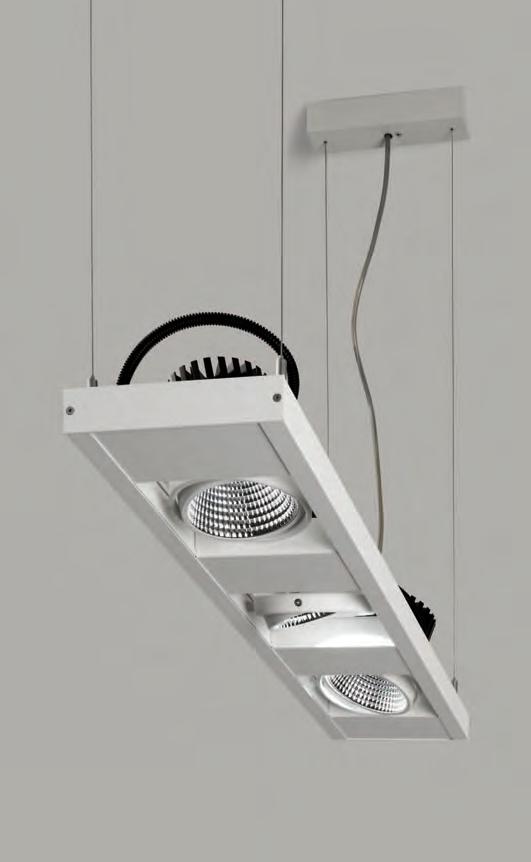

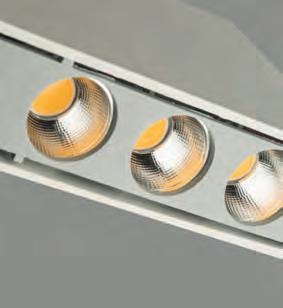

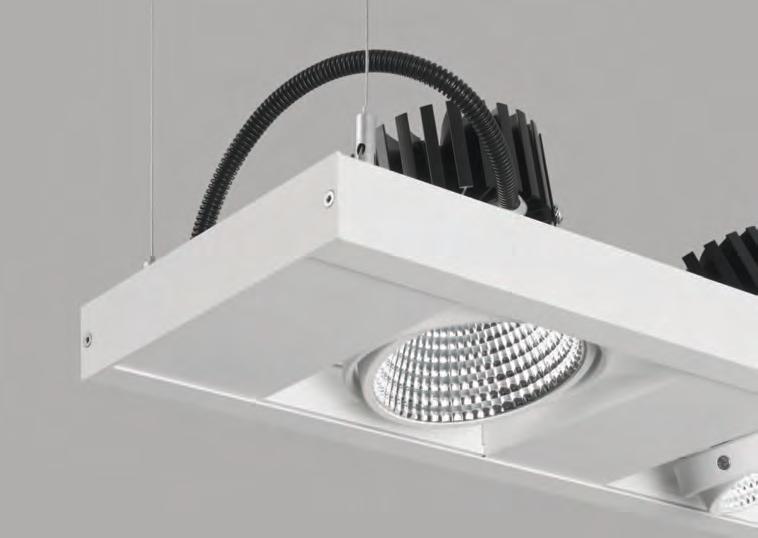

The MOZA lighting system represents luminaires for accent lighting. Due to their simple and subtle design these luminaires are particularly suitable for retail areas, cultural and presentation rooms and showrooms.

SuspendedBody

Optical system

Combination of aluminium and sheet metal finished in epoxy powder coating

Aluminium reflector

230V, 50Hz Luminaires are equipped with electronic transformer

Dimensions l/w/h (mm) 570x190x38

Dimensions l/w/h (mm)

810x190x38

DESCRIPTION

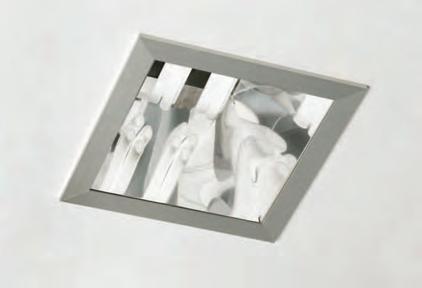

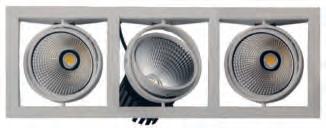

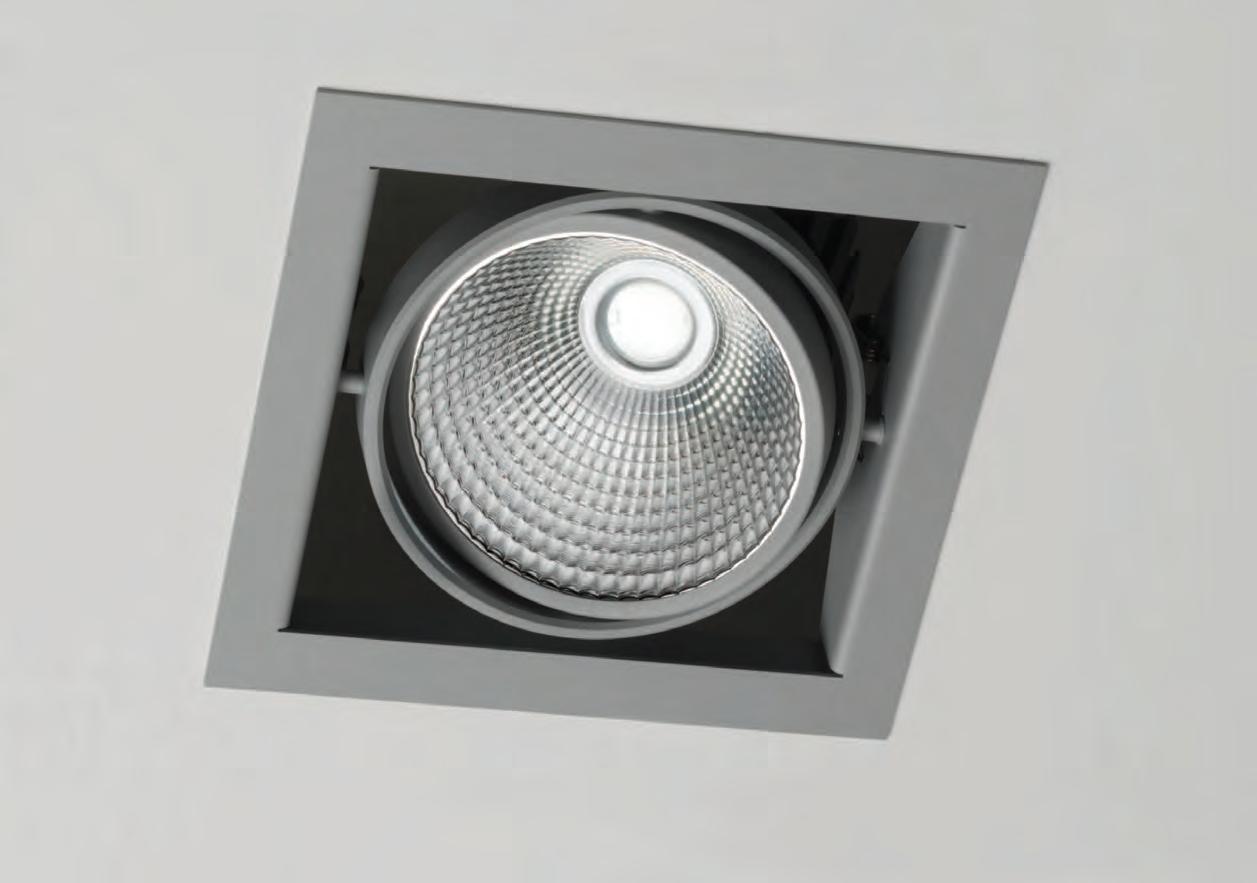

The GATU family presents built-in luminaires with hinged reflectors placed in an elegant powder coated aluminium frame. Luminaires may have one up to four multiple sources and this is why an optimal number of luminaires may be selected for a particular space. Due to the ability to turn the reflectors, objects in different directions can be illuminated. The light fixtures are particularly suitable for retail, cultural and social areas.

Dimensions l/w/h (mm) 185x185x125 max.

350x185x125

Dimensions l/w/h (mm) 515x185x125 max.

Dimensions l/w/h (mm)

350x350x125 max.

TYPE MATERIAL

Recessed Surface Body Optical system Reflector and ring UV-resistant polycarbonate

Aluminium highly specular coating Clear and semi-frosted cover

LIGHT SOURCEPOWER SUPPLY

LED 230V, 50Hz Luminaires are equipped with electronic transformer Other possible options are specified below product codes

Dimensions /h (mm)

172x115 max.

www.halla.eu/ravo

Dimensions /h (mm)

172x115 max.

Dimensions /h (mm)

170x260

RecessedBody

Optical system

Sheet metal surface finished with powder painting Aluminium reflector

LED 230V, 50Hz Luminaires are equipped with electronic transformer Other possible options are specified below product codes

Dimensions /h (mm) 165x125 max.

The BURE family is circular light fixtures 230 mm in diameter with horizontally placed light sources. A polycarbonate spotlight with a reflective, powdered aluminium layer maintains high optical effectiveness of the lighting system. These luminaires may be complemented by plastic covers providing IP44 rating, a turboraster limiting glare, or a decorative glass. BURE luminaires are fit for use in social areas, retail centres, office buildings and cultural areas.

Recessed Body

Optical system

Reflector and ring UV-resistant polycarbonate

Gear box PP

Aluminium highly specular coating

Clear, semi-frosted or opal polycarbonate cover

Polycarbonate radial louvre

Sand-blasted glass

Compact fluorescent lamps230V, 50Hz

Luminaire includes electronic unit with standard or non-dimmable electronic ballast Other possible options are specified below product codes

www.halla.eu/bure

www.halla.eu/bure

DESCRIPTION

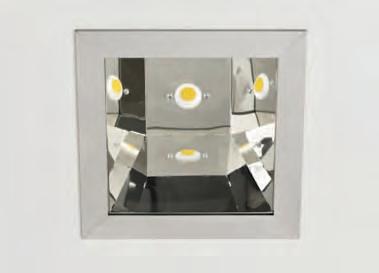

TORVE are square built-in luminaires with direct light distribution. They use the latest LED resources including Tunable White technology, enabling to take advantage of the Human Centric Lighting principle. They are available also in the variant with compact fluorescent lamps. The luminaires are fitted with a clear cover or satinated diffuser which provides evenly diffused lighting. Elegant aluminium frame fits into simple modern interiors. The luminaires can be used in business and social premises as well as in administrative buildings.

Recessed Body

Optical system

Anodised extruded aluminium profile

Aluminium profile finished in epoxy powder coating

Steel sheet

Specular aluminium reflector

Opal plastic diffuser

Sand-blasted glass

Dimensions l/w/h (mm)

132x132x85

Dimensions l/w/h (mm) 197x197x140

Compact fluorescent lamps LED 230V, 50Hz

Control or power-supply unit with a conventional or electronic ballast is installed in a plastic box outside of the luminaire

Other possible options are specified below product codes

Dimensions l/w/h (mm)

197x197x140

www.halla.eu/torve

Dimensions l/w/h (mm)

240x240x155

HALLA DIALux Plug-in

www.halla.eu/dialux

HALLA 3D models in 3DM, 3DS and DWG

www.halla.eu/3dmodels

5-year quarantee for all HALLA LED luminaires

www.halla.eu/led

HALLA XPRESS 0-5 days delivery

www.halla.eu/xpress

Type of ins TallaT ion

Recessed luminaire

Surface luminaire Wall mounted luminaire

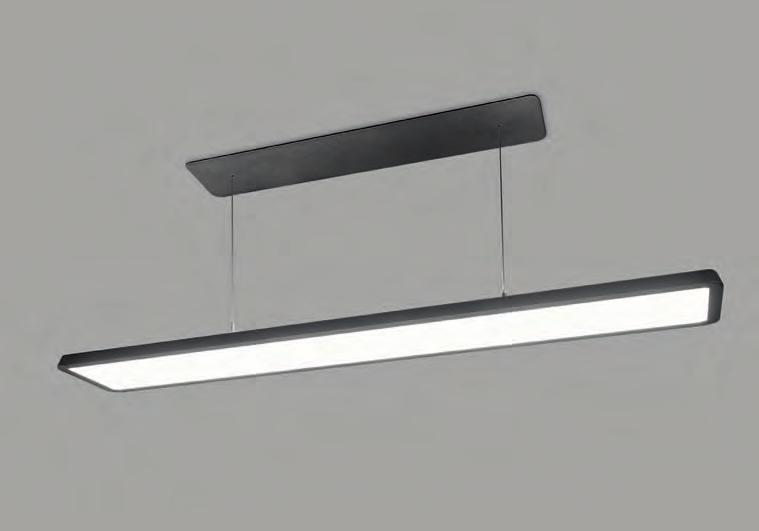

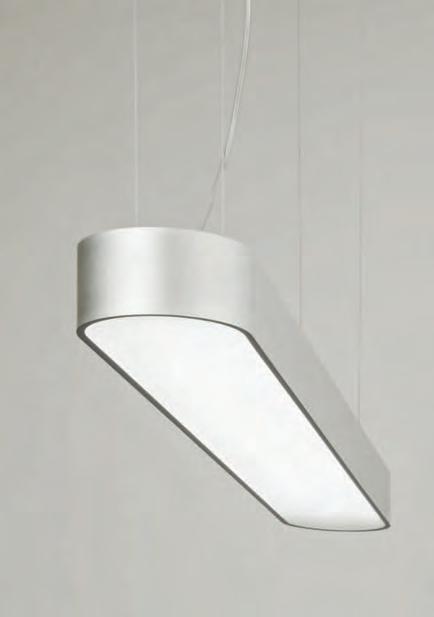

Suspended luminaire

Type of illuminaT ion

Direct luminaire

Colours and maT erials

a – sand-blasted glass

B – black

C – chrome

e – anodised aluminium

f – FeZn

li GHT sour C es

Direct-indirect luminaire

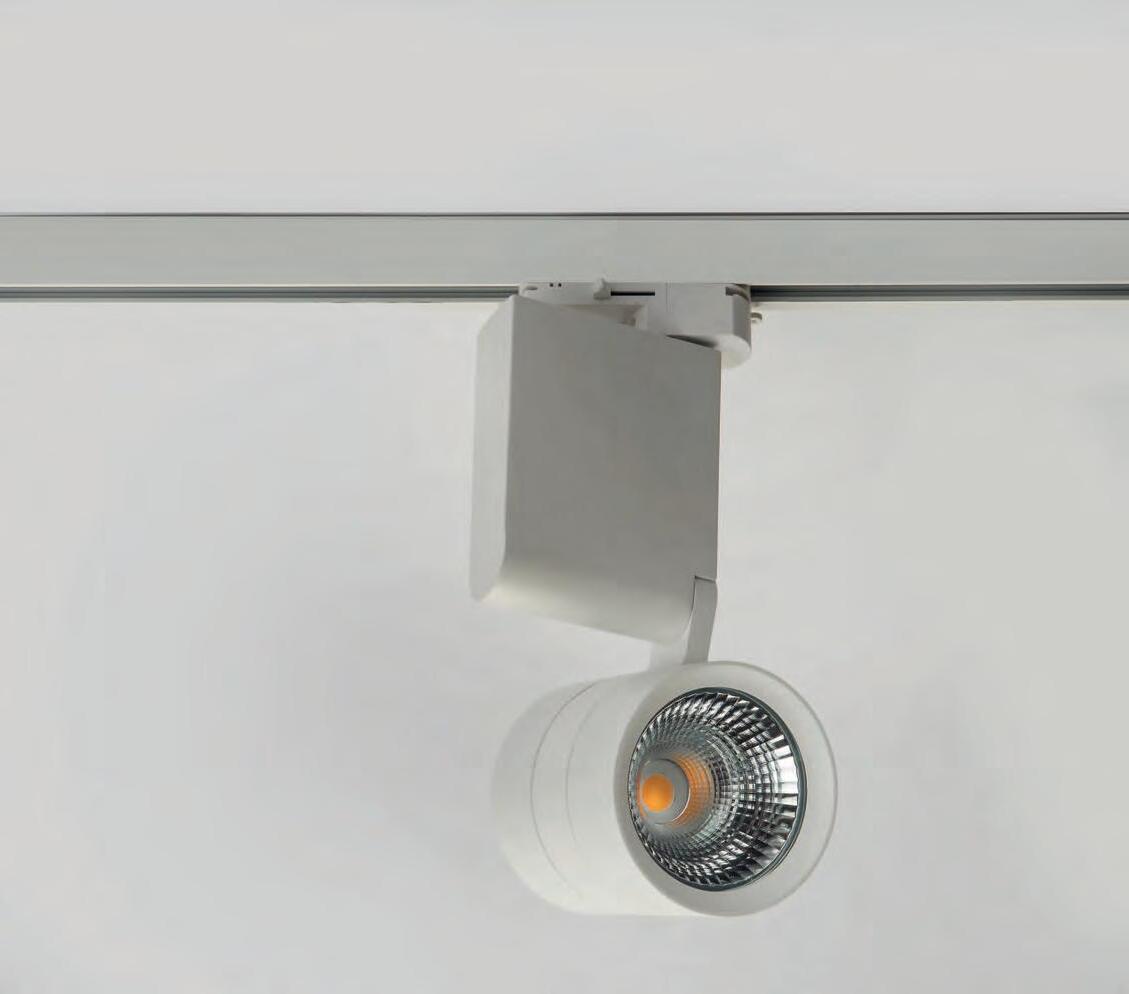

3 circuit track luminaire

Free-standing luminaire

Indirect luminaire

– clear

nickel s – structured silver

– white

linear fluores C en T lamps C ompa CT fluores C en T lamps

LED LUMINAIRE

REALWHITE true appearance of white color

s ym B ols and mar K s

Table lamp Commercial

used B eam an G les

Page reference

OLED LUMINAIRE

REALCOLOUR true appearance of colors, Ra=97

6021 – RAL 6021

7006 – RAL 7006

7045 – RAL 7045

– wood 1021 – RAL 1021 3000 – RAL 3000

TUNABLE WHITE TECHNICAL

STRONGCOLOUR true appearance of one color
