Pendant and recessed luminaires Serie 01 can be used separately or build-up into lighting systems as direct lines or other shapes. Thanks to its unique small dimensions and variability the luminaires fit easily into illuminated interiors.
APPLICATIONS
representative areas

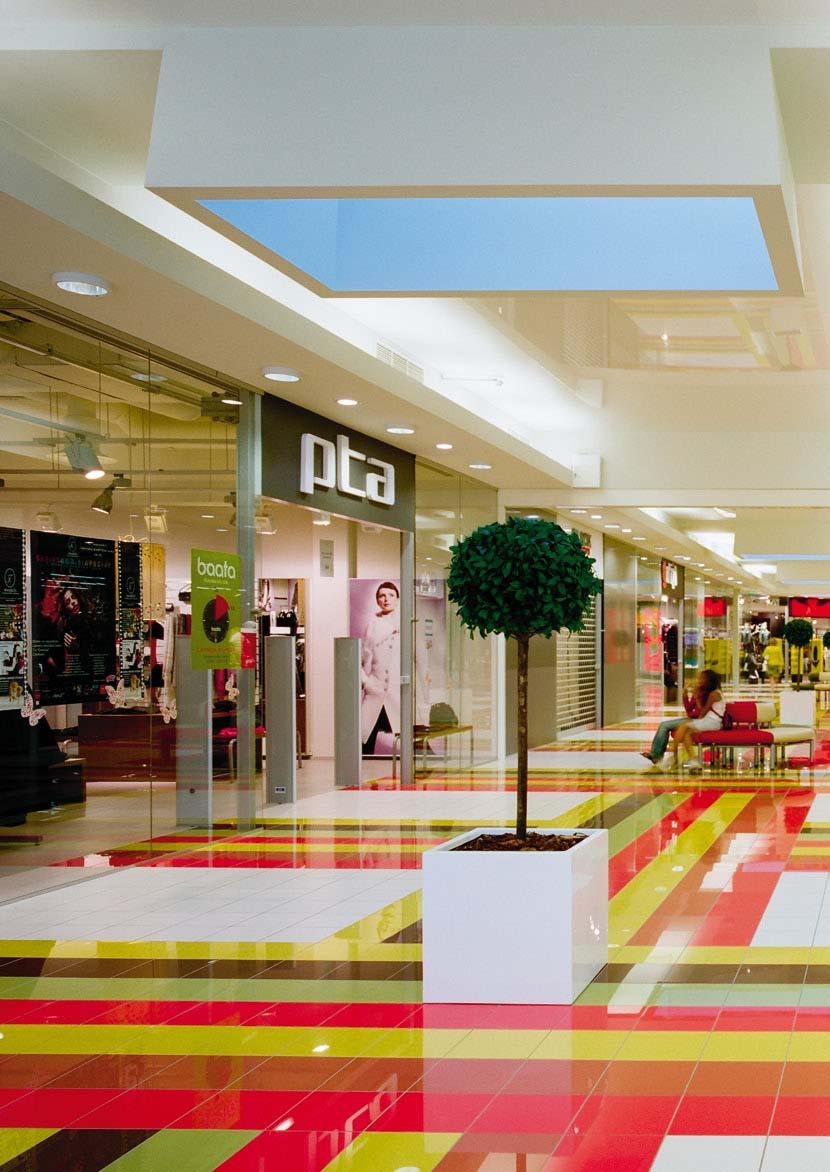

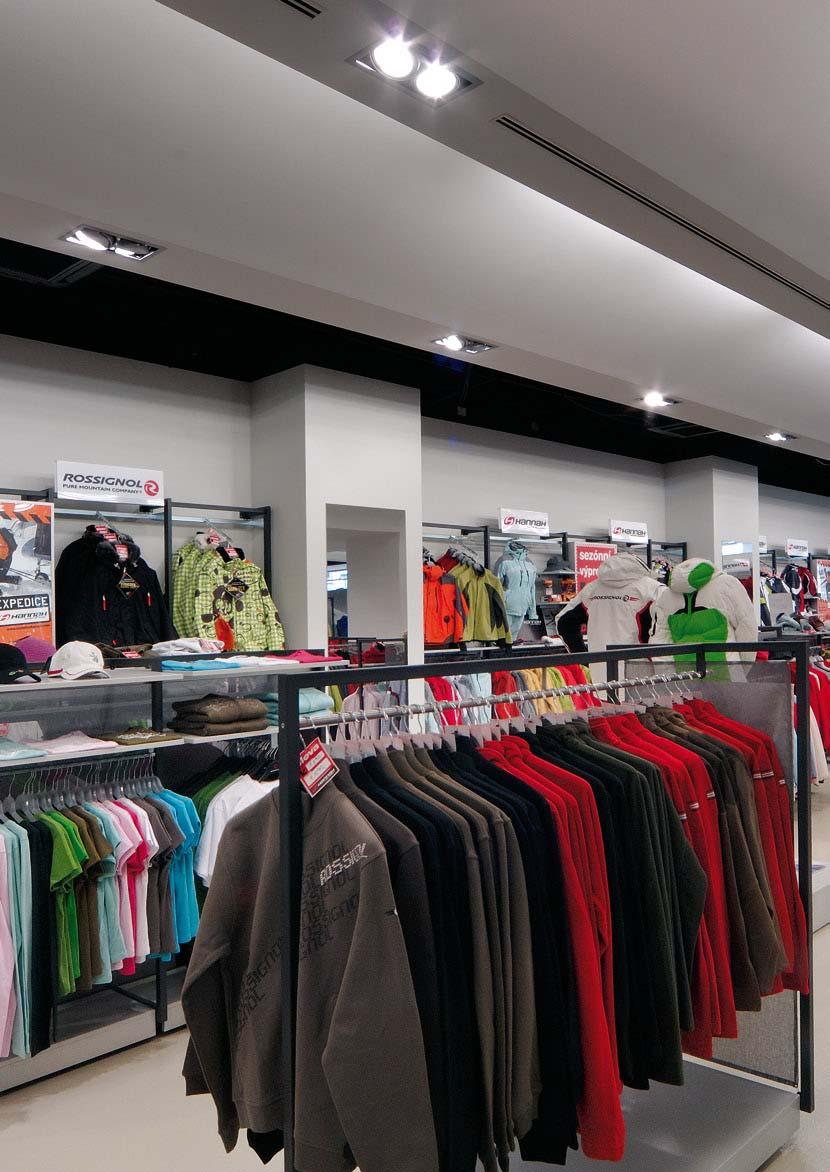

shopping premises

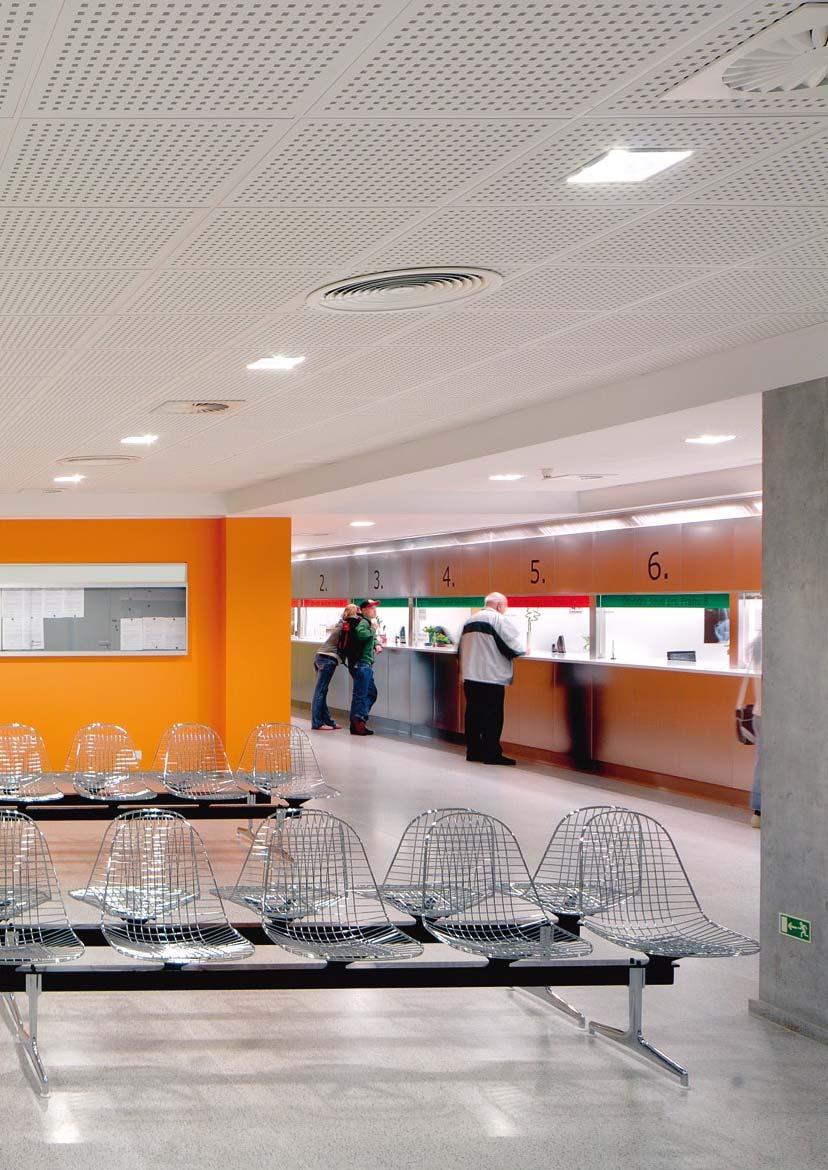

meeting areas

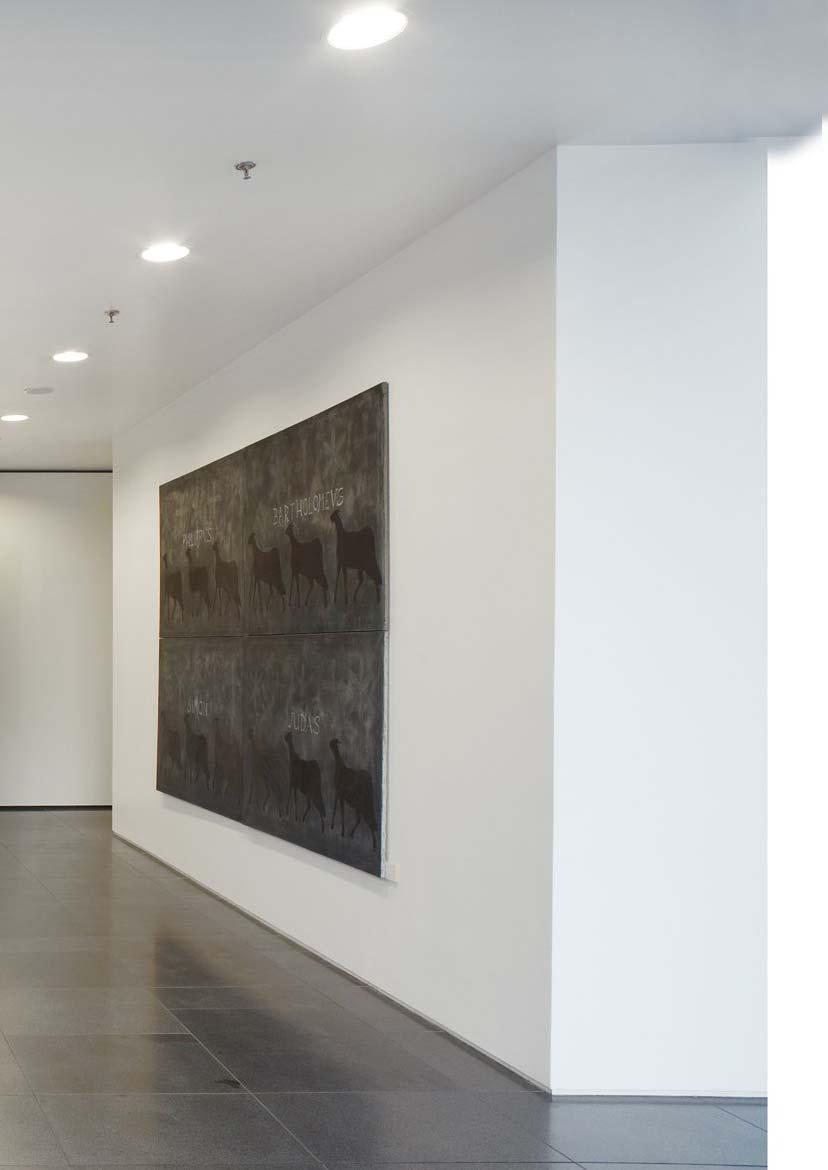

cultural facilities
MATERIALS
body anodised extruded aluminium profile
optical system reflector made of highly polished aluminium sheet
opal PMMA, PC
diffuser parabolic louvre made of highly specular aluminium
couplers anodised extruded aluminium profile
LIGHT SOURCES
linear fluorescent lamps
POWER SUPPLY
230V, 50Hz luminaires are equipped with a non-dimmable electronic ballast
other possible options are specified below product codes

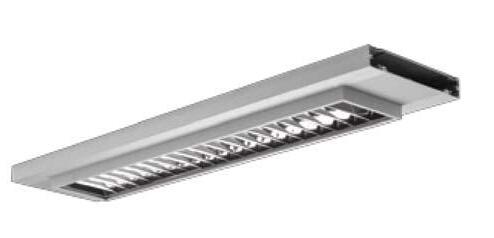

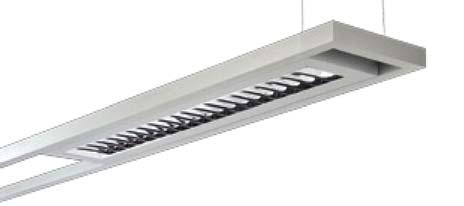

SYSTEM LUMINAIRES, PENDANT
Luminaires with polished parabolic louvre
01-550A-1014E-P T 16 1× 14 G5
01-550A-1021E-P T 16 1× 21 G5
01-550A-1024E-P T 16 1× 24 G5
01-550A-1028E-P T 16 1× 28 G5
01-550A-1035E-P T 16 1× 35 G5
01-550A-1039E-P T 16 1× 39 G5
01-550A-1049E-P T 16 1× 49 G5
01-550A-1054E-P T 16 1× 54 G5
01-550A-1080E-P T 16 1× 80 G5
system luminaires – with openings for power-supply cables end caps, suspensions, power-supply cables, ceiling cups, and system couplers have to be ordered separately
other options of electrical connections: EI, A, S, D, T – dimmable luminaires have different lengths
I= 1080 mm (14 W, 24 W)
1380 mm (21 W, 39 W)
1680 mm (28 W, 54 W)
1980 mm (35 W, 49W, 80 W)
IP 20
Luminaires with polished parabolic louvre
01-560A-2021E-P T 16 2× 21 G5
01-560A-2028E-P T 16 2× 28 G5
01-560A-2035E-P T 16 2× 35 G5
01-560A-2039E-P T 16 2× 39 G5
01-560A-2049E-P T 16 2× 49 G5
01-560A-2054E-P T 16 2× 54 G5
01-560A-2080E-P T 16 2× 80 G5
system luminaires – with openings for power-supply cables end caps, suspensions, power-supply cables, ceiling cups, and system couplers have to be ordered separately
other options of electrical connections: EI, A, S, D, T – dimmable luminaires have different lengths
I= 2320 mm (21 W, 39 W)
2920 mm (28 W, 54 W)
3520 mm (35 W, 49W, 80 W)
01-550K-1014E-P T 16 1× 14 G5
01-550K-1021E-P T 16 1× 21 G5
01-550K-1024E-P T 16 1× 24 G5
01-550K-1028E-P T 16 1× 28 G5
01-550K-1035E-P T 16 1× 35 G5
01-550K-1039E-P T 16 1× 39 G5
01-550K-1049E-P T 16 1× 49 G5
01-550K-1054E-P T 16 1× 54 G5
01-550K-1080E-P T 16 1× 80 G5
system luminaires – with openings for power-supply cables end caps, suspensions, power-supply cables, ceiling cups, and system couplers have to be ordered separately
other options of electrical connections: EI, A, S, D, T – dimmable luminaires have different lengths
SYSTEM LUMINAIRES, PENDANT
Luminaires with diffuser
01-560K-2021E-P T 16 2× 21 G5
01-560K-2028E-P T 16 2× 28 G5
01-560K-2035E-P T 16 2× 35 G5
01-560K-2039E-P T 16 2× 39 G5
01-560K-2049E-P T 16 2× 49 G5
01-560K-2054E-P T 16 2× 54 G5
01-560K-2080E-P T 16 2× 80 G5 I= 1080 mm (14 W, 24 W) 1380
system luminaires – with openings for power-supply cables end caps, suspensions, power-supply cables, ceiling cups, and system couplers have to be ordered separately
other options of electrical connections: EI, A, S, D, T – dimmable luminaires have different lengths
Luminaires with diffuser

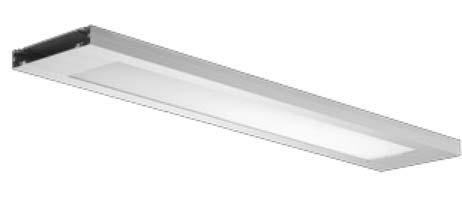

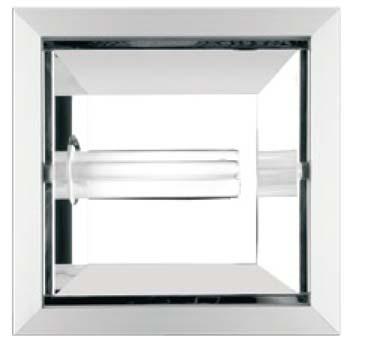

SYSTEM LUMINAIRES, RECESSED
Luminaires with diffuser
01-050K-1014E T 16 1× 14 G5
01-050K-1021E T 16 1× 21 G5
01-050K-1024E T 16 1× 24 G5
01-050K-1028E T 16 1× 28 G5
01-050K-1035E T 16 1× 35 G5
01-050K-1039E T 16 1× 39 G5
01-050K-1049E T 16 1× 49 G5
01-050K-1054E T 16 1× 54 G5
01-050K-1080E T 16 1× 80 G5
end caps and system couplers have to be ordered separately other options of electrical connections: EI, A, S, D, T
I= 595 mm (14 W, 24 W)
895 mm (21 W, 39 W)
1195 mm (28 W, 54 W)
1495 mm (35 W, 49W, 80 W)
Luminaires with diffuser CODE SOURCE POWER W SOCKET
01-060K-2021E T 16 2× 21 G5
01-060K-2028E T 16 2× 28 G5
01-060K-2035E T 16 2× 35 G5
01-060K-2039E T 16 2× 39 G5
01-060K-2049E T 16 2× 49 G5
01-060K-2054E T 16 2× 54 G5
01-060K-2080E T 16 2× 80 G5
end caps and system couplers have to be ordered separately other options of electrical connections: EI, A, S, D, T
I= 1779 mm (21 W, 39 W)
2379 mm (28 W, 54 W)
2979 mm (35 W, 49W, 80 W)
SYSTEM LUMINAIRES, RECESSED / ACCESSORIES
Luminaires with polished parabolic louvre CODE
01-050A-1014E T16 1× 14 G5
01-050A-1021E T16 1× 21 G5
01-050A-1024E T16 1× 24 G5
01-050A-1028E T16 1× 28 G5
01-050A-1035E T16 1× 35 G5
01-050A-1039E T16 1× 39 G5
01-050A-1049E T16 1× 49 G5
01-050A-1054E T16 1× 54 G5
01-050A-1080E T16 1× 80 G5
end caps and system couplers have to be ordered separately other options of electrical connections: EI, A, S, D, T
I= 595mm (14W, 24W)
895mm (21W, 39W)
1195mm (28W, 54W)
1495mm (35W, 49W, 80W)
CODE DESCRIPTION pendant profile 1000 mm
01-0003 01-0004
straight connector, a set contains 2 pieces for connection of two luminaires
“L” coupler – pendant
01-0006
end cap for pendant luminaires
Accessories for pendant luminaires
ACCESSORIES
Accessories for pendant luminaires
CODE DESCRIPTION
01-0007
wire suspension 2000 mm – 1 piece
01-0009
wall fastening for luminaires 01-5x0 - 1 piece
01-0010
ceiling fastening for luminaires 01-5x0 - 1 piece
30-0051
30-0053
30-0052
30-0054
30-0060
30-0061
transparent cable 3× 0,75 mm, 1000 mm transparent cable 3× 0,75 mm, 2000 mm transparent cable 4× 0,75 mm, 1000 mm transparent cable 4× 0,75 mm, 2000 mm
transparent cable 5× 0,75 mm, 1000 mm transparent cable 5× 0,75 mm, 2000 mm
30-0055
ceiling cup
30-0062
ceiling cup
recessed profile 1000 mm
straight connector, a set contains 2 pieces for connection of two luminaires
“L”
coupler – recessed
end cap for recessed luminaires
Accessories for recessed luminaires
Pendant luminaires Serie 02 are ready to be used in variable lighting systems or individually. Directindirect distribution of light combined with 3 phase track creates an unique advantage.
APPLICATIONS
representative areas
shopping centers
meeting areas
administration buildings
MATERIALS
body anodised extruded aluminium profile optical system specular aluminium reflector opal PMMA diffuser
parabolic louvre made of highly specular aluminium
couplers anodised extruded aluminium profile
LIGHT SOURCES
linear fluorescent lamps
POWER SUPPLY
230V, 50Hz
luminaires are equipped with a non-dimmable electronic ballast
other possible options are specified below product codes

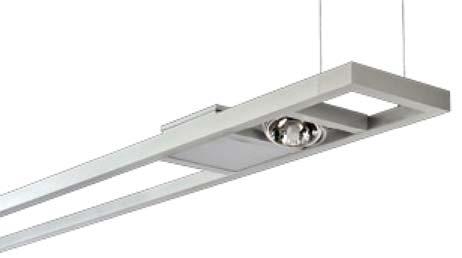

SYSTEM LUMINAIRES, DIRECTINDIRECT
Luminaires with polished parabolic louvre
I = 620 mm (14 W, 24 W)
920 mm (21 W, 39 W)
1220 mm (28 W, 54 W)
1520 mm (35 W, 49 W, 80 W)
IP 20
Luminaires with polished parabolic louvre
I = 1840 mm (21 W, 39 W)
2440 mm (28 W, 54 W)
3040 mm (35 W, 49 W, 80 W)
02-551A-2014E-P T16 2× 14 G5
02-551A-2021E-P T16 2× 21 G5
02-551A-2024E-P T16 2× 24 G5
02-551A-2028E-P T16 2× 28 G5
02-551A-2035E-P T16 2× 35 G5
02-551A-2039E-P T16 2× 39 G5
02-551A-2049E-P T16 2× 49 G5
02-551A-2054E-P T16 2× 54 G5
02-551A-2080E-P T16 2× 80 G5
system luminaires – with openings for power-supply cables end caps, suspensions, power-supply cables, ceiling cups and system couplers have to be ordered separately
other options of electrical connections: EI, A, S, D, T, M, M3 – emergency luminaires can have different lengths
02-561A-4021E-P T16 4× 21 G5
02-561A-4028E-P T16 4× 28 G5
02-561A-4035E-P T16 4× 35 G5
02-561A-4039E-P T16 4× 39 G5
02-561A-4049E-P T16 4× 49 G5
02-561A-4054E-P T16 4× 54 G5
02-561A-4080E-P T16 4× 80 G5
system luminaires – with openings for power-supply cables end caps, suspensions, power-supply cables, ceiling cups and system couplers have to be ordered separately
other options of electrical connections: EI, A, S, D, T, M, M3 – emergency luminaires can have different lengths
02-551K-2014E-P T16 2× 14 G5
02-551K-2021E-P T16 2× 21 G5
02-551K-2024E-P T16 2× 24 G5
02-551K-2028E-P T16 2× 28 G5
02-551K-2035E-P T16 2× 35 G5
02-551K-2039E-P T16 2× 39 G5
02-551K-2049E-P T16 2× 49 G5
02-551K-2054E-P T16 2× 54 G5
02-551K-2080E-P T16 2× 80 G5
system luminaires – with openings for power-supply cables end caps, suspensions, power-supply cables, ceiling cups and system couplers have to be ordered separately
other options of electrical connections: EI, A, S, D, T, M, M3 – emergency luminaires can have different lengths
SYSTEM LUMINAIRES, DIRECTINDIRECT
Luminaires with opal diffuser
02-561K-4021E-P T16 4× 21 G5
02-561K-4028E-P T16 4× 28 G5
02-561K-4035E-P T16 4× 35 G5
02-561K-4039E-P T16 4× 39 G5
02-561K-4049E-P T16 4× 49 G5
02-561K-4054E-P T16 4× 54 G5
02-561K-4080E-P T16 4× 80 G5
system luminaires – with openings for power-supply cables end caps, suspensions, power-supply cables, ceiling cups and system couplers have to be ordered separately
other options of electrical connections: EI, A, S, D, T, M, M3 – emergency luminaires can have different lengths
Luminaires with opal diffuser
SYSTEM LUMINAIRES, INDIRECT / ACCESSORIES
Luminaires with 3 circuit track
I = 620 mm (14 W, 24 W)
920 mm (21 W, 39 W)
1220 mm (28 W, 54 W)
1520 mm (35 W, 49 W, 80 W)
IP 20
Accessories
02-552V-1014E-P T16 1× 14 G5
02-552V-1021E-P T16 1× 21 G5
02-552V-1024E-P T16 1× 24 G5
02-552V-1028E-P T16 1× 28 G5
02-552V-1035E-P T16 1× 35 G5
02-552V-1039E-P T16 1× 39 G5
02-552V-1049E-P T16 1× 49 G5
02-552V-1054E-P T16 1× 54 G5
02-552V-1080E-P T16 1× 80 G5
system luminaires – with openings for power-supply cables end caps, suspensions, power-supply cables, ceiling cups and system couplers has to be ordered separately
other options of electrical connections: EI, A, S, D, T
CODE
02-0001
DESCRIPTION
profile 1000 mm
02-0002
straight connector, a set contains 4 pieces for connection of two luminaires
02-0003
02-0004
“L” coupler
30-0051
30-0053
30-0052
30-0054
30-0060
30-0061
transparent cable 3× 0.75 mm, 1000 mm
transparent cable 3× 0.75 mm, 2000 mm
transparent cable 4× 0.75 mm, 1000 mm
transparent cable 4× 0.75 mm, 2000 mm
transparent cable 5× 0.75 mm, 1000 mm
transparent cable 5× 0.75 mm, 2000 mm ceiling cup ceiling cup
ACCESSORIES

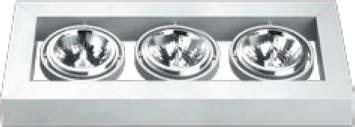

Serie 03 consists of pendant and recessed lighting fixtures, which can be used separately or continuously in direct lines or other shapes. Very amazing architectonic application offer the lighting systems with overlapping lamps. Used materials and sophisticated system of covering the T16 linear fluorescent lamps allow the uniform distribution of brightness across the whole profile lenght - the lighting surface looks homogenous showing no dark areas between the light sources.
APPLICATIONS
representative areas shopping centers meeting areas administration buildings
MATERIALS
body anodised extruded aluminium profile optical system specular aluminium reflector opal PMMA diffuser parabolic louvre made of highly specular aluminium asymmetric specular aluminium reflector couplers anodised extruded aluminium profile
LIGHT SOURCES
linear fluorescent lamps
POWER SUPPLY
230V, 50Hz
luminaries are equipped with a non-dimmable electronic ballast
other possible options are specified below prouct codes

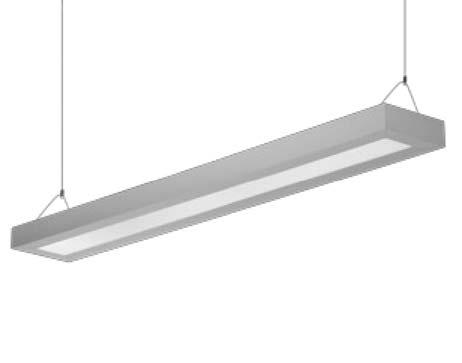

SYSTEM LUMINAIRES, PENDANT
Luminaires with polished parabolic louvre
I = 620 mm (14 W, 24 W)
920 mm (21 W, 39 W)
1220 mm (28 W, 54 W)
1520 mm (35 W, 49 W, 80 W)
IP 20
Luminaires with polished parabolic louvre
I = 1840 mm (21 W, 39 W)
2440 mm (28 W, 54 W)
3040 mm (35 W, 49 W, 80 W)
03-550A-1014E-P T 16 1× 14 G5
03-550A-1021E-P T 16 1× 21 G5
03-550A-1024E-P T 16 1× 24 G5
03-550A-1028E-P T 16 1× 28 G5
03-550A-1035E-P T 16 1× 35 G5
03-550A-1039E-P T 16 1× 39 G5
03-550A-1049E-P T 16 1× 49 G5
03-550A-1054E-P T 16 1× 54 G5
03-550A-1080E-P T 16 1× 80 G5
system luminaires – with openings for power-supply cables
end caps, suspensions, wall fastening, power-supply cables, ceiling cups, and system couplers have to be ordered separately
– emergency luminaires can have different lengths
other options of electrical connections: EI, A, S, D ,T, M, M3 – emergency luminaires can have different lengths
03-560A-2021E-P T 16 2× 21 G5
03-560A-2028E-P T 16 2× 28 G5
03-560A-2035E-P T 16 2× 35 G5
03-560A-2039E-P T 16 2× 39 G5
03-560A-2049E-P T 16 2× 49 G5
03-560A-2054E-P T 16 2× 54 G5
03-560A-2080E-P T 16 2× 80 G5
system luminaires – with openings for power-supply cables
end caps, suspensions, ceiling fastening, wall fastening, power-supply cables, ceiling cups, and system couplers have to be ordered separately
other options of electrical connections: EI, A, S, D ,T, M, M3 – emergency luminaires can have different lengths
03-550D-1014E-P T 16 1× 14 G5
03-550D-1021E-P T 16 1× 21 G5
03-550D-1024E-P T 16 1× 24 G5
03-550D-1028E-P T 16 1× 28 G5
03-550D-1035E-P T 16 1× 35 G5
03-550D-1039E-P T 16 1× 39 G5
03-550D-1049E-P T 16 1× 49 G5
03-550D-1054E-P T 16 1× 54 G5
03-550D-1080E-P T 16 1× 80 G5
system luminaires – with openings for power-supply cables end caps, suspensions, ceiling fastening, wall fastening, power-supply cables, ceiling cups, and system couplers have to be ordered separately
other options of electrical connections: EI, A, S, D ,T, M, M3 – emergency luminaires can have different lengths
SYSTEM LUMINAIRES, PENDANT
with asymmetric reflector
03-560D-2021E-P T 16 2× 21 G5
03-560D-2028E-P T 16 2× 28 G5
03-560D-2035E-P T 16 2× 35 G5
03-560D-2039E-P T 16 2× 39 G5
03-560D-2049E-P T 16 2× 49 G5
03-560D-2054E-P T 16 2× 54 G5
03-560D-2080E-P T 16 2× 80 G5
system luminaires – with openings for power-supply cables end caps, suspensions, ceiling fastening, wall fastening, power-supply cables, ceiling cups, and system couplers have to be ordered separately
other options of electrical connections: EI, A, S, D ,T, M, M3 – emergency luminaires can have different lengths
Luminaires with asymmetric reflector
SYSTEM LUMINAIRES,
RECESSED
Luminaires with polished parabolic louvre
03-050A-1014E T 16 1× 14 G5
03-050A-1021E T 16 1× 21 G5
03-050A-1024E T 16 1× 24 G5
03-050A-1028E T 16 1× 28 G5
03-050A-1035E T 16 1× 35 G5
03-050A-1039E T 16 1× 39 G5
03-050A-1049E T 16 1× 49 G5
03-050A-1054E T 16 1× 54 G5 03-050A-1080E T 16 1× 80 G5
system luminaires end caps and system couplers have to be ordered separately other options of electrical connections: EI, A, S, D ,T, M, M3 – emergency luminaires can have different lengths
I = 620 mm (14 W, 24 W)
920 mm (21 W, 39 W)
1220 mm (28 W, 54 W)
1520 mm (35 W, 49 W, 80 W)
Luminaires with polished parabolic louvre
03-060A-2021E T 16 2× 21 G5
03-060A-2028E T 16 2× 28 G5
03-060A-2035E T 16 2× 35 G5
03-060A-2039E T 16 2× 39 G5
03-060A-2049E T 16 2× 49 G5
03-060A-2054E T 16 2× 54 G5
03-060A-2080E T 16 2× 80 G5
system luminaires end caps and system couplers have to be ordered separately other options of electrical connections: EI, A, S, D ,T, M, M3 – emergency luminaires can have different lengths
I = 1840 mm (21 W, 39 W)
2440 mm (28 W, 54 W)
3040 mm (35 W, 49 W, 80 W)
03-050D-1014E T 16 1× 14 G5
03-050D-1021E T 16 1× 21 G5
03-050D-1024E T 16 1× 24 G5
03-050D-1028E T 16 1× 28 G5
03-050D-1035E T 16 1× 35 G5
03-050D-1039E T 16 1× 39 G5
03-050D-1049E T 16 1× 49 G5
03-050D-1054E T 16 1× 54 G5
03-050D-1080E T 16 1× 80 G5
system luminaires
end caps and system couplers have to be ordered separately other options of electrical connections: EI, A, S, D ,T, M, M3 – emergency luminaires can have different lengths
SYSTEM LUMINAIRES, RECESSED
Luminaires with asymmetric reflector
03-060D-2021E T 16 2× 21 G5
03-060D-2028E T 16 2× 28 G5
03-060D-2035E T 16 2× 35 G5
03-060D-2039E T 16 2× 39 G5
03-060D-2049E T 16 2× 49 G5
03-060D-2054E T 16 2× 54 G5
03-060D-2080E T 16 2× 80 G5
system luminaires
end caps and system couplers have to be ordered separately other options of electrical connections: EI, A, S, D ,T, M, M3 – emergency luminaires can have different lengths
Luminaires with asymmetric reflector
SYSTEM LUMINAIRES WITH OVERLAPPING LAMPS ELECTRIC UNITS
Electric units
1x14W, 1x24W: l=575 mm
1x21W, 1x39W: l=875 mm
1x28W, 1x54W: l=1175 mm
1x35W, 1x49W, 1x80W: l=1475 mm
2x21W, 2x39W: l=1650 mm
2x28W, 2x54W: l=2250 mm
2x35W, 2x49W, 2x80W: l=2850 mm
03-A00L-1014E T16 1× 14 G5
03-A00L-1024E T16 1× 24 G5
03-A00L-1021E T16 1× 21 G5
03-A00L-2021E T16 2× 21 G5
03-A00L-1028E T16 1× 28 G5
03-A00L-2028E T16 2× 28 G5
03-A00L-1035E T16 1× 35 G5
03-A00L-2035E T16 2× 35 G5
03-A00L-1039E T16 1× 39 G5
03-A00L-2039E T16 2× 39 G5
03-A00L-1049E T16 1× 49 G5
03-A00L-2049E T16 2× 49 G5
03-A00L-1054E T16 1× 54 G5
03-A00L-2054E T16 2× 54 G5
03-A00L-1080E T16 1× 80 G5
03-A00L-2080E T16 2× 80 G5
03-A00L-1039EI T16 1× 21/39 G5
03-A00L-2039EI T16 2× 21/39 G5
03-A00L-1054EI T16 1× 28/54 G5
03-A00L-2054EI T16 2× 28/54 G5
03-A00L-1080EI T16 1× 35/49/80 G5
03-A00L-2080EI T16 2× 35/49/80
start and continuous profiles and accessories (end caps, suspension, power supply, ceiling cup etc.) have to be ordered separately other options of electrical connections: A, S, D, T, M, M3 - except 14W, 24W
System assembly
In order to build-up a structure of Serie 03 with overlapping lamps it is necessary to order:
- profiles, electric units, accessories
- start/independent profile and electric units (and necessary accessories) to create an independent (single) luminaire
- start/independent profile as the first profile of the structure (1 pc only) which is followed by necessary quantity of continuous profiles (with electric units and necessary accessories) to create a longer structure.
CODE DESCRIPTION
SYSTEM LUMINAIRES WITH OVERLAPPING LAMPS PROFILES
pendant profile for 1 electric unit 14W and 24W, l=578 mm
pendant profile for 1 electric unit 21W and 39W, l=878 mm
pendant profile for 1 electric unit 28W and 54W, l=1178mm
pendant profile for 1 electric unit 35W, 49W and 80W, l=1478mm
pendant profile for 2 electric unit 21W and 39W, l=1656mm
pendant profile for 2 electric unit 28W and 54W, l=2256mm
pendant profile for 2 electric unit 35W, 49W and 80W, l=2856mm
pendant profile for 3 electric unit 21W and 39W, l=2434mm
pendant profile for 3 electric unit 28W and 54W, l=3334mm
pendant profile for 3 electric unit 35W, 49W and 80W, l=4234mm
CODE DESCRIPTION
pendant profile for 1 electric unit 14W and 24W, l=478mm
pendant profile for 1 electric unit 21W and 39W, l=778mm
pendant profile for 1 electric unit 28W and 54W, l=1078mm
pendant profile for 1 electric unit 35W, 49W and 80W, l=1378mm
pendant profile for 2 electric unit 21W and 39W, l=1556mm
pendant profile for 2 electric unit 28W and 54W, l=2156mm
pendant profile for 2 electric unit 35W, 49W and 80W, l=2756mm
pendant profile for 3 electric unit 21W and 39W, l=2334mm
pendant profile for 3 electric unit 28W and 54W, l=3234mm
pendant profile for 3 electric unit 35W, 49W and 80W, l=4134mm
Start/independent profiles – pendant
supplied including opal diffuser supplied including opal diffuser
Continuous profiles – pendant
SYSTEM LUMINAIRES WITH OVERLAPPING LAMPS PROFILES
Start/independent profiles – recessed
CODE DESCRIPTION
03-0070
03-0048
03-0050
03-0052
03-0054
03-0056
03-0058
03-0060
03-0062
03-0064
recessed profile for 1 electric unit 14W and 24W, l=578 mm
recessed profile for 1 electric unit 21W and 39W, l=878 mm
recessed profile for 1 electric unit 28W and 54W, l=1178mm
recessed profile for 1 electric unit 35W, 49W and 80W, l=1478mm
recessed profile for 2 electric unit 21W and 39W, l=1656mm
recessed profile for 2 electric unit 28W and 54W, l=2256mm
recessed profile for 2 electric unit 35W, 49W and 80W, l=2856mm
recessed profile for 3 electric unit 21W and 39W, l=2434mm
recessed profile for 3 electric unit 28W and 54W, l=3334mm
recessed profile for 3 electric unit 35W, 49W and 80W, l=4234mm
03-0071
03-0049
03-0051
03-0053
03-0055
03-0057
03-0059
03-0061
03-0063
03-0065
recessed profile for 1 electric unit 14W and 24W, l=578mm
recessed profile for 1 electric unit 21W and 39W, l=778mm
recessed profile for 1 electric unit 28W and 54W, l=1078mm
recessed profile for 1 electric unit 35W, 49W and 80W, l=1378mm
recessed profile for 2 electric unit 21W and 39W, l=1556mm
recessed profile for 2 electric unit 28W and 54W, l=2156mm
recessed profile for 2 electric unit 35W, 49W and 80W, l=2756mm
recessed profile for 3 electric unit 21W and 39W, l=2334mm
recessed profile for 3 electric unit 28W and 54W, l=3234mm
recessed profile for 3 electric unit 35W, 49W and 80W, l=4134mm
03501K2014E T 16 2× 14 G5
03501K2024E T 16 2× 24 G5
accessory for luminaires with overlapping lamps illuminated corner module has to be connected on both sides to overlapped lamp system other options of electrical connections: El, A, S, D, T
CODE DESCRIPTION
pendant profile 1000 mm
pendant body profile including opal diffusor 1000 mm
straight connector, the set contains 2 pieces for connection of two luminaires
“L” coupler – pendant
“T” coupler – pendant
“X” coupler – pendant end cap for pendant system luminaires wire suspension 2000 mm, 1 wire – 1 piece expansion cover to the end cap
Illuminated corner module – pendant
Accessories for pendant luminaires
ACCESSORIES
Accessories for pendant luminaires
Accessories for pendant luminaires
30-0051
30-0053
30-0052
30-0054
30-0060
30-0061
30-0055 30-0062
transparent cable 3× 0.75 mm, 1000 mm
transparent cable 3× 0.75 mm, 2000 mm
transparent cable 4× 0.75 mm, 1000 mm
transparent cable 4× 0.75 mm, 2000 mm transparent cable 5× 0.75 mm, 1000 mm transparent cable 5× 0.75 mm, 2000 mm
03-0009
03-0010
03-0011
03-0013
03-0014
03-0015
03-0016
pendant profile with 3 circuit track, l = 620mm
pendant profile with 3 circuit track, l = 920mm
pendant profile with 3 circuit track, l = 1220mm
pendant profile with 3 circuit track, l = 1520mm
pendant profile with 3 circuit track, l = 1840mm
pendant profile with 3 circuit track, l = 2440mm
pendant profile with 3 circuit track, l = 3040mm
03001K2014E T 16 2× 14 G5
T
accessory for recessed luminaires with overlapping lamps illuminated corner module has to be connected on both sides to overlapped lamp system other options of electrical connections: A, S, D, T
CODE DESCRIPTION
recessed profile 1000 mm
CODE
recessed body profile including opal diffusor 1000 mm
straight conector, the set contains 2 pieces for connection of two luminaires
“L” coupler – recessed end cap for recessed system luminaires expansion cover to the end cap
recessed profile with 3 circuit track, l = 620mm recessed profile with 3 circuit track, l = 920mm
recessed profile with 3 circuit track, l = 1220mm recessed profile with 3 circuit track, l = 1520mm recessed profile with 3 circuit track, l = 1840mm recessed profile with 3 circuit track, l = 2440mm recessed profile with 3 circuit track, l = 3040mm
Accessories for recessed luminaires
PENDANT LUMINAIRES
Luminaires with opal diffuser
I = 600 mm (24 W) 900 mm (39 W)
03-570K-4024E T 16 4× 24 G5
03-570K-4039E T 16 4× 39 G5
supplied including suspensions 2000 mm, power-supply cable and ceiling cup other options of electrical connections: EI, A, S, D ,T, M, M3
Range of Serie 10 is formed by lighting fixtures of a very small height, in which linear T16 fluorescent lamps, halogen or compact discharge lamps are used. The luminaires with direct, direct-indirect or indirect illumination can be mutually combined and spotlights can be simply added. The lighting systems can be set up by lighting fixtures of fixed lengths or, according to a dimensional drawing, when modules are inserted into a continuous aluminium profile of selected length.
APPLICATIONS
administration buildings representative areas meeting areas
MATERIALS
body anodised extruded aluminium profile optical system specular aluminium reflector microprismatic optical system opal PMMA diffuser parabolic louvre made of highly specular aluminium couplers anodised extruded aluminium profile
LIGHT SOURCES
linear fluorescent lamps halogen lamps metal halide lamps
POWER SUPPLY
230V, 50Hz
luminaires are equipped with a non-dimmable electronic ballast
other possible options are specified below product codes
SYSTEM LUMINAIRES
Luminaires with polished parabolic louvre
10-571A-2014E-P T16 2× 14 G5
10-571A-2021E-P T16 2× 21 G5
10-571A-2024E-P T16 2× 24 G5
10-571A-2028E-P T16 2× 28 G5
10-571A-2035E-P T16 2× 35 G5
10-571A-2039E-P T16 2× 39 G5
10-571A-2049E-P T16 2× 49 G5
10-571A-2054E-P T16 2× 54 G5
10-571A-2080E-P T16 2× 80 G5
system luminaires – with openings for power-supply cables end caps, suspensions, power-supply cables, ceiling cups, and system couplers have to be ordered separately
other options of electrical connections: EI, A, S, D, T, M, M3 – emergency luminaires can have different lengths
Luminaires with opal diffuser
I = 720 mm (14 W, 24 W)
1020 mm (21 W, 39 W)
1320 mm (28 W, 54 W)
1620 mm (35 W, 49 W, 80 W)
IP 20
10-55*K-2014E-P T16 2× 14 G5
10-55*K-2021E-P T16 2× 21 G5
10-55*K-2024E-P T16 2× 24 G5
10-55*K-2028E-P T16 2× 28 G5
10-55*K-2035E-P T16 2× 35 G5
10-55*K-2039E-P T16 2× 39 G5
10-55*K-2049E-P T16 2× 49 G5
10-55*K-2054E-P T16 2× 54 G5
*=0 direct luminaires
*=1 direct-indirect luminaires
system luminaires – with openings for power-supply cables end caps, suspensions, power-supply cables, ceiling cups, and system couplers have to be ordered separately
other options of electrical connections: EI, A, S, D, T, M, M3 – emergency luminaires can have different lengths
I = 720 mm (14 W, 24 W)
1020 mm (21 W, 39 W)
1320 mm (28 W, 54 W)
1620 mm (35 W, 49 W)
SYSTEM LUMINAIRES
Indirect luminaires CODE
10-552N-2014E-P T16 2× 14 G5
10-552N-2021E-P T16 2× 21 G5
10-552N-2024E-P T16 2× 24 G5
10-552N-2028E-P T16 2× 28 G5
10-552N-2035E-P T16 2× 35 G5
10-552N-2039E-P T16 2× 39 G5
10-552N-2049E-P T16 2× 49 G5
10-552N-2054E-P T16 2× 54 G5
system luminaires – with openings for power-supply cables end caps, suspensions, power-supply cables, ceiling cups, and system couplers have to be ordered separately
other options of electrical connections: EI, A, S, D, T
10-55*∆-2014E-P T16 2× 14 G5
10-55*∆-2021E-P T16 2× 21 G5
10-55*∆-2024E-P T16 2× 24 G5
10-55*∆-2028E-P T16 2× 28 G5
10-55*∆-2035E-P T16 2× 35 G5
10-55*∆-2039E-P T16 2× 39 G5
10-55*∆-2049E-P T16 2× 49 G5
10-55*∆-2054E-P T16 2× 54 G5
10-55*∆-2080E-P T16 2× 80 G5
*=0 direct luminaires
*=1 direct-indirect luminaires
Δ=A luminaires equipped with parabolic louvre
Δ=I luminaires equipped with microprismatic optical system system luminaires – with openings for power-supply cables end caps, suspensions, power-supply cables, ceiling cups, and system couplers have to be ordered separately
other options of electrical connections: EI, A, S, D, T, M, M3 – emergency luminaires can have different lengths
Luminaires with parabolic louvre / microprismatic diffuser
SYSTEM LUMINAIRES / ACCESSORIES
Halogen / Metal halide lamp luminaires
Accessories
10-550N-1100R-P QR111 1× 100 ma×. G53
10-550N-1035E-P HIR-CE111 1× 35 GX8,5
10-550N-1070E-P HIR-CE111 1× 70
system luminaires – with openings for power-supply cables end caps, suspensions, power-supply cables, ceiling cups, and system couplers have to be ordered separately
CODE DESCRIPTION
10-0011
10-0002
CODE DESCRIPTION blank profile 1000 mm
straight connector - set contents 2 pieces for connection of two luminaires
CODE DESCRIPTION
wire suspension 2000 mm, „Y shaped“ - 1 piece
wire suspension 2000 mm, 2 parallel wires, suitable for supply cable - 1 piece
wire suspension 2000 mm, 2 parallel wires, not suitable for supply cable - 1 piece
CODE DESCRIPTION
profile end cap
CODE DESCRIPTION
30-0051
30-0053
30-0052
30-0054
30-0060
30-0061
transparent cable 3× 0.75 mm, 1000 mm
transparent cable 3× 0.75 mm, 2000 mm
transparent cable 4× 0.75 mm, 1000 mm
transparent cable 4× 0.75 mm, 2000 mm
transparent cable 5× 0.75 mm, 1000 mm
transparent cable 5× 0.75 mm, 2000 mm
CODE DESCRIPTION
30-0055
ceiling cup
30-0062
ceiling cup
ACCESSORIES
CUSTOM MADE LIGHTING SYSTEM SET UP PROCEDURE
Requested lighting system made of custom made Serie 10 luminaires
1) Divide drawing into separate parts – 3× A, 3× B, 2× C, 2× D, 1× E
2) Clarify length of part A
Lenght A = [6000 mm – 2 × L-couplers (2 × 300 mm) – 1 × T-coupler (372 mm)] / 2 parts = 2514 mm (length of one A part without couplers)
Ordering code of profile is 10-0001. Order always in mm, structure of ordering code is 10-0001-length of profile - for part A than 10-0001-2514
Maximum length of profile is 3250 mm. Longer systems have to be made of several parts (each part with max. lenght 3250 mm)
3) Choose modules – fluorescent or/and halogen – which will be mounted into profile. Minimum lengths of profiles are mentioned in drawings on pages 48-50
a) fluorescent module 2× 39 W, direct/indirect with opal diffuser – min. length of profile 10-0001 is 1020 mm and ordering code of module is 10-511K-2039E
b) 2 × halogen modules 1× 100 W - min length of profile 10-0001 for one halogen module is 240 mm and ordering code of module is 10-510N-1100R
4) Specify locations of each module in dimensioned drawing
5) follow procedure mentioned in steps 2) - 4) for next parts of lighting system - parts B, C, D and E
CUSTOM MADE LIGHTING SYSTEM SET UP PROCEDURE
6) Specify couplers and end caps
4× coupler L; 10-0003, E
3× coupler T; 10-0004, E
1× coupler X; 10-0005, E
1× end cap; 10-0007, E
7) Specify quantity of suspenders, power supply cables and ceiling cups. Recommended distance between suspenders is 2 meters; quantity of power supply cables and ceiling cups depends on a quantity of el. connections of lighting system
8) Send dimensioned drawing of complete lighting system with ordering codes ...
List of ordering codes:
Part A
10-0001-2514, E + 10-511K-2039E, E +2× 10-510N-1100R, E
Part B 10-0001-1514, E + 3× 10-510N-1100R, E
Part C
10-0001-1514, E + 10-510A-2039E, E
Part D 10-0001-2514, E + 10-512N-2054E, E
Part E 10-0001-1255, E + 10-510N-1035E
Part F (suspension) 10-0006, N
coupler L 10-0003, E
coupler T 10-0004, E
coupler X 10-0005, E
end cap 10-0007, E
power supply cable
pieces
30-0054 as required ceiling cup 30-0056 according to quantity of power supply cables
9) According to your drawing we will make a final drawing for acceptance including all necessary components and send you for confirmation
10) After we receive your approval of final drawing it is possible to produce required lighting system
LIGHTING SYSTEM MODULES
Modules with polished parabolic louvre
10-521A-2014E T16 2× 14 G5
10-521A-2021E T16 2× 21 G5
10-521A-2024E T16 2× 24 G5
10-521A-2028E T16 2× 28 G5
10-521A-2035E T16 2× 35 G5
10-521A-2039E T16 2× 39 G5
10-521A-2049E T16 2× 49 G5
10-521A-2054E T16 2× 54 G5
10-521A-2080E T16 2× 80 G5
it is necessary to specify profile length, quantity, type and position of fluorescent and halogen lamps modules, quantity of couplers, connectors, end caps and suspensions, in order to complete the lighting system
other options of electrical connections: EI, A, S, D, T, M, M3 minimum length of profile with emergency modules can be different
14 W, 24 W: a = 536 mm; l = min. 720 mm
21 W, 39 W: a = 836 mm; l = min. 1020 mm
28 W, 54 W: a = 1136 mm; l = min. 1320 mm
35 W, 49 W, 80 W: a = 1436 mm; l = min. 1620 mm
IP 20
Modules with opal diffuser
10-51*K-2014E T16 2× 14 G5
10-51*K-2021E T16 2× 21 G5
10-51*K-2024E T16 2× 24 G5
10-51*K-2028E T16 2× 28 G5
10-51*K-2035E T16 2× 35 G5
10-51*K-2039E T16 2× 39 G5
10-51*K-2049E T16 2× 49 G5
10-51*K-2054E T16 2× 54 G5
*=0 direct modules mounted into profile 10-0001
*=1 direct-indirect modules mounted into profile 10-0001
it is necessary to specify profile length, quantity, type and position of fluorescent and halogen lamps modules, quantity of couplers, connectors, end caps and suspensions, in order to complete the lighting system
other options of electrical connections: EI, A, S, D, T, M, M3
minimum length of profile with emergency modules can be different
14 W, 24 W: a = 536 mm; l = min. 720 mm
21 W, 39 W: a = 836 mm; l = min. 1020 mm
28 W, 54 W: a = 1136 mm; l = min. 1320 mm
35 W, 49 W: a = 1436 mm; l = min. 1620 mm
10-512N-2014E T16 2× 14 G5
10-512N-2021E T16 2× 21 G5
10-512N-2024E T16 2× 24 G5
10-512N-2028E T16 2× 28 G5
10-512N-2035E T16 2× 35 G5
10-512N-2039E T16 2× 39 G5
10-512N-2049E T16 2× 49 G5
10-512N-2054E T16 2× 54 G5
indirekt modules mounted into profile 10-0001 it is necessary to specify profile length, quantity, type and position of fluorescent and halogen lamps modules, quantity of couplers, connectors, end caps and suspensions, in order to complete the lighting system
other options of electrical connections: EI, A, S, D, T
LIGHTING SYSTEM MODULES
Modules indirect
10-51*∆-2014E T16 2× 14 G5
10-51*∆-2021E T16 2× 21 G5
10-51*∆-2024E T16 2× 24 G5
10-51*∆-2028E T16 2× 28 G5
10-51*∆-2035E T16 2× 35 G5
10-51*∆-2039E T16 2× 39 G5
10-51*∆-2049E T16 2× 49 G5
10-51*∆-2054E T16 2× 54 G5
10-51*∆-2080E T16 2× 80 G5
*=0 direct modules mounted into profile 10-0001
*=1 direct-indirect modules mounted into profile 10-0001
Δ=A luminaires equipped with parabolic louvre
Δ=I luminaires equipped with microprismatic optical system
it is necessary to specify profile length, quantity, type and position of fluorescent and halogen lamps modules, quantity of couplers, connectors, end caps and suspensions, in order to complete the lighting system
other options of electrical connections: EI, A, S, D, T, M, M3
minimum length of profile with emergency modules can be different
LIGHTING SYSTEM MODULES / ACCESSORIES
Halogen / Metal halide lamp modules
Lighting system – accessories
CODE SOURCE POWER W SOCKET
10-510N-1100R QR111 1× 100 G53
10-510N-1035E HIR-CE111 1× 35 GX8,5
10-510N-1070E HIR-CE111 1× 70 GX8,5
direct modules installed into profile 10-0001 it is necessary to specify profile length, quantity, type and position of fluorescent and halogen lamps modules, quantity of couplers, connectors, end caps and suspensions, in order to complete the lighting system
CODE DESCRIPTION
10-0001
10-0011
10-0002
profile for modules 10-51xx-… 1000 mm
blank profile 1000 mm
straight connector - set contents 2 pieces for connection of two luminaires
CODE DESCRIPTION
10-0003
10-0004
10-0005
“L” coupler “T” coupler
coupler
CODE DESCRIPTION
wire suspension 2000 mm, „Y shaped“ - 1 piece
LIGHTING SYSTEM ACCESSORIES
wire suspension 2000 mm, 2 parallel wires, suitable for supply cable - 1 piece
wire suspension 2000 mm, 2 parallel wires, not suitable for supply cable - 1 piece
CODE DESCRIPTION
profile end cap
CODE DESCRIPTION
30-0051
30-0053
30-0052
30-0054
30-0060
30-0061
transparent cable 3× 0.75 mm, 1000 mm
transparent cable 3× 0.75 mm, 2000 mm
transparent cable 4× 0.75 mm, 1000 mm
transparent cable 4× 0.75 mm, 2000 mm
transparent cable 5× 0.75 mm, 1000 mm
transparent cable 5× 0.75 mm, 2000 mm
CODE DESCRIPTION
30-0055
ceiling cup
30-0062
ceiling cup
Perfect finish, smart design enhanced by latest lighting technologies describe Serie 12, individual pendant luminaires for direct or direct-indirect illumination. Body is made of anodized extruded aluminium profile and together with a parabolic louvre the luminaire reaches a lighting efficiency up to 92%! Serie 12 perfectly meets requirements of modern interiors.
APPLICATIONS
administration buildings representative areas meeting areas cultural facilities
MATERIALS
body anodised extruded aluminium profile optical system parabolic louvre made of highly specular aluminium opal PMMA diffuser microprismatic optical system
LIGHT SOURCES
linear fluorescent lamps
POWER SUPPLY
230V, 50Hz luminaires are equipped with a non-dimmable electronic ballast other possible options are specified below product codes
PENDANT LUMINAIRES
Luminaires with polished parabolic louvre
I = 1234 mm (28 W, 54 W)
1534 mm (35 W, 49W, 80 W)
Luminaires with polished parabolic louvre
I = 1234 mm (28 W, 54 W)
1534 mm (35 W, 49W, 80 W)
12-551A-1028E T16 1x28 G5
12-551A-1035E T16 1x35 G5
12-551A-1049E T16 1x49 G5
12-551A-1054E T16 1x54 G5
12-551A-1080E T16 1x80 G5
supplied including 2000 mm suspensions, power-supply cable and ceiling cup it is necessary to order a specular reflector to obtain a direct illumination other options of electrical connections: EI, A, S, D, T, P, M, M3
12-551A-2028E T16 2x28 G5
12-551A-2035E T16 2x35 G5
12-551A-2049E T16 2x49 G5
12-551A-2054E T16 2x54 G5
12-551A-2080E T16 2x80 G5
supplied including 2000 mm suspensions, power-supply cable and ceiling cup it is necessary to order a specular reflector to obtain a direct illumination other options of electrical connections: EI, A, S, D, T, P, M, M3
12-551*-1028E T16 1x28 G5
12-551*-1035E T16 1x35 G5
12-551*-1049E T16 1x49 G5
12-551*-1054E T16 1x54 G5
12-551*-1080E T16 1x80 G5
* = K luminaires with opal diffuser
* = I luminaires with a microprismatic optical system supplied including 2000 mm suspensions, power-supply cable and ceiling cup it is necessary to order a specular reflector to obtain a direct illumination other options of electrical connections: EI, A, S, D, T, M, M3
PENDANT LUMINAIRES / ACCESSORIES
Luminaires with diffuser
CODE
12-0001
12-0002
DESCRIPTION
specular reflector for direct luminaire 28W, 54W
specular reflector for direct luminaire 35W, 49W, 80W
Accessories
Pendant, surface mounted or wall mounted luminaires Serie 13 are creating atmosphere and architectural accent. Direct-indirect or direct illumination, thin anodized aluminium profile including opal difusor and other used materials together with modern lighting technologies assist to the general impression of the Serie 13. Luminaires with parabolic louvre are suitable mainly into an administration premises or office buildings and thanks to its colored replacable plexi enhance its atmosphere.
APPLICATIONS
representative areas adminitration premises cultural facilities residential premises
MATERIALS
body anodised extruded aluminium profile aluminium profile surface finished with a powder painting optical system opal PMMA diffuser parabolic louvre made of highly polished louvre metal-sheet
Fluorescent lamp luminaires are equipped with a nondimmable electronic ballast
Halogen lamp luminaires are equipped with an electronic transformer other possible options are specified below product codes
PENDANT LUMINAIRES
Rectangular luminaires direct-indirect
I = 900 mm (21 W, 39 W)
1200 mm (28 W, 54 W)
1500 mm (35 W, 49 W)
Rectangular luminaires direct-indirect
I = 1200 mm (28 W, 54 W)
1500 mm (35 W, 49 W, 80W)
13-511K-2021E T 16 2× 21 G5
13-511K-2028E T 16 2× 28 G5
13-511K-2035E T 16 2× 35 G5
13-511K-2039E T 16 2× 39 G5
13-511K-2049E T 16 2× 49 G5
13-511K-2054E T 16 2× 54 G5
supplied including 2000 mm suspension, power-supply cable and ceiling cup other options of electrical connections: EI, A, S, D, T, M, M3
13-511A-2028E T 16 2× 28 G5
13-511A-2035E T 16 2× 35 G5
13-511A-2049E T 16 2× 49 G5
13-511A-2054E T 16 2× 54 G5
13-511A-2080E T 16 2× 80 G5
supplied including 2000 mm suspension, power-supply cable and ceiling cup last two letters of product code mean a colour of profile (E, W, B) and a colour of plexi (W, B) other options of electrical connections: EI, A, S, D, T, M, M3
13-501K-4014E T 16 4× 14 G5
13-501K-4021E T 16 4× 21 G5
13-501K-4024E T 16 4× 24 G5
13-501K-4039E T 16 4× 39 G5
13-501K-6021E T 16 6× 21 G5
13-501K-6039E T 16 6× 39 G5
supplied including 2000 mm suspension, power-supply cable and ceiling cup other options of electrical connections: EI, A, S, D, T, M, M3
PENDANT LUMINAIRES
Square luminaires direct-indirect
13-551K-1V1UE
supplied including suspensions 2000 mm, supply cable and ceiling cup
W)
mm (21 W, 39 W)
Circular luminaires direct-indirect
SURFACE / PENDANT LUMINAIRES
Rectangular luminaires direct
CODE
13-200K-2014E T 16 2× 14 G5
13-200K-2021E T 16 2× 21 G5
13-200K-2024E T 16 2× 24 G5
13-200K-2028E T 16 2× 28 G5
13-200K-2035E T 16 2× 35 G5
13-200K-2039E T 16 2× 39 G5
13-200K-2049E T 16 2× 49 G5
13-200K-2054E T 16 2× 54 G5
it is necessary to order assembly kits 13-0001 or 13-0003 for suspended luminaire other options of electrical connections: EI, A, S, D, T, M, M3 – emergency luminaires can have different lengths
Rectangular luminaires direct
I = 600 mm (14 W, 24 W)
900 mm (21 W, 39 W)
1200 mm (28 W, 54 W)
1500 mm (35 W, 49W)
I = 1200 mm (28 W, 54 W)
1500 mm (35 W, 49 W, 80W)
CODE SOURCE POWER W SOCKET
13-210A-2028E T 16 2× 28 G5
13-210A-2035E T 16 2× 35 G5
13-210A-2049E T 16 2× 49 G5
13-210A-2054E T 16 2× 54 G5
13-210A-2080E T 16 2× 80 G5
it is necessary to order assembly kits 13-0001 or 13-0003 for suspended luminaire last two letters of product code mean a colour of profile (E, W, B) and a colour of plexi (W, B) other options of electrical connections: EI, A, S, D, T, M, M3
13-200K-4014E T 16 4× 14 G5
13-200K-4021E T 16 4× 21 G5
13-200K-4024E T 16 4× 24 G5
13-200K-4039E T 16 4× 39 G5
13-200K-6021E T 16 6× 21 G5
13-200K-6039E T 16 6× 39 G5
it is necessary to order assembly kits 13-0001 or 13-0003 for suspended luminaire other options of electrical connections: EI, A, S, D, T, M, M3
13-240K-1040E T16-R 1× 40 2GX13
It is necessary to order an assembly kit for suspension - 13-0001, 13-0003 other options of electrical connections: A, S, D, T, M, M3
13-240K-2024E TC-F 2× 24 2G10
it is necessary to order assembly kits 13-0001 or 13-0003 for suspended luminaire
I = 340 mm (40 W; 2× 24 W)
600 mm (14 W, 24 W)
900 mm (21 W, 39 W)
13-250K-1022E T16-R 1× 22 2GX13
it is necessary to order assembly kits 13-0002 or 13-0004 for suspended luminaire other options of electrical connections: A, S, D, T
13-250K-1040E T16-R 1× 40 2GX13
it is necessary to order assembly kits 13-0002 or 13-0004 for suspended luminaire other options of electrical connections: A, S, D, T, M, M3
13-250K-1V1UE T16-R 1× 22 2GX13 T16-R 1× 40 2GX13
it is necessary to order assembly kits 13-0002 or 13-0004 for suspended luminaire
d = 310 mm (22 W)
370 mm (22W + 40W; 40 W)
SURFACE LUMINAIRES
Square luminaires direct
Circular luminaires direct
WALL / SEMIRECESSED LUMINAIRES
Wall luminaires
I = 600 mm (14 W, 24 W)
900 mm (21 W, 39 W)
1200 mm (28 W, 54 W)
1500 mm (35 W, 49 W)
w = 80 mm (13-30*K-1)
120 mm (13-30*K-2)
Semi-recessed luminaires
13-30*K-1021E T 16 1× 21 G5
13-30*K-2021E T 16 2× 21 G5
13-30*K-1028E T 16 1× 28 G5
13-30*K-2028E T 16 2× 28 G5
13-30*K-1035E T 16 1× 35 G5
13-30*K-2035E T 16 2× 35 G5
13-30*K-1039E T 16 1× 39 G5
13-30*K-2039E T 16 2× 39 G5
13-30*K-1049E T 16 1× 49 G5
13-30*K-2049E T 16 2× 49 G5
13-30*K-1054E T 16 1× 54 G5
13-30*K-2054E T 16 2× 54 G5
*=0 direct lighting
*=1 direct-indirect lighting other options of electrical connections: EI, A, S, D, T, M, M3
13-30*K-1014E T 16 1× 14 G5
13-30*K-2014E T 16 2× 14 G5
13-30*K-1024E T 16 1× 24 G5
13-30*K-2024E T 16 2× 24 G5
*=0 direct lighting
*=1 direct-indirect lighting other options of electrical connections: EI, A, S, D, T
13-100K-4014E T 16 4× 14 G5 13-100K-4024E T 16 4× 24 G5
other options of electrical connections: EI, A, S, D, T, M, M3
13-260K-2028E T 16 2× 28 G5
13-260K-2035E T 16 2× 35 G5
13-260K-2039E T 16 2× 39 G5
13-260K-2049E T 16 2× 49 G5
13-260K-2054E T 16 2× 54 G5
it is necessary to order assembly kits 13-0001 or 13-0003 for suspended luminaire
other options of electrical connections: EI, A, S, D, T, M, M3
13-244K-1040E T 16-R 1× 40 G5
it is necessary to order assembly kits 13-0001 or 13-0003 for suspended luminaire other options of electrical connections: A, S, D, T, M, M3
SURFACE / PENDANT LUMINAIRES
Oval shaped luminaires direct
Square luminaires direct
PENDANT LUMINAIRES / ACCESSORIES
Square luminaires
Accessories
CODE DESCRIPTION
wire suspension 2000 mm, 4 wires, ceiling cup, transparent cable 4× 0.75 mm, 2000 mm
wire suspension 2000 mm, 4 wires, ceiling cup, transparent cable 5× 0.75 mm, 2000 mm wire suspension 2000 mm, 3 wires, ceiling cup, transparent cable 5× 0.75 mm, 2000 mm
wire suspension 2000 mm, 3 wires, ceiling cup, transparent cable 4× 0.75 mm, 2000 mm
supplied including power-supply cable other options of electrical connections: A, S, D, T
FREESTANDING LUMINAIRES
Direct-indirect luminaires
Round or square pendant and surface luminaires of Serie 14 are made of anodised aluminium profile. Elegant and smart design altogether with latest lighting technologies meets Serie 14 with highest demand.
APPLICATIONS
prestigious areas
social areas
cultural amenities
business areas
MATERIALS
body anodised extruded aluminium profile optical system opal PMMA diffuser
230V, 50Hz luminaires are equipped with non-dimmable electronic ballast or electronic transformer other possible options are specified below product codes
PENDANT LUMINAIRES
Square luminaires, direct-indirect
14-501K-4014E T 16 4× 14 G5
14-501K-4024E T 16 4× 24 G5
14-501K-6021E T 16 6× 21 G5
14-501K-6039E T 16 6× 39 G5
supplied including suspensions 2000 mm, power supply cable and ceiling cup other options of electrical connections: EI, A, S, D, T, M, M3
Circular luminaires, direct-indirect
CODE SOURCE POWER W SOCKET
14-551K-1060E T16-R 1× 60 2GX13
14-551K-1U1WE T16-R 1× 22 2GX13 T16-R 1× 60 2GX13
14-561K-4E2JE T16 4× 24 G5 TC-L 2× 24 2G11
14-561K-4022E T16-R 4× 22 2GX13
14-571K-4C4DE T16 4× 14 G5 T16 4× 21 G5
14-571K-4E4FE T16 4× 24 G5 T16 4× 39 G5
supplied including suspensions 2000 mm, power supply cable and ceiling cup
d = 450 mm (14-551K-*****)
d = 650 mm (14-561K-*****)
d = 950 mm (14-571K-*****)
14-200K-4014E T 16 4× 14 G5
14-200K-4024E T 16 4× 24 G5
14-200K-6021E T 16 6× 21 G5
14-200K-6039E T 16 6× 39 G5
it is necessary to order assembly kits 13-0001 or 13-0003 for suspended luminaire
other options of electrical connections: EI, A, S, D, T, M, M3
it is necessary to order assembly kits 13-0002 for suspended luminaire
CODE DESCRIPTION
13-0001 13-0003
wire suspension 2000 mm, 4 wires, ceiling cup, transparent cable 4× 0.75 mm, 2000 mm
wire suspension 2000 mm, 4 wires, ceiling cup, transparent cable 5× 0.75 mm, 2000 mm
Accessories
13-0002
wire suspension 2000 mm, 3 wires, ceiling cup, transparent cable 4× 0.75 mm, 2000 mm
13-0004
wire suspension 2000 mm, 3 wires, ceiling cup, transparent cable 5× 0.75 mm, 2000 mm
The new model range offers stand-alone pendant or surface mounted luminaires with a direct illumination equipped with a hi-tech opal diffusor which allows users to mix colours of illumination based on request (RGB). The RGB luminaires create beautiful atmosphere in retail or representative premises and thanks to a possibility to adjust different color temperature of white reach all needs for working area illumination as well. Luminaires can be connected into a large lighting area managed by computer and controlled with a simple remote controller.
APPLICATIONS
representative premises
meeting areas
cultural facilities
retail premises
MATERIALS
body solid anodised extruded aluminium profile
optical system special opal PMMA diffusor
LIGHT SOURCES
linear fluorescent lamps
POWER SUPPLY
230V, 50Hz
Luminaires are equipped with a dimmable electronic DALI ballast, optionally with a PHILIPS ActiLume colour modul
SURFACE / PENDANT LUMINAIRES / ACCESSORIES
Direct luminaires
Accessories
15-200K-1221D T 16 12× 21 G5
15-201K-1221D T 16 12× 21 G5
15-202K-1221D T 16 12× 21 G5
it is necessary to order assembly kits 13-0003 for suspended luminaire
CODE DESCRIPTION
15-200K-1221D
15-201K-1221D
15-202K-1221D
15-201K-1221D (15-202K-1221D)
main/master luminaire without sensor controlled by a remote control slave luminaire (DALI)
main/master luminaire with sensor controlled by a remote control
Luminaires Serie 18 introduce top design and functionality providing a very comfortable illumination. An exclusivity of the Serie 18 is enhanced by an aluminium used in a body and attaractive lighting features which emphasize mainly representative areas.
The suspended luminaires offer direct/indirect illumination.
APPLICATIONS
Representative premises
Meeting rooms
Cultural facilities
Retail areas
Receptions
MATERIALS
Body painted aluminium profile
Optical system opal PMMA diffuser
LIGHT SOURCES
Linear fluorescent lamps
POWER SUPPLY
230V, 50Hz
Luminaires are equipped with a non-dimmable electronic ballast Other possible options are specified below each product code
PENDANT LUMINAIRES
Square luminaires direct-indirect
supplied including 2000 mm suspension, power-supply cable and ceiling cup other options of electrical connections: EI, A, S, D, T
Design: Rob van Beek
Very flexible pendant system Serie 20 combines a wide range of luminaires and lamp sources. The single fittings are easily fitted into support rails. This unique feature is offering an optimal freedom and plenty possibilities to the customer.
APPLICATIONS
shopping centers
meeting areas
cultural facilities
MATERIALS
support rails and couplers
aluminium profile surface-finished with baked-on powder coating
optical system opal PMMA diffuser
parabolic cover made of highly specular aluminium according to used lamp source
LIGHT SOURCES
linear fluorescent lamps
halogen lamps
metal halide lamps
POWER SUPPLY
230V, 50Hz
fluorescent lamp luminaires are equipped with a non-dimmable electronic ballast
halogen lamp lighting fixtures are equipped with an electronic transformer
metal halide lamp lighting fixtures are equipped with a compensated conventional or electronic ballast transformer other possible options are specified below product codes
PENDANT MODULAR SYSTEM
Fluorescent lamp luminaires
20-52*A-2014E T 16 2× 14 G5
20-52*A-2021E T 16 2× 21 G5
20-52*A-2024E T 16 2× 24 G5
20-52*A-2028E T 16 2× 28 G5
20-52*A-2035E T 16 2× 35 G5
20-52*A-2039E T 16 2× 39 G5
20-52*A-2049E T 16 2× 49 G5
20-52*A-2054E T 16 2× 54 G5
20-52*A-2080E T 16 2× 80 G5
*=0 direct luminaires
*=1 direct-indirect luminaires
other options of electrical connections: A, S, D, T to complete lighting system is necessary to order support rails, couplers, end caps and suspension
I = 635 mm (14 W, 24 W)
935 mm (21 W, 39 W)
1235 mm (28 W, 54 W)
1535 mm (35 W, 49 W, 80 W)
Fluorescent lamp luminaires CODE SOURCE POWER W SOCKET
20-52*K-2021E T 16 2× 21 G5
20-52*K-2028E T 16 2× 28 G5
20-52*K-2035E T 16 2× 35 G5
20-52*K-2039E T 16 2× 39 G5
20-52*K-2049E T 16 2× 49 G5
20-52*K-2054E T 16 2× 54 G5
*=0 direct luminaires
*=1 direct-indirect luminaires
other options of electrical connections: A, S, D, T to complete lighting system is necessary to order support rails, couplers, end caps and suspension
I = 900 mm (21 W, 39 W)
1200 mm (28 W, 54 W)
1500 mm (35 W, 49 W)
PENDANT MODULAR SYSTEM
20-523N-1100R QR111 1× 100 max. G53
to complete lighting system is necessary to order support rails, couplers, end caps and suspension Halogen lamp luminaires
20-523N-2100R QR111 2× 100 max. G53
to complete lighting system is necessary to order support rails, couplers, end caps and suspension
PENDANT MODULAR SYSTEM
Halogen lamp luminaires
20-523N-3100R QR111 3× 100 max. G53
to complete lighting system is necessary to order support rails, couplers, end caps and suspension
Metal halide lamp luminaires
20-524N-1035E HIPAR-L30 1× 35 E27
20-524N-1070E HIPAR-L30 1× 70 E27
to complete lighting system is necessary to order support rails, couplers, end caps and suspension
20-525S-1035C HIT-CE 1× 35 G12
20-525F-1035C HIT-CE 1× 35 G12
20-525S-1035E HIT-CE 1× 35 G12
20-525F-1035E HIT-CE 1× 35 G12
20-525S-1070C HIT-CE 1× 70 G12
20-525F-1070C HIT-CE 1× 70 G12
20-525S-1070E HIT-CE 1× 70 G12
20-525F-1070E HIT-CE 1× 70 G12
20-525S-1150C HIT-CE 1× 150 G12
20-525F-1150C HIT-CE 1× 150 G12
20-525S-1150E HIT-CE 1× 150 G12
20-525F-1150E HIT-CE 1× 150 G12
20-525S-1050E HST-CRI 1× 50 GX12-1
20-525F-1050E HST-CRI 1× 50 GX12-1
20-525S-1100E HST-CRI 1× 100 GX12-1
20-525F-1100E HST-CRI 1× 100 GX12-1
to complete lighting system is necessary to order support rails, couplers, end caps and suspension
PENDANT MODULAR SYSTEM
Discharge lamp luminaires
20-526N-1035E HIR-CE111 1× 35 GX8,5
20-526N-1070E HIR-CE111 1× 70 GX8,5
to complete lighting system is necessary to order support rails, couplers, end caps and suspension
Metal halide lamp luminaires
PENDANT MODULAR SYSTEM / ACCESSORIES
Metal halide lamp luminaires
Accessories
to complete lighting system is necessary to order support rails, couplers, end caps and suspension CODE
2000 mm suspension, 2 parallel wires, incl. 3 pole terminal block for power supply
1 piece
2000 mm wire strand hanger, 2 parallel wires
1 piece
30-0062
ceiling cup
CODE
20-0016
DESCRIPTION
support rails end cap „U“ - 1 piece
CODE DESCRIPTION
30-0051
30-0053
30-0052
30-0054
30-0060
transparent cable 3× 0,75 mm, 1000 mm
transparent cable 3× 0,75 mm, 2000 mm
transparent cable 4× 0,75 mm, 1000 mm
transparent cable 4× 0,75 mm, 2000 mm
transparent cable 5× 0,75 mm, 1000 mm
transparent cable 5× 0,75 mm, 2000 mm
Recessed, pendant, wall or surface mounted luminaires of Serie 21 provide accent illumination in different designs. The luminaires are designed especially for fulfilling requirements of retail lighting.
APPLICATIONS
shopping centers representative areas meeting areas
cultural facilities
MATERIALS
body steel sheet finished by baked-on powder coating anodised extruded aluminium profile optical system according to used light source aluminium reflector
LIGHT SOURCES
halogen lamps metal halide lamps
POWER SUPPLY
230V, 50Hz or 12V
pendant, wall-mounted and surface halogen lamp luminaires are supplied including electronic transformer electronic units and transformers for recessed luminaries have to be ordered separately
RECESSED LUMINAIRES
1 lamp luminaires
21-000N-1100L QR111 1× 100 max. G53
transformers have to be ordered separately
1 lamp luminaires
21-001N-1 HIR-CE111 1× 35/70 GX8,5
electric units: 70-0004l 1× 35 W el. connection E 70-0005l 1× 70 W el. connection E
electric units have to be ordered separately
21-002N-1 HIPAR-L30 1× 35/70 E27
electric units: 70-0004l 1× 35 W el. connection E
1× 70 W el. connection E
electric units have to be ordered separately
RECESSED LUMINAIRES
1 lamp luminaires
21-003S-1 HIT-CE 1× 35/70 G12
21-003F-1 HIT-CE 1× 35/70 G12
1× 35 W el. connection C
1× 35 W el. connection E
1× 70 W el. connection C
1× 70 W el. connection E electric units have to be ordered separately
electric units: 70-0004l 1× 35 W el. connection E 70-0011l 2× 35 W el. connection E 70-0005l 1× 70 W el. connection E 70-0012l 2× 70 W el. connection E
70 W el. connection E electric units have to be ordered separately
RECESSED LUMINAIRES
SURFACE LUMINAIRES
1 lamp luminaires
21-200N-1050R QR111 1× 50 max. G53
2 lamp luminaires CODE
21-200N-2050R QR111 2× 50 max. G53
CODE SOURCE POWER W SOCKET
21-200N-3050R QR111 3× 50 max. G53
SURFACE LUMINAIRES
3 lamp luminaires
CODE SOURCE POWER W SOCKET
21-200N-4050R QR111 4× 50 max. G53
4 lamp luminaires
WALL LUMINAIRES
3 lamp luminaires
21-340N-3050R QR111 3× 50 max. G53
4 lamp luminaires
21-340N-4050R QR111 4× 50 max. G53
21-340N-2050R QR111 2× 50 max. G53
WALL / PENDANT LUMINAIRES
2 lamp luminaires
21-540N-2100R QR111 2× 100 max. G53
2 lamp luminaires
PENDANT LUMINAIRES
3 lamp luminaires
QR111 3× 100
4 lamp luminaires
QR111
21-540N-3100R
max. G53
21-540N-4100R
4× 100 max. G53
CODE DESCRIPTION
70-0001
70-0002
electric unit for metal halide lamps
1x35W, connection C
electric unit for metal halide lamps 1x70W, connection C
CODE DESCRIPTION
electric unit for metal halide lamps 1x35W, connection E
electric unit for metal halide lamps 2x35W, connection E
electric unit for metal halide lamps
70-0012l
PENDANT LUMINAIRES / ELECTRIC UNITS
electric unit for metal halide lamps 1x70W, connection E 2x70W, connection E Electric units
Luxury cardan-based luminaires Serie 23 are equipped with anodised or painted aluminium frame. Variability, noble materials together with powerful halogen and metal halide light sources support the luminaires to become a right choice in modern interiors.
APPLICATIONS
shopping centers
representative areas
meeting areas
cultural facilities
MATERIALS
body anodised aluminium frame
baked-on powder coated aluminium frame
steel sheet finished by baked-on powder
coating
optical system according to used ligh source
sandblasted glass
aluminium reflector
LIGHT SOURCES
halogen lamps
metal halide lamps compact fluorescent lamps
POWER SUPPLY
230V, 50Hz or 12V
CFL lighting fixtures are equipped with a non-dimmable electronic ballast
electronic units and transformers for recessed lighting fixtures have to be ordered separately
electric unit for metal halide lamps 1x35W, connection C
electric unit for metal halide lamps 1x70W, connection C electric unit for metal halide lamps 1x150W, connection C Electric
CODE DESCRIPTION
electric unit for metal halide lamps 1x35W, connection E electric unit for metal halide lamps 2x35W, connection E electric unit for metal halide lamps 1x70W, connection E electric unit for metal halide lamps 2x70W, connection E electric unit for metal halide lamps 1x150W, connection E
CODE DESCRIPTION
electric unit for sodium lamps HST-CRI 1x50W, connection C electric unit for sodium lamps HST-CRI 1x100W, connection C
Serie 24 becomes attractive for every interior. Pendant luminaires with independent light sources and metal halide technology create appropriate atmosphere.
APPLICATIONS
business centres
prestigious areas
social areas
cultural facilities
MATERIALS
body combination of aluminium and steel sheet finished by baked-on powder
coating
optical system according to used light source aluminium reflector
LIGHT SOURCES
halogen lamps metal-halide lamps
POWER SUPPLY
230V, 50Hz
luminaires are equipped with electronic ballast or electronic transformer
PENDANT LUMINAIRES
2 lamp luminaires
3 lamp luminaires
24-500N-2100R QR111 2× 100 max. G53
24-501N-2035E HIR-CE111 2× 35 GX8,5
24-501N-2070E HIR-CE111 2× 70 GX8,5
24-505S-2035E HIT-TC-CE 2× 35 G12
24-505U-2035E HIT-TC-CE 2× 35 G12
24-505F-2035E HIT-TC-CE 2× 35 G12
24-505S-2070E HIT-TC-CE 2× 70 G12
24-505U-2070E HIT-TC-CE 2× 70 G12
24-505F-2070E HIT-TC-CE 2× 70 G12
supplied including suspensions 2000 mm, power-supply cable and ceiling cup CODE
CODE SOURCE POWER W SOCKET
24-500N-3100R QR111 3× 100 max. G53
24-501N-3035E HIR-CE111 3× 35 GX8,5
24-501N-3070E HIR-CE111 3× 70 GX8,5
24-505S-3035E HIT-TC-CE 3× 35 G12
24-505U-3035E HIT-TC-CE 3× 35 G12
24-505F-3035E HIT-TC-CE 3× 35 G12
24-505S-3070E HIT-TC-CE 3× 70 G12
24-505U-3070E HIT-TC-CE 3× 70 G12
24-505F-3070E HIT-TC-CE 3× 70 G12
supplied including suspensions 2000 mm, power-supply cable and ceiling cup
CODE SOURCE POWER W SOCKET
24-500N-4100R QR111 4× 100 max. G53
24-501N-4035E HIR-CE111 4× 35 GX8,5
24-501N-4070E HIR-CE111 4× 70 GX8,5
24-505S-4035E HIT-TC-CE 4× 35 G12
24-505U-4035E HIT-TC-CE 4× 35 G12
24-505F-4035E HIT-TC-CE 4× 35 G12
24-505S-4070E HIT-TC-CE 4× 70 G12
24-505U-4070E HIT-TC-CE 4× 70 G12
24-505F-4070E HIT-TC-CE 4× 70 G12
supplied including suspensions 2000 mm, power-supply cable and ceiling cup
PENDANT LUMINAIRES
4 lamp luminaires
CODE SOURCE POWER W SOCKET
24-500N-5100R QR111 5× 100 max. G53
24-501N-5035E HIR-CE111 5× 35 GX8,5
24-501N-5070E HIR-CE111 5× 70 GX8,5
24-505S-5035E HIT-TC-CE 5× 35 G12
24-505U-5035E HIT-TC-CE 5× 35 G12
24-505F-5035E HIT-TC-CE 5× 35 G12
24-505S-5070E HIT-TC-CE 5× 70 G12
24-505U-5070E HIT-TC-CE 5× 70 G12
24-505F-5070E HIT-TC-CE 5× 70 G12
supplied including suspensions 2000 mm, power-supply cable and ceiling cup
5 lamp luminaires
Recessed luminaires Serie 40 are very suitable for offices or PC working areas due to a special optical system avoiding glare effect. The hi-tech luminaires are reaching lighting efficiency up to 91%, cutting costs, decreasing energy intensity of buildings and reducing production of CO2 – simply the luminaires Serie 40 are green!
APPLICATIONS
administration buildings schools meeting areas shopping centers
MATERIALS
body steel sheet finished by baked-on powder coating
optical system parabolic louvre made of highly specular aluminium MIRO Silver
LIGHT SOURCES linear fluorescent lamps
POWER SUPPLY
230V, 50Hz
luminaires are equipped with a non-dimmable electronic ballast other possible options are specified below product codes
RECESSED LUMINAIRES
2 lamp luminaires for M 600 module
40-003A-2028E*/*** T16 2× 28
40-003A-2054E*/*** T16 2× 54
*=E continuous terminal blok
*=W fast connector Wieland
***=830 light source with a colour temperature 3000K
***=840 light source with a colour temperature 4000K
other options of electrical connections: EI, A, S, D, T, P, M, M3
2 lamp luminaires for M 625 module
40-023A-2028E*/*** T16 2× 28 G5
40-023A-2054E*/*** T16 2× 54
*=E continuous terminal blok
*=W fast connector Wieland
***=830 light source with a colour temperature 3000K
***=840 light source with a colour temperature 4000K
other options of electrical connections: EI, A, S, D, T, P, M, M3
40-003A-3014E*/*** T16 3× 14 G5
40-003A-3024E*/*** T16 3× 24 G5
*=E continuous terminal blok
*=W fast connector Wieland
***=830 light source with a colour temperature 3000K
***=840 light source with a colour temperature 4000K
other options of electrical connections: EI, A, S, D, T, P, M, M3
RECESSED LUMINAIRES
3 lamp luminaires for M 600 module
40-023A-3014E*/*** T16 3× 14 G5
40-023A-3024E*/*** T16 3× 24 G5
*=E continuous terminal blok
*=W fast connector Wieland
***=830 light source with a colour temperature 3000K
***=840 light source with a colour temperature 4000K
other options of electrical connections: EI, A, S, D, T, P, M, M3
3 lamp luminaires for M 625 module
RECESSED LUMINAIRES
4 lamp luminaires for M 600 module
T16 4× 24
*=E continuous terminal blok
*=W fast connector Wieland
***=830 light source with a colour temperature 3000K
***=840 light source with a colour temperature 4000K
other options of electrical connections: EI, A, S, D, T, P, M, M3
4 lamp luminaires for M 625 module
40-023A-4014E*/*** T16 4× 14
40-023A-4024E*/*** T16 4× 24
*=E continuous terminal blok
*=W fast connector Wieland
***=830 light source with a colour temperature 3000K
***=840 light source with a colour temperature 4000K
other options of electrical connections: EI, A, S, D, T, P, M, M3
effectivity of a lighting system = lower energy costs together with a dimming system ActiLume cost savings 44%
high lighting efficiency min. 92% => lower quantity of luminaires used
lower quantity of luminaires used up to 26%
lower quantity of luminaires used => lower operational costscost savings 27%
No tool needed during installation. The luminaire consists of light sources and is covered by a protective foil. 1/2 price of installation
Costs %
A progress of costs of investement and operation of different lighting systems
TOTAL COSTS
4×18W conventional ballast
4×14W electronic ballast
40-003A-4014EE
40-003A-4014PE
Time (years)
ANNUAL COSTS
4×18W conventional ballast
4×14W electronic ballast
40-003A-4014EE
40-003A-4014PE
Pendant luminaires Serie 41 are made of a steel sheet and form an equivalent to aluminium lighting fixtures. Direct or direct-indirect illumination and modern design supports the fittings to be used in offices, schools and other administration premises.
APPLICATIONS
administration buildings schools
meeting areas
shopping centers
MATERIALS
body steel sheet finished by baked-on powder coating
optical system parabolic louvre made of highly specular aluminium
LIGHT SOURCES
linear fluorescent lamps
POWER SUPPLY
230V, 50Hz luminaires are equipped with a non-dimmable electronic ballast
other possible options are specified below product codes
PENDANT LUMINAIRES
Direct pendant luminaires
I = 935 mm (21 W, 39 W)
1235 mm (28 W, 54 W)
1535 mm (35 W, 49 W, 80 W)
Direct-indirect pendant luminaires
I = 935 mm (21 W, 39 W)
1235 mm (28 W, 54 W)
1535 mm (35 W, 49 W, 80 W)
41-500A-2021E T16 2× 21 G5
41-500A-2028E T16 2× 28 G5
41-500A-2035E T16 2× 35 G5
41-500A-2039E T16 2× 39 G5
41-500A-2049E T16 2× 49 G5
41-500A-2054E T16 2× 54 G5
41-500A-2080E T16 2× 80 G5
supplied including 2000 mm suspensions, power-supply cable and ceiling cup other options of electrical connections: A, S, D, T, M
41-501A-2021E T16 2× 21 G5
41-501A-2028E T16 2× 28 G5
41-501A-2035E T16 2× 35 G5
41-501A-2039E T16 2× 39 G5
41-501A-2049E T16 2× 49 G5
41-501A-2054E T16 2× 54 G5
41-501A-2080E T16 2× 80 G5
supplied including 2000 mm suspensions, power-supply cable and ceiling cup other options of electrical connections: A, S, D, T, M
Aluminium highly specular coating of reflector made of UV-resistant polycarbonate is a guarantee of excellent light output ratio of Serie 50 downlights. Easy tool-free installation makes Serie 50 useful in every type of project. Accessories, bayonet fixing, high efficiency and tool-free installation meet Serie 50 with highest demands.
APPLICATIONS
shopping centers
administration buildings meeting areas
cultural facilities
MATERIALS
body reflector and ring UV-resistant polycarbonate gear box PP
optical system aluminium highly specular coating clear, semi-frosted or opal polycarbonate cover polycarbonate radial louvre sand-blasted glass
LIGHT SOURCES
compact fluorescent lamps
POWER SUPPLY
230V, 50Hz
luminaire includes an electronic unit with a standard or nondimmable electronic ballast other possible options are specified below product codes
RECESSED LUMINAIRES
1 lamp luminaires
50-00*P-1013E TC-DEL 1× 13 G24q-1
50-00*P-1013K TC-D 1× 13 G24d-1
50-00*P-1018E TC-DEL 1× 18 G24q-2
50-00*P-1018K TC-D 1× 18 G24d-2
50-00*P-1026K TC-D 1× 26 G24d-3
*=1 luminaire without accessories
*=5 luminaire for accessories
other options of electrical connections: C, A, S, D, T, N, M, M3
dimmable and emergency luminaires and versions with an independent ballast box: Class 1
other options of electrical connections: A, S, D, T, M, M3 dimmable and emergency luminaires and versions with an independent ballast box: Class 1
2 lamp luminaires
50-00*P-2013E TC-DEL 2× 13 G24q-1
50-00*P-2013K TC-D 2× 13 G24d-1
50-00*P-2018E TC-DEL 2× 18 G24q-2
50-00*P-2018K TC-D 2× 18 G24d-2
50-00*P-2026E TC-DEL 2× 26 G24q-3
50-00*P-2026K TC-D 2× 26 G24d-3
*=1 luminaire without accessories
*=5 luminaire for accessories
other options of electrical connections: C, A, S, D, T, N, M, M3 dimmable and emergency luminaires and versions with an independent ballast box: Class 1
Luminaires Serie 52 and 53 are rounded downlights with a diameter 190mm or 265mm and create a sophisticated solution for public areas. Customer can choose from a rich range of recessed, semirecessed or surface mounted luminaires. Together with a suspension and ceiling cup there is an option of suspended version too. Plain or facetted reflectors together with glass accessories suit into any architectural concept.
APPLICATIONS
shopping centers
meeting areas
administration buildings cultural facilities
MATERIALS
body steel sheet finished by baked-on powder coating
optical system specular or facetted aluminium reflector
LIGHT SOURCES
compact fluorescent lamps
POWER SUPPLY
230V, 50Hz
power-supply unit with a conventional or electronic ballast is installed in a plastic box outside of the luminaire
power-supply unit of surface mounted version is installed into a luminaire body other possible options are specified below product codes
RECESSED LUMINAIRES
1 lamp luminaires
52-00*L-1018E TC-DEL 1× 18
52-00*L-1018K TC-D 1× 18
52-00*L-1026E TC-DEL 1× 26
52-00*L-1026K TC-D 1× 26
*=1 luminaires without accessories
*=2 luminaires for accessories
other options of electrical connections: C, A, S, D, T, N, M, M3
G24q-2
G24d-2
G24q-3
G24d-3
luminaires without accessories can be supplied with a facetted reflector (52-001T)
2 lamp luminaires
52-00*L-2018E TC-DEL 2× 18
52-00*L-2018K TC-D 2× 18
52-00*L-2026E TC-DEL 2× 26
52-00*L-2026K TC-D 2× 26
*=1 luminaires without accessories
*=2 luminaires for accessories
other options of electrical connections: C, A, S, D, T, N, M, M3
G24q-2
G24d-2
G24q-3
G24d-3
luminaires without accessories can be supplied with a facetted reflector (52-001T)
CODE DESCRIPTION
51-0001 51-0002 51-0003
distance pieces set 6 mm distance pieces set 25 mm for luminaires 52-002L-xxxxx
CODE DESCRIPTION
glass diameter 200 mm for luminaires 52-002L-xxxxx to be ordered with 51-0001 or 51-0002
CODE DESCRIPTION
52-0001
glass diameter 143 mm with distance for luminaires 52-001L-2xxxx
2 lamp luminaires
53-00*L-2018E TC-DEL 2× 18 G24q-2
53-00*L-2018K TC-D 2× 18 G24d-2
53-00*L-2026E TC-DEL 2× 26
G24q-3
53-00*L-2026K TC-D 2× 26 G24d-3
*=1 luminaire without accessories
*=2 luminaire for accessories
other options of electrical connections: C, A, S, D, T, N, M, M3
luminaires without accessories can be supplied with facetted reflector (53-001T)
53-00*L-2032E TC-TEL 2× 32 GX24q-3
53-00*L-2042E TC-TEL 2× 42 GX24q-4
*=1 luminaire without accessories
*=2 luminaire for accessories
other options of electrical connections: A, S, D, T, M, M3
luminaires without accessories can be supplied with facetted reflector (53-001T)
2 lamp luminaires
53-10*L-2018E TC-DEL 2× 18
G24q-2
53-10*L-2018K TC-D 2× 18 G24d-2
53-10*L-2026E TC-DEL 2× 26 G24q-3
53-10*L-2026K TC-D 2× 26 G24d-3
*=1 luminaire without accessories
*=2 luminaire for accessories
other options of electrical connections: C, A, S, D, T, N, M, M3
luminaires without accessories can be supplied with facetted reflector (53-101T)
53-10*L-2032E TC-TEL 2× 32 GX24q-3
53-10*L-2042E TC-TEL 2× 42 GX24q-4
*=1 luminaire without accessories
*=2 luminaire for accessories
other options of electrical connections: A, S, D, T, M, M3
luminaires without accessories can be supplied with facetted reflector (53-101T)
53-20*L-2018E TC-DEL 2× 18 G24q-2
53-20*L-2018K TC-D 2× 18 G24d-2
53-20*L-2026E TC-DEL 2× 26 G24q-3
53-20*L-2026K TC-D 2× 26 G24d-3
*=1 luminaire without accessories
*=2 luminaire for accessories
other options of electrical connections: C, A, S, D, T, N, M, M3 luminaires without accessories can be supplied with facetted reflector (53-201T)
53-20*L-2032E TC-TEL 2× 32 GX24q-3
53-20*L-2042E TC-TEL 2× 42 GX24q-4
*=1 luminaire without accessories
*=2 luminaire for accessories
other options of electrical connections: A, S, D, T, M, M3 (except 42 W) luminaires without accessories can be supplied with facetted reflector (53-201T) It is necessary to order an assembly kit for suspension 53-0024
CODE DESCRIPTION
51-0001 51-0002
distance pieces set 6mm distance pieces set 25mm for luminaires 53-002L, 53-102L, 53-202L
CODE DESCRIPTION
53-0001
glass diameter 270 mm for luminaires 53-002L, 53-102L, 53-202L to be ordered with 51-0001 or 51-0002
CODE DESCRIPTION
53-0017
glass diameter 205 mm
CODE DESCRIPTION
53-0024
wire suspension 1800 mm for luminaires 53-001L, 53-101L, 53-201L for luminaires 53-20**
SURFACE LUMINAIRES / ACCESSORIES
2 lamp luminaires
Accessories
Luminaires Serie 65, 66 and 67 are designed in a square shape using horizontal installation of light sources. Elegant anodised or painted aluminium frame makes them suitable for application in modern interiors. Frosted plastic diffuser or sandblasted glass can be used in order to ensure uniform diffusion of the illumination. The recessed luminaires Serie 65 can be equipped with a LED technology Fortimo. The luminaries Serie 66 are universal for an application with or without an accessory.
APPLICATIONS
shopping centers meeting areas representative areas cultural facilities
optical system specular aluminium reflector opal plastic diffuser sandblasted glass
LIGHT SOURCES
compact fluorescent lamps
DLM Fortimo LED
DLM Lexel RGB LED
POWER SUPPLY
230V, 50Hz
Control or power-supply unit with a conventional or electronic ballast is installed in a plastic box outside of the luminaire
other possible options are specified below product codes
RECESSED LUMINAIRES
1 lamp luminaires
65-00*L-1018E TC-DEL 1× 18 G24q-2
65-00*L-1018K TC-D 1× 18 G24d-2
*=1 fitting without accessories
*=2 fitting for accessories
other options of electrical connections: C, A, S, D, T, N, M, M3
2 lamp luminaires
65-00*L-2018E TC-DEL 2× 18 G24q-2
65-00*L-2018K TC-D 2× 18 G24d-2
*=1 fitting without accessories
*=2 fitting for accessories
other options of electrical connections: C, A, S, D, T, N, M, M3
CODE DESCRIPTION
65-000L-1018EL/840 LED 4000K 1× 18 ––
65-000L-1019EL/830 LED 3000K 1× 19 ––
65-000L-1032EL/840 LED 4000K 1× 32 ––
65-000L-1036EL/830 LED 3000K 1× 36 ––
other options of electrical connections: TD delivered together with a clear glass
65-000L-1040DXL/C LED RGB 1× 40 ––
other options of electrical connections: DALI/DMX delivered together with a clear glass
ACCESSORIES / RECESSED LUMINAIRES
RECESSED LUMINAIRES / ACCESSORIES
other options of electrical connections: C, A, S, D, T, N, M, M3 2 lamp luminaires
66-003L-2018E TC-DEL 2× 18
66-003L-2018K TC-D 2× 18
66-003L-2026E TC-DEL 2× 26
66-003L-2026K TC-D 2× 26
G24q-2
G24d-2
G24q-3
G24d-3
Accessories
sand-blasted glass
opal plastic cover
67-003H-2026E TC-DEL 2× 26 G24q-3
67-003H-2026K TC-D 2× 26 G24d-3
67-003H-3026E TC-DEL 3× 26 G24q-3
67-003H-3026K TC-D 3× 26 G24d-3
other options of electrical connections: C, A, S, D, T, N, M, M3
67-003H-2032E TC-TEL 2× 32 GX24q-3
67-003H-2042E TC-TEL 2× 42 GX24q-4
67-003H-3032E TC-TEL 3× 32 GX24q-3
67-003H-3042E TC-TEL 3× 42 GX24q-4
other options of electrical connections: A, S, D, T, M, M3 necessary to use with accessories; accessories has to be ordered separately
RECESSED LUMINAIRES / ACCESSORIES
CODE DESCRIPTION
67-0001
sand-blasted glass
67-0002
plastic cover
Accessories
opal
Rounded downlights Serie 70 offer fixed or flexible lighting unit. Powerful halogen or sodium lamp light sources are bringing enough light into illuminated interiors. Classical solution for retail and other shopping areas.
APPLICATIONS
shopping centers
meeting areas
cultural facilities
MATERIALS
body aluminium and steel sheet finished by baked-on powder coating
optical system aluminium reflector
LIGHT SOURCES
metal halide lamps
sodium lamps
POWER SUPPLY
230V, 50Hz
power-supply unit with a conventional or electronic ballast is installed in a plastic box outside of the luminaire and have to be ordered separately.
RECESSED LUMINAIRES
Adjustable luminaires electric units have to be ordered separately
Adjustable luminaires
70-081S-1
1× 100 W el. connection E
electric units have to be ordered separately
electric unit for metal halide lamps 1× 35W, connection C
electric unit for metal halide lamps 1× 70W, connection C
electric unit for metal halide lamps 1× 150W, connection C
electric unit for metal halide lamps 1× 35W, connection E
electric unit for metal halide lamps 1× 70W, connection E
electric unit for metal halide lamps 1× 150W, connection E
CODE DESCRIPTION
70-0007
70-0008
electric unit for sodium lamps HST-CRI 1× 50W, connection C
electric unit for sodium lamps HST-CRI 1× 100W, connection C
Hand-blown triplex opal glass is used as a base raw material of simple but very decorative luminaires Serie 90. Wall mounted luminaires with an excellent uniformity of illumination were designed within an intention to be used in restaurants, living premises or corridors.
APPLICATIONS
meeting rooms restaurants, hotels living premises corridors
MATERIALS
body steel sheet powder coated optical system triplex opal glass
LIGHT SOURCES
incandescent lamps compact fluorescent lamps
POWER SUPPLY
230V, 50Hz
the CFL versions are equipped with a conventional or non-dimming electronic ballast other possible options are specified below product codes
