Legenda
S = Solid gel
L = Liquid gel
C = Carbon
B = 4mm fitting/ banana plug
D = DIN connector
R = Rectangular
H = Holter
ST = Stresstest
RE = Repositionable
Table of contents
Frequently asked questions ................................
Short term applications
XL/Repositionable/TAB .......................................
Extra strong adhesive .........................................
Holter / Long term applications .......................
Pediatrics ..............................................................
Neonatology .......................................................
page 5 - 6
page 7 - 12
page 13 - 14
page 15 - 16
page 17 - 18
page 19 - 20
page 21
What is the difference between ECG monitoring and a diagnostic ECG?
During ECG monitoring, heart rhythms are continuously displayed on a screen or monitor. This is used for surveillance, for example during a surgical procedure. Monitoring can be requested in the emergency department, in the operating room, in the ICU, or during hemodynamic or imaging procedures (such as MRI).
A diagnostic ECG is usually performed on an outpatient basis in the cardiology department and may include a resting ECG, an exercise ECG, and/or a longterm ECG. The ECG signal can be observed on a screen, printed out, saved and audio-recorded. It is a detailed measurement of the heart rhythm that allows the physician to assess the condition and function of the heart and make a diagnosis. A resting ECG can also be performed in the emergency department, the ICU, or before a surgical procedure.
What is the difference between ECG electrodes with solid and liquid (“wet”) gel?
Electrodes with liquid gel wet the skin, contain a lot of water and immediately reduce the skin resistance. They are recommended for diagnostic ECG purposes. Although the skin should be well prepared in order to achieve the best ECG curves, in most cases little or no preparation of the skin is sufficient with liquid gel electrodes.

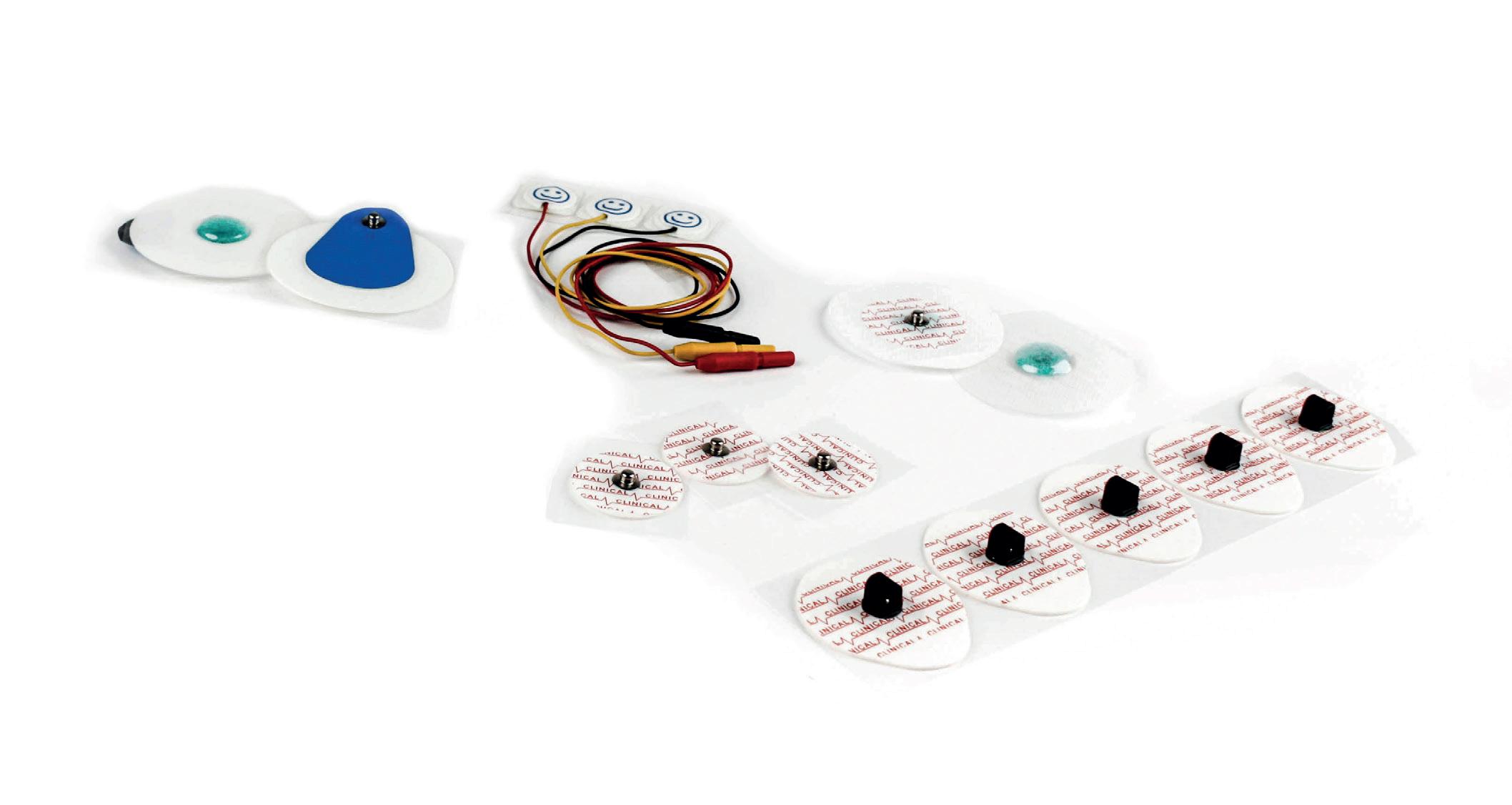

ECG electrodes
Frequently Asked Questions (FAQ)
Solid gel electrodes are often used because they are easy to apply, do not moisten the skin and leave no residue when removed. They are typically used for monitoring porposes. However, with solid gel electrodes, it is important to prepare the skin properly to ensure optimal signal quality.
What is the best way to prepare the patient’s skin before applying the electrodes?
1.The area where the electrode will be placed must be clean, dry, and free of skin oils so the electrode can adhere properly to the skin.
2.If necessary, excess hair should be removed by shaving the area. 3.The best signal quality is achieved by lightly abrading the skin before applying the electrode. Special abrasion pads are available for this purpose.
Why are there so many different types of electrodes, and how do I choose the right electrode for the specific application?
Various ECG electrodes are available to optimize signal quality, patient care, and ease of use. ECG electrodes should be selected carefully, taking the following criteria into account for each clinical application:
1.Electrode size:
Extra-small electrodes are available for babies and children. Sizes for adults vary and depend, among other factors, on the number of electrodes used during the procedure and their adhesive strength.
2.Carrier material:
For most ECG examinations, electrodes with a foam backing are used. For long-term studies, a backing material made of breathable, microporous fabric may be required.
3.Gel type:
Solid gel is usually used for monitoring, while liquid gel is often preferred for diagnostic procedures.
4.Type of connection:
Many ECG electrodes have a stud connector, but Clinical also offers electrodes with other common connector types, for example for a 4 mm banana plug connection.
5.Shelf life:
Solid gel electrodes generally have a shelf life of two years, while liquid gel electrodes have a shorter shelf life, sometimes only eighteen months.
Important: Always follow the instructions on the packaging.

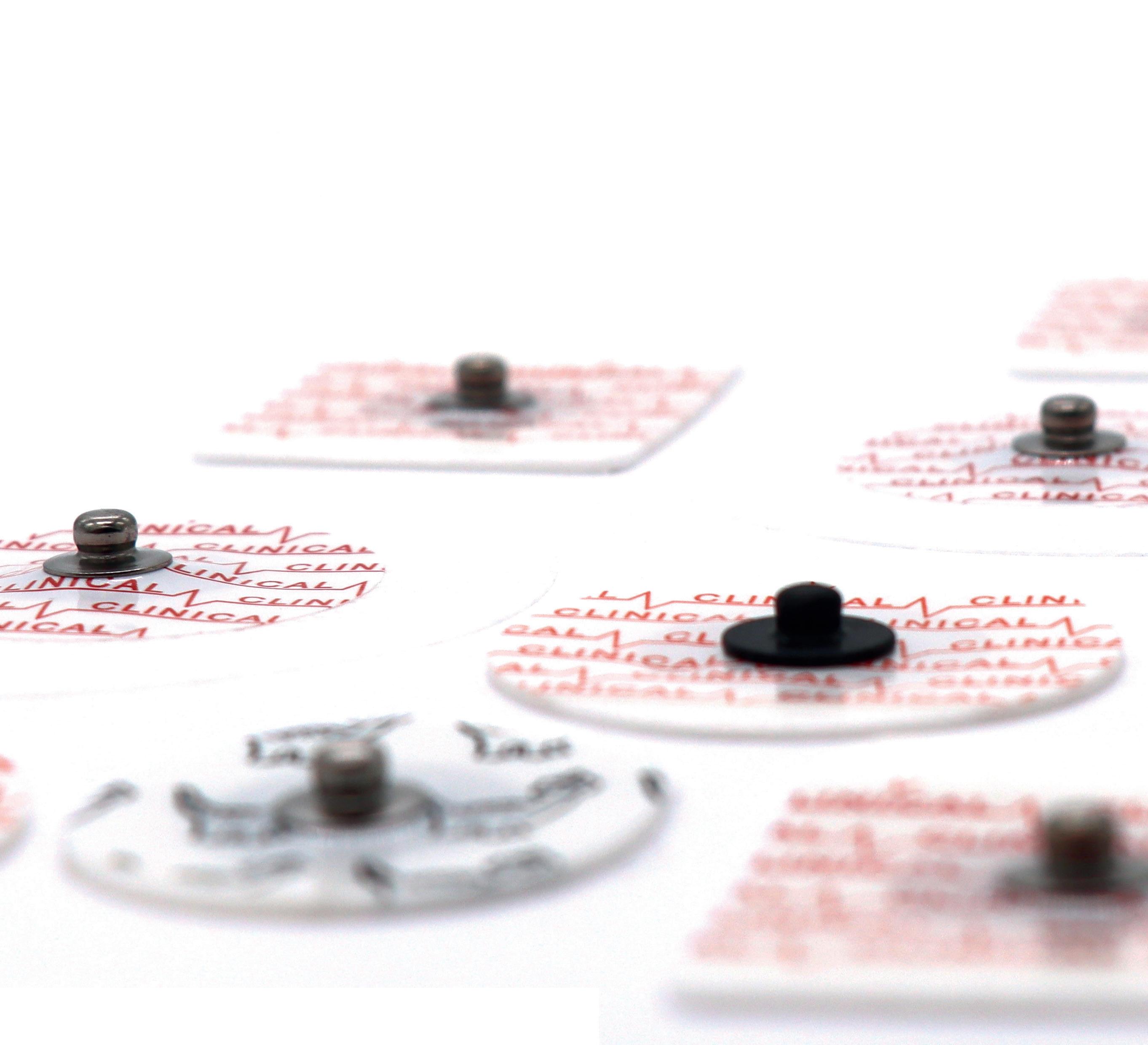

Why are there different types of connectors?
Clinical ECG electrodes must be compatible with different models of ECG devices and help optimize procedures. Therefore, there are electrodes with stainless steel stud connectors (for monitoring), carbon stud connectors (for monitoring during X-ray procedures and MRI), and 4 mm banana plugs (for resting ECGs).
Can Clinical ECG electrodes be used during X-ray examinations?
Yes. This is possible when using electrodes that are specifically designed to be radiolucent, allowing them to be used during X-ray or MRI examinations.
How can I prevent the gel from drying out before the electrodes are used?
The electrodes should ideally be kept in their packaging until the moment of use to prevent the gel from drying out. Once the package has been opened, it can be resealed using the zip closure.
ECG electrodes
Frequently Asked Questions (FAQ)
What are the advantages of repositionable electrodes?
Repositionable electrodes can be used for all monitoring applications and for all types of patients. This type of electrode can be repositioned and used multiple times on the same patient. They feature a soft, conductive adhesive surface and are ideal for patients with very sensitive skin.
How do I use each of the Clinical ECG electrodes?
Follow the instructions provided on each ECG electrode package. These contain all information about use, safety guidelines, precautions, duration of use, storage, and the proper method of removal.
Which advantages do disposable ECG electrodes offer compared to reusable solutions?
Disposable electrodes are hygienic and help prevent cross-contamination and hospital-acquired infections. They adhere well to the skin, ensuring an optimal signal. As with reusable electrodes, additional contact agents are no longer required.
How can I optimize my electrode usage and reduce costs?
It is very important to choose the right electrodes that match your specific needs in order to optimize usage and reduce costs. Do you need advice in this area? Please contact us, we will be happy to assist you.

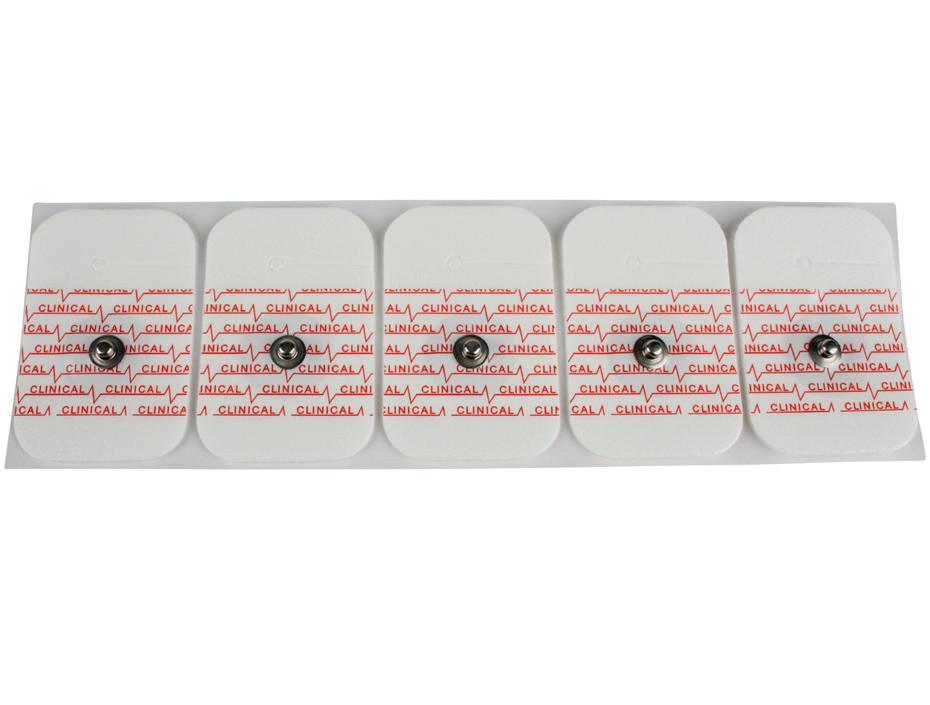

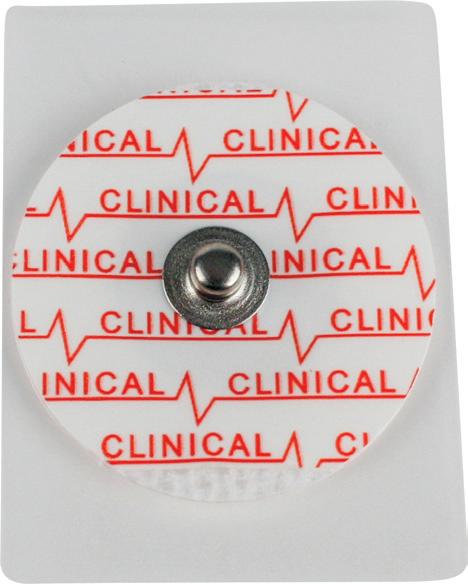

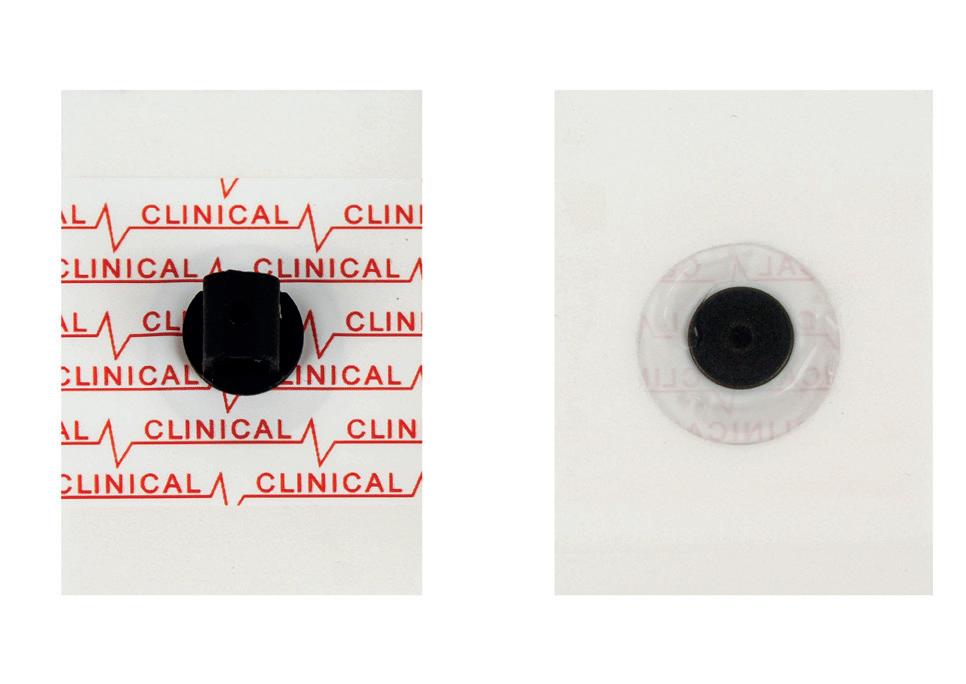

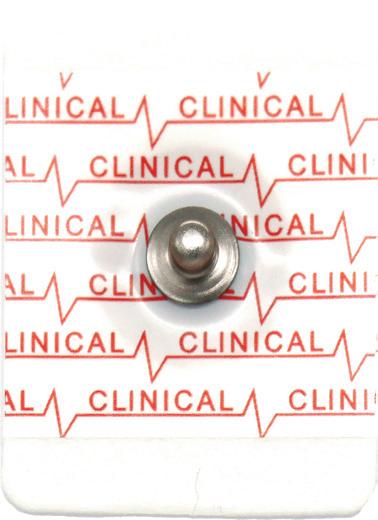

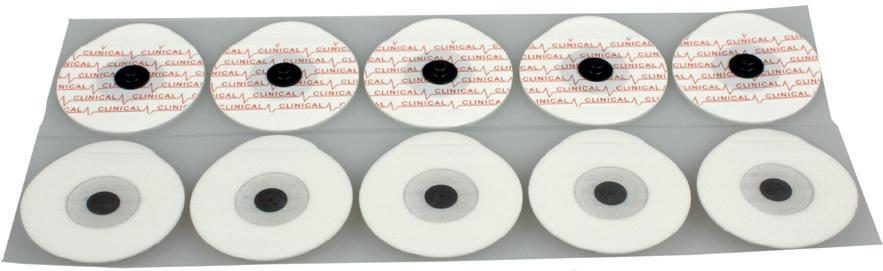

Clinical S32R
Article code
EC849759
Material Foam
Size (l x w)
44mm x 32mm
Gel type Solid gel
Connector Stainless steel stud, Ag/AgCl
Packing unit
100 electrodes (5 electrodes per strip)
Special features N/A
Application area Universally applicable
Comparable with 3M™ Red Dot™ 2228, 2560
Cardinal Health 22450
Medi-Trace 450, Kendall 7300
Skintact F-RG, FS-RG

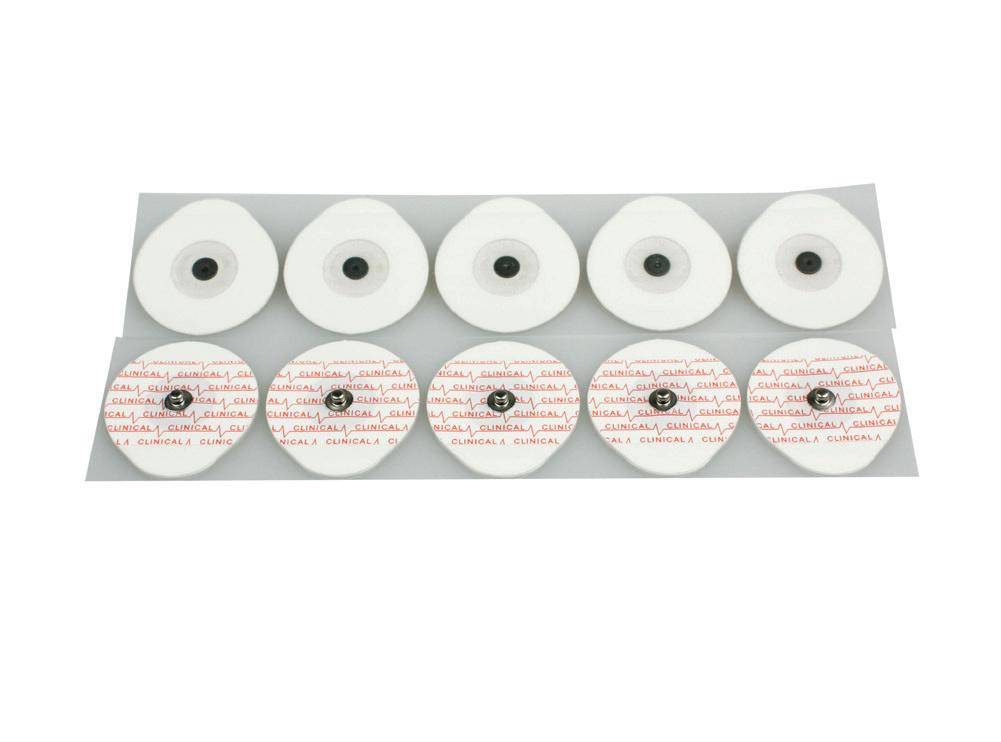

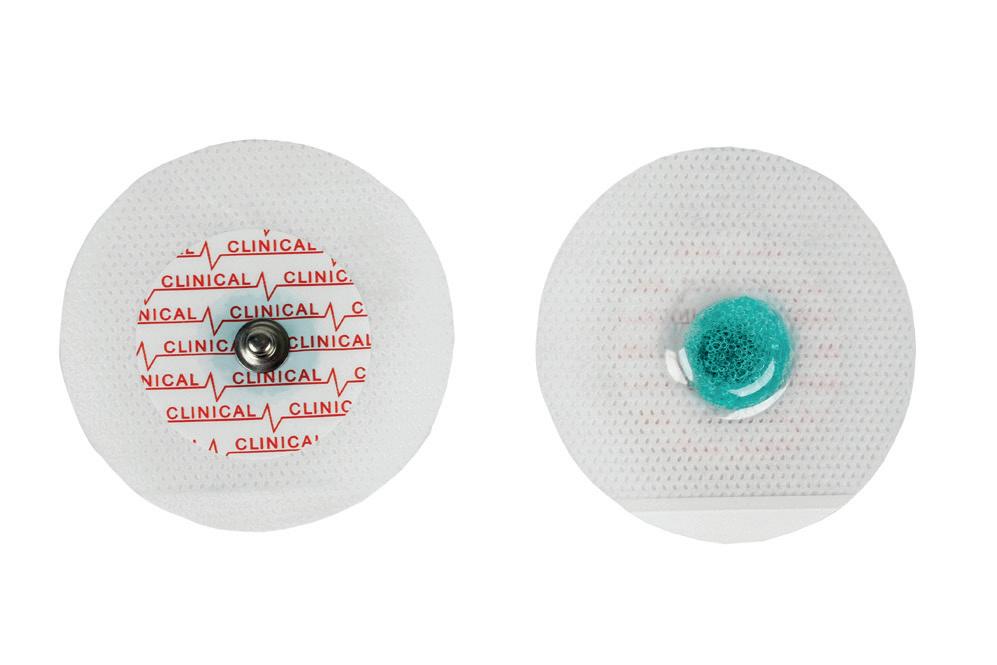

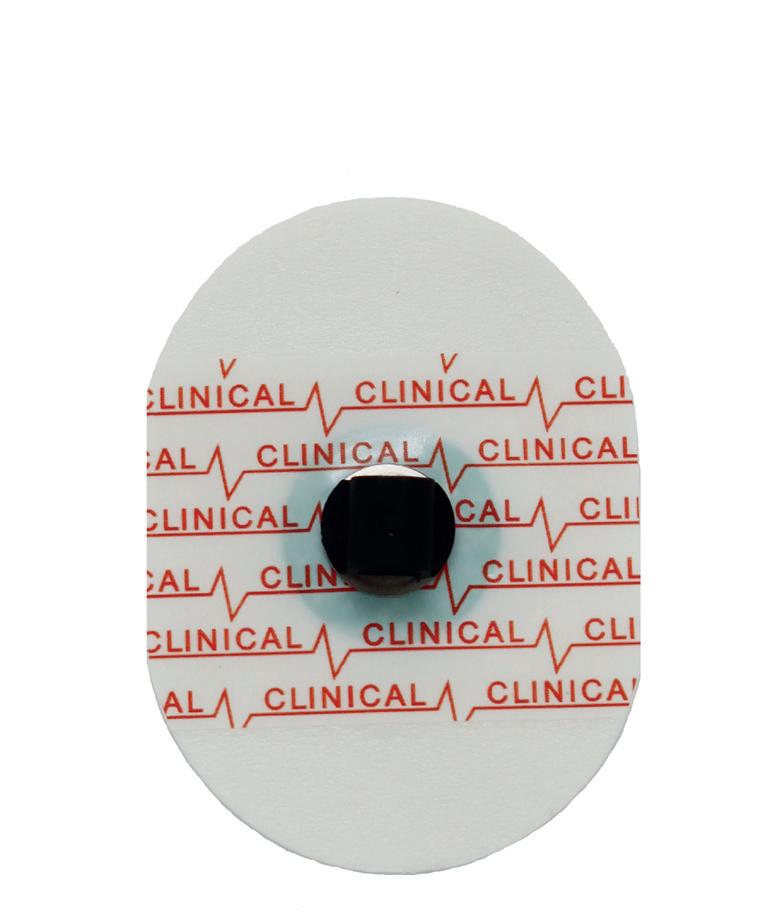

Clinical S32RC
Article code
EC849757
Material Foam
Size (l x w)
44mm x 32mm
Gel type Solid gel
Connector Carbon stud
Packing unit
100 electrodes (5 electrodes per strip)
Special features Radiolucent
Application area Universally applicable
Comparable with 3M™ Red Dot™ 2244, 2570
Cardinal Health 850, 22850
Skintact F-REC
ECG electrodes - Adult Short term applications
ECG electrodes - Adult Short term applications
Clinical S32RCB
Article code EC849756
Material Foam
Size (l x w) 44mm x 32mm
Gel type Solid gel
Connector 4mm fitting
Packing unit 300 electrodes (5 electrodes per strip)
Special features N/A
Application area Universally applicable
Comparable with Ambu WhiteSensor 4530, 4540

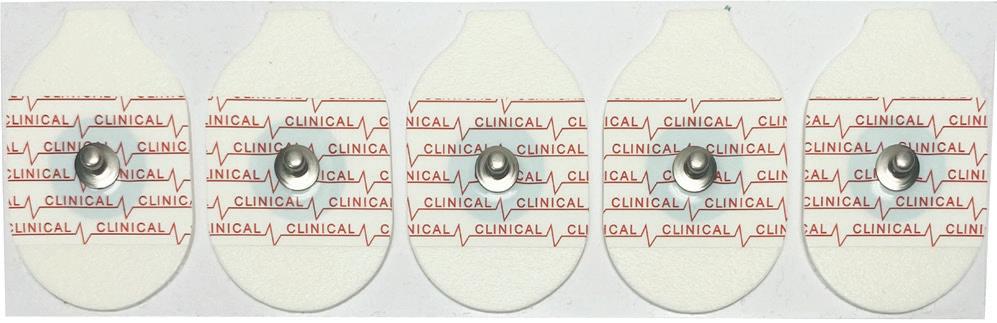

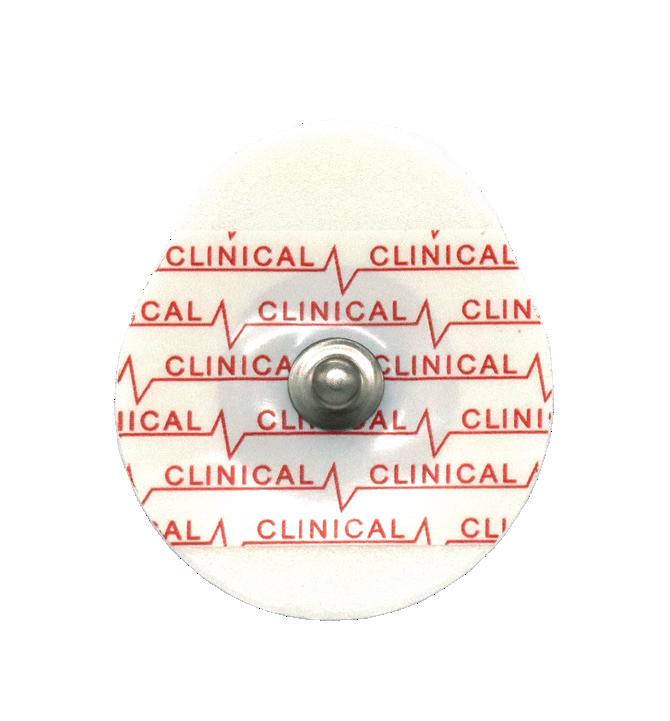

Clinical S40
Article code
EC849901
Material Foam
Size (l x w)
40mm x 36mm
Gel type Solid gel
Connector Stainless steel stud, Ag/AgCl
Packing unit
100 electrodes (5 electrodes per strip)
Special features N/A
Application area Universally applicable
Comparable with 3M™ Red Dot™ 2237, 2560
Cardinal Health Kendall 200, 31.0505.22; H135SG, 31.1355.21 Kendall™ Medi-Trace 200 Skintact F-TC1, FS-TC1

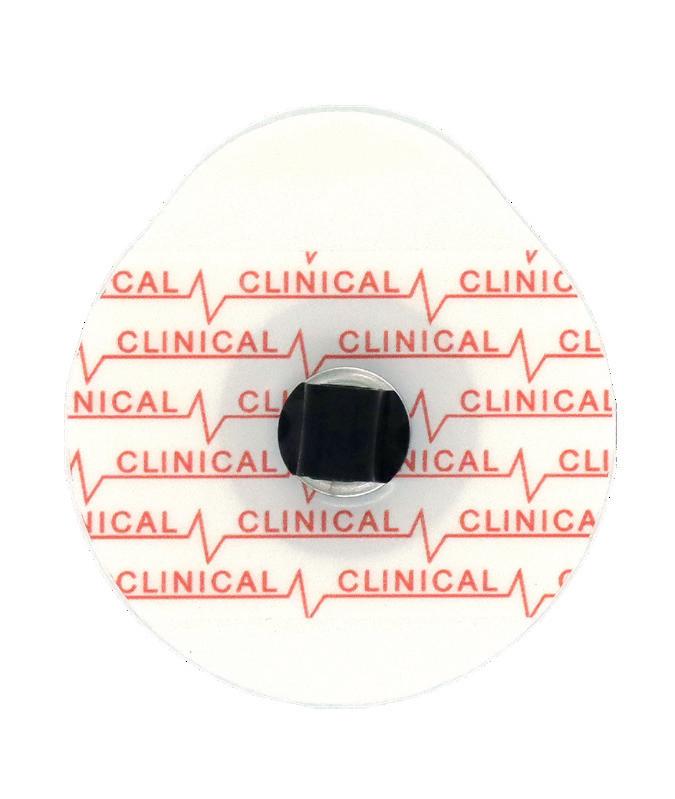

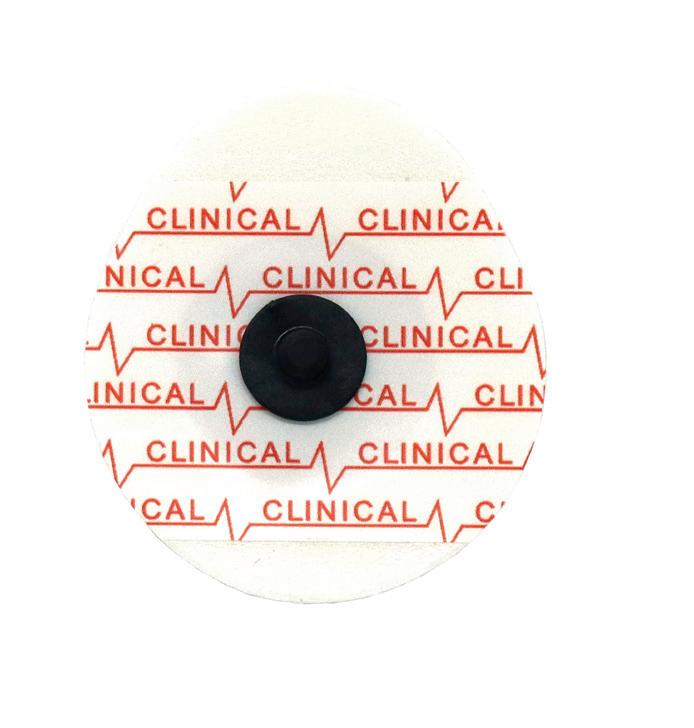

Clinical S40C
Article code
EC849902
Material Foam
Size (l x w)
40mm x 36mm
Gel type Solid gel
Connector Carbon stud
Packing unit
Special features
Application area
100 electrodes (5 electrodes per strip)
Radiolucent
Universally applicable
Comparable with 3M™ Red Dot™ 2268
Cardinal Health Kendall H135TSG, 31.1355821 Kendall™ Medi-Trace 600
ECG electrodes - Adult Short term applications
Article code
ECG electrodes - Adult Short term applications

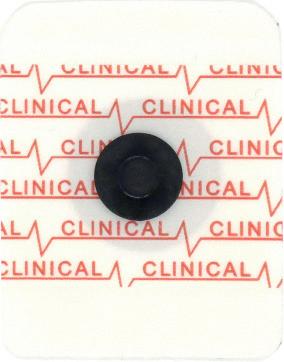

Clinical S45
EC849903
Material Foam
Size (l x w)
Gel type
45mm x 42mm
Solid gel
Connector Stainless steel stud, Ag/AgCl
Packing unit 60 electrodes (5 electrodes per strip)
Special features N/A
Application area Universally applicable
Comparable with 3M™ Red Dot™ 2237, 2245 Cardinal Health Kendall 530, 31.0139.26
Kendall™ Medi-Trace 530

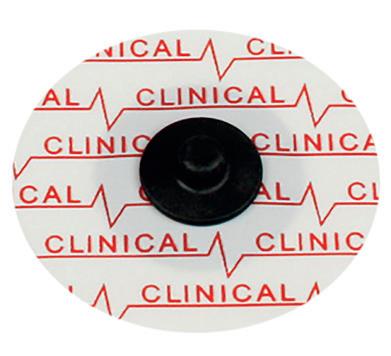

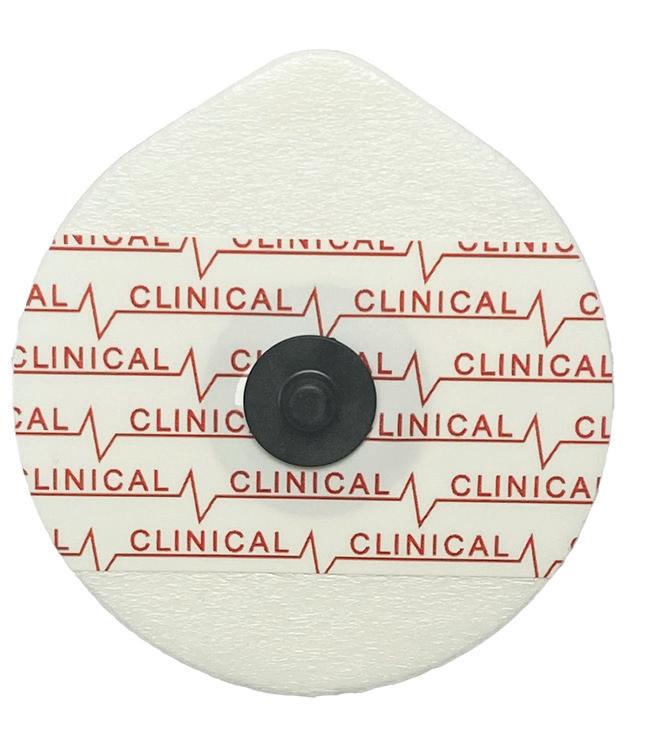

Clinical S45C
Article code
EC849904
Material Foam
Size (l x w)
Gel type
45mm x 42mm
Solid gel
Connector Carbon stud
Packing unit 60 electrodes (5 electrodes per strip)
Special features Radiolucent
Application area Universally applicable
Comparable with Cardinal Health SF3040.5 31.4523.89
Kendall™ Medi-Trace 530
Clinical S45B
Article code
EC849758
Material Foam
Size (l x w) 45mm x 42mm
Gel type Solid gel
Connector 4mm fitting
Packing unit 30 electrodes (5 electrodes per strip)
Special features N/A
Application area Widely used for diagnostics and stress testing
Comparable with 3M™ Red Dot™ 2228BA
Cardinal Health H914SG, 31.1941.21
Skintact FS-RB4

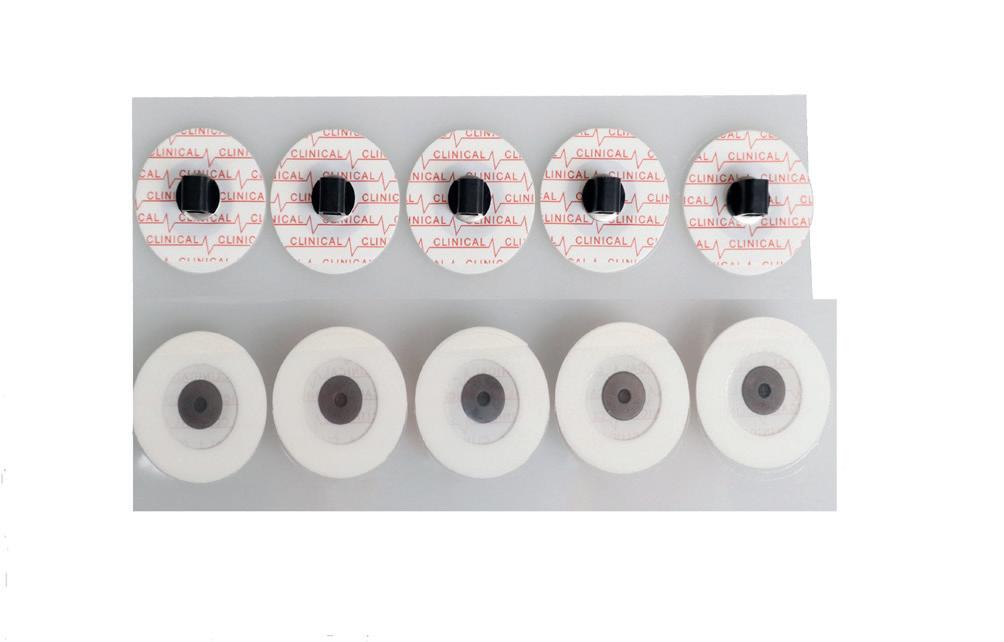

Clinical L50
Article code
EC849720
Material Foam
Size (l x w) 50mm
Gel type Liquid gel
Connector Stainless steel stud, Ag/AgCl
Packing unit 50 electrodes (5 electrodes per strip)
Special features Extra high conductivity
Application area Universally applicable
Comparable with 3M™ Red Dot™ 2256
Cardinal Health Kendall H34LG, 31.1345.21
Skintact FS-50, F-55, F-TB
ECG electrodes - Adult Short term applications
ECG electrodes - Adult Short term applications

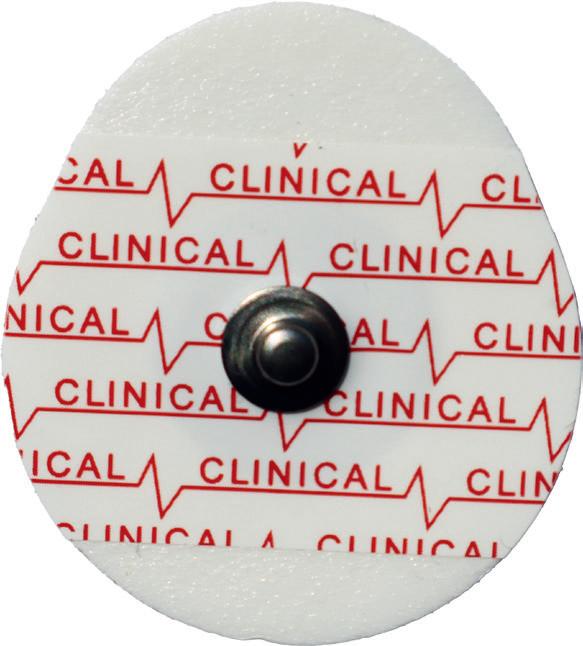

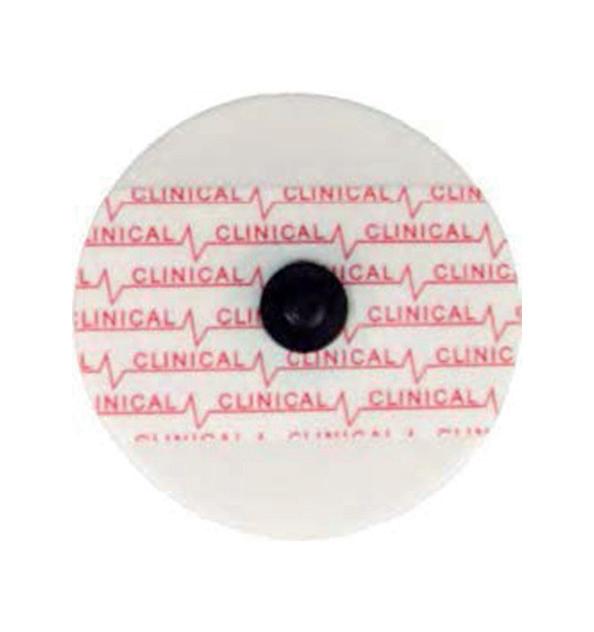

Clinical L50C
Article code
EC849723
Material Foam
Size (l x w) 50mm
Gel type
Liquid gel
Connector Carbon stud
Packing unit
50 electrodes (loose in bag)
Special features High conductivity Radiolucent
Application area Universally applicable
Comparable with Ambu WhiteSensor 4500M/RT Skintact FS-50C
Swaromed REF 1010
Clinical L50B
Article code
EC849721
Material Foam
Size (l x w)
Gel type
38mm x 50mm
Liquid gel
Connector 4mm fitting
Packing unit
50 electrodes (5 electrodes per strip)
Special features N/A
Application area Universally applicable, e.g., for diagnostics and stress testing.
Comparable with Skintact FS-RB4
Swaromed REF 1019

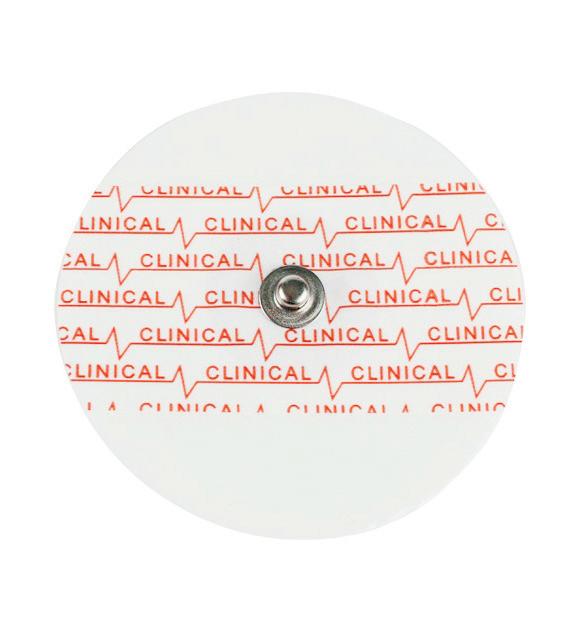

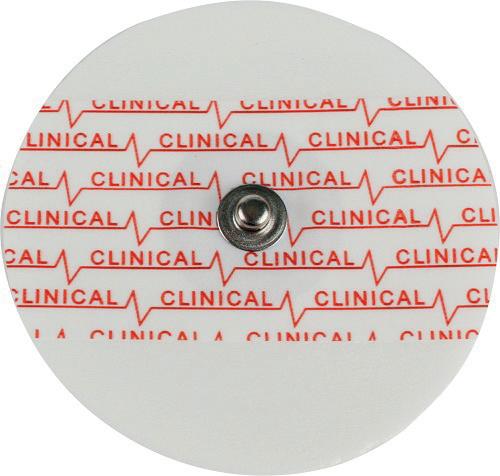

Clinical S55
Article code
EC849750
Material Foam
Size (l x w) 55mm
Gel type Solid gel
Connector Stainless steel stud, Ag/AgCl
Packing unit 30 electrodes (loose in bag)
Special features Large surface area
Application area Universally applicable
Comparable with 3M™ Red Dot™ 2330,2360
Cardinal Health Kendall H66LG, 31.1663.21
Skintact F-TB1

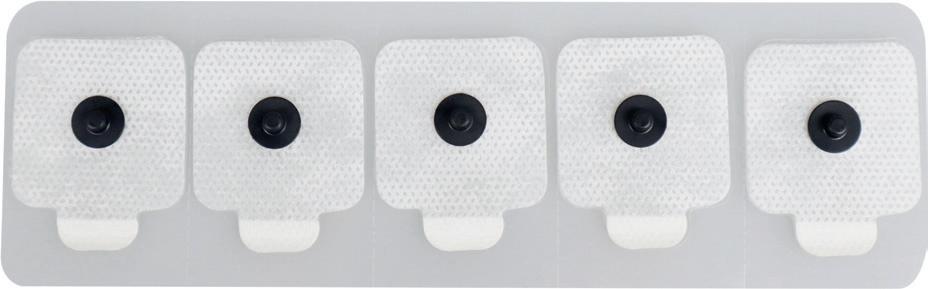

Clinical RE4032-5
Article code
EC849981
Material Vlies
Size (l x w) 40mm x 32mm
Gel type
Hydrogel
Connector Carbon stud
Packing unit Per strip of 5 electrodes
Special features Repositionable (up to 96 hours) Radiolucent
Application area Primarily used in the ICU
Comparable with 3M™ Red Dot™ 2260, 2670
Cardinal Health Kendall H49P; H59P, ES40076; H69P, ES40281; RR3305
ECG electrodes - Adult XL / Repositionable / TAB
ECG electrodes - Adult XL / Repositionable / TAB

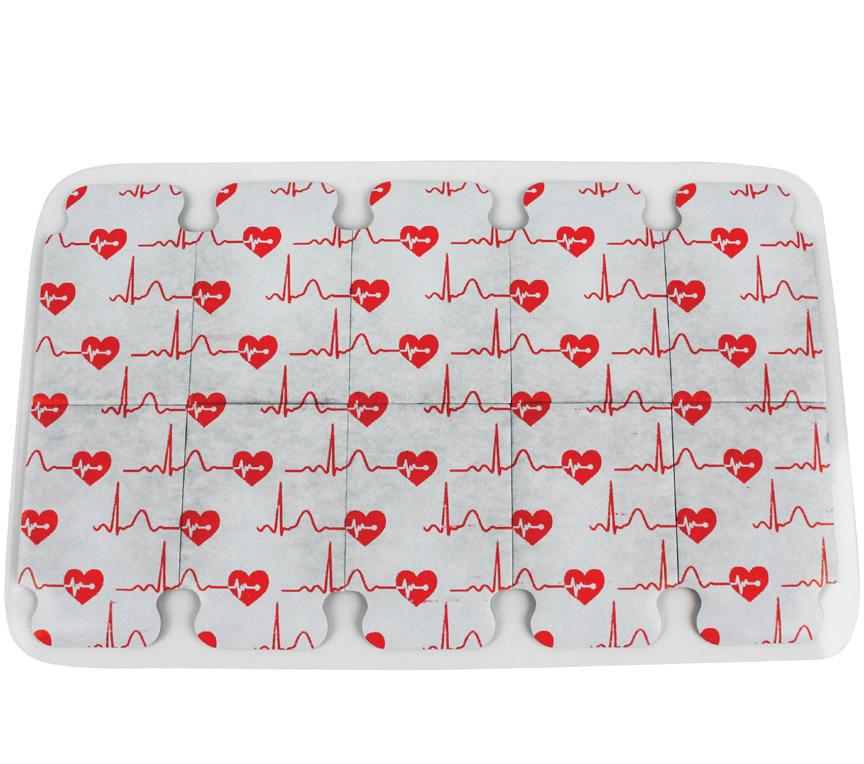

Clinical TAB
Article codeEC849745
Material Paper
Size (l x w) 21mm x 34mm
Gel type
Hydrogel
Connector TAB voor crocodile clamps
Packing unit100 electrodes (10 electrodes per strip)
Special featuresTAB connector
Application areaResting ECG /12-channel ECG
Comparable with3M™ Red Dot™ 2330, 2360
Cardinal Health Kendall 5400, 31433538; 5500, 30807732 Skintact RT-34
Clinical S33ST
Article code
EC849900
Material Foam
Size (l x w) 51mm x 33mm
Gel type Solid gel
Connector Stainless steel stud, Ag/AgCl
Packing unit 60 electrodes (5 electrodes per strip)
Special features Extra strong adhesive
Application area Universally applicable but mainly used for stresstests
Comparable with Cardinal Health Kendall H92SG, 31.1925.21
Clinical L38ST
Article code
EC849906
Material Foam
Size (l x w)
50mm x 38mm
Gel type Liquid gel
Connector Stainless steel stud, Ag/AgCl
Packing unit 50 electrodes (5 electrodes per strip)
Special features Extra strong adhesive
Application area Mainly used for stresstests
Comparable with Skintact FS-21, FS-524 Swaromed REF 1036, 1066
ECG electrodes - Adult Extra strong adhesive
ECG electrodes - Adult Extra strong adhesive
Clinical S40ST
Article codeEC849910
Material Foam
Size (l x w)
Gel type
40mm x 36mm
Solid gel
Connector Stainless steel stud, Ag/AgCl
Packing unit60 electrodes (loose in bag)
Special featuresExtra strong adhesive
Application areaUniversally applicable
Comparable withCardinal Health Kendall H135SG, 31.1355.21
Clinical S48C-ST
Article codeEC849929
Material Foam
Size (l x w)
Gel type
48mm x 45mm
Solid gel
Connector Carbon stud
Packing unit60 electrodes (loose in bag)
Special featuresExtra strong adhesive Radiolucent
Application areaUniversally applicable
Comparable withCardinal Health Kendall H34SG, 31.1946.21
Clinical S30H
Article code
EC849763
Material Fleece
Size (l x w) 30mm
Gel type Solid gel
Connector Stainless steel stud, Ag/AgCl
Packing unit 30 electrodes (loose in bag)
Special features N/A
Application area Universally applicable
Comparable with Skintact W-W130C/3
Clinical S55H
Article code
EC849765
Material Fleece
Size (l x w) 55mm
Gel type Solid gel
Connector Stainless steel stud, Ag/AgCl
Packing unit 30 electrodes (loose in bag)
Special features Breathable fleece
Application area Especially used for diagnostics
Comparable with 3M RedDot 2231, 2238, 2239, 2249, 2271
Cardinal Health Kendall H99SG, 31.1996.21
Skintact W-601
ECG electrodes - Adult Holter / long-term applications
Article code
ECG electrodes - Adult Holter / long-term applications

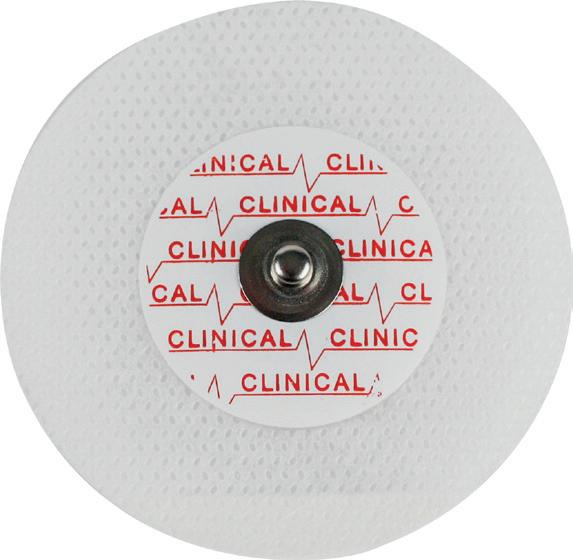

Clinical L55H
EC849722
Material Fleece
Size (l x w) 55mm
Gel type Liquid gel
Connector Stainless steel stud, Ag/AgCl
Packing unit 30 electrodes (loose in bag)
Special features Breathable fleece
Application area Especially used for diagnostics
Comparable with Cardinal Health Kendall H99LG, 31.1995.21 Skintact F-55, W-60
Article code

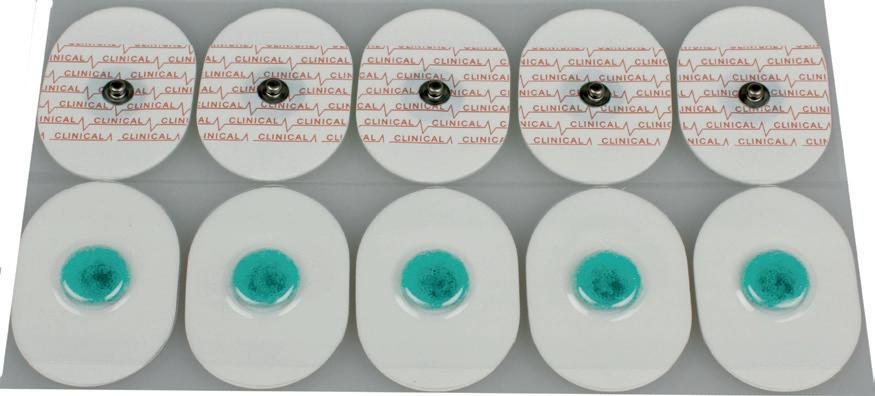

Clinical S2400H
EC849996
Material Foam
Size (l x w) 57mm x 38 mm
Gel type Solid gel
Connector Stainless steel stud, Ag/AgCl
Packing unit 30 electrodes (5 electrodes per strip)
Special features Cable slot
Application area Long-term applications (Holter monitoring)
Comparable with Ambu 4560M, 4570M

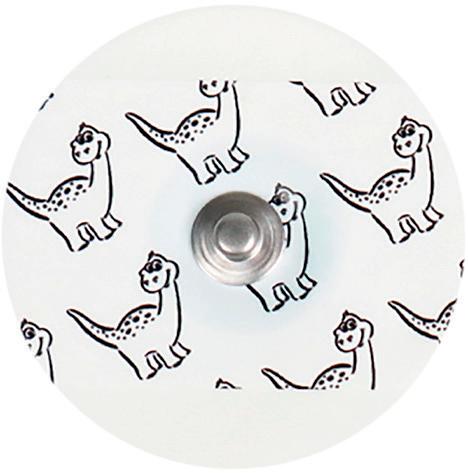

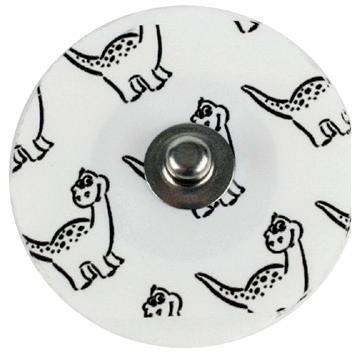

Clinical S30 Dino
Article code
EC849755
Material Foam
Size (l x w) 30mm
Gel type Solid gel
Connector Stainless steel stud, Ag/AgCl
Packing unit 30 electrodes (loose in bag)
Special features With Dino print
Application area
Universally applicable
Comparable with 3M™ Red Dot™ 2248
Cardinal Health Kendall 100, 31118733; 133, 31439725-; H124SG, 31.1245.21 Skintact F-301
Clinical S30C
Article code
EC849998
Material Foam
Size (l x w) 30mm
Gel type Solid gel
Connector Carbon stud
Packing unit 30 electrodes (5 electrodes per strip)
Special features Radiolucent
Application area
Universally applicable Used for children and adults
Comparable with 3M™ Red Dot™ 2268 Skintact W-130C /3
ECG electrodes - Pediatrics
EECG electrodes - Pediatrics
Clinical S40ClinicalDinoS30B
Article code
EC849905
Material Foam
Size (l x w) 30mm
Gel type Solid gel
Connector 4mm fitting
Packing unit 50 electrodes (5 electrodes per strip)
Special features High level of patient comfort
Used for children and adults
Application area Universally applicable
Comparable with 3M™ Red Dot™ 2268
Clinical L40 Dino
Article code
EC849726
Material Foam
Size (l x w) 40mm
Gel type Liquid gel
Connector Stainless steel stud, Ag/AgCl
Packing unit 50 electrodes (5 electrodes per strip)
Special features With Dino print
Application area Universally applicable
Comparable with Swaromed REF 1008 Diddle Skintact F-40C

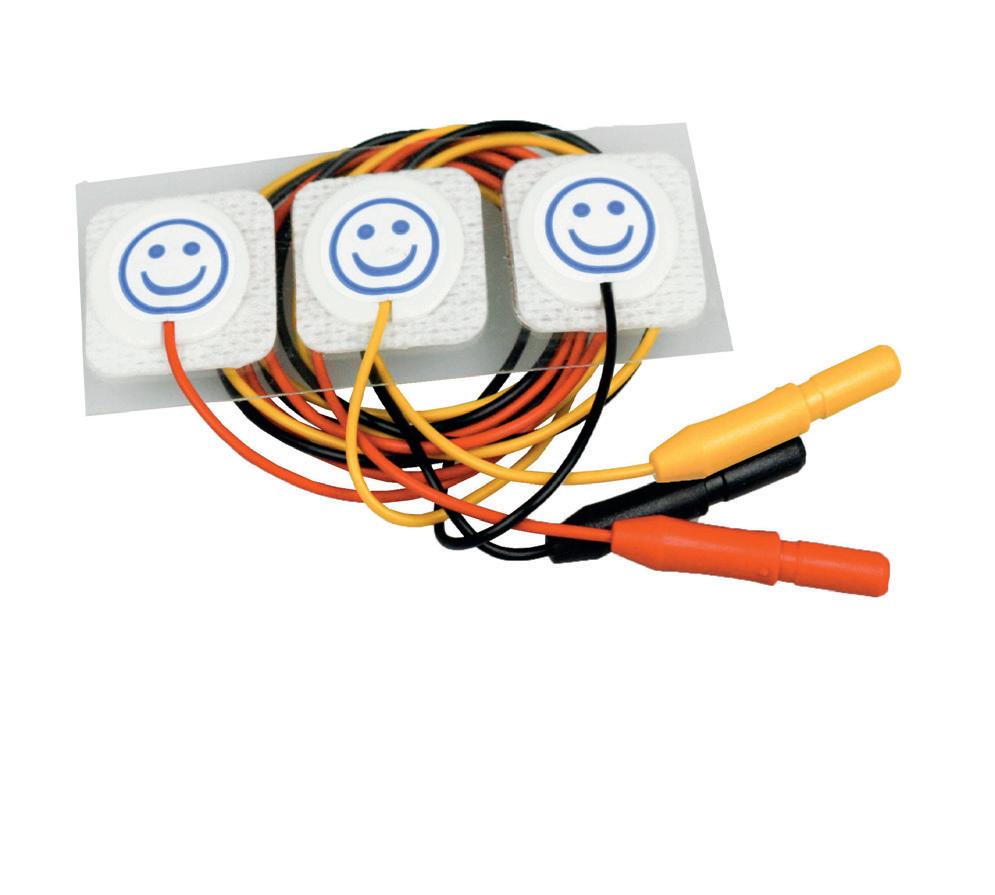

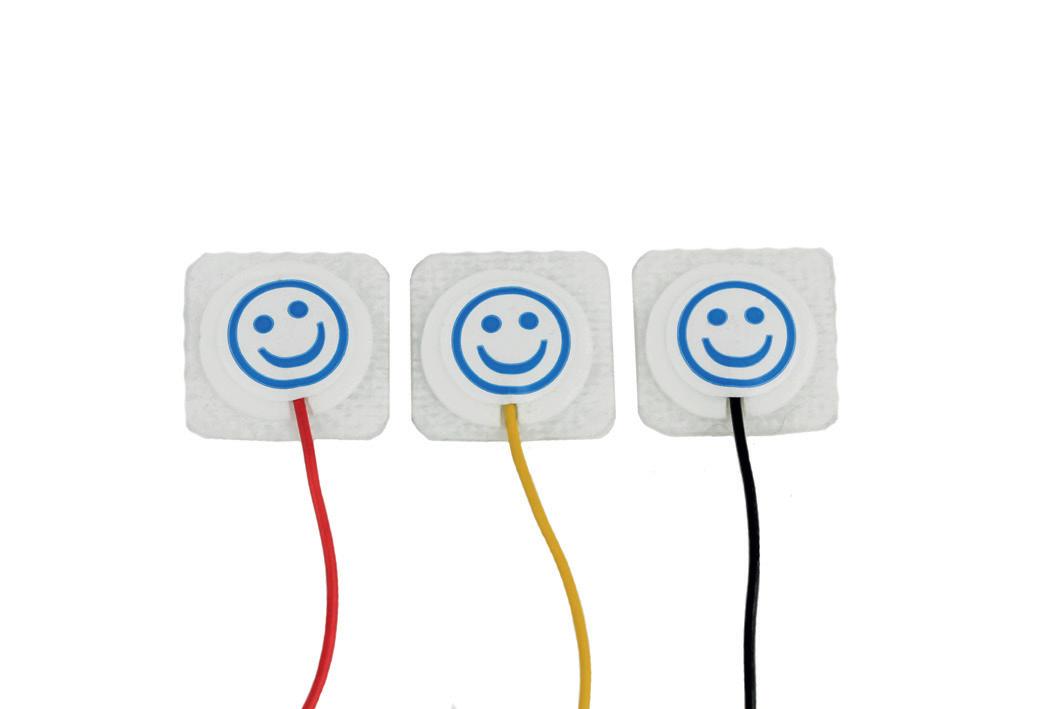

Clinical P22DR
Article codeEC849923
Material Fleece
Size (l x w)
22mm, with cable 60 cm
Gel type Hydrogel
Connector 1,5mm DIN connector
Packing unitPer strip of 3 electrodes
Special featuresRepositionable Radiolucent
Application areae.g. Incubators
Comparable with3M™ Red Dot™ 2269, 2282
Cardinal Health Kendall 1051NPSM, 31424743
Clinical P22BR
Article codeEC849925
Material Fleece
Size (l x w)
22mm, with cable 60 cm
Gel type Hydrogel
Connector 4mm fitting
Packing unitPer strip of 3 electrodes
Special featuresRepositionable Radiolucent
Application areae.g. Incubators
Comparable withCardinal Health Kendall H203GT Skintact PD-50-F4C
