GLOMEX 2026 - NOVITA'

SeaWebSat® OMNIX VLANS 8 ports

SeaWebSat® OMNIX VLANS 16 ports

“Not just a router, but digital peace of mind onboard!”

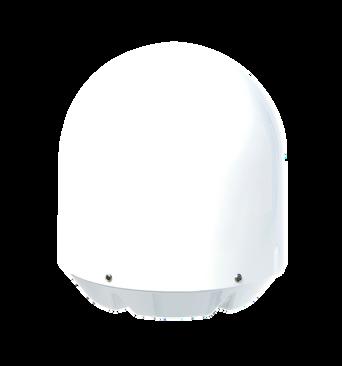

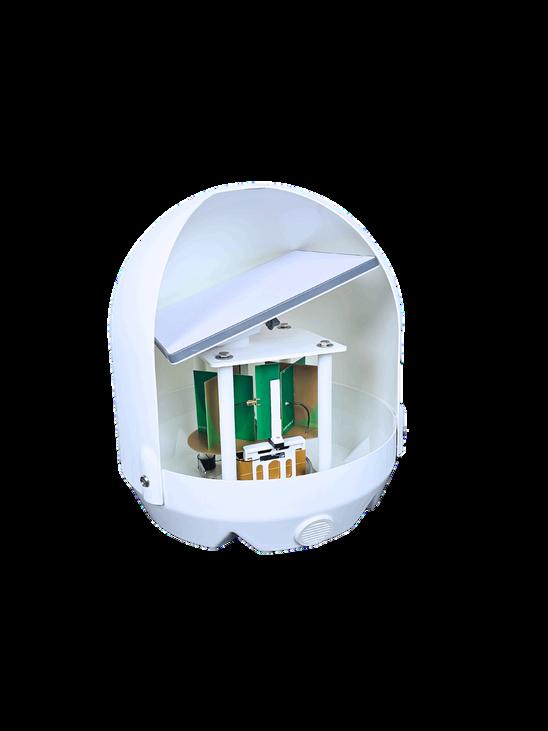

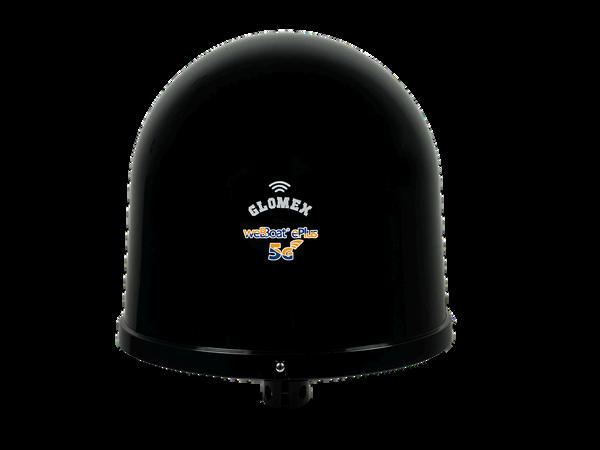

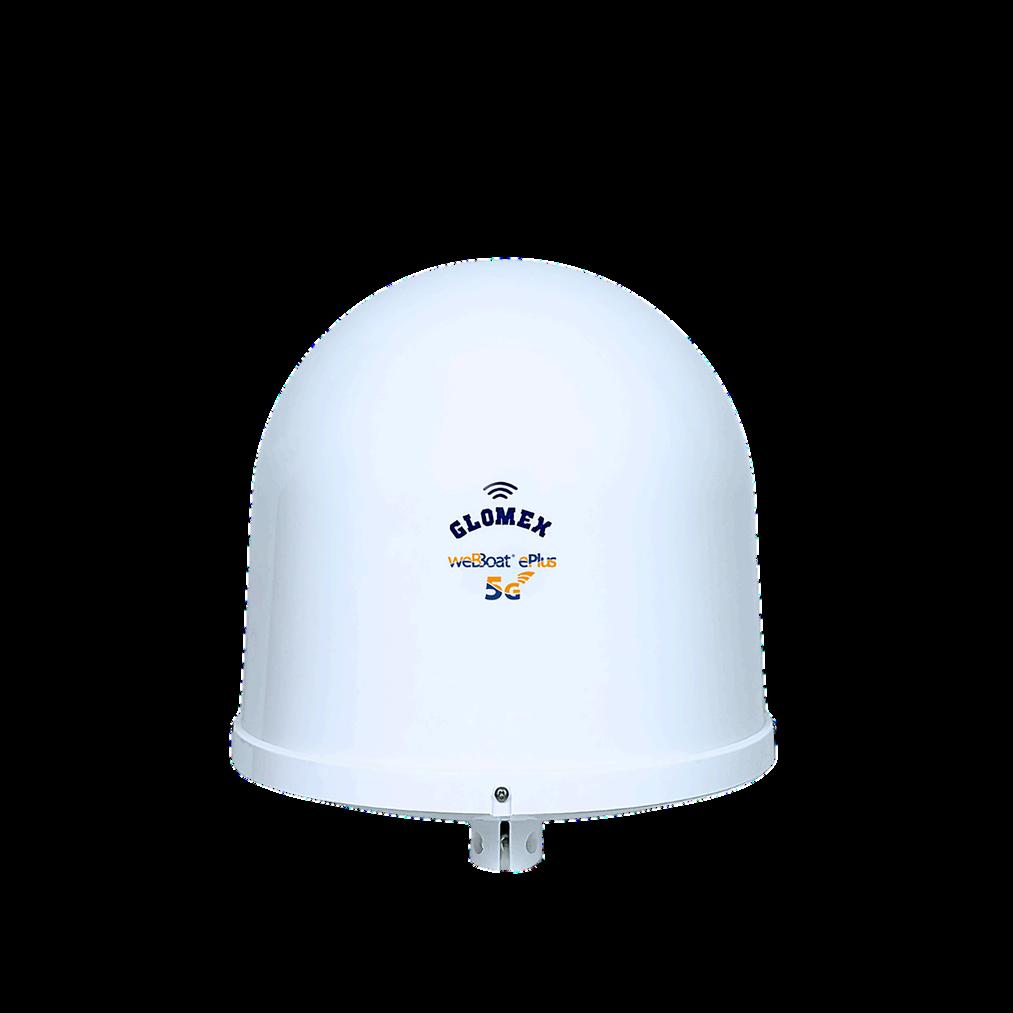

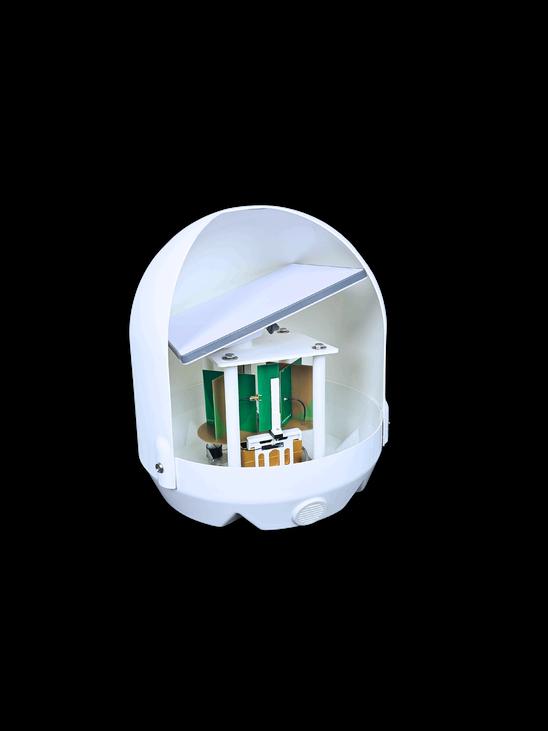

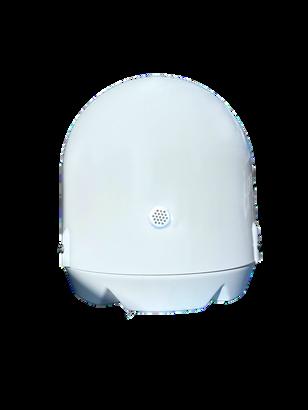

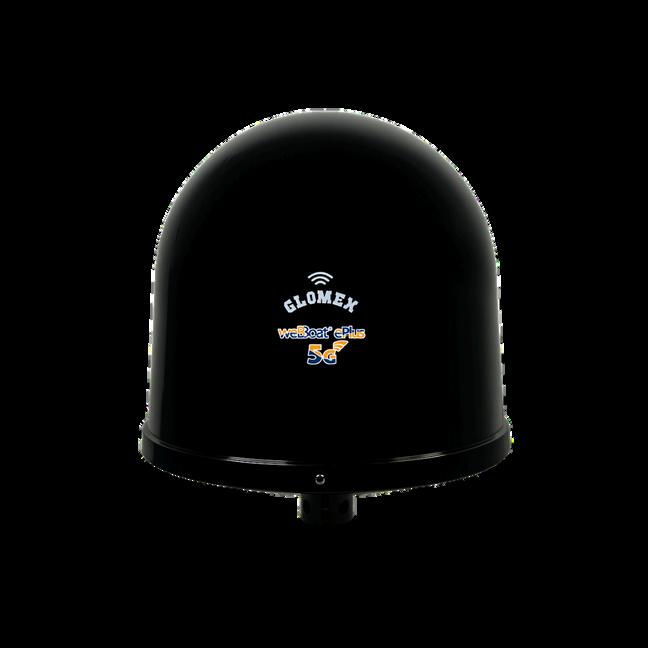

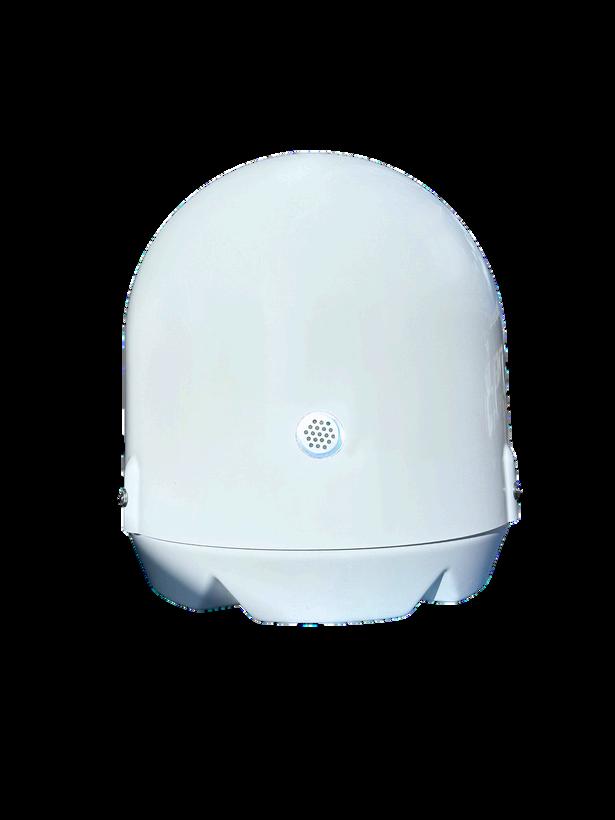

The core of SeaWebSat® OMNIX is an intelligent onboard router, housed inside a compact radome Ø 42 (16,5"), 52 (20,5"), or 66 (26") cm.

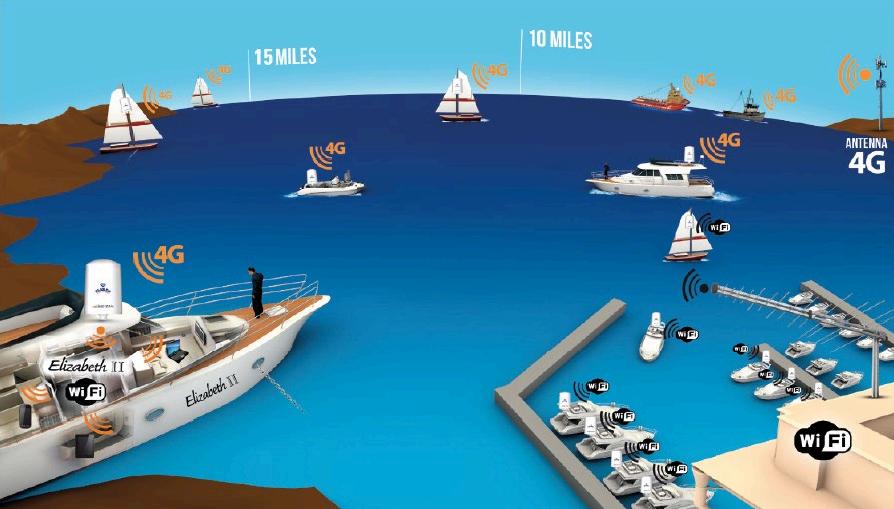

It automatically selects the best available connection, switching seamlessly between 5G/4G and Starlink®.

Acting as the single, secure onboard router, it manages both network privacy and cybersecurity. When the terrestrial 5G/4G signal weakens, Starlink® takes over instantly; as soon as the mobile signal returns, the system automatically reverts according to the assigned priority set via the Glomex weBBoat® app ensuring continuous, uninterrupted connectivity at sea.

on and Starlink® rypted Glomex peer-to-peer protocol,

Managed Switch

ep systems organized through Glomex

Flexible Conne multiple carriers and global coverage.

Easy to Use and install: Plug-and-play with Glomex dedicated App.

Unique router onboard: possibility to bypass Starlink or other routers

Fully compatible replacement to Glomex Sat Tv antennas and other brands drilling steps.

Available in 3 different dome size: 42cm (15"), 52cm (18") , 66cm (24")

(Ref p 8 for further details)

E-SIM

The new era of Mobile Maritime Connectivity

Are you still replacing SIM cards every time you run out of credit, your card becomes inactive, your roaming plan is used up, or performance and roaming costs become an issue?

You could be losing time, money, and most importantly connectivity. At sea, where reliability and speed are essential, traditional physical SIMs can become a limitation: replacing them requires manual intervention and is often impractical while sailing

This is where weBBoats with eSIM support make the difference.

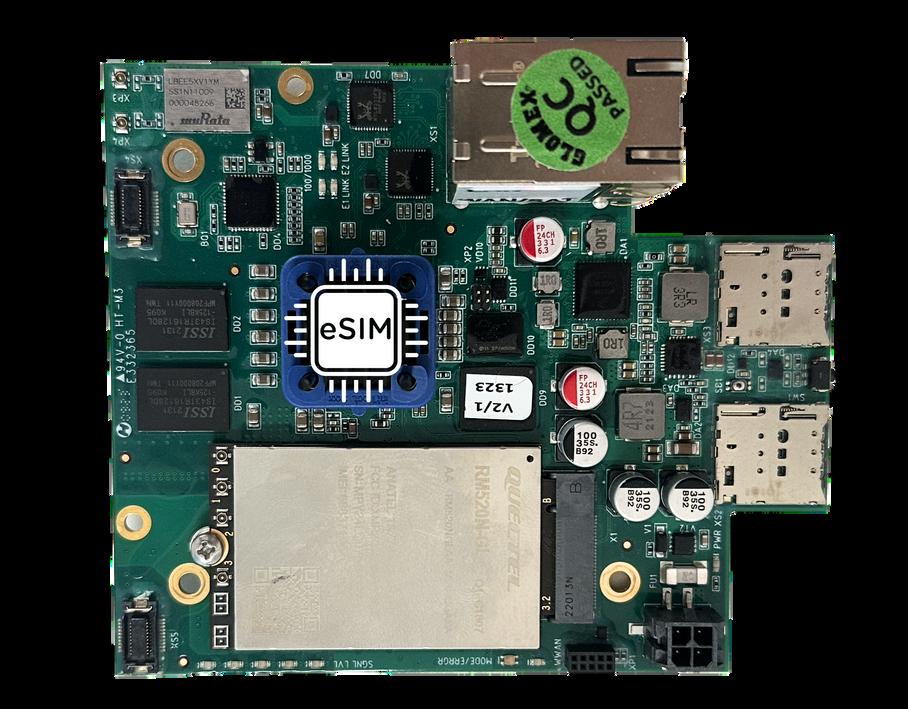

What is eSIM technology?

An eSIM (embedded SIM) is a digital SIM: there’s no card to insert, but rather a profile downloaded and activated on the router through the Glomex weBBoat® mobile app during the initial setup. This allows the device to connect immediately to the mobile network, without the need to replace or manage physical SIM cards

esim dedicated plans are available on the web. search on your browser for the best option of your area.

Sail without interruptions with weBBoat eSIM-enabled routers

Forget about changing SIM cards: with eSIM, you can download and activate your profile during the setup phase, no physical slot and no geographical limits

Total security: no SIM to remove or tamper with; profiles are protected, manageable, and can be disabled remotely.

Maximum freedom: change providers in just a few clicks, wherever you are.

Agility and speed: instant configuration, with no shipping or card replacements needed.

Always connected: if network performance drops, simply select another operator via eSIM with better coverage.

With the new weBBoat eSIM routers, your boat stays connected anywhere in the world in a simple, reliable way

Experienced sailors know that connectivity is not a luxury, but a vital service for safety, comfort, and work. With eSIM, the weBBoat range becomes even more versatile: delivering reliable internet everywhere, without the hassles of traditional SIM cards

Decentralized Connectivity for Maximum Privacy and Control

A Peer-to-Peer (P2P) connection enables devices to communicate directly with each other, without routing data through central servers. This approach is ideal for securely accessing any kind of devices, ensuring fast response times and enhanced privacy.

Main Advantages

Privacy: Data remains on board and does not pass through external servers.

Reliability: Each device is reachable via a unique key, enabling secure P2P connections from any authorized endpoint.

Security: Glomex uses a fully European P2P infrastructure, GDPR-compliant and free from non-EU servers

Speed: Direct device-to-device communication minimizes latency.

Why a European P2P Network Is Safer

A European P2P infrastructure guarantees that all data remains within the European Economic Area (EEA) and fully complies with EU privacy regulations There are no external routing paths or third-party access.

For Glomex, a European P2P network ensures immediate access, full security, and complete control for both shipowners and end users.

Onboard Subnet VLANs with SeaWebSat® and weBBoat®: your boat, your networks.

With VLANs implementation on SeaWebSat® and weBBoat®, you can create independent subnets for every need on board: from technical systems (engines, radar, batteries, chargers, echo sounder) to recreational networks, and even dedicated networks for the owner, guests, or video surveillance.

This approach ensures security, privacy, and reliability, reducing the risk of unauthorized access while guaranteeing that every system has the right priority and a stable connection.

“Separate to protect, unite to navigate.”

The 5 key advantages of Subnet VLANs:

• Maximum security – each network is isolated, protecting onboard systems from intrusions and interference.

• Guaranteed privacy – owners, crew, and guests enjoy dedicated networks, with no risk of cross-access.

• Stability and performance – critical instrumentation remains unaffected by recreational traffic (streaming, social media, gaming).

• Simple scalability – adding new networks (e g , video surveillance or additional onboard systems) is immediate.

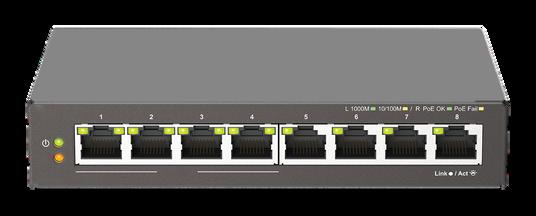

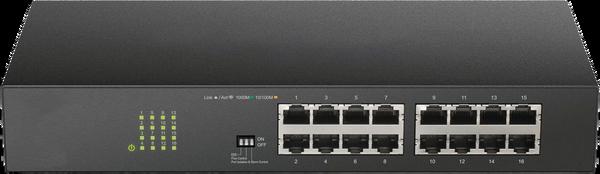

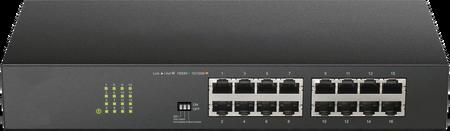

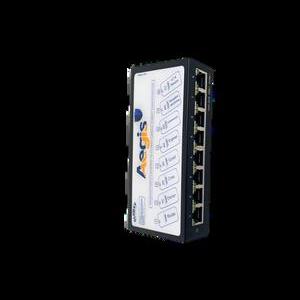

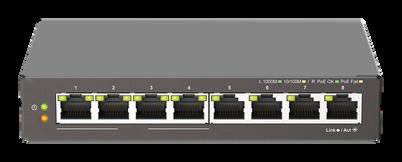

• Professional management – thanks to integration with an 8- or 16-ports managed switch, connections can be distributed and organized flexibly and centrally.

“One network, endless possibilities for control and security.”

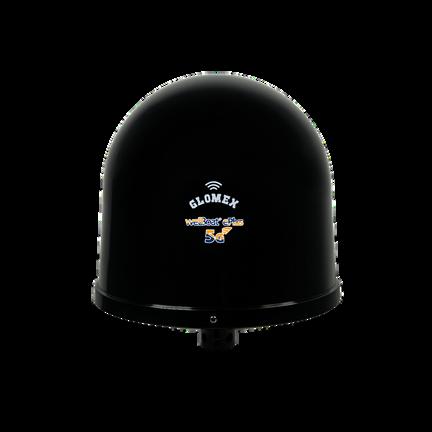

OMNIX Integrated Mobile Connection (5G/4G/3G) / Starlink® / European Peer-to-Peer System code: SWSO40

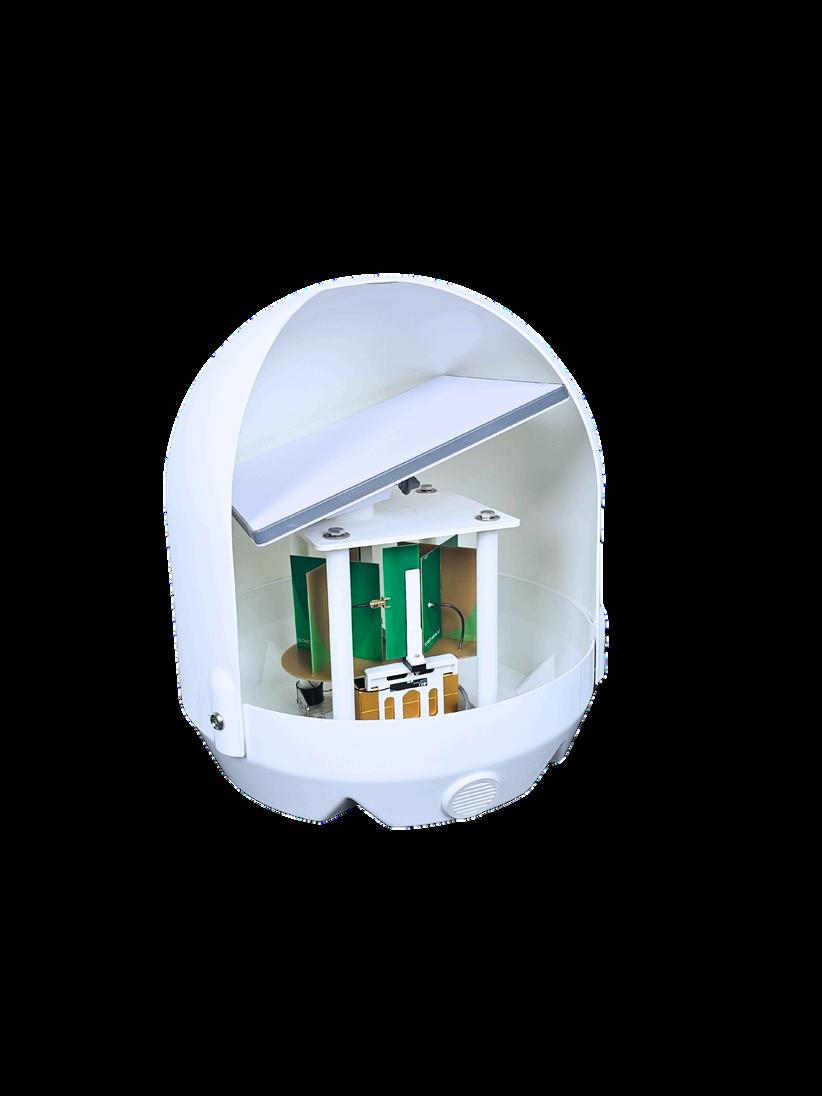

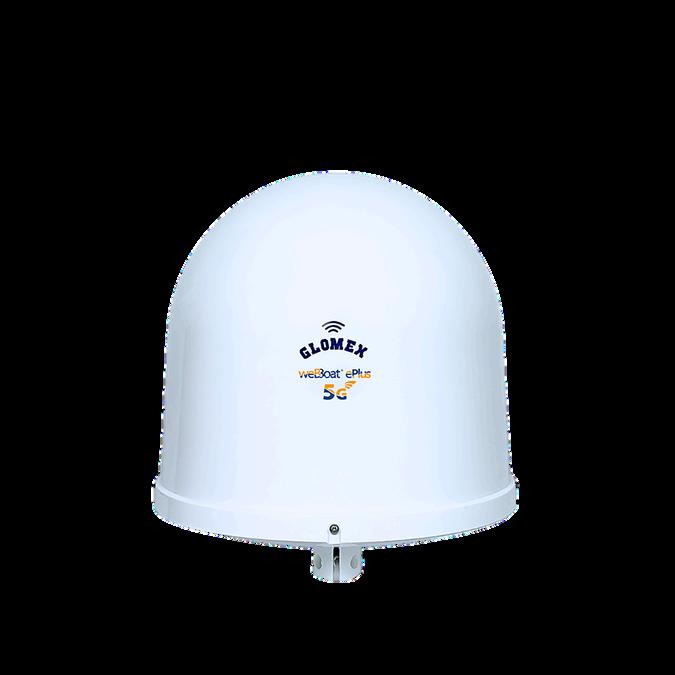

SeaWebSat® OMNIX is Glomex’s next-generation marine connectivity platform. It combines the best onboard technologies in a single intelligent architecture: 5G, Starlink satellite connection, and a European peer-to-peer network, delivering seamless connectivity, full security, and simplified management. S e a

The radome Ø 4

Webboat Co lot.

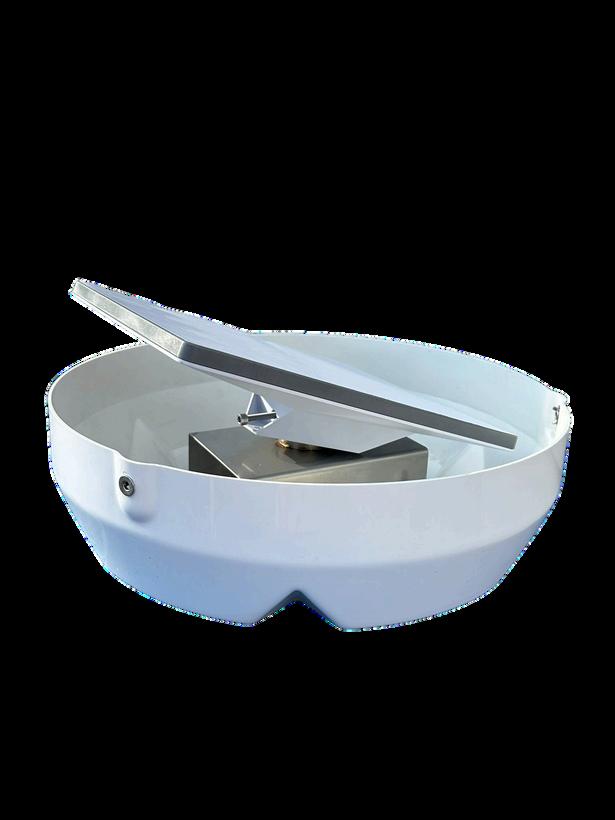

Integrable Starlink® Mini antenna for global satellite coverage.

SeaWebSat® OMNIX manages:

Network priority and automatic failover switch

Remote troubleshooting and service via the encrypted Glomex peer-to-peer protocol, fully GDPR-compliant and hosted on European servers.

Monitoring and management via the Glomex weBBoat® App

weBBoat® + Starlink® IN ACTION

MAIN FEATURES:

• Worldwide unit: for Europe, Middle East, North and South Americas, Australia, New Zealand, Africa and Asia (except for China)

• Physical Micro SIM and Multi eSIM support

• Subnet VLAN support (with external Managed Switch)

• Interent antennas: 4x 5G/LTE/4G/3G + 2 x

2 4/5GHz MiMo Wi-Fi antennas

• 5G: Up to 2 5Gbps in download

• 5G (LTE) CAT23: Up to 1Gbps in download

• WCDMA: Max 42Mbps in download

• CPU: Arm Cortex-A7 800MHz

• RAM: 256MB DDR3

• Radome: Ø 42 (16.5")

• Material: Marine-grade ASA, water-resistant and high-strength

• POWER SUPPLY: 10/30 Vdc

• Avarage consumption: 150 mA

• Autoswitch mode: with connection priority definition (Wi-Fi, Mobile, SAT/Starlink)

• Automatic APN

• SMS management function

• V-SAT/SAT internet autoswitch mode

• Switching cellular data to external Wi-Fi

• Encrypted real-time peer-to-

peerconnection for remote set-up and service

• Power Supply: 10/30 Vdc

• Average Consumption: 300mA

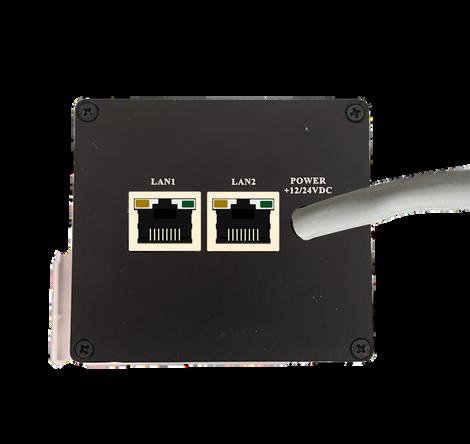

• Ethernet ports: 2 (1 LAN + 1 WAN)

OMNIX VLANs Integrated Mobile Connection (5G/4G/3G) / Starlink® / European Peer-to-Peer System AND 8-Ports Subnet-VLANs feature code: SWSO40/VLAN8, SWSO50/VLAN8, SWSO60/VLAN8

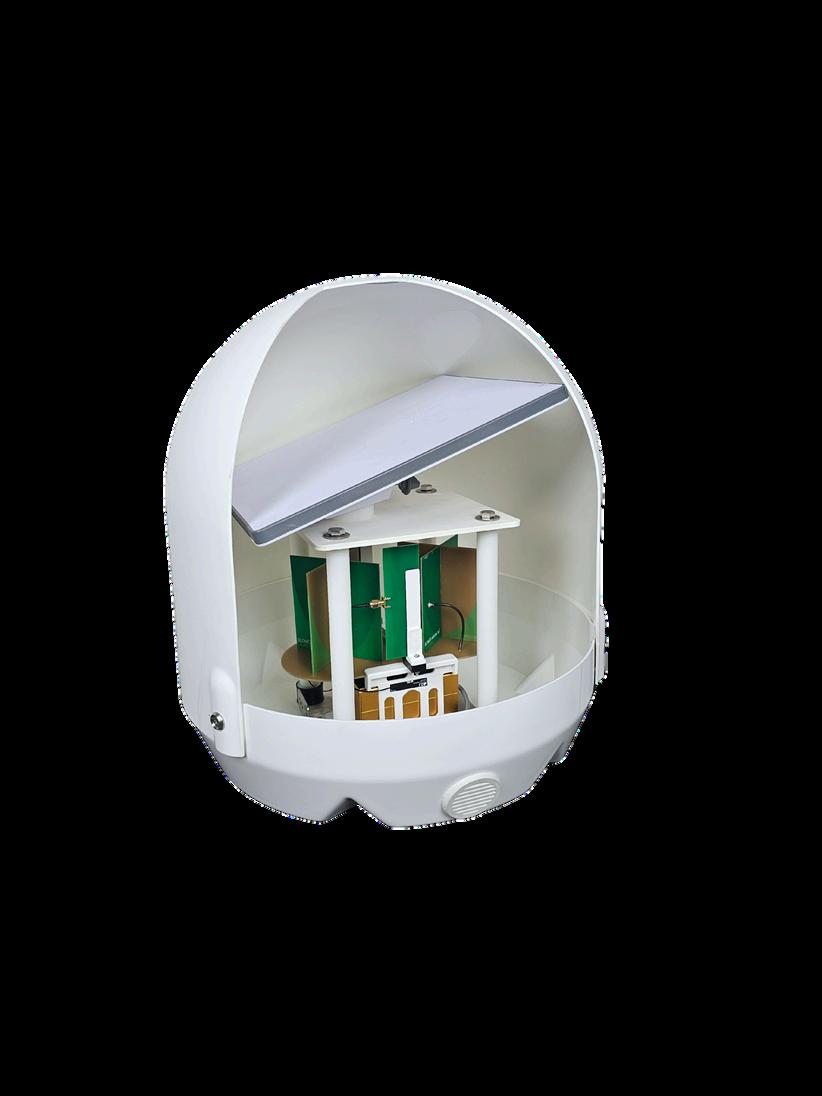

SeaWebSat® OMNIX VLANs is Glomex’s next-generation marine connectivity platform. It combines the best onboard technologies in a single intelligent architecture: 5G, Starlink® satellite connection, and a European peer-to-peer network, delivering seamless connectivity, full security, and simplified management. It also includes the new Glomex Subnet-VLANs feature. S e a W e b S a t ® A L

weBBoat® + Starlink® IN ACTION

Default ports configuration:

Subnets and VLANs Onboard:

More Order, Security, and Network Control

Using subnets and VLANs on the onboard router allows devices to be separated into distinct logical networks, reducing unnecessary traffic and increasing stability Each network area (navigation, guest access, onboard services ) can have dedicated rules, enhancing both security and management This approach limits unauthorized access and optimizes the use of available bandwidth.

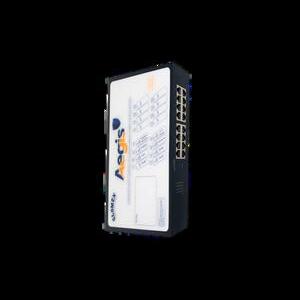

Aegis is available only for 2026 weBBoat ePlus 5G models with e-sim capabilities SeaWebSat OMNIX VLANs

OMNIX VLANs Integrated Mobile Connection (5G/4G/3G) / Starlink® / European Peer-to-Peer System AND 16-Ports Subnet-VLANs feature code: SWSO40/VLAN16, SWSO50/VLAN16, SWSO60/VLAN16

SeaWebSat® OMNIX VLANs is Glomex’s next-generation marine connectivity platform. It combines the best onboard technologies in a single intelligent architecture: 5G, Starlink® satellite connection, and a European peer-to-peer network, delivering seamless connectivity, full security, and simplified management. It also includes the new Glomex Subnet-VLANs feature. S e a W e b S a t ® A L

weBBoat® + Starlink® IN ACTION

Default ports configuration:

Subnets and VLANs Onboard:

More Order, Security, and Network Control

Using subnets and VLANs on the onboard router allows devices to be separated into distinct logical networks, reducing unnecessary traffic and increasing stability Each network area (navigation, guest access, onboard services ) can have dedicated rules, enhancing both security and management This approach limits unauthorized access and optimizes the use of available bandwidth.

Aegis is available only for 2026 weBBoat ePlus 5G models w bSat
