Contract Book

Parasols in project business

Glatz Superior sun protection with splendid radiance

The architectural demands on the outdoor areas of hotels and restaurants, public spaces, universities, leisure facilities and elegant estates require a wealth of imagination and specialist knowledge.

It is therefore worthwhile to discuss the approach to shading with our specialists at an early stage. The lasting message evoked by the right parasols is increasingly becoming a hallmark for outdoor locations.

A holistic shade solution requires quality from the first step to the last. Whether for planning, design, product development or project-specific individual solutions made to measure: we always strive for top performance when it comes to reliable sun protection for outdoor areas.

The Glatz project department has been committed to straightforward dialogue with national and international customers for years. Alongside sales partners, it assists architects, planners, interior designers, restaurateurs and hoteliers in their search for optimal shade solutions.

As the manufacturer, we support you with our many years of experience and consulting expertise, with innovative ideas, full technical support and our typical Swiss perfectionism. Welcome!

Glatz Contract

Visionary ideas require visionary enablers

If you, as an architect, designer, urban planner, contract fitter, restaurateur or hotel owner, want to replan and design an outdoor area on a patio or rooftop, at an entrance, or on a piazza in the city centre or by the water, you can use this opportunity to shape the long-term identity of your property and create a "place to be".

Finding the best possible shading solution in sophisticated and identity-establishing locations is a complex matter. Our shading professionals, with their decades of experience, are at your side so you can fully concentrate on your goals when it comes to your vision for the outdoor space. Your parasol ensemble is thereby always in top form, even in extreme weather and in particularly challenging locations.

Tailored shade comfort, practical handling, full shape harmony, lighting concepts for the right atmosphere even after sunset, super-secure fastening technology, stylish integration into the big picture and much more. The sooner you talk to us, the more efficient and easier the path to your goal will be.

Glatz Contract is your centre of excellence for individual property consulting and project-specific parasol solutions. We’ll never leave you stranded in the sun.

Do you want to get directly in touch with the manufacturer? Please do not hesitate to call us on +41 52 723 66 44

Glatz supports you in creating places where people get together

Your tool for project planning Contract Book

The earlier and more precisely you plan the outdoor shading space, the better the solution will be. The Glatz Contract Book is your practical tool for holistic shade planning.

Well-structured manual

For the best solution with Glatz parasols

Range of products

Specifically for the professional place of use

Fixations

The right solution for every situation

Standard accessories

Lighting, heaters, rain gutters and much more

Special product solutions

Made to measure

Project consulting step by step

Step 1

– Identifying the place of use (see page 12)

ຆ Large area outdoors

ຆ Small area outdoors

ຆ Terraces & rooftops

ຆ Public spaces & parks

ຆ Corrosive environments

Step 2 – Detailed situation analysis

ຆ Spatial conditions – Measuring the area, gradient & obstacles Parasol size & mass

ຆ What is to be shaded – No need to move the furniture Closing height

ຆ Surface characteristics & ground structure details Fixation

ຆ Weather conditions & weather influences – Wind, rain & snow Choice of material

ຆ Extreme locations – Wind & corrosion resistance

Stability & Corrosion protection

ຆ Observe the consulting guide for locations exposed to wind see page 14

Step 3 – Specific customer requirements

Ambiance

ຆ Outdoor Living – Harmony between the environment, architecture & furnishings

ຆ Frame colours, choice of fabrics & material

Usable area

ຆ Full coverage canopy solution

ຆ Open & flexible sharing solution

Handling

ຆ Quick & easy – Crank, tensioning lever, motor or pulley system

Customisation

ຆ Electronic systems – Lighting, heating, motorisation, ...

ຆ Textiles – Rain gutters, side walls, ...

ຆ Made to measure – Sizes, shapes, frame colours, ...

Parasols

Specifically for the project business

Giant parasols

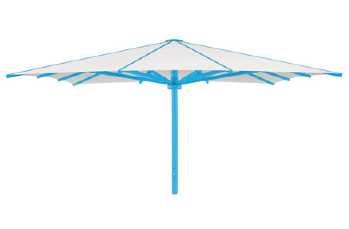

PALAZZO® Royal

A Swiss masterpiece

PALAZZO® Noblesse

The giant parasol for the ambitious

PALAZZO® Style

The stylish parasol

CASTELLO® Pro

The versatile allrounder

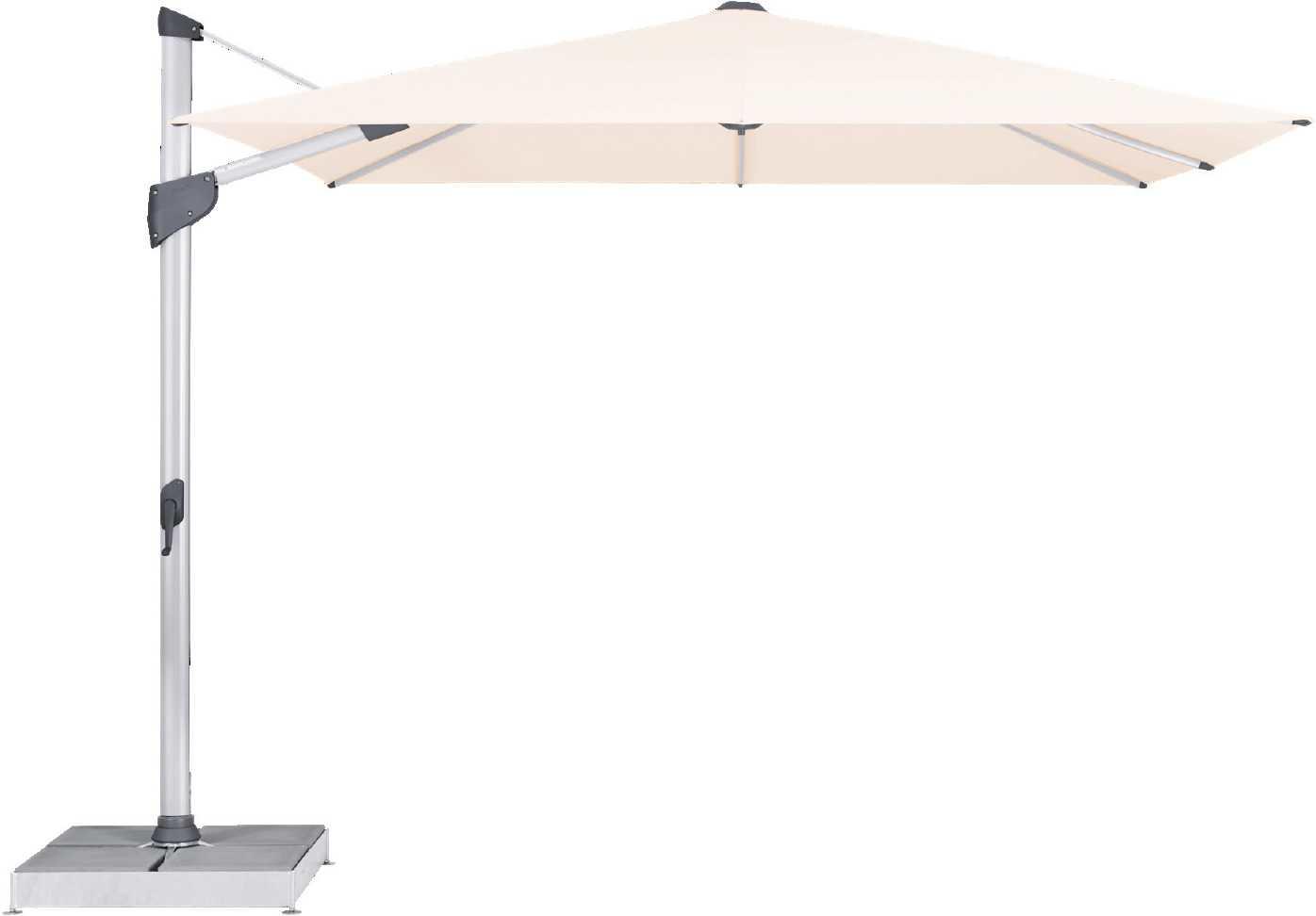

Side mast parasols

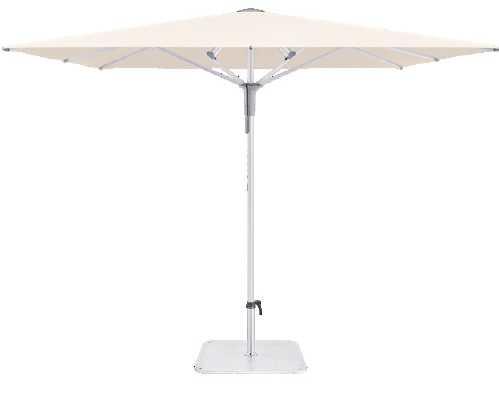

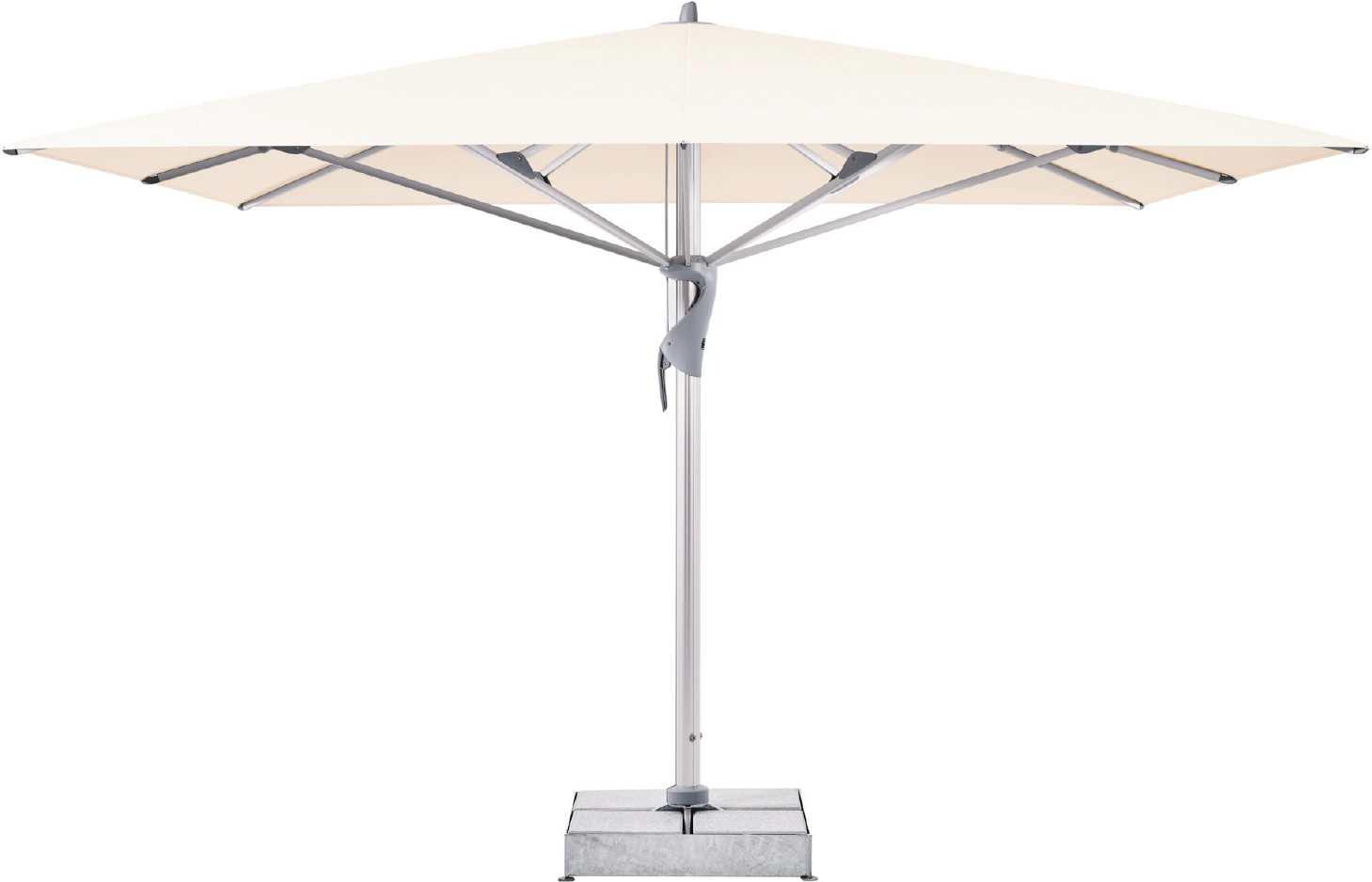

Centre pole parasols

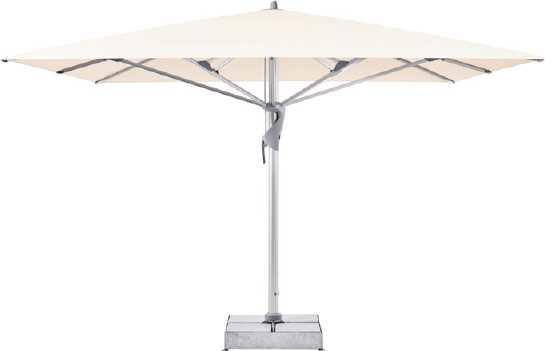

FORTELLO® Pro NEW

The large-size windproof parasol

FORTERO® Pro NEW

The medium-size windproof parasol

FORTINO® Pro NEW

The compact windproof parasol

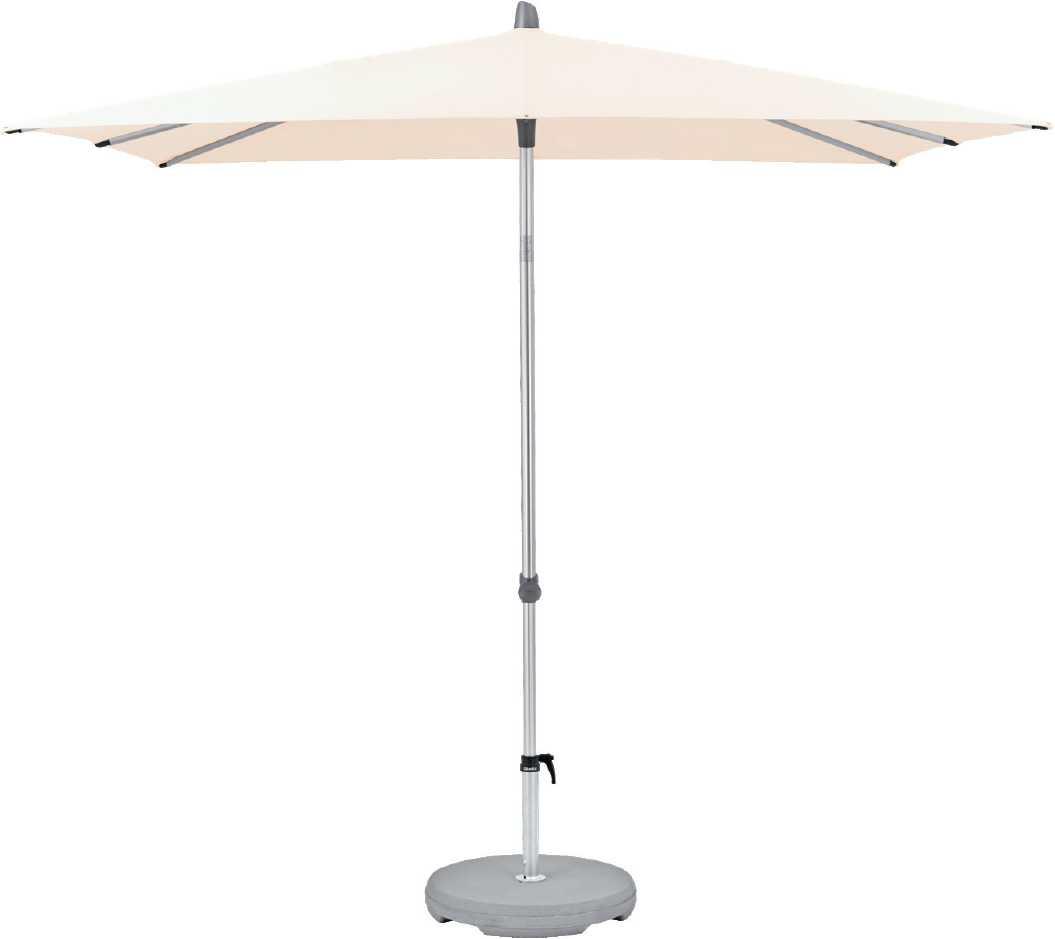

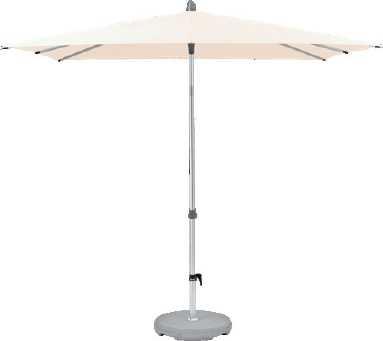

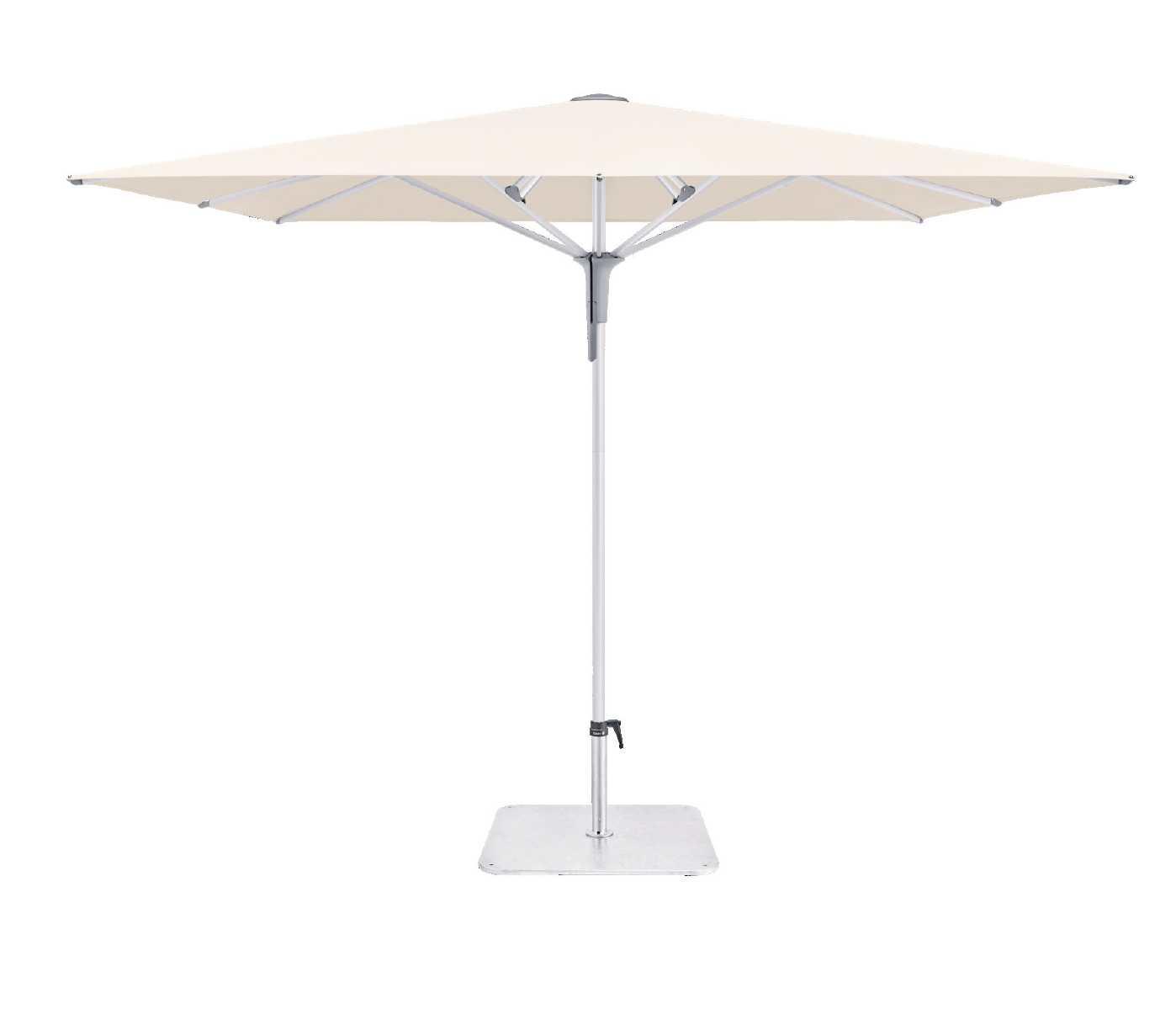

ALU-SMART

The small and adaptable parasol

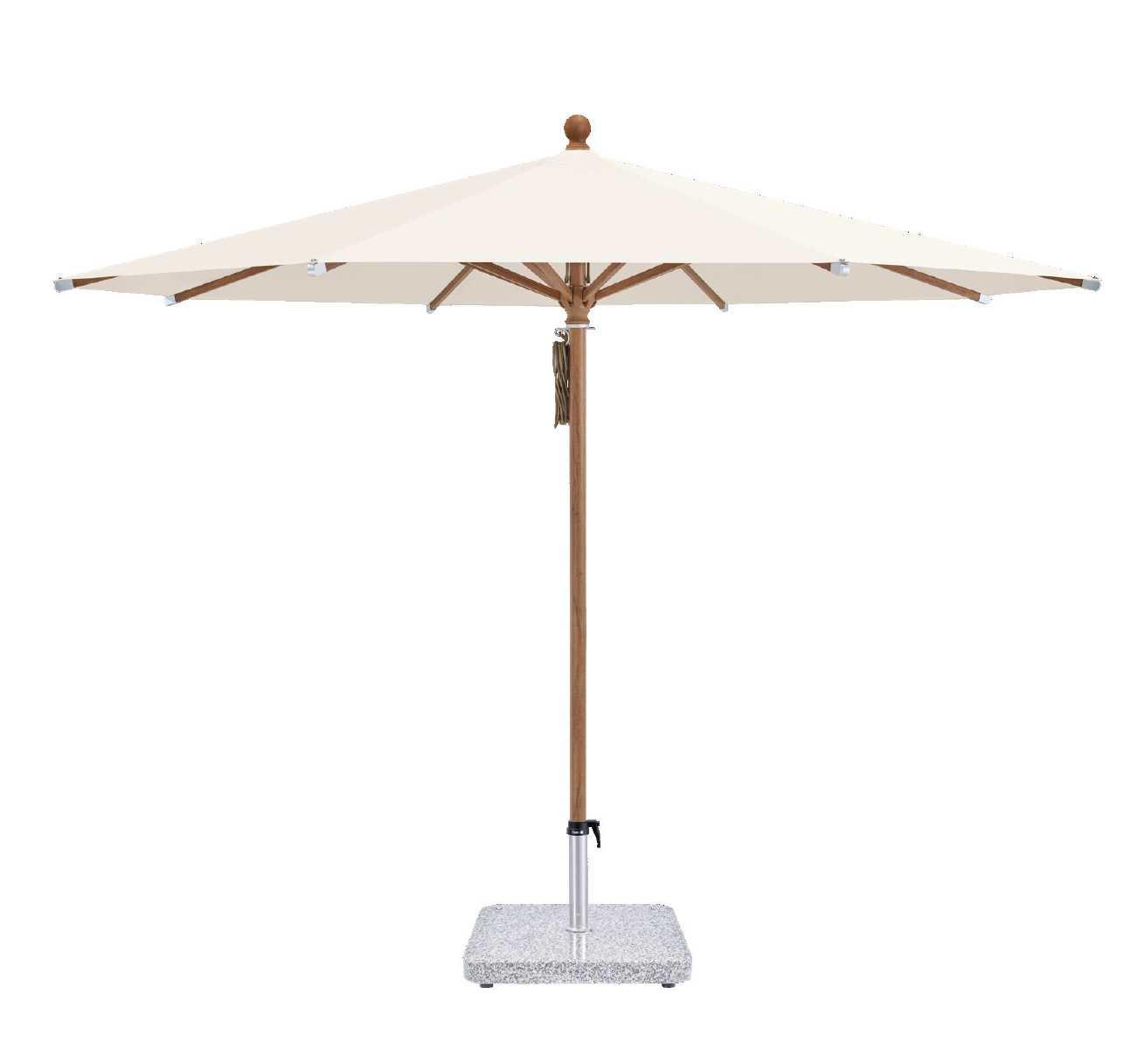

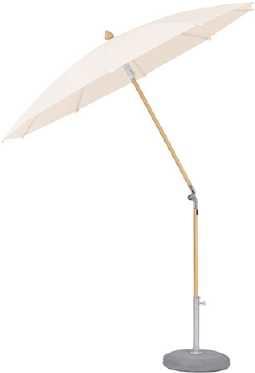

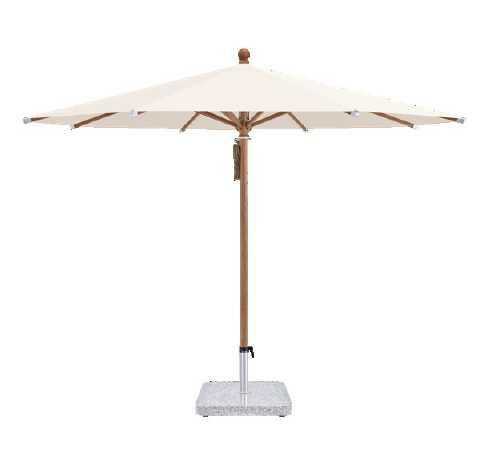

Wooden parasols & Aluminium wood look

The queen of the side-mast parasols PI

ALEXO® AMBIENTE Nova

PIAZZA® NEW

The wind-stable in wood look

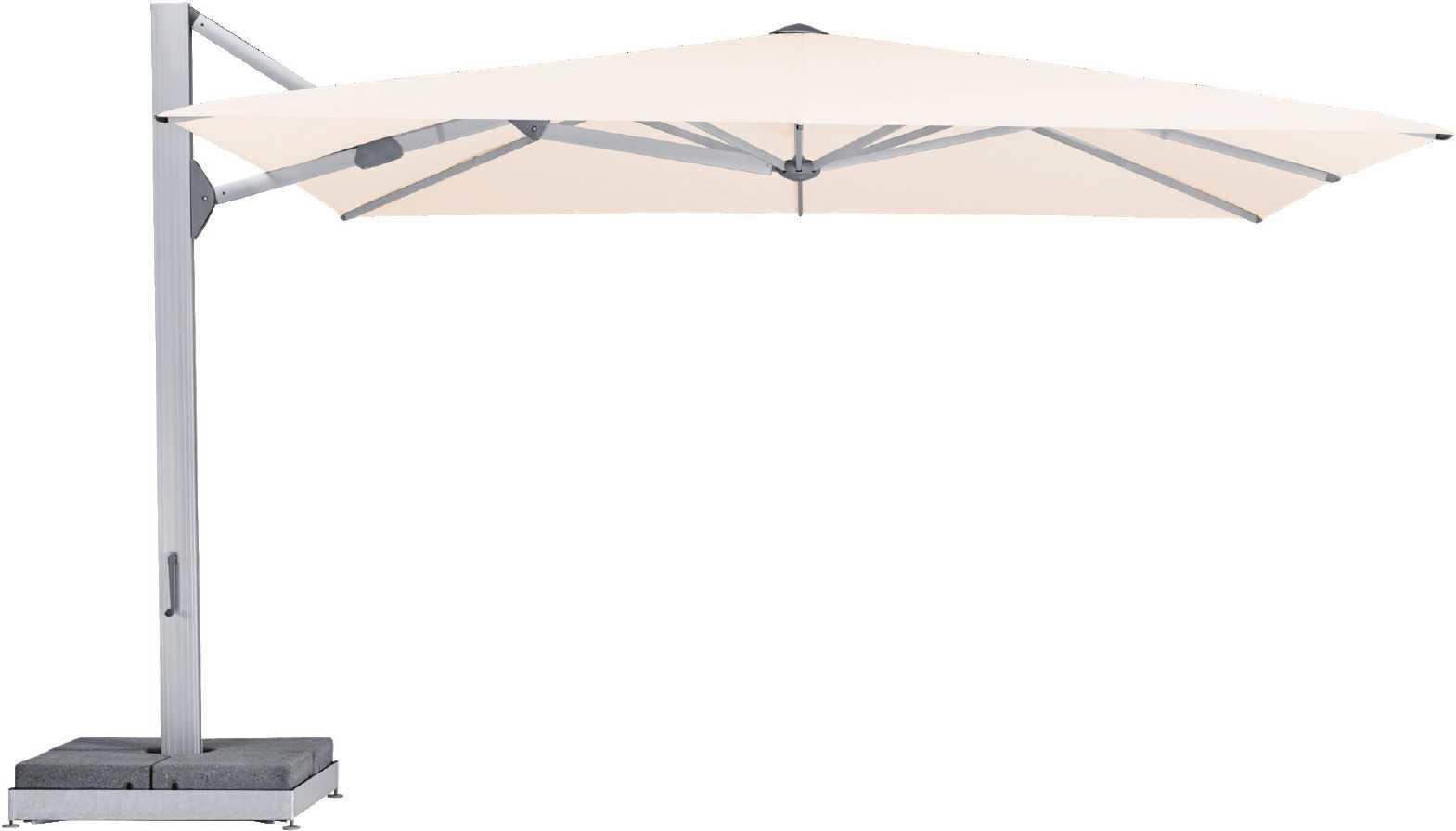

FORTANO®

The windproof side-mast parasol

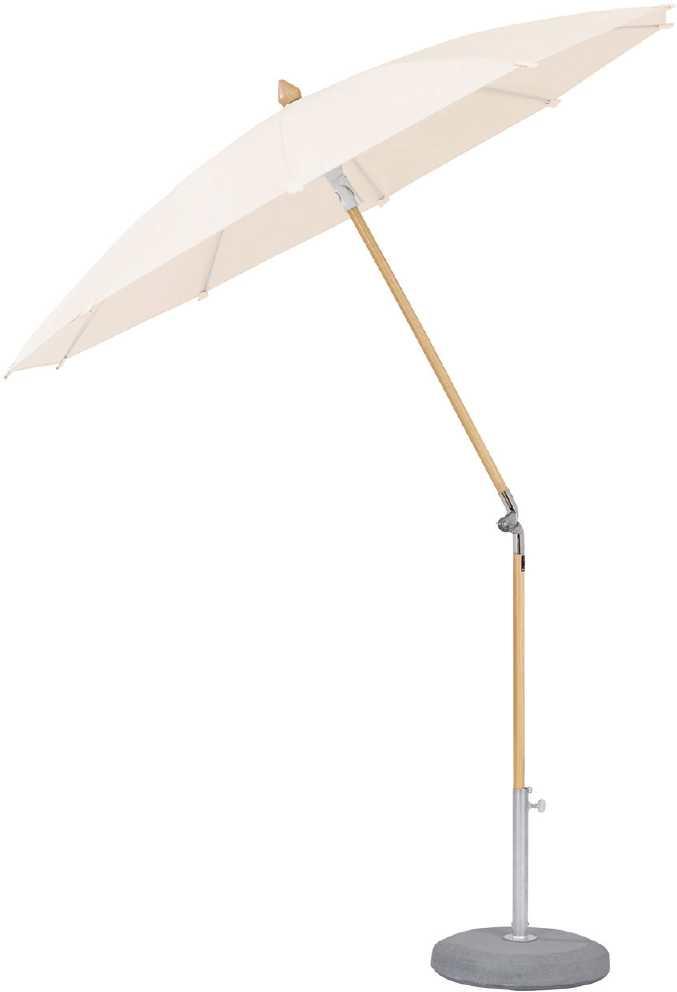

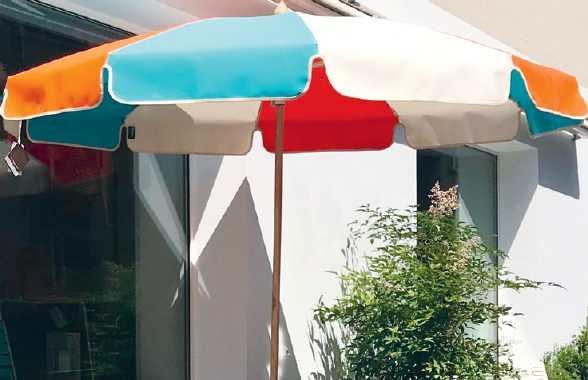

The classic parasol since 1931

Architecture, environment, furniture in harmony Places of use

When people meet outdoors, they want a beautiful shady spot. It’s not just the aesthetics of parasols that are part of modern architecture and landscape design – people often associate an emotional relationship with their favourite spot of shade under the sun.

Glatz Contract makes sure that the inner value matches the property. We focus on the factors of wind stability, handling, customisation and design, fabric quality, fastening technology and much more.

As a partner, we are at your side with our parasol expertise, from situation analysis to implementation. Whether idyllic hostels in the country, cool boutique hotels in the city, stylish rooftops, trendy restaurants, summery beach cafés, urban pedestrian zones, public meeting places, holiday resorts or playgrounds and parks – these spaces all have one thing in common: they are the sought-after attractions where people meet and enjoy themselves.

The right parasol for your place of use

Glatz has analysed the various locations and categorised them into similar or consistent places of use. Depending on the location, Glatz recommends a model selection tailored and geared toward the situation.

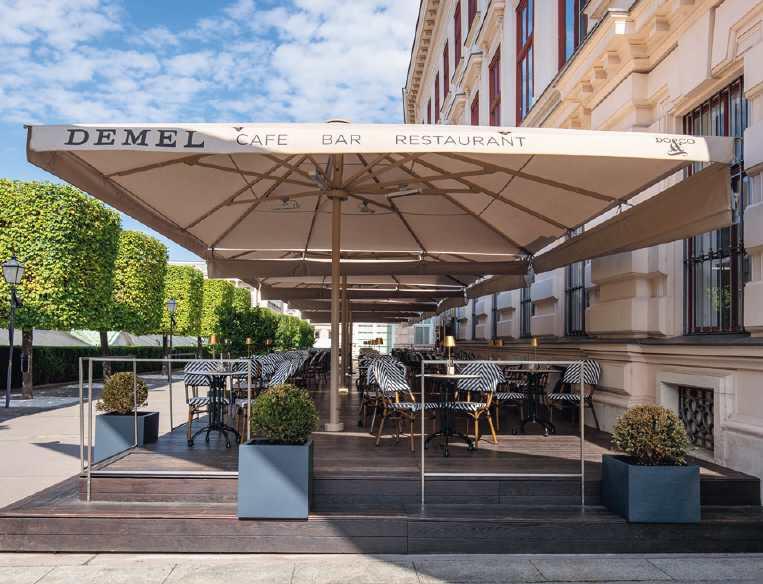

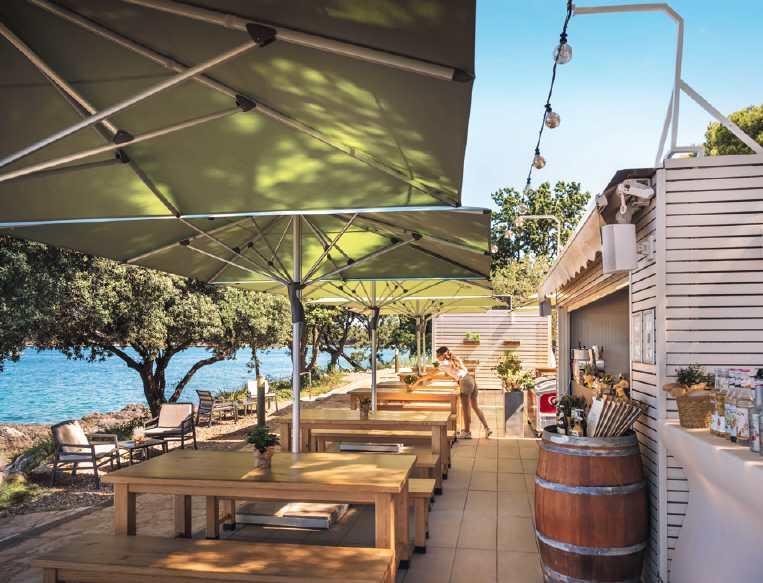

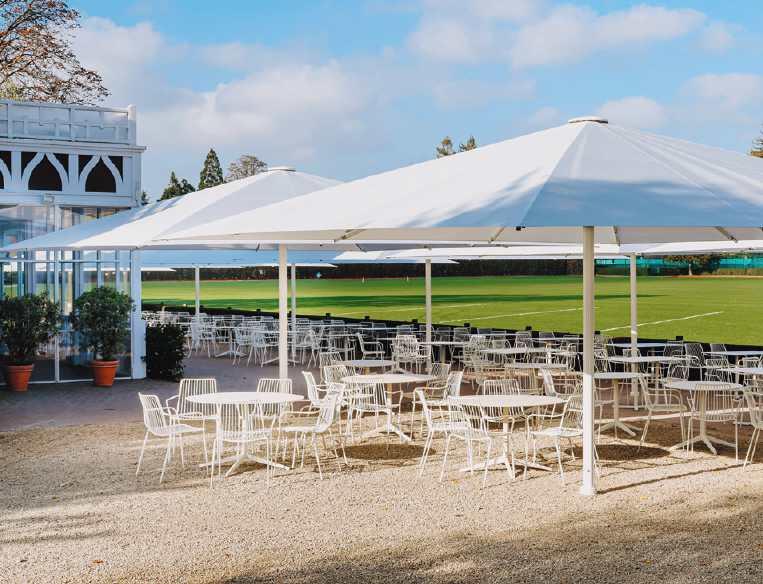

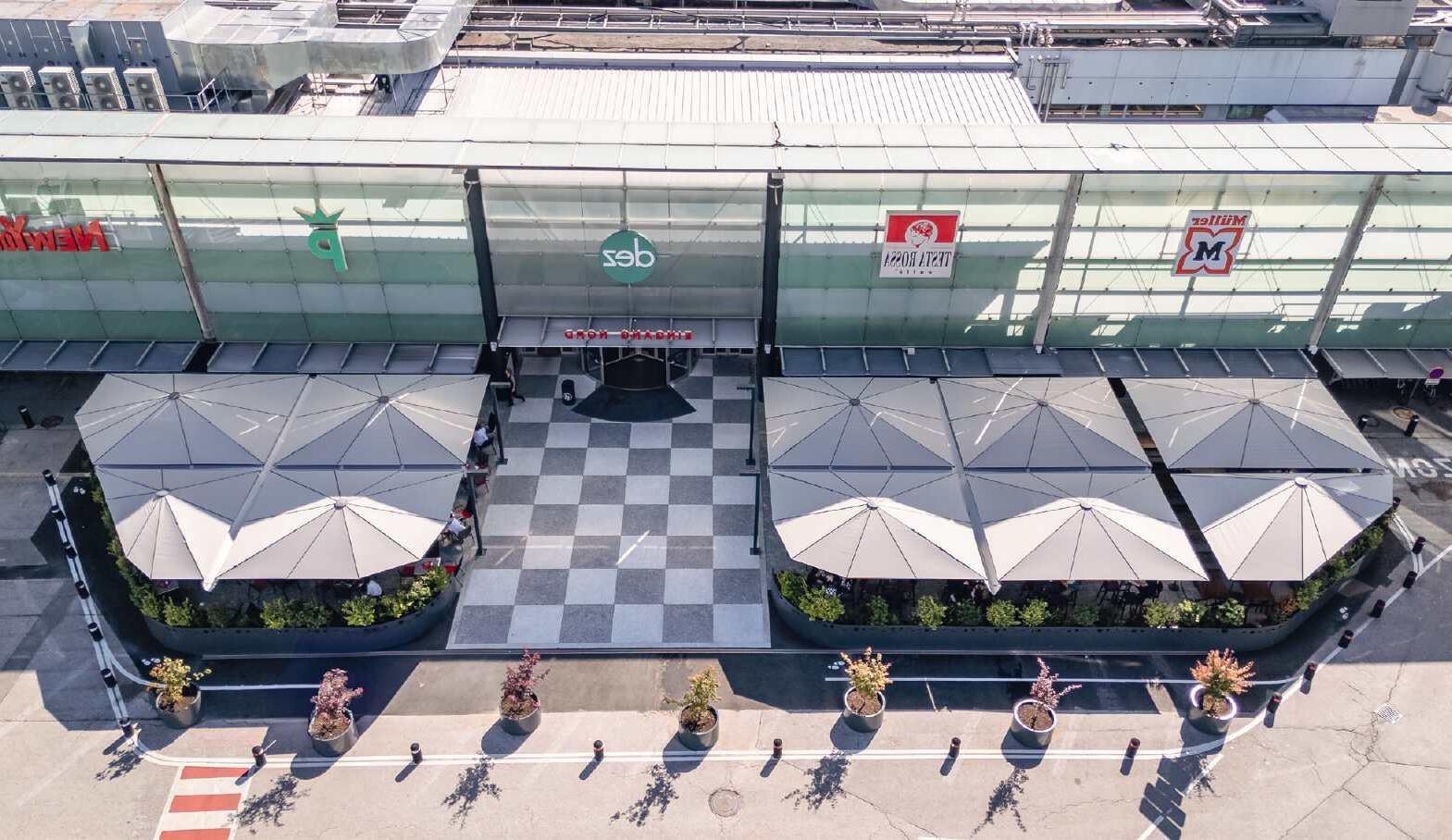

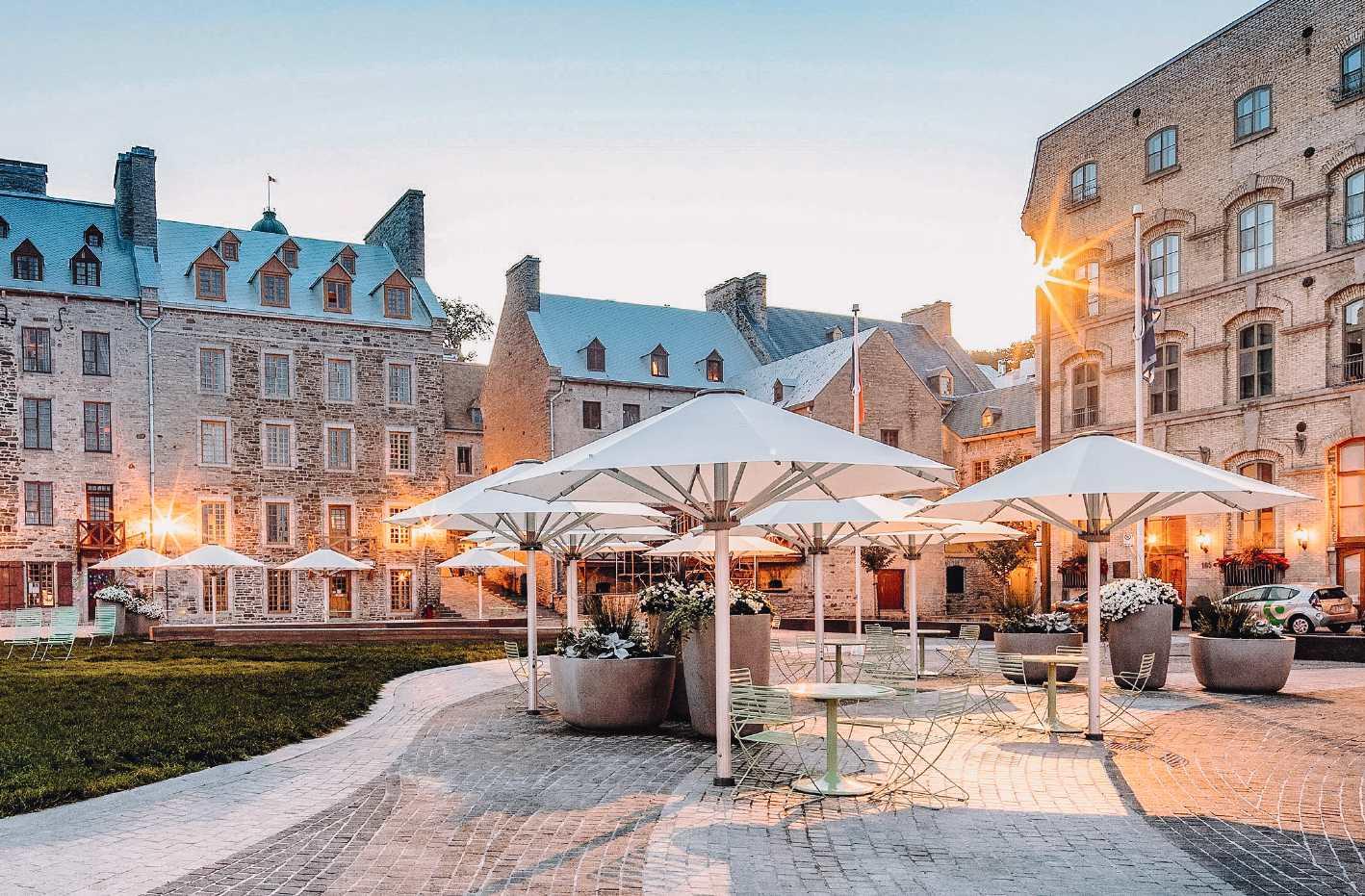

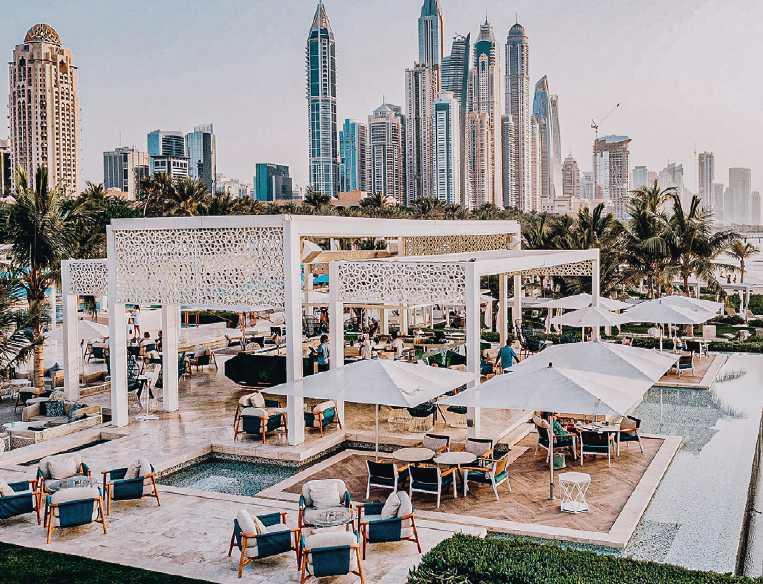

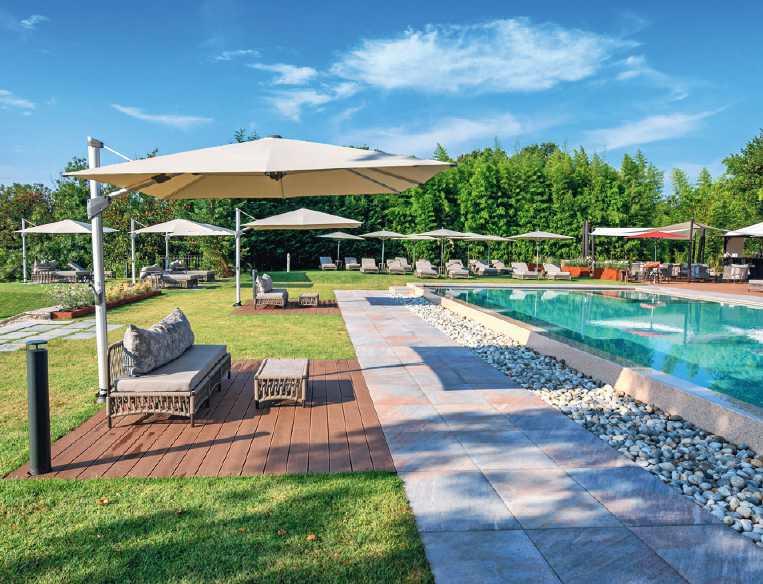

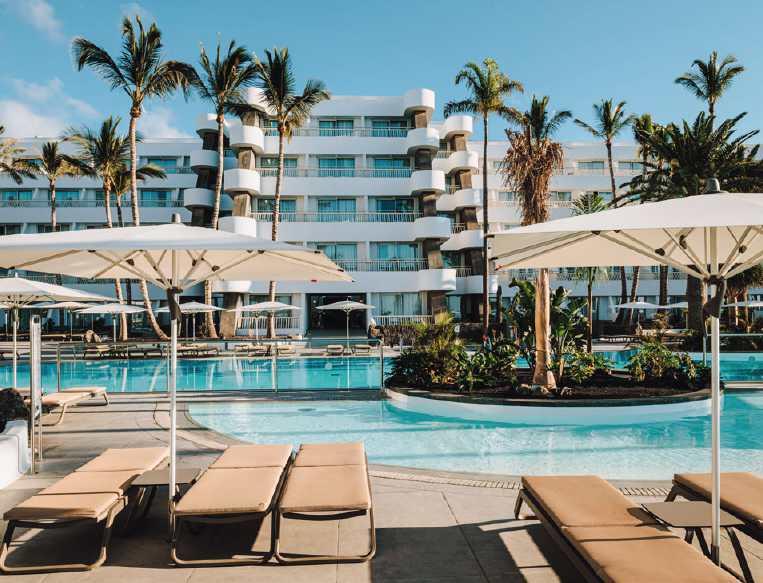

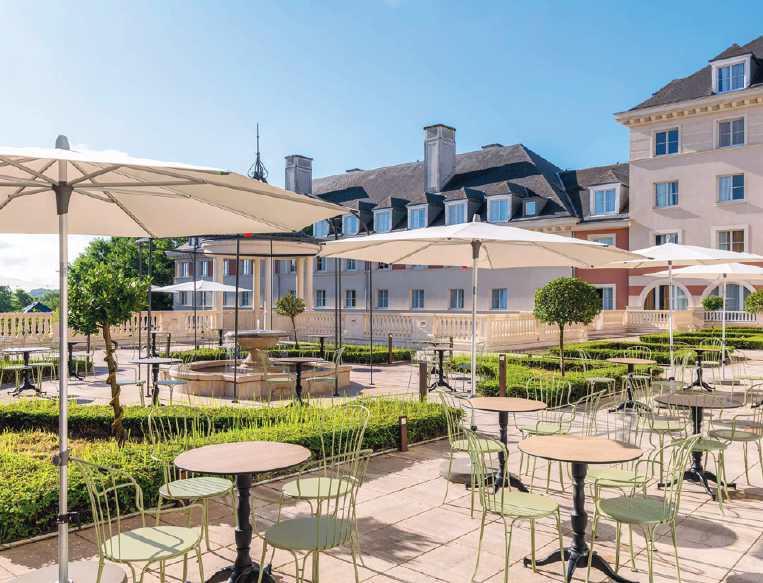

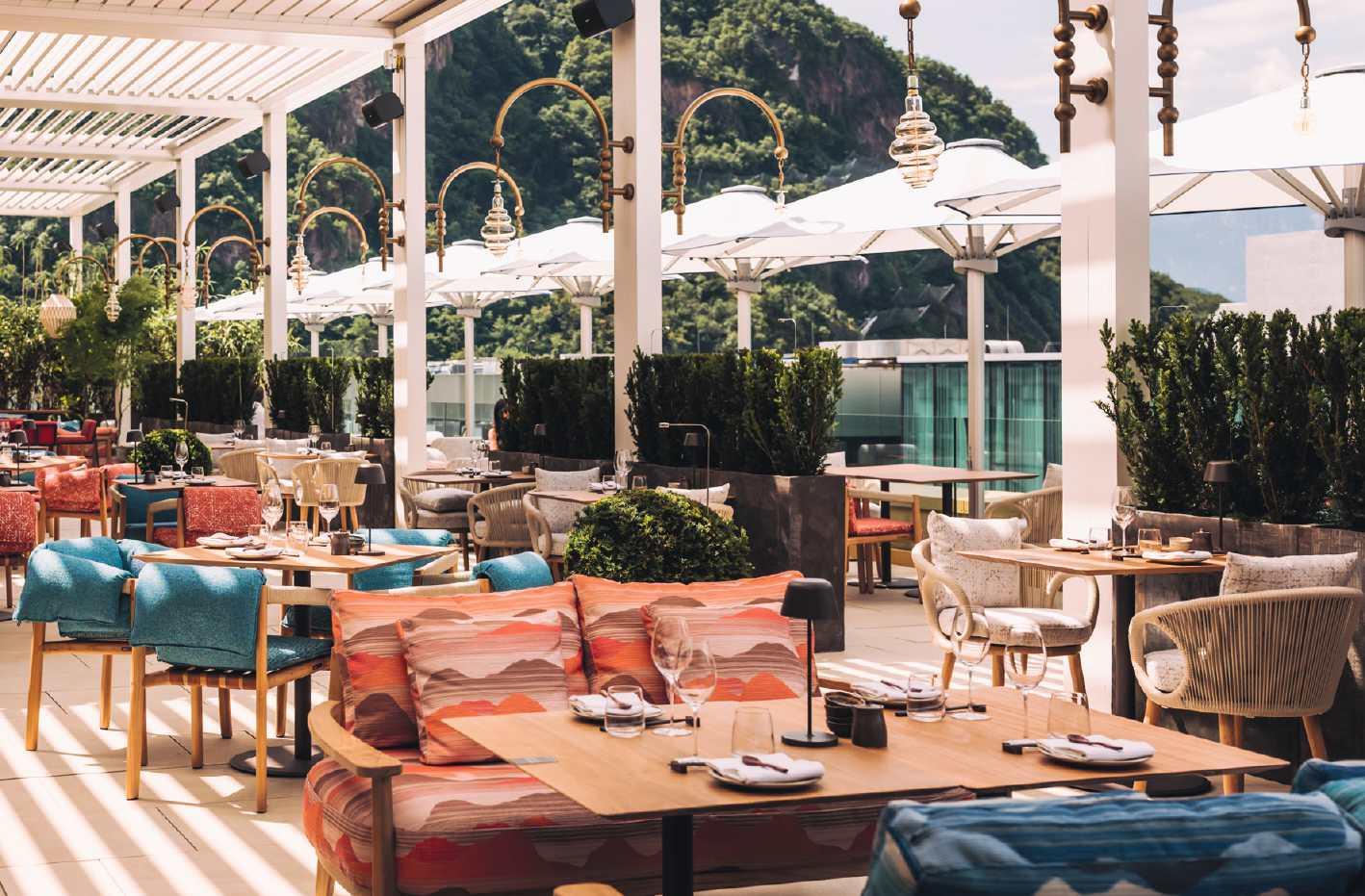

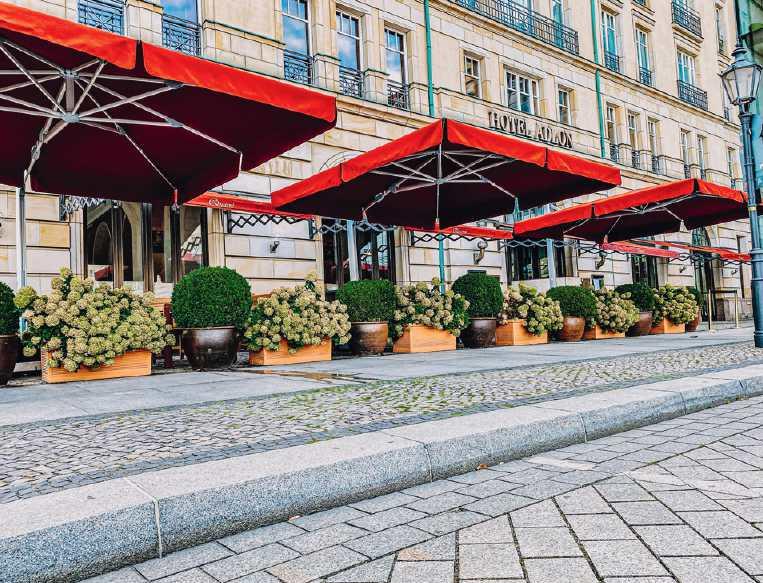

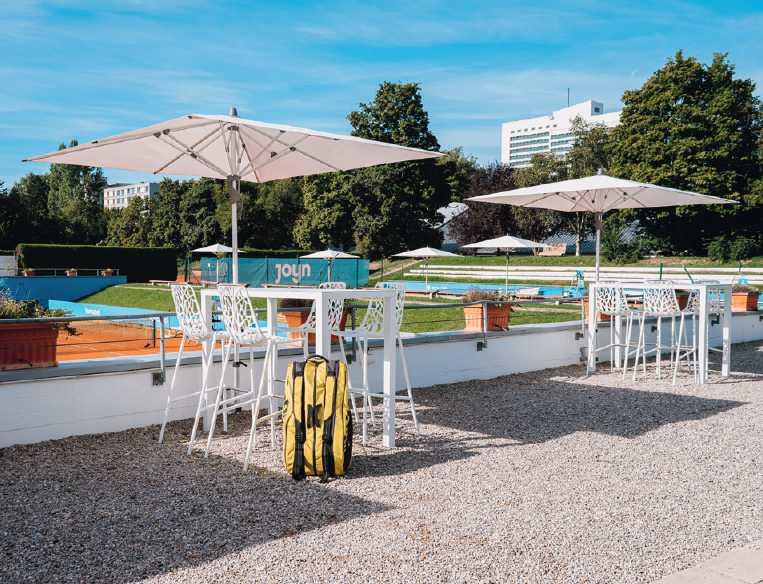

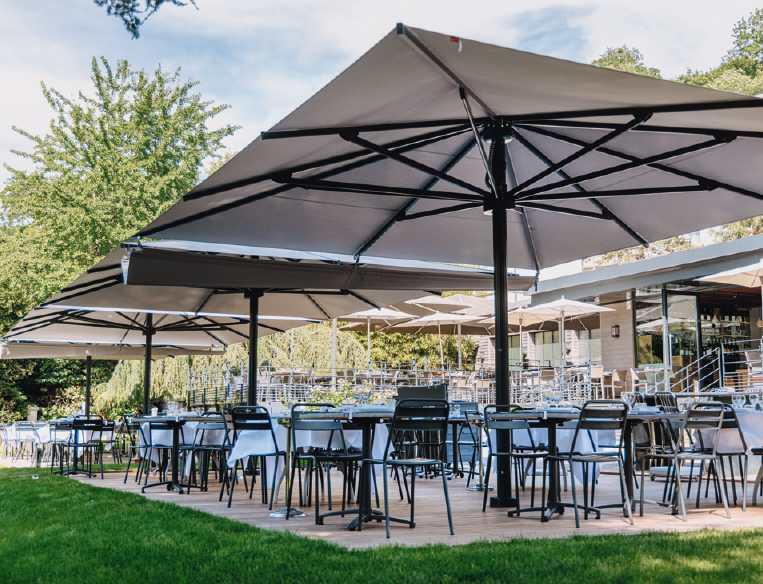

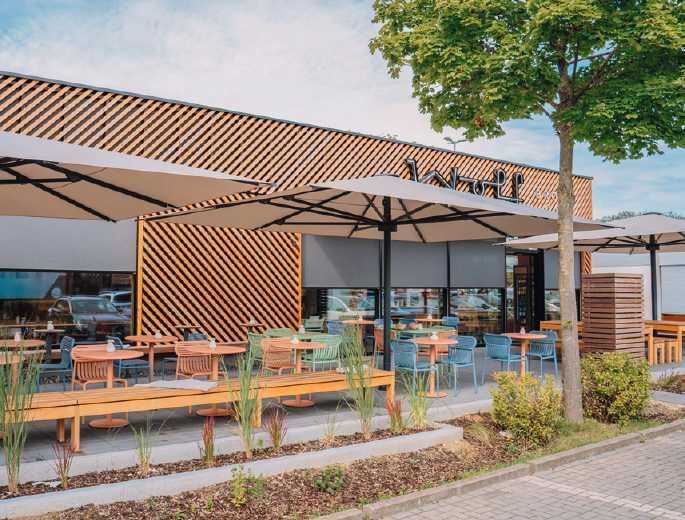

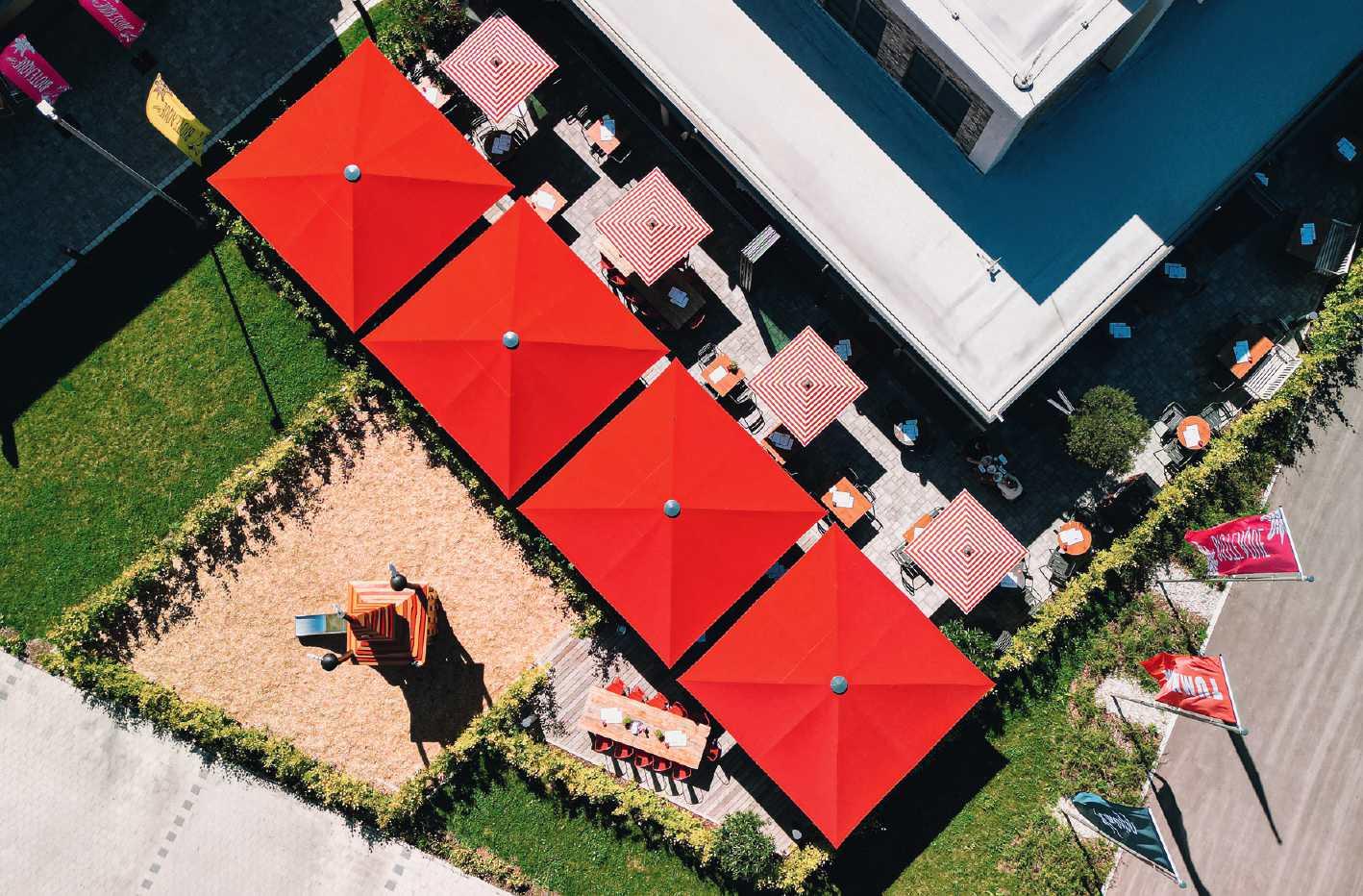

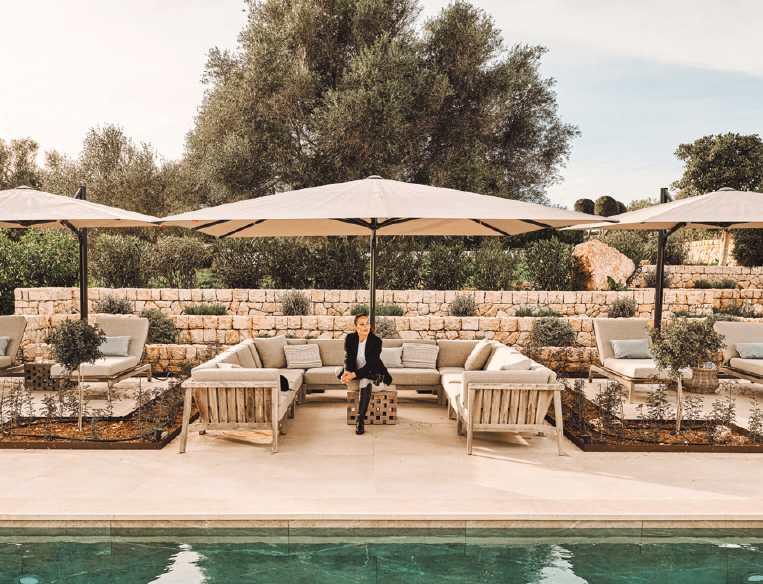

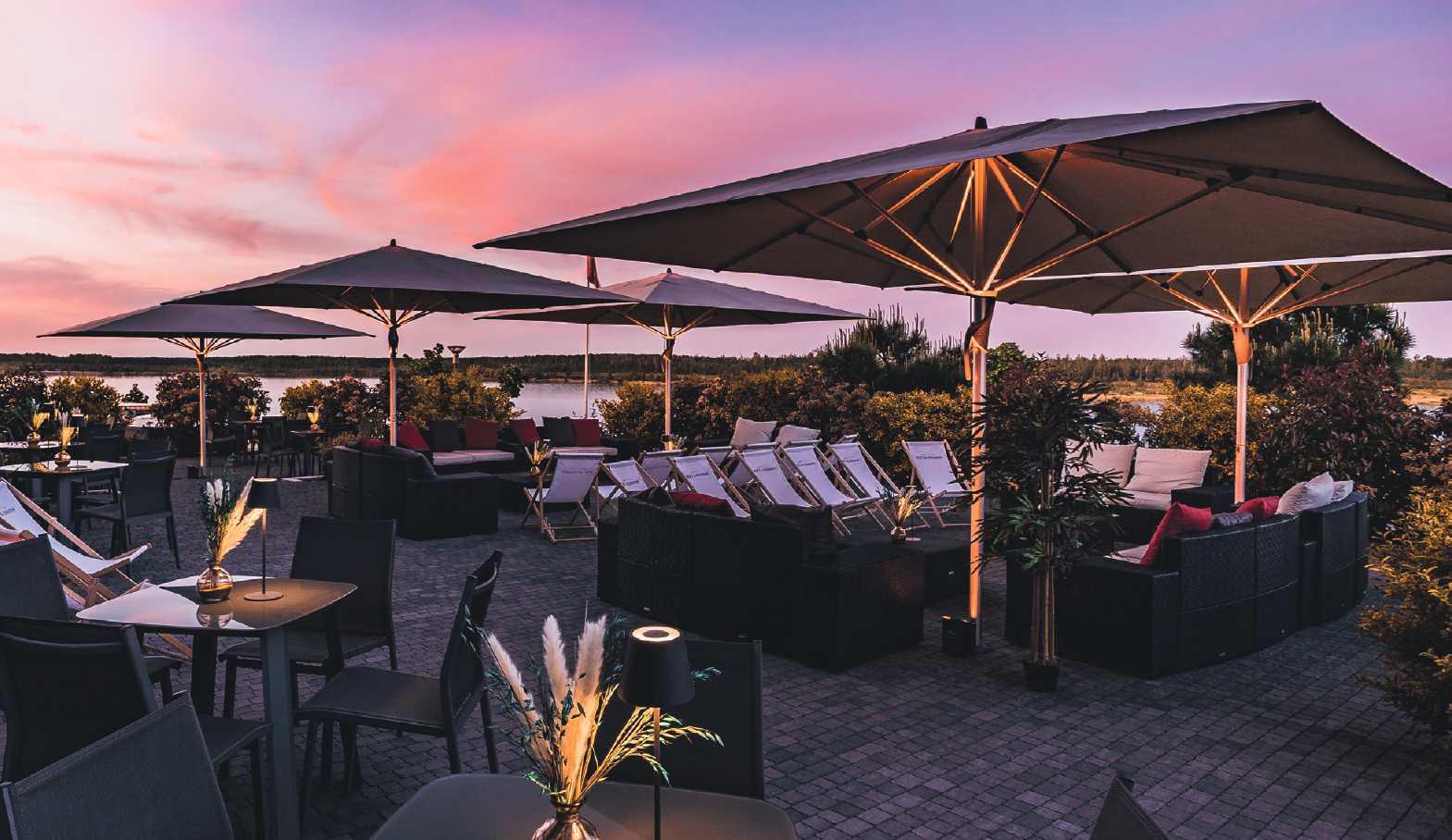

Large area outdoors

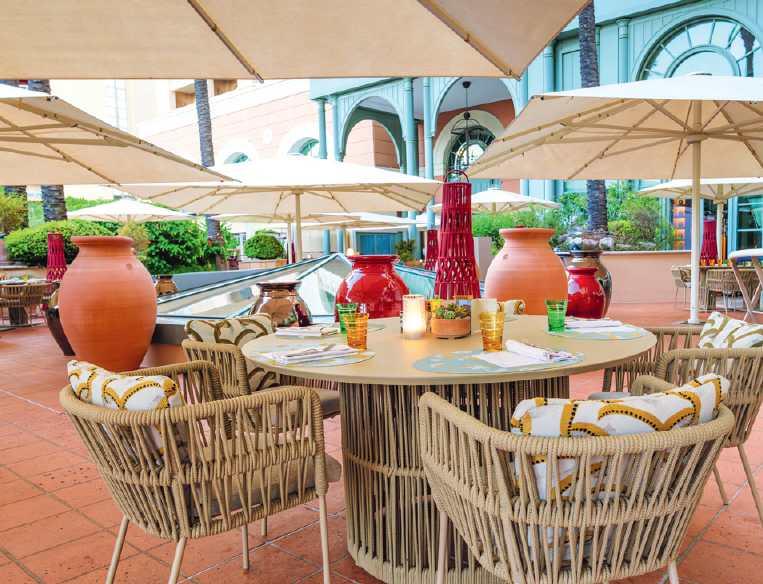

ຆ Hotels & restaurants

ຆ Cities, towns & communities

ຆ Hospitals & care homes

ຆ Universities & businesses (canteens)

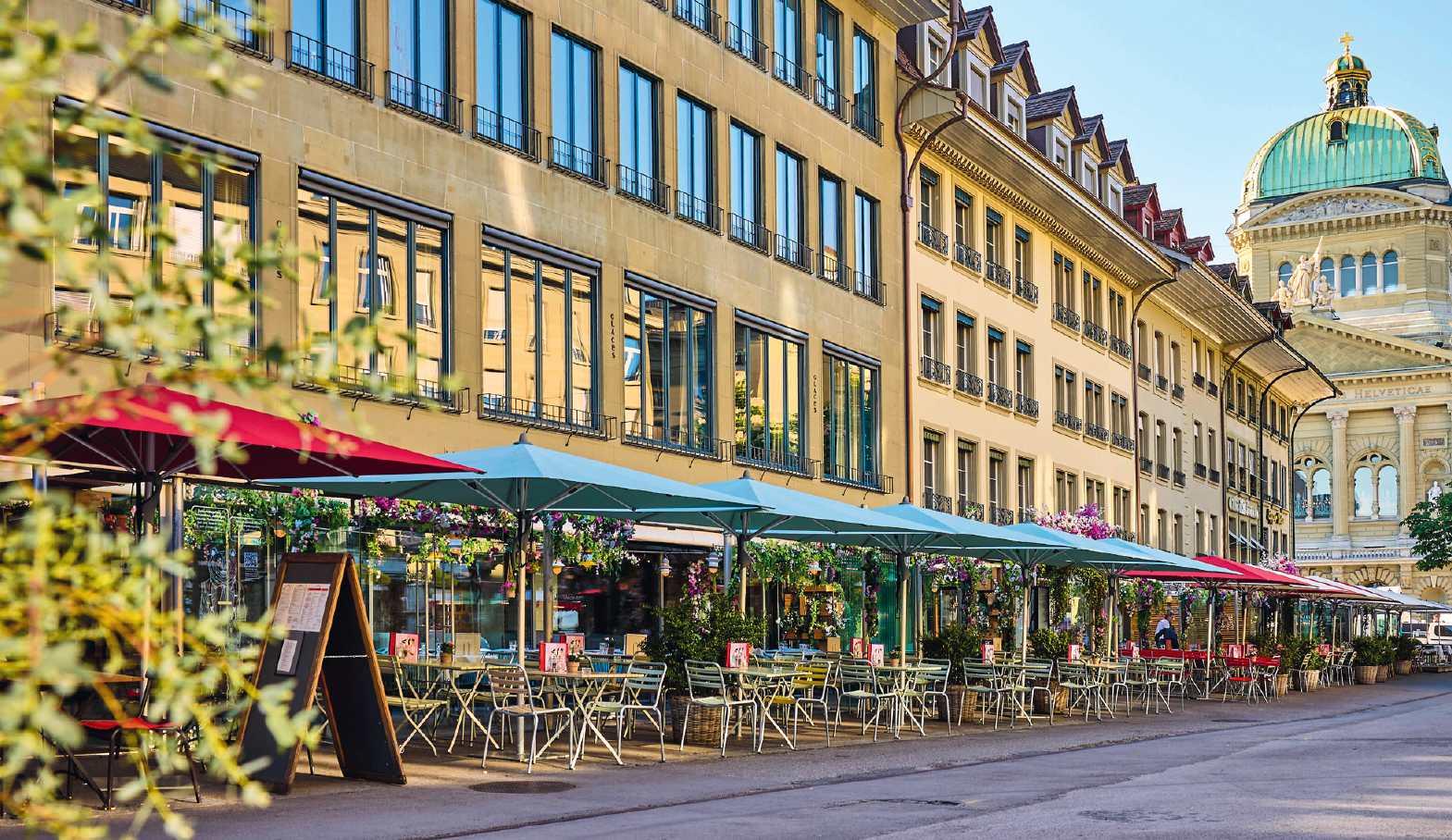

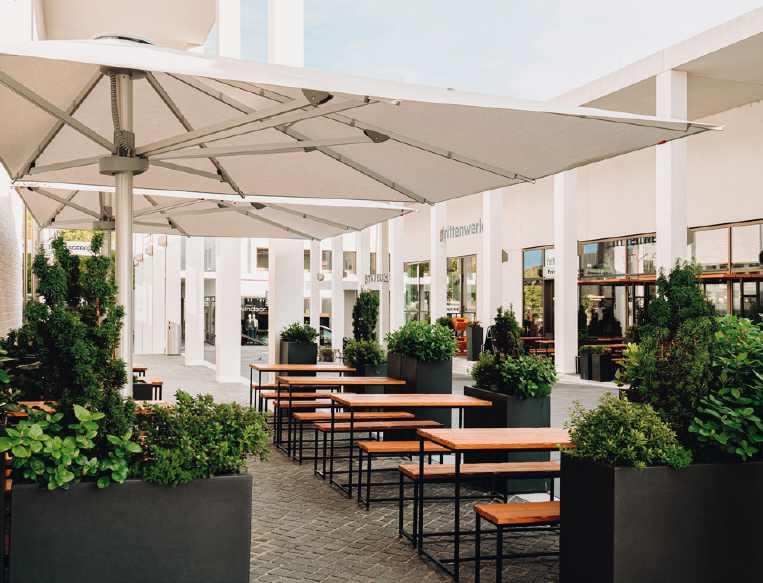

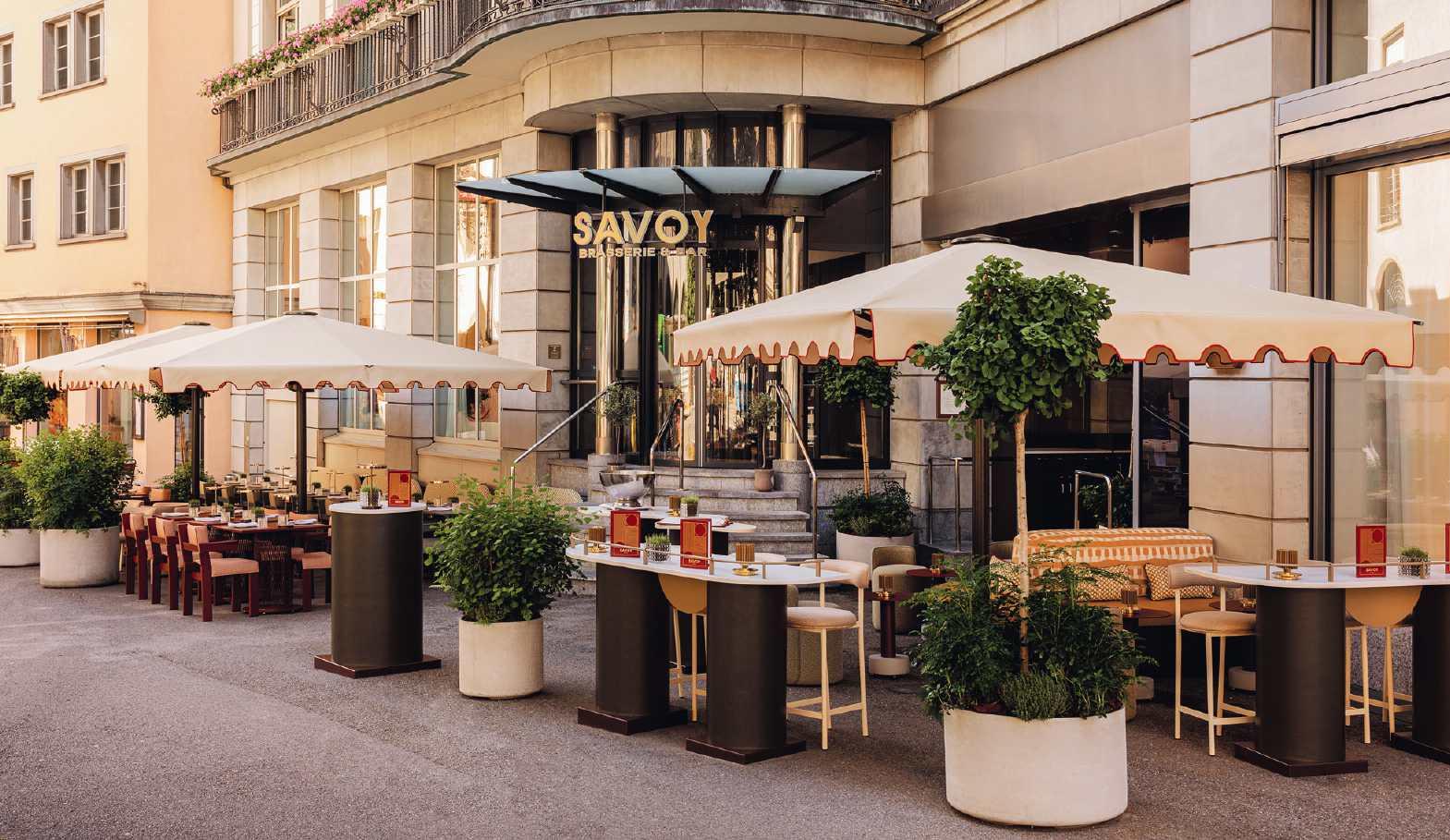

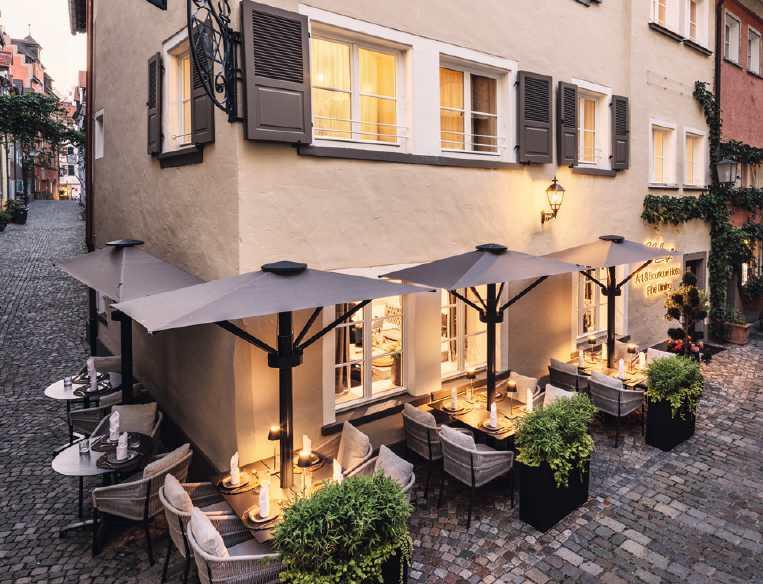

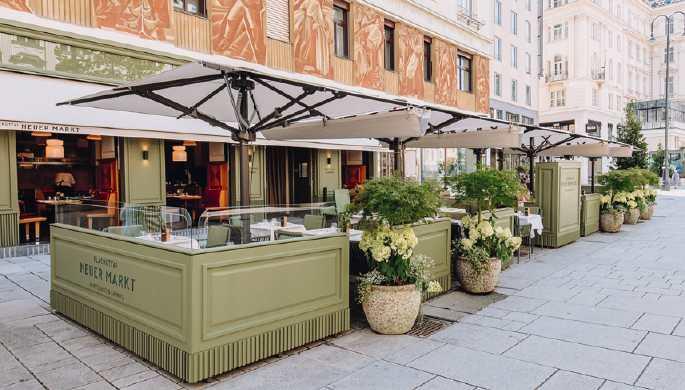

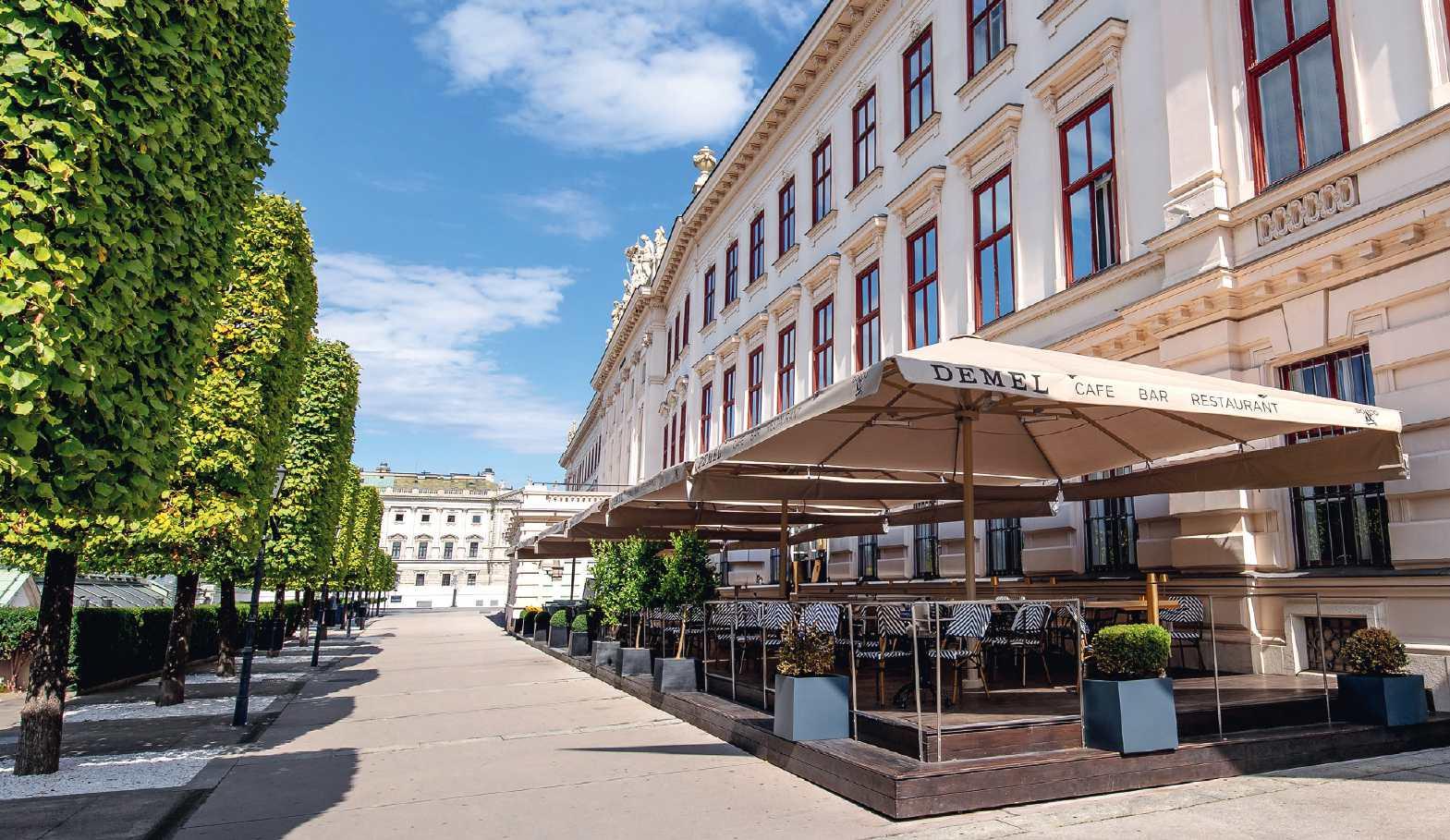

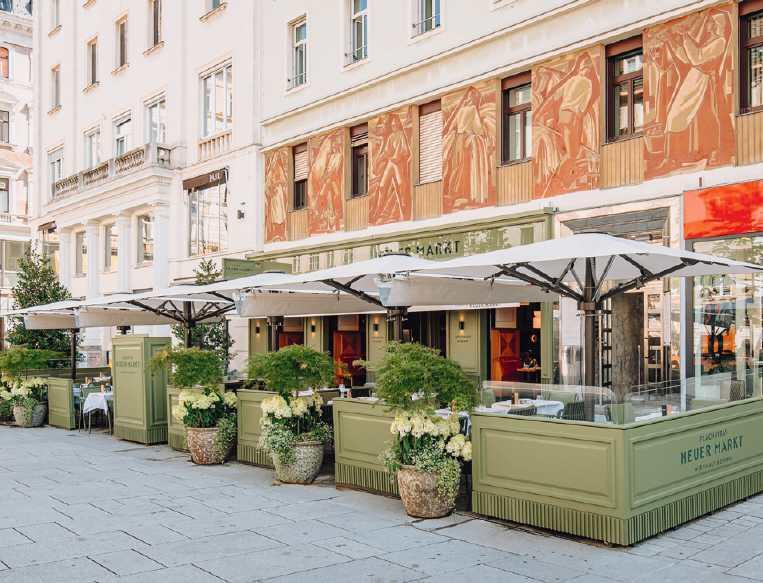

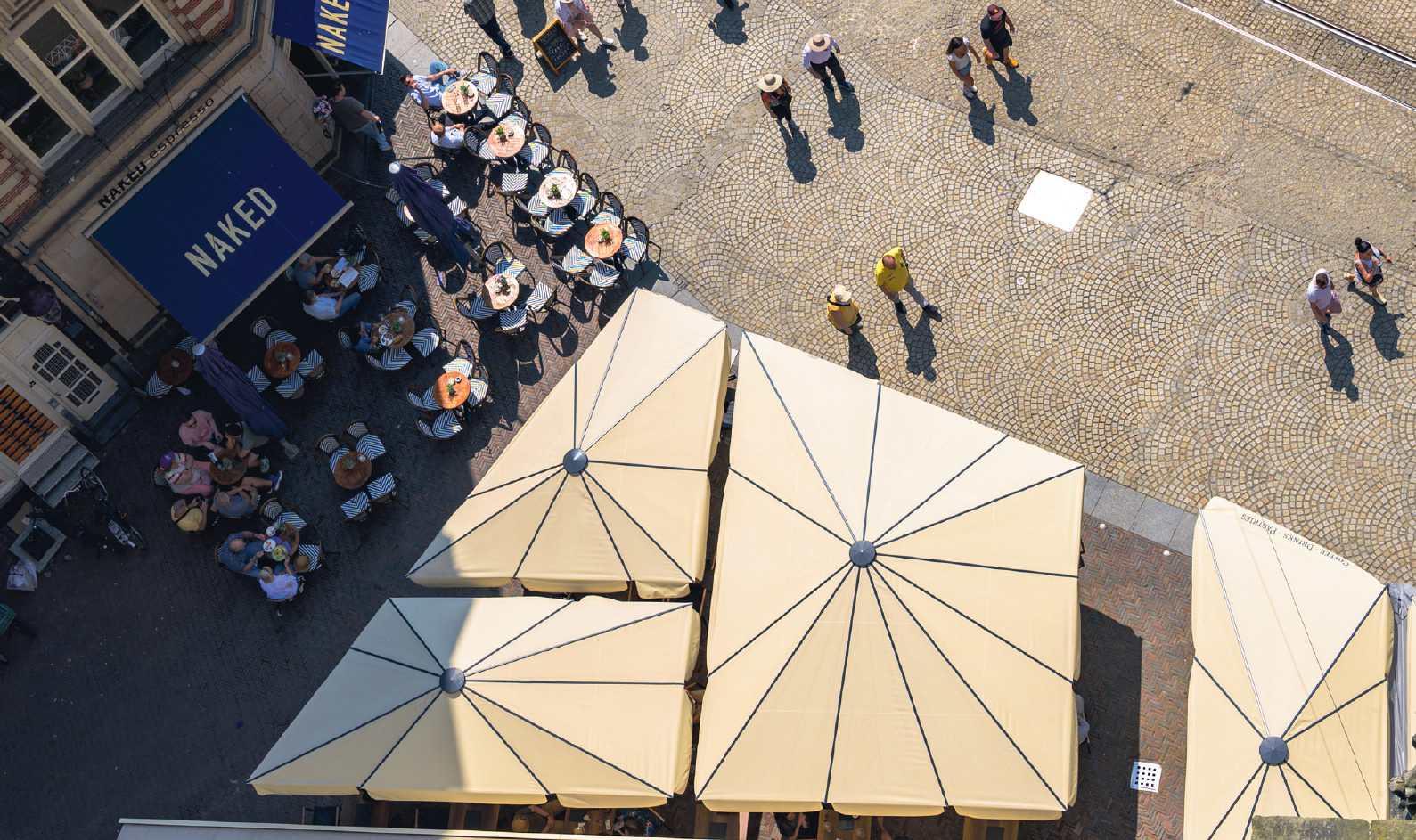

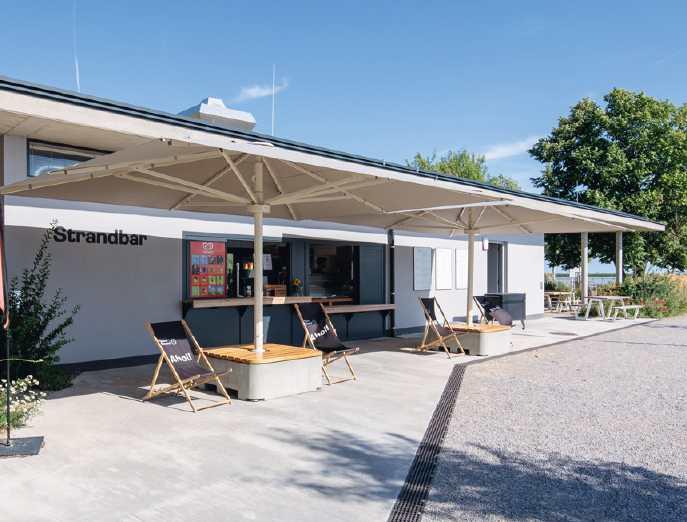

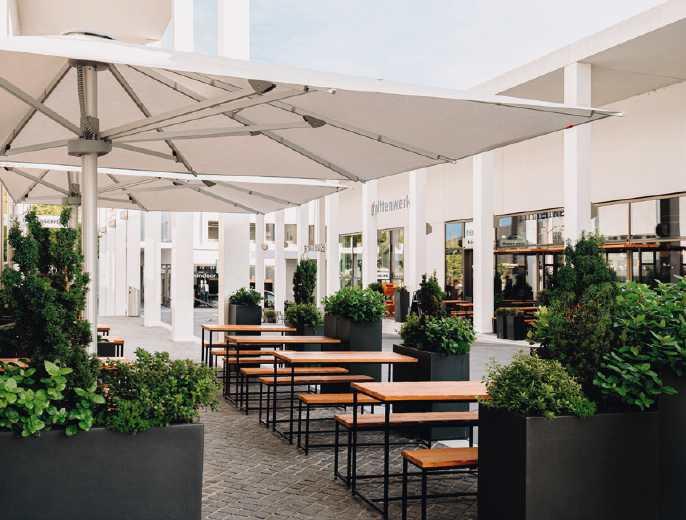

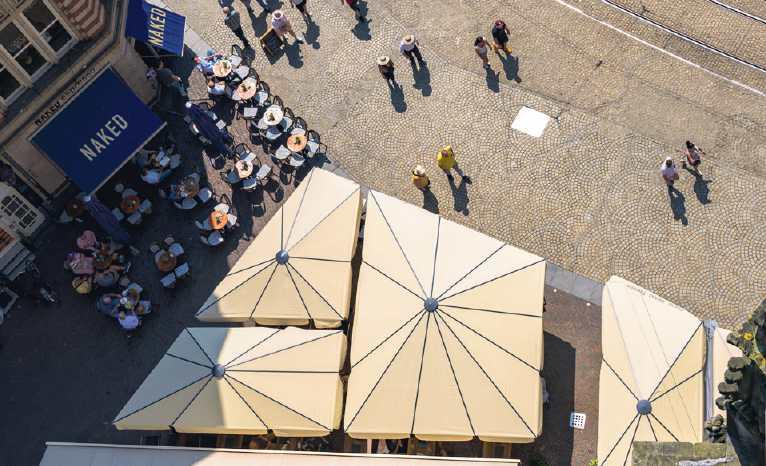

Small area outdoors

ຆ Hotels, restaurants, cafés & bars

ຆ Takeaways

ຆ Pedestrianised areas & pavements

ຆ Shopping centres & malls

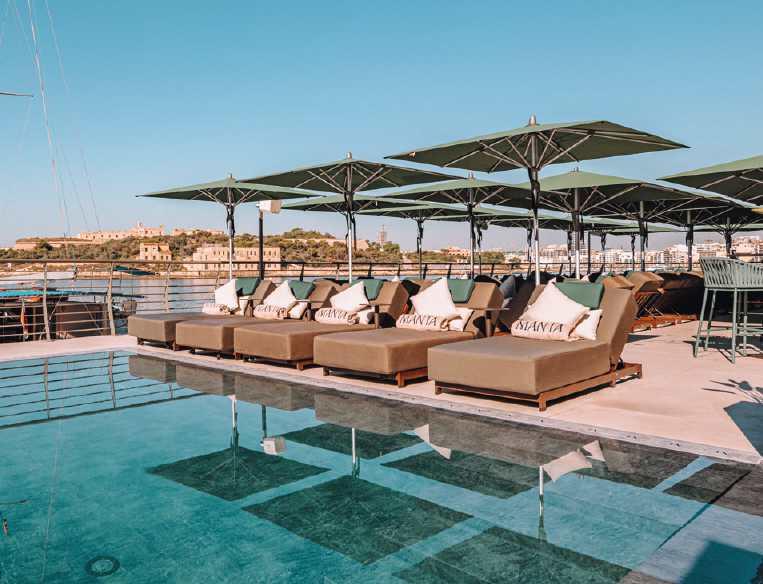

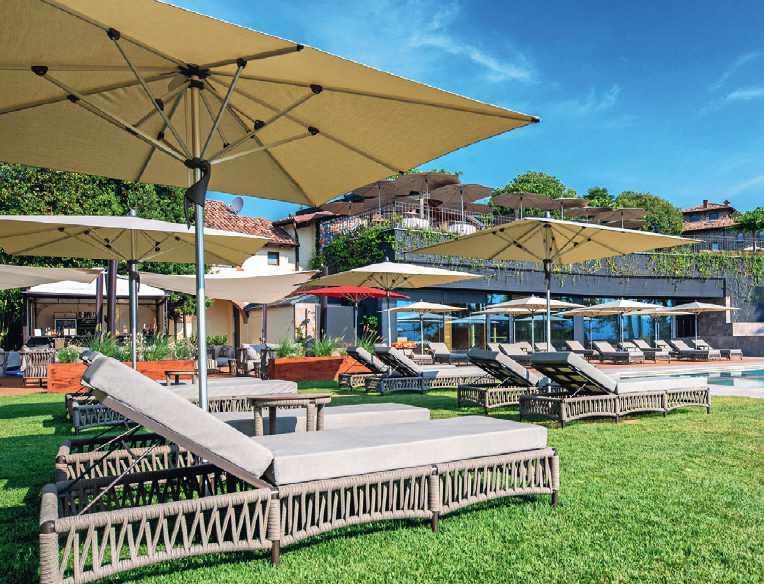

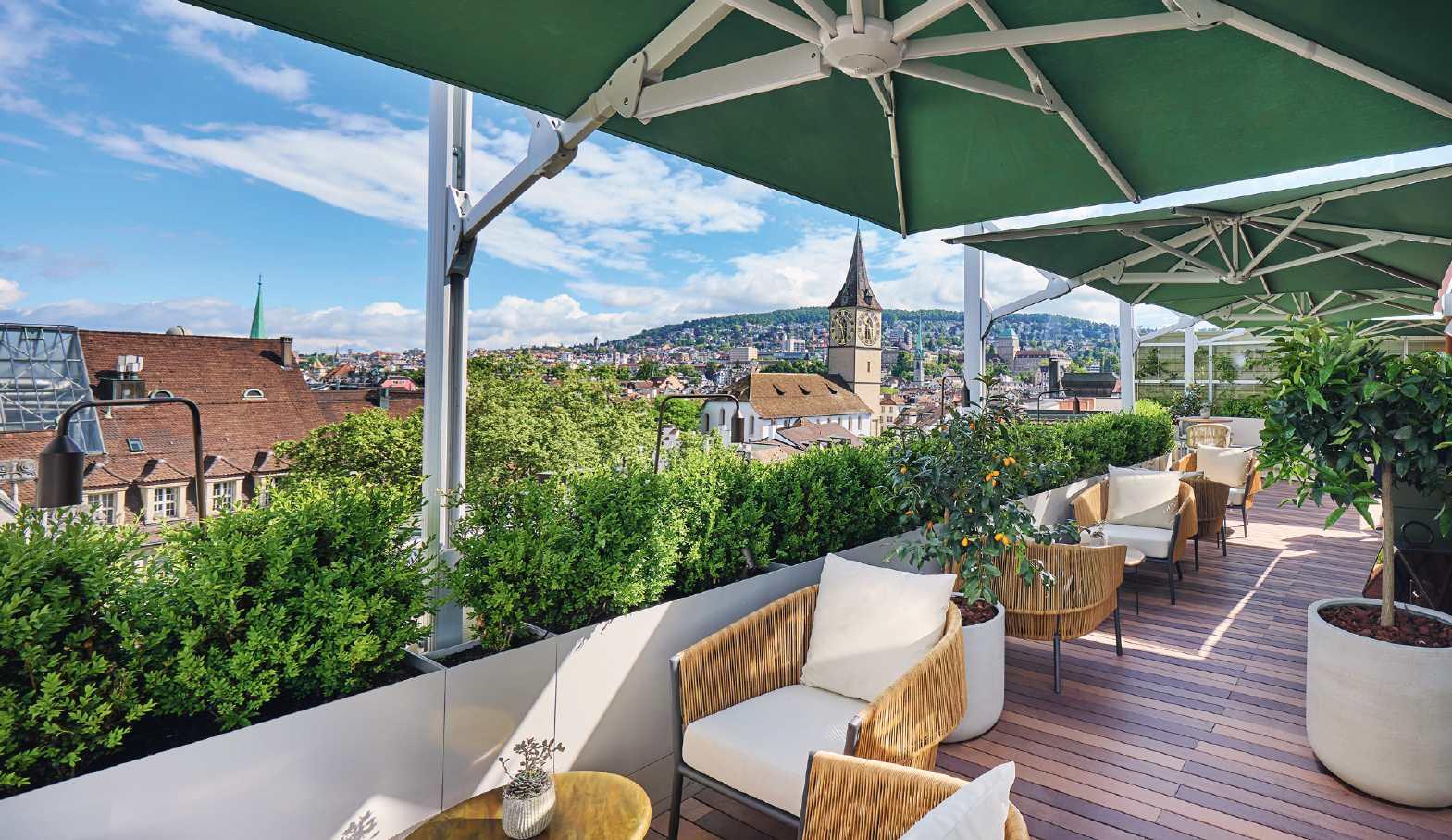

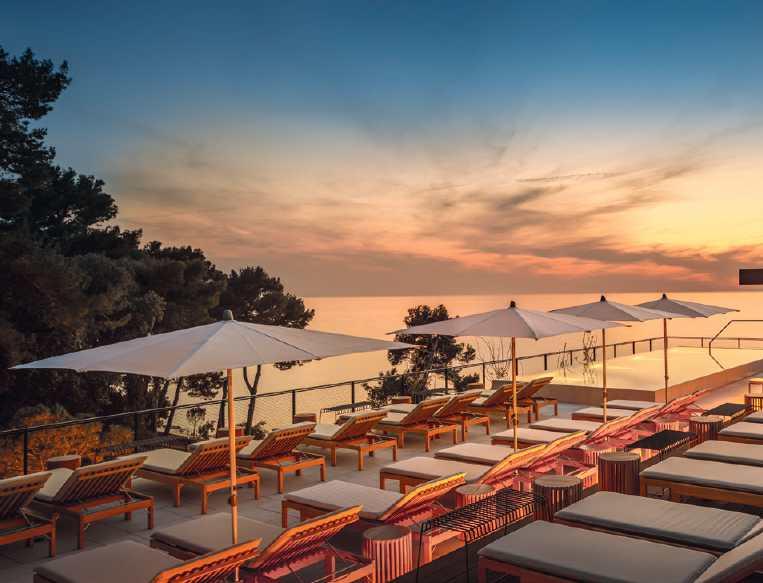

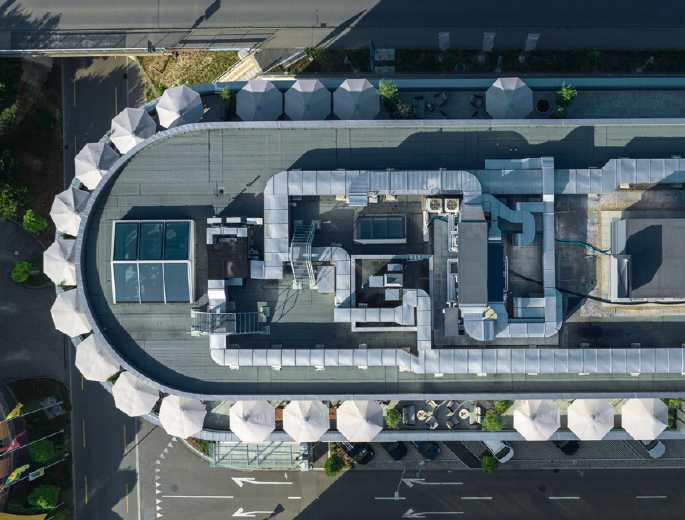

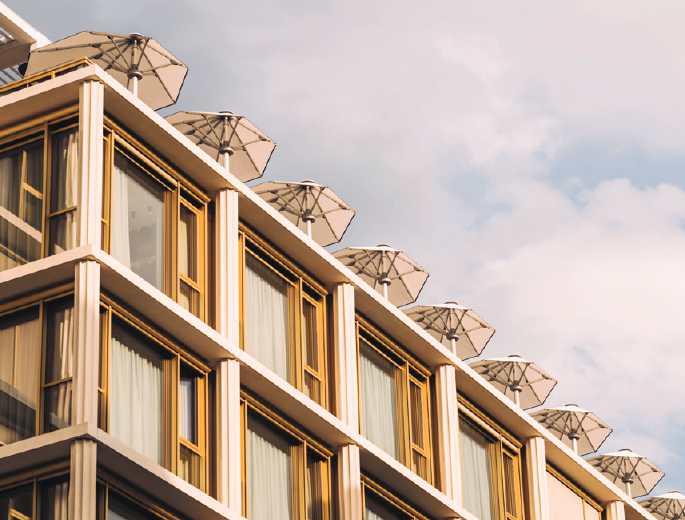

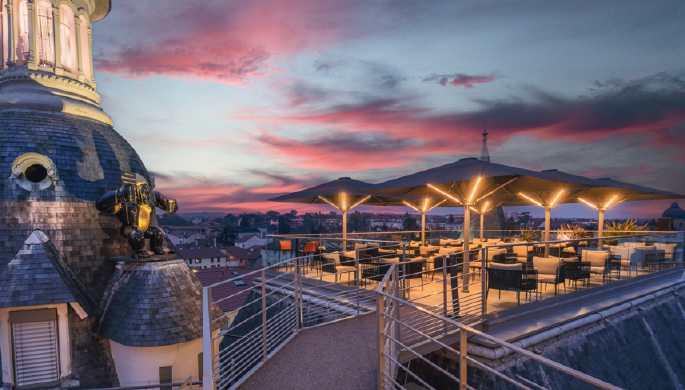

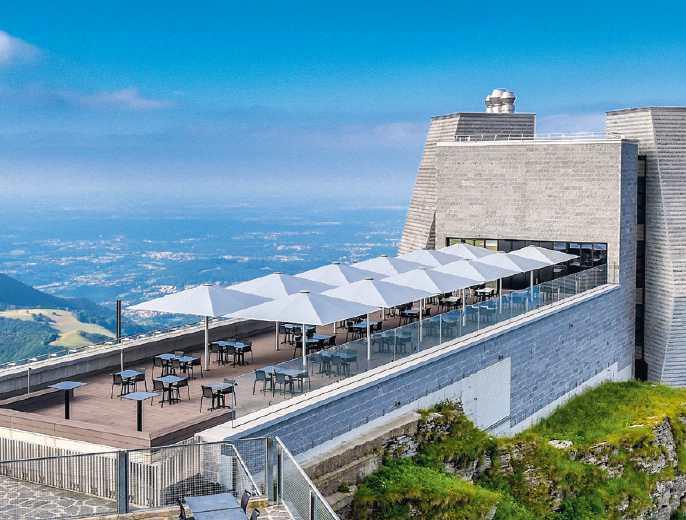

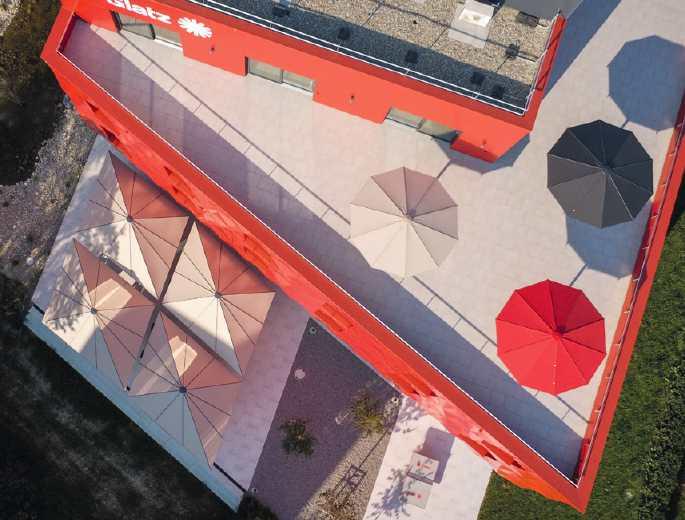

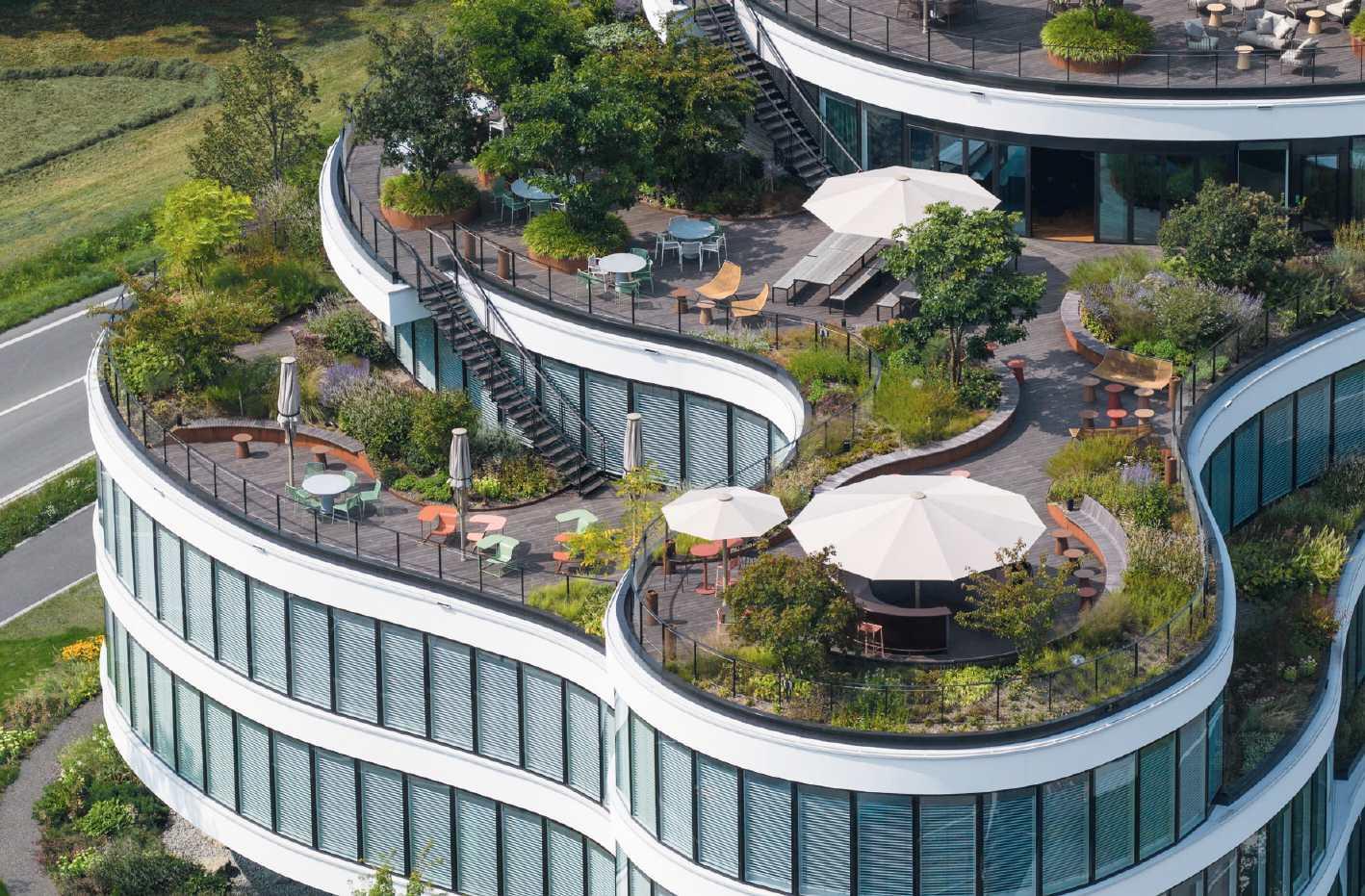

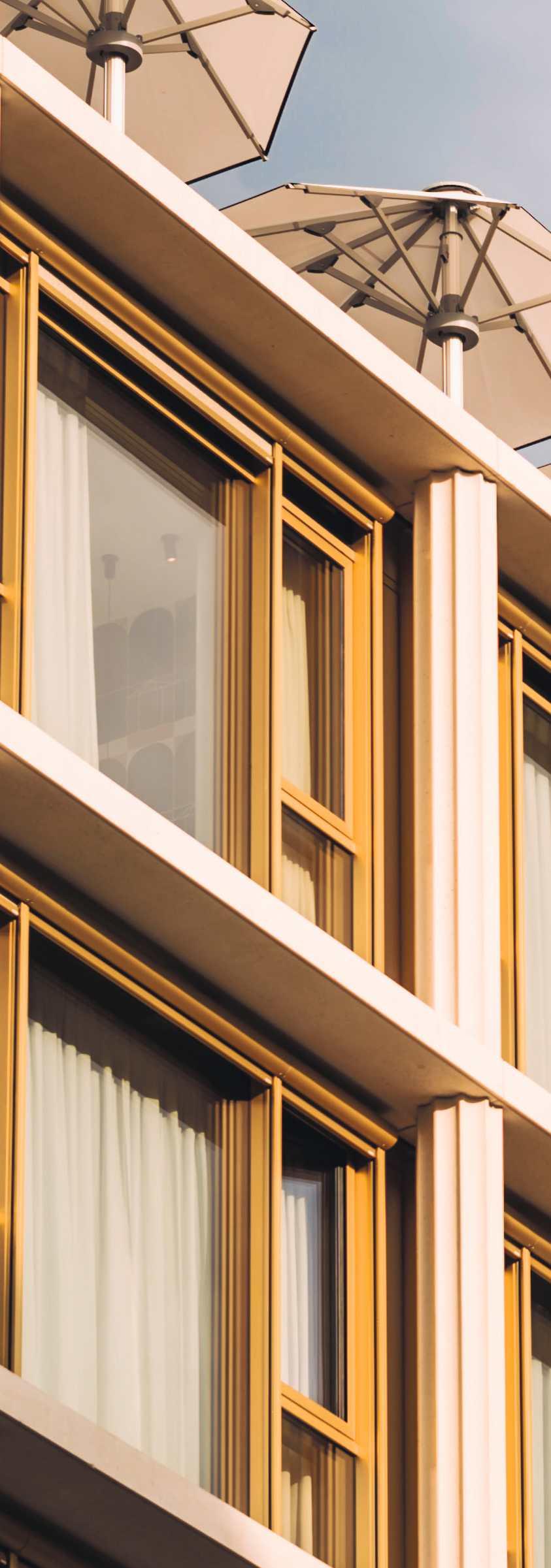

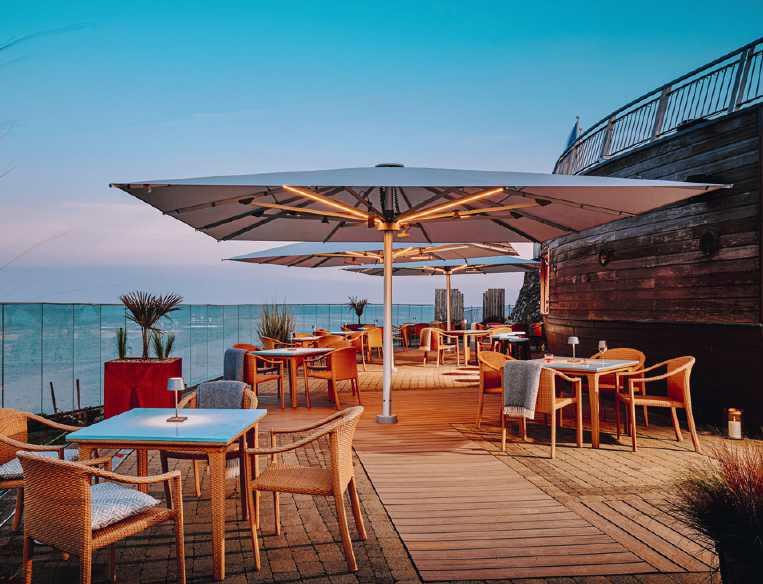

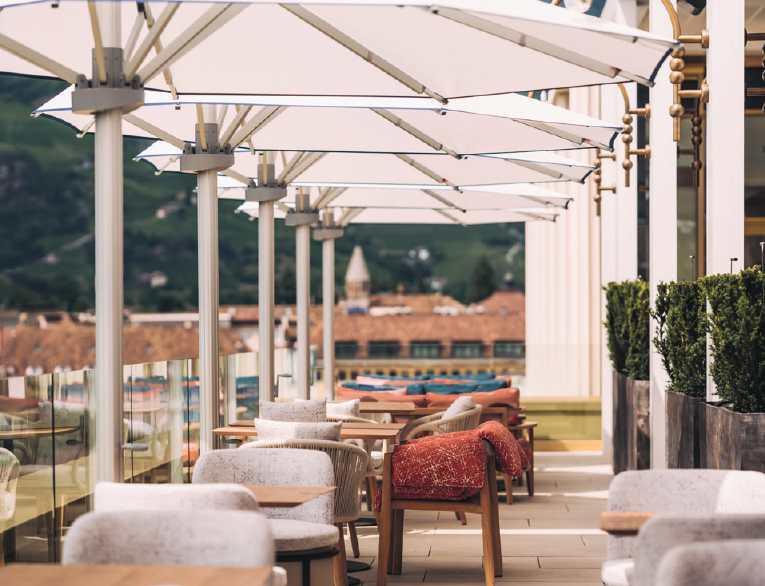

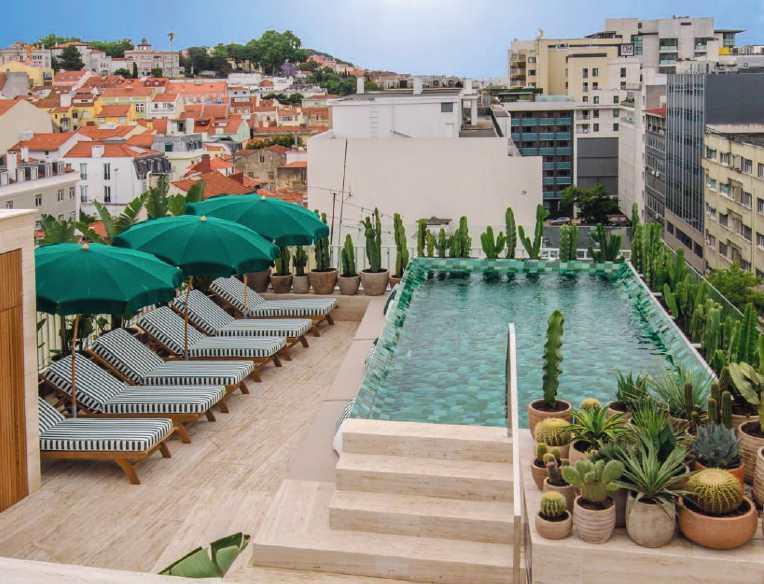

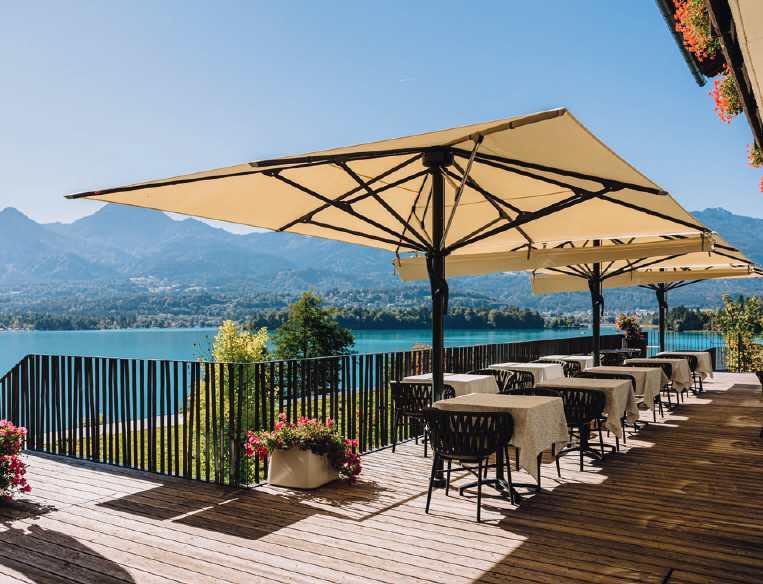

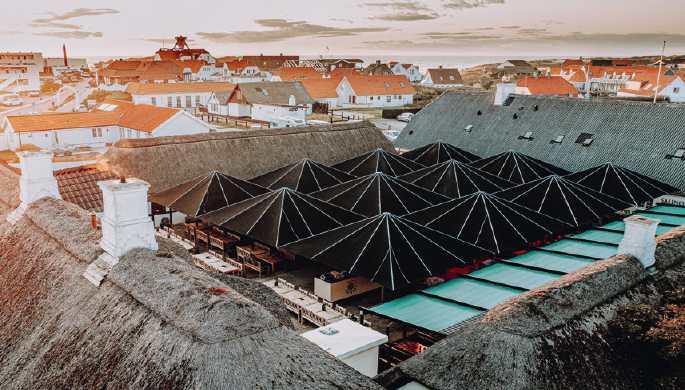

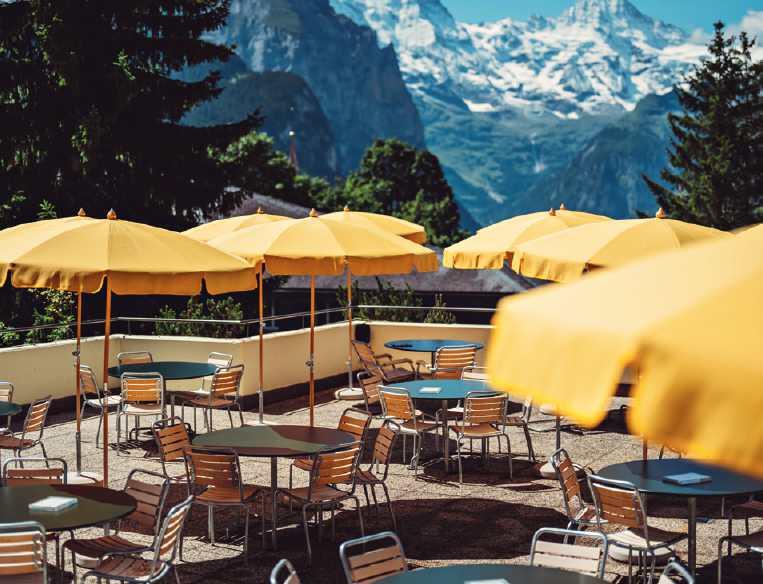

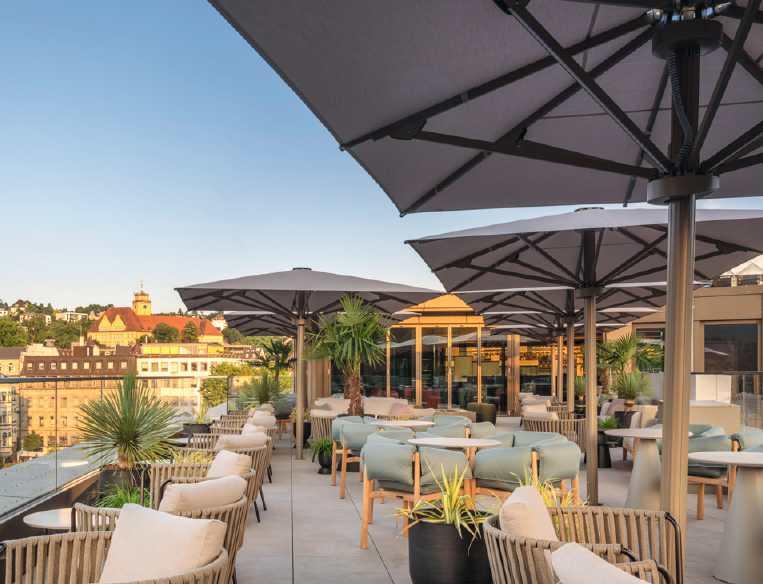

Terraces & rooftops

ຆ Hotels, restaurants & bars

ຆ Exclusive architecture

ຆ Urban living & high-rise buildings

ຆ Shopping centres & malls

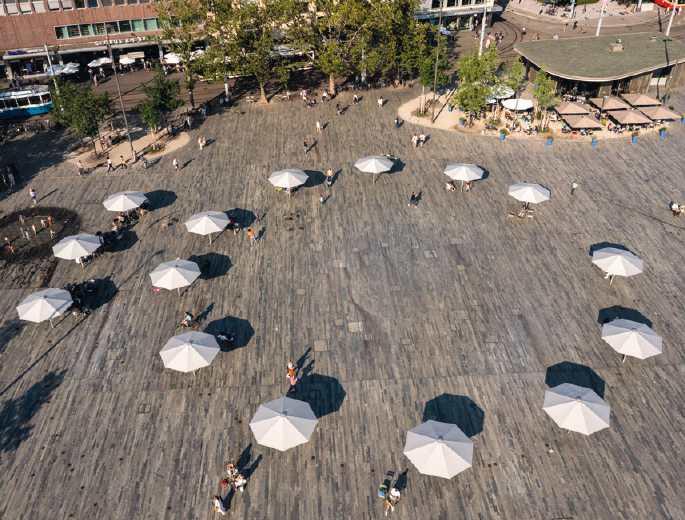

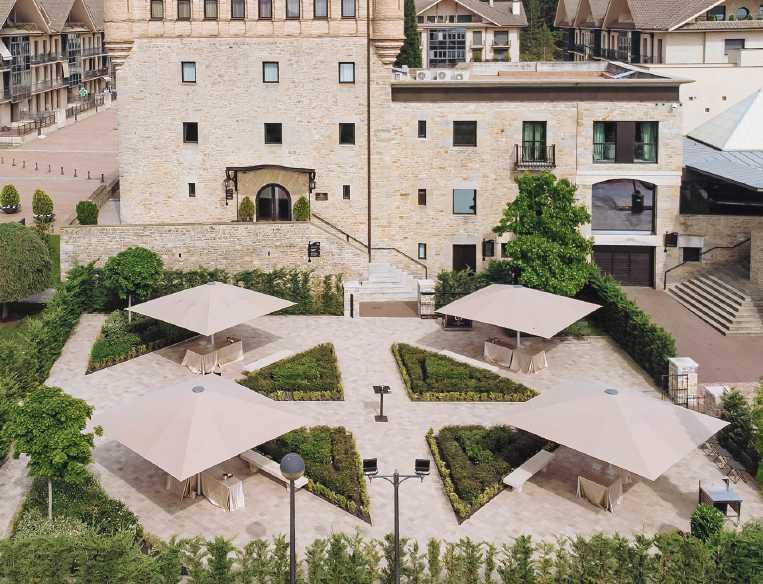

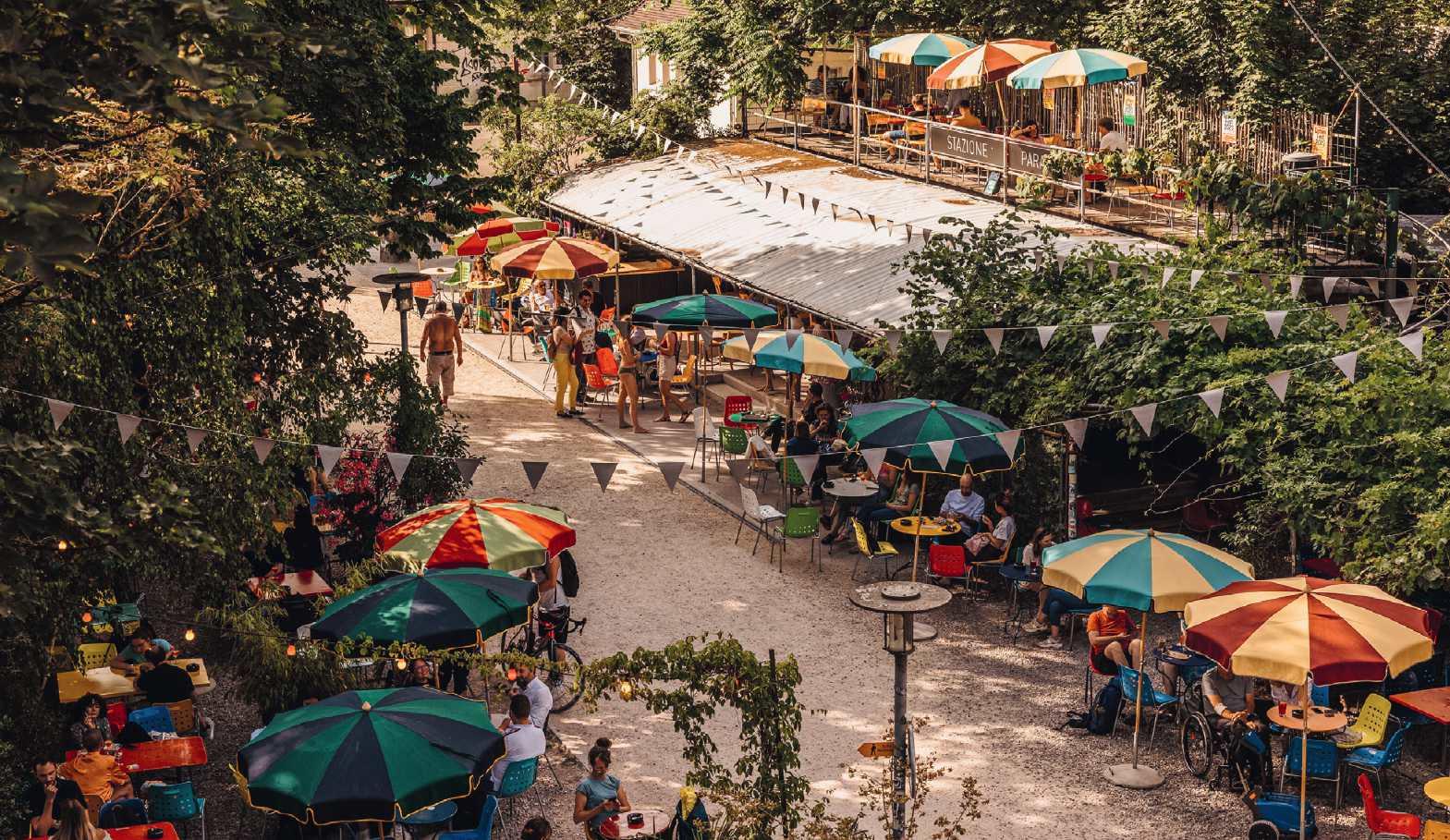

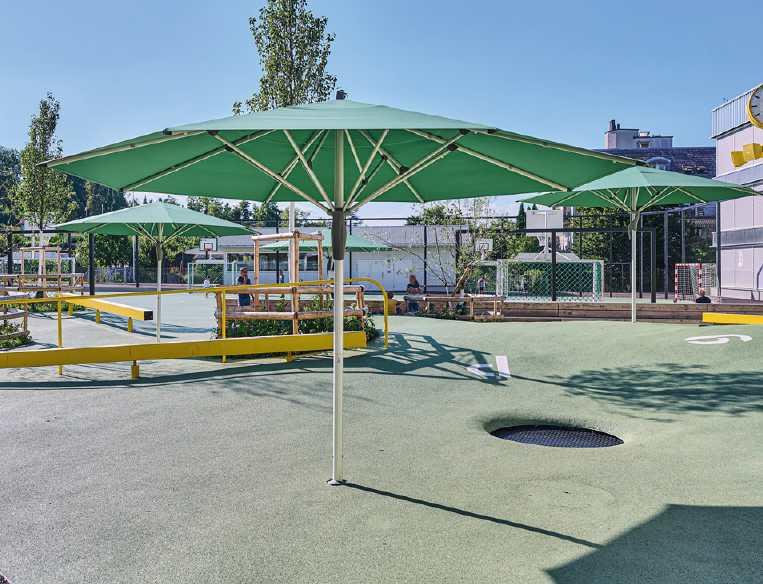

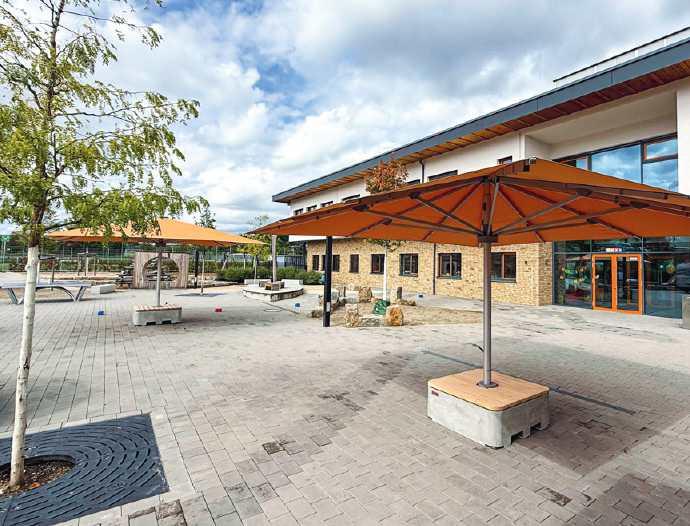

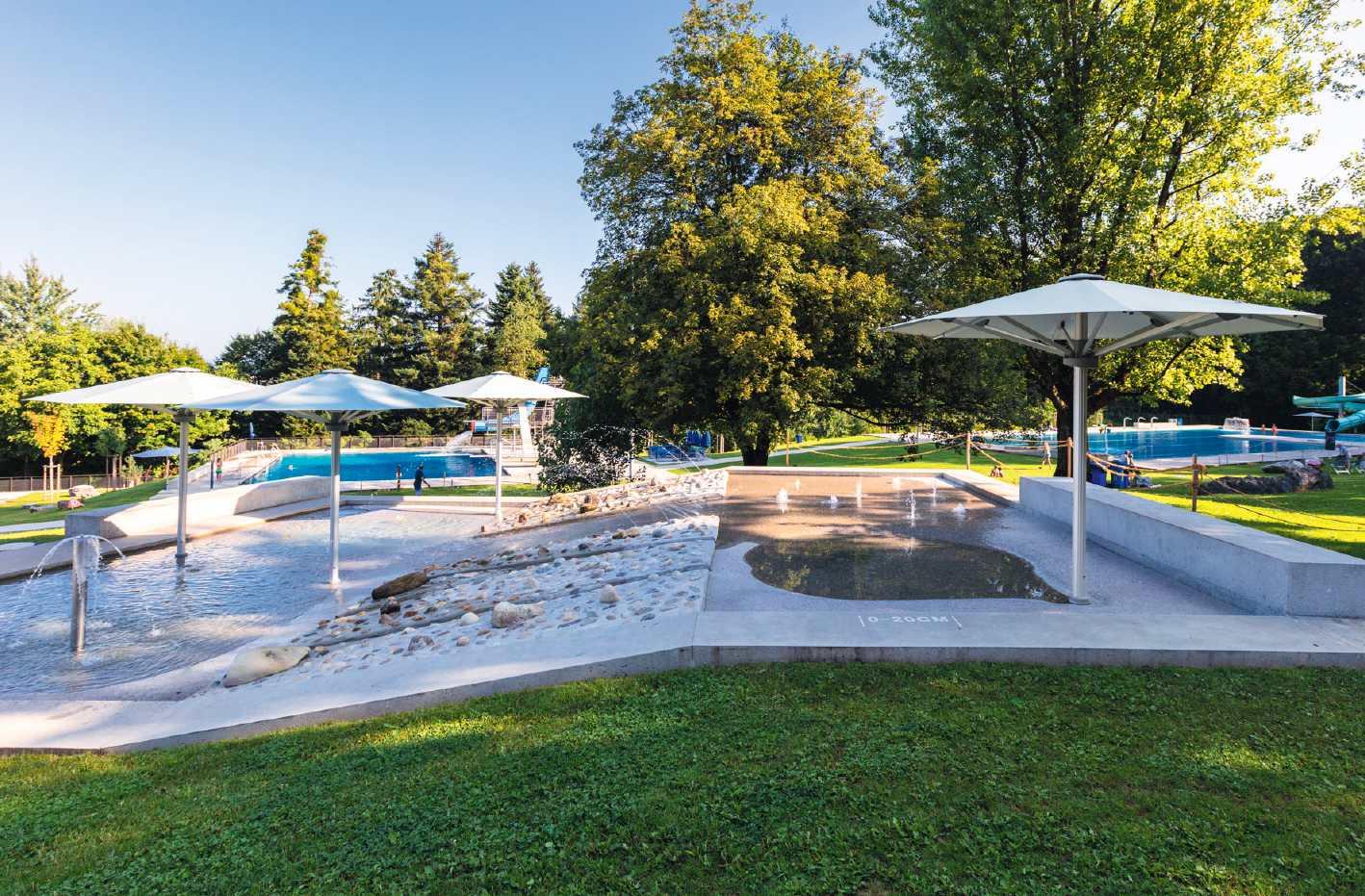

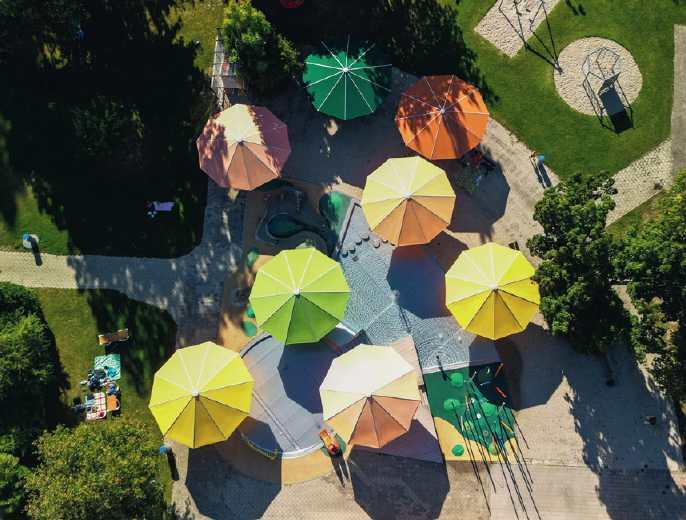

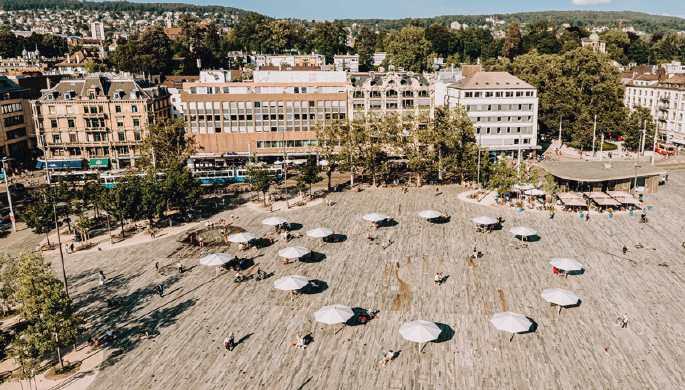

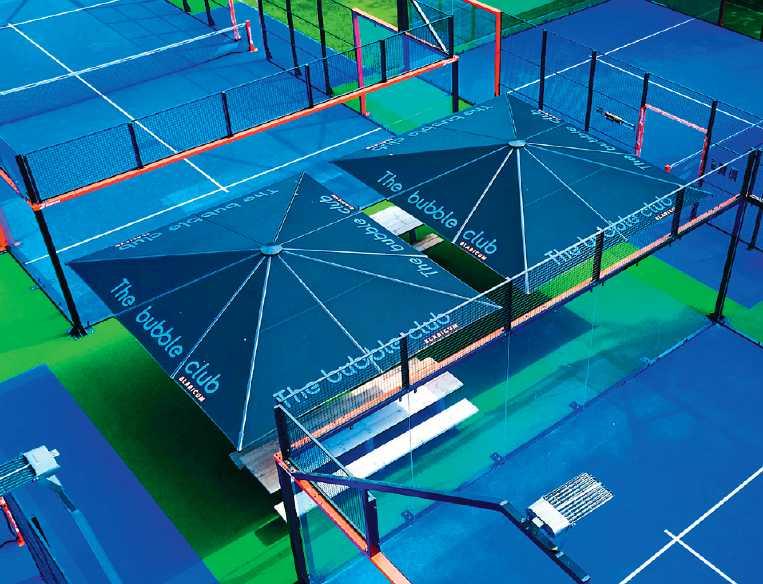

Public spaces & parks

ຆ Cities, towns & communities

ຆ Parks

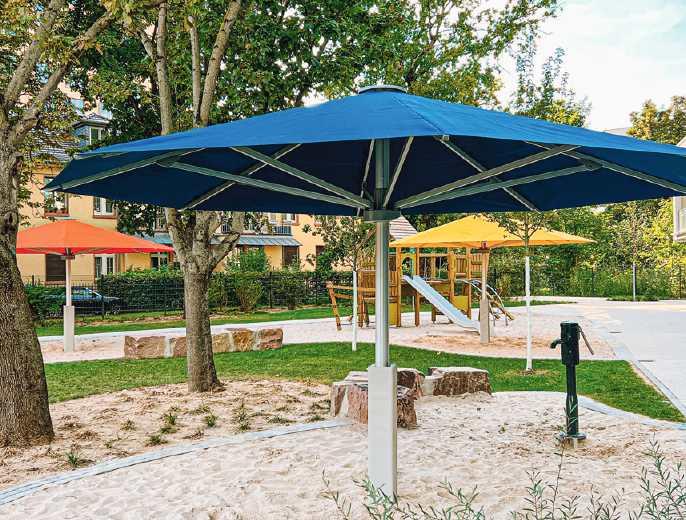

ຆ Playgrounds

ຆ Schools and nurseries

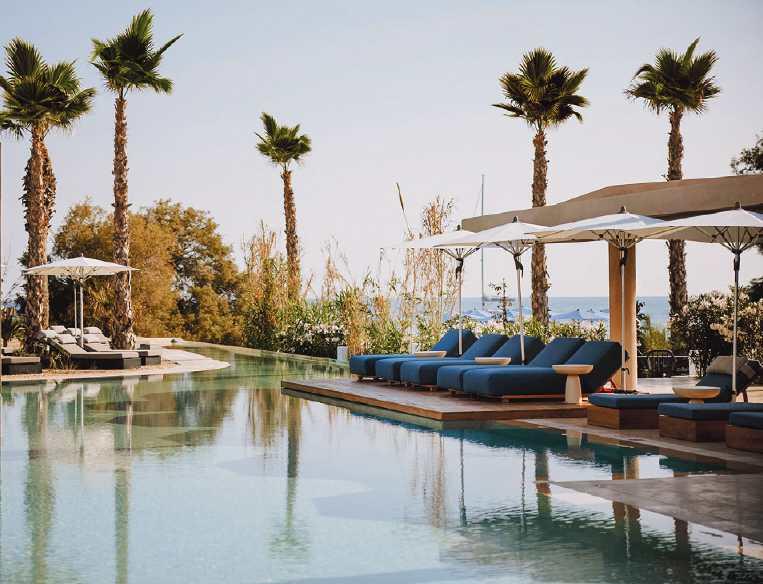

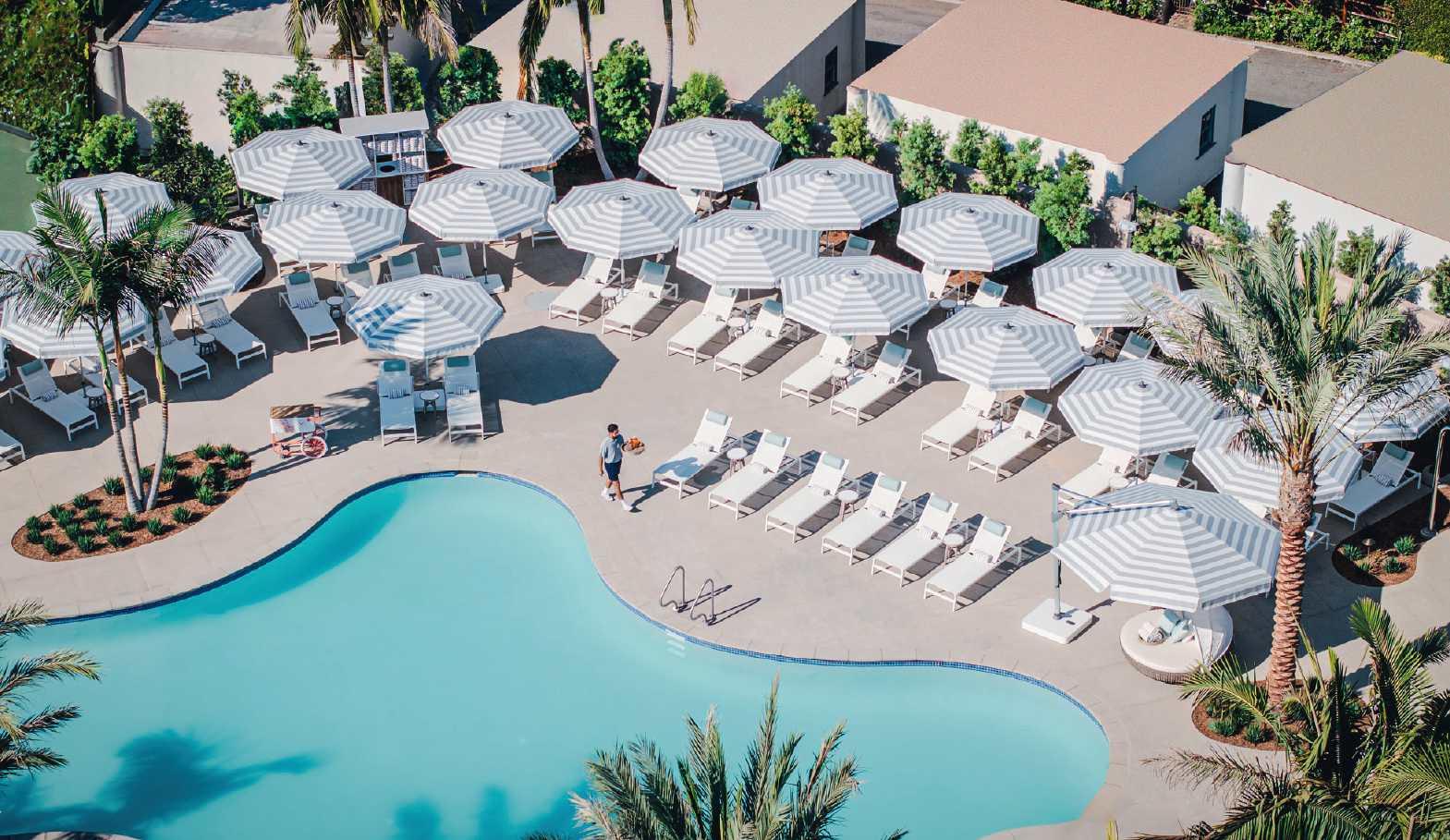

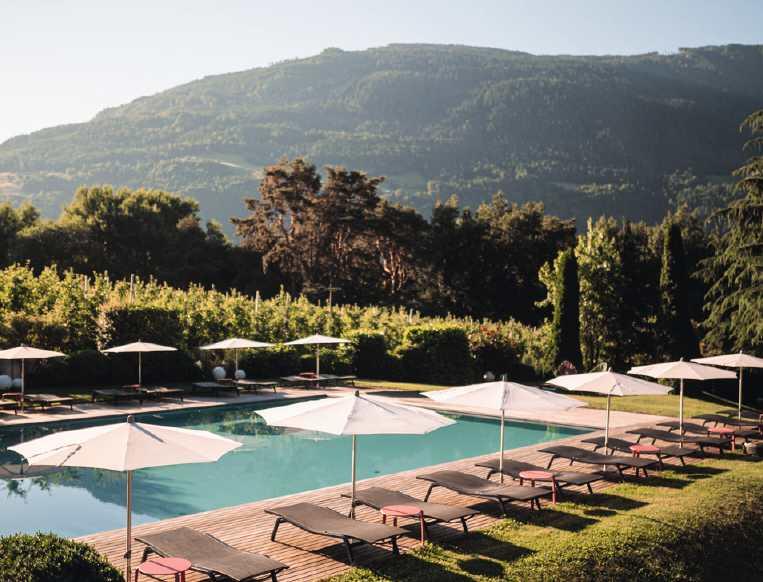

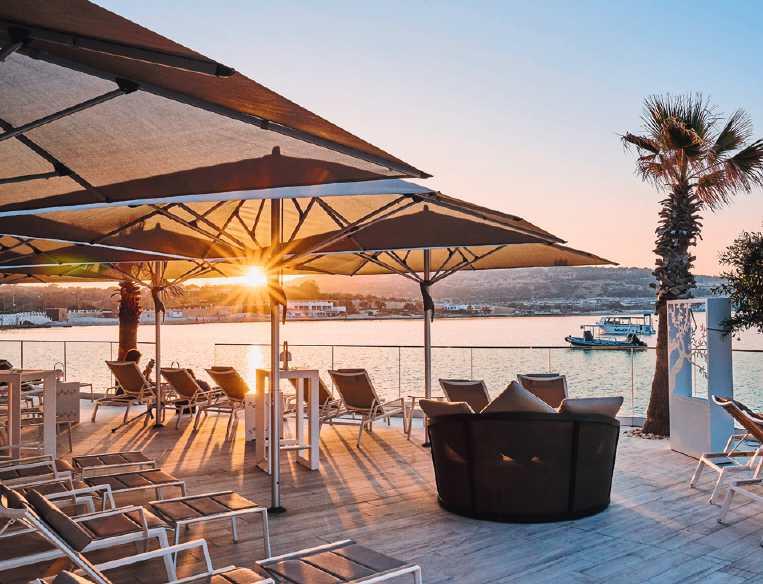

Corrosive environments

ຆ Hotels, restaurants, cafés & bars

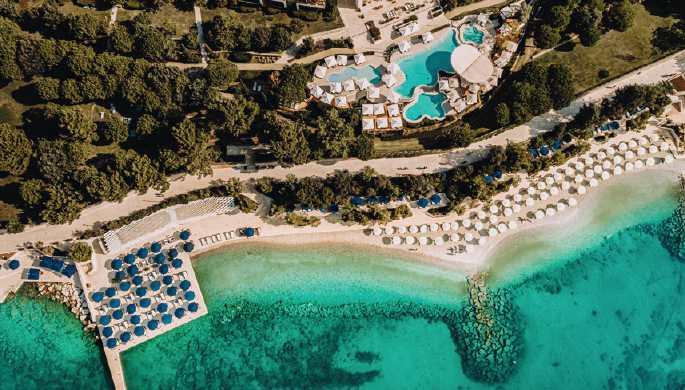

ຆ Seaside promenades

ຆ Coastal regions

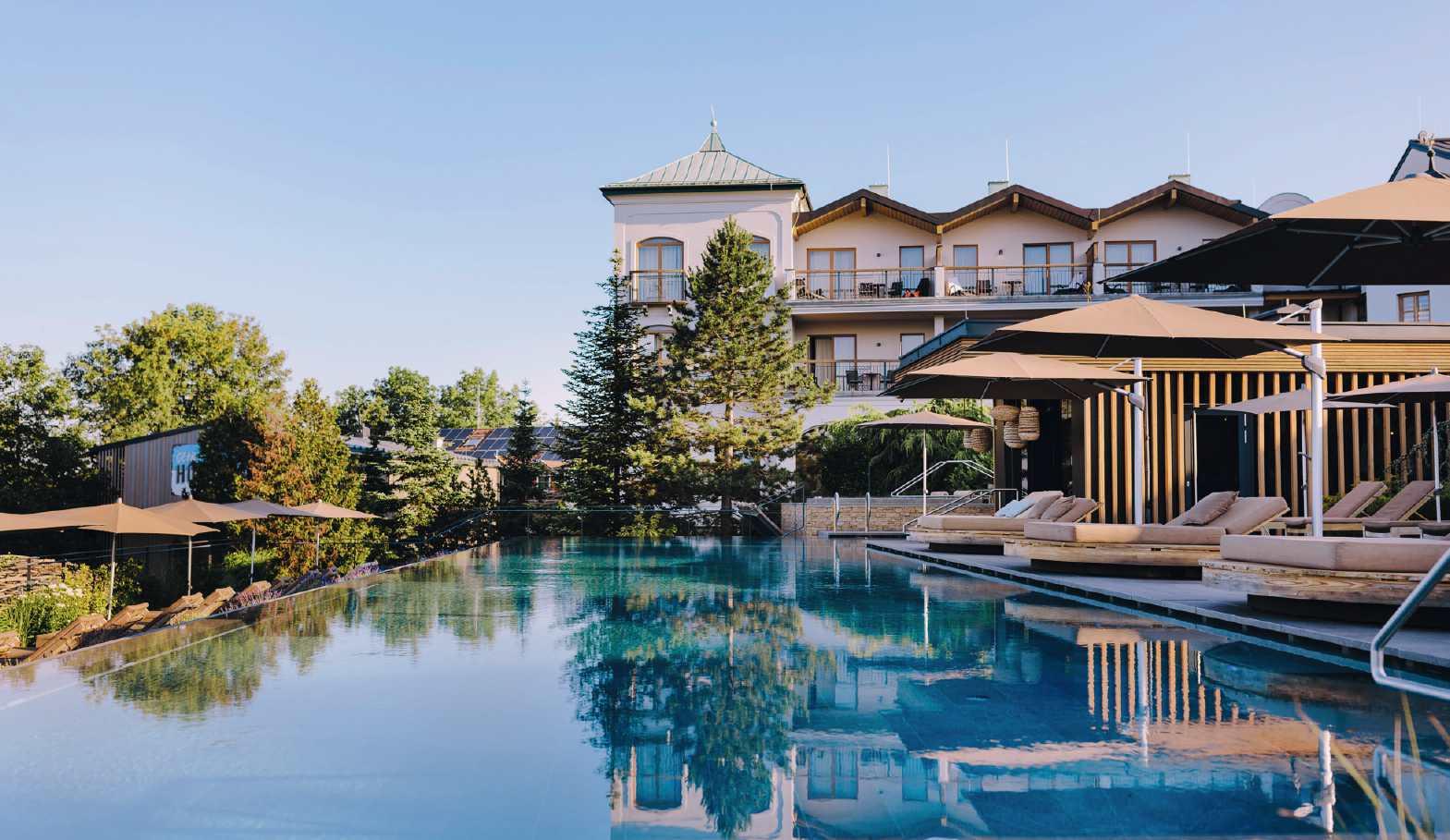

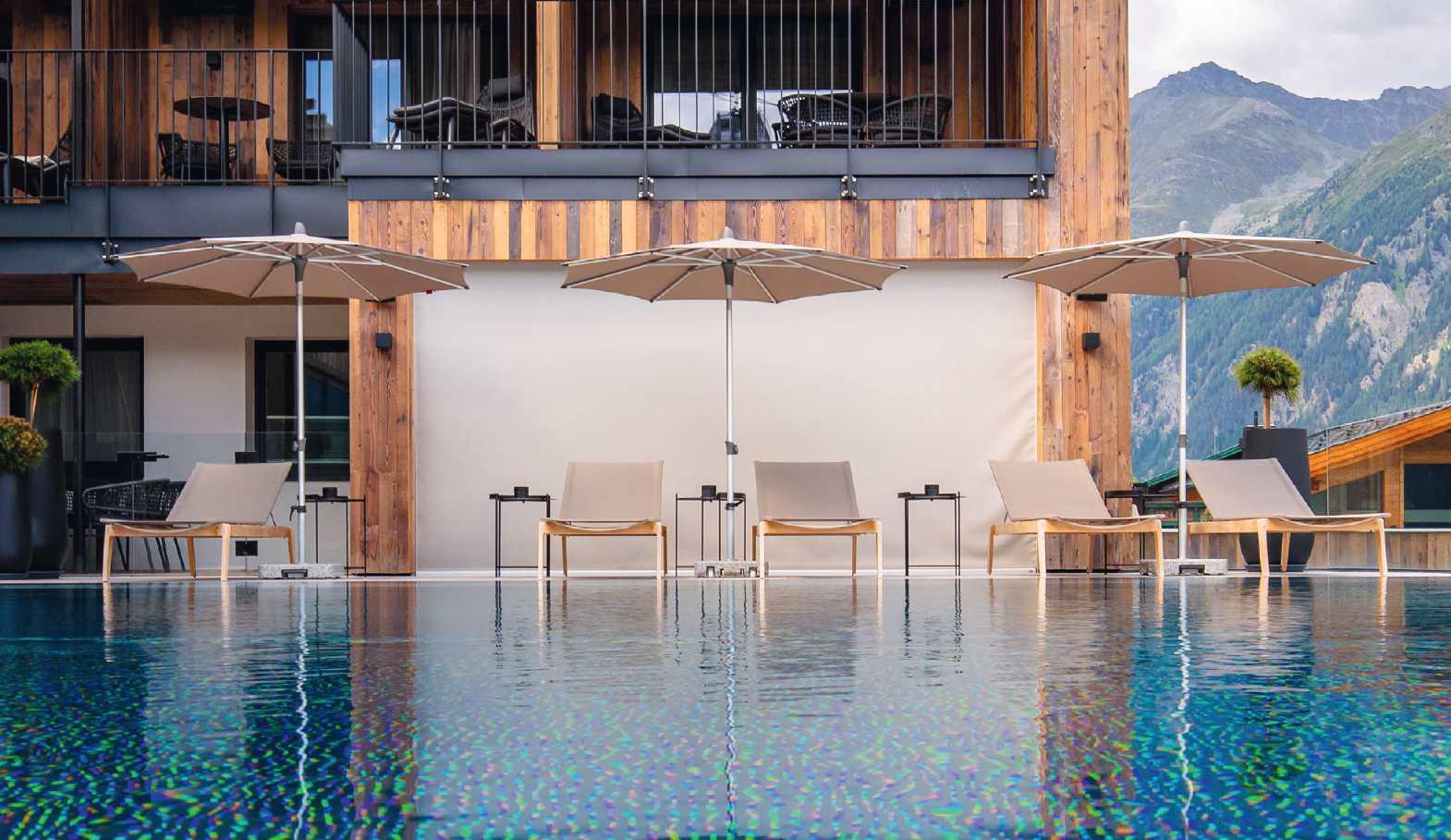

ຆ Swimming pools & pool facilities

Consulting guide Locations exposed to wind

Sensitive locations

ຆ Elevated sites (roof terraces, hills, mountains, ...)

ຆ Sparsely developed areas and foehn valleys

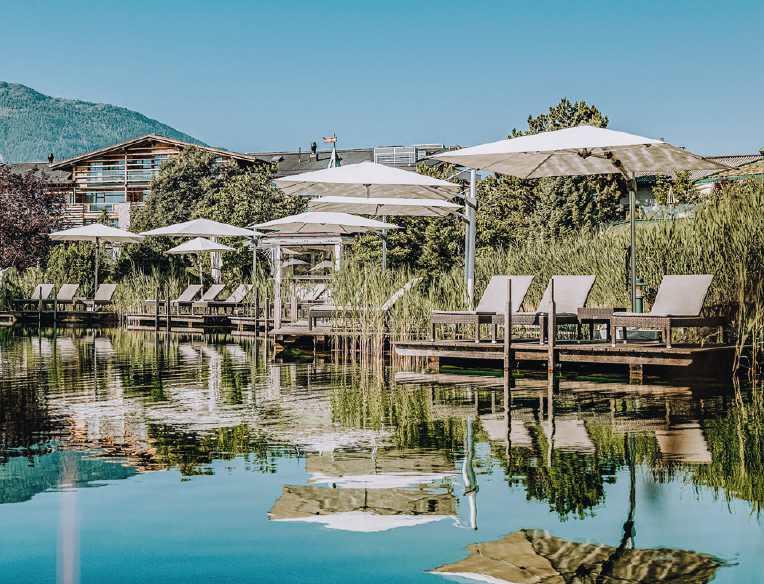

ຆ Lake shores, promenades and coastal regions

The right parasol selection

Wind-stable centre pole parasols up to a certain size are the best choice for wind-exposed locations. Important: Side mast parasols are not suitable in such locations!

ຆ Centre pole parasols with the best possible wind stability are a must: Palazzo Line, Castello Pro or F-Line Pro

ຆ It is better to plan several smaller parasols instead of one large one, e.g. four 350 × 350 cm parasols instead of one 700 × 700 cm parasol

ຆ If available, use parasols with a higher number of pieces, e.g. Palazzo Noblesse, 500 × 500 cm 12 parts instead of 8 parts

ຆ The following dimensions are not recommended:

Palazzo Royal larger than 600 cm

Palazzo Noblesse larger than 500 cm

Palazzo Style larger than 450 cm

Castello Pro larger than 450 cm

ຆ Closing motorised parasols is not possible at wind speeds above 35 km/h

Fixations

ຆ Basic recommendation – choose fixed anchorage (see fixations, p. 74)

ຆ Max. permissible wind speeds require fixed anchoring into the ground

ຆ Anchoring must be professionally installed or fitted (specialist on site)

ຆ Wall consoles are not permitted

Winter storage

ຆ Parasols in extremely exposed locations should be taken down in winter

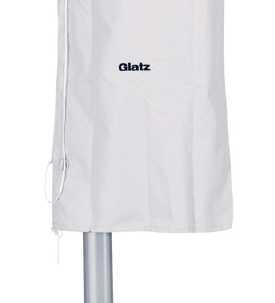

ຆ Parasols must be professionally tied and provided with a protective cover

Giant parasols

PALAZZO® Line

The Palazzo giant parasol range with the models Style, Noblesse and Royal is more in demand than ever in the contract sector. All three models are ideal for large outdoor areas, ensure a modern aesthetic with their flat parasol roof, withstand wind speeds of up to 120 km/h and provide reliable protection from the sun and rain.

The patented opening principle of the Palazzo line is absolutely unique. With only 4 to 19 turns of the crank depending on size, the three models can be opened in no time at all. Motorised parasols are also available for those who prefer to open their parasols as if by magic.

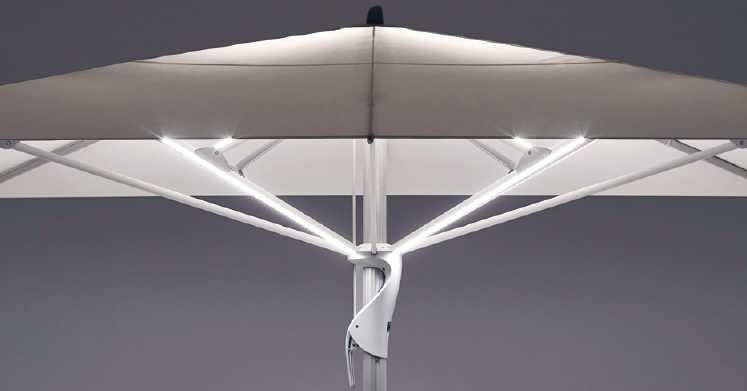

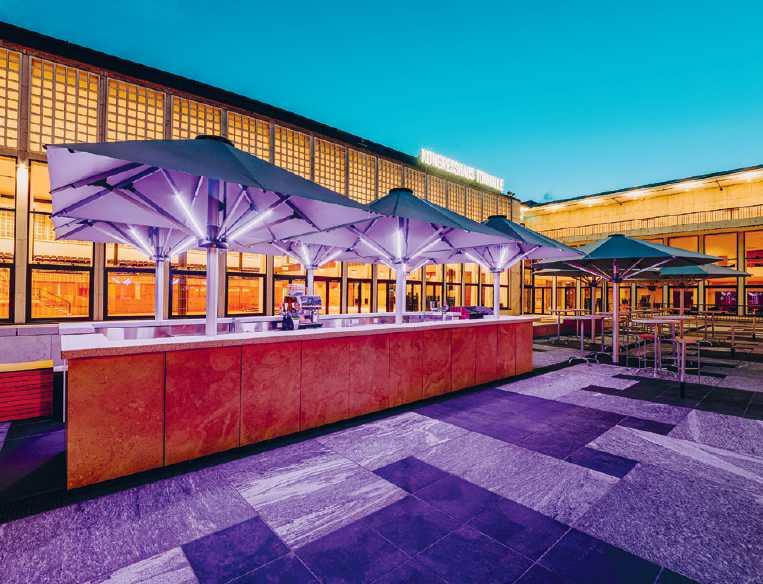

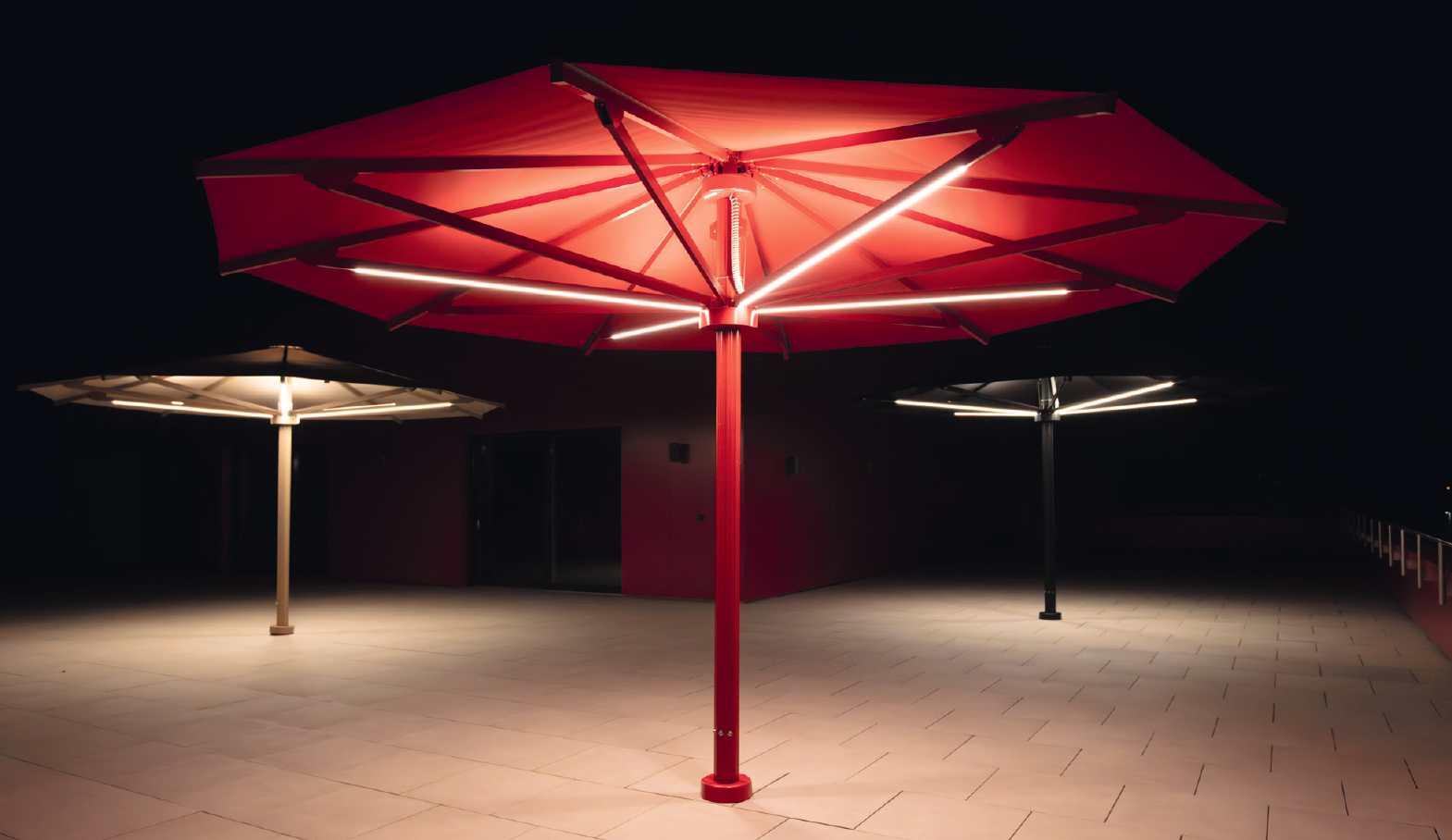

The LED lighting system is directly and indirectly integrated into the ribs and can be controlled via an intuitive remote control.

There are no limits for shape and size. Depending on the location, special sizes are available tailored in five-centimetre increments. The Palazzo range stands out through its distinctive design and intrinsic values. This gives every discerning outdoor area that je ne sais quoi.

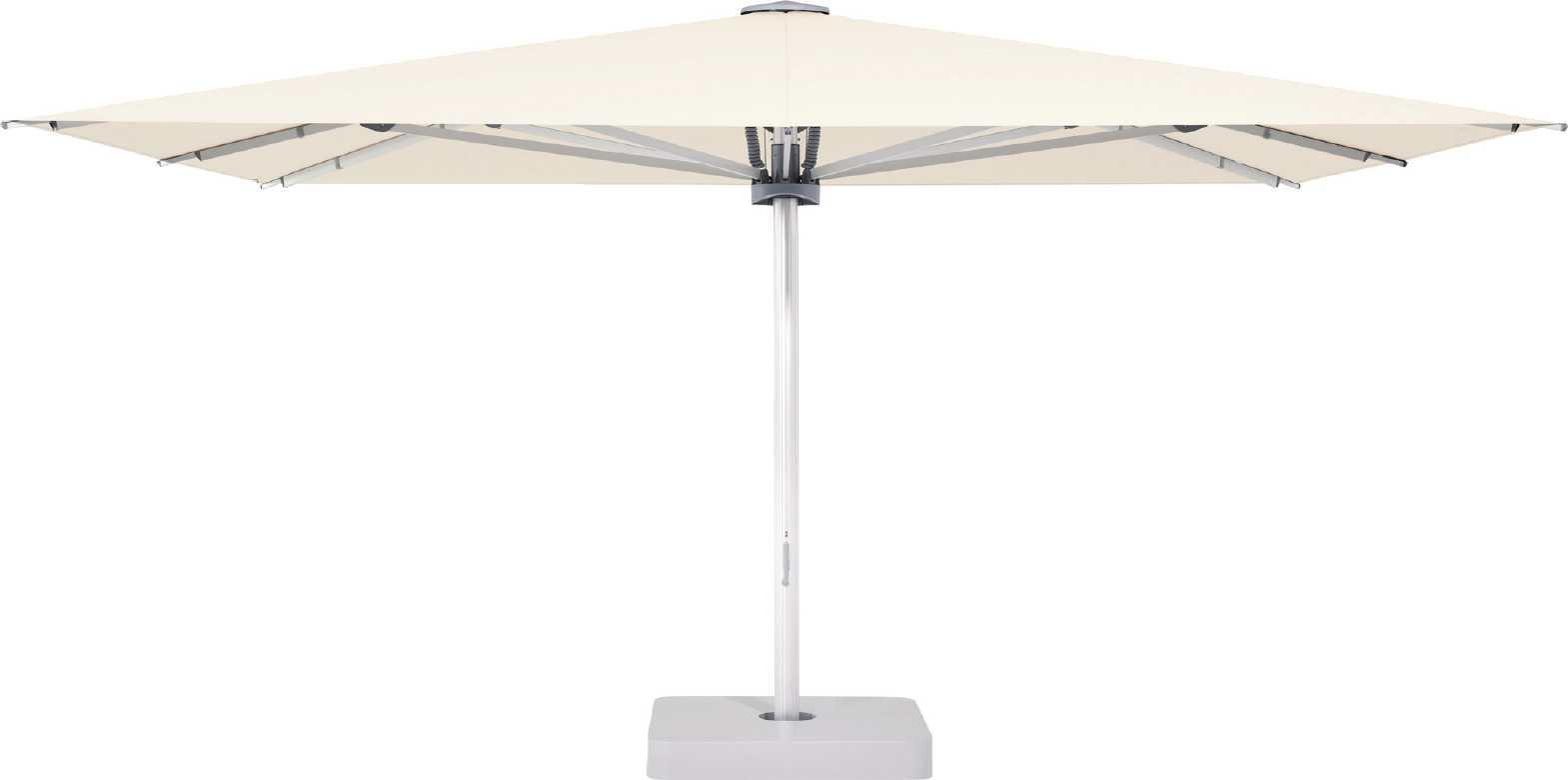

CASTELLO® Pro

This parasol is the ideal host in an outdoor space. Like the Palazzo line, it features an opposing opening system. In contrast to the Palazzo crank, the Castello Pro can be opened and closed using a tensioning lever. The tensioning lever can be locked to protect against unauthorised operation.

Its puristic shapes and the modern, flat roof give the Castello Pro a timelessly modern and fascinating design. Visually, it harmonises perfectly with the models of the F line Pro and ensures a uniform appearance when combined

NEW + 16 sizes

A Swiss masterpiece

ຆ 400 to 800 cm + special sizes made to measure

ຆ Max. 120 km/h wind stability

ຆ Counter-rotating opening principle (crank or motor)

ຆ Opened with just 14–19 turns of the crank (patented)

ຆ Professional additional options (LED, heating, ...)

ຆ Special product solutions (frame, fabrics, ...)

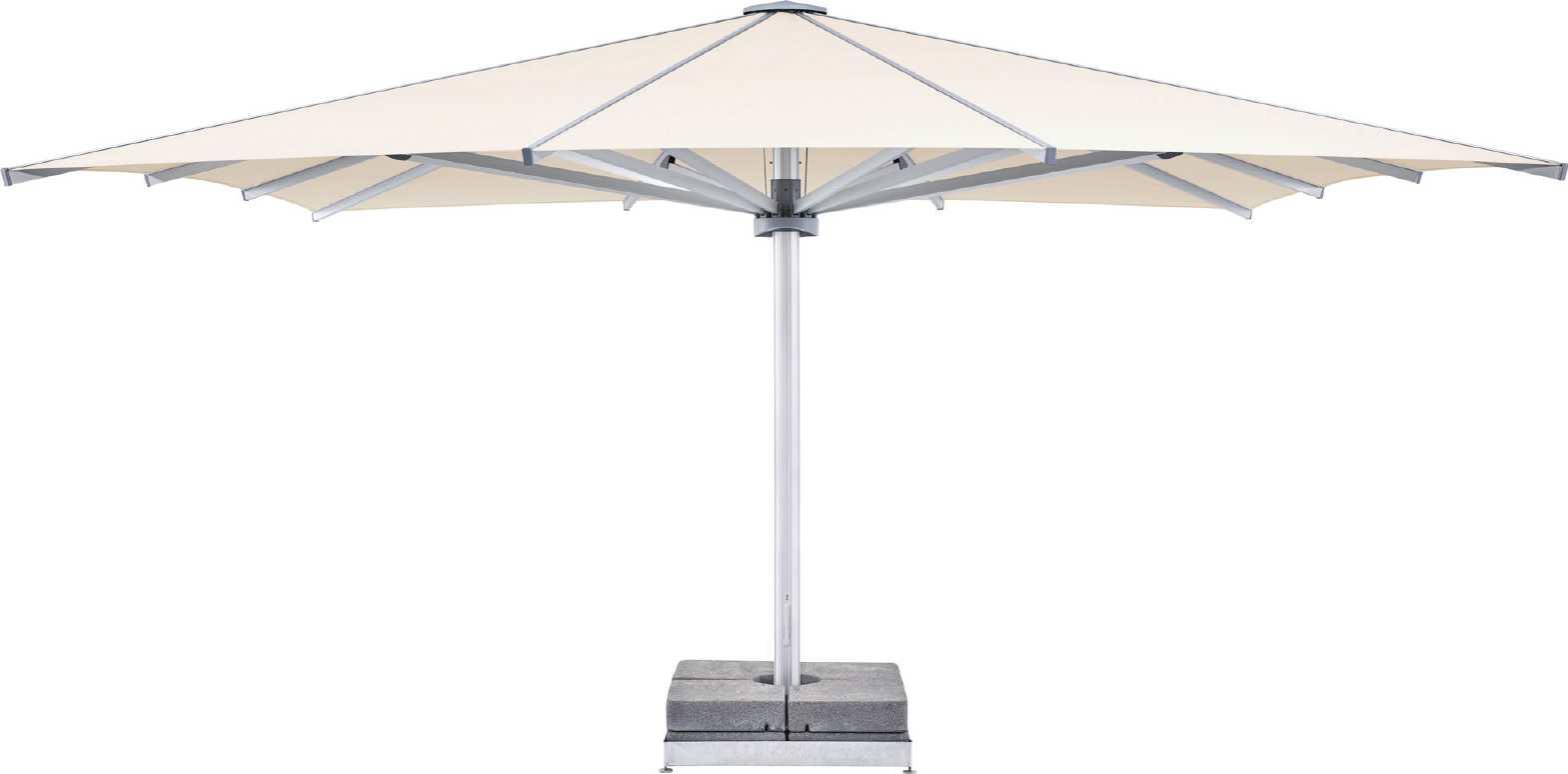

PALAZZO® Royal PALAZZO® Noblesse

The giant parasol for the ambitious

ຆ 250 to 700 cm + special sizes made to measure

ຆ Max. 110 km/h wind stability

ຆ Counter-rotating opening principle (crank or motor)

NEW + 20 sizes

ຆ Opened with just 7–17 turns of the crank (patented)

ຆ Professional additional options (LED, heating, ...)

ຆ Special product solutions (frame, fabrics, ...)

PALAZZO® Style

The stylish parasol

ຆ 200 to 600 cm + special sizes made to measure

ຆ Max. 120 km/h wind stability

ຆ Counter-rotating opening principle (crank or motor)

NEW + 16 sizes

ຆ Opened with just 4–13 turns of the crank (patented)

ຆ Professional additional options (LED, heating, ...)

ຆ Special product solutions (frame, fabrics, ...)

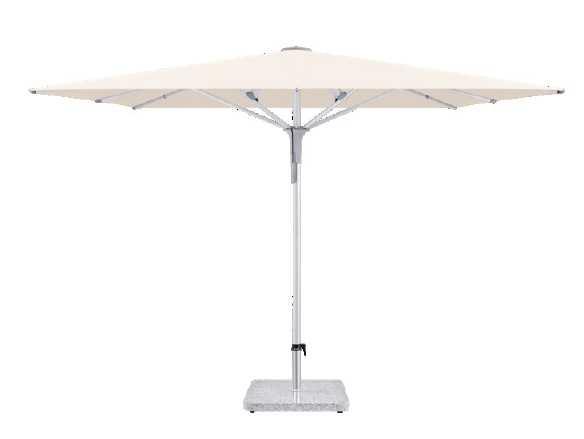

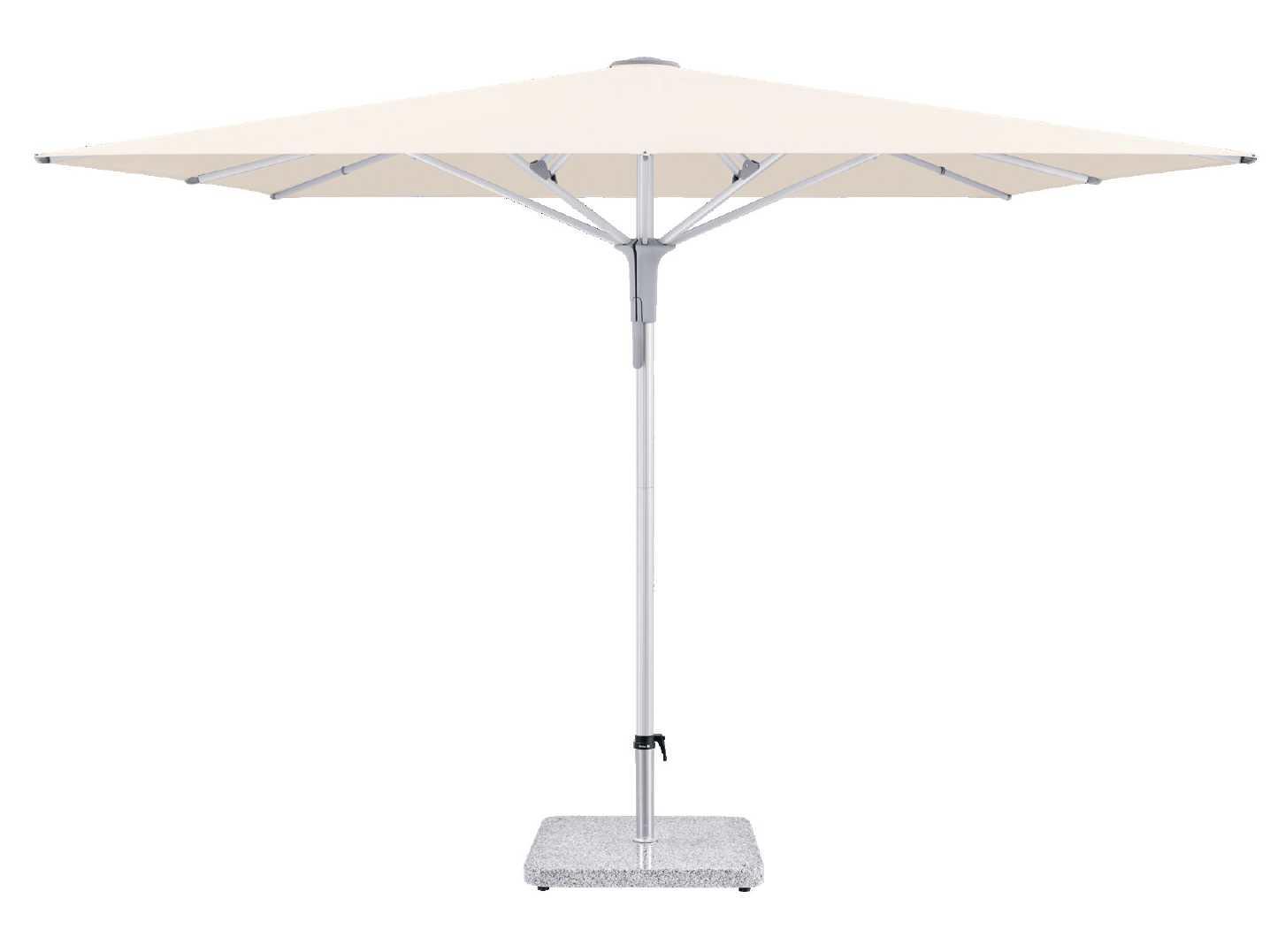

CASTELLO® Pro

The versatile allrounder

ຆ 300 to 600 cm + special sizes made to measure

ຆ Max. 100 km/h wind stability

ຆ Counter-rotating opening principle

ຆ Quick and easy operation using tensioning lever

ຆ Professional additional options (LED, heating, ...)

ຆ Special product solutions (frame, fabrics, ...)

Unique selling proposition

ຆ Palazzo line design language: uniform design of the models Royal, Noblesse and Style

ຆ Continuous mast profile down to the floor covering (internal tip-over hinge)

ຆ Counter-rotating opening principle (with crank or motor): Opened with just 14–19 turns of the crank (patented) High closing height (no need to move the furniture)

ຆ 110 km/h wind stability at size 500 × 500 cm

ຆ Top quality material selection

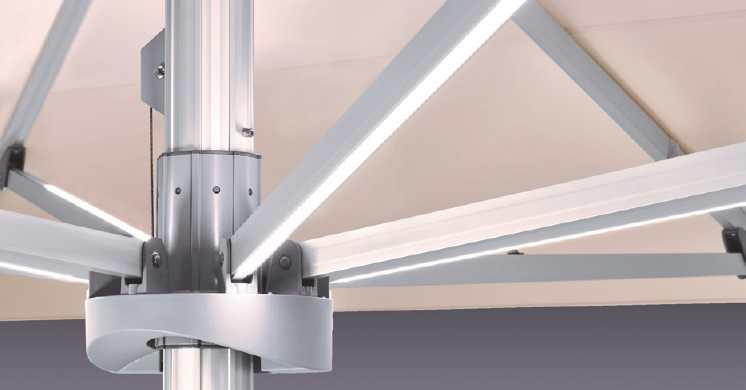

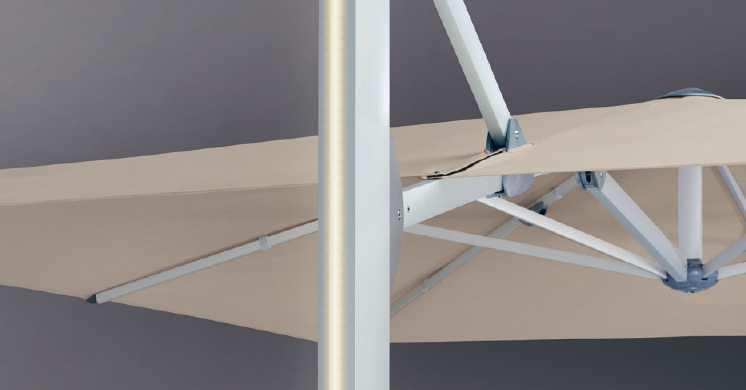

ຆ LED lighting system integrated into the struts

ຆ Professional additional options (Heating, rain gutters, ...)

ຆ Special product solutions (Sizes, frame, fabrics, ...)

Places of use

ຆ Large area outdoors

ຆ Terraces & rooftops

ຆ Corrosive environments

Basic model Fixations

Frame

ຆ 10, 12 or 14 parts made from anodised aluminium

ຆ Anti-rotation mast including reinforcing struts

ຆ Mast profile Ø 120 mm and 5.5 mm wall thickness

ຆ Roof struts 30 × 55 mm

Frame material

ຆ Aluminium: EN-AW-6063-T66

ຆ Screws and rivets made from stainless steel A4

ຆ Glass-fibre reinforced plastic parts: PA6GF30

ຆ Anodisation:

Profile surface finishing

High degree of hardness – wear resistance (“scratch-resistant”)

Increased corrosion resistance

Natural appearance (adaptation to environment)

Modern look (luxurious matt)

Frame colour

ຆ Anodised natural matt (standard)

ຆ RAL 7016 powder-coated (no surcharge)

ຆ RAL colours powder-coated (surcharge)

Powder coating on anodised profiles providing additional corrosion protection)

Opening principle

ຆ Counter-rotating (telescopic system)

ຆ Patented opening using a toothed belt

ຆ Opened with just 14–19 turns of the crank

Drive

ຆ With hand crank (detachable)

ຆ With motor (surcharge)

Canopy

ຆ With or without flounce

ຆ 100 % polyacrylic approx. 300 g/m2 (spun dyed)

ຆ Replaceable or interchangeable canopies

Wind stability

ຆ Up to 120 km/h (with fixed anchorage)

ຆ Tested in a wind tunnel

Important

ຆ The parasol is delivered as an assembly kit and must be assembled on site

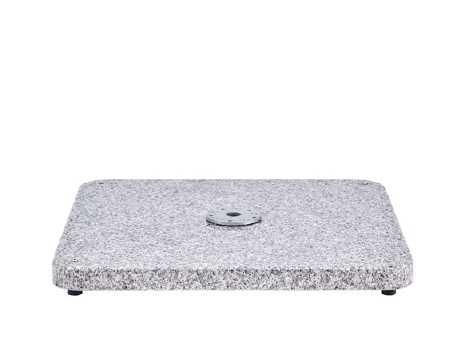

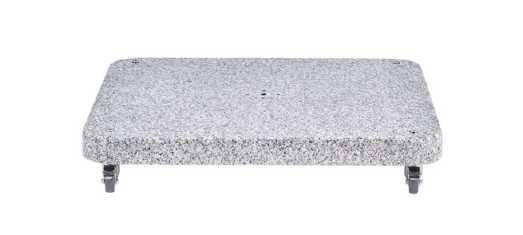

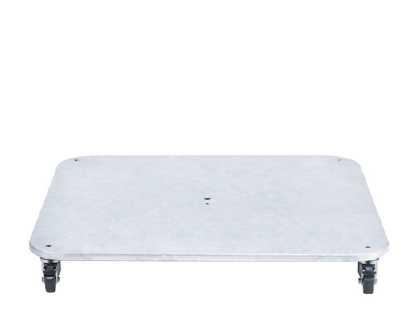

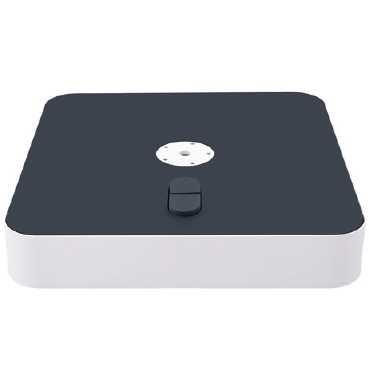

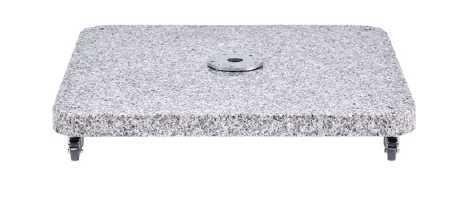

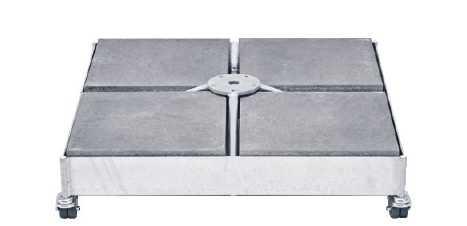

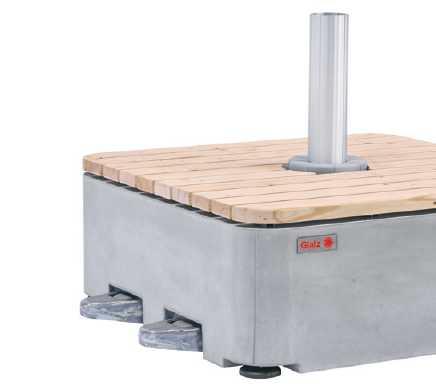

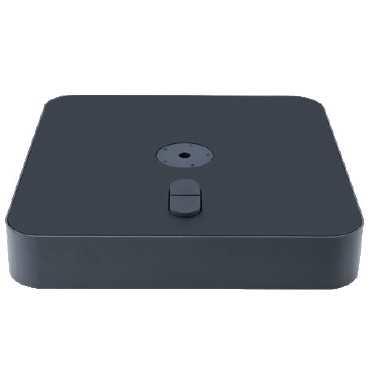

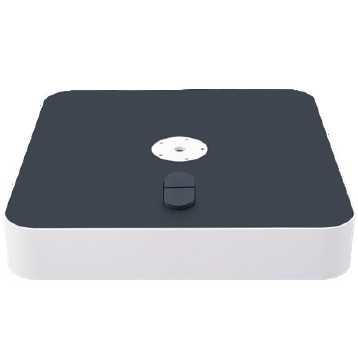

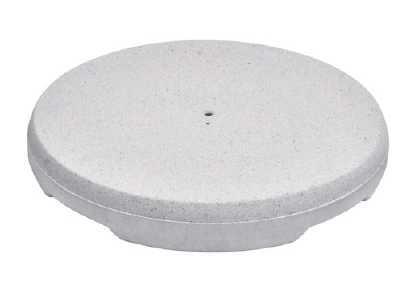

ຆ Bases / parasol stands / covers

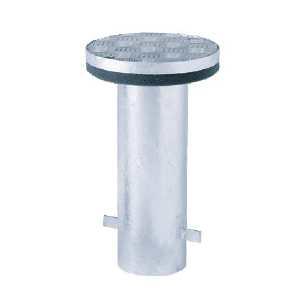

ຆ Ground sockets

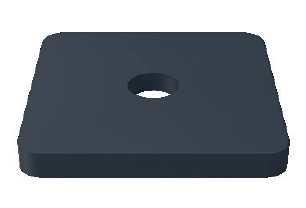

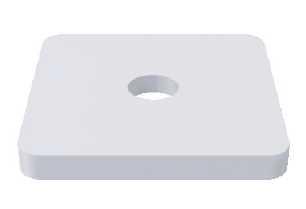

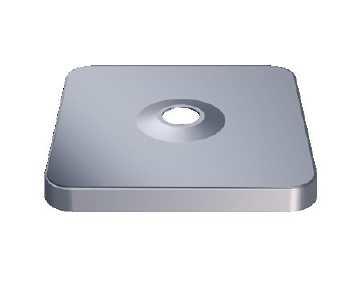

ຆ Mounting plates without or with installation height made to measure

ຆ Mounting plates for insulation floors

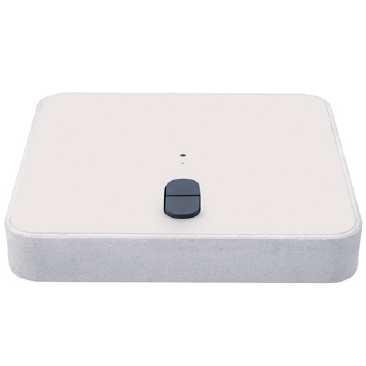

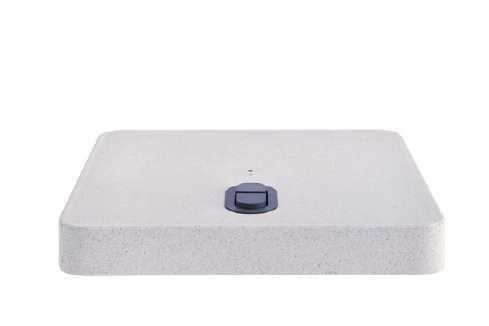

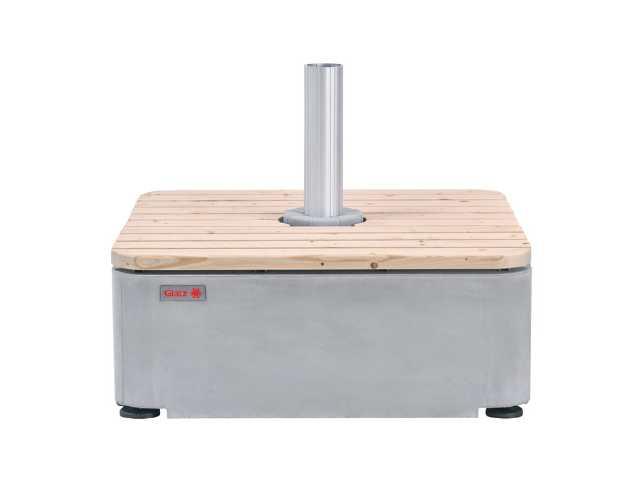

ຆ Glatz Concrete Cube M4/M8/M16

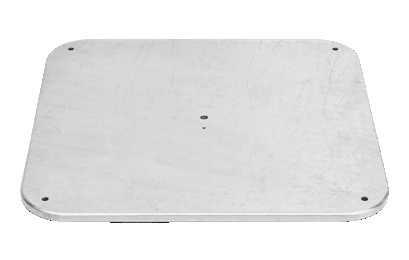

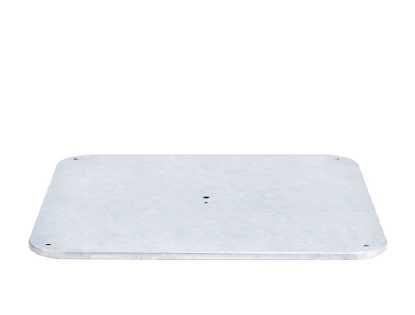

ຆ Base plates made to measure

Additional options – Standard accessories

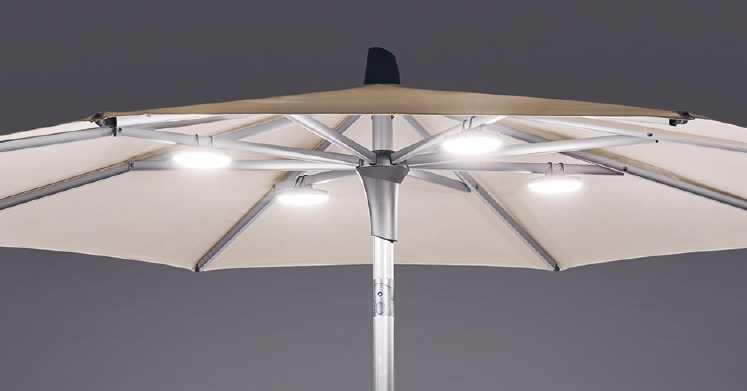

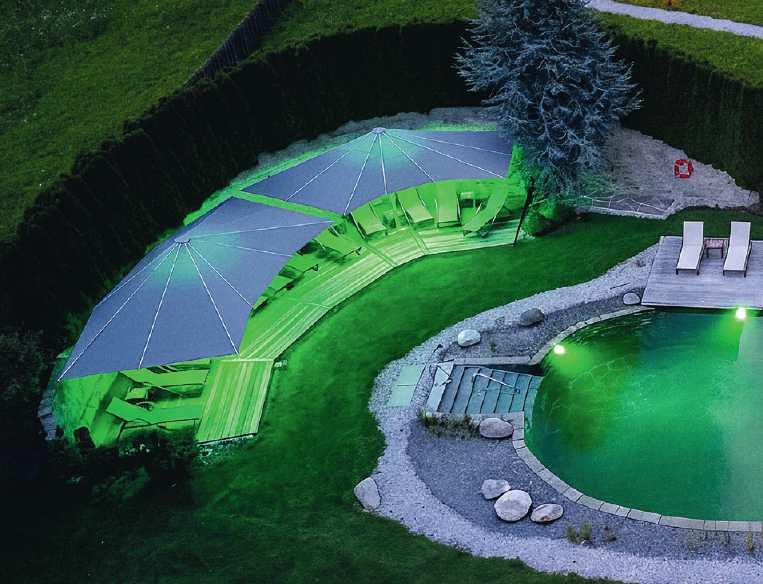

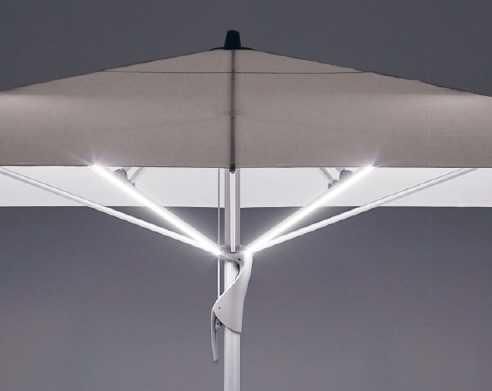

ຆ LED lighting system (RGBW)

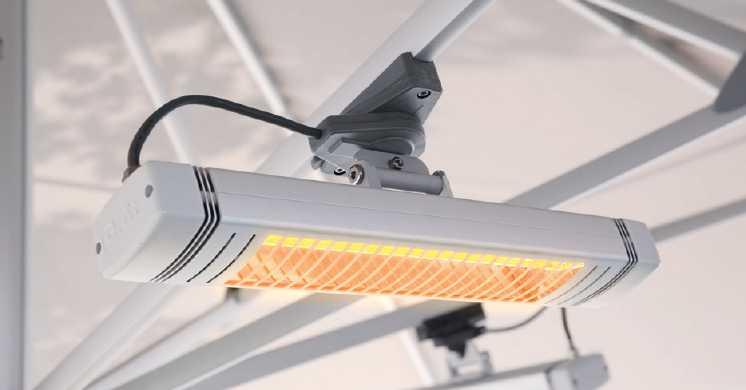

ຆ Infrared radiant heater

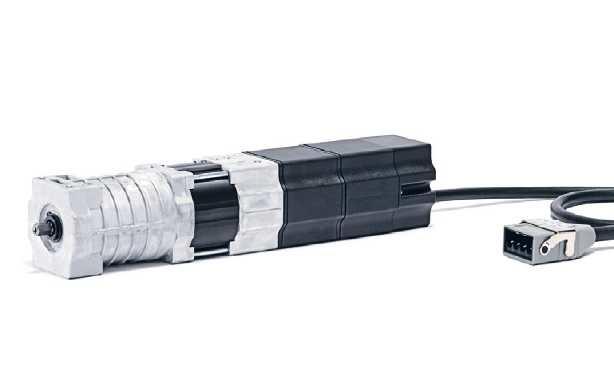

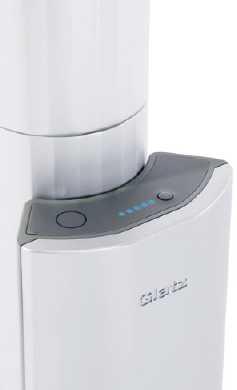

ຆ Motorisation

ຆ BUS systems / connection to the home control system

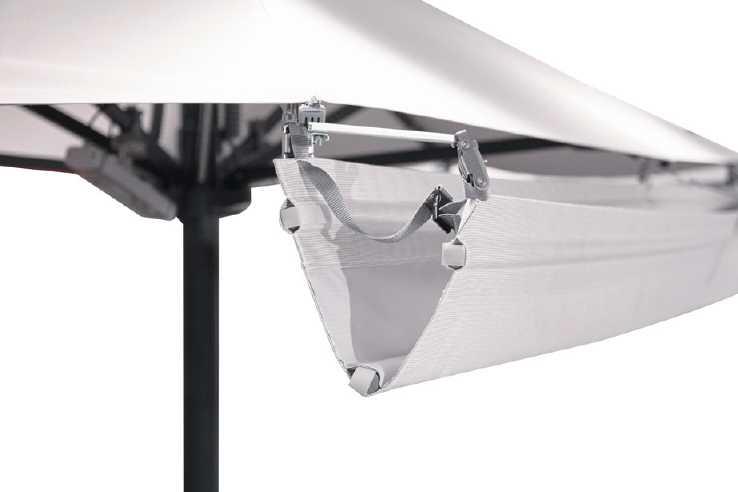

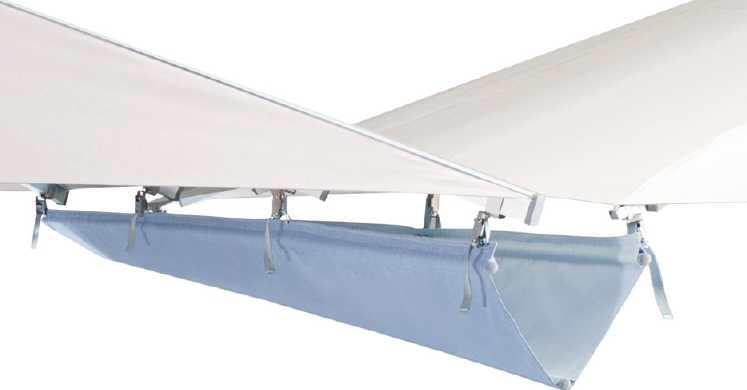

ຆ Rain gutters

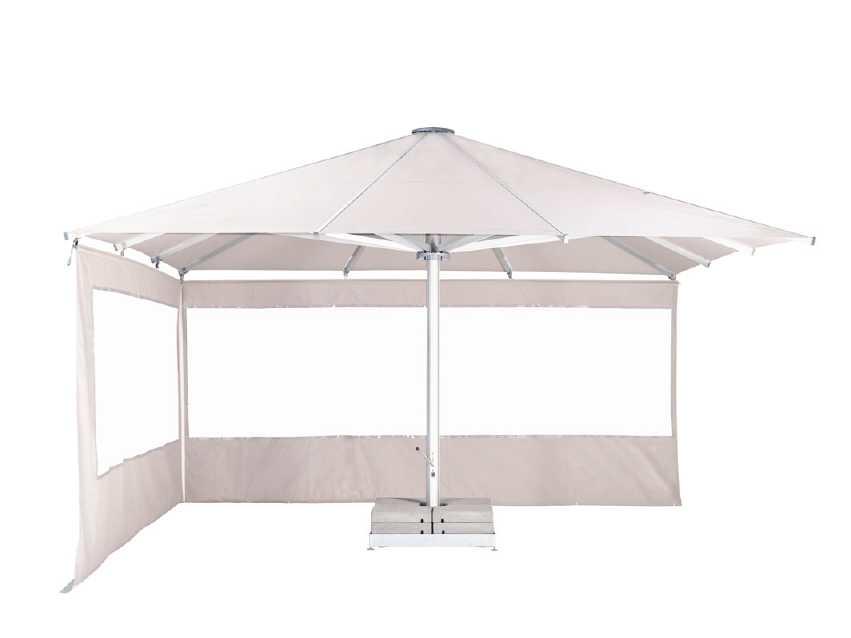

ຆ Side walls

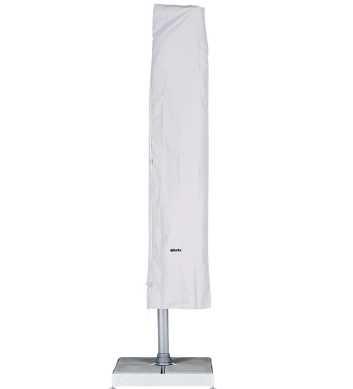

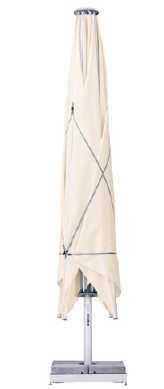

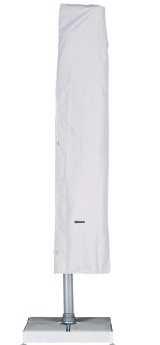

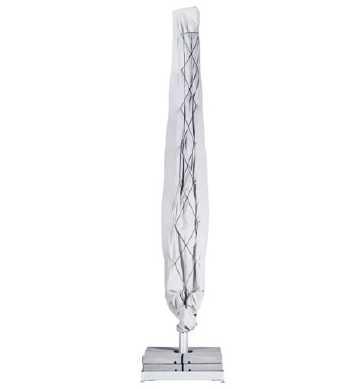

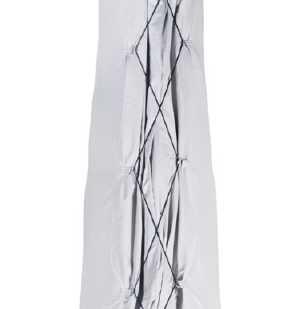

ຆ Protective covers with corset lacing

ຆ Strap systems

ຆ Impact protection

ຆ Anti-theft system (integrated)

ຆ Special sizes & intermediate measurements (increments 1, 2 & 3)

ຆ Mast extensions & reductions max. + 1000 mm / - 500 mm

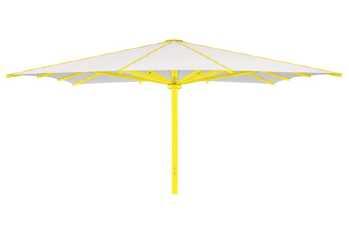

ຆ Frame in all RAL colours

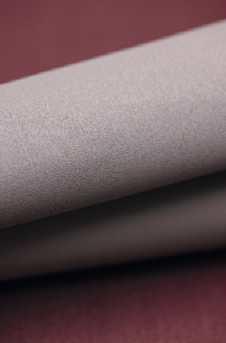

ຆ Glatz Green® Special fabric

ຆ Special fabrics (third-party fabrics, PVC & flame retardant)

ຆ Custom flounces & edging strips

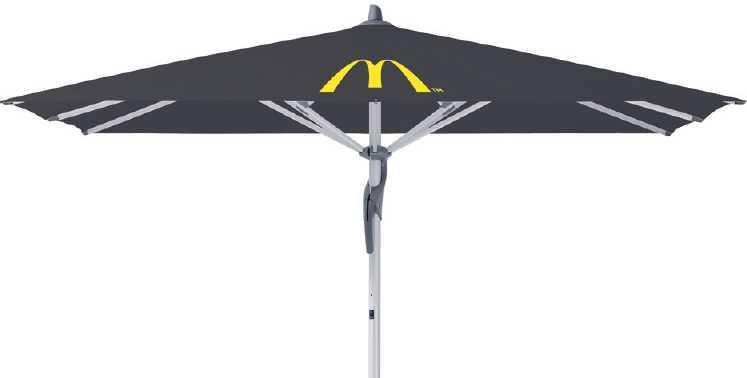

ຆ Printing & advertising print

Loose cover max. 10 cm, concrete thickness min. 30 cm (pay attention to frost depth), guarantee water drainage, supply line electric.

LED positions on the Palazzo Royal with LED

Radiant heater positions on the Palazzo Royal with radiant heater

10 10 km/h less with flounce

The above measures represent extrapolated average values that may be slightly different on the product (± 2 % ± 5 cm).

If a minimum or a maximum height underneath is required, this must be agreed with Glatz.

The measures of the height are determined by the M16 ground socket. If one of the offered bases is used, these measures change only slightly.

The max. wind speed limits as per our separate list apply only in the presence of a fix ground ancorage. A base with the specified minimum weight is not sufficient.

In the presence of several parasols, the min. distance between one parasol and another and between parasolsand walls shall be 30 cm.

Opening and closing using a battery-operated drill is not permitted.

PALAZZO® Noblesse

The giant parasol for the ambitious NEW + 20 sizes

Unique selling proposition

ຆ Palazzo line design language: uniform design of the models Royal, Noblesse and Style

ຆ Continuous mast profile down to the floor covering (internal support tube & tip-over hinge)

ຆ Counter-rotating opening principle (with crank or motor): Opened with just 7–17 turns of the crank (patented) High closing height (no need to move the furniture)

ຆ 110 km/h wind stability at size 400 × 400 cm

ຆ Top quality material selection

ຆ LED lighting system integrated into the struts

ຆ Professional additional options (Heating, rain gutters, ...)

ຆ Special product solutions (Sizes, frame, fabrics, ...)

Places of use

ຆ Large area outdoors

ຆ Terraces & rooftops

ຆ Public spaces & parks

ຆ Corrosive environments

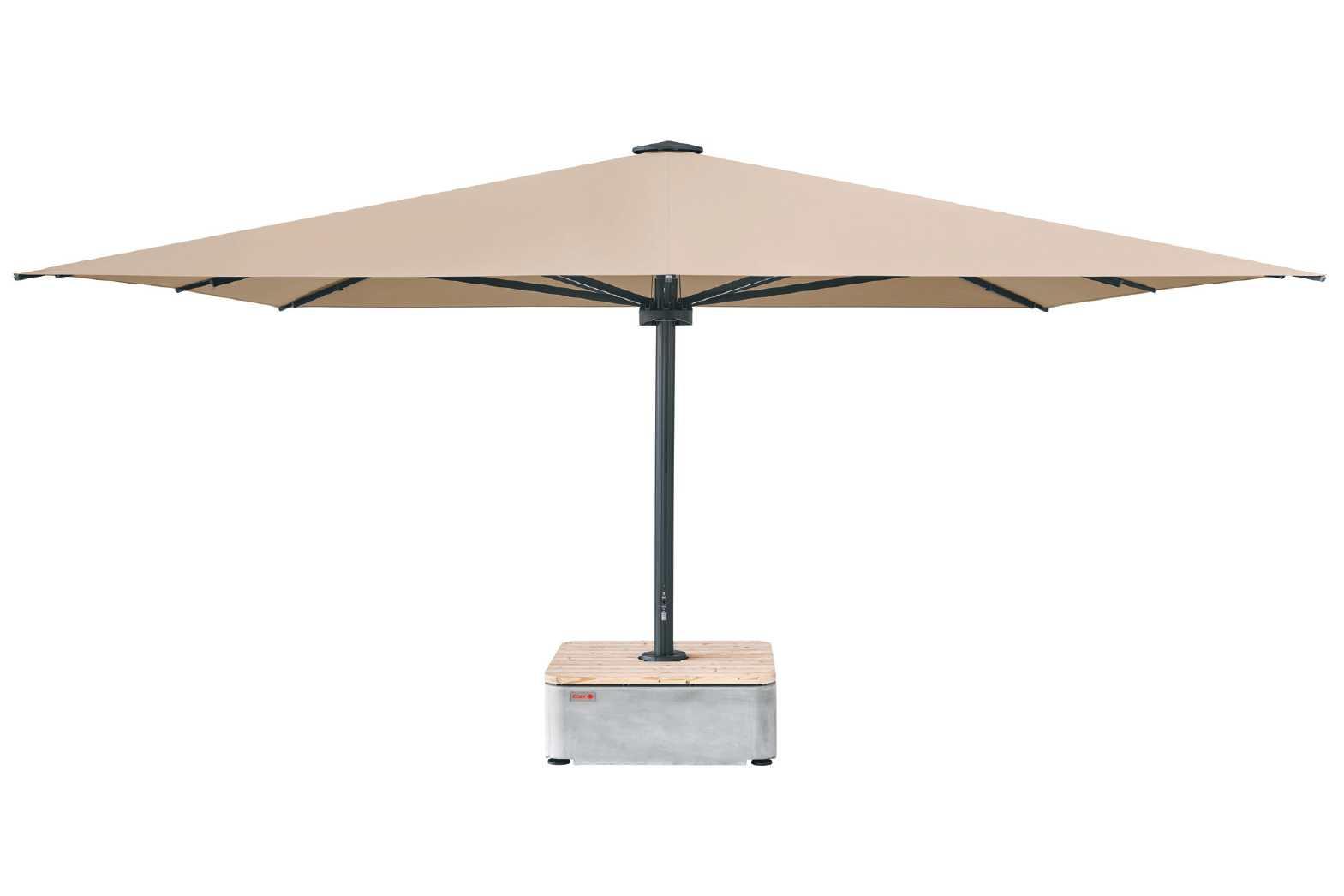

PALAZZO® Noblesse

The giant parasol for the ambitious NEW + 20 sizes

Basic model Fixations

Frame

ຆ 8, 10 or 12 parts made from anodised aluminium

ຆ Anti-rotation mast including reinforcing struts

ຆ Mast profile Ø 105 mm and 4.5 mm wall thickness

ຆ Roof struts 23 × 50 mm / 23 × 40 mm

Frame material

ຆ Aluminium: EN-AW-6063-T66

ຆ Screws and rivets made from stainless steel A4

ຆ Glass-fibre reinforced plastic parts: PA6GF30

ຆ Anodisation:

Profile surface finishing

High degree of hardness – wear resistance (“scratch-resistant”)

Increased corrosion resistance

Natural appearance (adaptation to environment)

Modern look (luxurious matt)

Frame colour

ຆ Anodised natural matt (standard)

ຆ RAL 7016 powder-coated (no surcharge)

ຆ RAL colours powder-coated (surcharge)

Powder coating on anodised profiles (providing additional corrosion protection)

Opening principle

ຆ Counter-rotating (telescopic system)

ຆ Patented opening using a toothed belt

ຆ Opened with just 7–17 turns of the crank

Drive

ຆ With hand crank (detachable)

ຆ With motor (surcharge)

Canopy

ຆ With or without flounce

ຆ Adjustable (adjustable strut extensions)

ຆ 100 % polyacrylic approx. 300 g/m2 (spun dyed)

ຆ Replaceable or interchangeable canopies

Wind stability

ຆ Up to 110 km/h (with fixed anchorage)

ຆ Tested in a wind tunnel

ຆ Bases / parasol stands / covers

ຆ Ground sockets

ຆ Mounting plates without or with installation height made to measure

ຆ Mounting plates for insulation floors

ຆ Glatz Concrete Cube M4/M8/M16

ຆ Base plates made to measure

Additional options – Standard accessories

ຆ LED lighting system (RGBW)

ຆ Infrared radiant heater

ຆ Motorisation

ຆ BUS systems / connection to the home control system

ຆ Rain gutters

ຆ Side walls

ຆ Protective covers with corset lacing

ຆ Strap systems

ຆ Impact protection

ຆ Anti-theft system (integrated)

Special product solutions – Made to measure

ຆ Special sizes & intermediate measurements (increments 1, 2 & 3)

ຆ Mast extensions & reductions max. + 1000 mm / - 500 mm

ຆ Frame in all RAL colours

ຆ Glatz Green® Special fabric

ຆ Special fabrics (third-party fabrics, PVC & flame retardant)

ຆ Custom flounces & edging strips

ຆ Printing & advertising print

Loose cover max. 10 cm, concrete thickness min. 30 cm (pay attention to frost depth), guarantee water drainage, supply line electric.

LED positions on the Palazzo Noblesse with LED

Radiant heater positions on the Palazzo Noblesse with radiant heater

9 reinforced design for increased wind resistance

10 10 km/h less with flounce

The above measures represent extrapolated average values that may be slightly different on the product (± 2 % ± 5 cm).

If a minimum or a maximum height underneath is required, this must be agreed with Glatz.

The measures of the height are determined by the M4 / M8 ground socket. If one of the offered bases is used, these measures change only slightly.

The max. wind speed limits as per our separate list apply only in the presence of a fix ground ancorage. A base with the specified minimum weight is not sufficient.

In the presence of several parasols, the min. distance between one parasol and another and between parasolsand walls shall be 25 cm.

Opening and closing using a battery-operated drill is not permitted.

The stylish parasol

Unique selling proposition

ຆ Palazzo line design language: uniform design of the models Royal, Noblesse and Style

ຆ Continuous mast profile down to the floor covering (internal support tube & tip-over hinge)

ຆ Counter-rotating opening principle (with crank or motor): Opened with just 4–13 turns of the crank (patented) High closing height (no need to move the furniture)

ຆ 115 km/h wind stability at size 300 × 300 cm

ຆ Top quality material selection

ຆ LED lighting system integrated into the struts

ຆ Professional additional options (Heating, rain gutters, ...)

ຆ Special product solutions (Sizes, frame, fabrics, ...) PALAZZO® Style

Places of use

ຆ Small area outdoors

ຆ Terraces & rooftops

ຆ Public spaces & parks

ຆ Corrosive environments

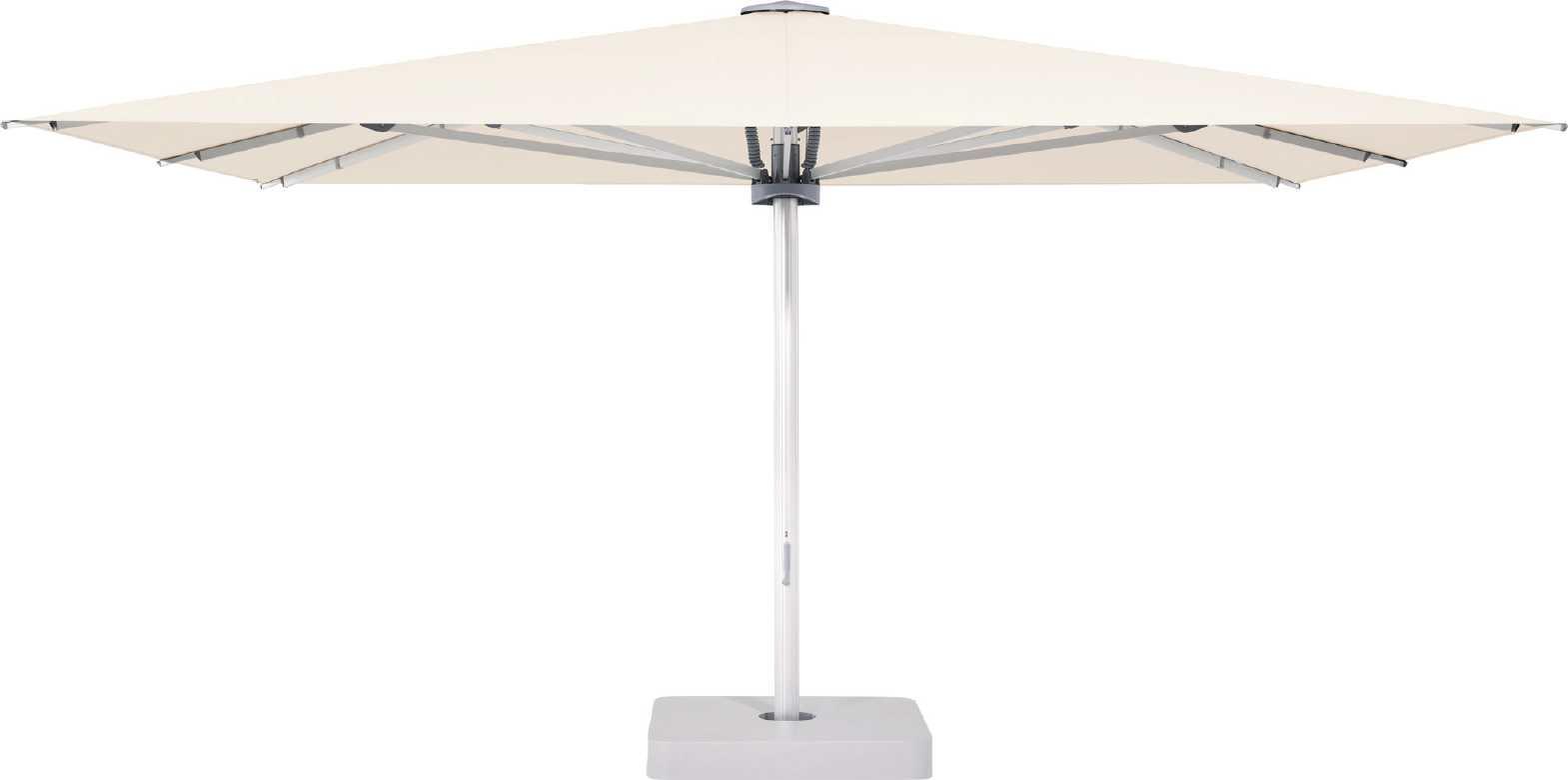

PALAZZO® Style

The stylish parasol NEW + 16 sizes

Basic model Fixations

Frame

ຆ 8 parts made from anodised aluminium

ຆ Anti-rotation mast including reinforcing struts

ຆ Mast profile Ø 105 mm and 4.5 mm wall thickness

ຆ Roof struts 23 × 40 mm

Frame material

ຆ Aluminium: EN-AW-6063-T66

ຆ Screws and rivets made from stainless steel A4

ຆ Glass-fibre reinforced plastic parts: PA6GF30

ຆ Anodisation:

Profile surface finishing

High degree of hardness – wear resistance (“scratch-resistant”)

Increased corrosion resistance

Natural appearance (adaptation to environment)

Modern look (luxurious matt)

Frame colour

ຆ Anodised natural matt (standard)

ຆ RAL 7016 powder-coated (no surcharge)

ຆ RAL colours powder-coated (surcharge)

Powder coating on anodised profiles (providing additional corrosion protection)

Opening principle

ຆ Counter-rotating (telescopic system)

ຆ Patented opening using a toothed belt

ຆ Opened with just 4–13 turns of the crank

Drive

ຆ With hand crank (detachable)

ຆ With motor (surcharge)

Canopy

ຆ With or without flounce

ຆ Adjustable (adjustable strut extensions)

ຆ 100 % polyacrylic approx. 300 g/m2 (spun dyed)

ຆ Replaceable or interchangeable canopies

Wind stability

ຆ Up to 120 km/h (with fixed anchorage)

ຆ Tested in a wind tunnel

ຆ Bases / parasol stands / covers

ຆ Ground sockets

ຆ Mounting plates without or with installation height made to measure

ຆ Mounting plates for insulation floors

ຆ Glatz Concrete Cube M4/M8/M16

ຆ Base plates made to measure

Additional options – Standard accessories

ຆ LED lighting system (RGBW)

ຆ Infrared radiant heater

ຆ Motorisation

ຆ BUS systems / connection to the home control system

ຆ Rain gutters

ຆ Side walls

ຆ Protective covers with corset lacing

ຆ Strap systems

ຆ Impact protection

ຆ Anti-theft system (integrated)

Special product solutions – Made to measure

ຆ Special sizes & intermediate measurements (increments 1, 2 & 3)

ຆ Mast extensions & reductions max. + 1000 mm / - 500 mm

ຆ Frame in all RAL colours

ຆ Glatz Green® Special fabric

ຆ Special fabrics (third-party fabrics, PVC & flame retardant)

ຆ Custom flounces & edging strips

ຆ Printing & advertising print

Loose cover max. 10 cm, concrete thickness min. 30 cm (pay attention to frost depth), guarantee water drainage, supply line electric.

LED positions on the Palazzo Style with LED

Radiant heater positions on the Palazzo Style with radiant heater

10 10 km/h less with flounce

The above measures represent extrapolated average values that may be slightly different on the product (± 2 % ± 5 cm).

If a minimum or a maximum height underneath is required, this must be agreed with Glatz.

Height dimensions are based on ground socket M4. These differ slightly depending on the type of base. Except for base M4, 180 kg plus 15.5 cm.

The max. wind speed limits as per our separate list apply only in the presence of a fix ground ancorage. A base with the specified minimum weight is not sufficient. In the presence of several parasols, the min. distance between one parasol and another and between parasols and walls shall be 25 cm.

Opening and closing using a battery-operated drill is not permitted.

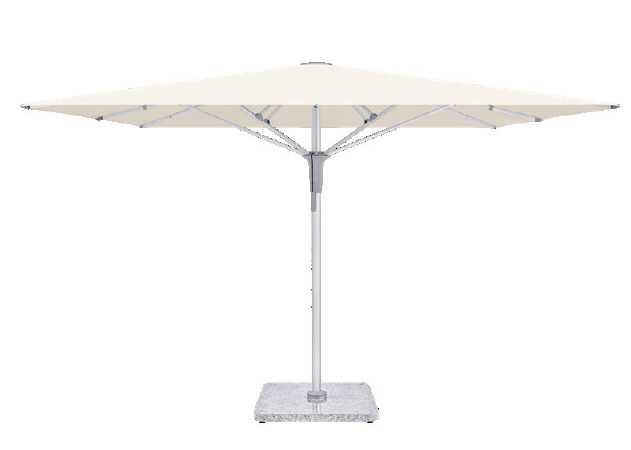

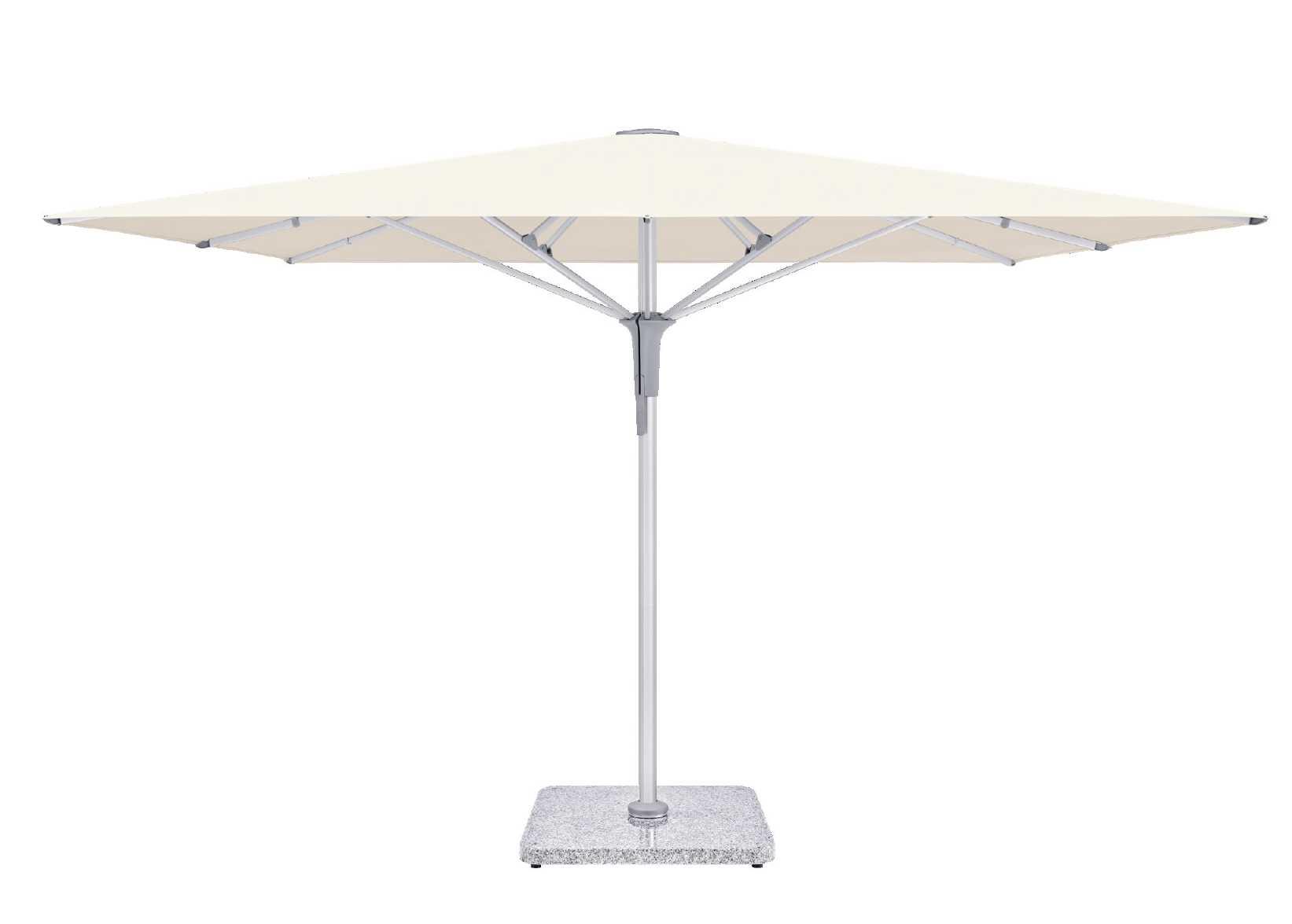

CASTELLO® Pro

The versatile allrounder

Unique selling proposition

ຆ F-line design language: Harmonises with the Fortello, Fortero and Fortino Riviera models

ຆ Continuous mast profile down to the floor covering (internal support tube)

ຆ Counter-rotating opening principle: Quick and easy operation using tensioning lever High closing height (no need to move the furniture)

ຆ 100 km/h wind stability at size 300 × 300 cm

ຆ Top quality material selection

ຆ LED lighting system integrated into the struts

ຆ Professional additional options (Heating, rain gutters, ...)

ຆ Special product solutions (Sizes, frame, fabrics, ...)

ຆ Lockable tensioning lever against unauthorised use

Places of use

ຆ Large area outdoors

ຆ Small area outdoors

ຆ Terraces & rooftops

ຆ Public spaces & parks

ຆ Corrosive environments

Basic model Fixations

Frame

ຆ 8 parts made from anodised aluminium

ຆ Profiled and anti-rotation mast

ຆ Mast profile Ø 90 mm and 3.2 mm wall thickness

ຆ Roof struts 20 × 33 mm

Frame material

ຆ Aluminium: EN-AW-6063-T66

ຆ Screws and rivets made from stainless steel A4

ຆ Glass-fibre reinforced plastic parts: PA6GF30

ຆ Anodisation:

Profile surface finishing

High degree of hardness – wear resistance (“scratch-resistant”)

Increased corrosion resistance

Natural appearance (adaptation to environment)

Modern look (luxurious matt)

Frame colour

ຆ Anodised natural matt (standard)

ຆ RAL 7016 powder-coated (no surcharge)

ຆ RAL colours powder-coated (surcharge)

Powder coating on anodised profiles (providing additional corrosion protection)

Opening principle

ຆ Counter-rotating (telescopic system)

ຆ Fast opening thanks to slide and tensioning lever

Canopy

ຆ With or without flounce

ຆ Self-tautening thanks to the flexible strut ends

ຆ 100 % polyacrylic approx. 300 g/m2 (spun dyed)

ຆ Replaceable or interchangeable canopies

Wind stability

ຆ Up to 100 km/h (with fixed anchorage)

ຆ Tested in a wind tunnel

ຆ Bases / parasol stands / covers

ຆ Ground sockets

ຆ Mounting plates without or with installation height made to measure

ຆ Mounting plates for insulation floors

ຆ Glatz Concrete Cube M4/M8/M16

ຆ Base plates made to measure

ຆ LED lighting system (RGBW)

ຆ Infrared radiant heater

ຆ Rain gutters

ຆ Side walls

ຆ Protective covers with corset lacing

ຆ Strap systems

ຆ Impact protection

ຆ Anti-theft system

ຆ Lockable tensioning lever

Special product solutions – Made to measure

ຆ Special sizes & intermediate measurements (increment 1)

ຆ Mast extensions & reductions max. + 800 mm / - 800 mm

ຆ Frame in all RAL colours

ຆ Glatz Green® Special fabric

ຆ Special fabrics (third-party fabrics, PVC & flame retardant)

ຆ Custom flounces & edging strips

ຆ Printing & advertising print

Loose cover max. 10 cm, concrete thickness min. 30 cm (pay attention to frost depth), guarantee water drainage, supply line electric.

LED positions on the Castello Pro with LED

Radiant heater positions on the Castello Pro with radiant heater

10 10 km/h less with flounce

The above measures represent extrapolated average values that may be slightly different on the product (± 2 % ± 5 cm).

If a minimum or a maximum height underneath is required, this must be agreed with Glatz.

Height dimensions are based on ground socket M4. These differ slightly depending on the type of base. Except for base M4, 180 kg plus 15.5 cm.

The max. wind speed limits as per our separate list apply only in the presence of a fix ground ancorage. A base with the specified minimum weight is not sufficient.

In the presence of several parasols, the min. distance between one parasol and another and between parasols and walls shall be 25 cm.

Centre pole parasols

The new F Line Pro

The dimensions are not too big and not too small – that's why the new F Line Pro with the models Fortino Pro, Fortero Pro and Fortello Pro is in such high demand in the contract sector. This model range is ideal for compact and contorted outdoor areas; arranged as a group, they can easily shade larger areas while speaking the same design language.

Handling and operation is child's play. The opposing opening principle ensures high efficiency: simply pull the tensioning lever downwards and engage in the runner. The well thought-out telescopic system with its high closing heights is especially convenient as it does not touch furniture or crockery.

The Fortello (model until 2025, not Pro version) is perfect for spending time outdoors in the late evening or at night. It is available with LED lighting, without a tangle of cables and without any power supply lines required on site. The rechargeable Glatz battery pack provides dimmable LED light for up to 10 hours.

Our giant parasol Castello Pro is also often the top choice when it comes to custom requests. It harmonises perfectly with the new F Line Pro and ensures a uniform appearance at the property when combined.

ALU-SMART

The name says it all: simple and practical operation, many useful functions and a modern design. With its sizes, it easily adapts to compact and tight spaces and, owing to its height adjustment and tilting, provides shade to meet your preferences, even when the sun is at a low angle.

FORTELLO® Pro

The large-size windproof parasol

ຆ 300 to 400 cm

ຆ Max. 80 km/h wind stability

ຆ Counter-rotating opening principle

ຆ Quick and easy operation using tensioning lever

ຆ Corrosion-resistant plastic components

ຆ Optional integrated LED lighting with battery pack

FORTERO® Pro

The medium-size windproof parasol

ຆ 200 to 350 cm

ຆ Max. 65 km/h wind stability

ຆ Counter-rotating opening principle

ຆ Quick and easy operation using tensioning lever

ຆ Corrosion-resistant plastic components

ຆ Osyrion Spot battery-powered LED light with remote

FORTINO® Pro

The compact windproof parasol

ຆ 200 to 300 cm

ຆ Max. 80 km/h wind stability

ຆ Counter-rotating opening principle

ຆ Quick and easy operation using tensioning lever

ຆ Corrosion-resistant plastic components

ຆ Osyrion Spot battery-powered LED light with remote

ALU-SMART

The small and adaptable parasol

ຆ 150 to 300 cm

ຆ Max. 65 km/h wind stability

ຆ Easy to open by pressing the slide

ຆ Continuous height adjustment

ຆ Tilt function by activating the tilt joint

ຆ Osyrion Spot battery-powered LED light with remote

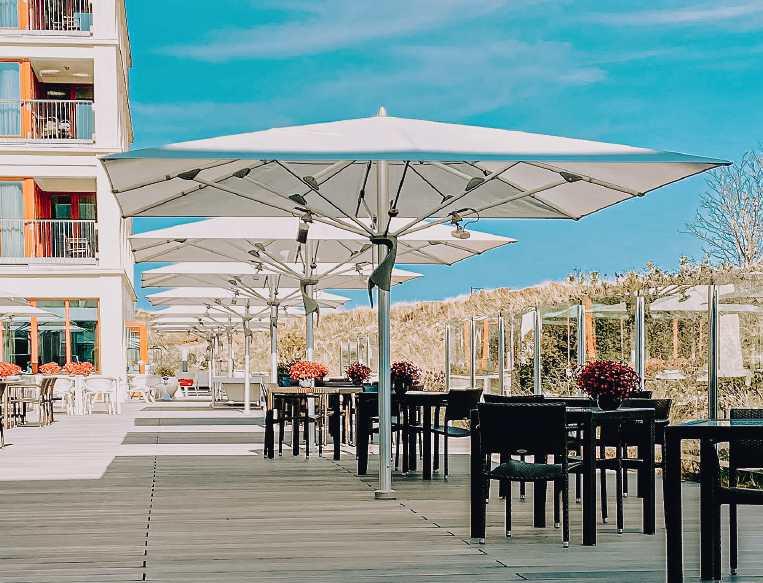

The large-size windproof parasol

Unique selling proposition

ຆ F-line Pro design language: uniform design of the models Fortello Pro, Fortero Pro and Fortino Pro

ຆ Continuous mast profile down to the floor covering (internal support tube)

ຆ Counter-rotating opening principle: Quick and easy operation using tensioning lever

High closing height (no need to move the furniture)

ຆ 80 km/h wind stability at size 350 × 350 cm

ຆ Top quality material selection

ຆ Integrated LED lighting with battery pack (no power cable) (only available on model 2025, not on Pro version)

ຆ Quickship program available

Places of use

ຆ Small area outdoors

ຆ Terraces & rooftops

ຆ Public spaces & parks

ຆ NEW Corrosive environments

Basic model

Frame

ຆ 8 parts made from anodised aluminium

ຆ Profiled two-part mast

ຆ Mast profile Ø 67 mm and 3 mm wall thickness

ຆ Roof struts 20 × 33 mm

Frame material

ຆ Aluminium: EN-AW-6063-T5

ຆ Screws and rivets made from stainless steel A4

ຆ Glass-fibre reinforced plastic parts: PA6GF30

ຆ Anodisation:

Profile surface finishing

High degree of hardness – wear resistance (“scratch-resistant”)

Increased corrosion resistance

Natural appearance (adaptation to environment)

Modern look (luxurious matt)

Frame colour

ຆ Anodised natural matt

Opening principle

ຆ Counter-rotating (telescopic system)

ຆ Fast opening thanks to slide and tensioning lever

Canopy

ຆ Without flounce (flounce for a surcharge)

ຆ Self-tautening thanks to the flexible strut ends

ຆ Available in 3 fabric qualities:

100 % polyacrylic approx. 300 g/m2 (spun dyed)

100 % polyester approx. 250 g/m2 (spun dyed)

100 % polyester approx. 220 g/m2 (piece dyed)

ຆ Replaceable or interchangeable canopies

Wind stability

ຆ Up to 80 km/h (with fixed anchorage)

ຆ Tested in a wind tunnel

Fixations

ຆ Bases / parasol stands / covers

ຆ Ground sockets

ຆ Mounting plates without or with installation height made to measure

ຆ Mounting plates for insulation floors

ຆ Glatz Concrete Cube M4/M8/M16

ຆ Base plates made to measure

Additional options – Standard accessories

ຆ LED lighting with battery pack (only available on model 2025, not on Pro version) (Not suitable for corrosive environments)

ຆ Protective cover

Special product solutions – Made to measure

ຆ Mast extensions & reductions max. + 300 mm / - 275 mm

ຆ Glatz Green® Special fabric

ຆ Special fabrics (third-party fabrics, flame retardant)

ຆ Custom flounces & edging strips

ຆ Printing & advertising print

Loose cover max. 10 cm, concrete thickness min. 30 cm (pay attention to frost depth), guarantee water drainage

The listed measures represent extrapolated average values that may be slightly different on the product (± 2 % ± 5 cm).

The height dimensions are based on the ground socket M4. With the base M4, 120 kg these vary by plus 11.5 cm and with the base M4, 180 kg by plus 15.5 cm. With the natural granite base, 120 kg these vary by plus 9.5 cm and with the natural granite base with set of castors by plus 14 cm.

Using PX ground socket with adapter on M4 leaves an additional 10.5 cm.

The max. wind speed limits as per our separate list apply only in the presence of a fix ground anchorage. A base with the specified minimum weight is not sufficient. In the presence of several parasols, the minimum distance between one parasol and another and between parasols and walls shall be 20 cm.

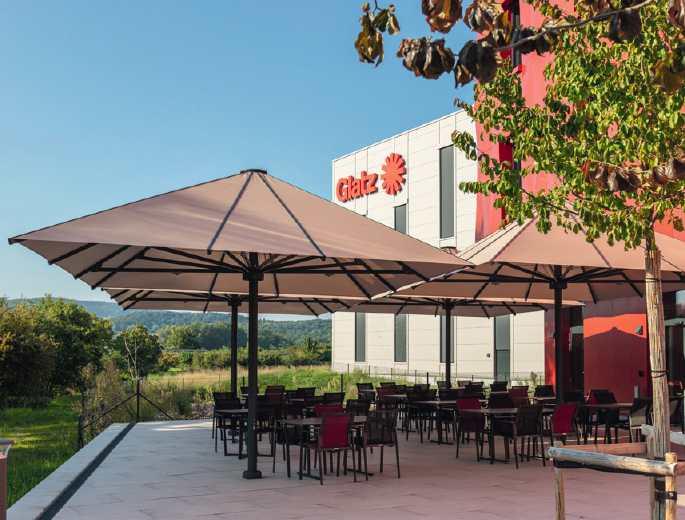

The medium-size windproof parasol

Unique selling proposition

ຆ F-line Pro design language: uniform design of the models Fortello Pro, Fortero Pro and Fortino Pro

ຆ Counter-rotating opening principle: Quick and easy operation using tensioning lever

High closing height (no need to move the furniture)

ຆ 60 km/h wind stability at size 300 × 300 cm

ຆ Top quality material selection

ຆ Osyrion Spot battery-powered LED light with remote

ຆ Quickship program available

Places of use

ຆ Small area outdoors

ຆ Terraces & rooftops

ຆ Public spaces & parks

ຆ NEW Corrosive environments

The medium-size windproof parasol

Basic model

Frame

ຆ 8 parts made from anodised aluminium

ຆ Profiled two-part mast

ຆ Mast profile Ø 55 mm and 2.5 mm wall thickness

ຆ Roof struts 20 × 26 mm

Frame material

ຆ Aluminium: EN-AW-6063-T5

ຆ Screws and rivets made from stainless steel A4

ຆ Glass-fibre reinforced plastic parts: PA6GF30

ຆ Anodisation:

Profile surface finishing

High degree of hardness – wear resistance (“scratchresistant”)

Increased corrosion resistance

Natural appearance (adaptation to environment)

Modern look (luxurious matt)

Frame colour

ຆ Anodised natural matt

Opening principle

ຆ Counter-rotating (telescopic system)

ຆ Fast opening thanks to slide and tensioning lever

Canopy

ຆ Without flounce (flounce for a surcharge)

ຆ Self-tautening thanks to the flexible strut ends

ຆ Available in 3 fabric qualities:

100 % polyacrylic approx. 300 g/m2 (spun dyed)

100 % polyester approx. 250 g/m2 (spun dyed)

100 % polyester approx. 220 g/m2 (piece dyed)

ຆ Replaceable or interchangeable canopies

Wind stability

ຆ Up to 65 km/h (with fixed anchorage)

ຆ Tested in a wind tunnel

Fixations

ຆ Bases / parasol stands / covers

ຆ Ground sockets

ຆ Mounting plates without or with installation height made to measure

ຆ Mounting plates for insulation floors

ຆ Base plates made to measure

Additional options – Standard accessories

ຆ Osyrion Spot battery-powered LED light, removable

ຆ Protective cover

Special product solutions – Made to measure

ຆ Mast extensions & reductions max. + 300 mm / - 550 mm

ຆ Glatz Green® Special fabric

ຆ Special fabrics (third-party fabrics, flame retardant)

ຆ Custom flounces & edging strips

ຆ Printing & advertising print

Loose cover max. 10 cm, concrete thickness min. 30 cm (pay attention to frost depth), guarantee water drainage

The listed measures represent extrapolated average values that may be slightly different on the product (± 2 % ± 5 cm).

Using PX ground socket with connecting tube leaves an additional 10.5 cm.

Height dimensions are based on ground socket M4. If one of the offered bases is used, these measures raise by 9.5–16 cm.

The max. wind speed limits as per our separate list apply only in the presence of a fix ground anchorage. A base with the specified minimum weight is not sufficient.

In the presence of several parasols, the minimum distance between one parasol and another and between parasols and walls shall be 20 cm.

The compact windproof parasol

Unique selling proposition

ຆ F-line Pro design language: uniform design of the models

Fortello Pro, Fortero Pro and Fortino Pro

ຆ Modern look thanks to extra flat roof of the parasol

ຆ Counter-rotating opening principle:

Quick and easy operation using tensioning lever

High closing height (no need to move the furniture)

ຆ 80 km/h wind stability at size Ø 250 cm

ຆ Top quality material selection

ຆ Osyrion Spot battery-powered LED light with remote

ຆ Quickship program available

Places of use

ຆ Small area outdoors

ຆ Terraces & rooftops

ຆ Public spaces & parks

ຆ Corrosive environments

The compact windproof parasol

Basic model

Frame

ຆ 8 parts made from anodised aluminium

ຆ Profiled two-part pole

ຆ Pole profile Ø 38.4 mm and 2 mm wall thickness

ຆ Roof struts 14 × 20 mm

Frame material

ຆ Aluminium: EN-AW-6063-T5

ຆ Screws and rivets made from stainless steel A4

ຆ Glass-fibre reinforced plastic parts: PA6GF30

ຆ Anodisation:

Profile surface finishing

High degree of hardness – wear resistance (“scratch-resistant”)

Increased corrosion resistance

Natural appearance (adaptation to environment)

Modern look (luxurious matt)

Frame colour

ຆ Anodised natural matt

Opening principle

ຆ Counter-rotating (telescopic system)

ຆ Fast opening thanks to slide and tensioning lever

Canopy

ຆ Without flounce (flounce for a surcharge)

ຆ Self-tautening thanks to the flexible strut ends

ຆ Available in 3 fabric qualities:

100 % polyacrylic approx. 300 g/m2 (spun dyed)

100 % polyester approx. 250 g/m2 (spun dyed)

100 % polyester approx. 220 g/m2 (piece dyed)

ຆ Replaceable or interchangeable canopies

Wind stability

ຆ Up to 80 km/h (with fixed anchorage)

ຆ Tested in a wind tunnel

Fixations

ຆ Bases / parasol stands

ຆ Ground sockets

ຆ Mounting plates without or with installation height made to measure*

ຆ Mounting plates for insulation floors*

ຆ Base plates made to measure*

* Adapter required

Additional options – Standard accessories

ຆ Osyrion Spot battery-powered LED light, removable

ຆ Protective cover

Special product solutions – Made to measure

ຆ Mast extensions & reductions max. + 300 mm / - 550 mm

ຆ Glatz Green® Special fabric

ຆ Special fabrics (third-party fabrics, flame retardant)

ຆ Custom flounces & edging strips

ຆ Printing & advertising print

Loose cover max. 10 cm, concrete thickness min. 30 cm (pay attention to frost depth), guarantee water drainage

The listed measures represent extrapolated average values that may be slightly different on the product (± 2 % ± 5 cm).

Height dimensions are based on ground socket BT. These vary slightly depending on the type of base. Except for steel base minus 5 cm.

For the variants with a mounting plate and the M4-to-Z adapter, the specified heights are reduced by 4–5 cm.

The max. wind speed limits as per our separate list apply only in the presence of a fix ground anchorage. A base with the specified minimum weight is not sufficient. In the presence of several parasols, the minimum distance between one parasol and another and between parasols and walls shall be 20 cm.

ALU-SMART

The small and adaptable parasol

Unique selling proposition

ຆ Modern design language thanks to extra flat parasol roof

ຆ Easy to open by pressing the slide

ຆ Continuous height adjustment

ຆ Tilt joint to tilt the parasol roof

ຆ 65 km/h wind stability at size Ø 220 cm

ຆ Top quality material selection

ຆ Osyrion Spot battery-powered LED light with remote

ຆ Quickship program available

Places of use

ຆ Small area outdoors

ຆ Corrosive environments

ALU-SMART

The small and adaptable parasol

Basic model Fixations

Frame

ຆ 6 or 8 parts made from anodised natural aluminium

ຆ Profiled two-part pole

ຆ Upper pole profile Ø 38.4 mm / 1.2 mm wall thickness

ຆ Lower pole profile Ø 35 mm / 1.5 mm wall thickness

ຆ Roof struts 14 × 20 mm

Frame material

ຆ Aluminium: EN-AW-6063-T5

ຆ Screws and rivets made from stainless steel A2

ຆ Anodisation:

Profile surface finishing

High degree of hardness – wear resistance (“scratch-resistant”)

Increased corrosion resistance

Natural appearance (adaptation to environment)

Modern look (luxurious matt)

Frame colour

ຆ Anodised natural matt

Opening principle & functions

ຆ Push-up function (press the slide)

ຆ Continuous height adjustment

ຆ Parasol roof can be tilted using the tilt joint

Canopy

ຆ Without flounce (flounce for a surcharge)

ຆ Self-tautening thanks to the flexible strut ends

ຆ Available in 3 fabric qualities:

100 % polyacrylic approx. 300 g/m2 (spun dyed)

100 % polyester approx. 250 g/m2 (spun dyed)

100 % polyester approx. 220 g/m2 (piece dyed)

ຆ Replaceable or interchangeable canopies

Wind stability

ຆ Up to 65 km/h (with fixed anchorage)

ຆ Tested in a wind tunnel

ຆ Bases / parasol stands

ຆ Ground sockets

Additional options – Standard accessories

ຆ Osyrion Spot battery-powered LED light, removable

ຆ Protective cover

Special product solutions – Made to measure

ຆ Glatz Green® Special fabric

ຆ Special fabrics (third-party fabrics, flame retardant)

ຆ Custom flounces & edging strips

ຆ Printing & advertising print

Loose cover max. 10 cm, concrete thickness min. 30 cm (pay attention to frost depth), guarantee water drainage

The listed measures represent extrapolated average values that may be slightly different on the product (± 2 % ± 5 cm).

Height dimensions are based on ground socket BT. These vary slightly depending on the type of base. Except for steel base minus 5 cm.

The max. wind speed limits as per our separate sheet apply only if the parasol canopy is in a horizontal position and if there is a fix ground anchorage. A base with the specified minimum weight is not sufficient.

In the presence of several parasols, the minimum distance between one parasol and another and between parasols and walls shall be 20 cm.

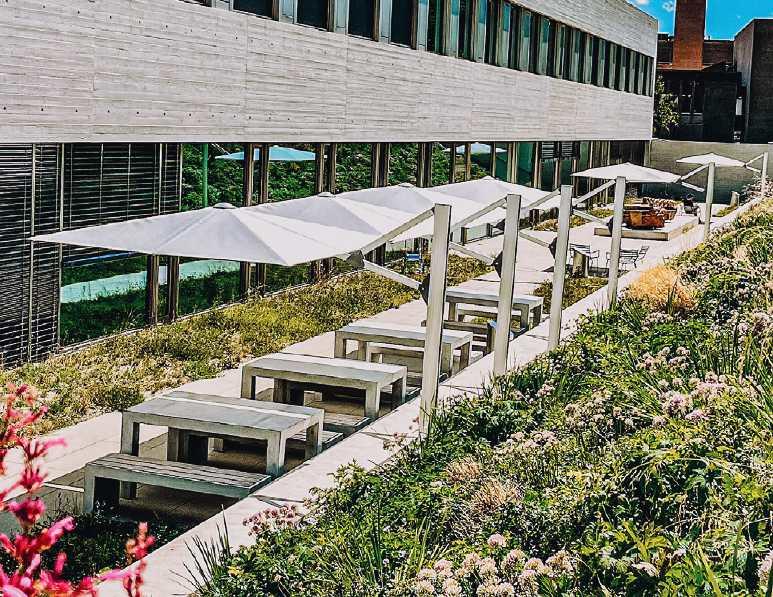

Side mast parasols

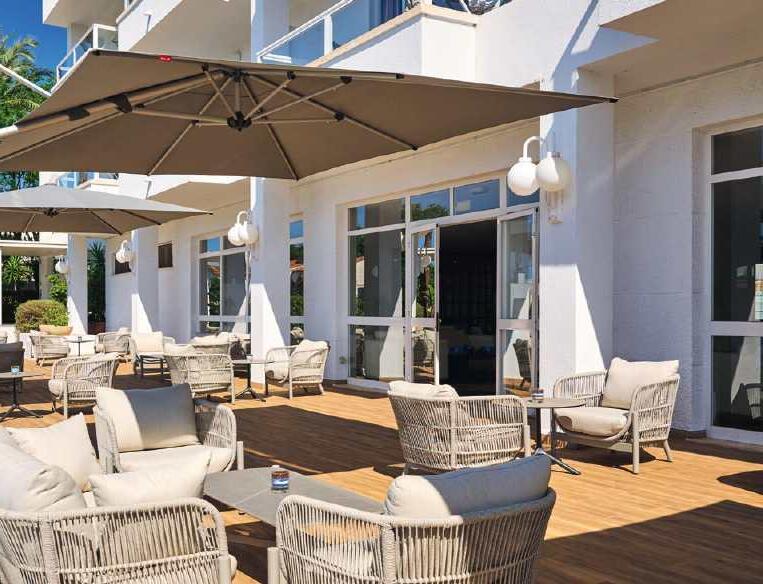

Our cantilever parasols

In some places, the mast gets in the way. The parasol is located exactly where you want to benefit from shade or enjoy the view. With over 30 years of experience in the design of new parasol solutions, Albert Glatz registered the patent for the Pendalex back in 1959 – the world's first side-mast parasol.

GLATZ now offers six different cantilever models for private and professional applications.

... for the project business

The Ambiente Nova features a unique design and impresses with its subtle design language. A patented drive system ensures that operating the crank is absolute child’s play. While the parasol roof automatically aligns itself horizontally when opened, its high closing height means that it does not touch the tables or seats below. In the evening, an optional warm-white LED lighting system, which is integrated in the ribs and mast, brings light into the darkness.

With a clear design and very stable structure, the Fortano complements the range of sidemast parasols and visually matches the F line Pro. In addition to its closing height, it boasts fantastic stability, withstanding wind speeds of up to 55 km/h. The simple and synchronous opening and closing principle of the Ambiente Nova can also be found in the Fortano.

AMBIENTE Nova

The queen of the side-mast parasols

ຆ 300 to 500 cm + special sizes made to measure

ຆ Max. 45 km/h wind stability

ຆ Synchronised crank or motor opening system

ຆ Opening mechanism with just a few crank turns and high closing height (patented)

ຆ Optionally available with integrated LED lighting system

ຆ Special product solutions (frame, fabrics, ...)

FORTANO®

The windproof side-mast parasol

ຆ 300 to 400 cm

ຆ Max. 55 km/h wind stability

ຆ Synchronised crank opening system

ຆ Opening mechanism with just a few crank turns and high closing height (patented)

ຆ Anodised natural or anthracite frame (“RAL 7016”) available

ຆ Osyrion Spot battery-powered LED light with remote

AMBIENTE Nova

The queen of the side-mast parasols

Unique selling proposition

ຆ Unique design language: Harmonises with all giant parasols and F-line

ຆ Continuous mast profile down to the floor covering (internal support tube)

ຆ Patented and synchronous opening mechanism: Operation via crank or motor

Simultaneous opening and extension of the parasol roof

Opened with just a few turns of the crank High closing height (no need to move the furniture)

ຆ 45 km/h wind stability at size 400 × 300 cm

ຆ Top quality material selection

ຆ Parasol can be rotated by 360° using the turnable adapter M4

ຆ LED lighting system integrated into the struts and mast

ຆ Special product solutions (Sizes, frame, fabrics, ...)

Places of use

ຆ Large area outdoors

ຆ Small area outdoors

AMBIENTE Nova

The queen of the side-mast parasols

Basic model Fixations

Frame

ຆ 8 parts made from anodised aluminium

ຆ Profiled straight mast

ຆ Mast profile 85 × 145 mm and 4.5 mm wall thickness

ຆ Roof struts 20 × 33 mm

Frame material

ຆ Aluminium: EN-AW-6063-T66

ຆ Screws and rivets made from stainless steel A4

ຆ Glass-fibre reinforced plastic parts: PA6GF30

ຆ Anodisation:

Profile surface finishing

High degree of hardness – wear resistance (“scratch-resistant”)

Increased corrosion resistance

Natural appearance (adaptation to environment)

Modern look (luxurious matt)

Frame colour

ຆ Anodised natural matt

ຆ RAL colours powder-coated (surcharge)

Plastic parts only in RAL 7045

Opening principle (synchronous)

ຆ Patented opening mechanism for high closing height

ຆ Fast and simple operation thanks to synchronous opening and extension of the parasol roof

ຆ Opened with just a few turns of the crank

Drive

ຆ With hand crank (detachable)

ຆ With motor (surcharge)

Canopy

ຆ With or without flounce

ຆ Self-tautening thanks to the flexible strut ends

ຆ 100 % polyacrylic approx. 300 g/m2 (spun dyed)

ຆ Replaceable or interchangeable canopies

Wind stability

ຆ Up to 45 km/h (with fixed anchorage)

ຆ Tested in a wind tunnel

ຆ Bases / parasol stands / Covers

ຆ Ground sockets

ຆ Mounting plates without or with installation height made to measure

ຆ Mounting plates for insulation floors

ຆ Glatz Concrete Cube M4/M8/M16

ຆ Base plates made to measure

Additional options – Standard accessories

ຆ Turnable adapter M4 for 360° rotation (with electrical feed lines 310°)

ຆ LED lighting system

ຆ Motorisation

ຆ Protective cover

Special product solutions – Made to measure

ຆ Special sizes & intermediate measurements (increment 1)

ຆ Mast extensions & reductions max. + 400 mm / - 300 mm

ຆ Frame in all RAL colours

ຆ Glatz Green® Special fabric

ຆ Special fabrics (third-party fabrics, flame retardant)

ຆ Custom flounces & edging strips

ຆ Printing & advertising print

Loose cover max. 10 cm, concrete thickness min. 30 cm (pay attention to frost depth), guarantee water drainage, supply line electric.

LED positions on the Ambiente Nova with LED

The listed measures represent extrapolated average values that may be slightly different on the product (± 2 % ± 5 cm).

If a minimum or a maximum height underneath is required, this must be agreed with Glatz.

The measures of the height are determined by the M4 ground socket. If one of the offered bases is used, these measures change only slightly.

The max. wind speed limits as per our separate sheet apply only if the parasol canopy is in a horizontal position and if there is a fix ground anchorage. A base with the specified minimum weight is not sufficient.

In the presence of several parasols, the min. distance between one parasol and another and between parasols and walls shall be 25 cm.

FORTANO

Unique selling proposition

ຆ Unique design language: Harmonises with all giant parasols and F-line

ຆ Continuous mast profile down to the floor covering (internal support tube)

ຆ Patented and synchronous opening mechanism: Operation via crank

Simultaneous opening and extension of the parasol roof Opened with just a few turns of the crank High closing height (no need to move the furniture)

ຆ 55 km/h wind stability at size 300 × 300 cm

ຆ Top quality material selection

ຆ Parasol can be rotated by 360° using the turnable base M4

ຆ Osyrion Spot battery-powered LED light with remote

ຆ Anodised natural or anthracite frame (“RAL 7016”)

Places of use

ຆ Small area outdoors

ຆ Corrosive environments

FORTANO®

The windproof side-mast parasol

Basic model Fixations

Frame

ຆ 8 parts made from anodised natural aluminium

ຆ Profiled straight mast

ຆ Mast profile 66 × 95 mm and 3 mm wall thickness

ຆ Roof struts 20 × 26 mm

Frame material

ຆ Aluminium: EN-AW-6063-T5

ຆ Screws and rivets made from stainless steel A2

ຆ Anodisation:

Profile surface finishing

High degree of hardness – wear resistance (“scratch-resistant”)

Increased corrosion resistance

Natural appearance (adaptation to environment)

Modern look (luxurious matt)

Frame colour

ຆ Anodised natural matt or anthracite (“RAL 7016”) powder-coated

Opening principle (synchronous)

ຆ Patented opening mechanism for high closing height

ຆ Fast and simple operation thanks to synchronous opening and extension of the parasol roof

ຆ Opened with just a few turns of the crank

Drive

ຆ With hand crank

Canopy

ຆ Without flounce

ຆ Self-tautening thanks to the flexible strut ends

ຆ Available in 3 fabric qualities:

100 % polyacrylic approx. 300 g/m2 (spun dyed)

100 % polyester approx. 250 g/m2 (spun dyed)

100 % polyester approx. 220 g/m2 (piece dyed)

ຆ Replaceable or interchangeable canopies

Wind stability

ຆ Up to 55 km/h (with fixed anchorage)

ຆ Tested in a wind tunnel

ຆ Bases / parasol stands / covers

ຆ Ground sockets

ຆ Mounting plates without or with installation height made to measure

ຆ Mounting plates for insulation floors

ຆ Base plates made to measure

Additional options – Standard accessories

ຆ Turnable base M4 for 360° rotation

ຆ Osyrion Spot battery-powered LED light, removable

ຆ Protective cover

Special product solutions – Made to measure

ຆ Glatz Green® Special fabric

ຆ Special fabrics (third-party fabrics, flame retardant)

ຆ Printing & advertising print

Loose cover max. 10 cm, concrete thickness min. 30 cm (pay attention to frost depth), guarantee water drainage 8 parts

The listed measures represent extrapolated average values that may be slightly different on the product (± 2 % ± 5 cm).

The height dimensions are based on the ground socket M4. With the base M4, 120 kg these vary by plus 11.5 cm and with the base M4, 180 kg by plus 15.5

The lowest height for opening/closing is 5 cm below the closing height.

The max. wind speed limits as per our separate sheet apply only if the parasol canopy is in a horizontal position and if there is a fix ground anchorage. A base with the specified minimum weight is not sufficient.

In the presence of several parasols, the minimum distance between one parasol and another and between parasols and walls shall be 20 cm.

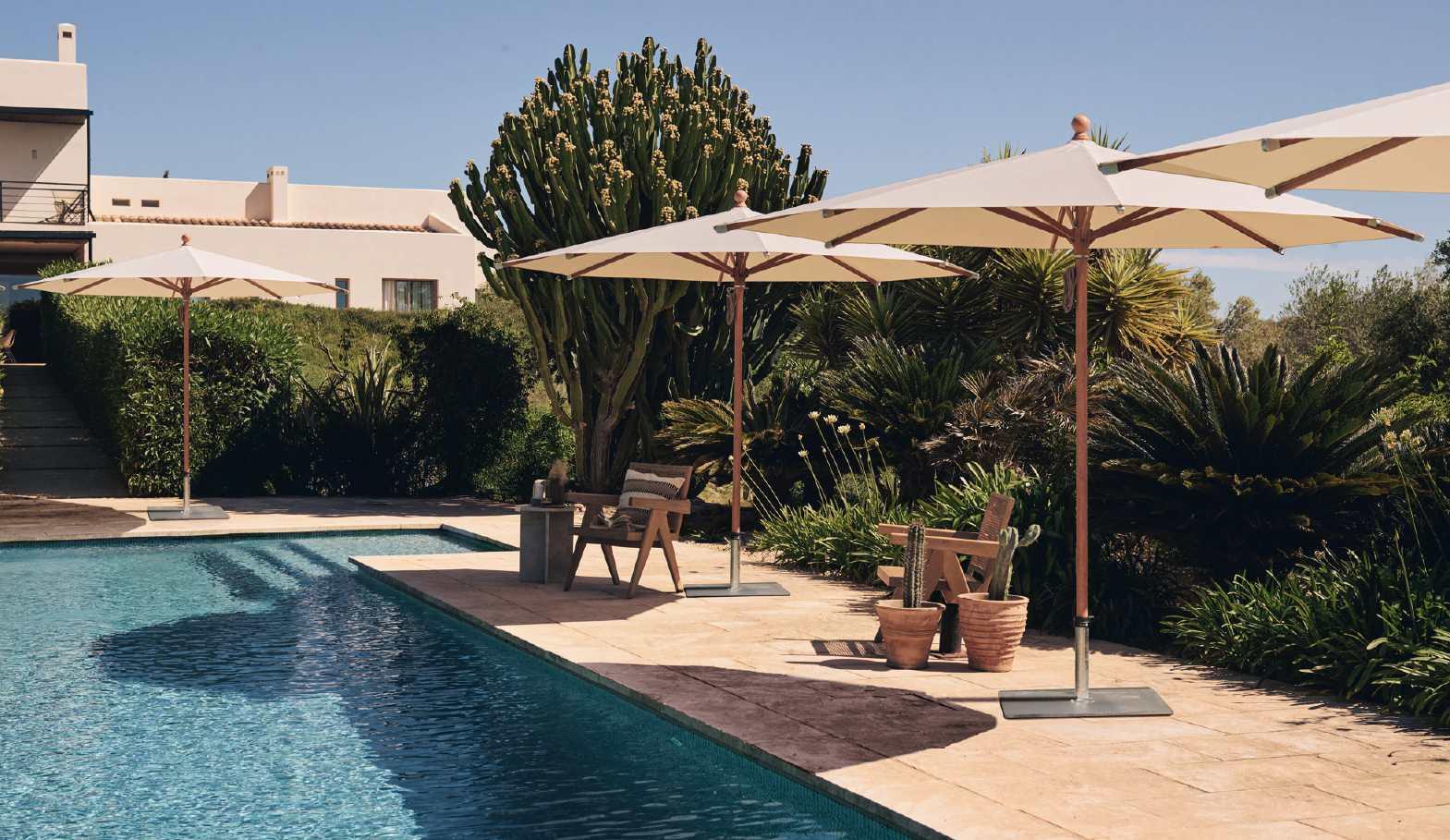

Wooden parasols & Aluminium wood look

Evoking emotions

Our wooden parasols evoke emotions not only in private gardens, but also in the best restaurants and hotels in the world. In fact, comfort and cosiness are the words that most people associate with wood.

The new

PIAZZA® in aluminium wood

look

In project business, two criteria are paramount: wind stability and durability. Pure wooden parasols cannot meet these requirements – they are too susceptible to weather conditions, maintenance requirements and material fatigue.

That is why Glatz has decided to launch a product that also meets the high demands of commercial customers: the Piazza in aluminium wood look combines the warm, natural appearance of wood with the robustness and durability of aluminium.

The result: a parasol that looks great, performs well and offers reliable protection even in the harshest conditions.

The design icon ALEXO®

A classic for over 90 years: the timeless cult parasol made of fine ash wood combines form, function and individuality. Ideal for small, wind-protected areas – and thanks to its versatile design options, the perfect companion for extraordinary concepts and projects with cult status.

The wind-stable in wood look

ຆ 250 to 300 cm

ຆ Max. 75 km/h wind stability

ຆ Pulley system for opening and closing

ຆ Slider can be fixed at four levels for optimum fabric tension

ຆ Aluminium frame with wood look finish

ຆ Osyrion Spot battery-powered LED light with remote

The classic parasol since 1931

ຆ 200 to 220 cm

ຆ THE classic + perfect for extraordinary concepts

ຆ Easy to open by pressing the slide

ຆ Elegant and typical brass gear joint for tilting

ຆ Frame made from ash, struts made from fibreglass

ຆ All versions can be customised

ຆ Osyrion Spot battery-powered LED light with remote

New product References wanted

PIAZZA®

The wind-stable in wood look

Unique selling proposition

ຆ Combines the warm, natural look of wood with the robustness and durability of aluminium

ຆ Quick and easy operation using a pulley

ຆ Slider can be fixed at four levels for optimum fabric tension

ຆ 75 km/h wind stability at size Ø250 cm

ຆ Top quality material selection

ຆ Osyrion Spot battery-powered LED light with remote

ຆ Quickship program available

Places of use

ຆ Small area outdoors

ຆ Terraces & rooftops

ຆ Corrosive environments

The wind-stable in wood look

Basic model Fixations

Frame

ຆ 8 parts made from aluminium powder-coated with 3D foiling

ຆ Continuous pole

ຆ Pole profile Ø 48 mm

ຆ Roof struts 16.5 × 25.5 mm

Frame material

ຆ Aluminium: EN-AW-6063-T5

ຆ Screws and rivets made from stainless steel A4

Frame colour

ຆ 3D wood-effect foiling

ຆ Plastic parts with 3D wood texture

Opening principle

ຆ Pulley system

ຆ Parasol roof fastened with a metal pin (4 increments for retightening)

Canopy

ຆ Without flounce

ຆ With leather-reinforced fabric edges

ຆ Available in 3 fabric qualities:

100 % polyacrylic approx. 300 g/m2 (spun dyed)

100 % polyester approx. 250 g/m2 (spun dyed)

100 % polyester approx. 220 g/m2 (piece dyed)

ຆ Replaceable or interchangeable canopies

Wind stability

ຆ Up to 75 km/h (with fixed anchorage)

ຆ Bases / parasol stands

ຆ Ground sockets

ຆ Mounting plates without or with installation height made to measure

ຆ Mounting plates for insulation floors

ຆ Base plates made to measure

ຆ Osyrion Spot battery-powered LED light, removable

ຆ Protective cover

ຆ Glatz Green® Special fabric

ຆ Special fabrics (third-party fabrics, flame retardant)

ຆ Printing & advertising print

Loose cover max. 10 cm, concrete thickness min. 30 cm (pay attention to frost depth), guarantee water drainage

The listed measures represent extrapolated average values that may be slightly different on the product (± 2 % ± 5 cm).

The height dimensions are based on the ground socket PX (structure 15 cm). In the base variations these might differ slightly. Apart from the steel base minus 7.5 cm. For the variants with a mounting plate and support tube M4, the specified heights are reduced by 12–13 cm.

The max. wind speed limits as per our separate list apply only in the presence of a fix ground anchorage. A base with the specified minimum weight is not sufficient. In the presence of several parasols, the minimum distance between one parasol and another and between parasols and walls shall be 20 cm.

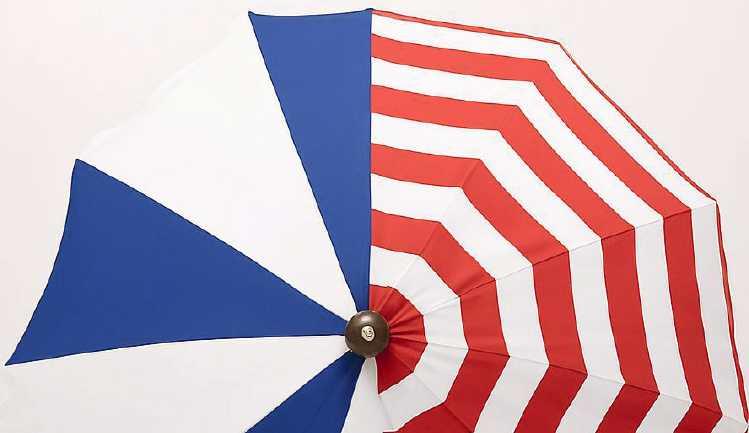

ALEXO®

The classic parasol since 1931

Unique selling proposition

ຆ THE classic + perfect for unusual concepts

ຆ Impresses with its unique effect and its aura

ຆ Easy to open by pressing the slide

ຆ Elegant and typical brass gear joint for tilting

ຆ The best production and finest material selection: Frame made from ash, struts made from fibreglass

ຆ All versions can be customised

ຆ Osyrion Spot battery-powered LED light with remote

Places of use

ຆ Small area outdoors

ALEXO®

The classic parasol since 1931

Basic model Fixations

Frame

ຆ 10 parts made from ash

ຆ Pole profile Ø 30 mm

Frame material

ຆ Ash with a clear varnish

ຆ Struts made from fibreglass (white)

ຆ Mast including gear joint made from nickel-plated brass

Opening principle & functions

ຆ Push-up function (press the slide)

ຆ Parasol roof can be tilted using the tilt joint

Canopy

ຆ With or without flounce

ຆ With leather-reinforced fabric edges

ຆ Available in 2 fabric qualities:

100 % polyacrylic approx. 300 g/m2 (spun dyed)

100 % polyester approx. 250 g/m2 (spun dyed)

ຆ Replaceable or interchangeable canopies

Wind stability

ຆ Up to 20 km/h (with fixed anchorage)

ຆ Bases / parasol stands

ຆ Ground sockets

Additional options – Standard accessories

ຆ Osyrion Spot battery-powered LED light, removable

ຆ Protective cover

Special product solutions – Made to measure

ຆ Glatz Green® Special fabric

ຆ Special fabrics (third-party fabrics, flame retardant)

ຆ Custom flounces & edging strips

ຆ Printing & advertising print

parts

Loose cover max. 10 cm, concrete thickness min. 30 cm (pay attention to frost depth), guarantee water drainage

The listed measures represent extrapolated average values that may be slightly different on the product (± 2 % ± 5 cm).

The measures of the height are determined by the ST ground socket. If one of the offered bases is used, these measures change only slightly.

Apart from the steel base minus 5 cm.

The max. wind speed limits as per our separate sheet apply only if the parasol canopy is in a horizontal position and if there is a fix ground anchorage. A base with the specified minimum weight is not sufficient.

In the presence of several parasols, the minimum distance between one parasol and another and between parasols and walls shall be 20 cm.

Fabric collection

Made in Switzerland – Made by Glatz

Glatz's 130 years of experience are also reflected in the perfectly fitting canopies. The outstandingly high-quality fabrics and precision work are combined in the in-house sewing workshop. Thanks to the manufacturing approach, virtually anything is possible when it comes to individuality and creativity. Whether you want parasols with differently coloured edging strips, special frills or segments in alternating colours – Glatz manufactures every canopy to meet your specific wishes.

Glatz fabric qualities

All Glatz fabrics are divided into the fabric qualities 2, 4 and 5 based on their material, coating and UV protection. The high quality and resistance of a fabric can be measured based on its light fastness, fabric weight, hydrostatic head and the UV protection. Each of the three fabric qualities guarantees a maximum possible UV protection of more than 98 percent.

Light fastness

If a parasol is frequently exposed to sunlight, the fabric fades over time. The light fastness of a fabric determines how much and how quickly the colour intensity fades. The following applies here: The higher the fabric quality, the better the light fastness, and as a result, the longer the period before it starts to fade. The light fastness of Glatz canopies is determined according to the standard ISO 105 B02.

Fabric

Quality 5

The premium collection

ຆ 100 % polyacrylic

ຆ Spun dyed

ຆ Approx. 300 g/m 2 weight per square metre

ຆ Class 7-8 light fastness (350-700 days) (ISO 105 B02)

ຆ Water pressure resistance >350 mm

ຆ UV protection: UPF 50+ and 98-100 % UV PROTECTION

ຆ Scotchgard ® and Teflon ® coating

ຆ Dirt repellent and resistant to mould

Fabric Quality 4

The intermediate stage

ຆ 100 % polyester

ຆ Spun dyed

ຆ Approx. 250 g/m 2 weight per square metre

ຆ Class 7 light fastness (350 days) (ISO 105 B02)

ຆ Water pressure resistance >150 mm

ຆ UV protection: UPF 50+ and 98-100 % UV PROTECTION

ຆ Dirt repellent and resistant to mould

Fabric Quality 2

Budget-driven

ຆ Not recommended for the project business

ຆ 100 % polyester

ຆ Piece dyed

ຆ Approx. 220 g/m 2 weight per square metre

ຆ Class 5 light fastness (80 days) (ISO 105 B02)

ຆ Water pressure resistance >100 mm

ຆ UV protection: UPF 50+ and 98-100 % UV PROTECTION

Special fabrics

ຆ For details, see special products (page 102)

Fixations

The right solution for every situation

Stability and steadiness are the central foundation of a Glatz parasol. A wide variety of fastening options are available depending on the ground conditions and the local situation. They can be customised if desired.

Please note that the maximum permissible wind speeds for all models require fixed anchoring in the ground. Mobile parasols are possible depending on the place of use. In this case, a Glatz base or parasol stand is required for secure fixation. The recommended minimum base weight for the respective parasol must be adhered to.

The topic of fixations is a science in itself. Our Glatz Contract professionals are very familiar with this topic. We'll find the ideal shading solution for you with a long-term secure ground fixation, so that your guests feel safe in any weather.

Tailored special solutions: +41 52 723 66 44

Fixed anchorage

Ground

ຆ Ground socket + connection tube

ຆ Ground socket + support tube

ຆ Ground socket + tip-over hinge

Hard coverings without insulation

ຆ Mounting plate without installation height

ຆ Mounting plate with installation height made to measure

Hard coverings with insulation

ຆ Mounting plate for insulation floors with high insulation

ຆ Mounting plate for insulation floors

Special situations

ຆ Glatz Concrete Cube M4/M8/M16

ຆ Base plate with installation height

ຆ Wall clamp with projection

ຆ Special adapter / adapter of any kind

Bases / parasol stands

Fixed – Without castors

ຆ Steel base + support tube (40 and 55 kg)

ຆ Concrete base + support tube (30 to 90 kg)

ຆ Granite base + support tube (40 to 120 kg)

ຆ Base frame + support tube (120 and 180 kg) + Covers

ຆ Base frame + tip-over hinge (240 to 690 kg) + Covers

Mobile – Base with castors

ຆ Steel base + support tube (40 and 55 kg)

ຆ Design base with castors + support tube (55 and 90 kg)

ຆ Granite base + support tube (40 to 120 kg)

ຆ Design base with castors + support tube (120 and 180 kg)

ຆ Base frame including set of castors + support tube (120 and 180 kg)

Ground socket + connection tube

ຆ Smart fixation for quickly removing the parasol

ຆ For locations which have to be cleared every day (e.g. pavement)

ຆ Connection tube is inserted into the ground socket Fortello with special adapter + Support tube M4

ຆ Hot-dip galvanised steel or stainless steel V2A ground socket

ຆ Hot-dip galvanised steel or stainless steel V2A connection tube

Ground socket + support tube

ຆ Very stable fixation for parasols up to 500 cm

ຆ Tip-over hinge recommended for parasols of 500 cm or larger

ຆ Support tube is screwed into the ground socket

ຆ Hot-dip galvanised steel ground socket (stainless steel on request)

ຆ Support tube M4 hot-dip galvanised steel essential

Ground socket + tip-over hinge

ຆ Very stable fixation for parasols of 500 cm or larger

ຆ Tip-over hinge recommended for parasols of 500 cm or larger because these can be stored

ຆ Tip-over hinge is screwed into the ground socket

ຆ Hot-dip galvanised steel ground socket (stainless steel on request)

ຆ Hot-dip galvanised steel tip-over hinge M8 / M16 essential

Slabs or other <10 cm

Concrete foundation min. 30 cm

Compressed filter gravel

Observe frost line

Width varies depending on the parasol size

Fixed anchorage

Hard coverings without insulation

Mounting plate without installation height

ຆ Especially suited to areas without a cellar underneath

ຆ Anchorage via anchor screws in the rough surface

ຆ Thickness and characteristics of the rough surface must be checked

ຆ Customer provides the fixation material (depends on surface)

ຆ Hot-dip galvanised steel mounting plate (stainless steel on request)

ຆ Support tube M4 or tip-over hinge M8 / M16 mountable

Rough surface (Thickness and characteristics important!)

Mounting plate with installation height

ຆ Suitable for areas with terrace structures

ຆ The height of the mounting plate is produced to measure (top of rough surface to top of terrace structure = Height H)

ຆ Anchorage via anchor screws in the rough surface (Waterproofing essential for areas with cellars underneath)

ຆ Thickness and characteristics of the rough surface must be checked

ຆ Customer provides the fixation material (depends on surface)

ຆ Hot-dip galvanised steel mounting plate (stainless steel on request)

ຆ Support tube M4 or tip-over hinge M8 / M16 mountable

Top of terrace structure

Terrace structure (Height H)

Waterproofing

Rough surface

(Thickness and characteristics important!)

Waterproofing

Fixed anchorage

Hard coverings with insulation

Mounting plate for high insulation

ຆ Suitable for areas with terrace structures

ຆ The height of the mounting plate is produced to measure (top of insulation to top of terrace structure = Height H) (Waterproofing essential above insulation and ring)

ຆ Anchorage with anchor screws in rough surface (top of rough concrete to top of insulation = Height J)

ຆ Customer provides the fixation material (depends on surface)

ຆ Hot-dip galvanised steel mounting plate (stainless steel on request)

ຆ Support tube M4 or tip-over hinge M8 / M16 mountable

Top of terrace structure

Terrace structure (Height H)

Waterproofing

Waterproofing (optional)

Insulation (Height J) Rough surface (Thickness and characteristics important!)

Waterproofing

Mounting plate for insulation floors

ຆ Suitable for areas with terrace structures

ຆ The height of the mounting plate is produced to measure (top of insulation to top of terrace structure = Height H) (Waterproofing essential above insulation and plate)

ຆ Anchorage with threaded bolts in rough surface (top of rough concrete to top of insulation > 60 mm and < 140 mm)

ຆ Customer provides the fixation material (depends on surface)

ຆ Minimises thermal bridge

ຆ Stainless steel V2A mounting plate

ຆ Support tube M4 or tip-over hinge M8 / M16 mountable

Top of terrace structure

Terrace structure (Height H)

Waterproofing

Insulation > 60 mm and < 140 mm

Waterproofing (optional)

Rough surface (Thickness and characteristics important!)

Special situation

Glatz Concrete Cube M4 / M8 / M16

Product description

ຆ Multifunctional and adjustable fixation in exclusive Glatz design

ຆ Seat made of spruce, colourless pressure-impregnated

ຆ 1’100 kg total weight replaces the mechanical anchoring in the ground and guarantees as a «high foundation» the defined wind stability for all parasol sizes up to Ø 600 / 550 × 550 cm

ຆ There is no guarantee of maximum wind stability for larger parasols

ຆ Safe and easy to place with a forklift or crane

Places of use

ຆ Public spaces & parks

ຆ Promenades & pedestrian zones

ຆ Schools, nurseries & sports grounds

ຆ Hotels & restaurants

Specifications

ຆ Weight: 1'100 kg

ຆ Dimension: 115 × 115 × 46 to 51 cm

ຆ Concrete element: Reinforced, smooth grey

ຆ Seat: Spruce, colourless impregnated and assembled

Boiling water resistant glued, SWP 3, FSC-certified

ຆ Mounting type: M4 included in the price

M8 or M16 for an extra charge

ຆ Levelling: 50 mm continuously adjustable

Plate feets Ø 103 mm made of stainless steel, load capacity 1'800 kg

ຆ Transport by forklift or crane:

Equipped with stainless steel forklift pockets on 2 sides

Equipped with 4 anchor sleeves Rd14 for installation aids

Options for customisation

ຆ Other types of wood on request

ຆ Graffiti protection on concrete on request

Important to note

ຆ Observe clear headrooms due to the cube height: Mast shortening absolutely necessary

ຆ Select mounting type M4, M8 or M16: M4 tube or M8 / M16 tip-over hinge required

No mechanical anchorage possible

Base plate with installation height

ຆ Suitable for areas with terrace structures

ຆ The height of the base plate is produced to measure (top of rough surface to top of terrace structure = Height H)

ຆ Anchorage is replaced and guaranteed by the weight and the size of the base plate (no damage to the rough surface required)

ຆ The area and weight are calculated based on the parasol

ຆ Base plate is placed between the top of the rough surface and the terrace structure (it is important to level off the plate!)

ຆ Transport aids in the corners (thread and hole)

ຆ Hot-dip galvanised steel base plate

ຆ Support tube M4 or tip-over hinge M8 / M16 mountable

Top of terrace structure

Terrace structure (Height H)

Waterproofing

Rough surface (load-bearing capacity important!)

Base plate placed to measure

(e.g.: 150 × 150 × 2 cm = 355 kg)

Special situation

Anchorage to a wall

Wall clamp with projection

ຆ Suitable for walls and masonry

ຆ Clamp projection 100, (180) or 480 mm (projections to measure on request)

ຆ Anchorage with heavy-duty anchorage bolts in the concrete wall

ຆ Customer provides the fixation material (depends on wall)

ຆ Hot-dip galvanised steel wall clamp (stainless steel on request)

ຆ Support tube Z or M4 mountable

Special situation

Special adapter

Adapter of any kind

ຆ For Glatz fixations which have become detached due to age

ຆ For fixations for other parasol brands

Bases

Fixed – Without castors

ຆ 40 or 55 kg

ຆ Dimensions 58.5 × 58.5 × 2 cm / 68.5 × 68.5 × 2 cm

ຆ Hot-dip galvanised steel plate

ຆ Support tube Z essential

ຆ Hot-dip galvanised steel or stainless steel V2A support tube Z

Z

ຆ 30, 40, 55, 70 or 90 kg

ຆ Dimensions from Ø 47 bis 75 cm

ຆ Support tube Z essential

ຆ Hot-dip galvanised steel or stainless steel V2A support tube Z

Z

ຆ 40, 55 or 90 kg

ຆ Dimensions 50 × 50 × 8 cm / 59 × 59 × 8 cm / 75 × 75 × 8 cm

ຆ Support tube Z essential

ຆ Hot-dip galvanised steel or stainless steel V2A support tube Z

ຆ 120 kg

ຆ Dimensions 87 × 87 × 9.5 cm

ຆ Support tube M4 essential

ຆ Hot-dip galvanised steel support tube M4

ຆ 120 or 180 kg (option: with castors)

ຆ Dimensions 96 × 96 × 11.5 to 19.5 cm

ຆ Hot-dip galvanised steel base frame

ຆ Concrete or polished granite plate set

ຆ Support tube M4 essential

ຆ Cover for base M4 120 or 180 kg

ຆ Plastic ABS coated

ຆ Standard colours: Anodized aluminium look or anthracite

Base frame M4 / M8 / M16

ຆ 240, 310, 430, 570 or 690 kg

ຆ Dimensions 105 × 105 × 12 to 38 cm

ຆ Hot-dip galvanised steel base frame

ຆ Concrete element set (special shape)

ຆ Support tube M4 or tip-over hinge M8 / M16 essential

ຆ Cover for base M4 / M8 / M16 240 or 310 kg

ຆ Aluminium powder-coated

ຆ Standard colours: Aluminium light grey or anthracite

ຆ Special colours: Colours in RAL (surcharge)

Bases

/ parasol stands

Mobile – With castors

Steel base Z including set of castors

ຆ 40 or 55 kg

ຆ Dimensions from 58.5 × 58.5 × 2 cm / 68.5 × 68.5 × 2 cm

ຆ Hot-dip galvanised steel plate

ຆ Set of castors in galvanised or stainless steel

ຆ Support tube Z essential

ຆ Hot-dip galvanised steel or stainless steel V2A support tube Z

Design base with castors Z

ຆ 55 or 90 kg

ຆ Dimensions from 65 × 65 × 11 cm / 80 × 80 × 11.5 cm

ຆ Design base made of concrete

ຆ Support tube Z essential

ຆ Hot-dip galvanised steel or stainless steel V2A support tube Z

ຆ Decorative plate for base 55 kg essential

ຆ Aluminium composite

ຆ Standard colours: grey white (RAL 9002) or anthracite (RAL 7016)

Granite base Z including set of castors

ຆ 40, 55 or 90 kg

ຆ Dimensions 50 × 50 × 8 cm / 59 × 59 × 8 cm / 75 × 75 × 8 cm

ຆ Set of castors in galvanised or stainless steel

ຆ Support tube Z essential

ຆ Hot-dip galvanised steel or stainless steel V2A support tube Z

Granite base M4 including set of castors

ຆ 120 kg

ຆ Dimension 87 × 87 × 9.5 cm

ຆ Set of castors in galvanised or stainless steel

ຆ Support tube M4 essential

ຆ Hot-dip galvanised steel support tube M4

Design base with castors M4

ຆ 120 or 180 kg

ຆ Dimensions: 80 × 80 × 15 cm / 94 × 94 × 15 cm

ຆ Design base (base frame white (RAL 9016) or anthracite (RAL 7016) powder coated)

ຆ Weight set made of concrete

ຆ Support tube M4 essential

ຆ Decorative plate for base 120 or 180 kg

ຆ Aluminium composite

ຆ Standard colours: grey white (RAL 9002) or anthracite (RAL 7016)

Base frame M4 including set of castors

ຆ 120 or 180 kg

ຆ Dimensions 96 × 96 × 11.5 to 19.5 cm

ຆ Hot-dip galvanised steel base frame

ຆ Set of castors in galvanised or stainless steel

ຆ Concrete or polished granite plate set

ຆ Support tube M4 essential

Additional options

Standard accessories for all your needs

Motor drives, lighting variants, heaters, rain gutters, side walls, protective covers. The standard accessories and additional options from Glatz are extremely diverse and can be individually tailored to your needs. We can also cater to special requests and project-specific requirements with custom products (from page 96).

There is a huge demand for parasols, especially in the contract sector. With our all-round carefree package, we guarantee that everything will fit perfectly in the end. Experience has taught us that the more that can be integrated under a parasol roof, in the mast or the ribs, the better. Lighting in different colours, heaters and automated processes are prime examples of this. It goes without saying that the aesthetics also meet the highest standards.

There are also plenty of protection options for the materials. We have the accessories that will turn your Glatz parasols into long-lasting friends.

Electronic equipment

Textiles

Material protection

ຆ LED lighting system Palazzo line

ຆ LED lighting system Castello Pro

ຆ LED lighting Fortello with battery pack

ຆ Osyrion Spot battery-powered LED light with remote

ຆ LED lighting system Ambiente Nova

ຆ Infrared radiant heater

ຆ Motorisation

ຆ BUS system / connection to the home control system

ຆ Rain gutters Triangular

ຆ Self-supporting rain gutters

ຆ Side walls

ຆ Protective covers

ຆ Protective covers with corset lacing

ຆ Strap systems

Additional options

Electronic equipment

LED lighting system PALAZZO® line

ຆ RGBW (colour and white)

ຆ 8 LED stripes integrated into the struts (4 direct + 4 indirect)

ຆ LED stripes integrated along the entire length of the strut

ຆ Direct and indirect stripes can be controlled individually

ຆ Power supply via parasol mast (230V / 10A)

ຆ Controlled remotely (functions labelled)

LED lighting system CASTELLO® Pro

ຆ RGBW (colour and white)

ຆ 8 LED stripes integrated into the struts (4 direct + 4 indirect)

ຆ LED stripes integrated along the entire length of the strut

ຆ Direct and indirect stripes can be controlled individually

ຆ Power supply via parasol mast (230V / 10A)

ຆ Controlled remotely (functions labelled)

LED lighting FORTELLO® with battery pack

(only available on model 2025, not on Pro version)

ຆ White (approx. 2700K, 3200lm), continuously dimmable

ຆ 4 LED stripes integrated into the struts

ຆ No power supply required (Energy via battery pack)

ຆ Lithium-ion battery pack with 150Wh and protective class IP54

ຆ Light duration 10h at the recommended level (4h on max. level)

ຆ Not suitable for corrosive environments

Osyrion Spot battery-powered LED light with remote

ຆ White (approx. 2700K, 320lm each spot), 5 levels dimmable

ຆ Easily attach the light sources using the magnetic plates

ຆ Control via intuitive Glatz remote

ຆ Integrated battery with protective class IP54

ຆ Light duration 4h at 50% light level

ຆ Spots available in sets of 2 or 4 (connect up to 8 spots)

LED lighting system AMBIENTE Nova

ຆ White (approx. 2700K, min. 4000lm)

ຆ 8 LED stripes integrated into the struts (4 direct + 4 indirect)

ຆ 1 LED stripe integrated along the mast

ຆ Every stripe can be controlled individually

ຆ Power supply via parasol mast (230V / 10A)

ຆ Controlled remotely (functions labeled)

Infrared radiant heater

ຆ Heater in Glatz design with intuitive quick coupling

ຆ Polished aluminium infrared heater (1500W, 230V, 6.5A)

ຆ Max. 4 heaters can be mounted on each parasol

ຆ Power supply via parasol mast (400V / 16A)

ຆ Controlled remotely or via BUS system

Motorisation

ຆ Venetian blind drive including soft-start function

ຆ Motor inside the parasol mast (not visible)

ຆ Power supply via parasol mast (230V / 10A)

ຆ Controlled remotely or via BUS system

ຆ Closing of motorised parasols not possible at wind speeds > 35 km/h

BUS system / connection to the home control system

ຆ The use of this control system requires BUS competence (normally KNX) on the part of the customer

ຆ No remote control units are necessary for any of the BUS control systems

ຆ Various other functions can be combined by the customer once programmed: Timer, wind monitor, ...

Textiles

Rain gutters Triangular

ຆ Triangular construction as standard:

Conical structure for easy runoff

No sagging due to "tripple-tube" design (see picture)

Modern look

ຆ Customer is free to choose the material colour of the rain gutter

ຆ Interior doubling made from waterproof PVC

ຆ Length of the rain gutter produced to measure

ຆ The side connection tubes do not sag

ຆ Connection tube fitted with plug connections and detachable conical spring

ຆ Fixation to the struts via levelling clasps and clamps

ຆ Various modular parts of the neighbouring parasol?

Fixation points are adjusted (e.g.: 3/4, 4/3, ...)

ຆ Special rain gutters on request (Length, width, height, ...)

Self-supporting rain gutters

ຆ Solution to protect passageways

e.g. between the parasol and facade

ຆ Triangular rain gutter is mounted on a sinlge parasol

ຆ No opposing fixation necessary

ຆ Mounted to the rib using a levelling buckle and suspension profile

walls

ຆ Customer is free to choose the fabric colour

ຆ Length = Side length of the parasol

ຆ Height = Height underneath the parasol (without flounce) minus 10 cm

ຆ PVC window can be sewn in (optional)

ຆ PVC runoff lip at the end of the side wall (optional)

ຆ Edge connections, zip fastener or Velcro (optional)

ຆ No flapping owing to support tubes below

ຆ No sagging due to the connection tubes

ຆ Connection tube fitted with plug connections and detachable conical spring

ຆ Fixation to the struts via levelling clasps and clamps

ຆ Sewn-on D rings for connection to the ground

Additional options

Material protection

Protective covers

ຆ Rod and zipper to help you pull on the cover easily

ຆ Woven with special rip-stop technology

ຆ Highly tear-resistant through the integration of thick threads

ຆ Polyurethane coating on the inside of the cover protects against moisture from the outside

Protective covers with corset lacing

ຆ Rod and zipper to help you pull on the cover easily

ຆ Corset lacing to keep the parasol compact

ຆ Woven with special rip-stop technology

ຆ Highly tear-resistant through the integration of thick threads

ຆ Polyurethane coating on the inside of the cover protects against moisture from the outside

Strap systems

ຆ Tying lace included in the delivery of a new parasol

ຆ Tie system also helps to tie large rectangular sizes up properly and in a compact form

ຆ No flapping in strong winds thanks to compact tying

Special product solutions

Our factory even makes the seemingly impossible possible

The Glatz development and project department embodies innovative strength and ingenuity every day. In our modern factory, we draw on the decades of experience and the specialist knowledge of our employees to find a tailored solution for every situation, no matter how challenging.

We always take the following points into account:

ຆ Use of high-quality materials

ຆ Application of the latest production methods

ຆ High-quality craftsmanship by loyal and experienced employees

ຆ A constant goal of improvement and innovation

Driven by over 125 years of ingenuity and the passion for the perfect shade solutions, we do the seemingly impossible for your project..

We look forward to your challenge: +41 52 723 66 44

Frames

Parasol canopies

ຆ Special sizes level 1

ຆ Special sizes level 2

ຆ Special sizes level 3 (Shapes and decentralised mast)

ຆ Pole extensions & reductions

ຆ Frame in all RAL colours

ຆ Glatz Green® (The parasol that purifies the air)

ຆ Third-party fabrics (fabric not from the Glatz collection)

ຆ All-weather fabrics

ຆ PVC materials

ຆ Flame-retardant fabrics

ຆ Custom flounces & edging strips

ຆ Printing & advertising print

Special product solutions Frames

Special sizes level 1

ຆ Proportional reduction of the original size (original size = the next larger standard size)

ຆ Special size level 1 in 5 cm increments possible

ຆ Maximum reduction to limit measurement

Special sizes level 2

ຆ Non-proportional reduction of the original size (original size is defined by the development team)

ຆ Special size level 2 is redrawn

ຆ Technical production limit at a 2:1 ratio

Special sizes level 3

ຆ Asymmetrical shape of the original size (original size is defined by the development team)

ຆ Decentralised placement of the mast possible

ຆ Special size level 3 is redesigned

Special product solutions Frames

ຆ Powder coating in all RAL colours (NCS colours)

ຆ Powder coating of anodised profiles (creating additional corrosion protection)

ຆ Powder coating of all metal frame parts: Corrosion class C3 / HWF59 / Qualicoat class 2 Corrosion protection C5 (possible on demand)

ຆ Liquid-painting of all visible plastic parts

Mast extensions & reductions

ຆ Maximum extension / reduction depends on the model

ຆ It makes sense to adapt the parasol height, height underneath or closing height to suit the local situation

ຆ The wind stability is reduced when the mast is extended

Special product solutions

Parasol canopies

Third-party fabrics

ຆ Fabrics outside the Glatz collection

ຆ Quality must correspond to fabric quality 5

ຆ 100 % polyacrylic

ຆ Approx. 300g/m2 weight per square metre

ຆ Suppliers: Para, Sattler, Sauleda, Dickson (more suppliers on request)

All-weather fabrics

ຆ Fabric with enhanced water resistance

ຆ Suitable for particularly rainy locations

ຆ 100% polyacrylic

ຆ Approx. 330g/m2 weight per square metre

ຆ Water pressure resistance >1000 mm (DIN EN ISO 811)

ຆ Products: Sattler LUMERA, Sauleda Masacril, Para Tempotest Resinato, Dickson Max

Glatz Green® Collection

ຆ The parasol that purifies the air

ຆ 100% polyacrylic

ຆ Specifications same as fabric quality 5

ຆ Coating: Green TiO2 nanoparticles

ຆ How it works: photocatalysis

ຆ 3 brands – 1 mission: Glatz, Sauleda, Pureti

Flame-retardant fabrics

ຆ Special fabric with low flammability

ຆ Used wherever it is required

ຆ Observe country-specific fire safety standards (Examples: B1 DIN 4102-1 / B-s2 d0 EN 13501-1)

ຆ Products: Dickson SPARK FR, Sattler FIREMASTER (more products on request)

PVC materials

ຆ Particular area stability and high robustness

ຆ Use for locations with extreme weather conditions

ຆ Surface easy to clean. Ideal for environments prone to dirt

ຆ 100 % polyester 550 Dtex with PVC coating

ຆ Approx. 480g/m2 weight per square metre

ຆ Products: TEXOUT® Precontraint 302 (more products on request)

Custom flounces & edging strips

ຆ Split or continuous flounces

ຆ Various flounce heights

ຆ Flounce colour selection

ຆ Edging strips colour selection

ຆ Different coloured segments

Printing & advertising print

ຆ Screen printing on fabric qualities 4 and 5

ຆ Full surface screen printing on polyester (minimum quantities)

ຆ Printable logo in EPS format required

ຆ References: McDonald‘s, Burger King, Nestlé, ...

Checklist

Have you thought of everything?

Step 1 – Identifying the place of use

Place of use identified

Recommended / suitable parasol models checked

Step 2 – Detailed situation analysis

ຆ Spatial conditions – area & gradient measured?

(Take note of obstacles such as opening doors, roofs, railings, trees, ...)

ຆ What is to be shaded?

(Sizes and heights of furnishings)

ຆ Fixed anchorage possible?

(Surface characteristics & ground structure details)

ຆ Required wind stability? Special weather conditions & weather influences?

(Extreme location with wind, rain, snow or corrosion)

ຆ Have you checked the consulting guide for locations exposed to wind?

Determine of parasol size including important measurements (headrooms, closing heights, ...)

Determine of fixation (fixed anchorage or base / parasol stands)

Choice of material (frame, fabrics / canopies, corrosion protection, ...)

Delivery / installation location accessible (lift, crane, ...)?

Step 3 – Specific customer requirements

Ambiance

ຆ Is there harmony between the environment, architecture & furnishings?

ຆ Choice of materials, fabric selection, RAL frame colour

Additional options

ຆ Electronic equipment? (Motorisation, lighting, heating)

ຆ Textiles? (Rain gutters, side walls)

ຆ Material protection? (Protective covers, strap systems, impact protection)

Special product solutions

ຆ Frame? (Special sizes, pole extension/reduction, frame colour)

ຆ Canopy? (Special fabrics, flounces, printing / advertising print)

ຆ Side walls?

ຆ BUS system / connection to the home control system?

Definition of parasol model including modifications

Selection of additional options & special product solutions

Legal notice

Publisher

Address Contact Photography

Page 2, photo 1-3

Page 18, photo 01

Page 18, photo 03

Page 18, photo 04

Page 22, photo 04

Page 30, photo 02

Page 30, photo 04

Page 36, photo 01

Page 36, photo 04

Page 36, photo 05

Page 40, photo 01

Page 44, photo 01

Page 44, photo 04

Page 48, photo 04

Page 58, photo 01

Page 58, photo 05

Page 68, photo 01

Page 97, photo 02

Page 98, photo 03

Page 107, photo 01

© All rights reserved.

Glatz AG

Glatz AG

8500 Frauenfeld

Switzerland

Telephone +41 52 723 66 44

contract@glatz.com

Glatz AG

Angela Lamprecht

Palmo

Vere Maagdenberg

Bela Böke

Monte-Carlo Société des Bains de Mer

Robert Illemann

Corinne Glanzmann

Johannes Funkner

Christian Collet

Studio Gataric Fotografie

Remimag Gastronomie AG

THE LANGHAM Huntington

Golf de Genève

HIP Hotels, Patrick Schwienbacher

Genussdorf Gmachl

GRUPOTEL Alcudia Suite

Zürich Tourismus

Bogen33

Moritz Orgler

Studio Gataric Fotografie

Pictures must not be reproduced or used for other purposes without the written agreement of Glatz AG.

Valid as of January 2026.

Marketing

Do you need some help with your communication activities? We would be happy to support you with suitable PR, photo and reference material.

Schools & nurseries – colourful, sturdy and very easy to use
