Giga denotes a 109 metric factor - the main frequency in wireless communications.
Tera denotes a 1011 metric factor - the main frequency in LED lighting.
GigaTera® Lighting merges the world’s greatest IT engineering prowess with advanced LED systems, innovating at every turn to develop the most precise and reliable light.

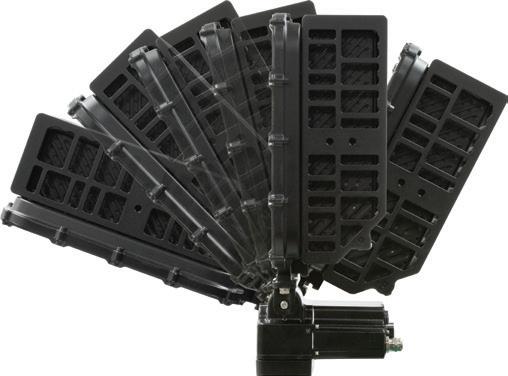

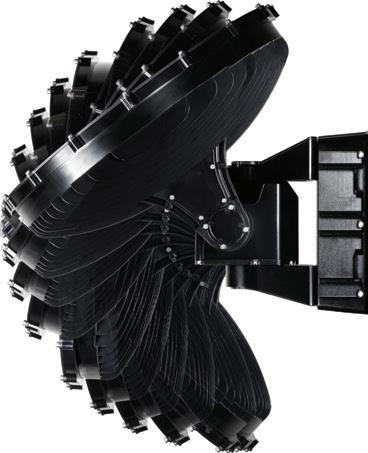

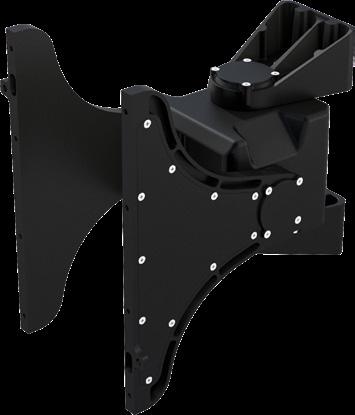

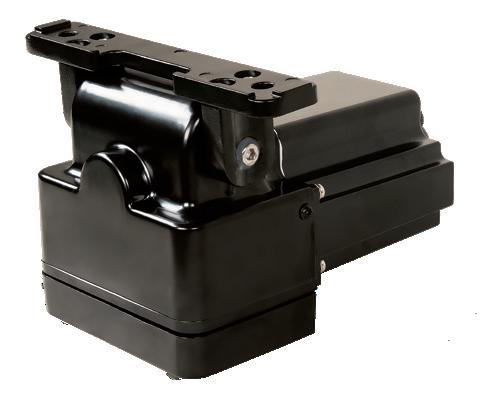

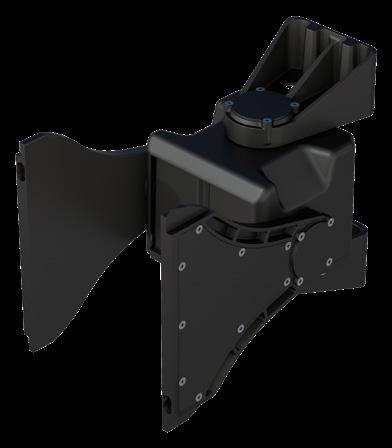

RTS™ Smart Aiming & Moving System
• Flawless wireless remote control of steering and tilting mechanisms.
• Immediate, safe, and ultra-precise aiming from the ground, eliminating the need for aerial lifts.
• One-touch aiming angle transitions based on custom presets tailored to specific spatial needs (e.g., field-centric, track-centric).
• Goes beyond traditional illumination to deliver dynamic, immersive entertainment lighting performances that captivate audiences.
[STRUCTURAL
PTX™ Ultra-Lightweight Thermal Solution (NET Certified)
• Guarantees an overwhelmingly long lifespan through an unrivaled thermal management design.

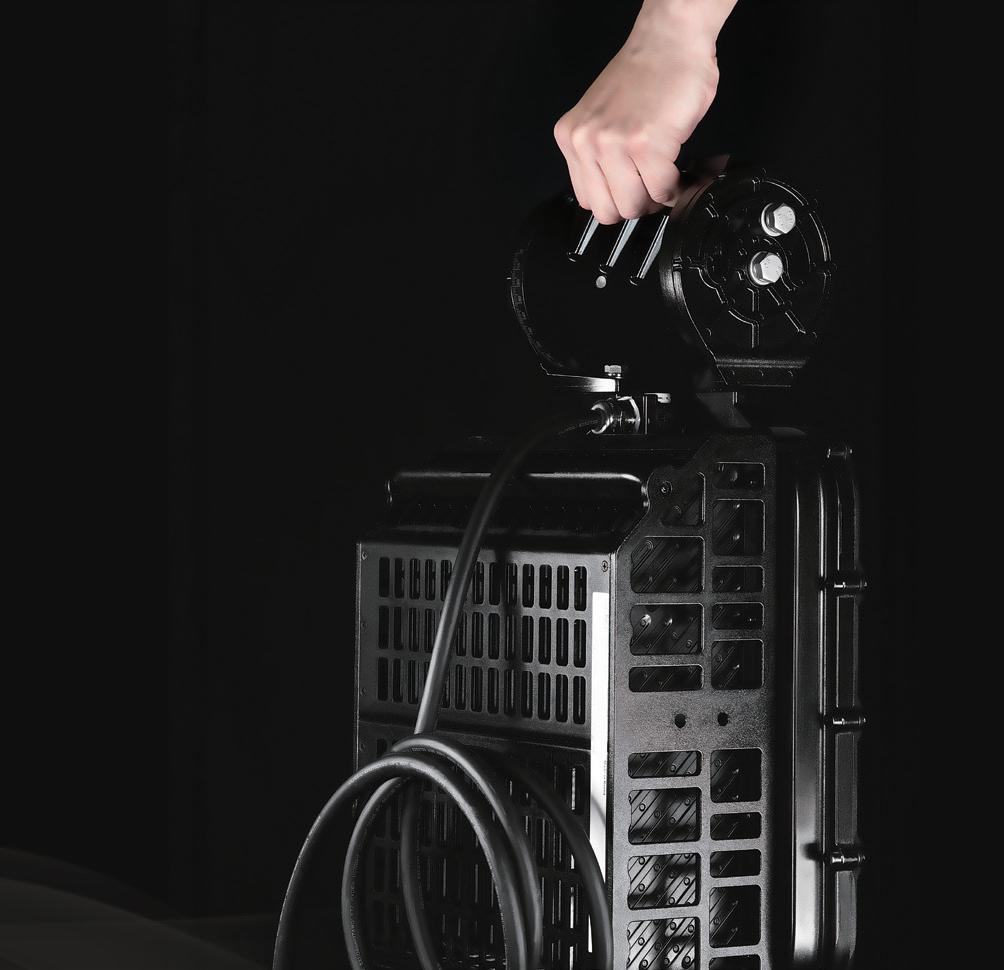

• Achieves an ultra-lightweight and compact form factor that shatters the limits of conventional high-power lighting by minimizing heat sink volume.
• Drastically reduces wind load, enabling safe and streamlined installation even on aging, existing masts.
• Demonstrates top-tier technological credibility, officially awarded the NET (New Excellent Technology) certification by the Korean Agency for Technology and Standards (KATS).
[OPTICAL INNOVATION]
Hybrid Precision Light Distribution Design
• Achieves extreme luminous efficacy by minimizing optical loss through the optimal combination of lenses and reflectors.
• Features ultra-precise, customized optics tailored specifically to individual LED chip characteristics and industrial applications.
• Offers a high-end reflector lineup designed to perfectly control and eliminate glare.
• Delivers a high-quality, high-uniformity illuminance environment with zero blind spots across expansive spaces.
GigaTera® is a leading LED sports and high-power lighting company, recognized globally for its innovative technology and advanced manufacturing processes. We provide world-class lighting solutions optimized for diverse environments, including sports stadiums, large-scale ports, and industrial facilities. In particular, we have maximized product efficiency and operational convenience through our proprietary PTX™ thermal management technology and RTS™ (Remote Tilting and Steering) technology, both developed in 2024. We continue to lead the global market with our next-generation lighting lineup featuring these new technologies.

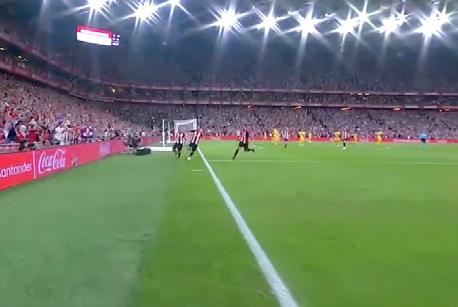

Modern professional sports venues demand immersive entertainment systems that interact with the audience beyond simple illumination. By integrating cutting-edge RGBW and RTS™ (Remote Tilting and Steering) technologies, GigaTera® successfully completed installations at Dickies Arena in the US in 2024, followed by the BMG Stadium in Germany in 2025. This provides dramatic visual effects during major events, delivering overwhelming immersion to spectators. Furthermore, we contribute to realizing social safety values through our high-power emergency lighting systems, which fully support on-site safety and rescue operations even in disaster situations with limited power supply.
Innovation-Driven R&D and Global Network
GigaTera®’s innovation originates from the cutting-edge infrastructure and outstanding researchers at our corporate R&D center, ‘Crazy Lab.’ We rigorously verify product performance and durability through various in-house testing equipment simulating harsh environments, securing uncompromising reliability. Additionally, we have maximized production efficiency by establishing an organic supply chain between our headquarters in South Korea and our manufacturing base in Vietnam. We possess a robust sales network that provides prompt and stable services to customers worldwide through our global corporate network connecting Europe, the US, Japan, China, and Türkiye.
by
Company Name GigaTera Lighting Inc.
CEO Song Jung-nam
Established July 2017 (KMW Business Unit)
Headquarters 21, Dongtan-daero 25-gil, Hwaseong-si, Gyeonggido, Republic of Korea
Specialties Sports Lighting, Area Floodlighting, High Bay Lighting, Roadway Lighting, RGB Lighting, Controls
· LED Lighting Business Unit Established
· LED Category Grand Prize (Korea Land & Housing Corporation)
· 8th Luminaire Design Grand Prize
· KS Certification for LED Lighting Products
· Excellent Manufacturing Technology Research Center Designation (ATC)
· New Technology (NET) Certification
· GigaTera® Lighting Established (KMW Spinoff)
· BNSF Lighting Supplier Contract
· Global Procurement Leading Company Program Selection (P300)
· VietnamProduction PlantEstablished
· Established GigaTera® Subsidiaries (Türkiye, India)
· TL9000 Certification
· Anseong ORT Center Completed
· ICT Certification
· Established GigaTera® Subsidiaries (Middle East, Europe, Japan, China)
· “Crazy Lab” R&D Center Established
· OHSAS18001 Certification
· ISO 9001 certification
· Maru Lighting Co., Ltd. Established
· SUMA Series Launched
· MAHA-Plus Series Launched
· GigaTera® U.S. Subsidiary Established
· World Class 300 Company Selection
· $200M Export Tower Award(Trade Day)
· SFP Approved for FIFA Quality Pro (FQP)
· SFP won 3 Categories at LIT Lighting Design Awards
· SFP Selected as IES 2025 Innovative Product
· Developed RTS™-G4 integrated Circular SUFA (SFC)
· Developed RTS™-G4 integrated Rectangular SUFA (SFR)
· Launched SUFA-P / MAHA-P
· Developed RTS™-G3 / RTS™-G4
· Indoor-Ag Con Exhibitor (SOLNSOL)
· Smart Farm Korea Exhibitor (SOLNSOL)
· Exhibited at NACDA Orlando, USA
· Exhibited at TOC Europe
· Exhibited at FSB Germany
· Developed HPEL™ System
· Developed TML™ System
· PTX™ Series Development
· RTS™-G2 System Development

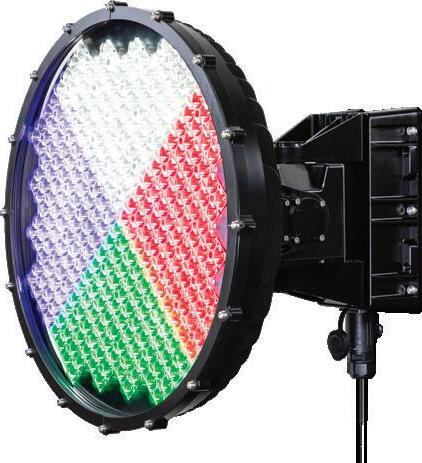

· Launched RTS™ Sports Entertainment System
· Exhitited at MJBizCon, USA (SOLNSOL)

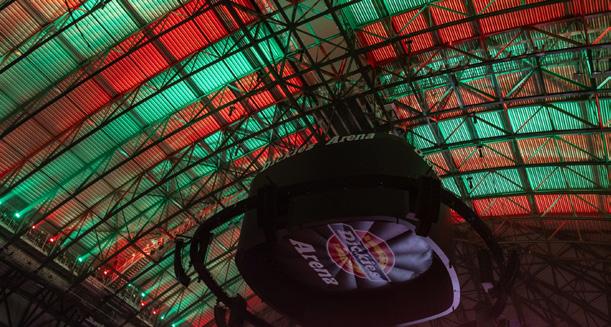

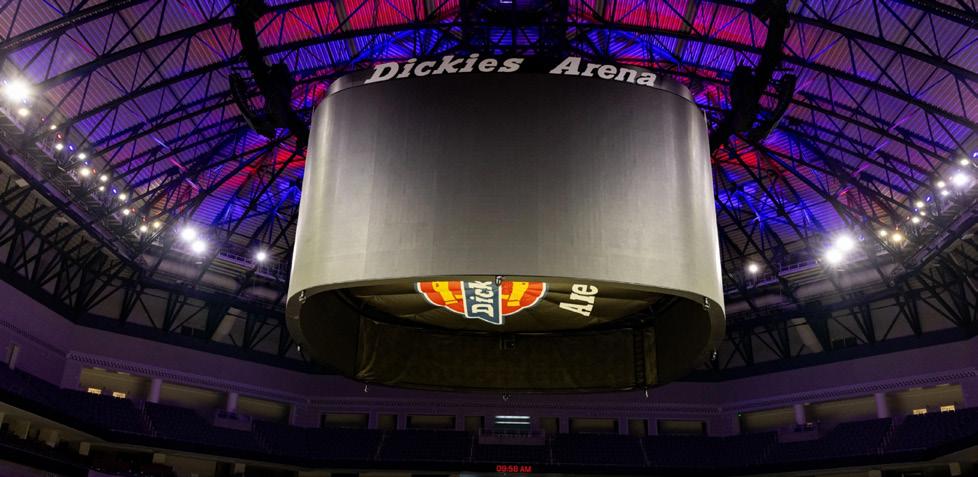

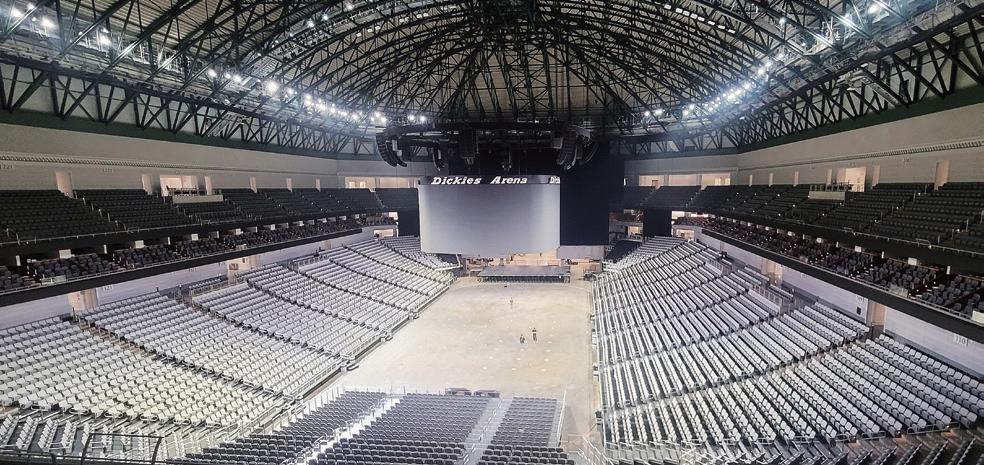

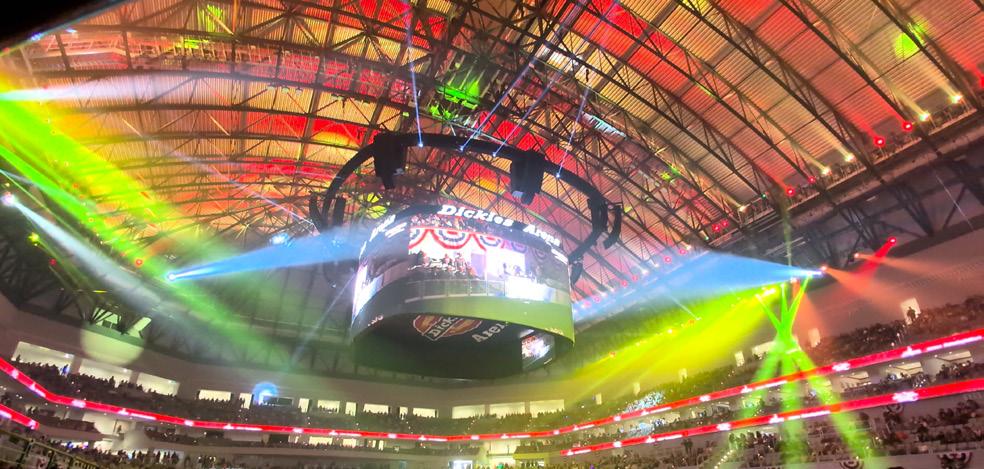

· Installed Lighting at Dickies Arena, USA (Sports Entertainment Lighting System)
· Minister’s Award for New Technology Development (International Optoelectronics Expo)
· SOLNSOL Horticultural Lighting Brand Launched
· International Agriculture Expo Exhibitor (SOLNSOL)
· Smart Farm Korea Exhibitor (SOLNSOL)
· RAS Technology Development
· Light + Building Exhibitor
· SNI Certification in Indonesia
· Approved Models
SFP1K5 (5700K 90Ra), SFP1K5 (5700K 80Ra)
SFP1K2 (5700K 90Ra), SFP1K2 (5700K 80Ra)
· Certified Stadium

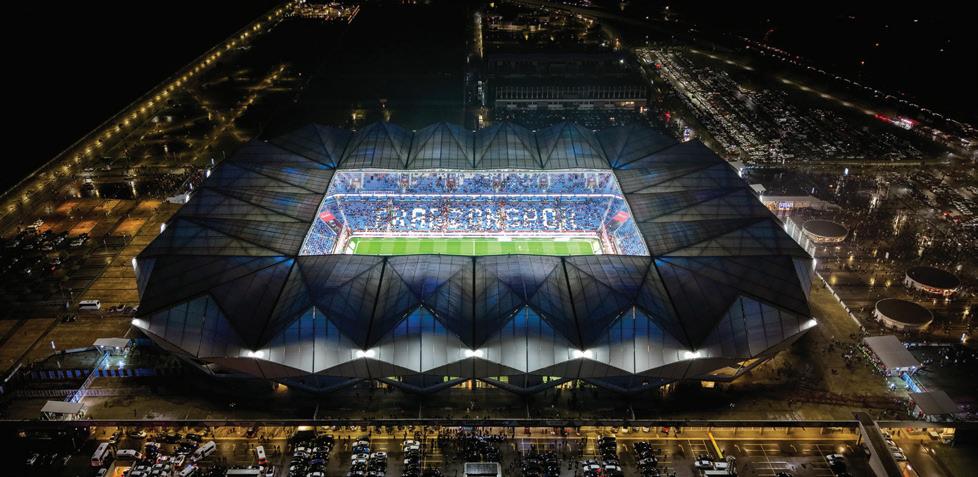

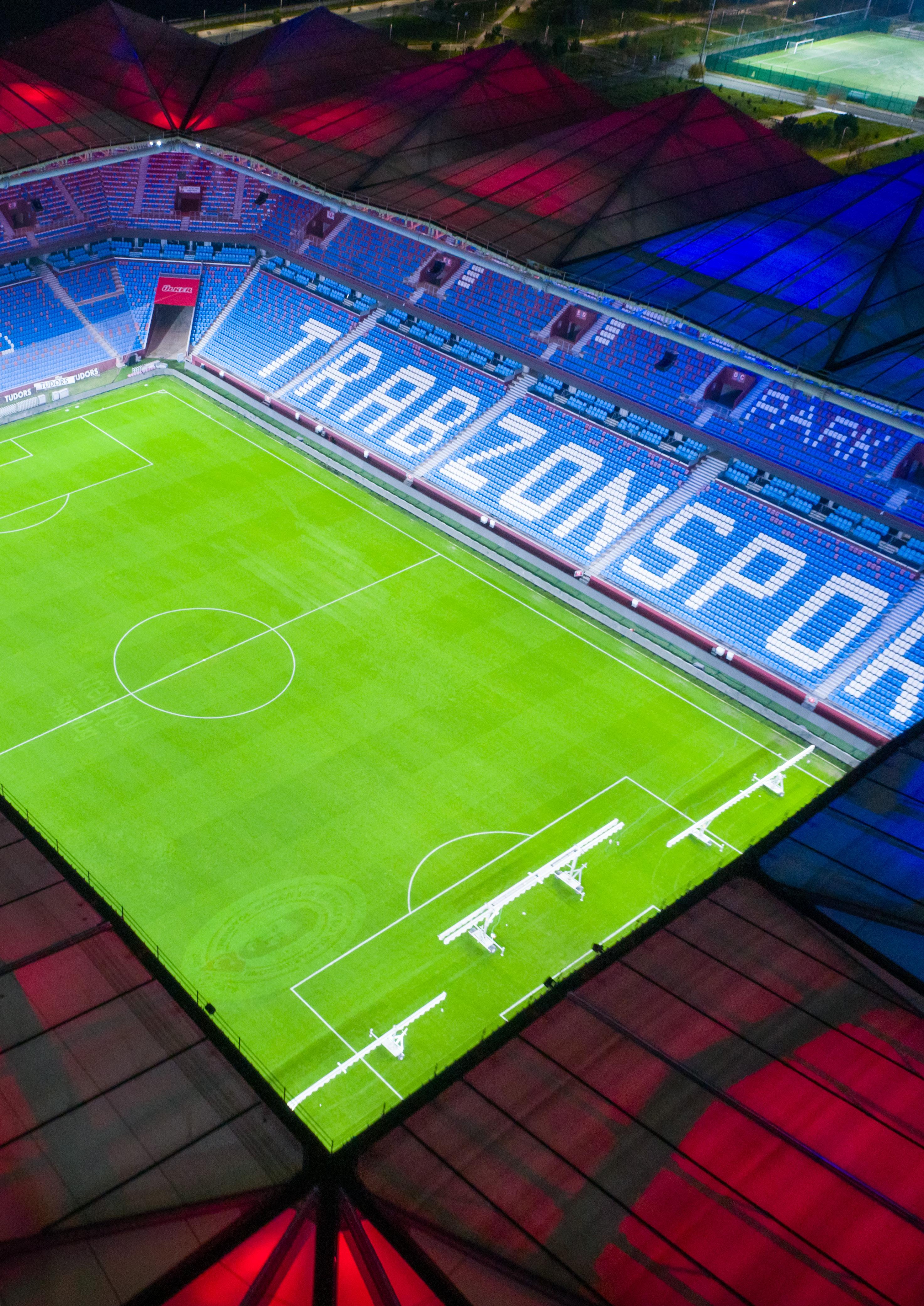

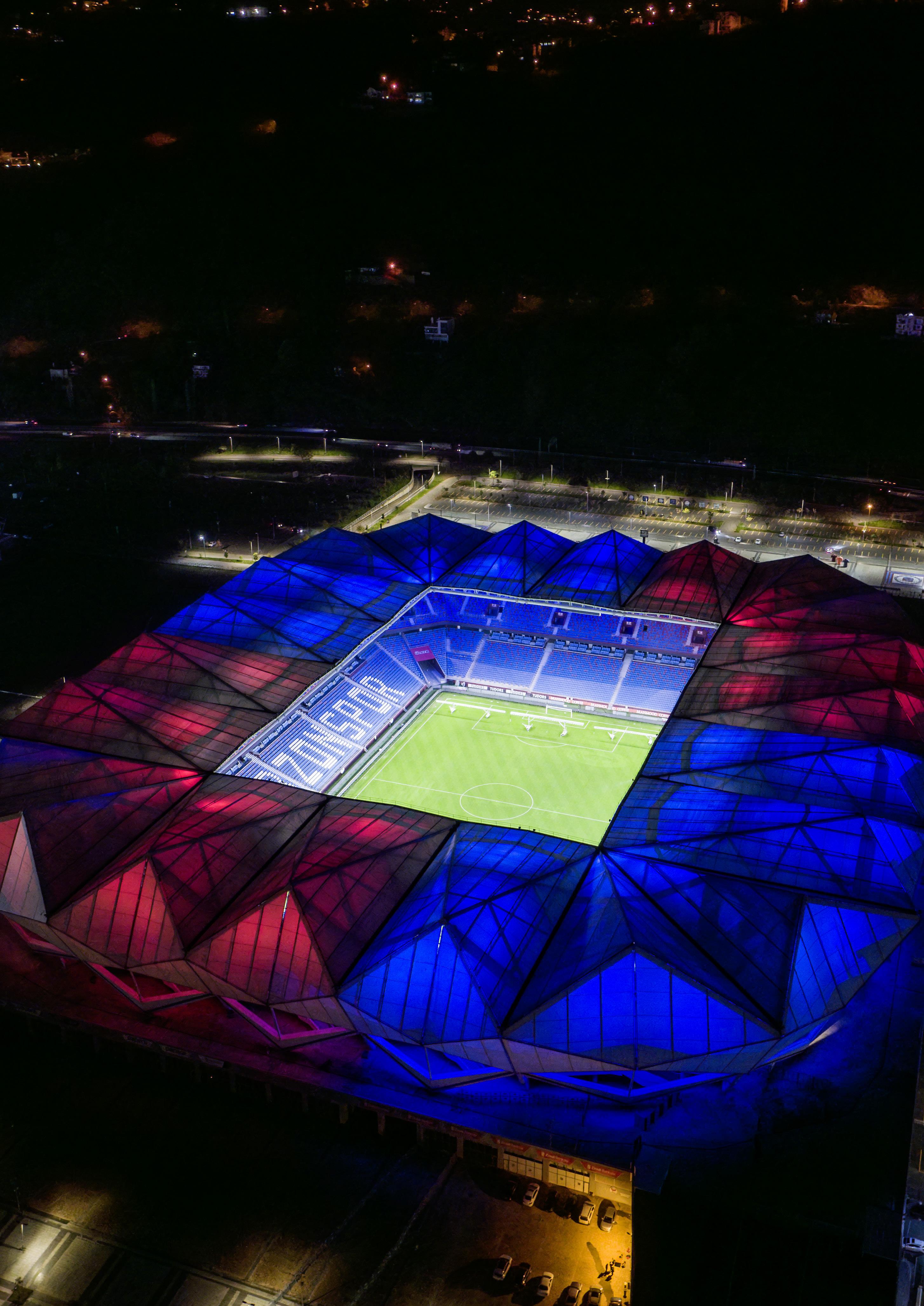

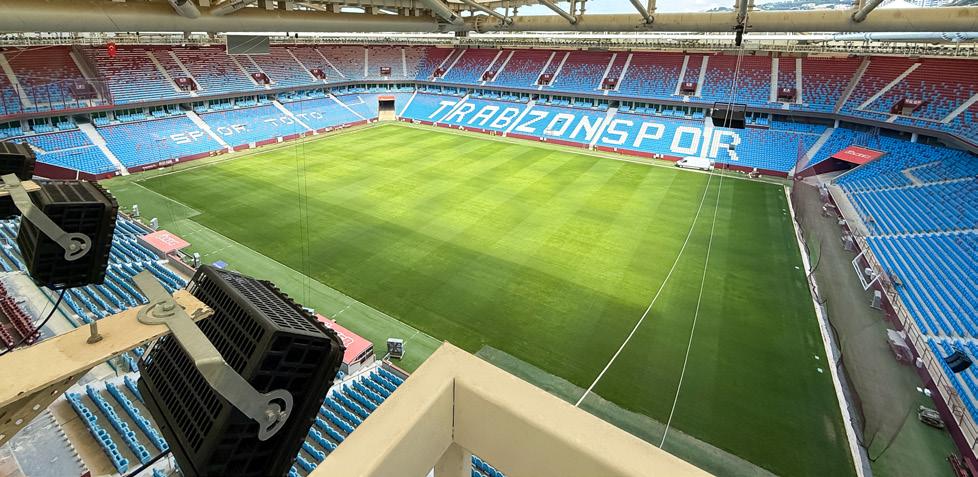

Trabzonspor Stadium (FIFA STANDARD A) / Türkiye
FIFA Quality Program requires engagement with a FIFA‑accredited test institute at every stage. A floodlight manufacturer must be officially licensed by FIFA in order to certify floodlight installations for the FIFA Quality and FIFA Quality Pro levels. Installed stadiums are then listed in FIFA website registry following certification of field tests. FIFA Quality Programme certification provides an international benchmark that simplifies technical tender requirements for floodlights and assures stakeholders that the system meets the highest standards available.
FIFA Quality Programme certified floodlight installations are backed by GigaTera’s US$7 million global product liability insurance, providing comprehensive protection for the lighting equipment. GigaTera® has also obtained the WFSGI labor‑rights pledge, underscoring its adherence to international labor standards. SUFA‑P is designed and certified for sustainability, limiting hazardous substances and ensuring components can be easily recycled with minimal adhesives, as confirmed through life‑cycle assessments. Developed to meet the most demanding sustainability requirements, GigaTera’s SUFA‑P delivers world‑class illumination, comprehensive safety and enduring operational confidence, making it the future‑ready choice for uncompromising floodlighting excellence.

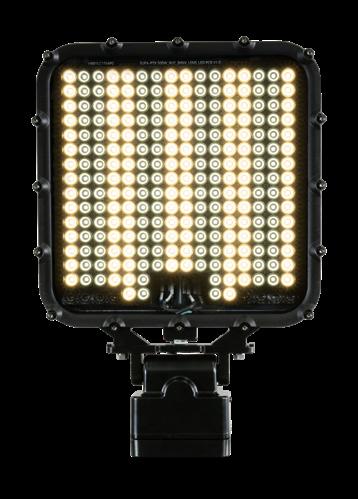

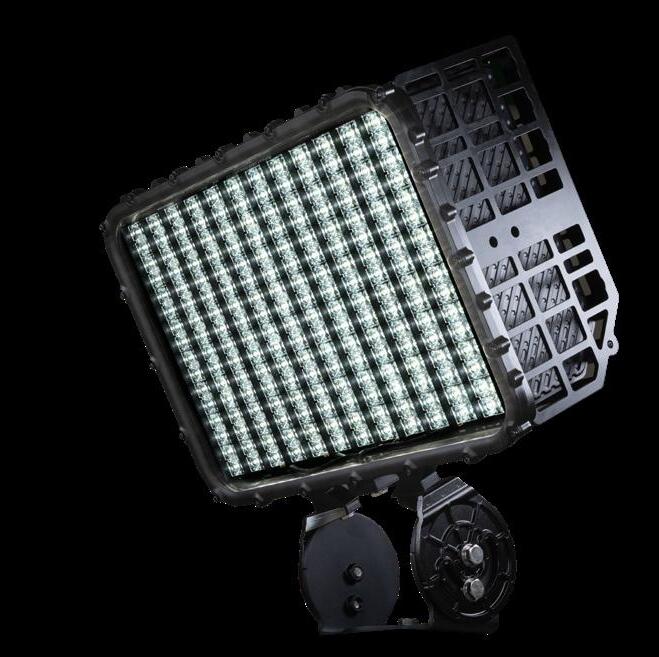

GigaTera® Lighting’s flagship sports lighting luminaire, the SFP1K5 (SUFA-P), has been officially selected as an innovative product in the 2025 Progress Report by the Illuminating Engineering Society (IES), the world’s most prestigious international standards organization for lighting technology. Notably, the SFP1K5 earned high technical acclaim for flawlessly overcoming lumen depreciation - a chronic limitation of conventional high-power sports lighting caused by thermal buildup - by seamlessly integrating our proprietary PTX™ thermal management solution with ultra-precision optical design. Furthermore, it garnered praise for breaking the physical boundaries of highpower sports lighting, achieving an ultra-lightweight form factor through structural design innovation despite its overwhelming 1,500W-class output.
Above all, the drastically reduced weight and aerodynamic design minimize the wind load exerted on structures, even in outdoor environments with strong winds. This ultra-lightweight form factor not only maximizes worker safety and installation convenience in extreme high-altitude settings but also dramatically elevates the structural stability of the entire lighting system, perfectly satisfying the rigorous safety standards of global engineering firms.
The IES establishes the definitive global lighting design guidelines for environments ranging from sports facilities to industrial sites, serving as the ultimate benchmark for the world’s top-tier engineering firms. This prestigious selection officially validates GigaTera® Lighting’s overwhelming capabilities in the global sports lighting market, specifically demonstrating:
• World-class technology recognized by IES
• Unmatched reliability and quality in the global market
• Strengthened position as a brand leading the way in innovation
GigaTera® Lighting has achieved a remarkable milestone by sweeping three categories at the world-renowned LIT Lighting Design Awards™, an institution that celebrates exceptional innovation and creativity in architectural, entertainment, and product lighting worldwide.
Evaluated by an international jury on rigorous criteria - including aesthetic merit, technical innovation, and sustainability—GigaTera® Lighting outshone over 1,000 global entries to secure this ultimate honor. The core lineups that earned official recognition for their world-class technological prowess in this award are as follows:
SUFA-PTX™ Floodlight: Achieves an unprecedented ultra-lightweight design without compromising its overwhelming luminous efficacy, delivering optimized reliability for rofessional sports environments. It was highly commended for engineering excellence that drastically reduces installation complexity and overall construction costs.
SFP-RTS™ Sports Lighting System: Powered by our proprietary RTS™ (Remote Tilting & Steering) technology, this system guarantees flawless precision and seamless scalability. It serves as a next-generation entertainment solution, transforming ordinary stadiums into landmark arenas through dynamic moving light performances.
This recognition is a direct testament to GigaTera® Lighting’s relentless commitment to maximizing the longterm durability and operational efficiency of high-power sports lighting systems. We will continue to solidify our absolute leadership in the global market by delivering innovative, future-ready lighting solutions.
GigaTera® operates a fully integrated one-stop system that spans from R&D to manufacturing, enabling a structured and highly efficient workflow. With creativity and efficiency as core values, we maintain an optimized organizational system designed to achieve our vision and goals effectively.
We are equipped with an in-house reliability testing system certified by UL Korea, through which we thoroughly validate product performance and continuously strive for quality improvement and technological innovation.
GigaTera® provides high-quality lighting solutions optimized for various applications, including sports facilities and industrial sites, delivering both maximum efficiency and exceptional economic value as a leading professional lighting manufacturer.
Integrated System Structure
Continuous Research & Development
Continuous R&D through the fusion of 30 years of wireless communication thermal technology and 15 years of lighting technology

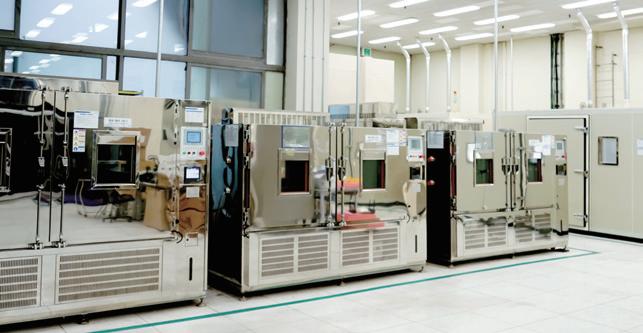

In-house Production Line In-house Reliability Verification
In-house production line spanning the Korea headquarters and Vietnam manufacturing base
Performance Measurement Equipment
Integrating Sphere System

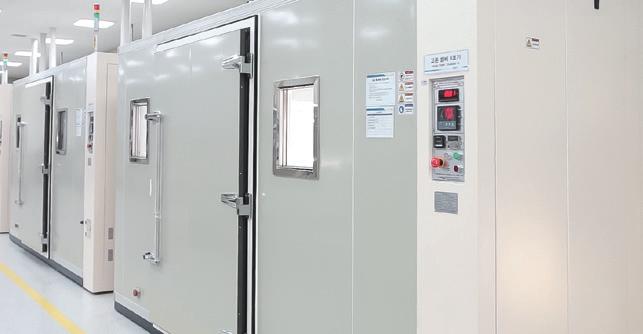

Excellent quality verification system through in-house reliability equipment
The integrating sphere positions the light source at the center and measures luminous flux, luminous efficacy, and spectral characteristics of the emitted light. By comparing the output of the standard light source and the test luminaire, the system immediately verifies and analyzes the stability and performance of the lighting fixture in real time.
The goniophotometer rotates the light source or luminaire around its optical axis, and measures luminous intensity distribution and photometric characteristics using sensors that detect reflected light. It supports evaluation of the luminaire’s optical stability in accordance with CIE and IESNA LM79 standards and can simulate real-world installation angles through Burning Position settings. Additionally, the system automatically adjusts measurement intervals for precise testing, and meets the measurement requirements specified by NEMA classifications.

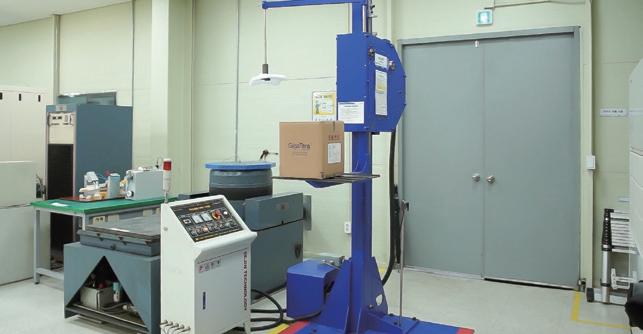

No
Equipment

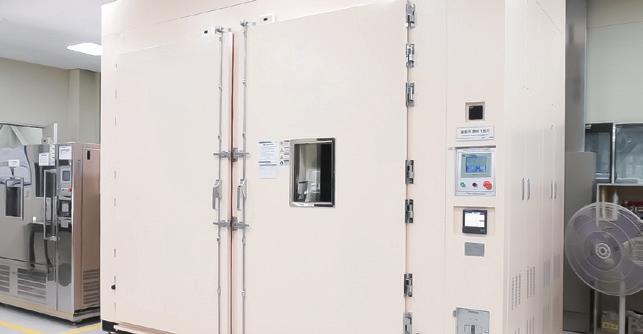

1 High Temperature Tester
2 Constant Temp. & Humid
3 Thermal Shock Tester

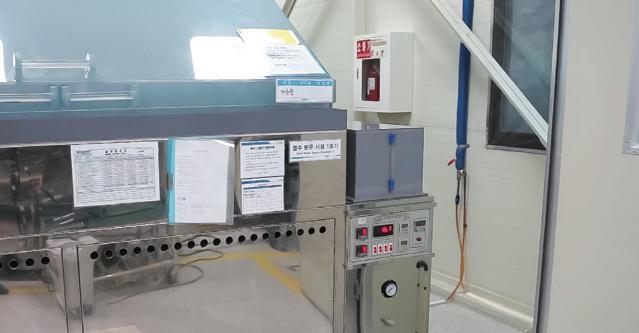

4 Salt Spray Tester

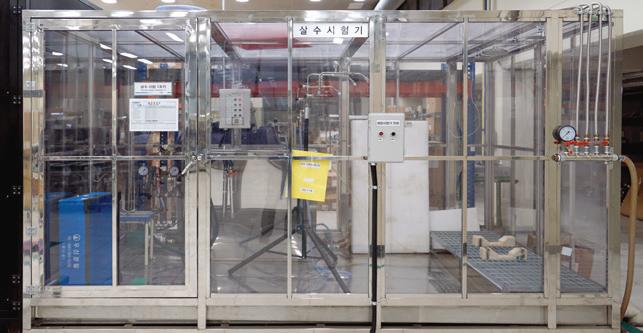

5 Rain Tester

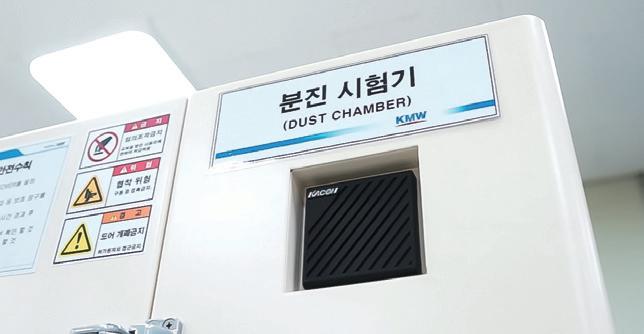

6 Dust Tester
7 Vibration System
8 ESD Simulator
9 Drop Tester
10 On/Off Tester
11 Dry Oven
12 Cryo Chamber
13 Draught Proof Enclosure
14 Integrating Sphere System
15 Mirror type Goniophotometer
Spec/Range
AC380V, 3Ø, 60Hz, 18kW, RT~80°C
AC380V, 3Ø, 60Hz, 45kW, -50~120°C, 30%~98% R.H
AC380V, 3Ø∅, 60Hz, 78kW, -50~150°C
AC220V, 1Ø, 60Hz, 5kW, RT~35°C, NaCl 5%
IPX5 : 12.5L/min ±5% (≥3 min) / IPX6 : 100L/min ±5% (≥3 min)
IP6X: Protection against external dust particles
220V, 60Hz, 47AMPS
AC100~240V, 50/60Hz, 75VA
AC100~240V, 50/60Hz, 75VA
AC100~240V, 50/60Hz, 75VA
AC380V, 3Ø, 60Hz, 12kW, RT~250°C
Temperature range: approx. −70~80°C
Luminaires and lamps temperature rise testing
CIE 84 / IESNA LM79
- CIE 43, 69, 70, 84, 121, 127 - IESNA LM31, LM35, LM41, LM42, LM46, LM79

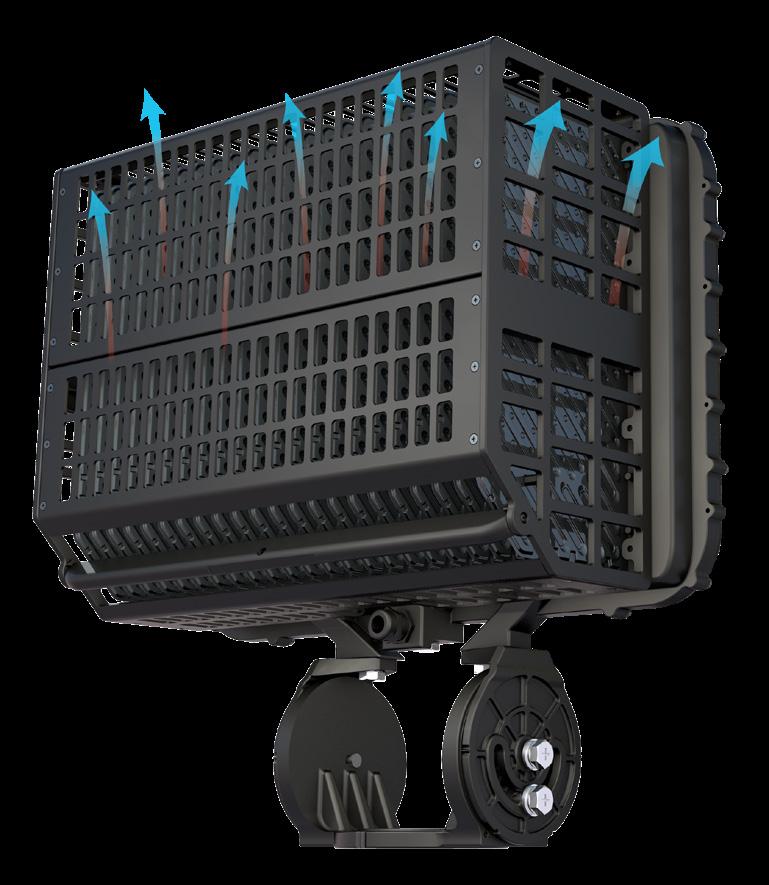

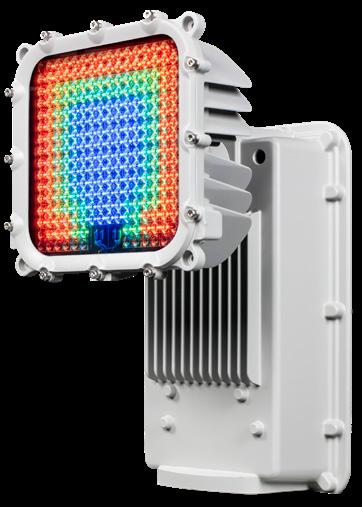

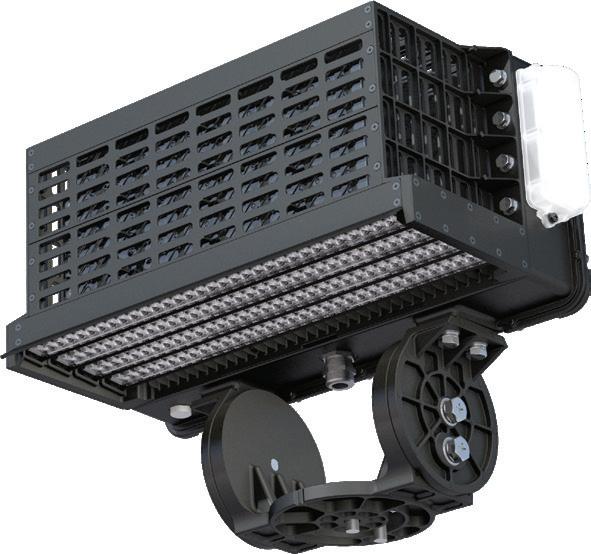

PTX™ Thermal Technology
Among the core technologies of LED lighting products, thermal management plays a crucial role not only in brightness but also in product lifespan. Traditional heat-sink structures commonly used in lighting increase overall product weight, which has long been a limitation in LED lighting design. GigaTera has overcome this challenge with its innovative PTX™ (Plate Thermal eXchanger) technology.
PTX™ enables ultra-high brightness performance and exceptional thermal efficiency while maintaining structural stability, resulting in long-life, high-reliability products. This technology was officially recognized as a new technology in December 2024 under the certification title: “Finless high-performance thermal technology applying large-area LED lighting heat-pipe structure for telecommunication equipment and high-power lighting.”
PTX™ Features
Design
Optimized thermal design delivering superior cooling performance with PTX™ technology
Rapid heat dissipation for enhanced stability and extended product lifespan
PFAS-Free materials ensuring high performance and environmental safety

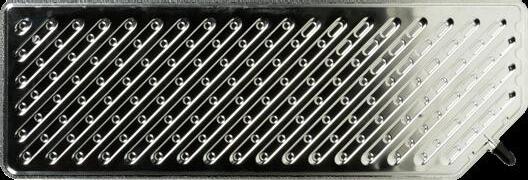

PTX™ achieves a thermal conductivity of over 3,000 W/mK, surpassing silver (420 W/mK) and far exceeding copper and aluminum. This breakthrough cooling technology, optimized for LED lighting, dramatically improves heat transfer efficiency - enhancing system reliability and overall project performance.Compared to traditional heat sinks, PTX™ overcomes weight and performance limitations, delivering long-lasting, high-efficiency thermal management that sets a new standard in the industry.
Thermal Conductivity by Material
Quad Module(2010)
Dual Module(2015)
1.2kW / 18.0Kg
Single Module(2024)
1.5kW / 11.8Kg
Traditional heat‐sink structures used in lighting fixtures are a major cause of increased product weight. However, PTX™ thermal technology drastically overcomes these structural limitations. Products featuring PTX™ technology achieve both lightweight construction and streamlined design, improving efficiency across manufacturing, logistics, installation, and maintenance. Especially for high‐output floodlights, weight and wind load have significant impact on pole engineering and cost. PTX™‐optimized products reduce structural load, allowing reuse of existing pole designs or adoption of more efficient engineering alternatives. This flexibility delivers major advantages not only for new installations, but also for retrofit projects where lighting is upgraded while poles remain unchanged.
Advantages of PTX™ Installation Max 800W / 25.0Kg
· Reduced pole loading allows optimization of steel thickness and pole structure, lowering installation cost
· Lower EPA (Effective Projected Area) minimizes wind load impact
· Lightweight fixtures ensure greater installation stability
· Simplified installation eliminates the need for additional equipment and manpower
· Reduced long‐term maintenance costs
Series

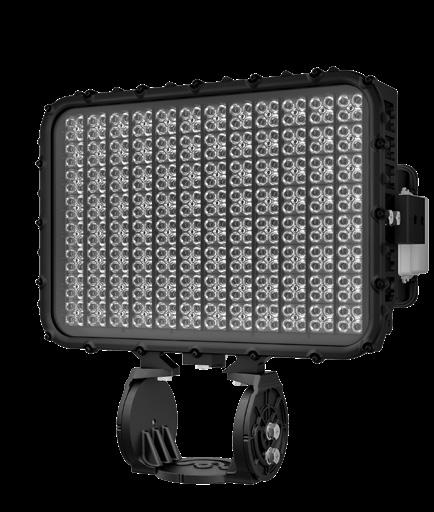

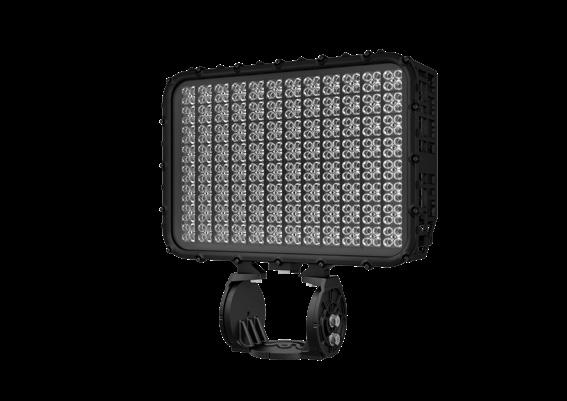

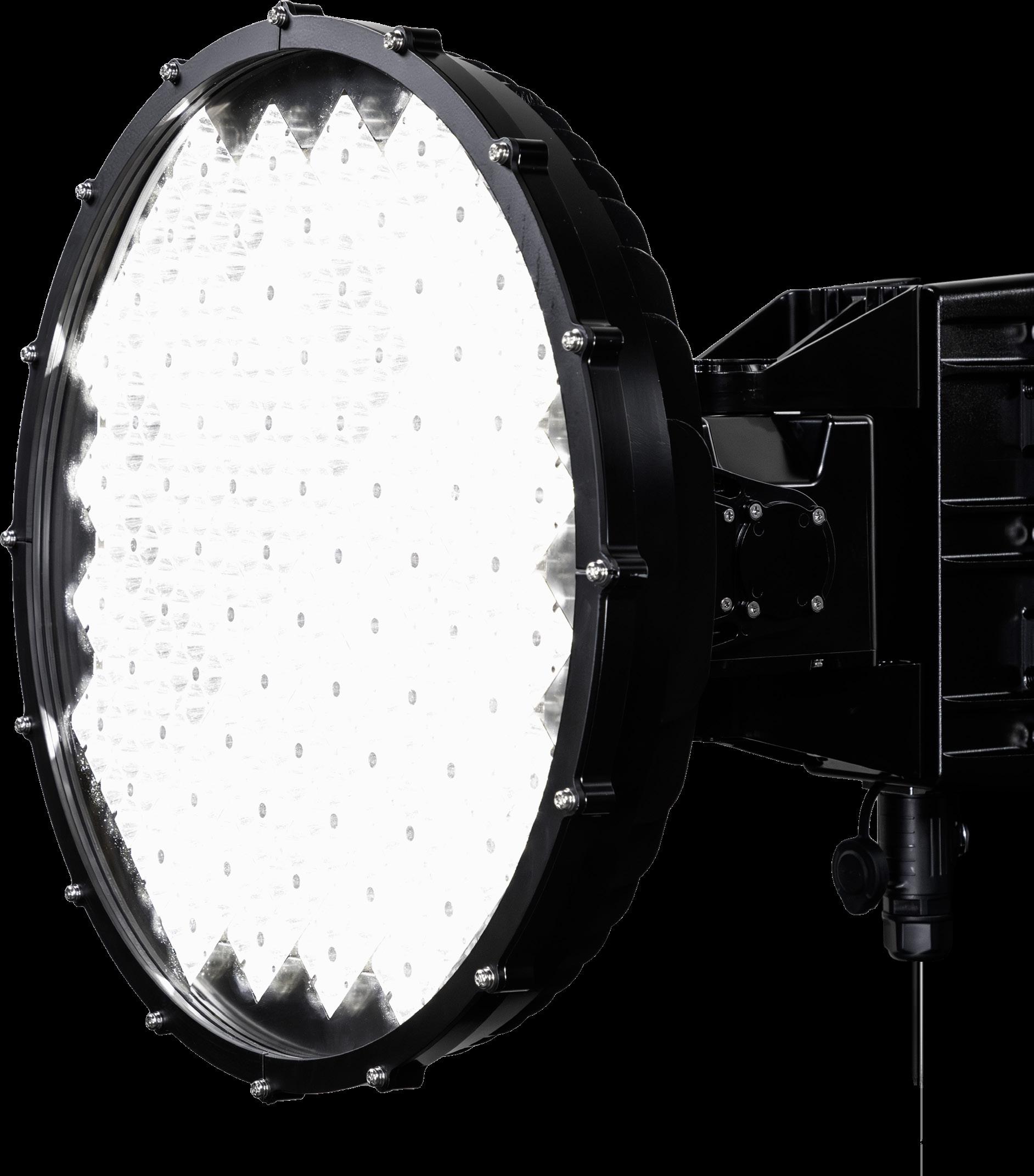

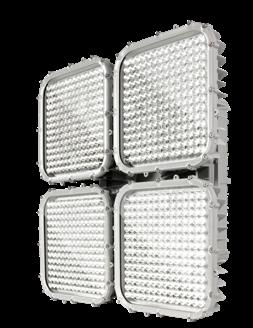

GigaTera® Sports Flood Lighting Series 1200W

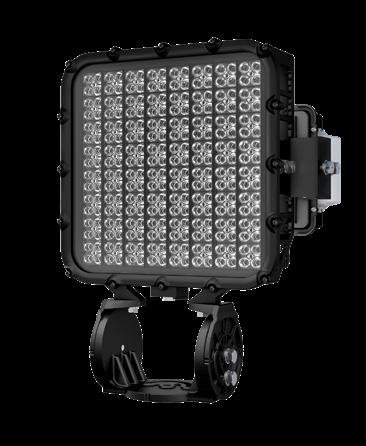

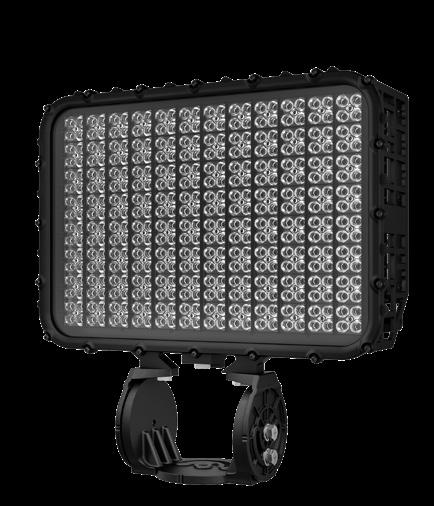

GigaTera® New Products: SUFA PTX™ (SFP Series) & MAHA PTX™ (MHP Series) Up to approx. 52% weight reduction (SFP1K2)/ Up to approx. 50% weight reduction (MHP1K2) SFP1K2

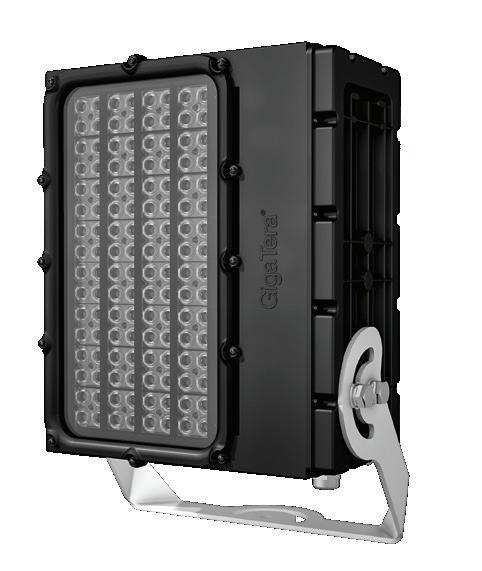

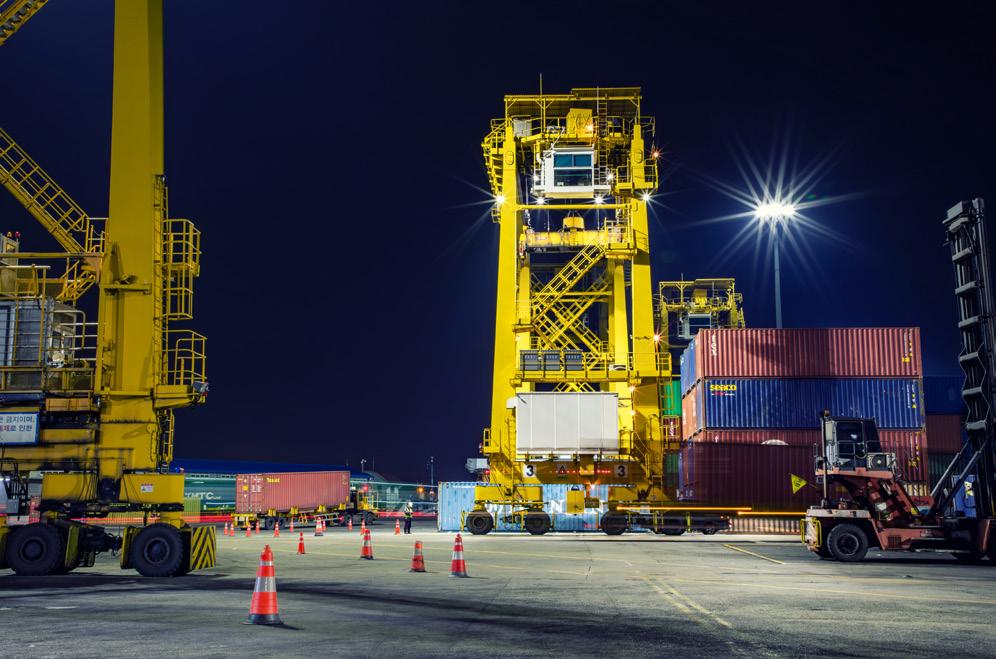

GigaTera® Area Flood Lighting Series 1000W
(Built-in) SFM1K2
(Remote) SFA1K2
GigaTera® lighting systems are engineered with precision optical design to minimize uplight and maximize efficiency. Even when compared with lighting systems that have similar rated luminous efficacy, GigaTera® demonstrates superior uniformity and higher illuminance performance in real-world simulation environments.
· Inner Visor
· Glare Control
· Dual-Head & Multi-Beam Forming Technology (NMBF)
· Backlight Control
· Full Cut-off Illumination
· Optimized Light Distribution & Thermal Design
· Field Lumen Performance
Inner Visor
An inner visor refers to a visor installed inside the luminaire rather than externally.
External visors increase fixture weight, wind load, and can disrupt fixture appearance and design, especially in stadium or large‐scale outdoor installations where structural load and aesthetics are critical.
GigaTera’s stadium lighting uses internal visors that effectively block spill light and glare from inside the fixture, increasing useful light output to the intended target area while reducing unwanted light spill.
20–30% reduction in upward light spill and glare compared to fixtures using external visors
· Minimizes glare and light spill
· Rugged, one‐piece integrated design protects lenses from environmental damage
· Eliminates the need for external visors → reducing weight and wind load
· No additional cleaning or maintenance work required due to enclosed structure
· Superior internal design ensures excellent durability and optical stability
· Precise beam control that blocks unnecessary light spill and improves uniformity
Spill Light No Spill Light
(Not Proper Cut-off) (Clear Cut-off)
External Visor GigaTera® Inner Visor
If spill light is not properly controlled, unwanted light spreads into surrounding residential or public areas, causing light pollution and discomfort. With GigaTera®’s internal visor technology, spill light is effectively blocked, increasing useful lumens on the target surface and reducing wasted light. Many lighting manufacturers calculate efficiency including spill light; however, what truly matters is how much useful light reaches the field.

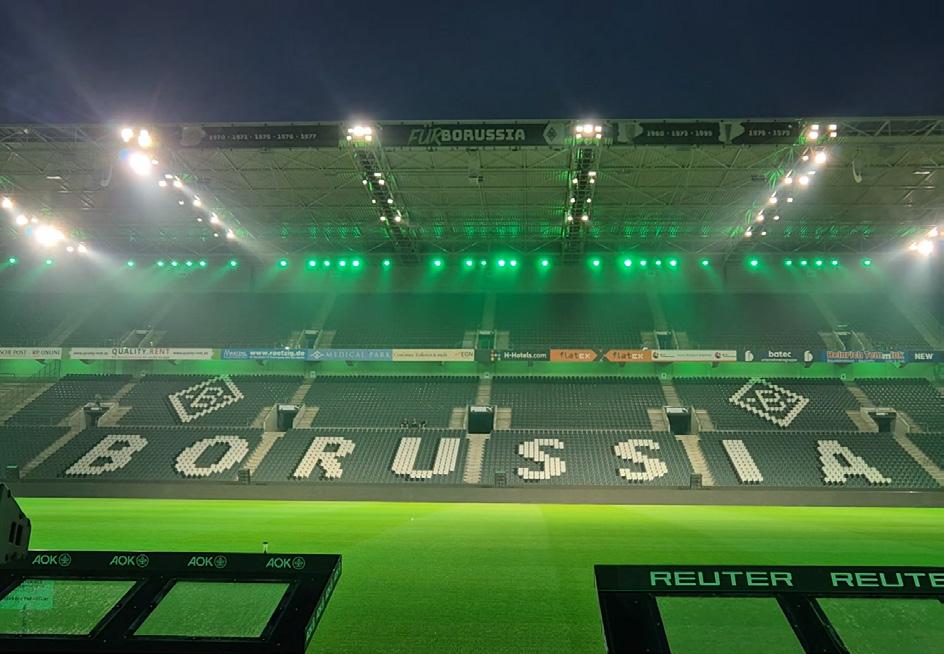

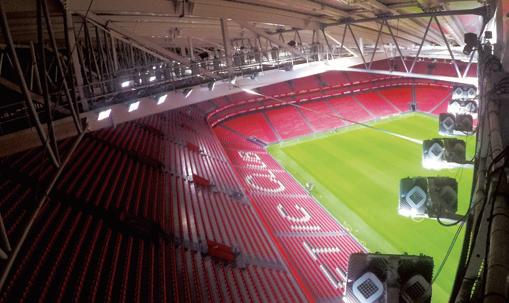

In real-world stadium performance, GigaTera®’s inner visor design delivers superior uniformity and higher illuminance compared to fixtures marketed with high luminous efficiency but external visor structures.
GigaTera®’s innovative optical technology provides optimal solutions, even for stadiums with spatial or height limitations. By combining asymmetric hybrid optics with high-efficiency NMBF (narrow multi-beam forming) technology, our lighting systems are designed to deliver top-tier performance in even the most constrained environments.
• Enhanced light control through chip-specific lens application
• Zero uplight and uniform coverage across target areas
• Minimal light spill and glare for better visibility
• Consistent illuminance even without exact aiming
• Minimizes spill light caused by aiming adjustments
• Smooth distribution and even light coverage across large spaces

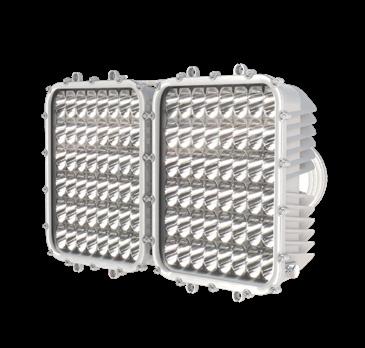

GigaTera®’s luminaires use low-power LED modules that can be combined to create high-power systems of 800W, 1200W, or 1500W. Each module allows for independent tilting and rotation, minimizing interference during aiming and focusing light precisely where needed. Such modular design achieves exceptional uniformity and nearly eliminates glare, often creating the illusion that our lights are off.
· Optimized energy use with minimal spill light
· Enhanced uniformity through multiple aiming points
· Reduced glare for athletes
· Flexible aiming for even light coverage
· Low glare, low spill light, and low light pollution
· Dual module setup with mounted or remote drivers
· Sustainable modular design for decarbonization from design to install
The MAHA series features a complete light distribution that minimizes glare, spill light, and light trespass without additional visors or complex aiming adjustments, ensuring zero light pollution and preserving the natural night sky. Even when mounted at heights of up to 14 m and aimed up to 15° upward, the MAHA series maintains a ULR value of 0 with exceptionally low glare ratings.
SUMA products significantly reduce glare by applying precise optical engineering for superior visual comfort and safety. With the Advanced Full technology, SUMA products achieve approximately twice the glare reduction compared to the MAHA series.
Lower values indicate reduced glare and enhanced visual comfort.
· Comfortable lighting with no glare for both players and spectators
· Uplight-free (ULR 0%) design (MAHA, SUMA series)
· Precise beam control delivering light only where needed
· Reduces light spill and protects the natural environment with eco-friendly illumination
Even when installed in the same location, GigaTera® full Cut-off optics significantly reduce spill light compared to conventional luminaires.
By precisely directing light only to the target area, backlight and spill are minimized, ensuring a comfortable, glare-free environment for both players and audience.

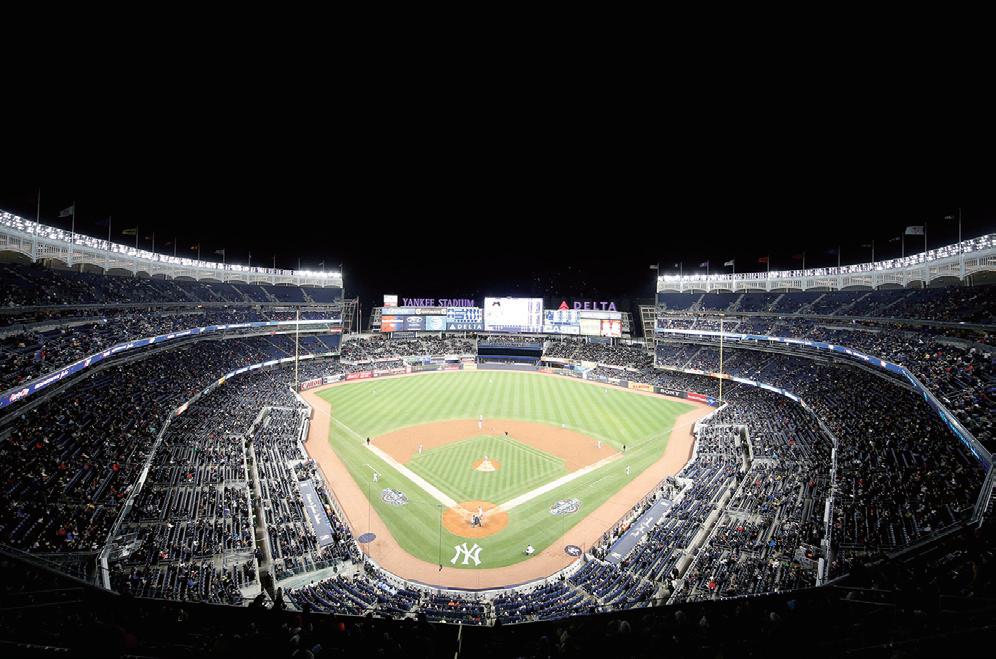

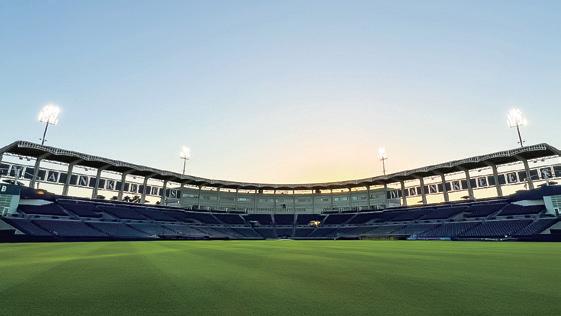

Even after 10 years of installation, Yankee Stadium in New York continues to rely on GigaTera® lighting for perfect illumination.

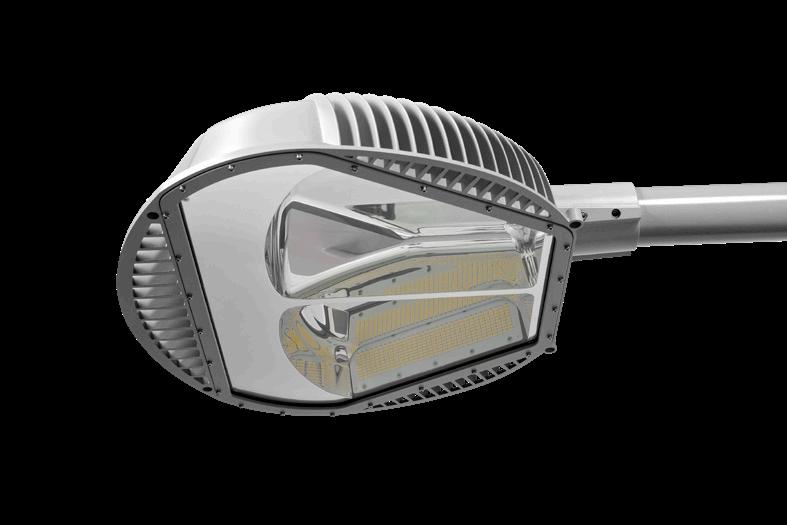

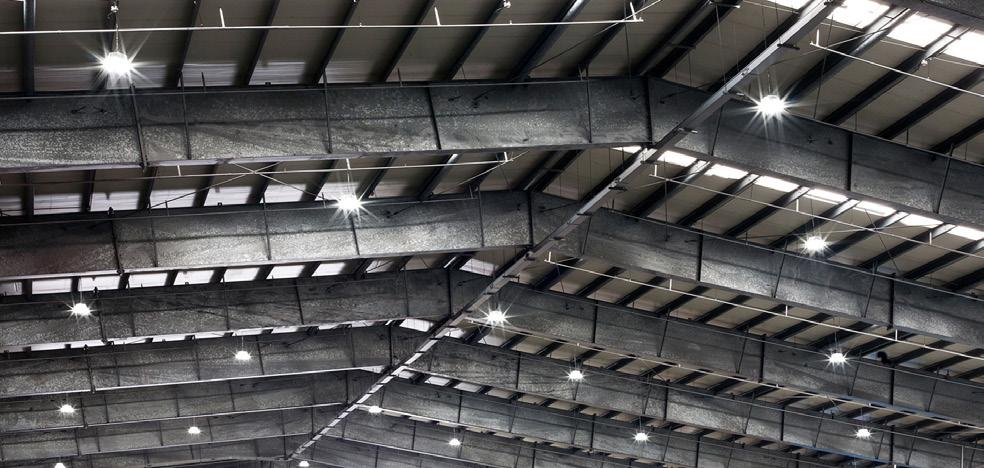

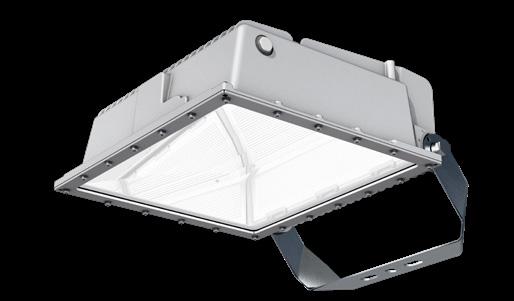

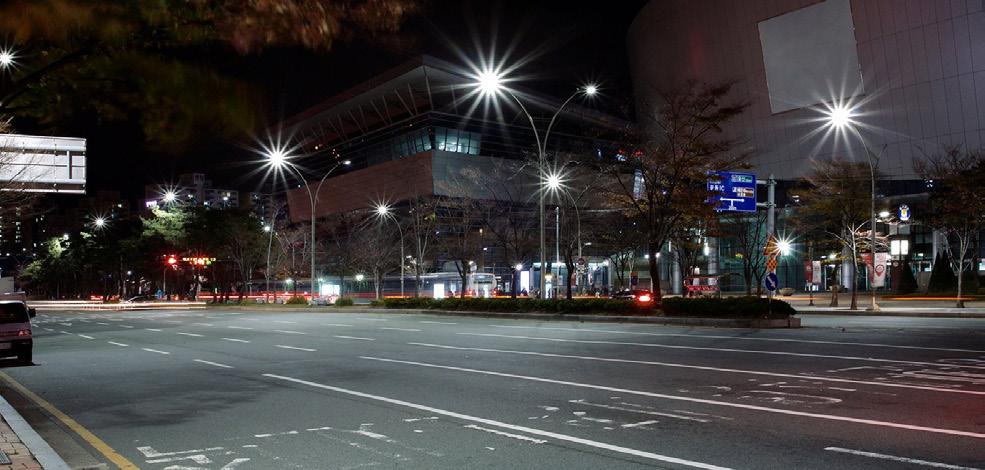

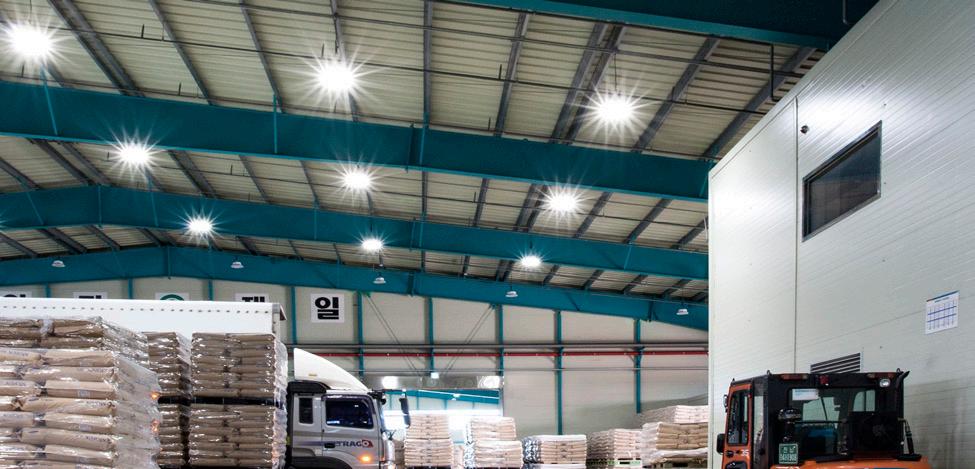

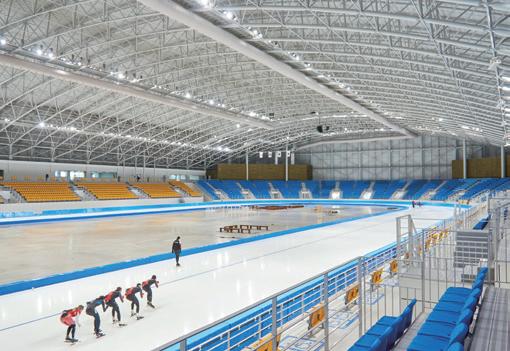

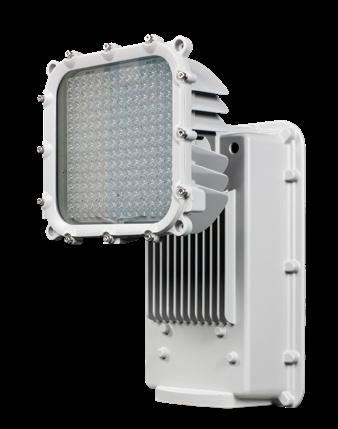

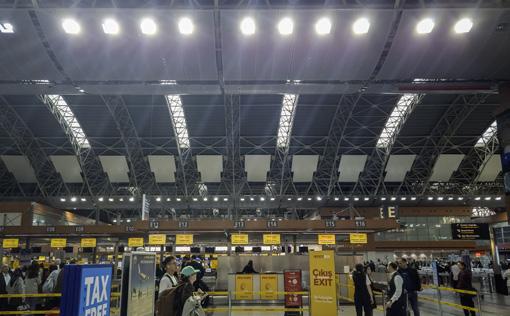

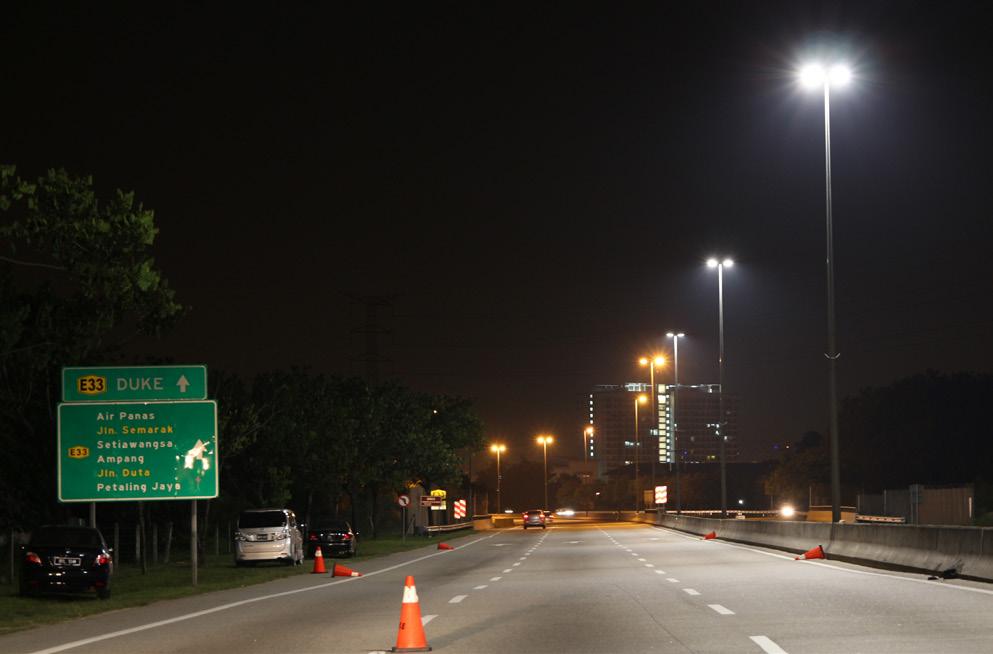

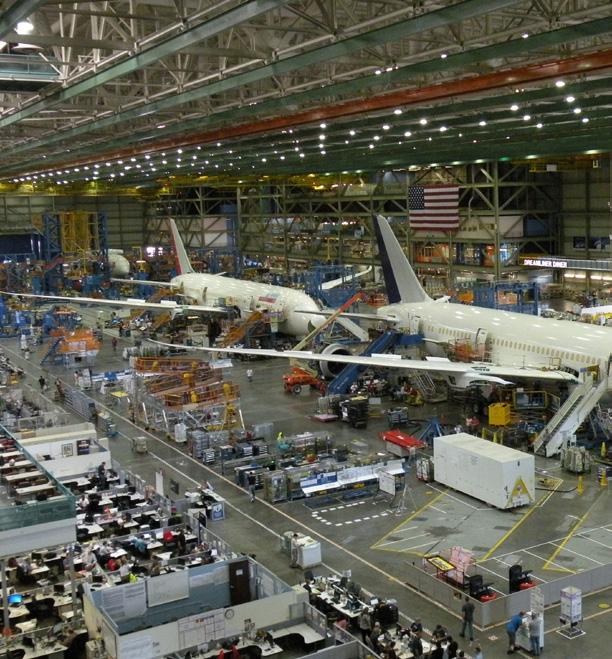

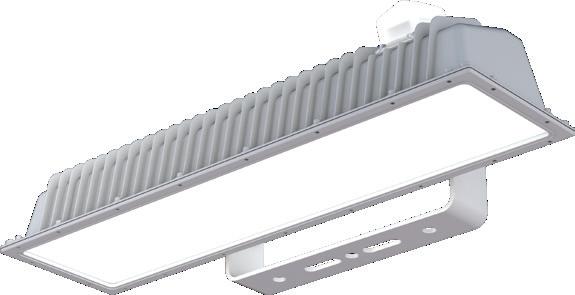

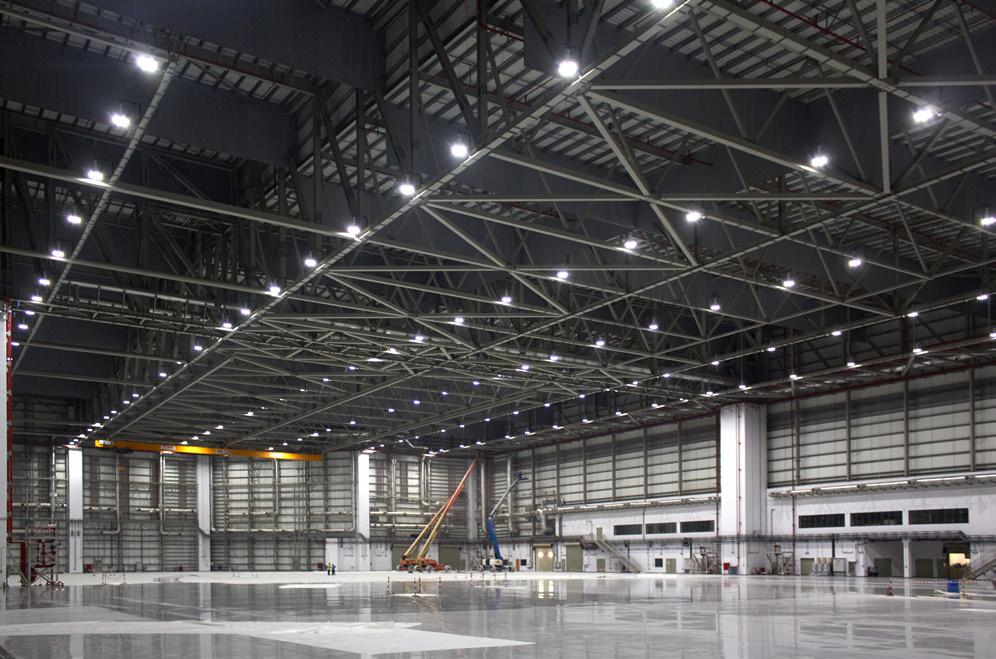

The high-bay SEGA series and roadway META/SETA series deliver brighter, more uniform light with minimal glare, transforming environments with improved visibility and safety.
Through indirect reflection optical design, light is evenly distributed across the space without direct glare, enhancing comfort and clarity.
Separately structured vertical LED modules maximize light output while minimizing direct eye exposure.
Additionally, vertical cooling fins and optimized airflow paths efficiently dissipate heat and prevent dust buildup, ensuring long-term reliability and stable performance even during extended operation.
Smart wireless control enables easy maintenance management, while high luminous efficiency and low power consumption provide excellent long-term cost savings.

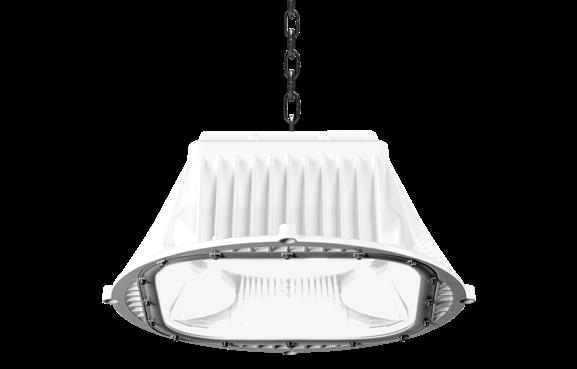

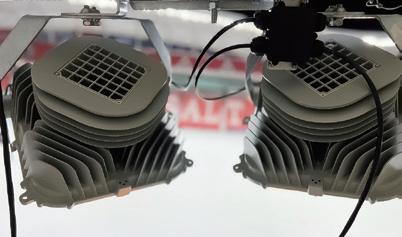

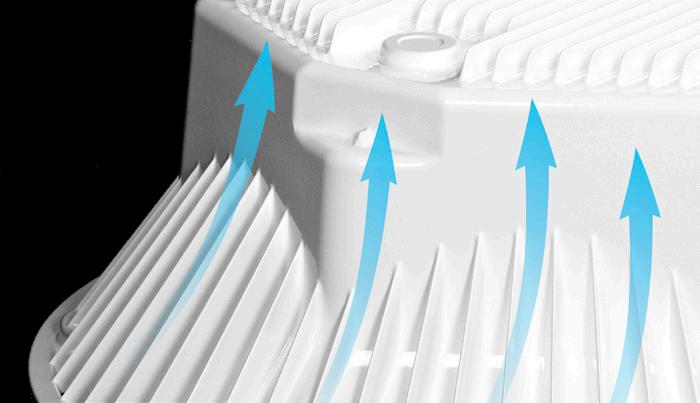

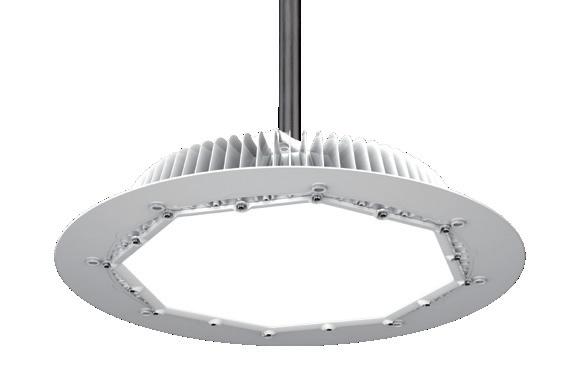

GigaTera® high-bay luminaires utilize a vertically-oriented fin structure designed for efficient natural convection cooling.
Unlike forced-air cooling designs, this passive thermal structure maximizes airflow and dissipates heat effectively without added mechanical components, overcoming thermal limitations common in high-power LED luminaires.
Efficient thermal management is directly linked to product lifespan and reliability, making advanced heat-dissipation engineering a key core technology in GigaTera® products.

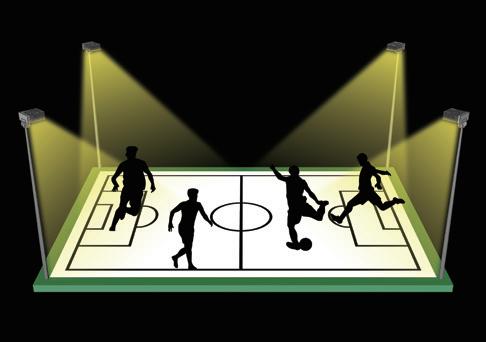

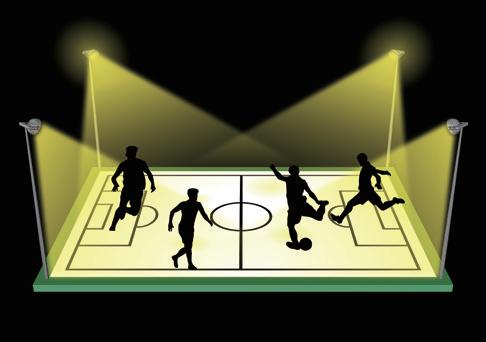

Even with high luminous efficacy, lighting is ineffective if light does not accurately reach the target area. When light spreads outside the intended zone, visibility decreases and spill light issues arise. GigaTera®’s optical system incorporates a Multi-Layered Inner Visor (MLV™) inside the luminaire, delivering precise light control that directs light exactly to the intended location. This results in consistent illumination quality and comfortable visibility for players, spectators, and broadcast cameras.
➀Targeted Illumination: Light only where it’s needed, reducing glare and keeping the field comfortable for players and spectators
➁ Game-Optimized Lighting: Custom light distribution for every sport, maximizing focus and immersion
➂ Energy Smart: Minimize wasted light, boost efficiency, and cut operational costs

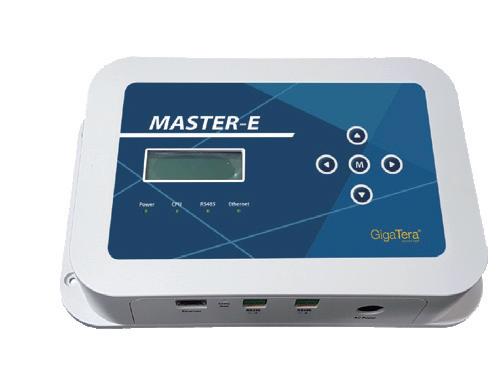

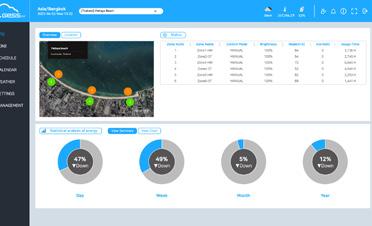

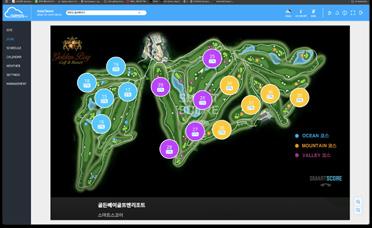

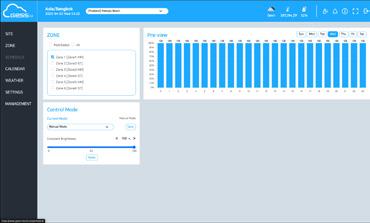

Facility managers must be able to control lighting anytime, anywhere without location constraints. GigaTera®’s GeSS® control solution provides flexible and remote lighting management with various control modes.
The GeSS® control system allows lighting installed on poles, buildings, or indoors to be easily turned on/off or finely adjusted via PC, tablet, or smartphone. With the GeSS® platform, users can monitor lighting, apply automated schedules, analyze power consumption, and manage dimming for smart energy efficiency.
This enables significant energy savings and improved operational convenience. Starting from a single fingertip, GigaTera®’s innovative smart lighting control system brings intelligent energy reduction and advanced operation to any site.
The GeSS® control solution provides a more intuitive and streamlined lighting management system, enabling both energy savings and long-term sustainability. By illuminating only the required areas instead of lighting the entire sports park or tennis court at once, unnecessary power usage is minimized. With GeSS®, lighting can be precisely controlled only where and when it is needed. Its intuitive user interface and simplified control functions reduce complex configurations, significantly lowering both energy consumption and operational costs.
One of the biggest challenges in deploying a control system is the initial infrastructure cost.
GigaTera®’s lighting control solution supports wired, wireless, and hybrid installation options, offering flexibility suited to the site environment and budget. This allows maximum use of existing infrastructure and minimizes installation work, reducing time and cost. Particularly in remote or difficult-to-wire environments, wireless-based control provides excellent economic and operational efficiency, delivering a fast and convenient control experience.
Control System
GigaTera® provides the GeSS® lighting control solution, supporting both wired (DMX-RDM, RS-485) and wireless (Zigbee) networks, offering seamless control integration and flexible networking options tailored to customer needs.
[Supported Networks] (Wired) DMX- RDM | RS-485, (Wireless) Zigbee
User-Centered Values Enabled by GeSS®
Designed for compatibility with existing control systems, GeSS® enables lighting replacement or upgrades without modifying current infrastructure - provided the site meets supported network requirements. The system can be integrated without changing control protocols, allowing customers to retain their current system while upgrading easily, without additional installation cost.
This reflects GigaTera®’s customer-first philosophyproviding a flexible control solution that considers operational needs, environment, and budget to enable smarter lighting management.
· Real-time brightness control
· Scheduled operation settings
Optimizes light levels based on environment and purpose, enhancing energy efficiency and providing long-term electricity savings.
· Monitoring of lighting status and system operation
· Quick action in case of abnormalities
· Reduces unnecessary on-site inspections
Improves operational efficiency and significantly reduces time and cost required for maintenance.
· Real-time control via PC or mobile
· Control from any location, without on-site access
· Group control & simple batch settings
Offers convenient operation and fast response capability, enabling centralized management even in large-scale facilities.
· Collects lighting usage patterns and energy consumption data
· Provides reporting and analysis for users
· Predictive maintenance and intelligent scheduling
Enables strategic, data-driven lighting management, supporting more scientific and future-oriented energy and facility operation.
Graphic User Interface System
The GeSS® GUI is a local lighting control solution that offers a user-friendly interface, fully programmed and customized for each site. Integrated with both wired and wireless control methods, the GeSS® GUI system ensures reliable and seamless lighting management in any environment.
It enables precise control such as on/off switching, dimming, RGB effects, and event-based scenes—providing optimized, customized lighting solutions for diverse applications.
• Supports multiple control methods (wired & wireless)
• Individual fixture control to group based control
• High stability system design
• Reduces energy and maintenance costs
· Control available via PC or IPC
· Up to 200 fixtures controllable with a single Master-W unit
· Control available via PC or IPC
· Wireless communication distance between Master-WH-M and Master-WH-S: up to 200 m (*LOS standard)
· Each Master-WH-S supports up to 32 wired fixtures
* WH-M : Hybrid Master
* WH-S : Hybrid Slave
GeSS® Cloud 3.0 Lighting Control System
With GeSS® Cloud, users can monitor and remotely control lighting installations anytime, anywhere. By leveraging PCs, tablets, and smartphones, the system enables efficient operation and maximized energy-saving performance.
• Monitoring: Issue detection & response for enhanced service quality
• Core Functions: Auto scheduling / Reservation mode / Power consumption monitoring
Lighting ON/OFF & Dimming Control: Automatic & manual switching
Dimming range: 10–100%, step control or slider control available
• User Tailored Convenience: Customized settings based on user needs and site conditions

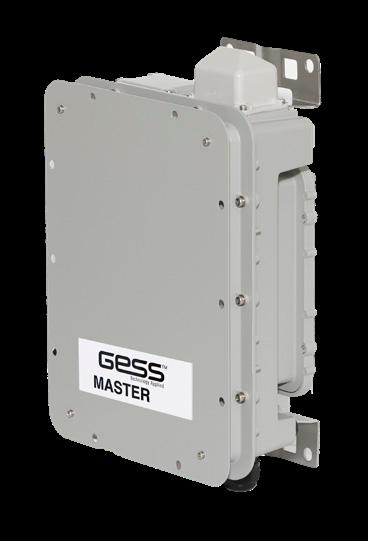

· One Master-E can manage up to 2 Master-W units
· One Master-W can control up to 200 luminaires
· One Master-E can manage up to 2 Master-WH-M units
· One Master-WH-S can control up to 32 luminaires
The SUFA-P Series, available in White, Tunable White, and RGBW versions, can be seamlessly integrated with the RTS™-G3 remote control bracket. Positioned as a future - ready solution, RTS™-G3 can be mounted to all SUFA-P main luminaires—either during the initial installation or added later as an advanced upgrade. Unlike typical moving lights, the RTS™-G3 is designed as a flexible component, offering robust remote tilting and steering control as a premium option (±70° steering, 20° to –70° tilting, moving speed 5°/ sec). This ensures precision, adaptability, and long-term scalability, enabling stadiums and arenas to transform into landmark venues.
SUFA‑PTX™ Tunable White
Multi Purpose Arena & Stadium Lighting Without Limits
The SUFA-P TW delivers 4000K–5700K tunable white lighting to meet official standards across multiple sports with the precision RTS™-G3 bracket delivering optimal beam direction for any venue layout.

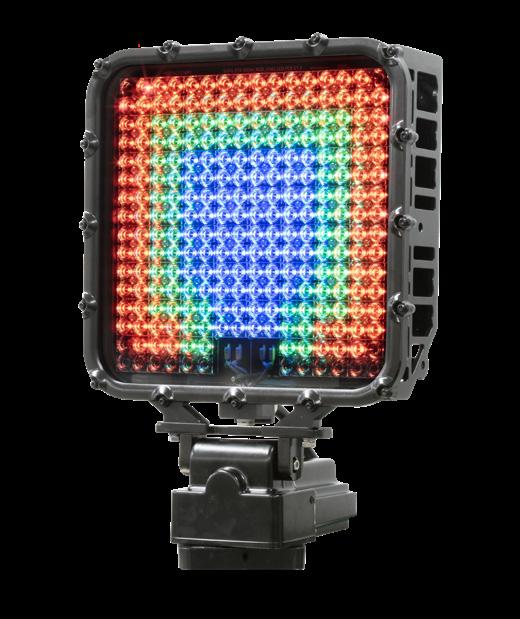

SUFA‑PTX™ RGBW (RGB Optional)
As venues and schools continue to elevate the spectator experience, color and motion have become essential for energizing crowds and creating unforgettable moments. The SUFA-P RGBW enables smooth, programmable movement for immersive fan experiences, events, and shows.
Going beyond the limitations of the previous RTS™-G3’s optional bottom-bracket design, the RTS™-G4 has been reborn as an “all-in-one rear-mounted control system” perfectly integrated with the luminaire.
Designed to be unified at the rear of the newly developed SUFA lineup (Circular and Rectangular types), the RTS™-G4 achieves unrivaled mechanical stability. This enables it to effortlessly support heavier, high-output lighting, while delivering extensive tilting and steering control, as well as ultra-precise aiming, at significantly faster speeds.

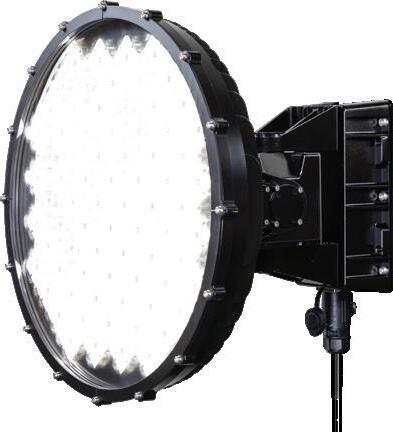

Notably, the SUFA Circular model, which modernizes the traditional lighting form, supports both White and RGBW specifications. This allows it to flawlessly create the most dynamic and immersive lighting environment that captivates audiences in any space.
Premium Main Lighting for Professional Sports Stadiums
The SUFA Circular White is an 800W high-output luminaire. Seamlessly integrated with the RTS™-G4 system, it serves flawlessly as the main lighting for premium stadiums. Utilizing the tilting and steering functions of the RTS™-G4 system, stadium operators can focus the light exactly where it is needed at any time.
As venues and schools continue to elevate the spectator experience, color and motion have become essential for energizing crowds and creating unforgettable moments. The SUFA Circular RGBW enables smooth, programmable movement for immersive fan experiences, events, and shows.
Yankee Stadium
New York, USA
Sports Flood Lighting SUFA
• Installed 2015

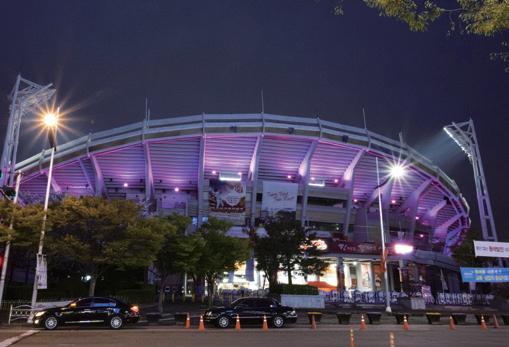

Busan, South Korea
Sports Flood Lighting SUFA
• Installed 2015
• Exterior RGB Lighting

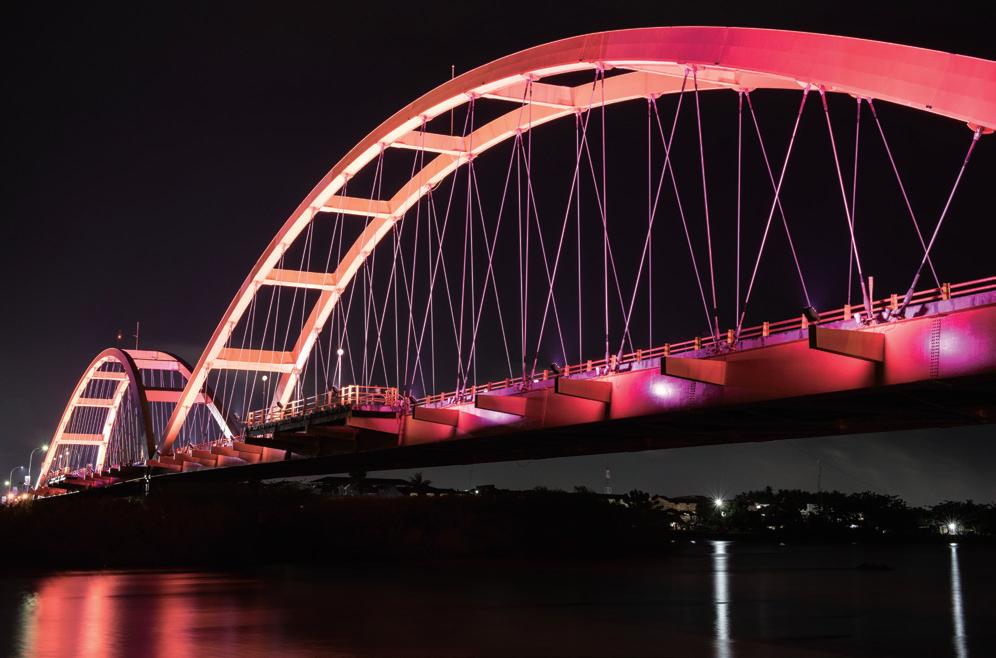

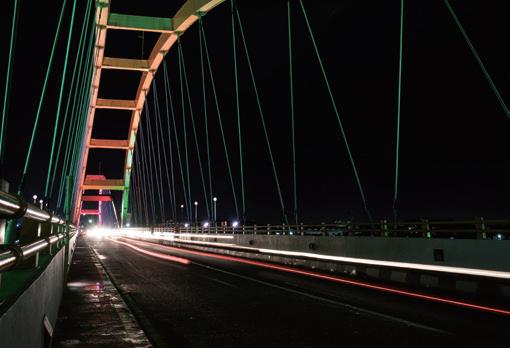

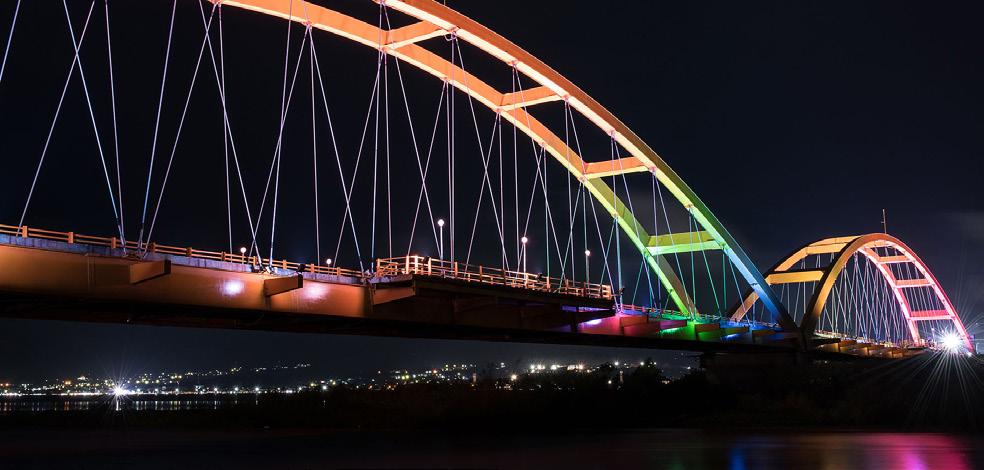

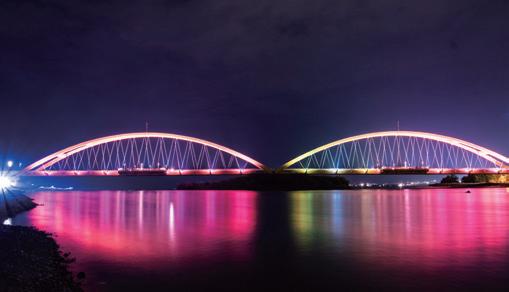

Jembatan Ponulele
Palu, Indonesia
Facade Lighting
MAHA_RGB
• Installed 2016
• RGB Lighting System

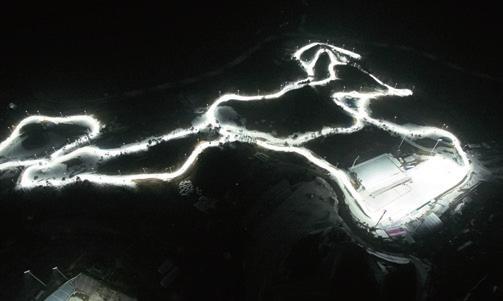

Pyeongchang, South Korea
Sports Flood Lighting SUFA
• Installed 2016
• Curling Center, Speed Skating Oval, Biathlon Arena & Cross-Country Ski Venue

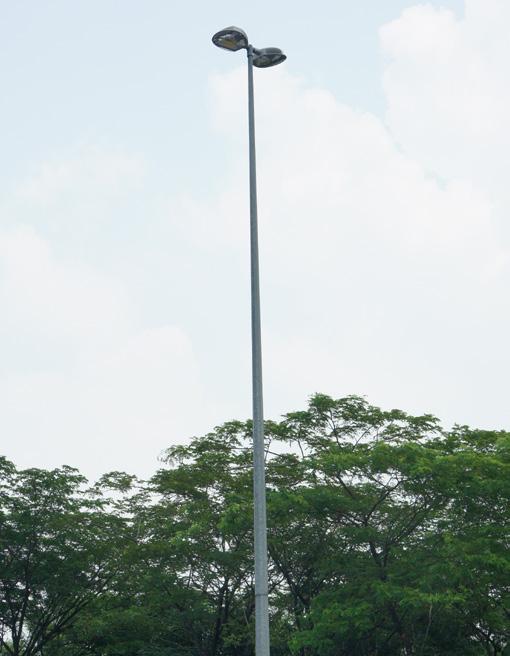

Malaysia

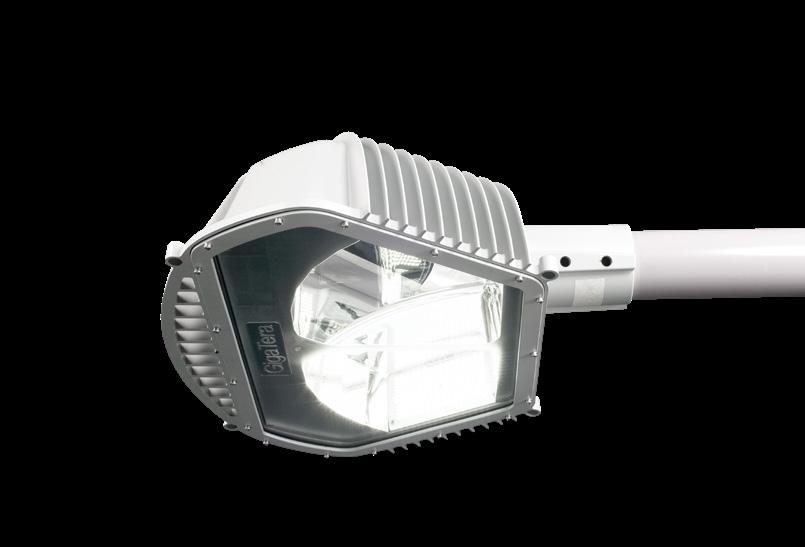

Roadway Lighting META
• Installed 2016

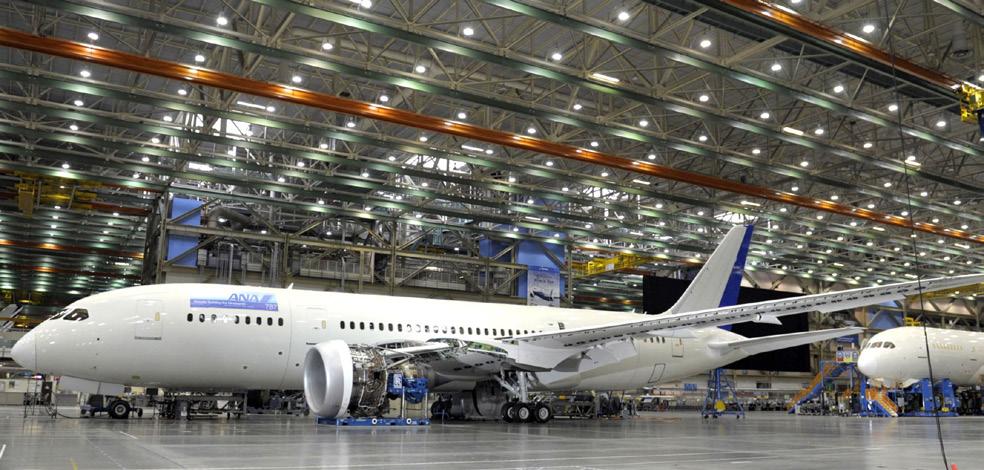

Boeing USA
United States
Bay Lighting
SEGA-HP
• Installed 2017
Suwon, South Korea
Sports Flood Lighting SUFA
• Installed 2017

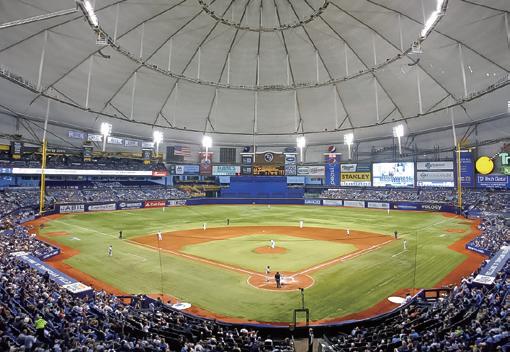

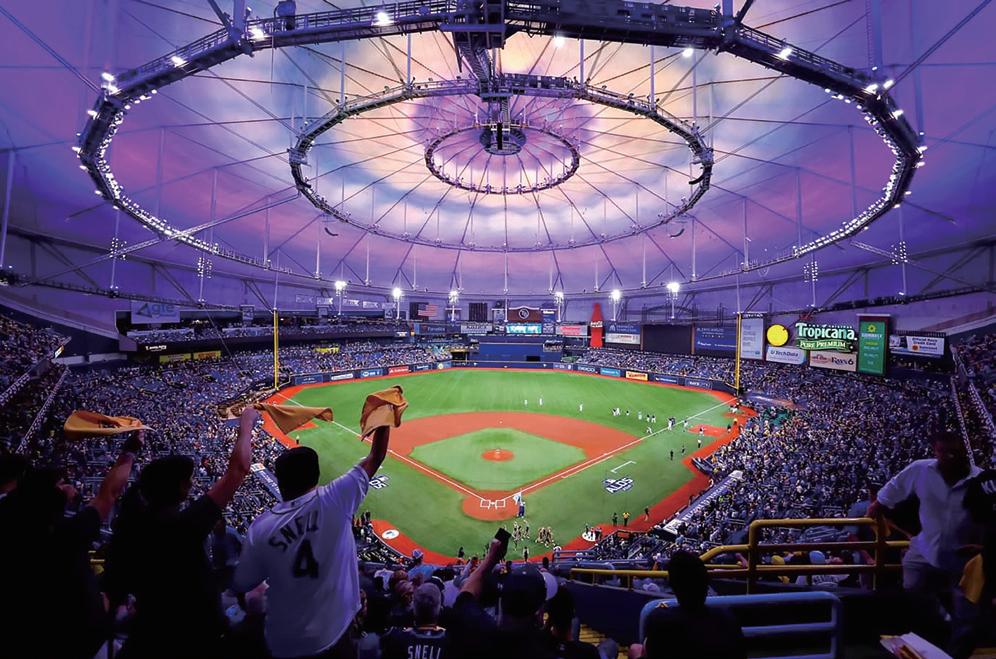

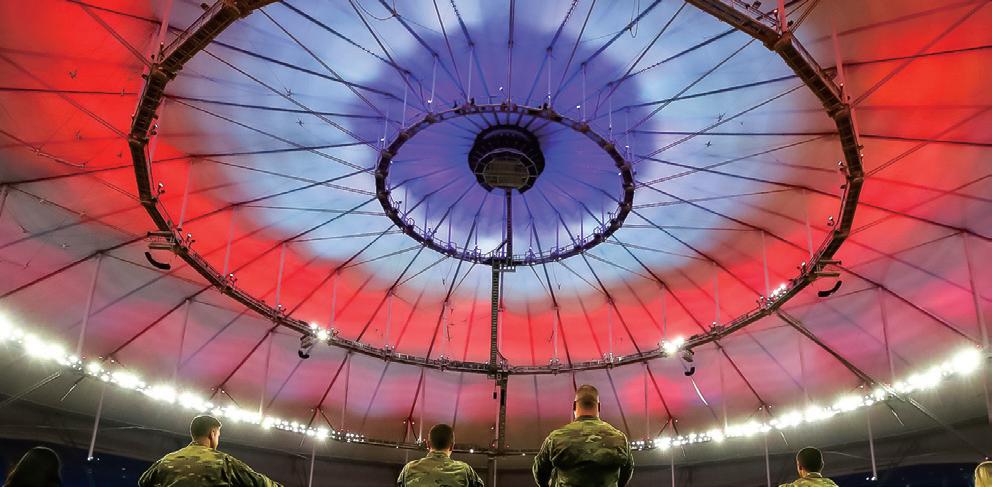

Tampa Bay, USA
Sports Flood Lighting SUFA
• Installed 2017
• RGB Lighting Installed

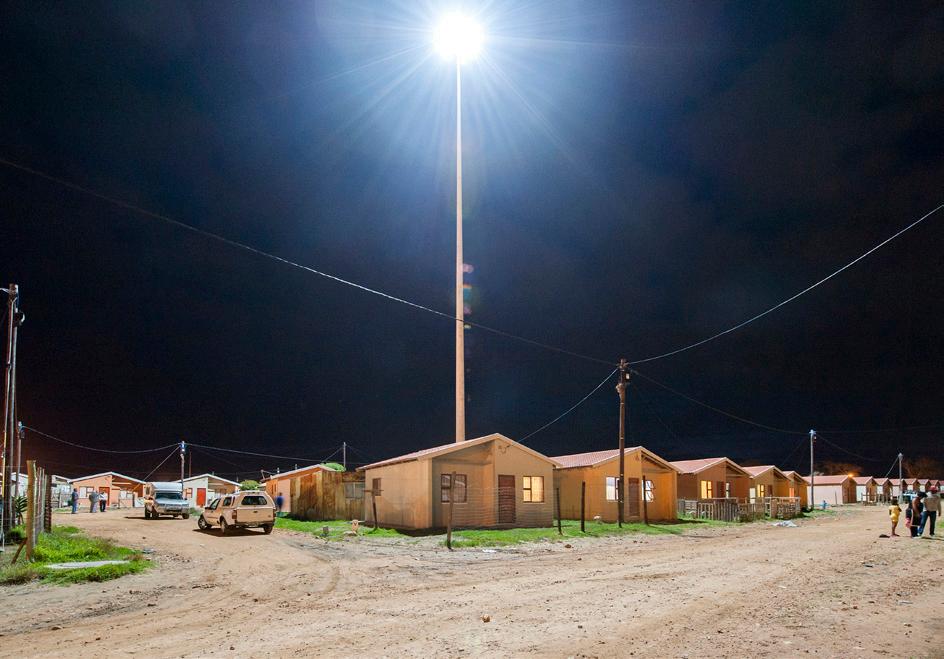

South Africa
Area Flood Lighting MAHA
• Installed 2017

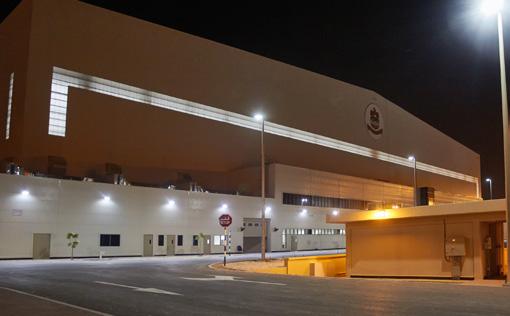

Abu Dhabi, UAE
Bay /Area Flood Lighting SEGA-HP, WAPA
• Installed 2017

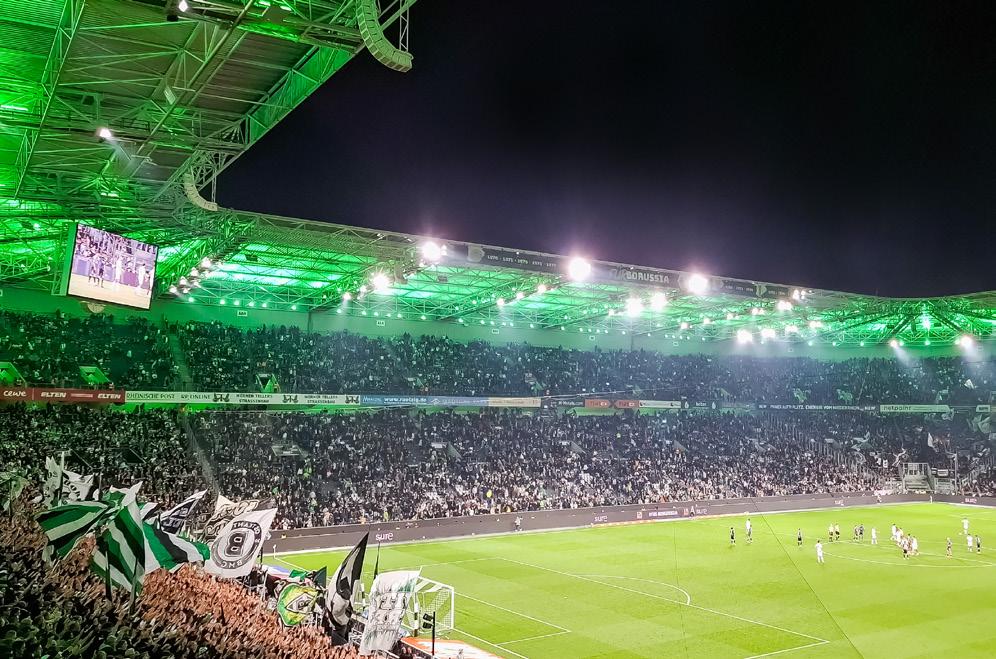

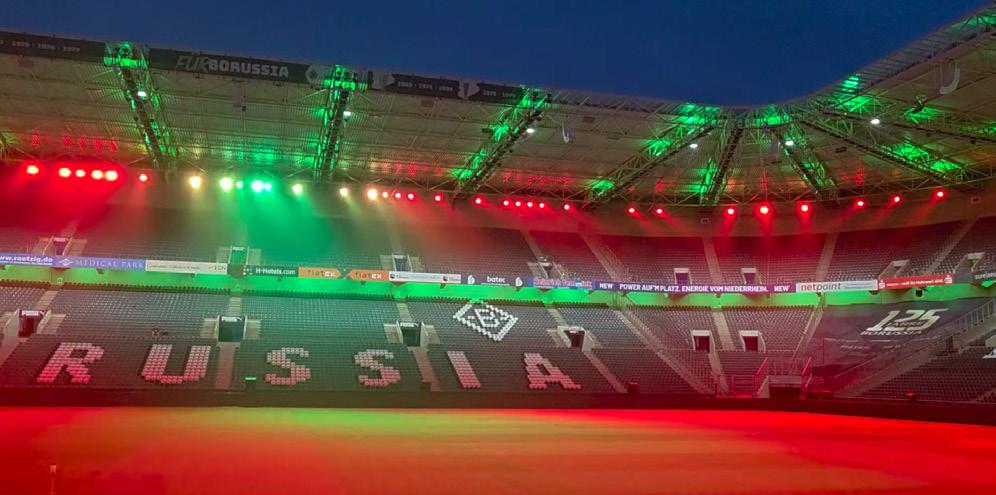

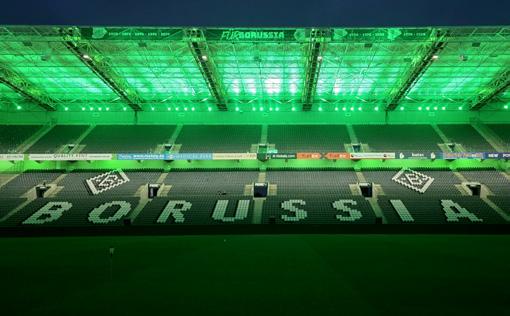

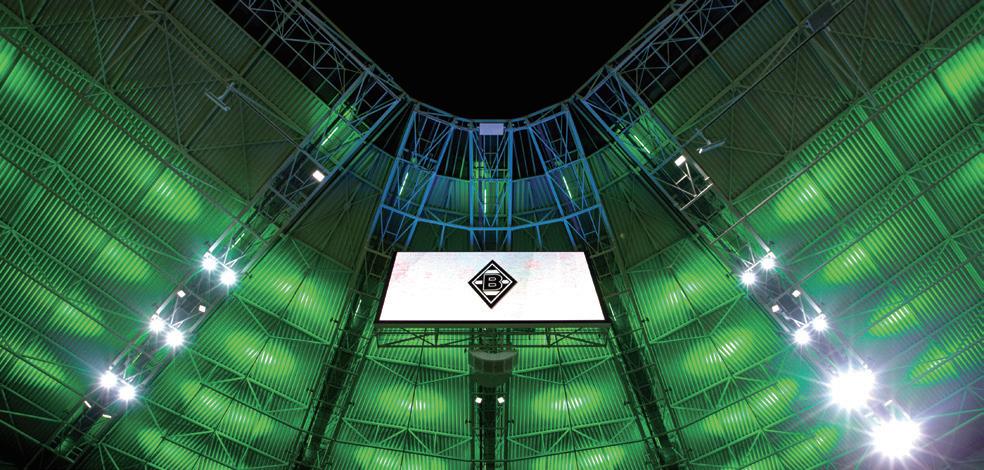

Mönchengladbach, Germany
• Installed 2017 (* WAPA Green)
• Renovation 2025
(*SUFA-PTX™ Upgrade) Facade Lighting SUFA, SUFA RGB
Hokkaido, Japan
Sports Flood Lighting SUFA
• Installed 2018

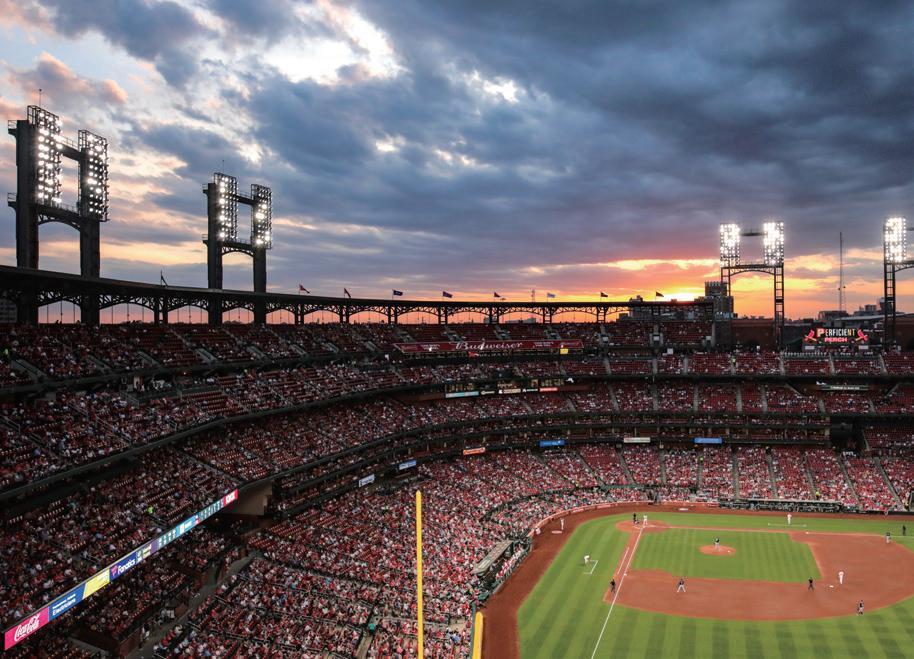

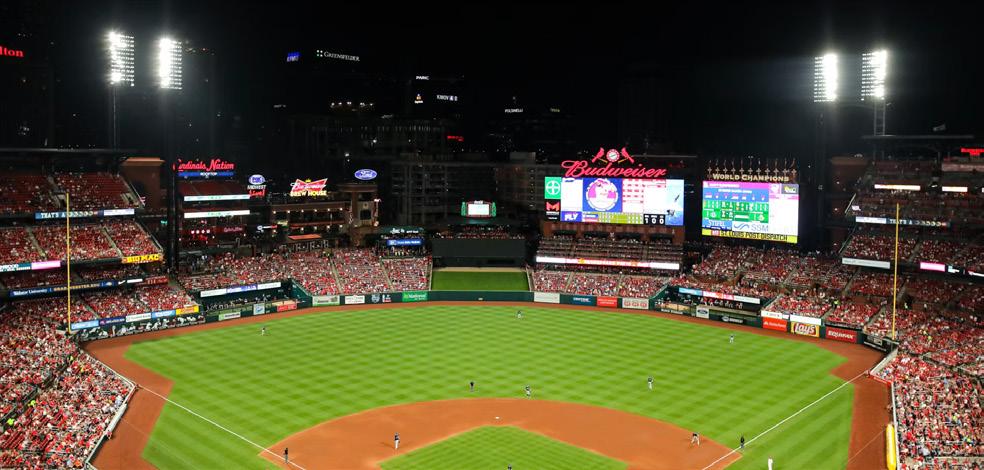

Busch Stadium
St. Louis, USA
Sports Flood Lighting SUFA
• Installed 2018

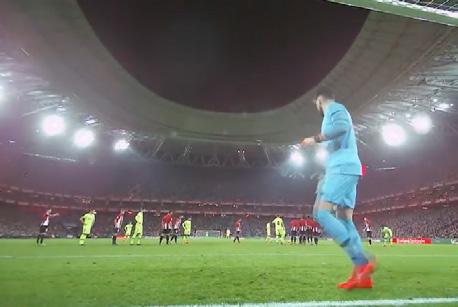

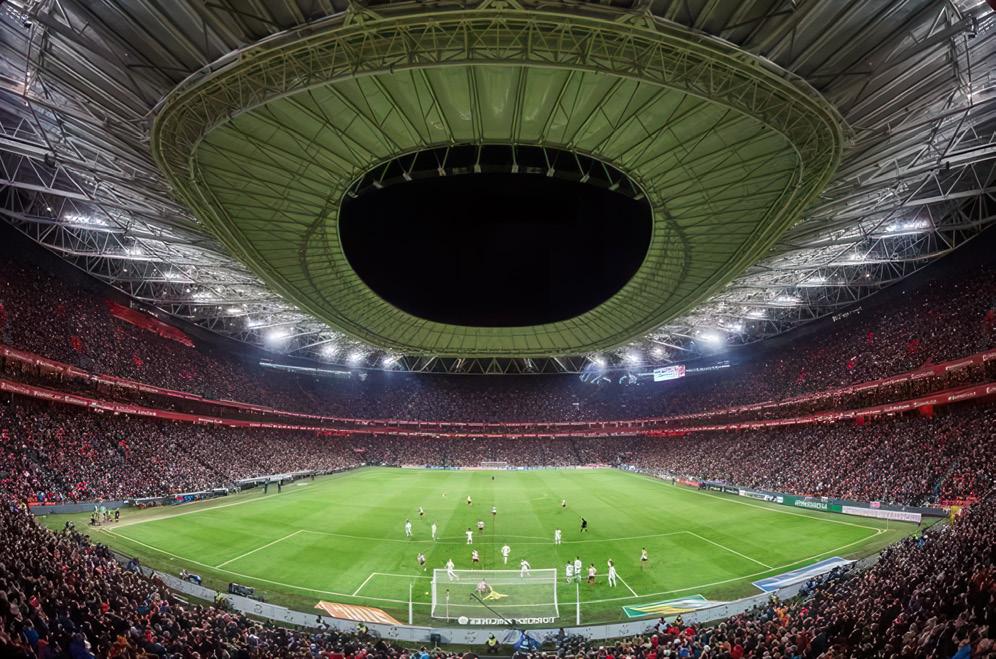

San Mamés Bilbao, Spain
Sports Flood Lighting SUFA
• Installed 2019
Goyang, South Korea
Sports Flood Lighting SUFA
Installed 2021
Tampa, USA
Sports Flood Lighting SUFA, MAHA
• Installed 2022
First MLS-standard installation in the U.S.A.
Busan, South Korea
Area Flood Lighting MAHA
• Installed 2023
Seoul, South Korea
Sports Flood Lighting SUFA
• Installed 2023
RGB lighting installed
Incheon, South Korea
Flood Lighting MAHA, SUFA
• Installed 2024
South Korea
Sports Flood Lighting SUFA
• Installed 2024
Texas, USA
Sports Flood Lighting SUFA
• Installed 2024
• SUFA Tunable White & RGBW installed
Sono Arena
Goyang, South Korea
Area Flood Lighting MAHA-PLUS
• Installed 2024

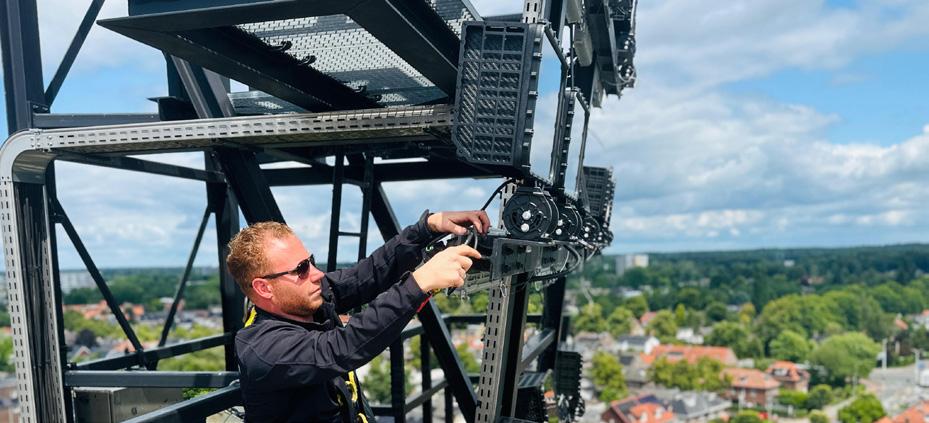

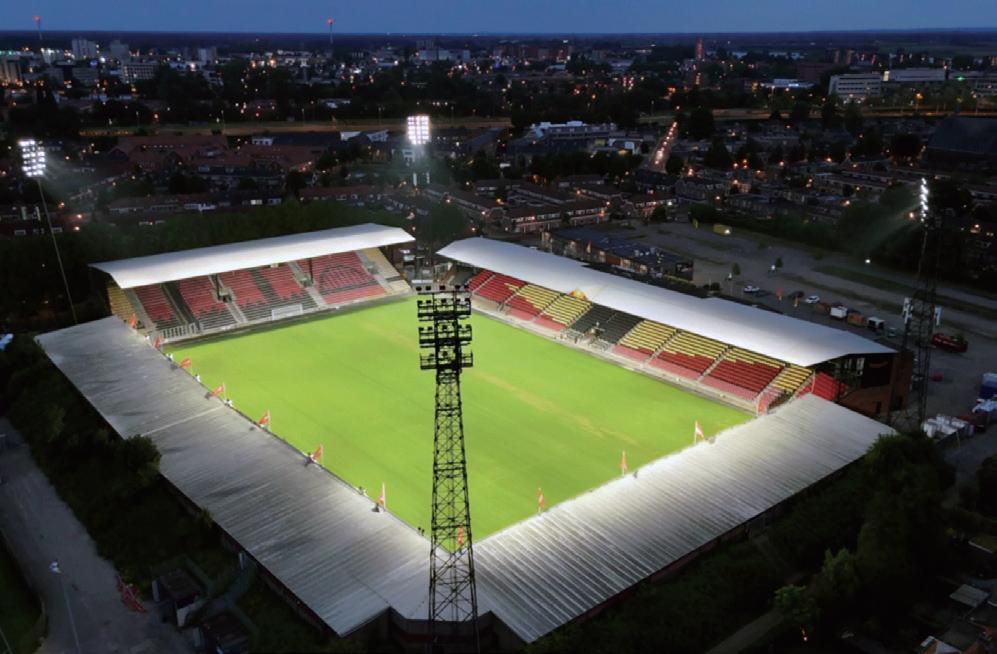

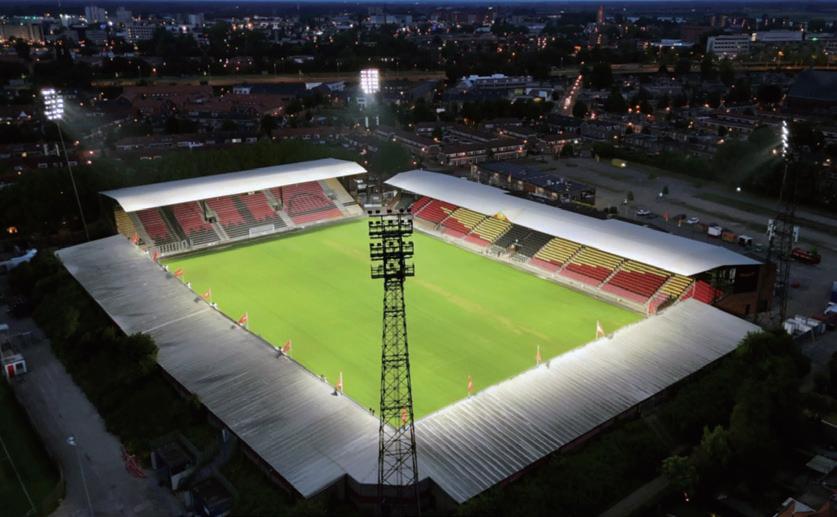

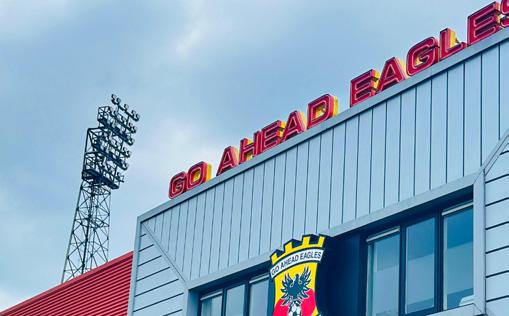

Go Ahead Eagles De Adelaarshorst
Deventer, Netherlands
Sports Flood Lighting SUFA
• Installed 2024
Ulsan
Dongcheon
Gymnasium
Ulsan, South Korea
Area Flood Lighting MAHA
• Installed 2024

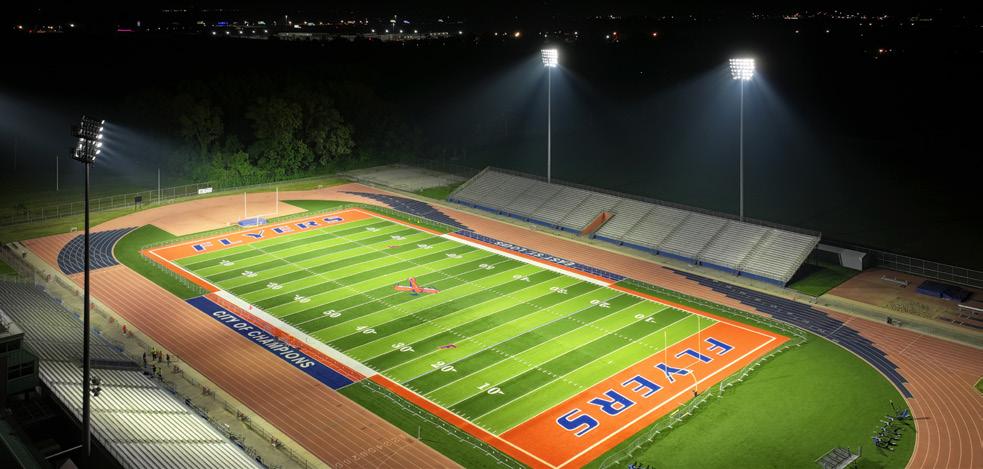

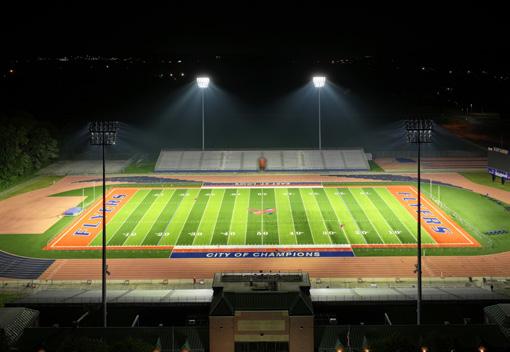

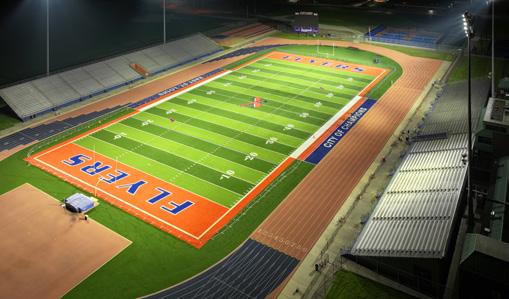

East st. Louis High School, U.S.A.
Flood Lighting SUFA
• Installed 2025

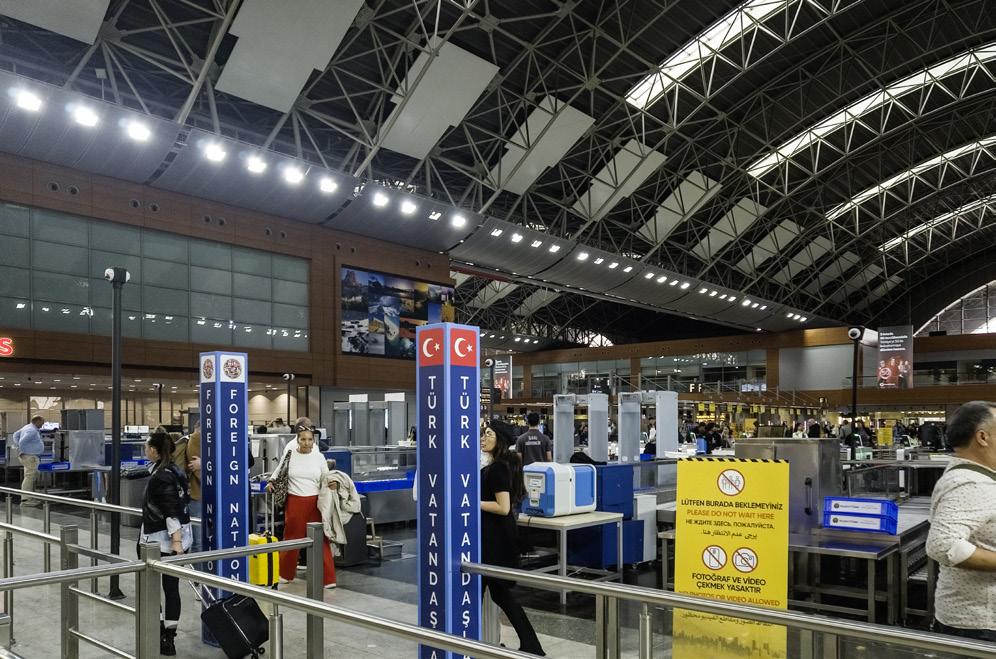

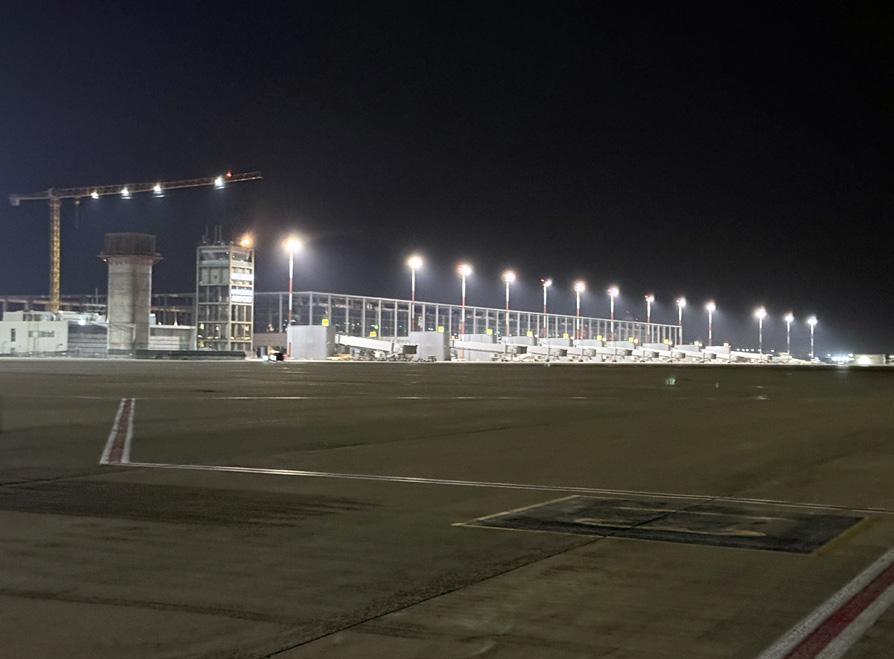

Sabiha Gokcen Airport Istanbul, Türkiye
Sports Flood Lighting MAHA
• Installed 2025

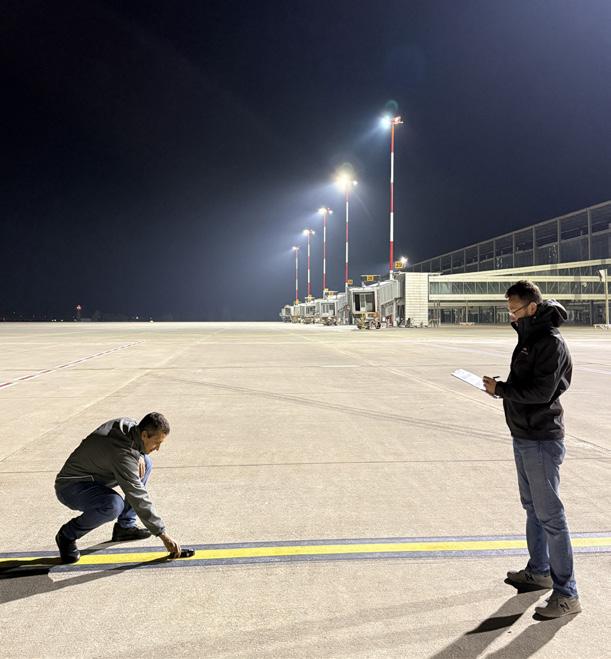

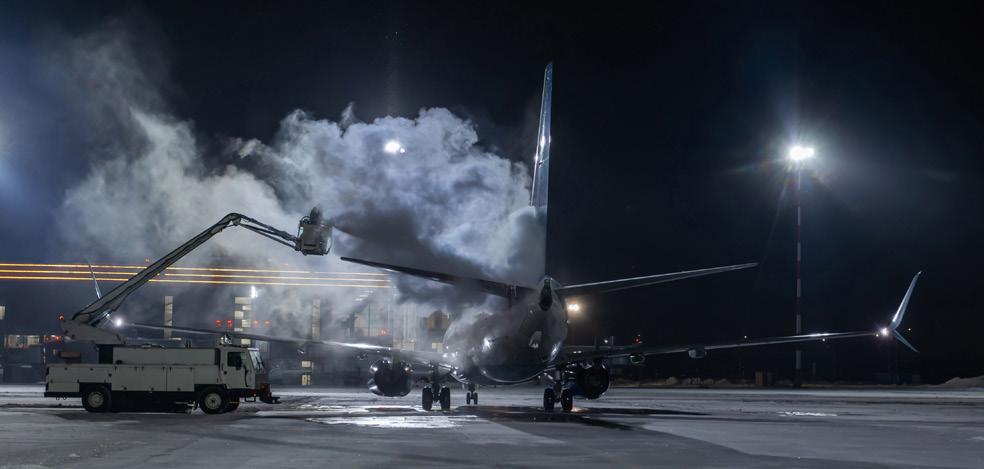

YDA Dalaman Airport Apron, Türkiye
Sports Flood Lighting MAHA
• Installed 2025

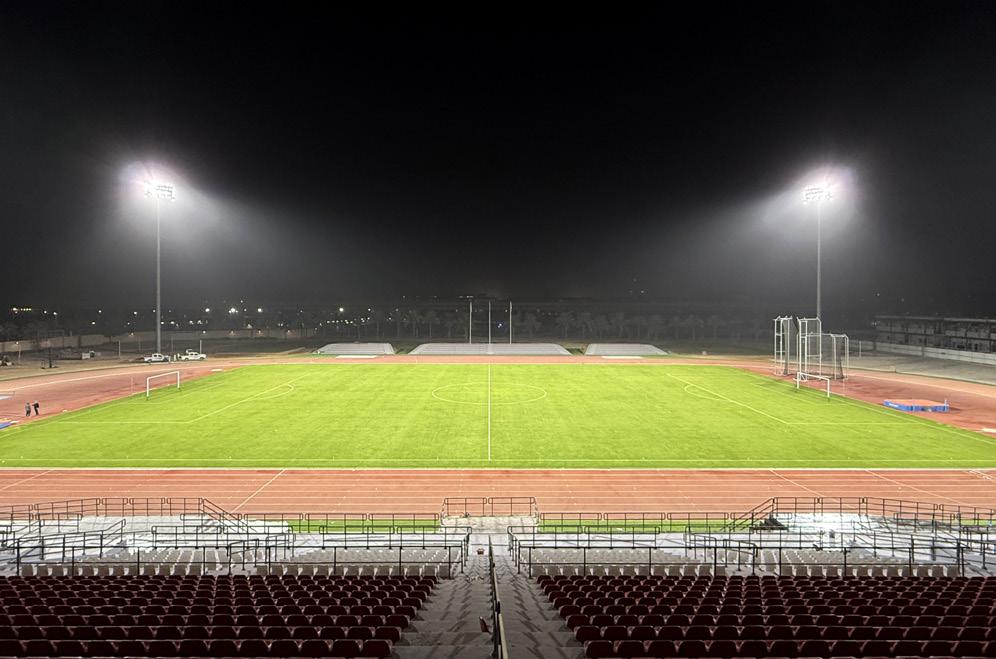

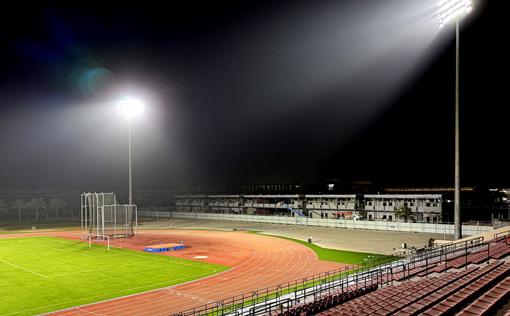

Princess Noura University Stadium, Saudi Arabia
Area Flood Lighting SUFA
• Installed 2026
Stadion im Borussia-Park. Germany
Sports Flood Lighting SUFA with RTS™-G3
• Installed 2026

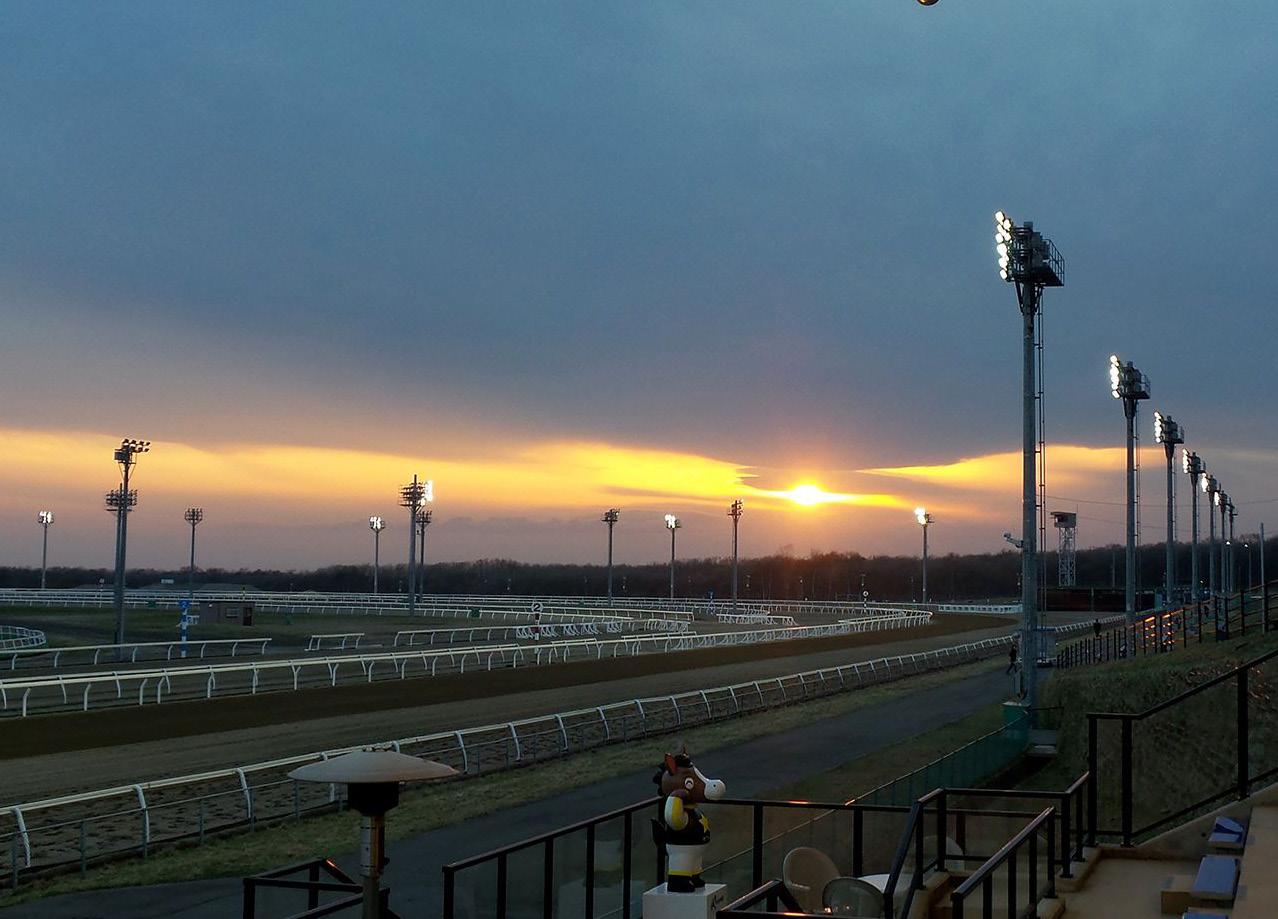

Monbetsu Racecourse, Japan
Sports Flood Lighting SUFA
• Installed 2026
Ultra-lightweight 1500W floodlight (11.8kg)
Compact body with high-efficiency thermal design
Inner Visor system for minimal spill light and glare control
Precision aiming & advanced optical beam control
Reduced glare & light pollution for professional applications
Remote driver configuration for flexible installation & maintenance
Light distribution 15°(Symmetric), 20°(Symmetric), 30°(Symmetric/ Asymmetric), 45°(Symmetric)
CCT 5700K, 5000K, 4000K, 3000K
CRI 70Ra, 80Ra, 90Ra
Material Body : Cast Aluminum | Optic : Polycarbonate Lens | Cover : Tempered Glass 3.2T (Clear) | Finish : Electro Deposition (Black / Gray) Bracket MT Bracket (STD, REV) / Yoke Bracket (STD, REV) / Internal Wiring(STD, REV) / RTS™-G3 Bracket
Control Wireless (Zigbee, NEMA7, Zhaga Interface) | Wired (DMX-RDM, DALI-2)
Product Dimensions Applications
Ultra-lightweight 1,500W floodlight (18.0kg)
Compact body with high-efficiency thermal design
Internal visor for minimized light spill
Precision aiming & advanced optical control
Anti-glare & light pollution reduction
Built-in driver system
Light distribution 15°(Symmetric), 20°(Symmetric), 30°(Symmetric/ Asymmetric), 45°(Symmetric)
CCT 5700K, 5000K, 4000K, 3000K
CRI 70Ra, 80Ra, 90Ra
Material Body : Cast Aluminum | Optic : Polycarbonate Lens | Cover : Tempered Glass 3.2T (Clear) | Finish : Electro Deposition (Black / Gray)
Bracket MT Bracket (STD, REV) / Yoke Bracket (STD, REV) / Internal Wiring(STD, REV) / RTS™-G3 Bracket
Control Wireless (Zigbee, NEMA7, Zhaga Interface) | Wired (DMX-RDM, DALI-2)
Product Dimensions
· SFP600/800
Applications
Sports Stadium, Indoor Venues, Sports Fields, Ports and Terminals
Ultra-lightweight floodlight, up to 8.7 kg
Slim body with PTX™ thermal technology
Side-mounted integrated driver design
Compatible with GeSS® control system with wired/wireless control options
Light distribution 15°(Symmetric), 20°(Symmetric), 30°(Symmetric/ Asymmetric), 45°(Symmetric)
CCT 5700K, 5000K, 4000K, 3000K
CRI 70Ra, 80Ra, 90Ra
Material Body : Cast Aluminum | Optic : Polycarbonate Lens | Cover : Tempered Glass 3.2T (Clear) | Finish : Electro Deposition (Black) Bracket Yoke Bracket Control Wireless (Zigbee, NEMA7, Zhaga Interface) | Wired (DMX-RDM, DALI-2)
· SFP300 | SFP400
Sports Stadium, Indoor Venues, Sports Fields, Ports and Terminals
Seamless All-in-One integrated fixture and driver
Thermal-Isoldatd design between housing and driver
Choice of 15°, 20°, 30°, and 45° Beam Angles Wired/Wireless Controls Integrated with GeSS® Optional heavy-duty marine bracket for SFX600
Light distribution 15°(Symmetric), 20°(Symmetric), 30°(Symmetric/ Asymmetric), 45°(Symmetric)
CCT 5700K, 5000K, 4000K, 3000K
CRI 70Ra, 80Ra, 90Ra
Material Body : Cast Aluminum | Optic : Polycarbonate Lens | Cover : Tempered Glass 3.2T (Clear) | Finish : Powder Coating
Bracket SFX200 : Swivel Bracket / Surface Mount Bracket | SFX600 : Heavy duty mount bracket
Control Wireless (Zigbee), Wired (DMX-RDM)
Sports Stadium, Indoor Venues, Sports Fields, Ports and Terminals

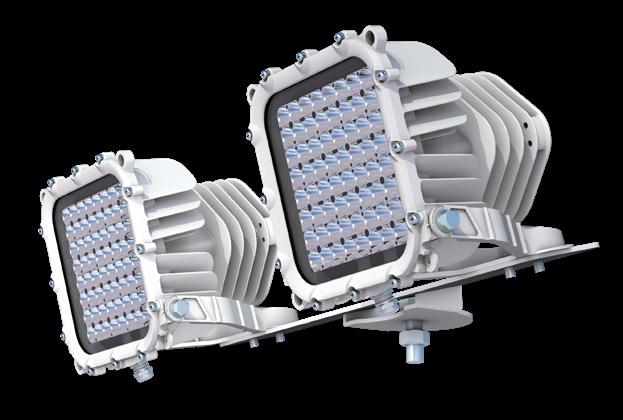

SUFA-M
Unique dual-head design with 2 x 200W modules on bridge bracket
Minimized glare via precision reflector optics
Flexible omni-directional aiming (tilting & steering)
High installation flexibility for diverse structures
Wired/wireless controls integrated with GeSS® Model
Light distribution 15°(Symmetric), 20°(Symmetric), 30°(Symmetric/ Asymmetric), 45°(Symmetric)
CCT 5700K, 5000K, 4000K, 3000K
CRI 70Ra, 80Ra, 90Ra
Material Body : Cast Aluminum | Optic : AL Coating Reflector | Cover : Tempered Glass 3.2T (Clear) | Finish : Powder Coating
Control Wired (DMX-RDM)
Product Dimensions
516.0 × 218.0 × 316.0mm
Applications
Sports facilities (Baseball/Soccer/Tennis/Golf), Ports
MAHA-PTX™
Maximized energy savings up to 135 lm/W
Low EPA design for minimum wind resistance
Fully open housing for maximum natural convection
Supports both top and bottom bracket mounting Integrated or remote driver options available
Light distribution Asymmetric Wide
CCT 5700K, 5000K, 4000K, 3000K
CRI 70Ra, 80Ra, 90Ra
Material Body
Cast
Bracket MT Bracket(Standard, Reverse)
Control Wireless(Zigbee, NEMA7, Zhaga Interface) | Wired (DMX-RDM, DALI-2) · MHP300/400
Product Dimensions Applications
MAHA-PLUS Remote & Built-in Driver
Delivers excellent thermal performance and high luminous efficacy
(Remote)
Minimizes glare and light pollution for an eco-friendly lighting environment
Provides perfect Cut-off optical performance
Supports smart lighting control with integrated wired/wireless options
Offers both integrated and remote driver configurations for flexible installation environments
(Bulit-in)
Light distribution Asymmetric Wide
CCT 5700K, 5000K, 4000K, 3000K
CRI 70Ra, 80Ra, 90Ra
Material Body : Cast Aluminum | Optic : Reflector + Lens | Cover : Tempered Glass 4.0T (Clear) | Finish : Powder Coating
Control Wireless (Zigbee, NEMA7, Zhaga Interface) | Wired (RS-485, DMX-RDM, DALI-2)
Product Dimensions
*** MAH1K2, MAH1K6: KC, UKCA Not Certified
MAH1K6 Remote
MAHA-PLUS Built-in Driver
Delivers excellent thermal performance and high luminous efficacy
MAH600 (Built in)
Minimizes glare and light pollution for an eco-friendly lighting environment
Provides perfect Cut-off optical performance
Supports smart lighting control with integrated wired/wireless options
Built-in driver
MAH200 (Built in)
Light distribution Asymmetric Wide
CCT 5700K, 5000K, 4000K, 3000K
CRI 70Ra, 80Ra, 90Ra
Material Body : Cast Aluminum | Optic : Reflector + Lens(MAH600) | Cover : Tempered Glass 4.0T (Clear) | Finish : Powder Coating Control Wireless (Zigbee, NEMA7, Zhaga Interface) | Wired (RS-485, DMX-RDM, DALI-2)
*** MA150, MAH500: CE Not Certified
Product Dimensions
Applies Full Cut-off optical technology
Reduced glare with extended effective light reach
Precise aiming with +10° upward / −20° downward tilt adjustment
Stable performance with excellent thermal management and durability
Flexible installation with integrated or remote driver options
Supports wired and wireless dimming control
Light distribution Asymmetric Wide
CCT 5700K, 5000K, 4000K, 3000K
CRI 70Ra, 80Ra, 90Ra
Material Body : Cast Aluminum | Optic : AL Coating Reflector | Cover : Tempered Glass 4.0T (Clear) | Finish : Powder Coating Bracket Mount Bracket/ Pole Mount Control Wireless (Zigbee, NEMA7) | Wired (RS-485, DMX-RDM)
Product Dimensions
Perfect Cut-off asymmetric light distribution
Reflector-based optical system to minimize glare
Versatile lighting suitable for various installation environments
· Indirect lighting method for soft, natural light quality
Heat-resistant optical structure maintains consistent performance over long operation
Light distribution Asymmetric Wide
CCT 5700K, 5000K, 4000K, 3000K
CRI 70Ra, 80Ra, 90Ra
Material Body : Cast Aluminum | Optic : AL Coating Reflector | Cover : Tempered Glass 3.2T (Clear) | Finish : Powder Coating
Bracket Wall Mount/ Mount Bracket/ Pole Mount Control Wireless (ZigBee) | Daylight Sensor
Product Dimensions
· WP50(Node/None)
WP75/100(Node/None)
Flexible color temperature control (4000K–5700K)
Creates lighting that enhances the atmosphere and emotion of each space
Improves visual comfort while optimizing energy efficiency
Infinite possibilities to perfectly support multipurpose environments
Smart lighting control solution optimized for event applications
(Warm·Cool)
(Warm·Cool)
Light distribution
SFM400 TW : 15°(Symmetric), 30°(Symmetric/ Asymmetric)
SFP500 TW : 15°(Symmetric), 30°(Symmetric/ Asymmetric), 45°(Symmetric)
CCT 4000K~5700K
SFM400 TW Body : Cast Aluminum | Optic : AL Coating Reflector
Cover : Tempered Glass 3.2T (Clear) | Finish : Powder Coating
Material
SFP500 TW Body : Cast Aluminum | Optic : Polycarbonate Lens Cover : Tempered Glass 4.0T (Clear) | Finish : Electro Deposition (Black)
Bracket SFP500 TW : MT Bracket/ RTS™-G3 Bracket
Control Wired (DMX-RDM)
Power Box Weight : 10.0 Kg
Product Dimensions
Lightweight design with excellent thermal performance

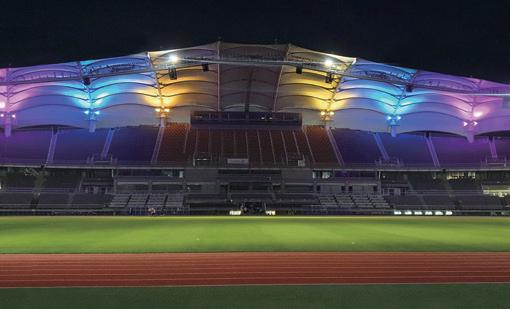

· All-in-one RGBW lighting for sports entertainment
Flexible tilt and rotation through RTS™-G3 bracket remote control
Dynamic RGB effects optimized for multi-purpose stadiums and arenas
Built-in 20kV surge protection
Durable construction, and high-corrosion-resistant powder coating
Bracket Option (RTS™-G3)
Asymmetric)
Bracket MT Bracket/ RTS™-G3 Bracket
Control Wired (DMX-RDM)
Power Box Weight : 10.0 Kg
Product Dimensions
Lightweight architecture with superior thermal management
All-in-one RGBW lighting optimized for sports entertainment
Flexible aiming control through seamless integration with the RTS™-G4
RTS™-G4: Steering ±60° | Tilting ±60°
Enables remote lighting control via a wired DMX-RDM interface
Dynamic event effects tailored for professional stadiums
Light distribution 15°, 30° Material Body : Cast Aluminum | Optic : AL Coating Reflector | Cover : Tempered Glass 3.2T | Finish : Electro Deposition (Black) Control Wireless (Zigbee) | Wired (DMX-RDM)
Product Dimensions

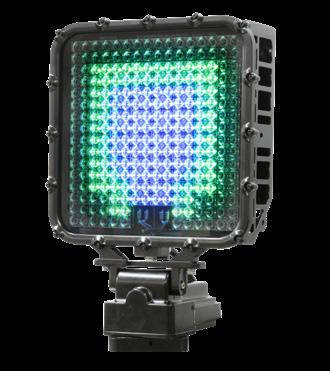

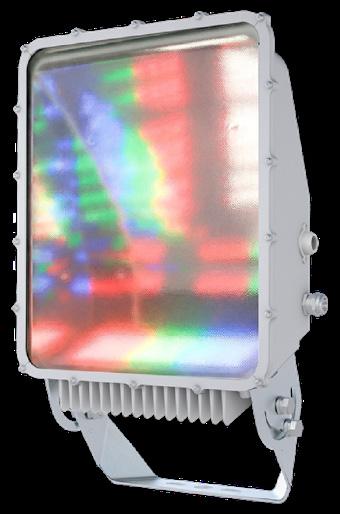

SUFA-X RGBW

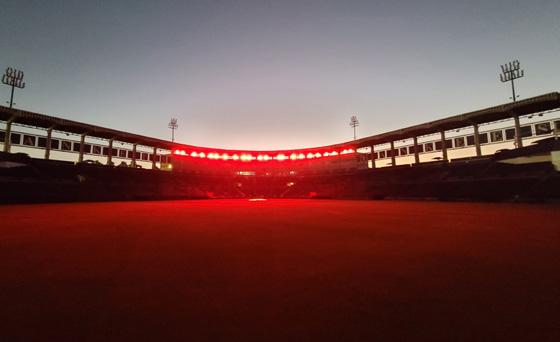

Equipped with RGBW capability for vivid multi-color lighting effects
Lighting design optimized for indoor/outdoor sports and event facilities
Excellent thermal structure and built-in 20kV surge protection for outstanding durability
Versatile lighting that supports both functional illumination and dynamic show lighting
Supports wired control system for event lighting
Integrated driver
Product Dimensions
MAHA-RGB
Dynamic RGB technology for versatile color effects
Optimized for indoor and outdoor sports and event venues
Exceptional durability with advanced thermal management & 20kV surge protection
Multi-purpose design fulfilling both functional and entertainment lighting needs
Laminated surface treatment for soft illumination
Supports wired control systems for event lighting
Integrated Driver
Light distribution Asymmetric Wide Material
High-bay industrial LED lighting optimized for high-power environments
145 lm/W efficiency for maximum energy savings
Vertical heat-sink structure minimizes thermal stress
Available with integrated or remote driver options depending on installation conditions
Compatible with wired/wireless control systems for additional energy-saving benefits
Offered with clear, frosted, and diffuser lens options
Light distribution 80°
CCT 5700K, 5000K, 4000K, 3000K
Bracket Ceiling bracket (pipe/chain) Material Body :
Product Dimensions
High-efficiency LED solution optimized for industrial environments
145 lm/W efficiency for maximum energy savings
Reflector-type optical design for improved visibility and workplace safety
Product lineup from 280W to 320W to support various installation conditions
Compatible with wired/wireless control systems for additional energy-saving benefits
Available with clear and frosted cover options
Light distribution 90° CCT 5700K, 5000K, 4000K, 3000K
Bracket Ceiling bracket (pipe/chain)
High-efficiency LED solution optimized for industrial environments 150 lm/W efficiency for maximum energy savings
Reflector-type optical design for improved visibility and workplace safety
Product lineup from 80W to 200W to support various installation conditions
Compatible with wired/wireless control systems for additional energy-saving benefits
Available with clear and frosted cover options
Light distribution
SE80,SE100 : 80°, 110° | SE130,SE160,SE200 : 90°, 130°
CCT 5700K, 5000K, 4000K, 3000K Bracket Ceiling bracket (pipe/chain)
Material Body : Cast Aluminum | Optic : AL
Control Wireless (Zigbee)
Product Dimensions
Energy-saving high efficacy of 145 lm/W
Versatile 130W–200W lineup for tailored applications
Type III-S asymmetric short-throw optics for side mounting
Wide application from side streets to 4-lane roads
Reflector-based optical design for visual comfort
Wireless, NEMA & daylight sensor ready for smart control
Built-in 20kV surge protection for robust stability
Light distribution Type III-S
CCT 5700K, 5000K, 4000K, 3000K
CRI 70Ra, 80Ra, 90Ra
Bracket Pole Mount (*Mount Hole Size : Ø60.5mm, Weight : 1.2Kg) / Junction
Material Body : Cast Aluminum | Optic : AL Coating Reflector | Cover : Tempered
Control Wireless (Zigbee, NEMA7) | Daylight Sensor
Product Dimensions
· MT130/150/180/200
Applications
Highways, arterial roads, general roadways, industrial park access roads, etc.
Advanced thermal management for stable, high efficacy
Tailored solutions for public spaces and roadways
Precision reflector optics for perfect Type II-S distribution
Smart wireless controls (Zigbee, NEMA) for easy management
Maximized energy savings to minimize operating costs
Built-in 20kV surge protection for robust system stability
Light distribution Type II-S
CCT 5700K, 5000K, 4000K, 3000K
CRI 70Ra, 80Ra, 90Ra
Bracket Pole Mount (*Mount Hole Size : Ø60.5mm, Weight : 1.2Kg) / Junction Box
Material Body : Cast Aluminum | Optic : AL Coating Reflector |
Control Wireless (Zigbee, NEMA7) | Daylight Sensor
Product Dimensions Applications
Up to 1.5kW, IP66-rated LED driver (rear-mount or remote installation)
Supports multiple wired control options
Programmable control: DALI-2, D4i, DMX-RDM, 0–10V, etc.
Non-isolated Class I, high efficiency (98%)
Wide input range: 200–480Vac / 277–480Vac
Bracket Wall Mount/ SUS-BAND/ Cabinet type(Non IP)
Material Body : Cast Aluminum | Electro Deposition (Black)
Control Wired (DALI-2, D4i, DMX-RDM) / Wireless (Zigbee, Casambi)
· BLP800 · BLP1K2 /1K5
[Basic(*None)] : 360.0 × 212.0 × 109.0mm
[Node(*Zigbee)] : 364.0 × 212.0 × 109.0mm
[Cable(*DMX-RDM)] : 360.0 × 212.0 × 109.0mm
[Basic(*None)] : 439.0 × 212.0 × 105.0mm
[Node(*Zigbee)] : 449.0 × 212.0 × 105.0mm
[Cable(*DMX512 or DALI-2)] : 439.0 × 212.0 × 105.0mm
* Tc : Temperature Case
Precise remote control via wired DMX-RDM
Wide control range: Tilting 20° to -70° / Steering ±70°
Fast tilting & steering speed of 5°/sec
Enables rapid aiming response
Fully compatible with SUFA-PTX™ 600–1500 series
Life Time 40,000 cycle
Material Body : Cast Aluminum | Finish : Electro Deposition(Black)
Control Wireless (Zigbee - *Option) | Wired (DMX-RDM)
: 250,000 [bps] | Zigbee(*Option) : 2.4
■ Precise remote control via wired DMX-RDM
■ Wide control range: Tilting ±60° / Steering ±60°
■ Fast tilting & steering speed of 9°/sec
■ Enables rapid aiming response
■ Fully compatible with SUFA-Circular White and RGBW series
Life Time 40,000 cycle
Material Body : Cast Aluminum | Finish : Electro Deposition(Black)
Control Wireless (Zigbee - *Option) | Wired (DMX-RDM)
Data Rate DMX-RDM : 250,000 [bps] | Zigbee(*Option) : 2.4 GHz –
(Compatible)
GeSS® Controller
GUI-integrated lighting control hardware interface
Supports RS-485 and DMX512 wired control and Zigbee wireless control For wired control: monitor and control up to 32 slave units per master For wireless control: monitor and control up to 200 fixtures per master
Application
Product Dimensions
Port
GeSS® Controller
■ Ethernet-based lighting control hardware interface for GeSS® Cloud
■ Transfers RS-485 control signals between the control PC and Master unit
■ Can be configured independently without PC connection
High bay
Control Wired(RS-485, Ethernet)
Product Dimensions
Wall-mounted switch with dimming and scheduling control
Supports 10–100% wired/wireless dimming control
Individual ON/OFF control by zone and group
Lock function to prevent accidental or unauthorized operation
LED indicators for intuitive monitoring of dimming and control status
Application Industrial High bay Lighting, Sports Lighting, High mast Lighting
Control Wireless (Zigbee) | Wired (RS-485)
Data rate Zigbee : 250kbps | RS-485 : 115,200 [bps], 8-N-1
Product Dimensions

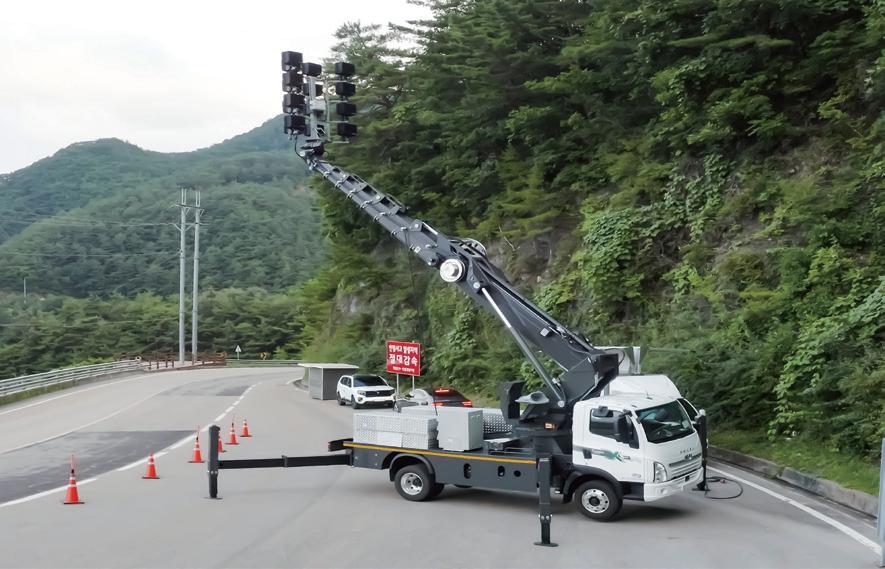

Instant use in emergencies with zero warm-up time
Powerful, highly directional lighting via 16 units of 1,200W LEDs
Flexible aiming control via Tilt & Steering function
Rapid deployment in urgent environments like disaster relief
Equipment
Category
Vehicle specification
Bucket rated load and including luminaire weight
Aerial work platform vehicle
Specification
Base on a 5-ton truck
400kgf / 219.2kg (SFP1K5 x 16ea)
Max. working radius 26m
Max. working height 40m
Boom type
8-stage, 7-sided high-tensile boom, straight-type
Boom deployment / Retraction Speed Deployment: 75 sec / Retraction: 24 sec
Slewing method
Hydraulic motor + planetary gear reduction type
Slewing angle -180° ~ +180° (Total 360°)
Slewing speed
Safety devices
Vehicle specification
Mobile generator system
Max 0.9RPM (Varies with working radius)
Safety valve + safety devices(emergency stop, leveling indicator, alarms, moment detector, various sensor, etc.)
Based on a 1-ton truck
Generator max. output 25kVA
Generator rated output 20kW
Generator rated voltage 440(220)V
Generator phase
3-Phase, 4-Wires
Generator engine Vertical Water-cooled 4-cycle diesel engine
Generator engine output 23.7kW [32.2PS] generator displacement 2.434ℓ
Core performance and flexible configuration
Exclusive advantage: Real-time precise aiming control on the move
Dynamic solution for all nighttime operations
Versatile applications: Industrial sites, emergencies, leisure, etc.
Category
System Name
Platform
Primary Lighting
Secondary Lighting
Mast System
Aiming Control
Illumination Distance
Additional Features
Control System
Key Applications
TML™ Specifications & Features
TML™ (Truck Mobile Lighting)
Pickup Truck
SFP(SUFA-PTX™) 800W
MHP(MAHA-PTX™) 400W
Motorized pole system (Max. height: 4m)
RTS™-G3 / RTS™-G4 series remote control system (Remote Tilting & Steering)
700m ~ 1km (Based on SFP 800W)
Red/blue warning lights & white light switching via RGBW technology
Independent lighting control system (Mobile/ Tablet / PC)
Nighttime search & rescue, constructioln sites, leisure(camping, fishing), police/safety warnings, etc.
Equipped with two SFP 800W high-performance LEDs, the TML™ delivers clear visibility to distant targets using powerful, highly directional narrow beams. It also supports mixed configurations with asymmetric MHP 600W units to efficiently cover broad areas, providing flexible lighting solutions optimized for diverse site conditions.
Unlike conventional mobile lighting that requires the vehicle to be parked, the TML™ features exclusive technology for real-time, precise aiming control while on the move. This enables continuous target tracking and instant response. The motorized pole elevates up to 4m, providing omnidirectional control via tilting and steering. With simple operation and no complex setup, users can rapidly secure the optimal light source.
Search & rescue operations, Emergency recovery operations, Nighttime patrol & perimeter security, etc.
www.gigateraled.com
Global Networks
Head Office, Republic of Korea
21 Dongtan-daero 25-gil, Dongtan-gu, Hwaseong-si, Gyeonggi-do, Republic of Korea (18462)
Tel : +82 31 370 8800
E mail : ledsales@gigateraled.com
GigaTera EU GmbH (EU & Middle East)
Bonner Str. 355 40589 Dusseldorf, Germany
Tel : +49 (0)211 989 675 0
E mail : gigateraeu@gigateraled.com me@gigateraled.com https://www.gigateraled.com/eng/
KMW China
No.38, South Tuanjie Road, Hi-Tech Zone, Xi’an, Shaanxi Province, P.R.C.
Tel : +86 29 8838 4888
Fax : +86 29 8799 5999
E mail : sales@htctelecom.com https://www.gigateraled.com/eng/
KMW Viet Nam (Production Plant)
Lot C, Dong Van I Industrial Park, Yen Bac Ward, Duy Tien Town, Ha Nam Province, Viet Nam
Tel : +84 2263 585 590
E mail : ledsales@kmwinc.com https://www.gigateraled.com/vie/
GigaTera North America
8111 Royal Ridge Pkwy Irving, TX 75063
Tel : +1 714 515 1481
Email : info@gigateralighting.com https://www.gigateralighting.com
GigaTera Türkiye
Flora Residence No.1 K.28 D.365 Atasehir, Istanbul 34750
Tel : +90 216 999 3578 / +90 530 324 0309
E mail : info@gigatera.com.tr https://www.gigatera.com.tr
KMW Japan
5F, K&G Bldg., 1-3, Yamabukicho, Naka-ku Yokohama-shi, Kanagawa, 231-0038, Japan
Tel : +81 45 231 6430
Fax : +81 45 231 6433
E mail : info@kmwinc.co.jp https://www.gigateraled.com/jap/
Due to continuous research and development for product improvement, specifications are subject to change without prior notice. Actual product colors may vary from those shown on screens or in this brochure. All images and specifications contained herein are based on the latest information available at the time of publication.
© 2026 GigaTera®. All rights reserved. No part of this document may be reproduced or utilized in any form without the prior written consent of GigaTera.
Contact us
21 Dongtan-daero 25-gil, Dongtan-gu, Hwaseong-si, Gyeonggi-do, Republic of Korea (18462)
Tel : +82 31 370 8800
E mail : ledsales@gigateraled.com | https://www.gigateraled.com
Follow us
YouTube / Instagram / Facebook / LinkedIn
