BARRIER-FREE BATHROOMS
A FASCINATION FOR THE BATHROOM
Sensuousness and sensibility – KEUCO’s passion for the bathroom runs through its veins, and this is evident in our products. A KEUCO bathroom awakens the emotions. It is an intimate place of well-being. It conveys elegance and luxury, and it combines aesthetics, ergonomics and functionality.
In no other room is this challenge more exciting and demanding than the bathroom. That is why this fascination still drives us forward. Since its founding in the year 1953, our company, which is still family-run today, has undergone a rapid and sustained transformation. From market leader for high quality bathroom accessories, KEUCO has evolved into the brand for the bathroom, with a wide assortment of furniture, fittings, accessories and mirror cabinets and from our early days we focused on offering concepts of complete bathroom furnishings.
Important factors contributing to our success are the contemporary, technically innovative products, the highest standard of quality, a clear orientation towards design, and state-of-the-art manufacturing facilities. Today, KEUCO products are sold around the world, and are market leaders in many areas. They are the result of intensive development work, the use of the best materials, and the most careful workmanship. We combine high-tech manufacturing and involved hand craftsmanship to achieve optimum results. KEUCO quality sets standards: Our products will convince you by their immaculate surfaces, maximum longevity, and perfect functionality. Each article is examined individually before being shipped out.
At KEUCO, the subject of design already played a pivoting role long before it even became a general topic of conversation. Our understanding of design involves striving to achieve classic-modern aesthetics that retain their contemporary feel, even after many years of use. Whether designed in-house or in cooperation with internationally recognized designers – KEUCO products are regularly distinguished by renowned awards.
Longevity has another definition when it comes to KEUCO products. Getting older brings a higher level of comfort desired for in the bathroom. When it comes to design, KEUCO is a leader for barrier free bathroom solutions which harmoneously combine functionality, ergonomics and aesthetics into one putting the human being into the centre point.
But timeless design and long-lasting product quality are only two aspects of our sustainability philosophy. Equally important are responsible company management, and resource-saving production – with the help of our own water conditioning system for our electroplating plant, for example. We view the label “Made in Germany” as commitment to the kind of company management that aims to secure jobs in the long term.
KEUCO products are made in our own production plants in Hemer, Gütersloh and Bünde. Inland production provides us with a close proximity that is essential, so that we can develop and utilize the know-how of our employees on a long term basis, and so achieve seamless quality management. And that makes “Made in Germany” a promise of quality.
Hartmut Dalheimer, Managing Director
Engelbert Himrich, Managing Partner
THE EVOLUTION OF COMFORT
TIMELESSLY MODERN AND INCREDIBLY
VERSATILE
With 450 individual products, PLAN is one of the most extensive bathroom collections in the world. PLAN is as varied as the lifestyles of today and the breadth and depth of its large assortment enables individual, tailored solutions to be found. PLAN leaves nothing to be desired – not from an aesthetic or an ergonomic point of view, as the main focus of the PLAN care range offers an additional wide collection of barrier-free products to choose from.
.molldesign
Reiner Moll
EYECATCHER IN EVERY BATHROOM
The wide range of surface variants multiplies the diversity of PLAN even more. Choose from chrome-plated, aluminium and stainless steel.

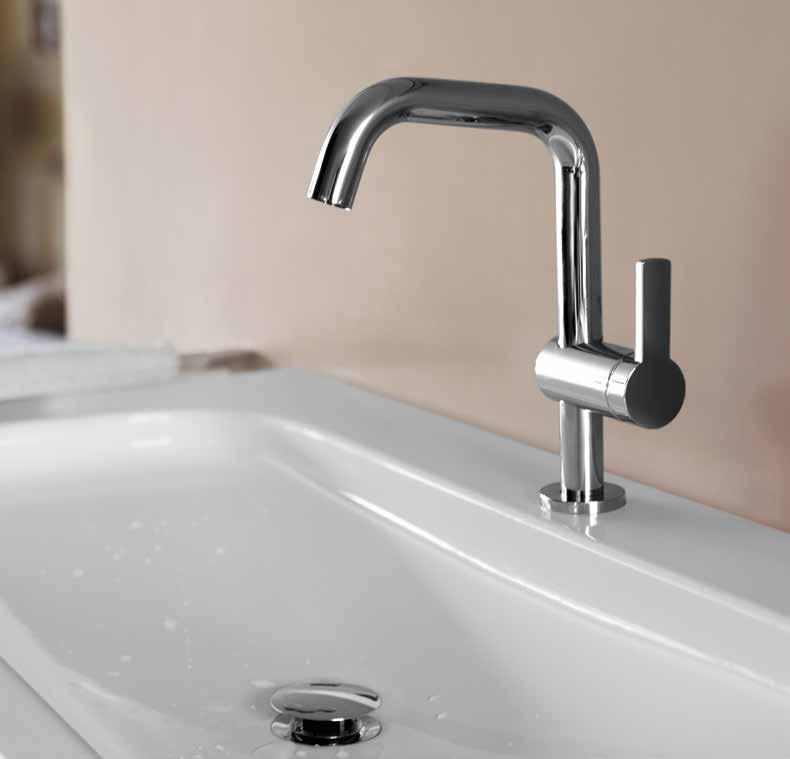

On the left you can see the PLAN blue fitting with a swivel spout – perfectly suited for the private and project area. Either as a one hand mixer or pillar tap, PLAN blue convinces with a slim design and precise language of shape. PLAN blue fittings are available with 3 different spout lengths and therefore match different washbasins fulfilling individual needs – this offers more freedom of movement when washing. The XL version is particularly suited for top-mounted washbasins or is a perfect solution for washing your hair in the washbasin. PLAN blue fittings offer high energy efficiency and a low flow rate of 6 l/min and is WELL certified.
HIGH QUALITY, CONVENIENT, BEAUTIFUL AND SAFE

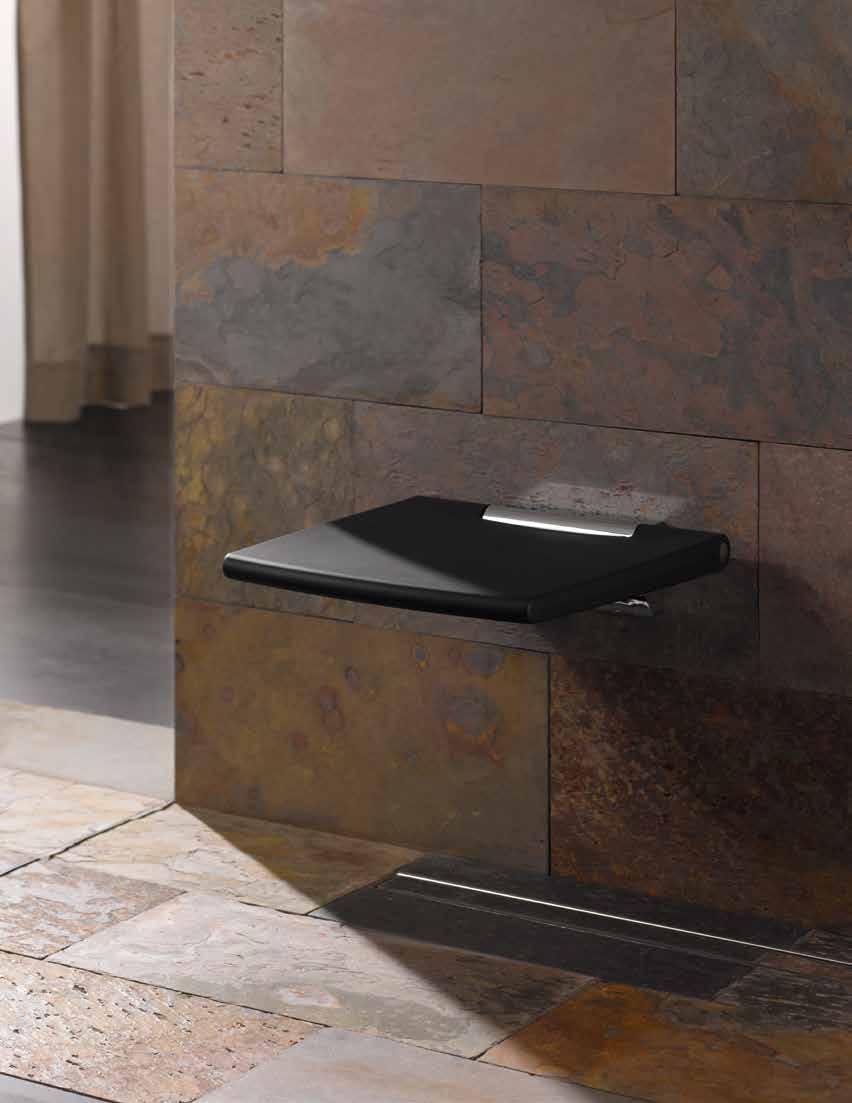

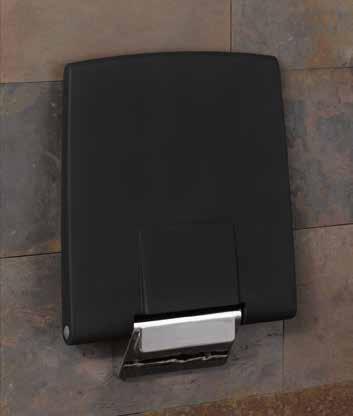

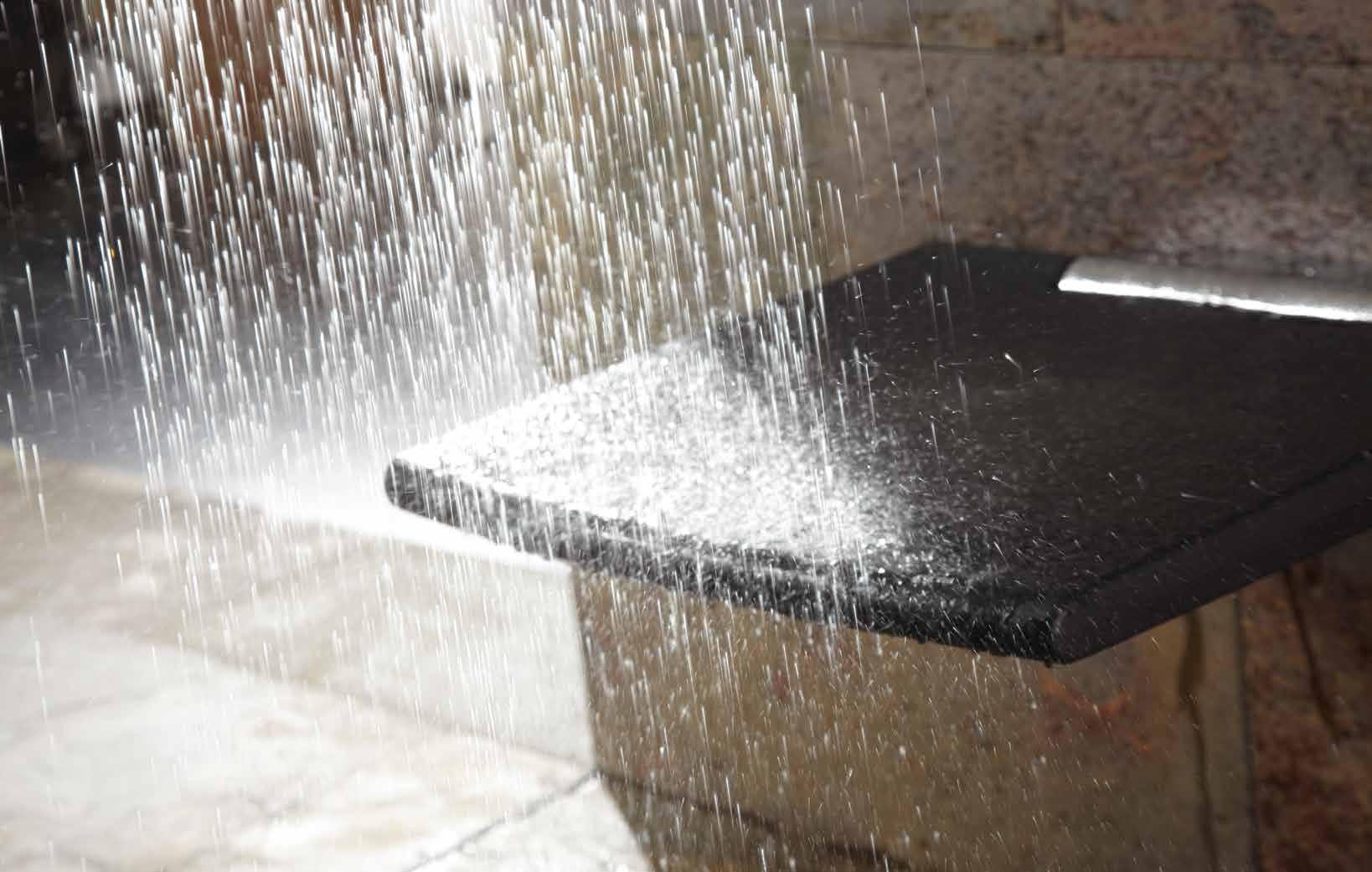

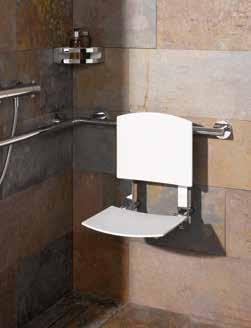

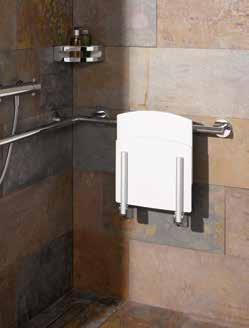

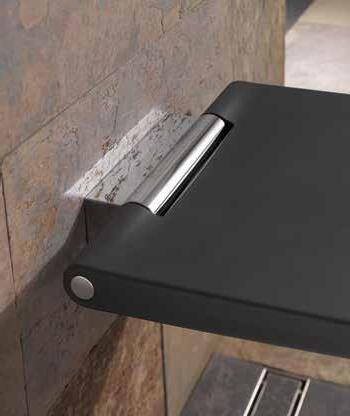

The 45 mm wide PLAN CARE tip-up seat with the ergonomical foam
meets the requirements of

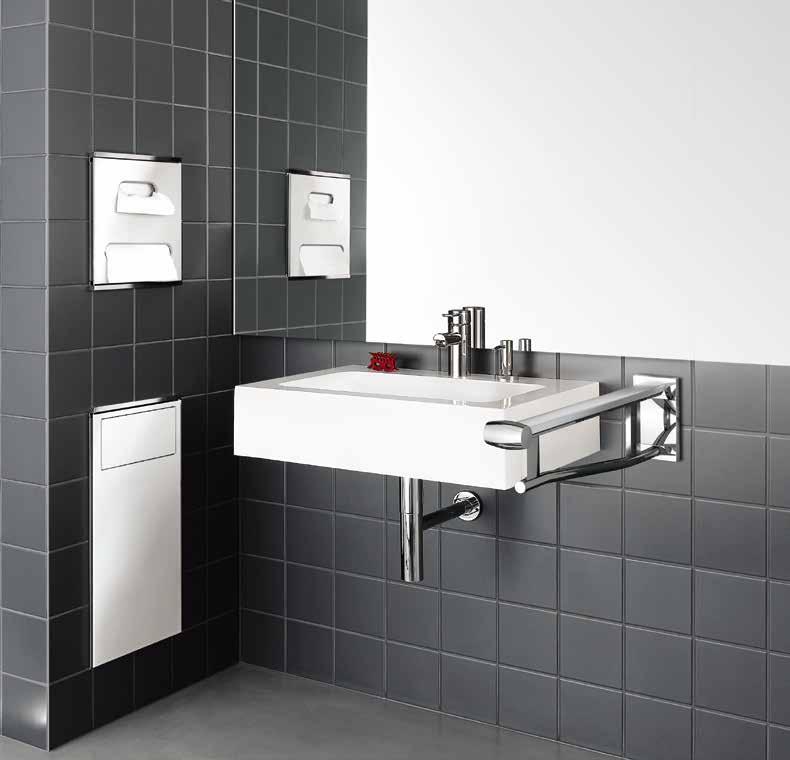

and is suitable for public sanitary rooms. The PLAN rail system not only serves the purpose of a shower rail and towel holder but at the same time offers a stable grab bar.
soft-seat
DIN 18040-1

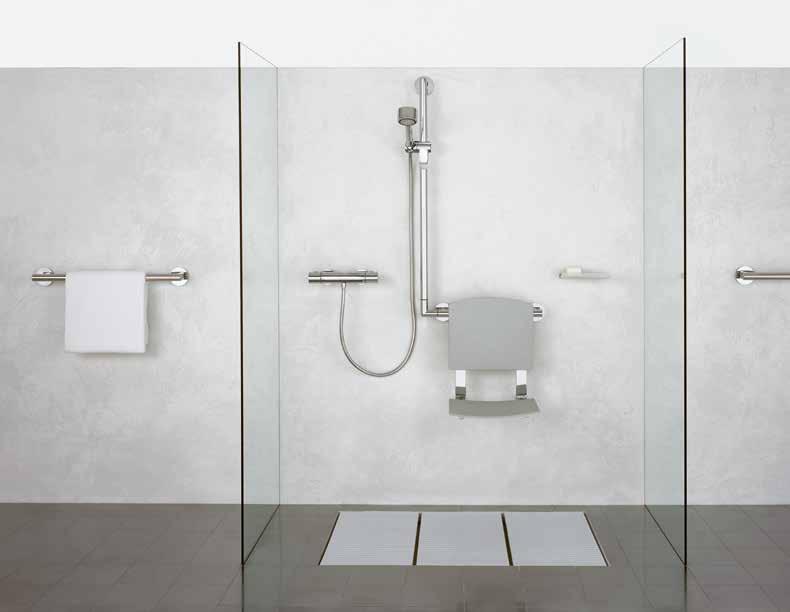

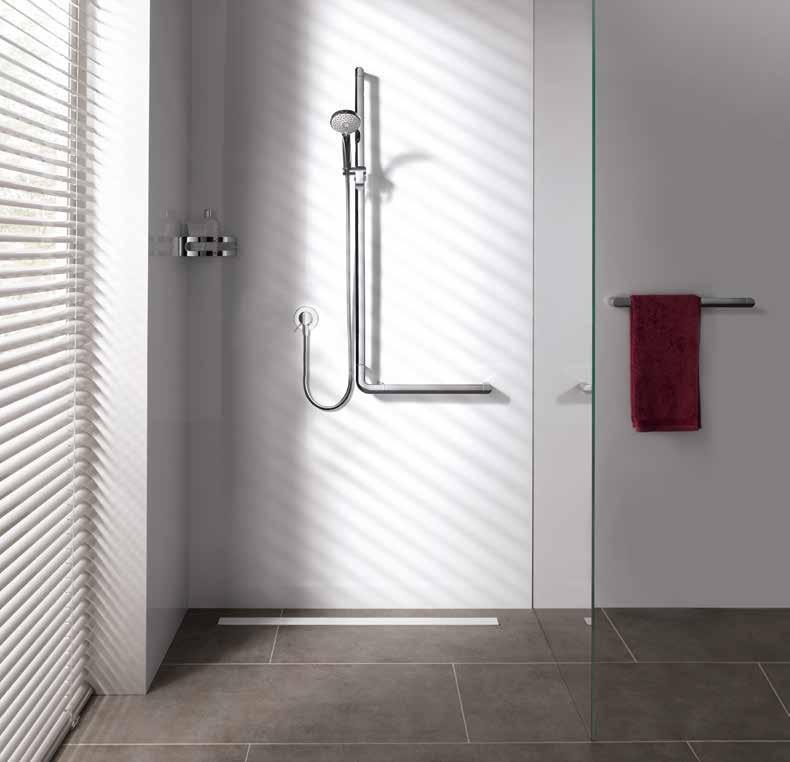

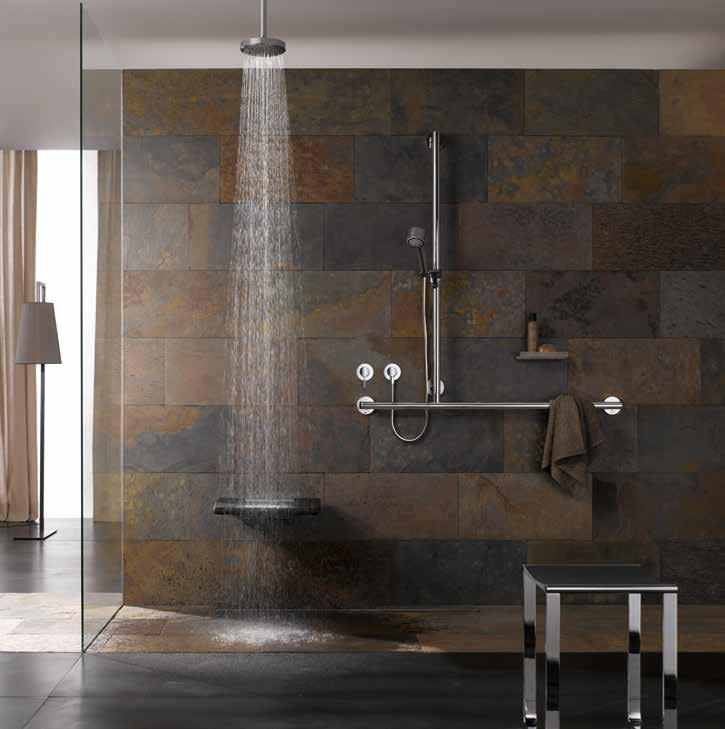

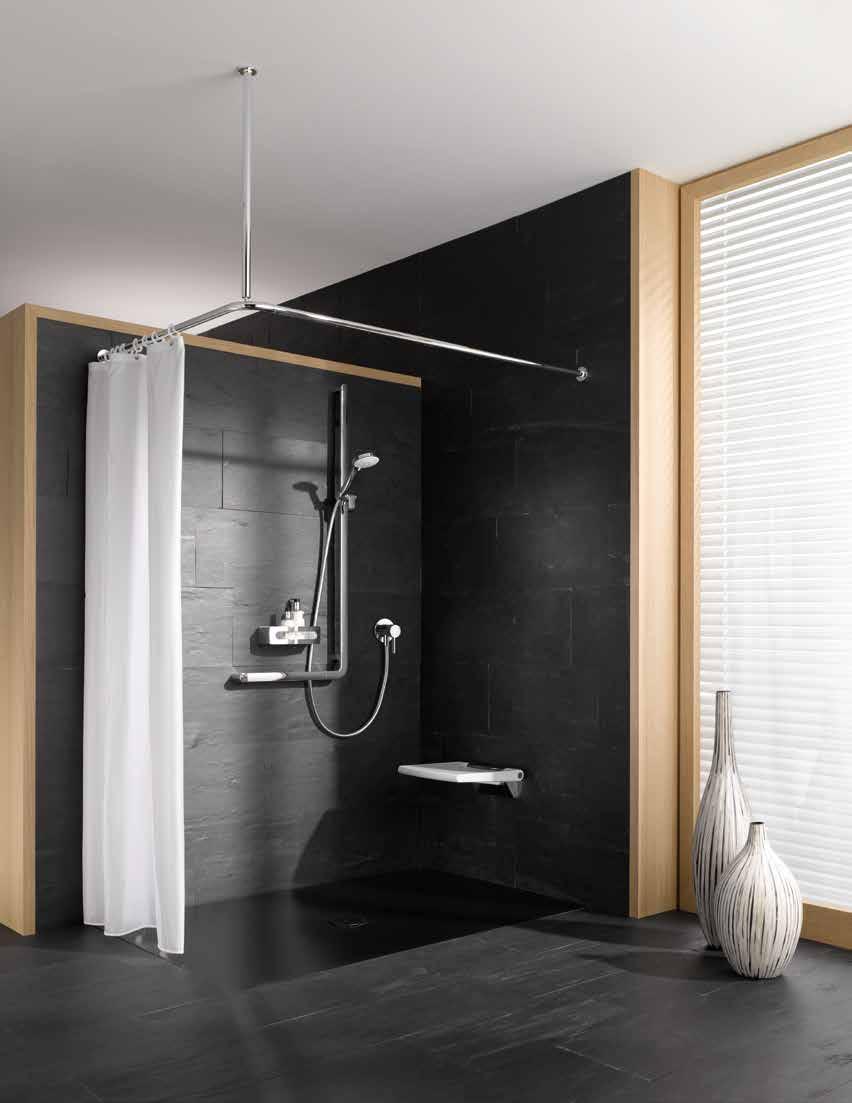

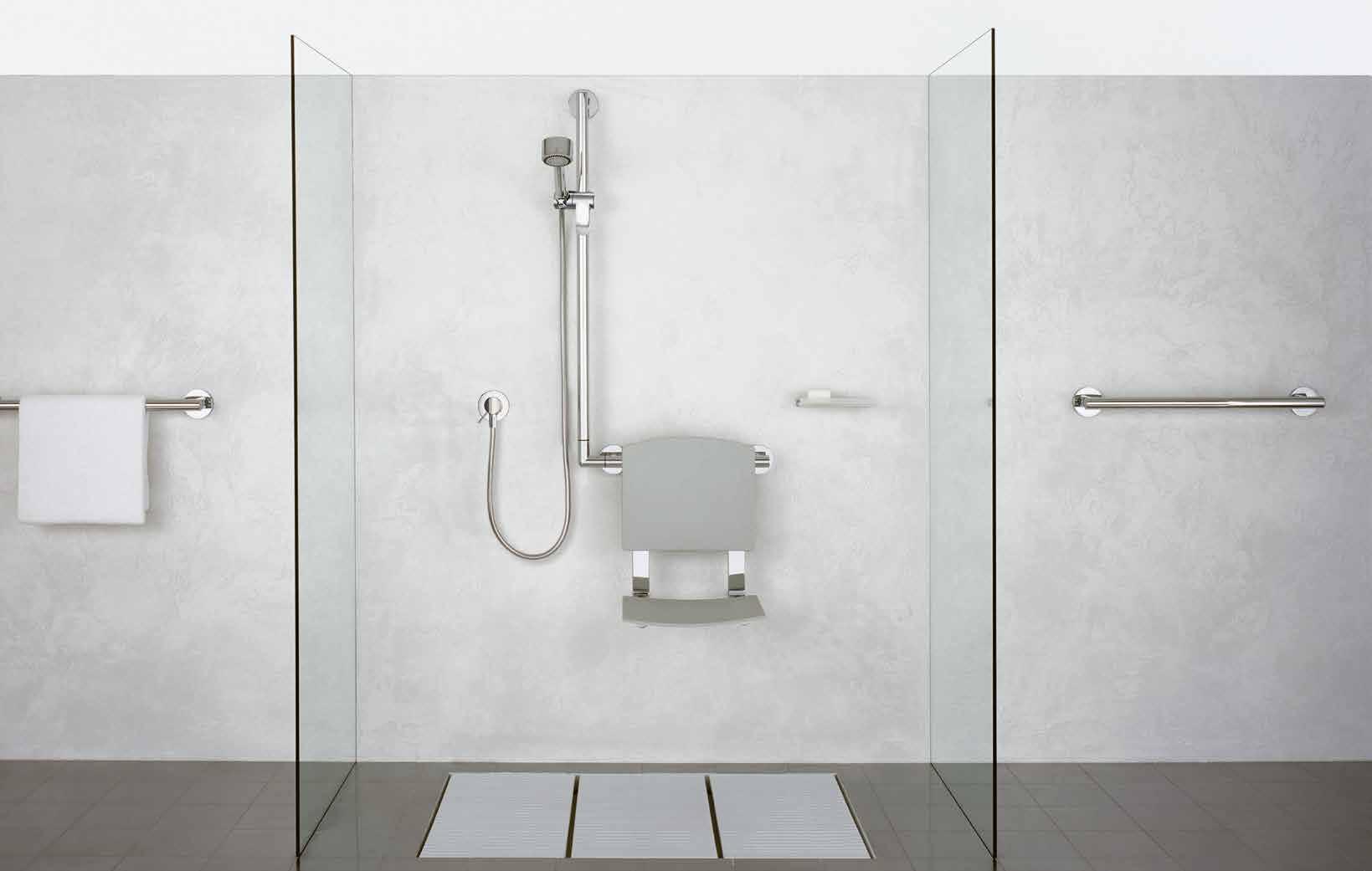

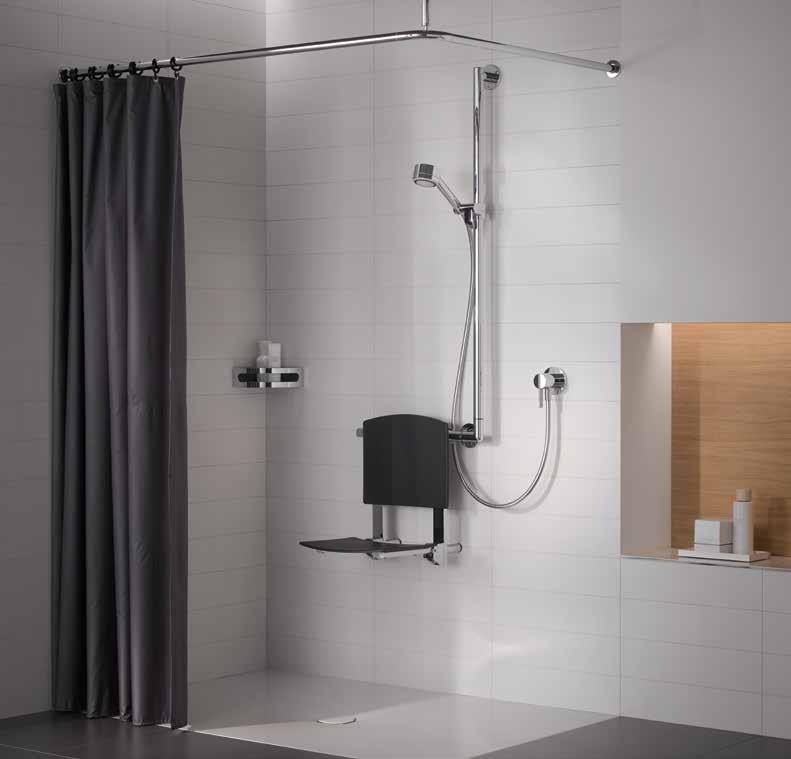

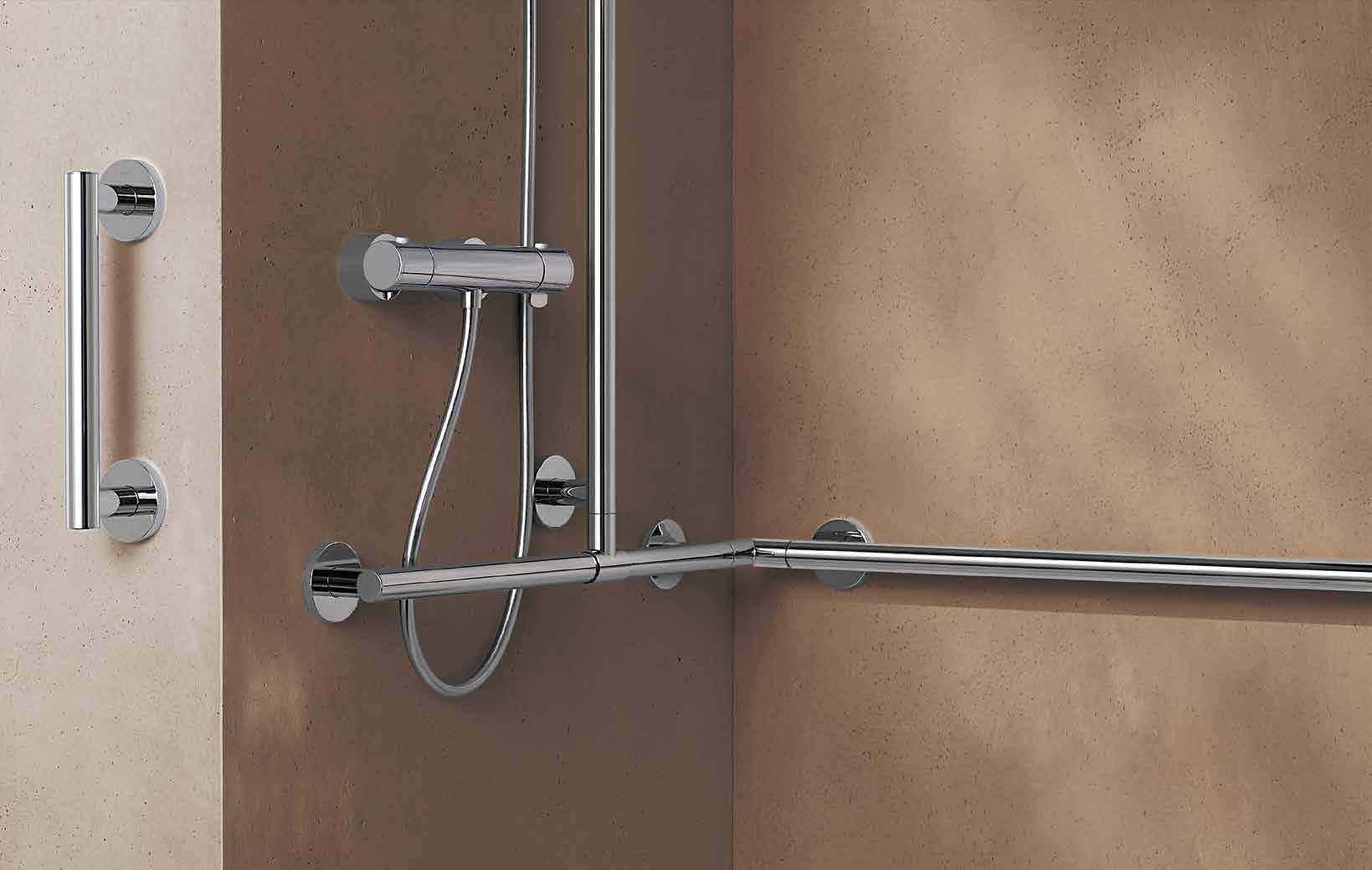

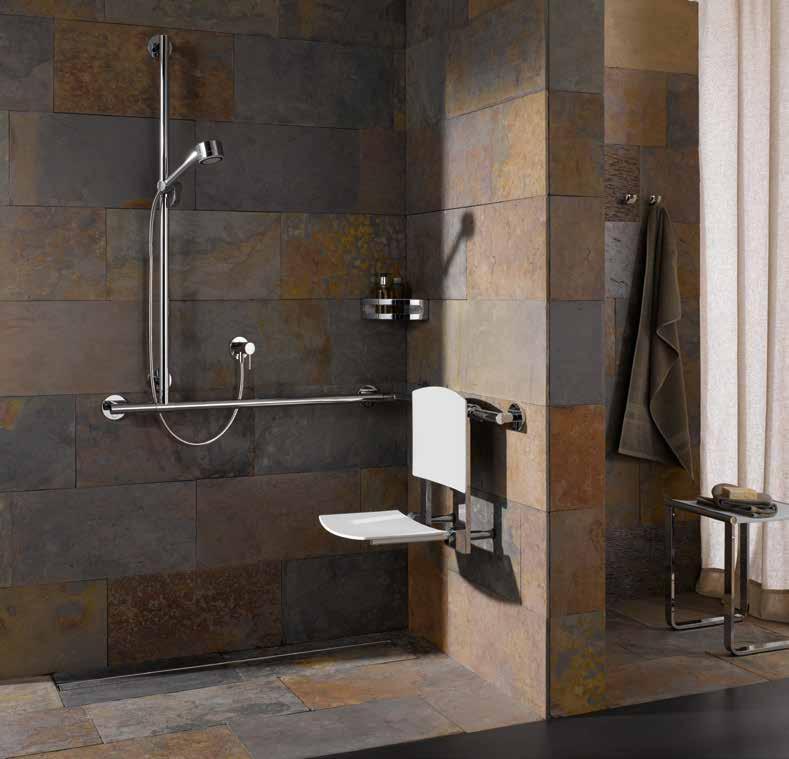

A corner solution for the shower that leaves nothing wanting. The rail system serves as a shower rail, a stable grab rail as well as a holder for a mountable tip-up shower seat. The matching sponge basket for corner installation rounds everything off.

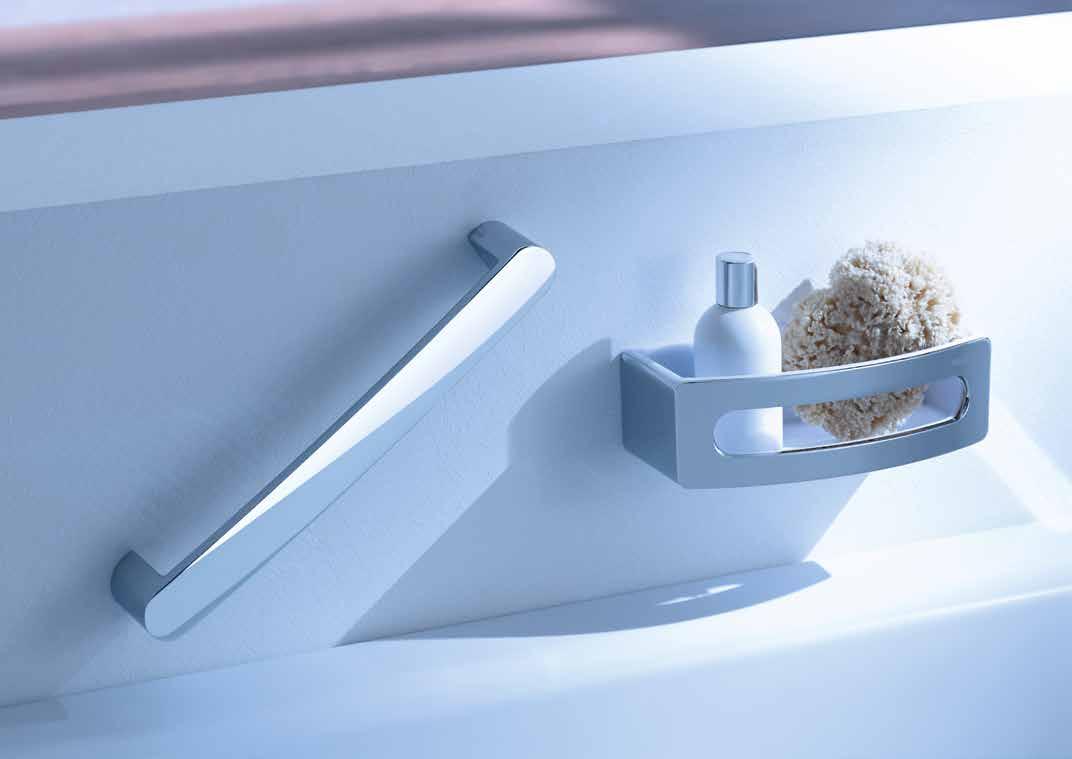

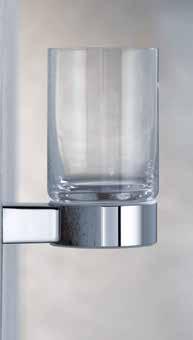

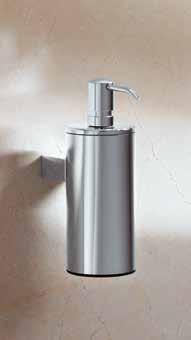

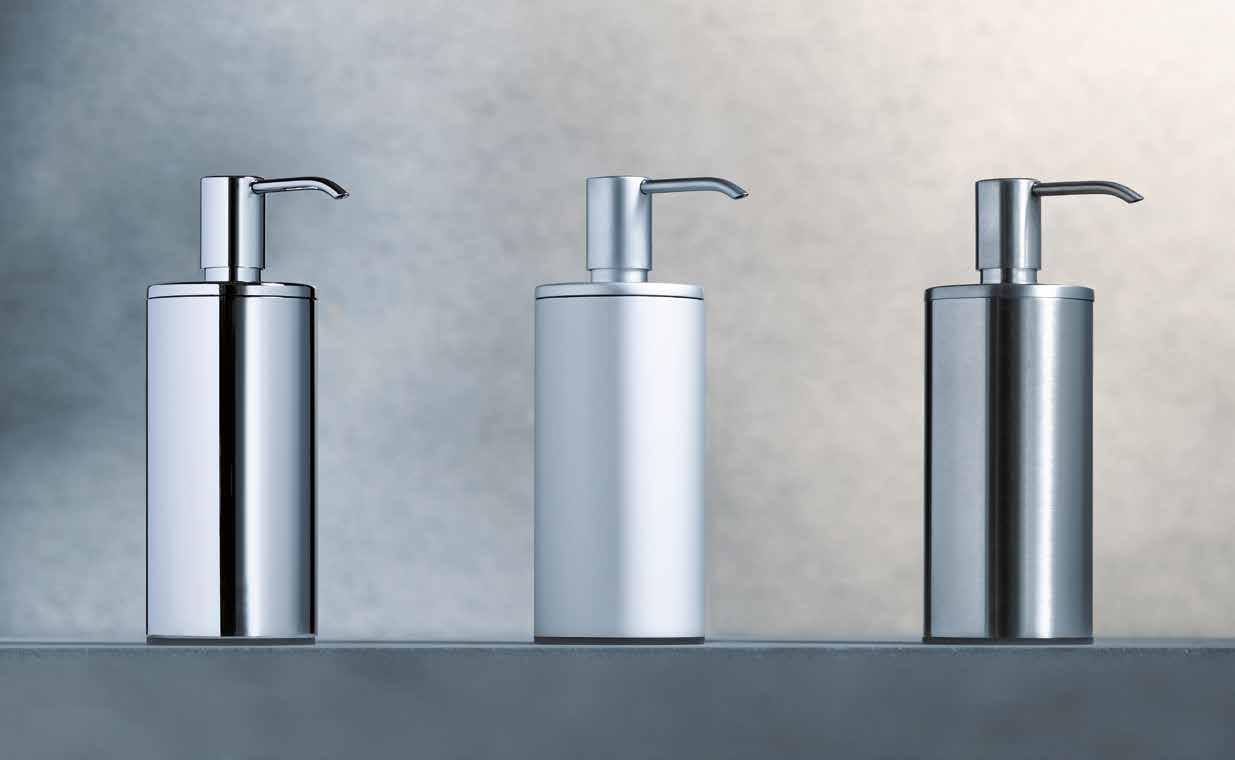

The accessories combine functionality and aesthetics thanks to their diverse options and sophisticated design. Numerous shower seat options in different colours round the extensive range off. Choose between tip-up seats with or without a back rest. What they all have in common is an ergonomically shaped seat.

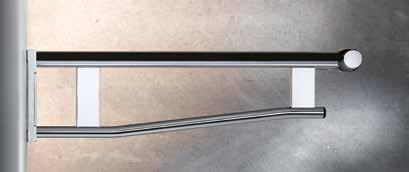

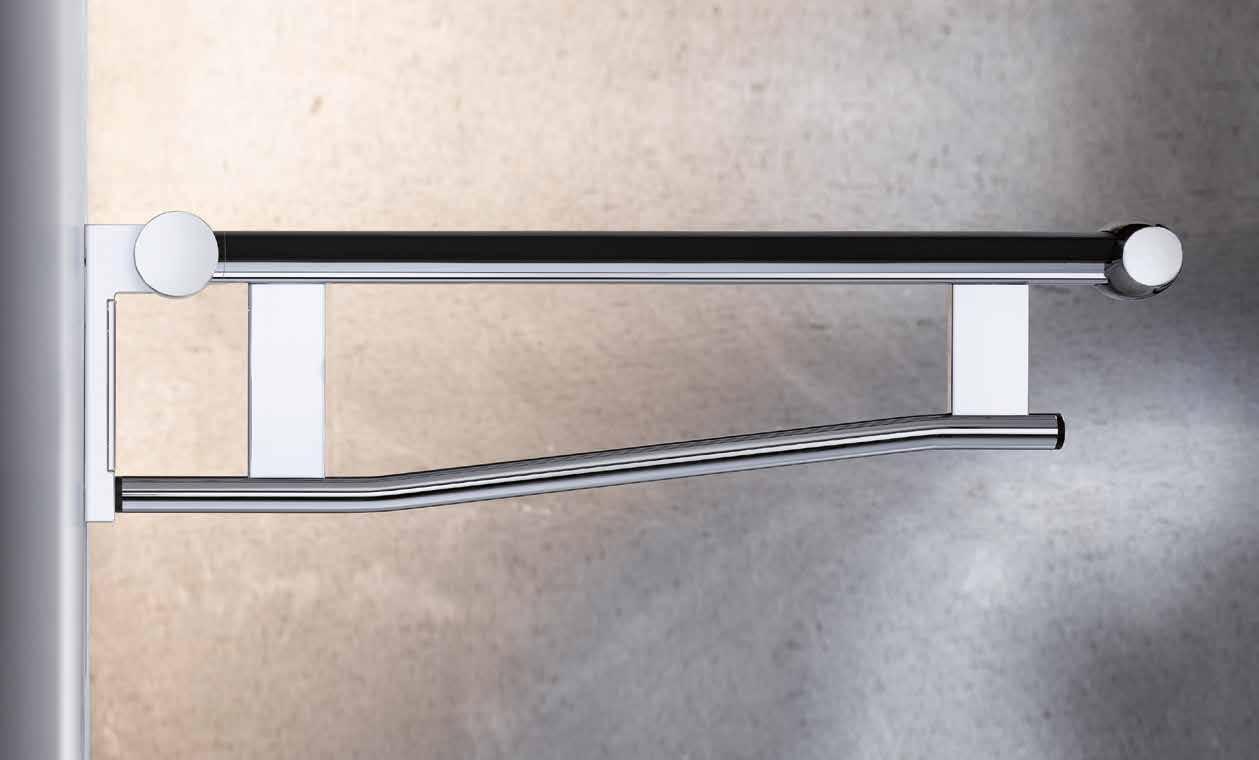

Ergonomic, aesthetic, resilient: The PLAN foldable support grab bar is not only nice in its shape but is just as stable.

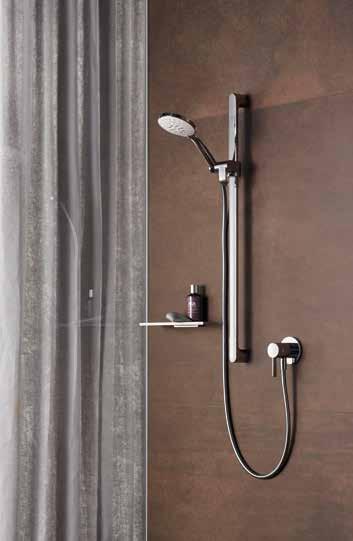

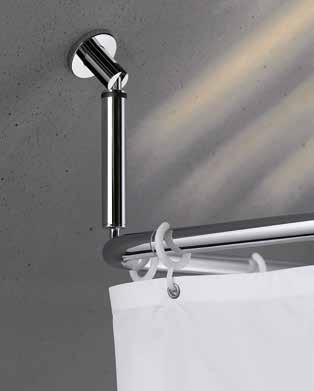

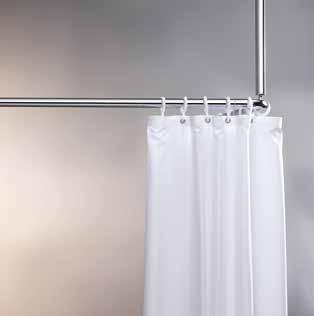

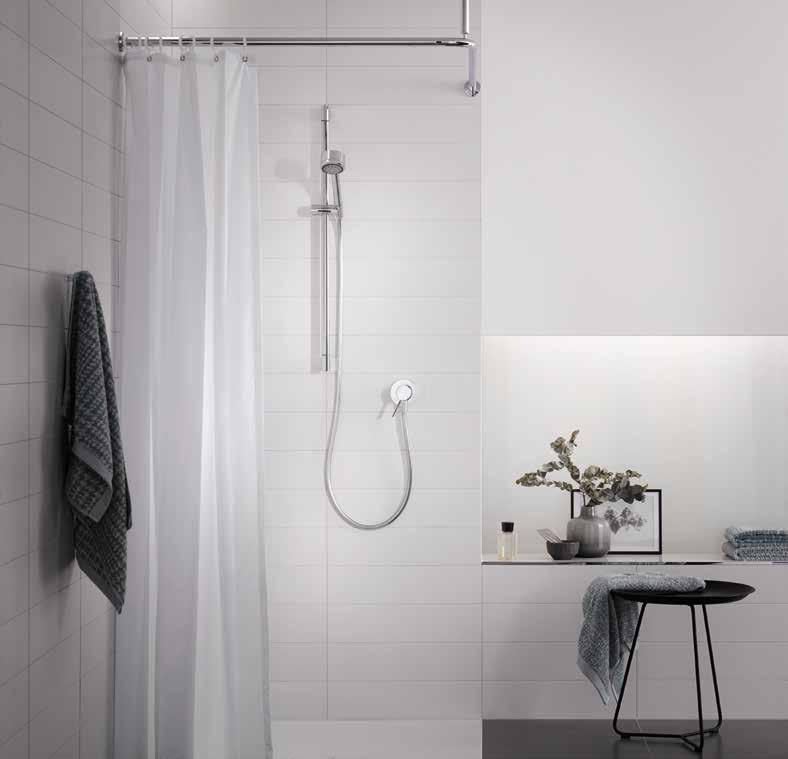

You make the plans and PLAN will accompany you – the shower curtain rail sets offer possibilities for every eventuality. One of many examples for ideal usage: The wall fixing with cover plate can be adapted for different slanted ceilings from 10° to 80° inclination. The PLAN shower curtains are just simply nice – and to that they are anti-bacterial, fungicidal, shower tight and anti-static. A special PLAN shower curtain for bathrooms which underlie strict fire protection requirements is also available – “highly inflammable”. In addition to that you can choose from different colours.

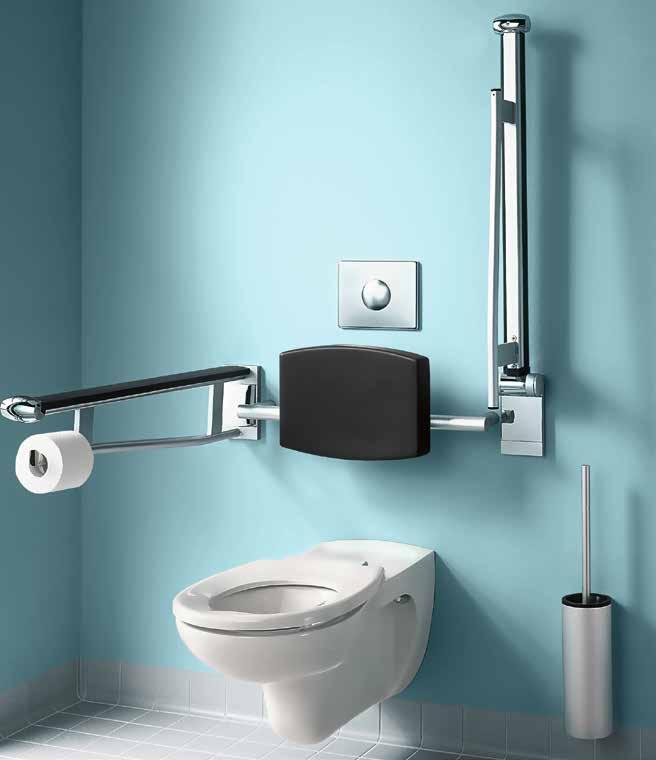

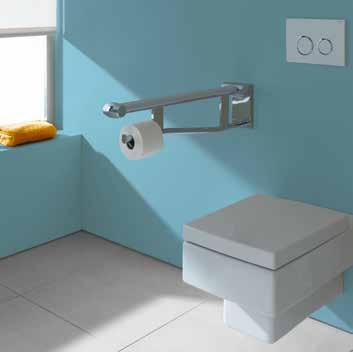

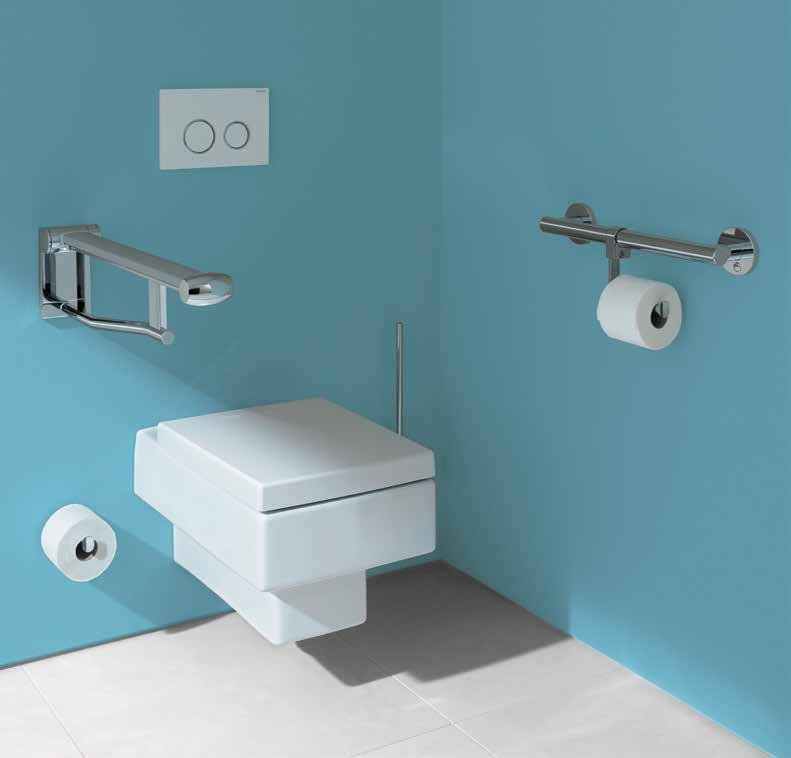

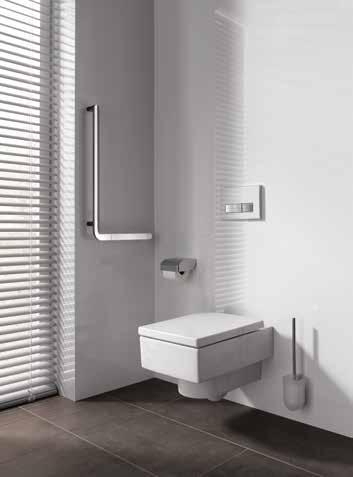

In the WC area it is plain to see that with PLAN, design and accessibility merge into an integrated unit: Uncompromising functionality with many intelligent details combine with ease into an autonomous, elegant aesthetic. The PLAN pivoted supporting rail for WC is also available as variation with an electronic remote controlled flush system (see picture above).
Thanks to the restricted mechanic the PLAN CARE foldable support grab bar smoothly folds downwards. The WC back rest is hung into the wall rail and stands in a stable upright position by means of a wall distance spacer.
CLEAR LANGUAGE OF FORM

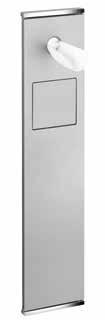

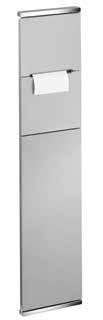

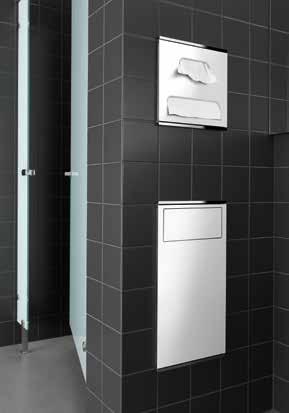

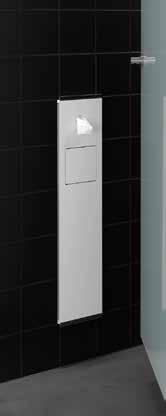

The PLAN INTEGRAL wall integration modules for wash-basin and WC are extremely well-suited for heavily frequented public sanitary facilities. Not only do they convince through their advantages such as easy cleaning, sturdiness and easy refilling, but they also come in an elegantly discreet design.
LESS CAN DO MORE
MINIMALISM IN THE SHOWER

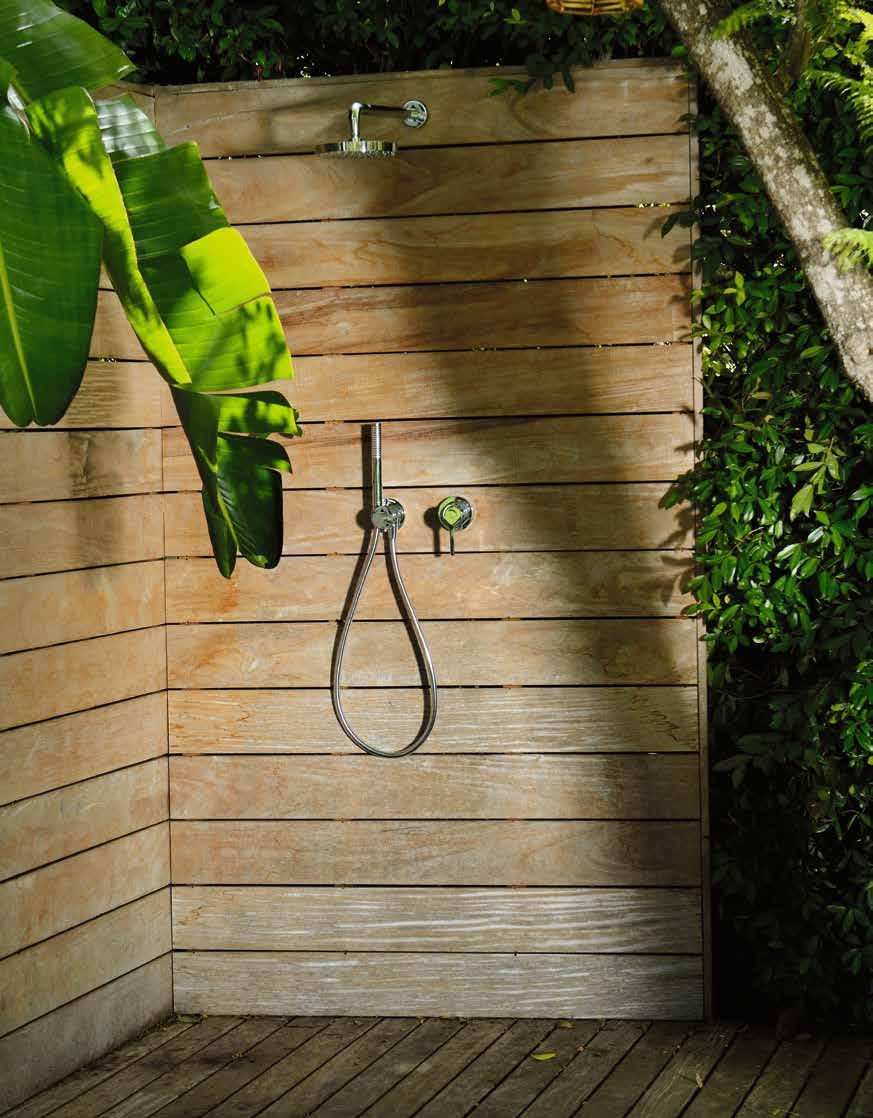

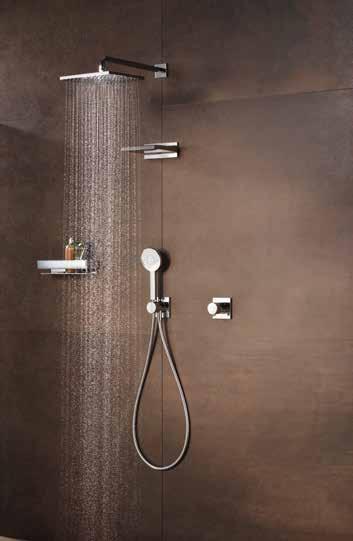

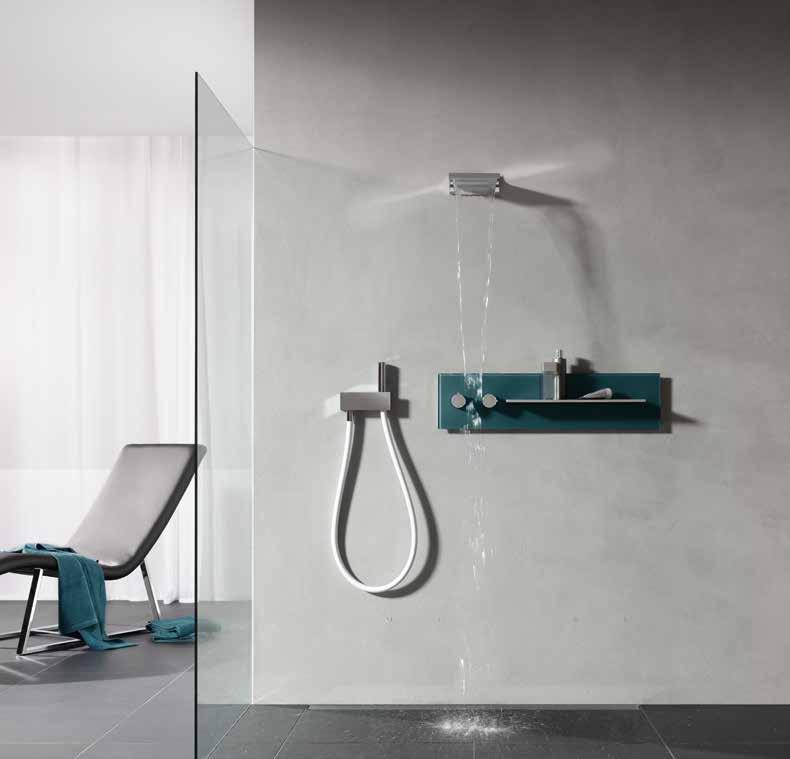

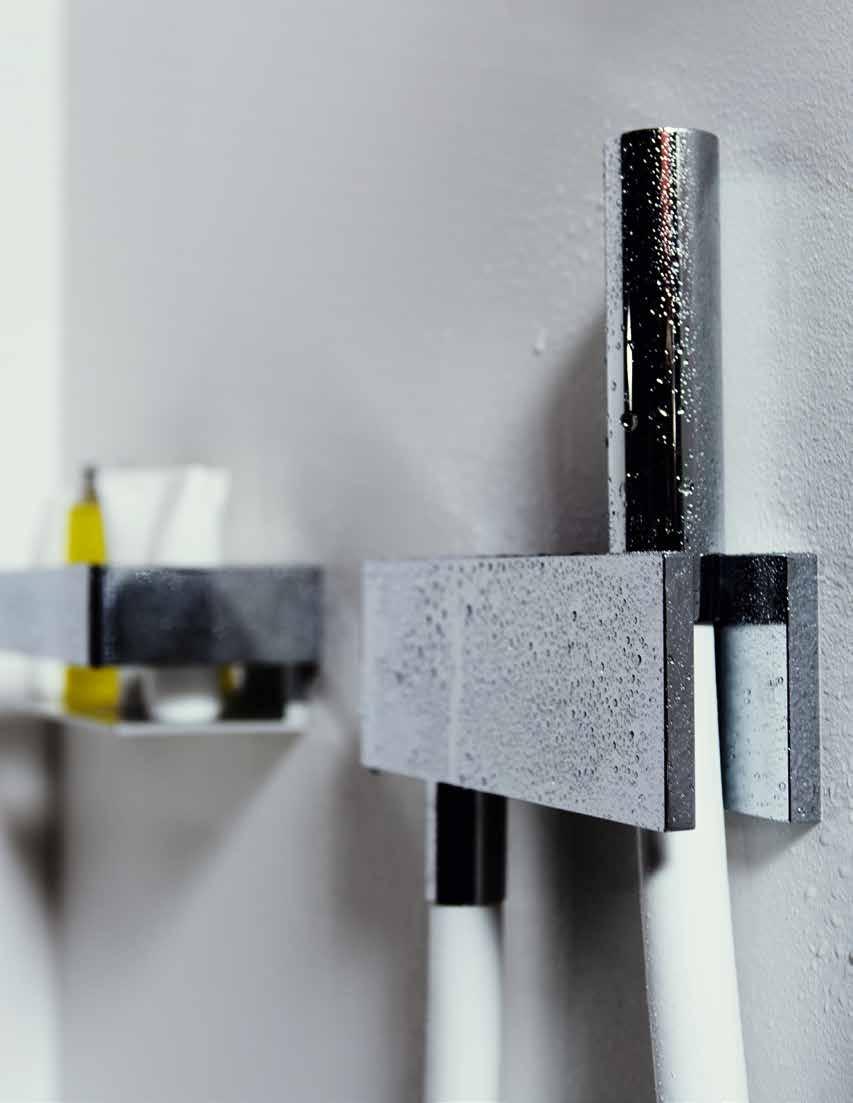

With the new member of the IXMO family, the motto “less can do more” has never been so true. IXMO SOLO is truly a functional wonder: The impressive thing about this little module is its intelligent combination of innovative technology and minimalist design.
The result is a fitting that uniquely combines a singlelever mixer and hose connection. Minimum installation work, maximum convenience – because only IXMO SOLO and no further water-conducting elements is all that is required for a complete shower solution.

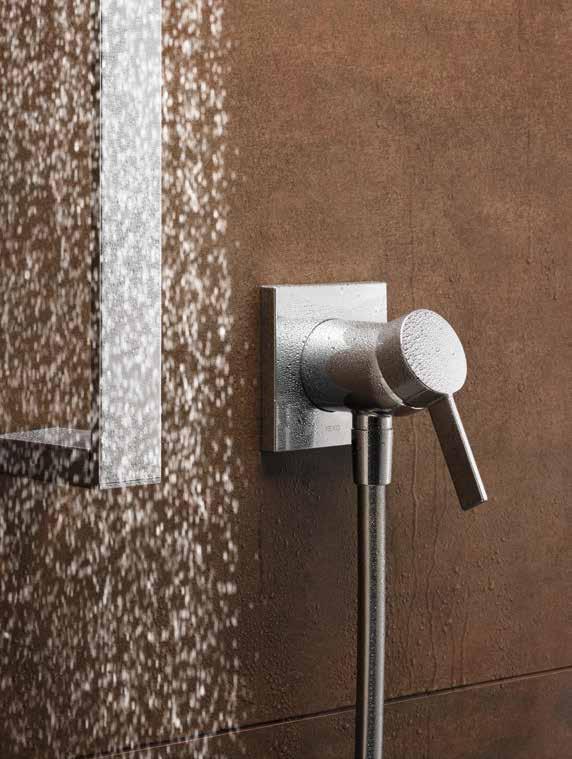

The IXMO SOLO product design is so consistent and small that a picture of perfection is produced in every shower. And with the round or rectangular decor disc options, IXMO SOLO also perfectly matches all other KEUCO lines.
WATER WILL FIND ITS WAY
For planners and architects, the IXMO concept isn’ t just about minimalist design, it is especially about maximum design freedom. Because, with the existing IXMO components and the new IXMO SOLO single-lever mixer, different installation types can now be impressively realised for the private household, the multi-family unit or the hotel branch.
The one-way installation with IXMO SOLO reduces the installation work to one water-conducting element on the wall.
For the two-way solution with two outlets, just two proven IXMO modules are required on the wall.
For the three-way installation, only two elements are needed on the wall, thanks to the 3-way stop and diverter valve.
COMPRESSED FUNCTIONS: 3 BECOME 1

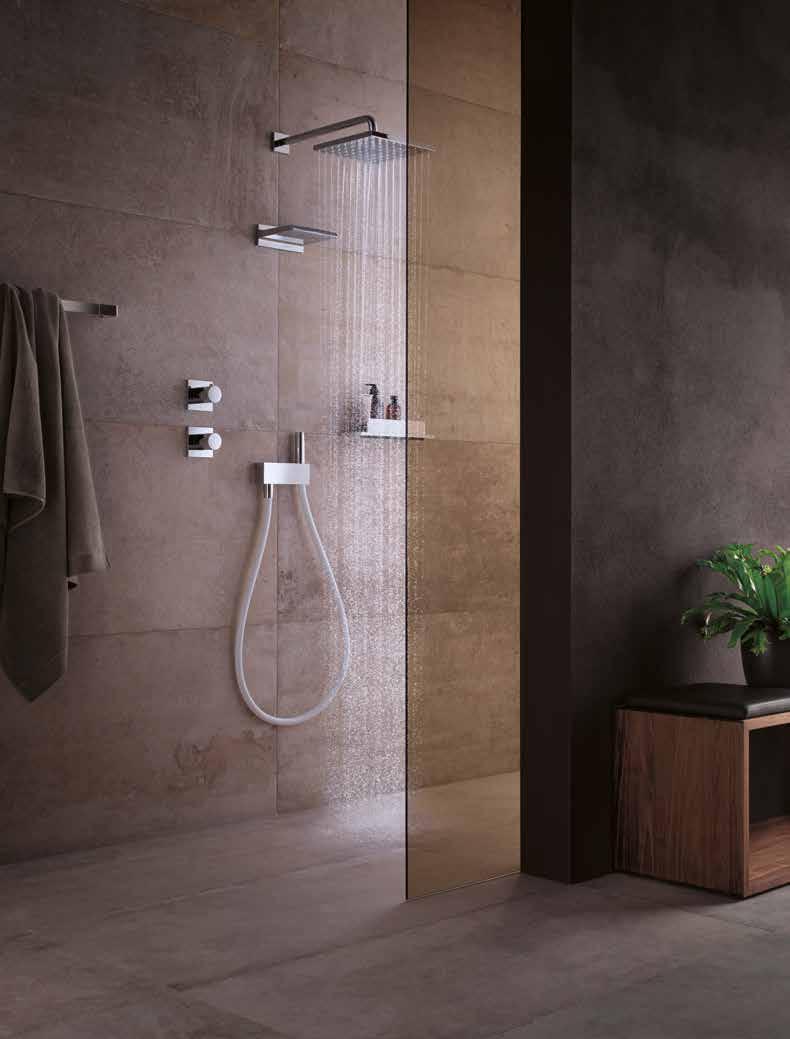

The central concept behind the IXMO fittings for the shower is the concentration of functionality. An IXMO single-lever mixer or thermostat is always combined with multifunctional IXMO elements which, in addition to connections for one, two or three water channels, also compactly unite other functions such as a hose connection, hand shower bracket, stop cock, or selector. This allows the number of products on the wall to be reduced, and enhances the appearance at the same time. Since the individual fitting units can be freely positioned, IXMO offers a high standard of design freedom.
With the IXMO fittings for the shower, KEUCO once again demonstrates its high standard of innovation in design and technology.
A QUESTION OF COMBINATION
Design for multiple styles: Another special benefit offered by IXMO bath fittings is the formal lightness and the clear, geometric contours. They integrate well in a diverse array of furnishing styles. Thanks to the multifunctional features of the modules, IXMO celebrates a fusion between design and function, pointing the way to the future.
IXMO GOES WASHBASIN

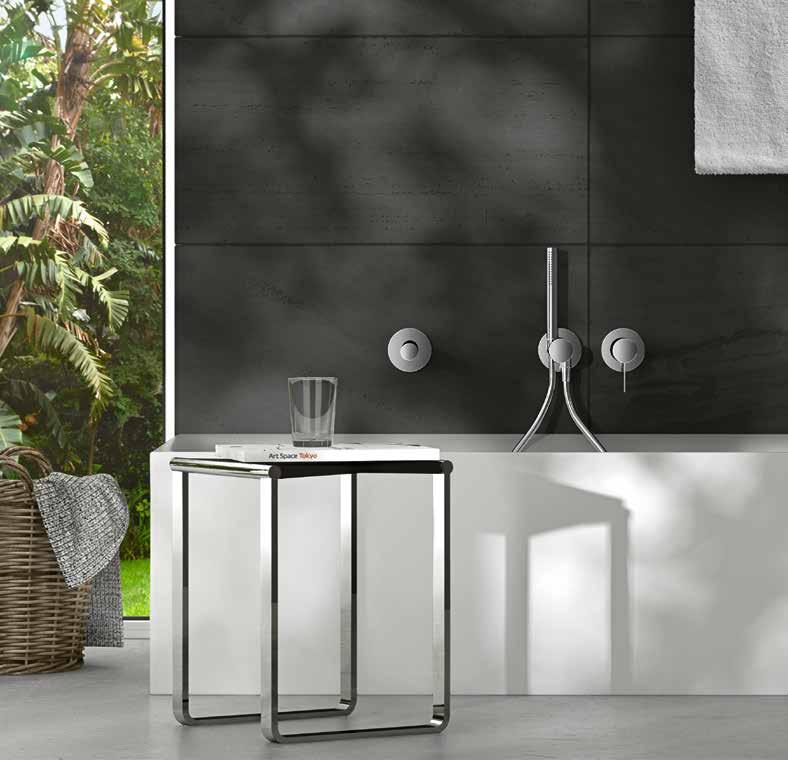

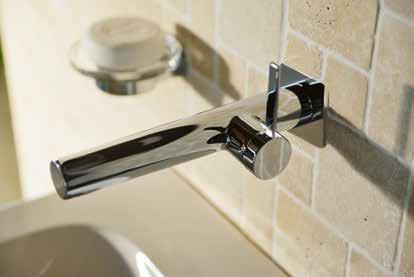

If it works impressively in the shower, it will be perfect for the washbasin, too. As such, we have now transferred the IXMO principle to an integrated washbasin fitting. When the wall spout and the single-lever mixer are combined in only one fitting element, as shown here, planning freedom benefits. The in-wall fitting comes with either a round or square decor disc and lends a luxurious, tidy feel to the wash area.
Minimal also aptly describes the installation work involved for all IXMO modules. HVAC pros only need to install one in-wall base structure. With the clever depth-compensation feature, the already shallow installation depth of the washbasin fitting can be flexibly varied anywhere from 70 to 100 mm. Maximum installation intelligence.
IXMO fittings are also available with chrome-plated, stainless steel or aluminium finishes.
VARIETY AS PRINCIPLE
THE DESIGN CLASSIC WITH PROFILE
Initially begun in 1967 purely as line of accessories, ELEGANCE established itself internationally over the decades and became the biggest selling bathroom series in the world. Today, ELEGANCE offers a comprehensive assortment with a wide array of models. The demand for ELEGANCE products still remains steady today thanks among other things to its timelessly modern design.
.molldesign
Reiner Moll
Different ways of combining à la carte: ELEGANCE shower solutions can be flexibly matched to every room constellation and of course to suit personal preferences. Hand shower or head shower, on-wall or in-wall – the choice is yours.
Right angles and straight lines, coupled with vibrant curves. As in the entire collection, ELEGANCE fittings convince by their striking, classic-modern design.
THOUGHT-OUT ERGONOMICS
ELEGANCE stands for longevity in every sense. This range has had a timeless beauty for centuries which is consequently reflected in the matching accessories.
SHOWER EXPERIENCE FOR THE SENSES
SOOTHING AND REFRESHING SHOWERS
The element of water has always fascinated people. It is particularly fascinating when it takes the form of a waterfall. The aesthetic meTime_spa dousing shower can bring this experience into your own bathroom. The feeling of taking a shower under a waterfall –of allowing the primal power of water act on you – is relaxing for your mind and soul, too. The water treatments inspired by Sebastian Kneipp are perfect for allowing the soothing and relaying effects of water fall on your skin and muscles. With the SPA hose, you can experience the health-promoting alternating hot and cold showers in the privacy of your own bathroom at home and at your leisure.
Tesseraux+Partner
Dominik Tesseraux
WE’RE PASSIONATE ABOUT FLAWLESS PRODUCTS
53902
53902
53905
53908
tap
53945
+/-
1-hole installation, lever head action 90° with ceramic sealing gaskets, aerator M 24 x 1 cache
53920 Bath tub mixer DN 15 exposed fitting cartridge mixer with ceramic sealing gaskets, ceramic stop valve and diverter, with backflow preventer wall outlet for shower hose DN 15, restricted flow rate 12 l/min.
53902
Single lever basin mixer 210 without pop-up waste, 1-hole installation, cartridge mixer with ceramic sealing gaskets and temperature limiter, aerator M 24 x 1 adjustable flow angle +/- 8° limiter, restricted flow rate 6 l/min. Height: 289 mm
Projection: 140 mm
53909
Single lever bidet mixer with pop-up waste 1 1/4 Inch, 1-hole installation, cartridge mixer with ceramic sealing gaskets and temperature limiter, aerator M 24 x 1 restricted flow rate 6 l/min.
53924
Shower mixer DN 15 exposed fitting ceramic stop valve, cartridge mixer with ceramic sealing gaskets, with backflow preventer wall outlet for shower hose DN 15, restricted flowrate 12 l/min.
53971

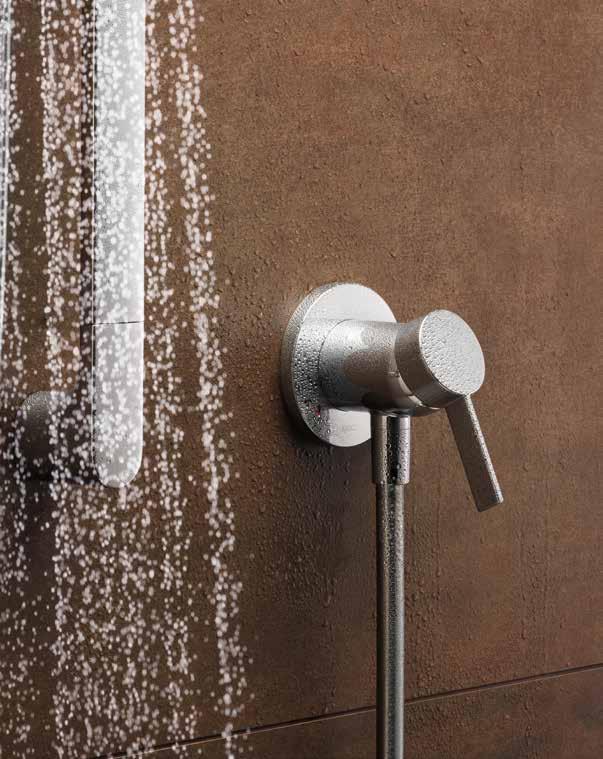

Single lever shower mixer concealed fitting, set complete with: handle, sleeve, rosette and installation unit, suitable for rough part no. 59970 (Flexx Boxx) (Flexx Boxx to be ordered separately)
54908
Pillar tap 50 without pop-up waste, 1-hole installation, lever head action 90°, with ceramic sealing gaskets, aerator M 18 x 1
54926

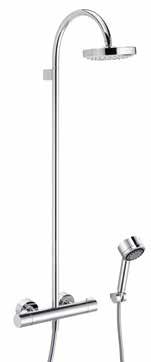

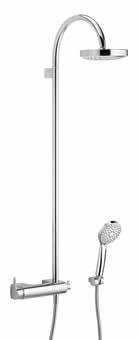

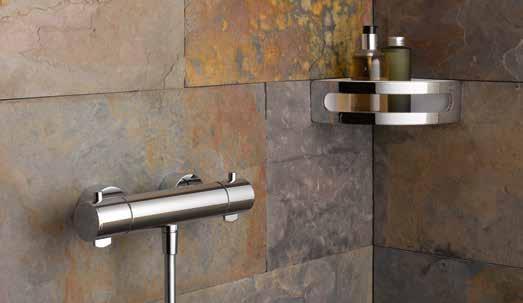

Thermostat battery for shower exposed fitting, handle with 50% water consumption regulation, safety cut-off at 38 °C, with backflow preventer
53972
Single lever bath tub and shower mixer concealed fitting, set complete with: handle, sleeve, diverter, rosette and installation unit, suitable for rough part no. 59970 (Flexx Boxx) (Flexx Boxx to be ordered separately)
53972
Single lever bath tub and shower mixer concealed fitting, with safety device, set complete with: handle, sleeve, diverter, rosette and installation unit, suitable for rough part no. 59970 (Flexx Boxx) (Flexx Boxx to be ordered separately)
53924
Shower mixer with head shower exposed fitting, ceramic stop valve and diverter, cartridge mixer with ceramic sealing gaskets, with backflow preventer, head shower swivelling, Ø 180 mm, restricted flowrate 9 l/min., hand shower with normal, soft and massage jet, with sliding bracket, wall bracket and shower hose, 1600 mm
mm
20 - 65°
54985

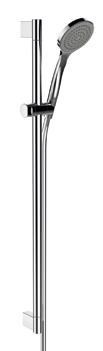

Hand shower sliding rail consisting of: – wall rail, 800 mm – sliding bracket for shower head – height adjustment via handle, tilting angle adjustable
spacer disc (5 mm)
54987

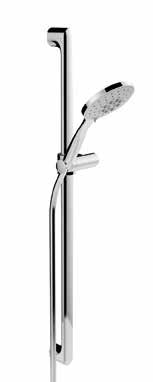

Hand shower sliding rail set consisting of: – rail with sliding bracket, 800 mm – height adjustment via handle, tilting angle adjustable
spacer disc (5 mm)
hand shower with normal jet and massage jet
shower hose, 1600 mm
51686 / 51688

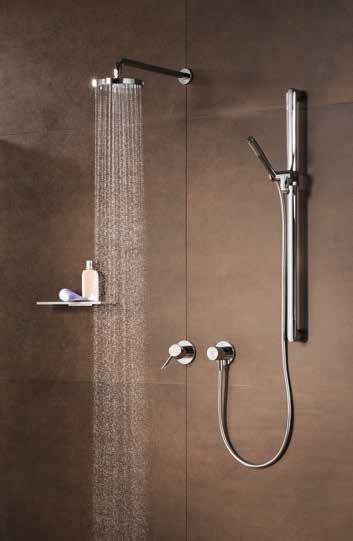

Overhead shower with wall outlet DN 15
Ø 180 mm, with shower head rail, restricted flow rate 15 l/min.
Projection: 300, 450 mm
51686 / 51689
Head shower with ceiling outlet DN 15
Ø 180 mm, with shower head rail, restricted flow rate 15 l/min.
Projection: 100, 300 mm
53980
Hand shower with anti limescale device
Functions:
normal jet
massage jet
59991
Wall bracket for hand shower for shower hoses with conical nuts, with adjustable tilt angle 20-65°
Projection: 97 mm
54941
Exposed part for angle valve DN 15/DN 20 complete with: handle, sleeve, rosette and adjustable extension (Angle valve DN 15/DN 20 to be ordered separately)
54991
Wall bracket for hand shower for shower hoses with conical nuts
54995
Shower hose DN 15 both ends fitted with conical nut and twist-protection, 1250, 1600, 2000 mm
53947
Wall outlet for shower hose DN 15 suitable for all concealed fittings
14943 / 14944
Shower curtain PLAN uni*
100% Trevira, 80 g/m², shower-proof, fungicidal, anti-bacterial, anti-static, washable at 30 °C, can be disinfected at 60 °C (shrinkage rate 1-2%), ironing possible (shrinkage 1-3%), tested for harmful substances according to OEKO -Tex Standard 100 Colours: white, ecru, light grey, truffle, anthracite, black
Full length: 1800, 2000 mm
Width: 1400, 2000, 3000 mm
14943/14944
Shower curtain PLAN 60°
100% Trevira, 80 g/m², vertical seams, reinforced stainless steel eyelets, distance between the eyelets approx. 20 cm, roll hem stainless steel weighted, 50 g per metre shower-proof, fungicidal, anti-bacterial, anti-static, washable at 60 °C, shrinkage rate 1-2 %, tested for harmful substances according to OEKO -Tex Standard 100
Colour: white
Full length: 1800, 2000 mm
Width 1400, 2000, 3000 mm
14943 / 14944
Shower curtain PLAN Flame CS*
highly flame resistant according to DIN 4102/B1
100% Trevira, 80 g/m², shower-proof, fungicidal, anti-bacterial, anti-static, washable at 30 °C, can be disinfected at 60 °C (shrinkage rate 1-2%), ironing possible (shrinkage 1-3%), tested for harmful substances according to OEKO -Tex Standard 100
Colour: off-white
Full length: 1800, 2000 mm
Width: 1400, 2000, 3000 mm
14946 / 14947 / 34948
Shower curtain PLAN maxxi*
100% polyester, 75 g/m², shower-proof, fungicidal, anti-bacterial, washable at 30 °C (Shrinkage rate 3%), ironing possible (shrinkage 1-3%), tested for harmful substances according to OEKO -Tex Standard 100
Colour: white
Full length: 670, 1800, 2000 mm
Width: 1400, 1800, 2000, 3000 mm
14945
Shower curtain PLAN* all sizes are custom made. Please specify: material, colour, full length and width
* Notes on production characteristics: Vertical seams, reinforced stainless steel eyelets, distance between the eyelets approx. 20 cm, roll hem stainless steel weighted, 50 g per metre, complete with curtain rings, white.
Notes on sizes: The sizes indicated are the sizes of the finished curtain. To prevent the curtain from touching the ground we recommend a distance from curtain to floor of approx. 30 mm. Distance between the middle of the curtain rod and the upper edge of the curtain approx. 40 mm. The width of the curtain should be approx. 1.3 to 1.5 times the length of the shower curtain rod.
THERMOSTAT
SINGLE LEVER MIXER
59551
Single lever mixer DN 15
Mixing cartridge with ceramic sealing gaskets, temperature controlled, set complete with: handle, sleeve, rosette (round or square) and installation unit, suitable for rough part no. 59551/000070
59551
Installation unit for single lever mixer DN 15
Rough part for recessed installation
59553
Thermostat battery DN 15
Set complete with: handle, sleeve and rosette (round or square) suitable for rough part no. 59553/000070
59553
Installation unit for thermostat battery DN 15
Rough part for recessed installation
59556
2-way diverter valve DN 15
59547
Wall outlet for shower hose DN 15 with round or square decorative disc, intrinsically safe against backflow
Projection: 55 mm
59592
Wall outlet for shower hose with hand shower bracket DN 15 for shower hoses with fitted conical end brackets, with round or square decorative disc, intrinsically safe against backflow
59541
Stop valve DN 15
Set complete with:
handle, casing rosette (round or square) and stop cock suitable for rough part no. 59541/000070
59541
Installation unit for stop valve DN 15
Rough part for recessed installation
59541
Stop valve with wall outlet for shower hose DN 15
Set complete with:
handle, casing, rosette (round or square) and stop cock, intrinsically safe against backflow, suitable for rough part no. 59541/000170
59541
Installation unit for stop valve with wall outlet for shower hose DN 15
Rough part for recessed installation
2-way diverter valve with wall outlet for shower hose and hand shower bracket DN 15 Set complete with:
casing, rosette (round or square) and diverter valve, intrinsically safe against backflow, suitable for rough part no. 59556/000170
stop and diverter valve DN 15
casing rosette (round or square) and stop and diverter valve suitable for rough part no. 59556/000070
2-way stop and diverter valve with wall outlet for shower hose DN 15
Set complete with:
casing, rosette (round or square) and stop and diverter valve, intrinsically safe against backflow, suitable for rough part no. 59556/000170
59541
Stop valve with wall outlet for shower hose and hand shower bracket DN 15
Set complete with:
handle, casing, rosette (round or square) and stop cock, intrinsically safe against backflow, suitable for stop cock no. 59541/000170
59541
Installation unit for stop valve with wall outlet for shower hose DN 15
Rough part for recessed installation
59557 2-way stop and diverter valve with wall outlet for shower hose and hand shower bracket DN 15
Set complete with: handle, casing, rosette (round or square) and stop and diverter valve, intrinsically safe against backflow, suitable for rough part no. 59556/000170
59548
3-way diverter valve DN 15
Set complete with:
handle, casing , rosette (round or square) and diverter valve suitable for rough part no. 59548/000070
59548
3-way diverter valve with wall outlet for shower hose DN 15
Set complete with:
handle, casing, rosette (round or square) and diverter valve, intrinsically safe against backflow, suitable for rough part no. 59548/000170
59548
3-way diverter valve with wall outlet for shower hose and hand shower bracket DN 15
Set complete with:
handle, casing, rosette (round or square) and diverter valve, intrinsically safe against backflow, suitable for rough part no. 59548/000170
59548
Installation unit for 3-way diverter valve DN 15
Rough part for recessed installation
59548
Installation unit for 3-way diverter valve with wall outlet for shower hose DN 15
Rough part for recessed installation
59548
Installation unit for 3-way diverter valve with wall outlet for shower hose DN 15
Rough part for recessed installation
59549
3-way stop and diverter valve DN 15
Set complete with:
handle, casing rosette (round or square) and stop and diverter valve suitable for rough part no. 59548/000070
59548
Installation unit for 3-way diverter valve DN 15
Rough part for recessed installation
59549
3-way stop and diverter valve with wall outlet for shower hose DN 15
Set complete with: handle, casing, rosette (round or square) and stop and diverter valve, intrinsically safe against backflow, suitable for rough part no. 59548/000170
59548 Installation unit for 3-way diverter valve with wall outlet for shower hose DN 15
Rough part for recessed installation
59549
3-way stop and diverter valve with wall outlet for shower hose and hand shower bracket DN 15
Set complete with:
handle, casing, rosette (round or square) and stop and diverter valve, intrinsically safe against backflow, suitable for rough part no. 59548/000170
59548
Installation unit for 3-way diverter valve with wall outlet for shower hose DN 15 Rough part for recessed installation
59516
Single lever basin mixer concealed fitting DN 15, cartridge mixer with ceramic sealing gaskets aerator SLIM SSR M 24 x 1, adjustable flow angle, flow rate limited to 7,6 l/min. (essential for installation: rough part article No. 59916 to be ordered
59553
Extension rosette
25 mm, round or square, brass, for installation between tiles and finish set for installation of stop and diverter valve in walls with a low wall thickness, installation depth 55-80 mm, suitable for rough part art. no. 59553 000070
59551
Extension rosette
25 mm, round or square, brass, for installation between tiles and finish set for installation of stop and diverter valve in walls with a low wall thickness, installation depth 55-80 mm, suitable for rough part art. no. 59541/000070, 59541/000170, 59548/000070, 59548/000170, 59556/000070, 59556/000170
59551
Extension rosette
25 mm, round or square, brass, with red/blue marker, for installation between tiles and finish set for installation of stop and diverter valve in walls with a low wall thickness, installation depth 55-80 mm, suitable for rough part art. no. 59556/000070
59949
Tube interrupter in accordance with DIN EN 1717 in a wall mounting box with chrome-plated cover (round)
Note: Behind the tube interrupter is no shutoff allowed. Installation only in a vertical position.
59949
Cover cap round (90 mm Ø) or square (90 x 90 mm), for tube interrupter article no. 59949/000070
59551
Extension set for single lever mixer
30 mm (installation depth 110-140 mm), for base structure 59551/000070
59553
Extension set for thermostatic mixer
30 mm (installation depth 110-140 mm), for base structure 59553/000070
59556
Extension set for stop and diverter valve
30 mm (installation depth 110-140 mm), for base structure 59541/000070, 59556 /000070 59548 /000070
59556
Extension set for stop and diverter valve with wall outlet for shower hose
30 mm (installation depth 110-140 mm), for base structure 59541/000170, 59556/000170, 59548/000170
59552 Set consisting of:
– Single-lever mixer with wall outlet for shower hose DN 15
Mixing cartridge with ceramic sealing gaskets, temperature limiter and flow rate limiter, wall outlet for shower hose intrinsically safe against backflow in accordance with DIN EN 1717, 90 mm projection
Finish set consisting of: lever, sleeve, decor disc (round or rectangular), installation unit and wall outlet for shower hose
– In-wall installation unit for single-lever mixer with wall outlet for shower hose DN 15 Rough part for recessed installation, installation depth 65 – 95 mm
Classification according to noise group I and flow rate class A
51187

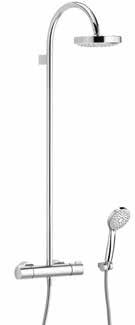

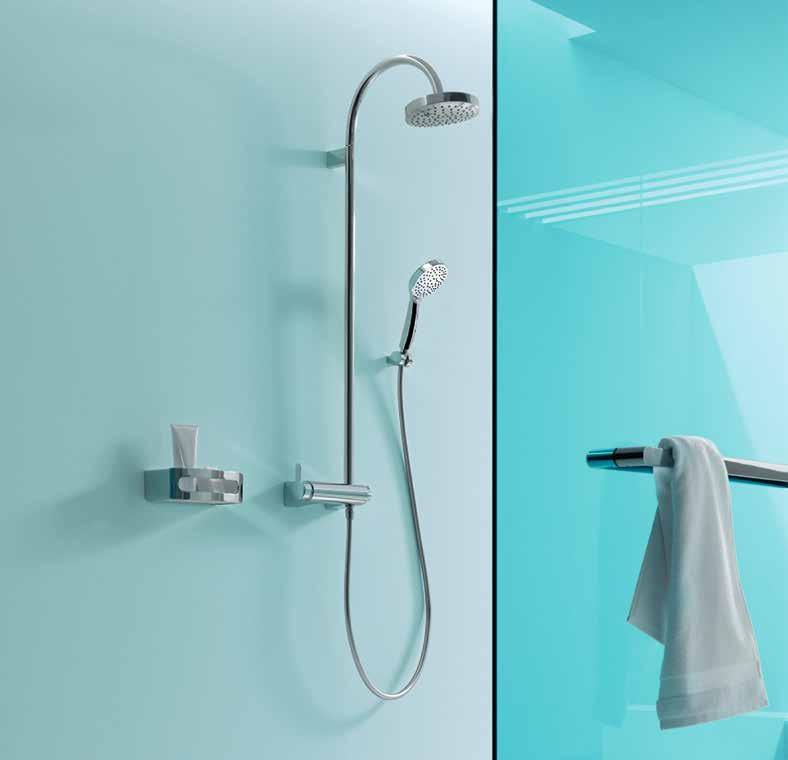

Shower set consisting of:
– 900 mm rail with sliding bracket for shower head, height adjustment with handle, tilt angle adjustable
59587
51604
51608

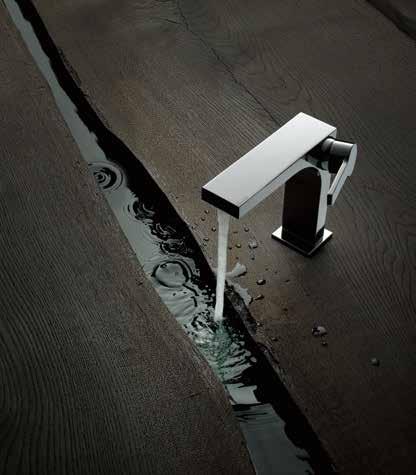

basin mixer concealed fitting DN 15 cartridge mixer with ceramic sealing gaskets and temperature control, aerator SLIM SSR M 24 x 1, adjustable flow angle (essential for installation: rough part article no. 51116 to be ordered separately)
Note: flexible arrangement of lever and spout possible during assembly.
51609
Single lever bidet mixer with pop-up waste 1 1/4 Inch, 1-hole installation, cartridge mixer with ceramic sealing gaskets aerotor M 24 x 1 51620 Single lever bath tub mixer exposed fitting cartridge mixer with ceramic sealing gaskets, with automatic diverter and backflow preventer 51620 Single lever bath tub mixer with head shower exposed fitting cartridge mixer with ceramic sealing gaskets, with automatic diverter, with backflow preventer, head shower swivelling, Ø 180 mm, hand shower with normal, soft and massage jet, with sliding bracket, wall bracket and shower hose, 1600 mm
51645

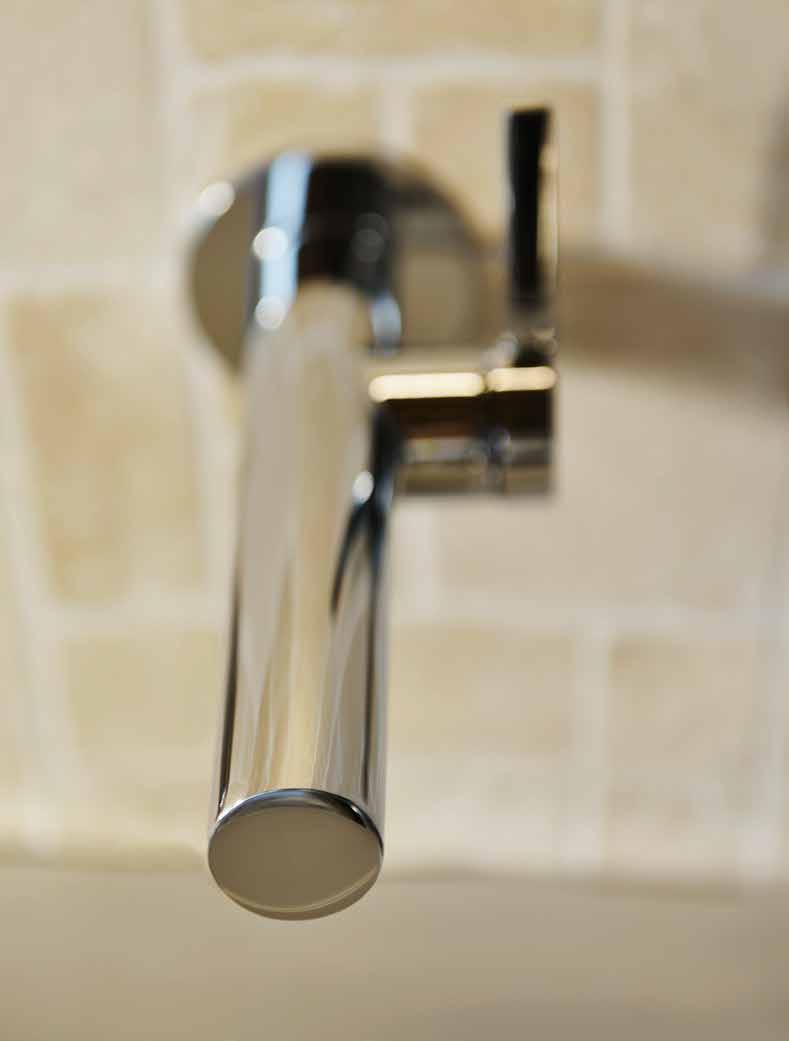

filler/spout DN 20 suitable for all concealed fittings Projection: 173, 223 mm
51630
lever bath tub and shower mixer 4-hole bath deck-mounted cartridge mixer with ceramic sealing gaskets, with automatic diverter and backflow preventer concealable hand shower with normal, soft and massage jet
51624
Thermostat battery for shower exposed fitting
with 50% water consumption regulation, safety cut-off at 38 °C, with backflow preventer
51626
51686
56161
Shower and bathtub board with thermostat battery DN 20
Finish set for the regulation of 1 user handles as desired left or right complete with:
– Mounting frame
– Panel made of ESG glass, with frame and one shelf made of aluminium
– Knob for thermostat with safety cut-off at 38 °C
– Shut-off handle
Dimensions (w x h): 800 x 200 mm
(essential for installation: rough part article no. 56161 000071 to be ordered separately)
56164
Shower board with thermostat battery DN 20
Finish set for the regulation of 1 user handles right, complete with:
– Mounting frame
– Panel made of ESG glass, with frame and three shelfs made of aluminium
– Knob for thermostat with safety cut-off at 38 °C
– Shut-off handle
Dimensions (w x h): 420 x 950 mm
(essential for installation: rough part article no. 56161 000071 to be ordered separately)
56162
Shower and bathtub board with thermostat battery DN 20
Finish set for the regulation of 2 users handles as desired left or right with/without safety device complete with:
– Mounting frame
– Panel made of ESG glass, with frame and one shelf made of aluminium
– Knob for thermostat with safety cut-off at 38 °C
– Shut-off and adjustment handle
Dimensions (w x h): 800 x 200 mm
(essential for installation: rough part article no. 56162 000072 to be ordered separately)
56165
Shower board with thermostat battery DN 20
Finish set for the regulation of 2 users handles right, complete with:
– Mounting frame
– Panel made of ESG glass, with frame and three shelfs made of aluminium
– Knob for thermostat with safety cut-off at 38 °C
– Shut-off and adjustment handle
Dimensions (w x h): 420 x 950 mm
(essential for installation: rough part article no. 56162 000072 to be ordered separately)
56163
Shower and bathtub board with thermostat battery DN 20
Finish set for the regulation of 3 users handles as desired left or right complete with:
– Mounting frame
– Panel made of ESG glass, with frame and one shelf made of aluminium
– Knob for thermostat with safety cut-off at 38 °C
– Shut-off handle
– Adjustment grip
Dimensions (w x h): 800 x 200 mm
(essential for installation: rough part article no. 56163 000073 to be ordered separately)
56166
Shower board with thermostat battery DN 20
Finish set for the regulation of 3 users handles right, complete with:
– Mounting frame
– Panel made of ESG glass, with frame and three shelfs made of aluminium
– Knob for thermostat with safety cut-off at 38 °C
– Shut-off handle
– Adjustment grip
Dimensions (w x h): 420 x 950 mm
(essential for installation: rough part article no. 56163 000073 to be ordered separately)
59948
Exposed part for 3-way diverter valve UP complete with: handle, sleeve, rosette (round/square)
The extraordinary surface characteristics and extremely fine colour nuances of our products can only be reproduced to a certain degree in print. Only the original KEUCO products, which can be viewed in sanitary trade dealers’ showrooms, can provide you with an optimum impression.
Reproduction and copying, even if only excerpts, are only permitted by explicit permission of the manufacturer, and with the inclusion of source information.
KEUCO GmbH & Co. KG, Postfach 1365, D-58653 Hemer
We reserve the right to make engineering changes for the purpose of improvement, as well as colour and design changes that are deemed necessary. Errors and omissions excepted.
Concept, design, text and lithography: KONTRAST Communication Services GmbH, Düsseldorf
Photography: Stephan Schacher, New York; Eva Gaida, Aalen; Casa, Münster; PF-Medien, Menden
Printing: Meinders & Elstermann GmbH & Co. KG, Belm, Osnabrück
Printed on GALAXI Keramik. Supplied by Papier Union.
For more information please visit www.keuco.de
