Welcome to the world of ESS Easy Sanitary Solutions

ESS stands for Easy Sanitary Solutions, and is at the same time the best and most appropriate statement describing our products. Simple, practical and advantageous for installation specialists and end-users, in the very best quality with an attractive and modern design. As a family owned company we have been designing, developing and producing sanitary solutions since 1928.

Top quality

ESS is committed to excellent products with attention to quality and durability. All our products are developed and manufactured inhouse in our factories in the Netherlands and Germany. This is how ESS guarantees highest quality. All products are subject to extensive testing and evaluation, to ensure a long lasting life in your bathroom.

Exclusive design

ESS has a passion for design. Therefore, we design all our products ourselves, with love for details.

Innovation power

Innovation is the soul of the company. ESS is constantly changing the world of sanitary with new ideas and solutions that add more comfort and ease of installation to the bathroom. Out-of-the-box thinking and intensive market contact enables ESS to innovate. Thanks to this innovation power customers all over the world know how to find ESS

We guarantee: Innovative and trendsetting bathroom solutions

‘Made in Germany quality’ and Exclusive and internationally acknowledged ‘Dutch design’

Over 80 years knowledge & experience in sanitary Square

This way we give all our products the exclusive Dutch design, which we are so proud of. ESS products are renowned worldwide for their exquisite design and have been awarded several international design and innovation awards.

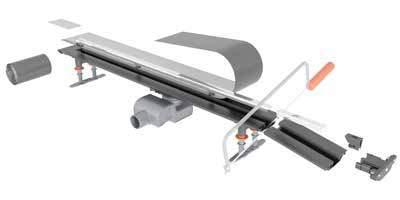

The product benefits Easy Sanitary Solutions

Height adjustable feet

Easy Drain shower drains are supplied with adjustable legs for easy height adjustment and levelling as well as fixing the build-in set during installation. Our Wall models come with a special mount for easy application against the wall.

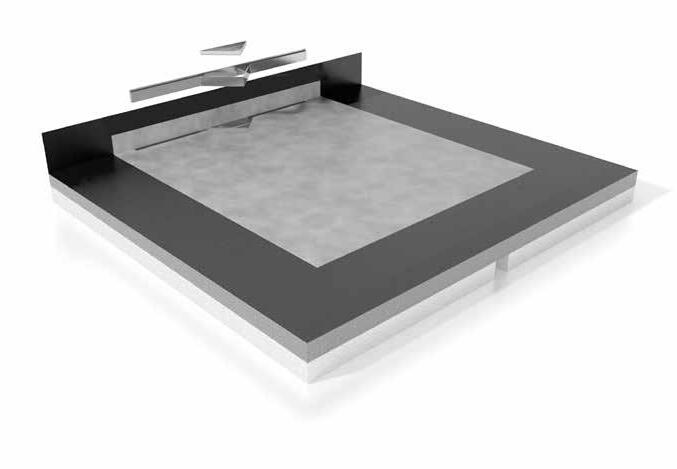

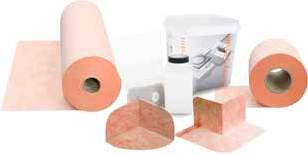

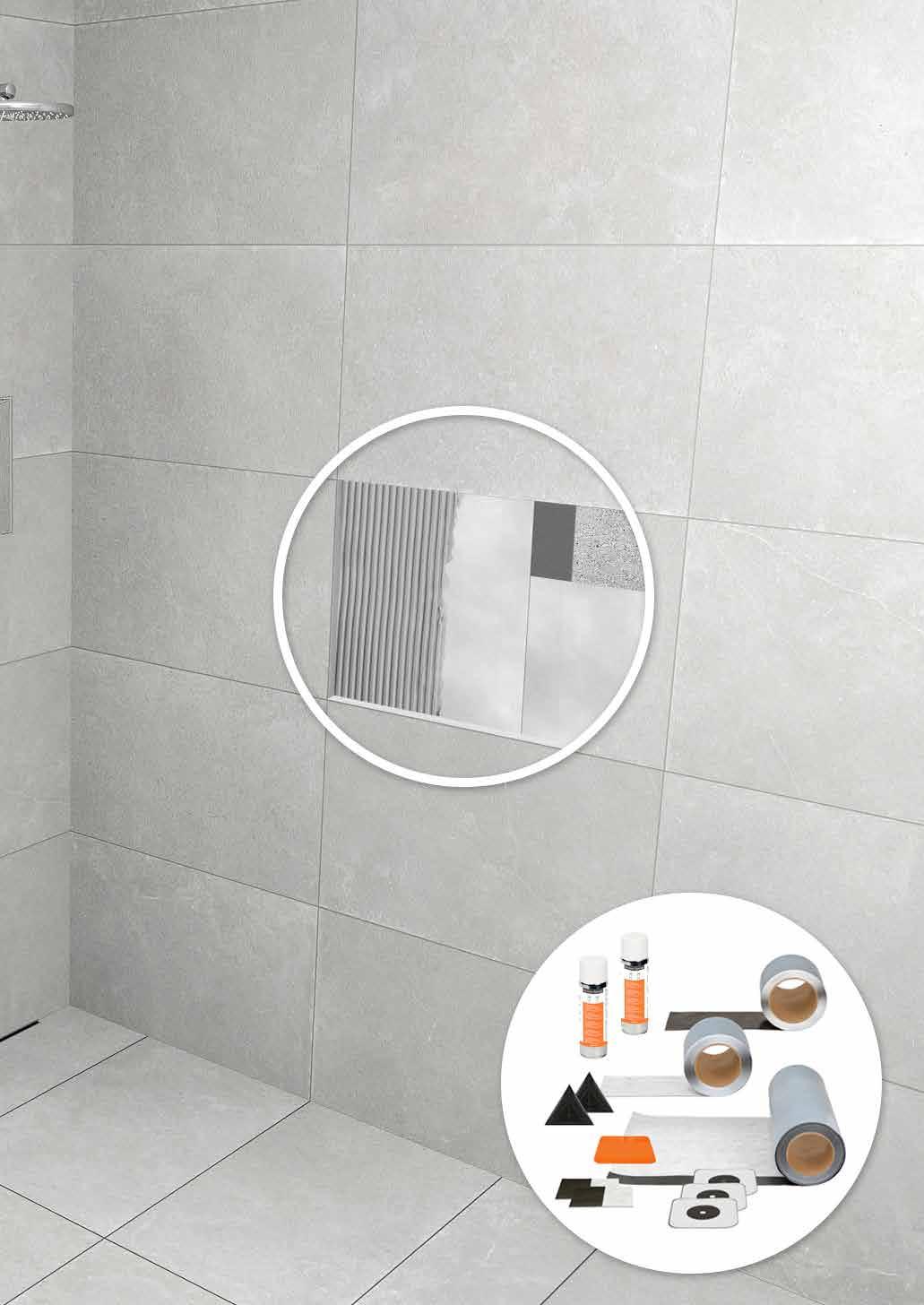

Wet area sealing system

Our Wet area Sealing System offers a guaranteed safe watertight system solution, in combination with an Easy Drain with Water Protection System (WPS). This seal kit ensures water tightness including warranty of 10 years!

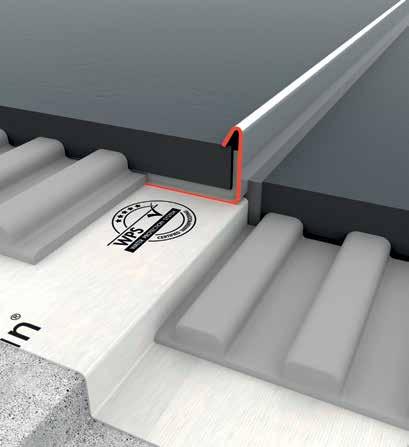

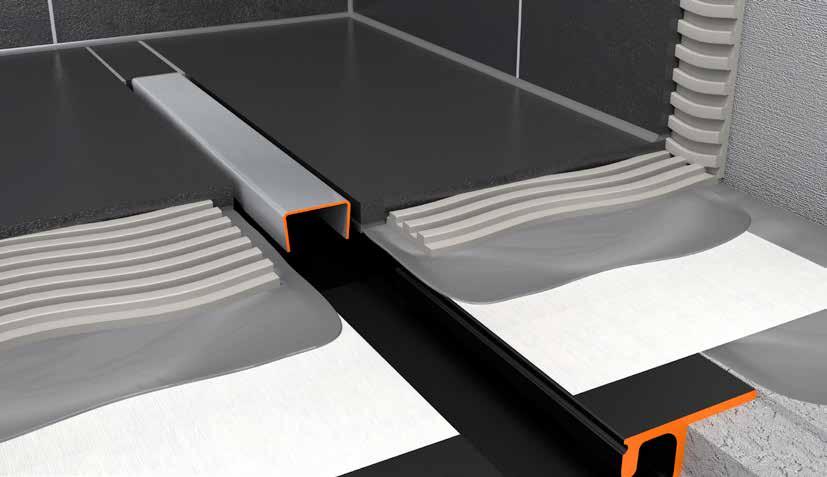

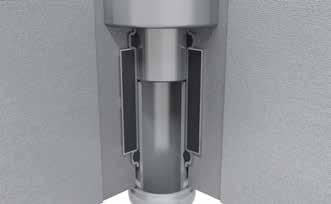

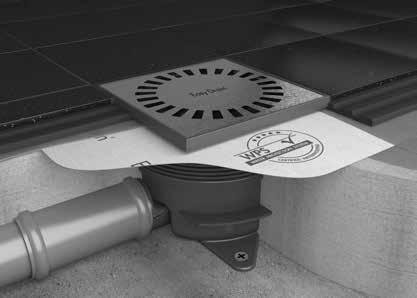

Water protection system

The innovative Water Protection System (WPS) provides an easy-to-install and safe-to-assemble sealing system for linear shower- and floor drains. This WPS-system consists of a flexible waterproofing membrane which is connected to the linear drain’s stainless steel flanges or the floor drain’s special cuff. This way, leaking as a result of faulty installation due to unfavorable conditions is eliminated.

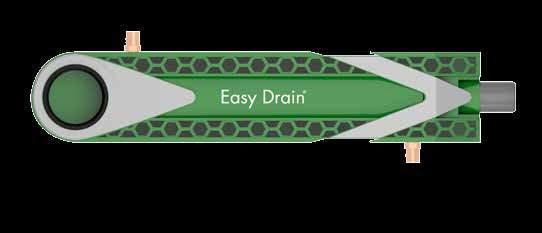

Grate removal tool

Easy Drain shower drains are supplied with a Grate Removal Tool to easily remove the grate for cleaning and maintaining your shower drain

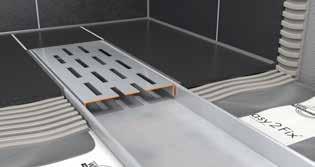

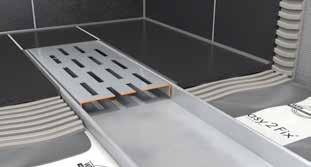

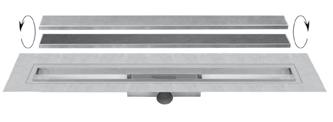

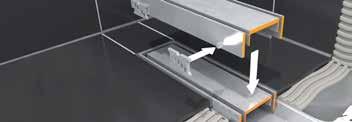

TAF (Tile Adjustable Frame)

The innovative TAF-system is fully adjustable at the time of tiling. TAF saves time and ensures a perfect fit with any thickness of floor material. TAF-system is available in standard (7-18 mm), high version (17-28 mm) and low version (3-13 mm)

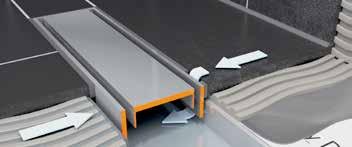

Secondary drainage

With our patented TAF-system (Tile Adjustable Frame) we offer a unique option to apply secondary drainage in a barrier-free installation. This way, any water leaking under the tiles due to porous sealant or cracks can flow back into the shower drain.

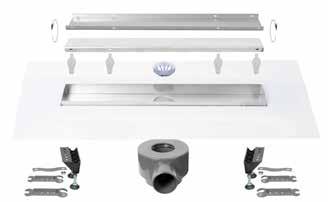

Complete sets

ESS products are supplied as complete set that only consists of a few parts which enable a quick and easy installation. By using our crystal clear installation- advice and videos, assembling an Easy Drain is only a matter of seconds!

We offer our product data in BIM-format. These BIM files are compatible with architectural CAD software Autodesk Revit and available in ICF format: the open and neutral data format for BIM in the construction industry.

Why use BIM?

Working with BIM offers the possibility to simplify the design and implementation (costs) of construction projects. BIM stands for “Building Information Modelling” and makes it possible to visualize the construction process in a single model. All cooperating parties (architect, designer, installer, etc.) have access to these files to ensure an efficient construction process.

Advantages

• All parties work with the latest and most relevant data

• Maintain control of complex projects

• Minimization of risks in the construction and thus reduction of costs

• Improved quality of buildings

• Improvement of project communication

CREATE A BETTER PLACE

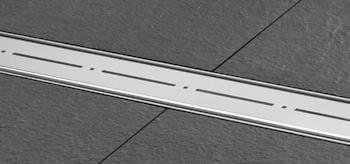

Standard finish

For thin coverings

Natural stone coverings

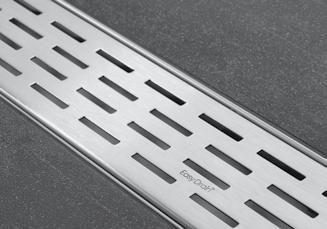

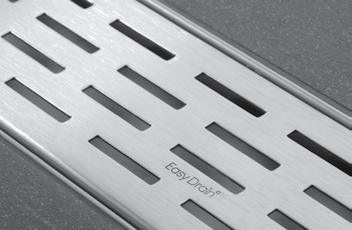

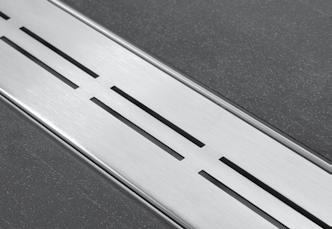

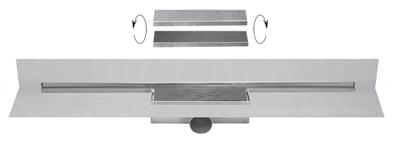

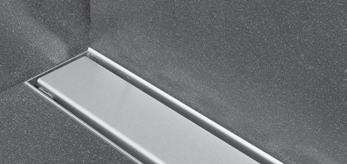

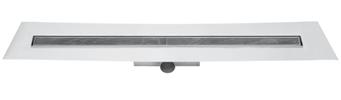

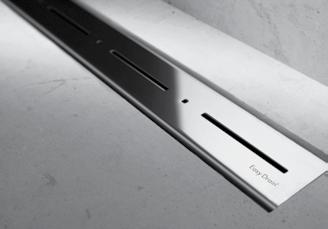

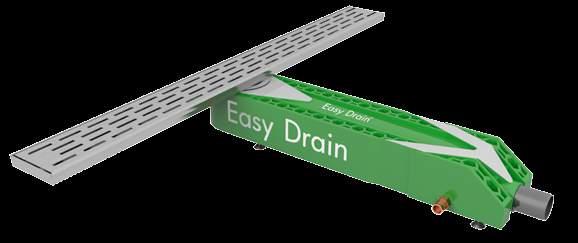

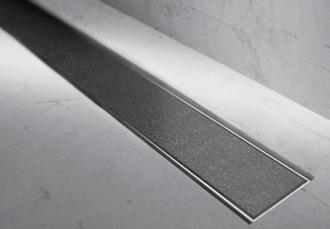

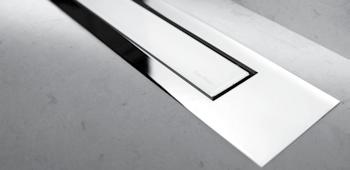

Easy Drain®

The original

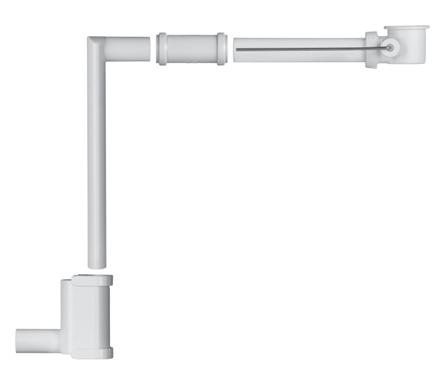

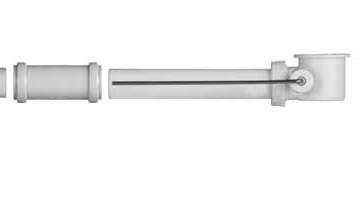

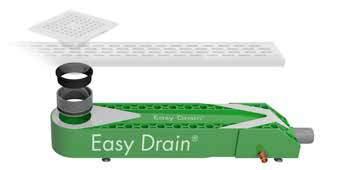

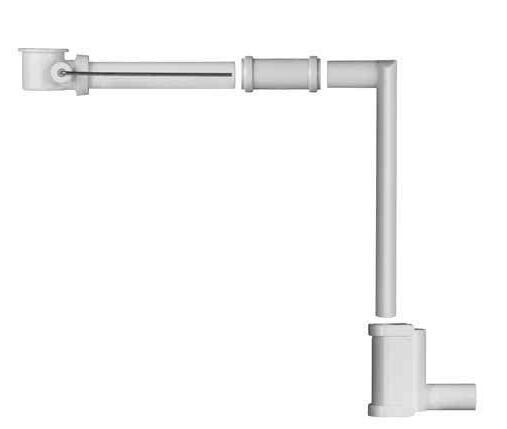

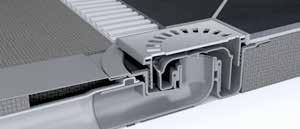

pIvotED AnD ADjustAbLE DRAINAGE SIPhON

whEELchAIr AccEssIbLE

cLEAnAbLE DrAInAgE SIPhON

InstALLAtIon

In thE fLoor

hEIght ADjustAbLE DRAINAGE SIPhON

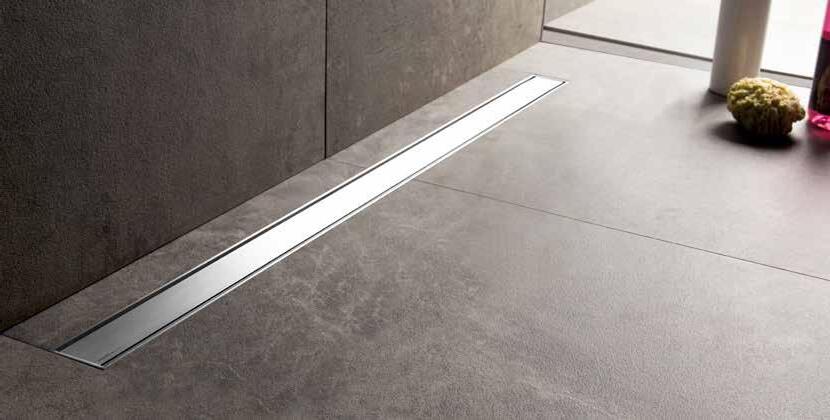

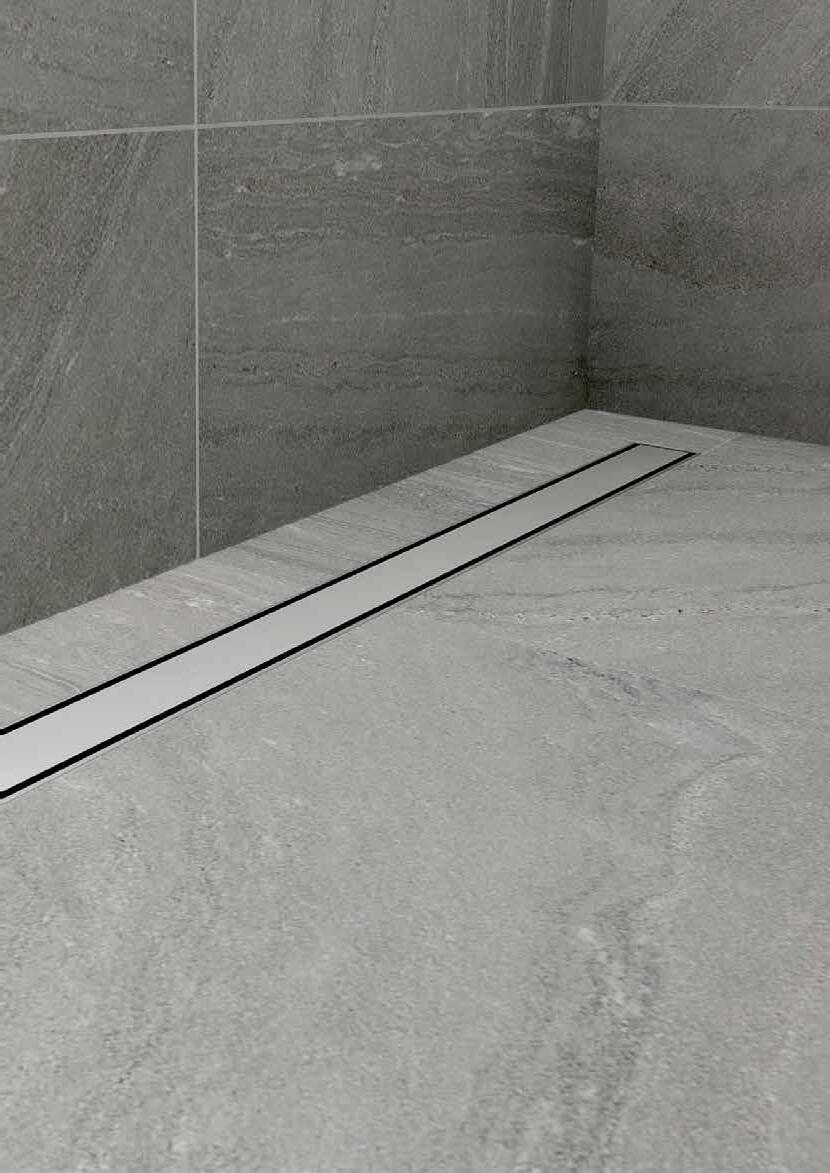

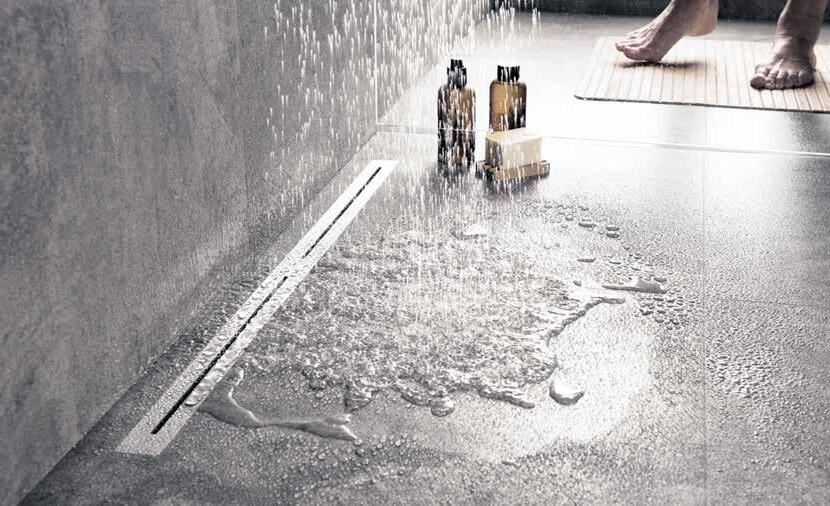

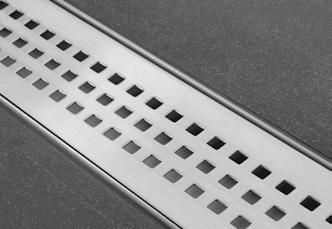

Enjoy showering in complete freedom. The Easy Drain series offers you complete freedom in designing your own bathroom. you decide where and how you want to shower. The modern and timeless design grates will give a unique touch to your shower sensation. Showering in complete freedom. you create a unique space without barriers. Think free. Shower free. Easy Drain is the original concept, designed by ESS As the inventors of barrier-free showering, we know how to amaze the world time and time again with breakthrough innovations. The patented TAF (Tile Adjustable Frame) and WPS (Water Protection System) systems have unleashed a revolution in barrier-free showering.

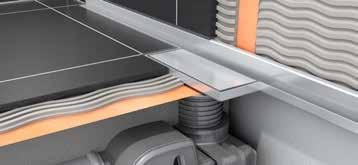

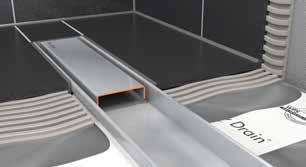

TAF: a height adjustable grate support frame, which ensures a perfect and smooth levelling of the grate to any tile thickness and offers simultaneously secondary water drainage.

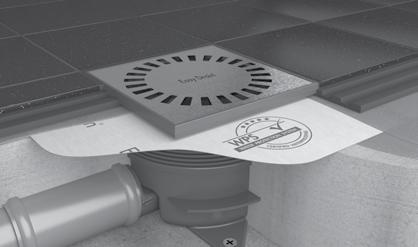

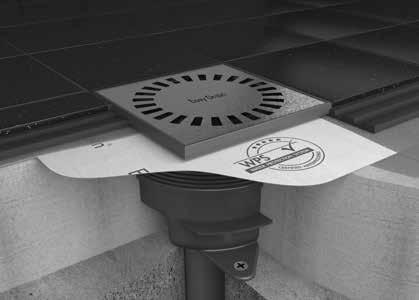

WPS: this system guarantees watertightness and thereby security. What is possible due to the pre-assembled sealing membrane. All of our products are tested extensively, which is why you can rely on our quality. Easy Drain is approved to European Standard EN 1253*, the highest functionality testing standard.

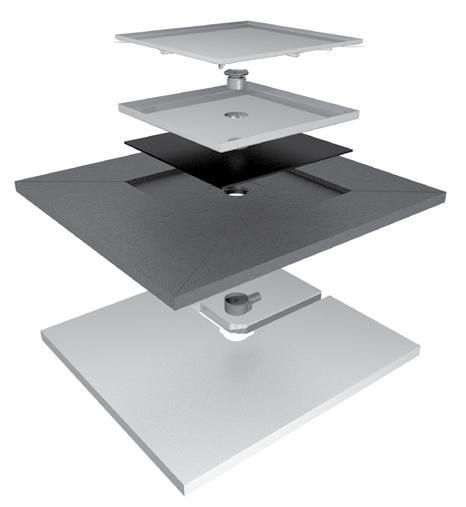

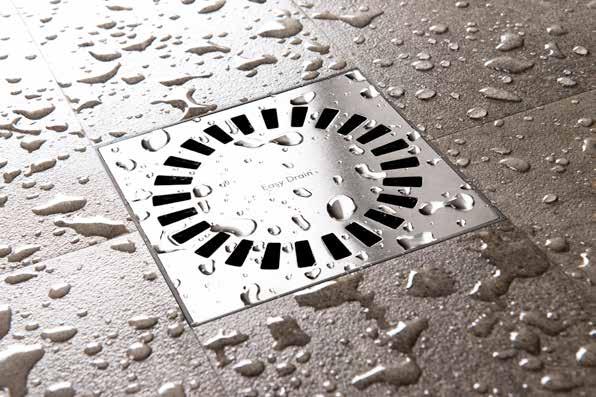

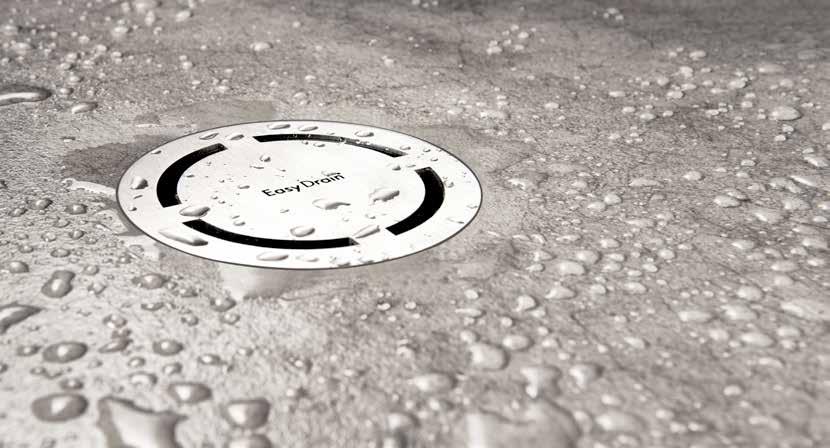

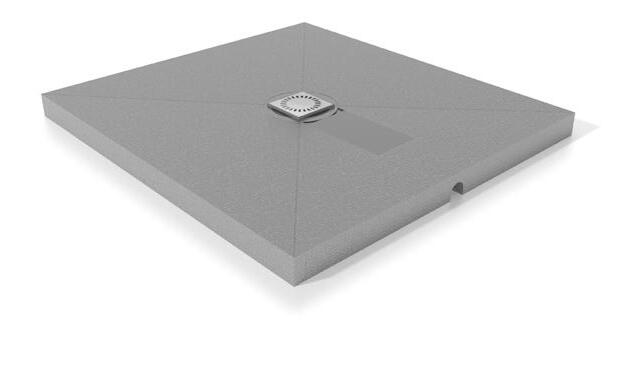

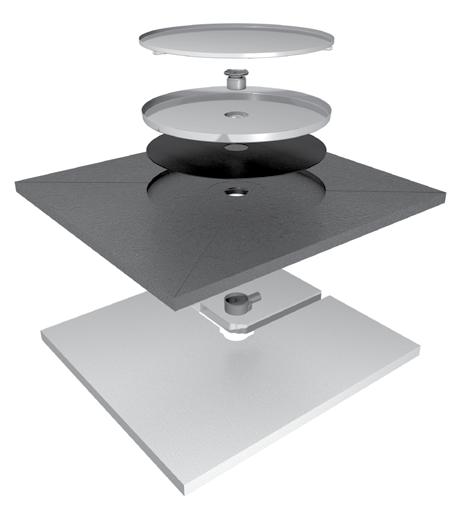

Dot – Creative freedom

Creative freedom and independence

This extra ordinary shower drain from Easy Drain is characterized by its circular shape and extra ordinary size. It offers designers creative freedom and independence in creating a modern barrier-free shower.

Easy Drain offers endless possibilities, both technical and in terms of design, to create the bathroom of your dreams.

Easy Drain Dot is perfect for renovations thanks to the innovative and Multi drainage technology. The included shower board can be easily adjusted in height and shortened to any desired length and width.

Product benefits:

• Connection - 360° rotatable

• Tile grate depth - 12 mm (the tile shown is not included)

• ABS Trap body - pivoted and height adjustable

• Drainage Syphon - removable and cleanable

• Showerboard - can be shortened to any required dimension

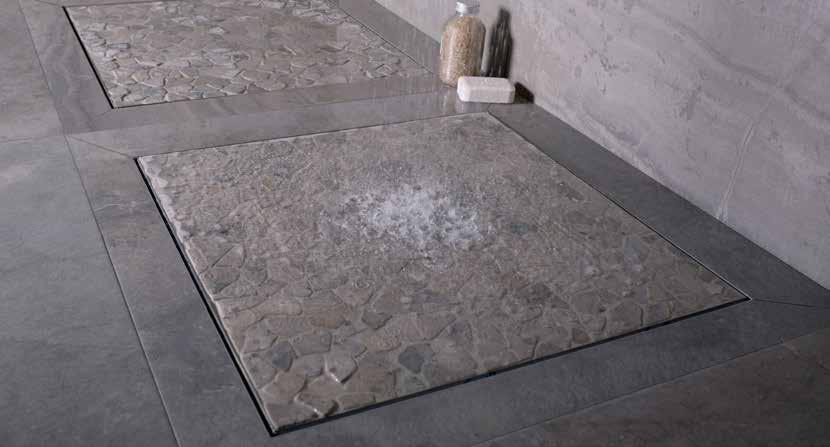

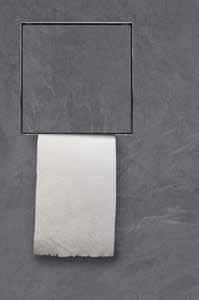

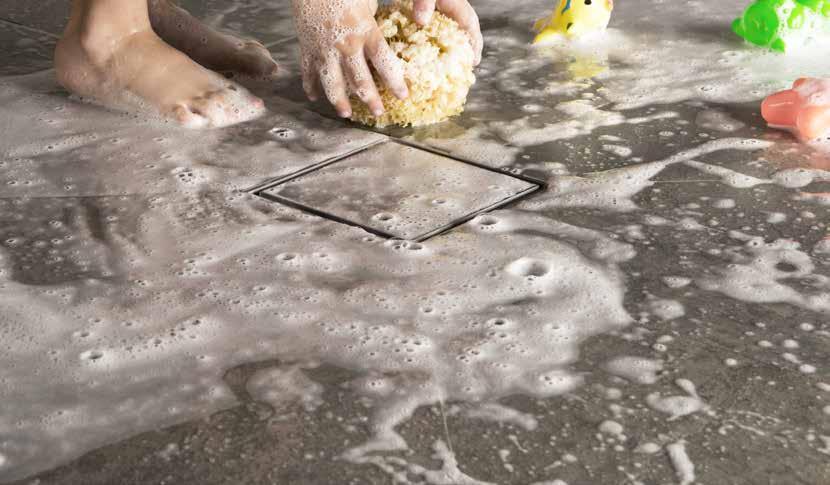

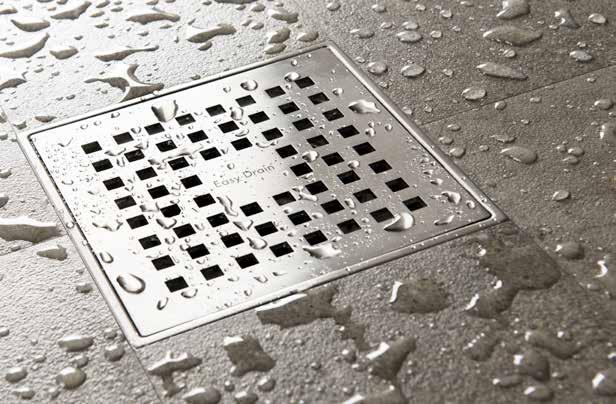

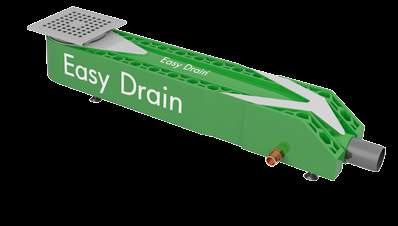

Square – Creative freedom &

tile thickness 9 - 18 mm

Creative freedom and independence

This unique shower drain from Easy Drain is characterized by its quadratic shape and extraordinary size. It offers designers creative freedom and independence in creating a modern barrier-free shower. Easy Drain offers endless possibilities, both technical and in terms of design, to create the bathroom of your dreams.

Easy Drain Square is perfect for renovations thanks to the innovative and patented Multi drainage technology. The included shower board can be easily adjusted in height and shortened to any desired length and width.

Product benefits:

• Connection - 360° rotatable

• Tile grate depth - 12 mm (the tile shown is not included)

• ABS Trap body - pivoted and height adjustable

• Drainage Syphon - removable and cleanable

• Showerboard - can be shortened to any required dimension

Ablaufleistung

S-line & M-line

Innovative

technology

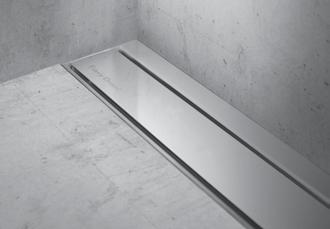

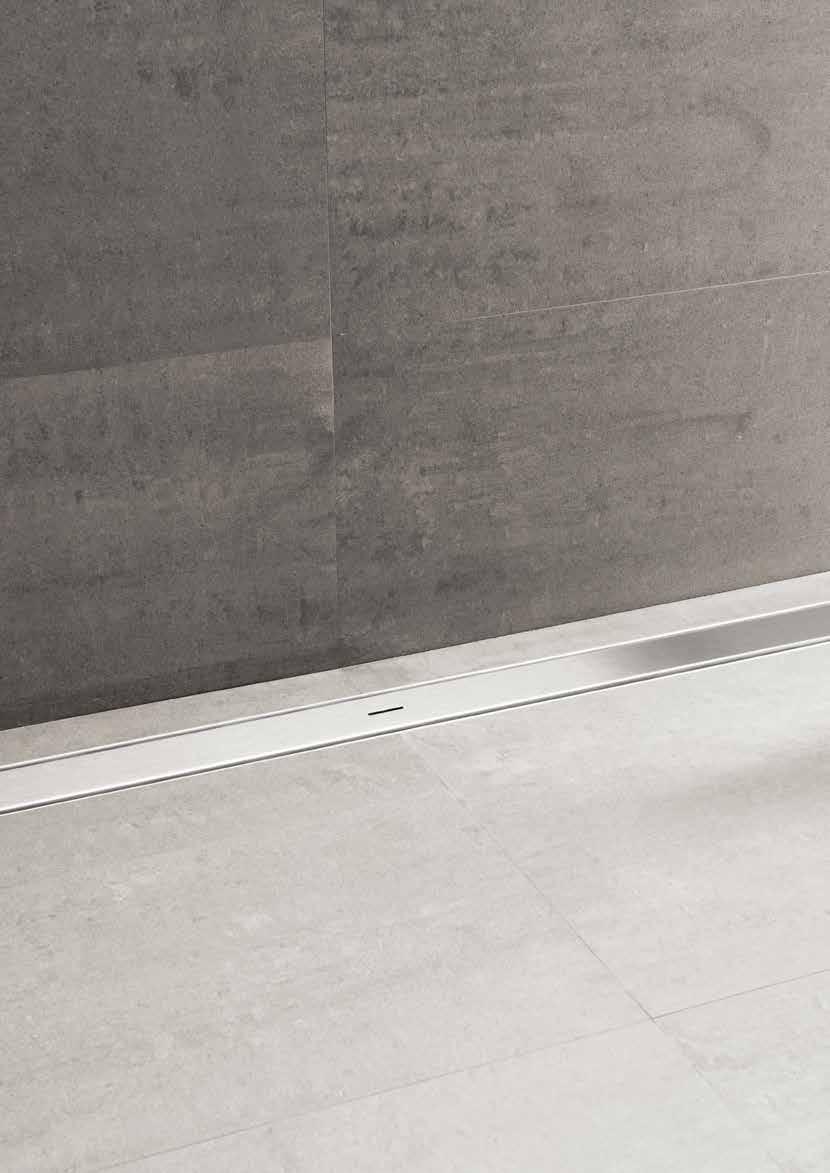

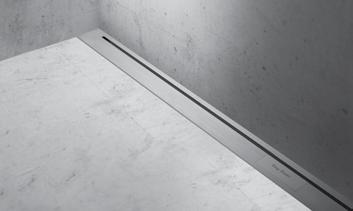

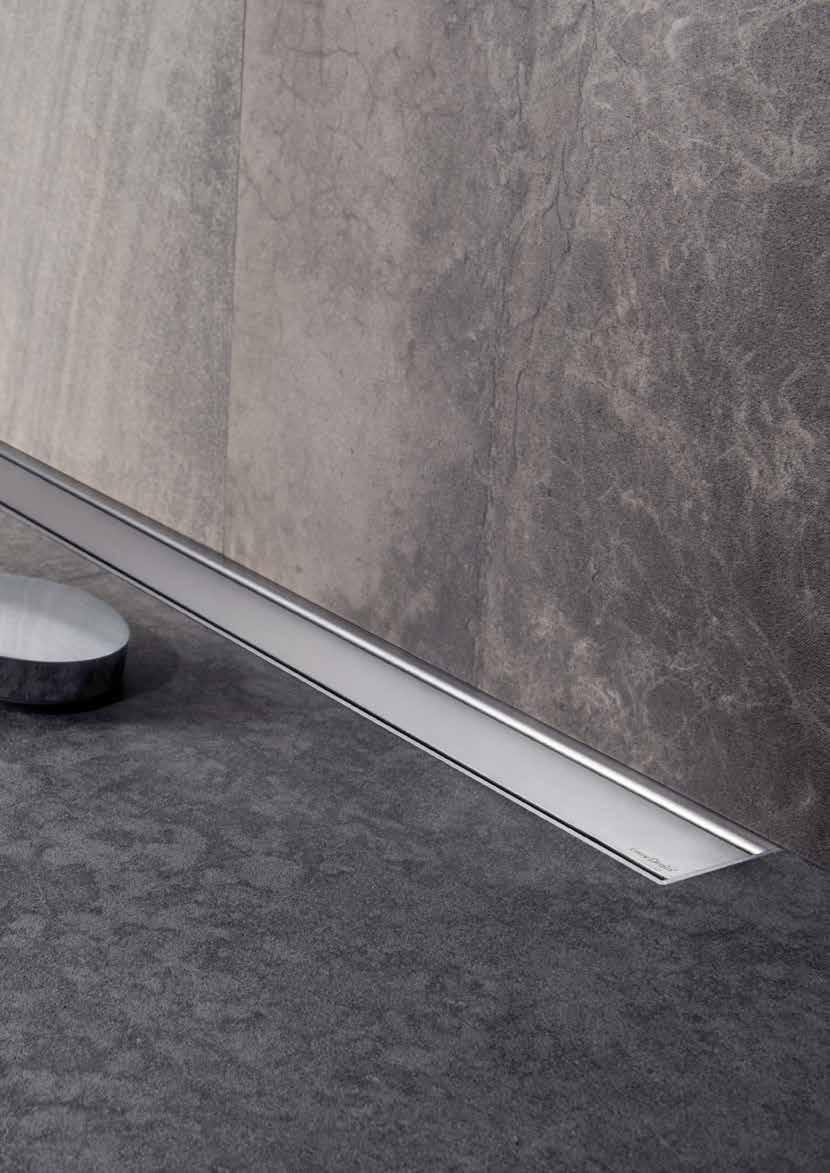

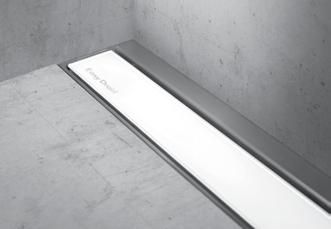

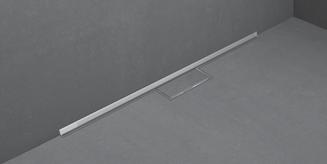

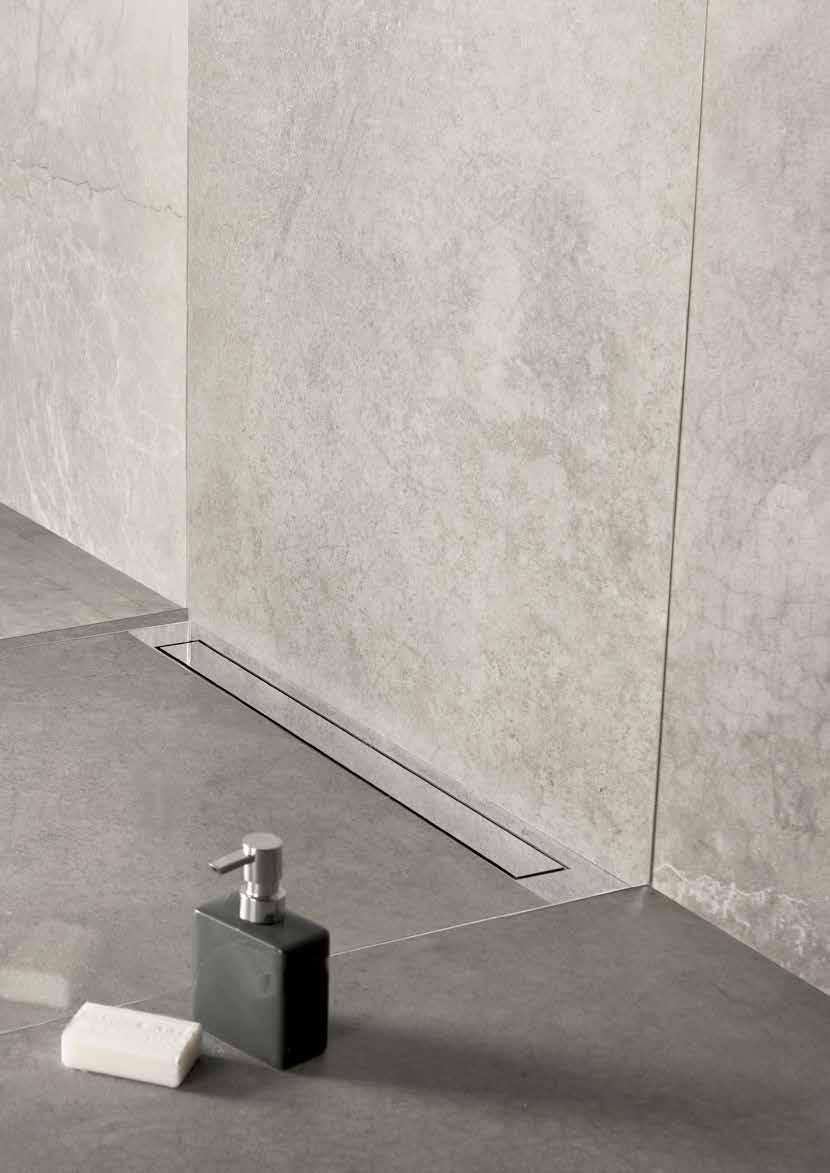

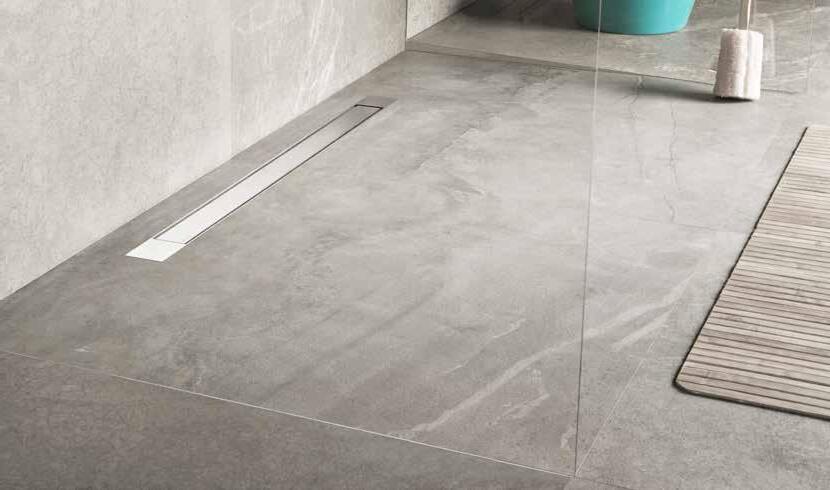

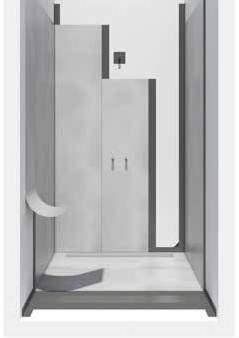

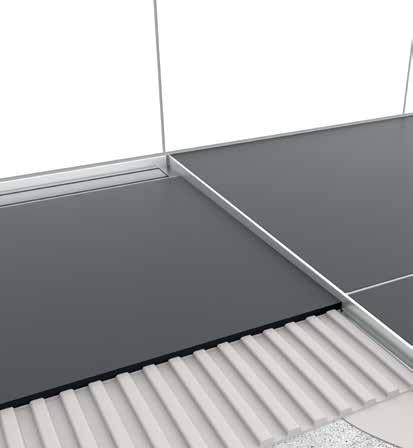

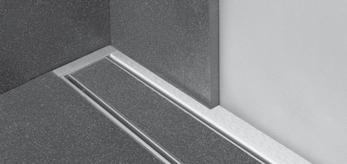

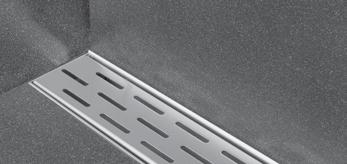

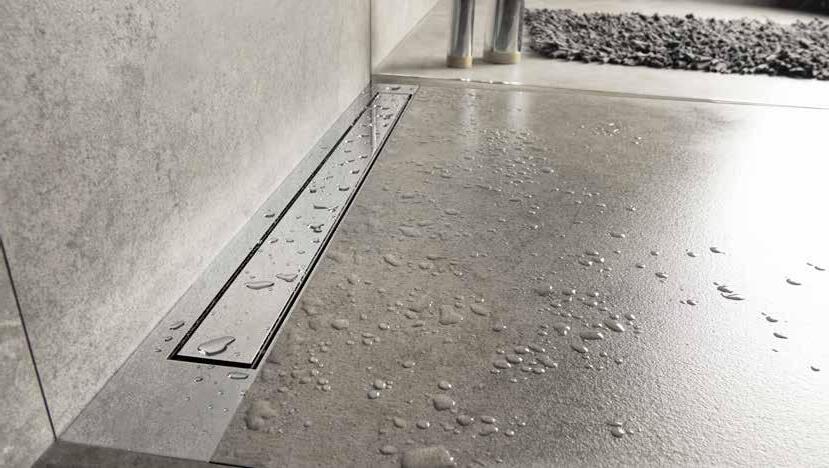

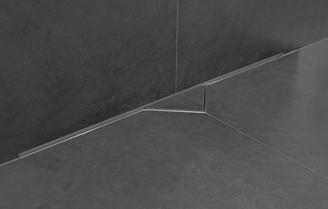

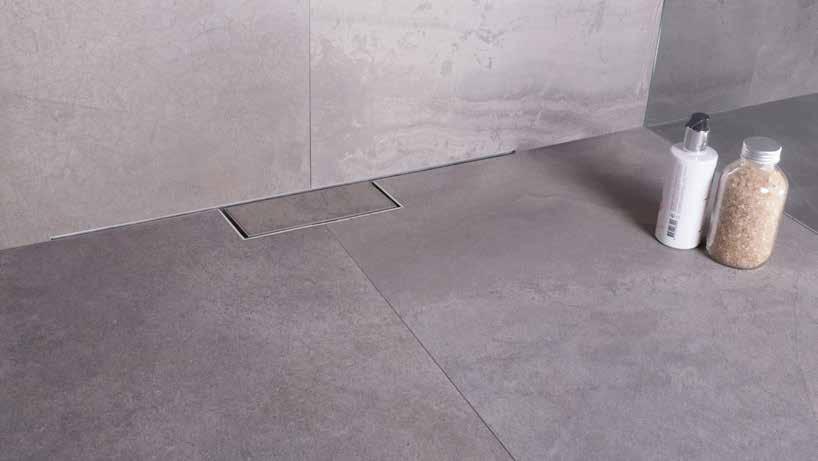

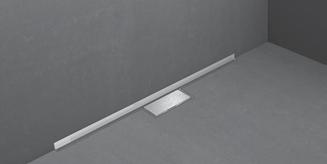

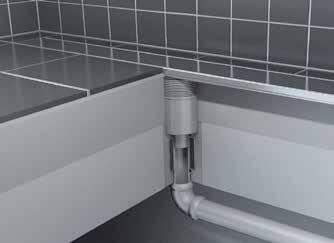

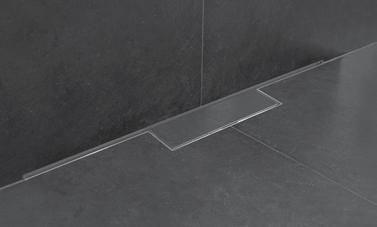

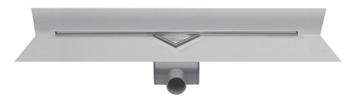

The perfect wall connection with innovative technology

The invisible and stylish wall drainage system from Easy Drain, equipped with our patented TAF and WPS-system. Our TAF system has been specially developed to enable secondary drainage while the pre-assembled sealing membrane (WPS) ensures a complete watertight installation. The S-line has a flexible wall connection for perfect installation and comes with an easyto-clean siphon.

Product benefits:

• TAF - height adjustable frame (7-18 mm)

• WPS - 100% watertight with 10 year warranty

• Trap body - pivoted and height adjustable

• Drainage Syphon - removable and cleanable

• Certified - EN 1253

set incl. grate

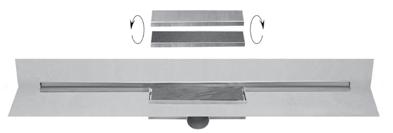

Complete set incl. grate and heightened TAF frame

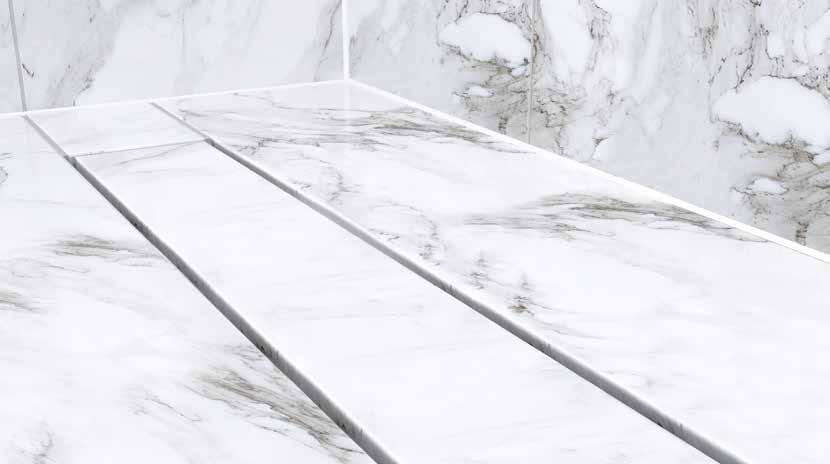

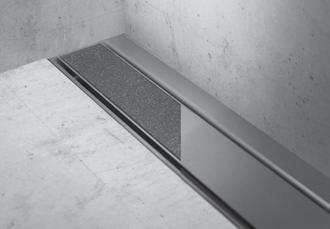

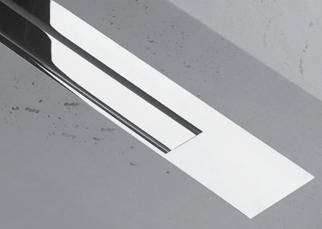

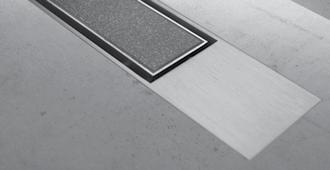

Heightened TAF frame

Heightened TAF frame: Specially for natural stone.

The tile shown is not included. The tile insert is 13 mm deep.

The heightened TAF frame is specially developed for application of natural stone in your bathroom floor, with a maximum tile thickness of 28 mm. Complete set Article code

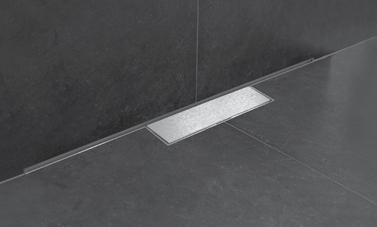

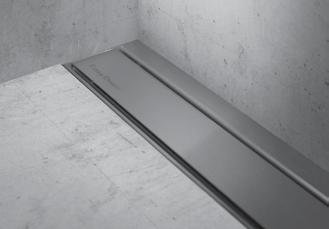

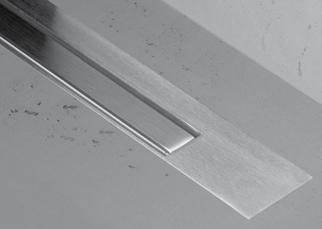

Innovative and flat: “All-in-one”

Innovative and flat: “all-in-one”

With the Easy Drain M-line you choose for the lowest shower drain in the world. Manufactured by the inventor of the linear shower drain. The invisible and stylish wall drainage system from Easy Drain, equipped with our patented TAF and WPS-system. Our TAF system has been specially developed to enable secondary drainage while the pre-assembled sealing membrane (WPS) ensures a complete watertight installation.

Product benefits:

• Easy to clean siphon

• Pre-assembled sealing membrane - WPS Technology

• Installation: directly at the wall

• Complete set

• Height adjustable TAF frame (7-18 mm)

• High drainage capacity up to 42 l/min

• EN 1253 certified (50 mm water seal)

thickness 7 - 18 mm

Technologypre-assembled sealing membrane

Nano

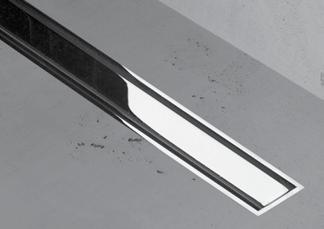

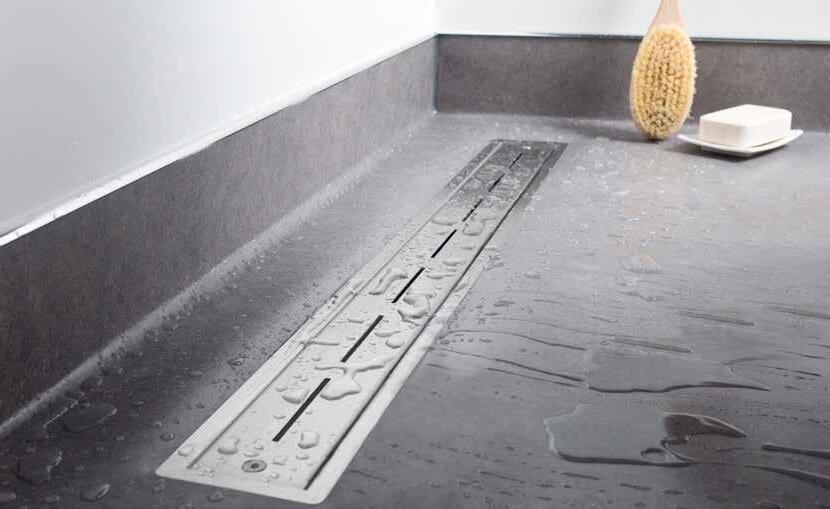

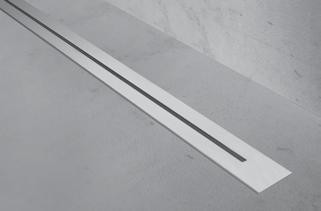

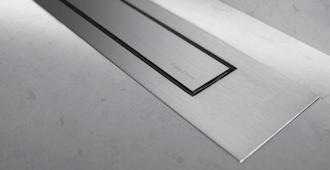

Xs Nano Barrier-free showering

The thinnest shower drainage system

Modern bathrooms have a simplistic and clean design. Easy Drain Xs Nano series definitely contributes to this kind of design. The Xs Nano is the world’s thinnest design linear shower drain and leaves a lasting impression, not only in terms of design but also technically. Xs Nano is equipped with the patented TAF-system and Water Protection System which means 100% watertight and a perfect finish. This elegantly designed linear shower drain can either be installed against the wall or free in the floor.

Nano Complete set

Nano Wall Complete set

Technologypre-assembled sealing membrane

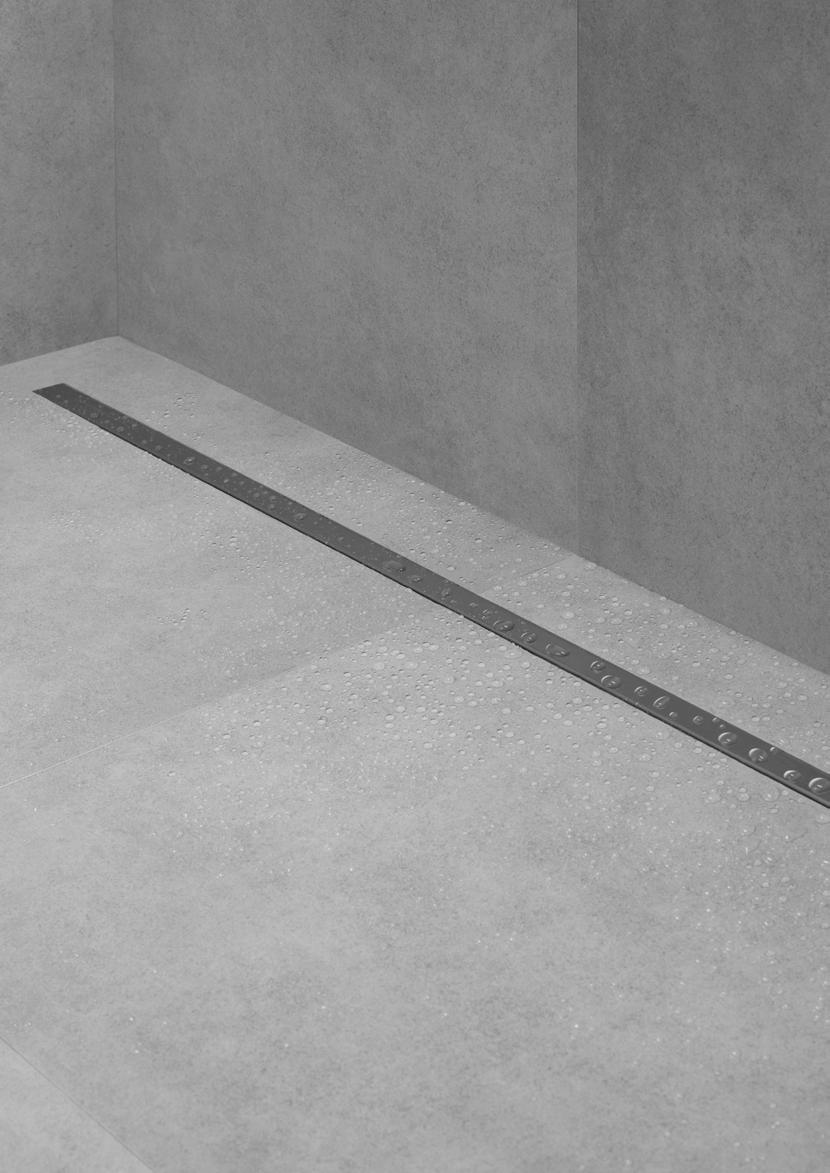

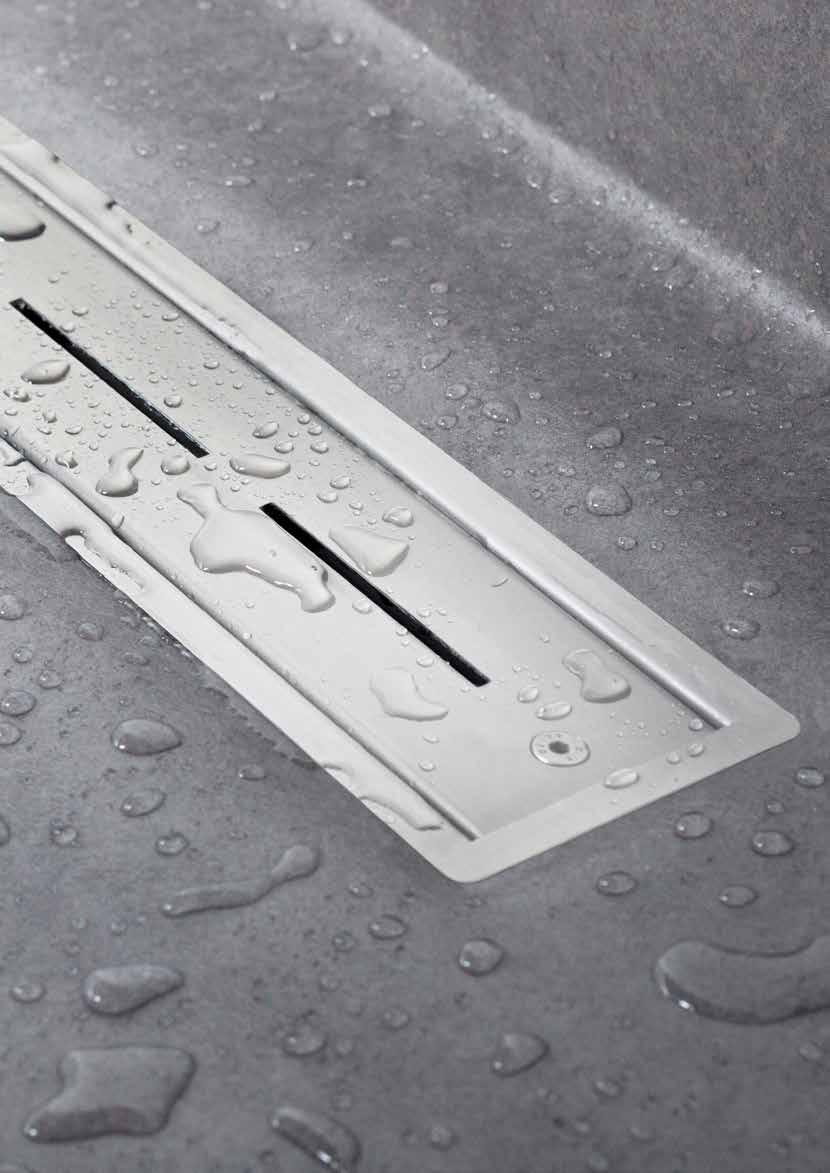

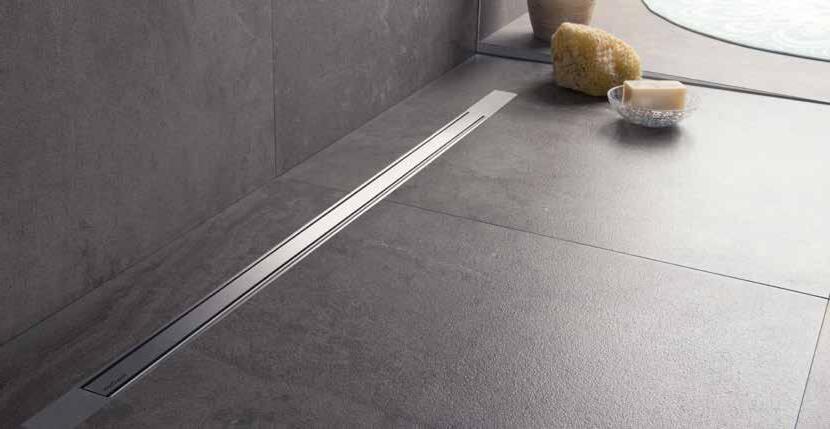

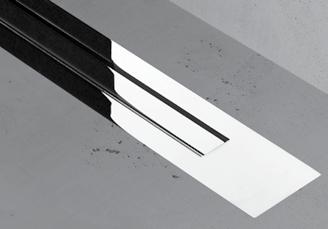

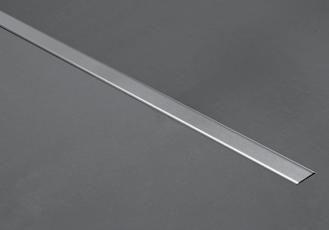

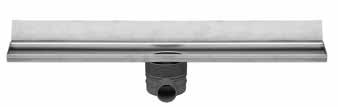

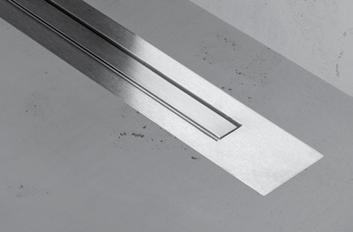

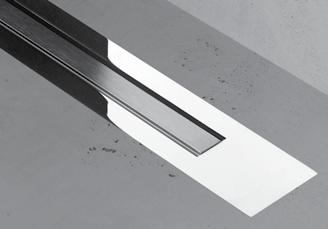

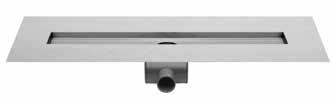

Xs Barrier-free showering

WPS Technology - pre-assembled sealing membrane

Small, smaller... Xs

As inventor and manufacturer of the successful Easy Drain, we hereby present our new and unique Easy Drain Xs series.

The Xs series combines unique technology with superslim design. Revolutionary is, that with the use of our patented TAF and WPS systems we guarantee easy installation and 100% waterproof finish.

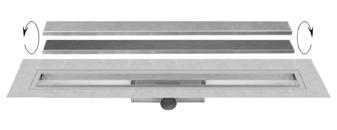

This series is standard equipped with a cleanable and height adjustable syphon, that provides the drain with a very high water capacity.

Complete set or configurable:

Complete set incl. grate See page 3 and 4 XS

Configure your shower drain:

Choose your build-in set incl. height adjustable legs, preassembled sealing membrane and preferred water seal height.

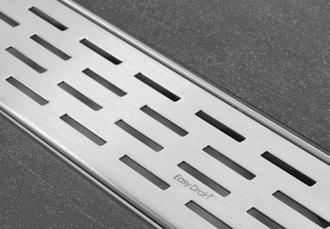

Choose your grate design

See page 7 - 10 XS

Xs-Z1 Complete set

complete set Article code

length 200 mm

AJXS-20-ZP

300 mm AJXS-30-ZP

400 mm AJXS-40-ZP

800 mm XS-TAF-800-Z1P

900 mm

1000 mm

1200 mm

XS-TAF-900-Z1P

XS-TAF-1000-Z1P

XS-TAF-1200-Z1P

Ablaufleistung

AJXS-20-ZM

300 mm

400 mm

500 mm

600 mm

700 mm

800 mm

900 mm

1000 mm

1100 mm

1200 mm

1300 mm

1400 mm

1500 mm

1600 mm

1700 mm

1800 mm

1900 mm

2000 mm

AJXS-30-ZM

AJXS-40-ZM

XS-TAF-500-Z1-M

XS-TAF-600-Z1-M

XS-TAF-700-Z1-M

XS-TAF-800-Z1-M

XS-TAF-900-Z1-M

XS-TAF-1000-Z1-M

XS-TAF-1100-Z1-M

XS-TAF-1200-Z1-M

XS-TAF-1300-Z1-M

XS-TAF-1400-Z1-M

XS-TAF-1500-Z1-M

XS-TAF-1600-Z1-M

XS-TAF-1700-Z1-M

XS-TAF-1800-Z1-M

XS-TAF-1900-Z1-M

XS-TAF-2000-Z1-M

Xs-Z4 Complete set

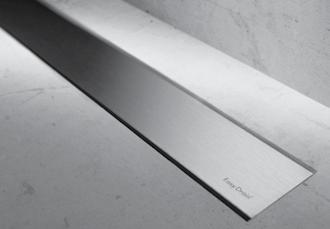

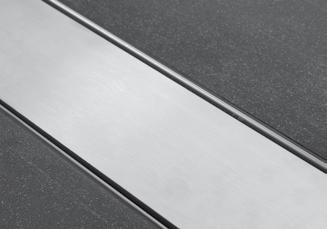

Zero+ brushed stainless steel

XS-TAF-1000-Z4P

XS-TAF-1200-Z4P

Build-in set Xs

Choose your build-in set incl. height adjustable legs, pre-assembled sealing membrane and preferred water seal height.

I Water seal 50 mm I

build-in set Article code

length 500 mm XS-ROH- 500 600 mm XS-ROH- 600 700 mm XS-ROH- 700 800 mm XS-ROH- 800

900 mm XS-ROH- 900 1000 mm XS-ROH- 1000 1100 mm XS-ROH- 1100 1200 mm XS-ROH- 1200

Ablaufleistung bei Sperrwasserhöhe

SeAling And oTher ASSembly AcceSSorieS, see “Assembly

WPS Technologypre-assembled sealing membrane

Frame brushed stainless steel

design set Article code

length

500 mm

600 mm

700 mm

800 mm

900 mm

1000 mm

1100 mm

1200 mm

XS-Z1M-M- 500

XS-Z1M-M- 600

XS-Z1M-M- 700

XS-Z1M-M- 800

XS-Z1M-M- 900

XS-Z1M-M-1000

XS-Z1M-M-1100

XS-Z1M-M-1200

Frame chrome-plated stainless steel

design set

length

500 mm

600 mm

700 mm

800 mm

900 mm

Article code

XS-Z1P-M- 500

XS-Z1P-M- 600

XS-Z1P-M- 700

XS-Z1P-M- 800

XS-Z1P-M- 900

1000 mm XS-Z1P-M-1000

1100 mm

XS-Z1P-M-1100

1200 mm XS-Z1P-M-1200

Frame brushed stainless steel

design set

length

500 mm

600 mm

700 mm

800 mm

Article code

XS-Z1M-P- 500

XS-Z1M-P- 600

XS-Z1M-P- 700

XS-Z1M-P- 800

900 mm XS-Z1M-P- 900

1000 mm

1100 mm

XS-Z1M-P-1000

XS-Z1M-P-1100

1200 mm XS-Z1M-P-1200

Frame chrome-plated stainless steel

design set

length

500 mm

600 mm

700 mm

Article code

XS-Z1P-P- 500

XS-Z1P-P- 600

XS-Z1P-P- 700

800 mm XS-Z1P-P- 800

900 mm

1000 mm

1100 mm

1200 mm

XS-Z1P-P- 900

XS-Z1P-P-1000

XS-Z1P-P-1100

XS-Z1P-P-1200

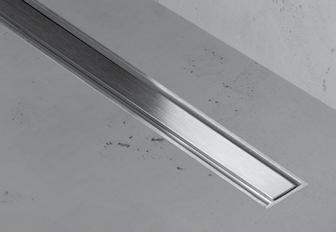

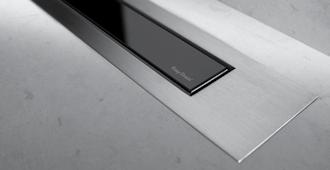

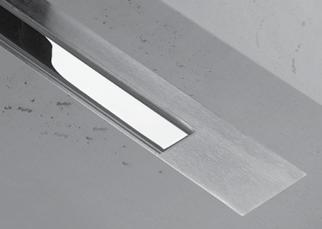

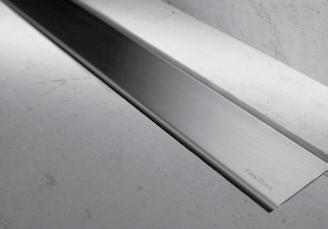

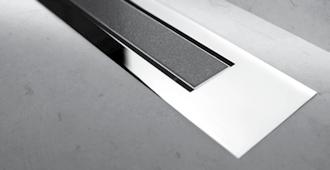

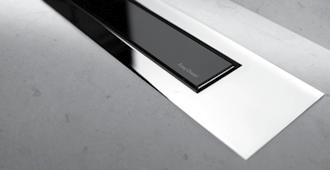

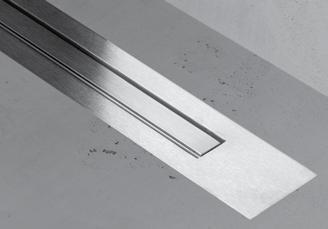

Zero+ brushed stainless steel

Frame brushed stainless steel

design set

length

800 mm

900 mm

1000 mm

1100 mm

+ = 3 mm brushed stainless steel

Article code

XS-Z2M-M- 800

XS-Z2M-M- 900

XS-Z2M-M-1000

XS-Z2M-M-1100

1200 mm XS-Z2M-M-1200

Frame chrome-plated stainless steel

design set Article code

length

800 mm

XS-Z2P-M- 800

900 mm XS-Z2P-M- 900

1000 mm XS-Z2P-M-1000

1100 mm XS-Z2P-M-1100

1200 mm XS-Z2P-M-1200

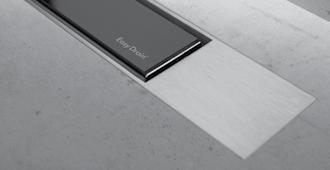

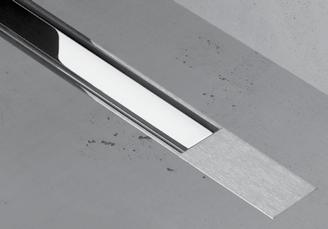

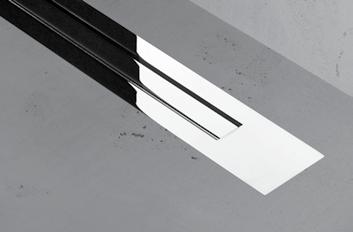

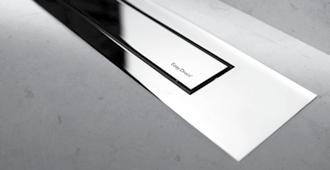

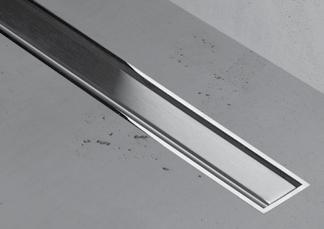

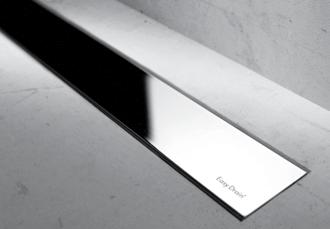

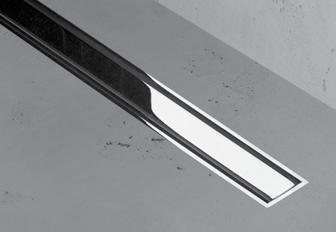

Zero+ chrome-plated stainless steel

Frame brushed stainless steel

design set Article code

length

800 mm

900 mm

1000 mm

1100 mm

Zero+ chrome-plated stainless steel

Zero+ brushed stainless steel + = 3 mm chrome-plated stainless steel

XS-Z2M-P- 800

XS-Z2M-P- 900

XS-Z2M-P-1000

XS-Z2M-P-1100

1200 mm XS-Z2M-P-1200

Frame chrome-plated stainless steel

design set Article code

length

800 mm

900 mm

XS-Z2P-P- 800

XS-Z2P-P- 900

1000 mm XS-Z2P-P-1000

1100 mm XS-Z2P-P-1100

1200 mm XS-Z2P-P-1200

SeAling And oTher ASSembly AcceSSorieS, see “Assembly accessories”

Wet

- Sealing system see “Assembly accessories”

Frame brushed stainless steel

design set Article code

length

800 mm

XS-Z3M-M- 800

900 mm XS-Z3M-M- 900

1000 mm XS-Z3M-M-1000

1100 mm XS-Z3M-M-1100

1200 mm XS-Z3M-M-1200

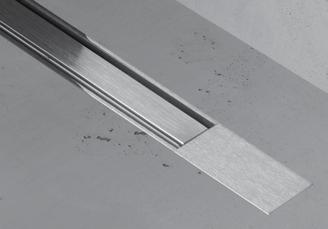

Zero+ brushed stainless steel

= 3 mm brushed stainless steel Zero+ brushed stainless steel

Zero+ chrome-plated stainless steel

Frame chrome-plated stainless steel

design set Article code

length

800 mm XS-Z3P-M- 800

900 mm XS-Z3P-M- 900

1000 mm XS-Z3P-M-1000

1100 mm XS-Z3P-M-1100

1200 mm XS-Z3P-M-1200

Zero+ chrome-plated stainless steel

+ = 3 mm chrome-plated stainless steel

Frame brushed stainless steel

design set Article code

length

800 mm

XS-Z3M-P- 800

900 mm XS-Z3M-P- 900

1000 mm XS-Z3M-P-1000

1100 mm XS-Z3M-P-1100

1200 mm XS-Z3M-P-1200

Frame chrome-plated stainless steel

design set Article code

length

800 mm

XS-Z3P-P- 800

900 mm XS-Z3P-P- 900

1000 mm XS-Z3P-P-1000

1100 mm XS-Z3P-P-1100

1200 mm XS-Z3P-P-1200

SeAling And oTher ASSembly AcceSSorieS, see “Assembly accessories”

Wet area - Sealing system see “Assembly accessories”

Zero+ brushed stainless steel

Frame brushed stainless steel

design set

800 mm

Article code

XS-Z4M-M- 800

900 mm XS-Z4M-M- 900

1000 mm XS-Z4M-M-1000

1100 mm XS-Z4M-M-1100

1200 mm XS-Z4M-M-1200

Frame chrome-plated stainless steel

design set Article code

length

800 mm XS-Z4P-M- 800

900 mm XS-Z4P-M- 900

1000 mm XS-Z4P-M-1000

1100 mm XS-Z4P-M-1100

1200 mm XS-Z4P-M-1200

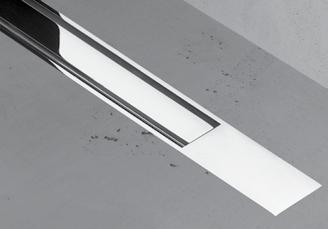

Zero+ chrome-plated stainless steel

Zero+ chrome-plated stainless steel

= 3 mm chrome-plated stainless steel

Frame brushed stainless steelt

design set Article code

length

800 mm

XS-Z4M-P- 800

900 mm XS-Z4M-P- 900

1000 mm XS-Z4M-P-1000

1100 mm XS-Z4M-P-1100

1200 mm XS-Z4M-P-1200

Frame chrome-plated stainless steel

design set Article code

length

800 mm

XS-Z4P-P- 800

900 mm XS-Z4P-P- 900

1000 mm XS-Z4P-P-1000

1100 mm XS-Z4P-P-1100

1200 mm XS-Z4P-P-1200

SeAling And oTher ASSembly AcceSSorieS, see “Assembly accessories” Wet

- Sealing

see “Assembly accessories”

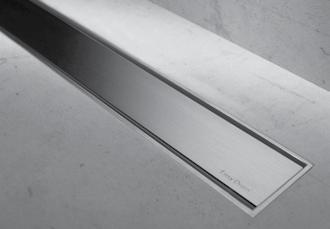

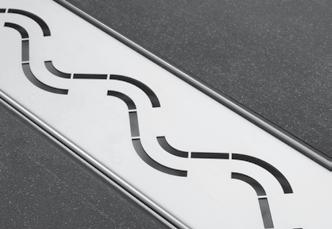

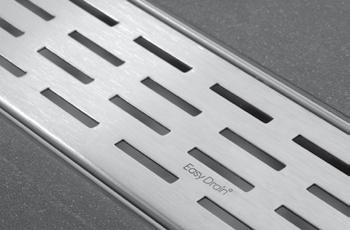

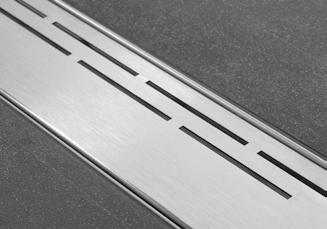

Modulo Design

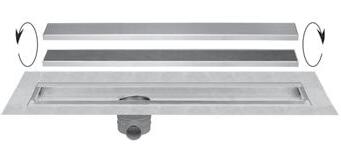

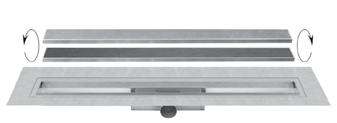

Appearance Z-2

Refined taste

Give your bathroom a refined appearance. The Modulo Design Z-2 grates are installed with subtle, widened frames on the short sides. Create your signature with refined design by Easy Drain. Your style in barrier-free showering.

Easy Drain Modulo Design is an integrated solution for modern water drainage. The low overall depth and adjustable drainage siphon ensure that the Easy Drain Modulo meets your requirements in any conceivable bathroom. Due to the innovative technique (TAF), you can enjoy security and comfort.

With the Easy Drain Modulo Design series, a high-quality finish is guaranteed. Easy Drain Modulo Design Z-2 is available in various sizes.

Configure your shower drain:

Choose your build-in set incl. height adjustable legs, preassembled sealing membrane and preferred water seal height.

Build-in set M-1

Build-in set M-2

Choose your grate design

See page 4 - 6 MD.

Grate set Z-2

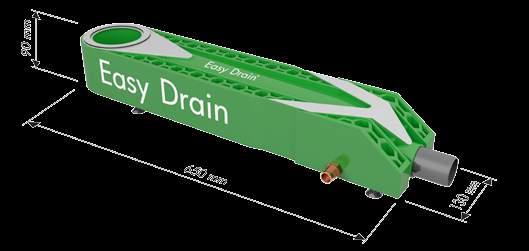

Build-in set Modulo

Choose your build-in set incl. height adjustable legs, pre-assembled sealing membrane and preferred water seal height.

Build-in set M1-30 I Water seal 30 mm I

Build-in set Article code

Length 800 mm EDM1 800-30

mm EDM1 900-30

mm EDM1 1000-30 1200 mm EDM1 1200-30

Build-in set M1-50 I Water seal 50 mm I

Build-in set Article code

Length

Ablaufleistung bei Sperrwasserhöhe

Build-in set M2-35 I Water seal 28 mm I

Build-in set Article code

Build-in set M2-50 I Water seal 50 mm I

WPS Technology - pre-assembled sealing membrane Available with Shower Board

Ablaufleistung bei Sperrwasserhöhe

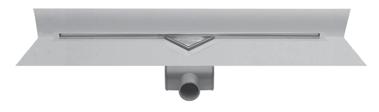

M2 trap body, vertical outlet

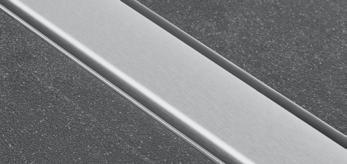

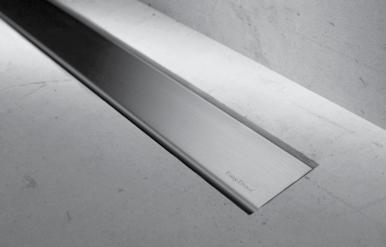

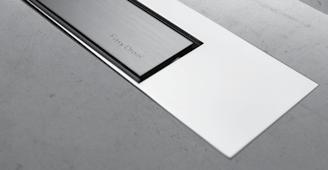

Zero+ brushed stainless steel

Frame brushed stainless steel

Design set Article code

Length 800 mm

900 mm

1000 mm

1200 mm

Zero+ brushed stainless steel

+ = 3mm brushed stainless steel

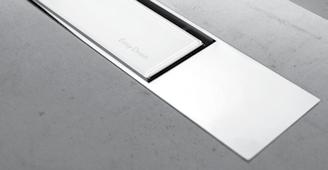

Zero+ chrome-plated stainless steel

Zero+ chrome-plated stainless steel

+ = 3mm chrome-plated stainless steel

MTAFDZ2MZM 800

MTAFDZ2MZM 900

MTAFDZ2MZM 1000

MTAFDZ2MZM 1200

Frame chrome-plated stainless steel

Design set Article code

Length 800 mm

MTAFDZ2PZM 800 900 mm

1000 mm

MTAFDZ2PZM 900

MTAFDZ2PZM 1000 1200 mm

MTAFDZ2PZM 1200

Frame brushed stainless steel

Design set Article code

Length 800 mm

MTAFDZ2MZP 800 900 mm

1000 mm

1200 mm

MTAFDZ2MZP 900

MTAFDZ2MZP 1000

MTAFDZ2MZP 1200

Frame chrome-plated stainless steel

Design set Article code

Length 800 mm

MTAFDZ2PZP 800 900 mm

1000 mm

1200 mm

MTAFDZ2PZP 900

MTAFDZ2PZP 1000

MTAFDZ2PZP 1200

SeALing AnD other ASSeMBLy AcceSSorieS, see “Assembly accessories”

Frame brushed stainless steel

Design set Article code

Length • 800 mm MTAFDZ2MT 800

• 900 mm MTAFDZ2MT 900

•1000 mm MTAFDZ2MT 1000

•1200 mm MTAFDZ2MT 1200

Frame chrome-plated stainless steel

Design set Article code

Length • 800 mm MTAFDZ2PT 800

• 900 mm MTAFDZ2PT 900

•1000 mm MTAFDZ2PT 1000

•1200 mm MTAFDZ2PT 1200

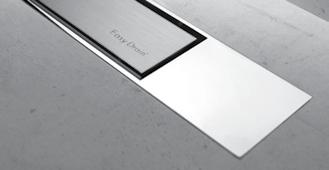

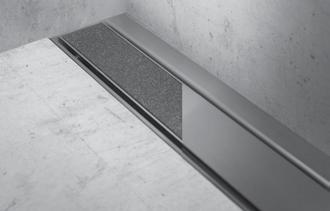

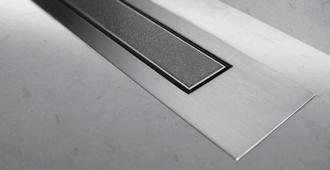

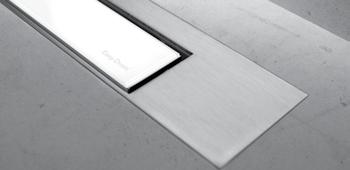

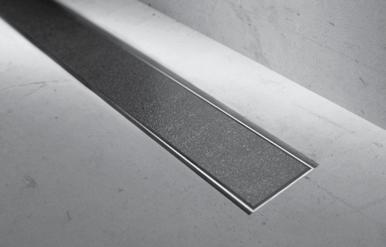

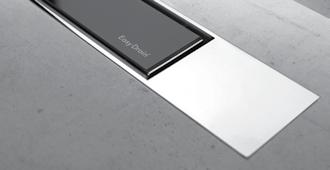

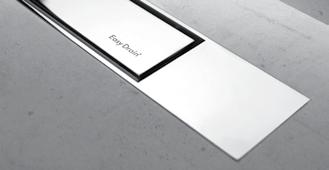

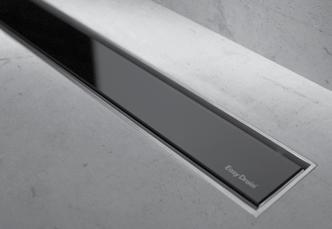

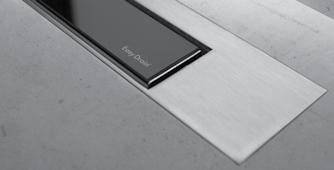

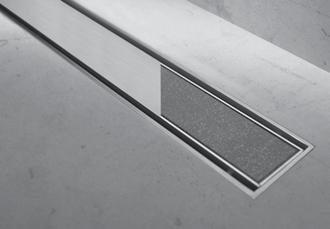

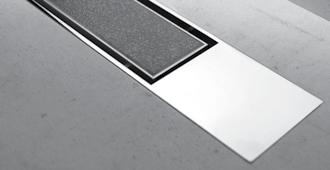

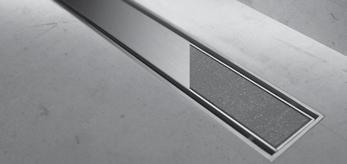

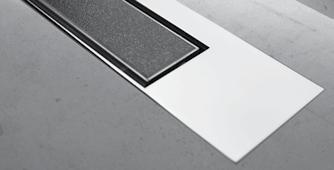

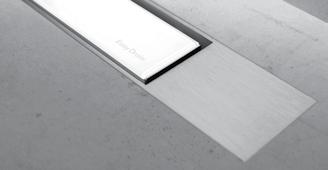

The tile shown is not included. The tile insert is 12 mm deep. Glass = safety glass

Frame brushed stainless steel

Design set Article code

Length • 800 mm MTAFDZ2MGS 800

• 900 mm MTAFDZ2MGS 900

•1000 mm MTAFDZ2MGS 1000

•1200 mm MTAFDZ2MGS 1200

Frame chrome-plated stainless steel

Design set Article code

Length • 800 mm MTAFDZ2PGS 800

• 900 mm MTAFDZ2PGS 900

•1000 mm MTAFDZ2PGS 1000

•1200 mm MTAFDZ2PGS 1200

SeALing AnD other ASSeMBLy AcceSSorieS, see “Assembly accessories”

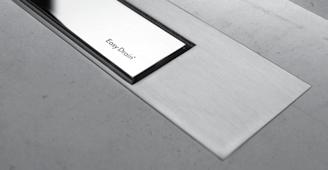

Choose your grate design 2

Frame brushed stainless steel

Design set Article code

Length

• 800 mm

• 900 mm

•1000 mm

•1200 mm

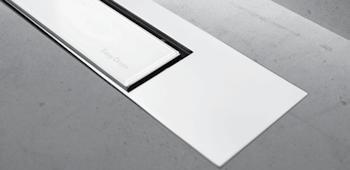

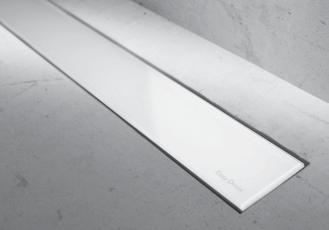

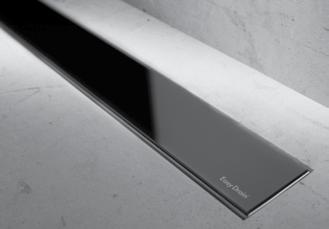

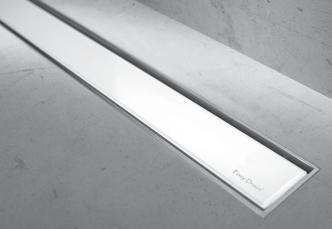

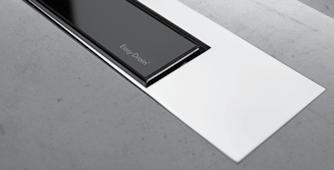

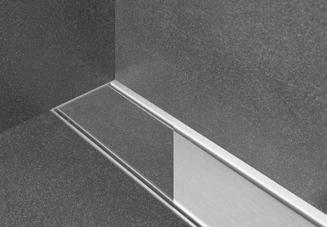

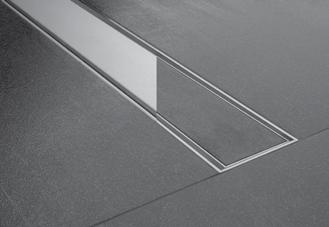

= safety glass

MTAFDZ2MGW 800

MTAFDZ2MGW 900

MTAFDZ2MGW 1000

MTAFDZ2MGW 1200

Frame chrome-plated stainless steel

Design set Article code

Length

• 800 mm

• 900 mm

•1000 mm

•1200 mm

MTAFDZ2PGW 800

MTAFDZ2PGW 900

MTAFDZ2PGW 1000

MTAFDZ2PGW 1200

Frame brushed stainless steel

Design set Article code

Length

• 800 mm

• 900 mm

•1000 mm

•1200 mm

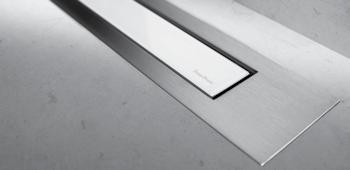

= safety glass

MTAFDZ2MGG 800

MTAFDZ2MGG 900

MTAFDZ2MGG 1000

MTAFDZ2MGG 1200

Frame chrome-plated stainless steel

Design set

Length

• 800 mm

• 900 mm

•1000 mm

•1200 mm

Article code

MTAFDZ2PGG 800

MTAFDZ2PGG 900

MTAFDZ2PGG 1000

MTAFDZ2PGG 1200

SeALing AnD other ASSeMBLy AcceSSorieS, see “Assembly accessories”

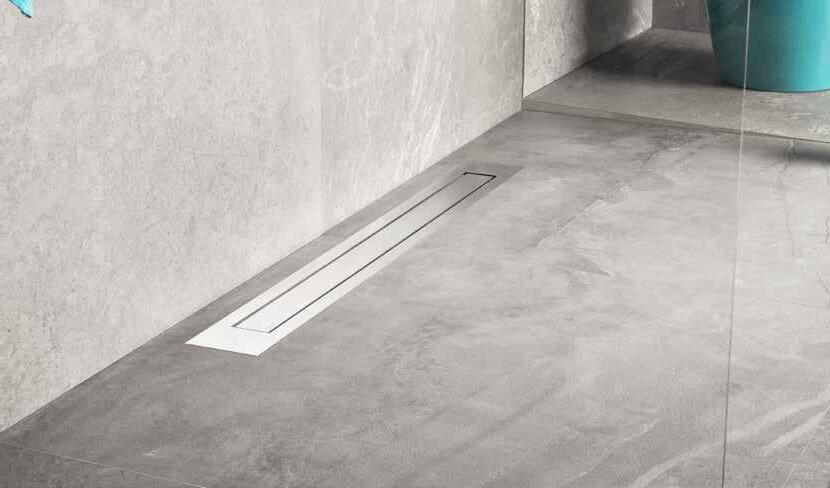

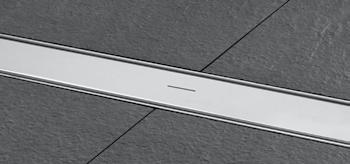

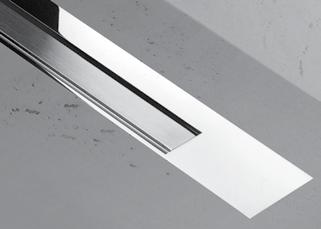

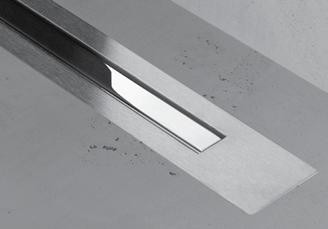

Design Z-2 Zero+ brushed stainless steel

Design Z-3

Distinct style

Your bathroom deserves a distinct touch. The Modulo Design Z-3 has 3-sided stainless frame with a slim front profile.

Design your bathroom with eye-catching details. Your style in barrier-free showering.

Easy Drain Modulo is the integrated solution for modern water drainage. The low installation depth and adjustable drainage siphon meets the requirements in any conceivable bathroom.

Due to the innovative technique tAF and WPS, you can enjoy safety and comfort. With the Easy Drain Modulo Design series, a high-quality finish is guaranteed.

Easy Drain Modulo Design Z-3 is available in various sizes.

Configure your shower drain:

1

Choose your build-in set incl. height adjustable legs, preassembled sealing membrane and preferred water seal height.

Build-in set M-1

2

Choose your grate design See page 10 - 12 MD.

Build-in set

Choose your build-in set incl. height adjustable legs, pre-assembled sealing membrane and preferred water seal height.

Build-in set M1-30 I Water seal 30 mm I

Build-in set Article code

Length 800 mm EDM1 800-30

mm EDM1 900-30

mm EDM1 1000-30

mm EDM1 1200-30

Build-in set M1-50 I Water seal 50 mm I

Build-in set Article code

Length

Installation options Capacity water seal

Ablaufleistung bei Sperrwasserhöhe 30 mm 50 mm

WPS Technology - pre-assembled sealing membrane

Build-in set M2-35 I Water seal 28 mm I Build-in

Build-in set Article code Length

Build-in set M2-50 I Water seal 50 mm I

Installation options Capacity water seal

Available with Shower Board

Ablaufleistung bei Sperrwasserhöhe 28 mm 50 mm

AnD other ASSeMBLy AcceSSorieS, see “Assembly accessories”

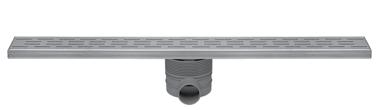

M2 trap body, vertical outlet

Zero+ brushed stainless steel

Zero+ brushed stainless steel

+ = 3 mm brushed stainless steel

Zero+ chrome-plated stainless steel

Zero+ chrome-plated stainless steel

+ = 3mm chrome-plated stainless steel

Frame brushed stainless steel

Design set Article code

Length 800 mm

MTAFDZ3MZM 800 900 mm

1000 mm

MTAFDZ3MZM 900

MTAFDZ3MZM 1000 1200 mm

MTAFDZ3MZM 1200

Frame chrome-plated stainless steel

Design set Article code

Length 800 mm

MTAFDZ3PZM 800 900 mm

1000 mm

MTAFDZ3PZM 900

MTAFDZ3PZM 1000 1200 mm

MTAFDZ3PZM 1200

Frame brushed stainless steel

Design set Article code

Length 800 mm

MTAFDZ3MZP 800 900 mm

1000 mm

MTAFDZ3MZP 900

MTAFDZ3MZP 1000 1200 mm

MTAFDZ3MZP 1200

Frame chrome-plated stainless steel

Design set Article code

Length 800 mm

MTAFDZ3PZP 800 900 mm

1000 mm

MTAFDZ3PZP 900

MTAFDZ3PZP 1000 1200 mm

MTAFDZ3PZP 1200

SeALing AnD other ASSeMBLy AcceSSorieS, see “Assembly accessories”

Frame brushed stainless steel

Design set Article code

Length • 800 mm MTAFDZ3MT 800

• 900 mm MTAFDZ3MT 900

•1000 mm MTAFDZ3MT 1000

•1200 mm MTAFDZ3MT 1200

Frame chrome-plated stainless steel

Design set Article code

Length

• 800 mm MTAFDZ3PT 800

• 900 mm MTAFDZ3PT 900

•1000 mm MTAFDZ3PT 1000

•1200 mm MTAFDZ3PT 1200

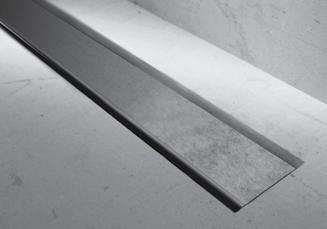

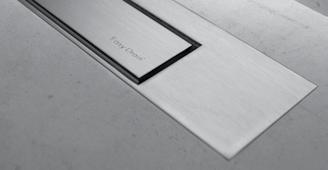

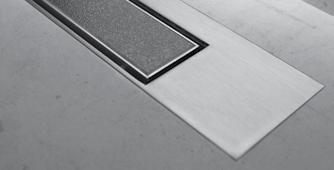

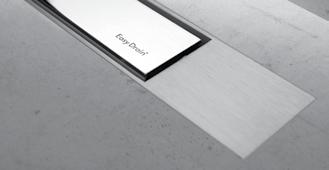

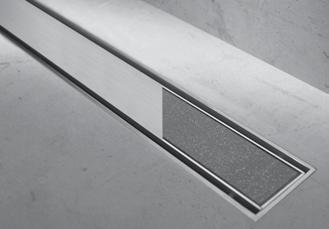

The tile shown is not included. The tile insert is 12 mm deep.

Glass = safety glass

Frame brushed stainless steel

Design set Article code

Length

• 800 mm MTAFDZ3MGS 800

• 900 mm MTAFDZ3MGS 900

•1000 mm MTAFDZ3MGS 1000

•1200 mm MTAFDZ3MGS 1200

Frame chrome-plated stainless steel

Design set Article code

Length

• 800 mm MTAFDZ3PGS 800

• 900 mm MTAFDZ3PGS 900

•1000 mm MTAFDZ3PGS 1000

•1200 mm MTAFDZ3PGS 1200

SeALing AnD other ASSeMBLy AcceSSorieS, see “Assembly accessories”

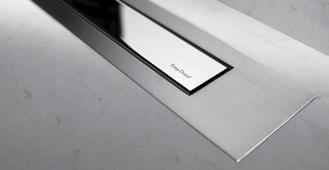

Frame brushed stainless steel

Design set Article code

Length • 800 mm

• 900 mm

•1000 mm

•1200 mm

MTAFDZ3MGW 800

MTAFDZ3MGW 900

MTAFDZ3MGW 1000

MTAFDZ3MGW 1200

Frame chrome-plated stainless steel

Design set Article code

Length • 800 mm

• 900 mm

•1000 mm

•1200 mm

MTAFDZ3PGW 800

MTAFDZ3PGW 900

MTAFDZ3PGW 1000

MTAFDZ3PGW 1200

Frame brushed stainless steel

Design set Article code

Length

• 800 mm

• 900 mm

•1000 mm

•1200 mm

Frame chrome-plated stainless steel tile thickness 7-18 mm

MTAFDZ3MGG 800

MTAFDZ3MGG 900

MTAFDZ3MGG 1000

MTAFDZ3MGG 1200

Design set Article code

Length

• 800 mm

• 900 mm

•1000 mm

•1200 mm

MTAFDZ3PGG 800

MTAFDZ3PGG 900

MTAFDZ3PGG 1000

MTAFDZ3PGG 1200

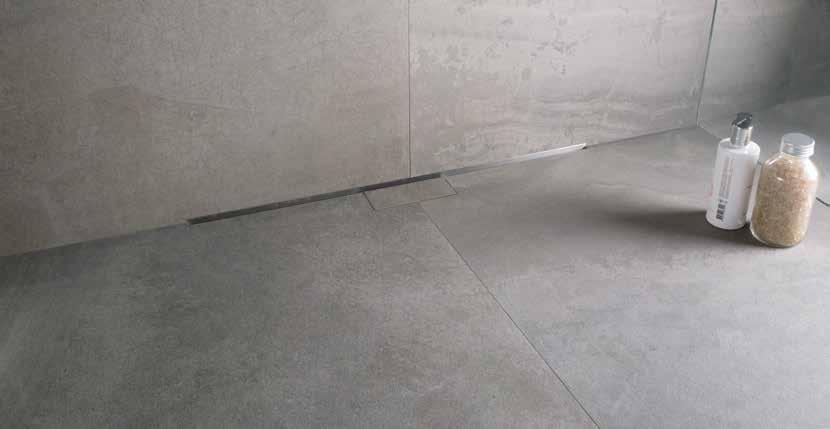

Modulo Design Z-3

Zero+ chrome-plated stainless steel

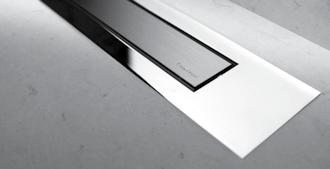

Exclusive Z-4

Exclusive design

Design your bathroom with an exclusive appearance with stylish four-sided frames. The Modulo Design Z-4 frames are installed with wide, stainless frame all around. Give your bathroom a touch of exclusive design. Your style in barrier-free showering.

Easy Drain Modulo is the integrated solution for modern water drainage. The low overall depth and adjustable drainage siphon ensure that the Easy Drain Modulo meets your requirements in any conceivable bathroom.

Due to the innovative technique tAF and WPS, you can enjoy safety and comfort. With the Easy Drain Modulo Design series, a high-quality finish is guaranteed.

Easy Drain Modulo Design Z-4 is available in various sizes.

Configure your shower drain:

1

Choose your build-in set incl. height adjustable legs, preassembled sealing membrane and preferred water seal height.

Build-in set M-1

Build-in set M-2

2

Choose your grate design See page 16 - 18 MD.

Build-in set

Choose your build-in set incl. height adjustable legs, pre-assembled sealing membrane and preferred water seal height.

Build-in set M1-30 I Water seal 30 mm I

Build-in set Article code

Länge 800 mm EDM1 800-30 900 mm EDM1 900-30 1000 mm EDM1 1000-30 1200 mm EDM1 1200-30

Build-in set M1-50 I Water seal 50 mm I

Build-in set Article code

Länge 800 mm EDM1 800-50

mm EDM1 900-50

Build-in set M2-35 I Water seal 28 mm I

Build-in set Article code

Länge 800 mm EDM2 800-35

mm EDM2 900-35

Build-in set M2-50 I Water seal 50 mm I

Ablaufleistung bei Sperrwasserhöhe

SeALing AnD other ASSeMBLy AcceSSorieS, see “Assembly

Zero+ brushed stainless steel

Frame brushed stainless steel

Design set Article code

Length 800 mm

900 mm

1000 mm

1200 mm

Zero+ brushed stainless steel

MTAFDZ4MZM 800

MTAFDZ4MZM 900

MTAFDZ4MZM 1000

MTAFDZ4MZM 1200

Zero+ chrome plated stainless steel

Frame chrome plated stainless steel

Design set Article code

Length 800 mm

MTAFDZ4PZM 800 900 mm

1000 mm

MTAFDZ4PZM 900

MTAFDZ4PZM 1000 1200 mm

MTAFDZ4PZM 1200

Frame brushed stainless steel

Design set Article code

Length 800 mm

MTAFDZ4MZP 800 900 mm

MTAFDZ4MZP 900 1000 mm

MTAFDZ4MZP 1000 1200 mm

MTAFDZ4MZP 1200 + = 3 mm brushed stainless steel

Zero+ chrome plated stainless steel

Frame chrome plated stainless steel

Design set Article code

Length 800 mm

MTAFDZ4PZP 800 900 mm

1000 mm

MTAFDZ4PZP 900

MTAFDZ4PZP 1000 1200 mm

MTAFDZ4PZP 1200

SeALing AnD other ASSeMBLy AcceSSorieS, see “Assembly accessories”

Frame brushed stainless steel

Design set Article code

Length • 800 mm MTAFDZ4MT 800

• 900 mm MTAFDZ4MT 900

•1000 mm MTAFDZ4MT 1000

•1200 mm MTAFDZ4MT 1200

Frame chrome plated stainless steel

Design set Article code

Length • 800 mm MTAFDZ4PT 800

• 900 mm MTAFDZ4PT 900

•1000 mm MTAFDZ4PT 1000

•1200 mm MTAFDZ4PT 1200

Frame brushed stainless steel

Design set Article code

Length • 800 mm MTAFDZ4MGS 800

• 900 mm MTAFDZ4MGS 900

•1000 mm MTAFDZ4MGS 1000

•1200 mm MTAFDZ4MGS 1200

Frame chrome plated stainless steel

Design set Article code

Length

• 800 mm MTAFDZ4PGS 800

• 900 mm MTAFDZ4PGS 900

•1000 mm MTAFDZ4PGS 1000

•1200 mm MTAFDZ4PGS 1200

SeALing AnD other ASSeMBLy AcceSSorieS, see “Assembly accessories”

= safety glass

= safety glass

Frame brushed stainless steel

Design set Article code

Length

• 800 mm

• 900 mm

•1000 mm

•1200 mm

MTAFDZ4MGW 800

MTAFDZ4MGW 900

MTAFDZ4MGW 1000

MTAFDZ4MGW 1200

Frame chrome plated stainless steel

Design set Article code

Length • 800 mm

• 900 mm

•1000 mm

•1200 mm

MTAFDZ4PGW 800

MTAFDZ4PGW 900

MTAFDZ4PGW 1000

MTAFDZ4PGW 1200

Frame brushed stainless steel

Design set Article code

Length

• 800 mm

• 900 mm

•1000 mm

•1200 mm

MTAFDZ4MGG 800

MTAFDZ4MGG 900

MTAFDZ4MGG 1000

MTAFDZ4MGG 1200

Frame chrome plated stainless steel

Design set Article code

Length

• 800 mm

• 900 mm

•1000 mm

•1200 mm

MTAFDZ4PGG 800

MTAFDZ4PGG 900

MTAFDZ4PGG 1000

MTAFDZ4PGG 1200

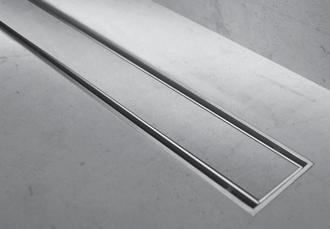

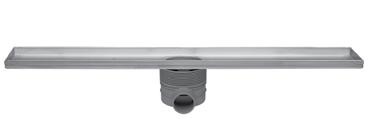

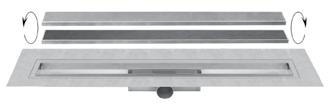

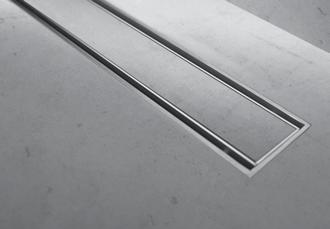

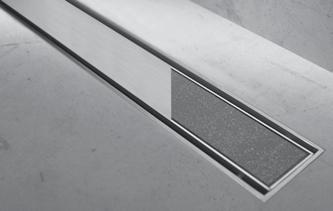

Modulo TAF Elegant stainless steel frame

Elegelant stainless steel frame and guaranteed watertight

The patented TAF-system and WPS, have unleashed a revolution in barrier-free showering. The height adjustable grate adapts perfectly to any tile thickness. Our TAF-system has been specially developed to enable secondary drainage while the pre-assembled sealing membrane (WPS) ensures a complete watertight installation.

Product benefits:

• Easy to clean siphon

• Installation: free in the floor or against the wall

• EN 1253 certified

• ETAG - 022 certified

• Pivoted and adjustable drainage siphon

• Modulo TAF height adjustable frame ( 7 - 18 mm )

• High drainage capacity ( 32 l/min )

Complete set or configurable:

Complete set incl. grate

See page 3 - 4 MO

Configure your shower drain:

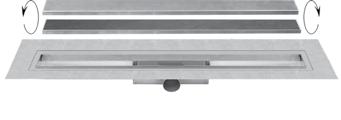

1

Choose your build-in set

incl. height adjustable legs, pre-assembled sealing membrane and preferred water seal height.

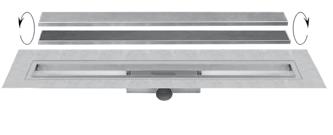

2 rotatable

Choose your grate design

See page 6 - 7 MO.

Modulo 30 TAF

Modulo 50 TAF

700-50 800 mm EDCOMTAF 800-50 900 mm EDCOMTAF 900-50

1000 mm EDCOMTAF 1000-50

1100 mm EDCOMTAF 1100-50

1200 mm EDCOMTAF 1200-50

1300 mm EDCOMTAF 1300-50 1400 mm EDCOMTAF 1400-50

1500-50 1600 mm

1600-50 1700 mm EDCOMTAF 1700-50 1800 mm EDCOMTAF 1800-50 1900 mm EDCOMTAF 1900-50 2000 mm EDCOMTAF 2000-50

build-in set Modulo

Choose your build-in set incl. height adjustable legs, pre-assembled sealing membrane and preferred water seal height.

build-in set M1-30

I Water seal 30 mm I

build-in set Article code

Length 500 mm EDM1 500-30

600 mm EDM1 600-30

700 mm EDM1 700-30

800 mm EDM1 800-30

900 mm EDM1 900-30

1000 mm EDM1 1000-30

1100 mm EDM1 1100-30

1200 mm EDM1 1200-30

build-in set M1-50

I Water seal 50 mm I

build-in set Article code

Length

500 mm EDM1 500-50

600 mm EDM1 600-50

700 mm EDM1 700-50

800 mm EDM1 800-50

900 mm EDM1 900-50

1000 mm EDM1 1000-50

1100 mm EDM1 1100-50 1200 mm EDM1 1200-50

build-in set M2-35

build-in set Article code

Length 500 mm EDM2 500-35

600 mm EDM2 600-35

700 mm EDM2 700-35

800 mm EDM2 800-35

900 mm EDM2 900-35

1000 mm EDM2 1000-35

1100 mm EDM2 1100-35

1200 mm EDM2 1200-35

build-in set M2-50

I Water seal 50 mm I

EDM2 700-50 800 mm EDM2 800-50 900

Ablaufleistung bei

with Shower Board

Ablaufleistung bei Sperrwasserhöhe

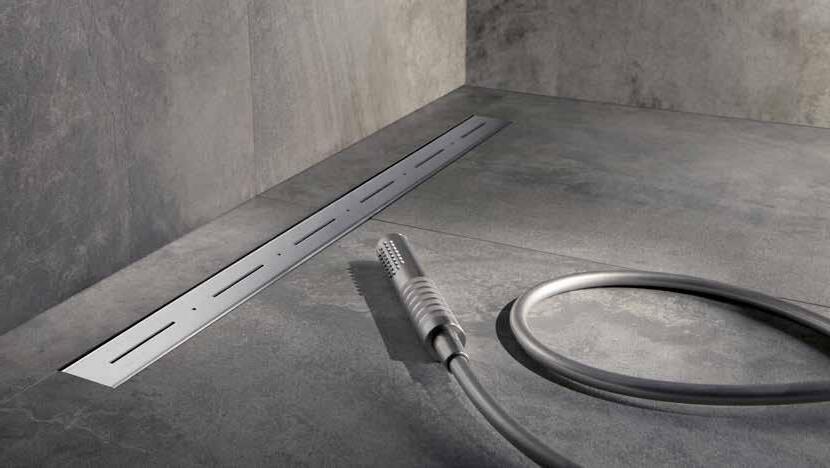

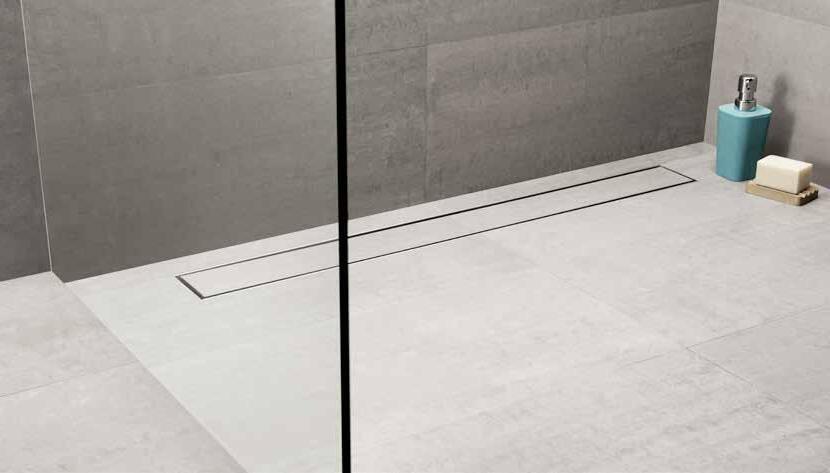

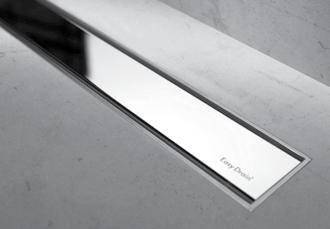

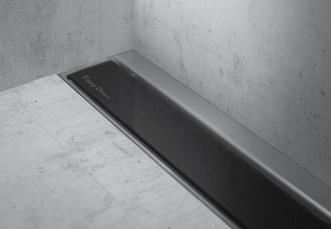

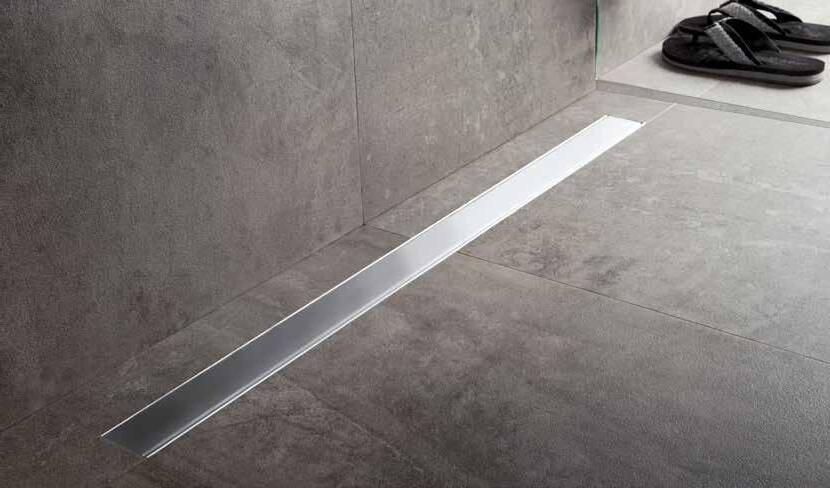

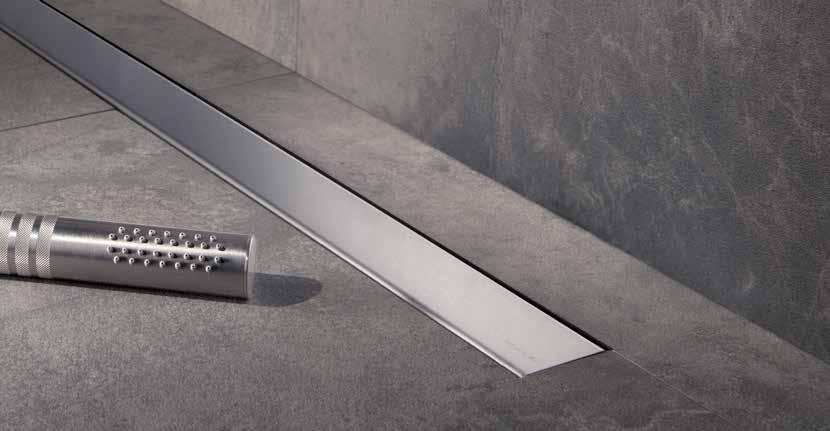

Modulo TAF Wall Elegant stainless steel frame

The perfect wall connection

The patented TAF-System and WPS, have unleashed a revolution in barrier-free showering. The height adjustable grate adapts perfectly to any tile thickness. Our TAF system has been specially developed to enable secondary drainage while the pre-assembled sealing membrane (WPS) ensures a complete watertight installation.

Product benefits:

• Easy to clean siphon

• Installation: against the wall

• EN 1253 certified

• ETAG - 022 certified

• Pivoted and adjustable drainage body

• Modulo TAF height adjustable tile frame ( 7 - 18 mm )

• Very high drainage capacity ( 32 l/min )

Complete set or configurable:

Complete set incl. grate

See page 9 - 10 MO

Configure your shower drain:

1

Choose your build-in set

incl. height adjustable legs, pre-assembled sealing membrane and preferred water seal height.

Build-in set M-1

Build-in set M-2

rotatable 360º

2

Choose your grate design

See page 12 - 13 MO

build-in set Modulo

Choose your build-in set incl. height adjustable legs, pre-assembled sealing membrane and preferred water seal height.

build-in set M1-30

I Water seal 30 mm I

build-in set Article code

Length 500 mm EDM1 500-30

600 mm EDM1 600-30

700 mm EDM1 700-30

800 mm EDM1 800-30

900 mm EDM1 900-30

1000 mm EDM1 1000-30

1100 mm EDM1 1100-30 1200 mm EDM1 1200-30

build-in set M1-50

I Water seal 50 mm I

build-in set Article code

Length

500 mm EDM1 500-50

600 mm EDM1 600-50

700 mm EDM1 700-50

800 mm EDM1 800-50

900 mm EDM1 900-50

1000 mm EDM1 1000-50

1100 mm EDM1 1100-50 1200 mm EDM1 1200-50

build-in set M2-35 I Water seal 28 mm I

build-in set Article code

Length 500 mm EDM2 500-35

600 mm EDM2 600-35

700 mm EDM2 700-35

800 mm EDM2 800-35

900 mm EDM2 900-35

1000 mm EDM2 1000-35

1100 mm EDM2 1100-35 1200 mm EDM2 1200-35

build-in set M2-50 I Water seal 50 mm |

EDM2 700-50

800 mm EDM2 800-50 900

WPS Technologysealingpre-assembled membrane

Ablaufleistung bei Sperrwasserhöhe 30 mm 50 mm Capacity water seal

Available with Shower Board

Ablaufleistung bei Sperrwasserhöhe 28 mm 50 mm Capacity water seal Installation options

And OTher AsseMbLy ACCessOries, see “Assembly accessories”

M2 trap body, vertical outlet

TAF Wall

TAF Wall

grate designt Article code Length

grate designt Article code

grate designt Article code Length

Modulo

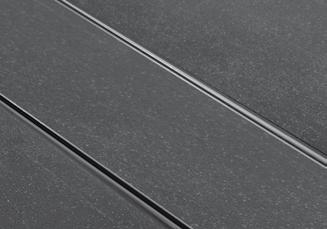

TAF for thin flooring

TAF Tile adjustable frame for thin flooring

Technology - pre-assembled

Tile adjustable frame especially for thin flooring

The height reduced TAF - frame from the Easy Drain Modulo Series is especially developed for application of thin flooring between 3 and 13 mm.

• Glass mosaic

• Large format tile as from 3 mm thick

• Vinyl flooring

• Concrete look: 2-component polyurethane resin

• Putty-knife technique

Configure your shower drain:

1

Choose your build-in set

incl. height adjustable legs, pre-assembled sealing membrane and preferred water seal height.

set M-1

2

Choose your grate design

See page 18 MO

build-in set

Choose your build-in set incl. height adjustable legs, pre-assembled sealing membrane and preferred water seal height.

build-in set M1-30

I Water seal 30 mm I

build-in set Article coder

Length 500 mm EDM1 500-30

600 mm EDM1 600-30

700 mm EDM1 700-30

800 mm EDM1 800-30

900 mm EDM1 900-30

1000 mm EDM1 1000-30

1100 mm EDM1 1100-30 1200 mm EDM1 1200-30

build-in set M1-50

I Water seal 50 mm I

build-in set Article coder

Length 500 mm EDM1 500-50

600 mm EDM1 600-50

700 mm EDM1 700-50

800 mm EDM1 800-50

900 mm EDM1 900-50

1000 mm EDM1 1000-50

1100 mm EDM1 1100-50 1200 mm EDM1 1200-50

Ablaufleistung bei

tile thickness 3 - 13 mm

build-in set M2-35 I Water seal 28 mm I

build-in set Article coder

Length 500 mm EDM2 500-35

600 mm EDM2 600-35

700 mm EDM2 700-35

800 mm EDM2 800-35

900 mm EDM2 900-35

1000 mm EDM2 1000-35

1100 mm EDM2 1100-35 1200 mm EDM2 1200-35

build-in set M2-50 I Water seal 50 mm I

600-50

700 mm EDM2 700-50

800 mm EDM2 800-50

EDM2 900-50

EDM2 1000-50

with Shower Board

Ablaufleistung bei

Zero+ brushed stainless steel

Zero+ brushed stainless steel

set M1-30 build-in set M1-30 build-in set M1-50

600

700

800

900

1100 mm

1200 mm

EDM1TAFLZ500-30

EDM1TAFLZ600-30

EDM1TAFLZ700-30

EDM1TAFLZ800-30

EDM1TAFLZ900-30

EDM1TAFLZ1000-30

EDM1TAFLZ1100-30

EDM1TAFLZ1200-30

grate design Article code

Length 500 mm

600 mm

700 mm

800 mm

900 mm

1000 mm

1100 mm

1200 mm

EDM1TAFLZ500-50

EDM1TAFLZ600-50

EDM1TAFLZ700-50

EDM1TAFLZ800-50

EDM1TAFLZ900-50

EDM1TAFLZ1000-50

EDM1TAFLZ1100-50

EDM1TAFLZ1200-50

set M1-50

mm MTAFLAAG- 500-T

mm MTAFLAAG- 600-T

mm MTAFLAAG- 700-T

mm MTAFLAAG- 800-T 900 mm MTAFLAAG- 900-T

mm MTAFLAAG-1000-T

mm

mm

Height reduced TAF frame for thin flooring - build-in set M1

Flooring from 3 mm

set M1-30 build-in set M1-30 build-in set M1-50

Flooring from 3 mm grate design Article

mm EDM1TAFLT 800-30

mm EDM1TAFLT 900-30

mm EDM1TAFLT 1000-30

1100-30

1200-30

mm EDM1TAFLT 500-50

mm EDM1TAFLT 600-50

mm EDM1TAFLT 700-50

mm EDM1TAFLT 800-50

mm EDM1TAFLT 900-50 1000 mm EDM1TAFLT 1000-50 1100 mm EDM1TAFLT 1100-50 1200 mm EDM1TAFLT 1200-50

M1-50

Modulo TAF

for natural stone

TAF Stainless steel frame for natural stone

Elegant stainless steel frame for natural stone

Easy Drain Modulo heightened TAF Frame offers you complete freedom in designing your bathroom. The heightened frame is specially developed for application of natural stone in your bathroom floor, with a maximum tile thickness of 28 mm.

Configure your shower drain:

1

Choose your build-in set

incl. height adjustable legs, pre-assembled sealing membrane and preferred water seal height.

Build-in set M-1

Build-in set M-2

2

Choose your grate design

See page 22 MO

build-in set

Choose your build-in set incl. height adjustable legs, pre-assembled sealing membrane and preferred water seal height.

build-in set M1-30

I Water seal 30 mm I

build-in set Article code

Length 500 mm EDM1 500-30

600 mm EDM1 600-30

700 mm EDM1 700-30

800 mm EDM1 800-30

900 mm EDM1 900-30

1000 mm EDM1 1000-30

1100 mm EDM1 1100-30

1200 mm EDM1 1200-30

build-in set M1-50 I Water seal 50 mm I

build-in set Article code

Length 500 mm EDM1 500-50

600 mm EDM1 600-50

700 mm EDM1 700-50

800 mm EDM1 800-50

900 mm EDM1 900-50

1000 mm EDM1 1000-50

1100 mm EDM1 1100-50 1200 mm EDM1 1200-50

WPS Technology - pre-assembled sealing membrane

build-in set M2-35

build-in set Article code

Length 500 mm EDM2 500-35

600 mm EDM2 600-35

700 mm EDM2 700-35

800 mm EDM2 800-35

900 mm EDM2 900-35

1000 mm EDM2 1000-35

1100 mm EDM2 1100-35 1200 mm EDM2 1200-35

build-in set M2-50 I Water seal 50 mm I

500 mm EDM2 500-50

600 mm EDM2 600-50

700 mm EDM2 700-50 800 mm EDM2 800-50

900-50

EDM2 1000-50

EDM2 1100-50

EDM2 1200-50 seALing And OTher AsseMbLy ACCessOries, see

water seal

Ablaufleistung bei Sperrwasserhöhe

Available with Shower Board

Ablaufleistung bei Sperrwasserhöhe

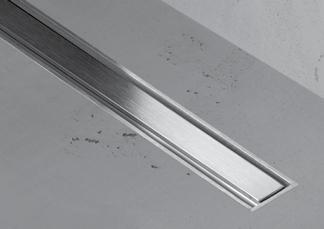

TAF frame brushed stainless steel

grate design Article code

Length 500 mm

600 mm

700 mm

800 mm

900 mm

1000 mm

1100 mm

1200 mm

MTAFHOOG- 500-Z+M

MTAFHOOG- 600-Z+M

MTAFHOOG- 700-Z+M

MTAFHOOG- 800-Z+M

MTAFHOOG- 900-Z+M

MTAFHOOG-1000-Z+M

MTAFHOOG-1100-Z+M

MTAFHOOG-1200-Z+M grate design Article code

Length 500 mm

600 mm

700 mm

800 mm

900 mm

1000 mm

1100 mm

1200 mm

MTAFHOOG- 500-Z+P

MTAFHOOG- 600-Z+P

MTAFHOOG- 700-Z+P

MTAFHOOG- 800-Z+P

MTAFHOOG- 900-Z+P

MTAFHOOG-1000-Z+P

MTAFHOOG-1100-Z+P

MTAFHOOG-1200-Z+P

TAF frame brushed stainless steel

grate design Article code

Length 500 mm

600 mm

700 mm

800 mm

900 mm

1000 mm

1100 mm

1200 mm

MTAFHOOG- 500-ZT

MTAFHOOG- 600-ZT

MTAFHOOG- 700-ZT

MTAFHOOG- 800-ZT

MTAFHOOG- 900-ZT

MTAFHOOG-1000-ZT

MTAFHOOG-1100-ZT

MTAFHOOG-1200-ZT

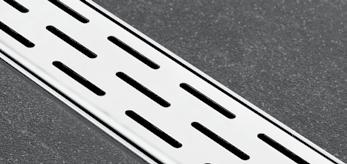

Basic Barrier-free showering

WPS Technology - pre-assembled

tile thickness 7 - 18 mm

Barrier-free showering starts with Easy Drain

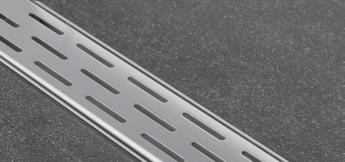

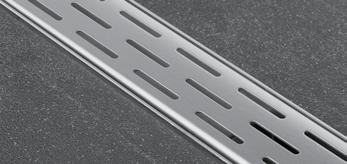

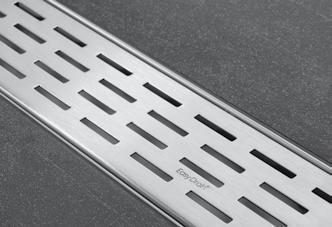

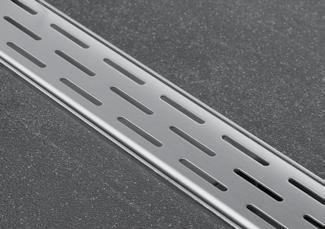

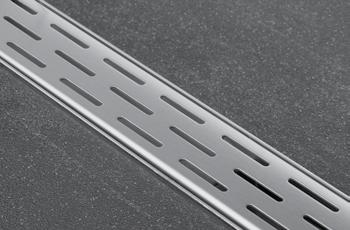

Choose from the extensive range of grates and give your bathroom a unique appearance. Total freedom in where and how you want to shower. Easy Drain is showering in style with the security of a patented technique and proven quality.

Easy Drain Modulo is the integrated solution for modern water drainage. The overall depth and adjustable drainage siphon ensure that the Easy Drain Modulo meets your requirements in any conceivable bathroom. Due to the innovative technique you will enjoy security and comfort.

Easy Drain Modulo is available in various sizes.

Configure your shower drain:

1

Choose your build-in set

incl. height adjustable legs, pre-assembled sealing membrane and preferred water seal height.

Build-in set M-1

Build-in set M-2

2

Grate set basic step: step:

rotatable 360º

Choose your grate design

See page 4 -6 MB.

Build-in set

Choose your build-in set incl. height adjustable legs, pre-assembled sealing membrane and preferred water seal height.

Build-in set M1-30

I Water seal 30 mm I

Build-in set Article code

Length 500 mm EDM1 500-30

600 mm EDM1 600-30

700 mm EDM1 700-30

800 mm EDM1 800-30

900 mm EDM1 900-30

1000 mm EDM1 1000-30

1100 mm EDM1 1100-30

1200 mm EDM1 1200-30

Build-in set M1-50

I Water seal 50 mm I

Build-in set Article code

Length

500 mm EDM1 500-50

600 mm EDM1 600-50

700 mm EDM1 700-50

800 mm EDM1 800-50

900 mm EDM1 900-50

1000 mm EDM1 1000-50

1100 mm EDM1 1100-50

1200 mm EDM1 1200-50

Build-in set M2-35

Build-in set Article code

Length 500 mm EDM2 500-35

600 mm EDM2 600-35

700 mm EDM2 700-35

800 mm EDM2 800-35

900 mm EDM2 900-35

1000 mm EDM2 1000-35

1100 mm EDM2 1100-35

1200 mm EDM2 1200-35

Build-in set M2-50

I Water sea 50 mm I

EDM2 600-50

mm EDM2 700-50 800 mm EDM2 800-50 900

EDM2 900-50

EDM2 1000-50

EDM2 1100-50

EDM2 1200-50 seALing And other AsseMBLy Accessories, see “Assembly accessories”

grate design Article code

Length

• 500 mm MBZ+M 500

• 600 mm MBZ+M 600

• 700 mm MBZ+M 700

• 800 mm MBZ+M 800

• 900 mm MBZ+M 900

•1000 mm MBZ+M 1000

•1100 mm MBZ+M 1100

•1200 mm MBZ+M 1200

grate design Article code

Length

• 500 mm MBZ+P 500

• 600 mm MBZ+P 600

• 700 mm MBZ+P 700

• 800 mm MBZ+P 800

• 900 mm MBZ+P 900

•1000 mm MBZ+P 1000

•1100 mm MBZ+P 1100

•1200 mm MBZ+P 1200 grate design Article code

Length 500 mm MBT 500

mm MBT 600

mm MBT 700

mm MBT 800

mm MBT 900

mm MBT 1000

mm MBT 1100

mm MBT 1200

1

3

2

3

3

1

2

grate design Article code

Length

• 500 mm MBGS 500

• 600 mm MBGS 600

• 700 mm MBGS 700

• 800 mm MBGS 800

• 900 mm MBGS 900

•1000 mm MBGS 1000

•1100 mm MBGS 1100

•1200 mm MBGS 1200

grate design Article code

Length

• 500 mm MBGW 500

• 600 mm MBGW 600

• 700 mm MBGW 700

• 800 mm MBGW 800

• 900 mm MBGW 900

•1000 mm MBGW 1000

•1100 mm MBGW 1100

•1200 mm MBGW 1200

grate design Article code

Length

• 500 mm MBGG 500

• 600 mm MBGG 600

• 700 mm MBGG 700

• 800 mm MBGG 800

• 900 mm MBGG 900

•1000 mm MBGG 1000

•1100 mm MBGG 1100

•1200 mm MBGG 1200

3

1 Nummer 2 Nummer 3 3

59 22 19 Nummer 1 Nummer 2 Nummer 3

12 22

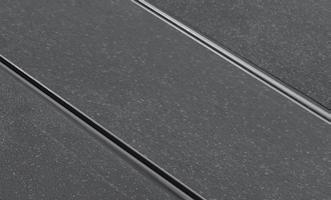

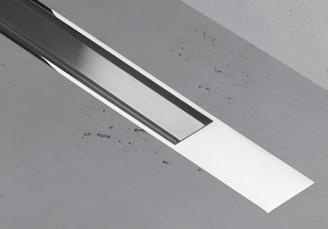

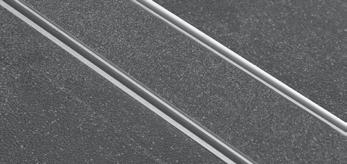

Stone Borderless grate for Natural stone

Barrier-free showering starts with Easy Drain

Especially for all sorts of natural stone ESS developed in the Modulo serie the frameless tileable grate.

This grate is suitable for all types of natural stones und thicknesses.  The shower drain in your bathroom offers an almost complete invisible design and fits harmoniously in the floor.

WPS Technology - pre-assembled sealing membrane

Configure your shower drain:

1

Choose your build-in set

incl. height adjustable legs, pre-assembled sealing membrane and preferred water seal height.

Build-in set M-1

Build-in set M-2

Grate Stone step: step:

2 rotatable 360º

Choose your grate design

See page 4 MS

Build-in set

Choose your build-in set incl. height adjustable legs, pre-assembled sealing membrane and preferred water seal height.

Build-in set M1-30

I Water seal 30 mm I

Build-in set Article code

Length 500 mm EDM1 500-30

600 mm EDM1 600-30

700 mm EDM1 700-30

800 mm EDM1 800-30

900 mm EDM1 900-30

1000 mm EDM1 1000-30 1100 mm EDM1 1100-30 1200 mm EDM1 1200-30

6

Build-in set M1-50

I Water seal 50 mm I

Build-in set Article code

Length 500 mm EDM1 500-50

600 mm EDM1 600-50

700 mm EDM1 700-50

800 mm EDM1 800-50

900 mm EDM1 900-50

1000 mm EDM1 1000-50

1100 mm EDM1 1100-50 1200 mm EDM1 1200-50

Build-in set M2-35 I

Build-in set Article code

Length 500 mm EDM2 500-35

600 mm EDM2 600-35 700 mm EDM2 700-35 800 mm EDM2 800-35 900 mm EDM2 900-35 1000 mm EDM2 1000-35

1100 mm EDM2 1100-35 1200 mm EDM2 1200-35

Build-in set M2-50 I Water seal 50 mm I

500-50

mm EDM2 600-50

mm

700-50

800-50

900-50

1000-50

1100-50

1200-50

M2 trap body, vertical outlet Article code: EDM2-O

2

Choose your grate design

Incl. a surface coating to improve the adhesion of natural stone.

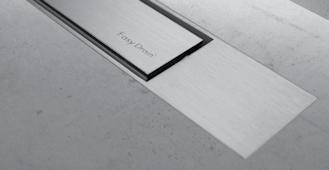

Modulo Stone grate for natural stone

SEALIng And othEr ASSEMBLy AccESSorIES, see “Assembly accessories”

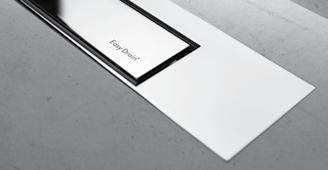

Compact

Compact

The flattest in the world

WPS Technology - pre-assembled sealing membrane

The flattest in the world

With the Easy Drain Compact you choose for the lowest shower drain in the world. Manufactured by the inventor of the linear shower drain. The Compact series conists of shower drains with a installation depth starting at 43 mm, and a removable, easy to clean water seal with the maximum drainage capacity. With these specifications, the series is a “Problem Solver” for renovation projects.

Product benefits:

• Easy to clean siphon

• Pre-assembled sealing membrane - WPS Technology

• Installation free in the floor

• EN 1253 certified

• ETAG - 022 certified

• High drainage capacity 32 l/min

Easy Drain Compact is available in a variety of different styles and models, including our patented systems TAF (Tile Adjustable Frame) and WPS (Water Protection System).

Complete set incl. grate

Compact 50

Complete set incl. grate

mm

1300-50

1400-50

Compact 30 FF

Complete set Article code

Length 500 mm EDCOMFF 500-30

600 mm EDCOMFF 600-30 700 mm EDCOMFF 700-30 800 mm EDCOMFF 800-30 900 mm EDCOMFF 900-30 1000 mm EDCOMFF 1000-30 1100 mm EDCOMFF 1100-30 1200 mm EDCOMFF 1200-30 1300 mm EDCOMFF 1300-30 1400 mm EDCOMFF 1400-30 1500 mm EDCOMFF 1500-30 1600 mm EDCOMFF 1600-30 1700 mm EDCOMFF 1700-30

1800 mm EDCOMFF 1800-30 1900 mm EDCOMFF 1900-30

2000 mm EDCOMFF 2000-30

1500-30

1600-30

EDCOMTFF 1700-30

EDCOMTFF 1800-30

EDCOMTFF 1900-30

2000-30

Compact 50 FF

Complete set Article code Length 500 mm EDCOMFF 500-50 600 mm EDCOMFF 600-50 700 mm EDCOMFF 700-50

800 mm EDCOMFF 800-50

900 mm EDCOMFF 900-50

1000 mm EDCOMFF 1000-50

1100 mm EDCOMFF 1100-50

1200 mm EDCOMFF 1200-50 1300 mm EDCOMFF 1300-50

1400 mm EDCOMFF 1400-50

1500 mm EDCOMFF 1500-50 1600 mm EDCOMFF 1600-50 1700 mm EDCOMFF 1700-50 1800 mm EDCOMFF 1800-50 1900 mm EDCOMFF 1900-50 2000 mm EDCOMFF 2000-50

Complete set Article code

Compact 30 Flange / TAF

Complete set Article code

mm

600-30 700 mm EDCOMPR 700-30 800 mm EDCOMPR 800-30 900 mm EDCOMPR 900-30

1000 mm EDCOMPR 1000-30 1100 mm EDCOMPR 1100-30

mm EDCOMPR 1200-30

Compact 30 TAF

1700-30 1800 mm EDCOMTAF 1800-30 1900 mm EDCOMTAF 1900-30 2000 mm EDCOMTAF 2000-30

Compact 50 Flange / TAF

1900-50 2000 mm EDCOMTAF 2000-50

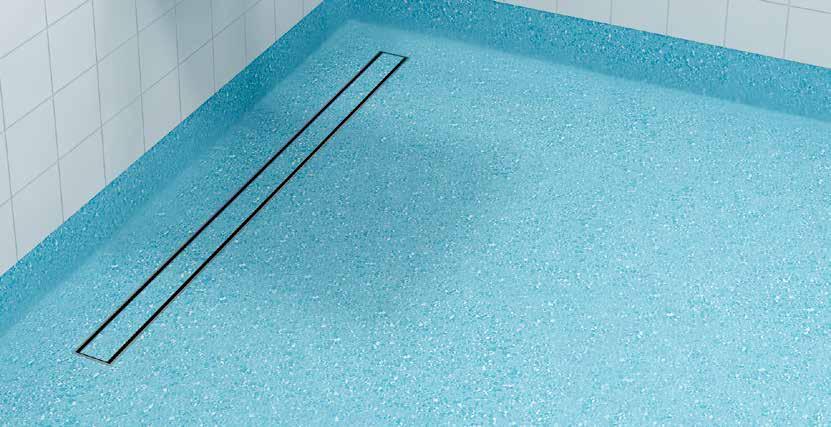

The solution for vinyl floors

Vinyl – The solution for vinyl floors

Easy Drain Vinyl is specially designed for use in combination with vinyl flooring. The vinyl can easily be clamped between the drain’s grate and build-in set to ensure a complete watertight installation. This way, the frame seamlessly fits into the vinyl floor. The Vinyl linear shower drain is supplied as complete set including: lockable grate, trap body, drainage siphon and height adjustable legs.

Complete set incl.brushed stainless steel grate

Complete set Article code

Length

700 mm

800 mm

900 mm

1000 mm

1200 mm

EDVIN-M2- 700-35

EDVIN-M2- 800-35

EDVIN-M2- 900-35

EDVIN-M2-1000-35

EDVIN-M2-1200-35

Ablaufleistung

Complete set Article code Length

800-50

900-50 1000

One-size fits-all shower drain

One-size fits-all shower drain

Easy Drain Flex linear shower drain offers a solution to design your bathroom in absolute freedom. The Flex linear shower drain has a variable length from 50-120 cm, meaning that it can easily be shortened in length on site. This shower drain is supplied as complete set including: grate, trap body, drainage siphon, height adjustable legs and sealing membrane.

Complete set incl. brushed stainless steel grate

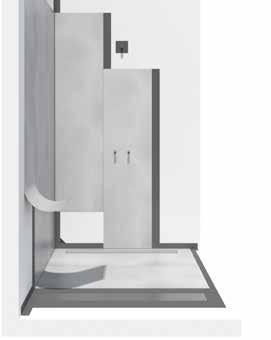

Waterstop

Guaranteed 100% watertight Waterstop Wall

Waterstop Wall

Easy Drain Waterstop Wall linear shower drain is supplied as complete set, including: grate, trap body, drainage siphon and pre-assembled sealing membrane (200 x 150 cm) with WPS technology (Water Protection System). The sealing membrane can be sealed with flexible tile adhesive for guaranteed watertightness and complete protection throughout the shower area. Waterstop shower drain can be installed free in the floor or directly at the wall and is certified according to ETAG 022, CE and EN 1253.

Product benefits:

• Easy to clean siphon

• Pre-assembled sealing membrane 200x150 cm

• Installation: free in the floor or directly at the wall

• High drainage capacity 30 l/min

• CE certified

• ETAG 022 certified

• EN 1253 certified

• Sealing membrane can be sealed with flexible tile adhesive

Waterstop Wall

Complete set Article code

Length

Complete set incl. grate Ablaufleistung bei Sperrwasserhöhe

Complete set Article code Length

seALing And other AssembLy ACCessories, see “Assembly accessories”

Waterstop

Guaranteed 100 % watertight

Waterstop Wall

Easy Drain Waterstop linear shower drain is supplied as complete set, including: grate, trap body, drainage siphon and pre-assembled sealing membrane (200 x 150 cm) with WPS technology (Water Protection System). The sealing membrane can be sealed with flexible tile adhesive for guaranteed watertightness and complete protection throughout the shower area. Waterstop shower drain can be installed free in the floor or directly at the wall and is certified according to ETAG 022, CE and EN 1253.

Product benefits:

• Easy to clean siphon

• Pre-assembled sealing membrane 200x150 cm

• Installation: free in the floor or directly at the wall

• High drainage capacity 41 l/min

• CE certified

• ETAG 022 certified

• EN 1253 certified

• Sealing membrane can be sealed with flexible tile adhesive

Complete set incl. grate

Complete set Article code

Length

mm ED-WS-M- 70

800 mm ED-WS-M- 80

900 mm ED-WS-M- 90 1000 mm ED-WS-M-100

- Water Protection System

Ablaufleistung bei Sperrwasserhöhe

Technology - pre-assembled sealing membrane

Complete set Article code

Length

seALing And other AssembLy ACCessories, see “Assembly accessories”

-

“Assembly accessories”

70

80

90

Multi TAF

Multifunctional

Multifunctional

The patented TAF-System and WPS, have unleashed a revolution in barrier-free showering. The pre-assembled sealing membrane and the height adjustable grate adapt perfectly to any tile thickness and guarantee complete drainage of shower water. By which watertightness is guaranteed.

Product benefits:

• Easy to clean siphon

• Installation free in the floor or between two walls

• EN 1253 certified

• ETAG - 022 certified

• Height adjustable trap body

• Multi TAF- height adjustable tile frame ( 7 - 18 mm)

• High drainage capacity ( 54 l/min)

The Multi TAF / Multi TAF Wall are supplied with the reversible grate (tile or brushed stainless steel). The complete package consists of a drain incl. grate, siphon (30, 35, 50 mm water seal), height adjustable feet, trap body, grounding and sealing membrane.

Multi TAF

Complete set incl. grate

Check if another type of Multi trap body is required.

Reversible grate (tile or brushed stainless steel). The tile shown is not included. The tile insert is 12 mm deep.

Other siphon options, see: Paragraph Multi Trap Body seALing And oTher AsseMbLy ACCessories, see “Assembly accessories”

Wet area - sealing system see “Assembly accessories”

extension set drain for Multi TAF, to be ordered seperately, see “Assembly accessories”

Multi TAF Wall

Check if another type of Multi trap body is required.

Complete set incl. grate Complete set Article code

(tile

Multi long length complete set

Complete set incl. grate

1. Check if another type of Multi trap body is required.

2. Please order a sealing set Easy2Fix seperately.

Complete set incl. tile grate

1. Check if another type of Multi trap body is required.

2. Please order a sealing set Easy2Fix seperately.

The tile shown is not included. The tile insert is 12 mm deep.

Incl. height adjustable legs

The most extensive

The most extensive

The Multi/Multi Wall build-in set is supplied without grating. For the grate, which has to be ordered seperately, see Multi Design sets.

1. Choose your Multi grate.

2. Choose a suitable build-in set incl. height adjustable feet.

3. Check if another type of trap body is required.

4. Please order a sealing set Easy2Fix seperately.

Product benefits:

• Easy to clean siphon

• Installation free in the floor or between two walls

• EN 1253 certified

• Height adjustable trap body

• High drainage capacity ( 54 l/min)

Set consisting of: a drain, siphon construction (30, 35, 50 mm water seal), height adjustable feet, trap body and grounding.

Configure your shower drain:

Choose your build-in set

incl. height adjustable feet. Check if another type of trap body is required. To seal in accordance with ZDB instructions, please order a sealing set Easy2Fix seperately.

Choose your grate design

See page 12 - 13 MU.

Multi/Multi Wall build-in set

1. Check if another type of Multi trap body is required.

2. Please order a sealing set Easy2Fix seperately.

Multi build-in set

Choose your build-in set incl. height adjustable legs, pre-assembled sealing membrane and preferred water seal height.

1. Check if another type of Multi trap body is required.

2. Please order a sealing set Easy2Fix seperately.

Build-in set

build-in set Article code

Length 500 mm EDMIPR 500

600 mm EDMIPR 600

700 mm EDMIPR 700

800 mm EDMIPR 800 900 mm EDMIPR 900 1000 mm EDMIPR 1000 1100 mm EDMIPR 1100

Custom made drains available on request.

Installation options

Capacity water seal

Other siphon options, see: Paragraph Multi Trap Body

set

build-in set Article code

Length 800 mm EDMIOS 600 900 mm EDMIOS 700 1000 mm EDMIOS 800 1100 mm EDMIOS 900

Custom made drains available on request.

seALing And oTher AsseMbLy ACCessories, see “Assembly accessories”

Wet area - sealing system see “Assembly accessories”

Multi build-in set

Choose your build-in set incl. height adjustable legs, pre-assembled sealing membrane and preferred water seal height.

1. Check if another type of Multi trap body is required.

2. Please order a sealing set Easy2Fix seperately.

Build-in set

build-in set Article code

Length 500 mm EDMI 500-O

600 mm EDMI 600-O

700 mm EDMI 700-O

800 mm EDMI 800-O

900 mm EDMI 900-O 1000 mm EDMI 1000-O

mm EDMI 1100-O

mm EDMI 1200-O

Custom made drains available on request.

Geïntegreerd afschot

Other siphon options, see: Paragraph Multi Trap Body

And oTher AsseMbLy ACCessories, see “Assembly

Multi Design set

Outside

design set Article code

Length

• 500 mm EDO 500 M

• 600 mm EDO 600 M

• 700 mm EDO 700 M

• 800 mm EDO 800 M

• 900 mm EDO 900 M

•1000 mm EDO 1000 M

•1100 mm EDO 1100 M

•1200 mm EDO 1200 M Move design set Article code

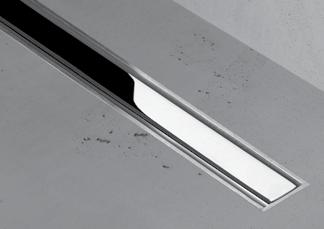

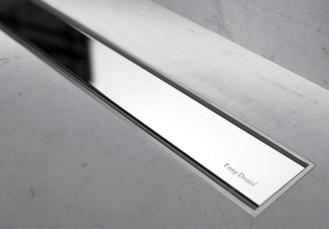

Grate: high-polished

Length • 500 mm EDW 500 P

• 600 mm EDW 600 P

• 700 mm EDW 700 P

• 800 mm EDW 800 P

• 900 mm EDW 900 P

•1000 mm EDW 1000 P

•1100 mm EDW 1100 P

•1200 mm EDW 1200 P

Centre design set Article code

Length 500 mm EDC 500 M

600 mm EDC 600 M

700 mm EDC 700 M

800 mm EDC 800 M

900 mm EDC 900 M

1000 mm EDC 1000 M

1100 mm EDC 1100 M

1200 mm EDC 1200 M

design set Article code

Length • 500 mm EDCAR 500 M

• 600 mm EDCAR 600 M

• 700 mm EDCAR 700 M

• 800 mm EDCAR 800 M

• 900 mm EDCAR 900 M

•1000 mm EDCAR 1000 M

•1100 mm EDCAR 1100 M

•1200 mm EDCAR 1200 M

seALing And oTher AsseMbLy ACCessories, see “Assembly accessories”

Multi trap body

Horizontal outlet, outlet 40 mm.

Artikel code

EDMSI 6

Horizontal outlet, outlet 50 mm.

Artikel code

Horizontal outlet, outlet 50 mm.

Artikel code

incl. siphon construction.

Outlet 50 mm, inlet 40 mm for sink connection.

1 Artikel code

incl. siphon construction.

Vertical outlet, outlet 50 mm.

2 Artikel code

3

Multi trap body

Vertical outlet, outlet 50 mm, inlet 40 mm for sink connection.

Artikel code

EDMSI 4

supplied incl. siphon construction. Water seal 70 mm.

Vertical outlet, outlet 50 mm, inlet 50 mm for sink connection.

Artikel code

EDMSI 5

supplied incl. siphon construction. Water seal 70 mm.

Perfect for every type of bathroom

Perfect for every type of bathroom

Easy Drain Basic Drain is perfect for every type of bathroom. Basic Drain comes standard with an easy-to-clean 50 mm siphon and offers outstanding drainage capacity, all certified according to EN 1253. This shower drain is supplied as complete product and can be placed free in the floor or mounted close to the wall.

Product benefits:

• Trap body - pivoted and adjustable

• Installation - floor and wall

• WPS - 100% watertight with 10 year warranty

• Supplied - Complete product unity

• Certified - EN 1253

• Drainage siphon - removable and cleanable

Basic Drain

Complete set Article code

Length 500 mm BD-50-FL

600 mm BD-60-FL

700 mm BD-70-FL

800 mm BD-80-FL

900 mm

1000 mm

1100 mm BD-110-FL

1200 mm BD-120-FL

Complete set Article code

Basic Drain Steps

Complete set Article code

Length 500 mm BD-50-STEPS

600 mm BD-60-STEPS

700 mm

800 mm

900 mm

1000 mm

BD-70-STEPS

BD-80-STEPS

BD-90-STEPS

BD-100-STEPS

1100 mm BD-110-STEPS

1200 mm BD-120-STEPS

The world’s toughest

The world’s toughest

Easy Drain Fixt is completely made of high quality stainless steel. This robust shower drain from the Easy Drain family is every installation specialist’s favourite. It fits perfectly into almost any floor, because of the stainless steel trap body. The grate is made of brushed stainless steel and is adjustable in height. The Fix is available with 30 and 50 mm water seal, which makes it ideal for new construction and renovation projects.

Fixt

Complete set incl. brushed stainless steel grate

Complete

Trapezium Multi

Complete set incl. grate

1. Check if another type of Multi trap body is required.

2. Please order a sealing set Easy2Fix seperately.

Square Multi

Complete set incl. grate

1. Check if another type of Multi trap body is required.

2. Please order a sealing set Easy2Fix seperately.

I Water seal 30, 35, 50 mm I

Custom made drains available on request.

Round Flex Class

Complete set incl. grate

1. Check if another type of Multi trap body is required.

2. Please order a sealing set Easy2Fix seperately.

Flex Class

Complete set incl. grate

1. Check if another type of Multi trap body is required.

2. Please order a sealing set Easy2Fix seperately.

Complete set Article code length

mm

mm

mm

mm

mm

mm

seAling And other Assembly ACCessories, see “Assembly accessories” easy2Fix see “Assembly accessories”

Shower Boards &

Shower Board

“Design in a Shower Board”

Shower Board S-line

“Design in a Shower Board”

Easy Drain Shower Board is perfectly applicable for any construction situation (new installation and renovation). The Shower Board can be shortened at each side up to a maximum length of 85 cm. All sides of the Shower Board are coated with a special plastic mortar mix, which can be tiled immediately and ensures a 100% watertight installation. Easy Drain Shower Board is a complete set including: S-line shower drain, trap body, sloped board and sealing set inclusief with corner pieces.

Some unique advantages:

• Slope created without mortar or cement

• Complete sealing of the shower area in combination with our SAM system

• Low installation depth

• Top of the shower panel coated with WPS fleece

• Complete installation by the installer

• The Shower Board can be shortened at each side up to a maximum length of 85 cm

• Simple installation and sealing of the EasyDrain® S-line

• EN 1253 Certified

• Incl. Secondary water drainage

• TAF- height adjustable frame (7 - 18 mm)

• Wheelchair accessible

Shower Board

Shower Board

Aqua Brilliant

The problem solver

( Horizontal or vertical outlet & extremely flat )

Shower Board Aqua Brilliant

“One system, its that simple……”

The Shower Board can be cut at each side up to a maximum length of 75 cm and is therefore suitable for almost all installation situations (new construction or renovation). All sides of the Shower Board are coated with a special plastic mortar mix, which can be tiled immediately and ensures a 100% watertight installation. The Shower Board is always a complete unit consisting of: shower drain, siphon 50 mm (certified EN 1253) with horizontal or vertical outlet, slope board and sealing set.

Some unique advantages:

• Slope preparation without mortar or screed

• Complete sealing of the shower area in combination with our SAM system

• Low installation depth

• Shortened at each side up to a maximum length of 75 cm

• Suitable for wheelchairs

• Variable connection, for vertical or horizontal application

• High drainage capacity: 39 l/min

• EN 1253 certified

• Height adjustable and rotatable grate

Shower Board

Shower Board

Modulo (M2)

“An universal system……”

Shower Board Modulo

“An universal board……”

The new Easy Drain® Modulo Shower Board eliminates the extensive and time consuming slope creating process with cement or mortar. The Easy Drain® Compact Shower Board combines extremely easy installation and low installation depth including the Easy Drain® Modulo M-1.

The Easy Drain® Compact Shower Board can be shortened at any desired length and with.

In this way it is suitable for every installation situation. To ensure a watertight sealing, the top side of the Shower Board is coated with a special plastic - mortar combination, on which tiles can be applied directly.

Some unique advantages:

• Slope created without mortar or cement

• Complete sealing of the shower area in combination with our SAM system

• Low installation depth

• Complete installation by the installer

• Can be shortened to any required dimension up to 85 x 90 cm

• Simplified installation and sealing of the Easy Drain® Modulo M-1

• Wheelchair accessible

• Pre-assembled drain body

• Height adjustable

• Combinable with 66 designs

Shower Board Modulo (M2)

Shower Board

“...the flattest board”

Compact (M1) installation depth only 56 mm

Shower Board Compact (M1)

“The flattest board on the market…”

The new Easy Drain® Compact Shower Board eliminates the extensive and time consuming slope creating process with cement or mortar. The Easy Drain® Compact Shower Board combines extremely easy installation and low installation depth including the Easy Drain® Modulo M-1.

The Easy Drain® Compact Shower Board can be shortened at any desired length and with up to 85 x 90 cm. In this way it is suitable for every installation situation. To ensure a watertight sealing, the top side of the Shower Board is coated with a special plastic - mortar combination, on which tiles can be applied directly.

Some unique advantages:

• Slope created without mortar or cement

• Complete sealing of the shower area in combination with our SAM system

• Low installation depth

• Top of the shower panel coated with WPS fleece

• Complete installation by the installer

• Can be shortened to any required dimension up to 85 x 90 cm

• Simplified installation and sealing of the Easy Drain® Modulo M-1

• Wheelchair accessible

• EN 1253 Certified

• Incl. Secondary water drainage

• TAF- height adjustable frame (7 - 18 mm)

Set complet incl.

Complete

d’encastrement et natte d’étanchiété Shower Board Compact (M1)

grille, élément

SAM

(Self-adhesive sealing membrane)

Sealing Solutions is a self-adhesive sealing system which offers a secure sealing in combination with Easy drain Shower Boards. With this sealing kit, we guarantee 10 year on water tightness for the entire bathroom area. All standard packages a sealing certificate is included. Sealing Solutions is certified according to:

Sealing Solutions SAM is a revolutionary sealing system based on elastic foam technology. The self-adhesive sealing membrane can be glued directly to wall and floor surfaces without using additional liquid sealing material. The top side is fleece-coated with an anti-bacterially film and offers an ideal base surface for every type of tile glue. Most moisture related damages result from an improper installation of liquid sealed sealing membranes, wall-to-floor transfers, and drainage systems. The patented Sealing Solutions SAM sealing system avoids moisture damage by using fleece free impact bonding. The non-woven zones interrupt the capillary movement of moisture and ensure a 100% watertightness.

The following primed base surfaces can be sealed with Sealing Solutions SAM:

• Concrete

• Cement screeds

• Dry screed

• Existing ceramics (tiles)

• Plasterboard

• Wood unique advantages:

• Time saving installation (ca. 2 hours drying time)

• Surface immediately tileable

• Suitable for all types of building chemicals

• No more liquid sealing necessary!

• Dust-free assembly

• Fast, direct processing

• 100% watertight warranty

• Complete sets including all accessories

• Antibacterial fleece coating to prevent mold formation!

• High material elasticity prevents cracking

• Acoustic decoupling between finished surface and building construction

• Instantly high adhesive force (20 ton / m2)

WPS Technology - pre-assembled sealing membrane

SAM system

2 h time saving

Sealing Solutions SAM

(Self-adhesive sealing membrane)

SEAL SET SAM - L

Self-adhesive

for L - Wall

SEAL SET SAM - U

Self-adhesive

for u - Wall

x Certificate

x Inside corner self-adhesive

Sealing Solutions SAM

(Self-adhesive sealing membrane)

WPS Technology - pre-assembled sealing membrane

Complete set shower area according to DIN 18534

SEAL SET SAM - FW 5 m2

self-adhesive for bathroom floors and walls 5 m2

Content:

• 6 x Inside corner self-adhesive

• 1 x Outside corner self-adhesive

• 3 x SEAL Wall sleeve

self-adhesive 1/2”

• 1 x SEAL Corner tape self-adhesive

20 m1 x 10 cm

• 1 x SEAL Finishing tape self-adhesive

10 m1 x 30 cm

SEAL SET SAM - FW 7,5 m2

• 1 x SEAL Sealing membrane self-adhesi-

ve, incl. processing aid 30m1 x 50 cm

• 2 x Sample

• 1 x Sleeve DN 100

• 1 x Certificate

17,5 m2 tileable

self-adhesive for bathroom floors and walls 7,5 m2

Content:

• 6 x Inside corner self-adhesive

• 1 x Outside corner self-adhesive

• 3 x SEAL Wall sleeve

self-adhesive 1/2”

• 1 x SEAL Corner tape self-adhesive

20 m1 x 10 cm

• 1 x SEAL Finishing tape self-adhesive

10 m1 x 10 cm

SEAL SET SAM - FW 10 m2

• 1 x SEAL Sealing membrane self-adhesive, 10 m1 x 30 cm

• 1 x SEAL Sealing membrane self-adhesive, incl. processing aid

35 m1 x 50 cm

• 2 x Sample

• 1 x Sleeve DN 100

• 1 x Certificate

19 m2 tileable

self-adhesive for bathroom floors and walls 10 m2

Content:

• 6 x Inside corner self-adhesive

• 1 x Outside corner self-adhesive

• 3 x SEAL Wall sleeve

self-adhesive 1/2”

• 1 x SEAL Corner tape self-adhesive

20 m1 x 10 cm

• 1 x SEAL Finishing tape self-adhesive

20 m1 x 10 cm

• 1 x SEAL Finishing tape self-adhesive 10 m1 x 30 cm

• 2 x SEAL Sealing membrane

self-adhesive, incl. processing aid

20 m1 x 50 cm

• 2 x Sample

• 1 x Sleeve DN 100

• 1 x Certificate

23 m2 tileable

Article code

Article code

SEAL-BoX-7

Article code

Sealing Solutions SAM (Self-adhesive sealing membrane)

Article list

SEAL Sealing membrane self-adhesive

Article code Article description

SEAL-pARTS-1 SEAL Sealing membrane self-adhesive, L= 30 m1, B= 50 cm, incl. processing aid

SEAL-pARTS-2 SEAL Sealing membrane self-adhesive, L= 20 m1, B= 50 cm, incl. processing aid

SEAL-pARTS-3 SEAL Sealing membrane self-adhesive, L= 15 m1, B= 50 cm, incl. processing aid

SEAL-pARTS-4 SEAL Sealing membrane self-adhesive, L= 10 m1, B= 50 cm, incl. processing aid

SEAL Finishing tape self-adhesive

Article code Article description

SEAL-pARTS-5 SEAL Finishing tape self-adhesive, L= 30 m1, B= 10 cm

SEAL-pARTS-6 SEAL Finishing tape self-adhesive, L= 20 m1, B= 10 cm

SEAL-pARTS-7 SEAL Finishing tape self-adhesive, L= 10 m1, B= 10 cm

SEAL Corner tape self-adhesive

Article code Article description

SEAL-pARTS-8 SEAL Corner tape self-adhesive, L=30 m1, B= 10 cm

SEAL-pARTS-9 SEAL Corner tape self-adhesive, L=20 m1, B= 10 cm

SEAL-pARTS-10 SEAL Corner tape self-adhesive, L=10 m1, B= 10 cm

SEAL-pARTS-11 SEAL Corner tape self-adhesive, L=5 m1, B= 10 cm

SEAL Corners

Article code Article description

SEAL-pARTS-12 SEAL Inside corner self-adhesive

SEAL-pARTS-13 SEAL Outside corner self-adhesive

SEAL Wall sleeve

Article code Article description

SEAL-pARTS-14 SEAL Wall sleeve self-adhesive 1/2”

SEAL-pARTS-15 SEAL Wall sleeve self-adhesive DN 50

SEAL-pARTS-16 SEAL Wall sleeve self-adhesive DN 100

SEAL Primers

Article code Article description

SEAL-pARTS-17 SEAL Wet cell primer for sand/cement/walls 1 kg for 7,5 m2

SEAL-pARTS-19 SEAL Deep foundation for stone and plaster walls, 1 kg for 7,5 m2

Aqua Jewels

A jewel in your bathroom

A jewel in your bathroom

ESS equipped their famous shower drain with the innovative TAF-system. The height adjustable grates adapt perfectly to the bathroom floor. Aqua Jewels shower drains are ideal for renovation as well as new construction due to the low installation depth. Decide for yourself what type of grate finish suits your bathroom floor best; brushed stainless steel, glass or your own bathroom tile. Aqua Jewels are delivered as one set and are in 3 versions available: Quattro, Delta and Linea XS.

Product benefits:

• Easy to clean siphon

• Pre-assembled sealing membrane - WPS Technology

• EN 1253 certified

• ETAG - 022 certified

• Height adjustable siphon

• Pivoted and adjustable drainage siphon

• Multi TAF- height adjustable drainage body

WPS Technology - pre-assembled sealing membrane

complete set incl. grate

Quattro

WPS Technology - pre-assembled sealing membrane

Complete set incl. grate with variable water seal from 50 to 25 mm

The tile shown is not included.

The tile insert is 12 mm deep.

size Article code

10 x 10 cm AJQ-10X10-ZM

15 x 15 cm AJQ-15X15-ZM

20 x 20 cm AJQ-20X20-ZM

10 x 10 cm AJQ-10X10-T

15 x 15 cm AJQ-15X15-T

20 x 20 cm AJQ-20X20-T

10 x 10 cm AJQ-10X10-GS

15 x 15 cm AJQ-15X15-GS

20 x 20 cm AJQ-20X20-GS

10 x 10 cm AJQ-10X10-GW

15 x 15 cm AJQ-15X15-GW

20 x 20 cm AJQ-20X20-GW

10 x 10 cm AJQ-10X10-GG

15 x 15 cm AJQ-15X15-GG

20 x 20 cm AJQ-20X20-GG

5 - 16 mm

Other siphon options, see: Chapter Aqua, paragraph Multi Trap Body

Top view: the outlet of Quattro 15x15 and 20x20 is asymmetric to facilitate the orientation in the floor.

seAling And oTher Assembly Accessories, see “Assembly accessories”

Wet area - sealing system see “Assembly accessories”

Quattro for natural stone Aqua Jewels

complete set incl. grate with heightened TAF frame

tile thickness 17 - 28 mm

WPS Technology - pre-assembled sealing membrane

Heightened TAF frame

Heightened TAF frame: Especially for natural stone.

The height adjustable grate support frame and pre-assembled sealing membrane ensure a seamless and watertight connection with your bathroom floor. The heightened frame is specially developed for application of dimension stone in your bathroom floor, with a maximum tile thickness of 28 mm.

Complete set incl. grate with variable water seal from 50 to 25 mm

Tile MSI

10 x 10 cm AJQ-10x10-T-HOOG

15 x 15 cm AJQ-15x15-T-HOOG

20 x 20 cm AJQ-20x20-T-HOOG

The tile shown is not included.

The tile insert is 13 mm deep.

Other siphon options, see: Chapter Aqua, paragraph Multi Trap Body

seAling And oTher Assembly Accessories, see “Assembly accessories”

Wet area - sealing system see “Assembly accessories”

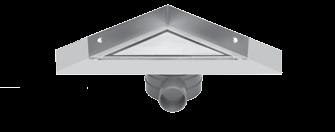

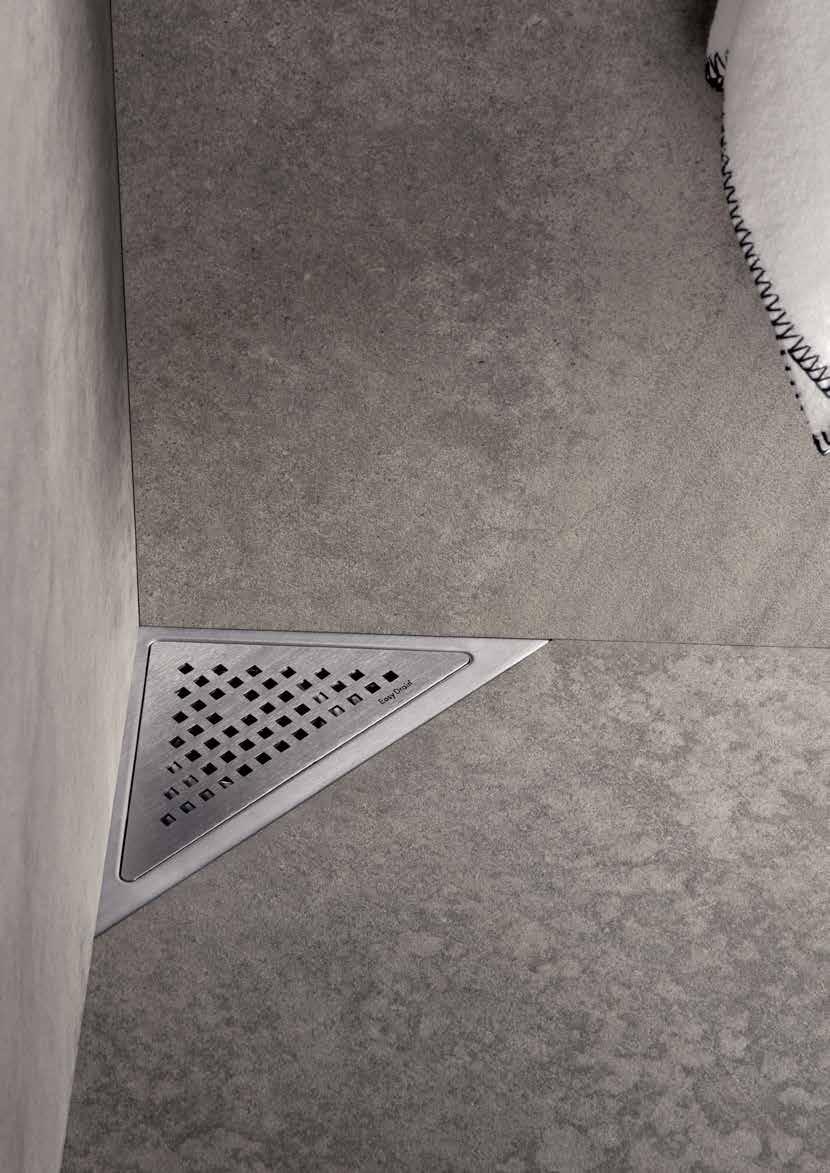

Aqua Jewels Delta

complete set incl. grate

WPS Technology - pre-assembled sealing membrane.

Complete set incl. grate with variable water seal from 50 to 25 mm

The tile shown is not included. The tile insert is 12 mm deep.

Other siphon options, see: Chapter Aqua, paragraph Multi Trap Body

5 - 16 mm

seAling And oTher Assembly Accessories, see “Assembly accessories”

Wet area - sealing system see “Assembly accessories”

Linea Xs Aqua Jewels

WPS Technology - pre-assembled sealing membrane.

AJXS-30-ZP

AJXS-40-ZP

seAling And oTher Assembly Accessories, see “Assembly accessories”

Aqua Plus Professional shower drain with Multi technology

Aqua Plus for professionals

Aqua Plus shower drain series are equipped with our Multi siphon technology. The build-in set is entirely made of stainless steel. This way, Aqua Plus is suitable for every build-in situation. An answer to every shower drainage question.

Features:

• Suitable for every build-in height: trap body and grate are height adjustable.

• 15x15 models are horizontally adjustable for an optimal tile/shower gully installation

• Variable and height adjustable water seal from 50 to 25 mm

• Installation depth as from 54 mm

• High drainage capacity

• Glueable ABS trap body, according to DIN-EN-ISO 2580-1:2002

• Easy to clean trap body

• Patented flexible flange technology: WPS ensures 100% watertightness, perfect adhesion and no pressure load on the edge in comparison to a fixed flange.

• ETAG - 022 certified

• EN 1253 certified

Quattro

Aqua Plus

build-in set with stainless steel finish

WPS Technology - pre-assembled sealing membrane

Complete set incl. grate with variable water seal from 50 to 25 mm

Other siphon options, see: Chapter Aqua, paragraph Multi Trap Body

seAling And other Assembly Accessories, see “Assembly accessories”

Wet area - sealing system see “Assembly accessories”

Aqua Plus

build-in set with stainless steel color

WPS Technology - pre-assembled sealing membrane

Complete set incl. grate with variable water seal from 50 to 25 mm

Other siphon options, see: Chapter Aqua, paragraph Multi Trap Body

seAling And other Assembly Accessories, see “Assembly accessories”

Wet area - sealing system see “Assembly accessories”

Aqua Plus

build-in set (with flange) with stainless steel color

WPS Technology - pre-assembled sealing membrane

Complete set incl. grate with variable water seal from 50 to 25 mm

x 24 cm

Other siphon options, see: Chapter Aqua, paragraph Multi Trap Body

Complete set incl. grate with variable water seal from 50 to 25 mm

x 24 cm

Other siphon options, see: Chapter Aqua, paragraph Multi Trap Body

seAling And other Assembly Accessories, see “Assembly accessories”

Wet area - sealing system see “Assembly accessories”

Aqua Brilliant

Variable connection ( horizontal and vertical )

Cutting edge technology

Vertical and horizontal connectivity combined in a single shower drain. Easy to apply due to its unique form and flexible flange. Very low installation depth with a 50 mm water seal, according to DIN EN 1253, Aqua Brilliant is ideal for renovations thanks to patented technology.

Features:

• Suitable for every installation depth: trap body and grate are height ajustable.

• Extremely low installation depth

• High drainage capacity: 39 l/m

• Glueable ABS trap body, according to DIN-EN-ISO 2580-1:2002

• Easy to clean siphon

• WPS technology – 10 years warranty

• Patented flexible flange technology: WPS ensures 100% watertight, perfect adhesion and no pressure load on the edge in comparison to a fixed flange.

• Soundproofing mat is included in the packing

• Variable connection, for vertical or horizontal application

• Self-explanatory shower drain for professionals (smooth transition from installation to tiling)

• ETAG - 022 certified

• EN 1253 certified

Aqua shower drains are supplied as a complete set including build-in set, grate, trap body, water seal, cement cap and WPS system. Using the cement cap makes sure that the build-in set and trap body are protected during the installation process.

Design:

The Aqua Brilliant shower drain is equipped with a solid grate and refined build-in set with stainless steel color.

Horizontal connection

Aqua Brilliant

Build-in set with horizontal or vertical connection

Water seal 50 mm

WPS Technology - pre-assembled sealing membrane

Complete set incl. grate with a water seal of 50 mm

with Shower Board

SeAling And other ASSemBly AcceSSorieS, see “Assembly accessories”

Wet area - Sealing system see “Assembly accessories”

Brilliant height adjustment piece 10 cm

Article code: AquaB-HOH

Aqua

Shower drain with Multi technology

Our answer: Aqua

Aqua shower drain series are equipped with our Multi siphon technology; providing a solution to every shower drainage question.

Features:

• Suitable for every installation depth: trap body and grate are height adjustable.

• 15x15 cm models are horizontally adjustable for a perfect tile/shower drain installation.

• Variable and height adjustable water seal from 50 to 25 mm

• Extremely low installation depth

• High drainage capacity.

• Glue able ABS trap body, according to DIN-EN-ISO 2580-1:2002

• Easy to clean siphon.

• Patented flexible flange technology: WPS ensures 100% watertightness, perfect adhesion and no pressure load on the edge in comparison to a fixed flanged drain.

• ETAG - 022 certified

• EN 1253 certified

Aqua shower drains are supplied as a complete set including build-in set, grate, trap body, water seal, cement cap and WPS system. Using the cement cap ensures the build-in set and trap body are protected during installation.

Design:

Aqua shower drains are equipped with a solid grate and refined build-in set with stainless steel finish.

Quattro

Build-in set with tileable grate

WPS Technology - pre-assembled sealing membrane

Complete set incl. grate with a variable water seal from 50 to 25 mm

Tile

Other siphon options, see: Paragraph Multi Trap Body tile thickness 8 - 18 mm

SeAling And other ASSemBly AcceSSorieS, see “Assembly accessories”

Wet area - Sealing system see “Assembly accessories”

Quattro

Build-in set with brushed stainless steel grate

WPS Technology - pre-assembled sealing membrane

Complete set incl. grate with a variable water seal from 50 to 25 mm

10 x 10 cm AquaW-10x10-MSI6 15 x 15 cm

Other siphon options, see: Paragraph Multi Trap Body

SeAling And other ASSemBly AcceSSorieS, see “Assembly accessories”

Wet area - Sealing system see “Assembly accessories”

Build-in set with brushed stainless steel grate

WPS Technology - pre-assembled sealing membrane

Complete set incl. grate with a

Other siphon options, see: Paragraph Multi Trap Body

Complete set incl. grate with a variable water seal from 50 to 25 mm

Other siphon options, see: Paragraph Multi Trap Body

SeAling And other ASSemBly AcceSSorieS, see “Assembly accessories”

Wet area - Sealing system see “Assembly accessories”

Build-in set with brushed stainless steel

WPS Technology - pre-assembled sealing membrane

Complete set incl. grate with a variable water seal from 50 to 25 mm

Other siphon options, see: Paragraph Multi Trap Body

SeAling And other ASSemBly AcceSSorieS, see “Assembly accessories”

Wet area - Sealing system see “Assembly accessories”

Delta / Delta Zero

Build-in set with brushed stainless steel grate

WPS Technology - pre-assembled sealing membrane

SeAling And other ASSemBly AcceSSorieS, see “Assembly accessories” Wet area - Sealing system see “Assembly accessories”

Aqua Compact

Build-in set with brushed stainless steel grate

SeAling And other ASSemBly AcceSSorieS, see “Assembly accessories”

Wet area - Sealing system see “Assembly accessories”

Multi trap body

Horizontal outlet, outlet 40 mm.

Article code

EDMSI 6

Horizontal outlet, outlet 50 mm.

Article code EDMSI

Horizontal outlet, outlet 50 mm. Supplied with water seal 70 mm.mm

code

1

Outlet 50 mm, inlet 40 mm for sink connection. Supplied with water seal 70 mm.

code

2

Vertical inlet, outlet 50 mm. Supplied with water seal 70 mm.

code

3

Multi trap body

Vertical outlet, outlet 50 mm, inlet 40 mm for sink connection. Supplied with water seal 70 mm.

4

Vertical outlet, outlet 50 mm, inlet 50 mm for sink connection. Supplied with water seal 70 mm.

5

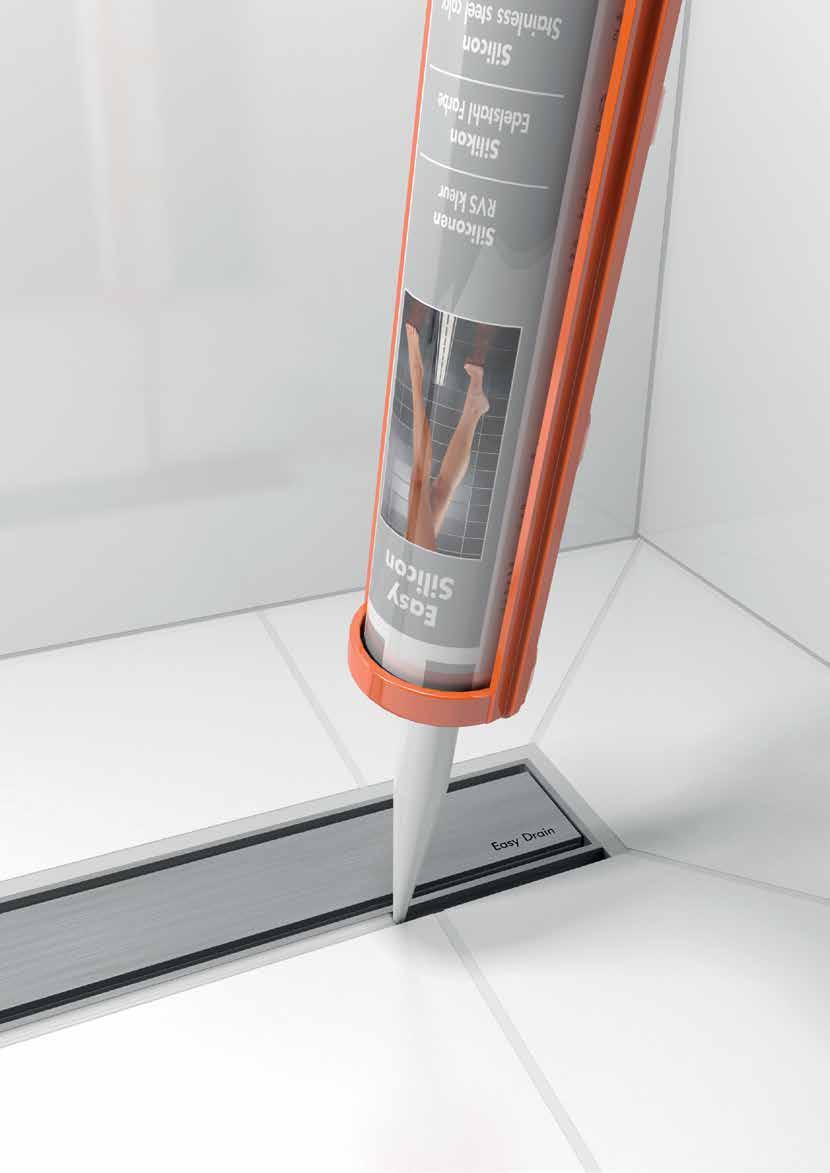

Assembly accessories

Assembly accessories

Easy2Seal 2K RAPID

Article code Article description

E2S-2K-K Set consisting of: 1,5 kg for approx. 1 m2

E2S-2K-G Set consisting of: 4,0 kg for approx. 3 m2

Easy2Seal 2K is a 2-component, highly flexible and reactively fast-setting sealing system for reliable sealing of surfaces.

• two components, fast-setting even at low temperatures

• dries with almost no shrinking

• weather-independent drying thanks to reactive setting

• can be applied by brush, roller, sprayer, or towel

• processing time approx. 45 minutes

• can be surface ready after approx. 90 min - perfect for renovation

• sets in the absence of air - important when sealing tapes overlap

• can be applied directly wet-on-wet

• saves time thanks to rapid work sequence

• for indoor and outdoor use

Consumption:

E2S-2K-K Set consisting of: 1,5 kg for approx. 1 m2

E2S-2K-G Set consisting of: 4,0 kg for approx. 3 m2

Set consisting of: 4,0 kg for approx. 3 m2

WS-I Inside corner set 2 pieces

Outside corner set 2 pieces

Sealing membrane 100 cm wide

Length per role

Sealing stripe 12,5 cm wide

Length per role

Assembly accessories

Wet area - Sealing system

With the new wet area sealing offers a guaranteed safe watertight system solution, that should be applied in combination with the Easy Drain drainage system. This way, leaking as a result of faulty installation due to unfavorable conditions is eliminated. This sealing system from Easy Drain offers both speed and quality in watertight installations with significant time savings. 10 years limited warranty when using sealing sets with any Easy Drain!

For a complete sealing, we offer 2 options:

Sealing set for wet area until 5 m2 wide

Sealing set for wet area until 5 m2

Contents:

Sealing set for wet area until 10 m2 wide Article

6 St. Inside corners

2 St. Outside corners

5 m2 Sealing membrane 100 cm wide

30 m1 Sealing stripe 12,5 cm wide

Easy2Seal 2K RAPID

Sealing set for wet area until 10 m2

Contents:

6 St. Inside corners

2 St. Outside corners

10 m2 Sealing membrane 100 cm wide

30 m1 Sealing stripe 12,5 cm wide

Easy2Seal 2K RAPID

Sealing set for wet area until 5 m2

Sealing set for wet area until 10 m2

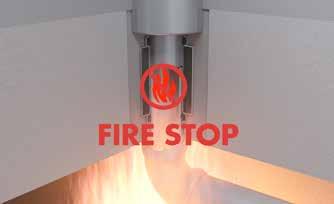

Fire protection set “R90”

Fire protection set

This fire protection system has been developed specifically for our shower drain series.

Its capacity has been successfully proven by fire tests, it turned out that the fire protection set has a resistance up to 90 minutes.

Characteristics:

• Direct mounting under the drain through a plug connection

• High fire proof foreclosure DN 50

• Fire protection set consisting of: fire protection collar, PP-HT socket DN 50 and a identification plate

• The scope of application with massiv covers is 150 until 325 mm cover thickness

• Compatible with all marketable drainage connections made of authorized plastics.

Fire and smoke resistant, fire-resistance class rating “R90” according to DIN 4102-11. Suitable for Easy Drain shower drains and shower drains with a Ø50 mm vertical outlet.

Fire protection set

Assembly Accessories

EasyCompound

Easy Compound is a two-part sealing set for the guaranteed sealing of the seams between tile and Easy Drain. Easy Compound is suitable for all tile sorts.

Advantages:

• 3-year watertightness guarantee

• No mould formation

• Can be used after two hours

• Can be applied with a simple sealant gun

Easy Compound consists of: 1 Easy Compound funnel, 2 mixing nozzles, 1 pot of cleaner 22 (degreaser), 1 brush and 2 trouwels.

EasySilicon

Stainless steel color

EasySilicon is a longlasting elastic, sealant that is easy to apply. The stainless steel color perfectly matches between Easy Drain and tile.

Advantages:

• High quality

• Unique stainless steel colour

• Easy to apply

EasySilicon set consists of: 1 EasySilicon funnel, 1 nozzle, 1 pot of easy cleaner 22 (degreaser), 1 brush and 2 spatulas.

Easy Clean set

Easy Clean set is specially developed for the care and cleaning of your Easy Drain. The Easy Clean set removes trapped filth and other stains that are hard to remove and gives the drain its shine back.

Easy Clean set consists of: 300 ml Easy cleaner, 300 ml Easy remover, sponge and microfiber cloth.

Soundproofing mat

Dimensions:1250x300x5 mm

In accordance with P-BA 74/2011 approval, suitable for entire Easy Drain series. The soundproofing mat complies with the enhanced soundproofing requirements according to DIN 4109.

M2 flat siphon for S-line and Waterstop

Water seal 28 mm

Assembly accessories

M2 flat siphon for Nano and Xs Models

Water seal 28 mm

33 l/min

M2 trap body / vertical outlet

Water seal 50 mm

Fits the following models: Modulo M-2, Xs, Nano, S-line

Modulo TAF Montage/Zubehör

Extension sets for Modulo TAF or TAF Wall

MTAF-VER-100

MTAF-VER-100/ MTAFW-VER-100

MTAF-VER-80

MTAF-VER-80 / MTAFW-VER-80

MTAF-VER-60

MTAF-VER-60 / MTAFW-VER-60

MTAF-VER-40

MTAF-VER-40 / MTAFW-VER-40

MTAF-VER-20

MTAF-VER-20 / MTAFW-VER-20

MTAF-VER-STD

MTAF-VER-STD / MTAFW-VER-STD

Article code

Article code

Article code

MTAF-VER - STD

MTAF-VER - 20

MTAF-VER - 40

MTAF-VER - 60

MTAF-VER - 80

MTAF-VER-100

Article code

MTAFW-VER - STD

MTAFW-VER - 20

MTAFW-VER - 40

MTAFW-VER - 60

MTAFW-VER - 80

MTAFW-VER-100

Assembly accessories

Compact installation/accessories

Connection clip*

To connect several Compact drains in length.

Wall clip*

For anchoring an Easy Drain Compact to the wall

End piece*

To shorten an Easy Drain in case of emergency.

Sealing set Compact flange

Sealing set for the Compact drain with RVS flange. Self-adhesive. This set can be sticked on the stainless steel flange. Compatible for models to 2000 mm.

Self-adhesive bonding strip Compact flange

Self-adhesive bonding strip for the Compact drain with RVS flange. Selfadhesive. This set can be sticked on the stainless steel flange. Compatible for models to 2000 mm.

Self-adhesive bonding strip

For an even better adhesion to the Easy Drain, with the chosen substrate it’s possible to mount this self-adhesive bonding strip to the bottom of the drain. The set consists of two self-adhesive strips with a sand structure and a degreasing agent for optimal mounting. Self-adhesive bonding strip for the Compact 50 to 120 cm. In case of longer lengths than 120 cm, it’s nesseccary to order 2 sets.

Article code

EDCOM CLIP

Article code

EDCOM MC-13

*Attention: do not use with TAF model.

Article code EDFT ES

*Attention: do not use with TAF model.

Article code

EDCOMPR-WD

Article code

EDPR-B

Article code

EDB-01

Assembly accessories

Multi installation/accessories

Extension sets for Multi TAF and TAF Wall

MULTAF-VER-100

MULTAF-VER-100 / MULTAFW-VER-100

MULTAF-VER-80

MULTAF-VER-80 / MULTAFW-VER-80

MULTAF-VER-60

MULTAF-VER-60 / MULTAFW-VER-60

MULTAF-VER-40

MULTAF-VER-40 / MULTAFW-VER-40

MULTAF-VER-20

MULTAF-VER-20 / MULTAFW-VER-20

MULTAF-VER-STD

MULTAF-VER-STD / MULTAFW-VER-STD

Article code

MULTAF-VER-STD

MULTAF-VER-20

MULTAF-VER-40

MULTAF-VER-60

MULTAF-VER-80

MULTAF-VER-100

Article code

MULTAFW-VER-STD

MULTAFW-VER-20

MULTAFW-VER-40

MULTAFW-VER-60

MULTAFW-VER-80

MULTAFW-VER-100

Connection clip*

Zum Verbinden von zwei Easy Drain Multi Rinnen.

Article code

EDFT CLIP

Wall clip*

Zum Befestigen der Easy Drain Multi Rinnen seitlich an der Wand

Easy2Fix*

Sealing set for a 100% watertight Easy Drain installation. Consisting of: Sealing membrane fitted with EPDM sealing ring and 900 gr. adhesive sealing mixture.

(E2F-FT-14: Sealing membrane 1400 x 330 mm) Multi 500-1200 mm.

(E2F-FT-22: Sealing membrane 2200 x 330 mm) Multi 1300-2000 mm.

Article code

EDFT MC

*Attention: do not use with TAF model.

Article code

E2F-FT-14

E2F-FT-22

E2F-CL-14

Easy2Fix Multi sealing membrane

Sealing membrane 1500 x 2000 mm

Article code

E2F-MULTI

*Attention: do not use with TAF model.

Assembly accessories

End piece*

To shorten an Easy Drain in case of emergency.

Multi height adjustment ring 5 cm

To gain an extra height of 5 cm, an ABS height adjustment ring can be glued to the trap body.

Sealing set Multi flange

Article code

EDFT ES

Article code

ED5006805

*Attention: do not use with Multi Flange and TAF model.

Sealing set for the Multi drain with RVS flange. Self-adhesive. This set can be sticked on the stainless steel flange. Compatible for models to 2000 mm.

Self-adhesive bonding strip Multi flange

Self-adhesive bonding strip for the Multi drain with RVS flange. Self-adhesive. This set can be sticked on the stainless steel flange. Compatible for models to 2000 mm.

Self-adhesive bonding strip

For an even better adhesion to the Easy Drain, with the chosen substrate it’s possible to mount this self-adhesive bonding strip to the bottom of the drain. The set consists of two self-adhesive strips with a sand structure and a degreasing agent for optimal mounting. Self-adhesive bonding strip for the Multi 50 to 120 cm. In case of longer lengths than 120 cm, it’s nesseccary to order 2 sets.

Article code

EDCOMPR-WD

Article code

EDPR-B

Article code

EDB-03

Assembly accessories

Fixt installation/accessories

Connection clip*

To connect several Compact drains in length.

End piece*

To shorten an Easy Drain in case of emergency.

Wall clip*

For anchoring an Easy Drain Multi to the wall.

Easy2Fix*

Sealing set for a 100% watertight Easy Drain installation.

Consisting of: Sealing membrane fitted with EPDM sealing ring and 900 gr. adhesive sealing mixture.

(E2F-FT-14: Sealing membrane 1400 x 330 mm) Multi 500-1200 mm.

(E2F-FT-22: Sealing membrane 2200 x 330 mm) Multi 1300-2000 mm.

Self-adhesive bonding strip

For an even better adhesion to the Easy Drain, with the chosen substrate it’s possible to mount this self-adhesive bonding strip to the bottom of the drain. The set consists of two self-adhesive strips with a sand structure and a degreasing agent for optimal mounting. Self-adhesive bonding stirp for the Compact 50 to 120 cm. In case of longer lengths than 120 cm, it’s nesseccary to order 2 sets.

WTW installation/accessories

WTW Cleaner Set

WTW Cleaner is specially developed to clean contaminated thermal backwin systems. Pollution accumlated soap greases, skin sebum, lime and hair is loosened and removed in an efficient manner.

It consists of: 2x 300 ml Easy WTW Cleaner.

Shower Board installation/accessories

Shower Board sealing set

To ensure a reliable sealing between the wall and the Shower Board. Consists of: 5m sealing tape, 2 inner corners and 2 kg sealant.

Article code EDFT CLIP

Article code EDFT MC

Article code EDFT MC

*Attention: do not use with TAF model.

Article code

E2F-FT-14

E2F-FT-22

*Attention: do not use with TAF model.

Article code EDB-02

Article code ED-WTW-CLEANER

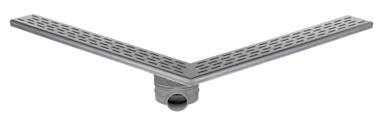

Specials (Round Flex Class) installation/accessories

Easy2Fix

Sealing set for a 100% watertight Easy Drain installation.

Easy2Fix consisting of: Sealing membrane with EPDM sealing ring, spatula and 900 gr. adhesive sealing mixture.

Sealing membrane 1400 x 250 (mm)

Assembly accessories Aqua installation/accessories

Aqua Brilliant height adjustment piece 10 cm

Top-up element for 10 cm.

Multi height adjustment piece 5 cm

To gain an extra height of 5 cm, an ABS height adjustment ring can be glued to the trap body. Article

Easy2Fix Aqua Brilliant sealing membrane

Sealing membrane 1500 x 2000 mm

Easy2Fix Aqua sealing membrane

Sealing membrane 1500 x 2000 mm

WPS Sealing set

WPS sealing set for Aqua and Aqua Plus 317 x 317 mm.

100% Watertightness: 10 years warranty.

WPS Sealing set (Brilliant)

WPS sealing set for Aqua Brilliant 317 x 317 mm.

100% Watertightness: 10 years warranty.

WPS Sealing set (Delta)

WPS sealing set for Aqua Delta 650 x 400 mm.

100% Watertightness: 10 years warranty.

Assembly accessories

Shower profiles

Stainless steel slope profile:

• Slope profile for linear shower drains

• Easy way to create a sloped floor (1 to 2%)

• Bevel cut from the wall tile is not necessary

• Profile can be used on the left- and right side of the shower

• Adjustable height from 8 to 32 mm

Slope profile

Left and right useful, 8 to 32 mm adjustable

Easy Turn®

Shower profiles

Barrier profile:

• No sharp transitions and edges

• Watertight solution

• No need for height difference between tiles

• Simple processing

• Maximum tile thickness: 13,5 mm

• Perfect for glass wall panels and barrier-free showers

• Sealing membrane included. The supplied sealing membrane is ultra-thin, tear-resistant, elastic, vapour diffusion-open sealing membrane for waterproof sealing of flat building parts. This membrane meets the ZDB (Central German Building and Construction Trade Association) requirements for alternative sealants. The membrane allows, after 7 days, no moisture penetration under a constant pressure of 1.5 bar.

Barrier profile

Straight, length: 1250 mm

Barrier profile

Perpendicular corner, arm length: 1030 mm

Space-saving

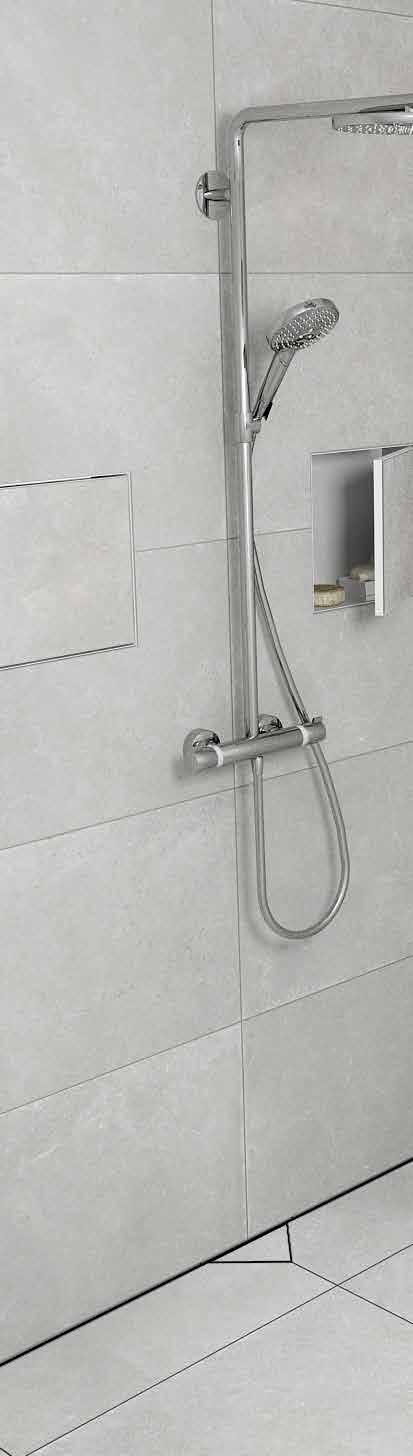

Collection

ESS presents a new range of container accessories and brings with this product line an array of attractive and practical products on the market suitable for bathroom and toilet. This new product-line includes a concealed toilet paper storage / holder and a built-in wall niche made of high quality stainless steel in various sizes. You can conveniently stow all your toilet paper, shampoos and shower gel’s. The perfect and sleek design of Container products will look harmonious in every bathroom.

All our products are distinctive by:

• Superior quality

• Space saving, stylish and functional design

• Easy installation, simple and uncomplicated sealing and tiling

Needless to say is that all products of this serie meet the high quality standard set by ESS with tileable door

Wall niche 10 or 14 cm installation depth for solid- and drywall.

Inclusive Build-in element & sealing set

Wall niche suitable for 0 mm - 55 mm in depth adjustable, for solid- and drywall incl. build-in element ( 10 cm installation depth) & sealing set.

Detail-Information see category Container C - Box.

Wall niche 10 cm in depth adjustable, for solid- and drywall incl. build-in element

Detail-Information see category Container Box 10.

Wall niche 7 cm installation depth solid wall construction

Detail-Information see category Container Box 7.

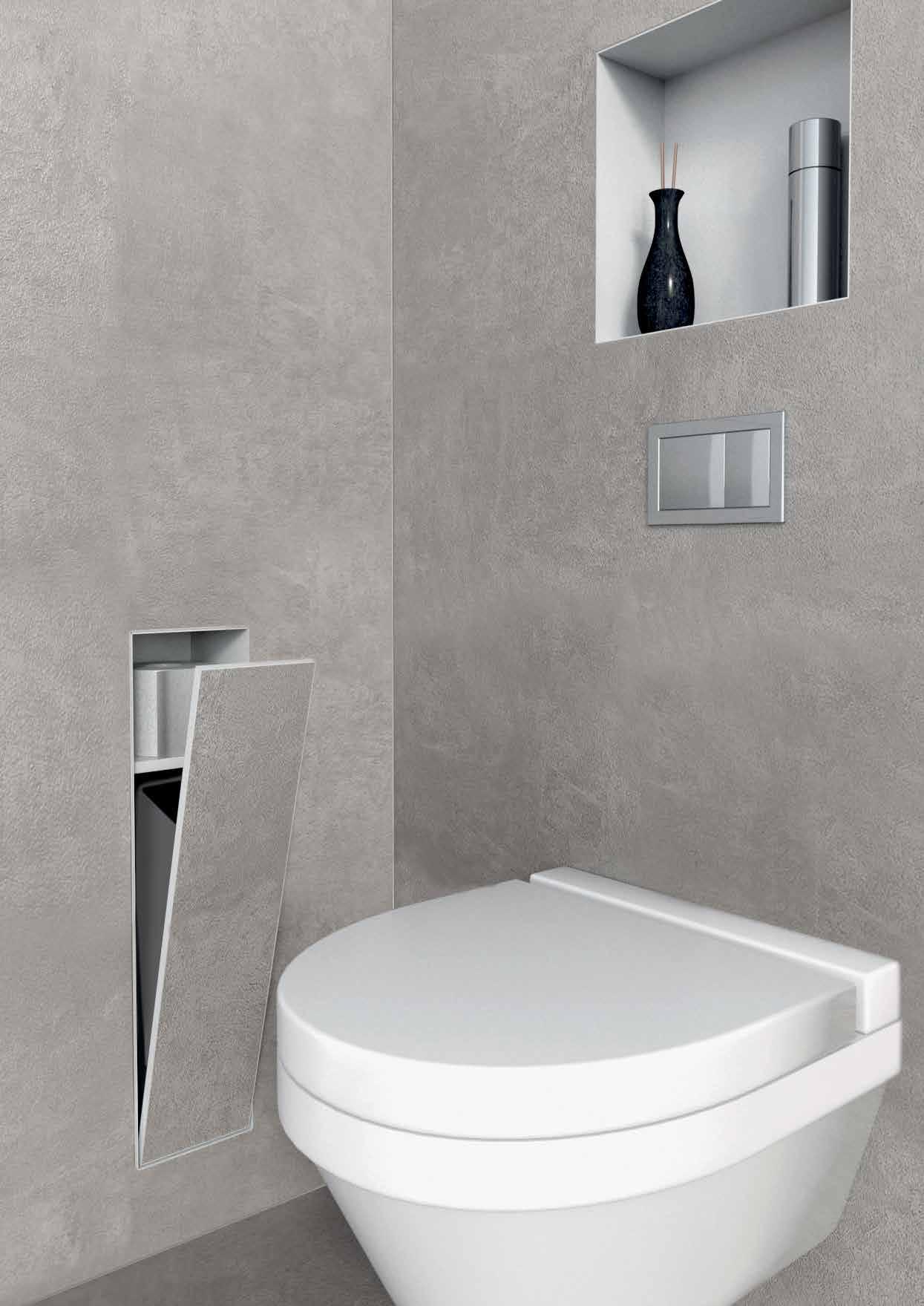

Build-in toilet- Brush holder & Wall niche

Build-in toilet- Brush holder & Paper holder with tileable door

Build-in toilet- Brush holder & Wall niche

Build-in toilet- Brush holder & Paper holder

WC - Paper including storage holder for 6 rolls

WC - Paper holder including storage holder for 5 rolls

Detail-Information see category Container Roll.

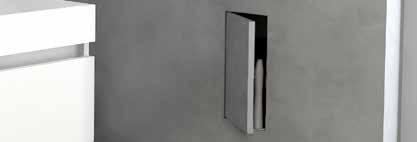

Wall niche 10 or 14 cm installation depth with tileable door for drywall & solid wall construction lncluding Build-in element & sealing set

15x30 30x30

Wall niChE WhiTE

Surface: White / RAL 9016

Size: 150x300x100 150x300x140

Article code: BOXT-W-15x30x10 BOXT-W-15x30x14

Build-in element & sealing set

Surface: Creme / RAL 9001

Size: 150x300x100 150x300x140

Article code: BOXT-C-15x30x10 BOXT-C-15x30x14

Surface: Anthracite

Build-in element & sealing set

Size: 150x300x100 150x300x140

Article code: BOXT-A-15x30x10 BOXT-A-15x30x14

Build-in element & sealing set

Surface: Brushed stainless steel

Size: 150x300x100 150x300x140

Article code: BOXT-15x30x10 BOXT-15x30x14

FOr dryWall & SOlid Wall COnSTruCTiOn

Size: 150x300x100 mm / 150x300x140 mm

Base material: Stainless steel

Build-in element & sealing set

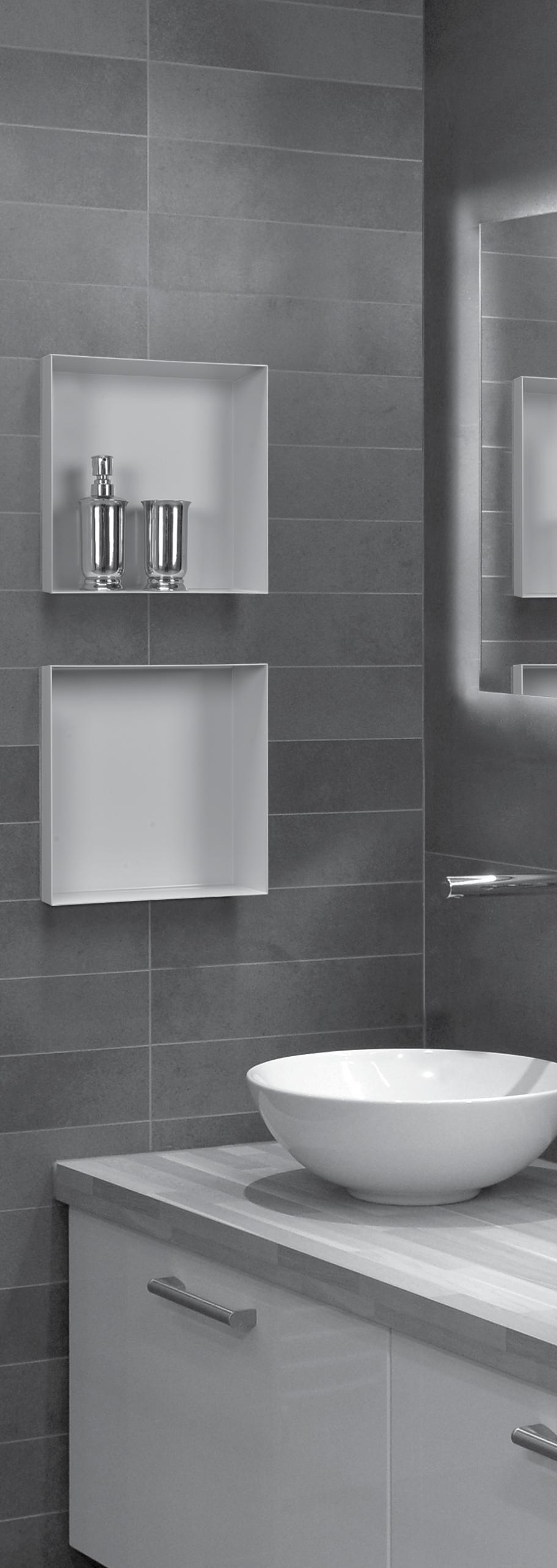

Wall niChE WhiTE

Surface: White / RAL 9016

Size: 300x300x100 300x300x140

Article code: BOXT-W-30x30x10 BOXT-W-30x30x14

Build-in element & sealing set

Wall niChE CrEmE

Surface: Creme / RAL 9001

Size: 300x300x100 300x300x140

Article code: BOXT-C-30x30x10 BOXT-C-30x30x14

Build-in element & sealing set

Wall niChE anThraCiTE

Surface: Anthracite

Size: 300x300x100 300x300x140

Article code: BOXT-A-30x30x10 BOXT-A-30x30x14

Wall niChE STainlESS STEEl

Surface: Brushed stainless steel

Build-in element & sealing set

FOr dryWall & SOlid Wall COnSTruCTiOn

Size: 300x300x100 mm / 300x300x140 mm

Base material: Stainless steel

Size: 300x300x100 300x300x140

Article code: BOXT-30x30x10 BOXT-30x30x14

Build-in element & sealing set

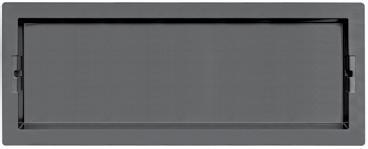

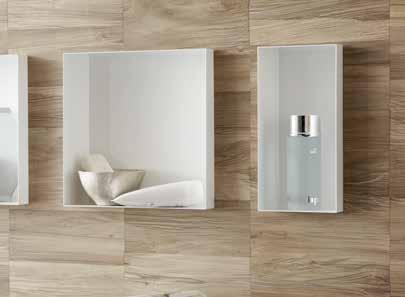

Wall niche variable from 0 - 55 mm in depth adjustable, for solid- and drywall incl. build-in element (10 cm installation depth) & sealing set.

From 0 - 55 mm adjustable in depth

Wall niChE WhiTE

Surface: White / RAL 9016

Article code: BOX10C-W-15x30x10

Wall niChE CrEmE

Build-in element & sealing set

Surface: Creme / RAL 9001

Article code: BOX10C-C-15x30x10

Wall niChE anThraCiTE

Surface: Anthracite

Build-in element & sealing set

Article code: BOX10C-A-15x30x10

Wall niChE STainlESS STEEl

FOr dryWall & SOlid Wall COnSTruCTiOn

Size: 150x300x100 mm

Base material: Stainless steel

Build-in element & sealing set

Surface: Brushed stainless steel

Article code: BOX10C-15x30x10

Build-in element & sealing set

Wall niChE WhiTE

Surface: White / RAL 9016

Article code: BOX10C-W-30x30x10

Wall niChE CrEmE

Build-in element & sealing set

Surface: Creme / RAL 9001

Article code: BOX10C-C-30x30x10

Wall niChE anThraCiTE

Surface: Anthracite

Build-in element & sealing set

Article code: BOX10C-A-30x30x10

Wall niChE STainlESS STEEl

FOr dryWall & SOlid Wall COnSTruCTiOn

Size: 300x300x100 mm

Base material: Stainless steel

Build-in element & sealing set

Surface: Brushed stainless steel

Article code: BOX10C-30x30x10

Build-in element & sealing set

FOr dryWall & SOlid Wall COnSTruCTiOn Size: 600x300x100 mm

Base material: Stainless steel

Wall niChE WhiTE

Surface: White / RAL 9016

Article code: BOX10C-W-60x30x10

Wall niChE CrEmE

Surface: Creme / RAL 9001

Article code: BOX10C-C-60x30x10

Build-in element & sealing set

Wall niChE anThraCiTE

Surface: Anthracite

Article code: BOX10C-A-60x30x10

Wall niChE STainlESS STEEl

Surface: Brushed stainless steel

Article code: BOX10C-60x30x10

Wall niche 10 cm installation depth for solid- and drywall inclusive

Build-in element & sealing set.

15x30 30x30 60x30

Border BruShed StainleSS Steel

Border poliShed

Border BruShed StainleSS Steel

Border BruShed StainleSS Steel

border polished border brushed stainless steel

15x30

Wall niChE WhiTE / bOrdEr bruShEd STainlESS STEEl

Surface: White / RAL 9016

Article code: BOX-15x30x10-W

Build-in element & sealing set

Wall niChE CrEmE / bOrdEr bruShEd STainlESS STEEl

Surface: Creme / RAL 9001

Article code: BOX-15x30x10--C

Build-in element & sealing set

Wall niChE anThraCiTE / bOrdEr bruShEd STainlESS STEEl

Surface: Anthracite

Article code: BOX-15x30x10--A

Build-in element & sealing set

Wall niChE STainlESS STEEl

bOrdEr bruShEd STainlESS STEEl

Surface: Brushed stainless steel

Article code: BOX-15x30x10

Build-in element & sealing set

FOr dryWall & SOlid Wall COnSTruCTiOn

Size: 150x300x100 mm

Base material: Stainless steel

Wall niChE WhiTE / bOrdEr pOliShEd

Surface: White / RAL 9016

Article code: BOX-15x30x10-PW

Wall niChE CrEmE / bOrdEr pOliShEd

Build-in element & sealing set

Surface: Creme / RAL 9001

Article code: BOX-15x30x10--PC

Build-in element & sealing set

Wall niChE anThraCiTE / bOrdEr pOliShEd

Surface: Anthracite Article code: BOX-15x30x10--PA

Build-in element & sealing set

Wall niChE STainlESS STEEl

bOrdEr pOliShEd

Surface: Brushed stainless steel

Article code: BOX-15x30x10-P

Build-in element & sealing set

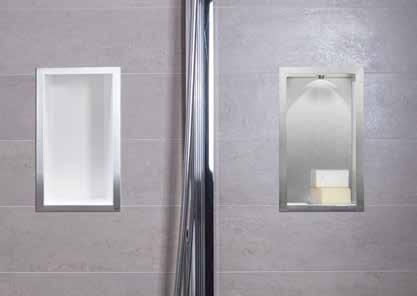

Wall niChE WiTh lEd lighTing

bOrdEr bruShEd STainlESS STEEl

Surface: Brushed stainless steel

Article code: BOX-15x30x10-L

Build-in element & sealing set

Wall niChE WiTh dOOr bOrdEr bruShEd STainlESS STEEl

Surface: Brushed stainless steel Article code: BOX-15x30x10-D

Build-in element & sealing set

FOr dryWall & SOlid Wall COnSTruCTiOn

Size: 150x300x100 mm

Base material: Stainless steel

30x30

Wall niChE WhiTE / bOrdEr bruShEd STainlESS STEEl

Surface: White / RAL 9016

Article code: BOX-30x30x10-W

Build-in element & sealing set

Wall niChE CrEmE / bOrdEr bruShEd STainlESS STEEl

Surface: Creme / RAL 9001

Article code: BOX-30x30x10-C

Wall niChE anThraCiTE /

Build-in element & sealing set

bOrdEr bruShEd STainlESS STEEl

Surface: Anthracite

Article code: BOX-30x30x10-A

Wall niChE STainlESS STEEl

Build-in element & sealing set

bOrdEr bruShEd STainlESS STEEl

Surface: Brushed stainless steel

Article code: BOX-30x30x10

Build-in element & sealing set

FOr dryWall & SOlid Wall COnSTruCTiOn

Size: 300x300x100 mm

Base material: Stainless steel

Wall niChE WhiTE / bOrdEr pOliShEd

Surface: White / RAL 9016

Article code: BOX-30x30x10-PW

Wall niChE CrEmE / bOrdEr pOliShEd

Build-in element & sealing set

Surface: Creme / RAL 9001

Article code: BOX-30x30x10-PC

Wall niChE anThraCiTE / bOrdEr pOliShEd

Surface: Anthracite

Build-in element & sealing set

Article code: BOX-30x30x10-PA

Wall niChE STainlESS STEEl / bOrdEr pOliShEd

Build-in element & sealing set

Surface: Brushed stainless steel

Article code: BOX-30x30x10-P

Build-in element & sealing set

Wall niChE WiTh lEd lighTing

bOrdEr bruShEd STainlESS STEEl

Surface: Brushed stainless steel

Article code: BOX-30x30x10-L

Wall niChE WiTh dOOr

bOrdEr bruShEd STainlESS STEEl

Build-in element & sealing set

Surface: Brushed stainless steel

Article code: BOX-30x30x10-D Build-in

Wall niChE WiTh mirrOr

bOrdEr bruShEd STainlESS STEEl

FOr dryWall & SOlid Wall COnSTruCTiOn Size: 300x300x100 mm

Base material: Stainless steel

& sealing

Surface: Brushed stainless steel

Article code: BOX-30x30x10-S 30x30

Build-in element & sealing set

FOr dryWall & SOlid Wall COnSTruCTiOn

Size: 600x300x100 mm

Base material: Stainless steel

Wall niChE WhiTE / bOrdEr bruShEd STainlESS STEEl

Surface: White / RAL 9016

Article code: BOX-60x30x10-W

Wall niChE CrEmE / bOrdEr bruShEd STainlESS STEEl

Surface: Creme / RAL 9001

Article code: BOX-60x30x10-C Build-in element & sealing set

Build-in element & sealing set

Wall niChE anThraCiTE /

bOrdEr bruShEd STainlESS STEEl

Surface: Anthracite

Article code: BOX-60x30x10-A

Wall niChE STainlESS STEEl

bOrdEr bruShEd STainlESS STEEl

element & sealing set

Surface: Brushed stainless steel

Article code: BOX-60x30x10

element & sealing set

Wall niChE WhiTE / bOrdEr pOliShEd

Surface: White / RAL 9016

Article code: BOX-60x30x10-PW

element & sealing set

Wall niChE CrEmE / bOrdEr pOliShEd

Surface: Creme / RAL 9001

Article code: BOX-60x30x10-PC

Build-in element & sealing set

Wall niChE anThraCiTE / bOrdEr pOliShEd

Surface: Anthracite

Article code: BOX-60x30x10-PA

Wall niChE STainlESS STEEl / bOrdEr pOliShEd

Build-in element & sealing set

Surface: Brushed stainless steel Artikelnummer: BOX-60x30x10-P

FOr dryWall & SOlid Wall COnSTruCTiOn

Size: 600x300x100 mm

Base material: Stainless steel

Wall niChE WiTh lEd lighTing

bOrdEr bruShEd STainlESS STEEl

Surface: Brushed stainless steel

Article code: BOX-60x30x10-L

Build-in element & sealing set

Wall niChE WiTh dOOr

bOrdEr bruShEd STainlESS STEEl

Surface: Brushed stainless steel

Article code: BOX-60x30x10-D

Build-in element & sealing set

Wall niChE WiTh mirrOr

bOrdEr bruShEd STainlESS STEEl

Surface: Brushed stainless steel

Article code: BOX-60x30x10-S

Mirror also suitable for shower area

Build-in element & sealing set

Wall niChE

bOrdEr bruShEd STainlESS STEEl

Build-in element & sealing set

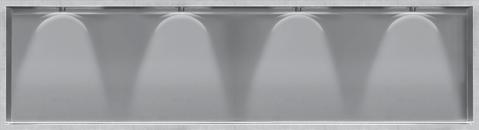

Wall niChE WiTh lEd lighTing

bOrdEr

FOr dryWall & SOlid Wall COnSTruCTiOn Size: 900x300x100 mm

Base material: Stainless steel

Wall niChE

bOrdEr bruShEd STainlESS STEEl

Surface: Brushed stainless steel

Build-in element & sealing set

Wall niChE WiTh lEd lighTing

bOrdEr bruShEd STainlESS STEEl Surface:

FOr dryWall & SOlid Wall COnSTruCTiOn

Size: 600x300x100 mm

Base material: Stainless steel

Wall niche 7 cm installation depth for solid wall construction

CONTAINER INCLuDINg DOOR

CONTAINER INCLuDINg MIRROR

Wall niChE

bOrdEr bruShEd STainlESS STEEl

Surface: Brushed stainless steel

Article code: BOX-15x30

Wall niChE WiTh dOOr

bOrdEr bruShEd STainlESS STEEl

Surface: Brushed stainless steel Article

FOr SOlid Wall COnSTruCTiOn

Size: 150x300x70 mm

Base material: Stainless steel

Wall niChE

bOrdEr bruShEd STainlESS STEEl

Surface: Brushed stainless steel

Article code: BOX-30x30

FOr SOlid Wall COnSTruCTiOn

Size: 300x300x70 mm

Base material: Stainless steel

Wall niChE WiTh dOOr

bOrdEr

Surface: Brushed stainless steel

Article code: BOX-30x30-D

Wall niChE WiTh mirrOr

bOrdEr bruShEd STainlESS STEEl

Surface: Brushed stainless steel

Article code: BOX-30x30-S

Also suitable for shower area

Wall niChE

bOrdEr bruShEd STainlESS STEEl

Article code: BOX-60x30

FOr SOlid Wall COnSTruCTiOn

Size: 600x300x70 mm

Base material: Stainless steel

Surface: Brushed stainless steel

Wall niChE WiTh dOOr

Surface: Brushed stainless steel

Article code: BOX-60x30-D

bOrdEr bruShEd STainlESS STEEl Wall niChE WiTh mirrOr

bOrdEr bruShEd STainlESS STEEl

Surface: Brushed stainless steel

Article code: BOX-60x30-S 60x30

Also suitable for shower area

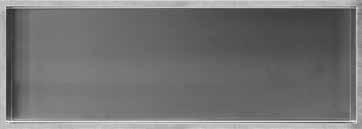

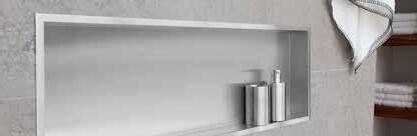

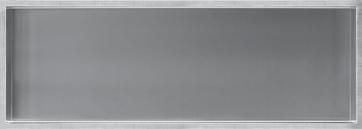

90x30 I 120x30

FOr SOlid Wall COnSTruCTiOn

Base material: Stainless steel

Wall niChE 90 x 30 Cm

bOrdEr bruShEd STainlESS STEEl

Size: 900x300x70 mm

Surface: Brushed stainless steel

Article code: BOX-90x30

Wall niChE 120 x 30 Cm

bOrdEr bruShEd STainlESS STEEl

Size: 1200x300x70 mm

Surface: Brushed stainless steel

Article code: BOX-120x30

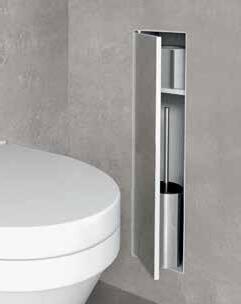

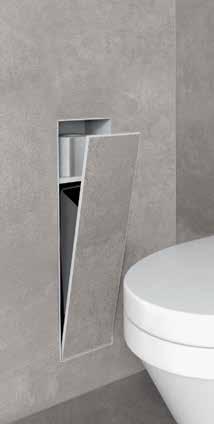

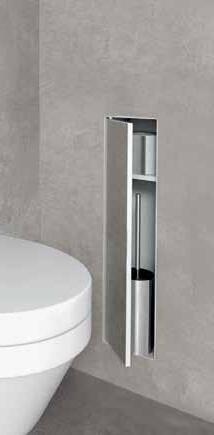

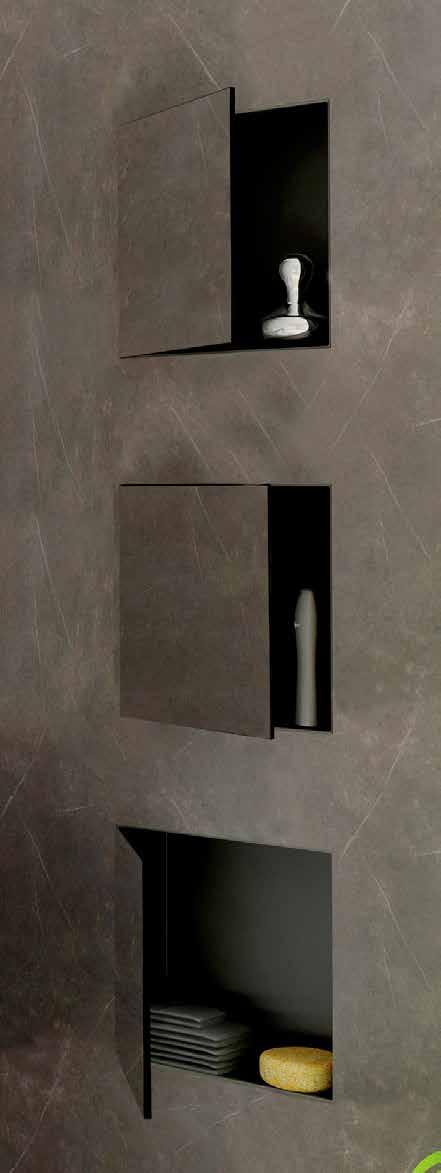

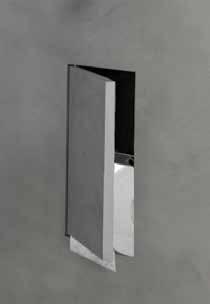

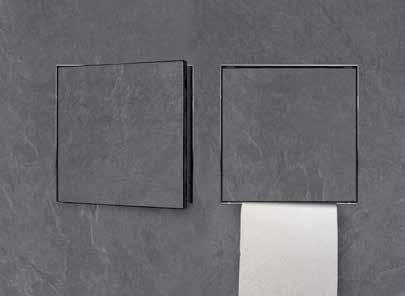

Wall niche 14 cm installation depth with tileable door for solid- and drywall. incl. build-in element, Sealing set & Brush holder.

TilEablE

FOr dryWall & SOlid Wall COnSTruCTiOn

Base material: Stainless steel

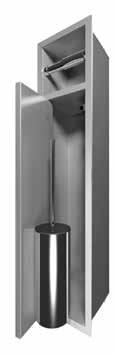

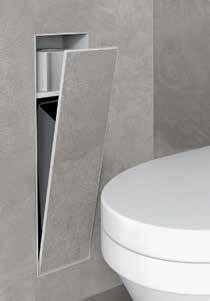

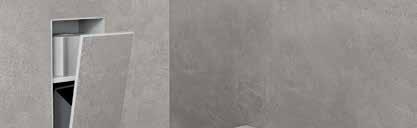

build-in TOilET- bruSh hOldEr & Wall niChE WhiTE

Size: 595x145 mm

Surface: White / RAL 9016

Article code: TCL-8-W

Build-in element & sealing set

build-in TOilET- bruSh hOldEr & Wall niChE CrEmE

Size: 595x145 mm

Surface: Creme / RAL 9001

Article code: TCL-8-C

Build-in element & sealing set

build-in TOilET- bruSh hOldEr & Wall niChE anThraCiTE

Size: 595x145 mm

Surface: Anthracite

Article code: TCL-8-A

Build-in element & sealing set

build-in TOilET- bruSh hOldEr & Wall niChE STainlESS STEEl

Size: 595x145 mm

Surface: Brushed stainless steel

Article code: TCL-8

Build-in element & sealing set

FOr dryWall & SOlid Wall COnSTruCTiOn

Base material: Stainless steel

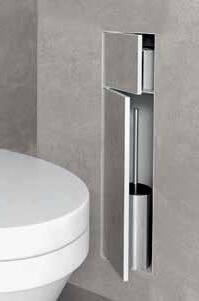

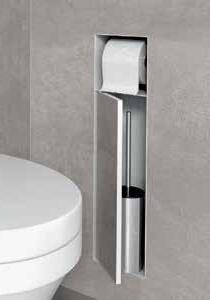

build-in TOilET- bruSh hOldEr & papErhOldEr WhiTE

Size: 595x145 mm

Surface: White / RAL 9016

Article code: TCL-9-W

Build-in element & sealing set

build-in TOilET- bruSh hOldEr & papErhOldEr CrEmE

Size: 595x145 mm

Surface Farbe Creme / RAL 9001

Article code: TCL-9-C

Build-in element & sealing set

build-in TOilET- bruSh hOldEr & papErhOldEr anThraCiTE

Size: 595x145 mm

Surface: Anthracite

Article code: TCL-9-A

Build-in element & sealing set

build-in TOilET- bruSh hOldEr & papErhOldEr STainlESS STEEl

Size: 595x145 mm

Surface: Brushed stainless steel

Article code: TCL-9

Build-in element & sealing set

FOr dryWall & SOlid Wall COnSTruCTiOn

Base material: Stainless steel

build-in TOilET- bruSh hOldEr & papErhOldEr WhiTE

Size: 595x145 mm

Surface: White / RAL 9016

Article code: TCL-10-W

Build-in element & sealing set

build-in TOilET- bruSh hOldEr & papErhOldEr CrEmE

Size: 595x145 mm

Surface: Creme / RAL 9001

Article code: TCL-10-C

Build-in element & sealing set

build-in TOilET- bruSh hOldEr & papErhOldEr anThraCiTE

Size: 595x145 mm

Surface: Anthracite

Article code: TCL-10-A

Build-in element & sealing set

build-in TOilET- bruSh hOldEr & papErhOldEr STainlESS STEEl

Size: 595x145 mm

Surface: Brushed stainless steel

Article code: TCL-10

Build-in element & sealing set

FOr dryWall & SOlid Wall COnSTruCTiOn

Base material: Stainless steel

build-in WaSTE COnTainEr & STOragE COmparTmEnT, TilEablE WhiTE

Size: 595x145 mm

Surface: White / RAL 9016

Article code: TCL-11-W

Build-in element & sealing set

build-in WaSTE COnTainEr & STOragE COmparTmEnT, TilEablE CrEmE

Size: 595x145 mm

Surface: Creme / RAL 9001

Article code: TCL-11-C

Build-in element & sealing set

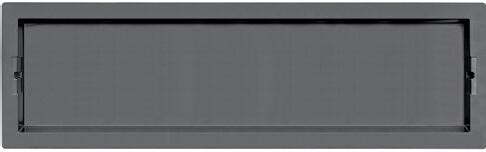

build-in WaSTE COnTainEr & STOragE COmparTmEnT, TilEablE anThraCiTE

Size: 595x145 mm

Surface Farbe: Anthracite

Article code: TCL-11-A

Build-in element & sealing set

build-in WaSTE COnTainEr & STOragE COmparTmEnT, TilEablE STainlESS STEEl

Size: 595x145 mm

Surface: Brushed stainless steel

Article code: TCL-11

Build-in element & sealing set

Wall niChE / papErhOldEr 15 x 15 WhiTE

Size: 150x150x140

Surface: White / RAL 9016

Article code: BOXT-W-15x15x14

Build-in element & sealing set

Wall niChE / papErhOldEr 15 x 15 CrEmE

Size: 150x150x140

Surface: Creme / RAL 9001

Article code: BOXT-C-15x15x14

Build-in element & sealing set

Wall niChE / papErhOldEr 15 x 15 anThraCiTE

Size: 150x150x140

Surface: Anthracite

Article code: BOXT-A-15-15-14

Build-in element & sealing set

Wall niChE / papErhOldEr 15 x 15 STainlESS STEEl

Size: 150x150x140

Surface: Brushed stainless steel

Article code: BOXT-15x15x14

FOr dryWall & SOlid Wall COnSTruCTiOn

150 x 150 x 140 mm

Base material: Stainless steel

Build-in element & sealing setw

Wall niChE 15 x 30 WhiTE

Size: 150x300x140

Surface: White / RAL 9016

Article code: TCL-12-W

Wall niChE 15 x 30 CrEmE

Size: 150x300x140

Surface: Creme / RAL 9001

Article code: TCL-12-C

Wall niChE 15 x 30 anThraCiTE

Size: 150x300x140

Surface: Anthracite

Article code: TCL-12-A

Build-in element & sealing set

Build-in element & sealing set

Build-in element & sealing set

Wall niChE 15 x 30 STainlESS STEEl

Size: 150x300x140

Surface: Brushed stainless steel

Article code: TCL-12

Build-in element & sealing set

Inlaid shelf T - BOX 15x30x14

FOr dryWall & SOlid Wall COnSTruCTiOn

Size: 150x300x140 mm

Base material: Stainless steel

• Choose quality and style

• Installation depth 86 mm

• Brushed stainless steel finish

• Offers space saving solutions

• Easy and quick installation

• Incl. build-in element

• Delivery includes brush set

1. Build-in toilet - brush holder & wall niche

2. Build-in toilet - brush holder & paper holder

3. Toilet paper storage for 6 rolls

4. Toilet paper holder including storage for 5 rolls

For drywall & solid wall construction

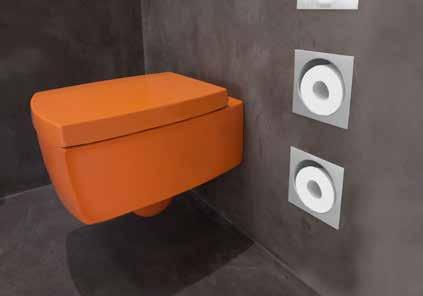

Toilet paper storage for 1 roll

For drywall & solid wall construction

Toilet paper holder

For drywall & solid wall construction

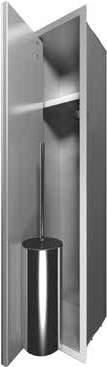

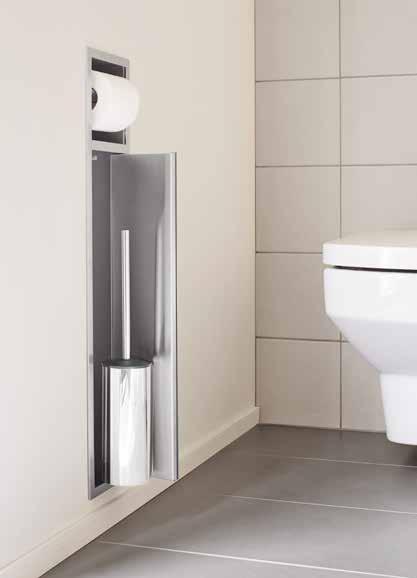

build-in TOilET- bruSh hOldEr & Wall niChE

Size: 740 x 195 mm

Surface: Brushed stainless steel

Article code: TCL-6

Build-in element & sealing set

(Delivery includes brush set) + Build-in element

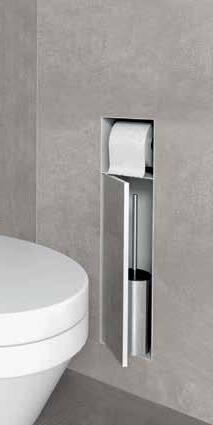

build-in TOilET- bruSh hOldEr & papErhOldEr

Size: 707 x 195 mm

Surface: Brushed stainless steel

Article code: TCL-7

Build-in element & sealing set

(Delivery includes brush set) + Build-in element

FOr dryWall & SOlid Wall COnSTruCTiOn

Base material: Stainless steel

FOr dryWall & SOlid Wall COnSTruCTiOn

Base material: Stainless steel

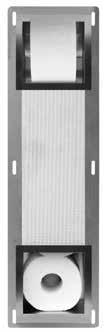

TOilET papEr STOragE FOr 6 rOllS

Size: 740 x 195 mm

Surface: Brushed stainless steel

Article code: TCL-1

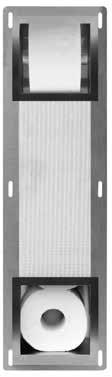

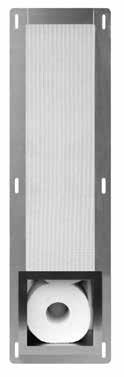

TOilET papEr hOldEr inCluding STOragE hOldEr FOr 5 rOllS

Size: 740 x 195 mm

Surface: Brushed stainless steel

Article code: TCL-5

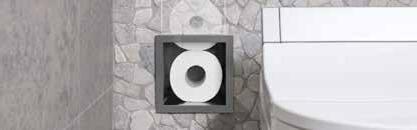

TOilET papEr STOragE SquarE FOr 1 rOll

Size: 158x158x107 mm

Surface: Brushed stainless steel

Article code: TCL-2

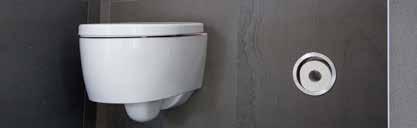

TOilET papEr STOragE rOund FOr 1 rOll

Size: 158x158x107 mm

Surface: Brushed stainless steel

Article code: TCL-3

TOilET papEr hOldEr SquarE

Size: 158x158x87 mm

Surface: Brushed stainless steel

Article code: TCL-4

FOr dryWall & SOlid Wall COnSTruCTiOn

Base material: Stainless steel

Slim serie

Practical innovation

Another practical and thoughtful innovation to solve installation problems. Since the beginning, it has been our goal to offer with our Slim Serie, a solution to the ever problematic installation of water capacity.

• Flattest washbasin siphon available.

• Ultra thin and therefore easy to install behind furniture.

• New chances and all freedom when installing the patented Slim Tube system.

• Fits all standard drain pipes DN 50/DN 40.

• No more need to adopt the furniture to the siphon.

• Compatible for washbasins with push-open valve.

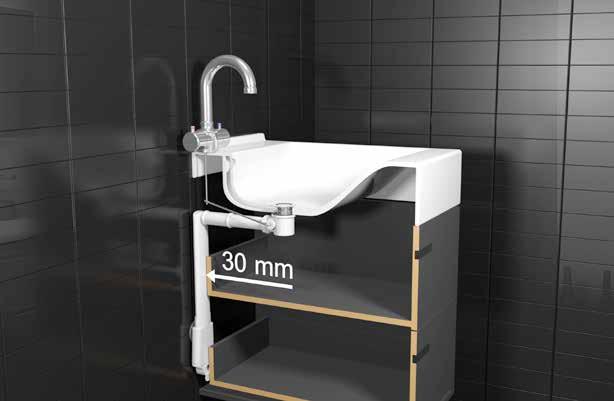

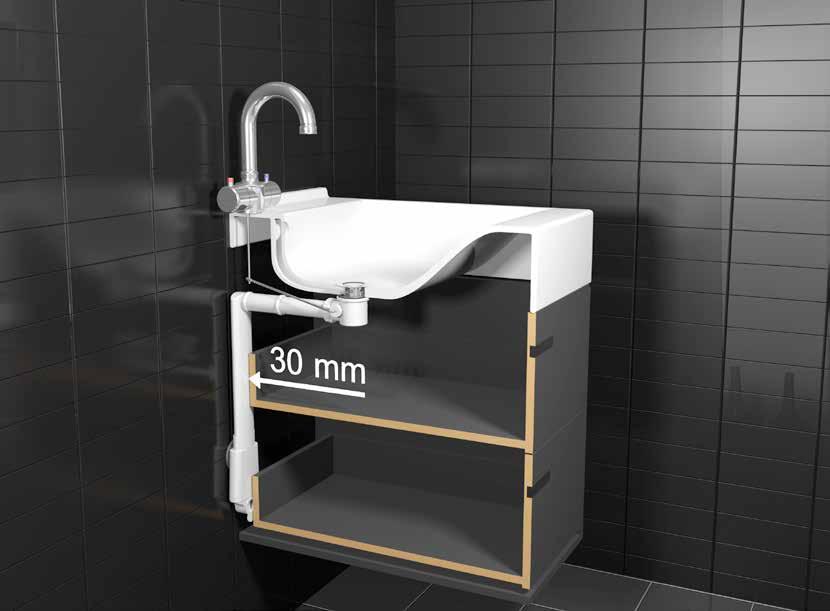

The flattest

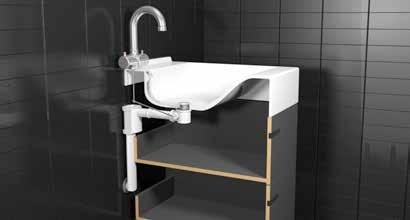

Slim Siphon XF ® & Slim Waste®

Slim Siphon XF with Slim Waste

This siphon is the ultimate space-saver. with only 55 mm is this siphon the flattest washbasin siphon available. our patented Slim waste in combination with the XF Siphon, offers manufacturers the possibility to design bathroom furniture without siphon recess. in practice, this results in more storage space in bathroom furniture. Furthermore, the XF Slim waste can be combined with all major drain valves which have a “Push open“ function.

Slim Siphon® & Slim Waste®

Slim Siphon with Slim Waste

Slim Siphon and Slim waste offers numerous application options and can be applied in almost any wall-drain connection. it can be installed up to 72 mm bottom basin. Furthermore, the Slim waste can be combined with all major drain valves which have a “Push open” function.

Installation options:

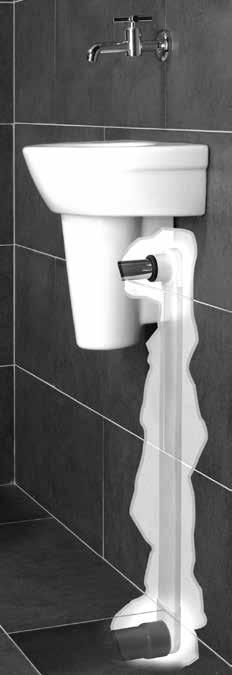

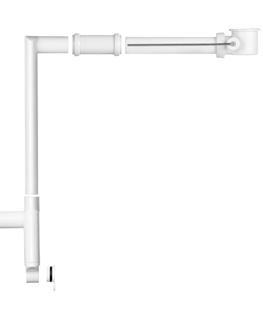

The ingenious drainage tube

Slim Series is the ultimate space-saver and enables manufacturers to design bathroom furniture without siphon recess.

it is our goal to offer a solution with Slim Tube for the again and again problematic installation of drainage pipes. Frequently, it happens with renovation as well as with new building that 7cm thick partition walls are utilized, which are affected in their stability when a common drainage pipe is laid in (which has to be at least a 4 to 5 cm deep slit that must be milled in the wall). how badly the wall is affected in its stability depends on the state of the wall. with renovations, the deep slit could cause damaging of the wall of the neighbouring room.

with an installation depth of only 2 cm, the Slim Tube offers an optimal solution for this problem. Due to the elongated flat ellipse shape, the Slim Tube has a comparable cross-cut like a drainage pipe of approximately 50mm Ø. This exceeds the minimum requirements with regard to the flow of a drainage pipe of 40mm Ø. because of the low installation depth of 2 cm, every wall construction stays unchanged. Adjoined wall damages are a part of the past. The drain can also be brought in front of a wall and leveled with a 2 cm thick ceramic plate (construction plate/gypsum cardboard plate), rough plaster and so on. because the installation depth is minimal, the sound transmission in other rooms is low as well.

Slim Tube is suitable for many applications. As drain pipe, Slim Tube can be connected to sinks, fountains, bidets, washing machines and so on. Soon, it will also be possible to, for example, connect horizontally the outlets of two sinks in the middle by means of a T-piece coupler.

given that the Slim Tube is also available in longer lengths, it is well suitable for continuous aeration and ventilation in the bathrooms. last mentioned is one of the most common problems of drainage technology.

Slim Tube consists of bondable parts and it is very easy to shorten. From that, the product can be brought to the desired length without much effort. Slim Tube is an evolved outlet. with its low installation depth, multifunctional usability and its flexibility can be considered as a revolutionary and practical invention.

Slim Tube is a worldwide patented invention of ESS

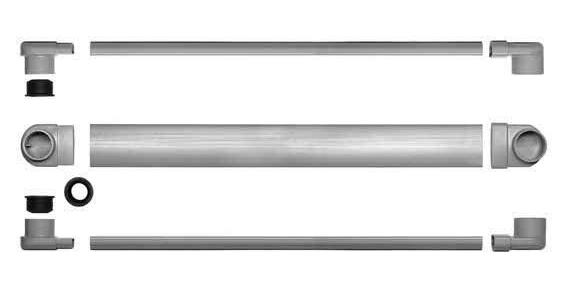

• Flat oval shaped PvC -pipe l = 750 mm

• Curve 90° inlet 40 mm inside (siphon connection)

• Curve 90° outlet 50 mm outside (drain connection)

• Protection cover

• Transition rubber 40/32 Processing

• Cut the flat oval PvC -pipe exactly to the required length

• Deburr the ends of the pipe and fitting, shear cut, sand and clean carefully

• Smear the pipe and curves evenly with PvC -glue/adhesive and merge immediately

• remove immediately redundant adhesive, don’t strain the connection point during the drying

• For more information with regard to gluing, see technical data sheet of the adhesive supplier

Tube curve outgoing at rear end, packing: 5 pieces in set

STb-02 4) Slim Tube curve outgoing at the front, packing: 5 pieces in set STb-03 5) Slim Tube siphon connections curve ø 40 mm, packing: 5 pieces in set STb-04 6) Slim Tube curve facing down, ø 40 mm packing: 5 pieces in set

STl-32 7) Slim Tube drainage pipe l = 3,2 m1 á 5 length

WTW-System

While taking a shower, a large amount of warm water is lost directly through the shower drain. The Easy Drain® WTWsystem ensures that the heat energy of the dissipated shower water is transferred to the cold tap water via a doublewalled spiral, which is then heated by 10 °C. The preheated water is directed to the water heater or (thermostatic) mixer tap of the shower. The Easy Drain® WTW-system does not only lower the heating costs, but also improves the energy efficiency of the house and thus contributes to a sustainable future.

Easy Drain® WTW is easy to install and maintain. Thanks to the Easy Drain® Multi technology, the WTW system can be simply coupled to the Easy Drain® WTW-Multi-shower drains and most of the Easy Drain® shower drains from the Aqua series. All shower drains with Multi-technology are rotatable and height-adjustable, thus offering a high degree of installation flexibility.

• Suitable for all Easy Drain® Multi shower drains and Aqua, Aqua Plus & Aqua Jewels drains, which are equipped with Multi-technology.

• Double-walled spiral according to NEN-EN 1717

• Efficiency up to 31 %

• Saving an avarage of 35m³ of gas per person per year.

• Very easy installation and maintenance.

• Standard connections for water and for the sewage.

• Lower EPC (energy-efficiency) of the building.

• Estimated EPC reduction by 0.02 - 0.05* (KIWAGastech) according to the NEN-5128 calculation method.

Energy saving

System A (recommended)

The energy saving WTW Heat recovery system

Technical specifications

Properties

Test results[1] and performances

Estimated EPC-reduction 0,02 - 0,05* (KIWA-Gastech) according to the NEN-5128-calculation method.

[1] EIDT, S.A. - 2013

[2] (flow rate/60) x 4,2 x (Temperature shower - temperature cold water [in])

[3] (flow rate/60) x 4,2 x (Temperature water [out] - temperature water [in])

[4] Saving on heating regarding the warm water producer/-boiler: (Energy [recovered] / efficiency heater) x yearly consumption x shower time x number of users/60

*The exact value of the EPC-Differenz (∆EPC) differ from the expected value due to various environment variables. Therefore, always perform an EPC - calculation by a reputed company.

Part

1 Easy Drain Multi connection

2 Easy Drain heat exchanger with spiral

3 Height adjustable feet (4 pieces)

4 Connection (1/2" outside diameter): Outlet (pre-heated water)

5 Connection (1/2" outside diameter): Supply (cold water)

6 Connection (Ø40 mm): Drain water into sewer (Extension to Ø50 mm)

resin & copper

/ plastic

Installation & connection

The Easy Drain® WTW Heat recovery system is height-adjustable by means of positioning feet on the underside of the housing. After installing the WTW-system, the system can easily be coupled to an Easy Drain® Multi-shower drain or a shower drain from the Aqua series. Thanks to the applied Multi-technique, the system can be sealed with a sealing rubber and optionally with a WPS sealing

cloth. The shower drain is still rotatable and adjustable in height afther the installation.

The WTW-system has two copper connections: one for cold tap water and one for warm water. The third connection, a round PVC pipe, must be connected to the sewer via a drain pipe.

Maintenance

The Easy Drain® WTW–system, combined with the Multi–technology, can easily be cleaned by means of the removable grate and siphon. After removal of the siphon, your drain pipe cleaning shaft is accessible.

In order to obtain the heat transfer in the heat exchanger, the Easy-Drain-WTW-system has to be cleaned 1 to 2 times a year.

© ESS

The information in this brochure was carefully drawn up by ESS. In connection with the continuous improvement of existing products and the development of new products, ESS reserves the right to adjust specifications. It is the responsibility of the fitter and the user to determine that the ESS product is suitable for the planned application and is installed according to the prevalent fitting instructions. No rights may be derived from the recommendations and suggestions, because the installation and usage conditions are outside the scope of control of ESS.
