MY26 Giant STP Range Launch Book

MOVES

INTRODUCING THE ALL-NEW STP RANGE

From those first thrilling moments of pedaling on dirt to gaining confidence, building skills, and learning to master bike parks, jump lines and trails, the new STP range is built for progression.

Blending the dynamic handling of a dirt jump bike with the rugged capabilities of a mountain bike, the STP range includes three series—each with a different wheel size—to help young riders evolve and expand their capabilities.

For those who have mastered the basics and are ready for the next level, the STP 24 has larger 24-inch wheels and geometry optimized for its size—plus a suspension fork that offers greater control on bumpy terrain. A shorter chainstay and wheelbase make it easier to lift the front wheel and maneuver the bike. This model also features a dropper seatpost to adjust rider position on the fly for added control on steep descents, jumps or pump tracks.

The entry point is the STP 20. The smallest model in the range is built on a lightweight aluminum frame with a low stand-over height and 20-inch wheels, offering balanced, dynamic handling for riders just starting their journey into the world of riding dirt. It features hydraulic disc brakes with lighter modulation for kids, a shorter 105mm crankset, and youth-specific cockpit components.

The STP 26 is a full-on dirt shredder—adept at railing corners, boosting jumps and nailing tricky lines with absolute confidence. The lightweight, strong and durable ALUXX aluminum frame is paired with 26-inch wheels and a 100mm Marzocchi Bomber DJ suspension fork. The components are built to last, with 26-inch Giant TRA 2 wheels featuring Wide Guard rim technology, plus powerful hydraulic disc brakes and a Giant Contact TR35 handlebar.

With these three models, the STP range offers something for every aspiring young dirt rider. It’s an entry point and a continuing adventure—with no limits and endless ways to progress.

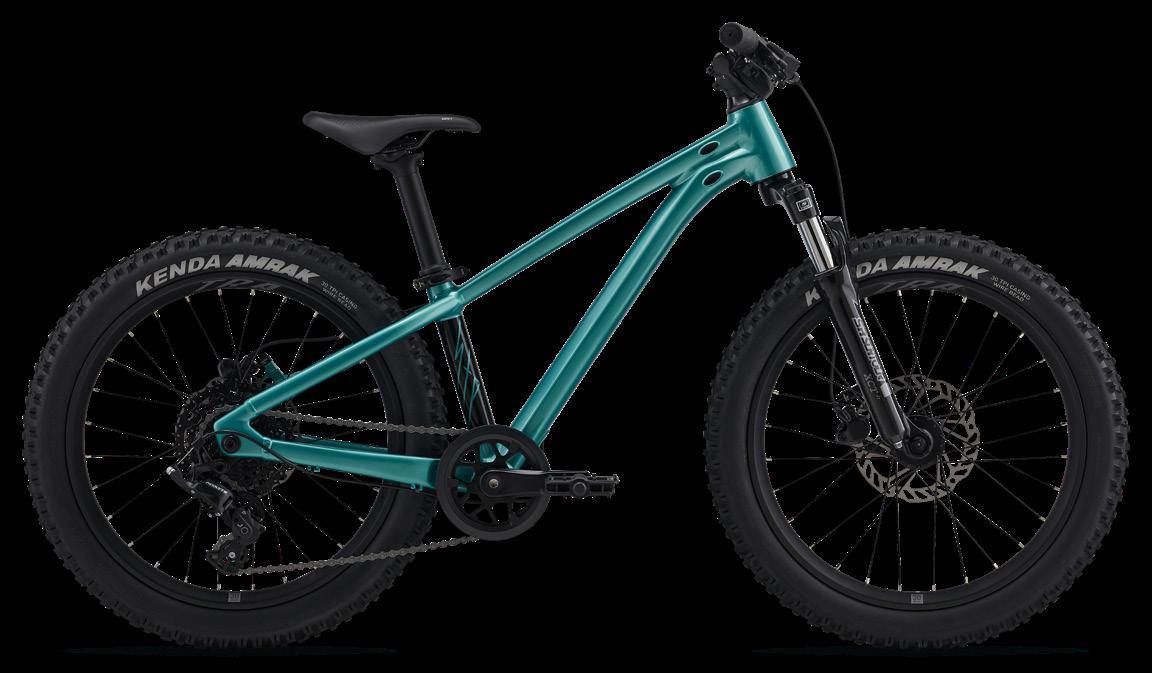

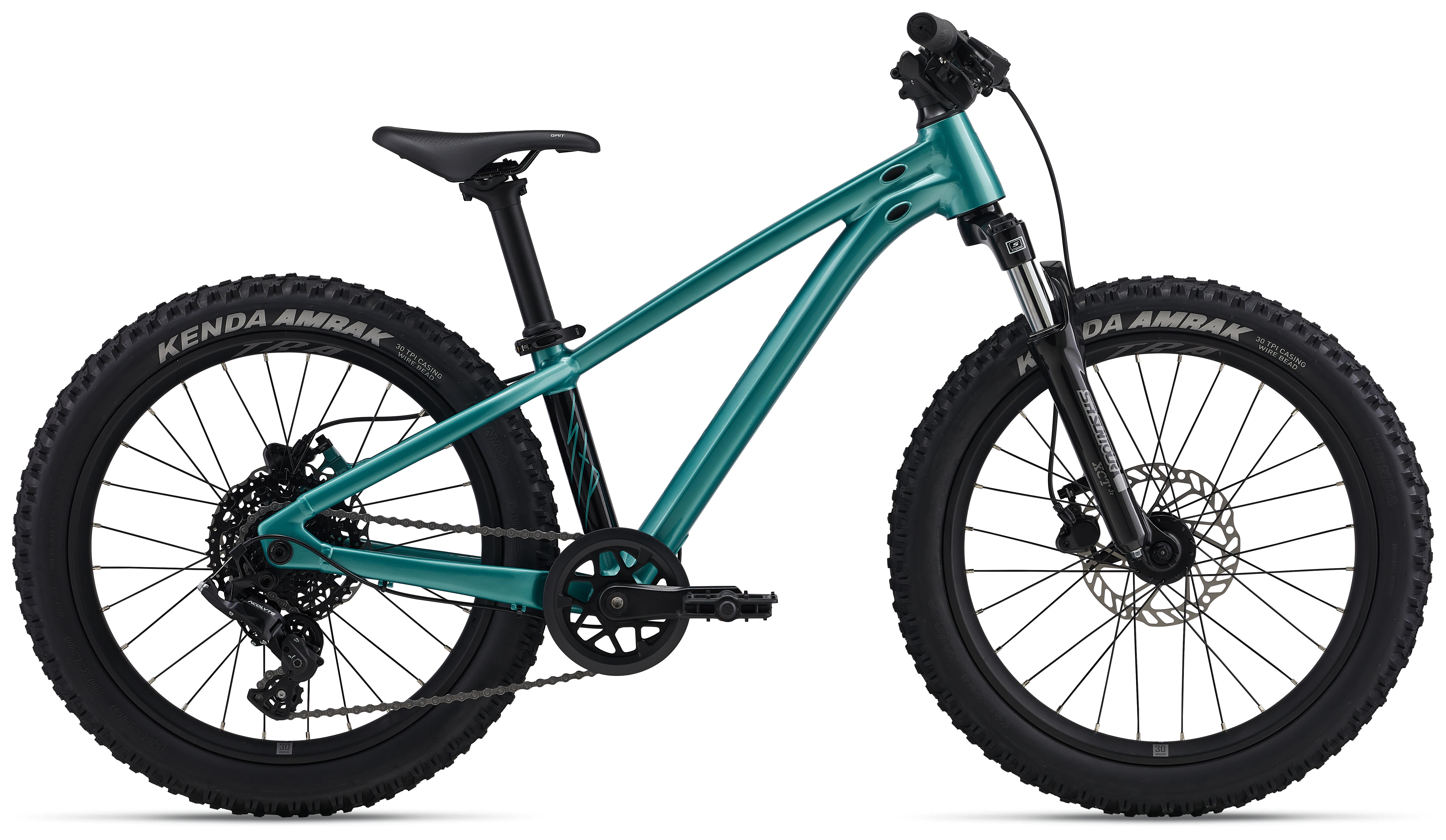

STP 20

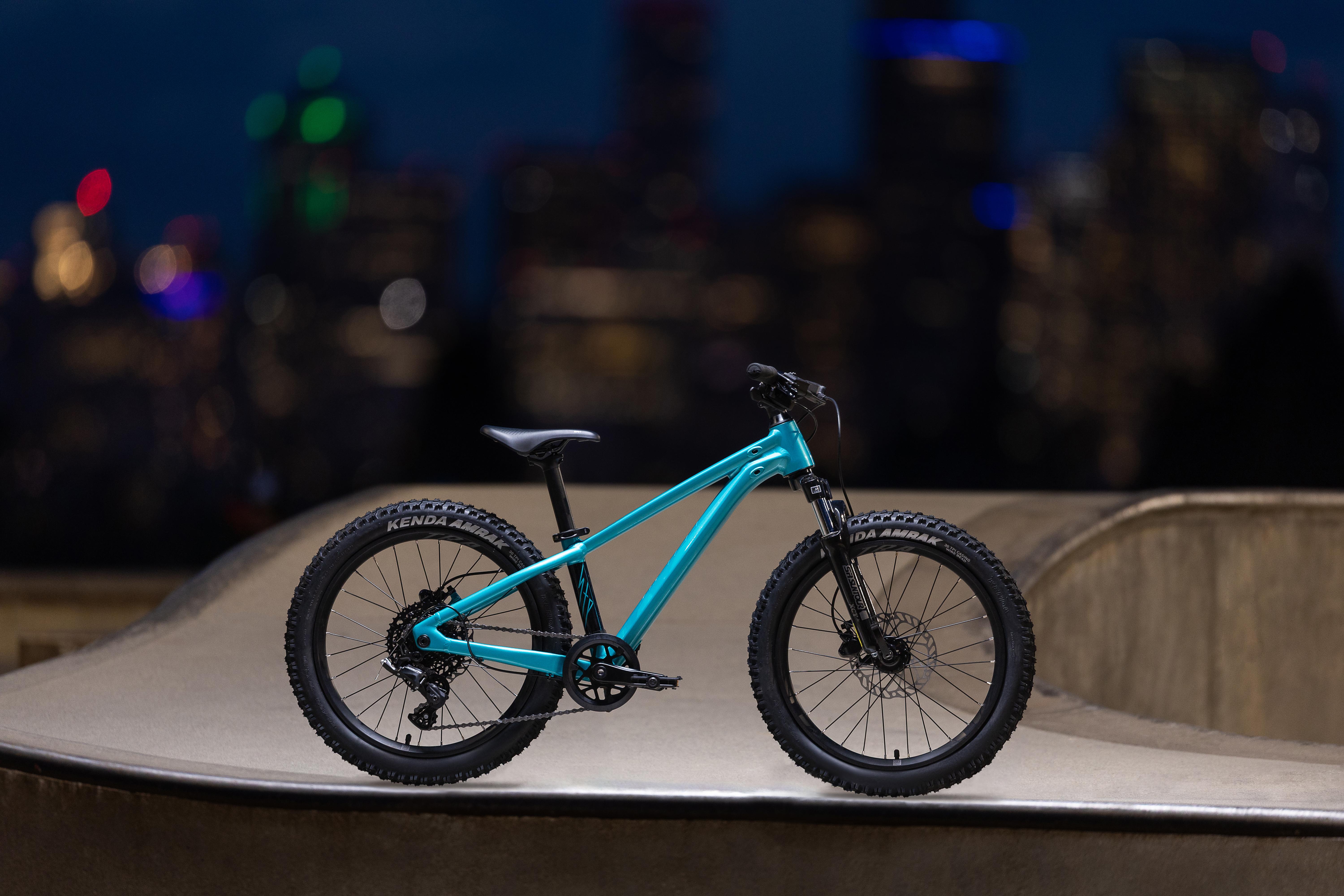

Dirt skills start here. With a lightweight aluminum frame that has a low stand-over height, a smooth-riding composite fork, and 20-inch wheels, the new STP 20 gives kids the confidence and maneuverability they need to start leaning into the turns, shifting their weight, and popping some air. It’s all the things that make riding fun.

FIT FOR YOUTH

The frame’s low stand-over height offers greater balance and stability with a lower center of gravity that’s ideal for riders 110-130cm tall. The 20-inch wheels and shorter 105mm cranks make for easier handling and smoother pedaling.

GREATER CONTROL

Youth-specific components including a Grit Core Lite saddle, smaller diameter handlebars, and hydraulic brakes with lighter modulation give STP 20 a smooth, controlled ride, helping young riders focus on building skills and gaining confidence.

PLAYFUL

With a lightweight, durable ALUXX aluminum frame and Advanced-grade composite fork, the STP 20 is easy for young riders to maneuver. A shorter wheelbase and chainstays add a playful feel and make it easier to lift the front wheel while riding.

FRAME GEOMETRY

STP 20

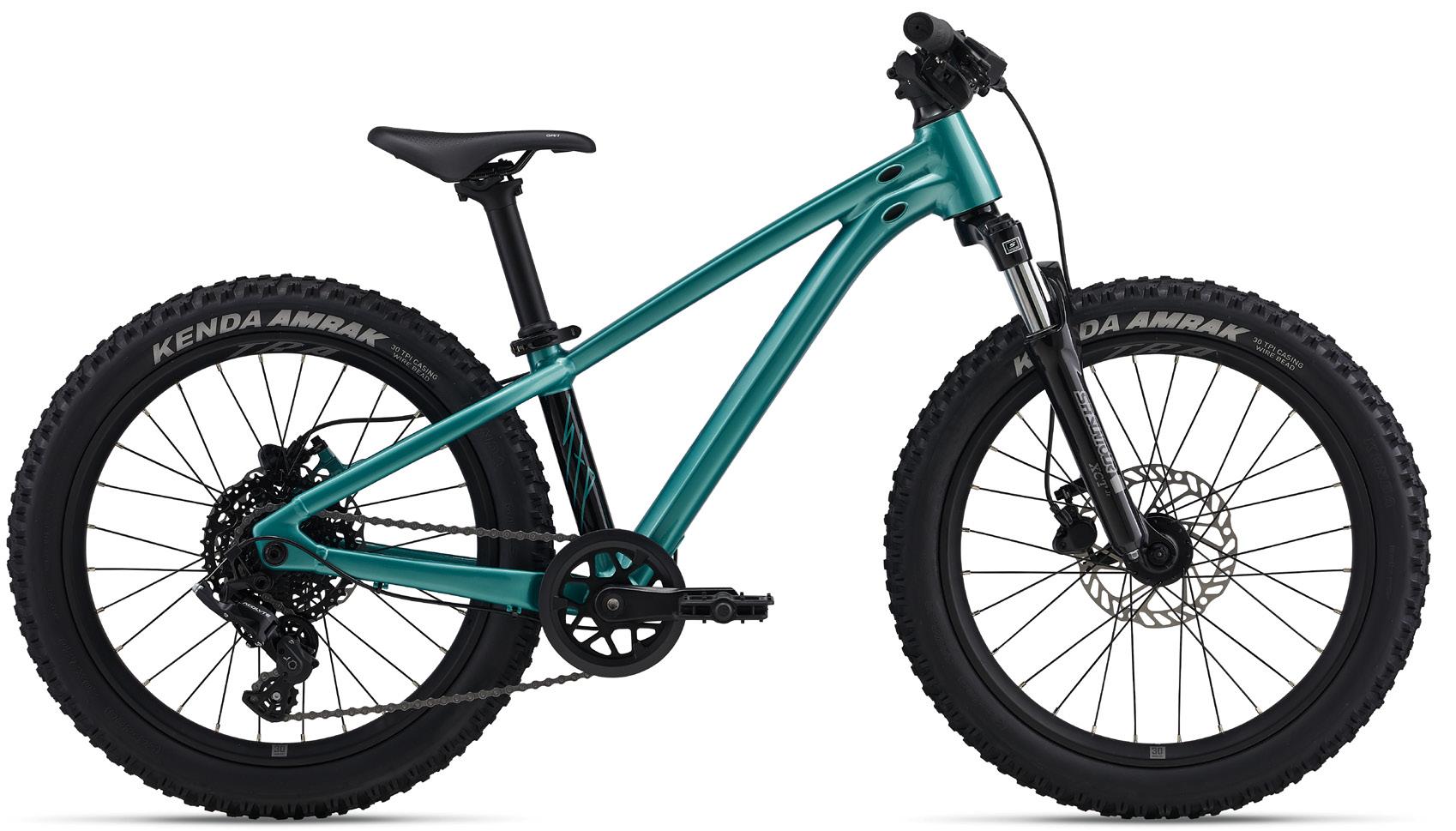

A lightweight, strong and durable ALUXX aluminum frame is designed with a lower center of gravity and standover height for balance and stability. The geometry includes a shorter rear-center measurement that makes it easier to handle and lift the front wheel. There are two STP 20 models—one with a lightweight composite fork, and one with a 63mm suspension fork. The 20-inch wheels, hydraulic disc brakes, shorter crankset and youth-specific cockpit components round out the package, giving young riders everything they need to start their adventures in dirt.

The STP is made with RK6061 recycled aluminum alloy, containing 90–100% pre-consumer recycled aluminum. This sustainable material delivers excellent strength-to-weight ratio and reliable performance through rigorous testing.

Hydraulic brakes with shorter travel brake levers are tuned with lighter modulation compared to adult brakes. This results in greater control and traction on dirt tracks and trails.

Lightweight Advanced-grade composite fork absorbs road shock and vibrations, delivering a smoother ride quality and pinpoint steering precision. A 1x8 drivetrain featuring shorter 105mm cranks, a 30-tooth chainring, and a wide 11-38 gear range helps young riders conquer hilly terrain with optimal pedaling cadence.

Smaller diameter wheels featuring Giant TRA rims with Wide Guard technology are optimized for the frame geometry. Minimal weight and rugged durability make them ideal for young dirt riders.

A narrow 125mm saddle width delivers optimal positioning and fit to help young riders tackle longer rides with greater comfort.

and dropper brake and dropper post cables are routed internally through integrated ports, saving weight while creating a cleaner look and

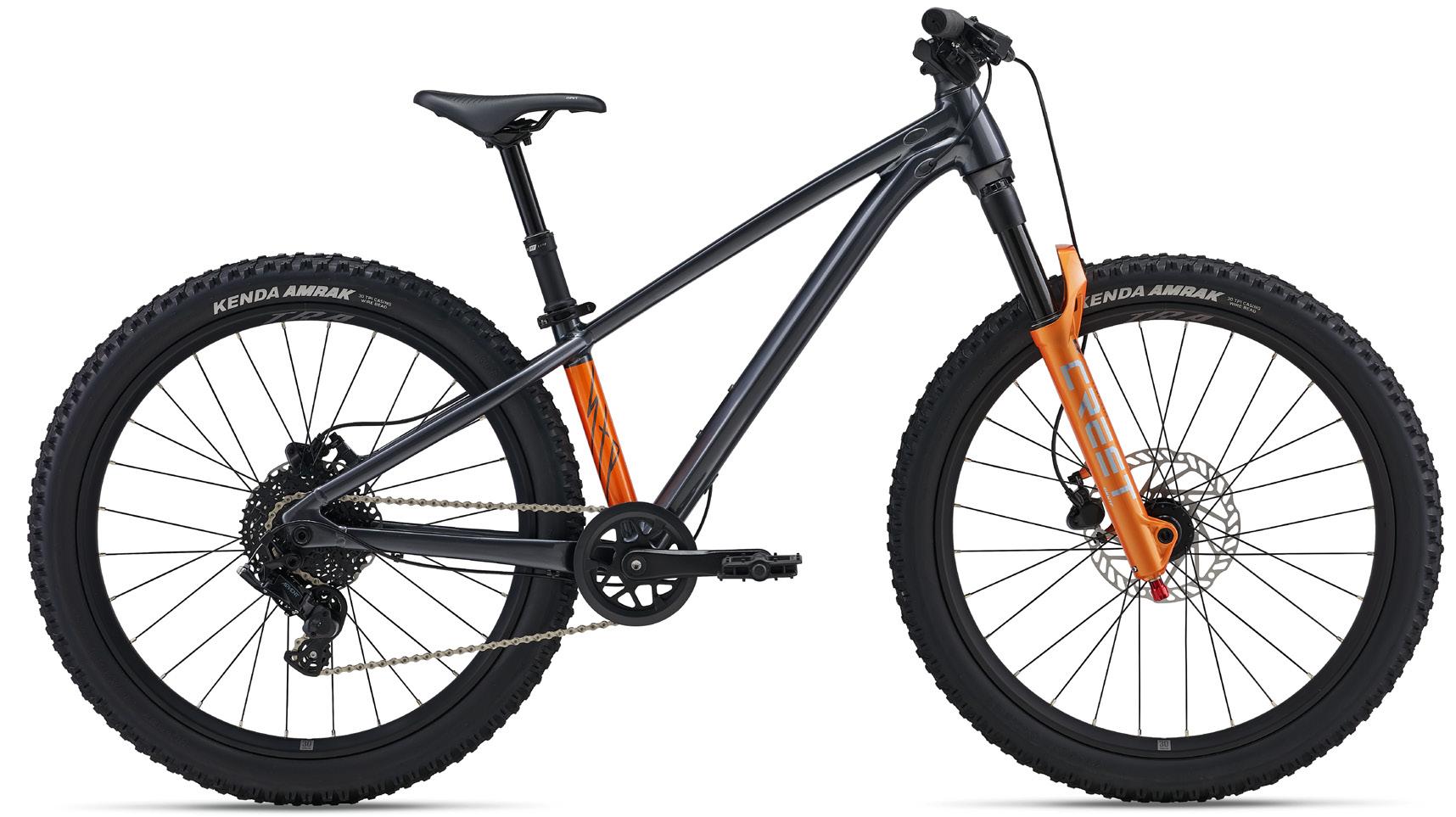

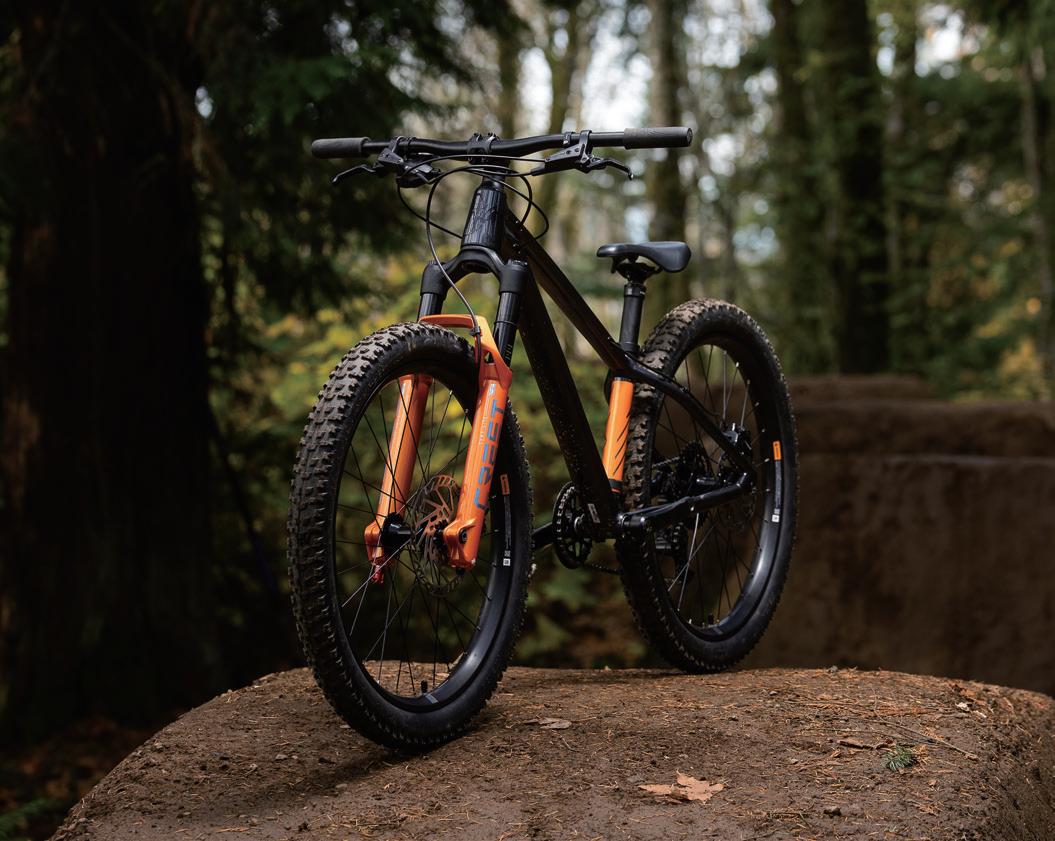

STP 24

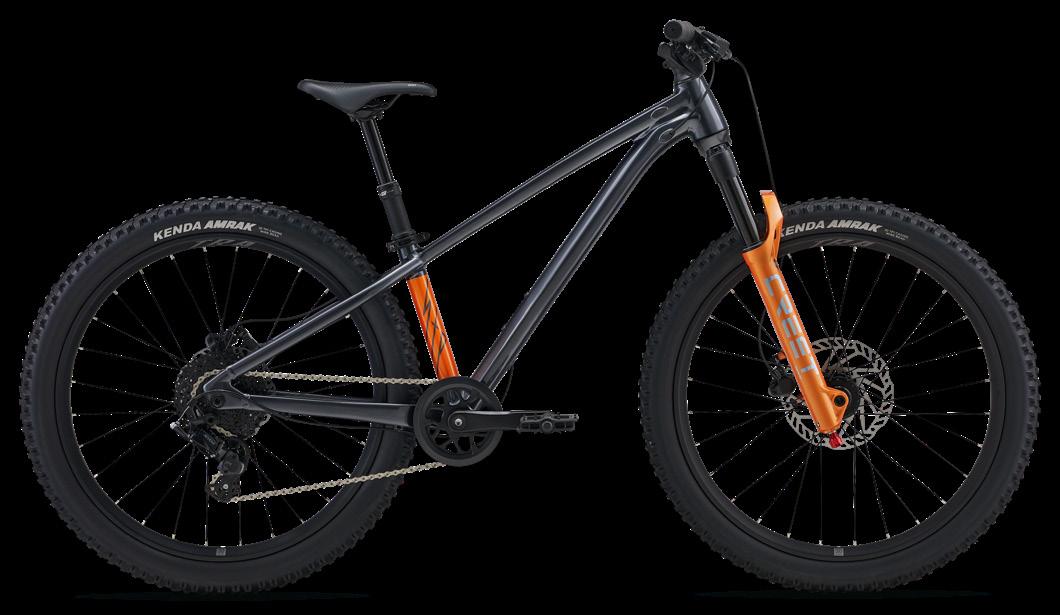

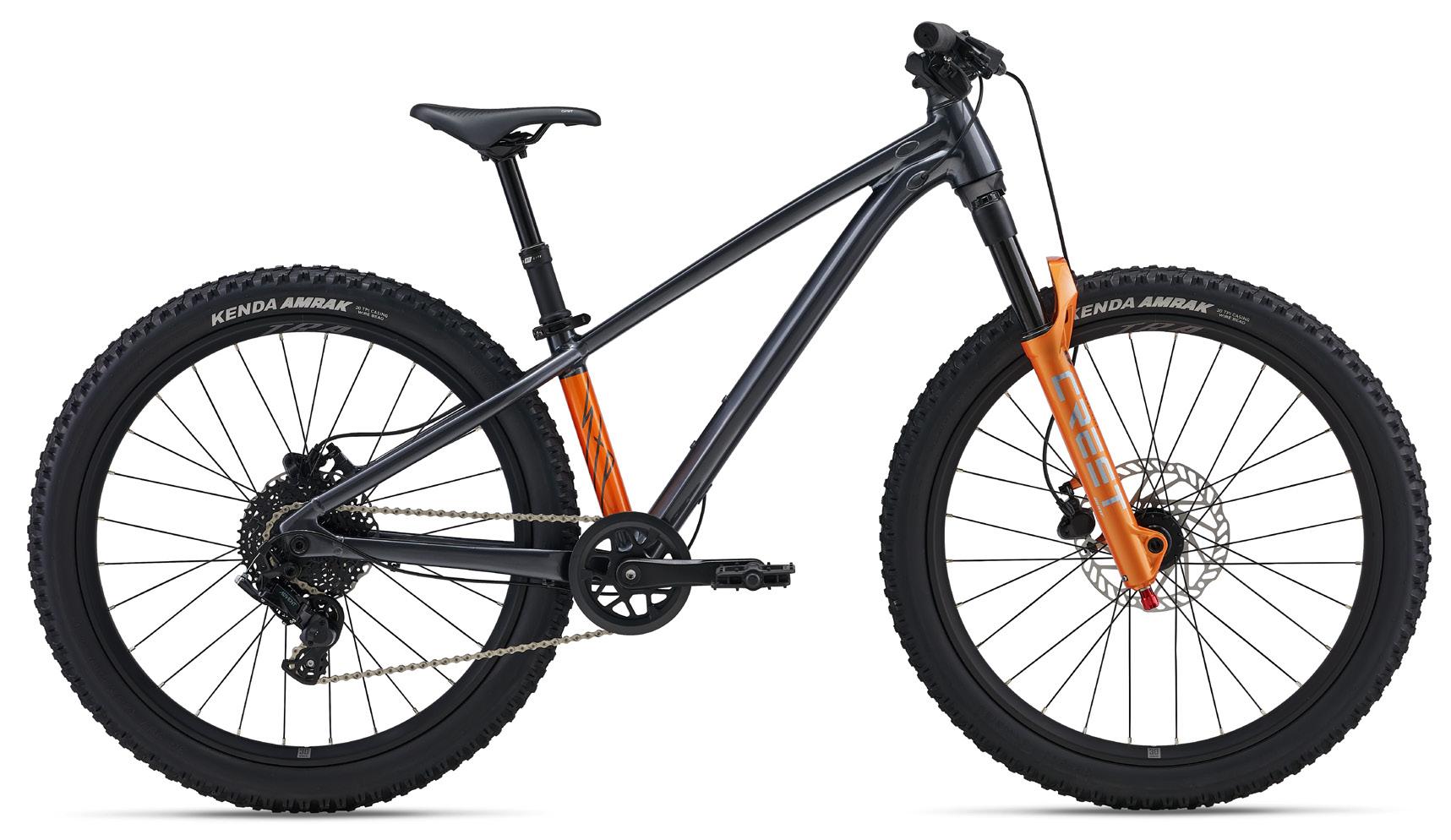

Made to help young riders have fun and show off their skills, this mini dirt shredder features a purpose-built aluminum frame and 100mm suspension fork with 24-inch wheels. Trail-worthy MTB components including hydraulic brakes and a dropper seatpost add to its capabilities, giving kids what they need to follow their dirt dreams.

FIT FOR YOUTH

The frame’s low stand-over height offers greater balance and stability with a lower center of gravity that make this model ideal for riders 125-145cm tall. The 24-inch wheels, shorter cranks, and sized-down cockpit components deliver for smooth pedaling and easier handling, while a dropper seatpost makes it easy to adjust riding position on the fly.

GREATER CONTROL

Youth-specific features including a Crest TR Comp Lite 100mm suspension fork, Grit Core Lite saddle, smaller diameter handlebars, and hydraulic brakes with lighter modulation give STP 24 a smooth, controlled ride, helping young riders focus on building skills and gaining confidence.

PLAYFUL AGILITY

With a lightweight, durable ALUXX aluminum frame, the STP 24 is easy for young riders to maneuver. A shorter wheelbase and chainstays add a playful feel and make it easier to lift the front wheel while riding.

TECHNOLOGIES

FRAME GEOMETRY

(UNITS IN MM UNLESS OTHERWISE INDICATED)

STP 24

A lightweight, strong and durable ALUXX aluminum frame is designed with a lower center of gravity and stand-over height for added balance and stability. The frame geometry also includes a shorter rear-center measurement that makes it easier to handle and lift the front wheel. A 100mm suspension fork adds smooth control for jumps and bumpy trails. With youth-optimized parts including 24-inch wheels, hydraulic disc brakes with lighter modulation, a shorter crankset, and sized-down cockpit components, it’s a fast track to fun.

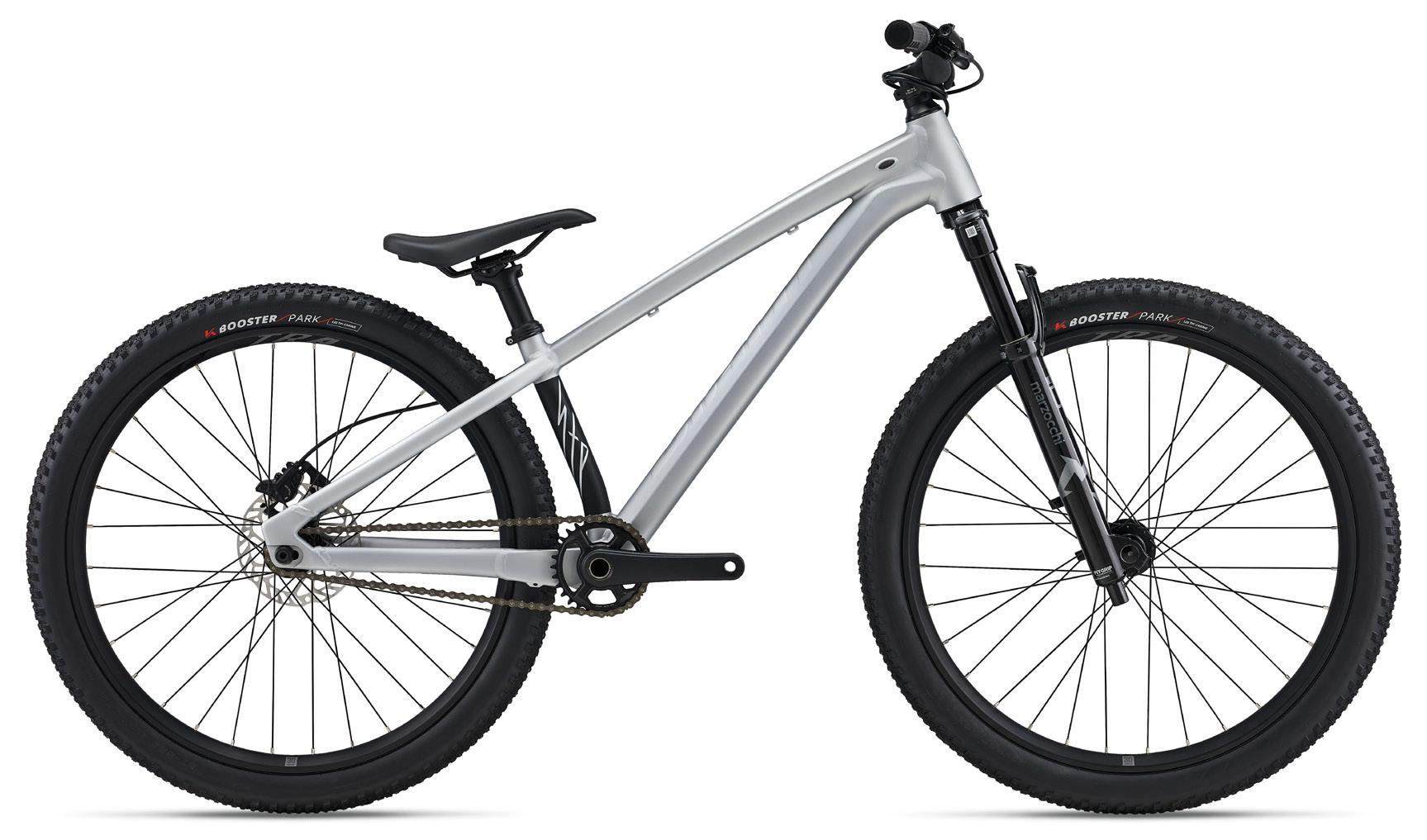

STP 26

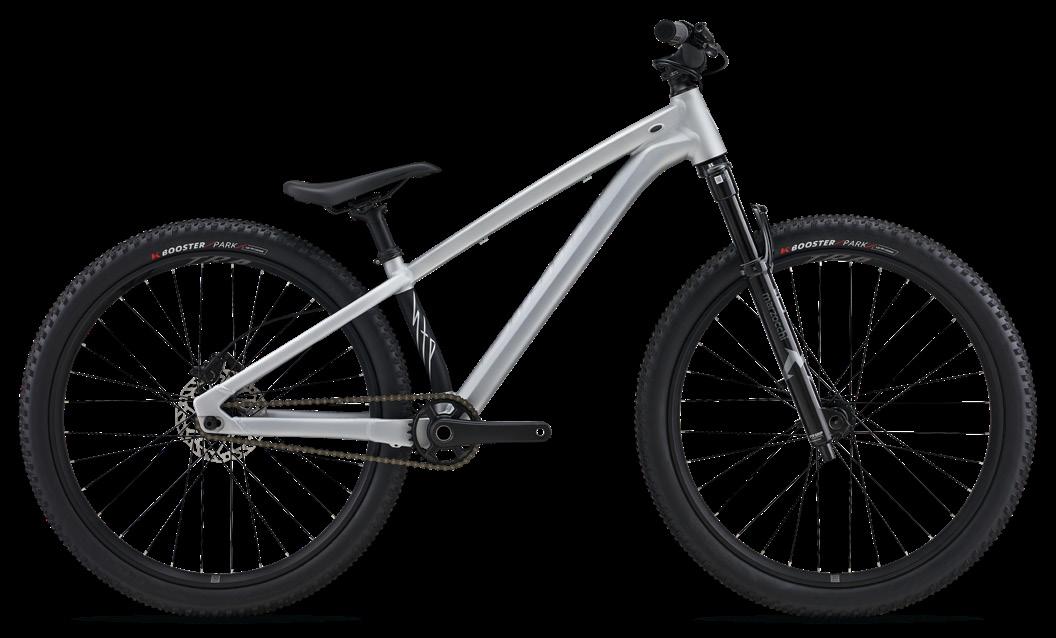

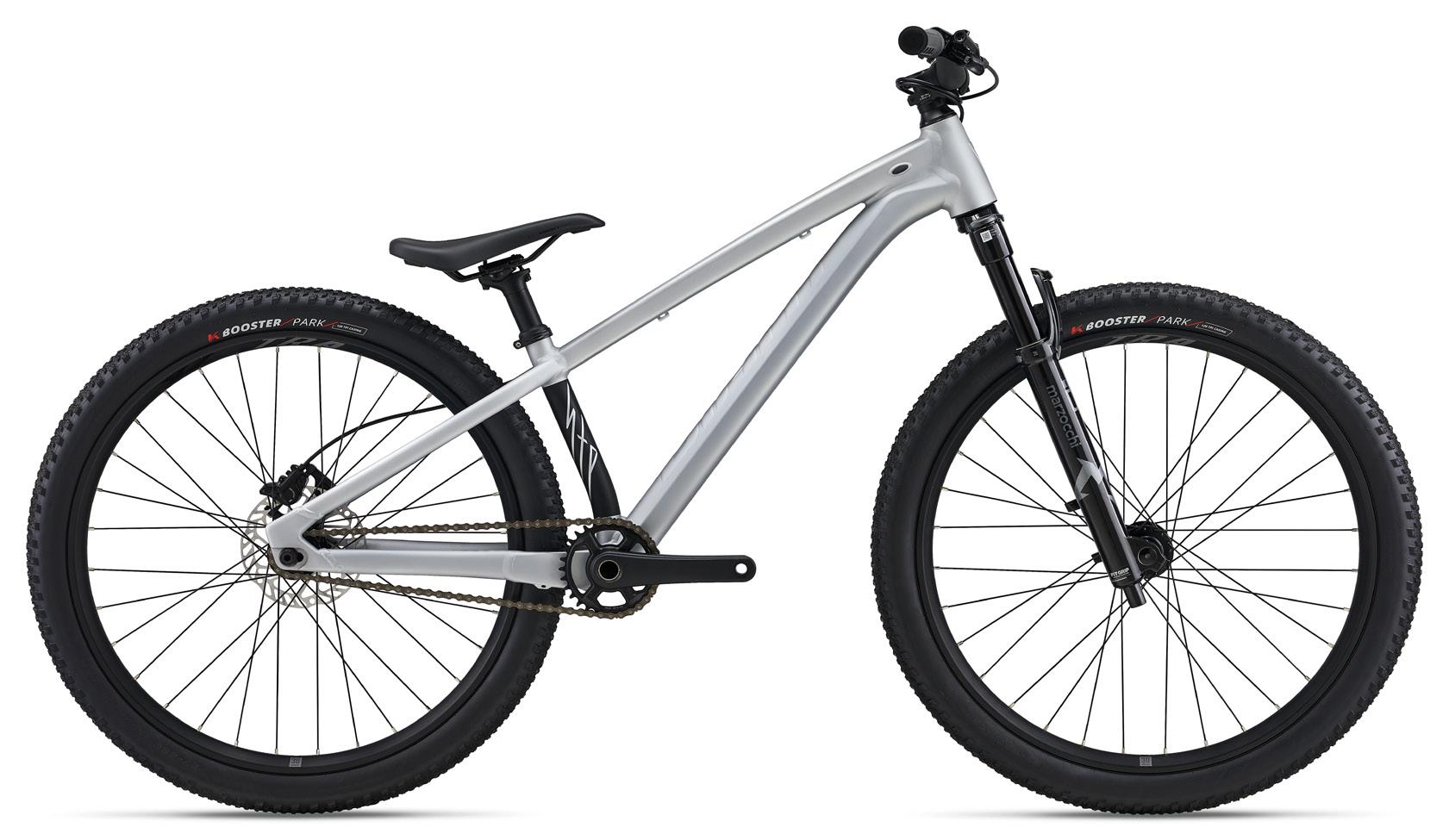

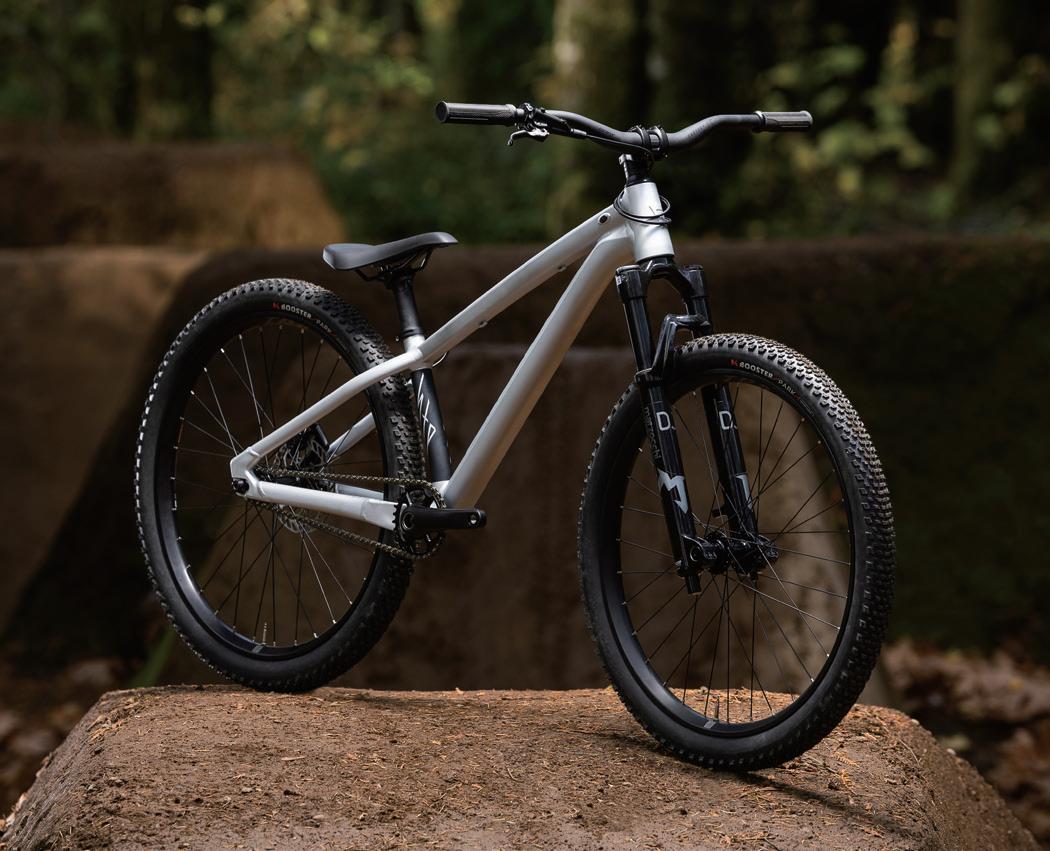

Rail the corner, boost a jump, give it a go on that tricky line. The all-new STP 26 is built for pushing limits. With its lightweight, super strong ALUXX aluminum frame, 100mm Marzocchi Bomber DJ fork, and 26-inch Giant TRA 2 wheels, it’s rugged and ready for takeoff.

RUGGED DURABILITY

Super strong and lightweight ALUXX aluminum frameset is backed by a warranty for hard-charging durability. A 26-inch Giant TRA 2 wheelset features Wide Guard rim technology, allowing lower tire pressures for better control along with increased puncture protection.

AGILITY AND CONTROL

The frame’s lower stand-over height offers balance and stability with a lower center of gravity. The 26-inch wheels and steeper head tube, combined with a shorter wheelbase and chainstays, make it quick and easily maneuverable for dirt jump performance. Gyro compatibility enables 360-degree handlebar rotation for bar spins.

READY FOR LANDING

The 135x10mm horizontal sliding rear dropout and Marzocchi Bomber DJ fork with 100mm of travel deliver smooth control on rugged terrain, jumps or drops—making it a versatile choice for dirt jumps or technical trails. A Giant Contact TR35 handlebar and shorter stem deliver pinpoint control that stands up to hard-charging dirt sessions.

TECHNOLOGIES

FRAME GEOMETRY

(UNITS IN MM UNLESS OTHERWISE INDICATED)

STP 26

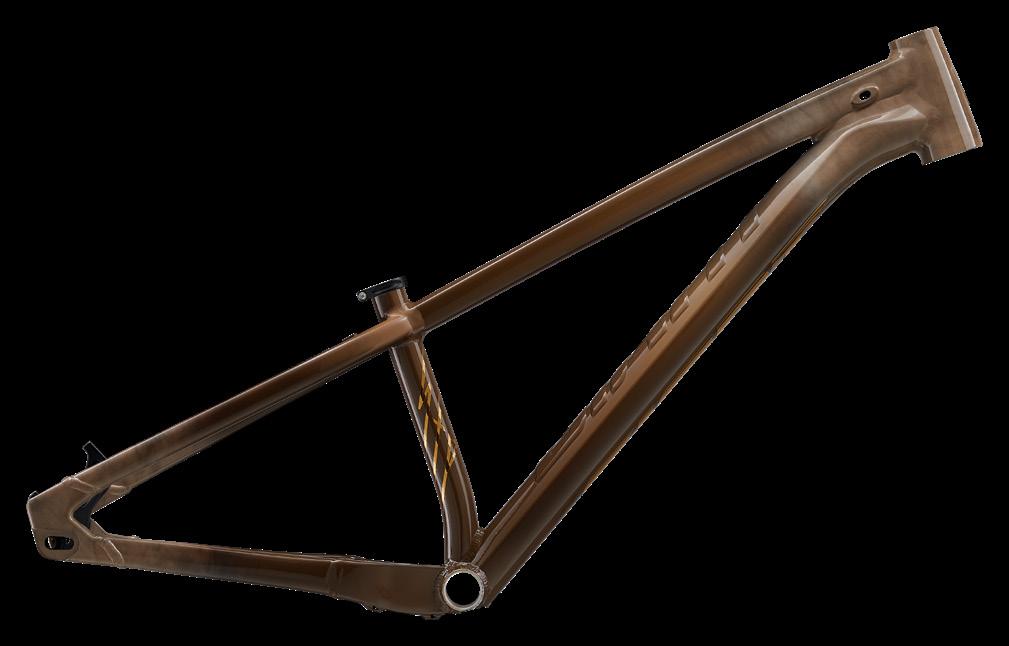

A lightweight, strong and durable ALUXX aluminum frame with dirt jump geometry is paired with a Marzocchi Bomber DJ 100mm suspension fork for added control. The frame features a closed horizontal sliding dropout that ensures a stiff, secure fit and chain tension adjustment. The components are built to last, with 26-inch Giant TRA 2 wheels featuring WideGuard rim technology, plus powerful hydraulic disc brakes and a Giant Contact TR35 handlebar.

The STP is made with RK6061 recycled aluminum alloy, containing 90–100% pre-consumer recycled aluminum. This sustainable material delivers excellent strength-to-weight ratio and reliable performance through rigorous testing.

Marzochi Bomber DJ 100mm suspension fork designed for dirt jumping, pump tracks and slopestyle use. Stiff 36mm chassis and dedicated 26-inch wheel configuration. Features a 20 x 110mm axle with option to convert to 15 x 100mm hubs.

TRA 2 26” wheels with Wide Guard technology combine lightweight performance with rim strength and puncture protection. A 72-tooth freehub ratchet delivers quick engagement.

135 x 10mm horizontal rear dropout to easily and securely set and maintain chain tension while improving overall frame stiffness.

Compatible with gyro detangler system, allowing the handlebars to rotate 360 degrees without twisting the cables for unlimited bar spins

Brake and dropper post cables are routed internally through integrated ports, saving weight while creating a cleaner look and better performance.
