You didn’t plan to ride that far. You definitely didn’t plan to climb that again.
But here you are — still pedalling, still smiling.
The Embolden E+ makes mountain biking feel easier and a lot more fun. A smooth, powerful SyncDrive Pro 3X motor delivers up to 100Nm of natural-feeling support, turning steep climbs into momentum and long rides into something you don’t want to end.
With 150mm of travel up front and 140mm at the rear, the suspension keeps the bike calm and confident when trails get rough. Technical sections feel more manageable, descents feel more composed, and flow comes easier as the ride unfolds.
From the very first ride, Embolden E+ invites you to try more — longer loops, new lines, and trails that once felt out of reach. Not because it asks you to push harder, but because it makes riding feel better.
Because when a bike puts this much joy into the ride, stopping early is rarely part of the plan.
THE LIV DIFFERENCE
When you buy a Liv bike, you’re investing in women.
We’re committed to women-first research and design, creating bikes like the Embolden E+ series with unique frame sizing and component selection for the perfect fit at every size. But our commitment goes beyond building bikes —we’re building the sport for women at every level, around the world.
• We elevate women in the industry, from our founder, CEO and engineers to team managers, mechanics, and physios, we ensure women are leading in every aspect of cycling.
• We cultivate a growing community of riders –both online, through original storytelling and how-to guides, and on the ground, thanks to an enthusiastic network of ambassadors.
• We champion women in racing, sponsoring women at the highest levels of competition, which includes four professional teams represented by international athletes competing across various cycling disciplines in top-level races worldwide.
• We advance women’s cycling events, sponsoring major events like A-Line at Crankworx Whistler and Liv Ladies AllRide mountain bike skills camps. We’re also proud sponsors of the Tour de France Femmes avec Zwift, including the White Jersey for Best Young Rider Classification.
At Liv, we’re not just making bikes— we’re making a difference.

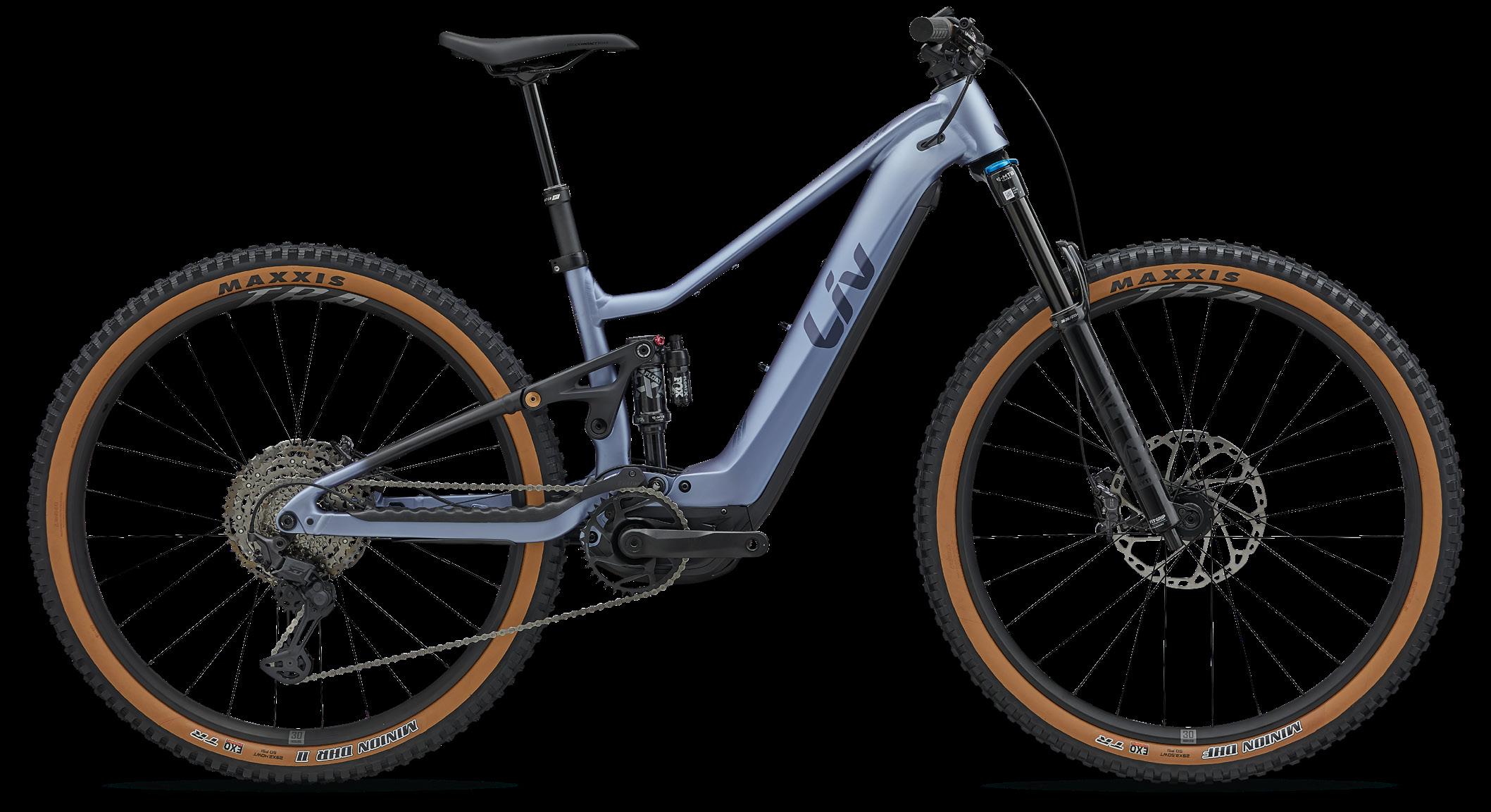

EMBOLDEN E+ 0 ATMOSPHERE

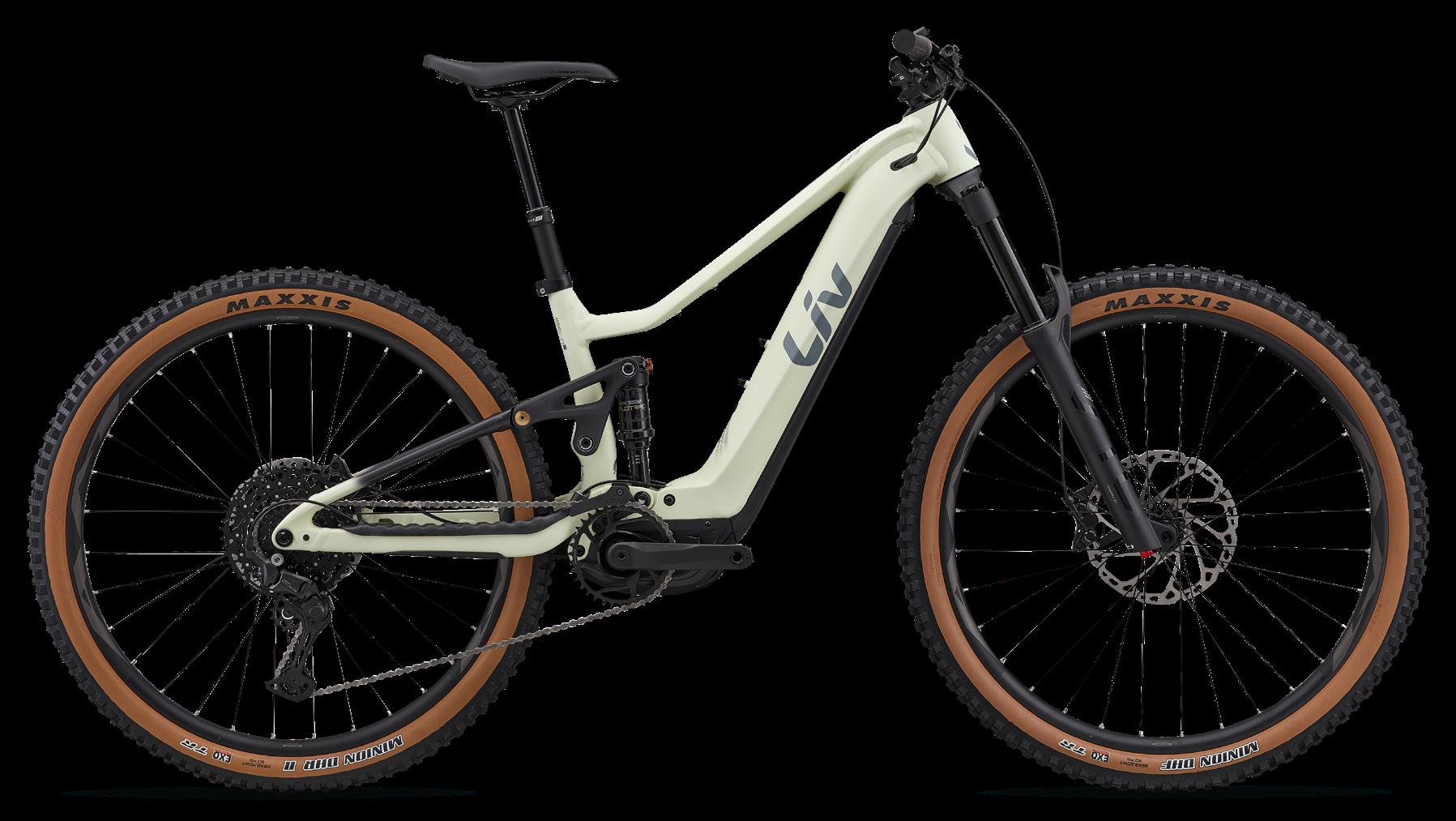

EMBOLDEN E+ 1 PALE MOSS

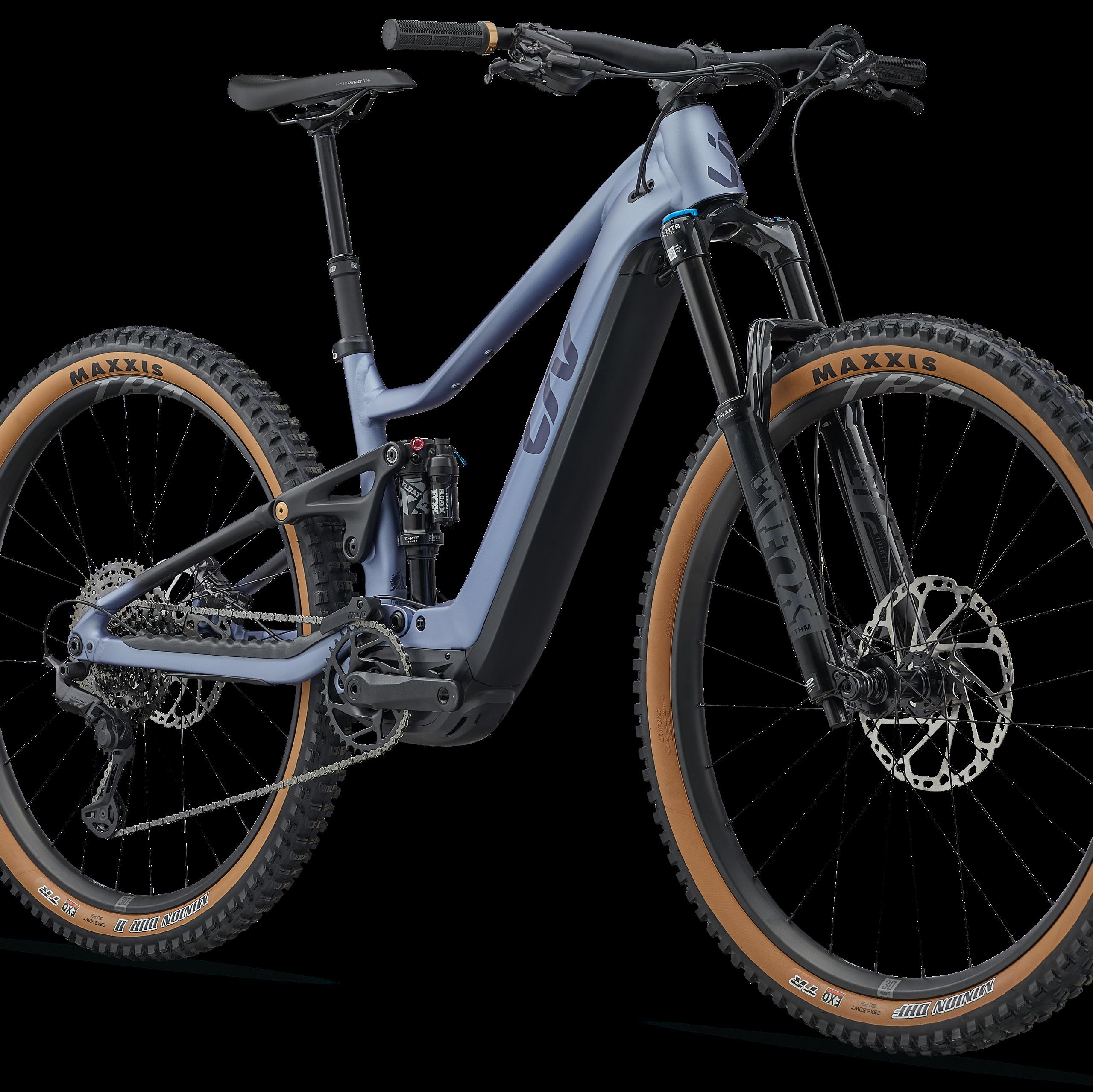

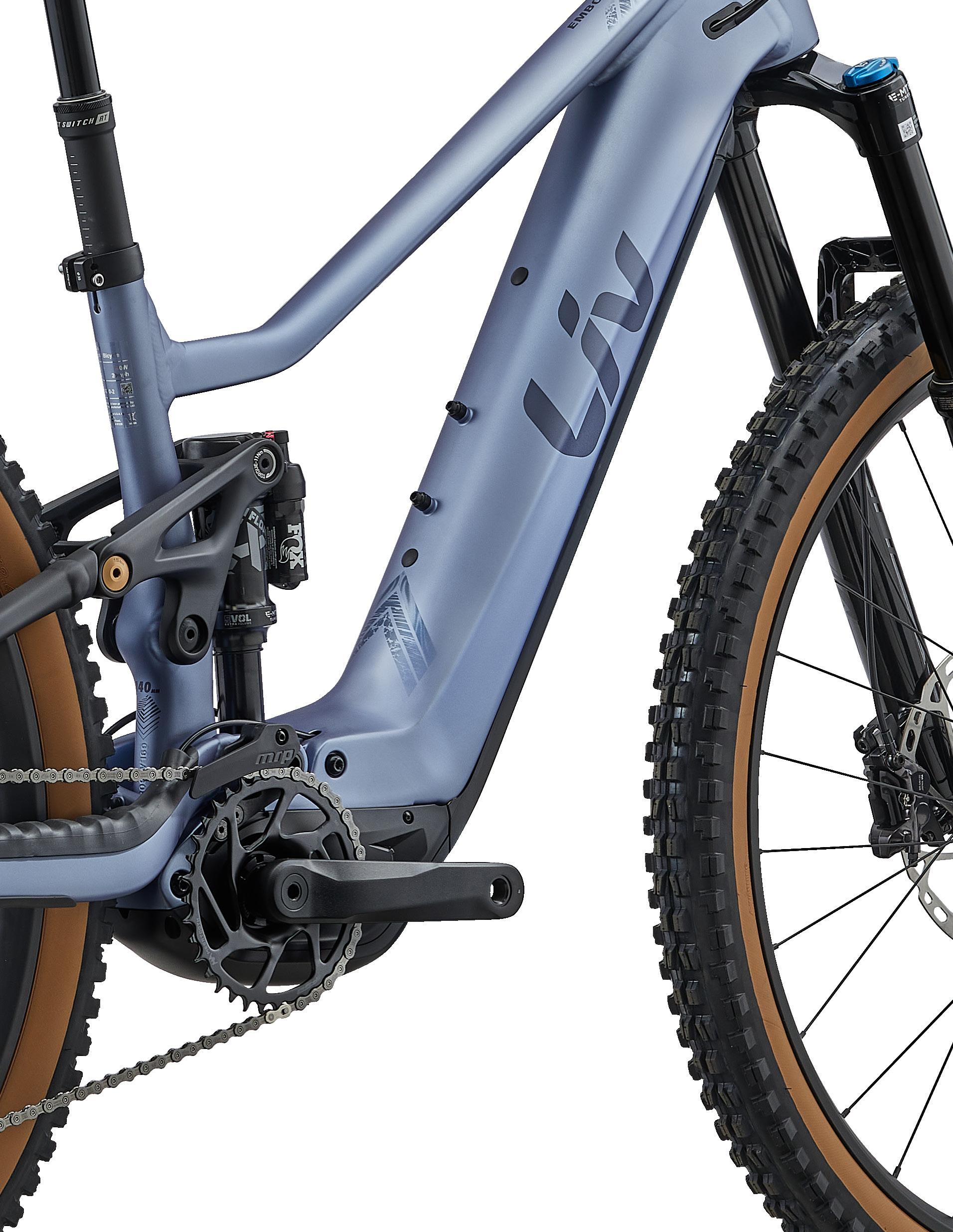

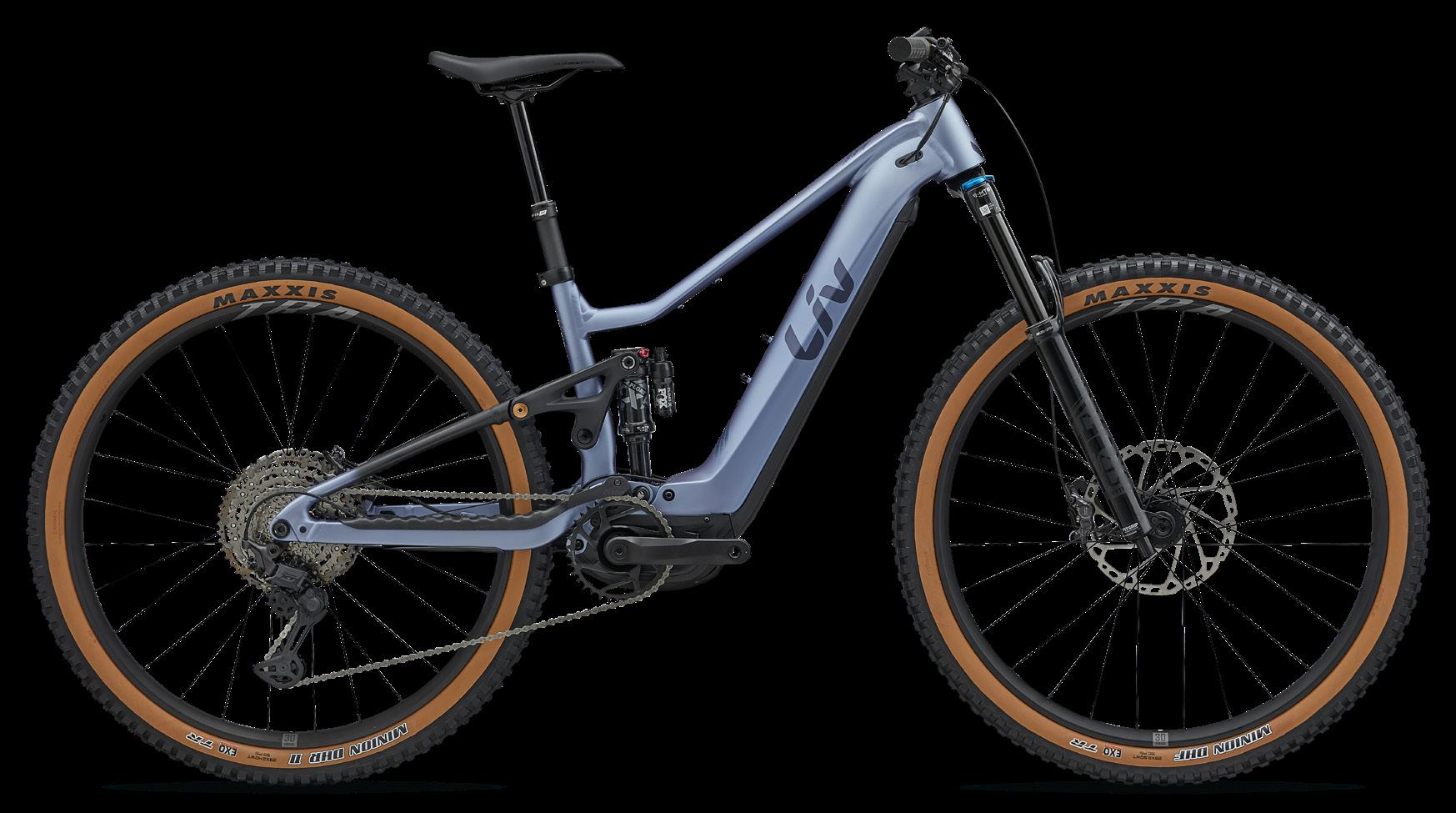

EMBOLDEN E+
Designed to help riders explore farther and progress with confidence, the Embolden E+ pairs full-suspension control with smooth, intuitive electric support. From forest roads to real mountain singletrack, it makes new terrain feel welcoming and longer rides feel achievable—with less stress and more fun.
KEY PERFORMANCE FACTORS
CONFIDENT TRAIL CAPABILITY
With 150mm of front travel and 140mm at the rear, the suspension system is designed and tuned specifically for the Embolden E+ to deliver stability, traction, and predictable handling when trails get rough. The lightweight ALUXX SLgrade aluminum frame helps keep the bike manageable on climbs and more intuitive on singletrack, while the new FlexPoint Suspension design keeps the rear wheel active and controlled over uneven surfaces—helping the bike stay composed and easier to manage as trails get more technical.
POWER YOU CAN RELY ON
The SyncDrive Pro 3X motor delivers up to 100Nm with a smooth, natural response that closely follows rider input—making steep climbs and long days feel more manageable. Paired with Smart Assist and high-capacity EnergyPak Smart batteries, the system supports a trail range of approximately 50–120 km depending on terrain, elevation, and support mode, with the option to add an EnergyPak Plus range extender for longer adventures. This gives riders the practical freedom to explore new areas, ride longer loops, and confidently plan full trail days without range anxiety.
SMART INTEGRATION, BUILT TO LAST
Every part of the E+ System is developed to work together—from motor to battery to software— supporting durability, serviceability, and long-term value. Through the RideControl Dash 2 and RideControl app, riders can personalize how the bike responds and which ride data they see, making it easy to fine-tune support modes and power delivery to match terrain, fitness, and riding style. The system is fully supported through Liv retailers with diagnostics and firmware updates, while the in-house developed, industry leading battery chemistry delivers up to 2300 charge cycles, improving resale value and reducing waste. Integrated technologies, including Aegis tire pressure monitoring, e-locking, and Apple Find My, add everyday security on and off the trail.
FEATURES

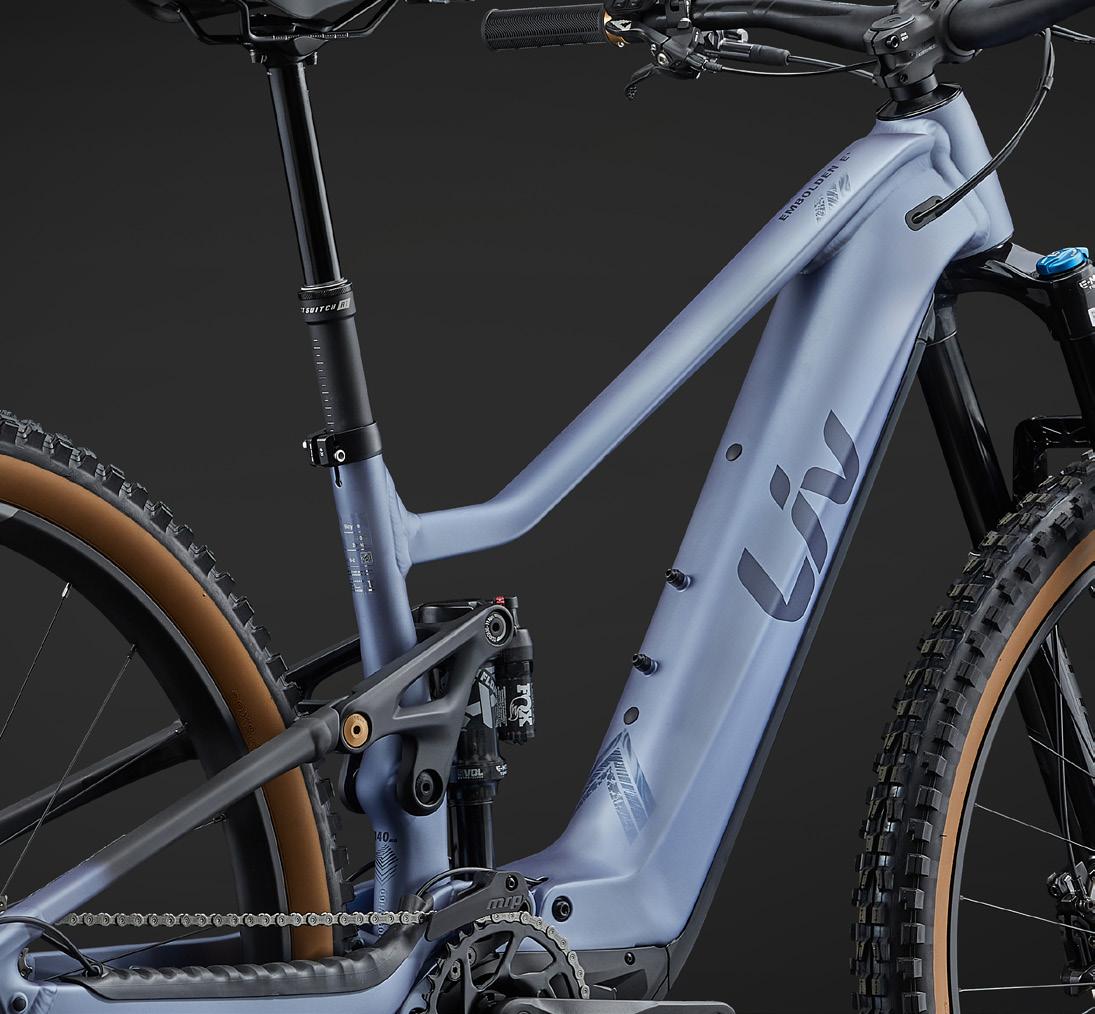

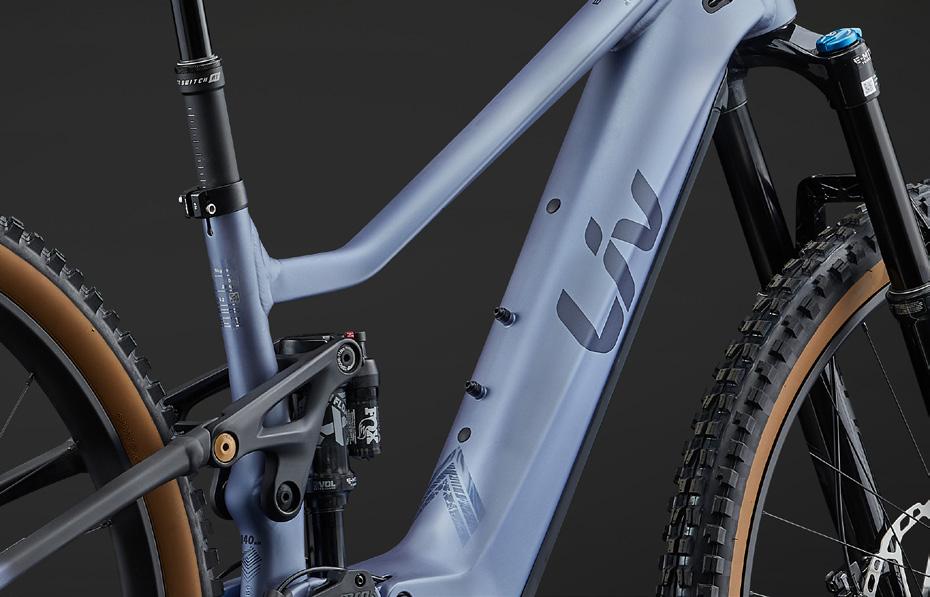

01.ALUXX SL ALUMINUM FRAME: This state-ofthe-art aluminum frame material delivers best-in-class strength-to-weight ratios. It’s crafted using advanced hydroforming and gravity casting techniques and features super smooth welds that give it a clean, modern look.
02. FLEXPOINT SUSPENSION: Single-pivot suspension system with 140mm of smooth, active rear travel for greater control on technical trails. Updated design results in less rear triangle deformation and higher anti-rise performance for greater chassis stability and balanced geometry under braking forces.
03.GIANT E+ SYSTEM: These user-friendly components and technologies—including motors, control units, battery packs and more—function as part of the overarching system that seamlessly combines electric power with human power to produce a smart, natural, powerful and secure ride experience.
04. SYNCDRIVE PRO 3X MOTOR: On Embolden E+ 0 and 1, the SyncDrive Pro 3X motor delivers up to 800 watts of peak power and 100Nm of torque for fast response and sustained support on demanding trails. Balancing high output with precise control, it’s engineered to maintain powerful assistance even at high cadences—helping riders climb steeper terrain and stay confident through longer, more challenging rides.
05. SMART ASSIST: Six smart sensors precisely measure your power input, speed and cadence, as well as the slope of the terrain you’re riding on, to provide just the right amount of support for a natural, powerful riding experience. This helps optimize energy efficiency for your battery system and you.
06. ENERGYPAK SMART BATTERY SYSTEM:
Climb higher and descend longer with the integrated EnergyPak system featuring 800Wh of capacity. This premium battery system is engineered with proprietary cell technology and optimizes charging performance using continuous communication between the battery and charger.
07. ENERGYPAK PLUS: Part of a modular system, this range extender gives you the option to add an additional 250Wh or 200Wh battery for longer range. This gives you the choice— lighter weight for everyday rides or add the extender for epic ride days.

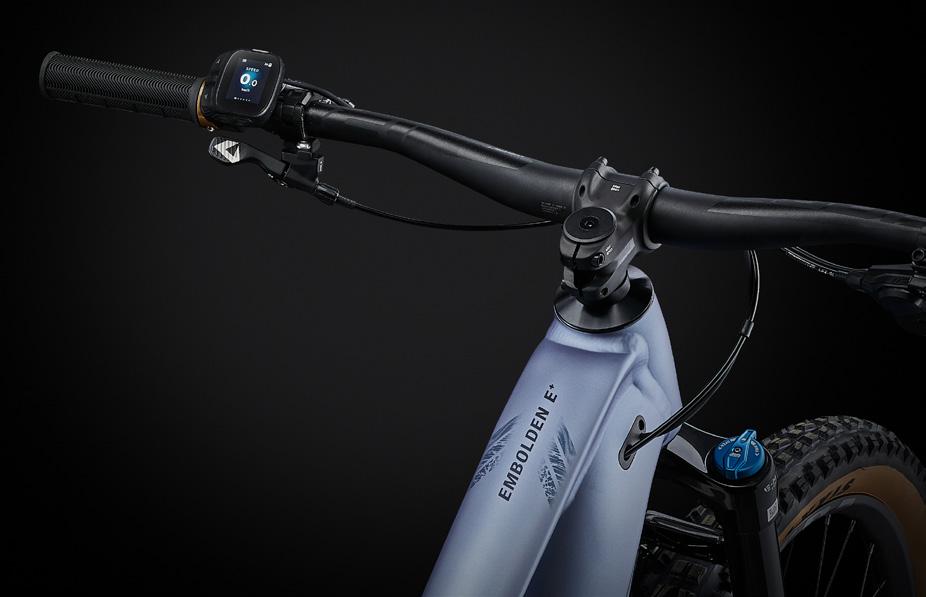

08. RIDECONTROL DASH 2: This updated control unit is cleanly integrated with the handlebar/ grip featuring ergonomic buttons to control support modes. The high-resolution color screen has an anti-fog design that displays range, battery level and support mode, speed and distance, and turn-by-turn directions.
09. RIDECONTROL APP: Use your smart phone to fine-tune the motor performance for your riding style and terrain. You can adjust the support, torque and launch (reaction) levels from the battery-saving Eco mode to the most aggressive Power mode if you want maximum speed and acceleration.
10. SAFETY FEATURES: Integrated technologies including Aegis tire pressure monitoring, e-locking and Apple Find My compatibility, providing peace of mind at home, during transport, and on the trail.

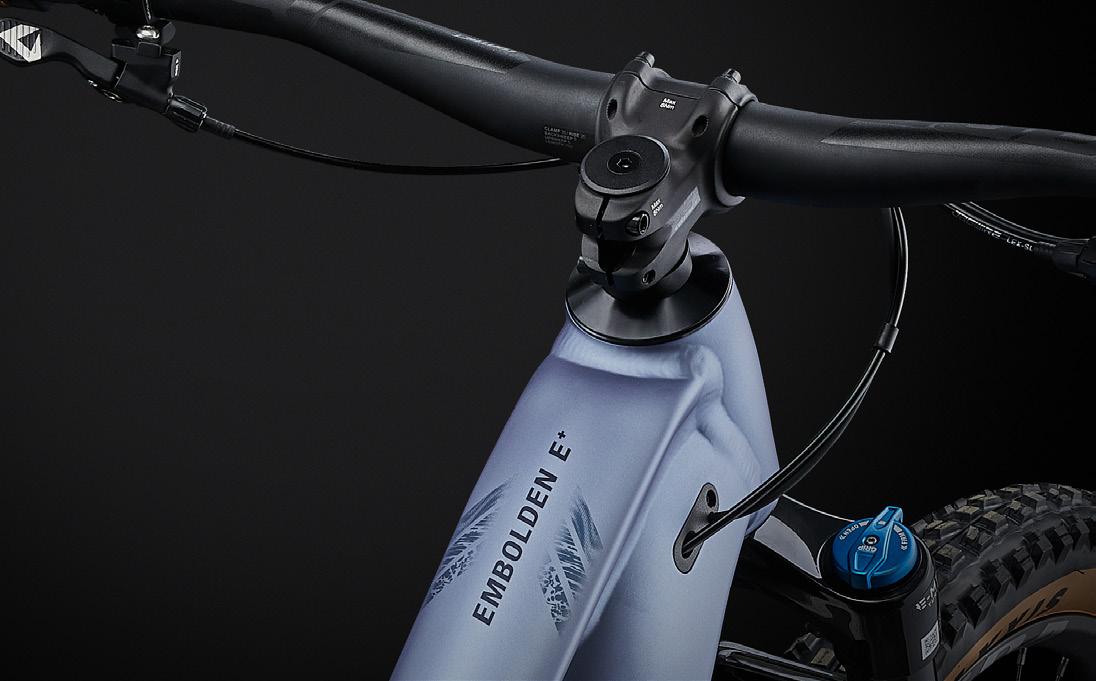

11. INTERNAL CABLE ROUTING: Pre-installed wiring pipes for the rear brake, rear derailleur and dropper seatpost allow easy access that doesn’t require removing the motor or battery when servicing or making adjustments to the E-bike.
12. GIANT CREST E-OPTIMIZED SUSPENSION: Embolden E+ 1 features Giant Crest E-optimized suspension, tuned specifically to handle the added weight and power of an E-MTB. The system is designed to deliver consistent support, controlled traction, and predictable handling across a wide range of trail conditions, helping riders stay balanced and confident as terrain gets rough. A simplified, unified setup approach keeps the suspension operating in its ideal range, reducing guesswork and making it easier to focus on the ride.
TECHNOLOGY
The E+ System is a fusion of advanced technology and purposeful design, integrated in perfect harmony for your choices, your goals, your ride. Whether you want to climb higher, go farther, or enjoy the trail ahead, these user-friendly components and technologies—including motors, control units, battery packs and more—seamlessly blend electric power with human power to deliver a smart, natural, powerful and secure ride experience.
SMART
You can control your ride with simple interfaces that put settings and ride data intuitively at your fingertips. RideControl Dash 2 places essential information and functions within easy reach, giving you effortless confidence on every ride. Ergonomic controls and intuitive displays simplify your settings, creating a ride experience that feels completely natural and tailored to you. You can connect the display units wirelessly to the RideControl App and configure the controller to your personal preferences.
NATURAL
The SyncDrive Pro 3X revolutionizes your ride using six sensors to automatically detect pedaling cadence and force along with speed and motor rotation. The sensors collect real-time data to immediately adjust motor support and create a customized experience. Built-in intelligence responds instantly to your movements and environment, enhancing your connection with the bike. Smart Assist, an automatic adaptive support mode, maximizes efficiency by delivering the right amount of power you need, exactly when you need it.
POWERFUL
EnergyPak Smart batteries give you long-lasting range and smart charging technology. They provide exceptional durability with up to 2300 full charge cycles and allow you to recharge rapidly, reaching 80% battery capacity in less than four hours so you’re always ready to go. And you can easily swap and charge batteries on or off the bike, with adjustable charging and range extenders.

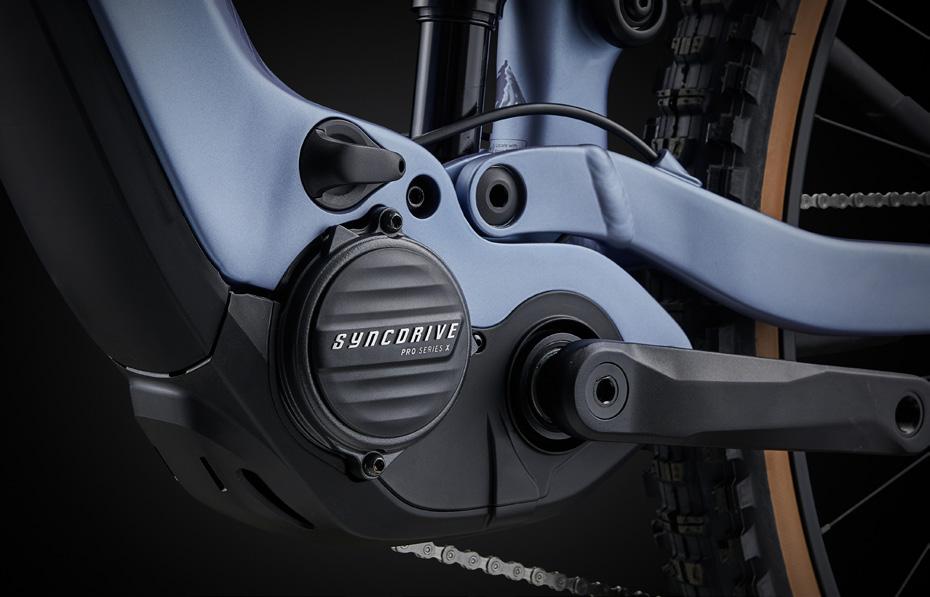

SYNCDRIVE PRO 3X
On Embolden E+ 0 and Embolden E+ 1, the SyncDrive Pro 3X motor delivers fast response, sustained power, and compact performance, helping riders climb steep terrain and accelerate with greater ease. Designed for demanding conditions, it balances high output with precise control for confident, capable riding.
KEY FEATURES
HIGH POWER
Building on the lightweight 5.7lb design of the Pro 3 motor, SyncDrive Pro 3X delivers up to 800W of peak power with an upgraded 100 Nm of torque. This results in an 11% improvement in torque-to-weight ratio, providing stronger climbing performance and improved control in technical terrain.
FAST RESPONSE
With an ultra-fast response time of just 0.24 seconds, the motor delivers maximum torque almost instantly, whether starting from a standstill or riding at low speeds. Six advanced sensors continuously monitor rider input and trail conditions, ensuring power delivery is both immediate and smooth.
SUSTAINED POWER
SyncDrive Pro 3X is engineered to maintain powerful assist levels even at high cadences, giving you sustained support over longer periods. With a maximum support ratio of 400%, the motor can deliver up to four times the rider’s input. Riders can further finetune the assist ratio, maximum torque, and responsiveness to match personal riding preferences.
SMART ASSIST
Smart Assist is an automatic adaptive support mode. This intelligent system uses six sensors and advanced algorithms to determine the optimum power support needed on variable terrain. Smart Assist also maximizes efficiency by not using unnecessary energy. And since it always delivers just the right amount of pedaling support, it maximizes the energy efficiency of the rider as well.
ENERGYPAK SMART 800
The EnergyPak Smart battery system delivers maximum range and consistent high-output performance for demanding E-MTB riding. Its 800Wh capacity supports sustained power delivery on long climbs and extended time in higher assist modes, while advanced cell management ensures efficient energy use and reliable output across varied terrain.
The Embolden E+ is designed for seamless integration of the battery pack and is compatible with either the EnergyPak 800 for long, high-intensity rides. You can also use the EnergyPak Plus range extender, adding 250Wh or 200Wh for epic rides. All battery configurations are easily removable for convenient charging and transport, designed to work seamlessly with Giant’s E+ system.

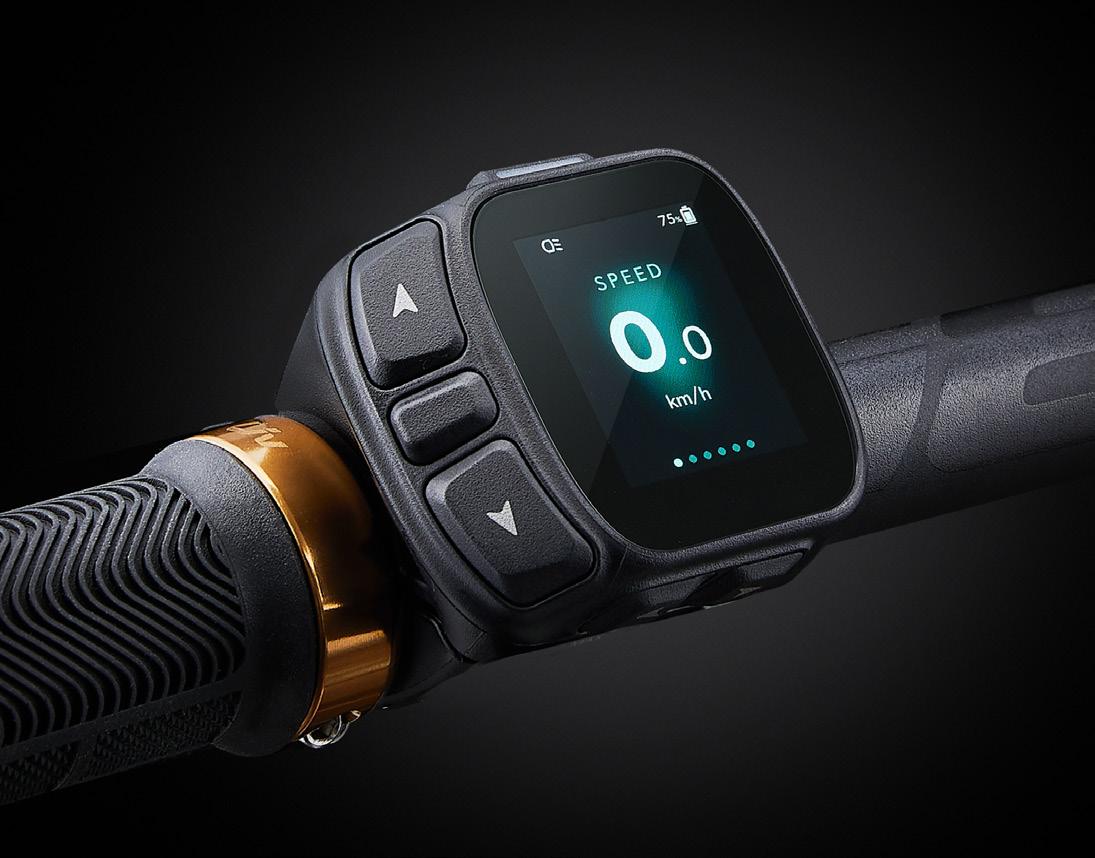

RIDECONTROL DASH 2
This new control unit features a 1.5-inch, high-resolution color screen for enhanced visibility. It’s integrated with the handlebar/grip for optimal comfort and control. The buttons allow you to switch support levels and each of the five modes (Eco, Tour, Active, Sport, Power) is a different color, helping you easily identify it at a glance. The controller shows battery level and range along with standard cycling data such as speed, cadence and distance. It also has sound effects for the new Giant E-Lock and Apple Find My security features.

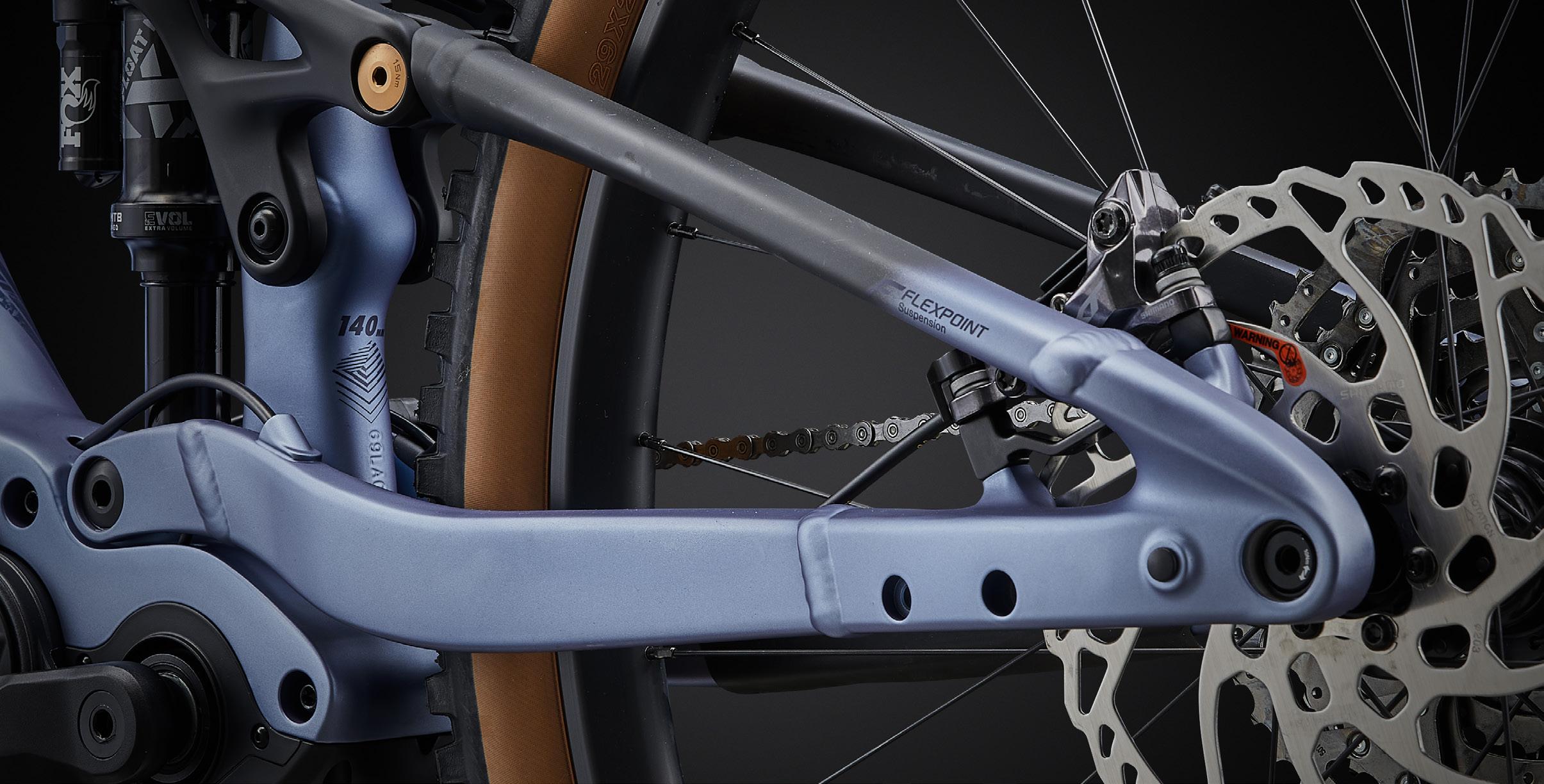

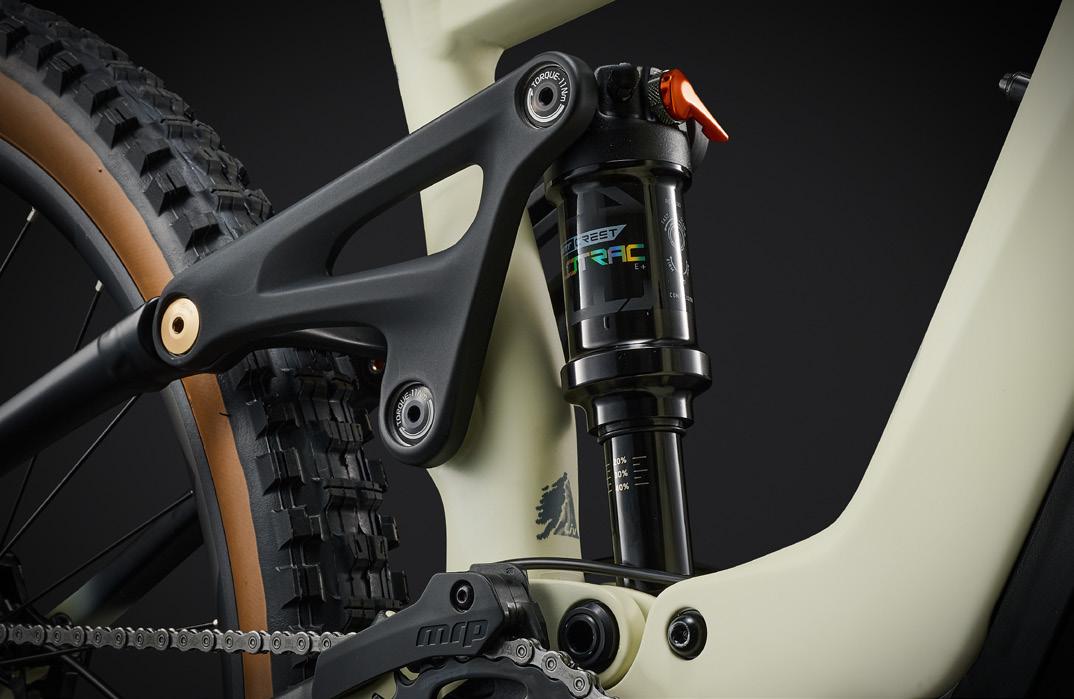

This updated rear suspension system delivers smooth control and uncompromising efficiency for confident trail riding performance. Its single-pivot design isolates the rear shock and produces 140mm of fully active, groundtracking suspension. The result is greater control to fly down technical descents and hammer up steep climbs.
KEY BENEFITS
ULTRA-SMOOTH ACTION
This linkage-driven, single-pivot system produces consistent damping and spring performance throughout its travel. The rear shock is isolated to provide small-bump sensitivity through the entire wheel path, delivering a smooth, active feel through the entire shock stroke with no harsh bottom-outs.
PRECISION AND STABILITY
A one-piece rocker arm saves weight and allows the rocker to fully grip the shock, ensuring consistent shock movement and efficient transfer of trail impacts. Reduced rear triangle deformation improves frame stability and tracking accuracy, helping the bike stay composed and predictable through rough, high-speed sections.
LESS IS MORE
The minimal flexing action of the chainstay/seatstay junction creates a ground-tracking, fully active system with fewer complex pivots, linkages and additional frame reinforcements. This makes it a durable system that requires less maintenance.
OPTIMIZED ANTI-RISE
Anti-rise is tuned to match Embolden E+’s longer travel and higher-power positioning. Under hard braking, the suspension helps counteract excessive fork dive while allowing the rear wheel to remain active, keeping the bike balanced and predictable as terrain gets steeper and more technical. By maintaining a stable center of gravity between the front and rear, the system improves control and confidence when braking into rough sections—without making the rear end feel harsh or locked to the ground.
WHAT IT IS
A dedicated E-MTB Trail fork and shock system, engineered from the ground up to meet the unique demands of electric mountain biking. Designed to handle increased system weight, higher torque, and sustained trail loads, this E-optimized suspension delivers consistent support, confident traction, and controlled stability throughout the entire stroke.
WHY WE MADE IT WHO
To solve EMTB riders’ biggest pain points—complex setup and unstable feel under added weight and torque—delivering easy control, strong support, and confidence from setup to hardcore trail riding.
FOR
For riders who came to E-MTB for more laps, steeper lines, and more fun—and need suspension that’s easy to set up and built to keep up, not hold them back.
E-optimized suspension features an enlarged air can and a precisely tuned air spring curve, providing consistent support throughout the entire travel range. From initial stroke to bottom-out, stability and control are maintained—engineered specifically to manage the added mass and higher load demands of E-bikes.
Enhanced compression and rebound force are calibrated to control the additional weight and torque of eMTBs, delivering confident traction, full-travel impact absorption, and stable ride control across varied terrain.
E-OPTIMIZED AIR CURVE
Boosts both initial and end-stroke support, effortlessly lifting the additional bike weight, rebalancing the E-bike weight allocation and ensuring confident E-bike control during intense rides without bottoming out.
SPRING CURVE
EASY SETUP
Fork and shock are designed and tuned together as one system—enabling a precise setup guide that makes suspension tuning intuitive and keeps riders in the sweet spot.
ETUNING
E-OPTIMIZED AIR CURVE
An enlarged shock air can with an added air chamber ensures linear and progressively growing support at the end of the stroke, guaranteeing improved traction, even under demanding control and terrain.
ETUNING
ENHANCED DAMPING
The damper tuning precisely aligns with the heavier bike weight and leverage ratio (shock), ensuring a targeted increase in damping force for optimal E-bike control
LITE-TUNING

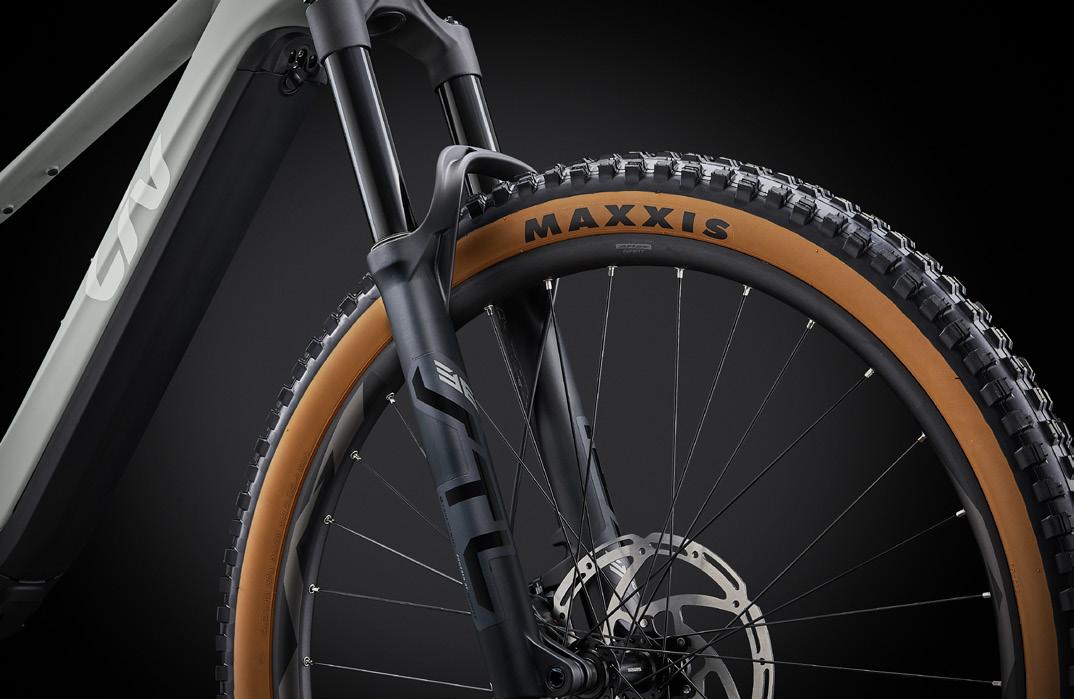

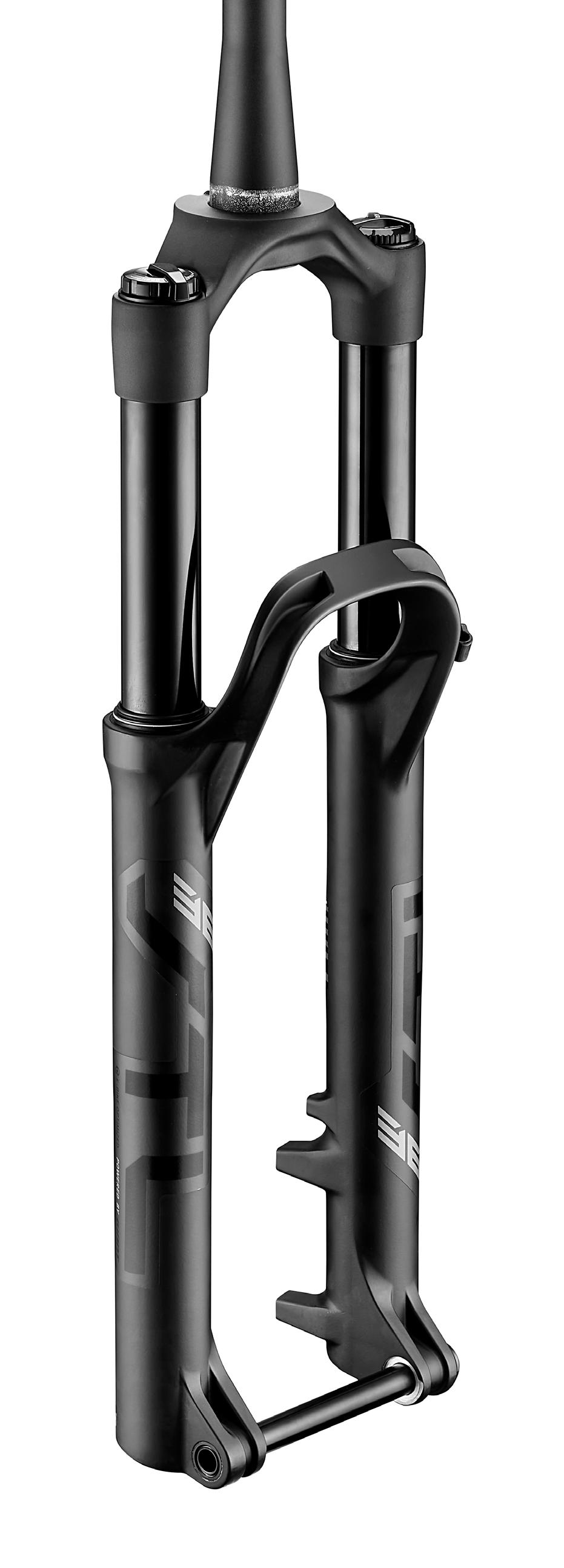

STL 36
The STL 36 brings performance-level suspension to E-bike riders with precise chassis control, optimized support under load, and consistent traction on the trail. E-optimized tuning and a unified suspension setup guide simplify setup and keep riders consistently in the sweet spot— for confident and consistent control on every ride.
KEY PERFORMANCE FACTORS
Chassis Control
A stiff, precisely engineered chassis delivers confident frontend control and accurate steering. The hollow arch bridge and 36mm stanchions work together to balance stiffness and controlled flex, while high-precision assembly ensures smooth, predictable handling in demanding conditions.
Supple Support
E-tuned spring and damping calibration deliver strong, load-ready support that remains smooth and easy to manage—ideal for the added weight and torque of E-MTBs. An enhanced air-spring curve provides stable mid-stroke performance under load and repeated impacts, with straight forward token adjustments that make fine-tuning rider preference quick and intuitive.
Consistent Traction
Low-friction suspension action keeps the front tire tracking the ground for reliable grip. A responsive negative spring and Giant E-tuned damping maintain traction from small bumps to repeated impacts, while the unified suspension setup guide helps riders stay in the traction sweet spot.
FEATURES
• Exclusive hollow arch bridge design reduces rear material while creating a stronger, more direct connection between fork legs—optimizing low weight, chassis stiffness, and controlled dynamic flex
• 36mm stanchions create a stiff, confidence-inspiring chassis that improves frontend precision and overall bike handling
• Ultra-precision chassis assembly ensures class-leading smoothness for optimal spring and damping performance
• Tool-free air-token tuning allows for fully customizable air-spring progression.
• E-tuning precisely enhances spring support and damper force, engineered to manage heavier system weight and a wider range of impact forces
• E-optimized air spring curve delivers enhanced mid-stroke support and predictable control in technical riding conditions
• Selected negative coil spring enhances small-bump sensitivity, increasing traction and rider comfort on rough terrain

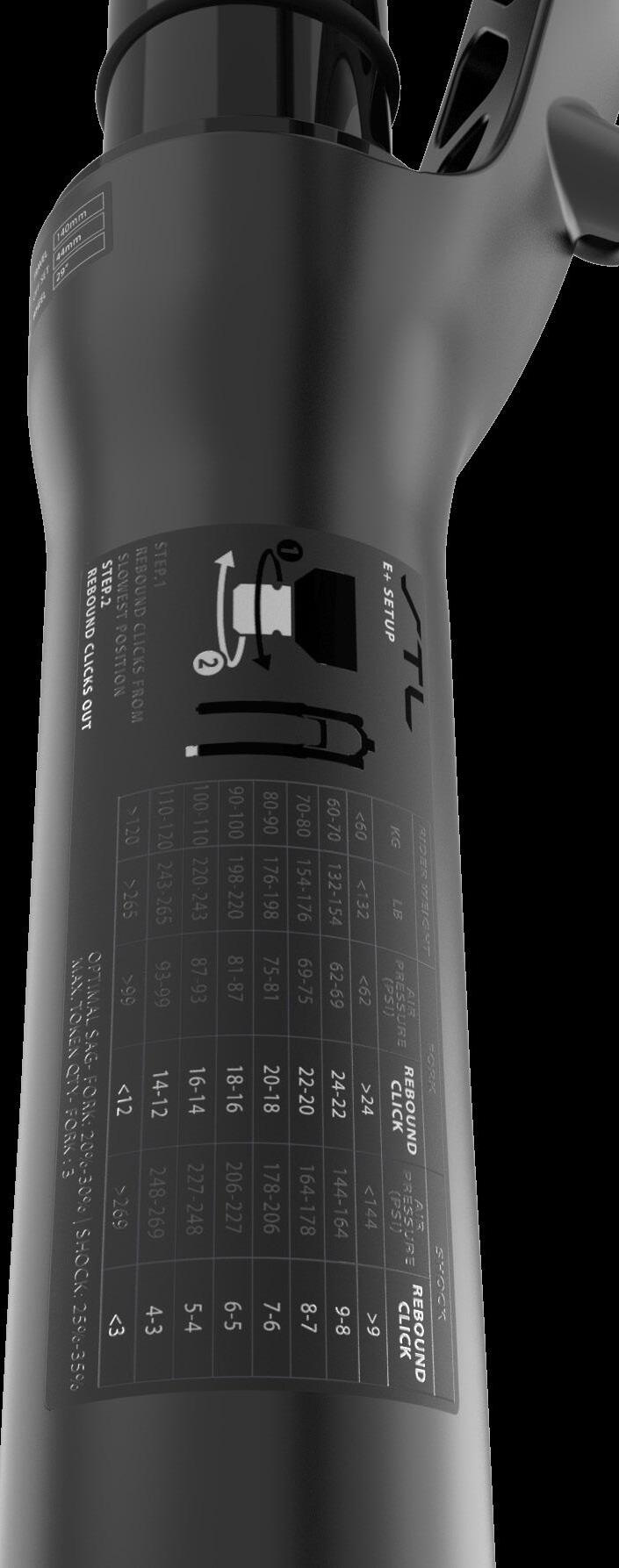

• Unified suspension setup guide provides clear guidance for both fork and shock, keeping riders consistently dialed into the sweet spot
• Dedicated mudguard mount ensures clean integration and dependable all condition usability
SPECIFICATIONS
WHEEL COMPATIBILITY 29”
TRAVEL 130MM/ 150MM
SPRING SINGLE-AIR
DAMPER GIANT E-TUNING DAMPER
ADJUSTMENTSREBOUND EXTERNALLY ADJUSTABLE REBOUND WITH 30 CLICKS

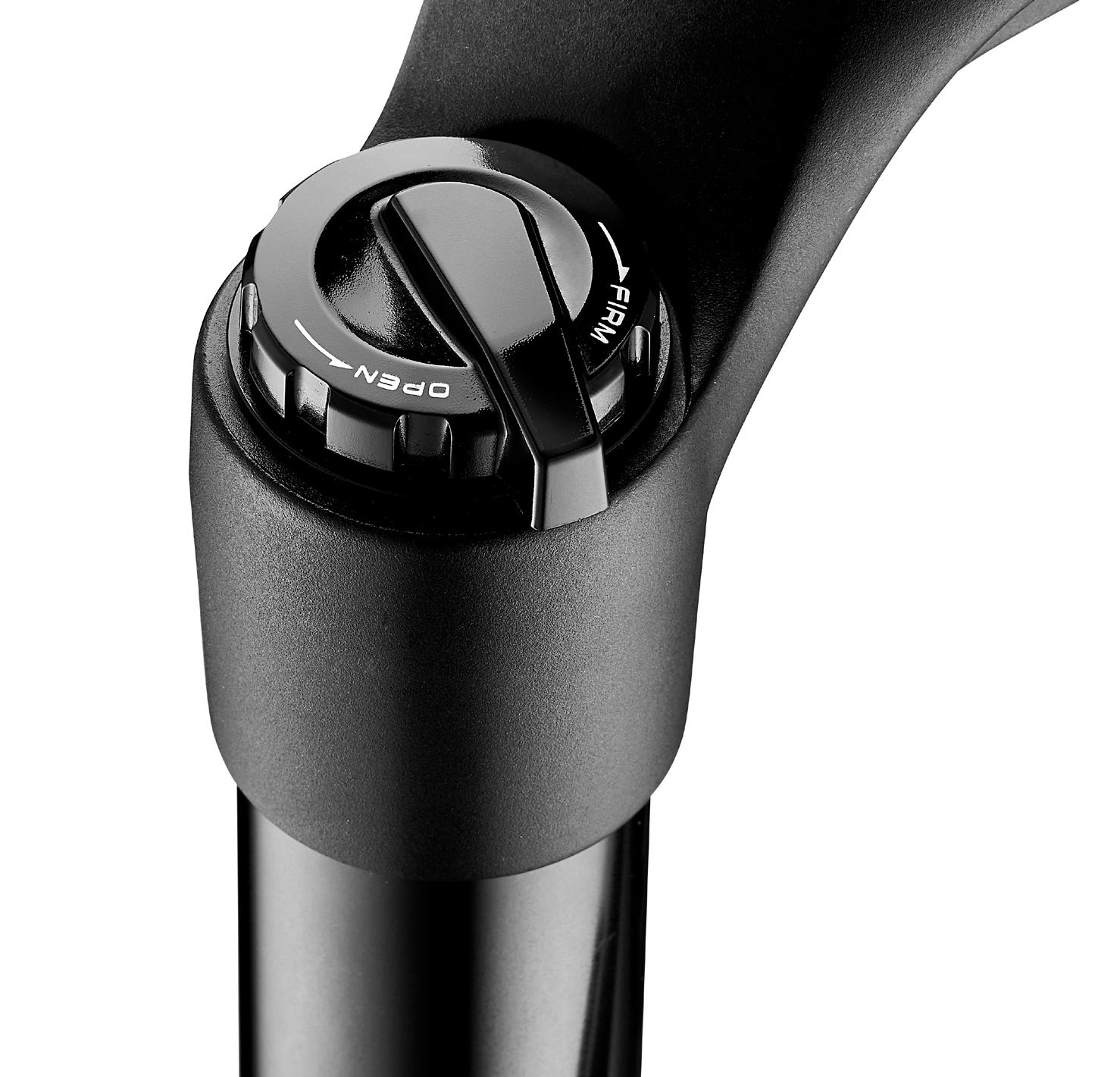

ADJUSTMENTSCOMPRESSION 5 POSITION CIRCUIT (OPEN, X3 TRAIL MODES, LOCK-OUT)
STEERER 1-1/8” TO 1.5” ALLOY, TAPERED
CROWN FORGED, HOLLOW 6061 ALUMINUM
STANCHIONS 36MM ALUMINUM
LOWER LEG THIXOMOLDED MAGNESIUM WITH ARCH BRIDGE
AXLE 15 X 110MM BOOST
OFFSET 44MM
WEIGHT 2350G (29”)

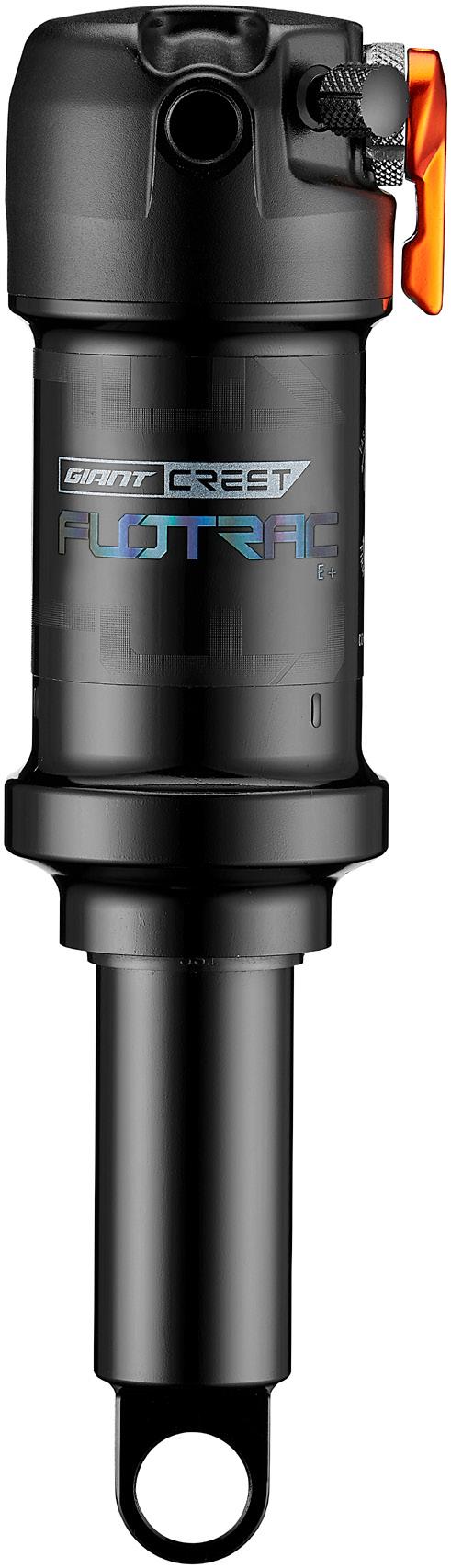

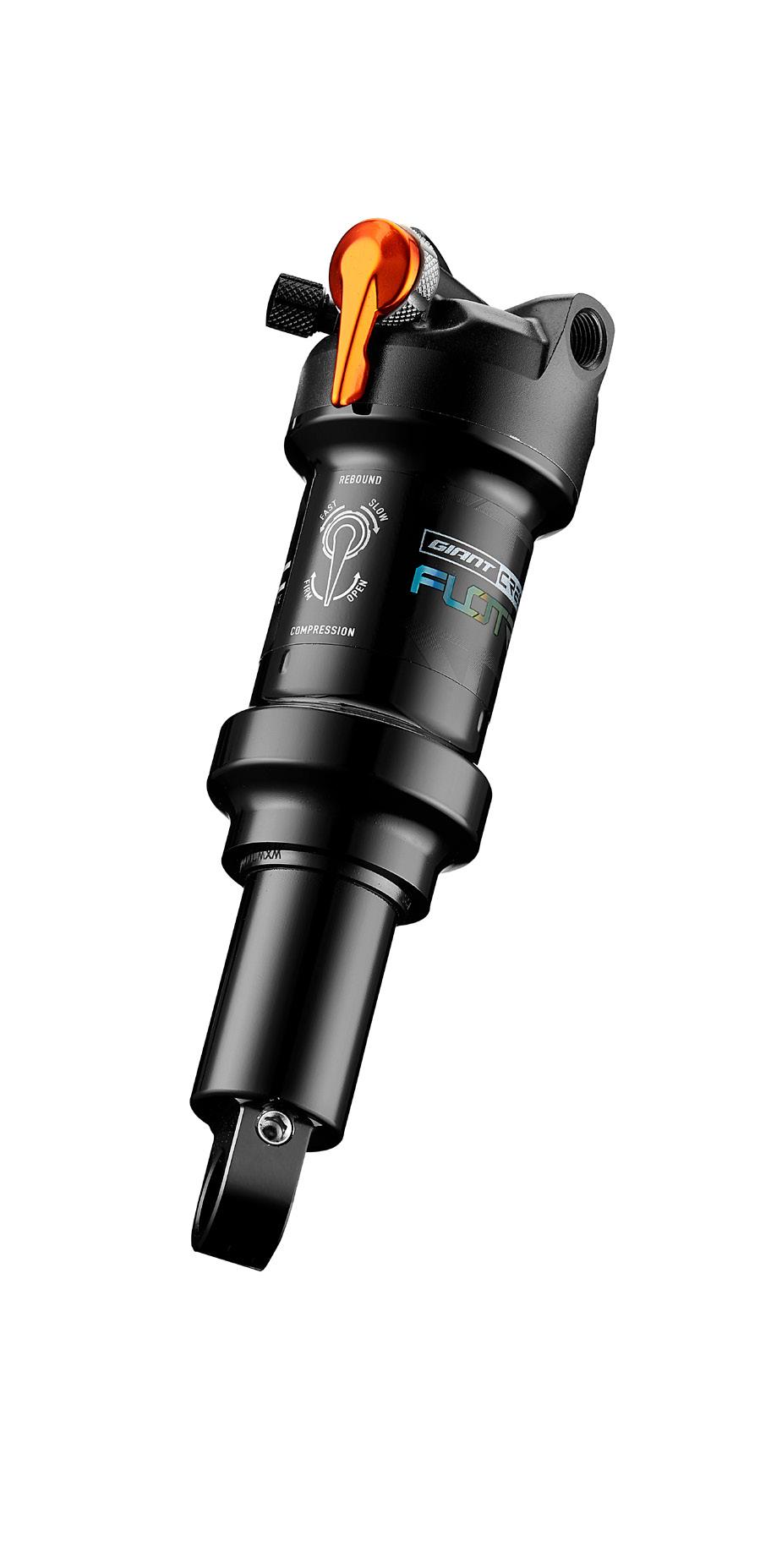

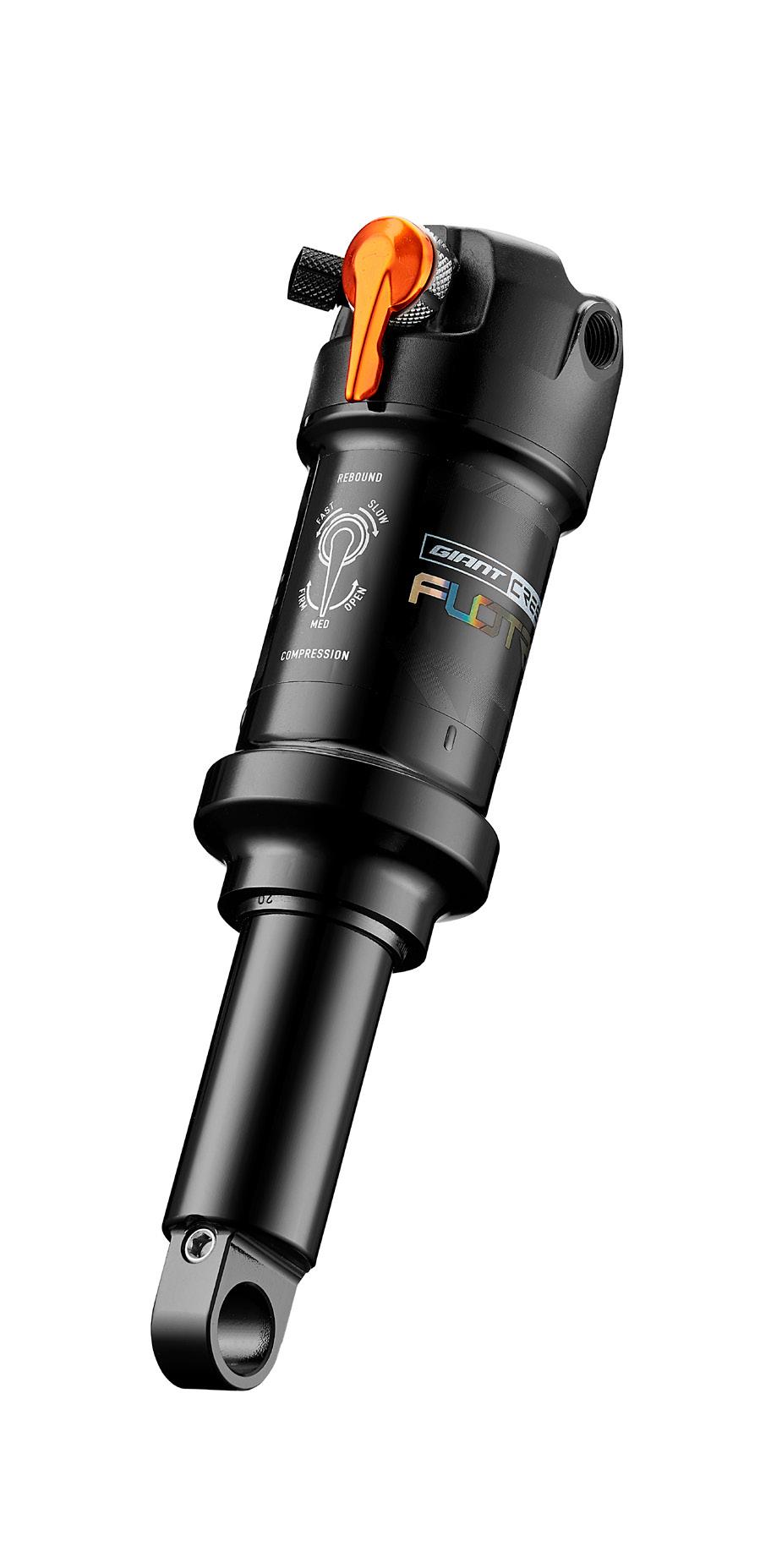

CREST FLOTRAC SHOCK (E-TUNING)
The E-tuned Crest FloTrac Shock is a fully tunable rear shock designed in-house to complement Giant E-bike suspension kinematics. Featuring triple flow path technology, the E-tuned FloTrac shock adds the large air cans to enhance support and motion control for boosting traction with confidence.
KEY PERFORMANCE FACTORS
Optimized Support
In-house engineered suspension kinematics and Giant-developed shocks are designed together to define the optimal rear-wheel path—delivering smooth, composed, and highly supportive suspension behavior under the heavier weight and higher loads of EMTB riding. An enlarged air can increases usable air volume and mid-stroke stability, confidently managing added system weight and heavier riders while maintaining sensitive, controlled suspension action.
Confident Control
Triple Flow Path damping, combined with E-optimized tuning, keeps the suspension active, predictable, and controlled across the full range of trail impacts. By maintaining consistent oil flow and damping response, the system delivers reliable traction and confidence-inspiring control—even under increased EMTB load and motor power—so riders of all skill levels can stay composed in real-world trail conditions.
Easy Setup
Fork and shock are co-designed and tuned as one unified system, supported by a clear, rider-friendly suspension setup guide. With wide adjustment range and intuitive, tool-free tuning features, riders can quickly find the sweet spot and enjoy optimized suspension performance—without guesswork, trial-and-error, or expert knowledge.
FEATURES
• Fully tunable, in-house engineering optimizes Giant suspension kinematics for each targeted platform
• E-tuning precisely customizes spring and damping performance, engineered to manage heavier system weight and increased motor power
• Enlarged air can enhances mid-stroke support, confidently handling added bike weight and larger impacts
• Triple Flow Path technology maintains plush, active suspension response from small bumps to big hits
• Three-position compression modes (Open / Firm / Lockout) deliver versatile suspension performance across diverse terrain and riding styles
• Fork and shock are co-designed and tuned as a unified system, simplifying setup and keeping riders consistently in the sweet spot
• Tool-free air token adjustment enables quick, intuitive personalization
• Trunnion mount design improves stiffness, packaging efficiency, and overall suspension performance
• Unified suspension setup guide provides clear guidance for both fork and shock, keeping riders consistently dialed into the sweet spot
SPECIFICATIONS
TUNE E-MTB OPTIMIZED
METRIC SIZES
185X52.5
SPRING TWO PISTON DESIGN
DAMPER TRIPLE FLOW PATH
ADJUSTMENTS
• COMPRESSION
• OPEN REBOUND LEVER ACTUATED OPEN, MEDIUM, FIRM MODES 16 CLICKS
