LSI SkyWays Fabric Shade Brochure

Featured Designs

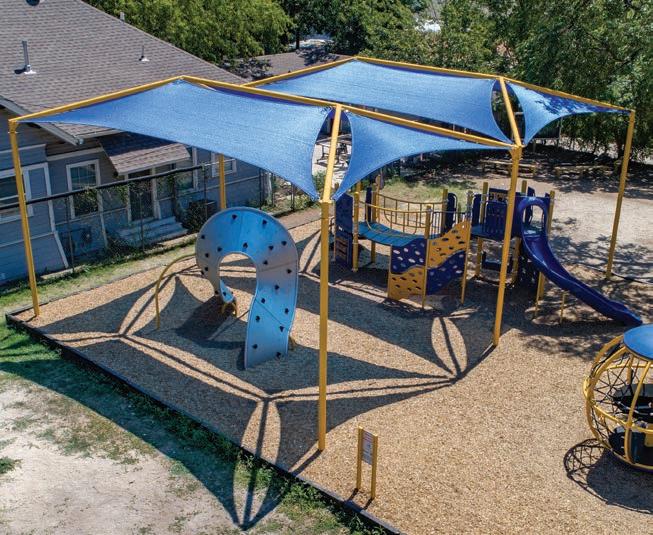

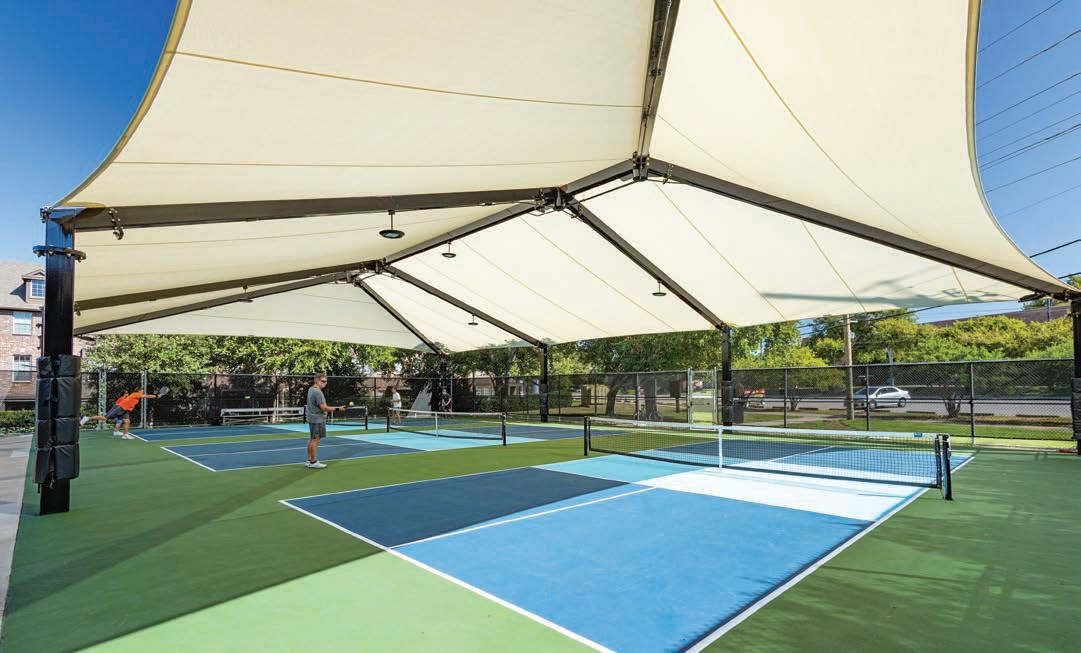

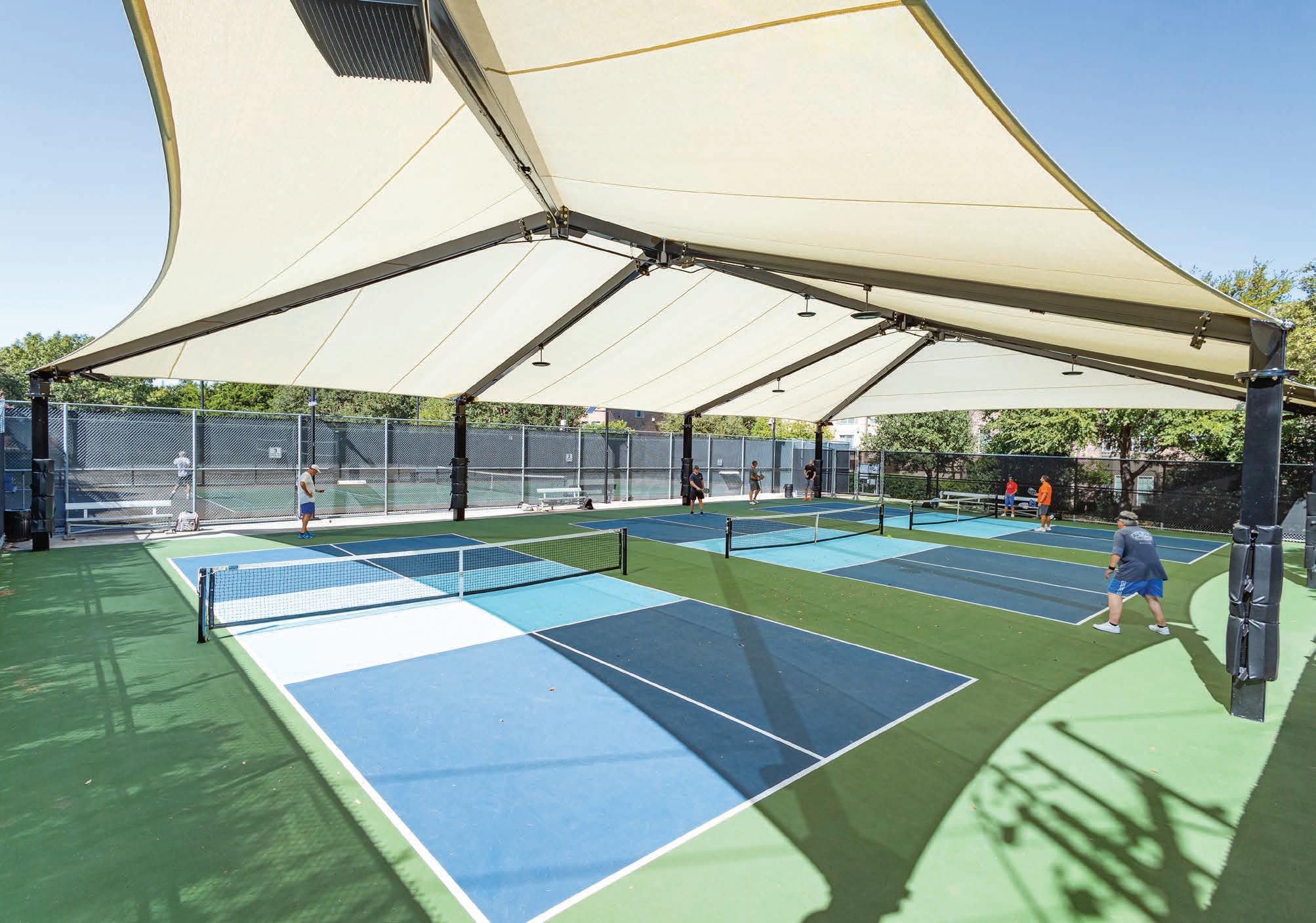

Fort Worth, Texas

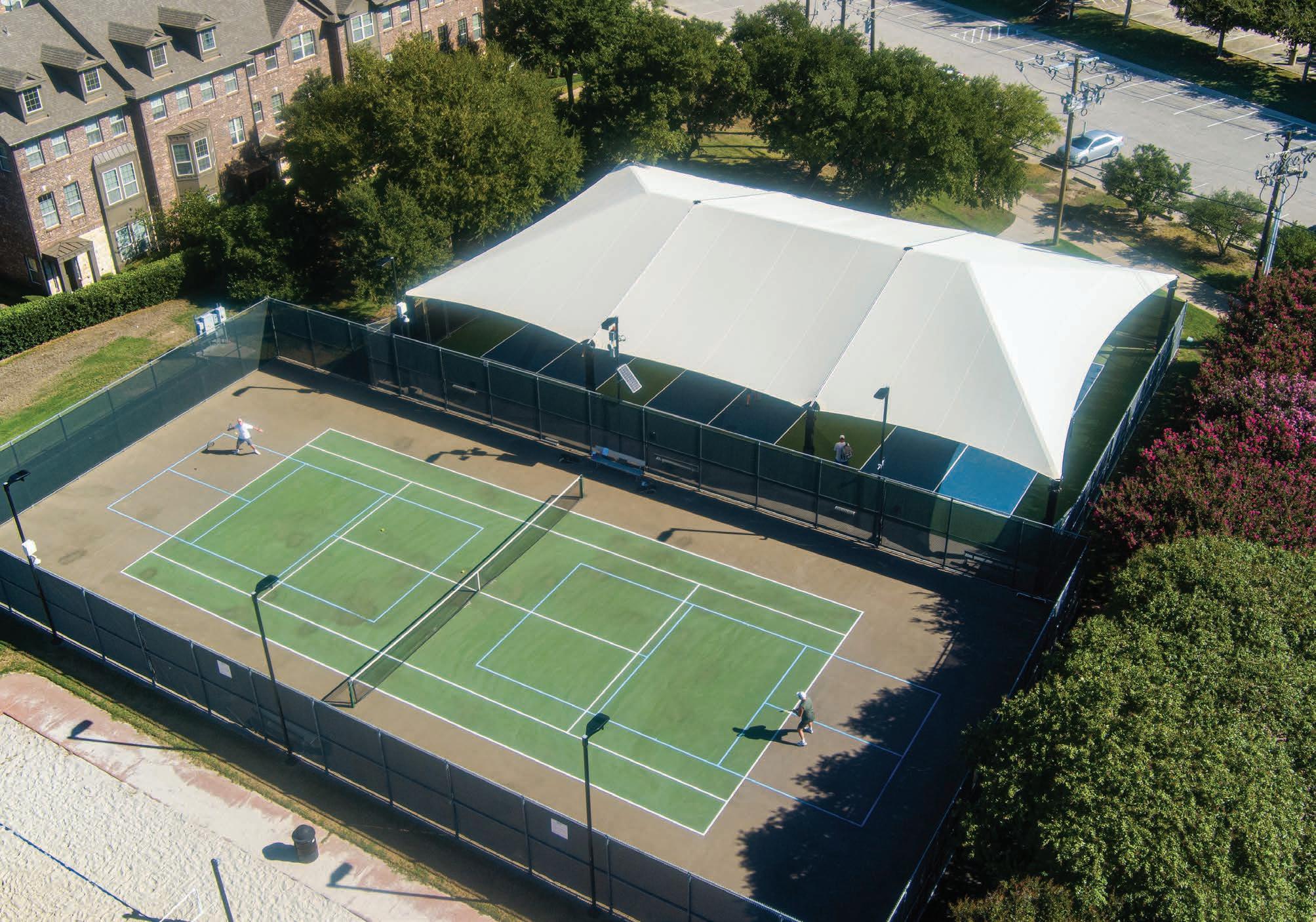

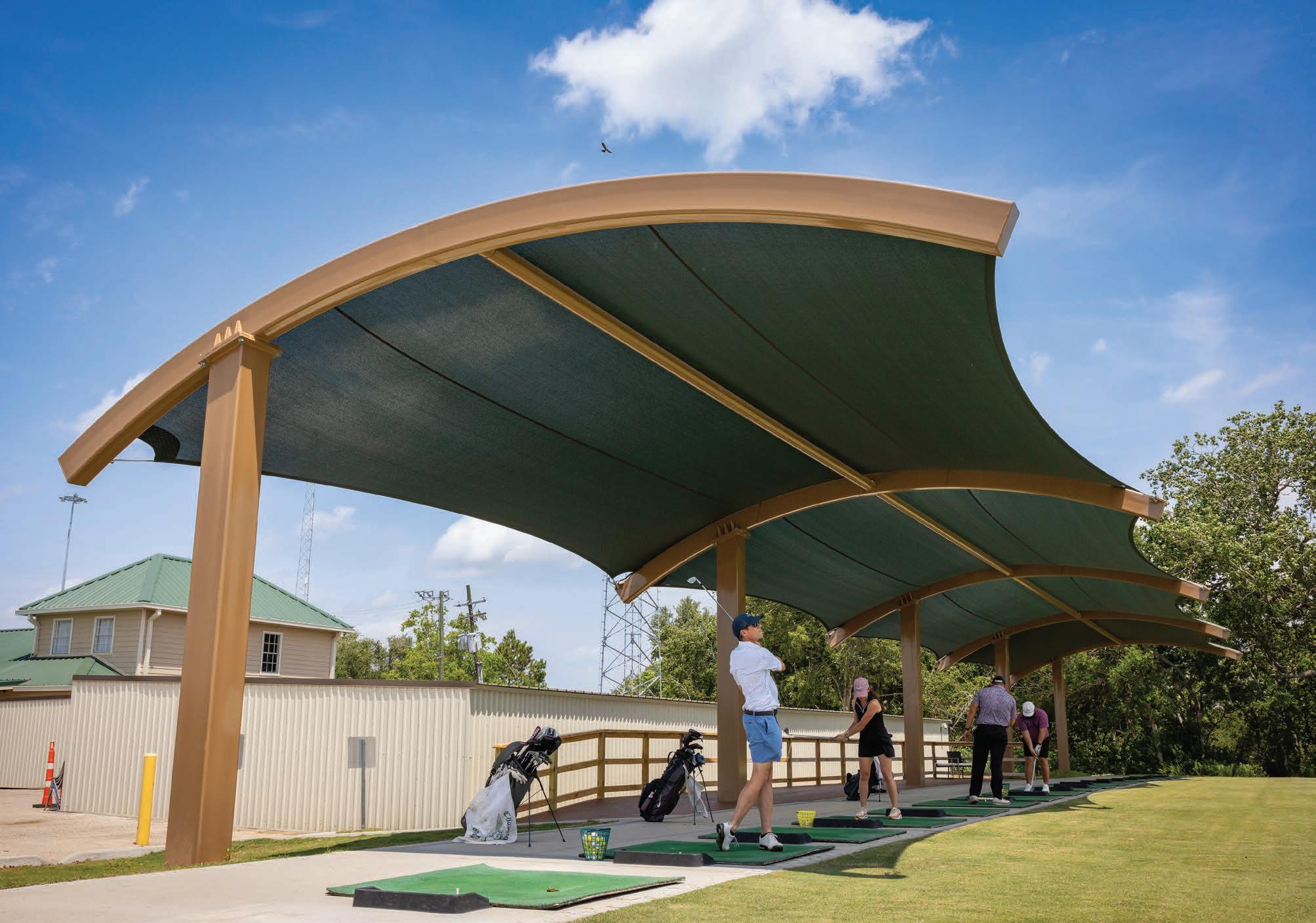

Pasadena Municipal Golf Course

Houston, Texas

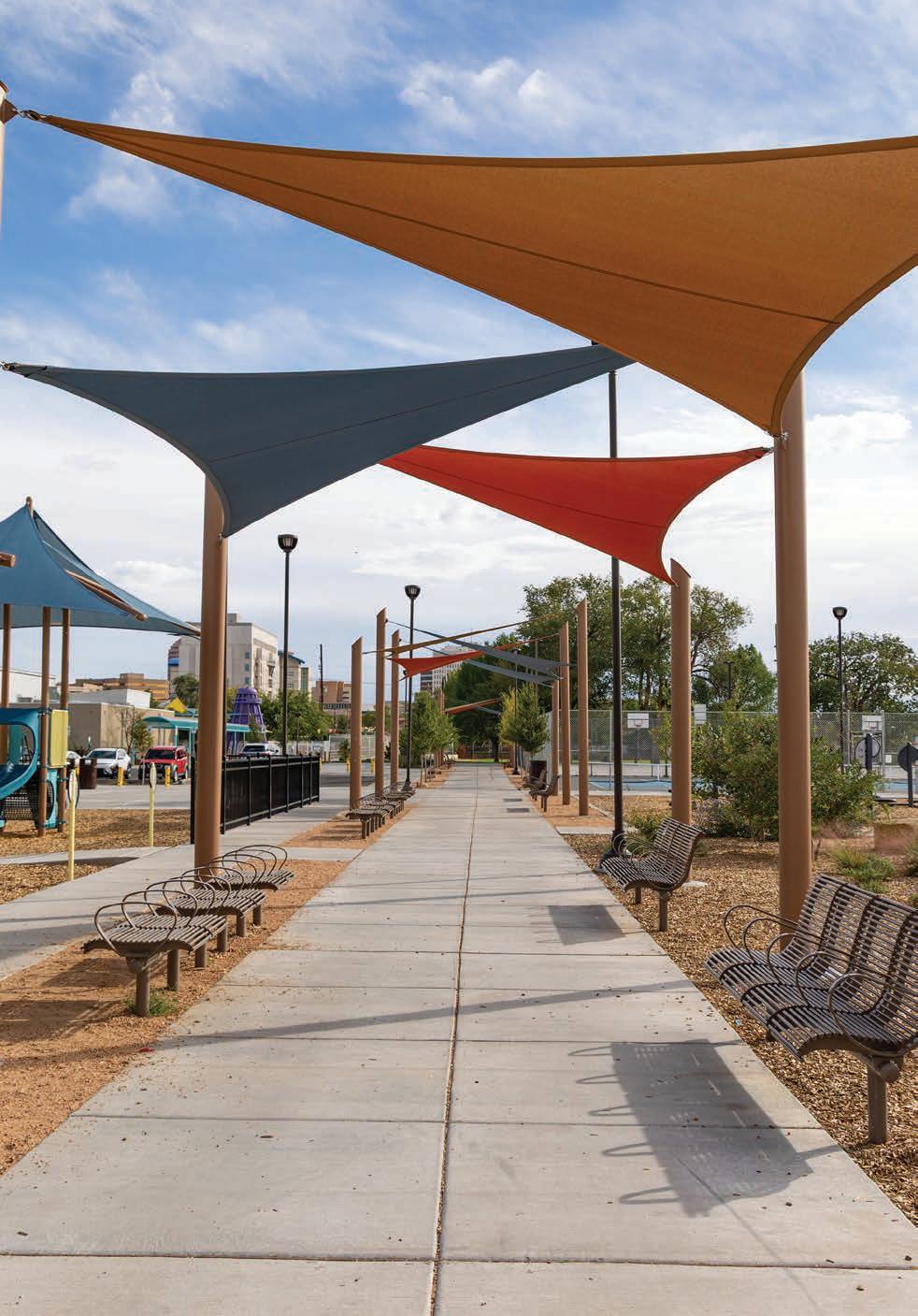

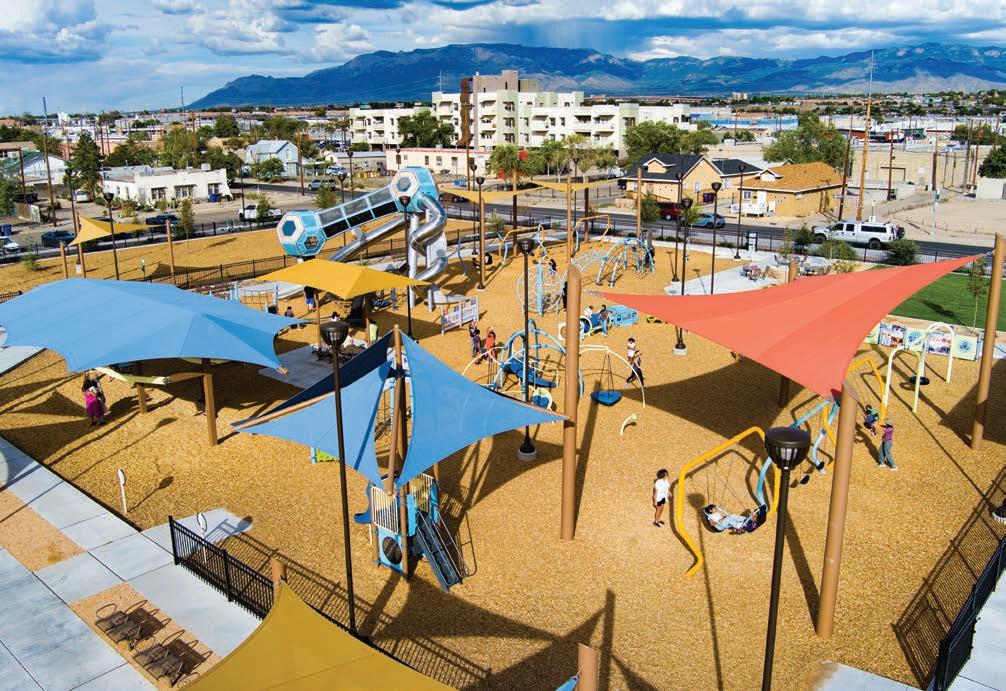

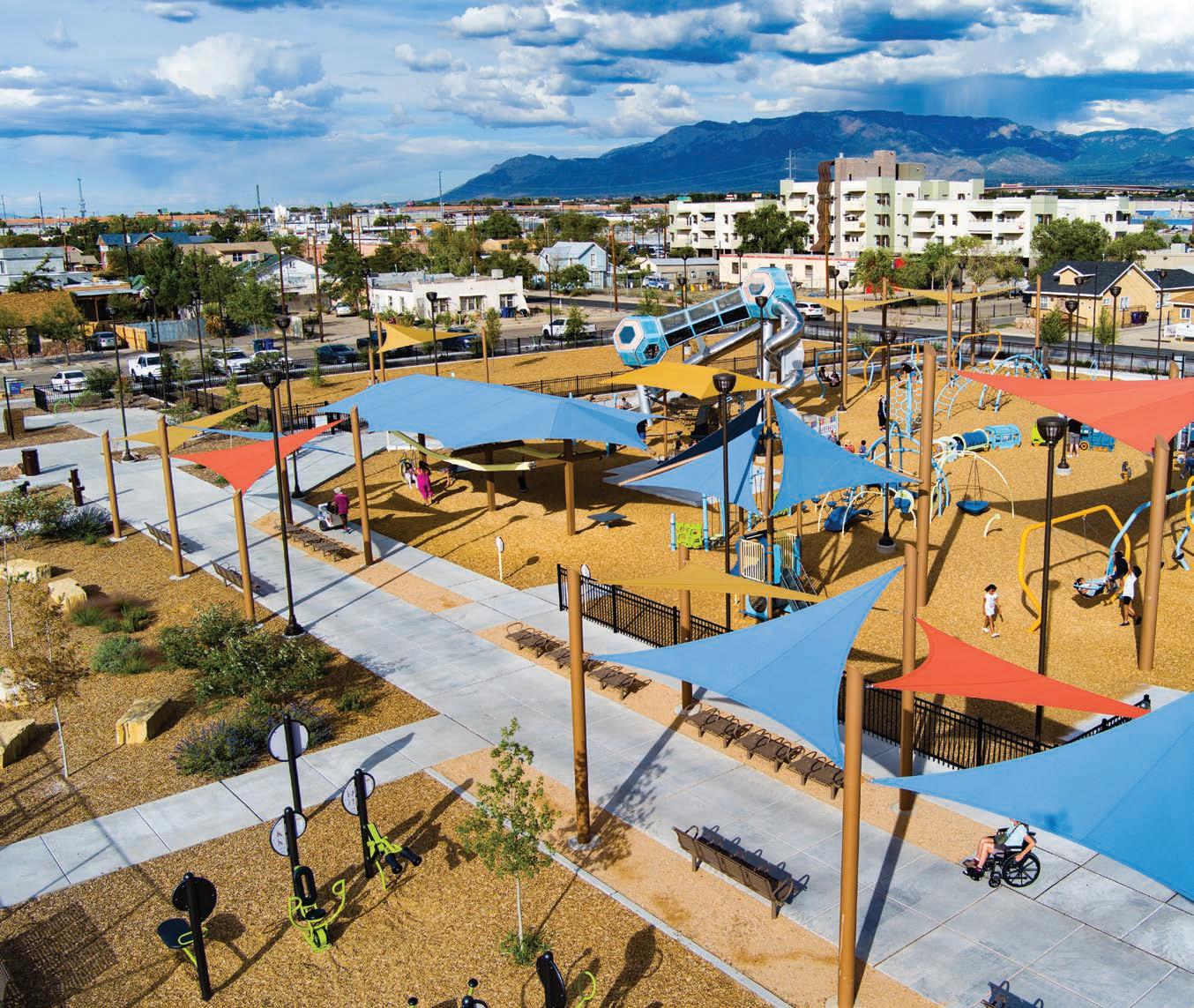

Phil Chacon Park

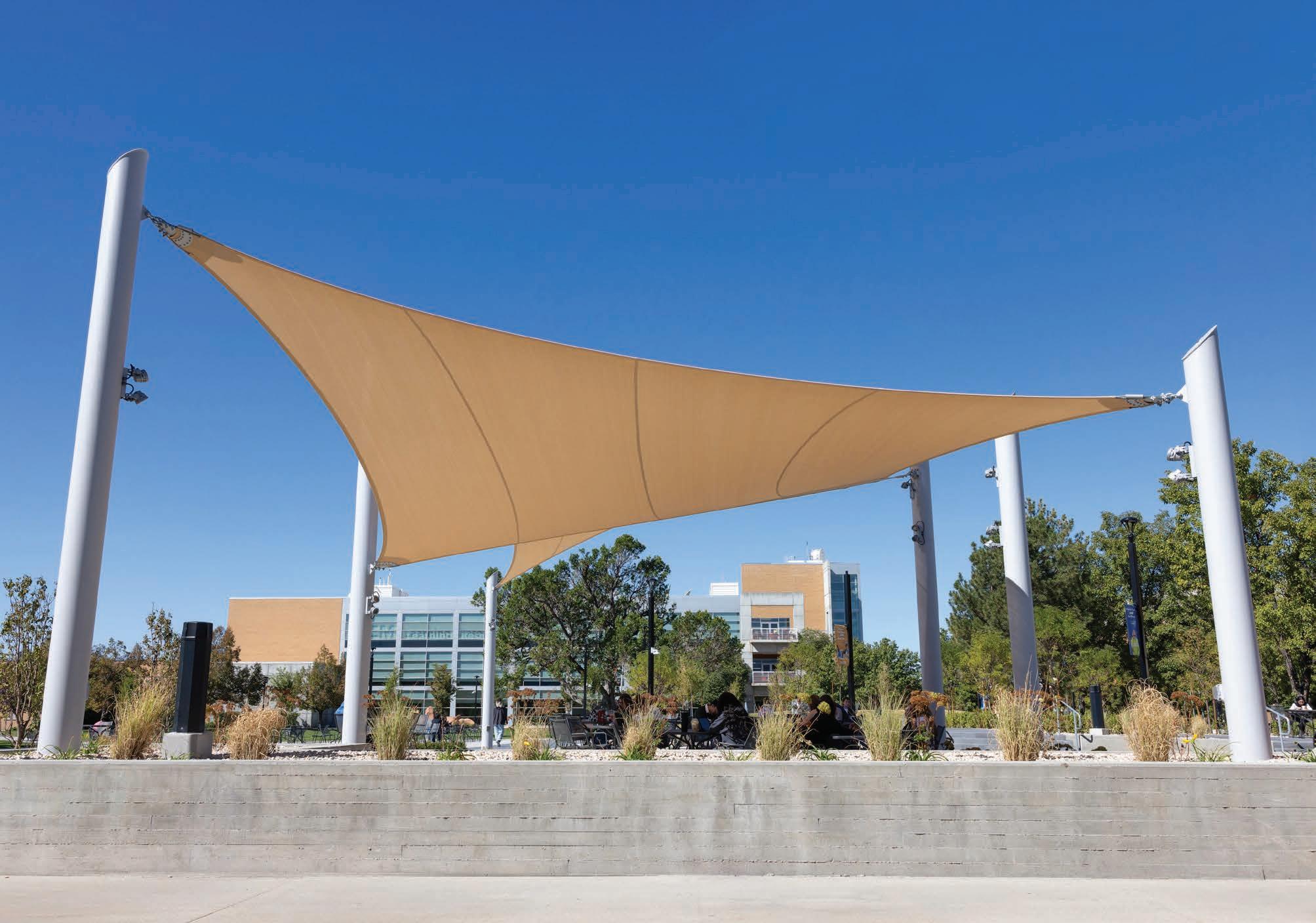

Albuquerque, New Mexico Joined

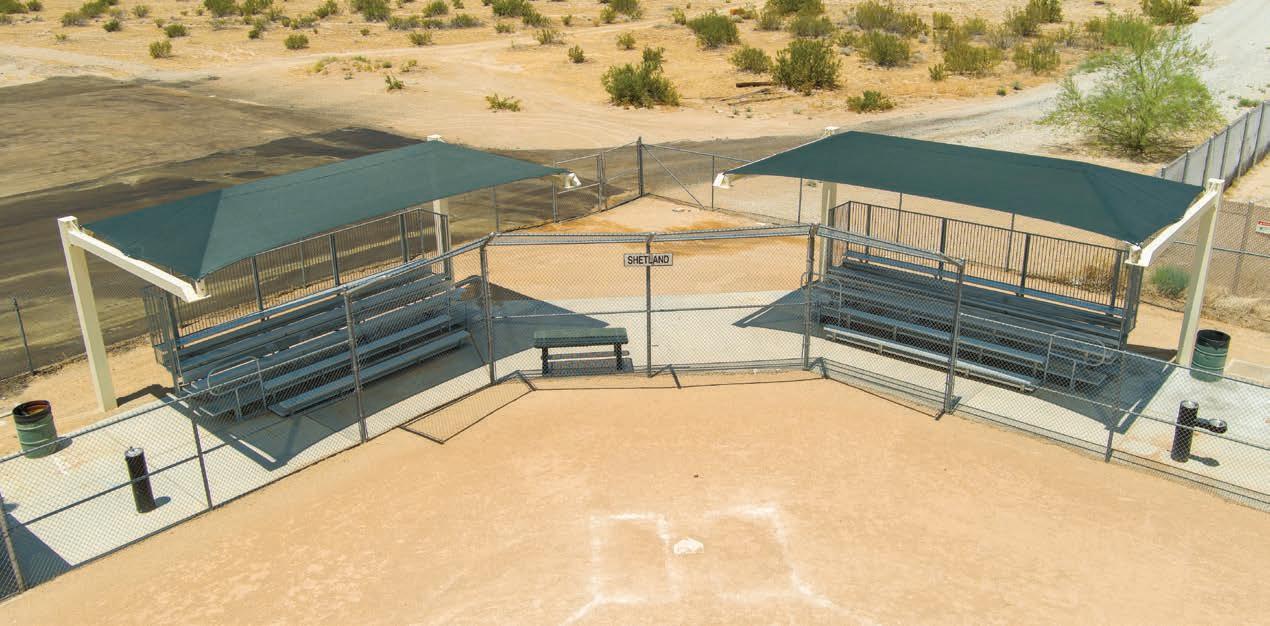

Peoria, Arizona

Netplex® with Integrated Shade Joined Slanted Cantilever Features Landscape Structures® Playground Equipment

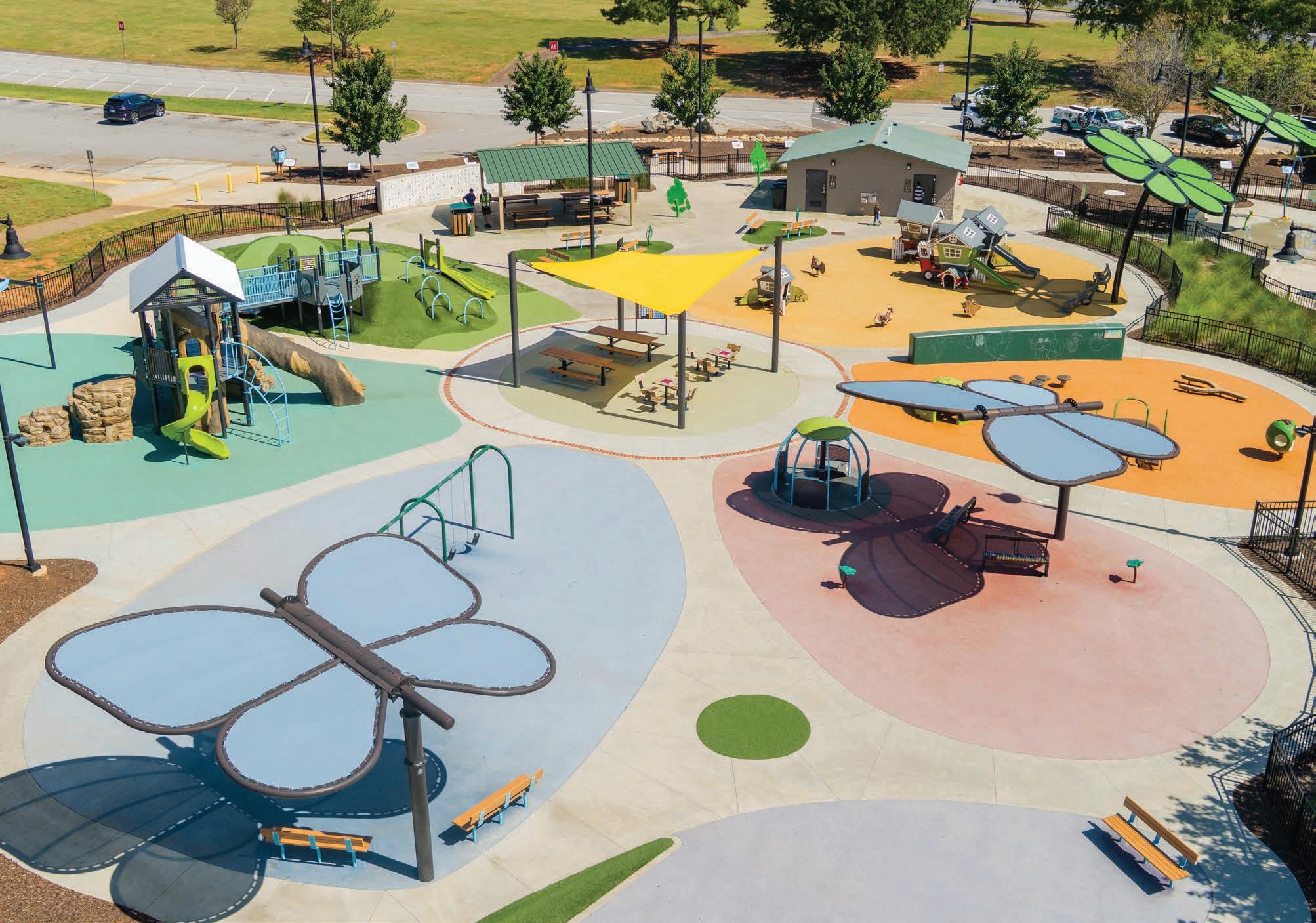

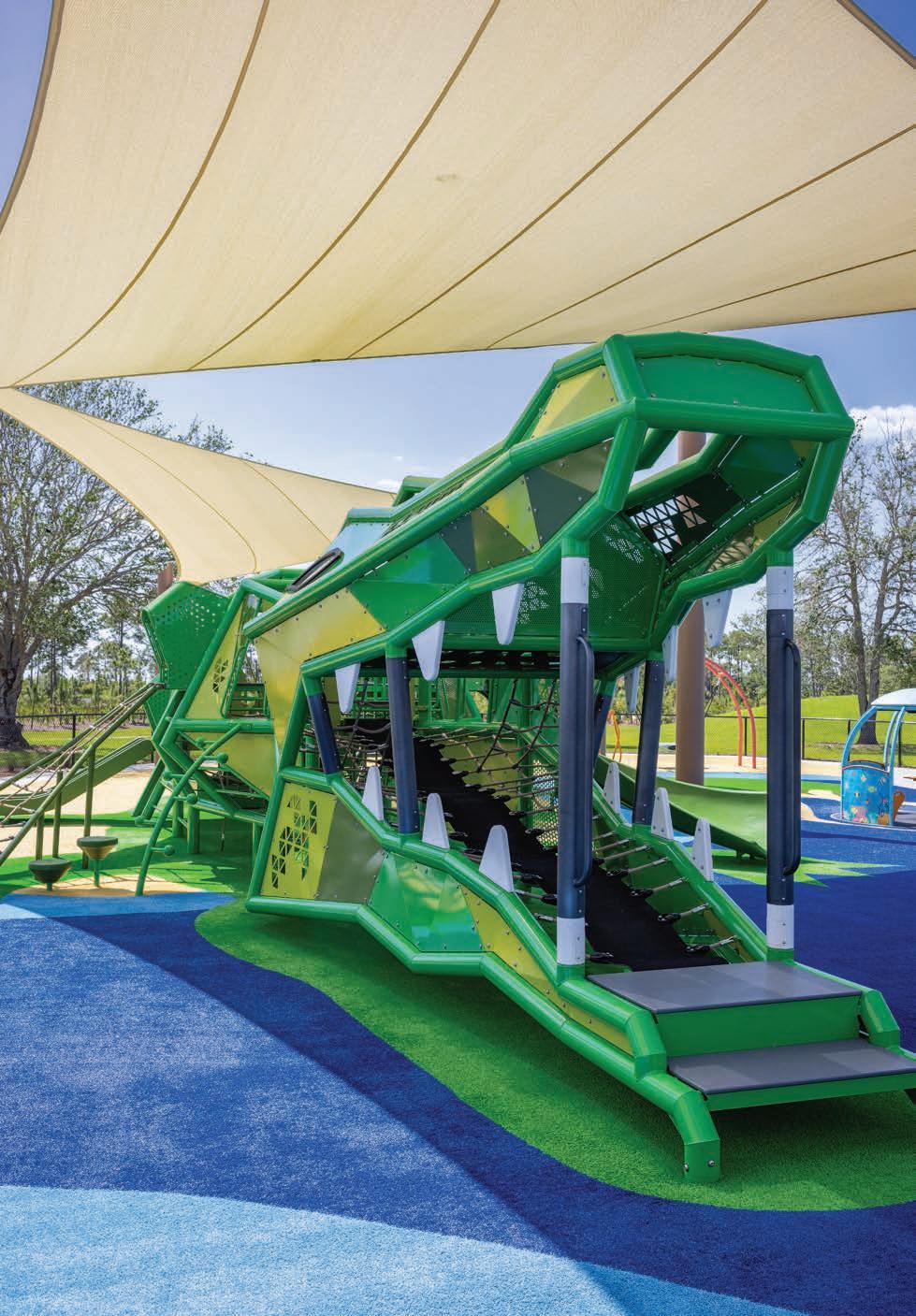

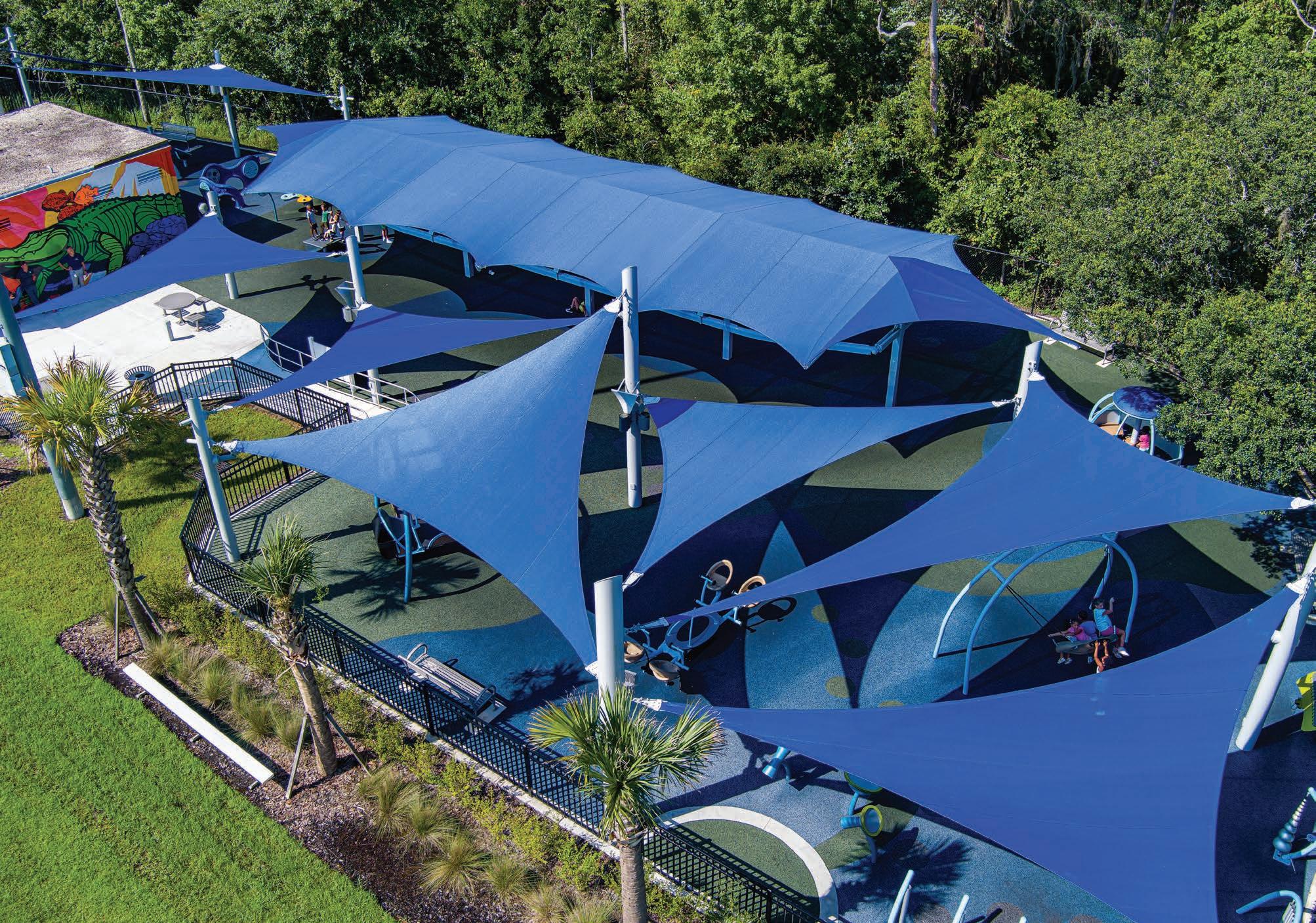

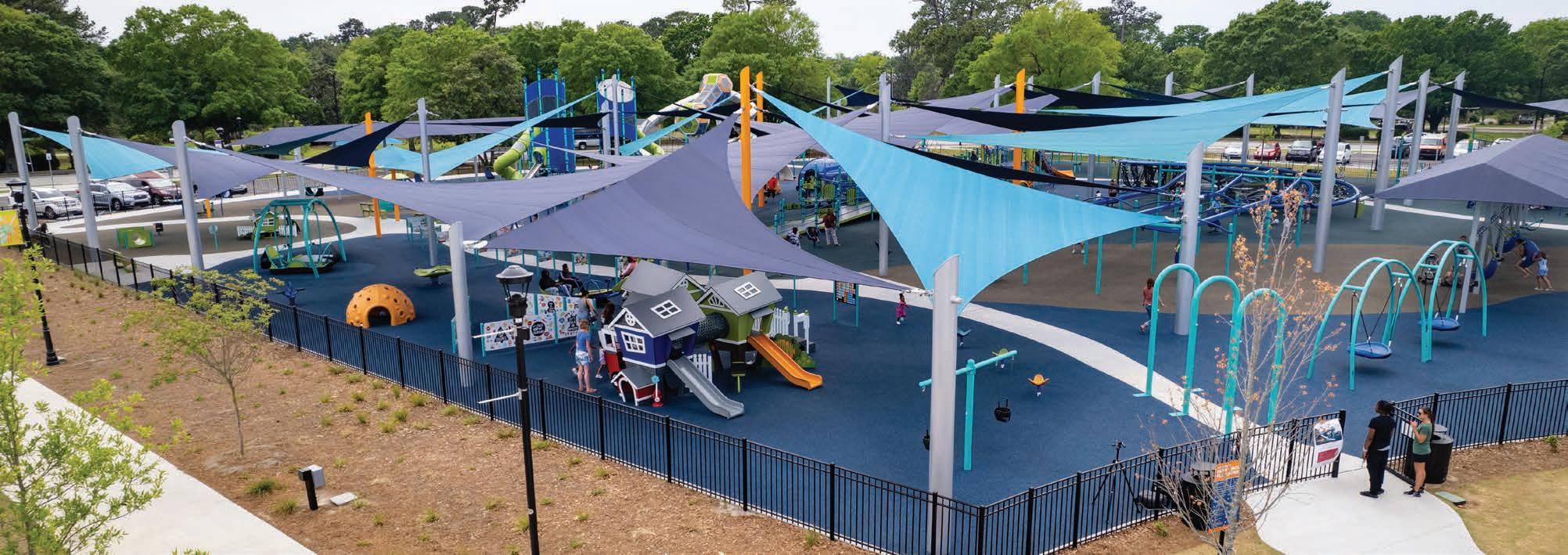

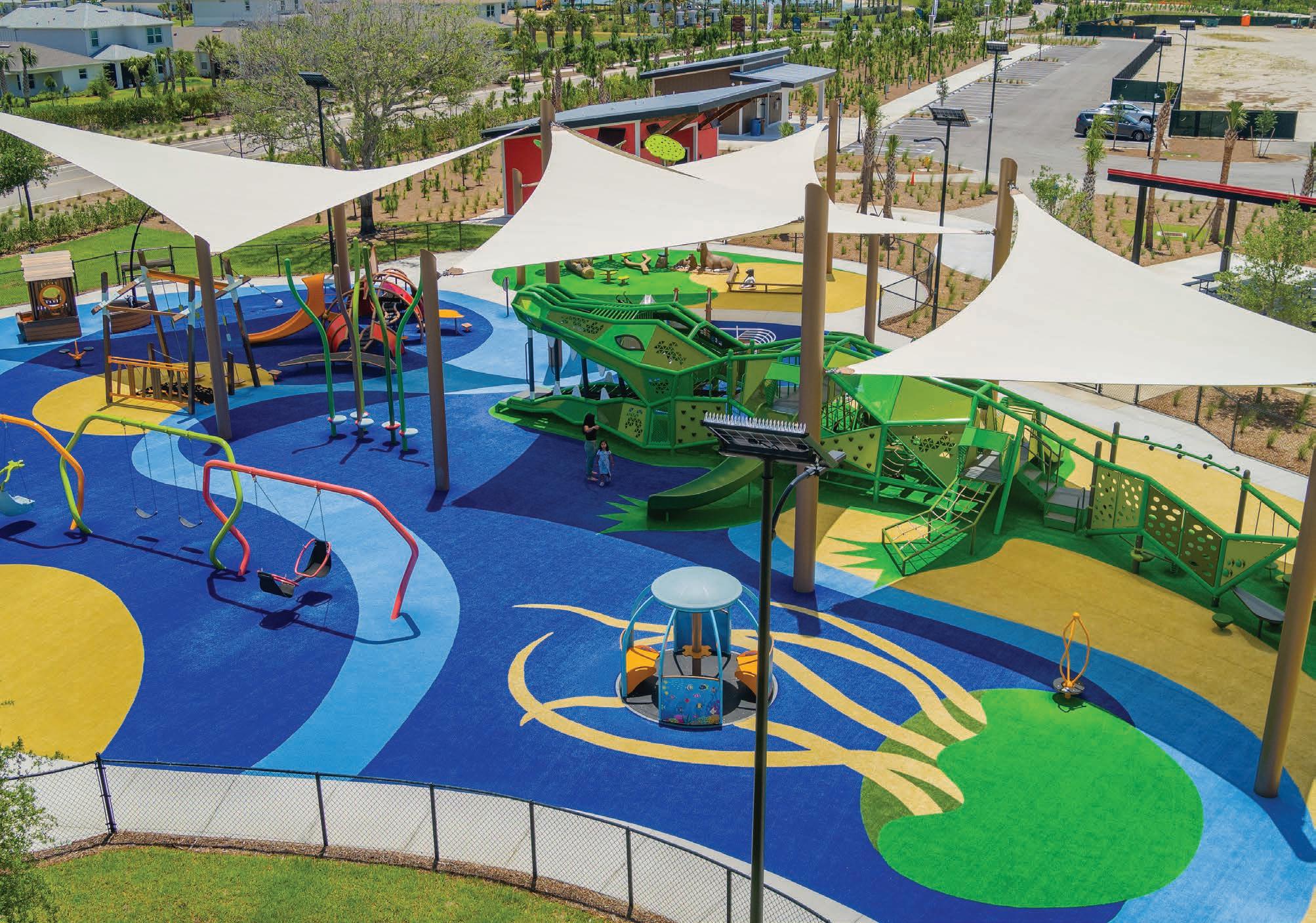

Babcock Ranch – Explorers Park

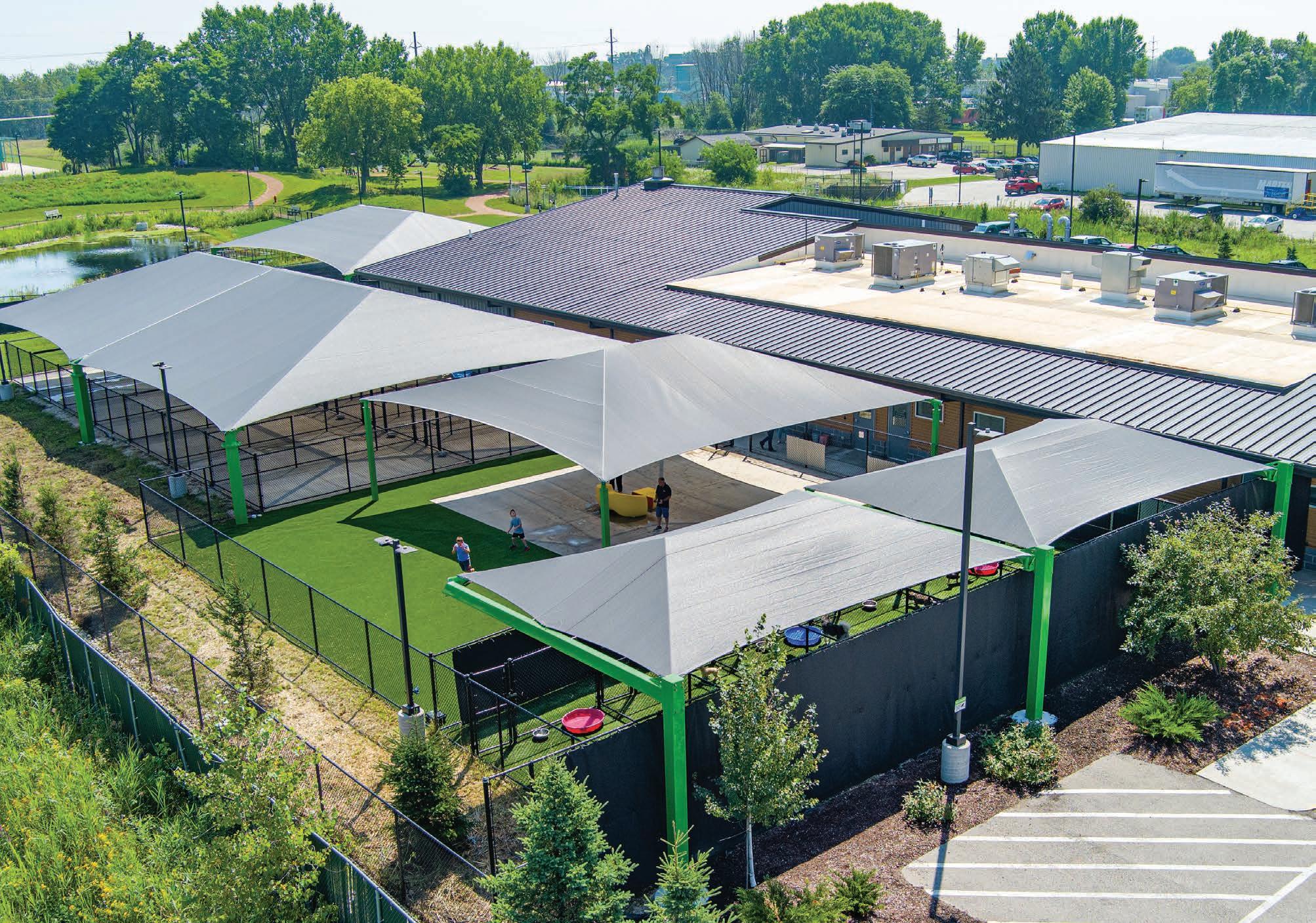

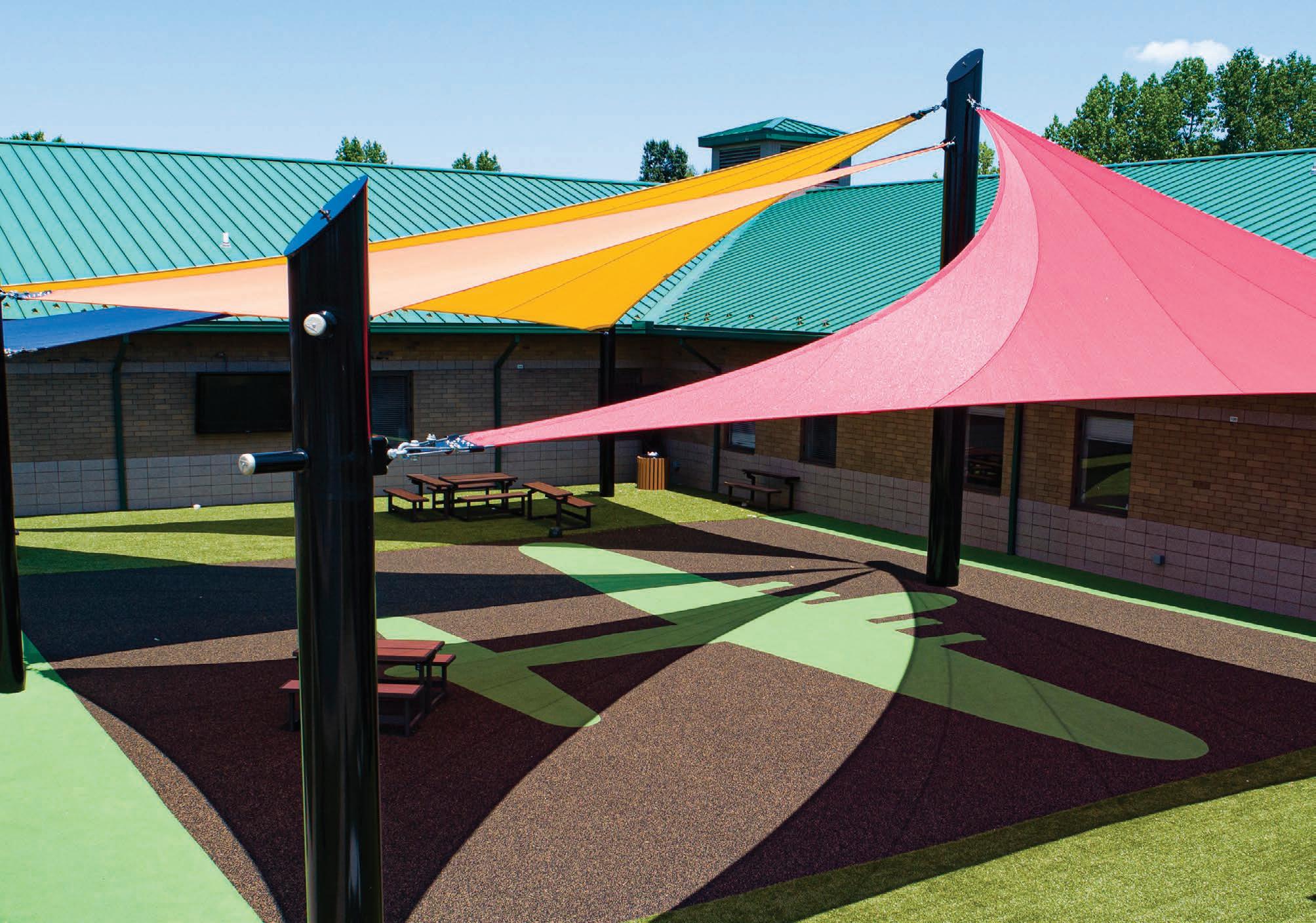

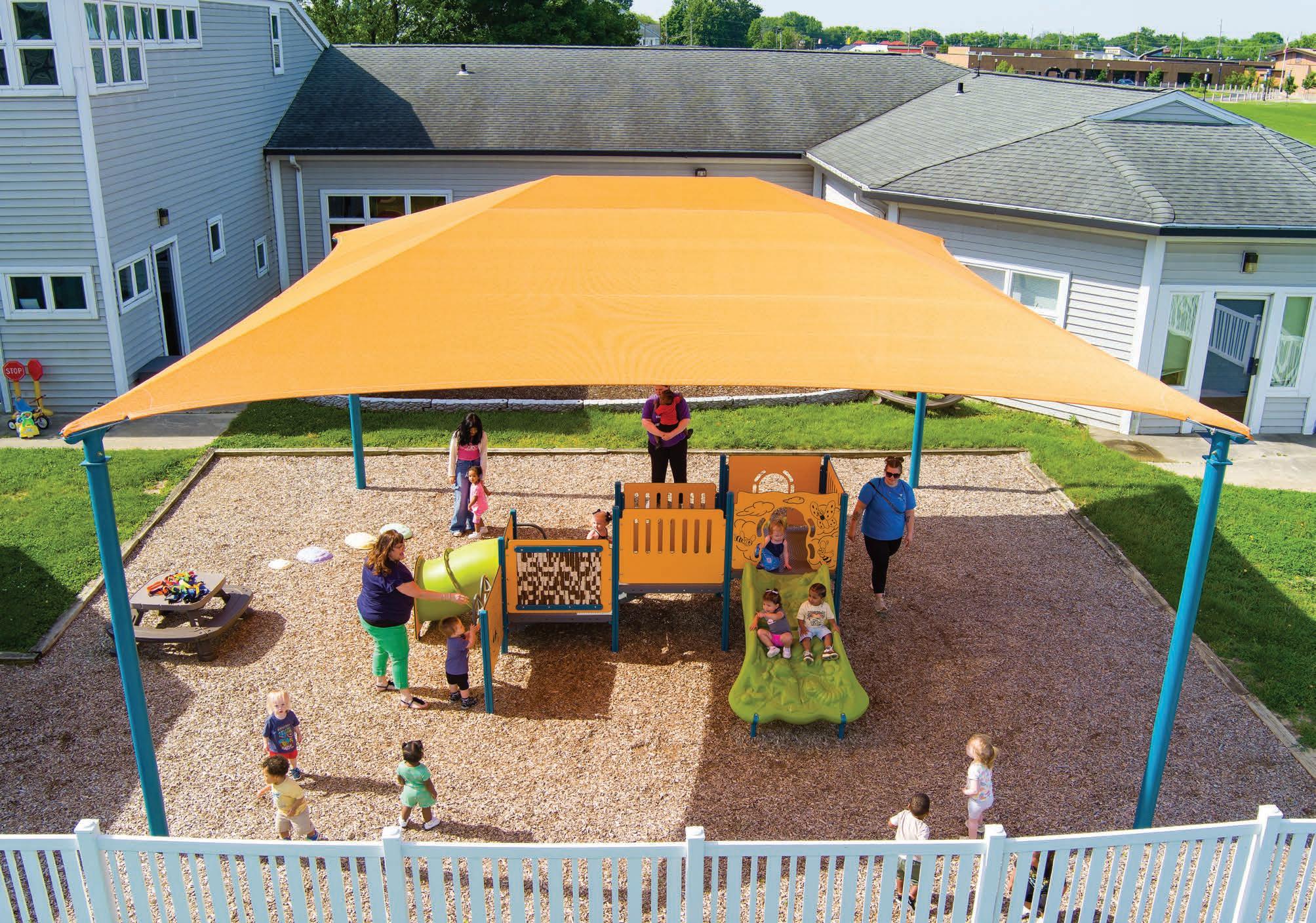

Humane Society of Sheboygan County

Wisconsin

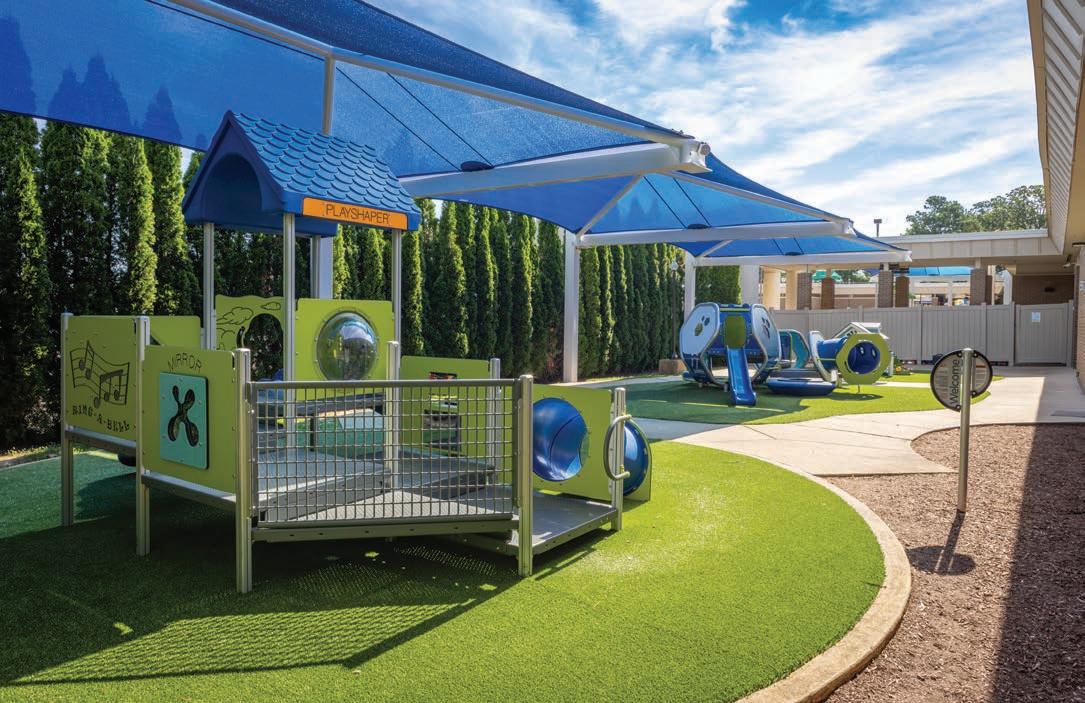

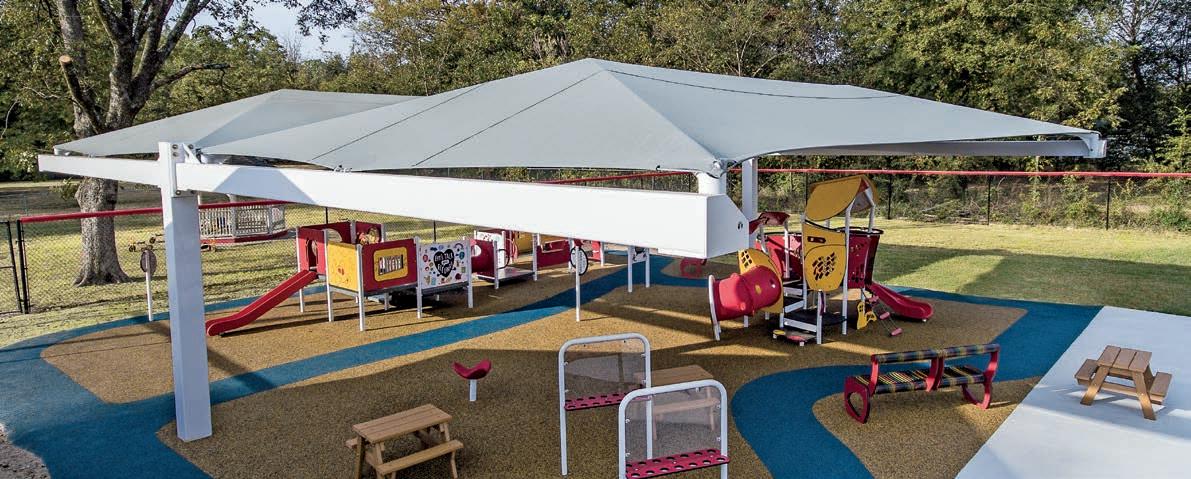

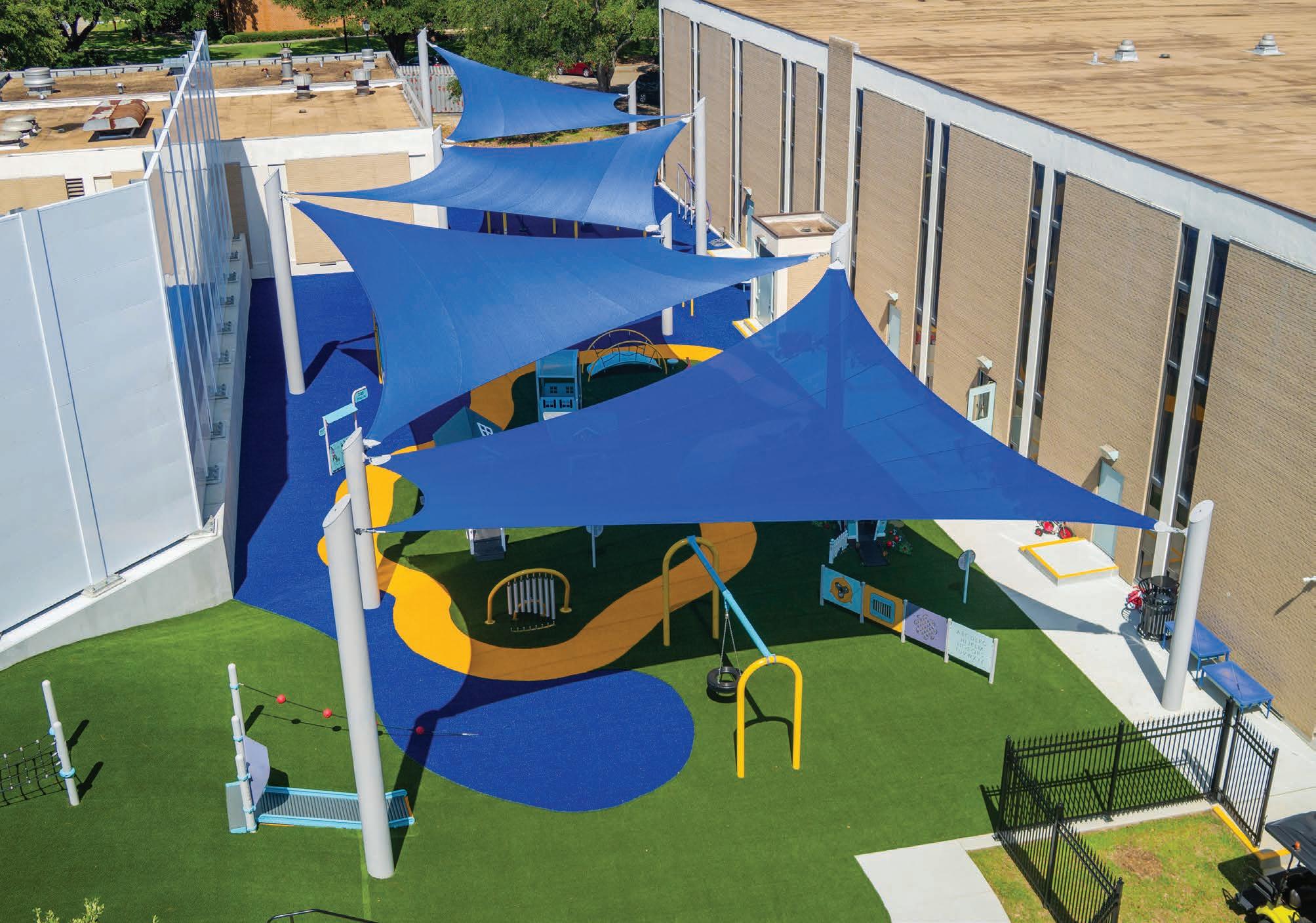

The Children’s Center for Communication and Development

Hattiesburg, Mississippi

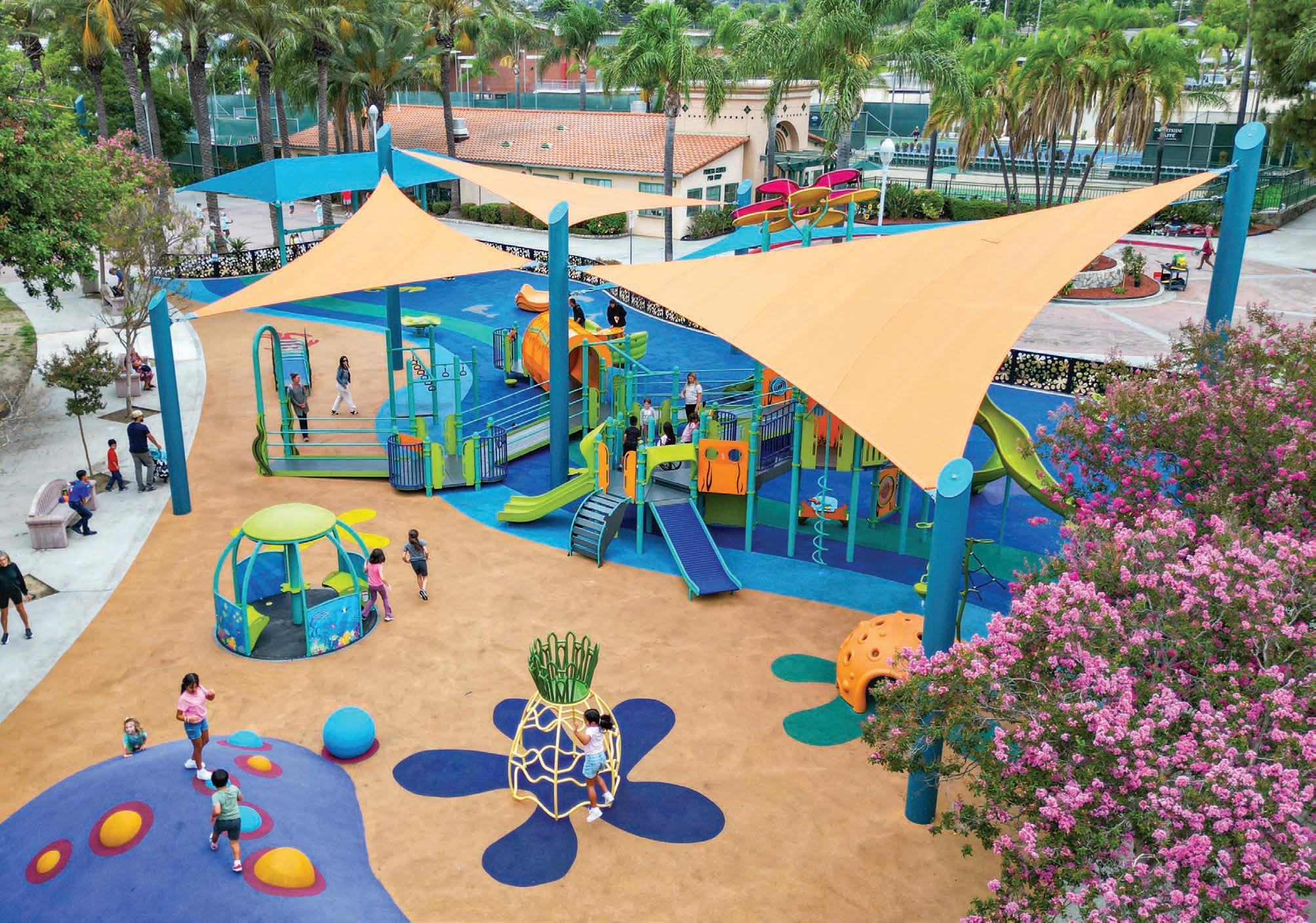

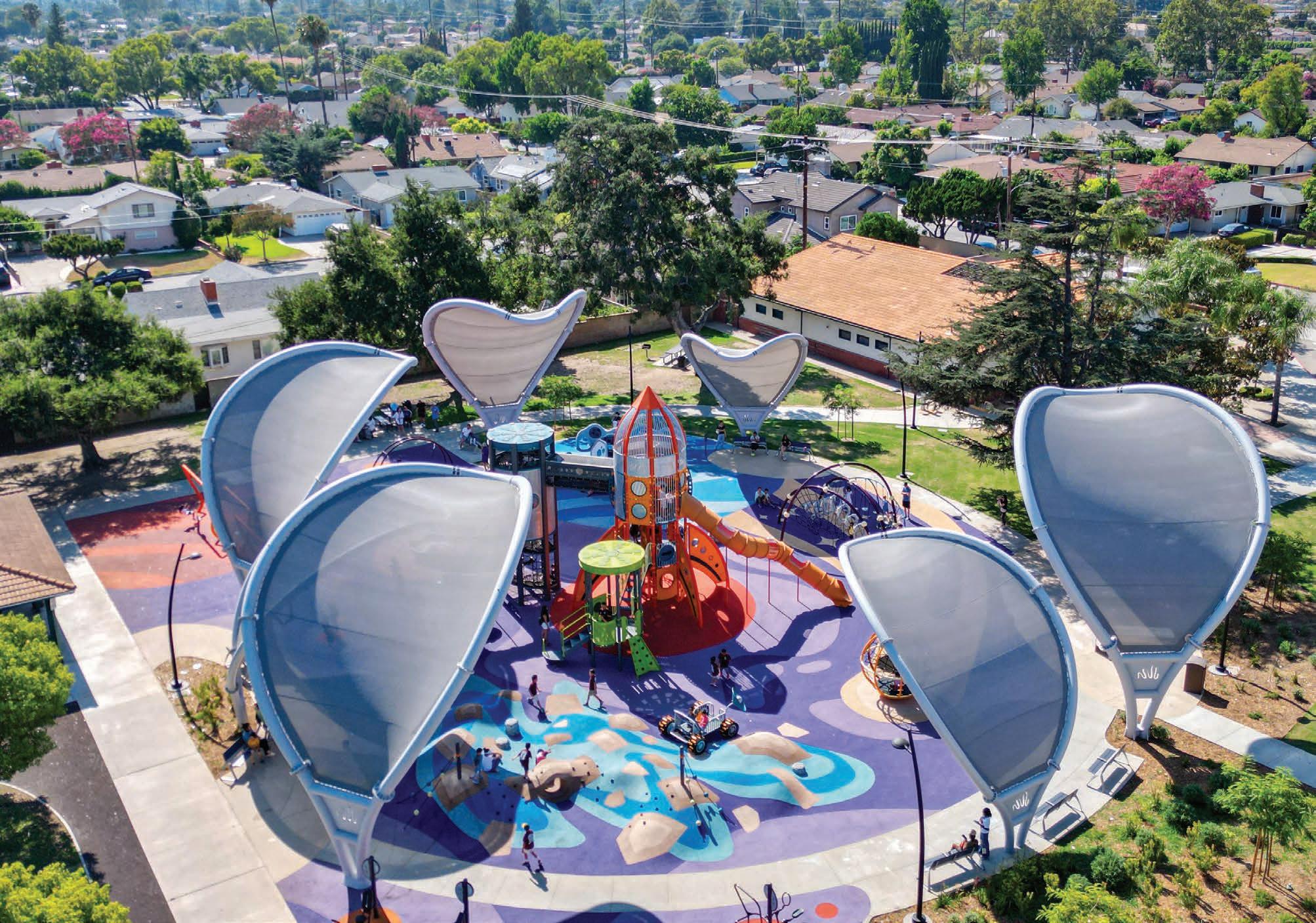

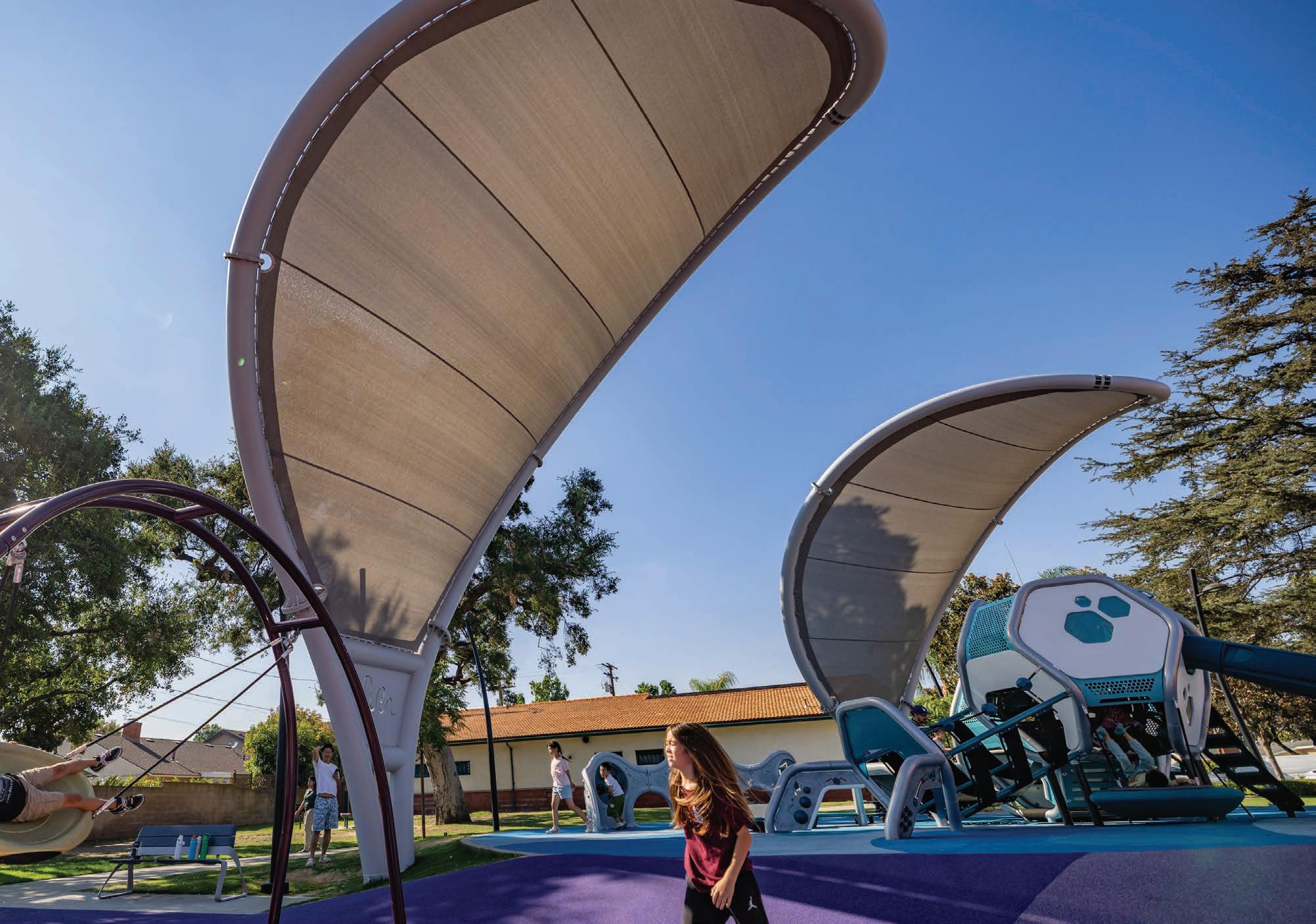

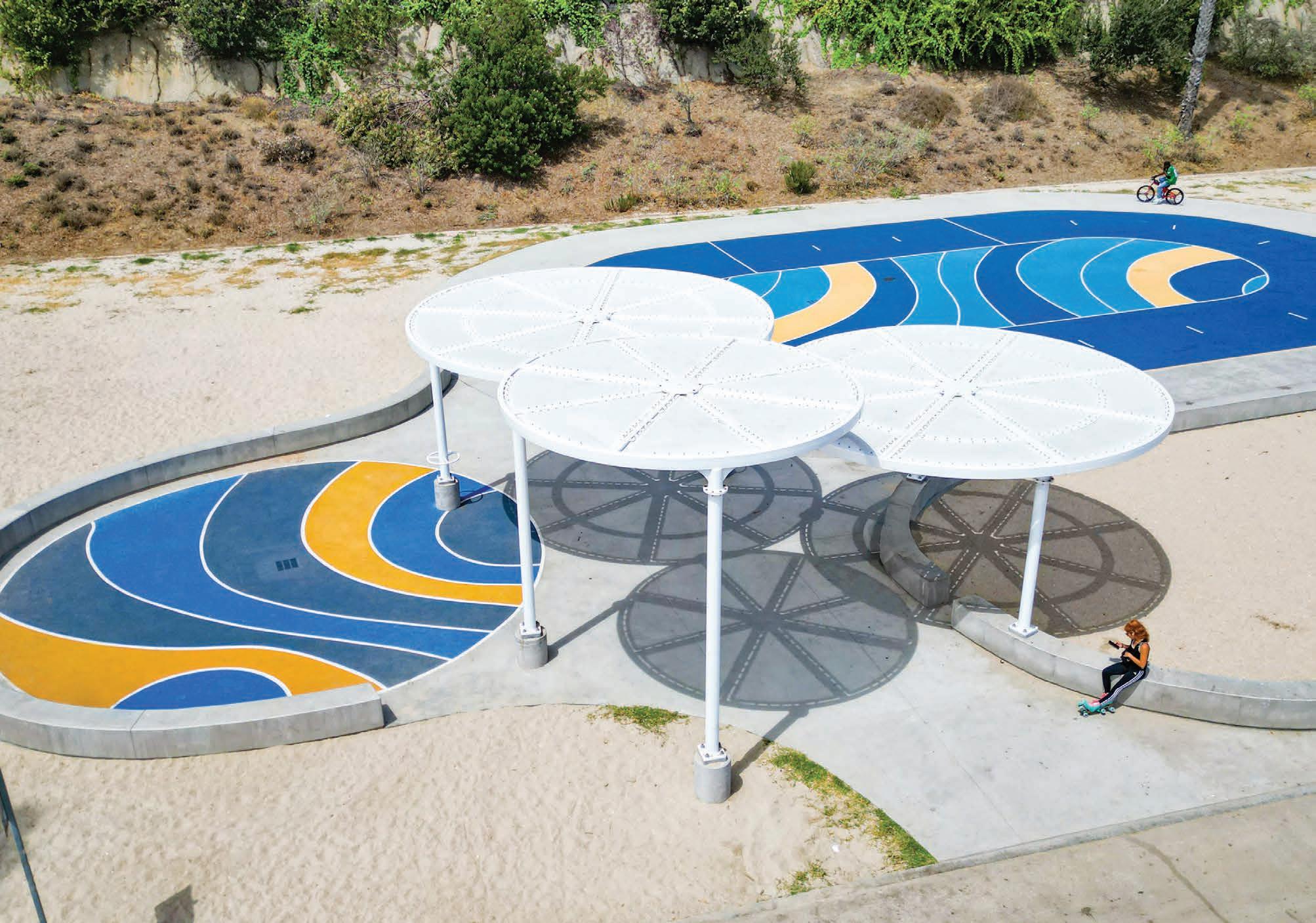

Altadena, California

Swings with Integrated Shade Features Landscape Structures® Playground Equipment

Waltham, Massachusetts

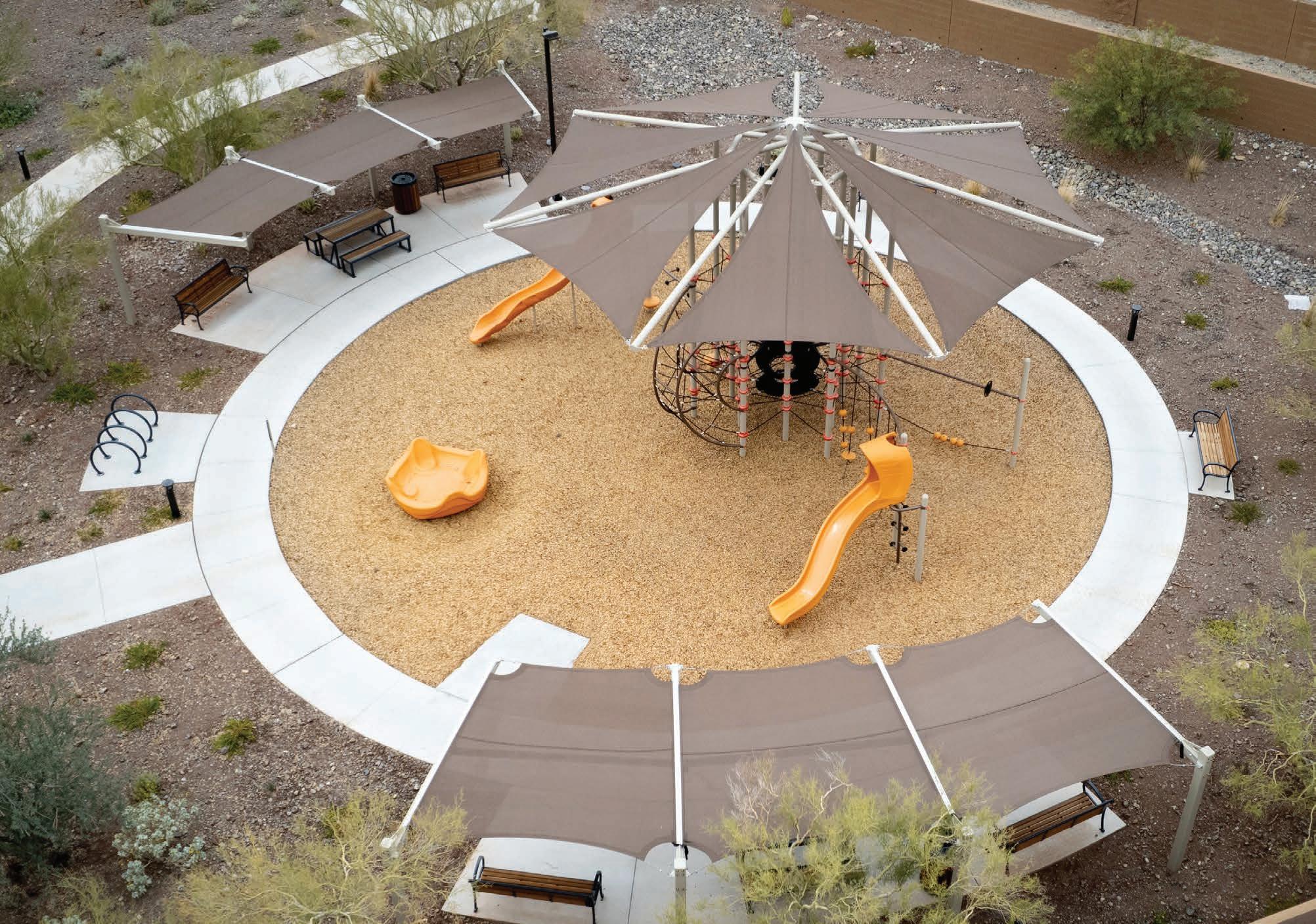

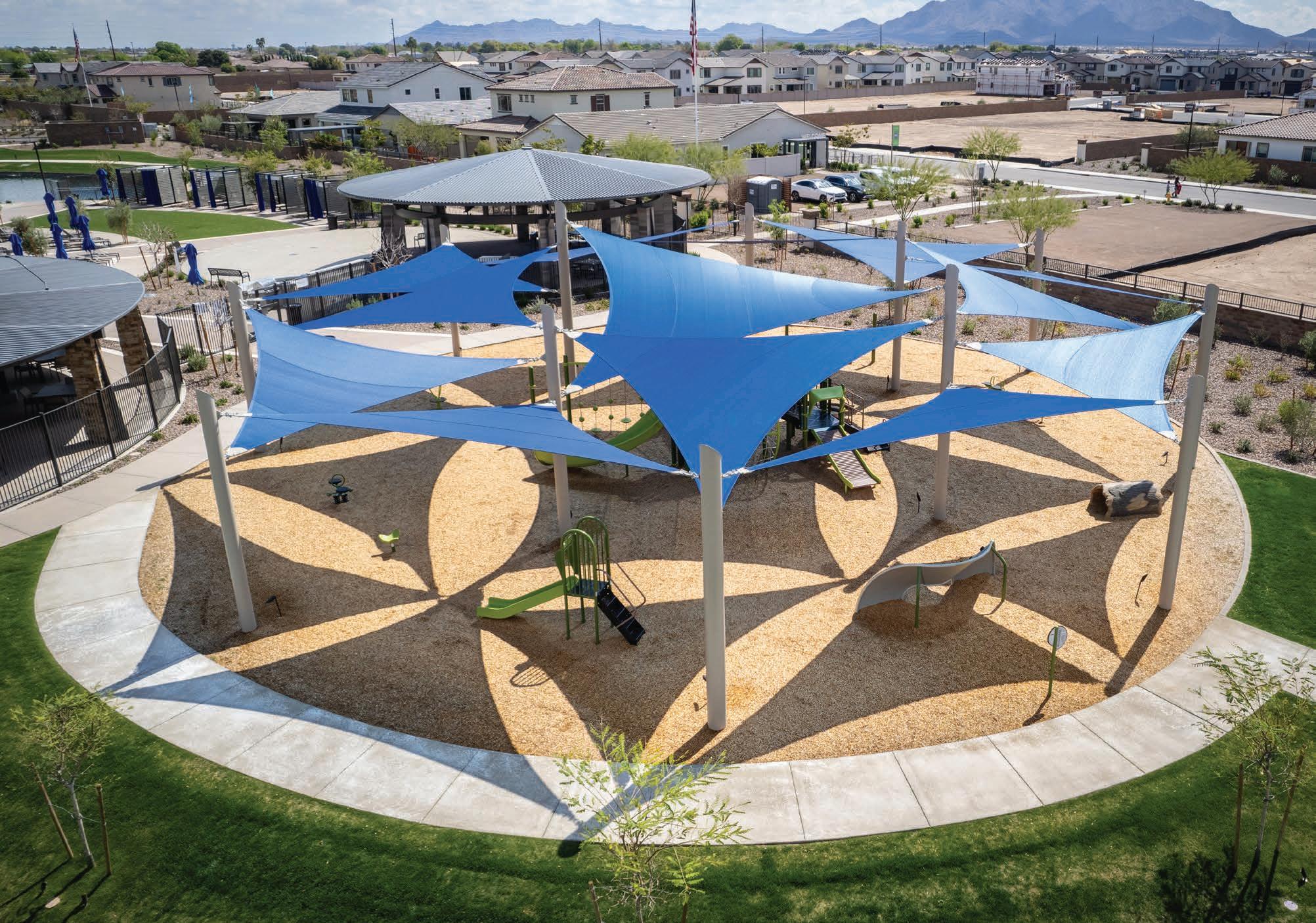

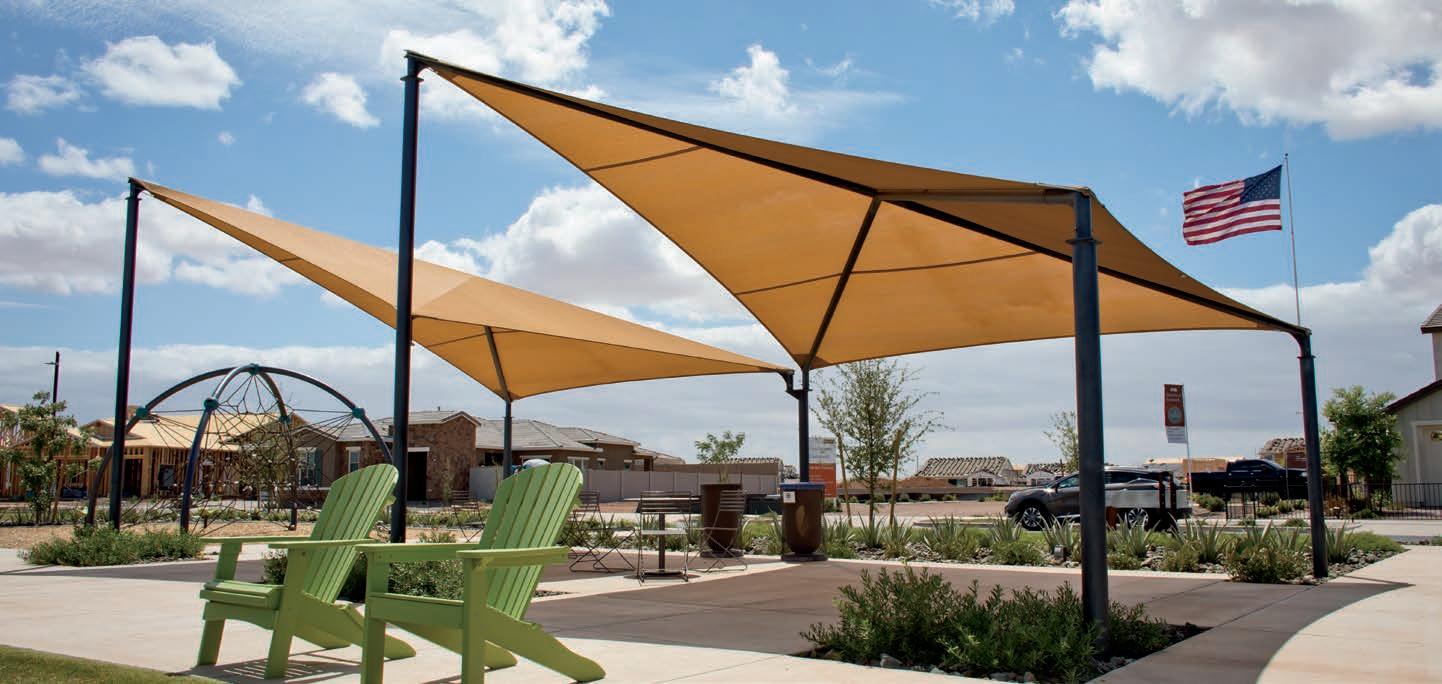

Radiance at Superstition Vistas

Apache Junction, Arizona

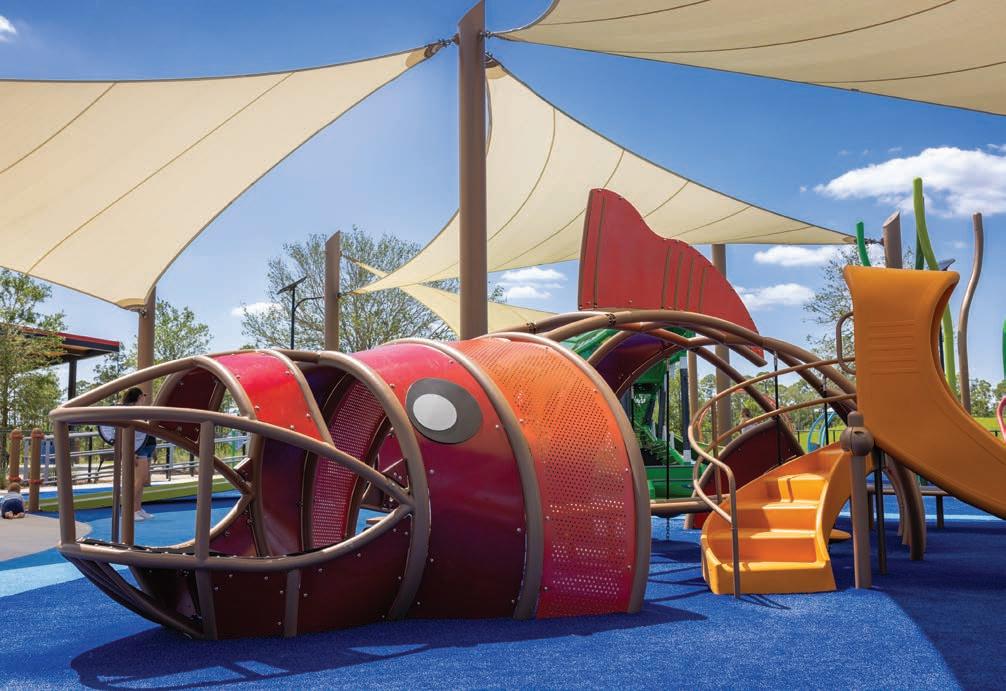

Hypar Sails

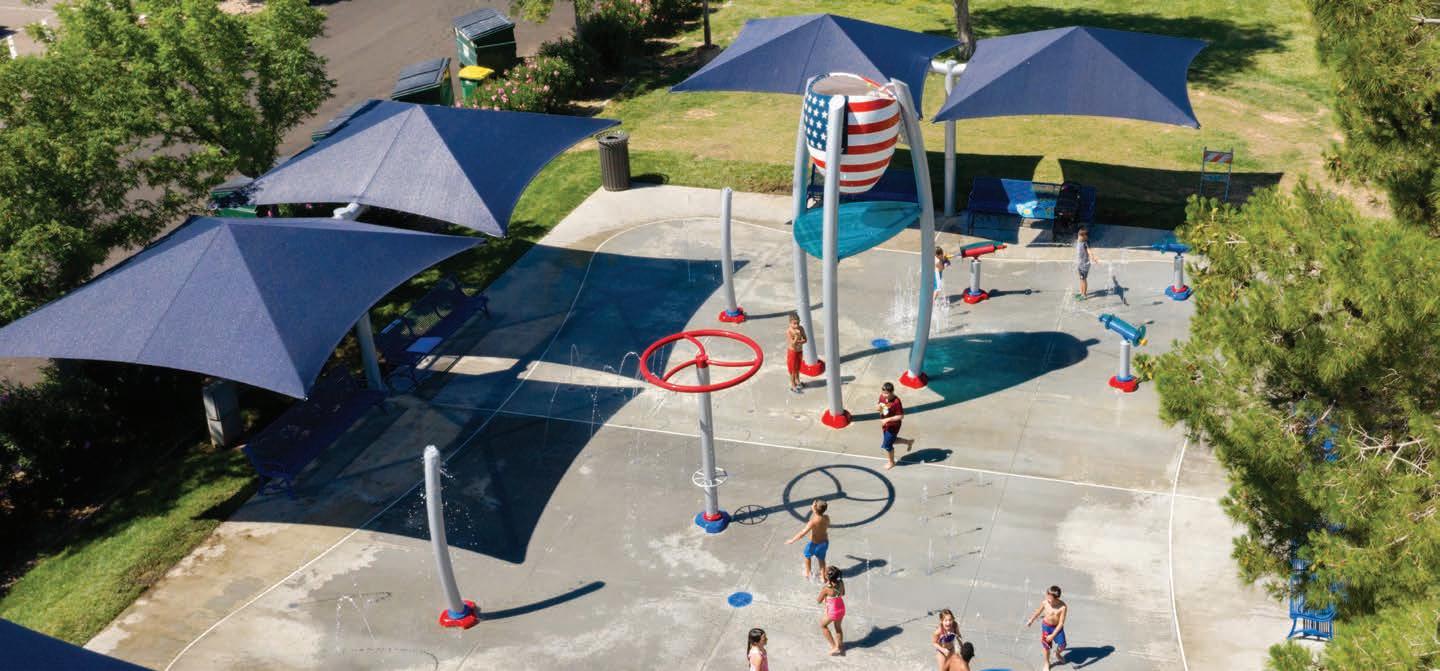

Features Landscape Structures® Playground

Equipment and Aquatix® Splash Play

SkyWays® Shapes

SkyWays® Shade Products are available in almost any shape or size, perfect for anywhere you need shade—at the ball field, at the beach, over a parking lot. You’ll be able to find that justright fit with SkyWays.

Don’t see the size, configuration or attachment method that you’re looking for? Let us know! We can create the ideal custom solution to fit the unique requirements of your environment.

58 SkyWays Integrated Shade with Netplex®

59 SkyWays Integrated Umbrella, SkyWays Umbrella, SkyWays Integrated Shade with Swings

60

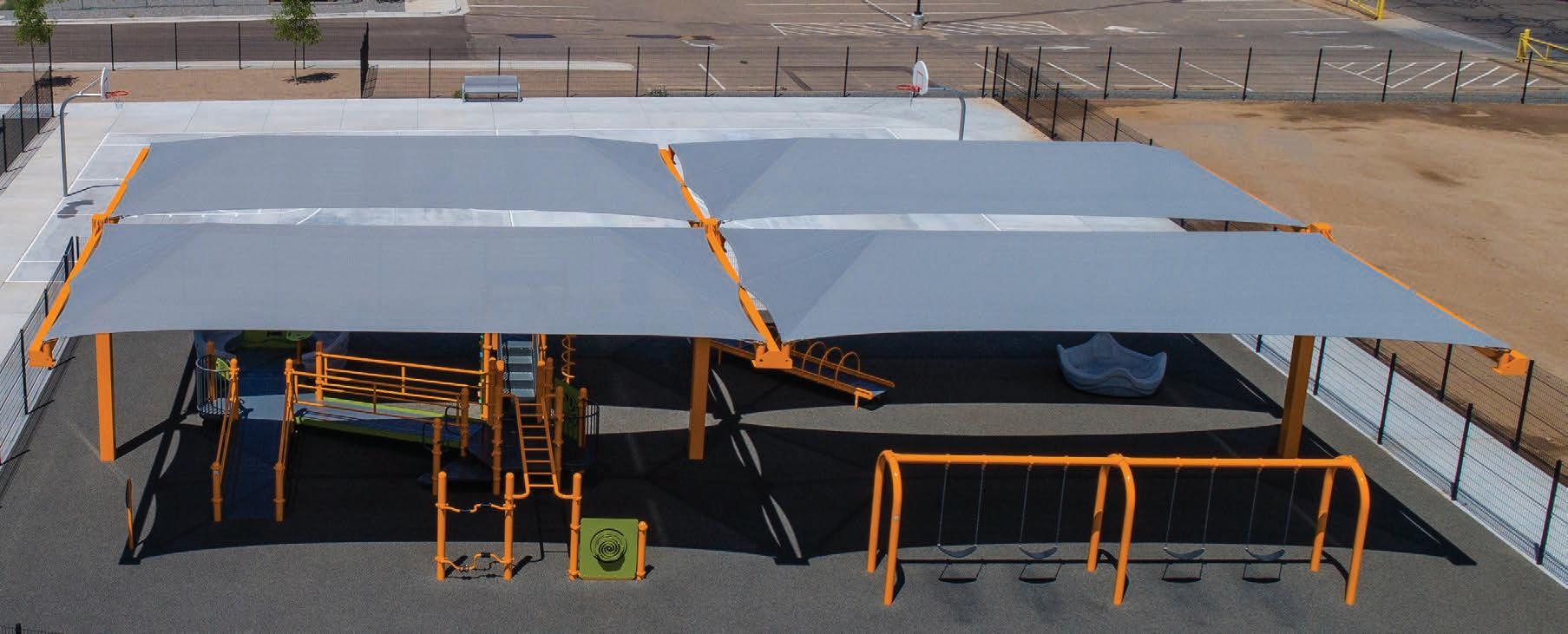

This cost-effective shade solution is a great value when you need sun coverage over large outdoor areas.

• Single or multi-panel options

• Multiple hips can be joined and/or extended to share posts

• Typical individual size: Up to 40' x 40'

• Additional sizes available

• Entry heights: Any

• Rapid Release® available

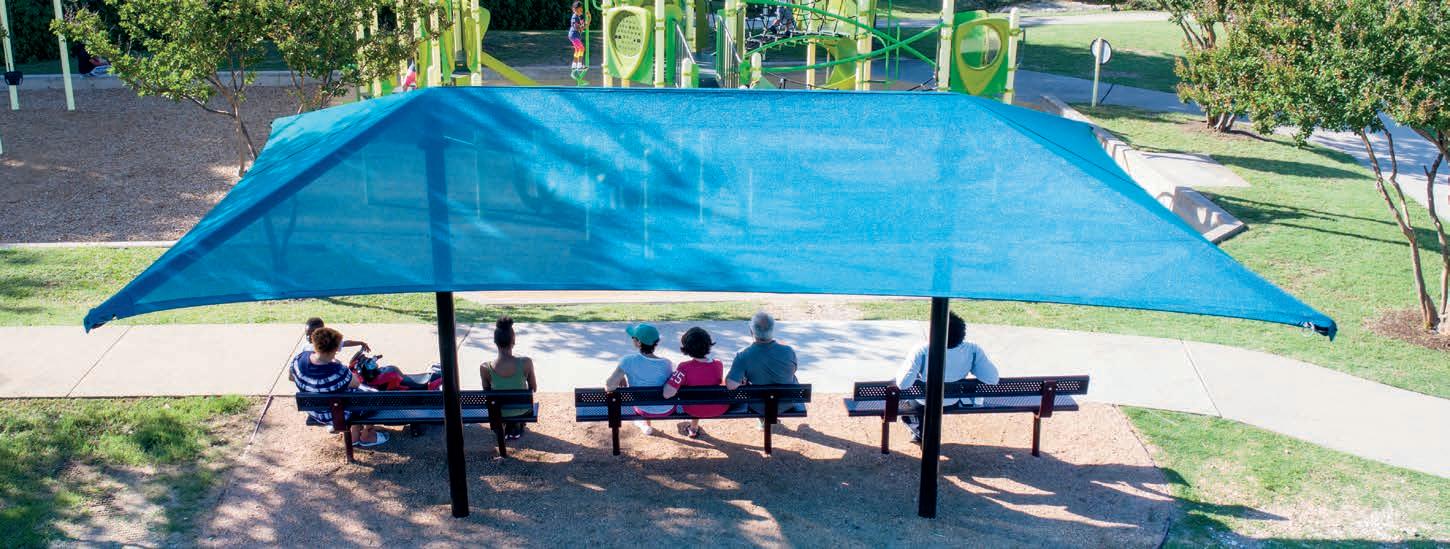

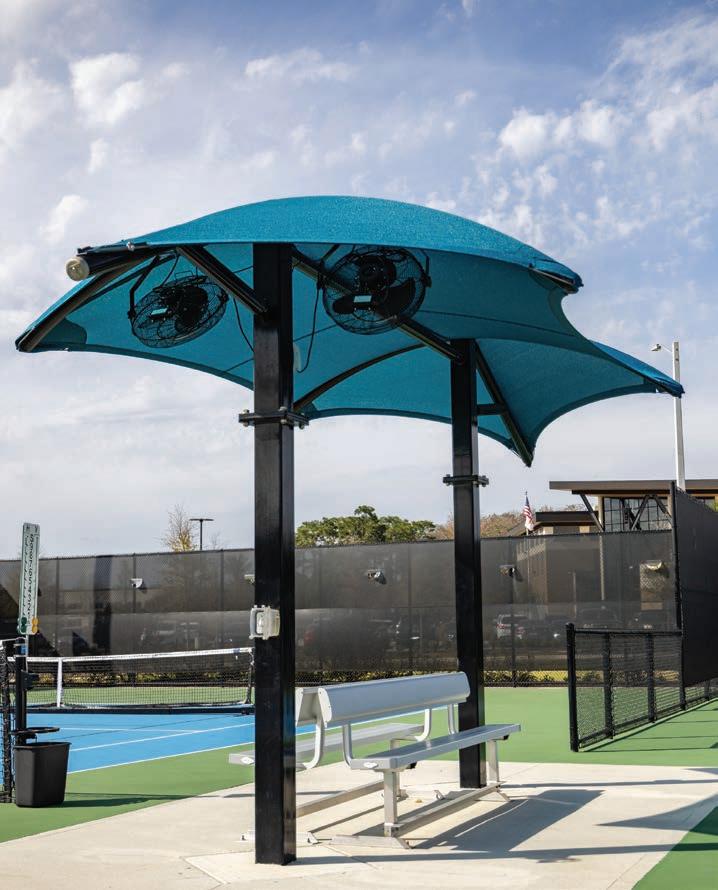

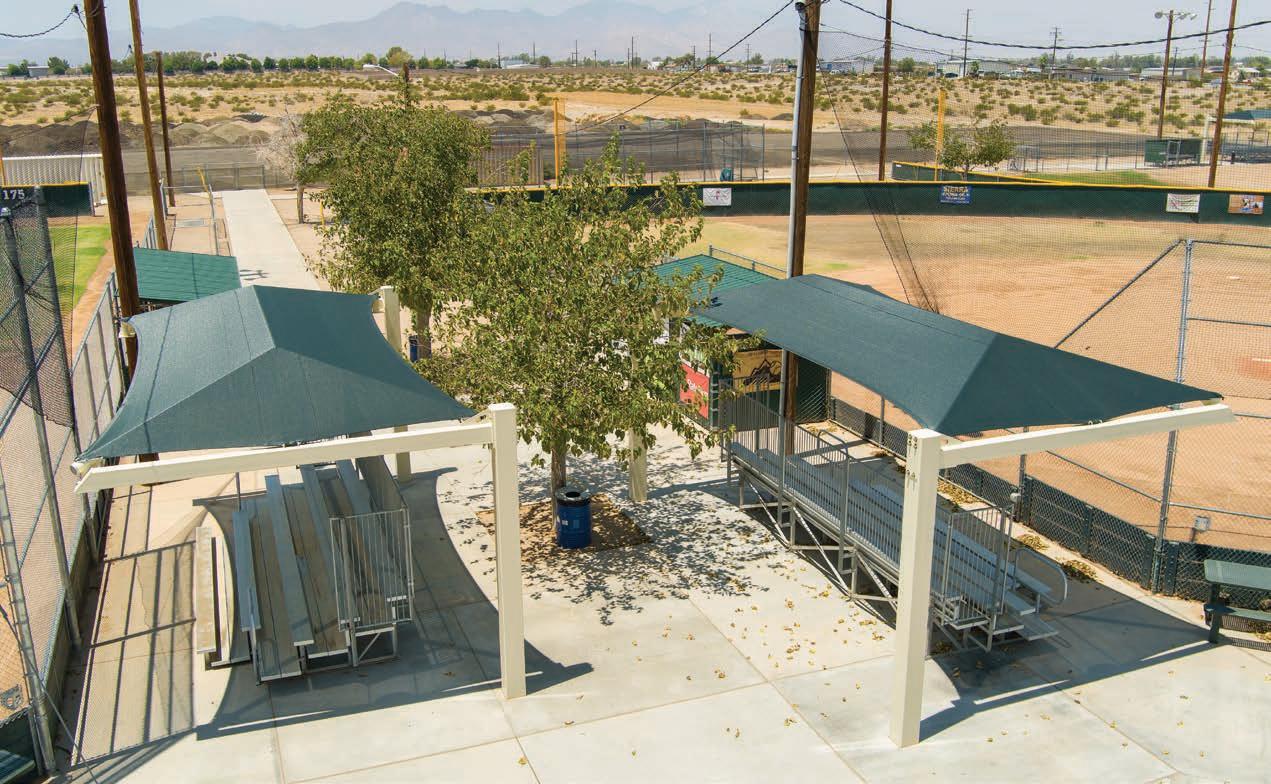

SkyWays Two-Post Hip

Supported by just two columns, this shape provides lots of shade.

• Typical size: 10' x 15' to 16' x 24'

• Additional sizes available

• Entry heights: Any

• Rapid Release available

SkyWays Super Hip

Achieve big shade at an affordable price.

• Typical size: Over 40' x 40'

• Additional sizes available

• Entry heights: Any

A. SkyWays Two-Post Hip

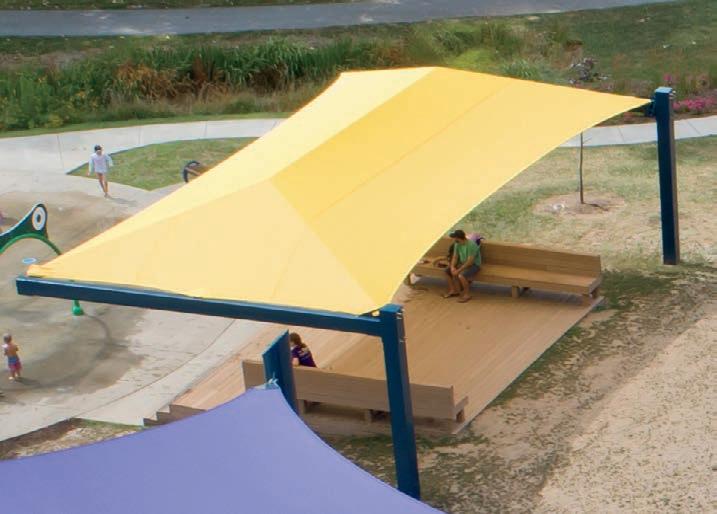

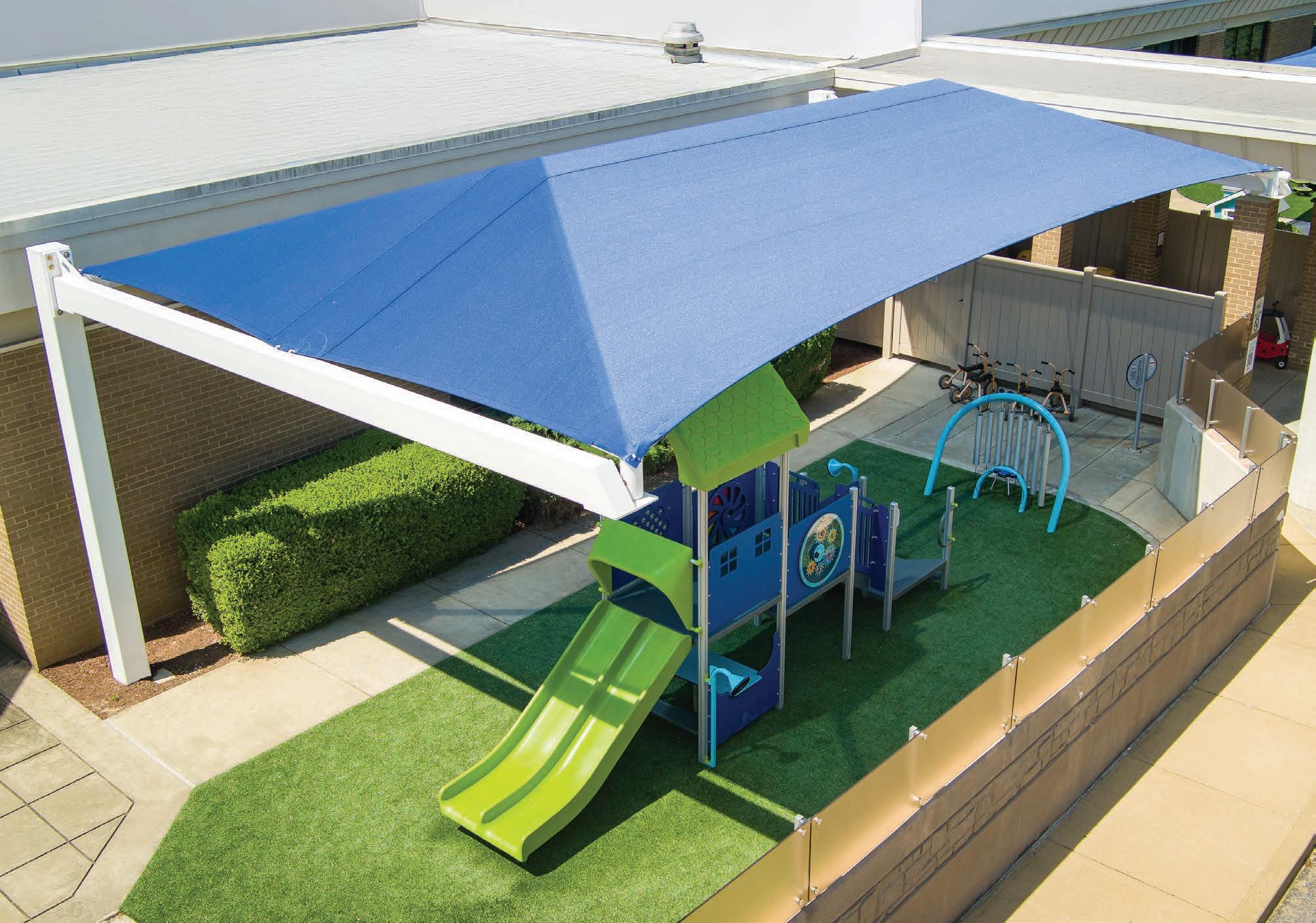

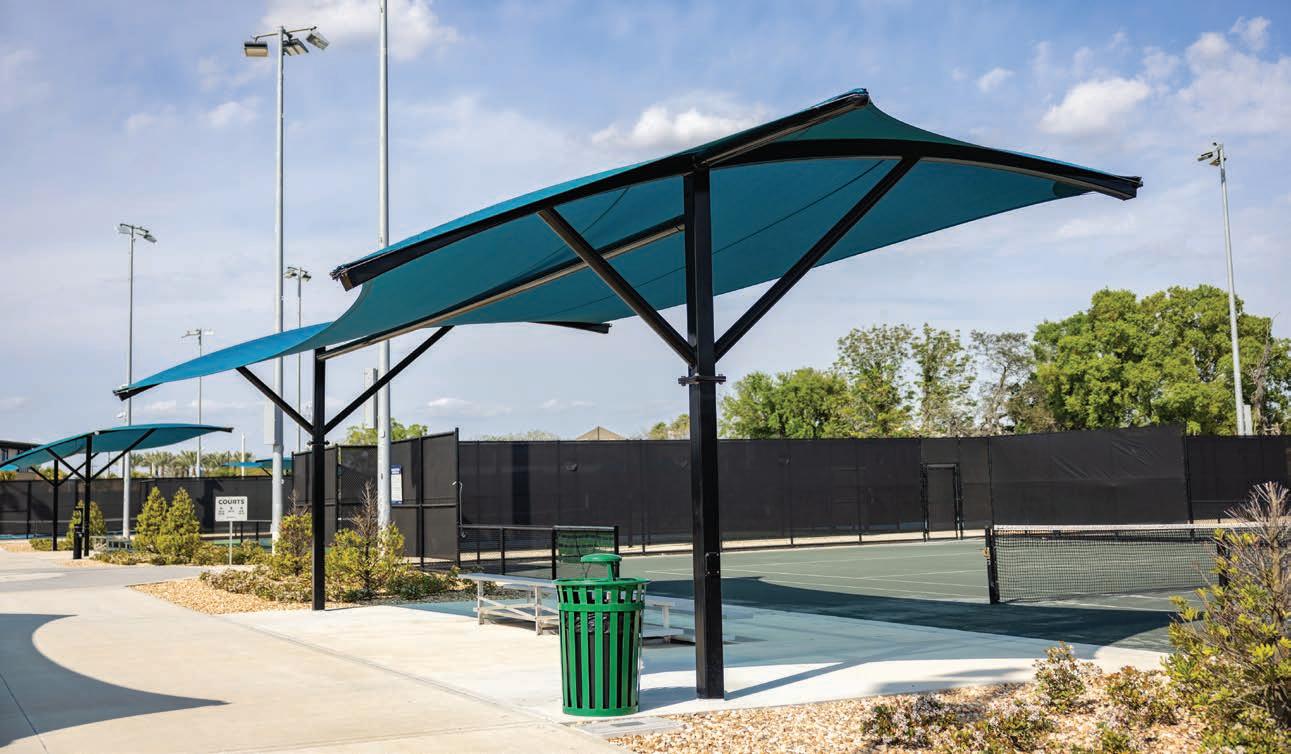

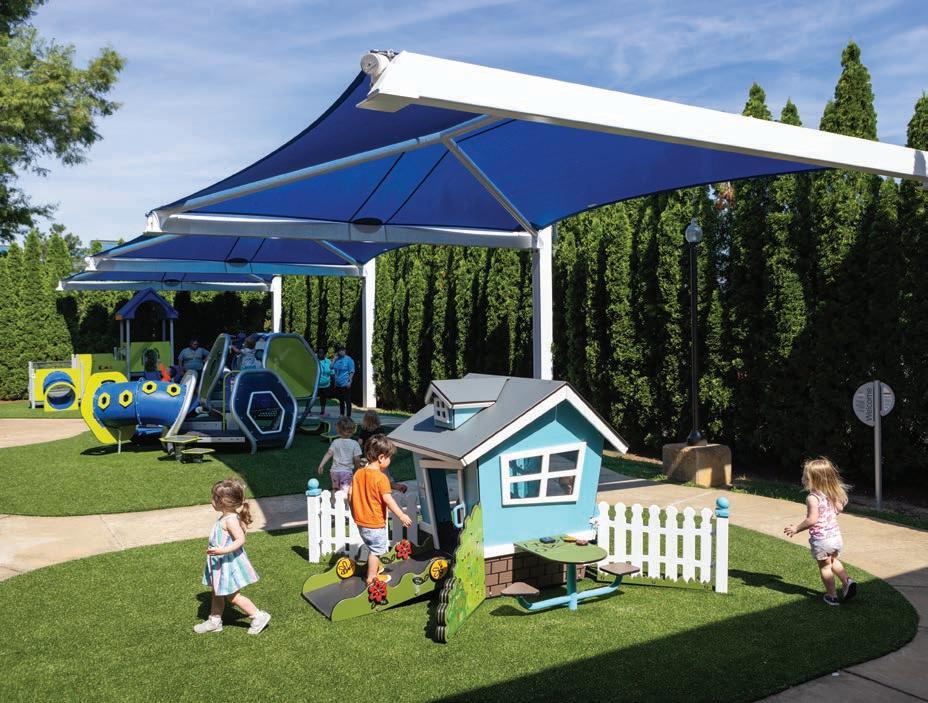

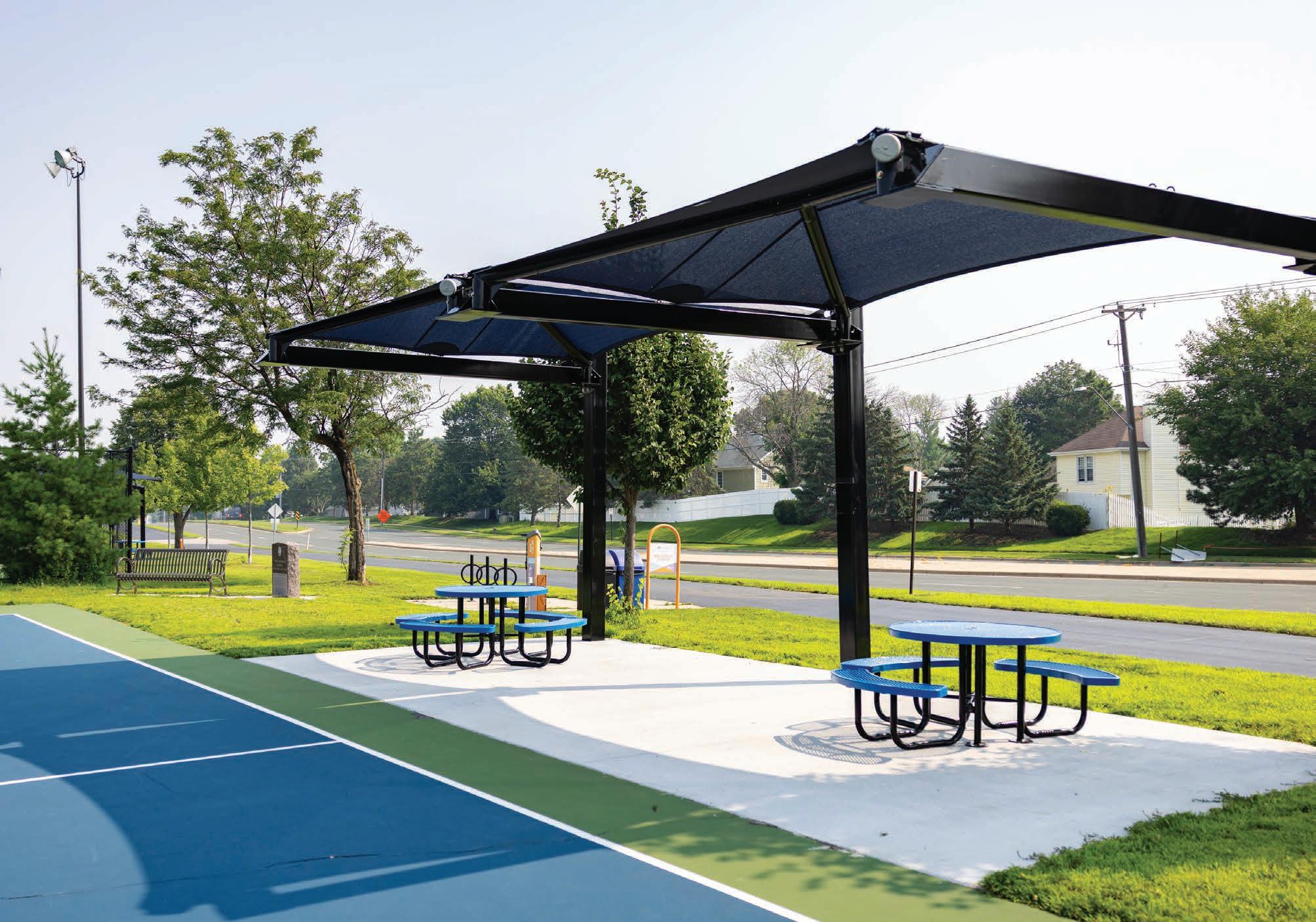

SkyWays® Cantilever Hip

Designed for spaces that need to keep posts to a minimum and out of the way, this shade solution extends from posts on one side, creating a cool, open feel.

• Multiple cantilevered hips can be extended to share posts

• Typical individual size: 10' x 10' to 20' x 40'

• Additional sizes available

• Entry heights: Any

• Rapid Release® available

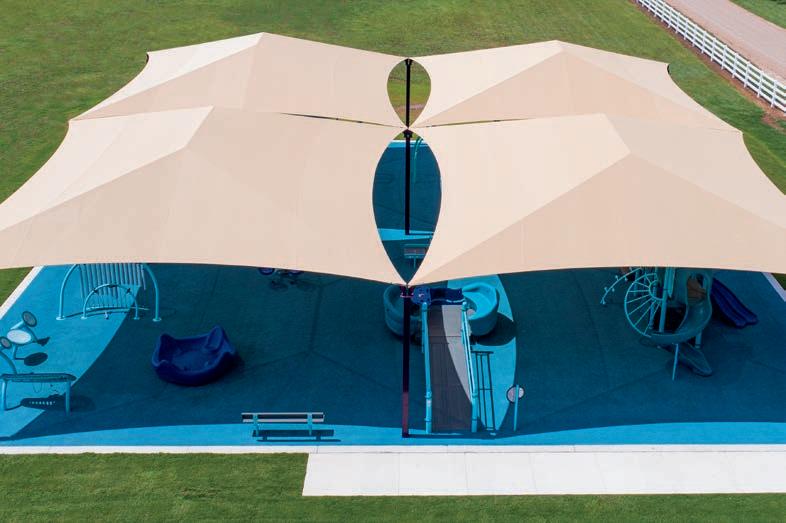

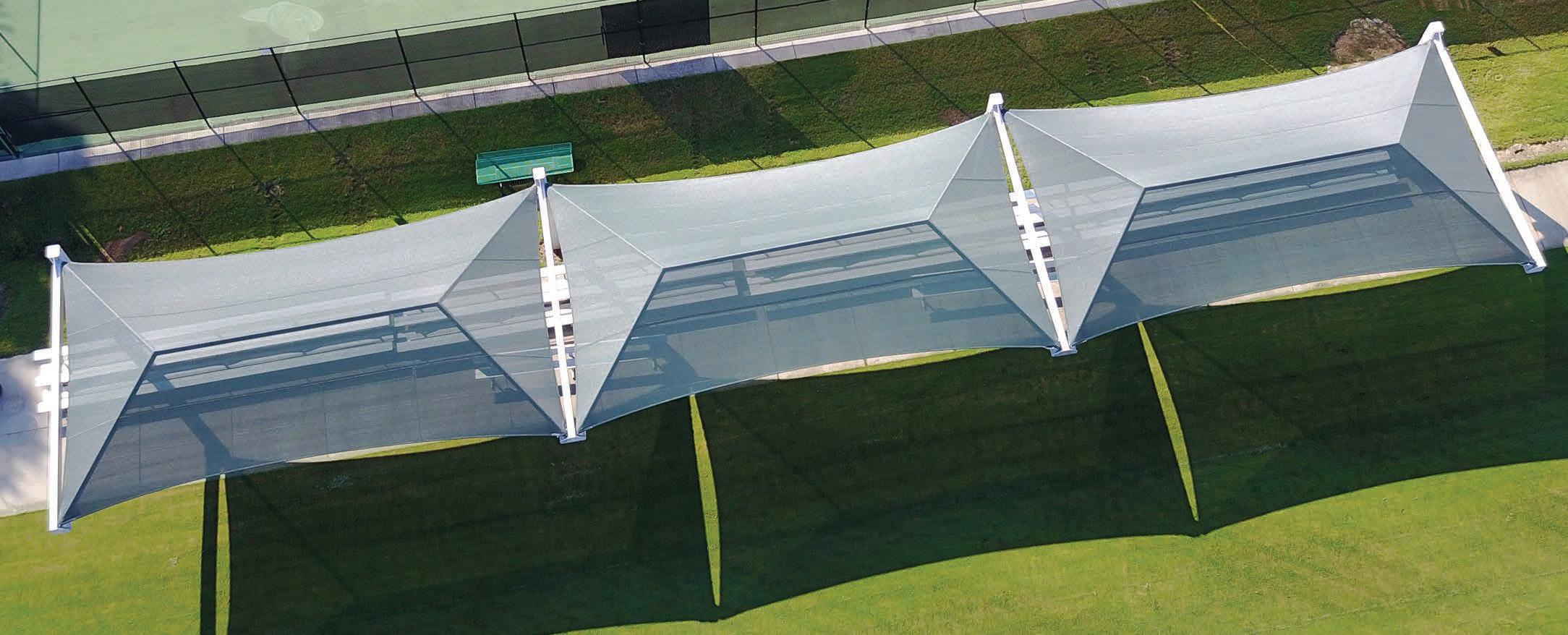

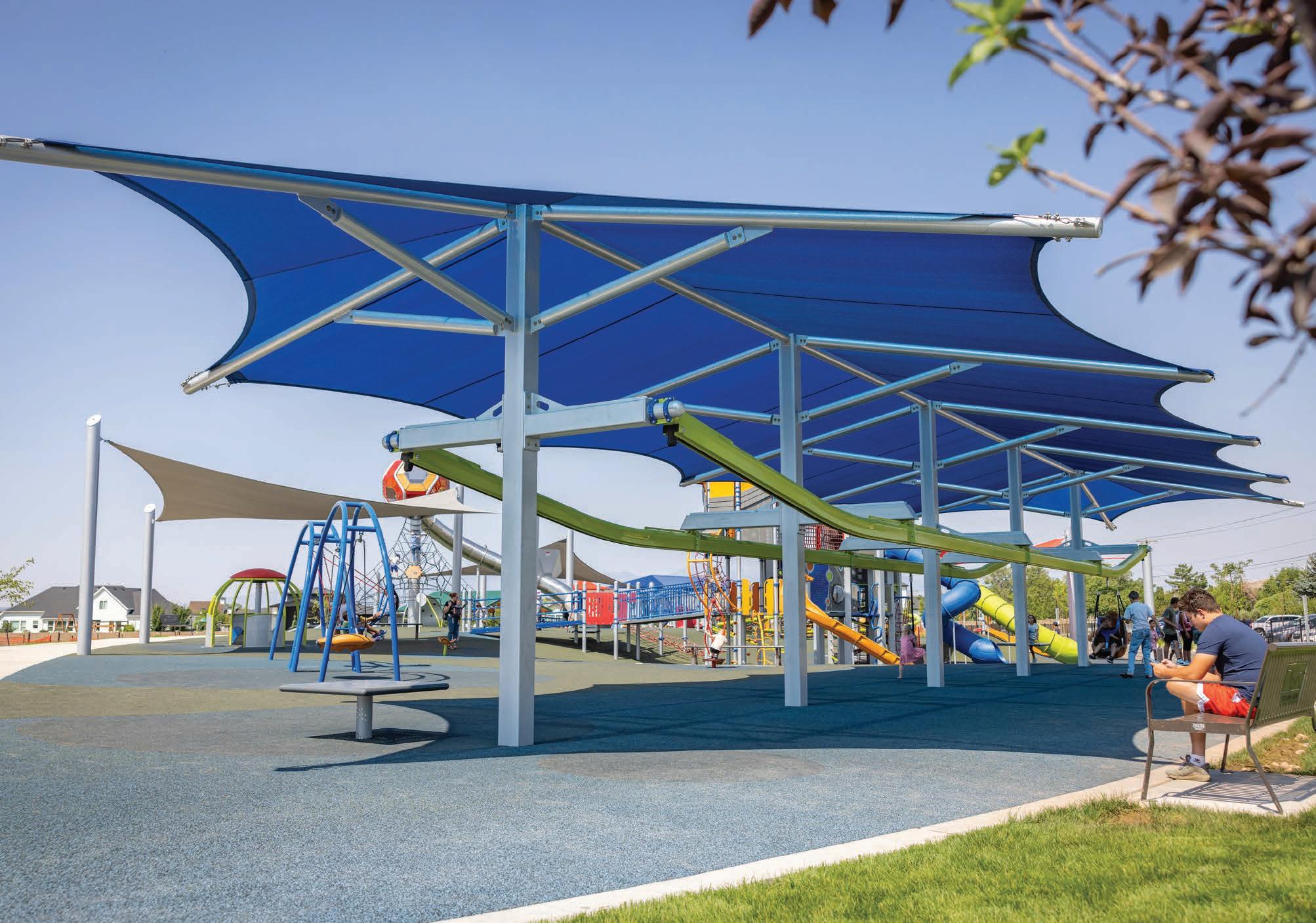

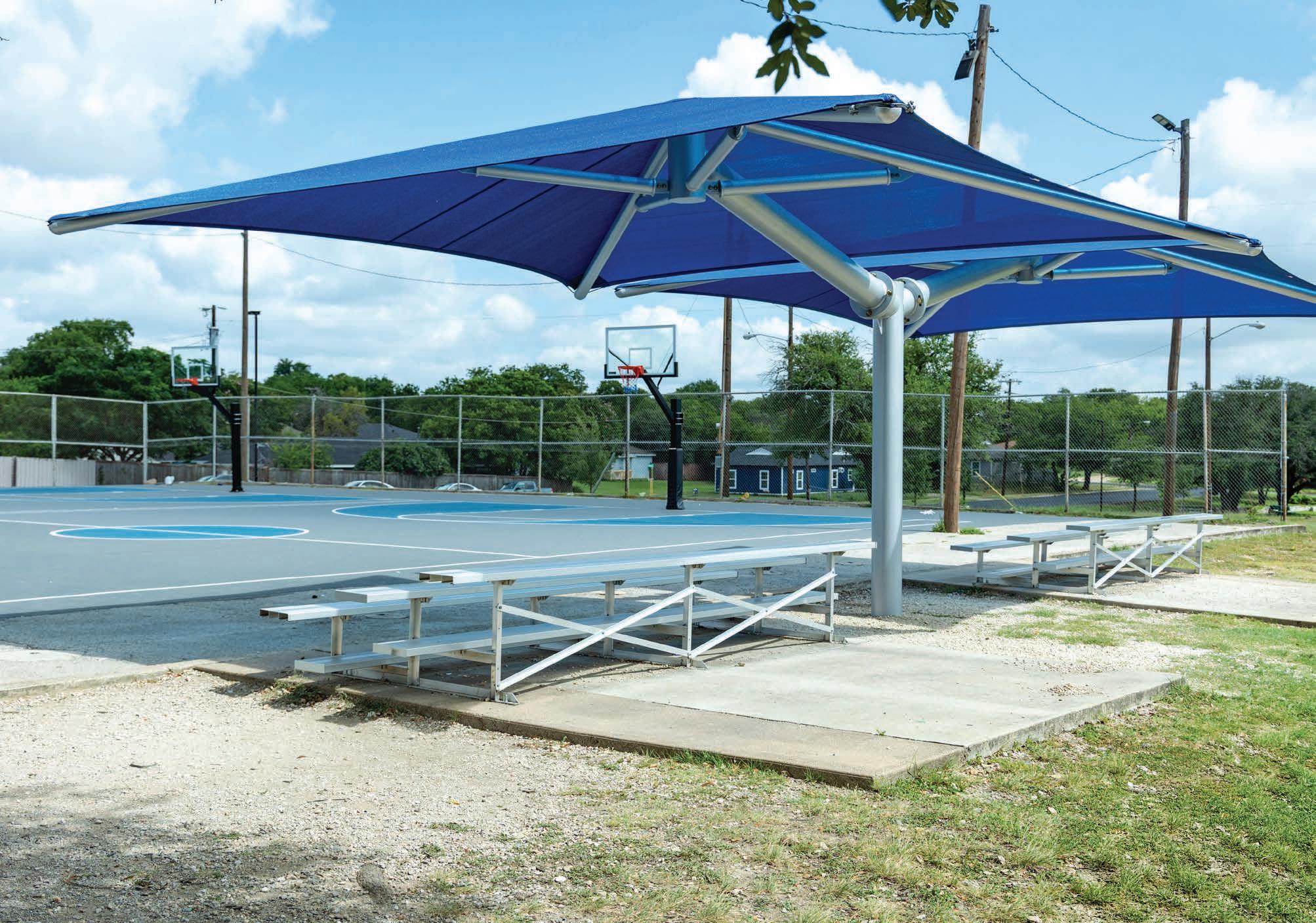

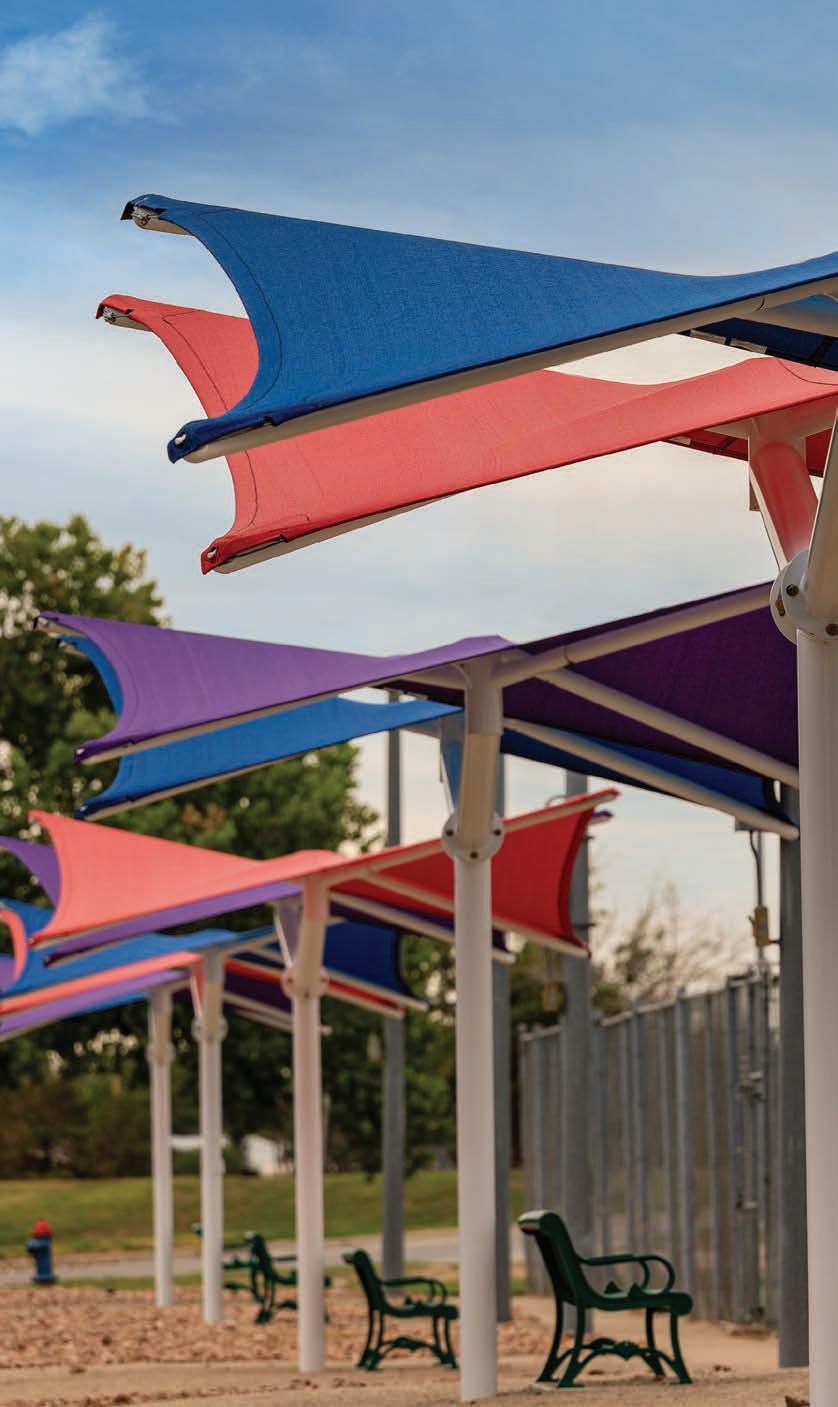

SkyWays Cantilever Hip, Back-to-Back

Center-positioned posts allow the shades to cantilever out from the middle—spreading shade all around.

• Multiple cantilevered hips can be extended to share posts

• Typical size: 10' x 10' to 40' x 40'

• Additional sizes available

• Entry heights: Any

• Rapid Release available

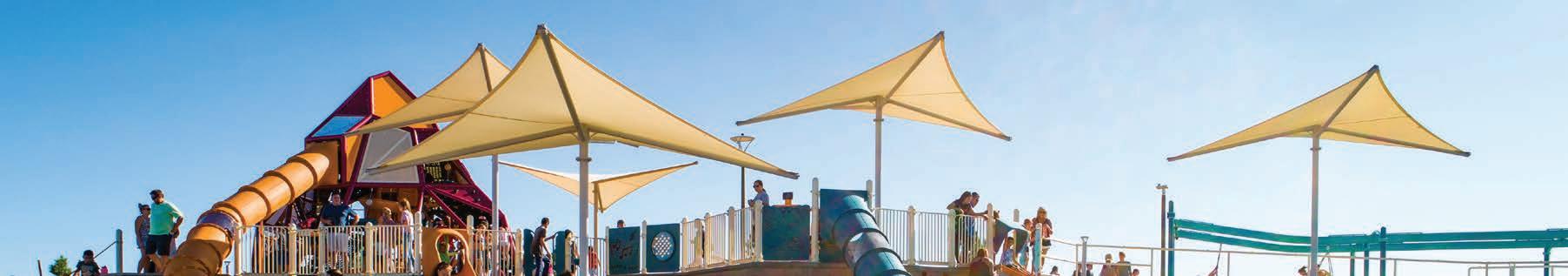

SkyWays®

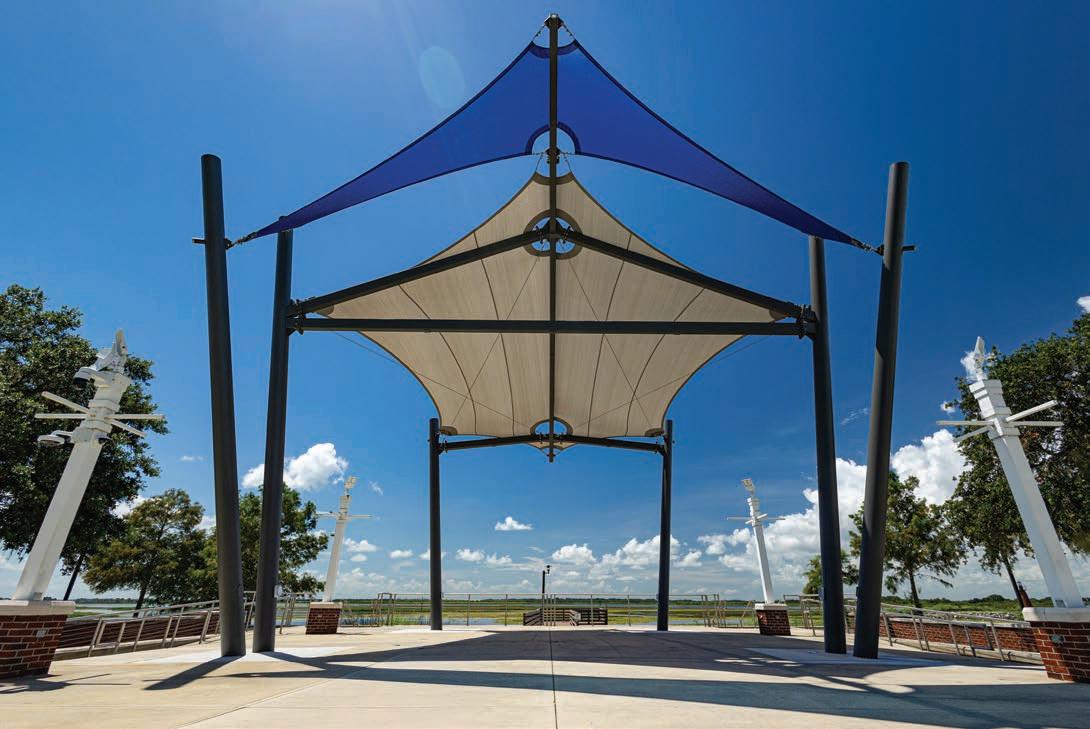

Pyramid and Peak

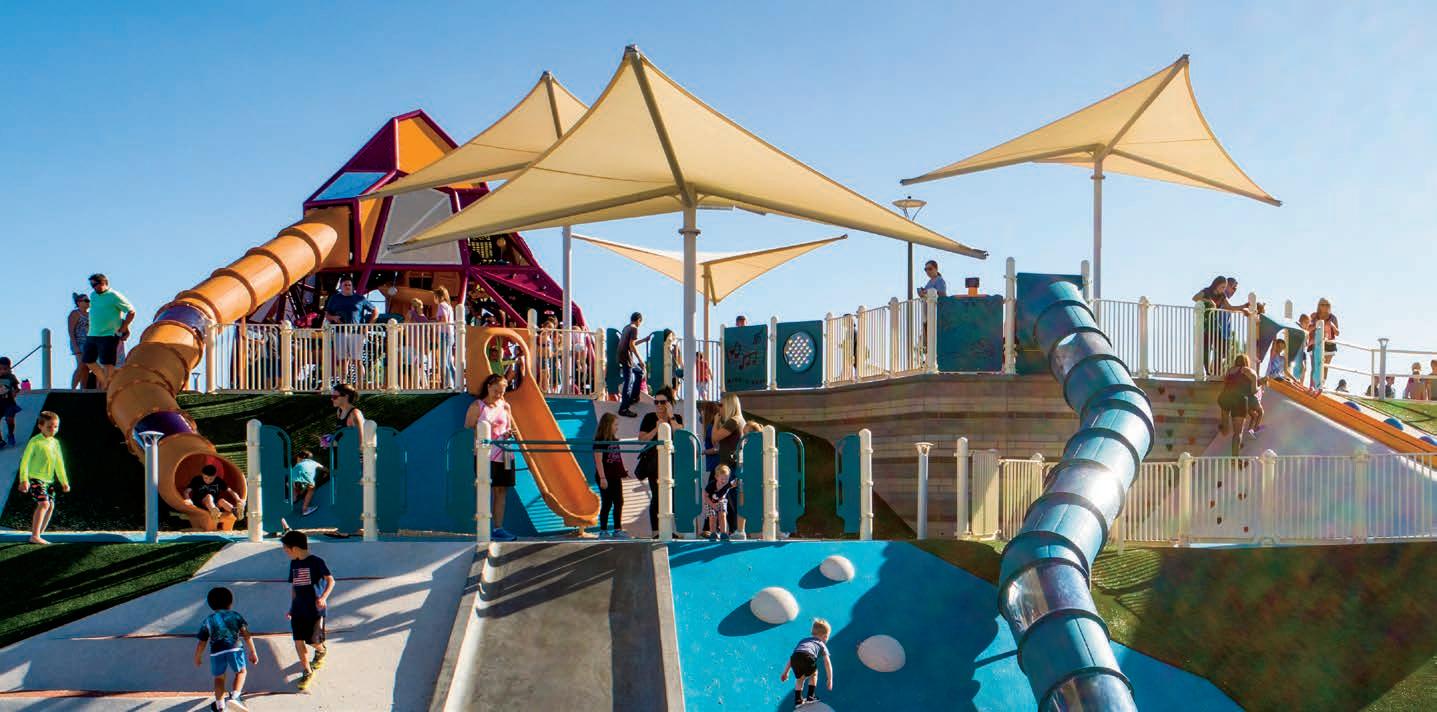

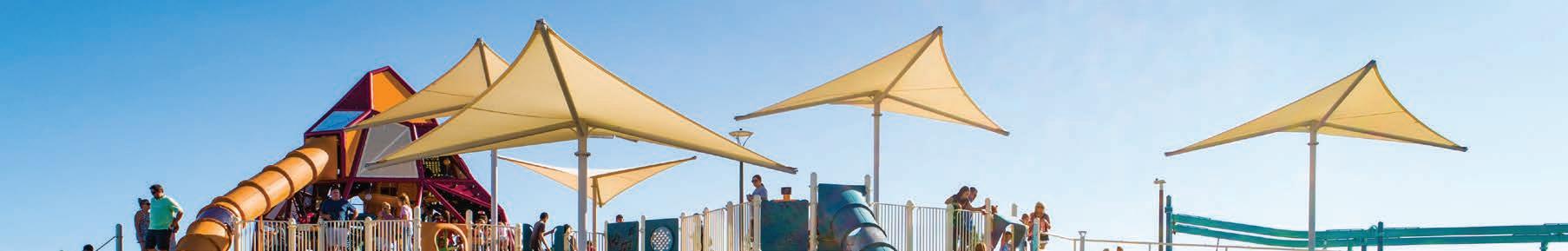

Perched atop four posts of equal or varying heights, pyramid and peak shades are both beautiful and functional.

• Multiple pyramids and peaks can be extended to share posts

• Typical individual size: 10' x 10' to 40' x 40'

• Additional sizes available

• Entry heights: Any

• Rapid Release® available

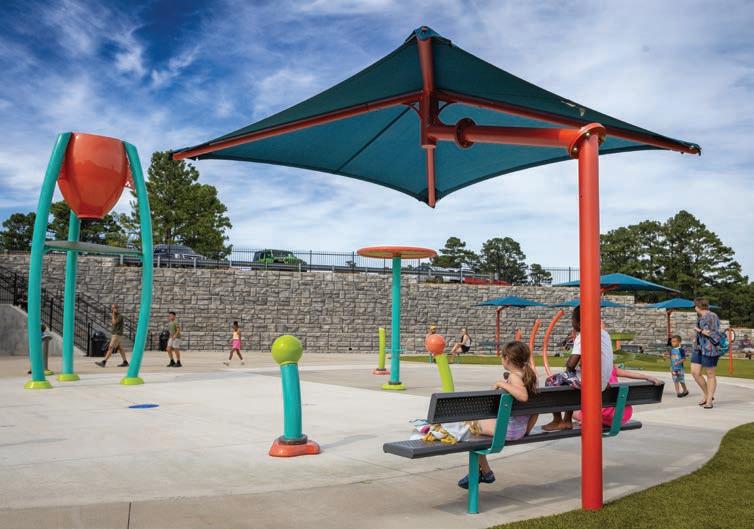

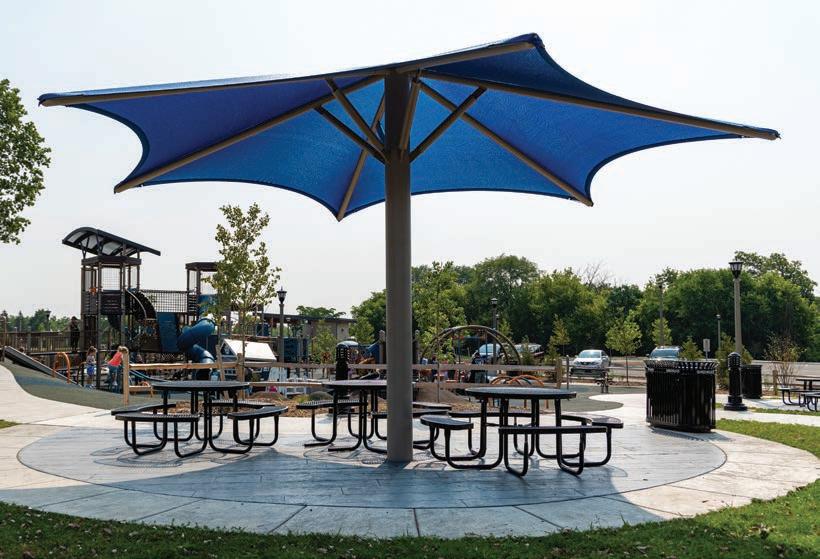

SkyWays Single Post Pyramid

Designed with one post to provide shade in a concentrated area.

• Shade can be cantilevered to keep the support post out of the way

• Two cantilevered pyramids can share a single post

• Typical size: 10' x 10' to 20' x 20'

• Additional sizes available

• Entry heights: Any

• Rapid Release available

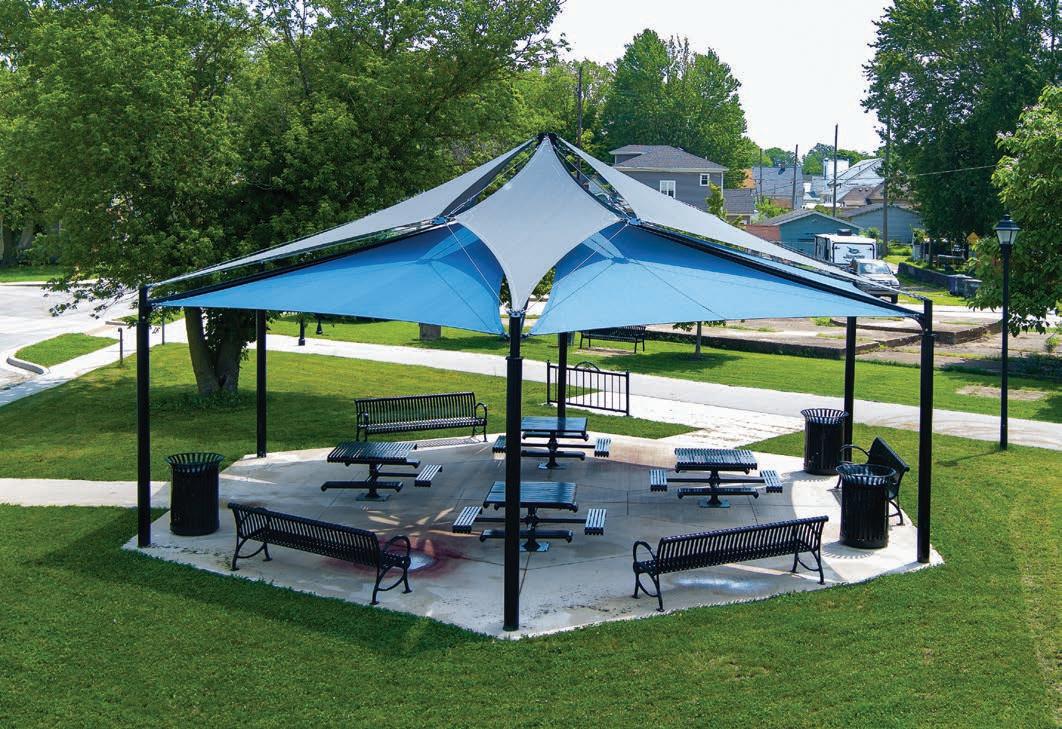

SkyWays® Octagon

Large, round areas can be completely shaded with an Octagon Shade.

• Single or multi-panel options

• Typical size: 35' to 80' Diameter

• Additional sizes available

• Entry heights: Any

• Rapid Release® available up to 40' diameter

A. SkyWays Octagon

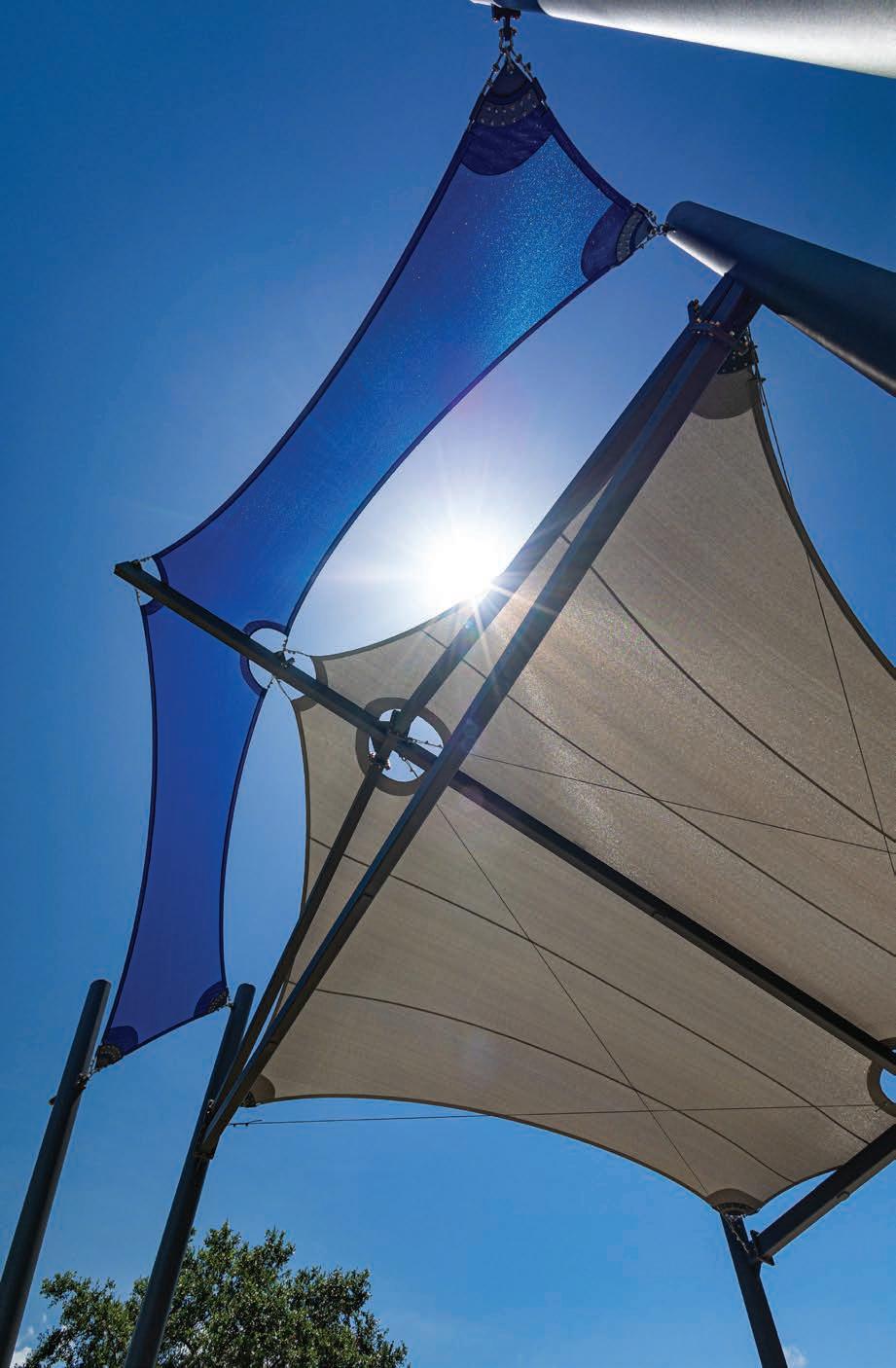

SkyWays Hexagon

Double Layer

Block even more sun with the overlapping panels of the SkyWays Hexagon Double Layer— and enjoy the unique design aesthetic that’s achieved with the layered fabric panels.

• Typical size: 20' to 80' Diameter

• Entry heights: Any

B. SkyWays Hexagon

Double Layer

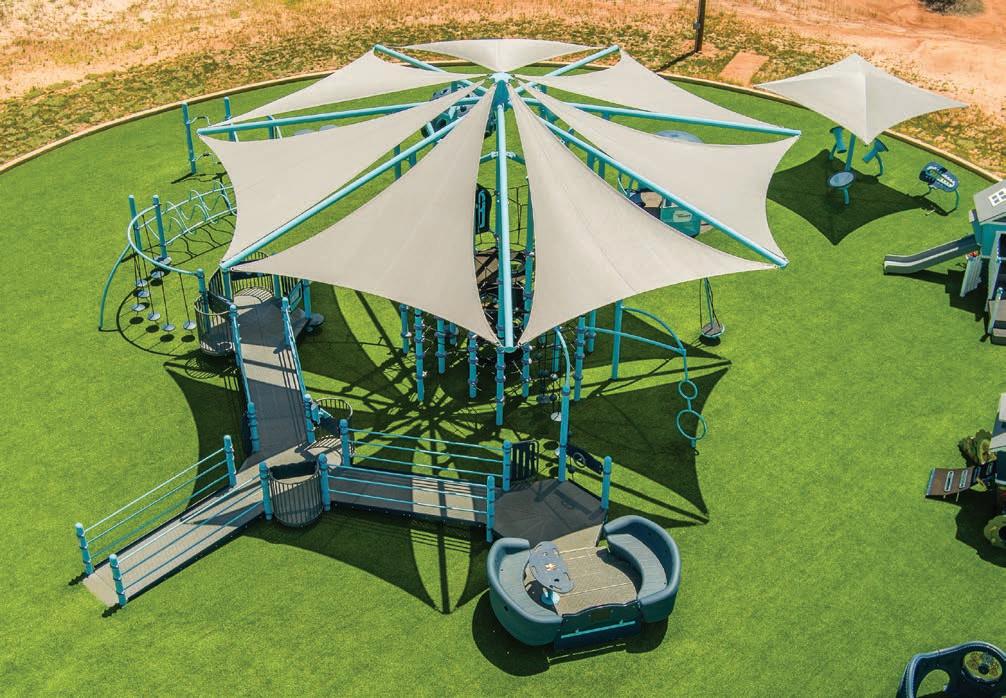

SkyWays Hexagon

This alternative shape can accommodate large, round areas— perfect for the spherical Evos® and Weevos® playsystems.

• Single or multi-panel options

• Typical size: 20' to 80' Diameter

• Additional sizes available

• Entry heights: Any

• Rapid Release available up to 40' diameter

C. SkyWays Hexagon

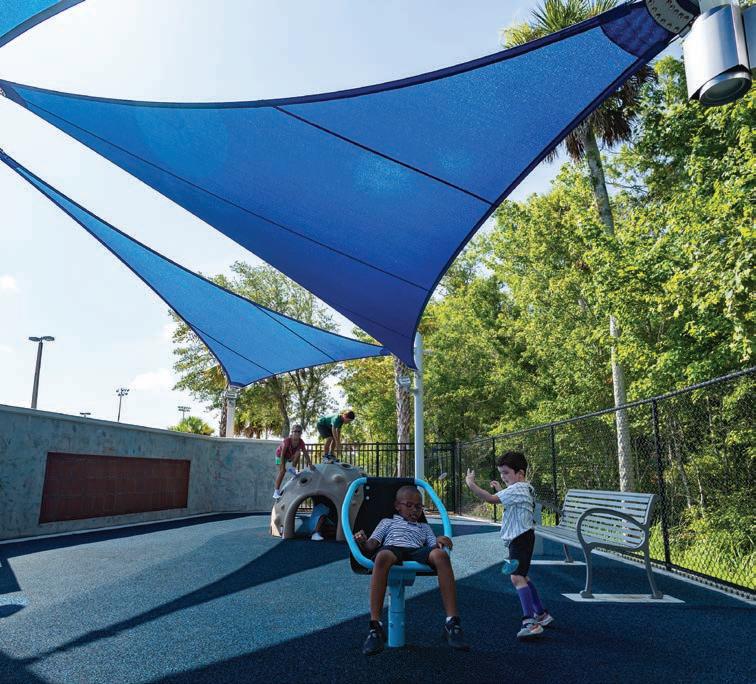

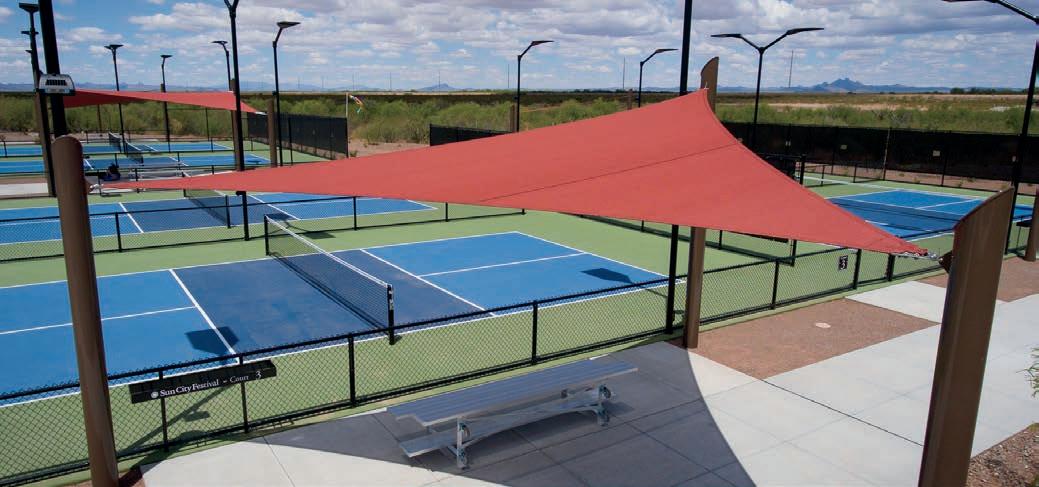

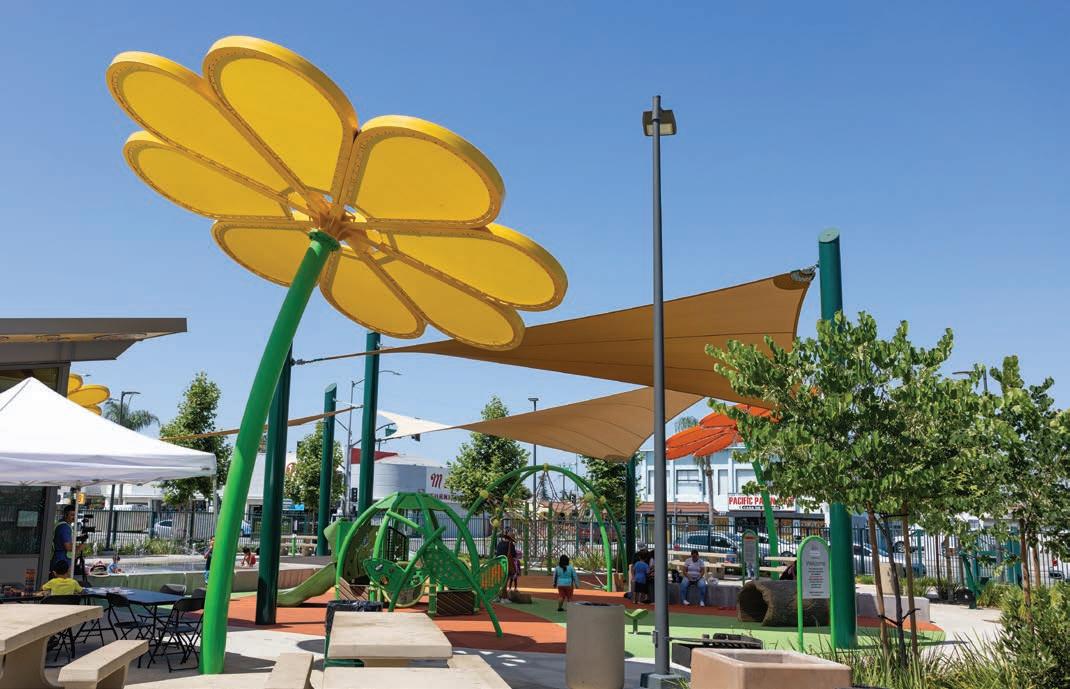

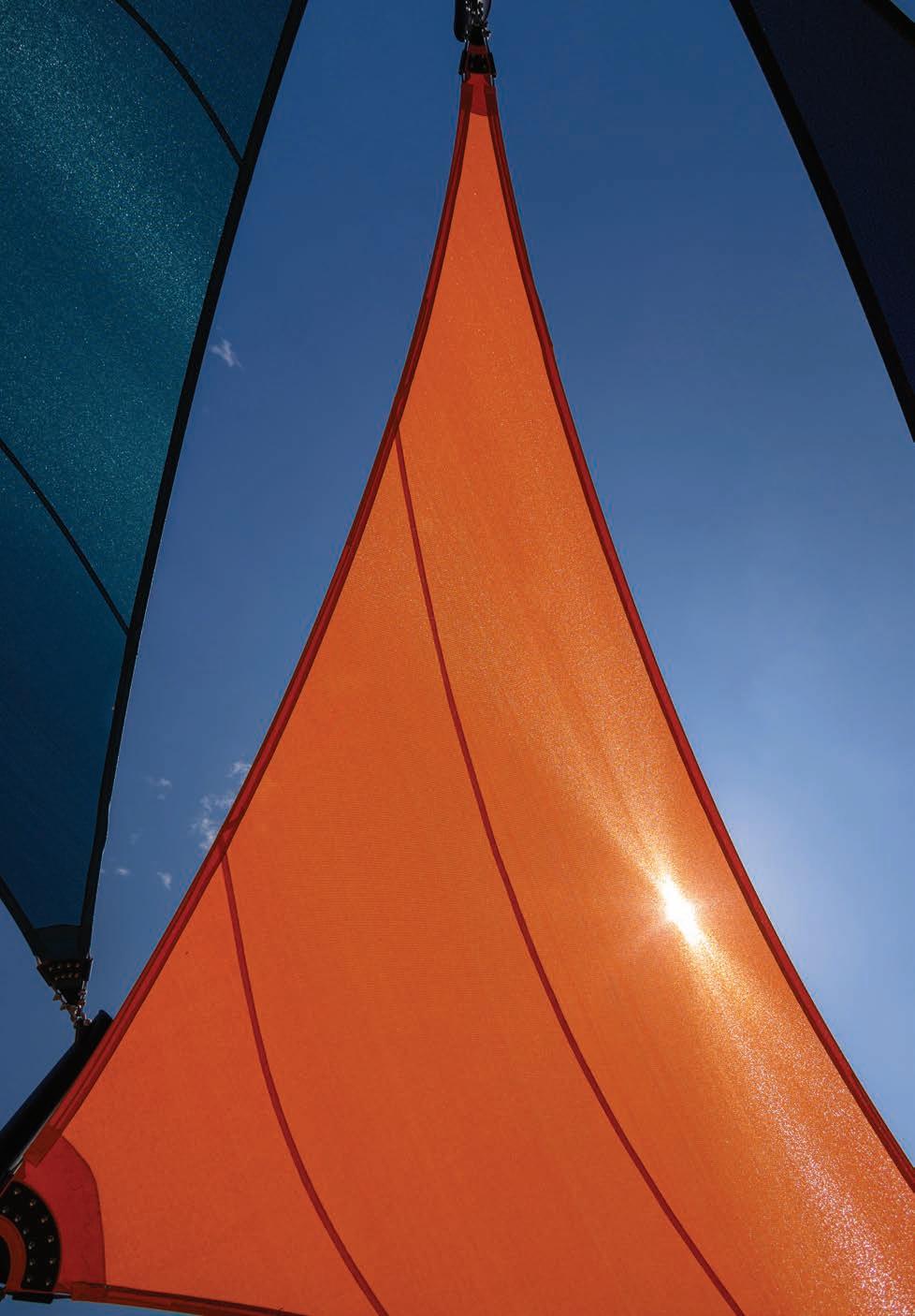

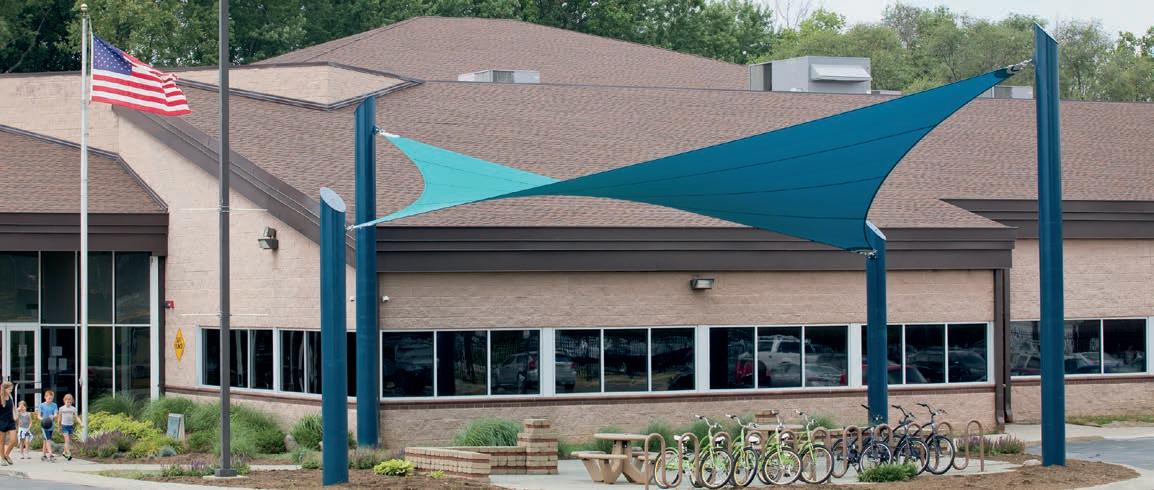

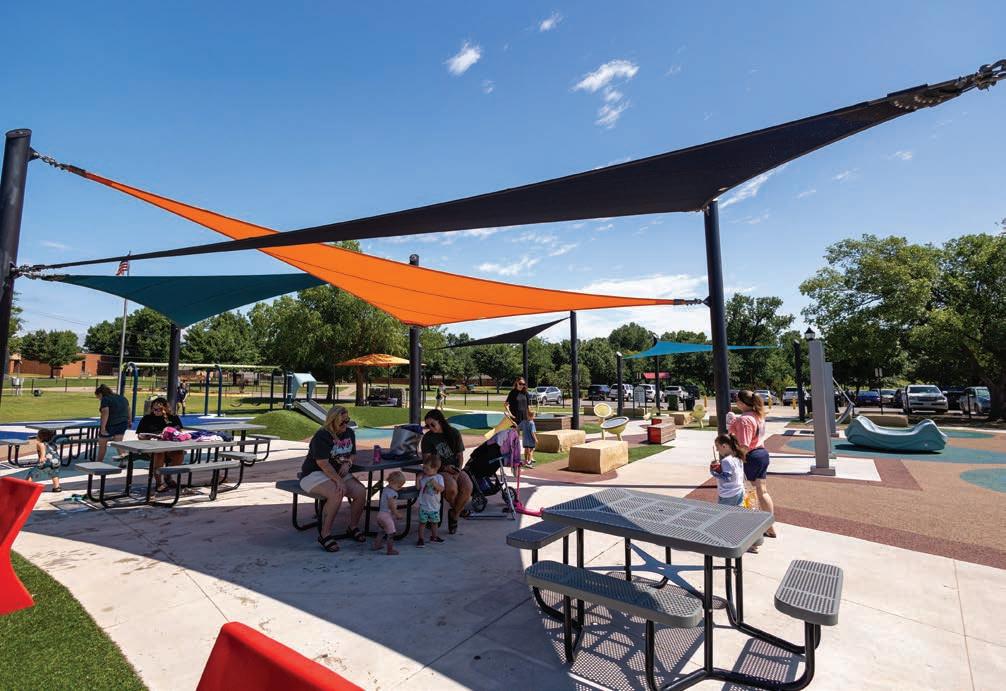

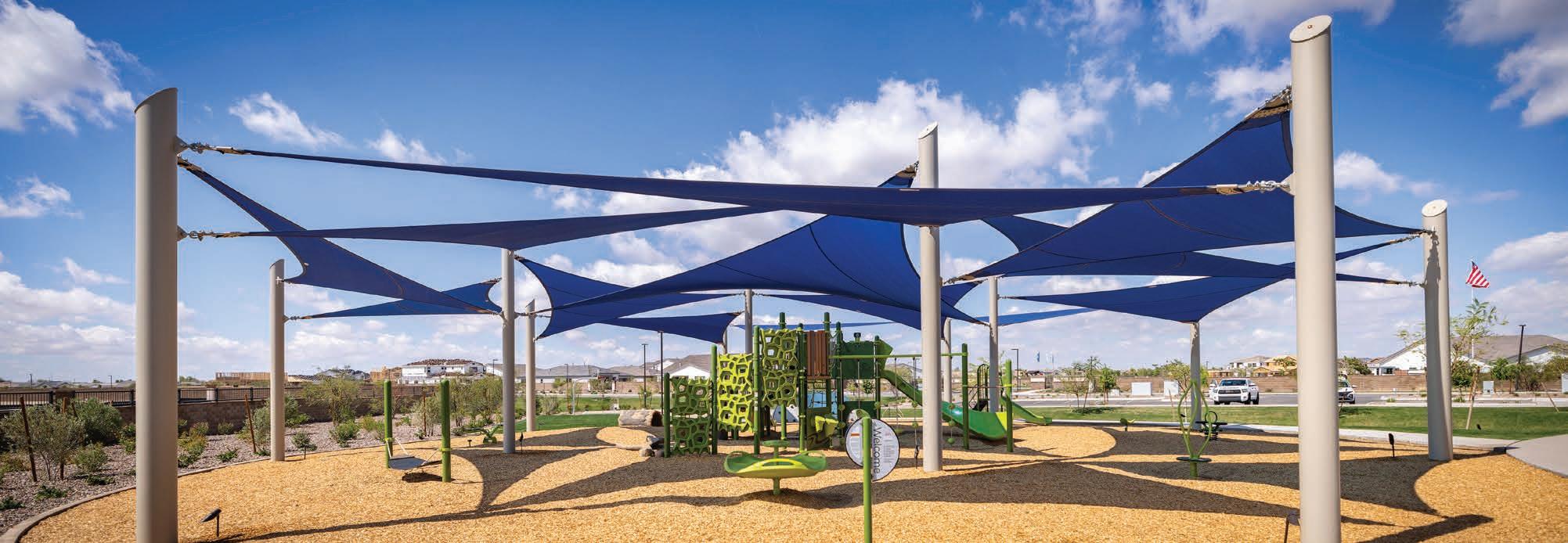

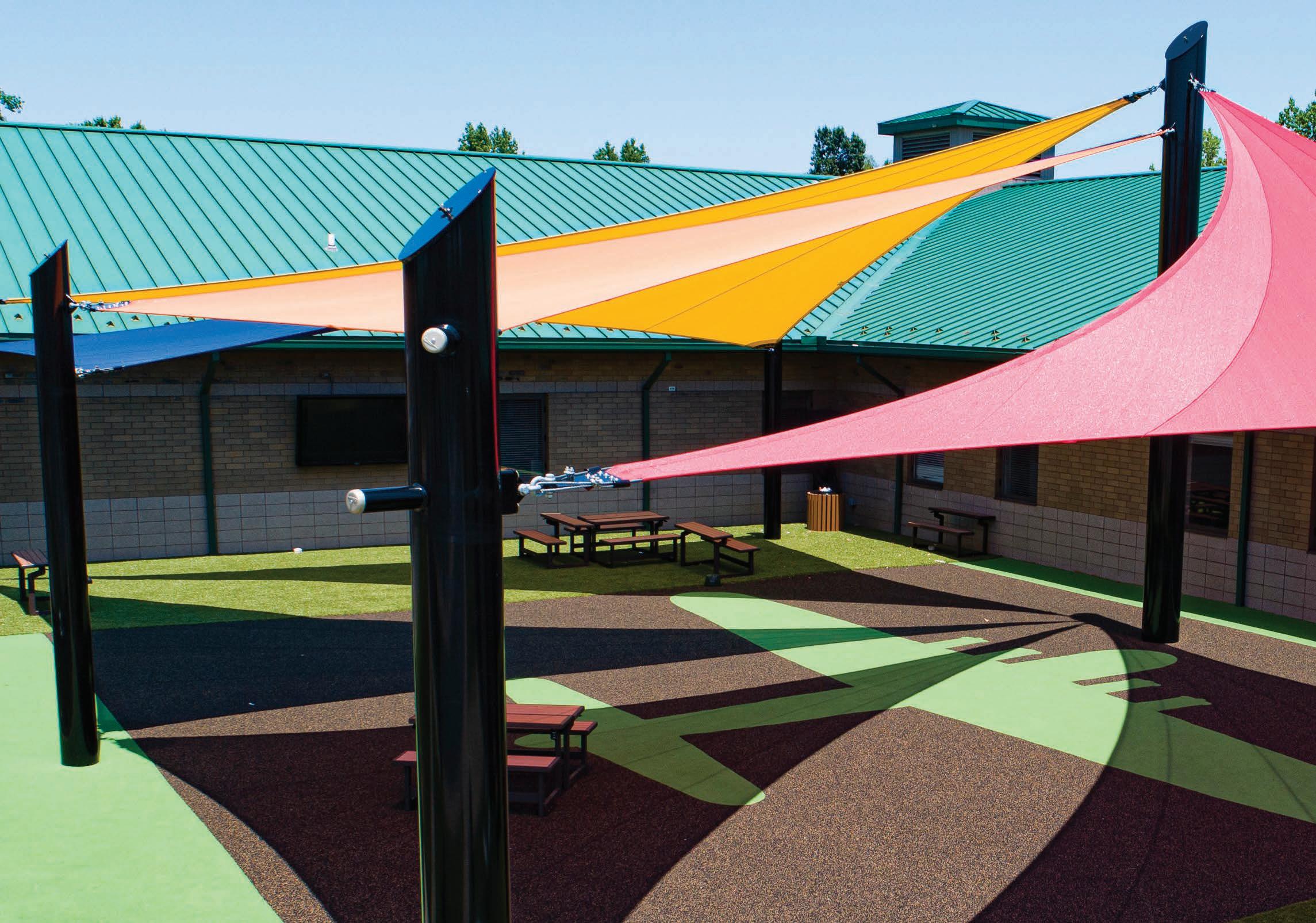

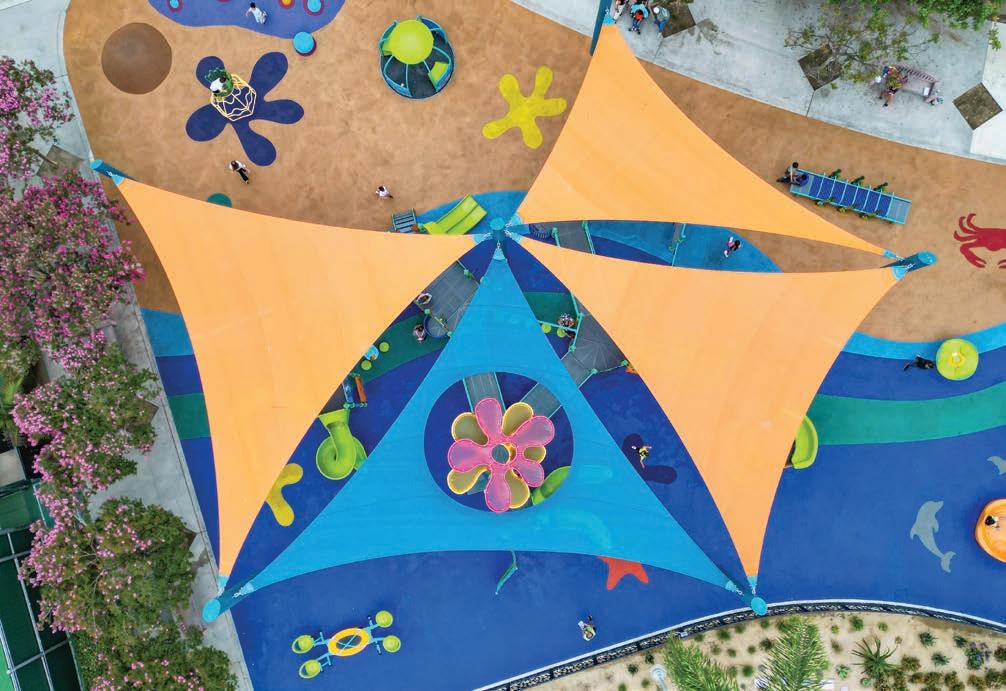

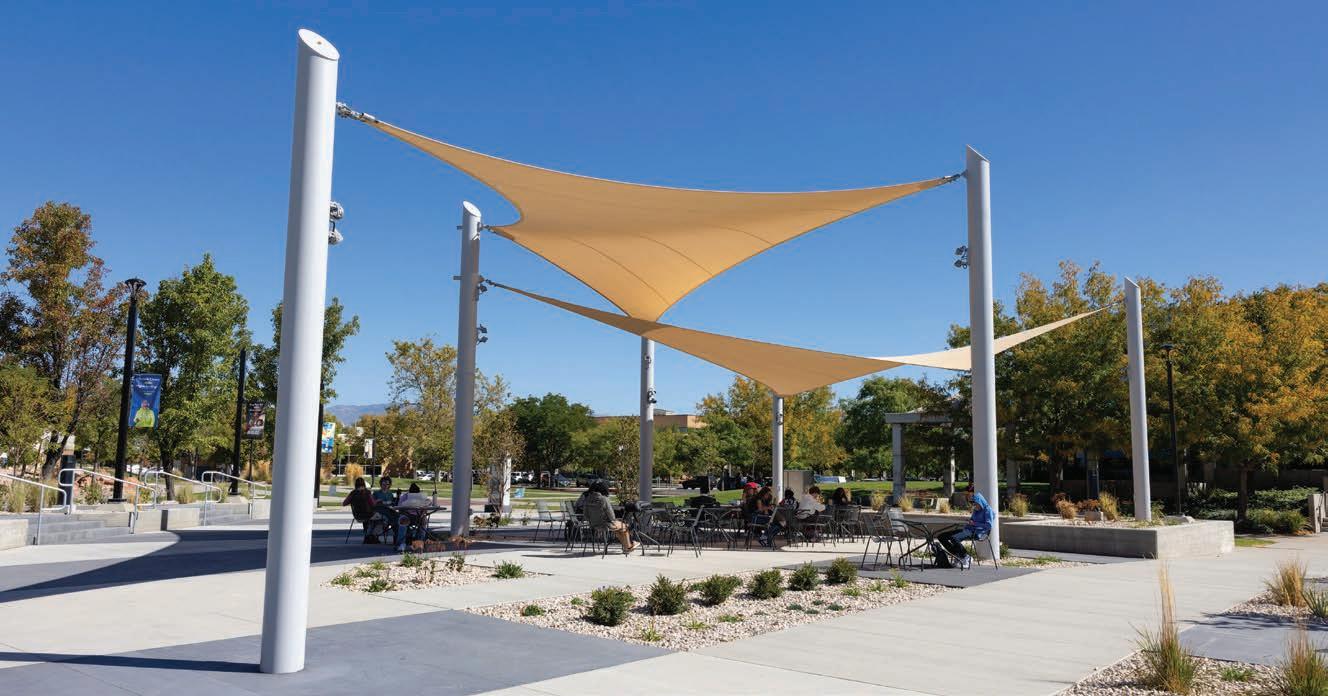

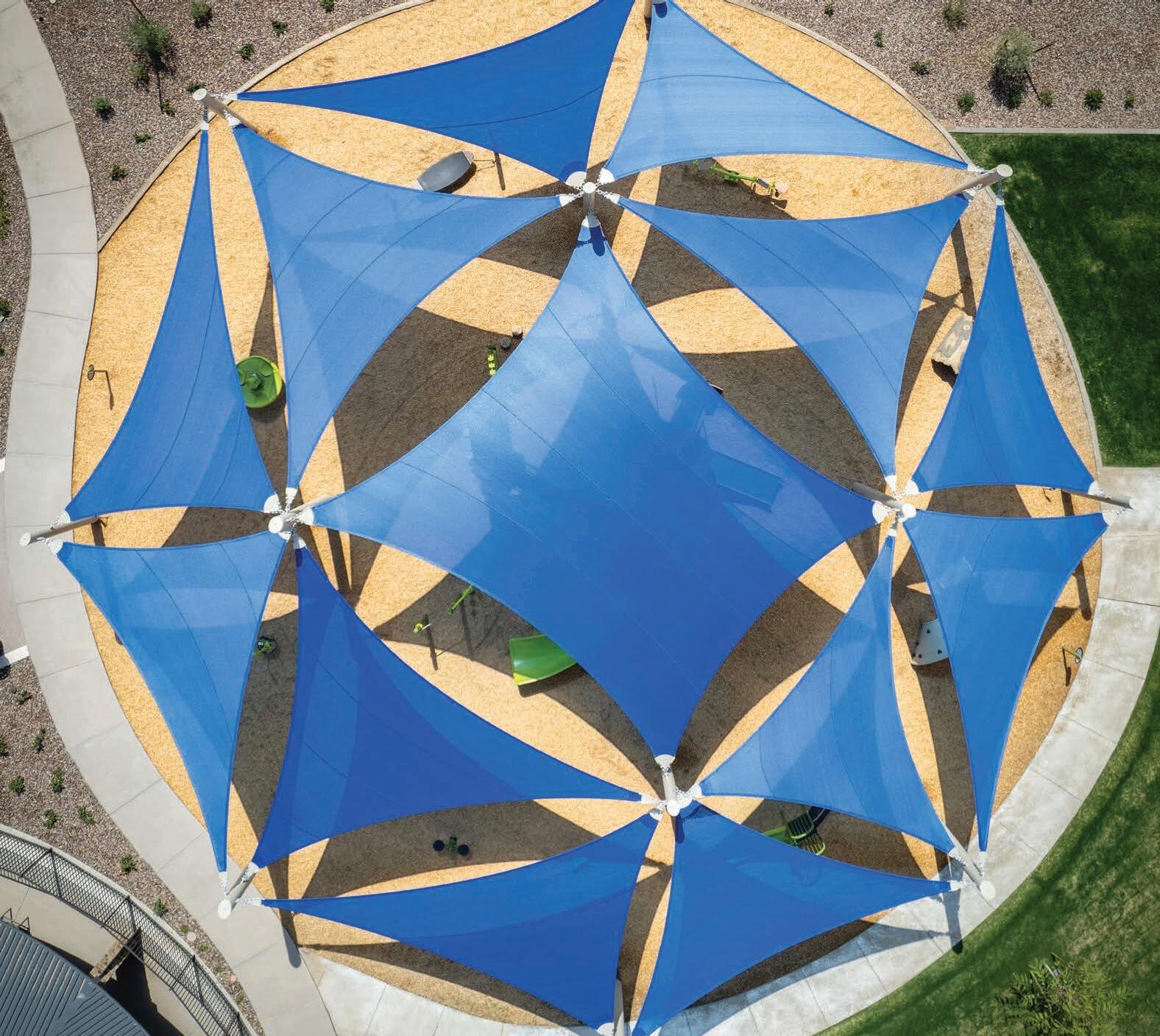

SkyWays Triangle Sail

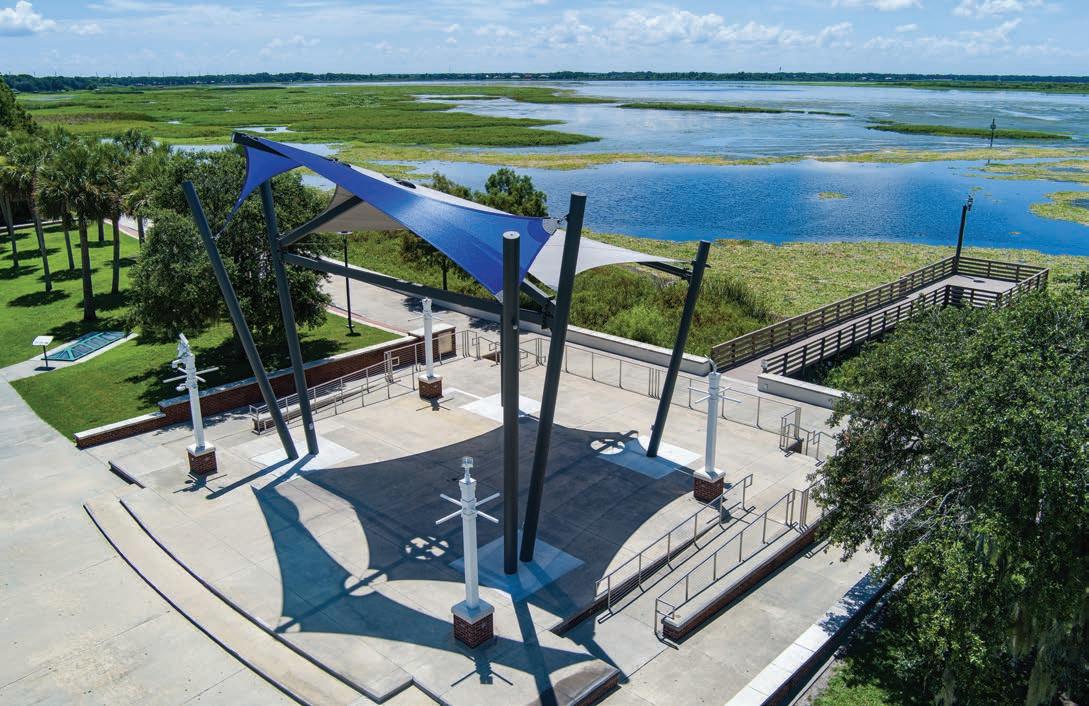

This three-post design covers a large space and provides a unique look with varying column heights and entries.

• Multiple sails can be joined to share posts

• Typical individual size: Up to 40' with standard fabric

• Larger sizes also available

• Entry heights: Any

• Rapid Release available

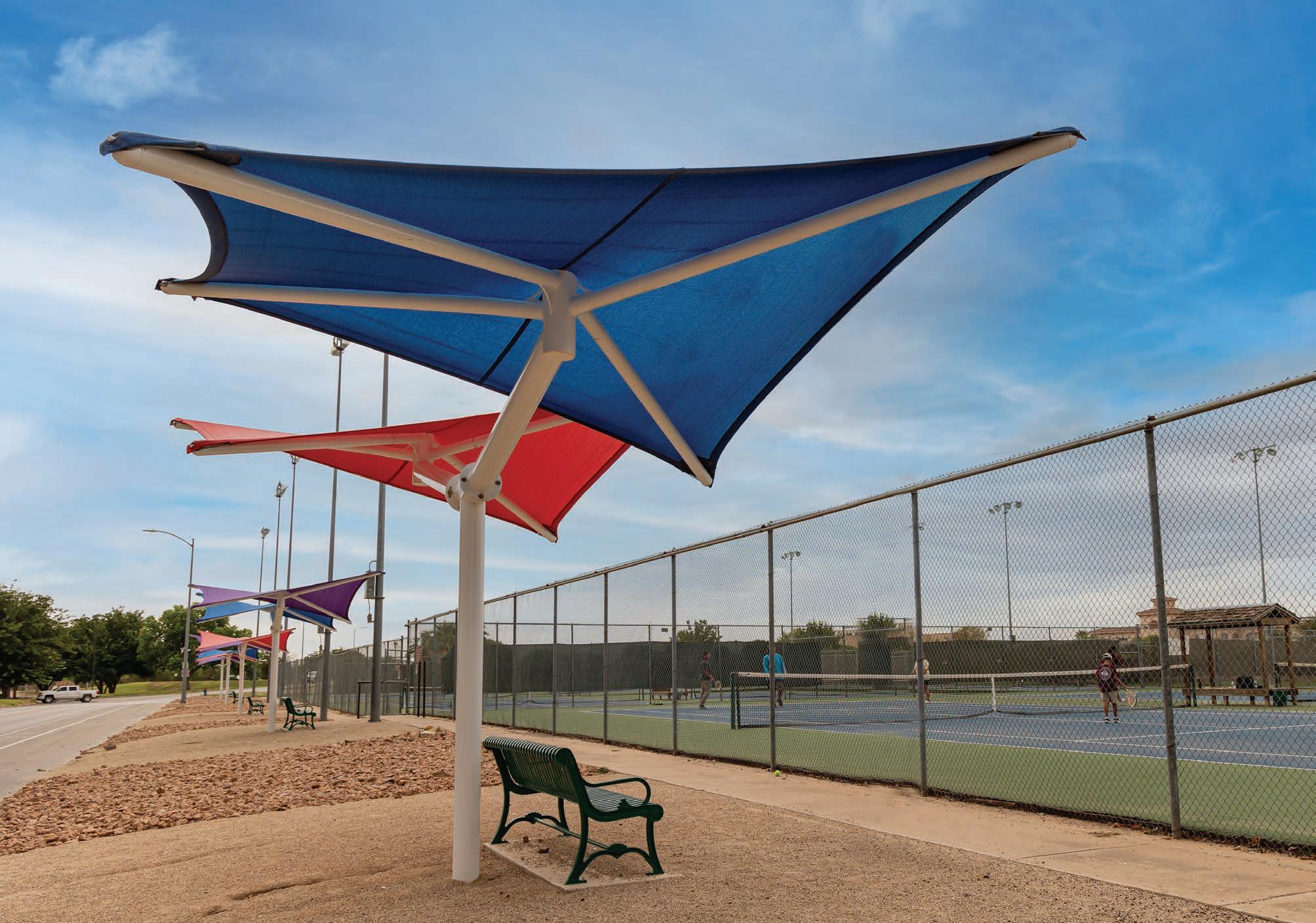

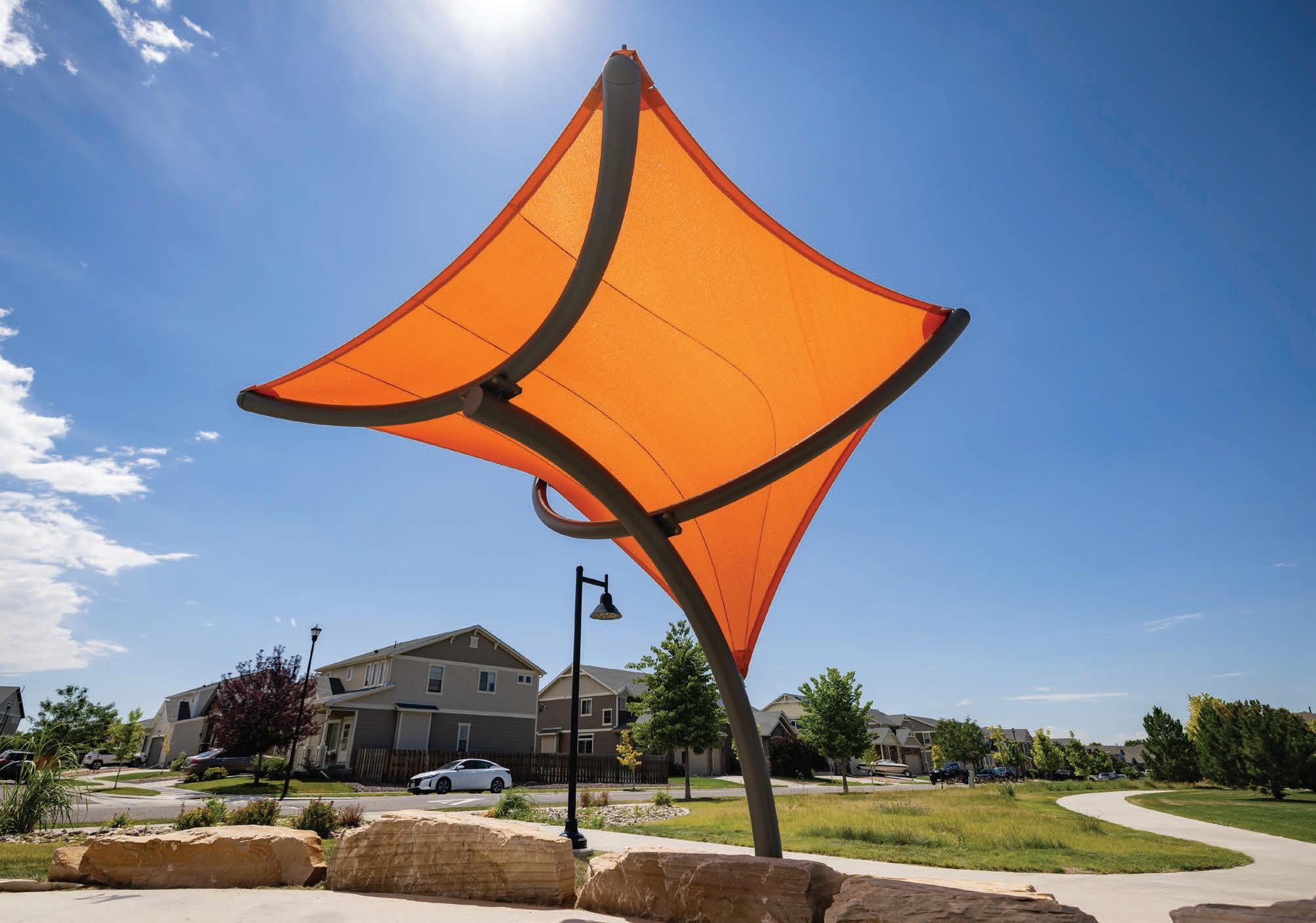

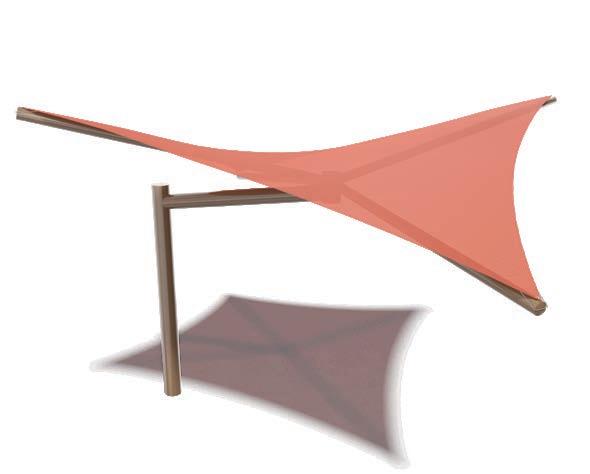

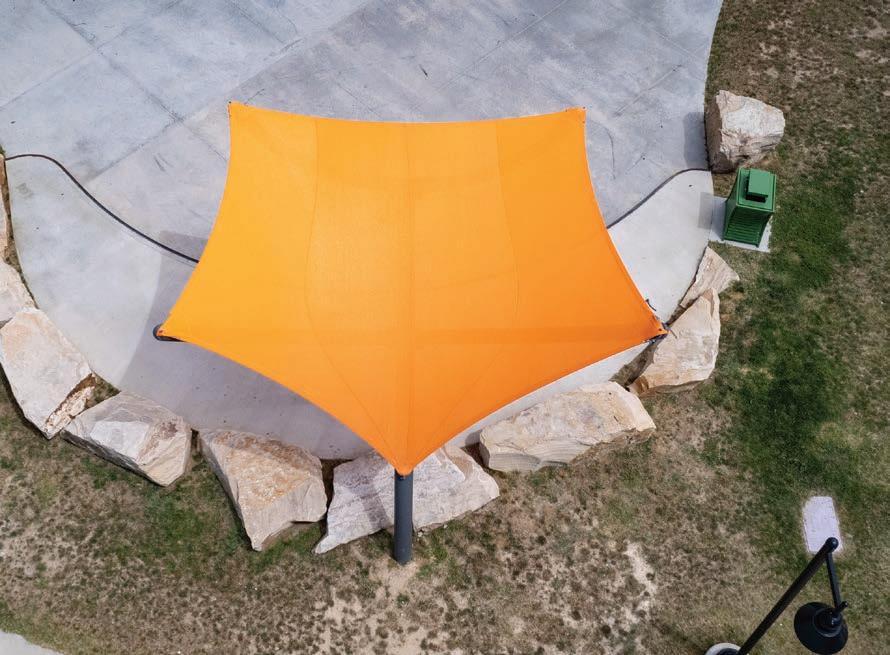

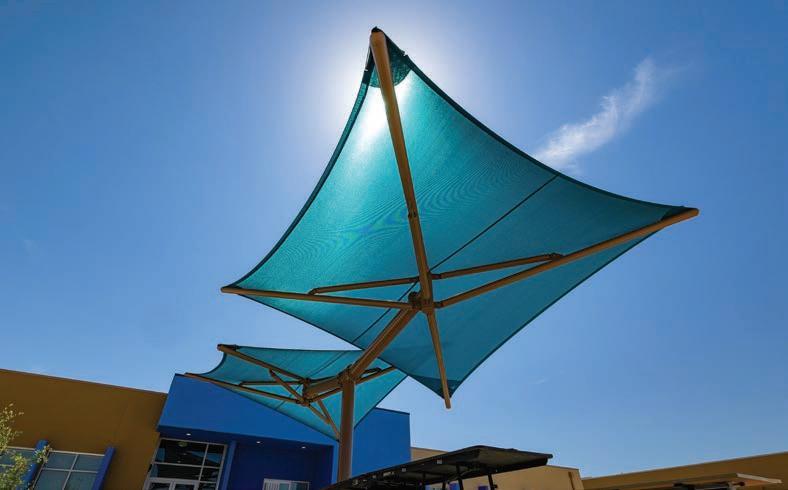

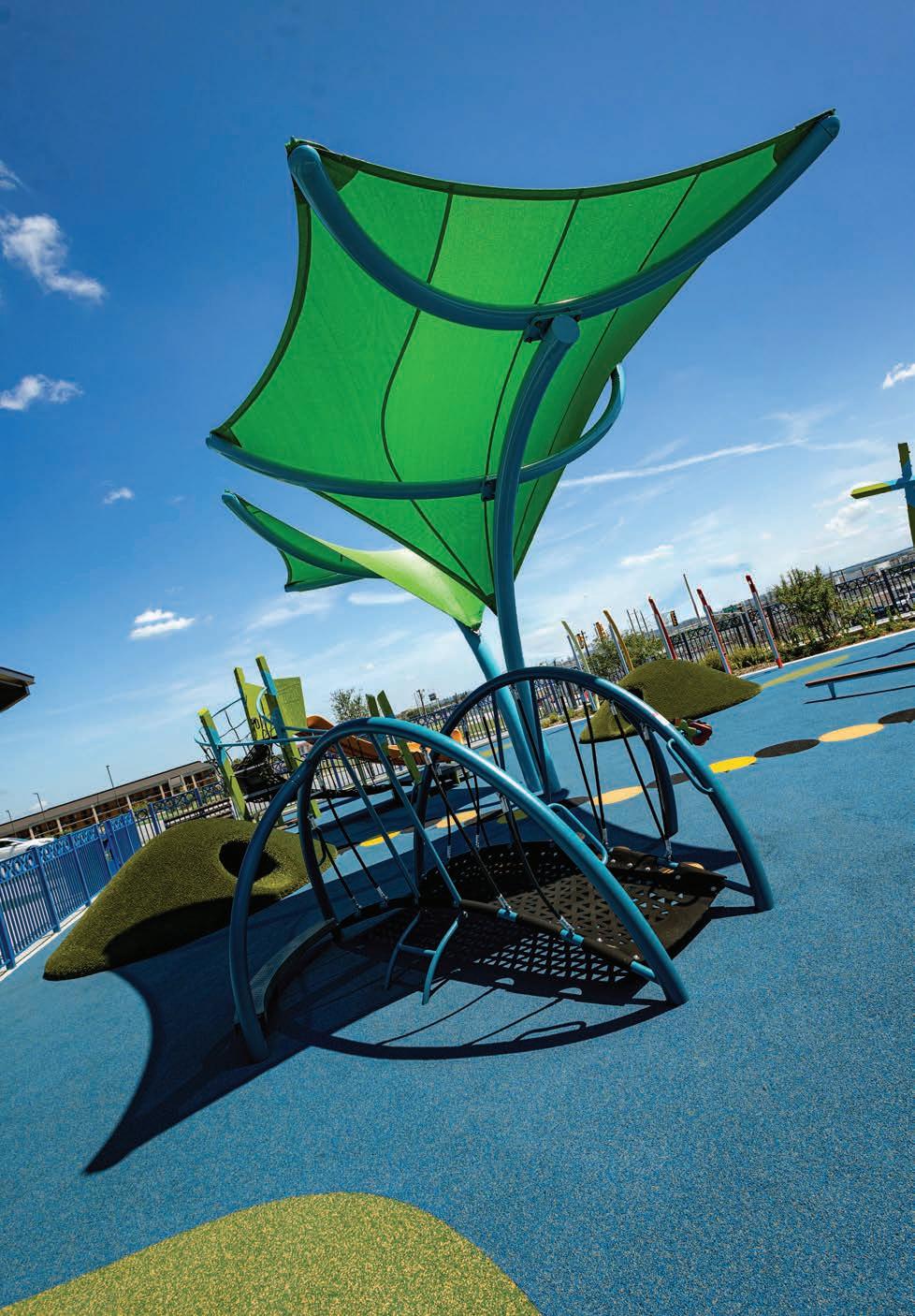

SkyWays® Single Post Hypar Sail

A single post minimizes the space required while the unique shape of the Hypar Sail maximizes shade from the sun. It also easily integrates into play equipment.

• Typical size: 10' x 10' to 16' x 16'

• Entry heights: Any

• Rapid Release® available

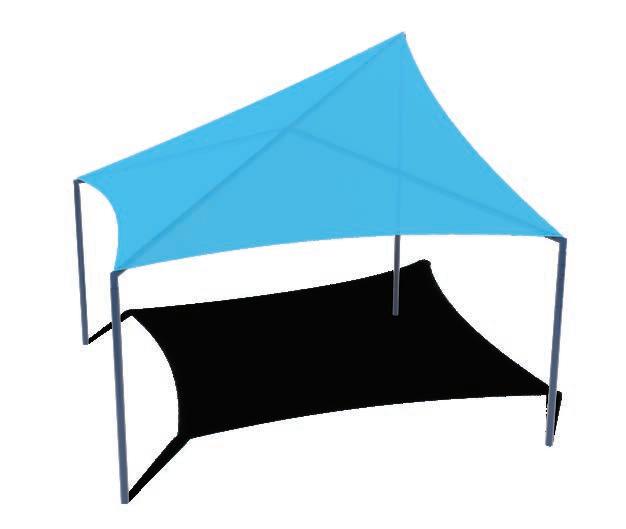

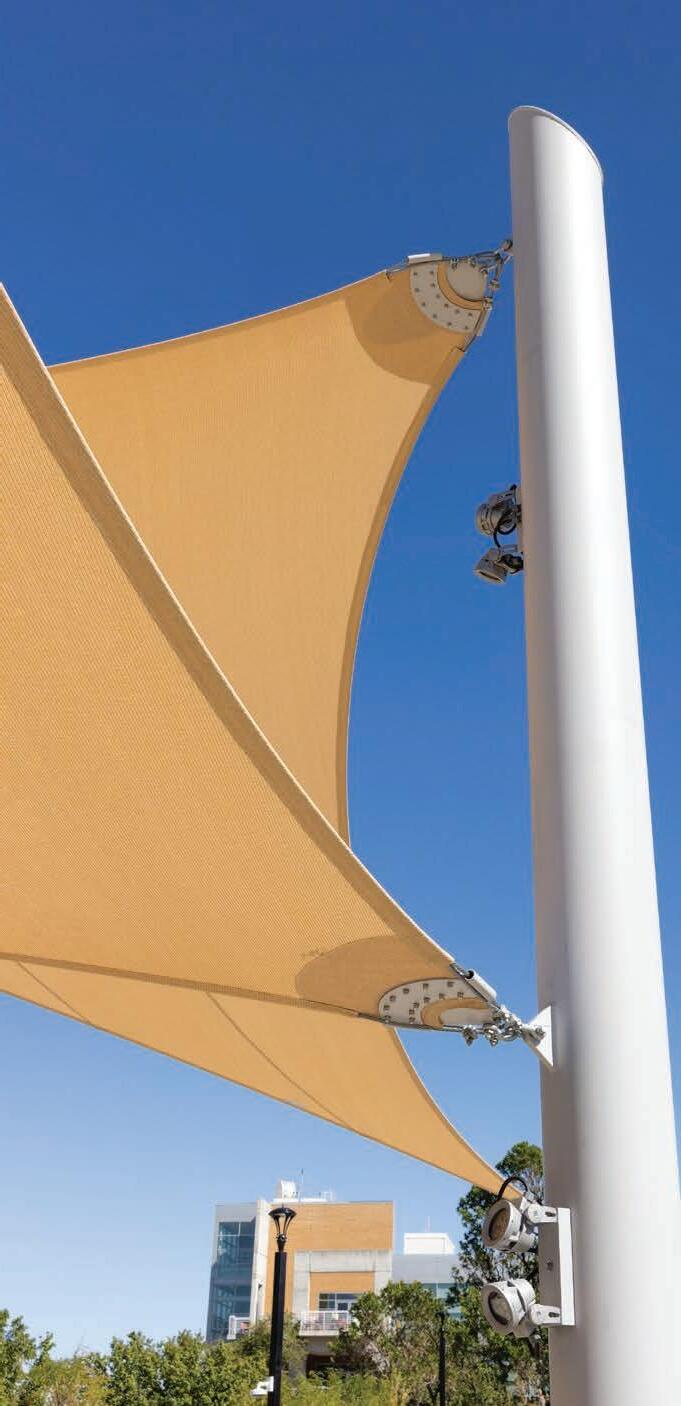

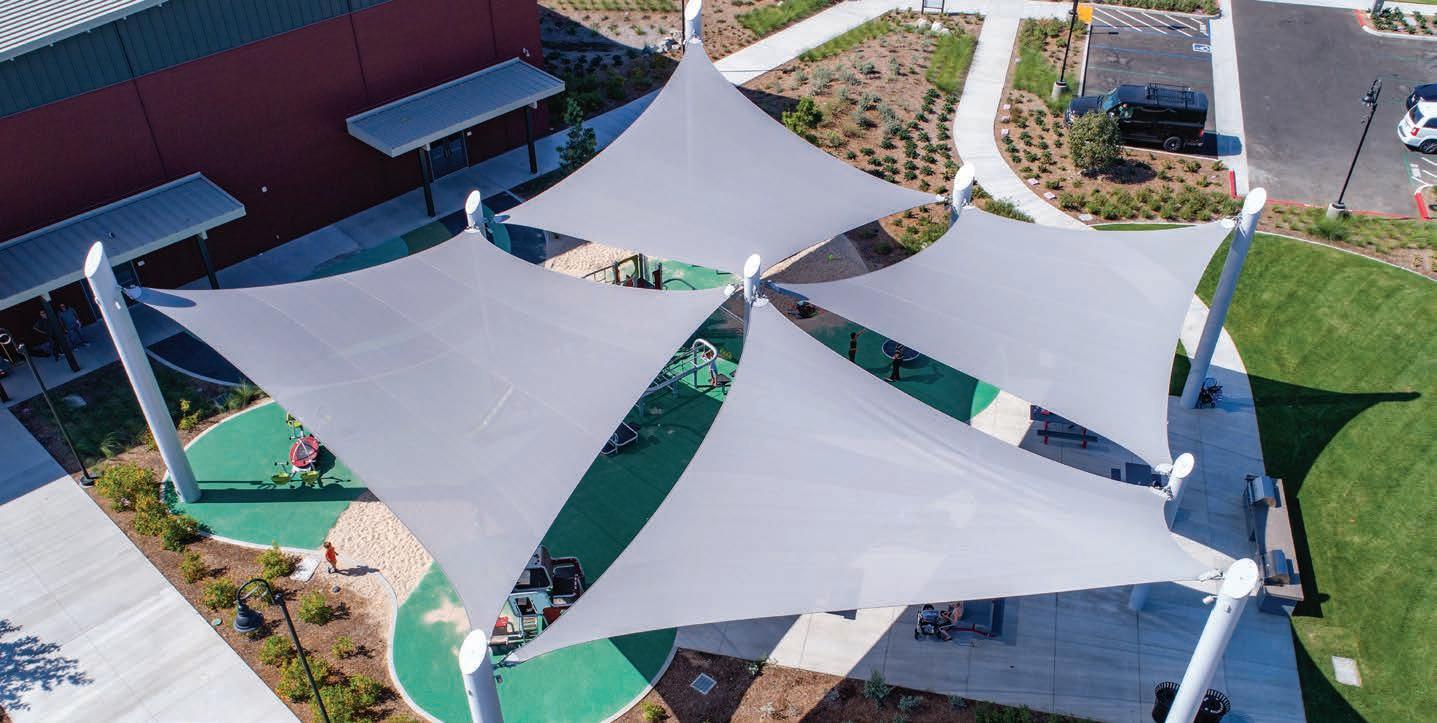

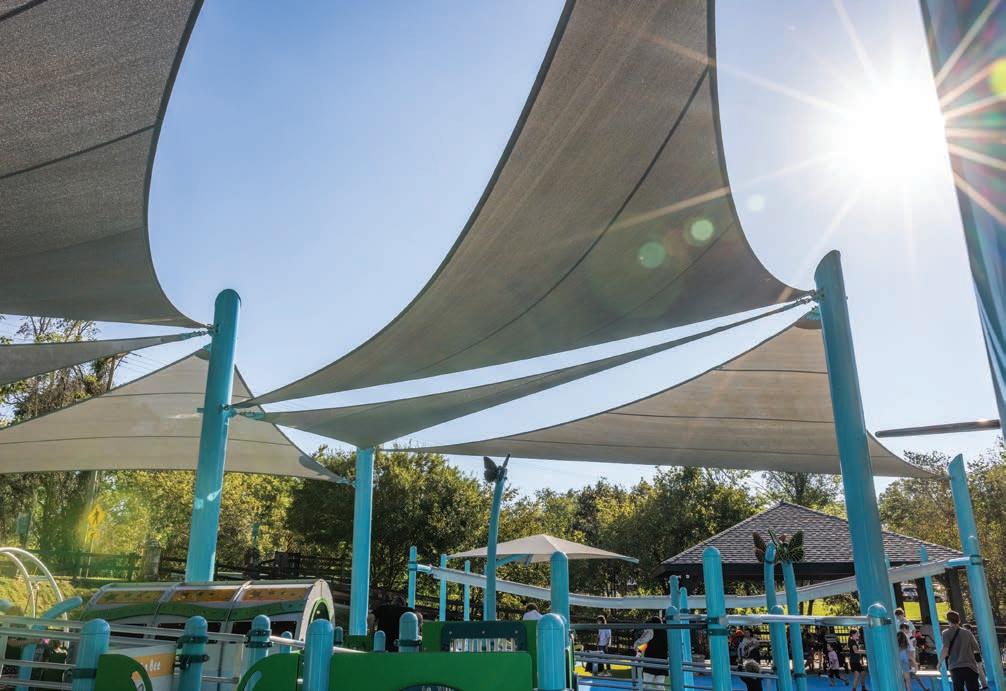

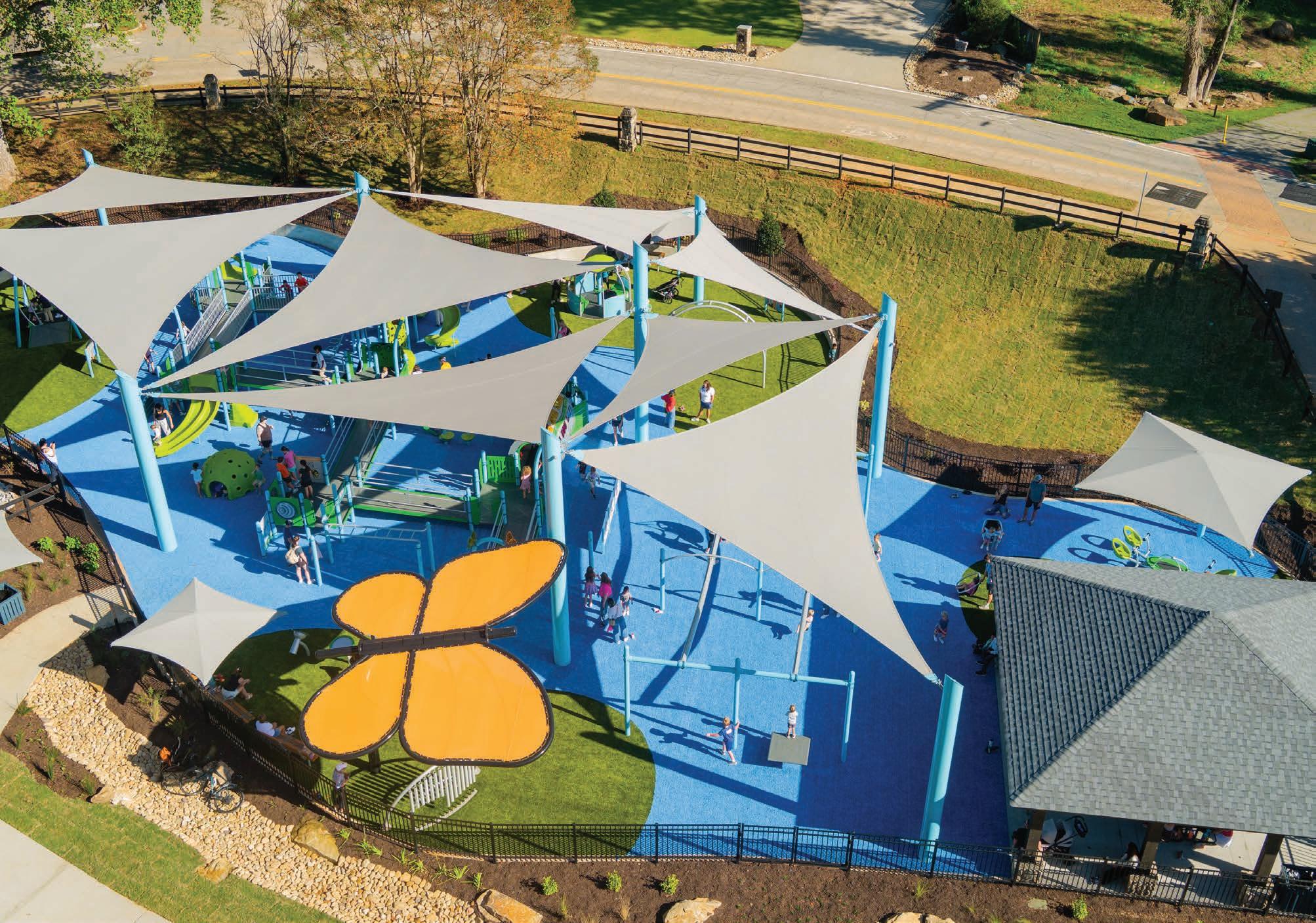

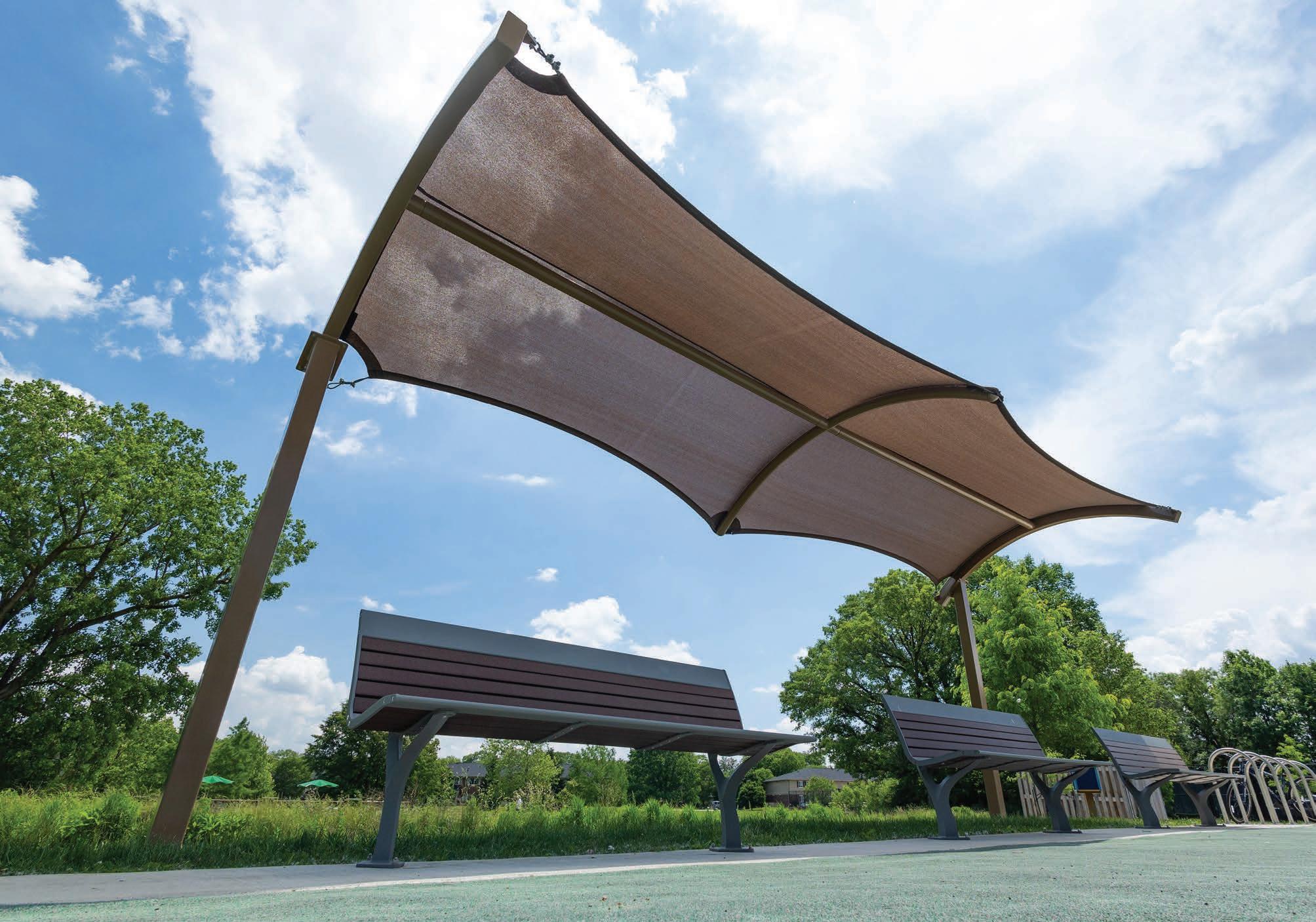

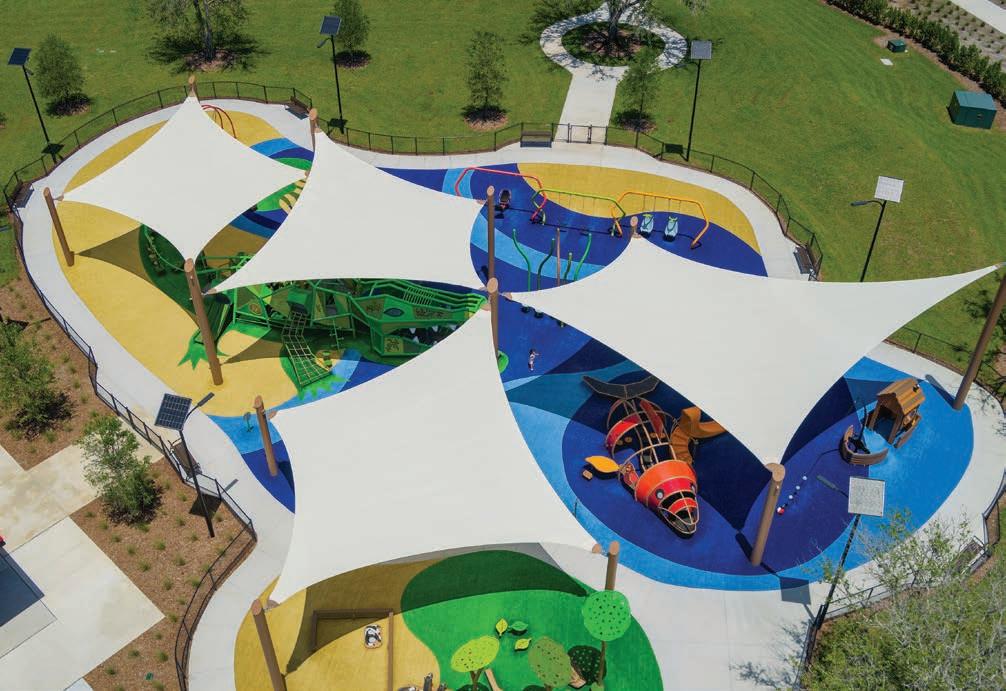

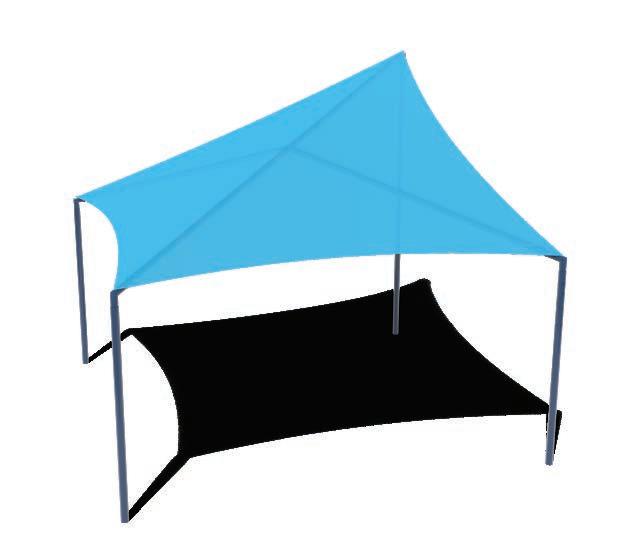

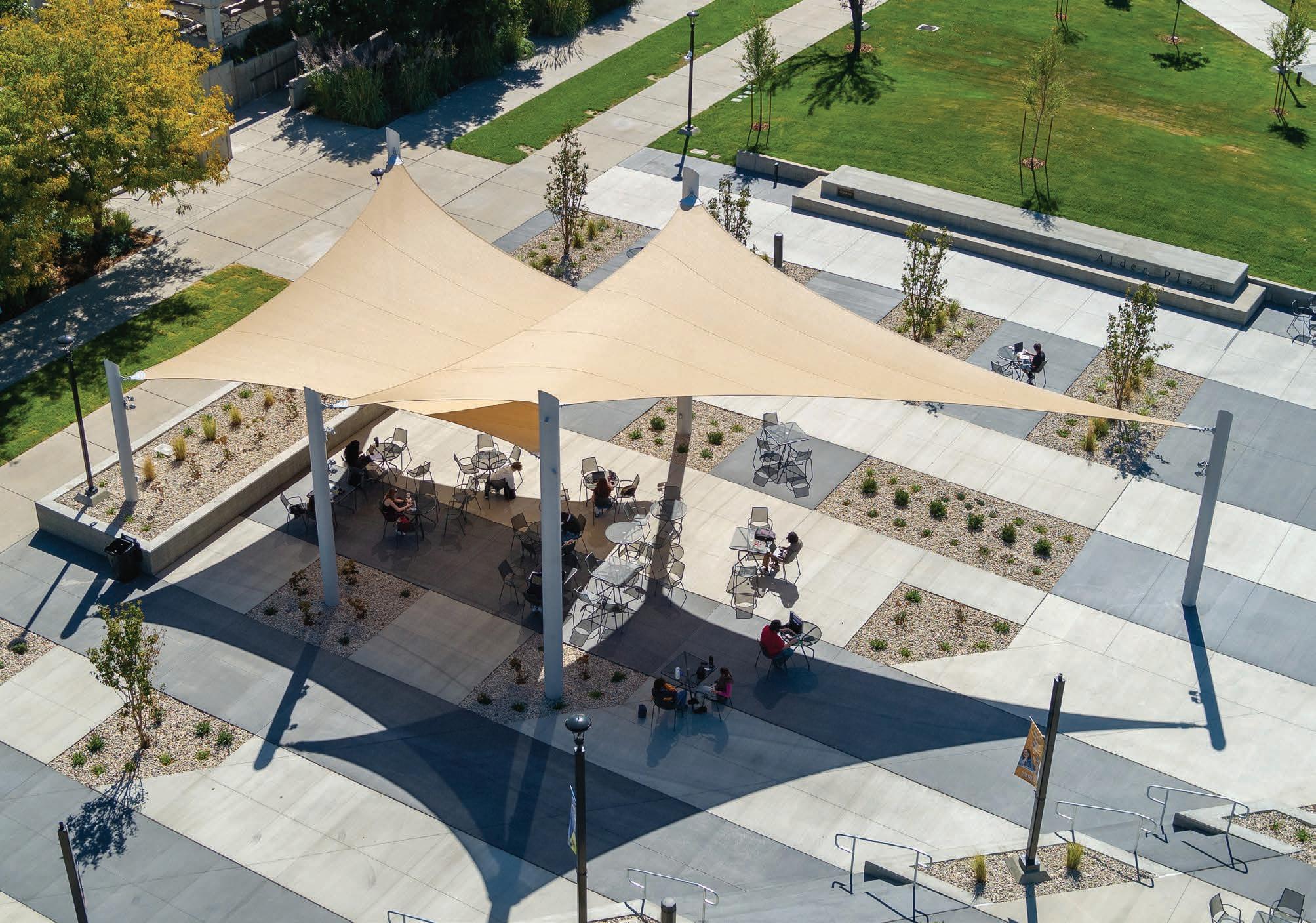

SkyWays Hypar Sail

The hyperbolic shape of this shade provides great coverage from the sun as well as visual interest.

• Multiple sails can be joined to share posts

• Typical individual size: Up to 40' with standard fabric

• Larger sizes also available

• Entry heights: Any

• Rapid Release available

A. Individual Hypar Sail

B. Joined Hypar Sails

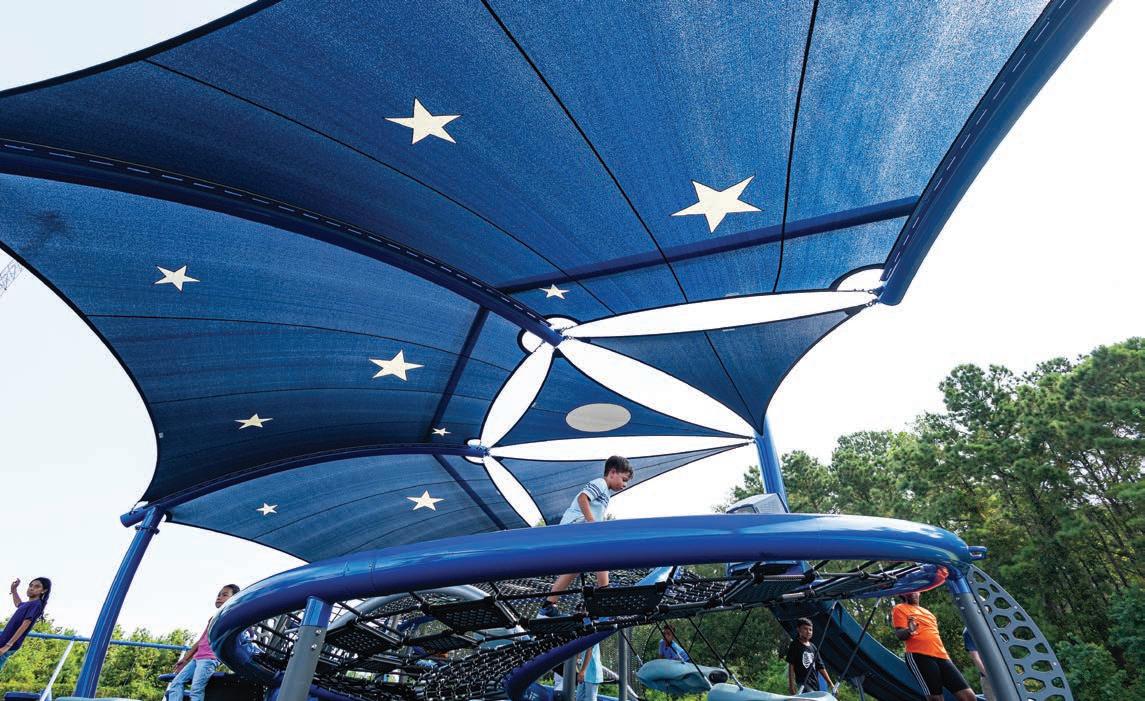

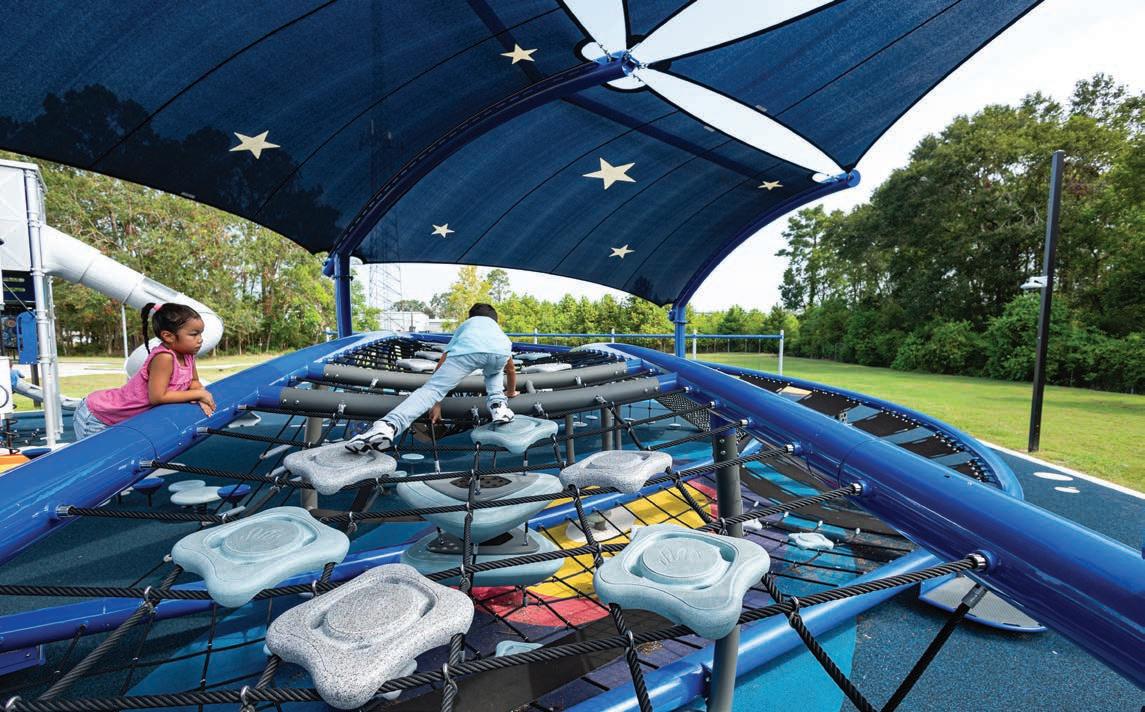

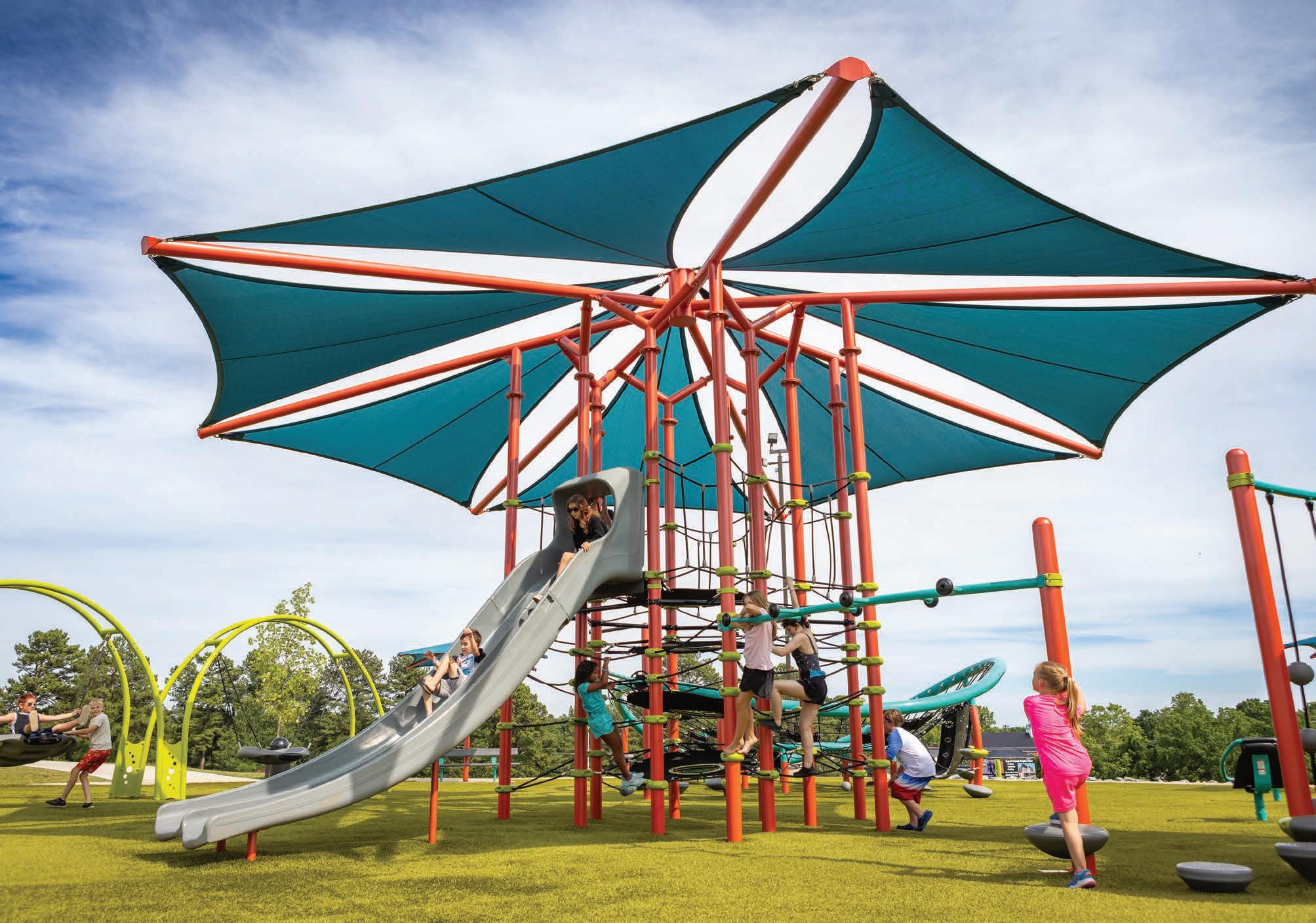

SkyWays® Integrated Shade with Netplex®

Shade can be integrated into Netplex structures to keep kids cool while playing.

• Available with 7-post, 13-post and 14-post Netplex

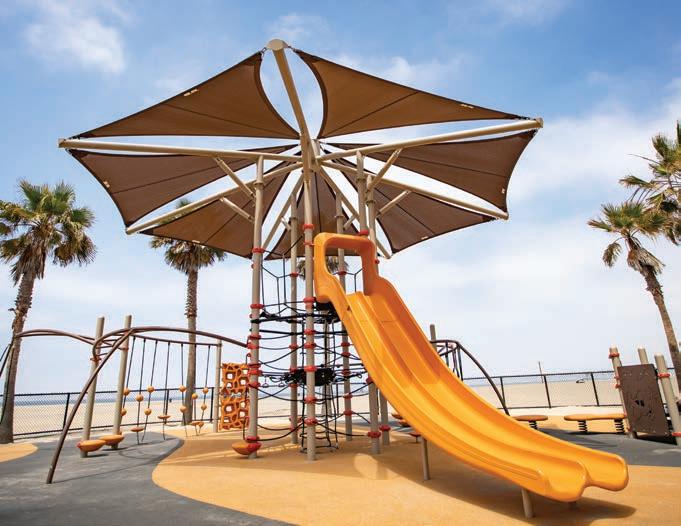

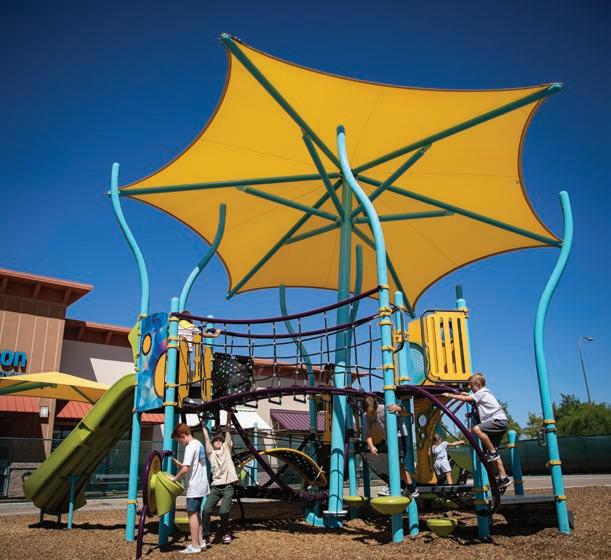

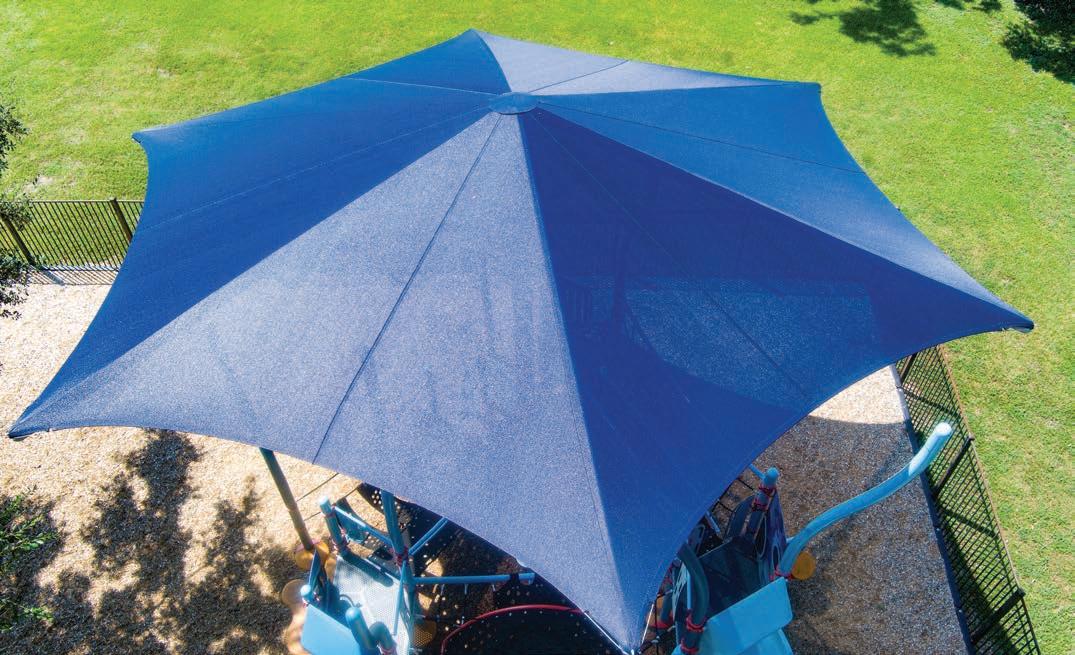

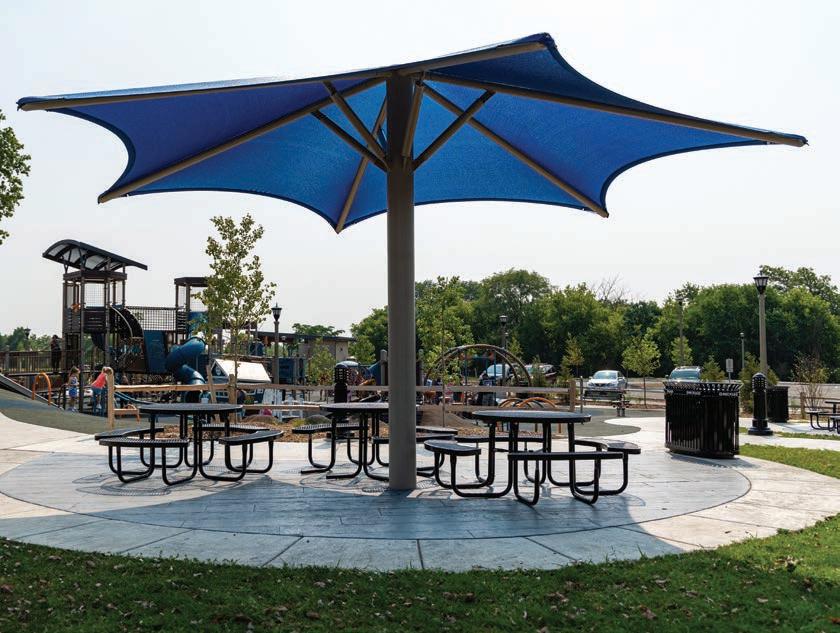

SkyWays Umbrella

A large angled beach umbrella can be integrated into a play structure to add a theming element while blocking sun. Or add an umbrella for lots of shade over chairs, benches or tables.

• Many sizes are available

A. Integrated Umbrella

B. Freestanding Umbrella

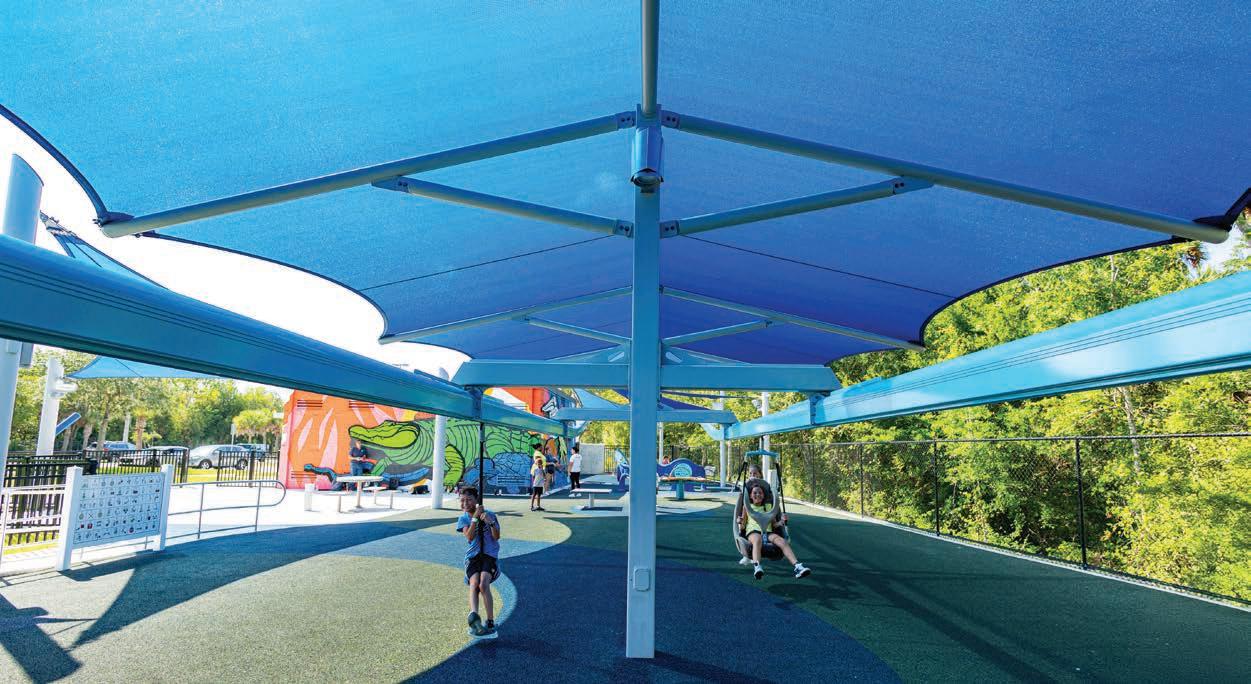

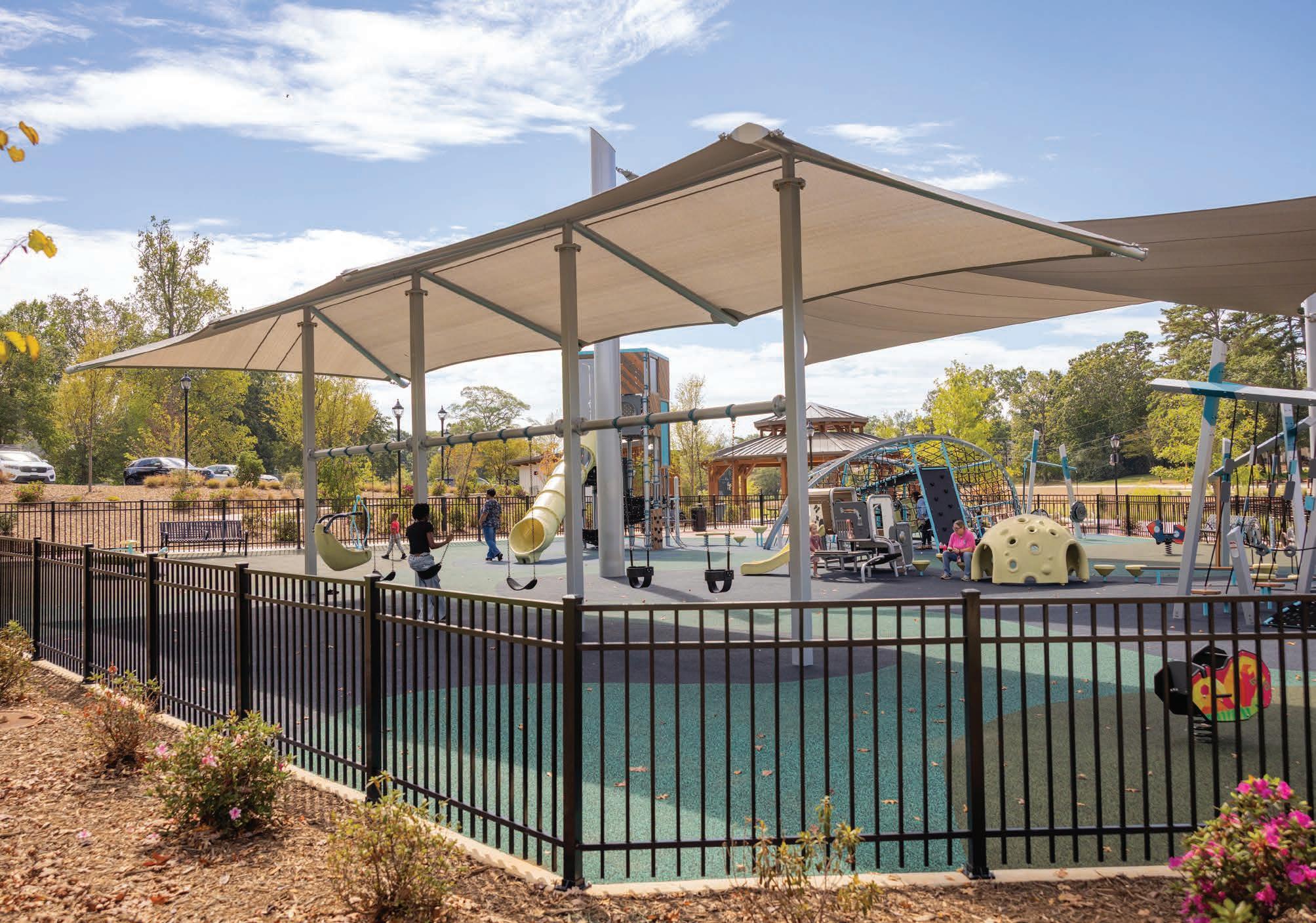

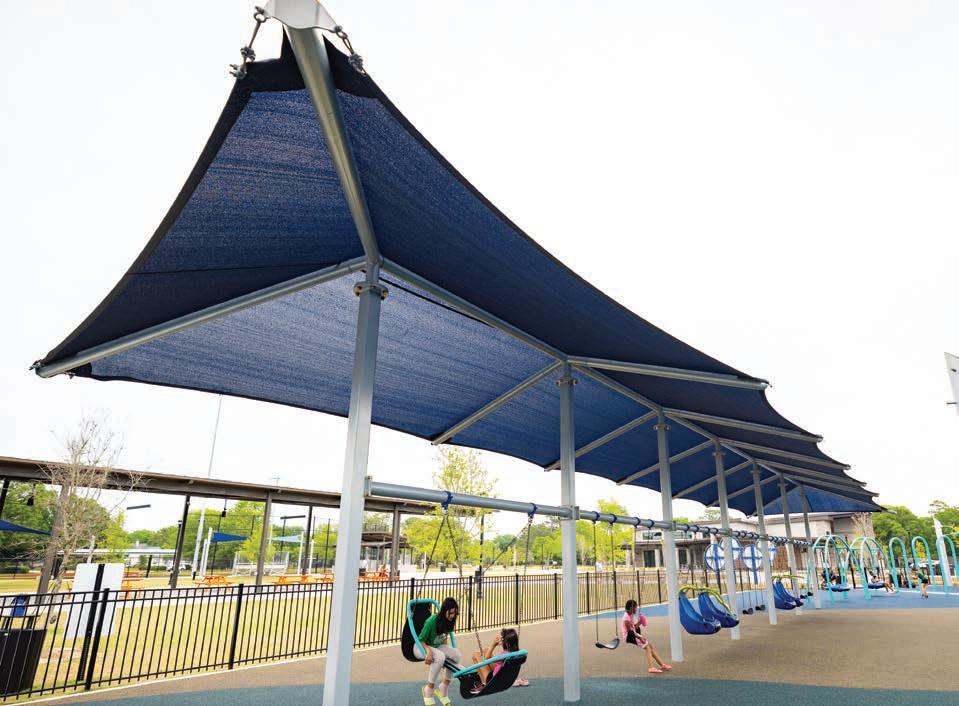

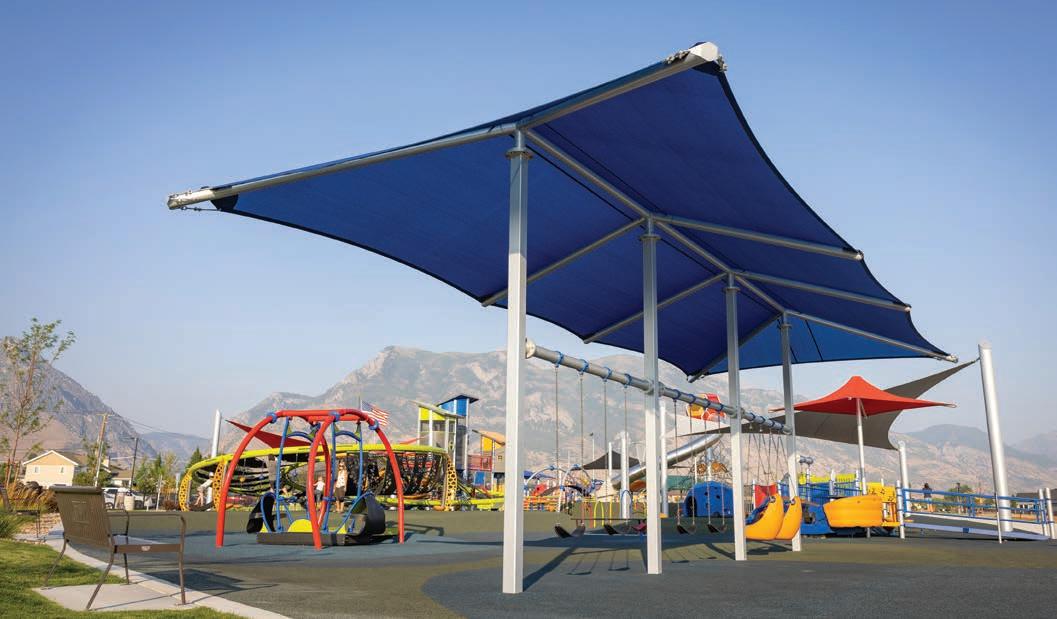

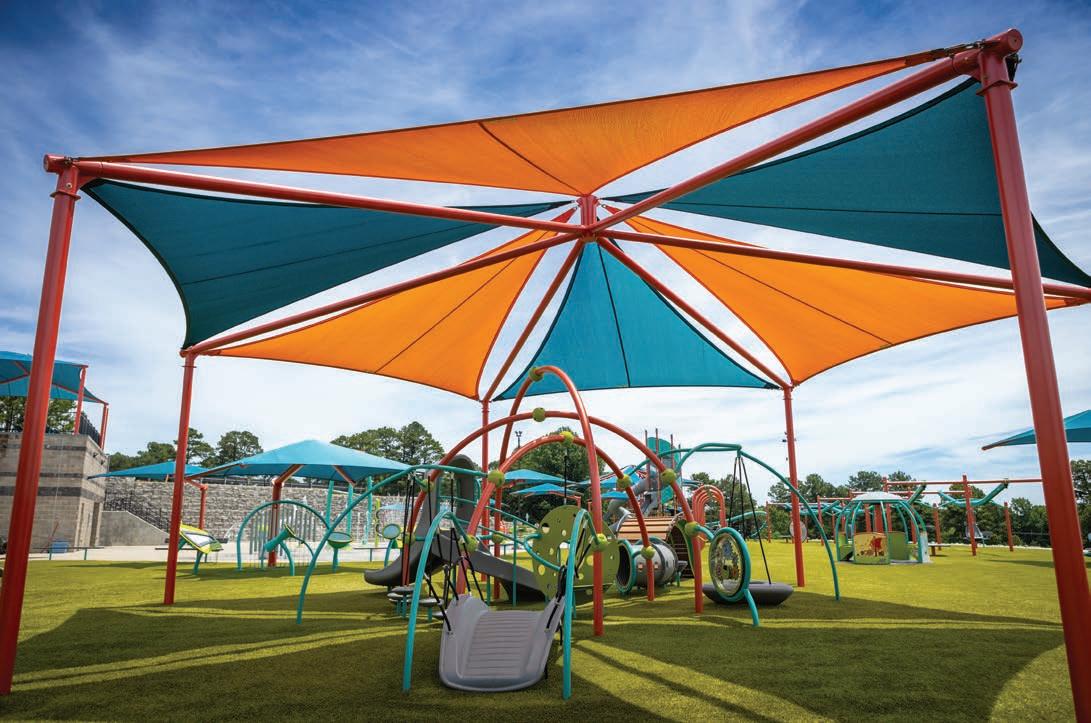

SkyWays Integrated Shade with Swings

Swinging is more fun when kids are cool and protected from the sun.

• Many shade shapes are available

• Available with single or multiple swing bays

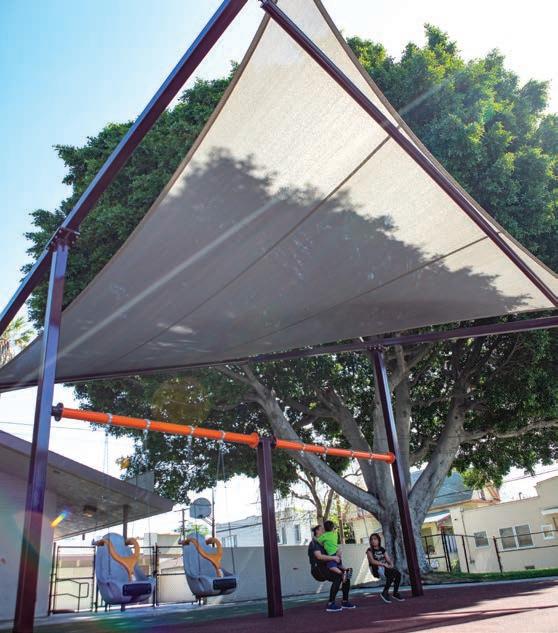

C. Three-Post Hip over Swings

D. Hypar Shade over Swings

SkyWays® Integrated Shade with Sway Fun® Glider

Built-in shade over the Sway Fun Glider keeps kids of all abilities out of the sun.

• Many designs available

SkyWays Integrated Shade with ZipKrooz®

Extended posts support large shade to protect kids from the sun as they zip through the air.

• Many designs available

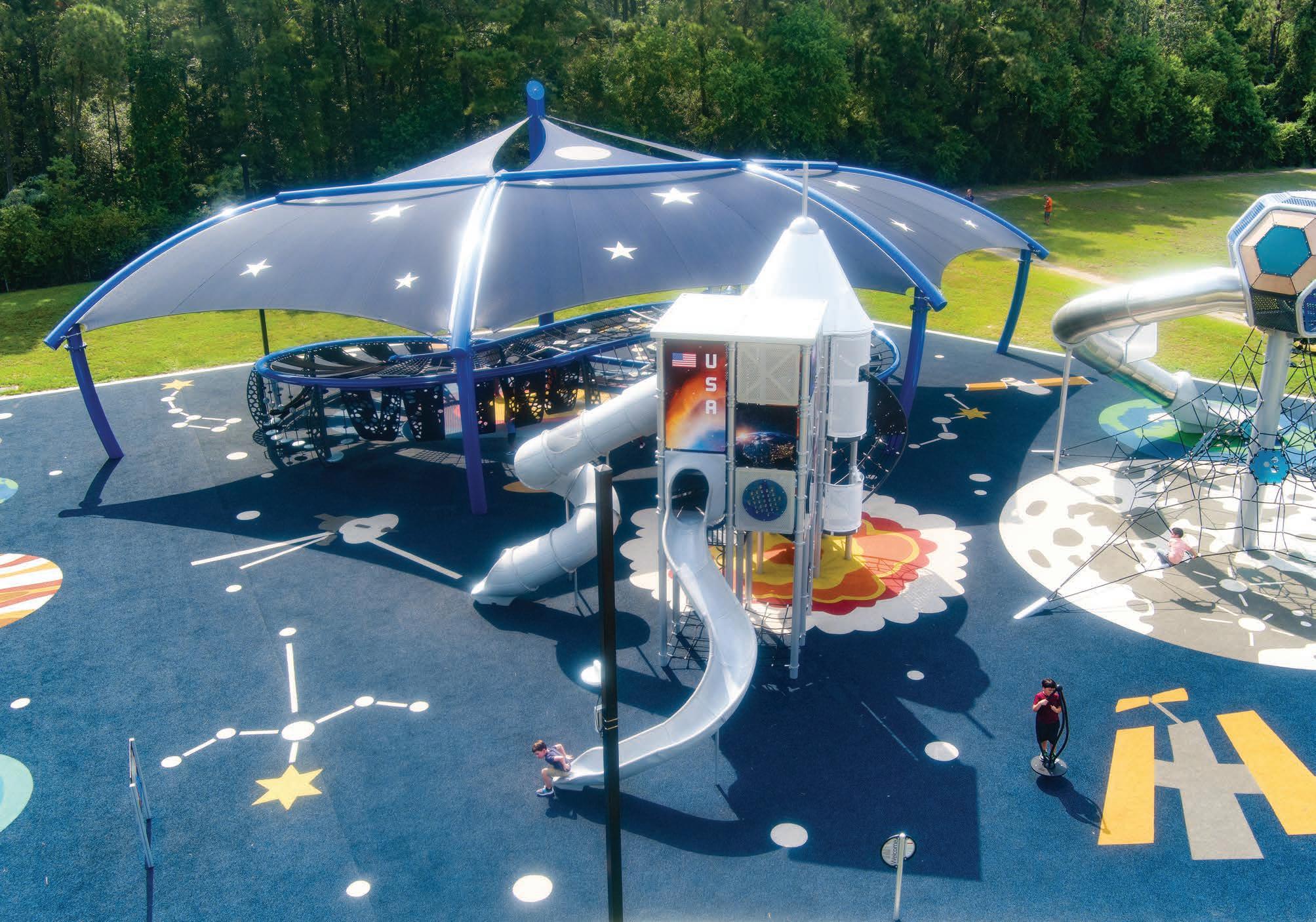

SkyWays Integrated Shade with Lunar Blast®

Kids can climb toward the sky while keeping cool in the shade. Additional play activities extend from the shade posts for more fun.

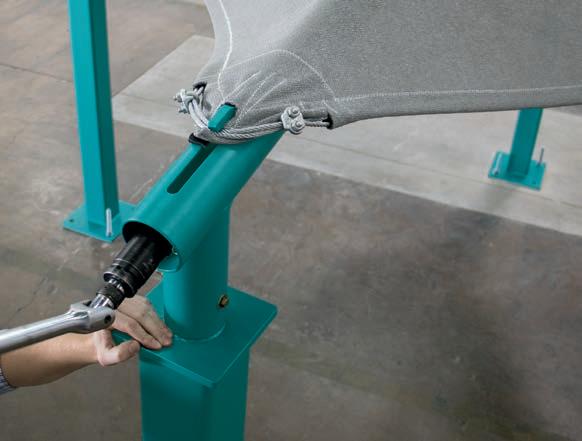

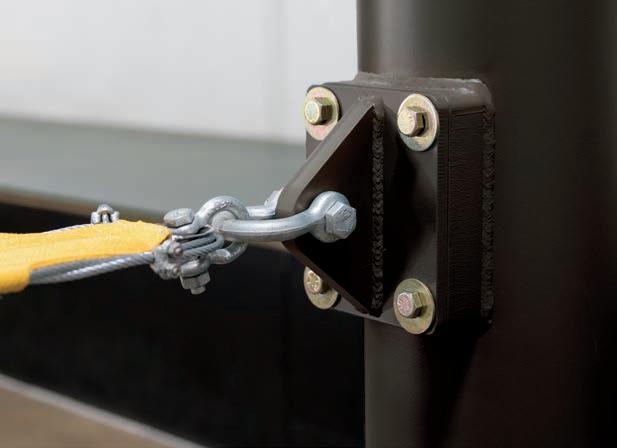

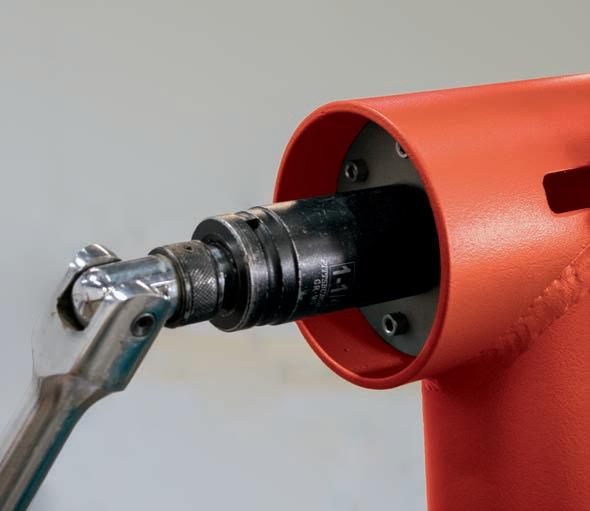

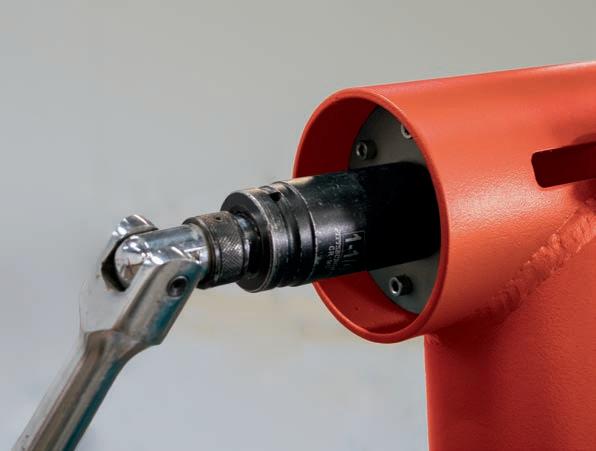

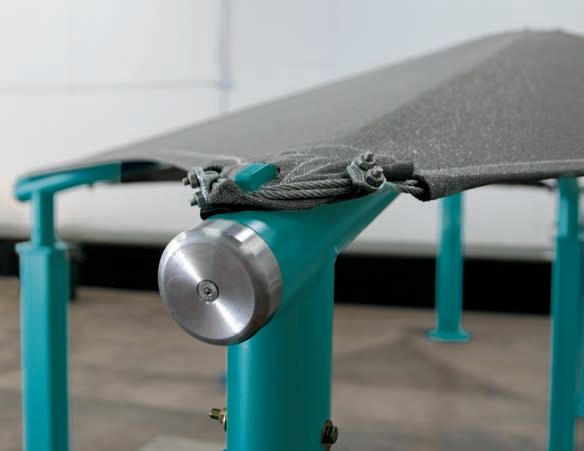

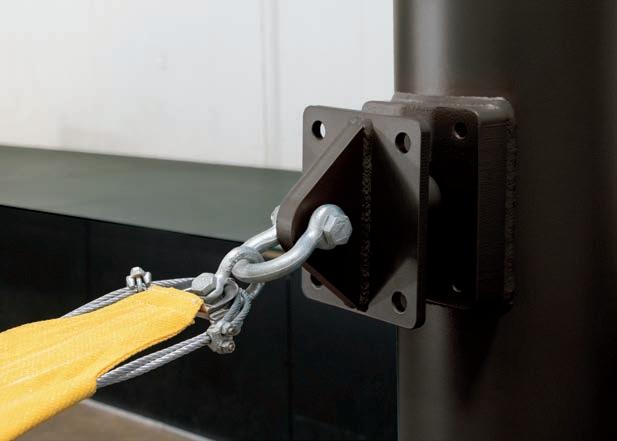

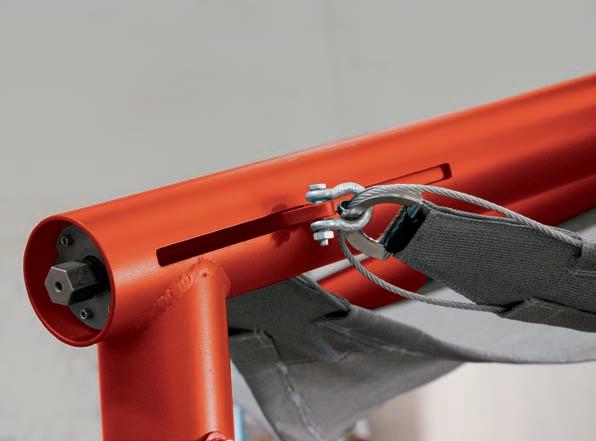

Rapid Release® Technology

There are a variety of reasons why you may want to remove and reinstall your canopy: the changing seasons, to prepare for inclement weather or a desire for a new color scheme. Fortunately, we’ve made it quick and easy for you with our patented Rapid Release system for SkyWays® Shade Products. We’ve designed an adjustable mechanism to quickly release your shades and to ensure that you achieve proper tensioning while reinstalling the canopy with no struggle.

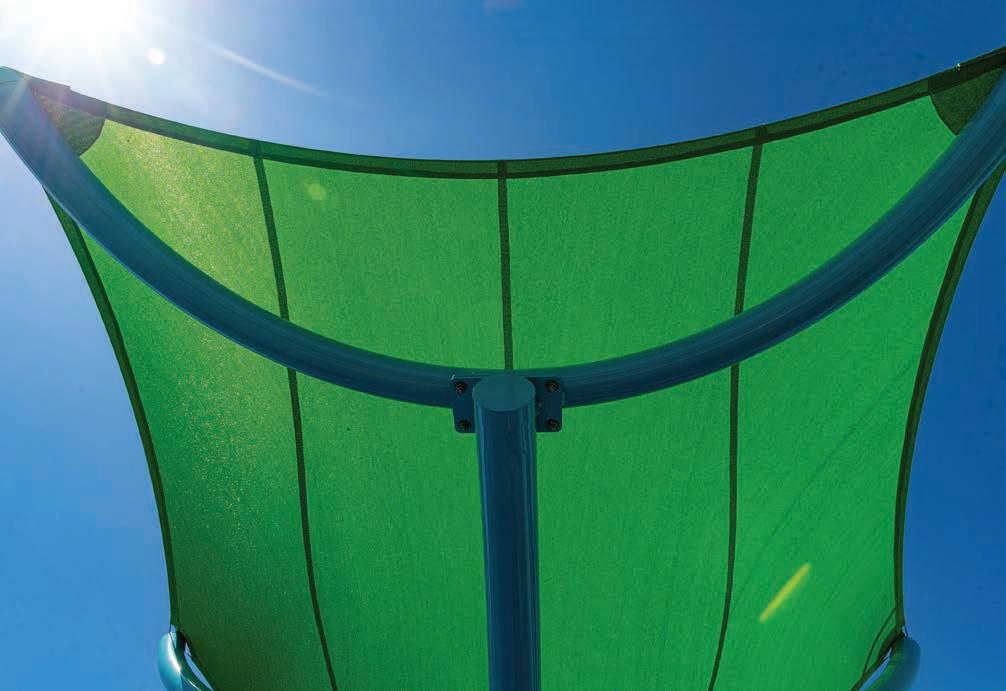

SkyWays® Flame-Resistant Fabric

SkyWays and CoolToppers® Shade Products fabrics are designed to block up to 97% of UV rays and keep playground temperatures up to 30 degrees cooler. Our fabrics are stringently tested and conform to FR standards worldwide.

Post Colors

ProShield® finish is specifically designed to withstand the demands of extreme heat, harsh climates, moisture and UV exposure. Our ProShield finish combines a specially formulated primer with a high-quality, architectural-grade, Super-Durable, TGIC polyester powdercoat. No lead-based paints.

Landscape Structures® Playground Equipment

Since 1971, Landscape Structures commercial playground equipment has brought communities together through play that challenges, inspires and connects people of all ages and abilities. Designed and built by our employee-owners, each playground reflects our passion for quality, innovation and inclusion. From imaginative themes to groundbreaking play experiences, we transform the landscape of play every day. Visit playlsi.com or view the Landscape Structures playground catalog for more information.

• Industry leader in innovative, inclusive and sensory-rich playground designs for all ages and abilities

• Durable, low-maintenance equipment engineered for safety, longevity and endless fun

• Custom design capabilities to reflect community themes, environments and unique site needs

• Comprehensive product portfolio, including playsystems, freestanding components, fitness equipment and site furnishings

• Highly trained local playground consultants provide personalized guidance from concept through completion

To learn more about Landscape Structures playground equipment, or to view the Landscape Structures virtual catalog, visit playlsi.com/play-catalog

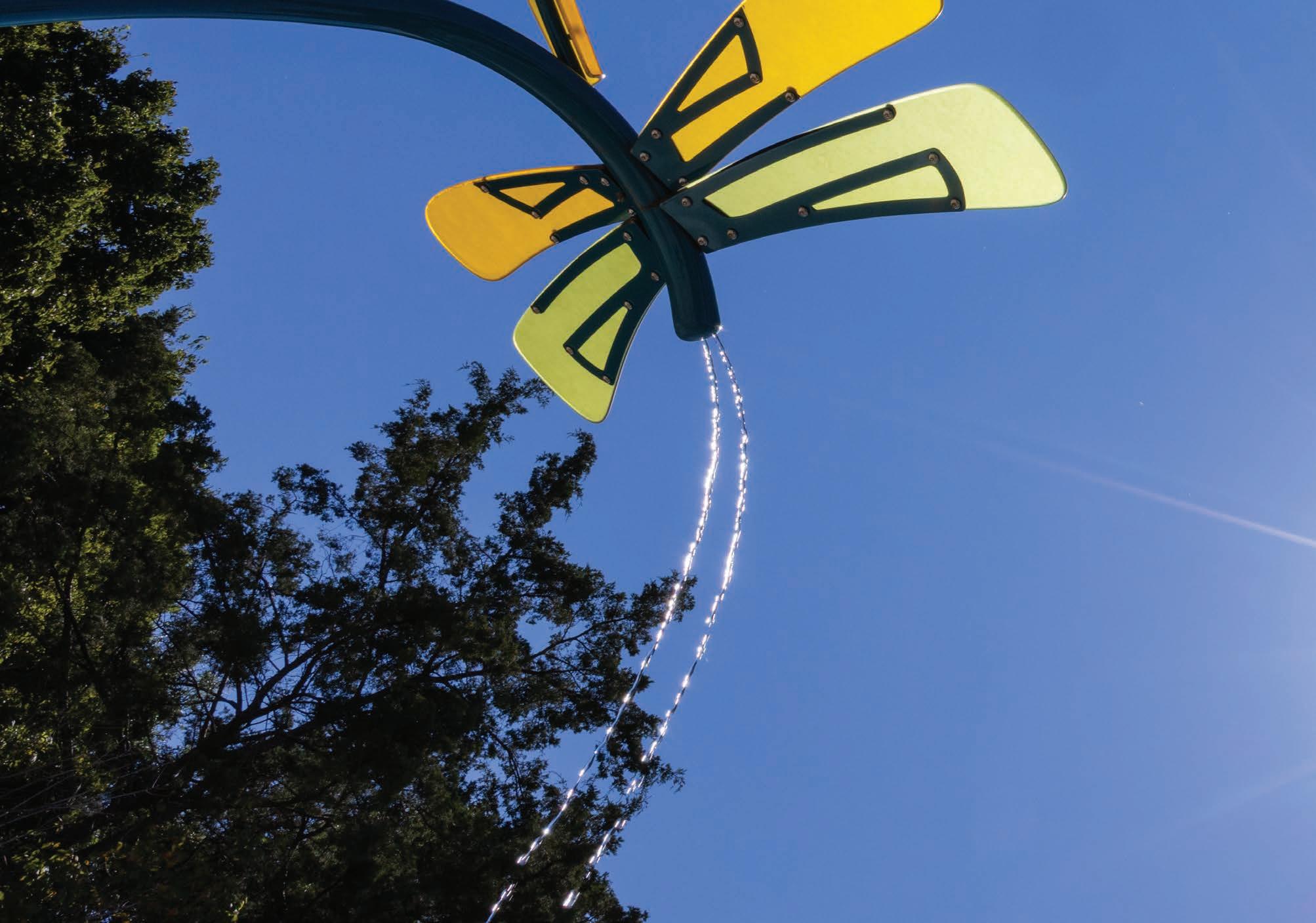

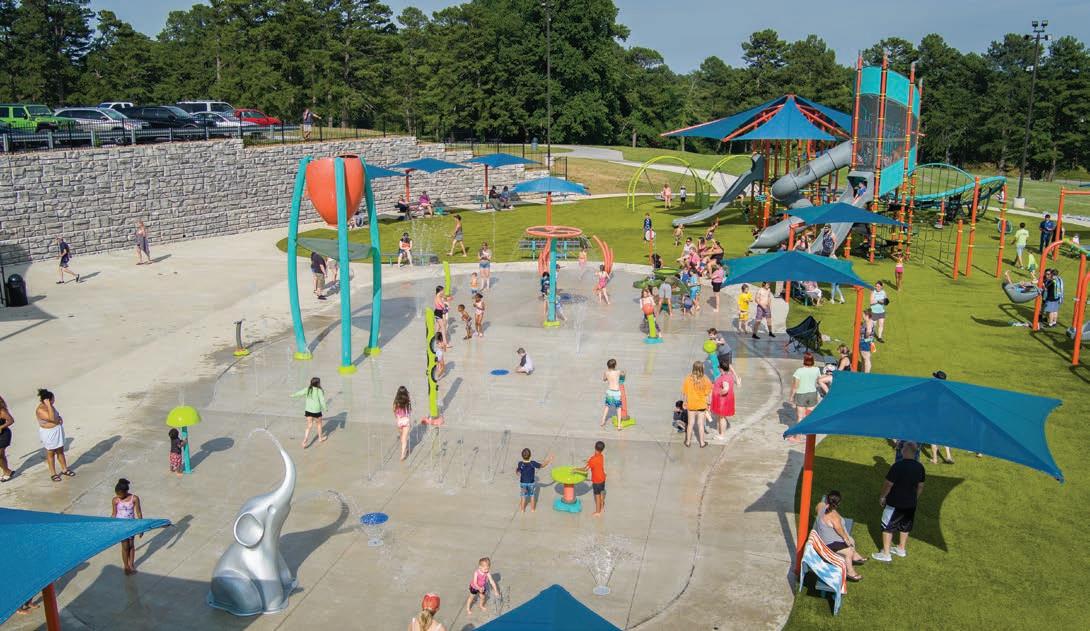

Aquatix® Splash Play

Aquatix splash play products deliver imaginative concepts that keep kids of all ages and abilities entertained and exploring new experiences in water. Aquatix splash pads are the perfect complement to a Landscape Structures® playground, or can stand alone in any park, city center, campground and more. Visit aquatix.playlsi.com or view the Aquatix catalog for more information.

• Over 300 safe, interactive, inclusive features with a variety of water effects from misters to bubblers to water showers and dumping buckets

• Manufactured with various materials such as fiberglass, stainless steel, plastics and GFRC. All are durable and sealed with our multi–step polyurethane finishing system, which is specifically designed to help prevent wear and fading caused by chemically treated water and UV rays.

• AquaSmart® packages, powered by HydroLogix®, eliminate the need for costly electrical installation while reducing water consumption

• Create thrilling interactive fountains with a combination of lights and water feature sequencing that stops people in their tracks

• Experience the future of splash pad installation with MecH2O™, where speed, simplicity and efficiency converge to elevate your splash pad projects

To learn more about Aquatix, or to view the Aquatix virtual catalog, visit aquatix.playlsi.com/ virtual-catalog

Find More

The team to serve you.

Our consultants are an essential part of our team. They are the most knowledgeable in the industry and know exactly what it takes to create a space that communities will appreciate for years to come. Get in touch with your SkyWays® by Landscape Structures® consultant to make your project vision a reality.

The contracts to assist you.

SkyWays is proud to have been awarded several national purchasing contracts. These contracts are nationally available, competitively bid, government-to-government procurement services. Through these contracts, SkyWays offers the best pricing on all of our quality products while satisfying your bid law requirements.

Manufacturing & Maintenance

Made with Expertise

Making the most of the expanded space and capabilities that our facility offers, our experienced SkyWays® team designs and builds only the most exceptional shade products. At every point in the process—from designing and engineering to welding and powdercoating the steel to cutting and sewing the fabric—attention to detail is paired with an unwavering commitment to lasting quality and satisfaction. It’s a point of pride to see our state-ofthe-art shade products soaring into the skies. We take that pride back with us, infusing each new order with the precision and dedication necessary to deliver outstanding shade creations.

Easy Care and Maintenance

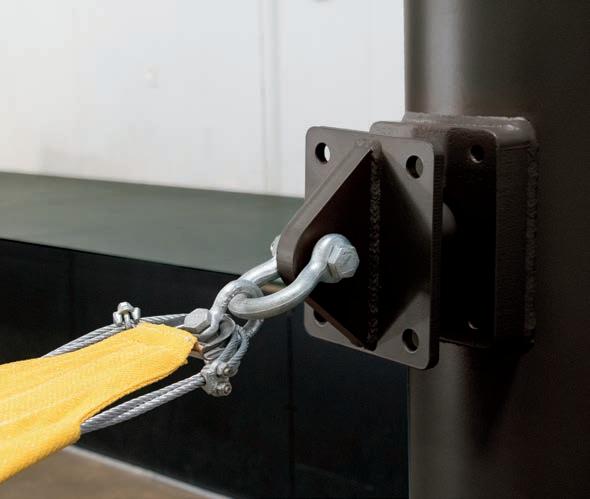

• SkyWays Shade Products use corrosionresistant steel fastening hardware

• Recommend yearly washing using a power washer or water hose and a light detergent

• The SkyWays design permits fasteners to be easily removed for fabric storage

We are certified to both ISO 9001:2015 and ISO 14001:2015 standards. These provide guidelines for establishing our quality and environmental programs (www.iso.org). Offering a process-oriented structure, ISO 9001:2015 is customer focused and emphasizes continuous improvement in quality while ISO 14001:2015 drives us toward operating in a manner that is environmentally conscious.

Additionally, being an AISC Certified Fabricator, a Clark County Approved Fabricator, and a Los Angeles Department of Building and Safety Approved Fabricator demonstrates our commitment to building in quality from the beginning.

Specifications

SkyWays standard shade products are designed to meet or exceed most local building code requirements. Different specifications may be custom engineered for geographical or locationspecific requirements.

SkyWays Shade Products are available in different mounting configurations to meet a wide variety of installation environments.

Contact your local consultant for individual product specifications and configurations.

We comply with the rigorous standards established by some of the most recognized quality certification programs for the structural steel industry, so you can feel confident about the superior quality of our shade products.

SkyWays offers a variety of DSA PreCheck models engineered to receive California Division of the State Architect Over-the-Counter approval the same day. Contact your local consultant for model information.

Installation

SkyWays offers a variety of options to support the installation of your project, including pre-planning technical support, an installation help line, on-site consulting and/or assistance and full turnkey installation services.

Warranty

You Have Our Word

More than just a contract, our warranty is our personal commitment that you’ll be satisfied with your purchase now and well into the future. As an employee-owned company, we take great pride in the quality of everything we make. And we’re so confident that you’ll be delighted with your purchase that we back our products with the most comprehensive long-term warranties in the industry. It’s just one more way that we show how much we care about our customers and communities.

20-Year Limited Warranty On all SkyWays and CoolToppers® steel components against structural failure due to material or manufacturing defects.

10-Year Limited Warranty On all SkyWays and CoolToppers fabric and thread against failure from significant fading, deterioration, breakdown, mildew, outdoor heat, cold or discoloration. This warranty is limited to the design loads as stated in the manual, and applies to standard colors only.

3-Year Limited Warranty On all other parts, including Rapid Release®, against failure due to corrosion/natural deterioration or manufacturing defects.

Landscape Structures®

shade fabric creates an island of sun-safe cool

SkyWays products are engineered for super durability. Our breathable shade fabric is made of high-density polyethylene (HDPE).

Designed to block up to 97 percent of the sun’s UV rays and keep temperatures up to 30 degrees cooler, it is also resistant to mildew, fading and ultra-violet rays, making it a long-lasting, great-looking addition to any space. SkyWays uses knitted mid-duty HDPE as our standard, one of the strongest standard fabrics available in the industry, leading in tensile, tear and burst strengths.

We also have heavy-duty fabric available as a custom option for very large spans. We reinforce all corners with 16-ounce non-tear vinyl and all pockets with protective webbing where steel cable enters or exits.

Learning Academy

As an authorized provider of continuing education credits from IACET, AIA and LA CES, we are pleased to offer educational sessions that best fit your needs. Learn more at playlsi.com.

The environment near a saltwater coast can be extremely corrosive. Some corrosion and/or deterioration is considered “normal wear” in this environment. Products installed within 500 yards (457 meters) of a saltwater shoreline will only be covered for half the period of the standard product warranty, up to a maximum of five years, for defects caused by corrosion. Products installed in direct contact with saltwater or that are subjected to salt spray are not covered by the standard warranty for any defects caused by corrosion.

This warranty does not include any cosmetic issues, wear and tear from normal use of the product, or misuse or abuse of the product. This warranty does not cover damage or failure resulting from natural disasters, including but not limited to flooding, fire, earthquake, hurricane, or other catastrophic events. This warranty is valid only if the equipment is erected to conform with Manufacturer’s installation instructions and maintained according to the maintenance procedures furnished by Manufacturer. Maintenance is particularly critical in regions where dirt and/or sand may cause abrasion of the fabric.

This warranty is void if conditions exceed design loads.

To see the entire warranty, visit playlsi.com.

Customize Your Shade Even Further

Own your shaded spaces.

Add a logo or design to your shade fabric—or have our design team create one for you. Show your colors with custom multi-panel tops. We are also able to integrate electrical elements such as handholes, lighting mounts/connections and more.
