Ducted Controller Touch Pad
PRODUCT UPDATE WI-FI CONTROL FOR FUJITSU DUCTED HEAT PUMPS* NEW! Temperature Sensor with Push Button Syncing
NEW!
Temperature Sensors

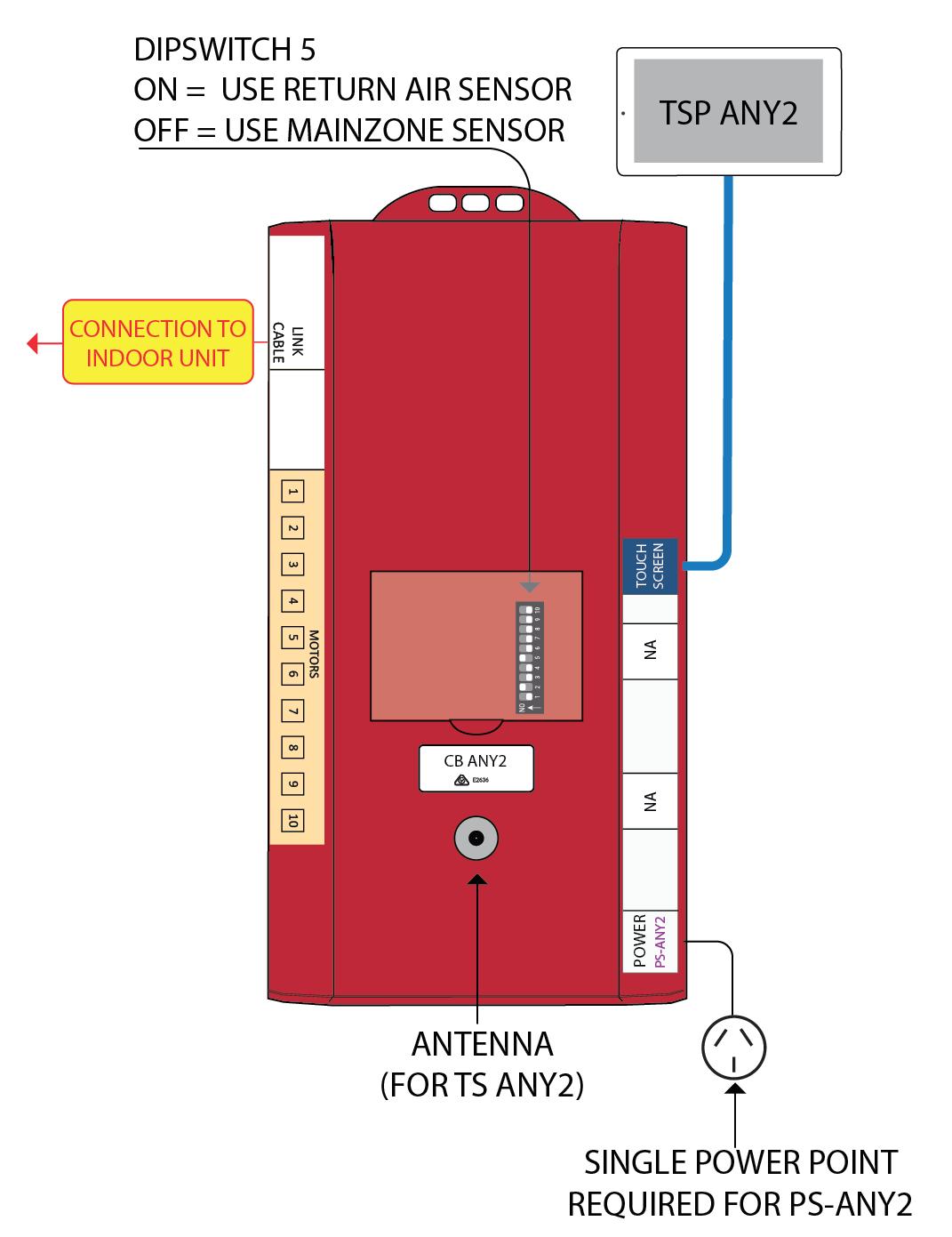

The new TS-ANY2 temperature sensors now have push button to easily pair with the control box. This will reduce interference from other systems in the area and allows easy connection in close proximity projects such as apartments and townhouses. TS-ANY2
UTY-ANY2

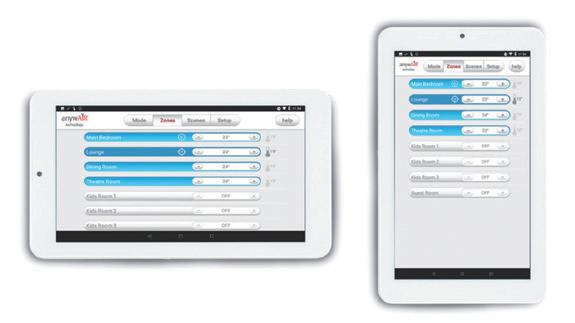

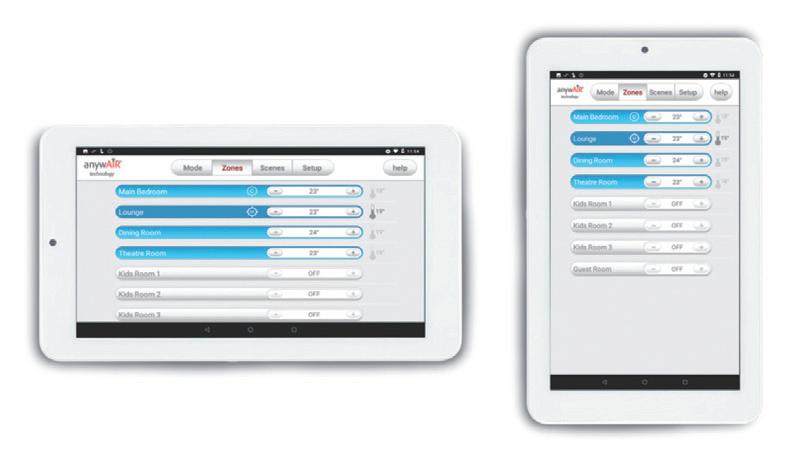

Easy to Use Touchpad

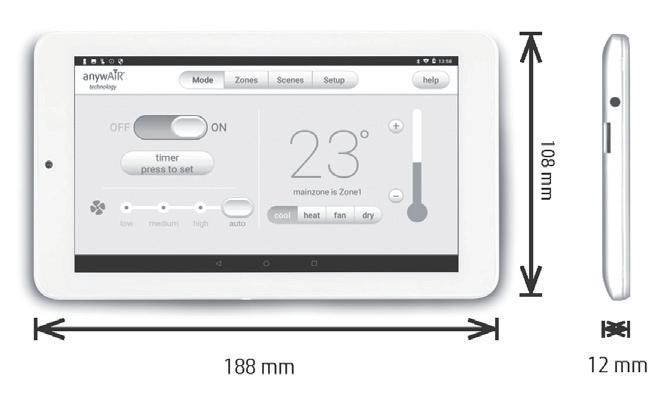

Mounted portrait or landscape to the wall by a Fujitsu heat pump specialist, the anywAiR® technology ducted controller is simple to set-up using a Google Play Store account. The touch pad is the central point from which to operate the air conditioner and can be used to manage a variety of Android apps such as weather, recipes, music and other home automation apps.

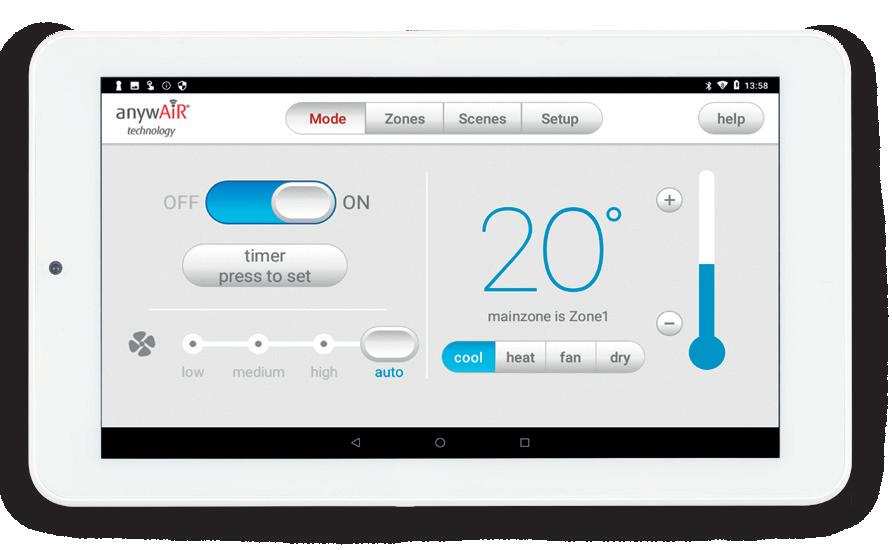

Simple Control Features
Basic control features of the anywAiR technology ducted controller touch pad include:
AC Control
On/Off, fan speed, set point and mode
Timers
Scenarios
Turns aircon on/off after a set time
Program scenes via custom settings
Temperature Controlled (VAV)^
Variable Air 0-100% Volume (VAV) Select the percentage of airflow for each zone
Control temperature and airflow in up to 10 zones
Programmable Scenarios
Create up to 12 custom scenes to run a series of commands at the touch of a button or at a chosen time. Commands can include turning the unit on and off, changing the mode or temperature, and selecting which zones are open. Scenarios such as going to work, coming home and bedtime can be programmed to control the air flow and temperature to rooms required at set times.
Variable Air Volume (VAV)#
Variable Air Volume (VAV) control allows the user to select the percentage of air flow for each zone from 0 to 100 percent, in 5 percent increments. This gives you greater control of airflow to each zone to better meet your comfort needs.
Temperature Controlled (VAV)#
Variable Air Volume (VAV) control allows the user to select the percentage of air flow for each zone from 0 to 100 percent, in 5 percent increments. This gives you greater control of airflow to each zone to better meet your comfort needs.
Wi-Fi Control
The Fujitsu General anywAiR® technology ducted controller provides Wi-Fi control for Fujitsu ducted air conditioning systems via a wall mounted touch pad. Remote access is available using the anywAiR App, giving control of your ducted system anytime, anywhere with selected smartphone and tablet devices.
*The anywAiR App is only compatible with a selected range of Fujitsu General ducted air conditioning when the optional anywAiR technology ducted controller is installed. It is not a standard inclusion when purchasing a Fujitsu ducted air conditioning system and must be installed by a Fujitsu air conditioning specialist. ^Requires optional individual room sensors to be installed. #VAV control is achieved by adjusting the opposed blade damper to control the airflow. The airflow fan setting (high/med/low/ auto) of the system works independently to this function.
