Jiahao (Fred) Ge, a visualizer, travels through the galaxy of mind to dedicate himself in creating works with no boundaries. While currently studying in B.arch program in SCI-Arc, he is building up architectural thinking within his gift in perception of space. Ge is enthusiastic to push hisself to create something beyond, something contrasts to what people know. He like to spend hours in studio and enjoy brainstorming in the world he creates.

In Ge’s mind, Diving into the architecture world is to find “fruits of confrontation”. Along with curiosity, Ge challenges ideas through different forms and materials, in which his projects focus not only on the aesthetic presentation of work – Such as renders and animations – but also on the thesis within drawing sets. While working in studio, Ge’s mind is freeing despite the body is in an enclosure. Ge always find his passion in solving problem in digital way. Ge does not follow routine to build-up his idea – He loves experimenting with different medias and define objects through his discovery. In SCI-Arc life, Ge is awarded for continuous scholarship. He was Teaching Assistance in his third year for second year studio. Outside of campus life, He interlink music into visualization of space and attend workshops often.

CONTENTS Positions I Design Development Assembiles II Assemblies I Worlds II 06 24 28 50 72

FRUITS OF CONFRONTATION

4A is meant to prepare students for their thesis before they enter vertical studios, by exposing students to a range of positions and discussions surrounding a set of architectural issues.

The objective of the Position Studio is to design an expansion for SCI-Arc that adds 50% more floor space to the existing structure, equating to approximately 4,200 square meters (or 45,000 square feet). This extension should be situated within a designated area surrounding the current building.

Positions I

Fall 2023

Instructor: Zeina Koreitem

FRED GE Positions I SOLIDS STUDY STUDIO KECK HALL LIABRARY ARCHIVE CAFE EXHIBITION PERFORMANCE DIGITAL HOUSE BAR PUBLIC DETOUR COMMUNAL MEDITATION TECHNO AHEAD FOR WORK LIBRARY PROMANADE COMMUNAL SPACE COMMUNAL SPACE COMMUNAL SPACE PUBLIC DETOUR ARCHIVE ATRIUM STUDIO CAFE EXHIBITION PERFORMANCE HALL AUDITORIUM ATRIUM DIGITAL HOUSE BAR TECHNO VENNUE STUDIO AHEAD FOR INSPIRATION AHEAD FOR DISCOVERING CONSTRUCTION WALL DIVISION PROGRAM DIVISION CIRCULATION BRIGHT DARK COLLACTIVE INDIVIDUAL STUDIO GYM RESTROOM PIN-UP PERFORMANCE HALL DIGITAL FABRICATION MEDICATION AREA SMOKING AREA LIBRARY CAR MEET FILM ROOM GAMING AREA MODEL-MAKING LECTURE HALL OUTDOOR ARCTIVITY CAFE EXHIBITION ARCHIVE PUBLIC DETOUR ROOF GARDEN ROOF WALKING BAR TECHNO VENUE

FRED GE Positions I 200’

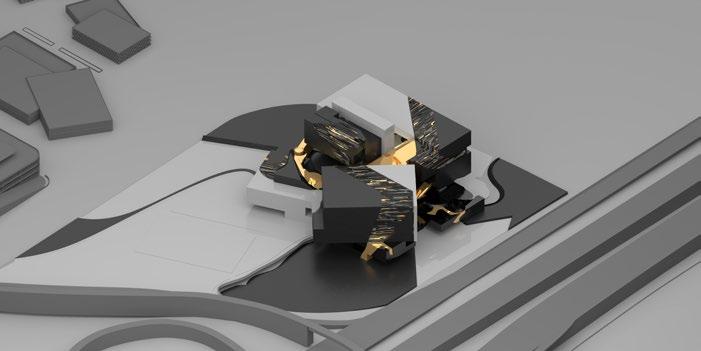

Site Plan Floor Plans (Mass-Void)

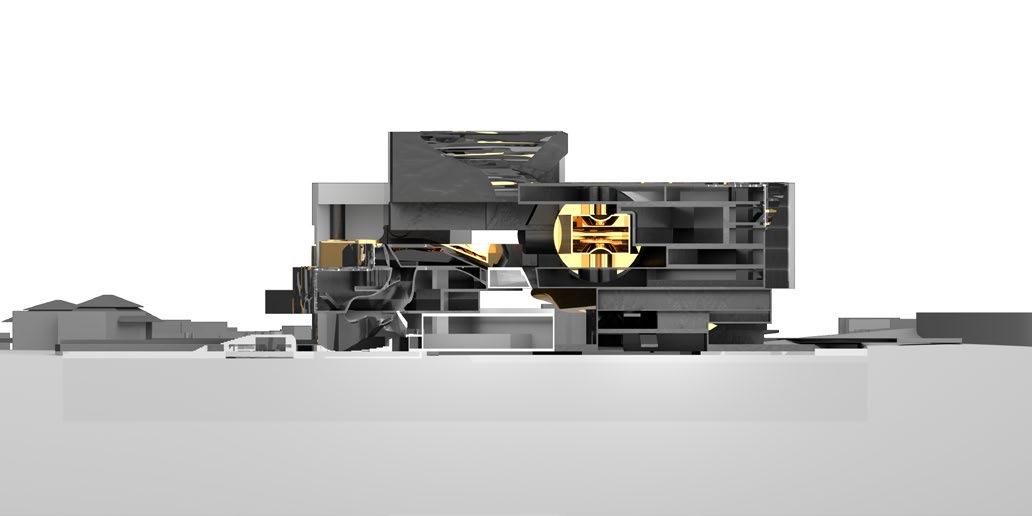

FRED GE Positions I GROUND FLOOR SECTION AA BRIDGE FLOOR SECTION BB

FRED GE Positions I

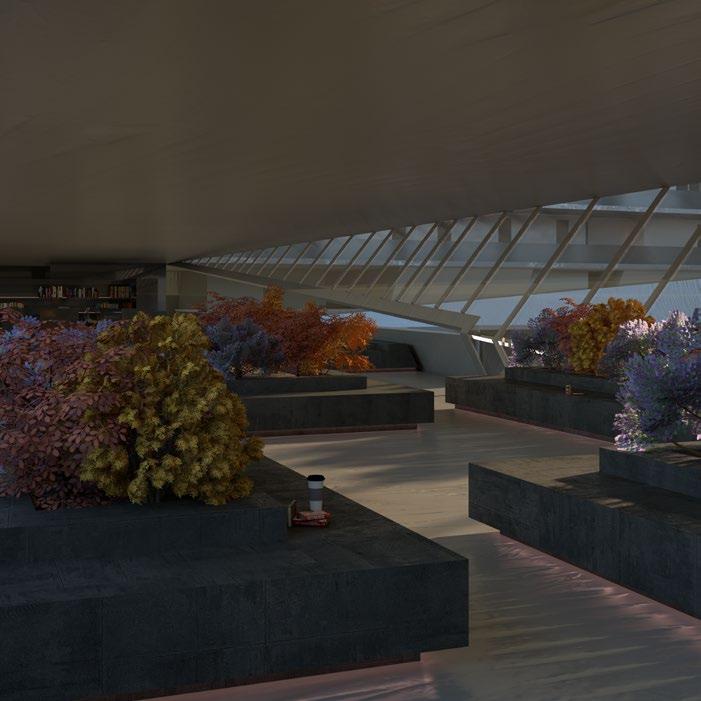

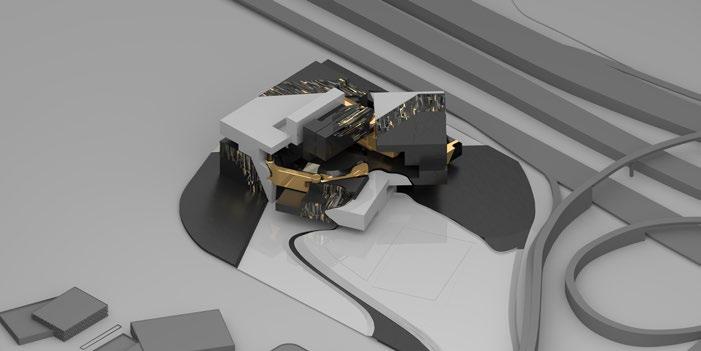

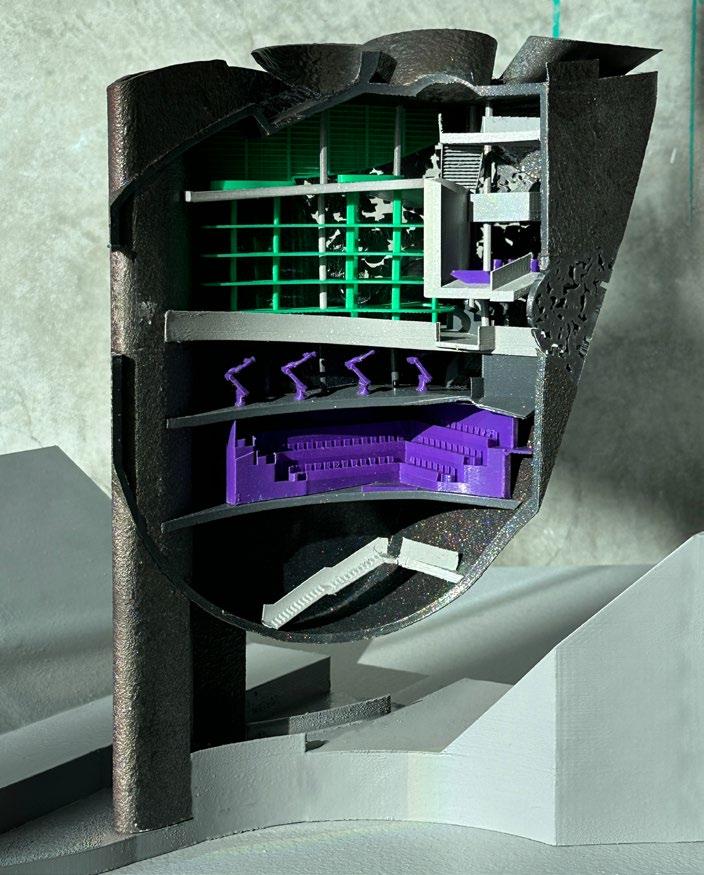

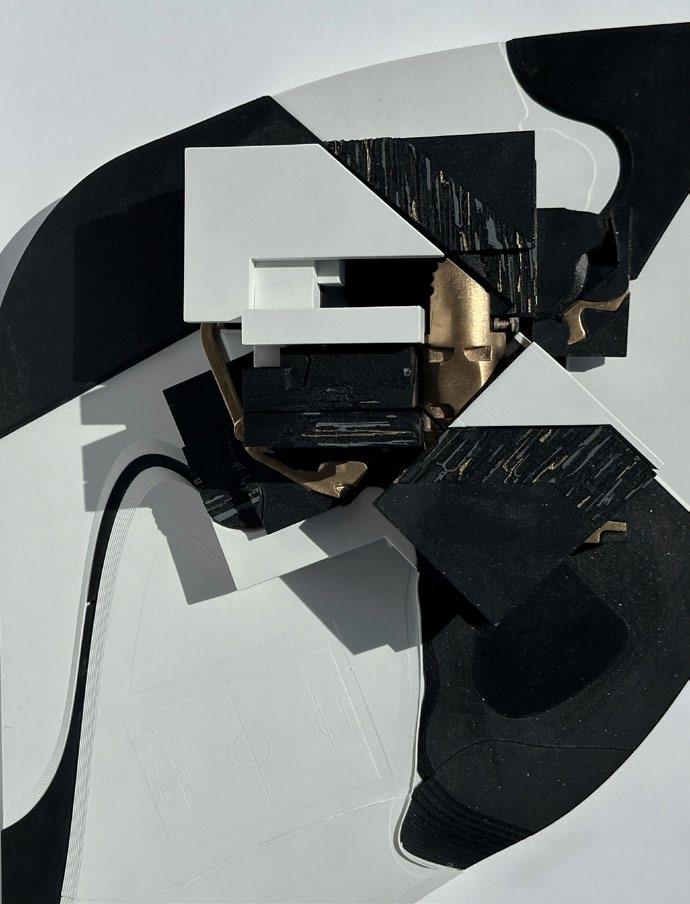

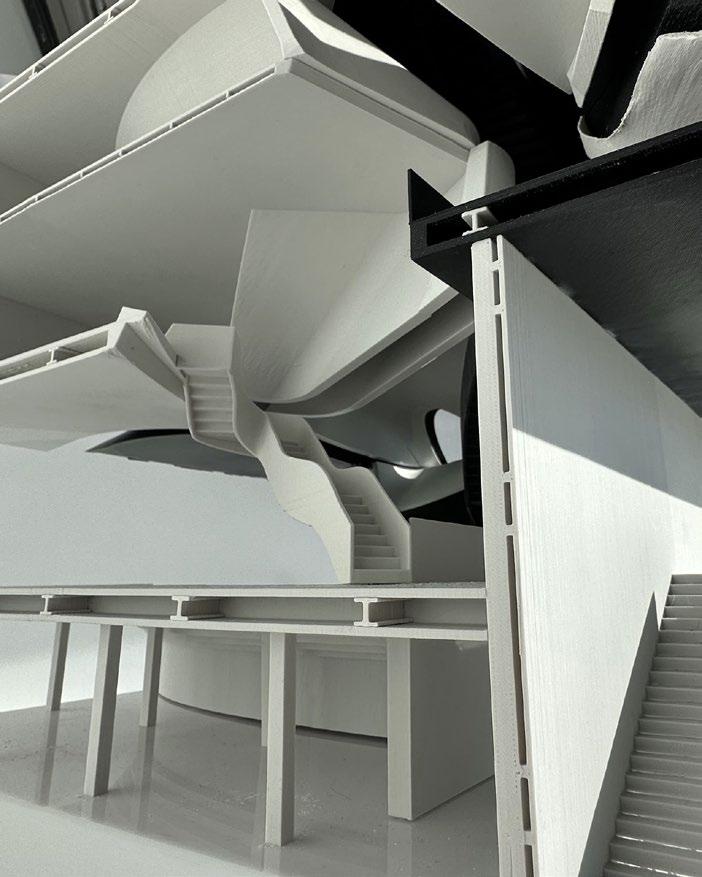

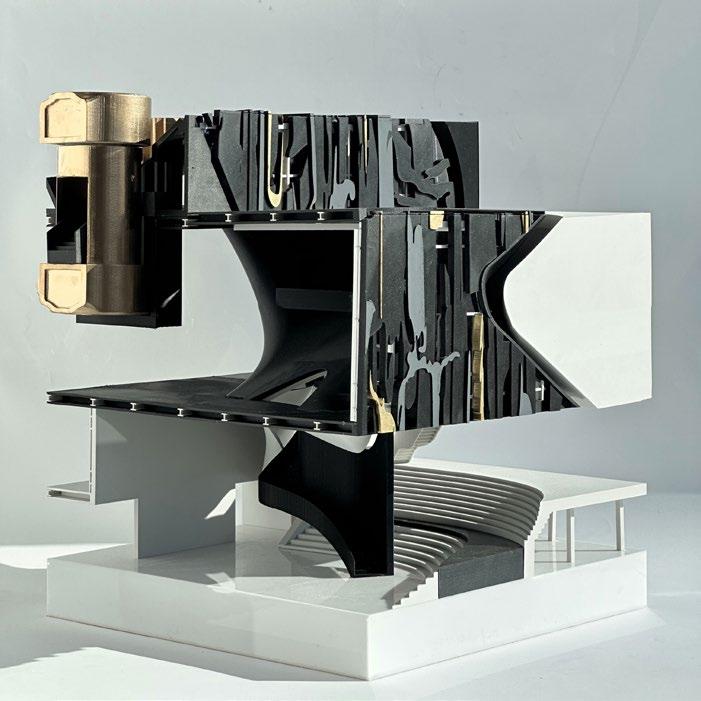

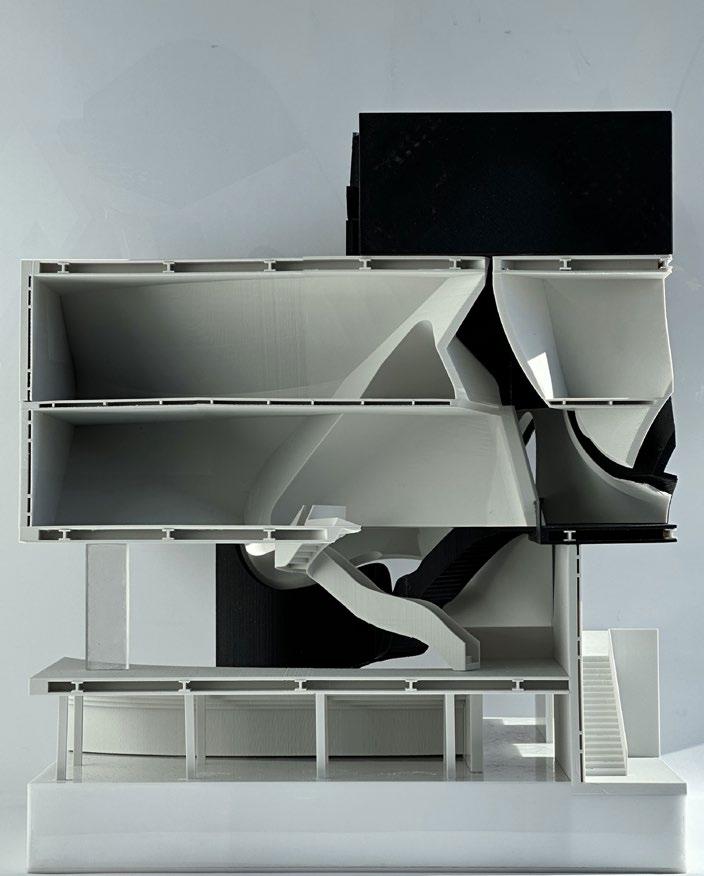

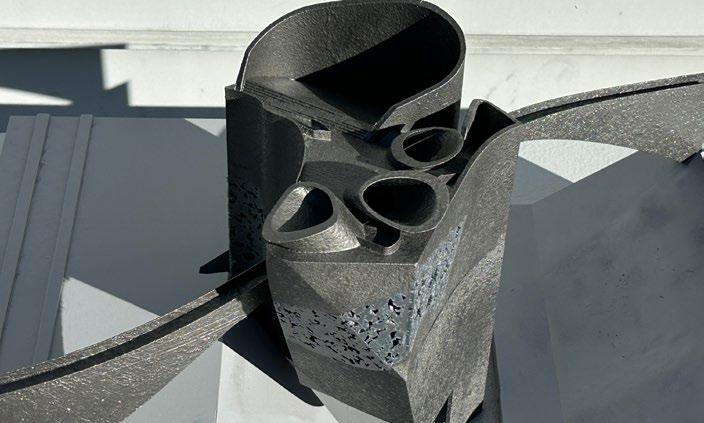

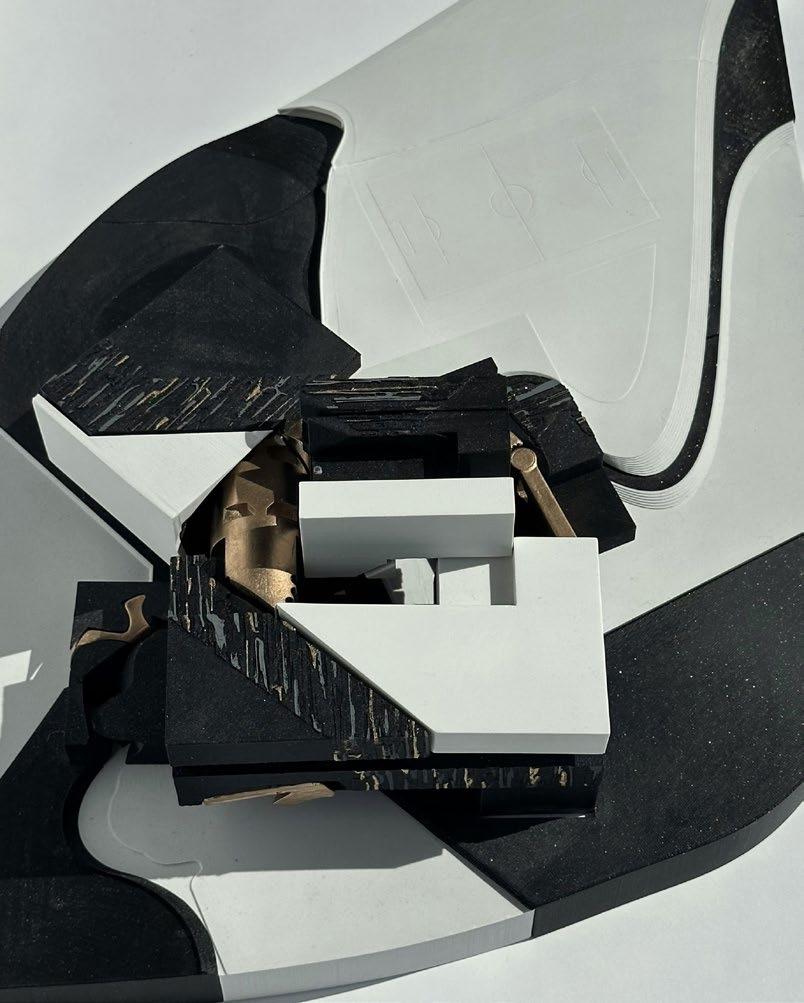

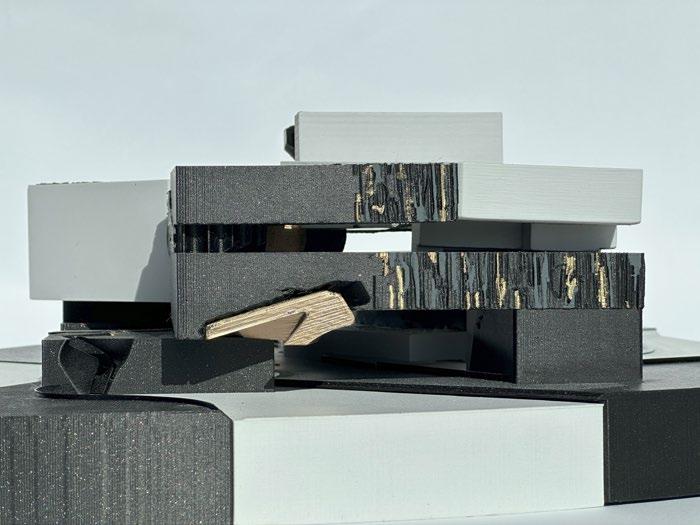

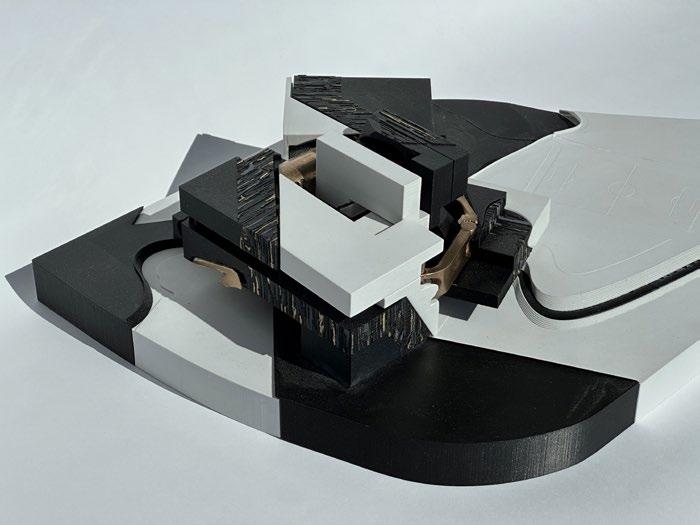

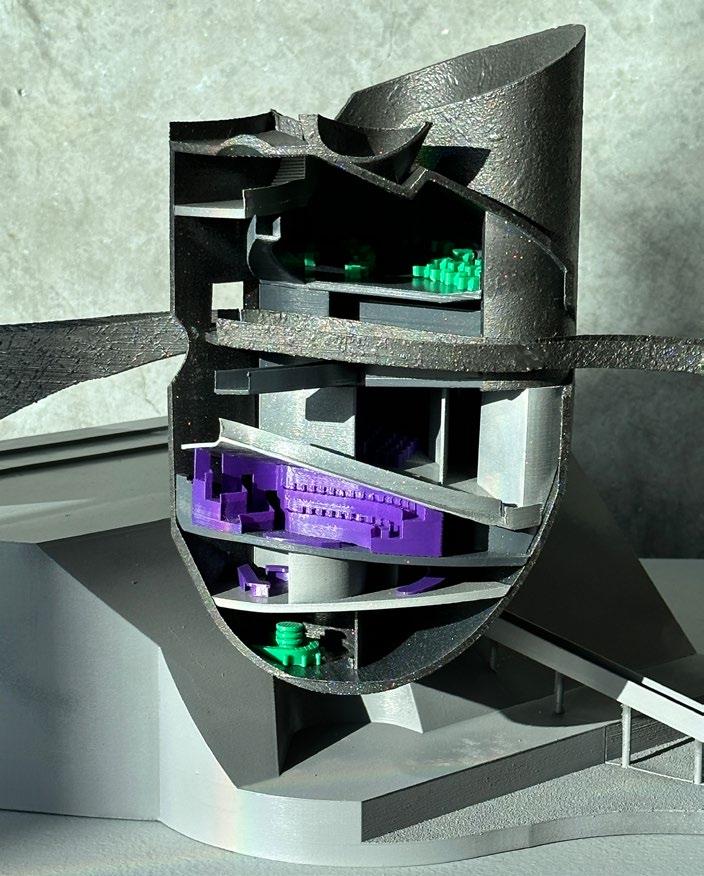

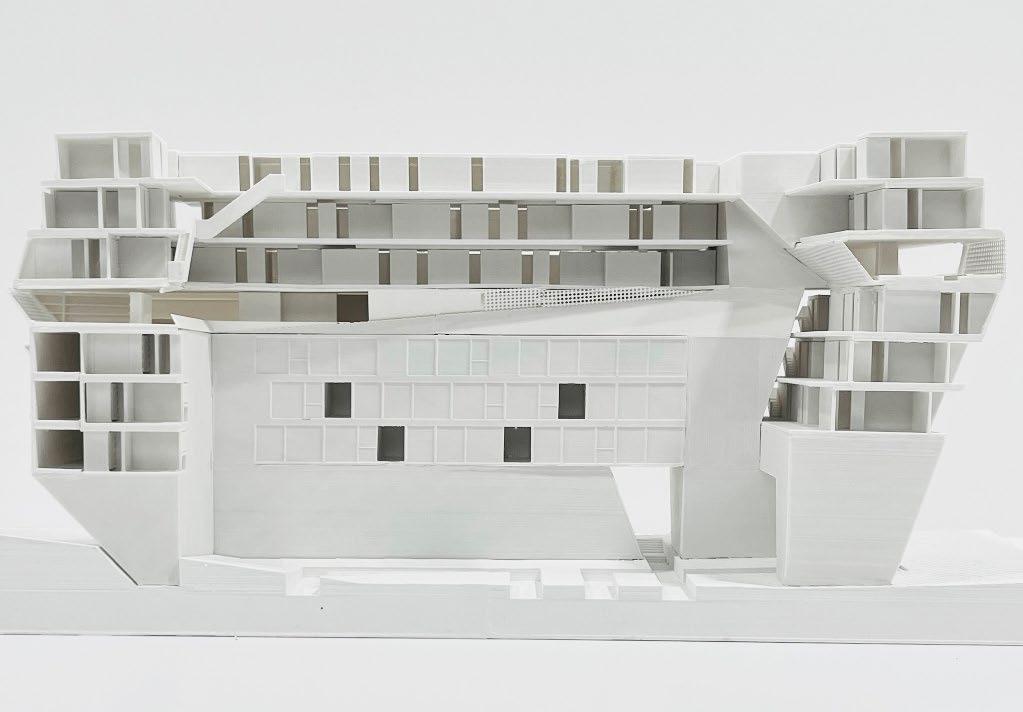

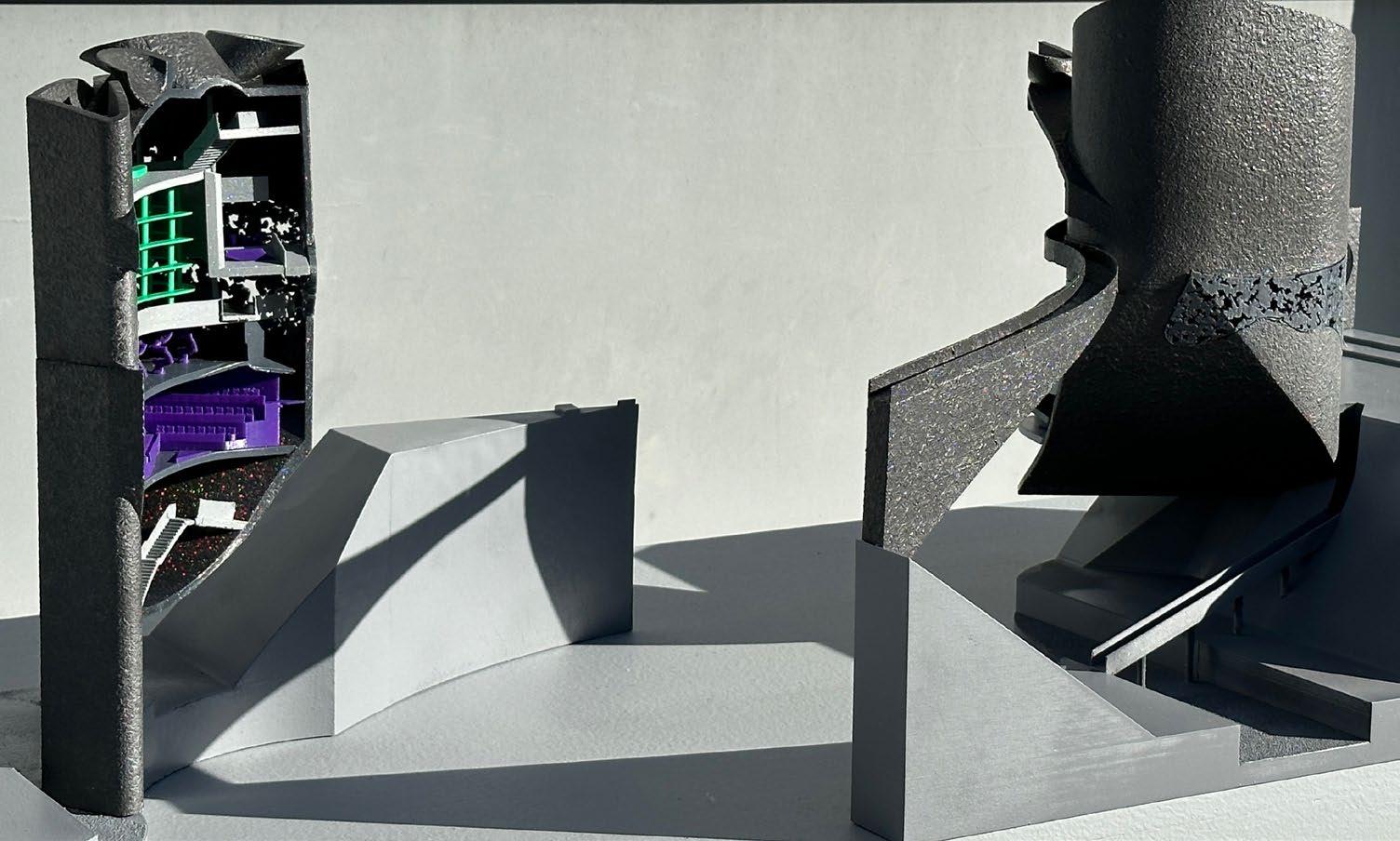

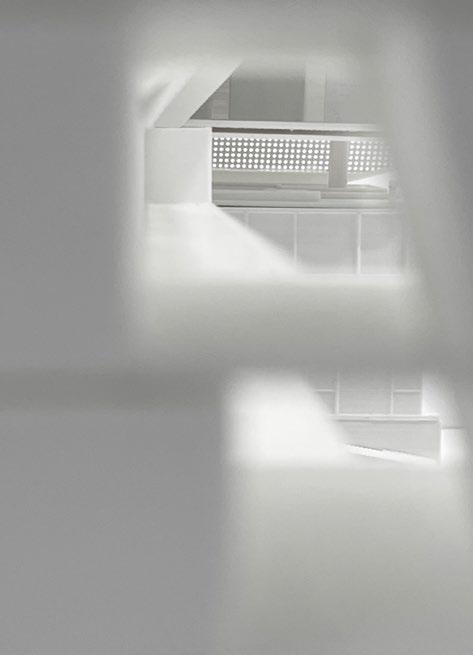

Physical Model (1” : 12’)

FRED GE Positions I

FRED GE Positions I

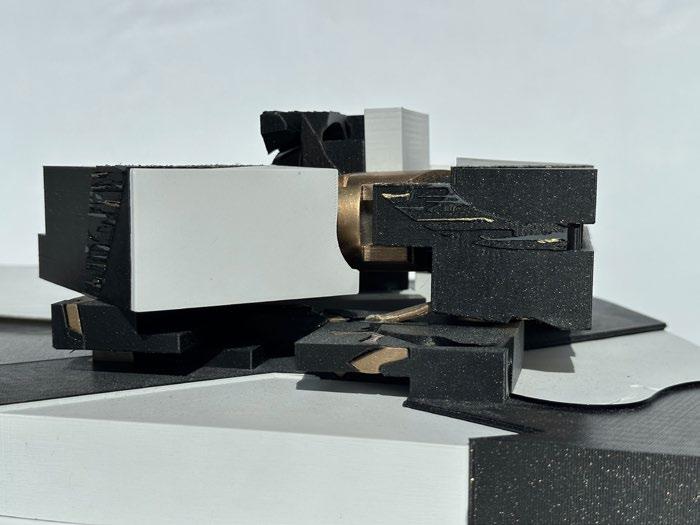

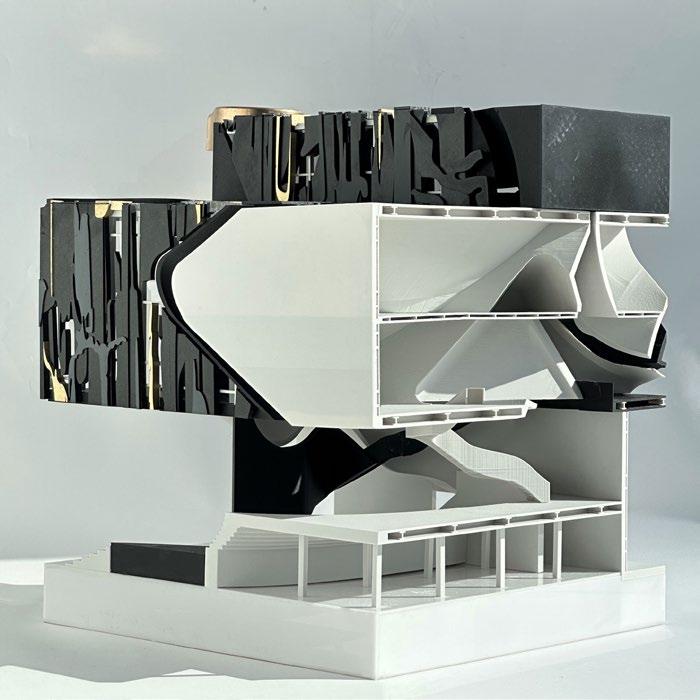

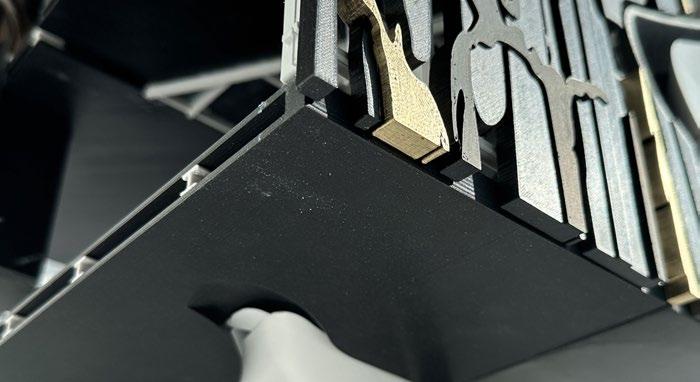

Physical Model (1” : 12’)

https://vimeo.com/902147077?share=copy

FRED GE Positions I

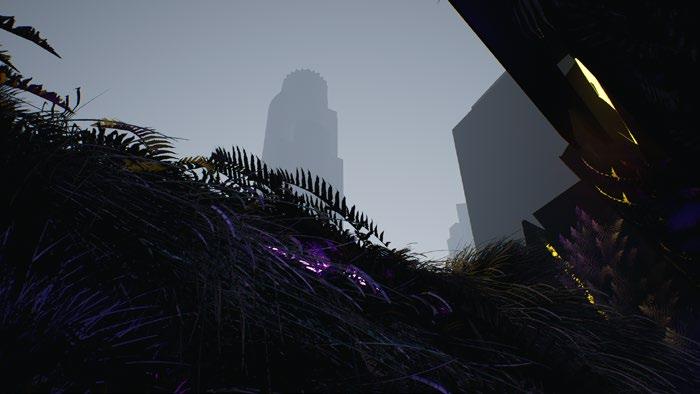

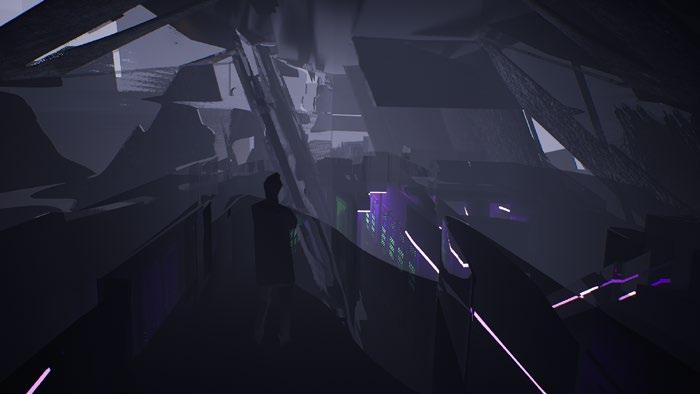

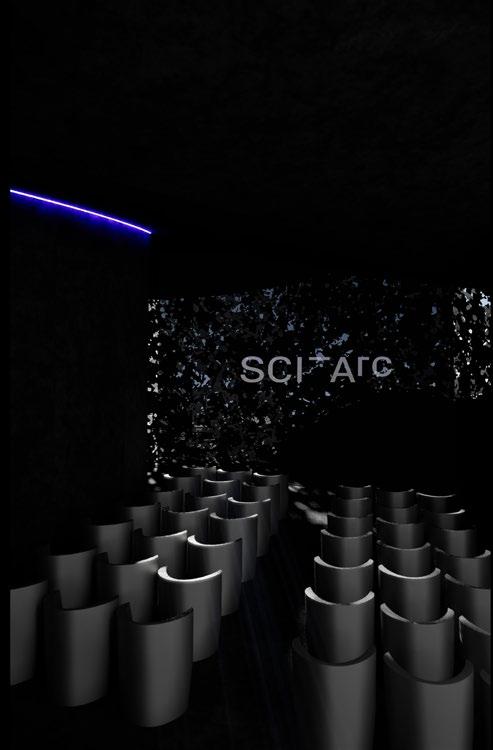

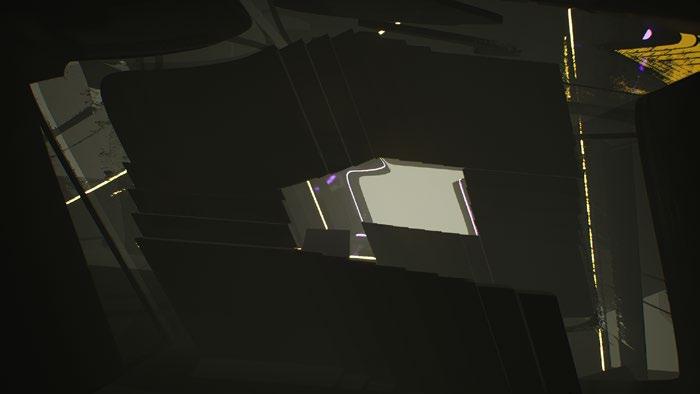

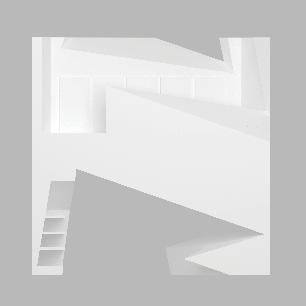

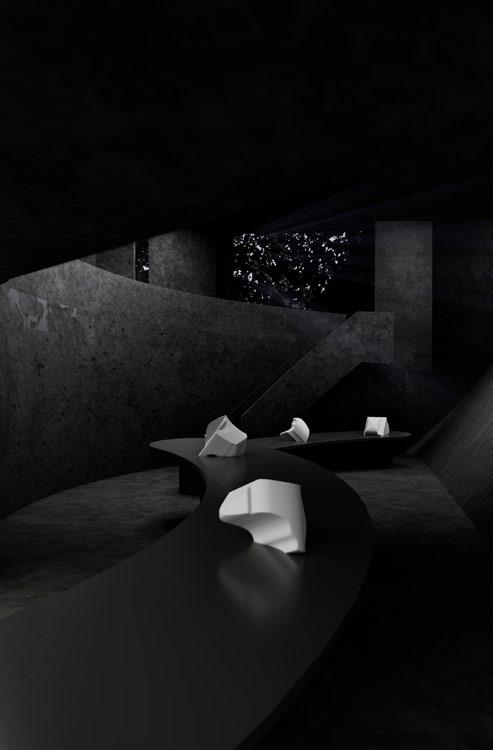

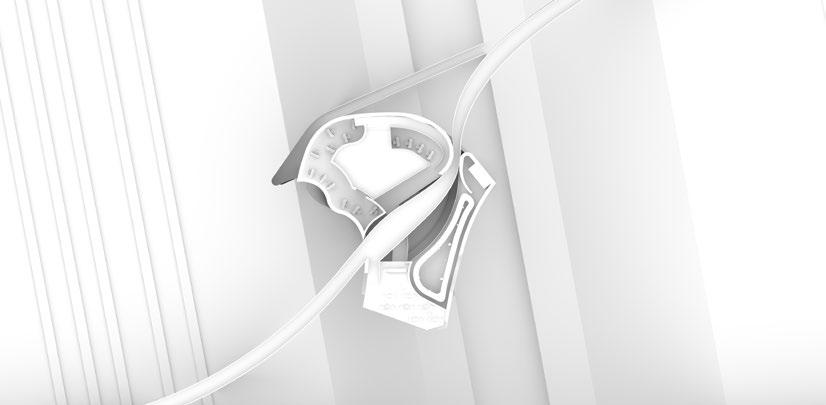

“Trinity“ Animation

https://vimeo.com/902147077?share=copy

FRED GE Positions I

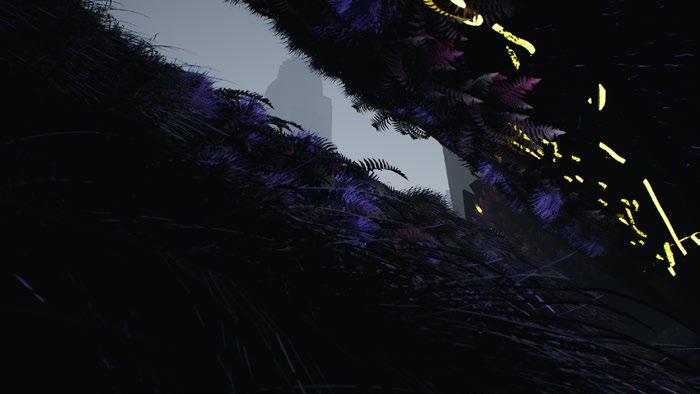

“Trinity“ Animation

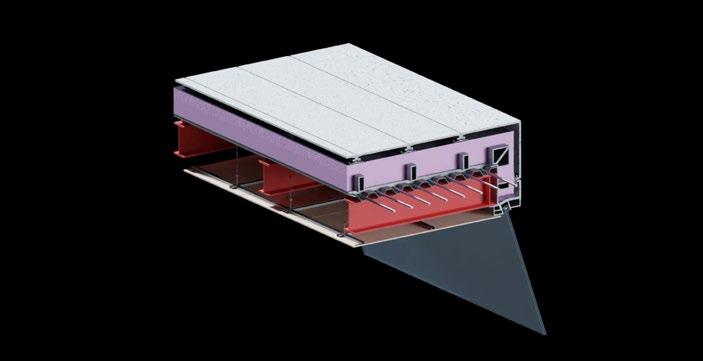

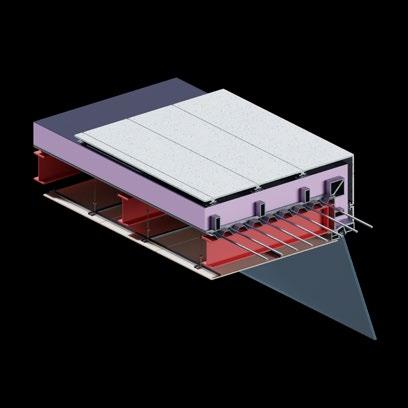

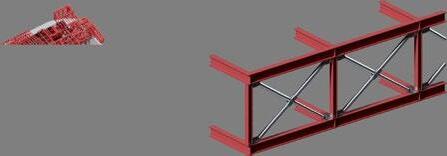

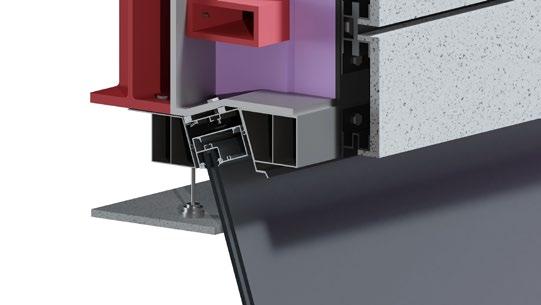

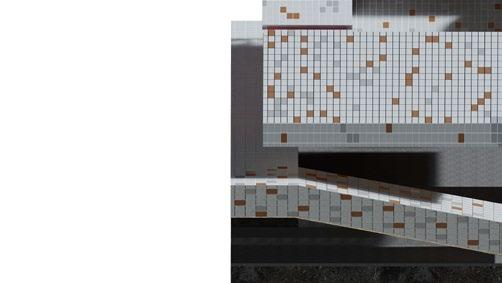

FRED GE Design Development REV S ONS SC -A A -3040 ES GN D VELOPMENT ALL 2023 O N -PRO UC ON C LL BORA E PRO CT: ORIENT AND SHIFT AD RE S 1550 NW 37th A e, M m FL 33125 EAM SP N ER C A - KEV N U - HA AB N Y AN - M R M GH N M - X N ON M - F ED GE - T A V VIVE BHO - BR E A FO GE M NEM ANO P R Z - SEBAS N MCANULT - UN HY ON E - M N HTW - YO SS H CH HA E DRAW N LE S RU TU A SO H EN E R EN R ME T L S S EM J ME Y U ON U T N S 0 S E T NO. A2.0 MATERIAL SELECTION SHEET CHEAP DURABLE LONGLASTING MATERIALS IMAGE PROS CONS CRITERIA GFRC STAINLESS STEEL COPPER LEED MATERIALS CRED IT/IAQ CUSTOMIZABLE HIGH IMPACT RESISTANT EASY TO WORK WITH LONG LIFESPAN SUSTAINABLE CORROSION RESISTANT EXPENSIVE SUSCEPTIBLE TO SCRATCHES AND DENTS DIFFICULT TO CLEAN ENERGY EFFICENT RECYCLABLE DURABLE EXPENSIVE CORROSION STARTS AT 4.7 PH. FLORIDA RAIN AVERAGE IS PH MAINTENANCE SELECTED CUSTOMIZABLE AND VERSATILE EASIER TO REPLACE IN CASE OF DAMAGE NOT SELECTED EXPENSIVE DIFFICULT TO CLEAN SELECTED ENERGY EFFICIENT REDUCE GLARE PREVENT DRAFTS AND HEAT GAIN DOUBLE PANE GLASS EXPENSIVE INSTALLATION SELECTED SUITABLE FOR WINDOWS WITHSTAND LOAD AND WIND FORCES CONCRETE CAN CRACK ENVIRONMENTALLY EXPENSIVE SELECTED NEEDED FOR FOUNDATION LOW THERMAL EXPANSION DURABLE REV S ONS SC -A A -3040 ES GN DEVELOPMENT ALL 2023 O N -PRO UC ON C LL BORA E PRO CT: B ADDRESS 1550 NW 37th A e, M m FL 33125 TEAM SP NCER CLA - KEVIN U - HA AB N YYAN - M R M GH N M - AXA N ONZ M - F ED GE - T A V VIVEK BHO - BREE A FO GE M NEM IANO PER Z - SEBAS IAN MCANULT - JUN HY ON E - M N HTW - YO SS H CHCHA E DRAW N LE S RUCTURA SO HIE PENNE R ENVIR ME T L S S EM J ME Y U CON U T N S 0 S EET NO. A4.0 CONSTRUCTION SEQUENCE STORYBOARD NO DES DA EXCAVATED GROUND EXISTING GROUND PILES RETAINING WALL FOOTINGS AND REBAR CONCRETE SHORING RETAINING WALL BRACES WATER PROOFING CONCRETE PODIUM/PARKING CONCRETE SLABS CONCRETE CORES PRIMARY STRUCTURE CROSS BRACING METAL DECKING GLASS GFRC PANELS REV S ONS SC -A A -3040 ES GN DEVELOPMENT ALL 2023 O N -PRO UC ON C LL BORA E PRO CT: B ADDRESS 1550 NW 37th A e, M m FL 33125 TEAM SP NCER CLA - KEVIN U - HA AB N YYAN - M R M GH N M - AXA N ONZ M - F ED GE - T A V VIVEK BHO - BREE A FO GE M NEM IANO PER Z - SEBAS IAN MCANULT - JUN HY ON E - M N HTW - YO SS H CHCHA E DRAW N LE S RUCTURA SO HIE PENNE R ENVIR ME T L S S EM J ME Y U CON U T N S 0 S EET NO. A3.0 FA AD ELEC ION NO DES DA SYSTEMS IMAGE PROS CONS CRITERIA FACE SEALED CONCRETE SYSTEM THAT ELIMINATES THE OPENINGS ON THE SURFACE OF MASS WALL THAT MAY THE RESULT OF IMPERFECTION CURTAIN WALL CLADDING SYSTEM THAT DEPLOYS LIGHTWEIGHT PANELS FRAME/ MULLLIONS SYSTEM. THIS SYSTEM NON STRUCTURAL AND ONLY DESIGNED TO CARRY ITS OWN LOAD, GOOD STRATEGY FOR INSULATION AND STRUCTURE QUICK CONSTRUCTION CAN INSTALL VARIOUS PANELS INTO THE FRAME ALLOWING FOR CUSTOMIZATION TRAPPED WATER INCREASES THE RISK OF CORROSION OR MOLD, DEGRADING THE INTEGRITY OF THE PRIMARY STRUCTURE SELECTED USEFUL FOR BASEMENT OR FOUNDATION IMPRACTICAL FOR CONSISTENT USE THROUGHOUT PROJECT DUE TOCARBON IMPACT OF CONCRETE DAMAGE TO WATERPROOF MEMBRANE OR FURRING STRIPS INCREASE RISK OF MOLD, ROT OR CORROSION COST OF CONSTRUCTION NON STRUCTURAL ELEMENT SELECTED NEEDED FOR LARGE APERTURE AREAS AND WALKAWAYS DAMAGE TO WATERPROOFING MEMBRANE OR FURRING STRIPS INCREASES RISK OF MOLD, ROT, OR CORROSION SELECTED IDEAL FOR OUR FACADE. FLEXIBILITYOF THIS SYSTEM ALLOWS US TO USE GFRC AND METAL PANELS FOR OUR BUILDINGS EXTERIOR GREAT STRATEGY FOR WATERPROOFING EASY TO CUTOMIZE PANELS, ALLOWING FOR MANY MATERIALS TO BE ATTACHED TO FACADE IMPROVED ENERGY EFFICIENCY BY PROVIDING A DEDICATE SPACE FOR INSUALTION LOOKS AWESOME GREAT STRATEGY FOR REDUCING ENERGY LOADS ON THE BUILDING EXPENSIVE TO CONSTRUCT AND MAINTAIN DUE TO CONDENSATION GATHERING, SKIN NEEDING TO BE REPLACE, ETC. NO REAL BENEFIT TO FIRE RESISTANCE REJECTED IDEAL OPTION FOR THE SCREEN PRESENT ON THE CURTAIN WALLS IN THE SCHEMATIC DESIGN OF THE PROJECT TEXTILES SYSTEM WHERE TEXTILES ACT AS SKIN OVER SKELETON, LIGHT COST EFFECTIVE EASY TO MAINTAIN AND REPLACE IF A STRUCTURE ISNT ALREADY IN PLACE THAT CAN HOLD A CANOPY IT WOULD ADD TO CONSTRUCTION COSTS IF USED IN SMALL AMOUNTS WOULD BE MORE EXPENSIVE THAN OTHER CONVENTIONAL MATERIALS REJECTED WOULD COST MORE THAN CONTINUING WITH THE GFRC AND COPPER RAIN SCREEN SYSTEM THAT OFFSETS THE CLADDING, ALLOWING FOR A VENTED CAVITY TO FORM. THE EXTERIOR CLADDING PROTECTS THE BUILDING ENVELOPE DOUBLE SKIN CLADDING SYSTEM THAT DEPLOYS THE USE OF TWO FACADES STACKED ON EACHOTHER, YIELDING CAVITY THAT ACTS AS THERMAL BREAK REVISIONS SCI-Arc AS-3040 DESIGN DEVELOPMENT FALL 2023 JOINT-PRODUCTION COLLABORATIVE PROJECT: TBD ADDRESS: 1550 NW 37th Ave, Miami, FL 33125 TEAM SPENCER CLARK KEVIN XU KHALID ABUNAYYAN MIRIAM ALGHANIM AXA NIYONZIMA FRED GE ATHARV VIVEK BHOLE BREENA FOIGELMAN EMILIANO PEREZ SEBASTIAN MCANULTY JUN HYEONG LEE MIN HTWE YOUSSEF HACHCHANE DRAWING TITLE STRUCTURAL: SOPHIE PENNETIER ENVIROMENTAL SYSTEMS: JAMEY LYZUN CONSULTANTS 10 SHEET NO. A6.3 CHUNK ROOF DETAIL NO. DESCRIPTION DATE GFRC RAINSCREEN WATER PROOFING THERMAL INSULATION STEEL BEAM HANGERS DOUBLE PANEL LOW E GLASS WINDOW BRACKET STEEL TUBE METAL DECKING

JOIN ERY

Students will design a mixed use complex including a community athletic facility as well as restaurants and commercial spaces. This complex will extend the planned masterplan, Miami Freedom Park. Students will design an overall project at the schematic design level. A more detailed section of the project will be carried to tectonic resolution, particularly in terms of the envelope.

Assemblies II

Spring 2023

Instructor: Jenny Wu

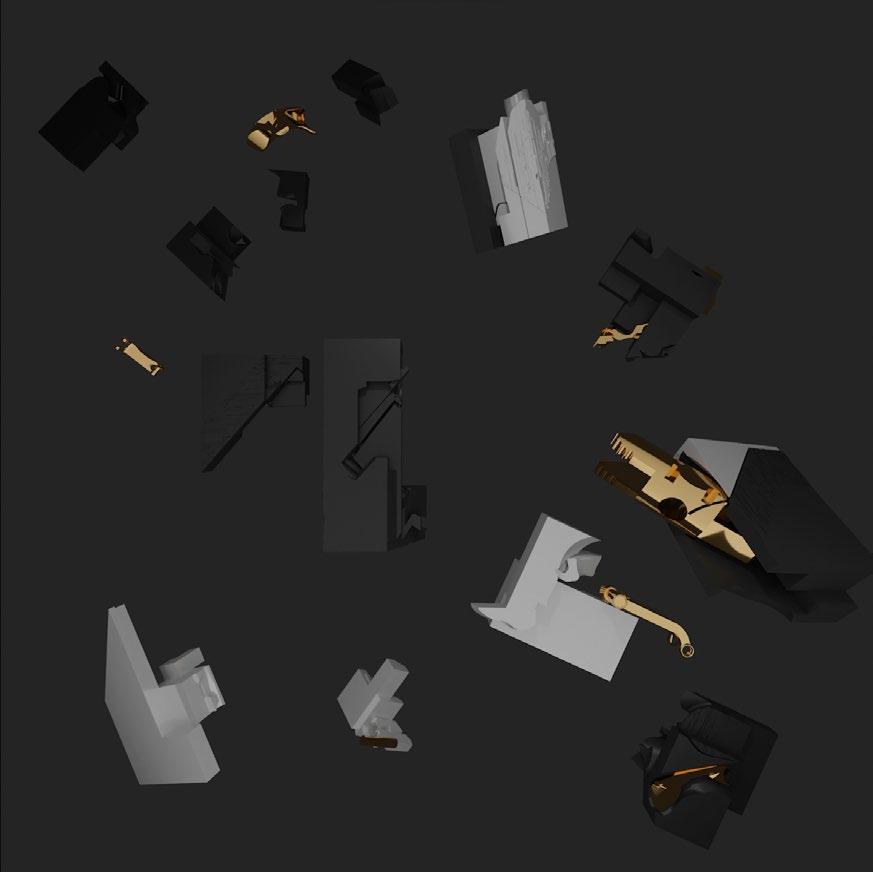

FRED GE Assemblies II BLOCK LEGO HINGE KOENIGSEGG DOOR HINGE CHUNKS RELOCATING ADDING HINGES CARVING

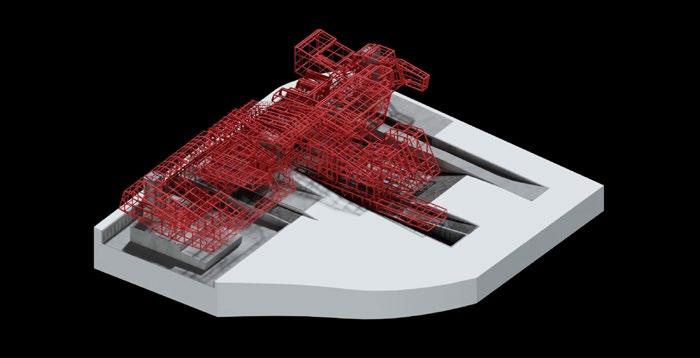

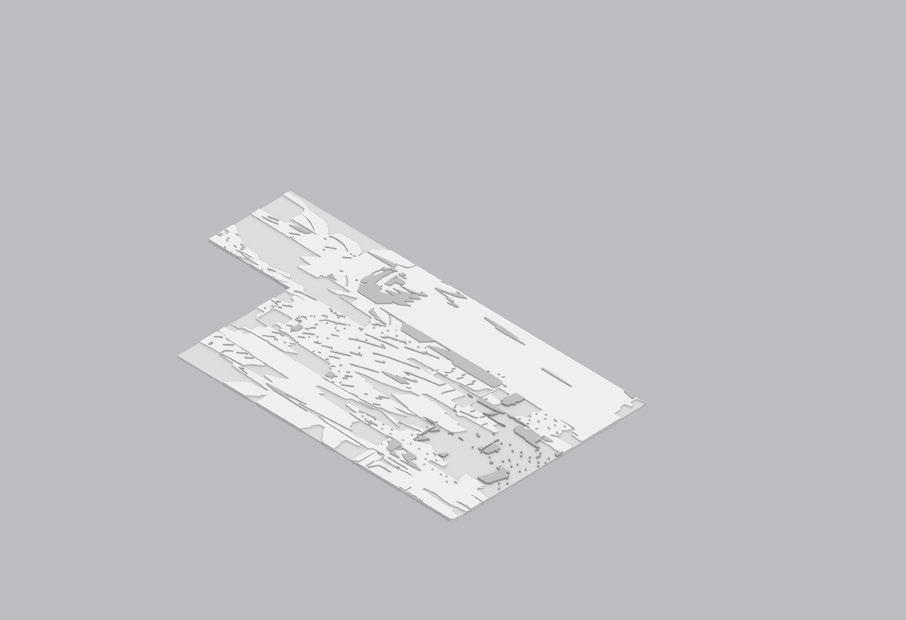

Axon NE Axon SW

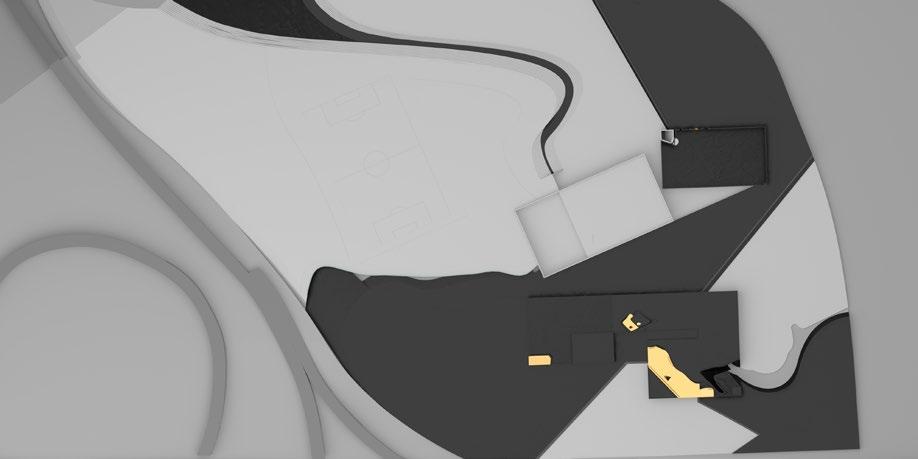

FRED GE Assemblies II GROUND PLAN 1”: 250” SECTION AA 1”: 150” 10 45 77.5 120 151.5

FRED GE Assemblies II

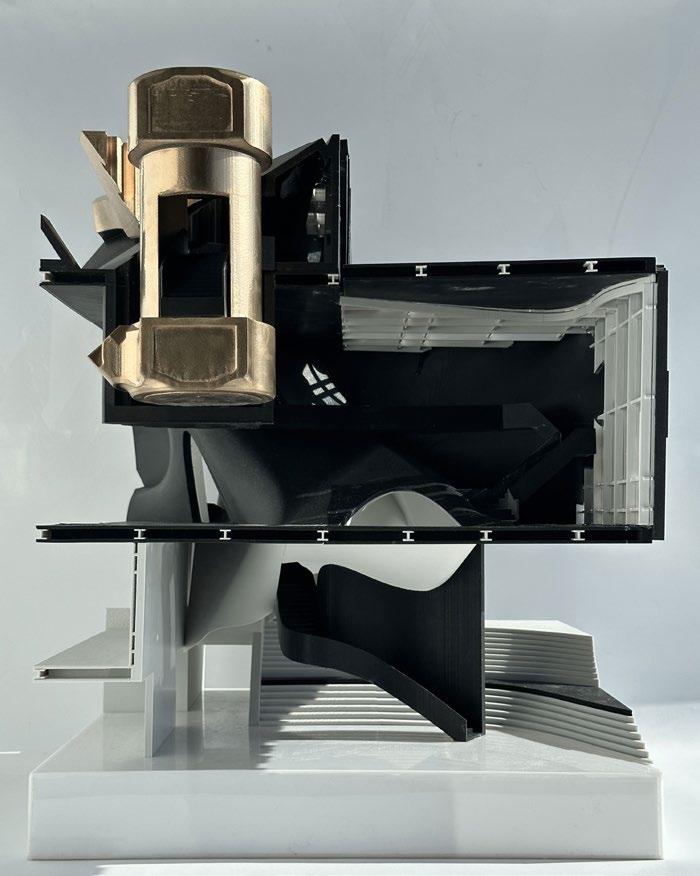

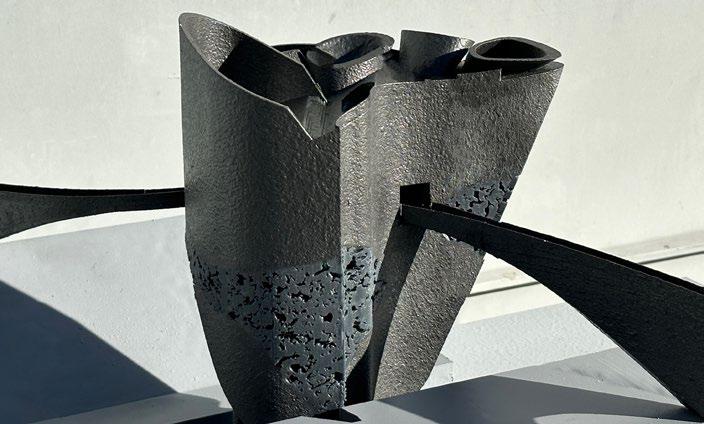

Physical Model (1”: 500”) Physical Model (1”: 500”)

FRED GE Assemblies II

Physical Model (1”: 500”) Physical Model (1”: 500”)

FRED GE Assemblies II

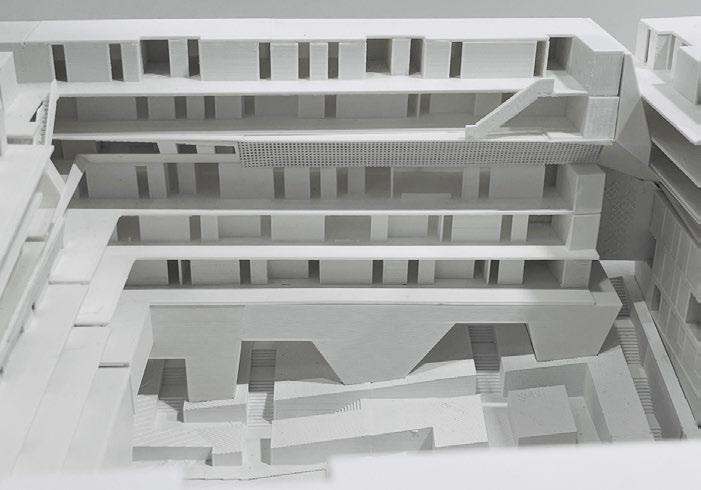

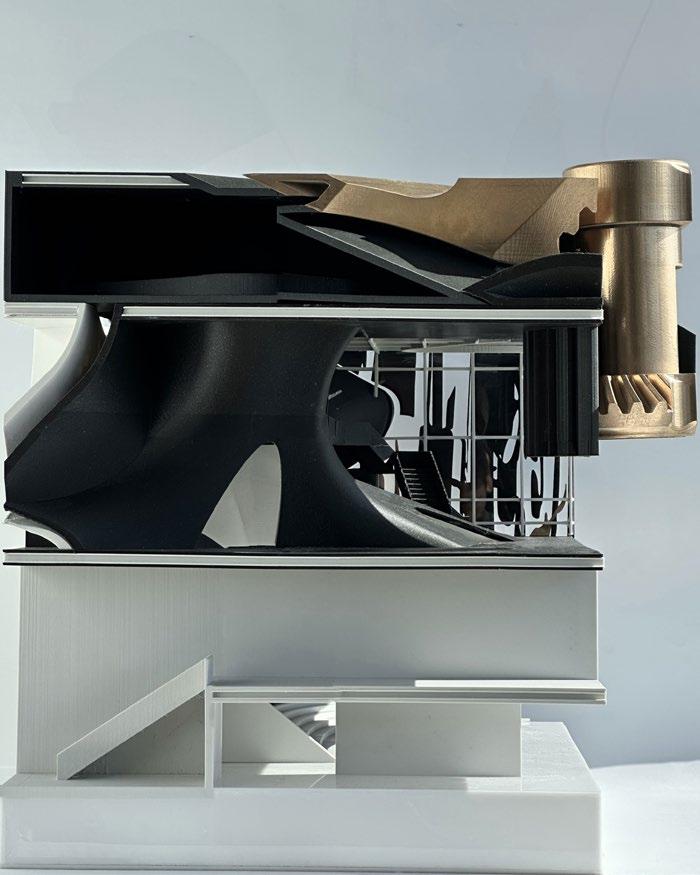

Chunk Model (1”: 8’) Chunk Model (1”: 8’)

FRED GE Assemblies II

Chunk Model (1”: 8’) Chunk Model (1”: 8’)

FRED GE Assemblies II

Chunk Model (1”: 8’) Chunk Model (1”: 8’)

FRED GE Assemblies II

Chunk Model (1”: 8’) Chunk Model (1”: 8’)

FRED GE Assemblies II

Chunk Model (1”: 8’) Chunk Model (1”: 8’) Chunk Model (1”: 8’)

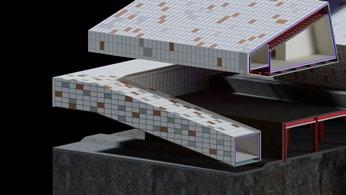

FRED GE Assemblies II Assemble Animation https://vimeo.com/902635095?share=copy

DONUT HOUSING

The studio examines how architecture can mediate the relationships across three disciplinary topics: typology, Precedent, and Scale. Tasked with developing integrated proposals for a moderately sized housing complex composed of micro units, students are encouraged to design into existing urban conditions with an understanding of the dynamic and interdependent forces of economies, access, privacy, shared space, and infrastructure that shapes these projects and their presence in the city. Case Studies will be examined through research in order to foster knowledge about how such projects are logistically resolved and integrated into their urban settings with an eye towards their potential for new forms of collectives.

Assemblies I

Fall 2022

Instructor: Ramiro Diazgranados

FRED GE Assemblies I

UNIT TYPE 1A - 250 SQF

4.00 8.74 27.77 13.97 6.28 23.77 13.72 7.27 7.23 4.00 27.77 10.52 10.02 23.77 7.23 6.52 9.24

UNIT TYPE 2 - 350 SQF

FRED GE Assemblies I

UNIT TYPE 1B - 250 SQF

8.37 4.00 27.77 17.93 8.37 23.77 17.93 7.05 7.05 5.71 17.05 23.77 7.55 7.55 5.71 17.05 15.94 23.77 7.39

UNIT TYPE 3 - 450 SQF

FRED GE Assemblies I 50 FT 150 300 25 0 FT 75 150 Context Plan Site Plan

FRED GE Assemblies I B B’ A A’ 5 15 30 FT B B’ A A’ 0 15 30 FT Floor Plan L1 Floor Plan L2

FRED GE Assemblies I B B’ A A’ 0 15 30 FT 15 30 FT 15 30 FT 15 30 FT

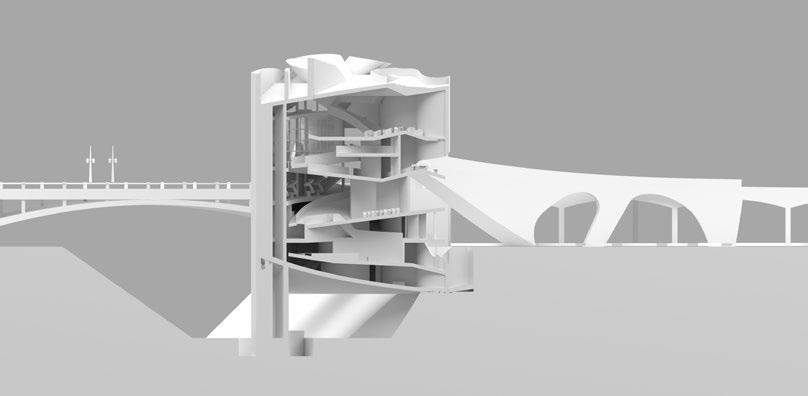

Floor Plan L3 Section B

Elevation

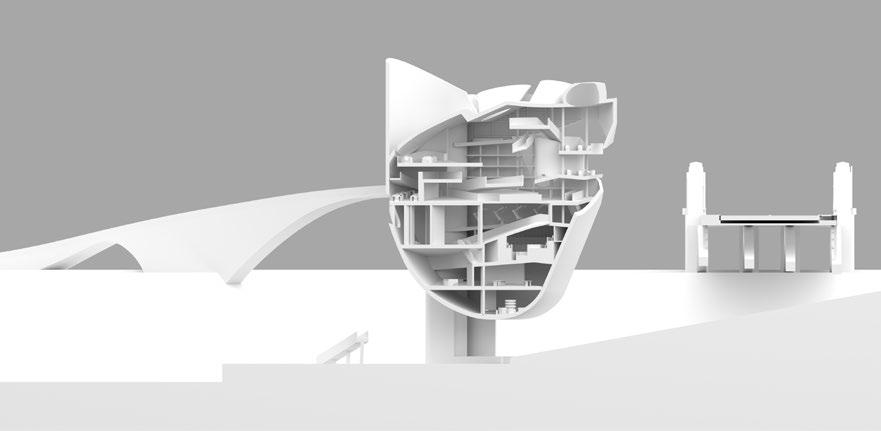

Section A

FRED GE Assemblies I

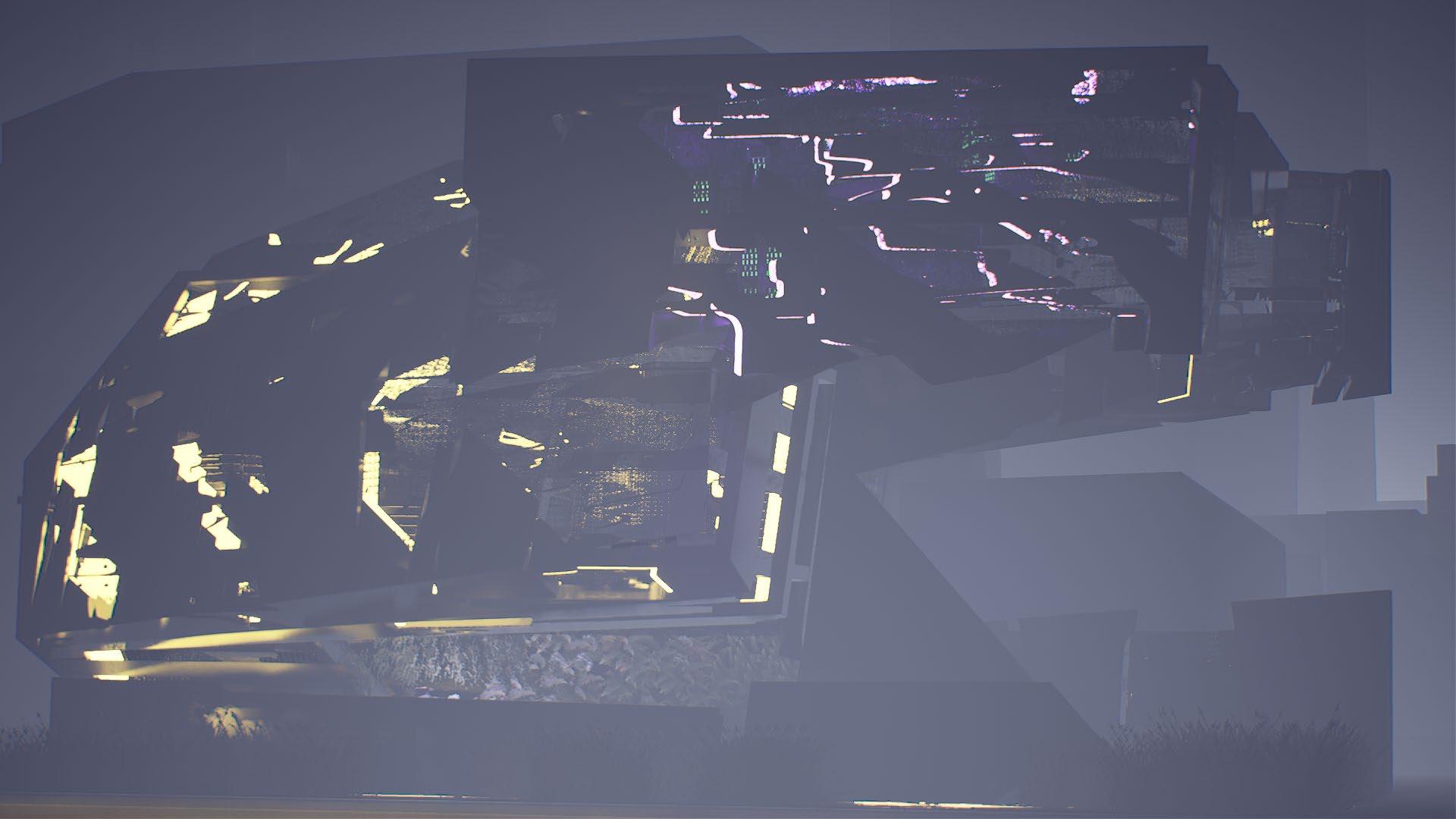

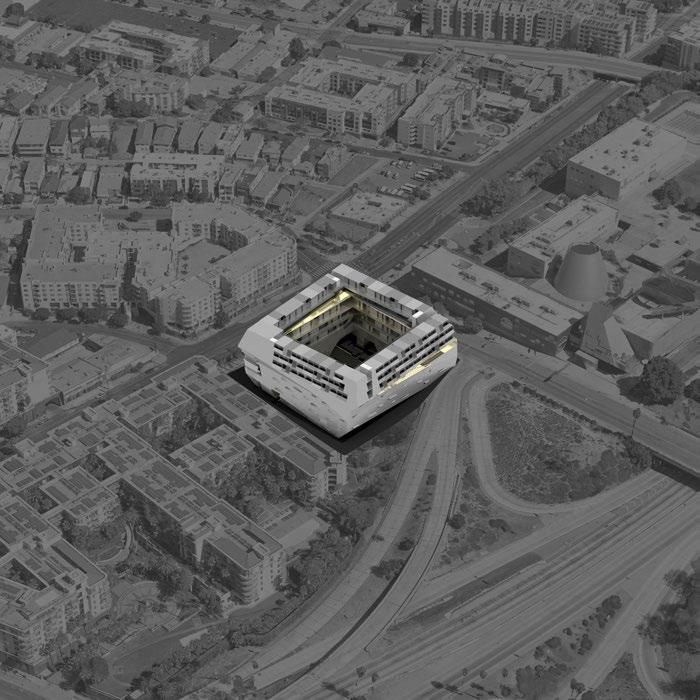

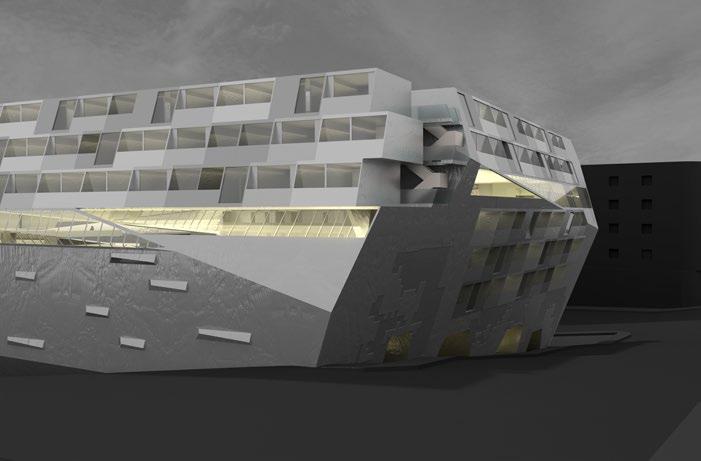

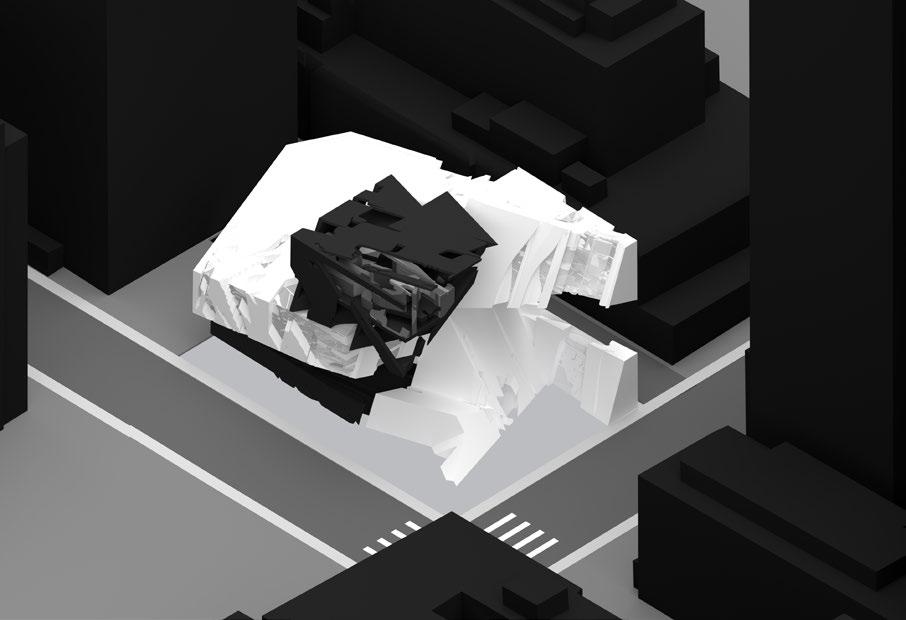

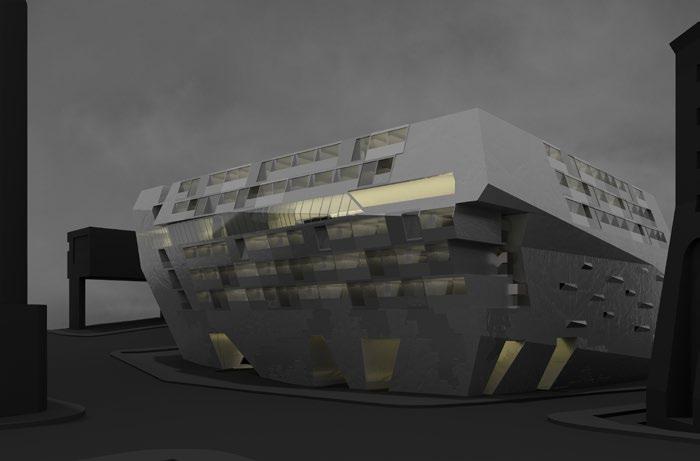

Axon SW Perspective View Perspective View

FRED GE Assemblies I

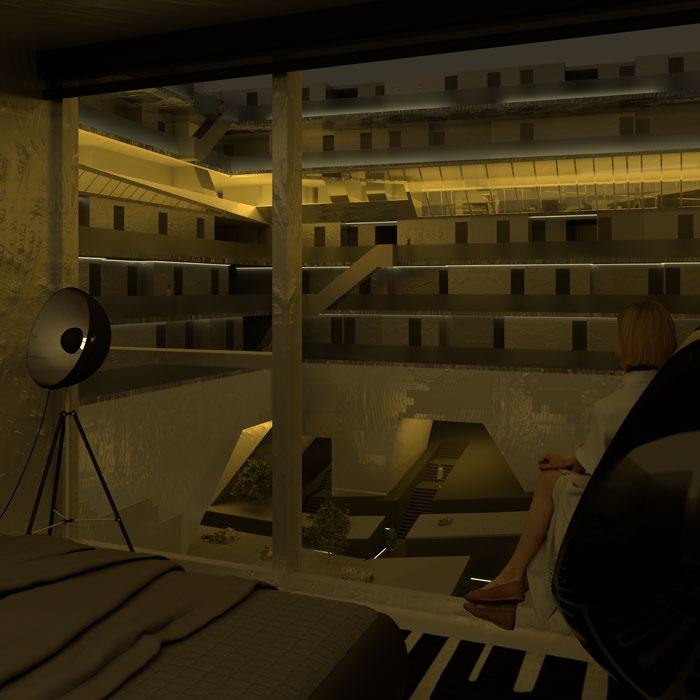

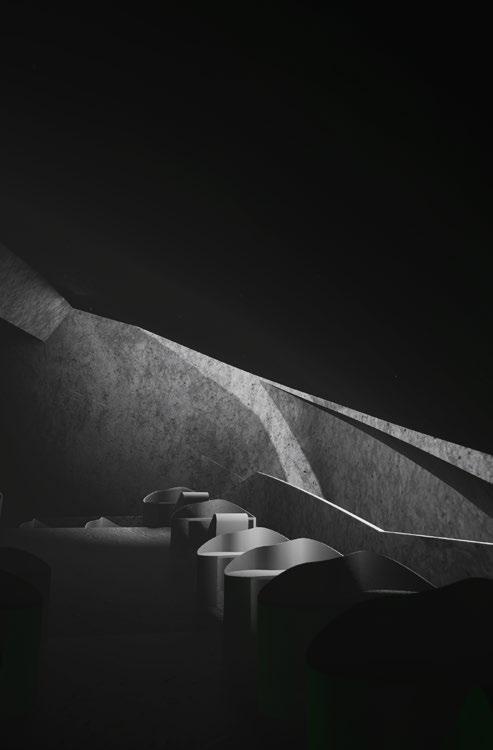

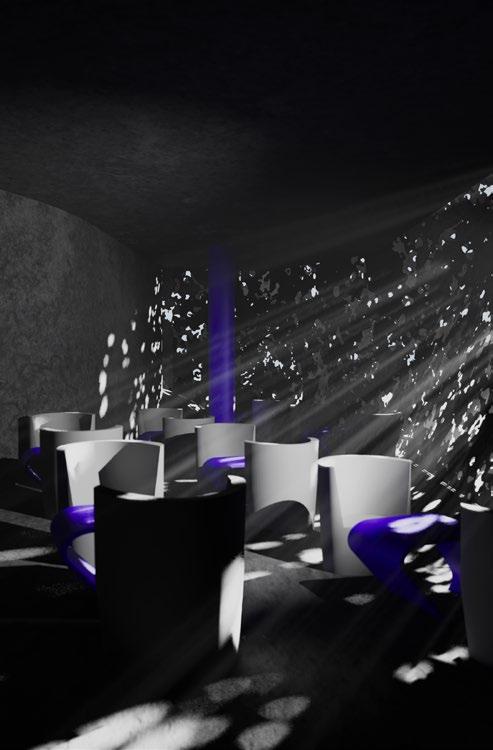

Interior View (Amenity) Interior View (Unit)

FRED GE Assemblies I

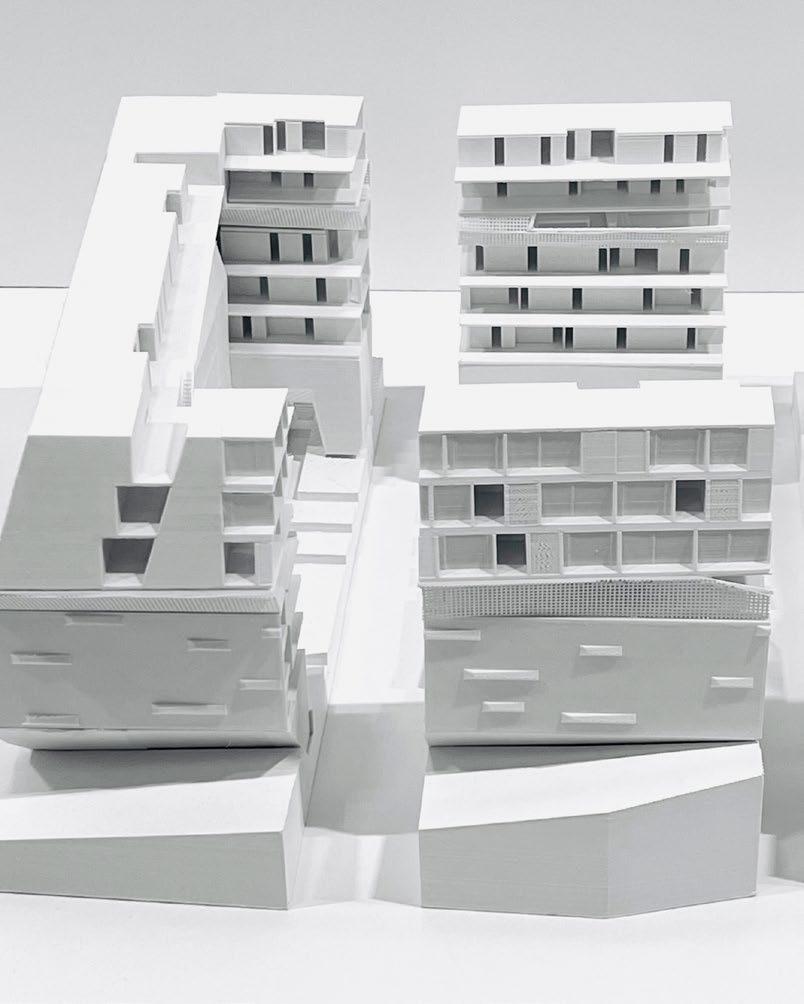

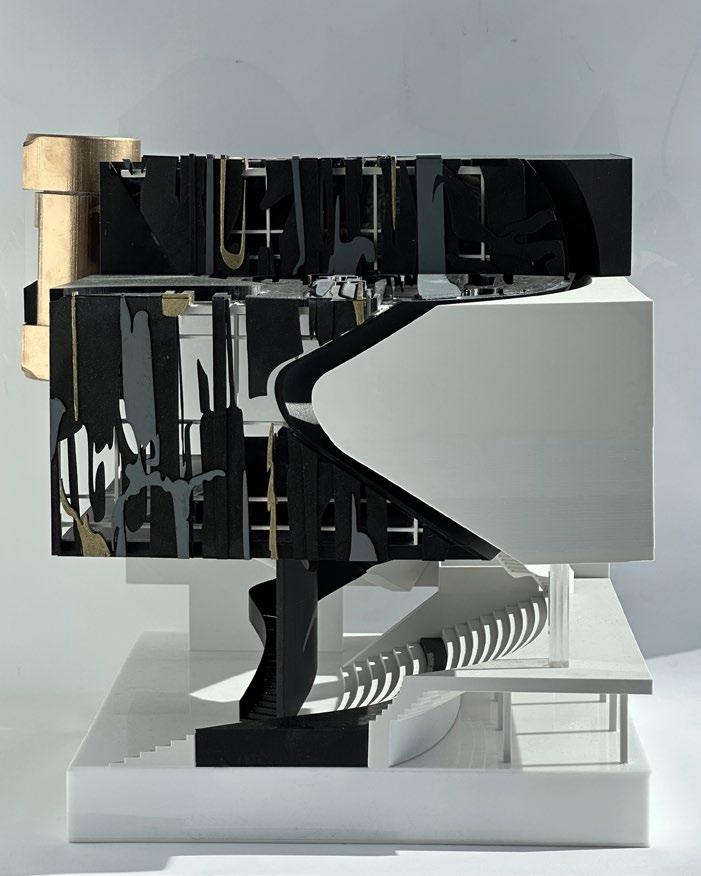

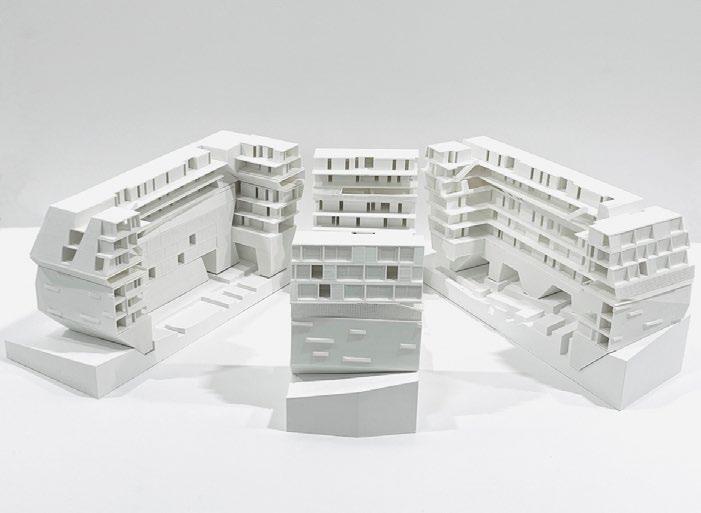

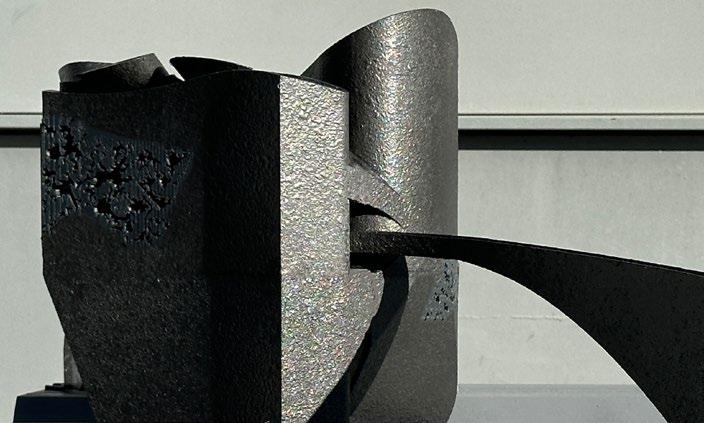

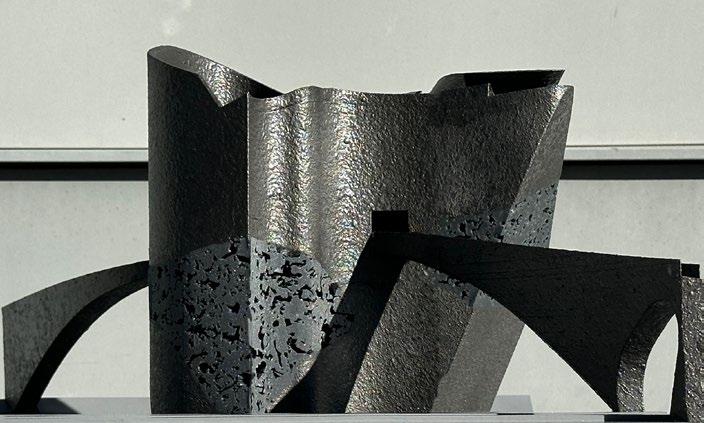

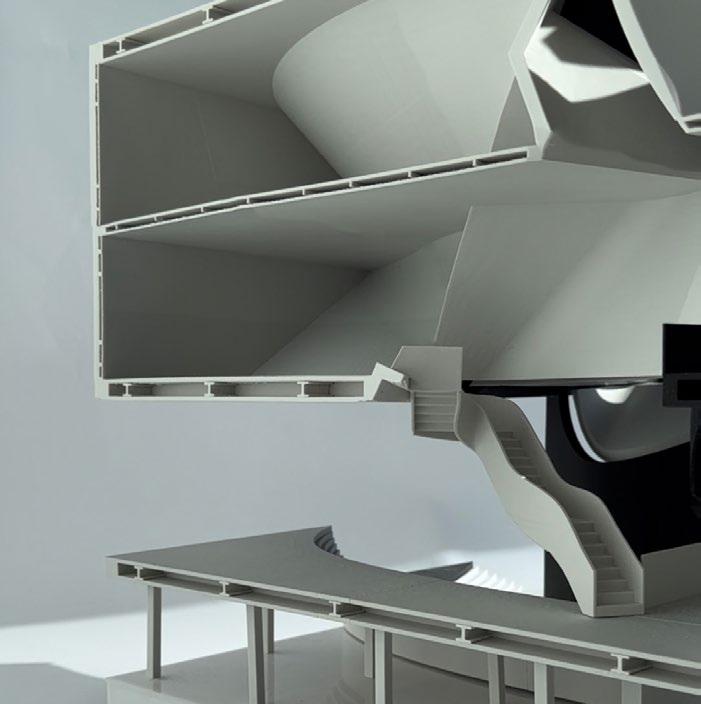

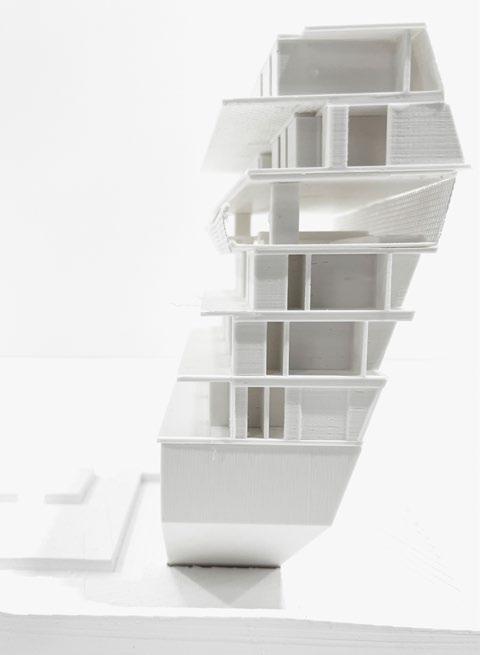

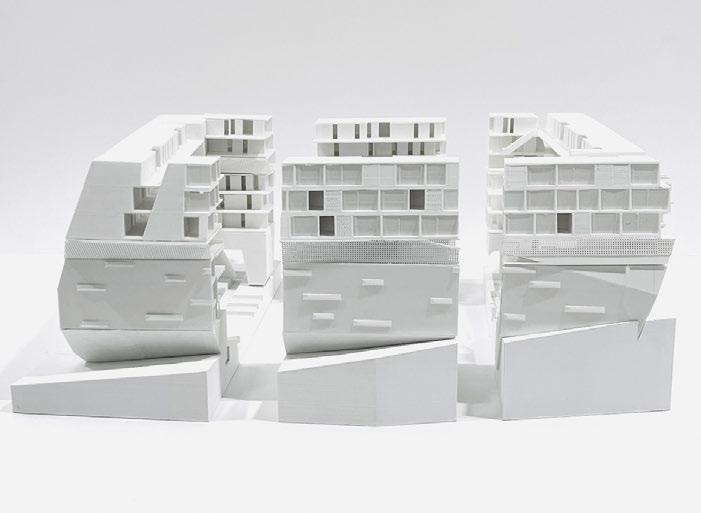

Physical Model (1” : 16’) Physical Model (1” : 16’)

FRED GE Assemblies I

Physical Model (1” : 16’) Physical Model (1” : 16’)

FRED GE Assemblies I

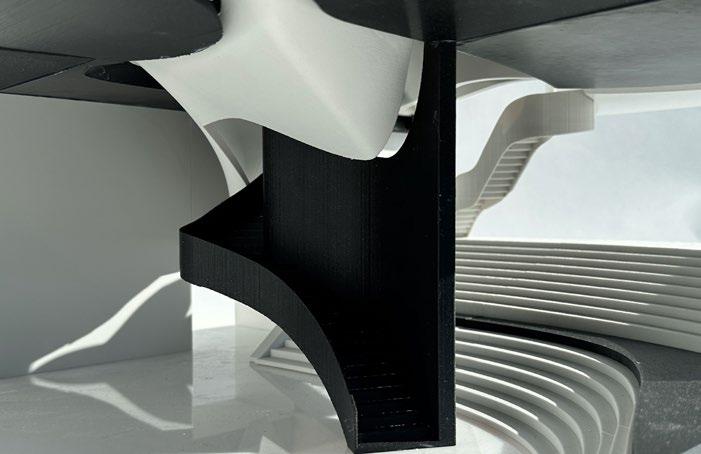

Physical Model (1” : 16’)

MEET ME

2B studio extends student’s spatial investigations from the site to the world beyond and look at ecology as a context. The studio will explore a range of methods to engage with environmental and ecological issues in developing a complex building program at a dense urban site. By negotiating with the environmental conditions and energy usage, the studio will look at the building as the interface that mediates between the programmatic spaces it houses and the ecology it inhabits, forging a site-specific relationship between them.

Worlds II

Spring 2022

Instructor: Kordae Henry

Event Drawings

1.9’ 9.2’ 5.7’ 9.2’ 6.9’ 5.9’ 2.9’ 5.1’ 8.1’ 5.4’ 11.1’ 0.3’ 1.25’ 2.5’ 13.57’ 15’ 11.87’ 8.41’ 15’ 1.25’ 2.5’ 5’ 12.82’ 7.48’ 3’ 0.54’ 4.68’ 0’ 1.25’ 2.5’ 5’ 75 74 FRED GE Moments Studies

Worlds II

77 76 Worlds II FRED GE

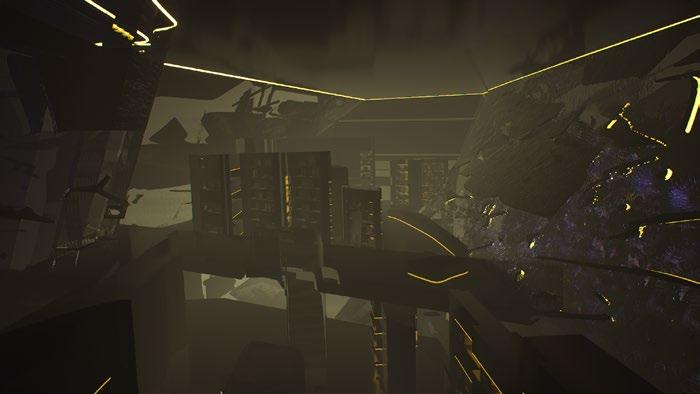

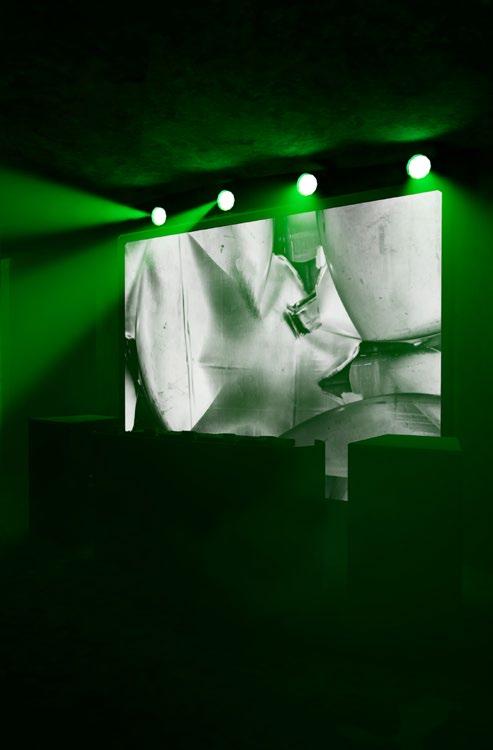

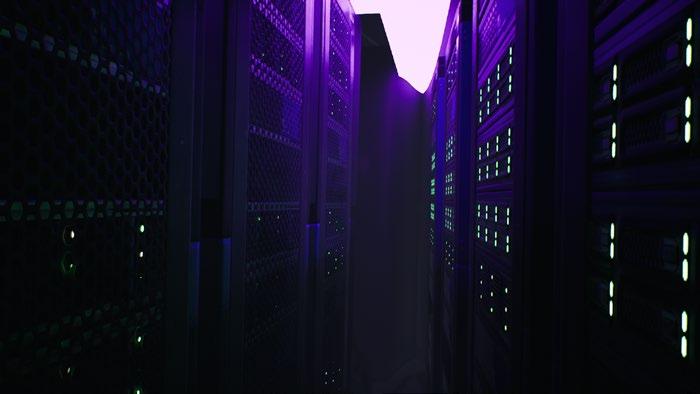

Shots from Film

https://vimeo.com/699680939?share=copy

79 78 Worlds II FRED GE

Shots from Film

https://vimeo.com/699680939?share=copy

81 80 Worlds II FRED GE

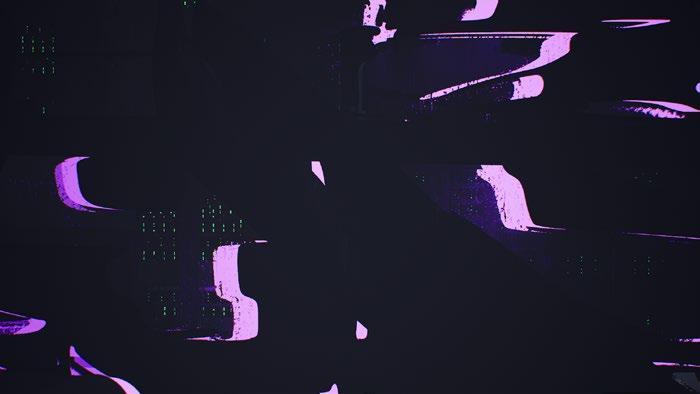

Shots from Film

https://vimeo.com/699680939?share=copy

83 82 Worlds II FRED GE

Shots from Film

https://vimeo.com/699680939?share=copy

0’ 15’ 30’ 60’ PLAN BOOK SHELF TABLE SERVERS CHAIRS CABLE B E C A D WATER POND A B C D E 0’ 15’ 30’ 60’ SECTION 15’ 30’ 45’ 60’ 75’ 90’ SERVERS BOOK SHELF A B A B AXO VIEW 0’ 30’ 60’ 120’ SITE PLAN 85 84 Worlds II FRED GE

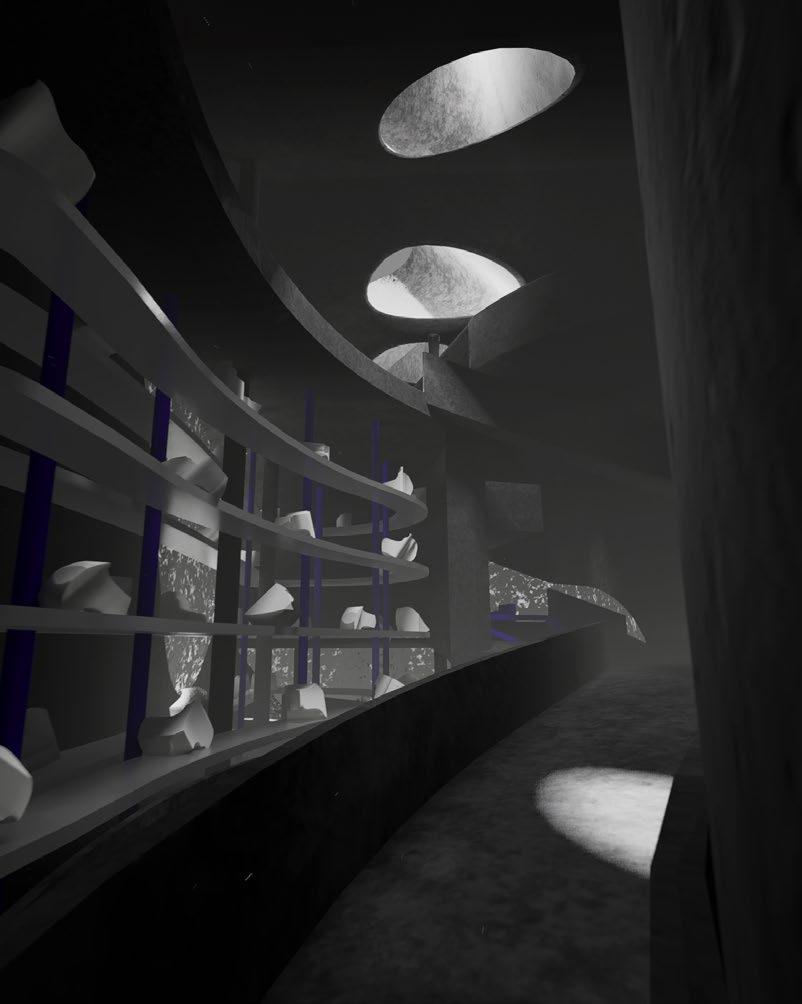

87 86 Worlds II FRED GE Street View

89 88 Worlds II FRED GE Interior + Exterior Shot https://vimeo.com/699694374?share=copy
