THROUGH CAREFULL, WELL CONSIDERED CONTEMPORARY DESIGN, HOUSE FACADES WILL SUPPORT THE LARGER SCALE OBJECTIVE OF DELIVERING CLEARLY IDENTIFIABLE AND COHESIVE STREETSCAPES, WITH THE ABILITY FOR OWNERS TO TAYLOR ASPECTS OF THE FACADE TO SUITE THEIR PERSONAL TASTE.
BUILT FORM
roof forms
1. SKILLION ROOF- 15 deg minimum pitch
2. PARAPET ROOF- 3 deg maximum pitch
• NO EAVES
• NO EXPOSED GUTTERS TO THE FRONT OF THE PROPERTY WHEREVER POSSIBLE.
• ALL ROOVES ARE TO DRAIN TO THE REAR OF THE SITE- WHEREVER POSSIBLE.
facade types
• WHEREVER POSSIBLE, AT LEAST 2 FACADE ITERATIONS FOR EACH HOUSE PLAN IS ENCOURAGED. THIS COULD BE ACHIEVED THROUGH ALTERNATIVE ROOF DESIGNS AND FEATURE FRONT
FRONT DOORS
• THE FRONT DOOR FINISH MUST PROVIDE ADEQUATE VARIATION FROM THE ADJACENT HOUSE TO PROVIDE VISUAL INTEREST AND CLEARLY IDENTIFY THE FRONT ENTRY OF EACH DWELLING.
• WHERE POSSIBLE, FRONT DOORS ARE TO BE POSITIONED PROUD OF THE LINE OF THE GARAGE DOOR FOR FRONT LOADED HOUSE TYPES.
• CONSIDERATION MUST BE GIVEN TO PROVIDING WEATHER PROTECTION OVER THE FRONT DOOR. EITHER BY WAY OF A CANOPY OR UPPER STOREY OVERHANG BY A MINIMUM OF 1M.

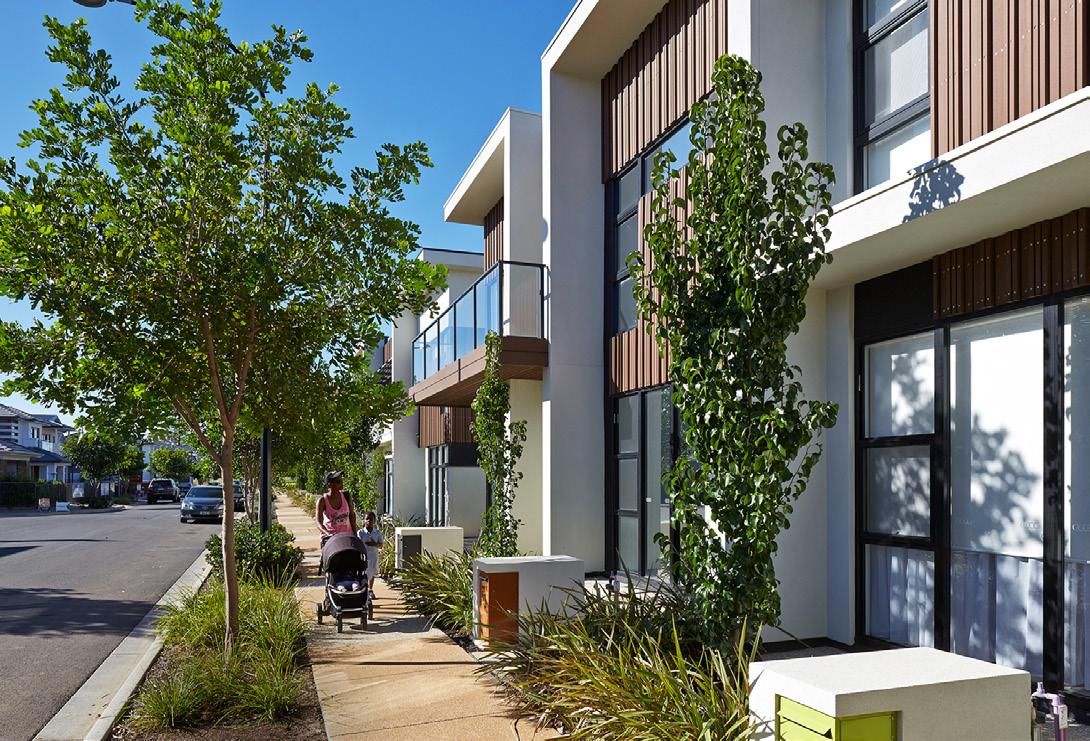

HOUSE FACADES
objective
THROUGH CAREFULL, WELL CONSIDERED CONTEMPORARY DESIGN, HOUSE FACADES WILL SUPPORT THE LARGER SCALE OBJECTIVE OF DELIVERING CLEARLY IDENTIFIABLE AND COHESIVE STREETSCAPES, WITH THE ABILITY FOR OWNERS TO TAYLOR ASPECTS OF THE FACADE TO SUITE THEIR PERSONAL TASTE.
BALCONIES
• MUST SIT HARMONIUOSLY WITHIN THE PRIMARY VOLUMETRIC ELEMENTS OF THE FACADE AS A FULLY INTEGRATED ELEMENT AND NOT APPEAR AS AN ADD ON OR AFTER THOUGHT.
• BALCONIES FACING THE STREET - 50% OF BALUSTRADE MUST HAVE NO GREATER THAN 20% TRANSPARENCY TO PROVIDE SCREENING TO SERVICES, CLOTHELINES, BBQ’S ETC.
WINDOWS
• MUST BE CONSIDERED AS COMPOSITIONAL ELEMENTS WITHIN THE FACADE. MINOR RELOCATIONS OF WINDOWS IS ENCOURAGED FOR DIFFERENT FACADE TYPES OF THE SAME PLAN.
CLADDING
• CLADDING JOINTS AND CONTROL JOINTS MUST ALIGN AS BEST AS POSSIBLE WITH THE OVERALL ELEVATIONAL COMPOSITION.
garageS
DOORS
• THE CLADDING MATERIAL AND COLOUR MUST POSITIVELY CONTRIBUTE TO THE CONTEMPORARY URBAN AESTHETIC.
• ROLLER DOORS ARE NOT PERMITTED.
DRIVEWAYS & PATHS
• ENSURE THE INTERNAL DRIVEWAY AND PATHS TO THE FRONT DOOR ARE EXPOSED AGG
• DIRECT, SEPARATE ACCESS FROM PEDESTRIAN FOOTPATH TO FRONT DOOR OF STREET-FRONT DWELLINGS PREFERRED
• INTEGRATED BALUSTRADE
• DIRECT PATH TO FRONT DOOR

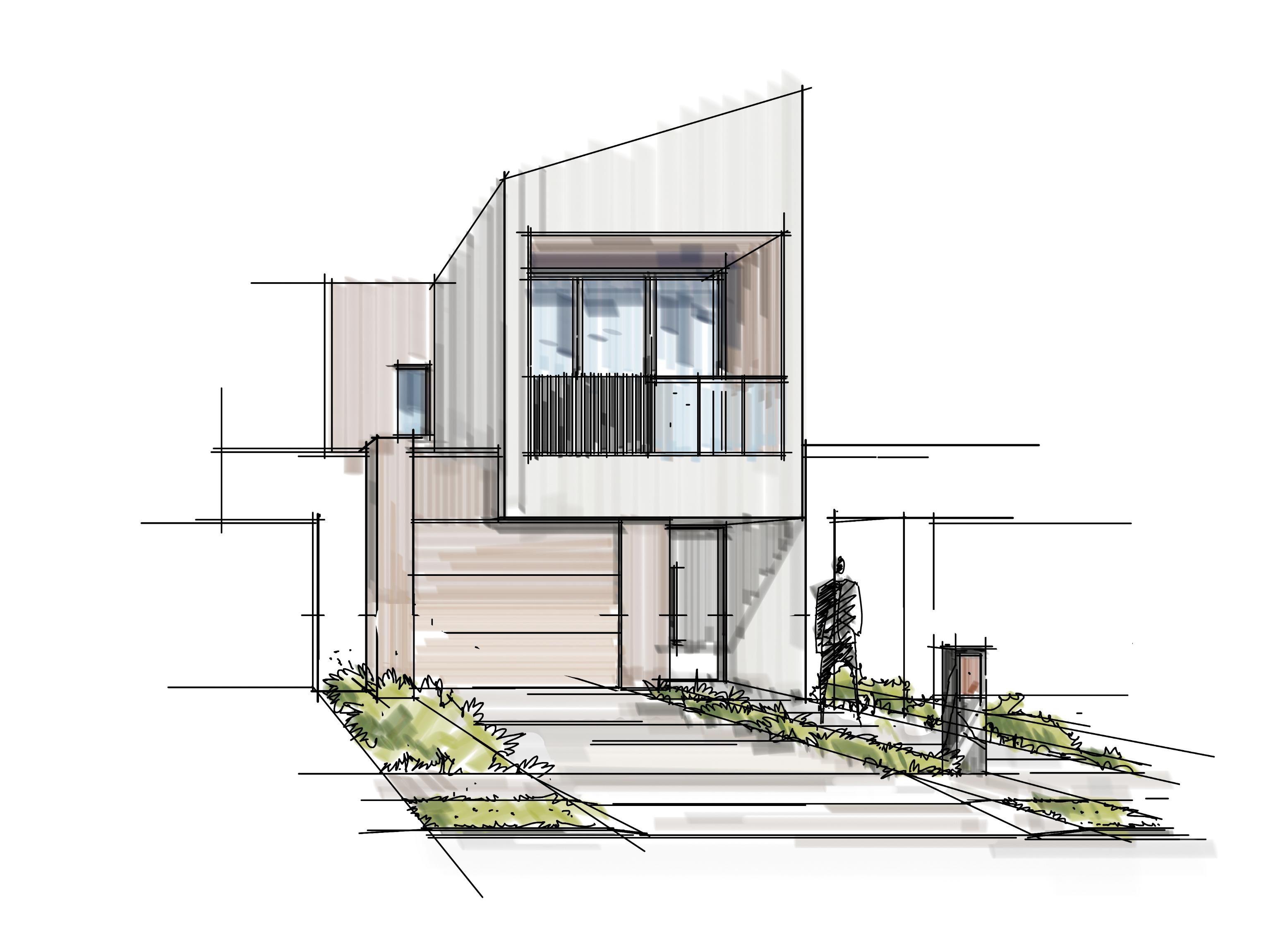

FRONT LOADED EXAMPLE
LETTER BOX- ALIGNED TO FOOTPATH AND PRIVATE ACCESS PATH.
corner lot treatments
objective
TO PROMOTE DESIGN EXCELLENCE FOR CORNER LOTS, MAKING THE MOST OF BOTH FRONTAGES AND ENHANCING THE PRESENTATION AND SAFETY OF THE PUBLIC REALM
APPLICATION
1. COMPLY WITH THE RELEVANT PLANNING SCHEME REQUIREMENTS
2. PRIMARY STREET MATERIALS ARE TO EXTEND AROUND TO THE SECONDARY FRONTAGE AND TERMINATE ON AN INTERNAL CORNER.
3. DWELLINGS ON CORNER LOTS ARE TO PRESENT ELEVATIONS OF CONSISTENTLEVEL OF DESIGN QUALITY AND FINISHES TO BOTH FRONTAGES.
4. AVOID TWO STOREY BLANK WALLS TO MINIMISE VISUAL BULK ON THE SECONDARY FACADE.
5. A MAJOR OPENING PER HABITABLE ROOM IS REQUIRED TO ADDRESS THE SECONDARY FRONTAGE, FOR BOTH GROUND AND UPPER LEVELS.
6. AT GROUND LEVEL, SIDE FENCING IS TO BE SETBACK A MINIMUM OF 1M FROM THE GROUND LEVEL FRONT FACADE.

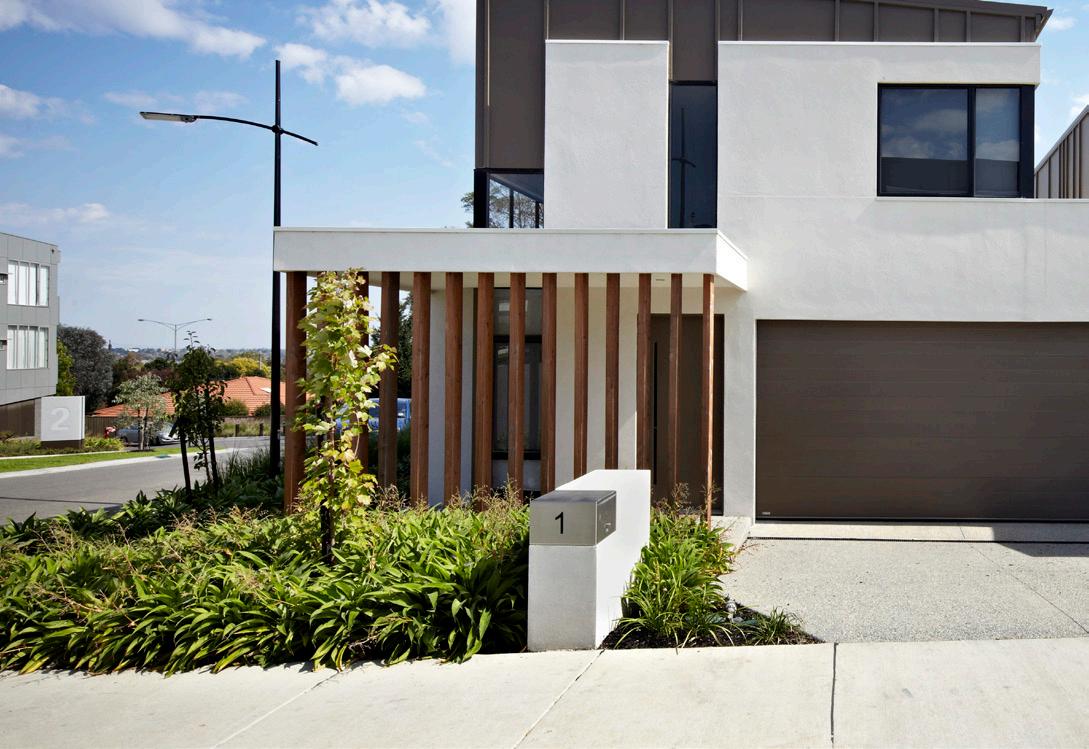

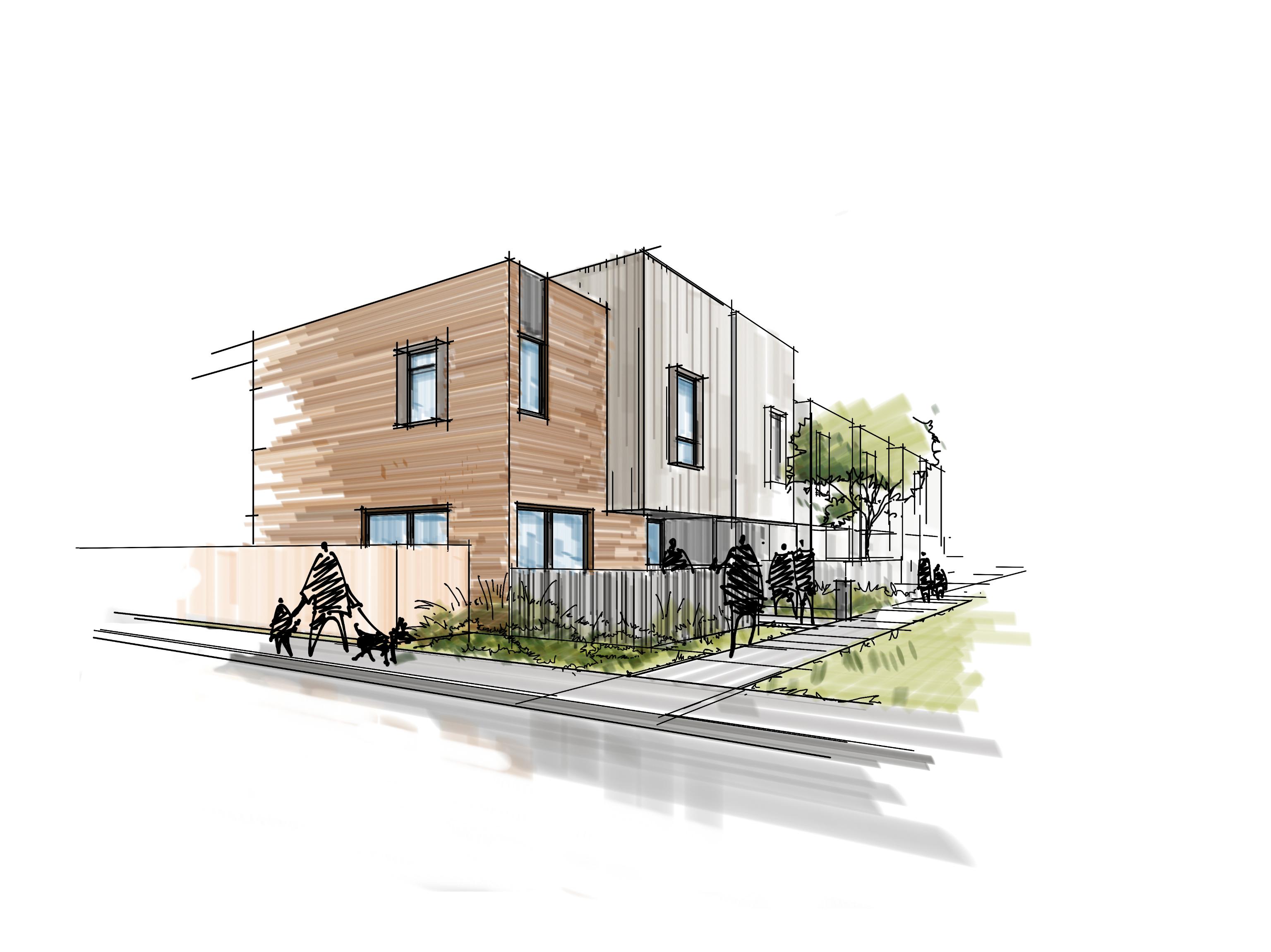

CORNER LOT EXAMPLE
• Materials wrap the corner volume
• Windows to habitable rooms
objective
TO ENSURE LANEWAYS ARE PASSIVELY ACTIVATED, CONVEY A SENSE OF SECURITY AND SAFETY AND MAINTAIN UNOBSTRUCTED ACCESS FOR CARS AND WASTE COLLECTION VEHICLES.

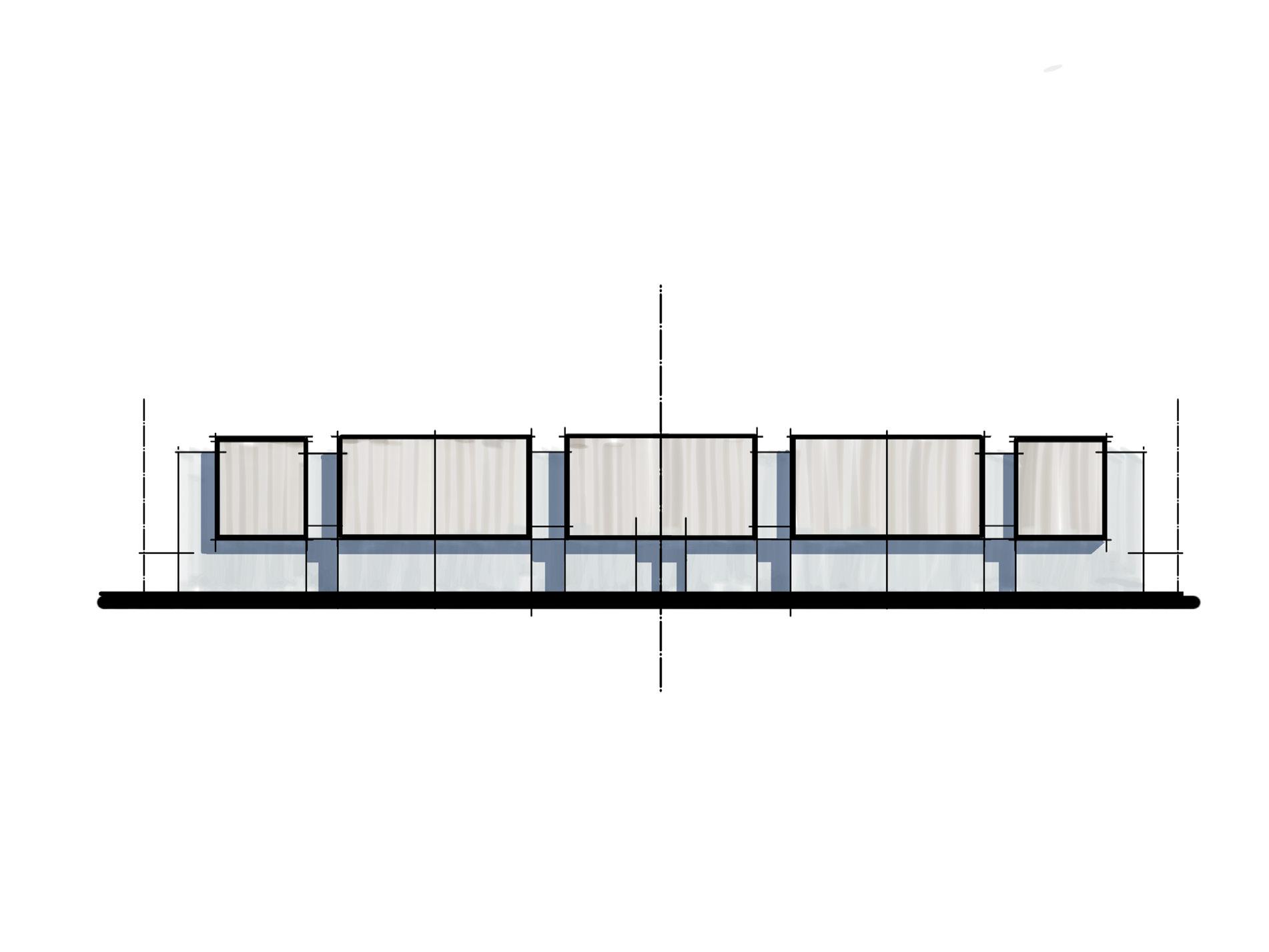

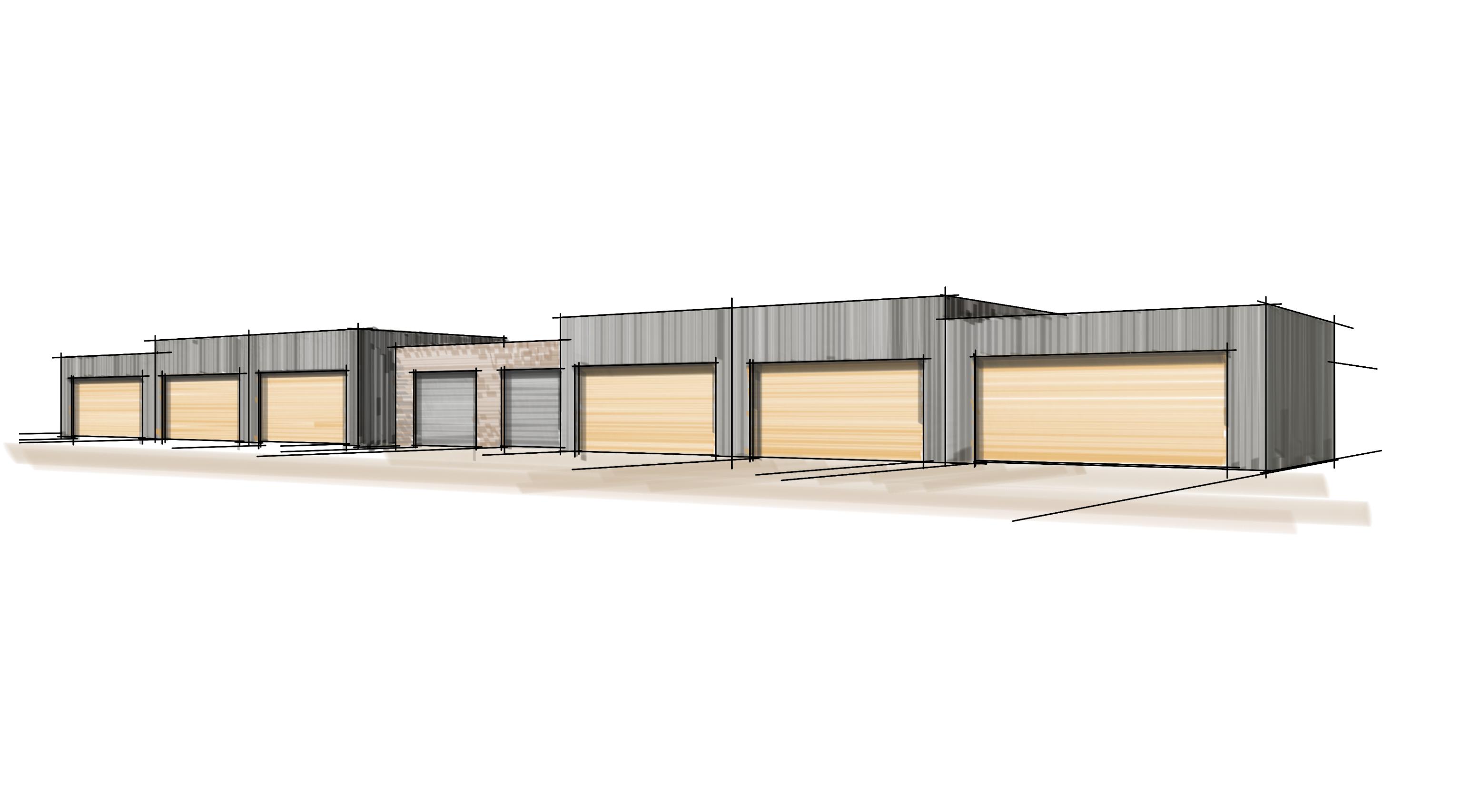

rear lane requirements
1. THE CENTRAL LOTS LOCATED MIDWAY WITHIN A LANEWAY ARE ENCOURAGED TO HAVE BOTH GARAGES SETBACK A MIN OF 1M TO ALLOW FOR SUITABLE LOW MAINTENANCE PLANTING .
2. WHERE ADEQUATE AREA IS AVAILABLE BETWEEN ADJACENT GARAGE DOORS, THE PLANTING OF LOW MAINTENANCE SUITABLE PLANTING IS ENCOURAGED.
3. BINS ARE NOT TO BE STORED IN THE REAR LANEWAY. A MINIMUM CLEARANCE AREA MUST BE PROVIDED FOR THE PLACEMENT OF BINS ON COLLECTION DAYS.
4. CONSIDER APPLYING VARIATION TO THE GARAGE DOOR COLOUR AND/OR FINISH, AND THE GARAGE PARAPET HEIGHT TO DELIVER VISUAL INTEREST.

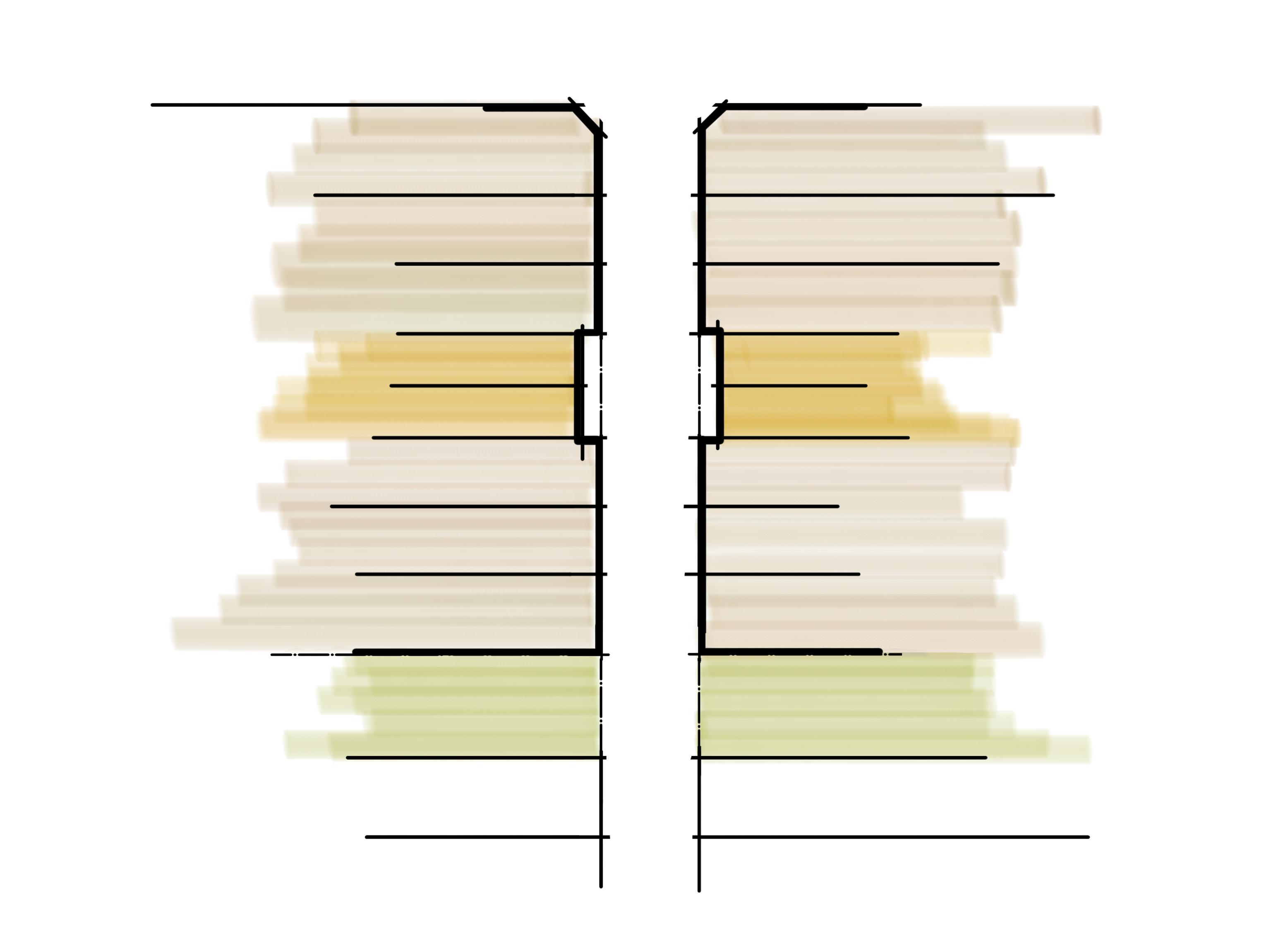

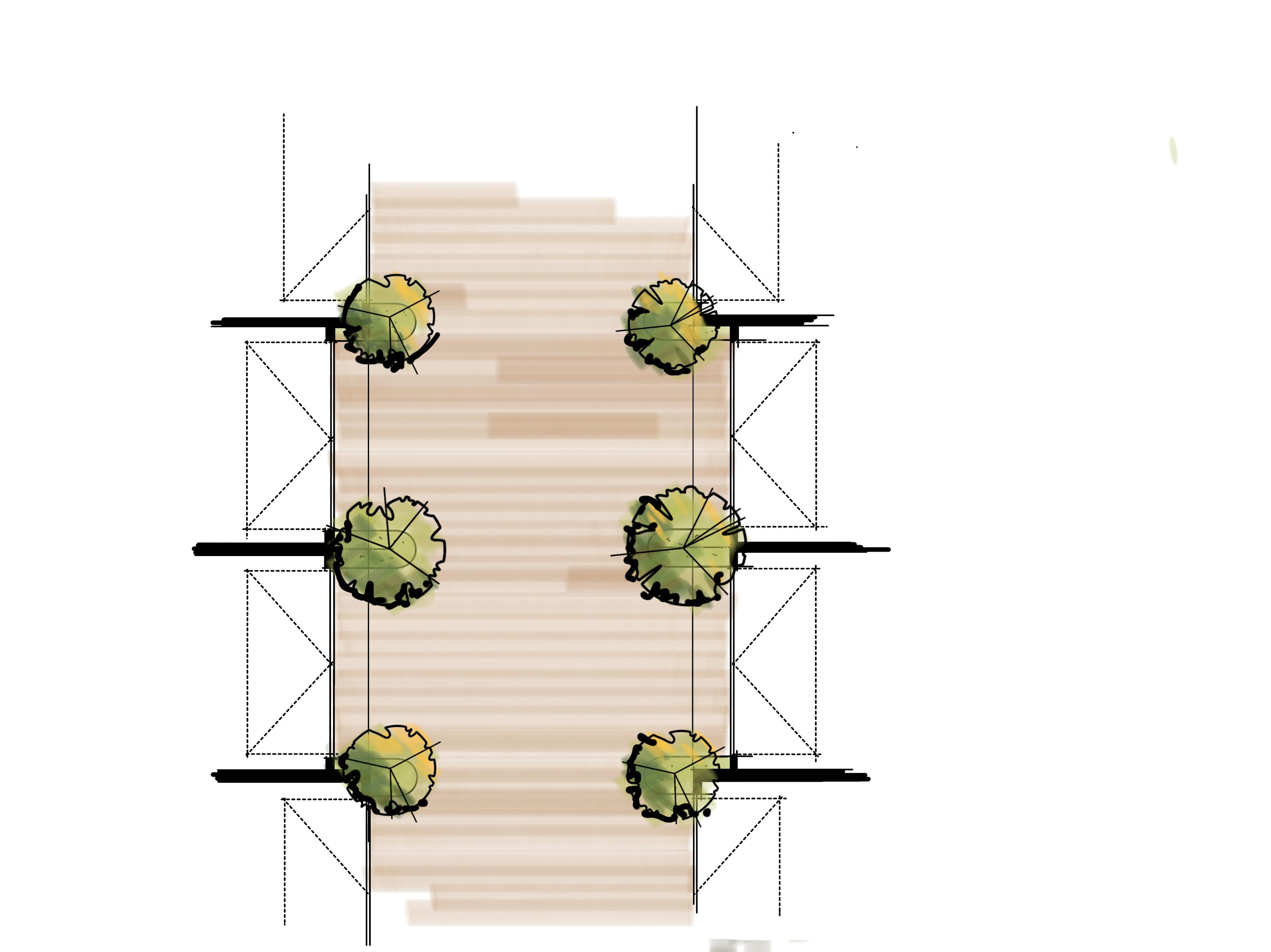

LANEWAY SETBACK STRATEGY
FENCES & LETTERBOXES

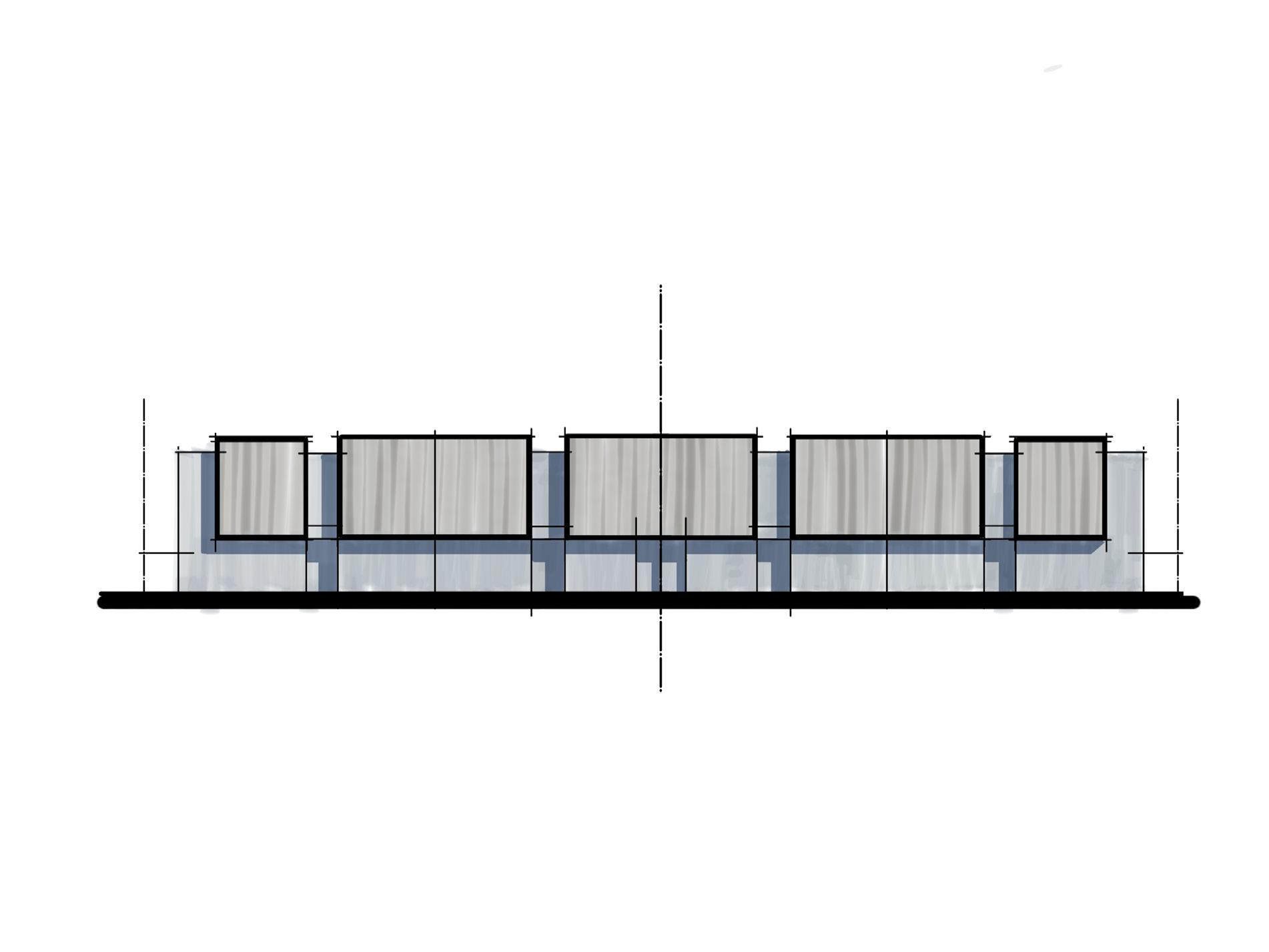

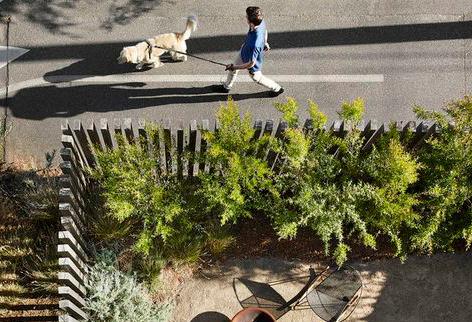

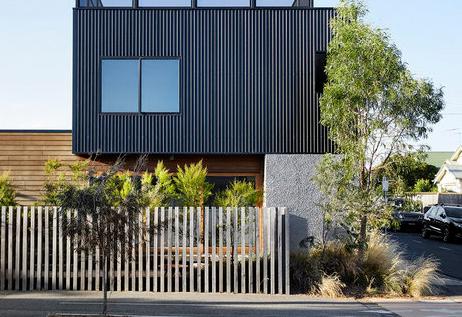

front fence WHERE REQUIRED
•BLADE OR BATTEN FENCE.
• PAINTED TIMBER BATTENS
•POWDER COATED METAL BLADES OR ALUMINIUM BATTENS
•1200 HEIGHT MAX.
•20% VISUAL PERMEABILITY
• FRONT GATES FOR EACH HOUSING TYPOLOGY TO BE CONSIDERED
COLOURS

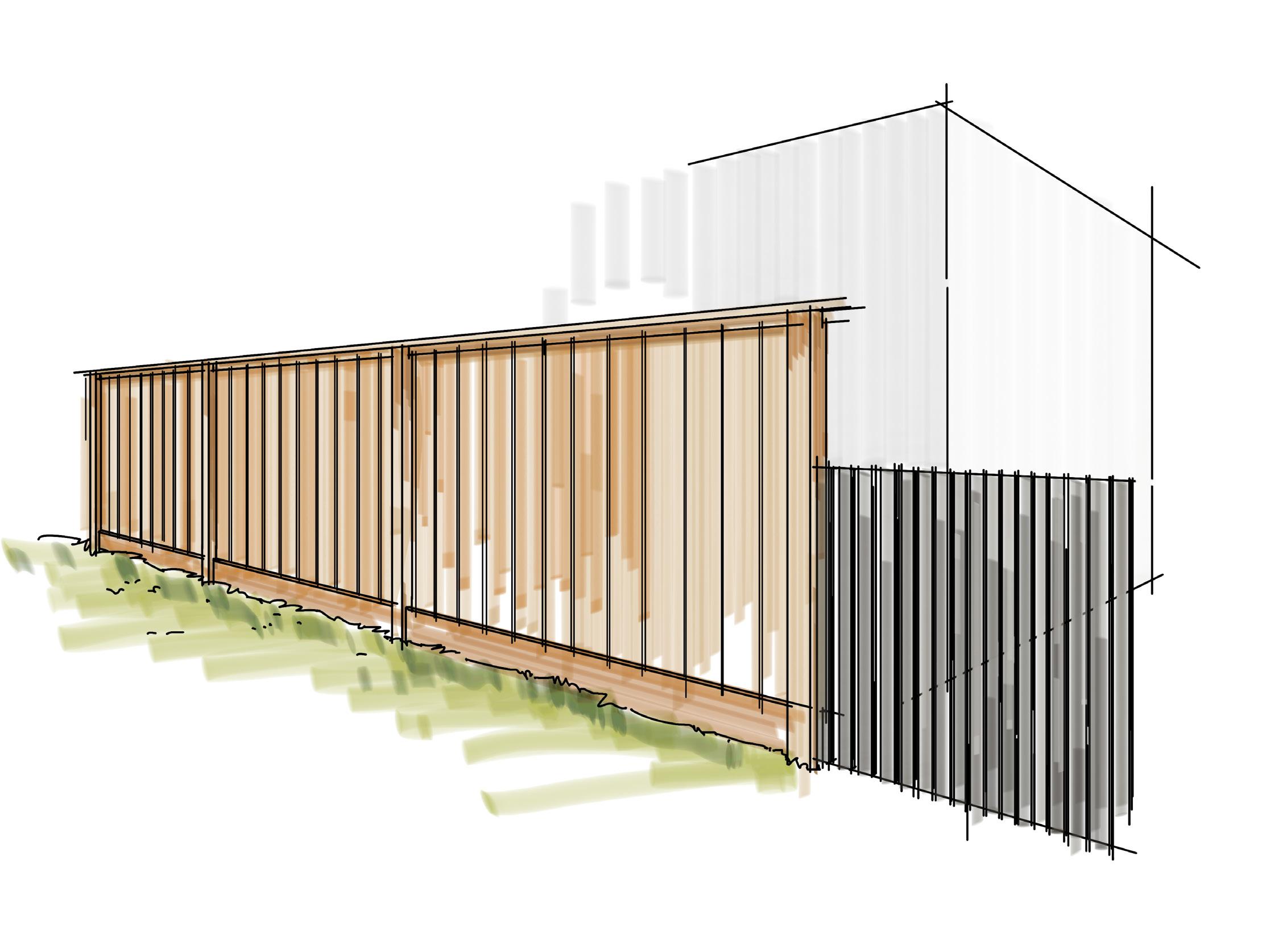

all side and rear fences
• ALL SIDE AND REAR FENCES TO BE CONSTRUCTED OF TIMBER PALINGS WITH EXPOSED POSTS AND CAPPED ACROSS THE TOP TO A MAXIMUM HEIGHT OF 2.0 METRES, INCLUDING THE CAPPING.
• FENCES SHOULD BE CONSTRUCTED PRIOR TO MOVING INTO YOUR HOME.

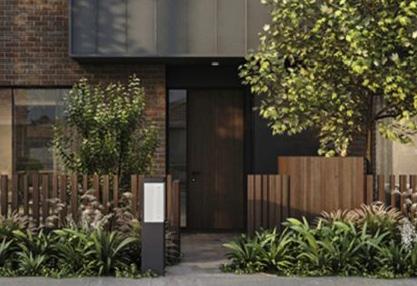

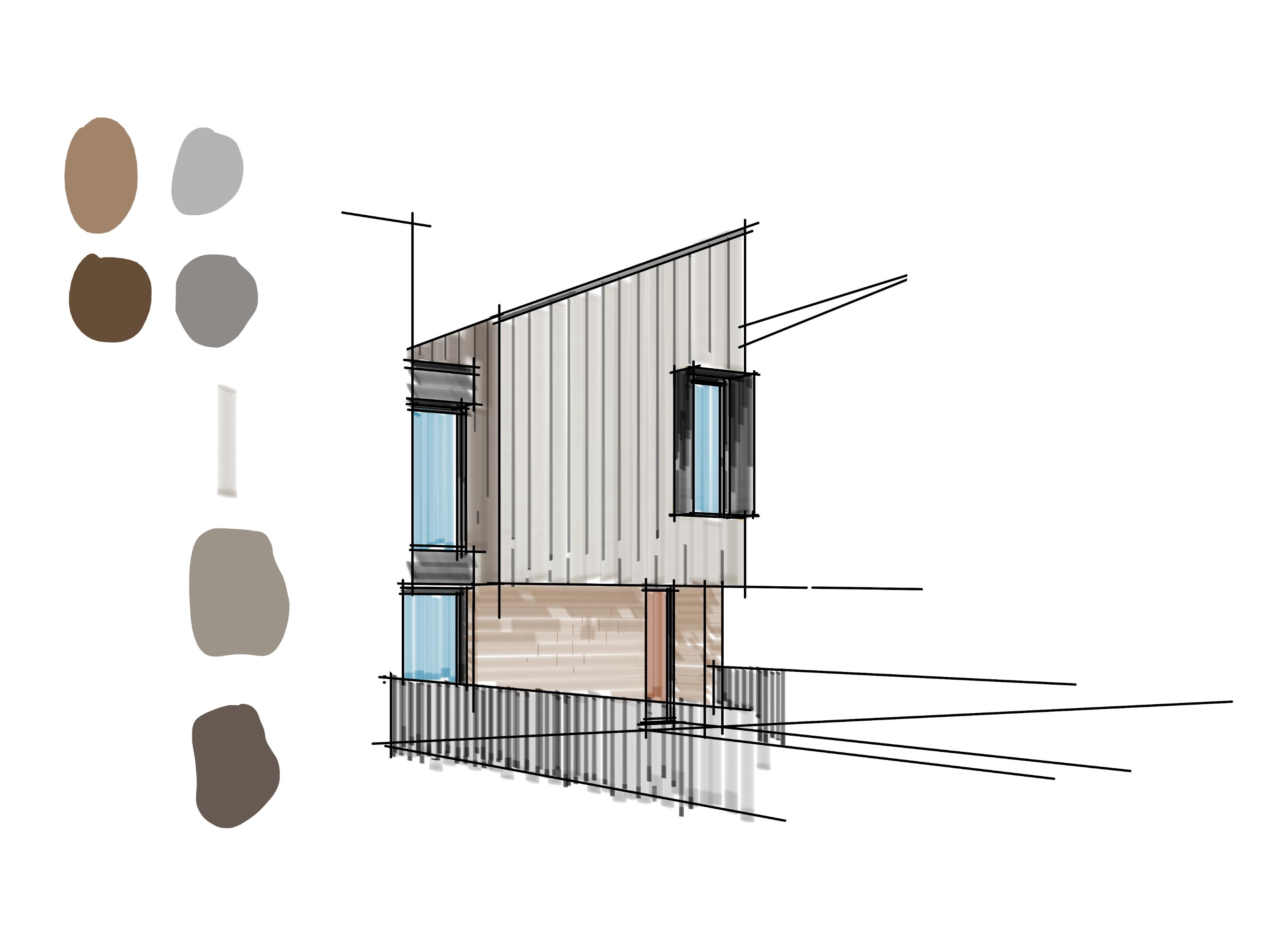

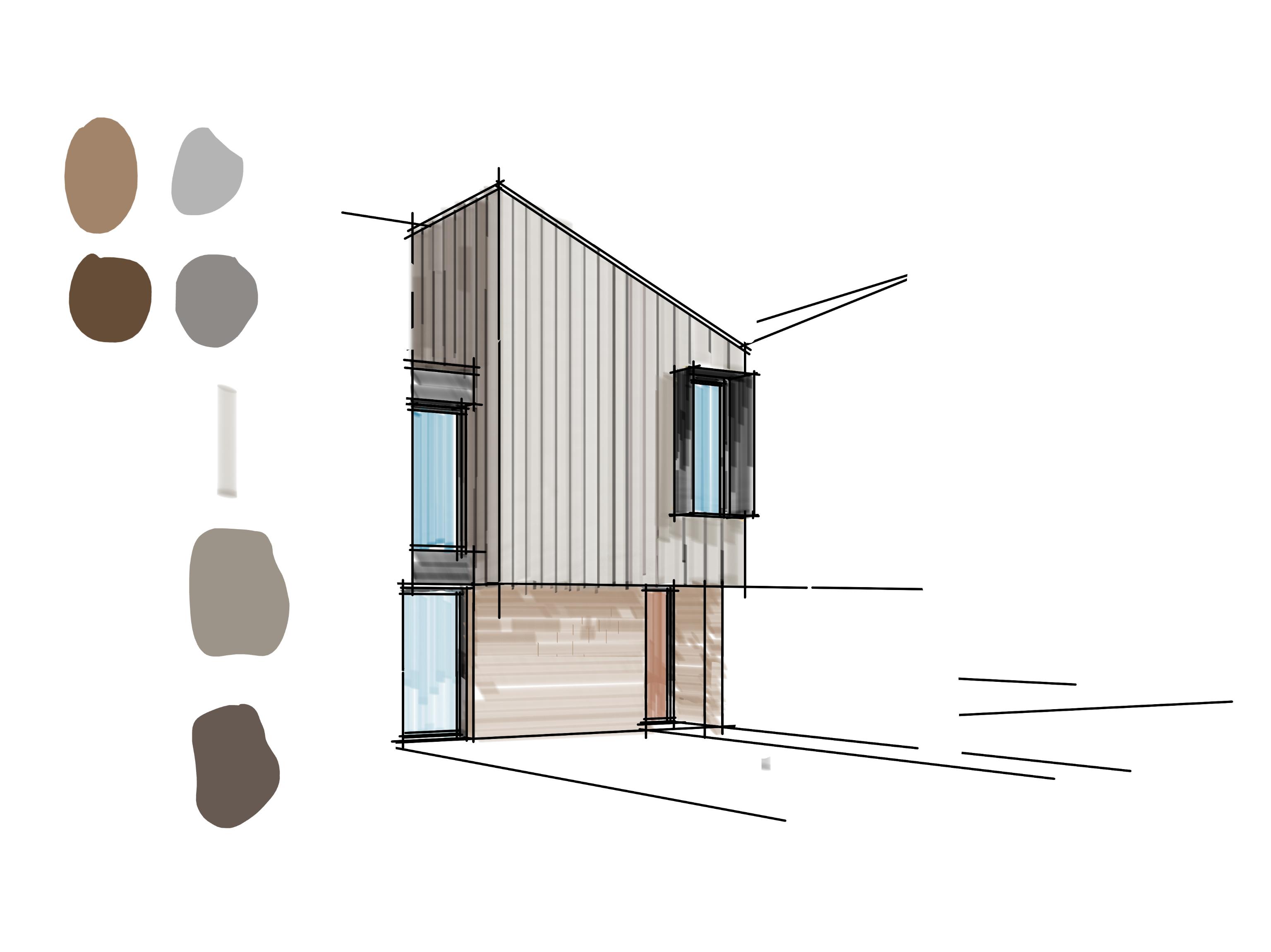

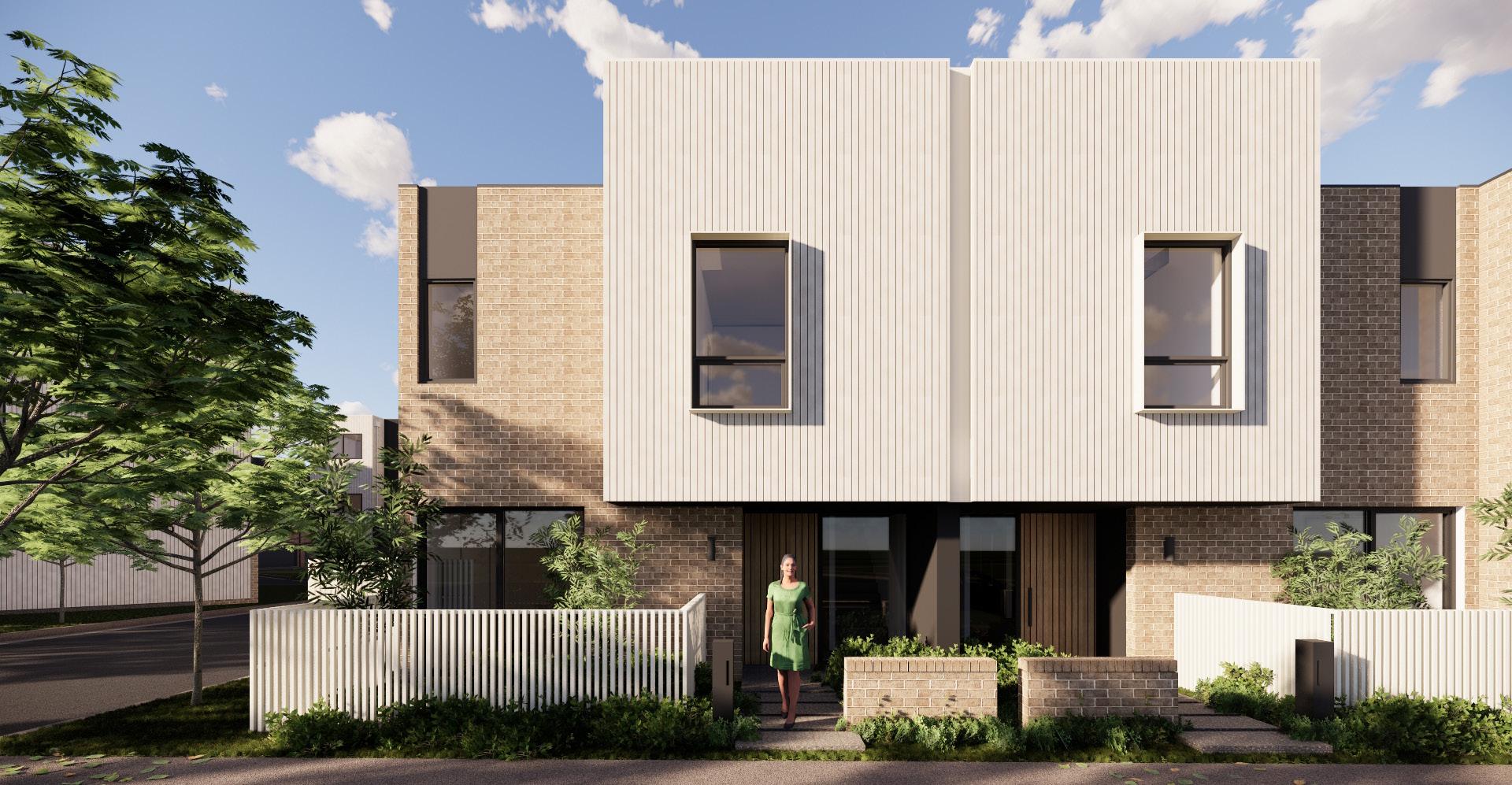

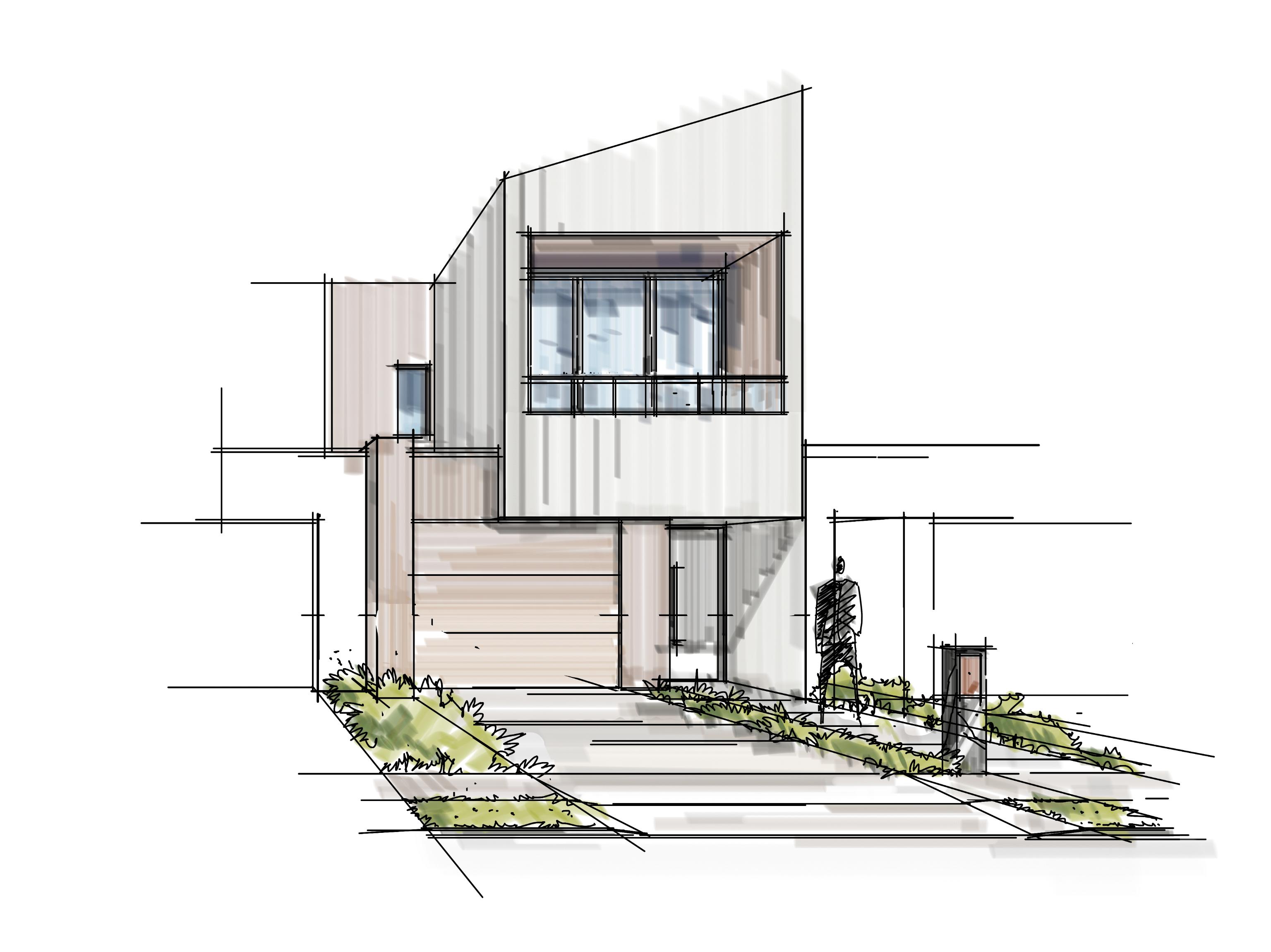

HOUSE FACADE- INDICATIVE ONLY

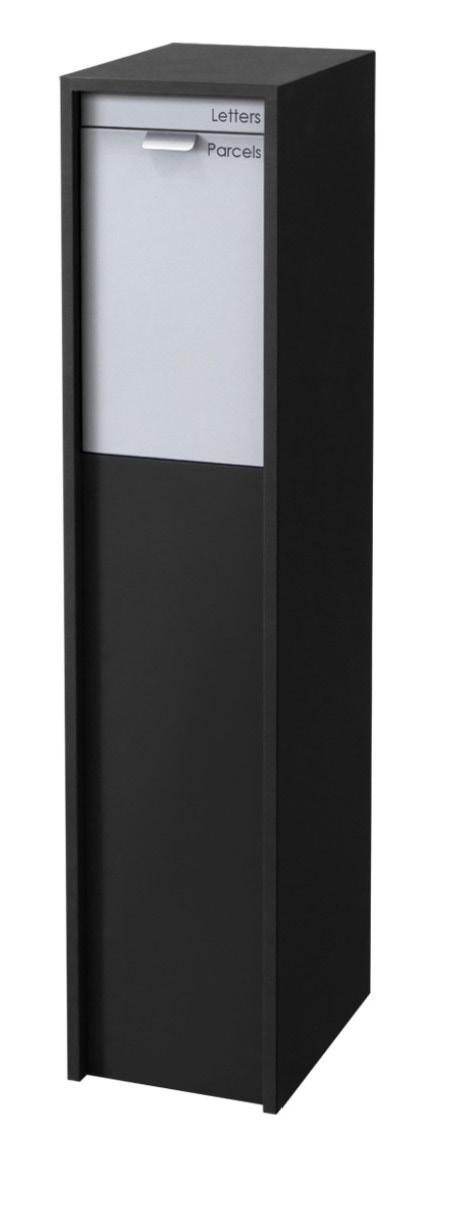

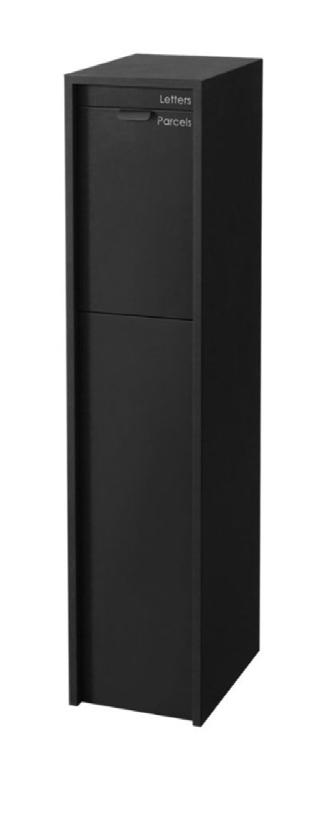

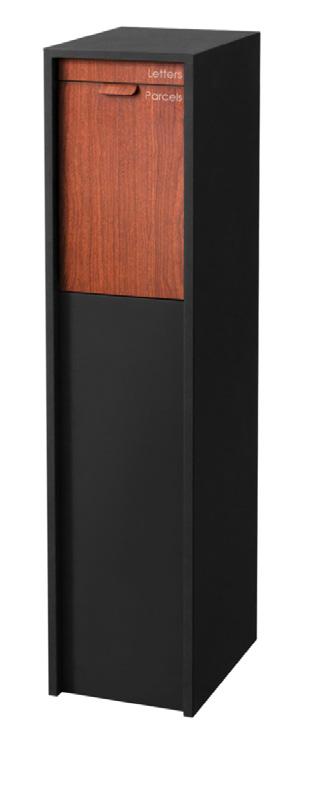

LETTERBOXES
• MINIMAL METAL FACE DESIGN
• BLACK, SILVER, TIMBER LOOK INLAY
• 1000mm x 220mm x 300mm
• OR SIMILAR APPROVED PRODUCT
side fenceforward of building line
• BLADE OR BATTEN FENCE.
• PAINTED TIMBER BATTENS
• POWDER COATED METAL BLADES OR ALUMINIUM BATTENS
• 1200 HEIGHT MAX.
• 20% VISUAL PERMEABILITY
• NO EXPOSED CAPPING
• ANY FENCE FORWARD OF THE BUILDING LINE SHOULD MATCH THE FRONT FENCE.
SHEDS, SERVICES AND OUTDOOR STRUCTURES
objective
TO INTEGRATE BUILDING SERVICES IN A WAY THAT DOES NOT VISUALLY DETRACT FROM THE PUBLIC REALM.
EXTERNAL FIXTURES MUST ADHERE TO THE FOLLOWING PRINCIPLES AND THE LOCATION MUST BE NOTED ON PLANS TO BE SUBMITTED TO THE DAP. CLOTHES LINES, GARDEN SHEDS, RAIN WATER TANKS, EXTERNAL HOT WATER SERVICES AND DUCTED HEATING UNITS OR SIMILAR MUST NOT BE VISIBLE FROM THE STREET.
SOLAR WATER HEATERS
ARE PERMITTED AND, WHERE POSSIBLE, ARE TO BE LOCATED OUT OF VIEW FROM THE FRONT BOUNDARY AND THE STREET ABUTTING IT. THE SOLAR PANELS SHALL BE LOCATED ON THE ROOF, NOT ON A SEPARATE FRAME, AND THE STORAGE TANKS DETACHED AND LOCATED OUT OF VIEW FROM THE STREET FRONTAGE.
AIR CONDITIONING UNITS, BOTH REFRIGERATED AND EVAPORATIVE, MUST BE POSITIONED SOTHAT THEY ARE NOT VISIBLE FROM THE FRONT BOUNDARY AND THE STREET ABUTTING IT. THEYMUST BE PAINTED TO MATCH THE COLOUR OF THE ROOF, BE LOW PROFILE UNITS AND INSTALLED AS LOW AS POSSIBLE BELOW THE ROOF RIDGELINE TOWARDS THE REAR OF THE HOUSE.
WALL MOUNTED AIR CONDITIONERS MUST BE LOCATED BELOW THE EAVES LINE, SCREENED SO THEY ARE NOT VISIBLE FROM THE FRO NT BOUNDARY AND THE STREET ABUTTING IT, THENSUITABLY BAFFLED TO REDUCE NOISE.
SATELLITE DISHES
WILL ONLY BE APPROVED IF LOCATED BELOW THE ROOFLINE OF THE HOUSE, THEN SCREENED FROM VIEW FROM THE FRONT BOUNDARY AND THE STREET ABUTTING IT.
RAINWATER TANKS
MUST NOT BE VISIBLE FROM THE FRONT BOUNDARY AND THE STREET ABUTTING IT.
EXTERNAL PLUMBING
EXCLUDING STORMWATER DRAINAGE ,DOWNPIPES MUST NOT BE VISIBLE FROM ABUTTING STREETS OR ANY PARKLAND ADJACENT TO THE FRONT OF THE LOT.
ADVERTISING SIGNAGE
IS NOT PERMITTED ON ANY RESIDENTIAL LOT EXCEPT WHEN THE LOT IS BEING SOLD AFTER THE COMPLETION OF A DWELLING.
HOUSE NUMBERING
FONT TYPE, SIZE AND POSITION NEED TO BE CONSIDERED WITH REGARD TO FACADE COMPOSITION AND VISIBILITY AND STREET VISIBILTY.
OTHER EXTERNAL ELEMANTS FRONTING THE HOME
ITEMS SUCH AS ALARM SENSORS, INTERCOMS, NEED TO BE CONSIDERATE OF THE POSITIONING AND OVERALL COLOR PALETTE
SOLAR PANELS
NO TILT PANELS, UNLESS APPROVED BY DEVELOPER REDUCE VIEW FROM THE PUBLIC DOMAIN AS MUCH AS POSSIBLE
BIN STORAGE
BIN STORE AREAS NOT VISIBLE FROM PUBLIC VIEW. THEY ARE TO BE LOCATED BEHIND FENCING, WITHIN THE SIDE SETBACK OR BEHIND/ WITHIN THE GARAGE. SEE REAR LANE SECTION.
METERS
METER BOXES ON RENDERED WALLS TO BE PAINTED SAME COLOR AS THE WALL. GAS AND WATER METERS TO BE APPROPRIATELY SCREENED BY LANDSCAPING AND LOCATED AWAY FROM PATHS WHERE POSSIBLE.
ANCILLARY ITEMS
SHEDS, CLOTHESLINES ETC TO BE POSITIONED SO THEY ARE NOT VISIBLE FROM THE STREET
plant pallete
Plant Palette
The following list of plant and tree species have been selected as appropriate for purpose and well suited to Wyndham conditions. Any additional species used should compliment the species listed below.
Lagerstroemia indica x fauriei ‘Natchez’ White Crepe Myrtle
Pyrus calleryana ‘Capital’ Capital Ornamental Pear
Tristaniopsis laurina Water Gum
Waterhousea floribunda Weeping Lilly-Pilly

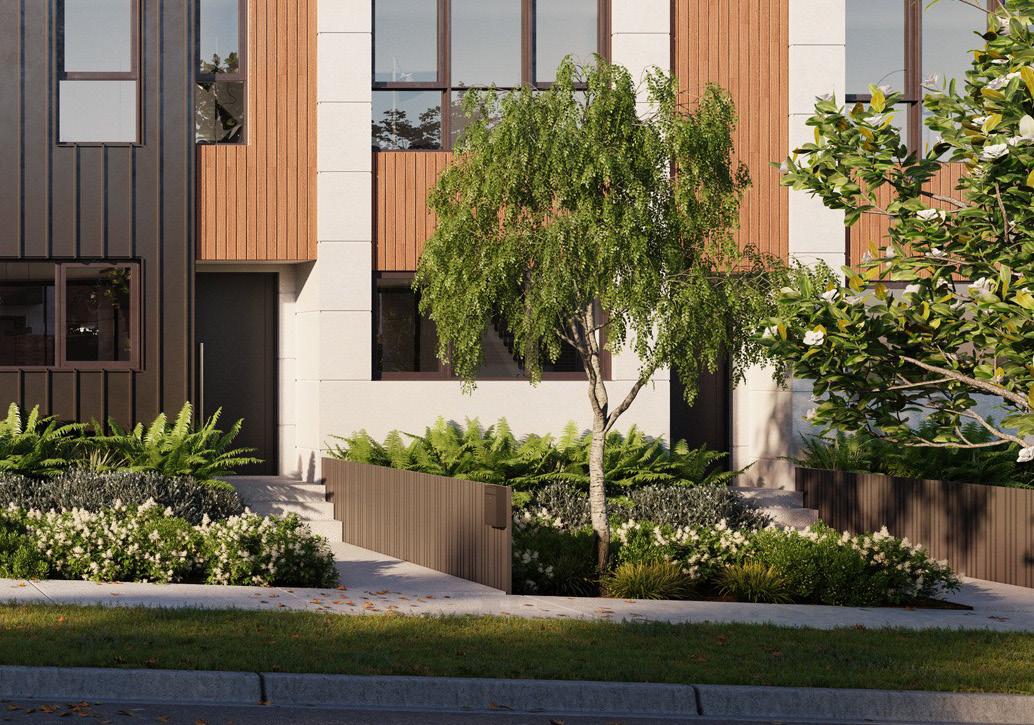

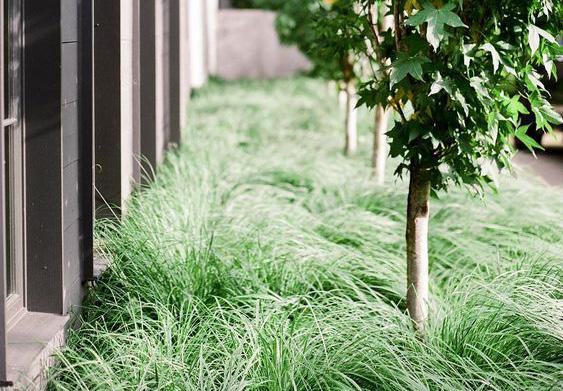

front gardens
Front Gardens:
1. Front gardens should be planted with a minimum of one tree per standard residential lot frontage combined with understory planting. The tree should have a minimum mature height of 4m and be planted as a 45 Litre pot size or greater. The tree species selected to be a suitable/similar mature canopy width to match the dimension of the front set back. E.g a suitable tree for a 1.5m setback may be Pyrus calleryana 'capital' which has a mature width of 1.5m.
2. Front garden designs should be completed to minimise hardscape paving where possible and maximise garden bed areas. Hard paving should be generally limited to driveways and pedestrian access paths.
3. Impermeable surfaces such as concrete or hard paving should be limited to driveways and front paths only.

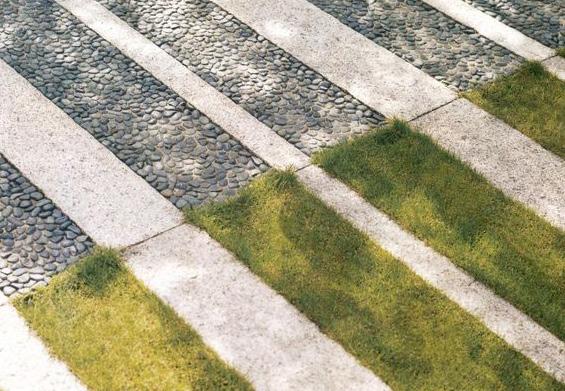

4. Permeable surface treatments such as pebbles, stepping pavers in gravel bed and crushed rock are strongly encouraged.
5. At least 30% of the front yard in total should consist of planted garden bed.
6. There must be a minimum 500mm width of garden bed to side boundaries, 800mm width for side boundaries of corner lots is encouraged if dimensions permit.
7. Double driveway entries must have a minimum 500mm width of garden bed between driveways and side boundaries. For single driveway entries a 750mm width garden bed between driveways and side boundaries is required.
8. The front boundary to the street, a minimum 500mm width of garden bed is to be installed to at least 50% of the total lot frontage.
9. Selected hard surface materials should compliment the building materials.
Garden Beds & Grassing:
1. Garden Beds - A minimum 250mm depth of suitable imported nursery topsoil (appropriate for garden bed us, such as 10% organics and a neutral PH level) is to be installed to all garden bed areas on top of cultivated site soil.
2. Grassed Areas - A minimum 100mm depth of suitable imported nursery topsoil (appropriate for grassing, such as 10% organics and a neutral PH level) is to be installed to all grassed areas on top of cultivated site soil.
3. Drainage – Garden beds and Grassed areas are to be free draining with agricultural drains installed where appropriate to ensure free draining sites.
4. Garden bed areas are to include an 80mm depth of mulch to retain moisture within the soil and suppress weed growth. Garden beds must be mulched with one of the following types of mulch:
• Pine bark, brown or black colour
• Recycled hardwood mulch with a maximum chip size of 50mm
• Gravel screenings (containing no fines) grey or brown in colour
• Decorative stone pebbles in natural colours of grey to brown
Brightly coloured/dyed wood mulches and pebbles (such as red and white) will not be approved.
5. Garden beds must be flush edged to present neatly using one of the following types of edging:
• Timber: ACQ treated pine 25mm width or hardwood 10mm width
• Steel edging 75-100mm depth x 3-5mm width
• Concrete/stone paved edging 100-150mm width.

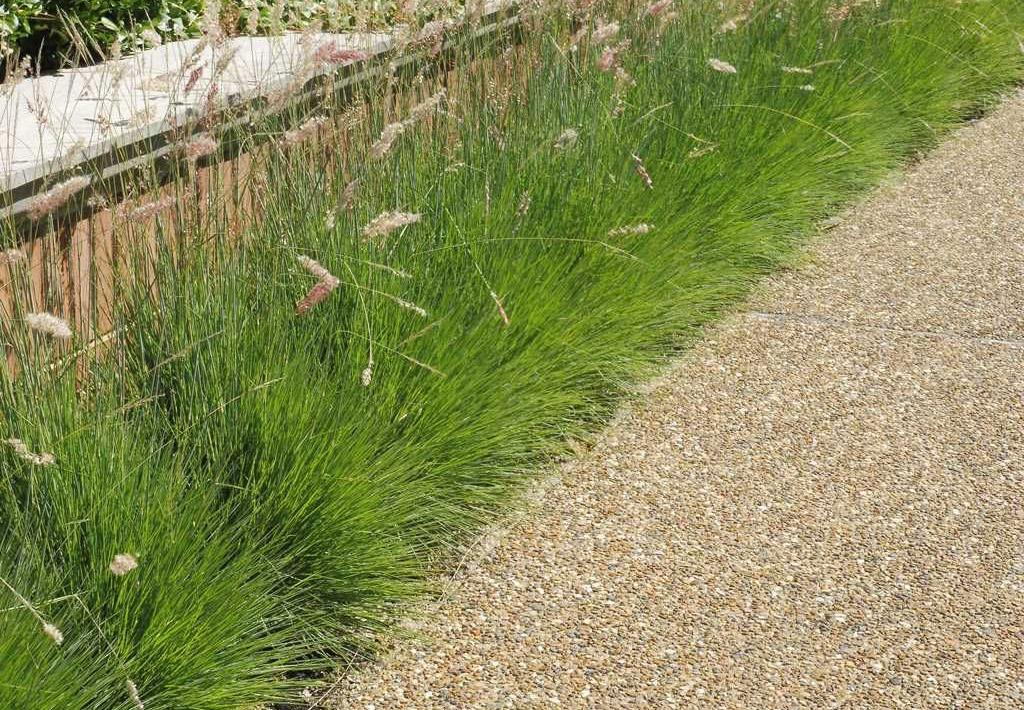

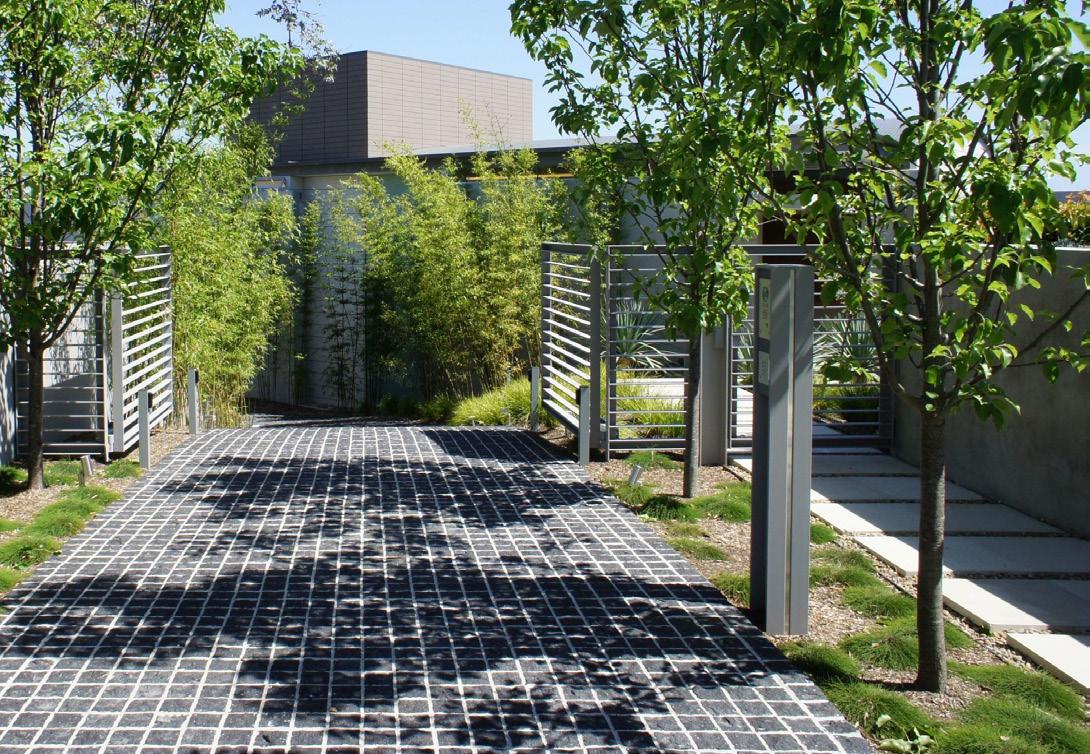

Driveways, Paths & Paving:
1. Entry paths, porches and side access paths are to be constructed from one or a combination of the following types of material and be between 600mm and 1400mm in width:
• Natural stone or concrete unit paving (coloured or exposed aggregate)
• Exposed aggregate cast-insitu concrete paving
• Coloured concrete paving
• Natural crushed stone aggregate or self-binding gravel (grey or brown in colour)
• Natural decorative pebbles in natural colours of grey to brown
2. Driveways are to be constructed from one or a combination of the following types of materials:
• Natural stone paving
• Exposed aggregate cast-insitu concrete paving
• Coloured concrete paving
Note: All hard surfaces should be selected to compliment the building materials and should be of a generally natural colour palette. Where using exposed aggregate concrete or coloured concrete as pathway treatment, the driveways and pathway materials must match.
