PARKFIT
Forpark Australia has been a market leader in designing and manufacturing outdoor fitness equipment for almost two decades and have pushed the boundaries to produce this sleek, contemporary outdoor fitness equipment range.
From its impressive style and unique design to our high-quality materials and low maintenance, it has changed the face of outdoor fitness equipment.
Designed and manufactured in Australia, ParkFit utilises the best European technology, incorporating the latest Rubber Resistance System (RRS) technology that offers a unique workout.
The range includes a combination of moving and static stainless steel apparatus to suit everyone, from the High-Intensity Interval Training (HIIT) enthusiasts to the older users that want to focus on flexibility or mobility.
The Most Innovative Outdoor Fitness Equipment In Australia
Motivating Healthy Communities
What sets ParkFit apart from any other outdoor fitness equipment range in Australia? It’s simple.
Australian made
Made from superior materials suitable for extreme Australian conditions
Design versatility for endless options
The range caters for seniors, everyday users and high-intensity athletes
Very low maintenance required
Above industry average warranty
Unique sleek design
Multiple finishes available, see page 8 for details
WORKOUT PLANS
Support Material

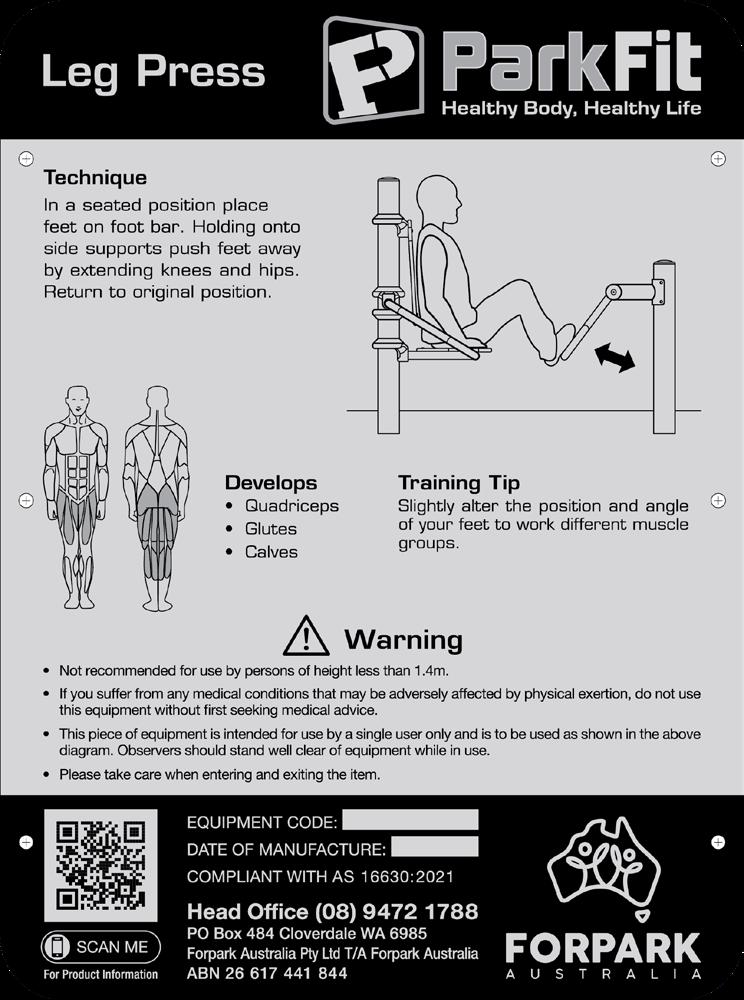

ParkFit equipment comes with instructional videos as well as workout plans for all fitness levels.
Visit our website to find workout plans, instructional videos and ParkFit locations in your local area.

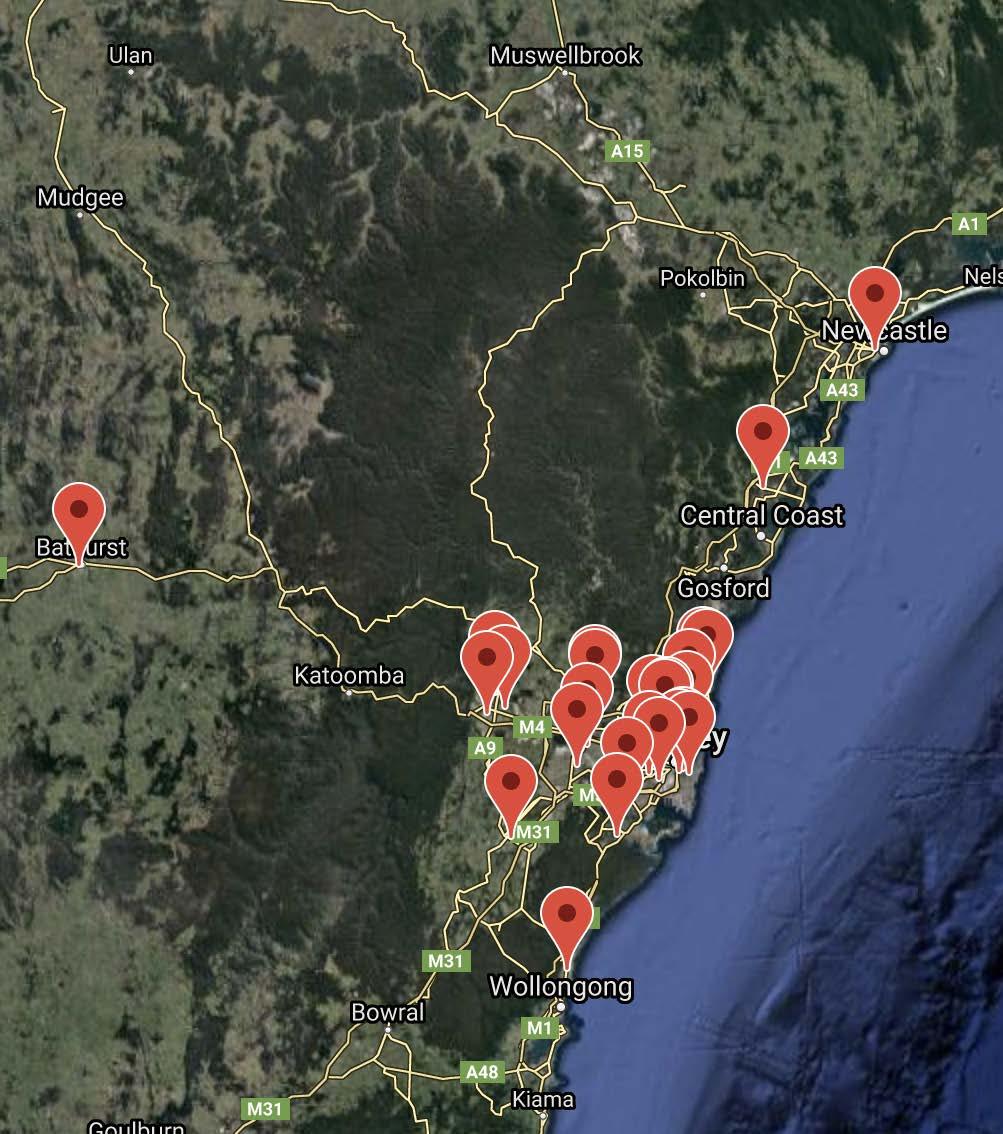

INSTRUCTIONAL VIDEOS PARKFIT NEAR YOU LOCATOR

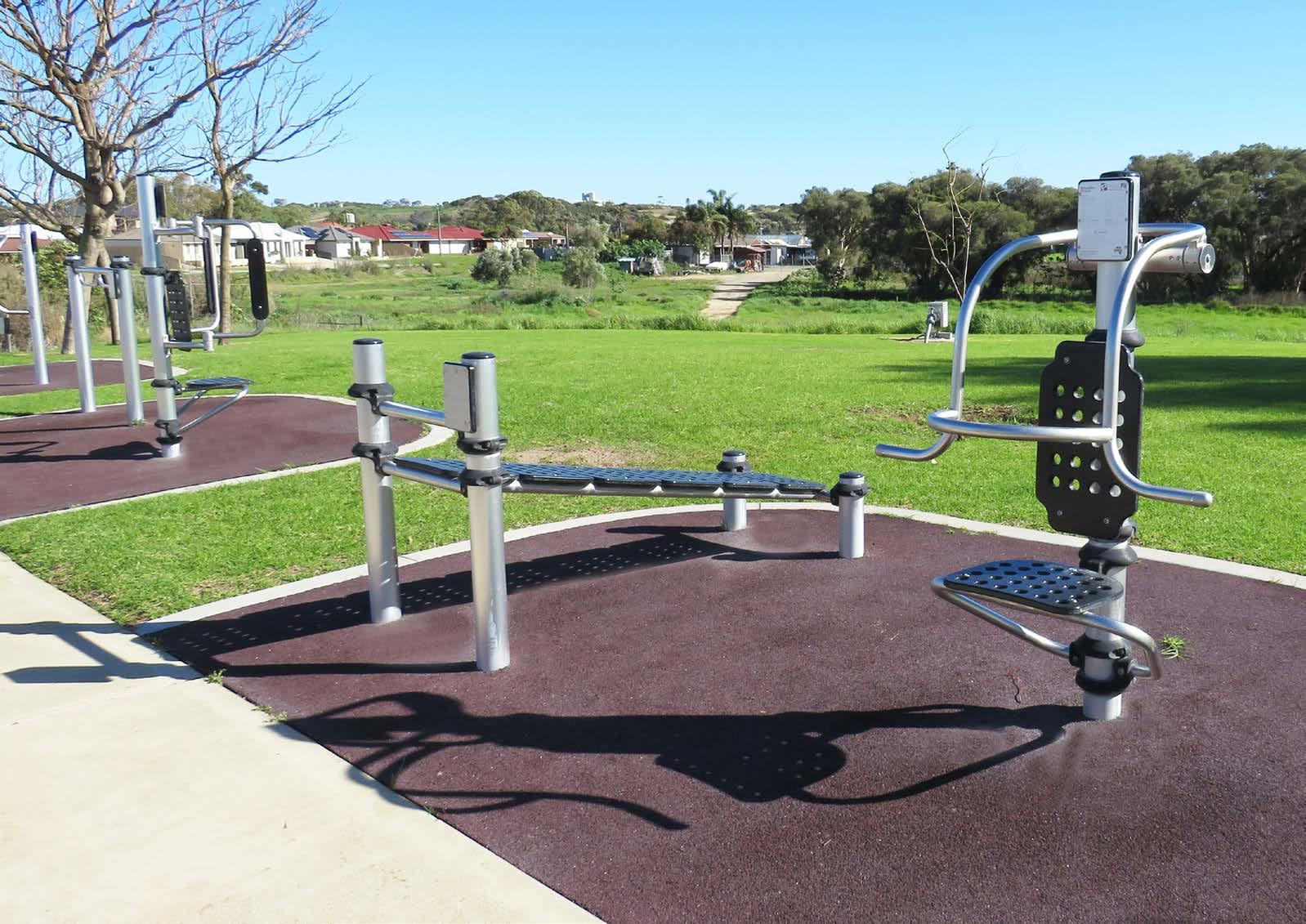

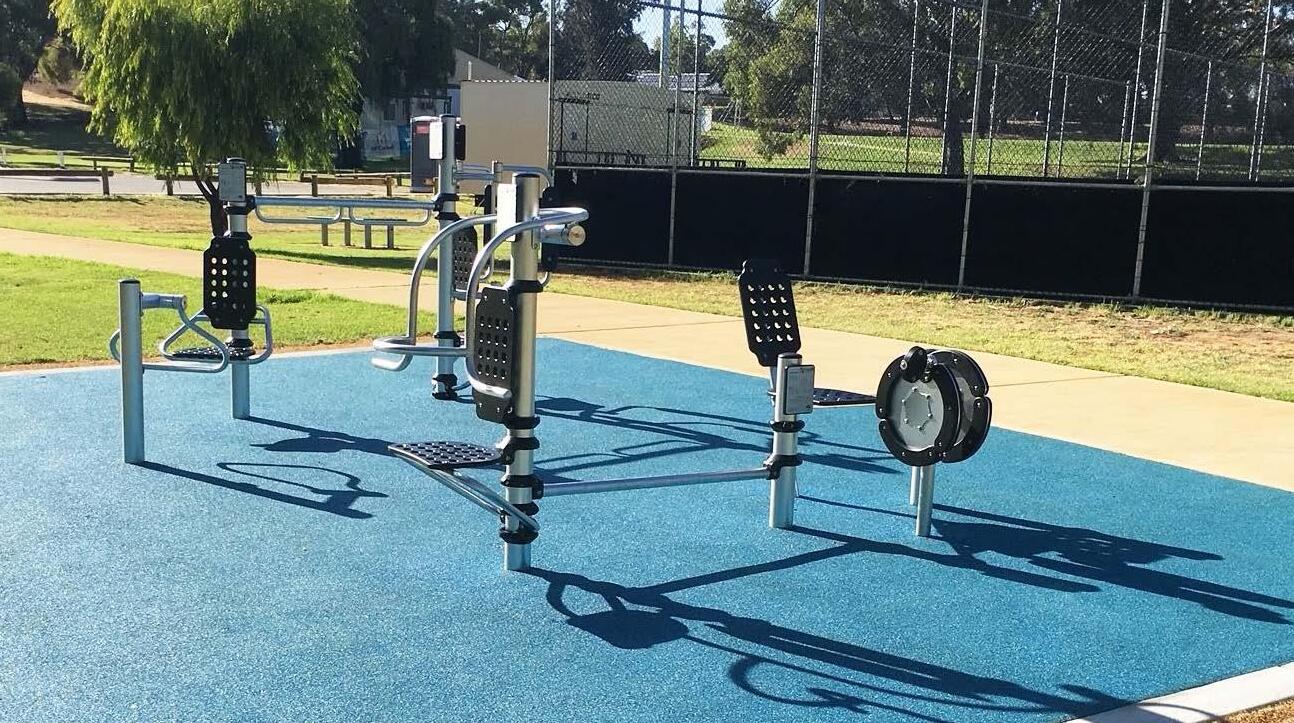

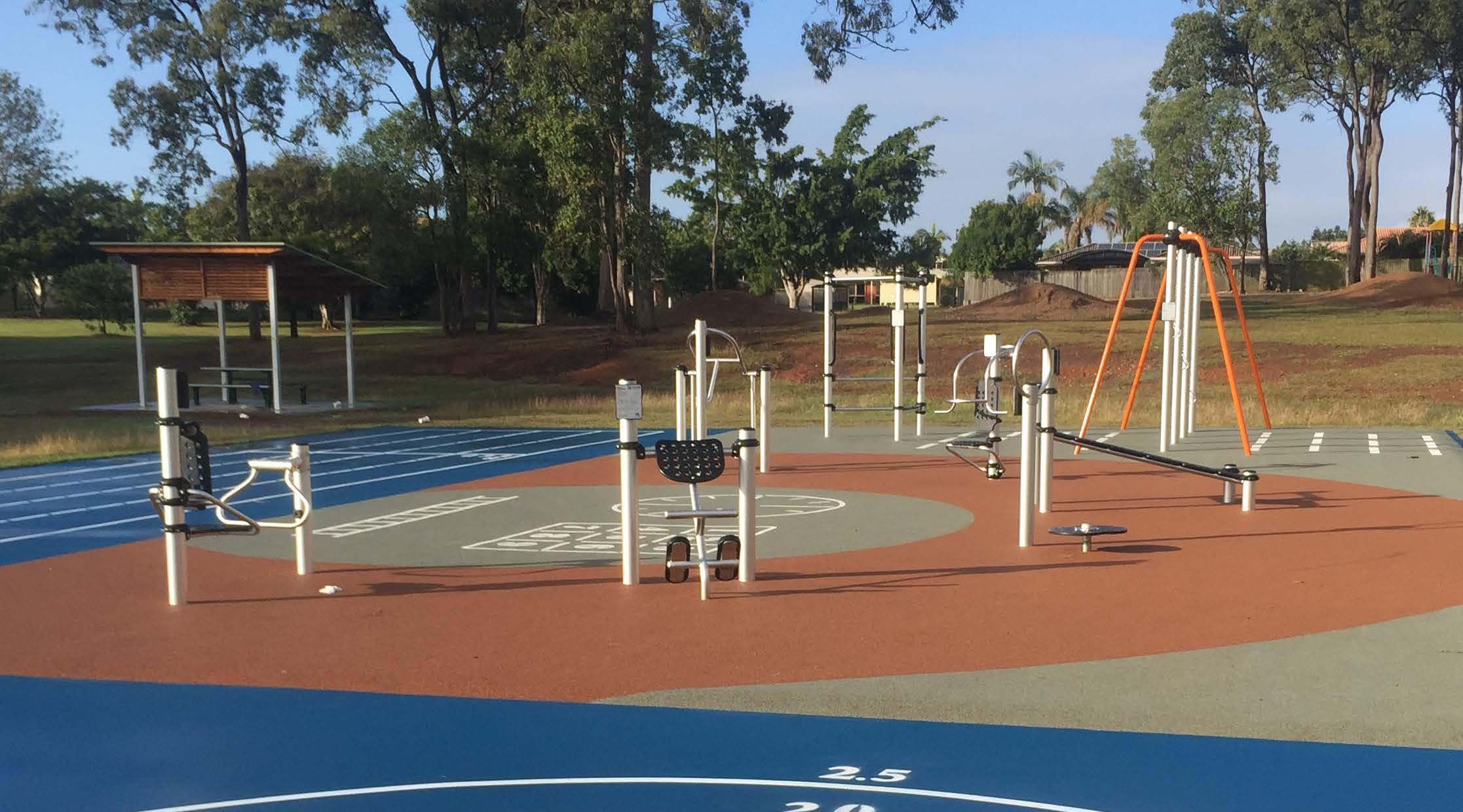

Fitness Space Concepts
FITNESS TRAIL
City Park - Western Australia

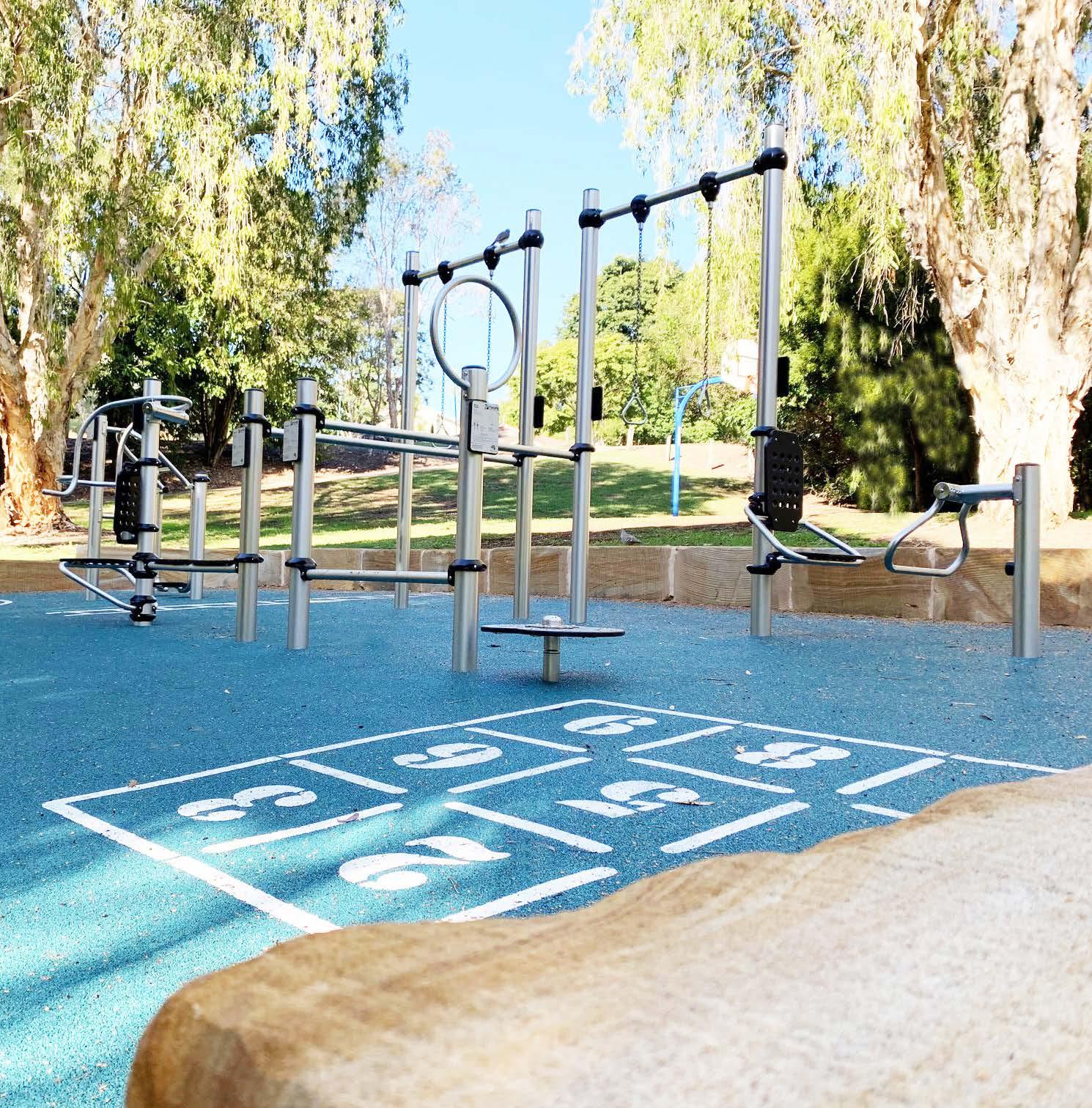

THE COMPLETE FITNESS HUB
Include softfall designs such as ‘beep test’ markings to create a complete fitness hub.

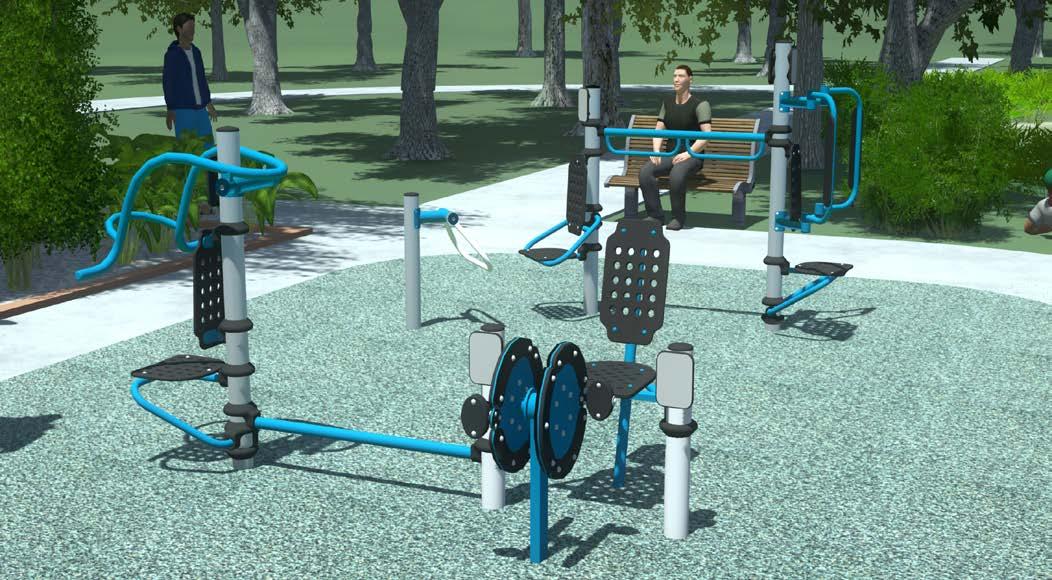

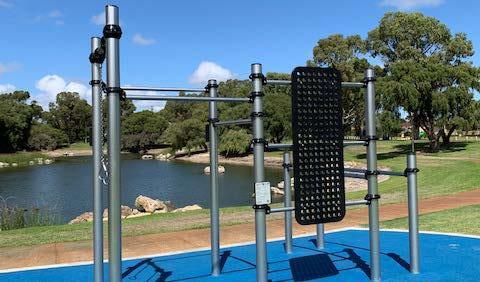

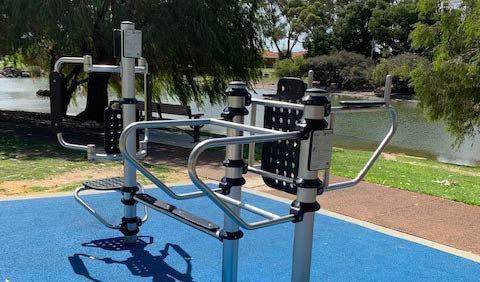

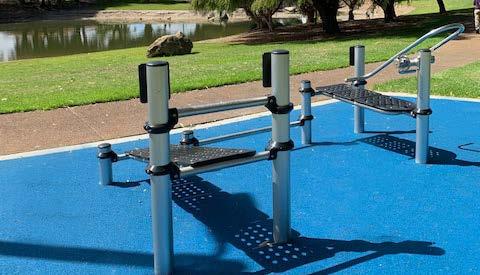

SMALL 360 FITNESS SPACES
Join a number of components together for maximum workout options for small spaces.

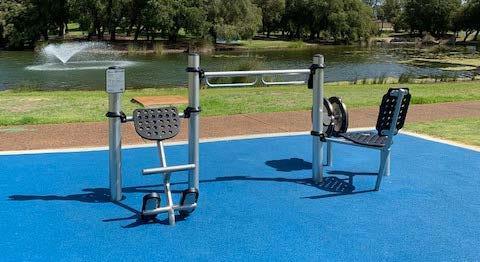

Blatchford Reserve - Queensland
Hudson Park - Western Australia
FREE DESIGN SERVICES
COMPLETE DESIGN SERVICE
Our ParkFit consultants can assist with projects of any size, from simple supply and installation to large scale landscape projects. All of your requirements for undersurfacing, edging and shade can be coordinated by us, giving you a turn-key project run by one contractor.
We will assist you every step of the way, from the initial consultation and design right through to project delivery and beyond!
DESIGN INPUT
We also offer a collaborative service, often utilised by Landscape Architects, which provides regular input where needed for small areas of fitness equipment to larger concepts. We are happy to provide as much or as little design input as needed.
We specialise in creating one-off designs for our customers.
STEP 1
Our consultants can meet with you on-site or in your offices to discuss the aim of the project.
Your ParkFit consultant is the end designer which means ‘lost in translation’ errors, when dealing with too many people, are eliminated. It makes for a much smoother design process.
Having gained an understanding of your needs, we survey the proposed site, taking into account any environmental factors that may have a bearing on your project.
STEP 2
We prepare 2D plans as well as computer-generated 3D images of the proposed equipment. These will be presented to you with a quotation detailing all costs associated with the project.
STEP 3
Upon acceptance of the quote, we will begin manufacturing the equipment and scheduling all works associated with the installation. With all manufacturing taking place in our factories can ensure strict quality control.
Standards ready
All ParkFit items and designs are compliant with AS 16630:2021.
This includes the design and manufacture of individual components as well as the layout of combinations to ensure safety for all users.
Customise your ParkFit Equipment
Choose your product
Choose either individual components or have our design consultants create the perfect combination. Whether you’re looking for high intensity, everyday combinations or a combination to get your community active, we can create the right combination for your space and budget.
Choose your upright material
Choice of the following materials:
1. Anodised Aluminium
2. Hot Dip Galvanised Steel
Choose your finish
1. Polished Stainless Steel
2. NEW Powder Coated Stainless Steel - See Colour Chart for colour options and our website for examples
Colour Chart
POWDER COAT COLOURS - STAINLESS STEEL
Individual Components
The range consists of products with both static and moving parts, making it possible to cater for practically any fitness level. Many of the components can be joined together to maximise the number of fitness activities for the space available, creating endless design options.

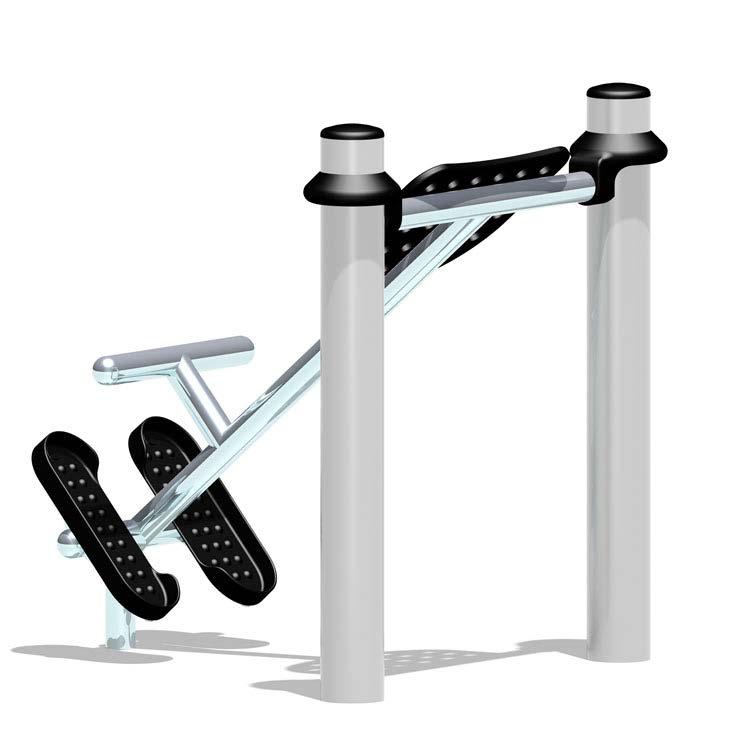

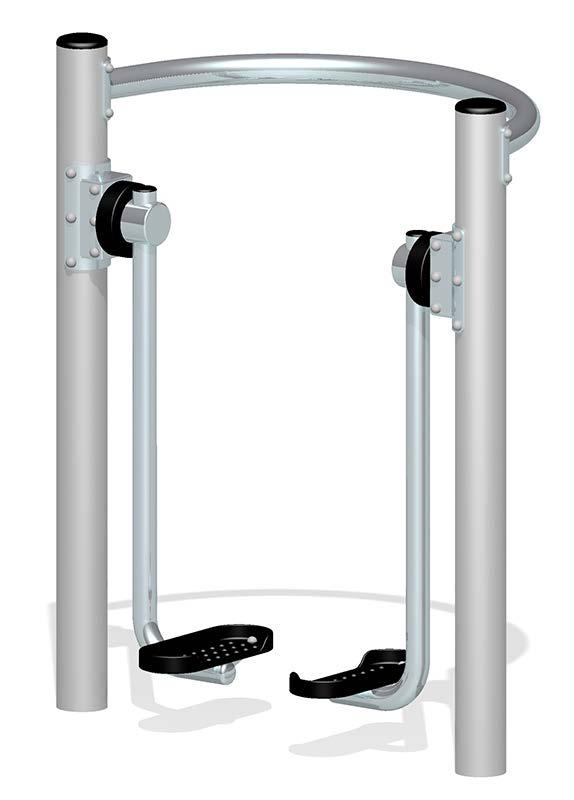

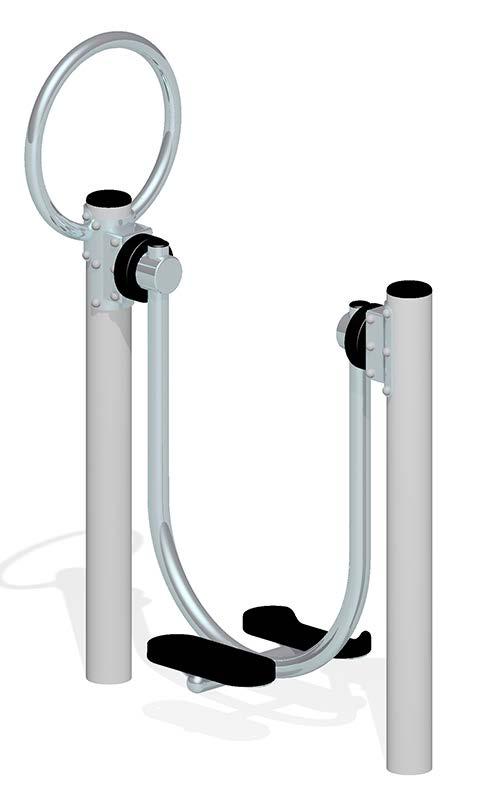

AEROBIC WALKER
Develops cardio system, quadriceps, hamstrings and calves
CARDIO FLEXIBILITY & MOBILITY STRENGTH
BENCH PRESS
Develops pectorals, deltoids and triceps
Maximum Fall Height: 530mm
Minimum Area of Movement: 15m2
Equipment Size: 1590mm x 870mm
Impact Surface Required: No
BODY TWIST
Develops flexibility and mobility, lower back, glutes and abdominals
Maximum Fall Height: 650mm
Minimum Area of Movement: 19m2
Equipment Size: 1090mm x 690mm
Impact Surface Required: Yes
BACK EXTENSION
Develops lower back, glutes and hamstrings
Maximum Fall Height: 850mm
Minimum Area of Movement: 12m2
Equipment Size:
870mm x 860mm
Impact Surface
Required: No
Maximum Fall Height: 150mm
Minimum Area of Movement: 17m2
BUTTERFLY PRESS
Develops pectorals
Maximum Fall Height: 400mm
Minimum Area of Movement: 13m2
Equipment Size: 760mm x 500mm
Impact Surface Required: Yes
Equipment Size: 975mm x 570mm
Impact Surface
Required: No

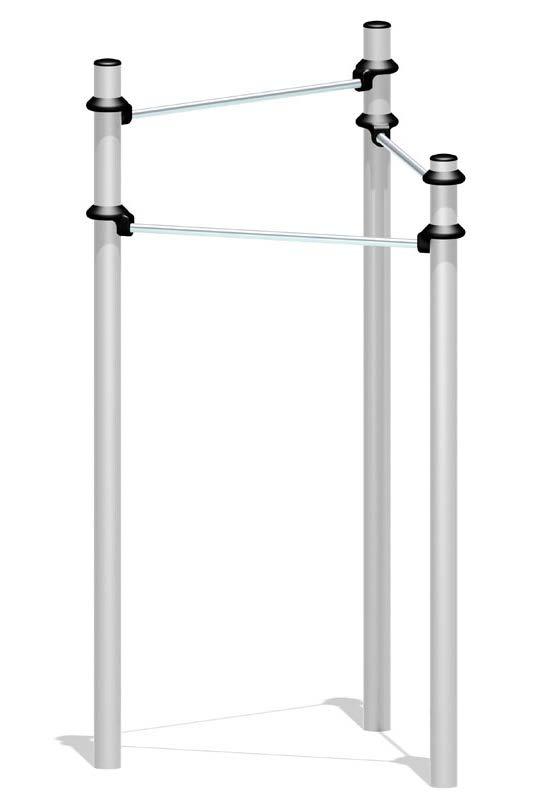

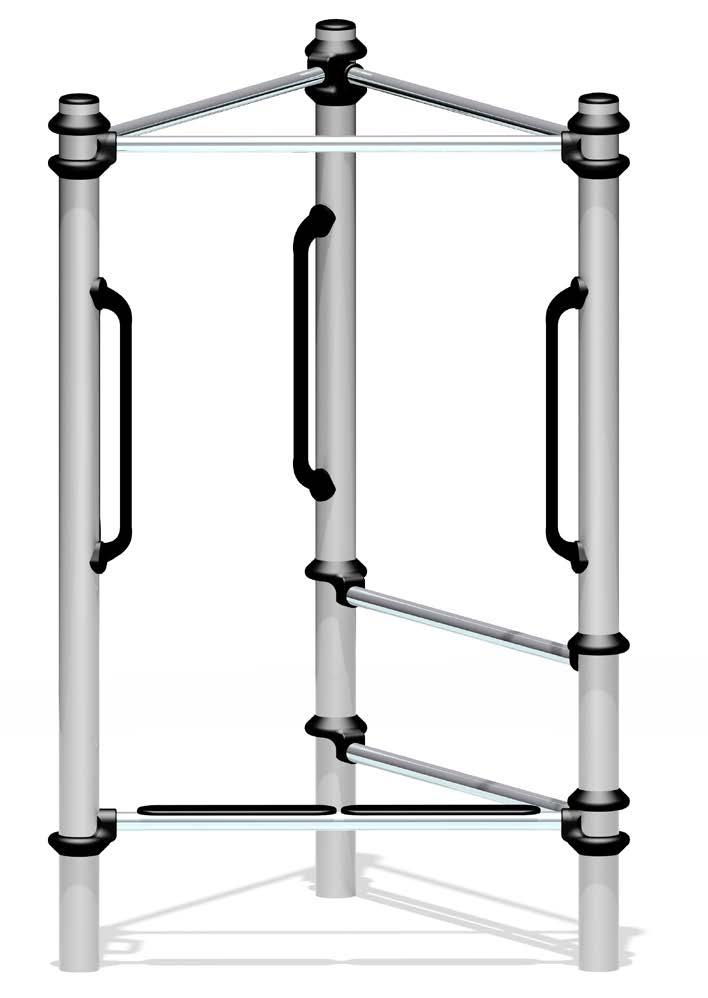

CHIN UP BARS
Develops biceps, triceps, lats and abdominals
Maximum Fall Height: Various
Minimum Area of Movement: 15m2
Equipment Size: 1450mm x 1285mm
Impact Surface Required: Yes

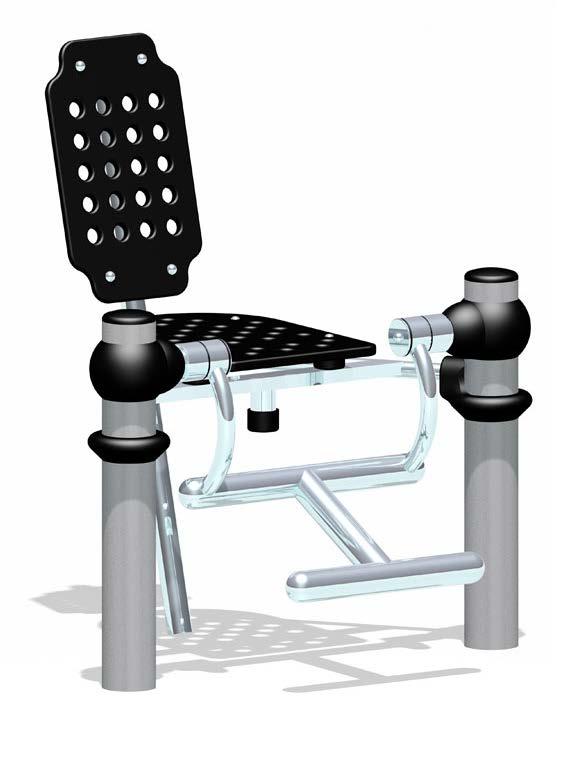

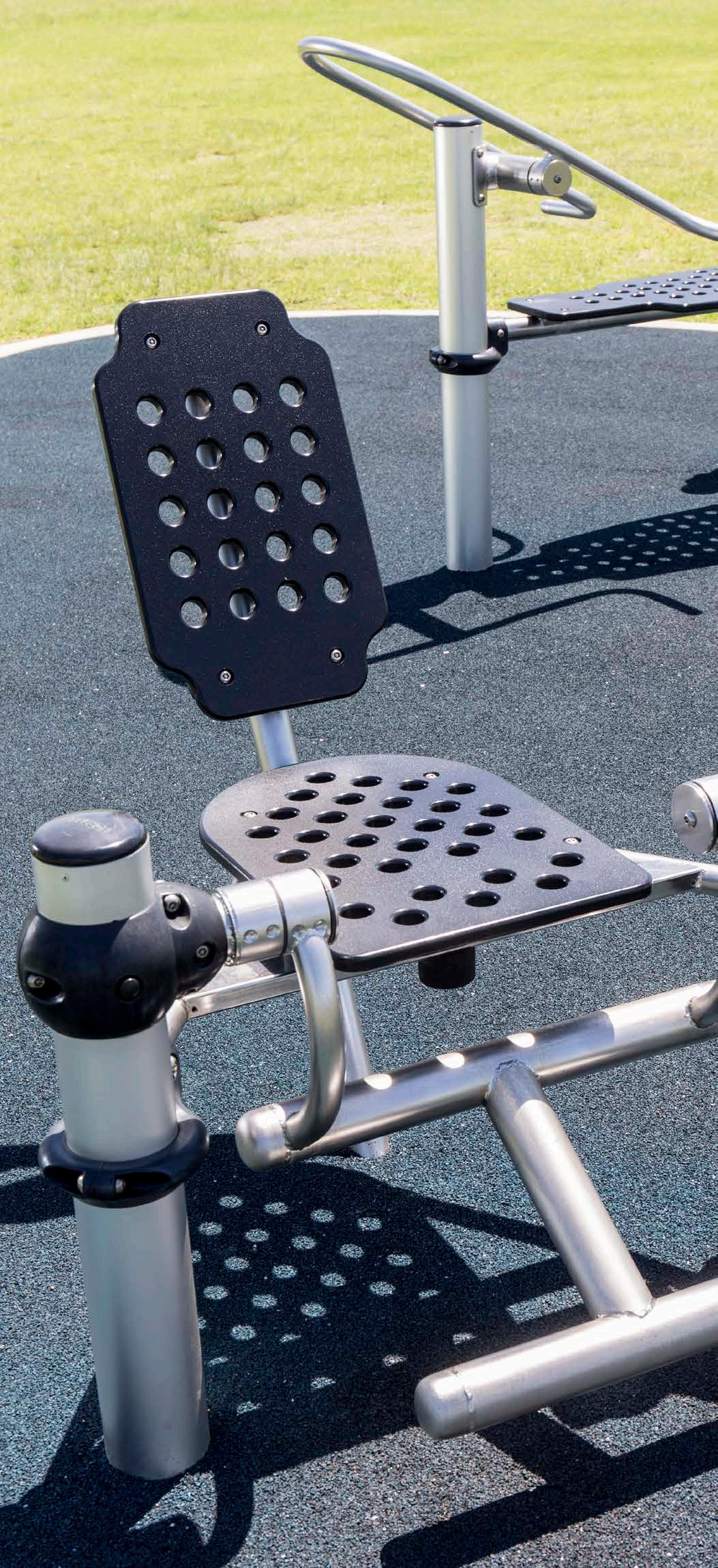

CYCLE SEAT
Develops quads, hamstrings and assist in improving cardio
Maximum Fall Height: 500mm
Minimum Area of Movement: 14m2
Equipment Size: 1440mm x 985mm
Impact Surface Required: No

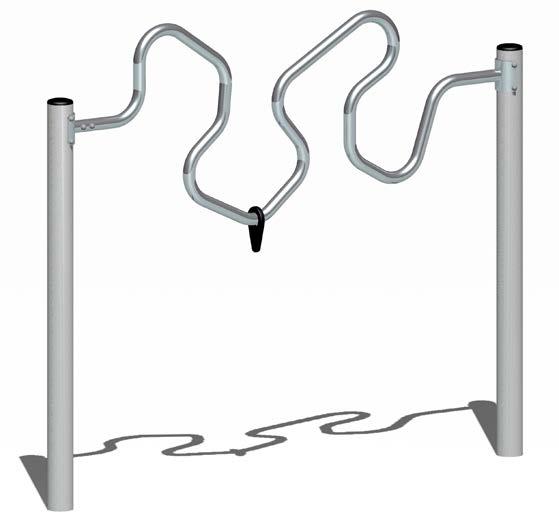

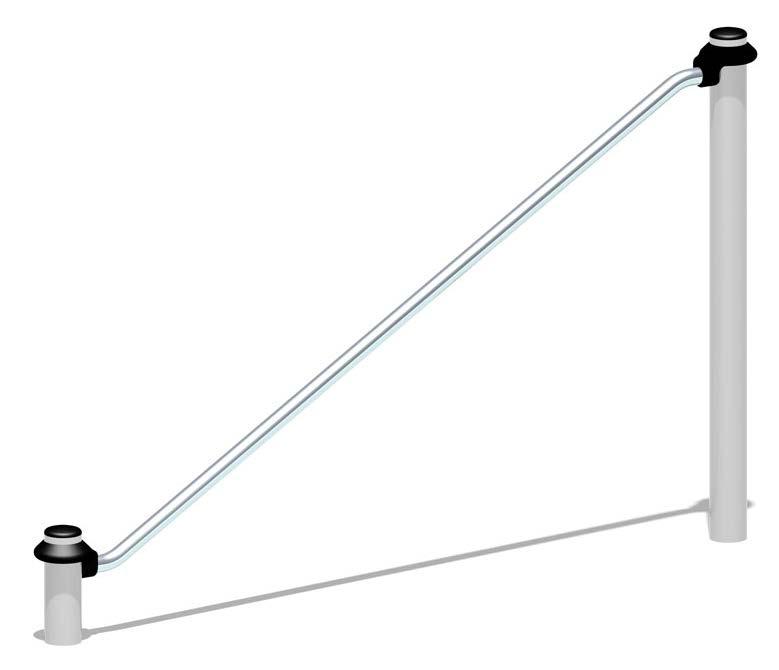

DEXTERITY BAR
Develops coordination and focus, while improving mobility
Maximum Fall Height: 0mm
Minimum Area of Movement: 14m2
Equipment Size: 3000mm x 150mm
Impact Surface Required: No

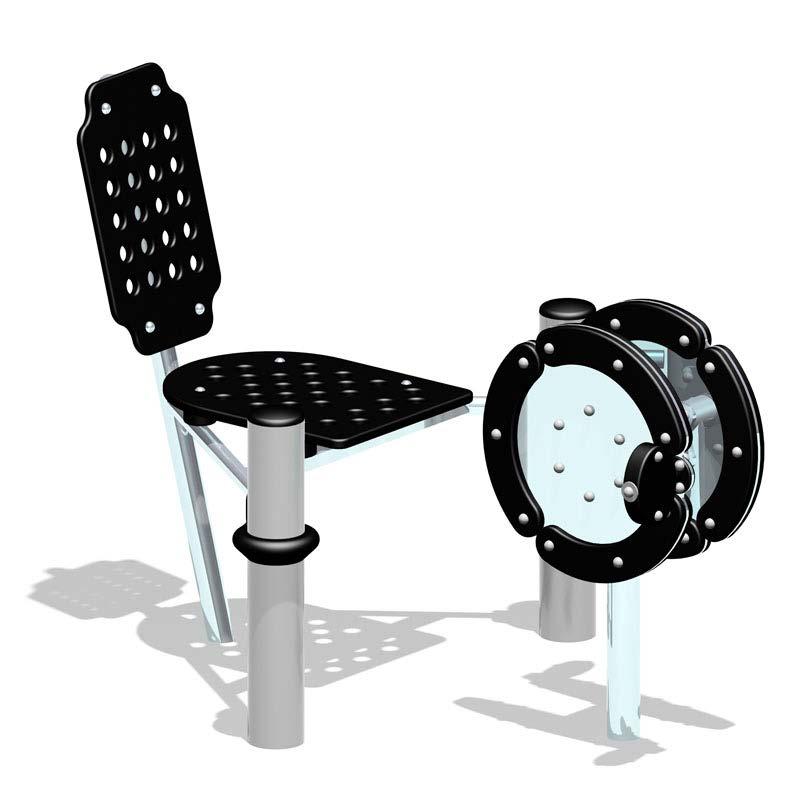

HAND CYCLE
Develops shoulders and assists with improving cardio and mobility
Maximum Fall Height: 0mm
Minimum Area of Movement: 10m2
Equipment Size: 590mm x 490mm
Impact Surface Required: No

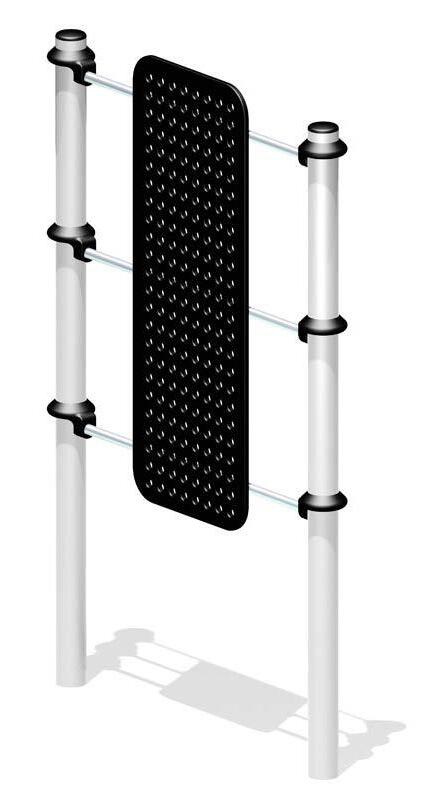

HANDSTAND WALL
Develops shoulders and biceps
Maximum Fall Height: 0mm
Minimum Area of Movement: 18m2
Equipment Size: 1450mm x 150mm
Impact Surface Required: No
LEG PRESS
Develops quadriceps, glutes and calves
Maximum Fall Height: 400mm
Minimum Fall Zone: 13m2
Equipment Size: 1430mm x 640mm
Impact Surface Required: No
LEG LIFT / DIP BAR
Develops chest, triceps, shoulders and abs
Maximum Fall Height: 0mm
Minimum Area of Movement: 15m2
Equipment Size: 1510mm x 760mm
Impact Surface Required: No
Area of Movement Area of Movement
OBLIQUE PIVOT
Develops abdominals, lower back and obliques
Maximum Fall Height: 750mm
Minimum Area of Movement: 16m2
Equipment Size: 1060mm x 480mm
Impact Surface Required: Yes
Area of Movement
Area of Movement

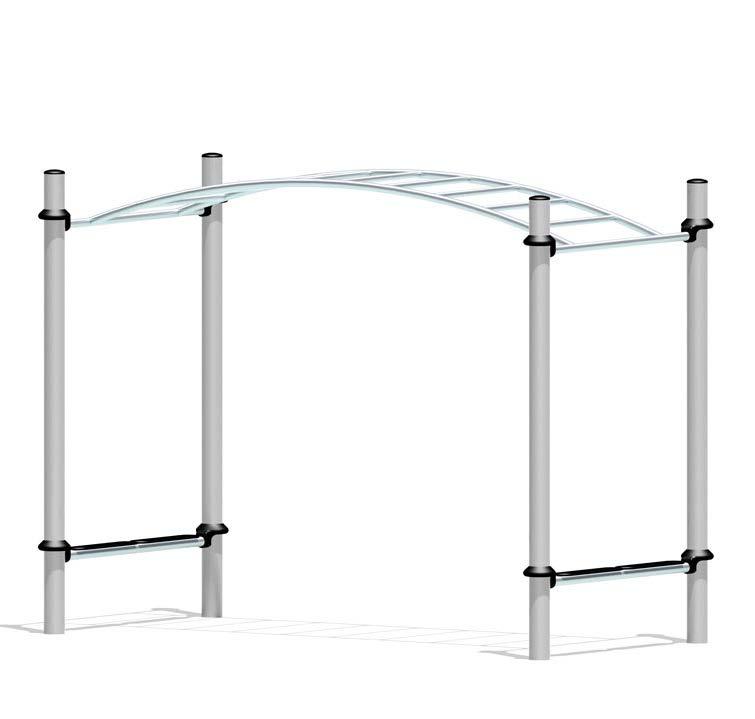

OVERHEAD CHALLENGE
Develops arms, shoulders and core
Maximum Fall Height: 1150mm
Minimum Area of Movement: 24m2
Equipment Size: 3000mm x 1460mm
Impact Surface Required: Yes
Area of Movement
PLYO BOX JUMPS
Develops hamstrings, calves, quadriceps, glutes and assists in improving cardio
Maximum Fall Height: 200-800mm
Minimum Area of Movement: 14m2
Equipment Size: 1500mm x 460mm
Impact Surface Required: No
Area of Movement

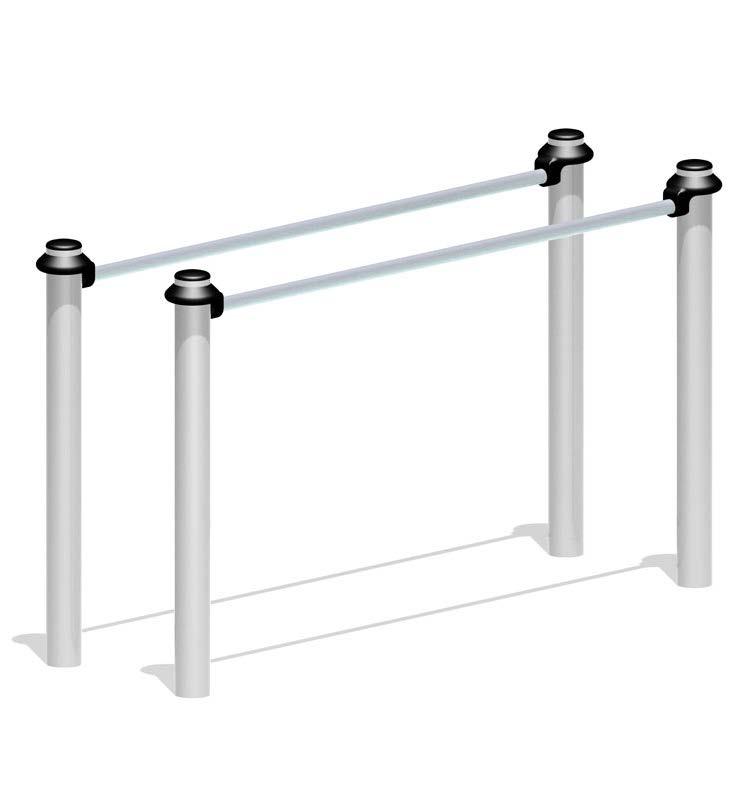

PARALLEL BARS
Develops shoulders, biceps, triceps and lats
Maximum Fall Height: 1150mm
Minimum Area of Movement: 16m2
Equipment Size: 2070mm x 680mm
Impact Surface Required: Yes
Area of Movement

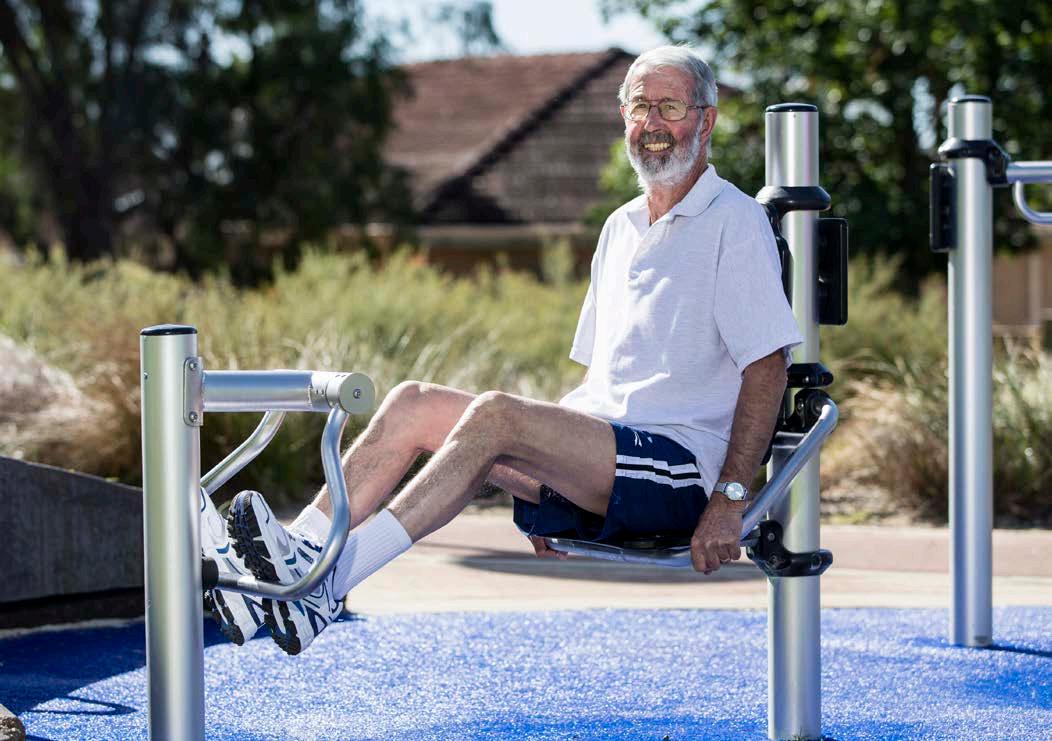

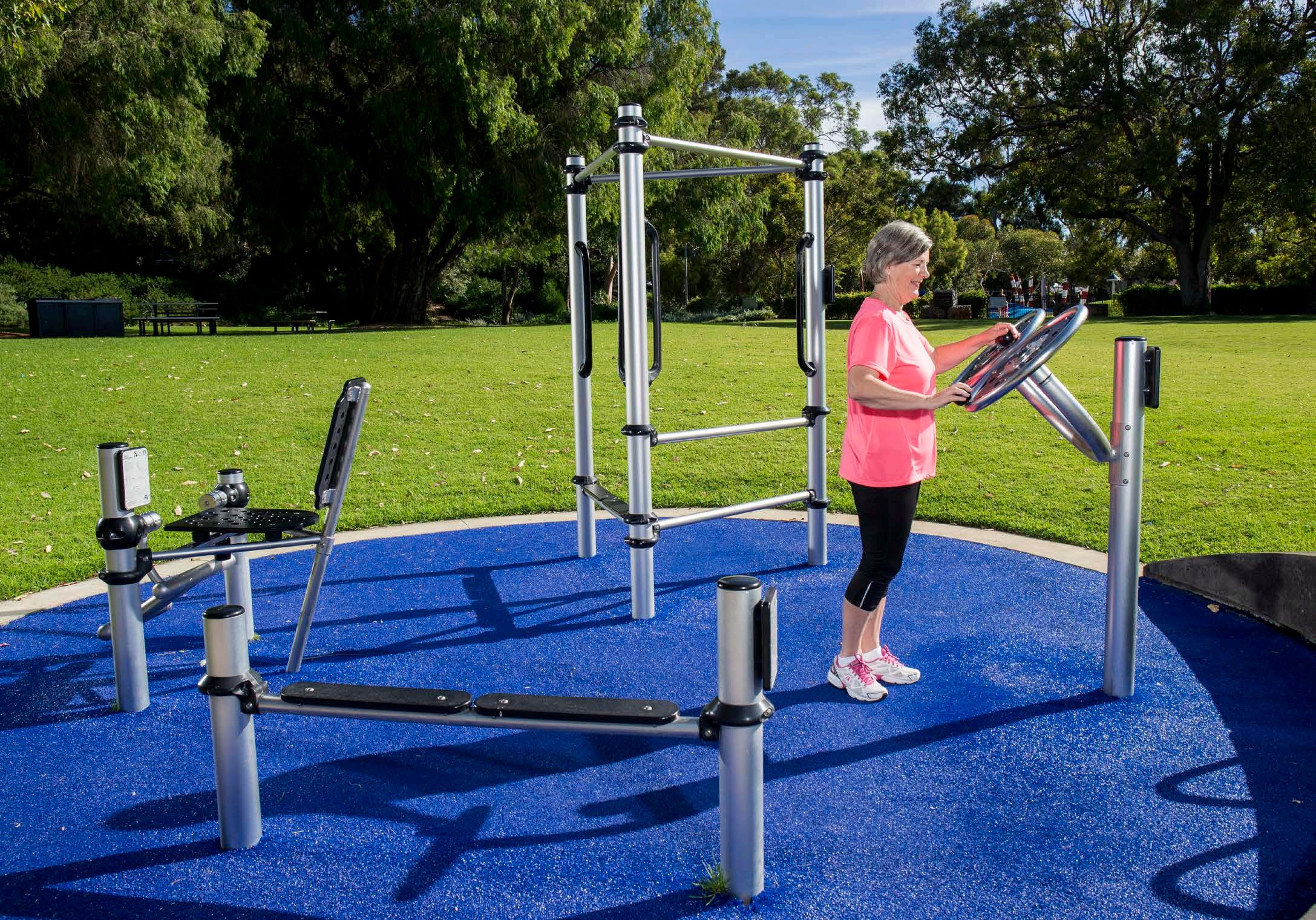

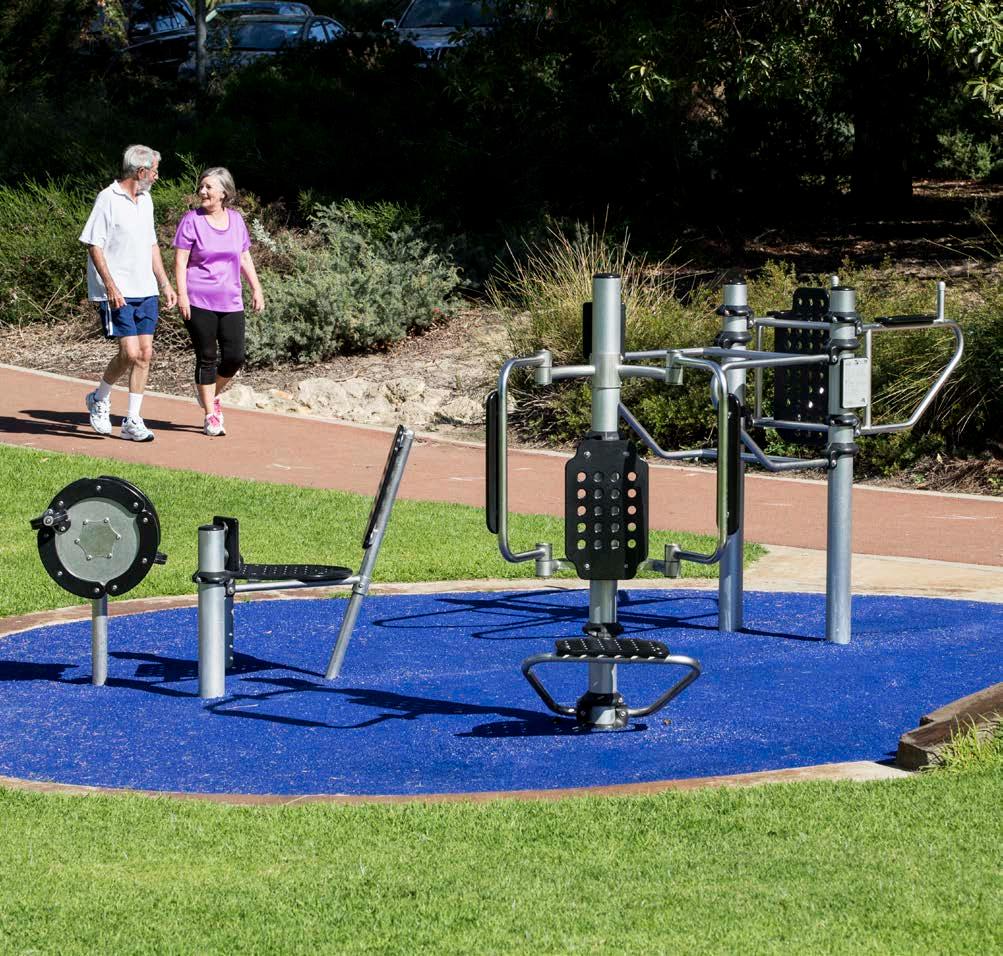

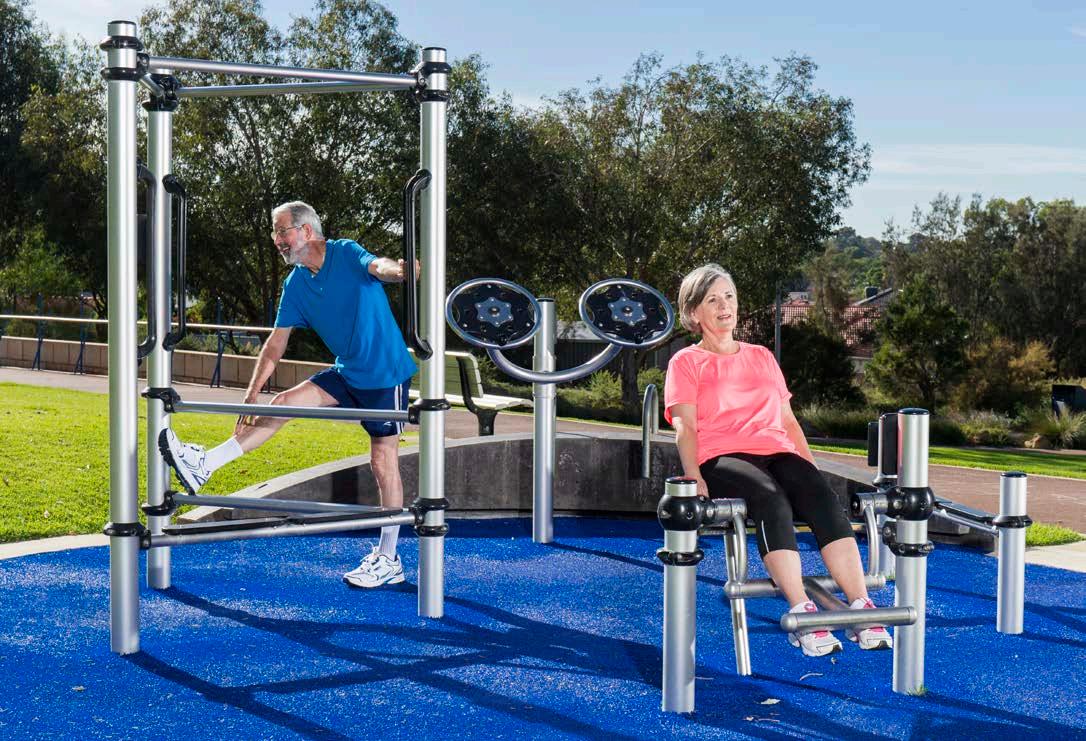

ParkFit for Seniors
Staying active and young at heart.
Equipment marked with the Flexibility and Mobility icon is specifically designed with seniors in mind. They ensure the exercises are all low impact with smooth flowing movements.

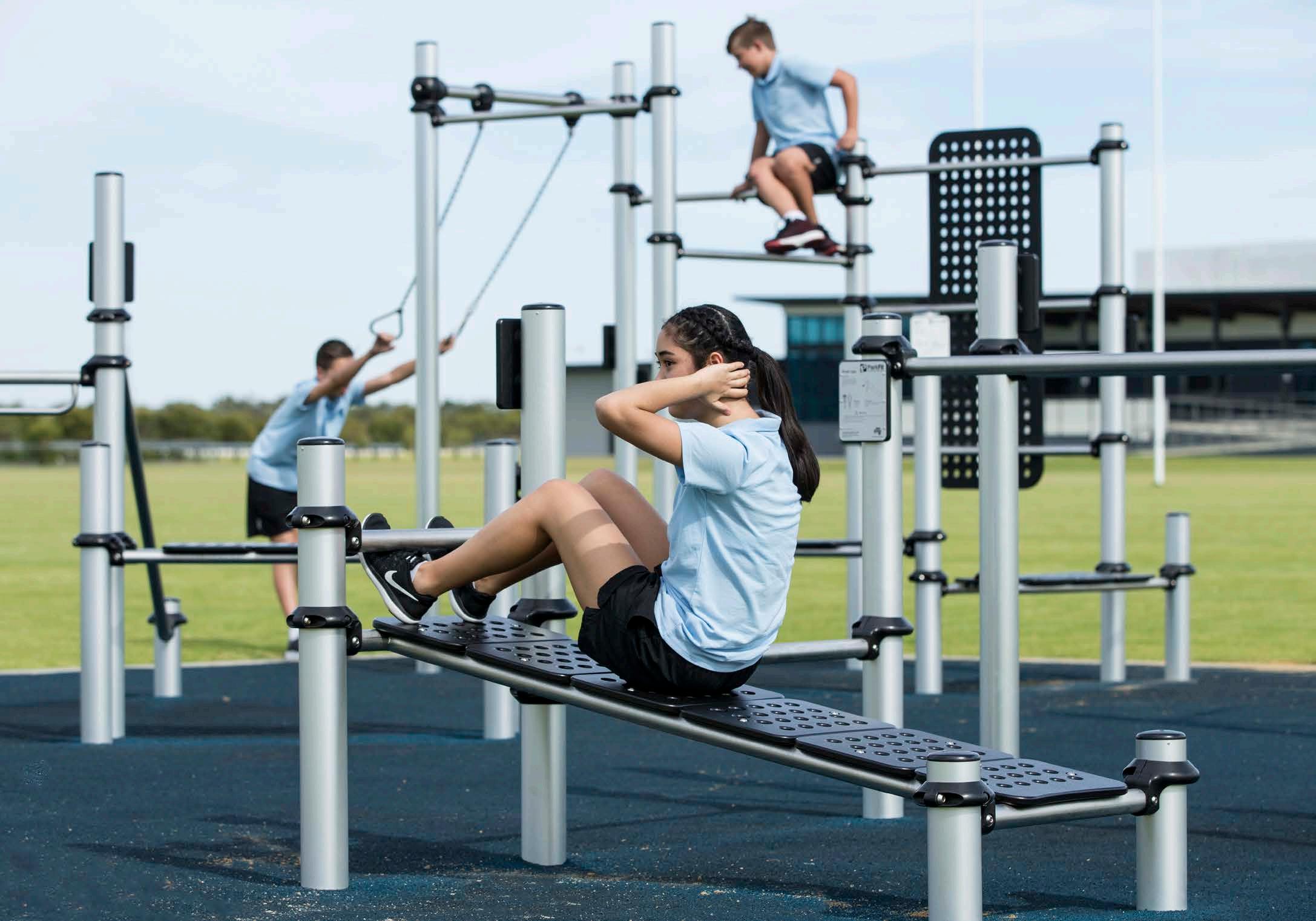

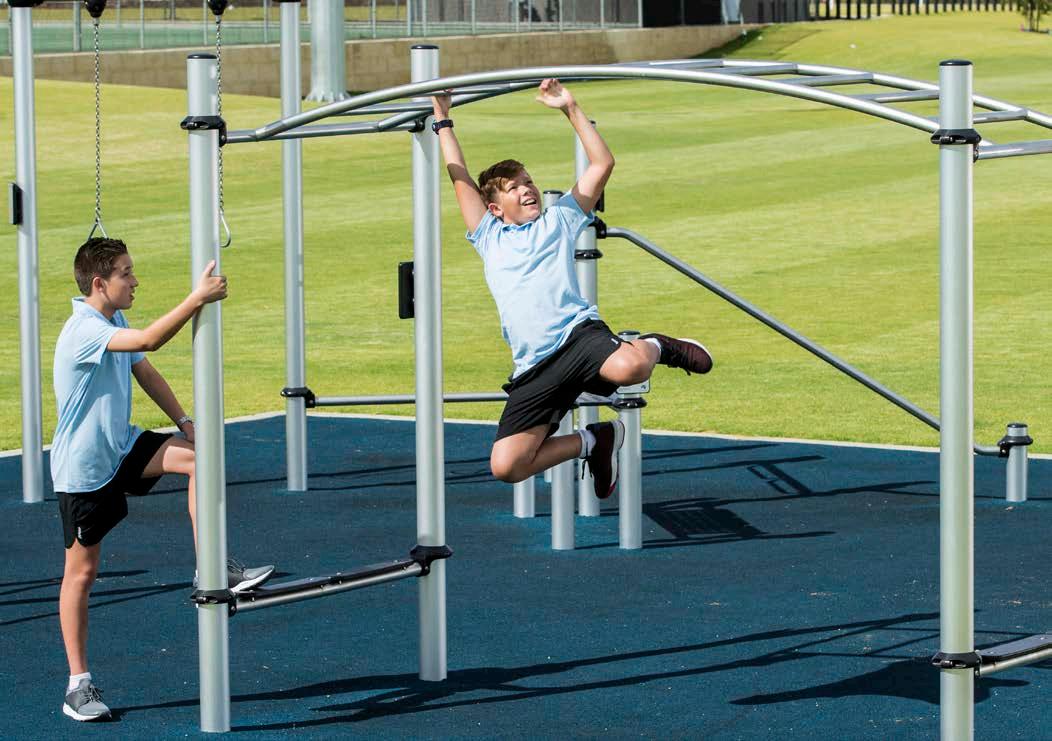

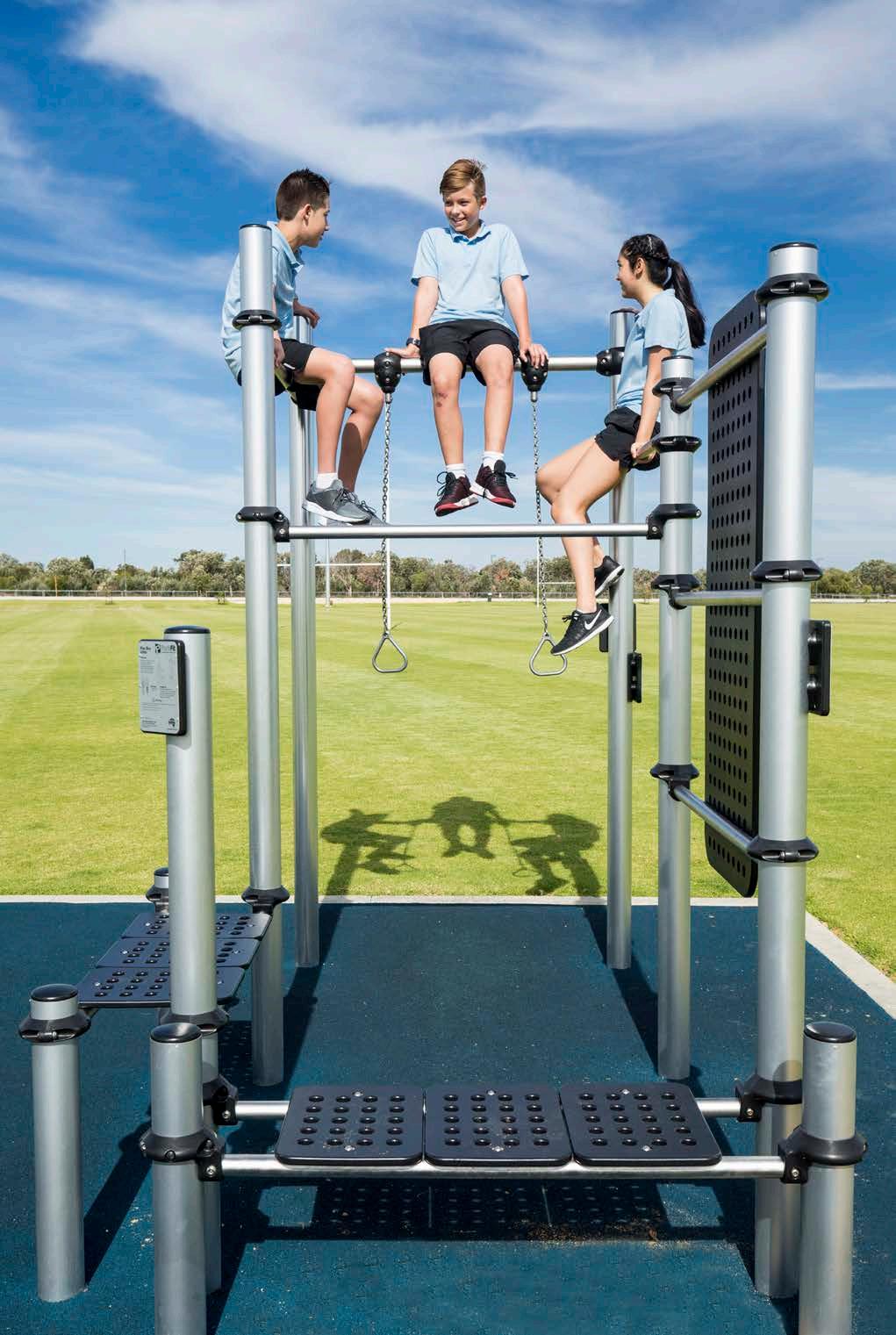

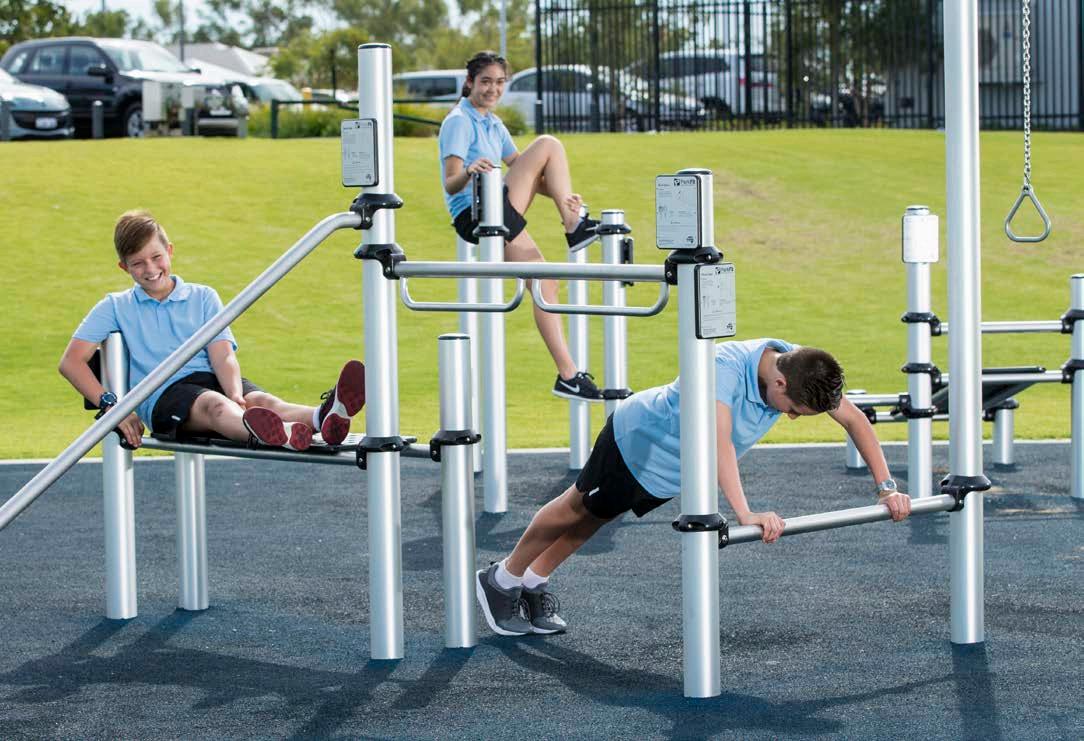

ParkFit in Schools
The future of fitness in Australian schools.
More and more schools are looking to integrate fitness equipment into their Physical Education Curriculum. Incorporating ParkFit stations has become a popular option to maximise development of strength and coordination.

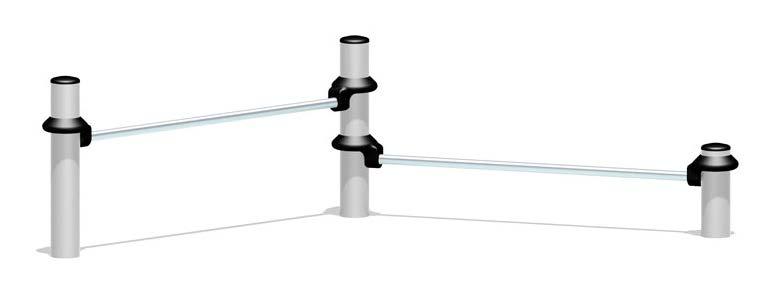

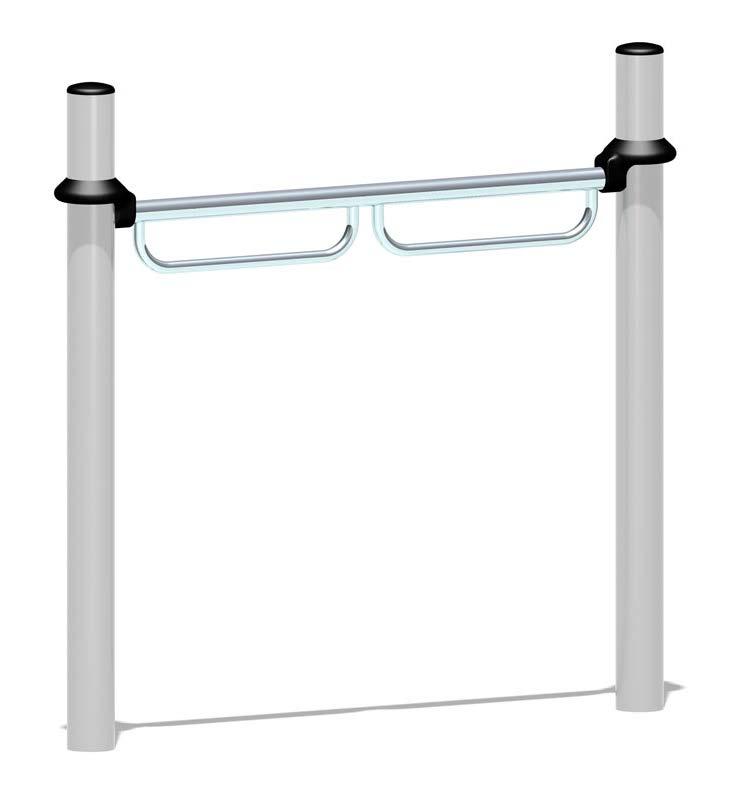

PULL UP BARS
Targets back, lats, chest and shoulders
Maximum Fall Height: 1100mm
Minimum Area of Movement: 13m2
Equipment Size: 1500mm x 150mm
Impact Surface Required: Yes
Area of Movement
PUSH UP BARS
Develops pecs, deltoids and triceps
Maximum Fall Height: 200 - 600mm
Minimum Area of Movement: 13m2
Equipment Size: 1500mm x 150mm
Impact Surface Required: No
Area of Movement
QUAD EXTENSION
Develops quadriceps
Maximum Fall Height: 600mm
Minimum Area of Movement: 13m2
Equipment Size: 1020mm x 980mm
Impact Surface Required: No
Area of Movement

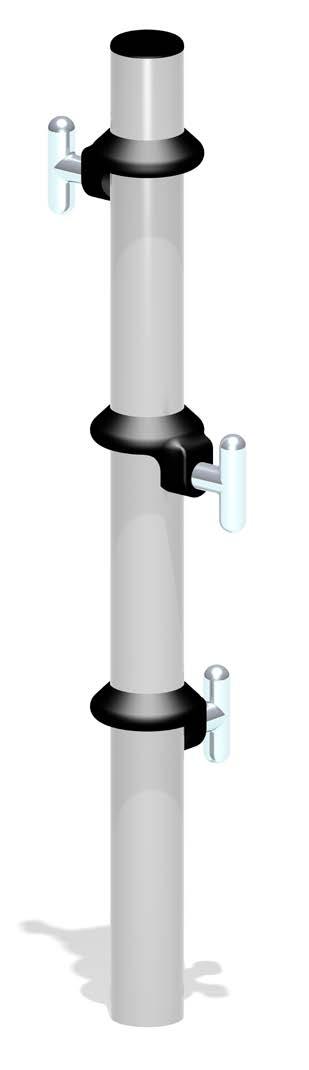

RESISTANCE HOOKS
Various exercises for resistance training for your shoulders
Maximum Fall Height: 0mm
Minimum Area of Movement: 8m2
Equipment Size: 250mm x 150mm
Impact Surface Required: No

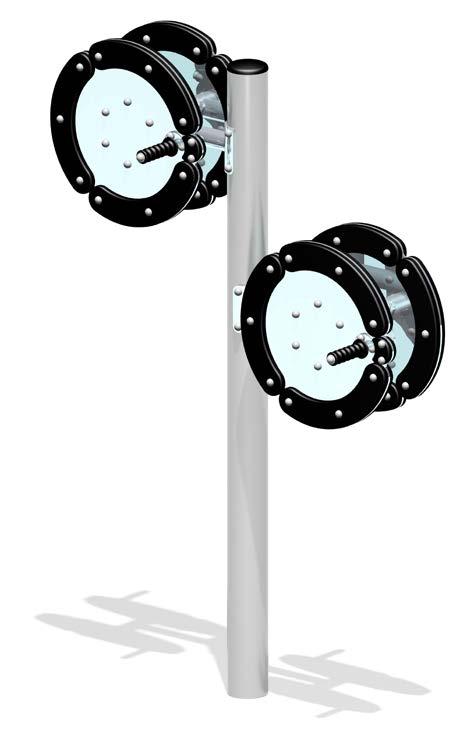

SHOULDER WHEEL
Encourages mobility and flexibility, whilst working the deltoid, trapezius and rotator cuffs
Maximum Fall Height: 0mm
Minimum Area of Movement: 11m2
Equipment Size: 1060mm x 230mm
SHOULDER PRESS
Develops shoulders and biceps
Maximum Fall Height: 400mm
Minimum Area of Movement: 12m2
Equipment Size: 920mm x 915mm
Impact Surface Required: No
Impact Surface Required: No Area of Movement
Impact Surface Required: No

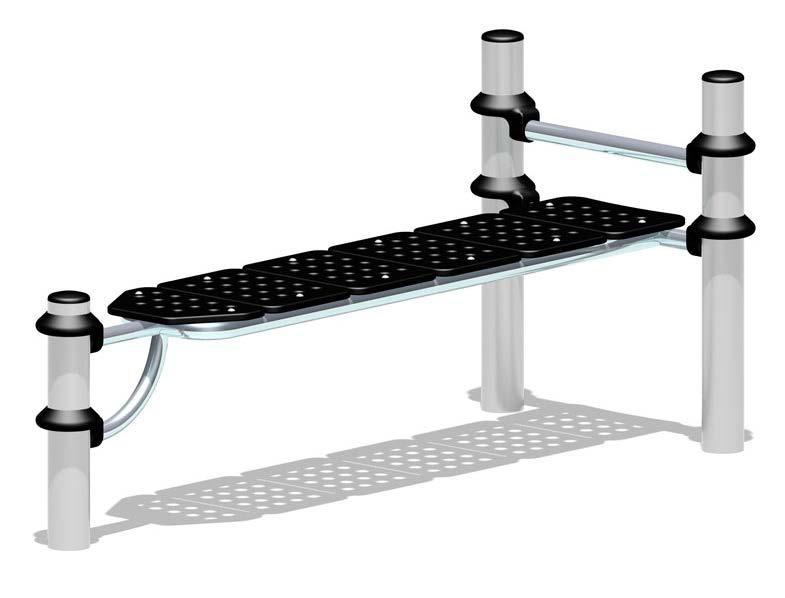

SIT UP BOARD
Develops abdominal, obliques and lower back
Maximum Fall Height: 540mm
Minimum Area of Movement: 16m2
Equipment Size: 2060mm x 870mm

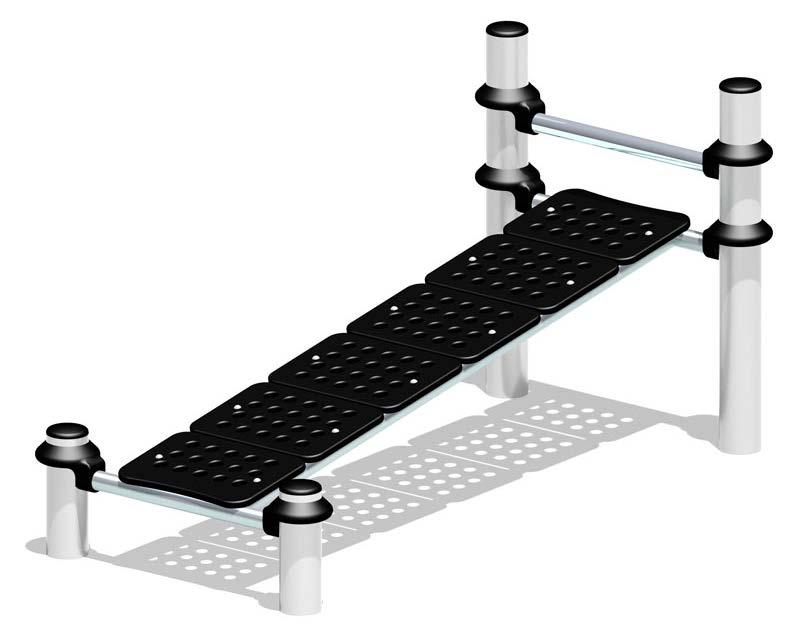

SIT UP BOARD - WITH INCLINE
Develops abdominal, obliques and lower back
Maximum Fall Height: 540-830mm
Minimum Area of Movement: 17m2
Equipment Size: 1815mm x 870mm
Impact Surface Required: No

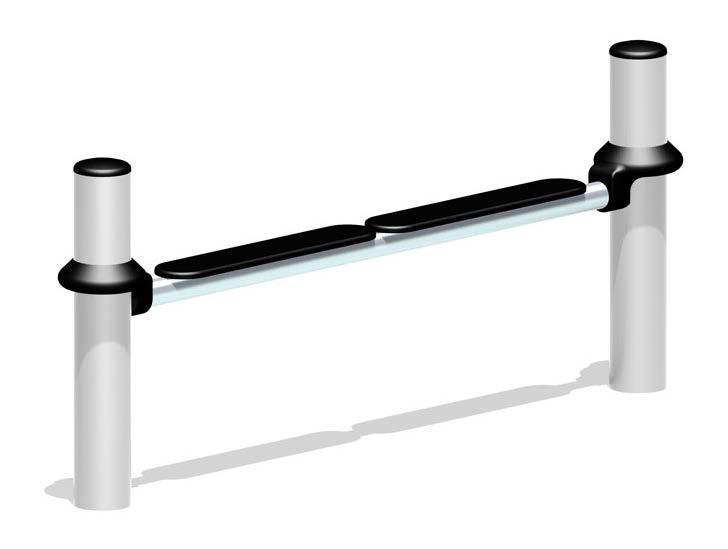

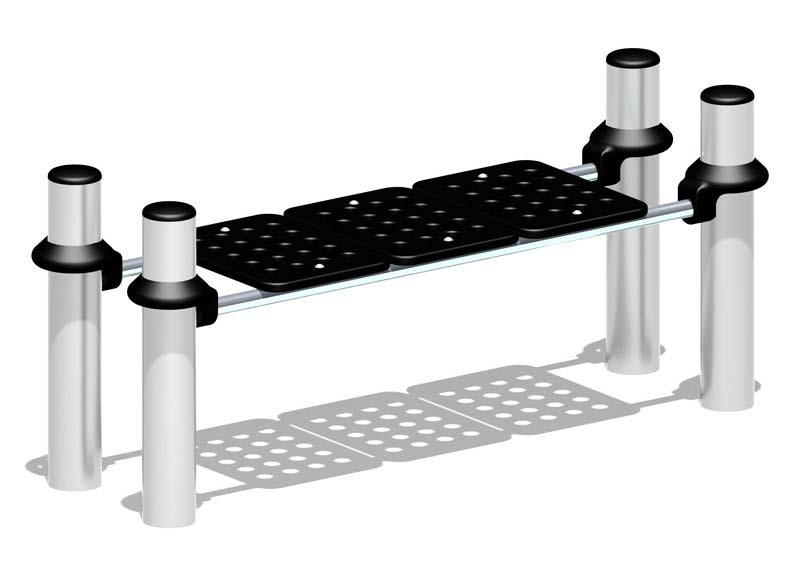

STEP UP
Develops calves, hamstrings, quadriceps and glutes
Maximum Fall Height: 400mm
Minimum Area of Movement: 12m2
Equipment Size: 1500mm x 150mm
Impact Surface Required: No
Area of Movement Area of Movement
STRETCH STATION
Great for stretching all muscles groups
Maximum Fall Height: 1100mm
Minimum Area of Movement: 21m2
Equipment Size: 1450mm x 1285mm
Impact Surface Required: Yes
of Movement

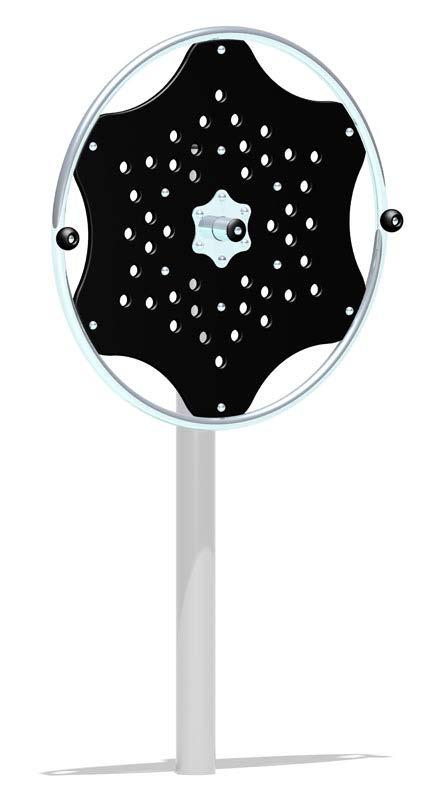

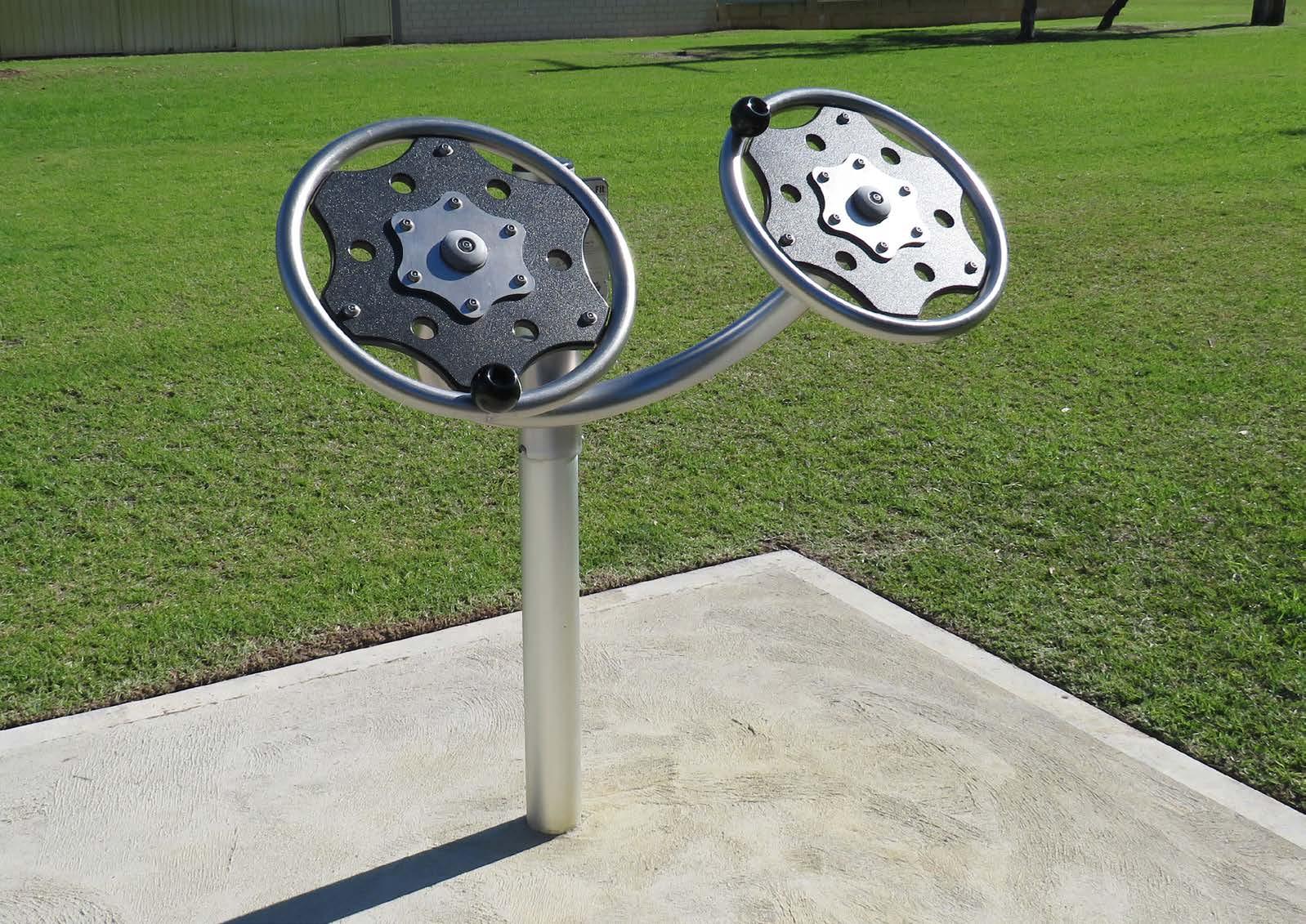

TAI CHI WHEEL
Enhances flexibility and mobility whilst developing focus and coordination
Maximum Fall Height: 0mm
Minimum Area of Movement: 12m2
Equipment Size: 1140mm x 610mm
Impact Surface Required: No
Area of Movement
VAULT BAR
Develops calves, hamstrings and quadriceps
Maximum Fall Height: 1350mm
Minimum Area of Movement: 14m2
Equipment Size: 2250mm x 150mm
Impact Surface Required: Yes
Area of Movement

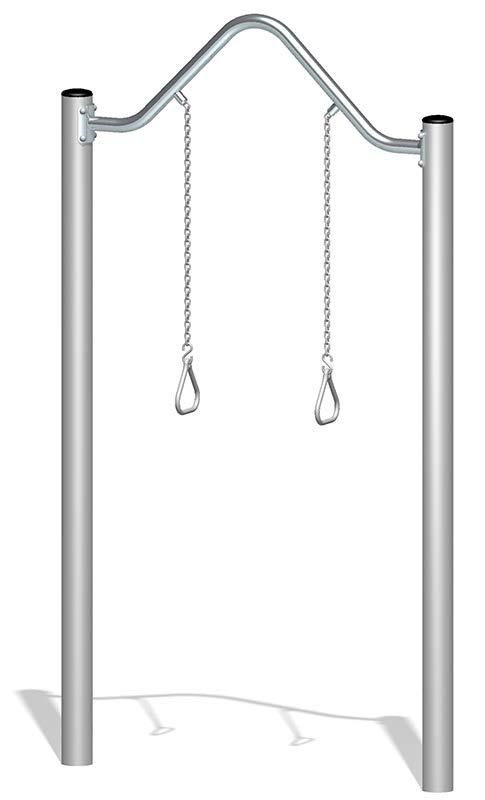

TRAPEZE RINGS
Develops arms, shoulders, back and core
Maximum Fall Height: 1180mm
Minimum Area of Movement: 9m2
Equipment Size: 1400mm x 150mm
Impact Surface Required: Yes
Area of Movement

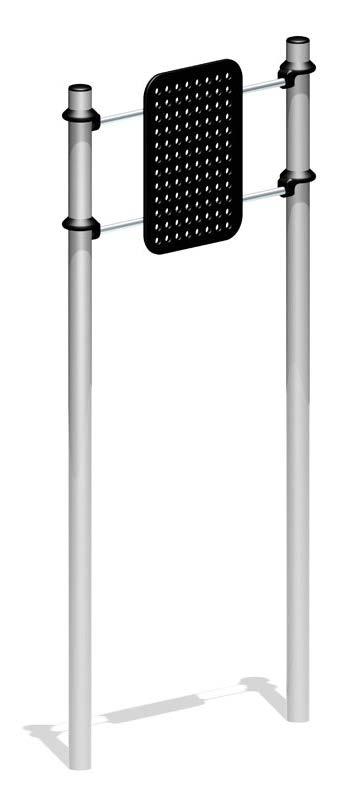

WALL BALL
Full body work out, focusing on quadriceps, shoulders & core
Maximum Fall Height: 0mm
Minimum Area of Movement: 12m2
Equipment Size: 1450mm x 150mm
Impact Surface Required: No
Area of Movement

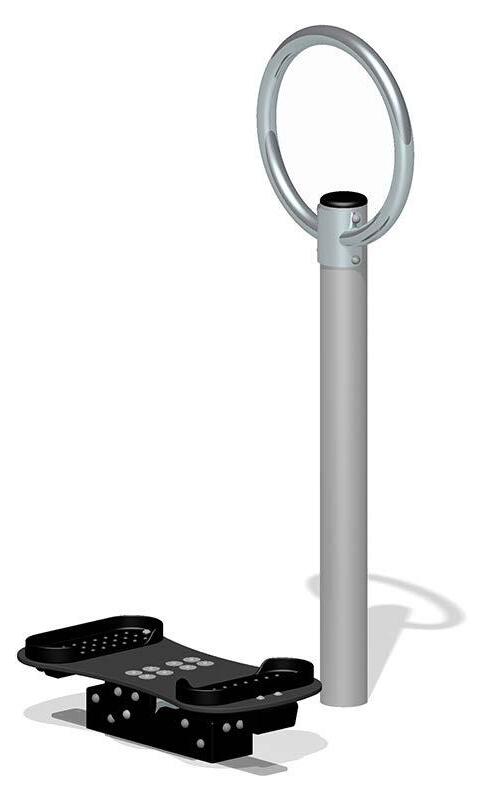

WOBBLE BOARD ASSISTED
Perform a range of standard exercises on the wobble board to increase intensity and train balance
Maximum Fall Height: 300mm
Minimum Area of Movement: 12m2
Equipment Size: 725mm x 715mm
Impact Surface Required: Yes
Area of Movement
Quality Guarantee
ParkFit is manufactured from the highest quality materials including marine grade 316 electro polished or powder coated stainless steel, hot dip galvanised steel, anodised aluminium and injection moulded glass-filled nylon. The use of these materials provides the highest level of corrosive protection available making ParkFit the perfect option for coastal areas.
• 25 Year Guarantee on all aluminium, hot dip galvanised and stainless steel components.
• 10 Year Guarantee on all plastic components.
• 10 Year Guarantee on all moving parts.
For the full ParkFit Guarantee of Quality please speak to your local ParkFit representative.

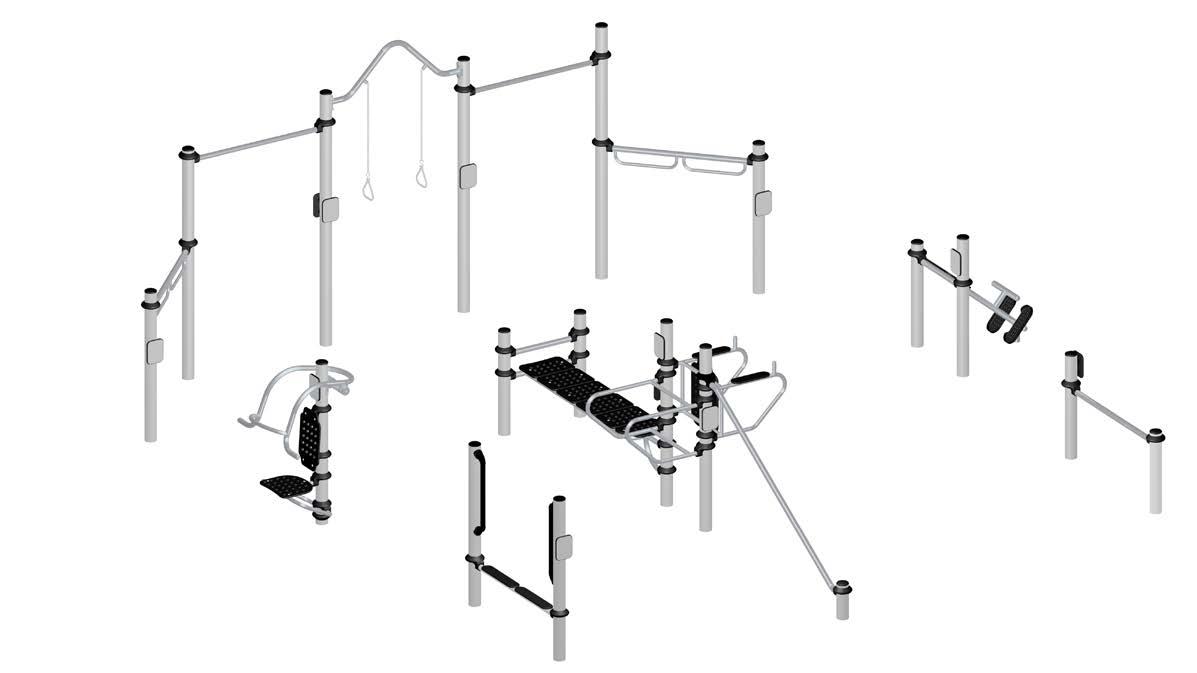

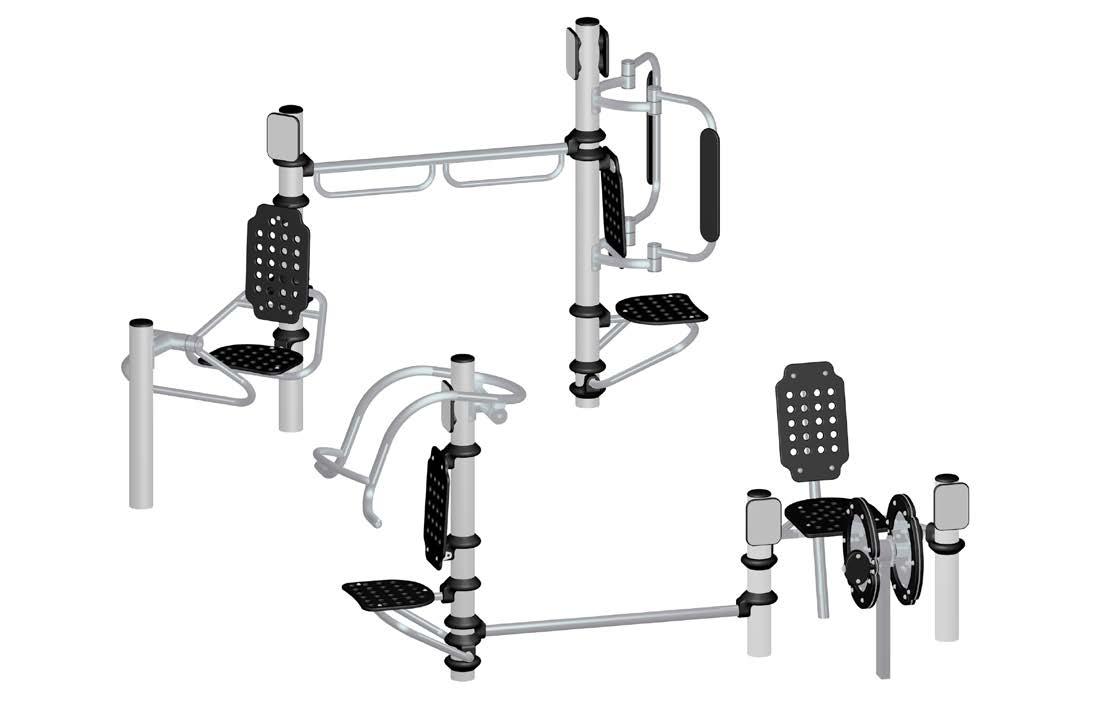

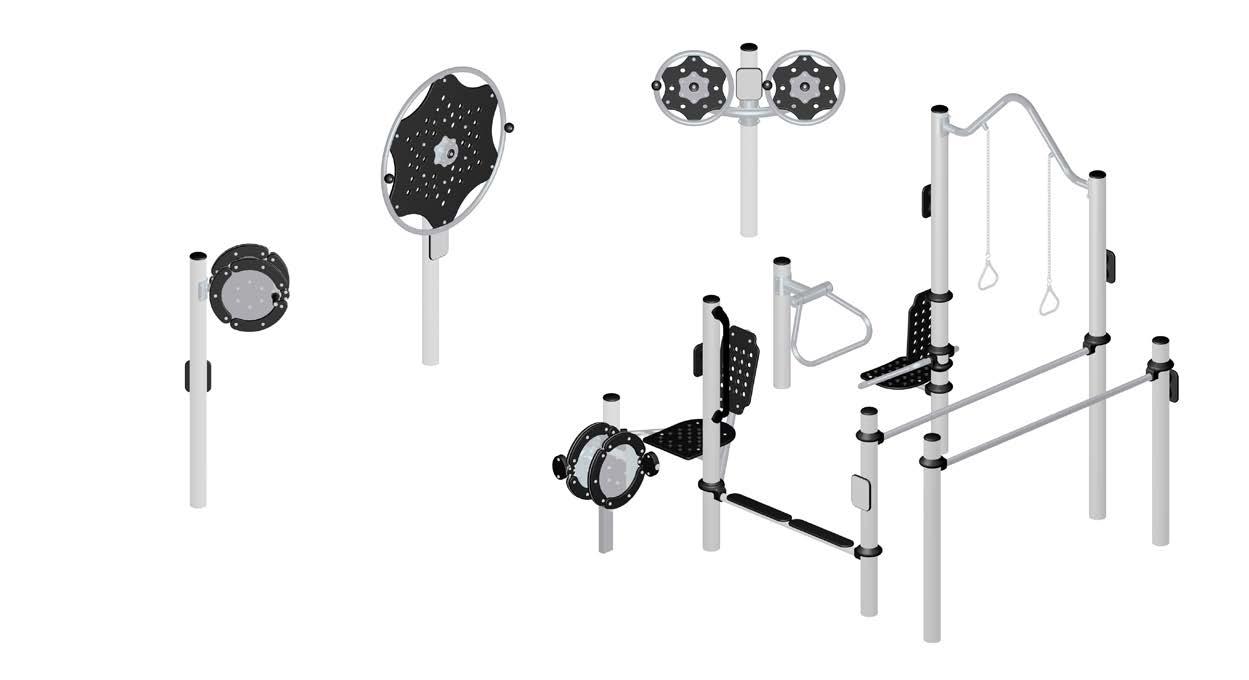

Combinations
The combination and colour options are endless. Each ParkFit combination can be designed to target certain muscle groups or be set out in a circuit format. It can also be combined with our Fitness Track (By Forpark Australia) to create a ninja obstacle course.
Once you have chosen your perfect combination, you can then decide if you would like to have the sleek look of our flagship ParkFit range or any of the colours from our new powder coated ParkFit range. Want to showcase your school, sports club, town or group colours? Speak to your local design consultant to discuss the colour combination that is right for you.
GETTING ACTIVE
These combinations are targeted at slightly older users or people with less mobility that are looking to get back into fitness through low impact movements.
EVERYDAY
As the name suggests; ‘Everyday’ combinations are designed to suit the broadest range of users. They consist of a mixture of low impact components and more advanced static items which give everyone great workout options.
HIGH INTENSITY
These combinations are created to offer a complete all rounded high intensity workout for people that are actively wanting to increase fitness and strength.
Technology Used
UNIQUE FUNCTIONALITY
ParkFit has been developed through consultation with health and fitness professionals, including sports physiotherapists and personal trainers. The range is designed to provide a unique and diverse exercise experience, with an emphasis on promoting health and general well-being, from high school students to seniors and high-intensity athletes.
The design of ParkFit’s moving items is based on RRS technology. Resistance in these units is designed to increase throughout the range of movement, which allows for an optimal range of muscle movement.
RRS TECHNOLOGY (RUBBER RESISTANCE SYSTEM)
Acting as a torsional spring device, the system allows for a range of movement of 60° in either direction from rest point. The level of resistance increases exponentially throughout the range of movement (torque) away from rest (charge). As the unit returns to rest position (relieve) the energy loss per oscillation produces a resultant damping effect.
RRS TECHNOLOGY (RUBBER RESISTANCE SYSTEM) MAINTENANCE & WARRANTY
Unlike current ‘bearing and lever’ systems, ParkFit has been designed to minimise the number of moving parts therefore reducing required maintenance. RRS technology has an increased expected lifespan when compared to a bearing, increasing the longevity of the ParkFit range.
Coupled with the use of high-quality materials, such as 316 stainless steel, ParkFit is the most durable fitness equipment in the market.
For more details visit our website parkfitaust.com.au
The ParkFit range comes with a 25-year structural warranty.

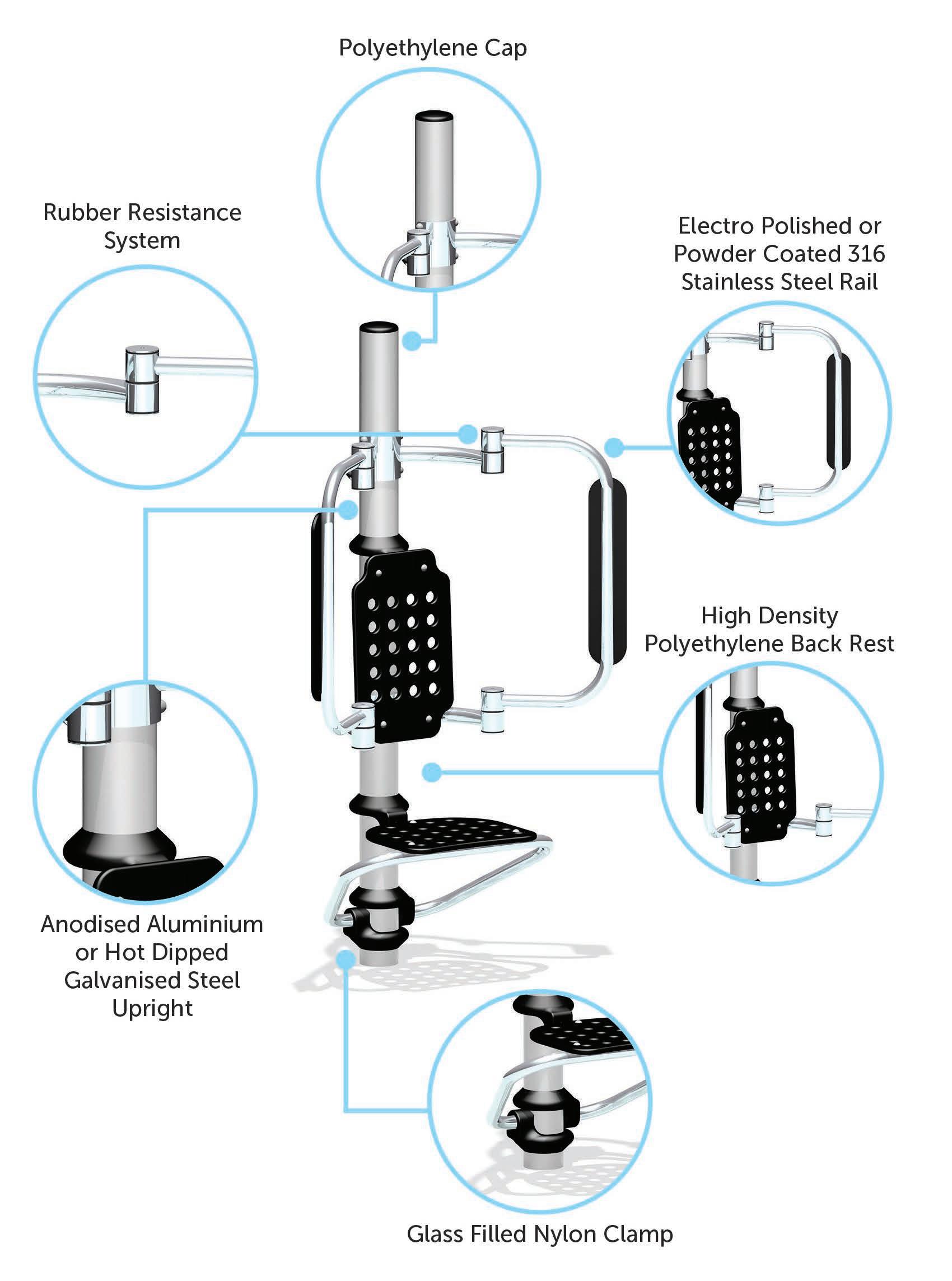

Material Specs
UPRIGHTS
Aluminium Pipe 101.6×6, 6005A T5, Anodised Frosted Silver 15um
Or
90nb Pipe Medium Steel uprights with a Hot Dip Galvanised coating which complies with the Hot-dip galvanized (zinc) coatings on fabricated ferrous articles Standard AS/NZS 4680
SUPPORTS
Electro Polished & Passivated Stainless Steel, Grade 316
Or
Stainless Steel 316 with all welds and penetrations passivated for protection in extreme environments. Then Powder Coated to 80-120 microns which greatly exceeds the required Australian Standard (AS3715-2002) of 60 microns. All powder coated items have a lead & TGIC free, baked polyester powder coat finish.
JOINTS
Rubber Resistance System
BEARINGS
Stainless Steel, Grade 316
FASTENERS
Security, Stainless Steel, Grade 304
CLAMPS
Nylon 30% Glass Filled
CAPS
Stainless Steel, Grade 316 & Polyethylene
SEATS, BACK & ARMS SUPPORTS
High Density Polyethylene
SIGN PLAQUES
Anodised Aluminium
WA PO Box 484
Cloverdale 6985
Ph: (08) 9472 1788 NSW/ACT PO Box 102
Kings Langley 2147
Ph: (02) 8851 7630
PO Box 715
Modbury 5092
Ph: (08) 8283 3611
PO Box 876
Capalaba 4157
Ph: (07) 3390 2188 VIC
Unit 24/21 Eugene Tce
Ringwood 3134
Ph: (03) 9870 0233
PO Box 4873
Cairns 4870
Ph: (07) 4033 5433
3/4 Beacon Court
Cambridge 7170
Ph: (03) 6248 5070
PO Box 876
Capalaba 4157
Ph: (07) 3390 2188 www.parkfitaust.com.au
