• Steel ball bearing system for high load ability of the slides
• High-performance wheels on special axles for a long lasting life
• Large range of measures and wide choice of finishes and packing have made the Comfy range a star in the drawer slide market
Ball bearing runner solutions
Roller slide updated technology
Ease of assembly
Excellent load ability
Comfy is driving drawers in hundred of millions of cabinets throughout the world for several decades. It is still the most competitive slide system for affordable furniture. It benefits from constant technological updates as well as of a range of state-of-the-art accessories.

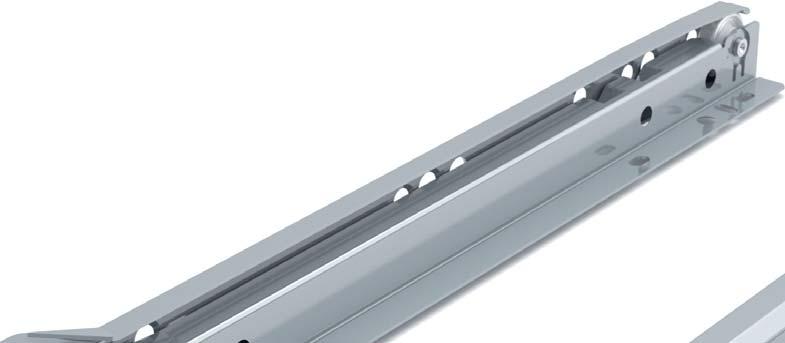

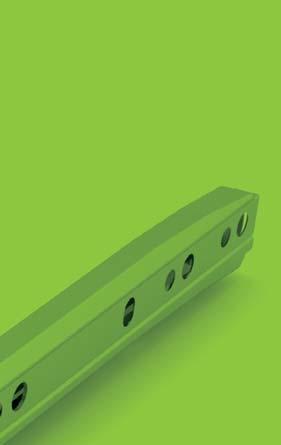

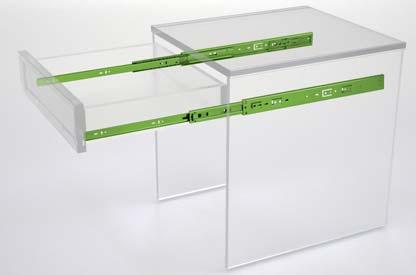

Comfy 145 full extension
Benefits for the industry
• Useful progressive full extension ball bearing runners
• Fastened to drawer with chipboard screws
• Better sliding on steel ball bearings
• Unlocking device
Benefits for the consumer
• Full extraction for improved accessibility and increased comfort
• Large range of depths from 250 to 700 mm
• Excellent load ability with 35kg dynamic standard capacity throughout the range
54.5145.07.250.00 Comfy 145 for 250mm deep drawer (1 pair)10 pairs per box
54.5145.07.300.00 Comfy 145 for 300mm deep drawer (1 pair)10 pairs per box
54.5145.07.350.00 Comfy 145 for 350mm deep drawer (1 pair)10 pairs per box
54.5145.07.400.00 Comfy 145 for 400mm deep drawer (1 pair)10 pairs per box
54.5145.07.450.00 Comfy 145 for 450mm deep drawer (1 pair)10 pairs per box
54.5145.07.500.00 Comfy 145 for 500mm deep drawer (1 pair)10 pairs per box
54.5145.07.550.00 Comfy 145 for 550mm deep drawer (1 pair) 10 pairs per box
54.5145.07.600.00 Comfy 145 for 600mm deep drawer (1 pair) 10 pairs per box
54.5145.07.650.00 Comfy 145 for 650mm deep drawer (1 pair) 10 pairs per box
54.5145.07.700.00 Comfy 145 for 700mm deep drawer (1 pair)10 pairs per box
Finish: zinc.
Comfy 145 SlowMotion solution
Benefits for the industry
• Damped solution with last generation technology
• Useful progressive full extension ball bearing runners
• Fastened to drawer with chipboard screws
• Better sliding on steel ball bearings
• Unlocking device
Benefits for the consumer
• Silent and controlled
• Large range of depths from 350 to 700 mm
• Excellent load ability with 35kg dynamic standard capacity throughout the range
CodeDescription
54.5145.C7.35X.00 Comfy 145 SlowMotion for 350mm deep drawer (1 pair)
54.5145.C7.40X.00 Comfy 145 SlowMotion for 400mm deep drawer (1 pair)
54.5145.C7.45X.00 Comfy 145 SlowMotion for 450mm deep drawer (1 pair)
54.5145.C7.50X.00 Comfy 145 SlowMotion for 500mm deep drawer (1 pair)
54.5145.C7.55X.00 Comfy 145 SlowMotion for 550mm deep drawer (1 pair)
54.5145.C7.60X.00 Comfy 145 SlowMotion for 600mm deep drawer (1 pair)
54.5145.C7.65X.00 Comfy 145 SlowMotion for 650mm deep drawer (1 pair)
pairs per box
pairs per box
54.5145.C7.70X.00 Comfy 145 SlowMotion for 700mm deep drawer (1 pair) 10 pairs per box
Finish: zinc.
mounting & dimensions

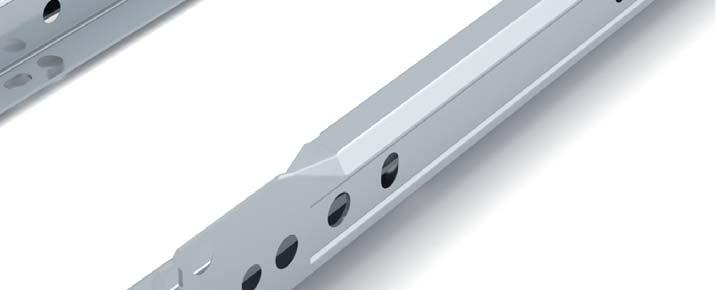

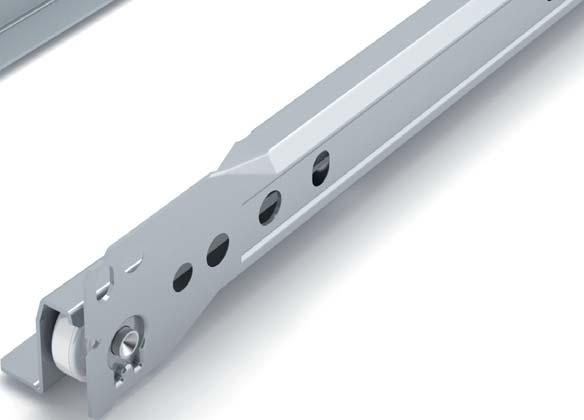

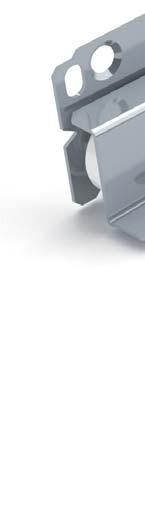

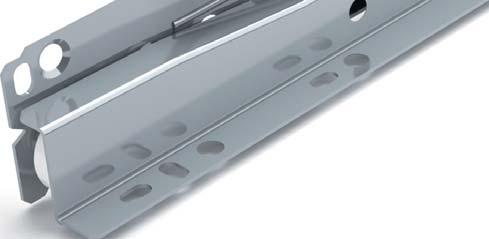

Comfy 082 screw-on
Bene
fits for the industry
• Large range of depths from 270 to 600 mm
• Choice of colours to match the furniture tone
• Tolerant, thanks to unilateral guiding constraint
• Ease of assembly on standard drawers
• Excellent load ability with 25kg dynamic standard capacity throughout the range
• Add-on SlowMotionFR damping with stop-close feature and FinalRelease feature
Benefits for the consumer
• Lasting quality thanks to optimised materials
• Ease of extraction of drawer for cleaning
• Easy retrofit solution for DIY applications
• Adaptive SlowMotionFR damping for noiseless closing optional
Code
54.5082.0*.27.000•.0
54.5082.0*.30.000•.0
54.5082.0*.35.000•.0
54.5082.0*.40.000•.0
54.5082.0*.45.000•.0
54.5082.0*.50.000•.0
54.5082.0*.55.000•.0
54.5082.0*.60.000•.0
Description
Comfy 082 for 270mm deep drawer (1 set)
Comfy 082 for 300mm deep drawer (1 set)
Comfy 082 for 350mm deep drawer (1 set)
Comfy 082 for 400mm deep drawer (1 set)
Comfy 082 for 450mm deep drawer (1 set)
Comfy 082 for 500mm deep drawer (1 set)
Comfy 082 for 550mm deep drawer (1 set)
Comfy 082 for 600mm deep drawer (1 set)
* colour finishes: 1 = White Ral 9010 / 2 = Brown Ral 8014 / 3 = Black Ral 9005 / 8 = Silver Ral 9006.
• packing: 0 = 4 boxes with 100 profiles each / 2 = 1 box with 25 sets taped.
54.5084.-*.27.0000.0 Comfy 082 for 270mm deep drawer (1 set)4 boxes with 100 profiles each
54.5084.-*.30.0000.0 Comfy 082 for 300mm deep drawer (1 set) 4 boxes with 100 profiles each
54.5084.-*.35.0000.0 Comfy 082 for 350mm deep drawer (1 set) 4 boxes with 100 profiles each
54.5084.-*.40.0000.0 Comfy 082 for 400mm deep drawer (1 set)4 boxes with 100 profiles each
54.5084.-*.45.0000.0 Comfy 082 for 450mm deep drawer (1 set)4 boxes with 100 profiles each
54.5084.-*.50.0000.0 Comfy 082 for 500mm deep drawer (1 set) 4 boxes with 100 profiles each
54.5084.-*.55.0000.0 Comfy 082 for 550mm deep drawer (1 set)4 boxes with 100 profiles each
54.5084.-*.60.0000.0 Comfy 082 for 600mm deep drawer (1 set)4 boxes with 100 profiles each - dowel: A = 8x11 / D = 8x8 / 0 = 10x10. * colour finishes: 1 = White Ral 9010 / 2 = Brown Ral 8014 / 3 = Black Ral 9005 / 8 = Silver Ral 9006.
Products could have pilot holes not shown in the drawings which are not contractual
Technical specifications:
• Solution for drawers equipped with Comfy 082/R82 roller slides
• Fully integrated dampened self-closing mechanism
• Silent closing movement and guaranteed pull close of the drawer
• Retrofit solution for all heights and depth of drawers
• Easy to use for drawers made in wood, chipboard or MDF
• Simple screw-on assembly on cabinet and drawer
• Damping effect to provide high-end feel to entry level drawers
Code

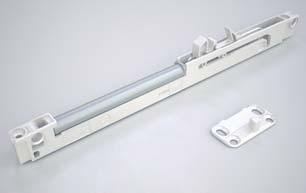

59.072S.**.Z0X._0C1 Kit SlowMotion Zeta ANYWAY for Comfy 082 slides100 kits per box

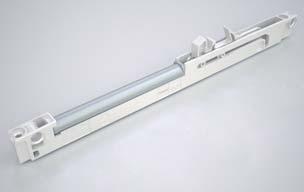

59.0720.01.Z0X._020 SlowMotion Zeta ANYWAY Damper – White RAL 9010200 pieces per box

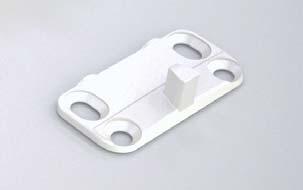

59.072S.**.Z00.0020 Comfy 082 slide fixing bracket
**Colour of plastic brackets:
01 = White RAL 9010
02 = Brown RAL 8014
06 = Grey RAL 7042.
_ Damper Fixing:
0 = selftapping screws fixing 2x (Ø4x20 mm)
E = euro screws fixing 2x (Ø6.3x20 mm)
Number of SlowMotion Zeta ANYWAY recommended
200 pieces per box
Kit composed by:
1 Damper
1 Fixing bracket
1 Drilling template Fixing screws.

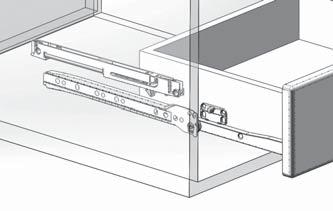

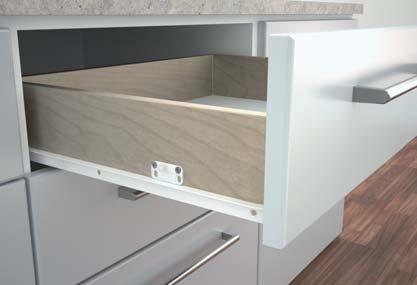

Assembly:
SlowMotion Zeta damper on the cabinet
1
SlowMotion Zeta brackets on the drawer
2
1 2
3
Selftapping screw
CodeDescription Packing
1A.0751.01280CF Euro screw L=125.000 pieces per box
1A.0751.01180CF Euro screw L=105.000 pieces per box
CodeDescription Packing
1A.0350.34.150CF Selftapping screw L=1220.000 pieces per box
1A.0350.34.250CF Selftapping screw L=1515.000 pieces per box
Dowel with spacer
CodeDescription Packing
2H011070230CFDowel Ø8 x L11 - black plastic10.000 pieces per box
2H011070340CFDowel Ø10 x L10 - white plastic10.000 pieces per box
2H011070440CFDowel Ø10 x L7.5 - white plastic10.000 pieces per box
CodeDescription Packing
2H019212810CFSpacer H4 with dowel Ø10 x L10 - brown plastic
2H019213060CFSpacer H5 with dowel Ø10 x L10 - brown plastic
2H019212860CFSpacer H4 with dowel Ø10 x L10 - grey plastic
pieces per box
pieces per box
pieces per box
2H019213460CFSpacer H4.5 with dowel Ø10 x L10 - grey plastic 10.000 pieces per box
2H019212760CFSpacer H9 with dowel Ø8 x L8 - grey plastic
pieces per box
CodeDescription Packing
2H41774460CFSpacer H2 - grey plastic10.000 pieces per box
2H41774160CFSpacer H4 - grey plastic10.000 pieces per box
2H41774260CFSpacer H8 - grey plastic10.000 pieces per box
2H41774360CFSpacer H12 - grey plastic10.000 pieces per box
