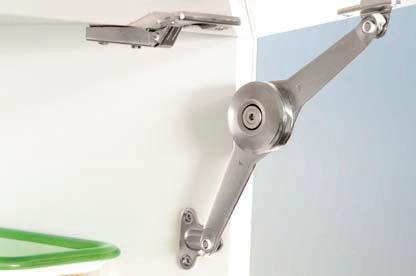

AeroWing
SINGLE KIT
Code Description
Technical speci cations:
• The three in one lifter solution: -self holding in all positions -self lifting and SlowMotion
- ap with brake
• 32mm standard cabinet drilling
• Covers 75°, 90° and 105° angles
• Combined with SlowMotion hinges, it confers a perfect movement to the door
Packing
59.0VW0.05.00.00000Kit AeroWing hole distance 37mm50 kits
Packed in a kit, consists of:
• 1 joint AeroWing
• 1 bracket for cabinet
• 1 bracket for wooden door
• 1 bracket for aluminium frame
•4 selftapping screws Ø4x15 mm
• Assembly instructions
