CIVETTA

AFFORDABLE DRAWER SYSTEM

CIVETTA - AFFORDABLE DRAWER SYSTEM

DRAWER H53

DRAWER H85

DRAWER H117

DRAWER H150

DRAWER H200

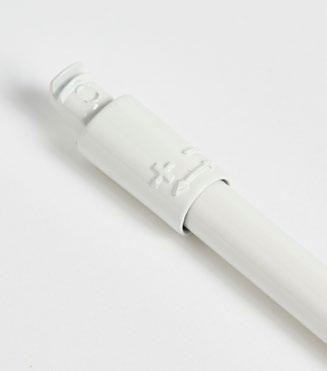

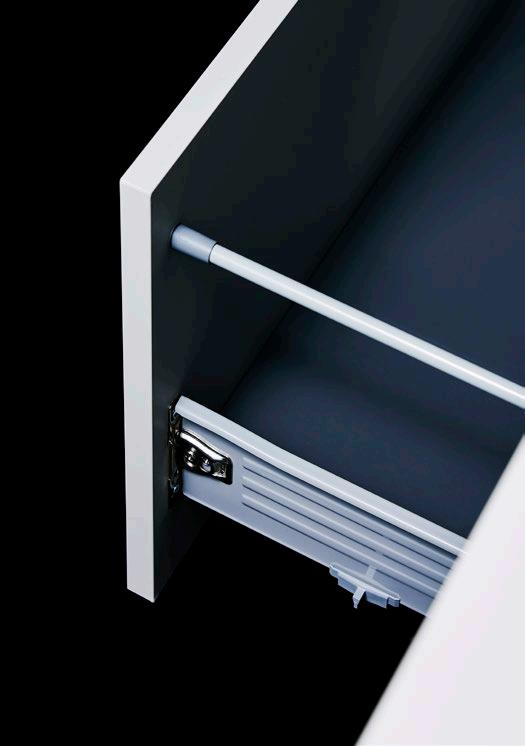

ROUND RAILING

FGV PROVIDES FUNCTIONAL SOLUTIONS FOR FURNITURE TO MEET THE REAL NEEDS OF A LARGE NUMBER OF CUSTOMERS.

All products are conceived and supplied with care and quality and are offered to the market at a competitive price. In this way, FGV contributes globally to increase the satisfaction of the customers buying furniture, giving access to pleasing features and improving the quality of life of the consumers.

CIVETTA

AFFORDABLE DRAWER SYSTEM

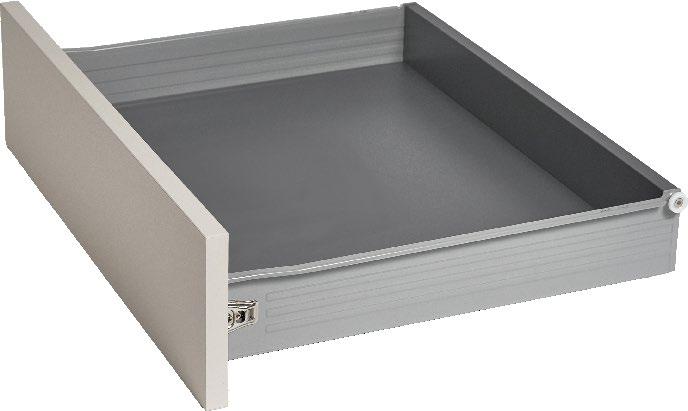

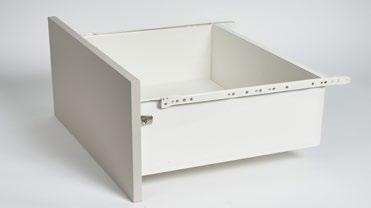

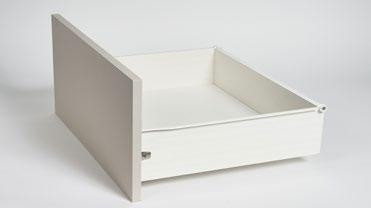

Civetta is a robust and reliable single-wall metal drawer, with an epoxy powder coating and equipped with a roller runner system for smooth and silent sliding.

STRENGTH, COMFORT AND VERSATILITY

Civetta is available in a large range of heights and depths and is manufactured in extremely competitive manner. The presence of the immediate vertical adjustment makes this product very versatile and easy to use.

The Civetta drawer is compatible with the SlowMotion Zeta Anyway soft-close system, a silent and damped self-closing device which can be retrofitted to any existing drawer. It enhances the drawer's value and impact at a competitive cost.

TECHNICAL DETAILS THAT MAKE THE DIFFERENCE

• Five heights and seven depths available

• Single-extension roller slides, available in 15 kg and 25 kg load capacities

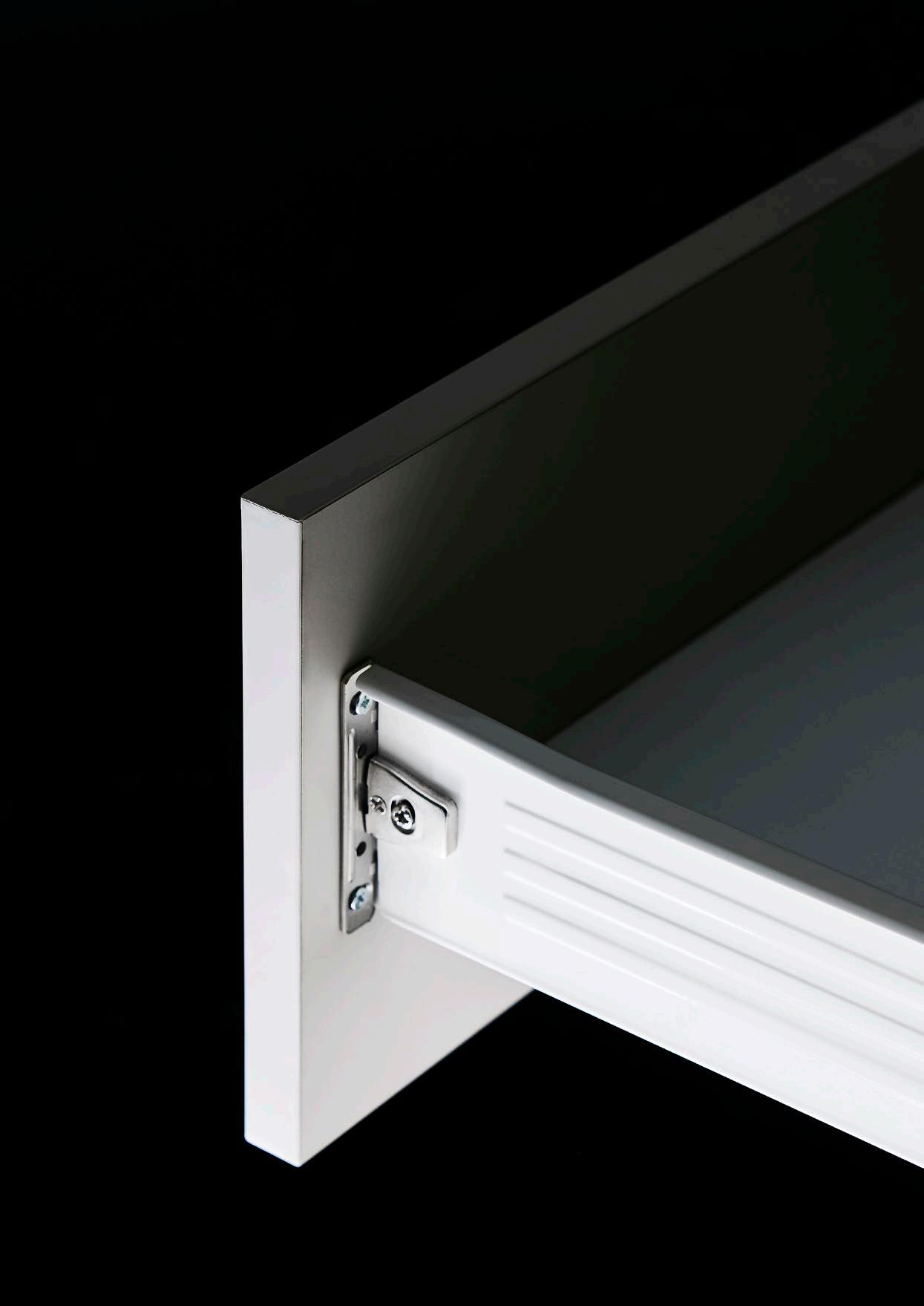

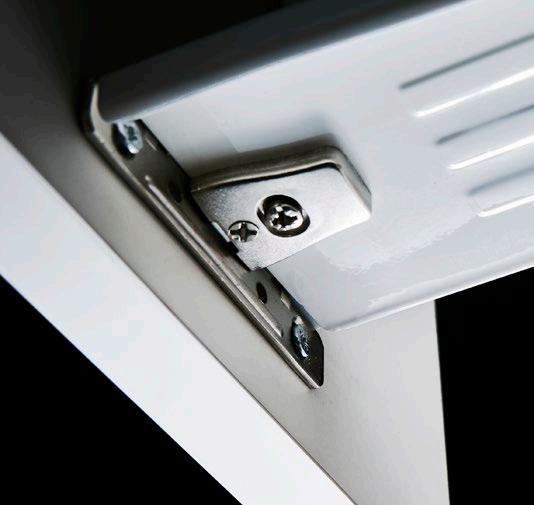

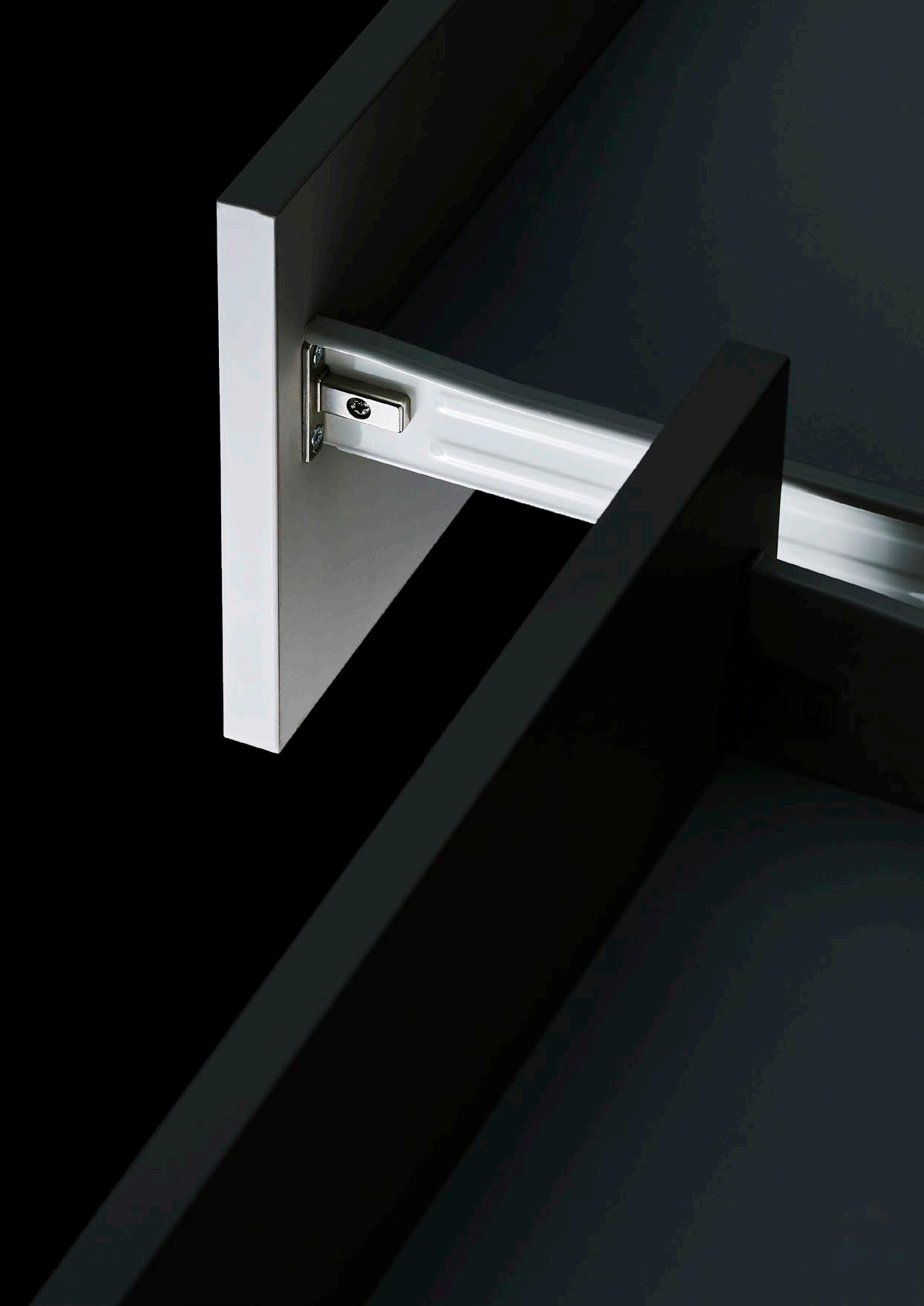

• Front bracket with two fixing options: screws or dowels, featuring One-Step adjustment

• Optional add-on SlowMotion Zeta Anyway damping solution

CIVETTA

PERFORMANCE

SINGLE-WALL METAL DRAWER

ROLLER RUNNER SYSTEM

5 STANDARD HEIGHTS H53/ H85/ H117/ H150/ H200

EPOXY POWDER COATING

LINEAR AND SIMPLE SHAPE

LARGE RANGE OF DEPTHS FROM 250 TO 550

SELECTION OF FRONT CONNECTORS WITH SCREW OR DOWELS

ADD-ON SLOWMOTION

ZETA ANYWAY DAMPING

SOLUTION

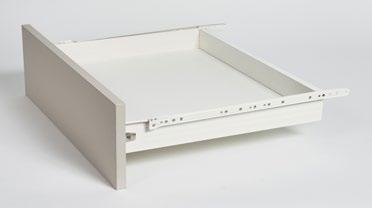

SINGLE EXTENSION PROGRAM OF SLIDES

• Wide range of H53 drawer dimensions from 250 to 550 mm depth

• Identical width for wooden bottom and back panel

• Vertical front adjustment +/-1.5mm up and down

• Two versions for different load capacities: 15 kg or 25 kg standard load capacity throughout the range

• Drawer versions for screw-on or dowel fixing of the front panel

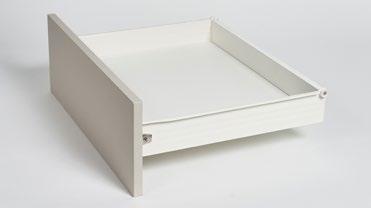

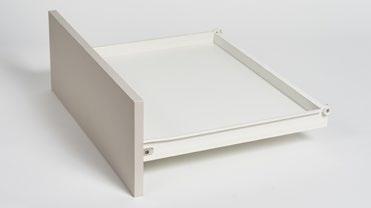

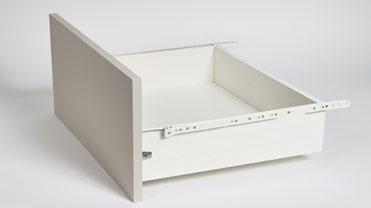

DRAWER SET

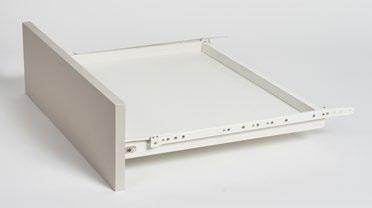

Drawer H53

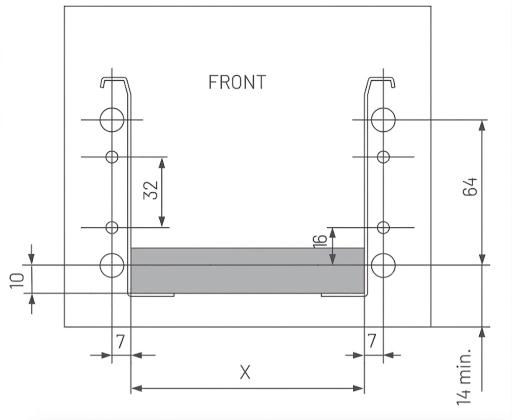

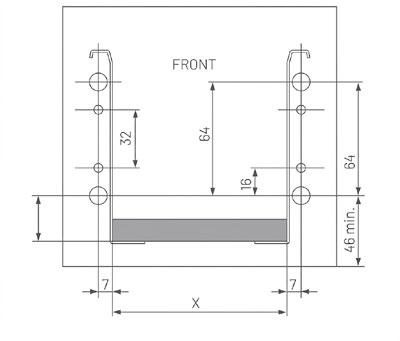

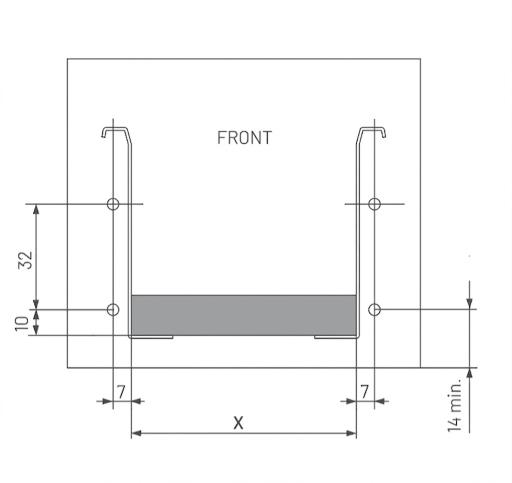

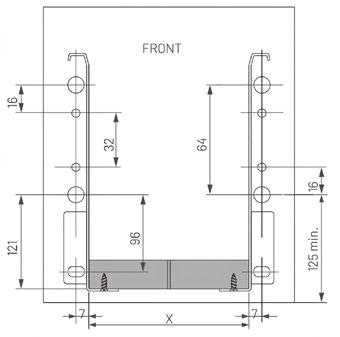

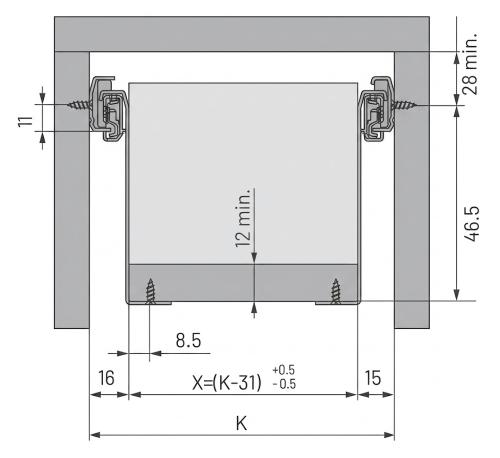

FRONT & BACK DRILLING PATTERN

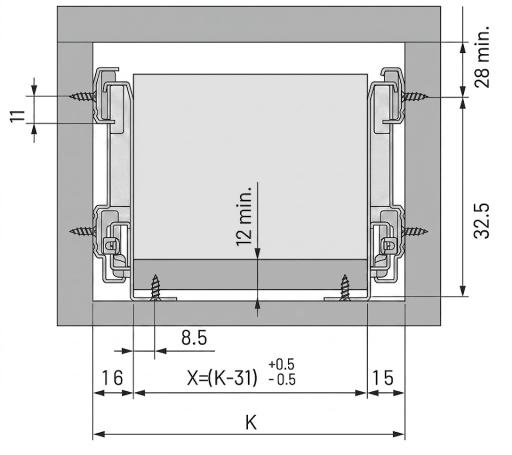

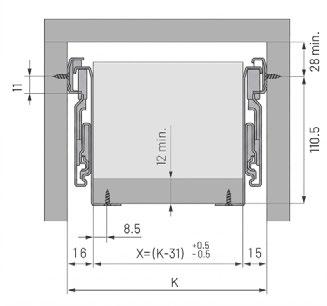

ASSEMBLY INSTRUCTIONS

X = Bottom Width

Y = Back Width

K = Internal Cabinet Width

Adjustments

+1,5

-1,5

• Wide range of H85 drawer dimensions from 250 to 550 mm depth

• Identical width for wooden bottom and back panel

• Vertical front adjustment +/-1.5mm up and down

• Horizontal front adjustment: + / - 1.5 mm

• Two versions for different load capacities: 15 kg or 25 kg standard load capacity throughout the range

• Drawer versions for screw-on or dowel fixing of the front panel

DRAWER SET

Drawer H85

FRONT & BACK DRILLING PATTERN

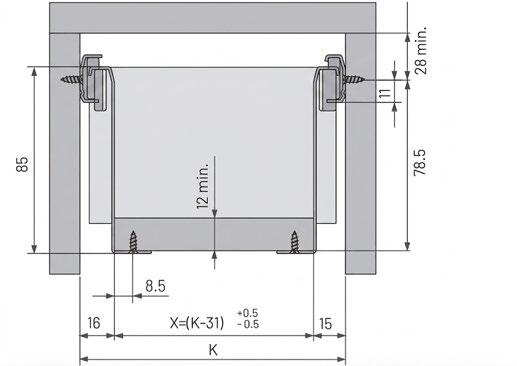

ASSEMBLY INSTRUCTIONS

X = Bottom Width

Y = Back Width

K = Internal Cabinet Width

Adjustments

+1,5 -1,5

+1,5 -1,5

• Wide range of H117 drawer dimensions from 250 to 550 mm depth

• Identical width for wooden bottom and back panel

• Vertical front adjustment +/-1.5mm up and down

• Horizontal front adjustment: + / - 1.5 mm

• Two versions for different load capacities: 15 kg or 25 kg standard load capacity throughout the range

• Drawer versions for screw-on or dowel fixing of the front panel

• Wide range of H150 drawer dimensions from 250 to 550 mm depth

• Identical width for wooden bottom and back panel

• Vertical front adjustment +/-1.5mm up and down

• Horizontal front adjustment: + / - 1.5 mm

• Two versions for different load capacities: 15 kg or 25 kg standard load capacity throughout the range

• Drawer versions for screw-on or dowel fixing of the front panel

Drawer

Drawer

Drawer

• Wide range of H200 drawer dimensions from 250 to 550 mm depth

• Identical width for wooden bottom and back panel

• Vertical front adjustment +/-1.5mm up and down

• Horizontal front adjustment: + / - 1.5 mm

• Two versions for different load capacities: 15 kg or 25 kg standard load capacity throughout the range

• Drawer versions for screw-on or dowel fixing of the front panel

DRAWER SET

Drawer H200

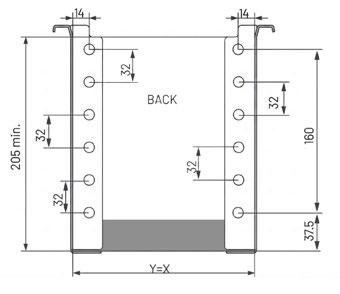

FRONT & BACK DRILLING PATTERN

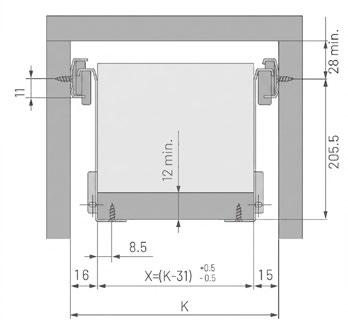

ASSEMBLY INSTRUCTIONS

X = Bottom Width

Y = Back Width

K = Internal Cabinet Width

Adjustments

+1,5 -1,5

+1,5 -1,5

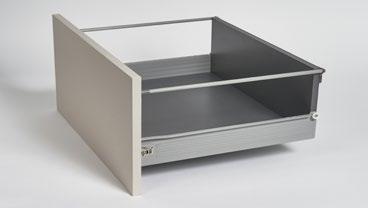

• Wide range of dimensions from 250 to 550 mm

• Flexible fixing solutions with EasyFix or Screw-on front attachment

• Improved storage capacity and containment of the drawers

• Durable construction with optimized materials and improved space organization

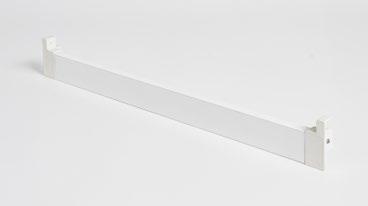

EASYFIX RAILING

SCREW-ON RAILING

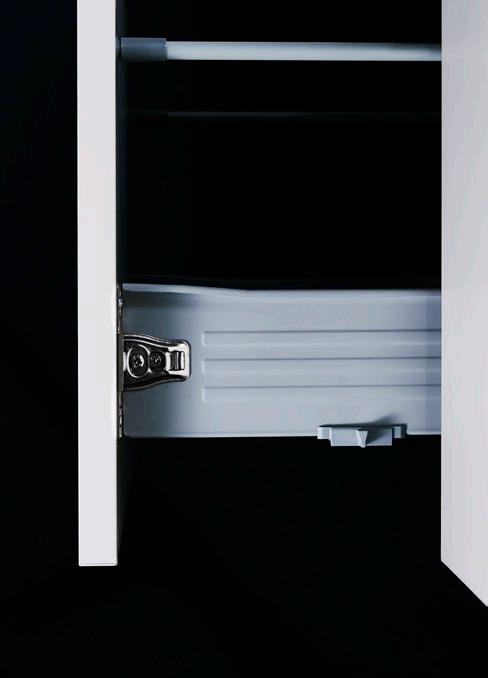

• 4-sided internal drawer solution

• Internal installation behind standard doors

• Free positioning of the drawer, as no front panel pattern is required

• Front bracket for easy assembly

INTERNAL DRAWER H85

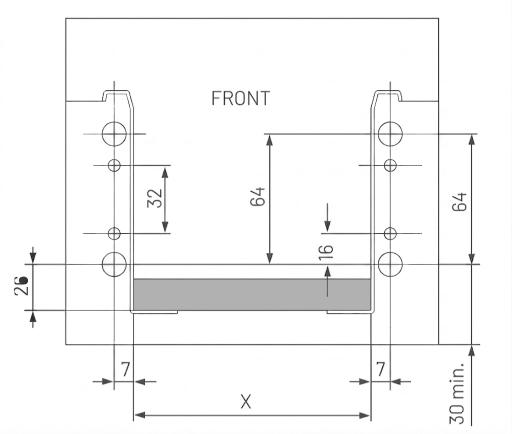

FRONT & BACK DRILLING PATTERN

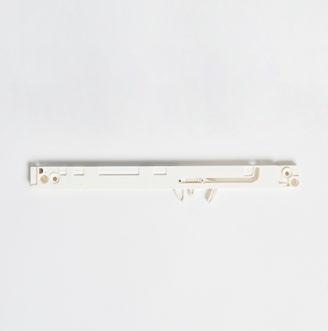

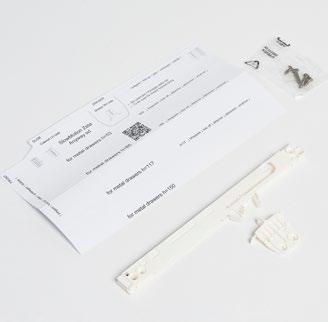

• SlowMotion device for Civetta metal single-wall drawer system

• Silent closing movement and smooth drawer pull-in guaranteed

• Retrofit solution for all drawer heights and depths

• Simple assembly

• Self-closing with damping effect to provide a high-end feel to drawer

ASSEMBLY

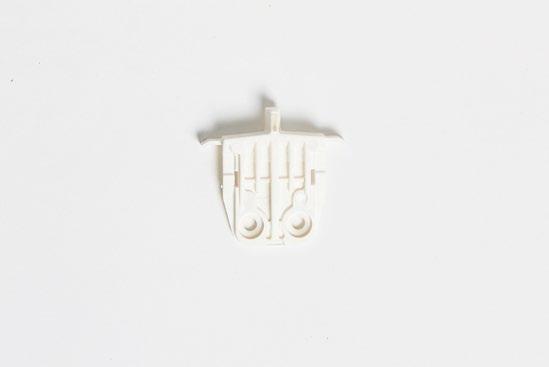

SlowMotion Zeta brackets on the drawer

Products could have pilot holes not shown in the drawings which are not contractual

Extension loss

Bottom length

Standard position for the dowels
