PROVIDES FUNCTIONAL SOLUTIONS FOR FURNITURE TO MEET THE REAL NEEDS OF A LARGE NUMBER OF CUSTOMERS.
All products are conceived and supplied with care and quality and are offered to the market at a competitive price. In this way, FGV contributes globally to increase the satisfaction of the customers buying furniture, giving access to pleasing features and improving the quality of life of the consumers.
REASONS TO CHOOSE OMNIA L
OMNIA L
OMNIA L 105°
OMNIA L 105° FOR CORNER DOORS

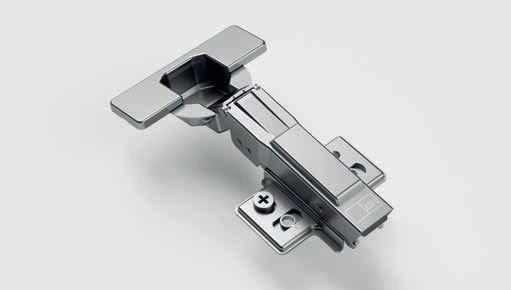

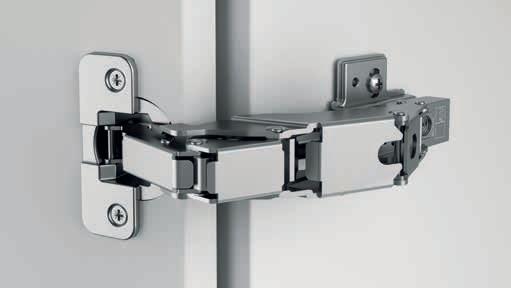

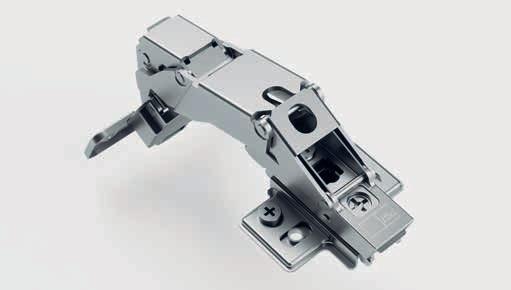

OMNIA L 155°

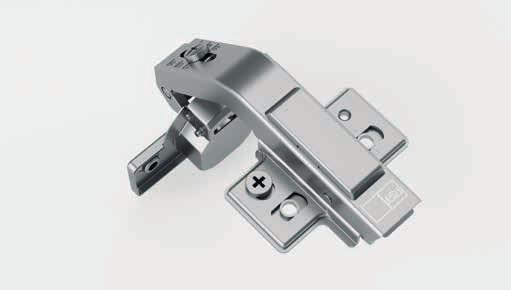

OMNIA L FOR CORNER CABINET 90°
OMNIA L 105° FOR DOORS WITH ALUMINIUM FRAME

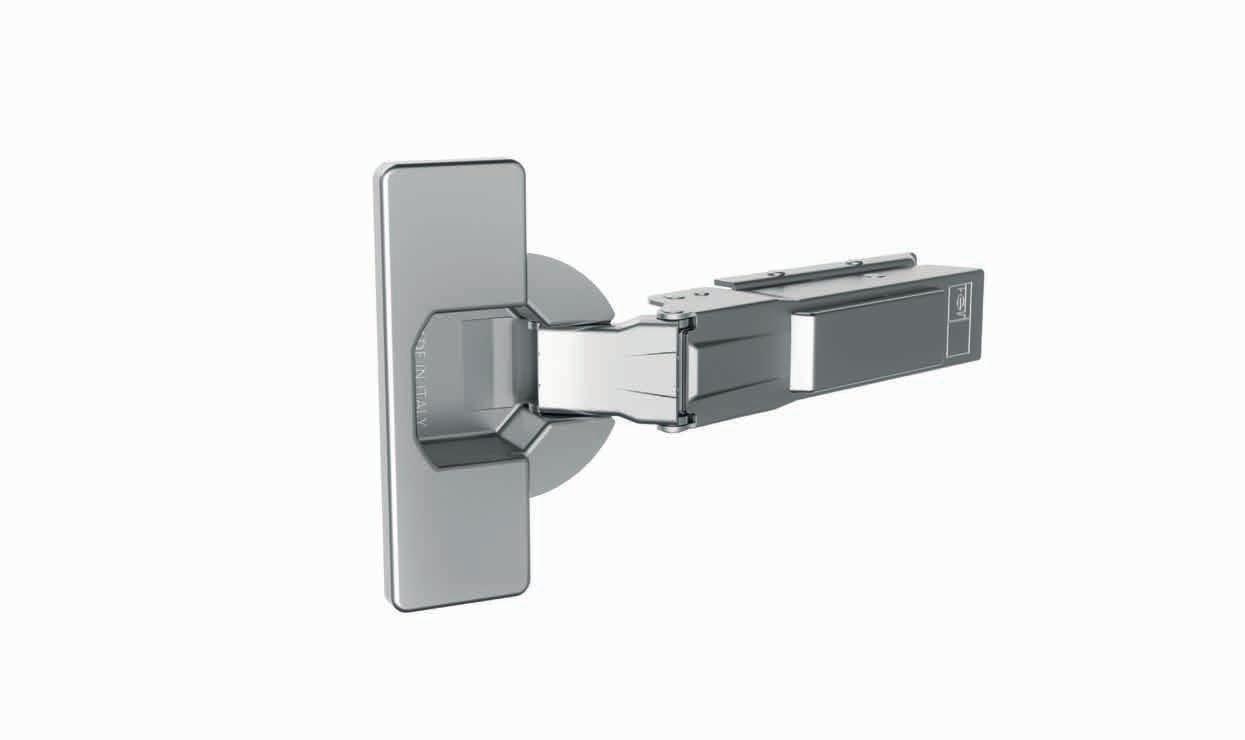

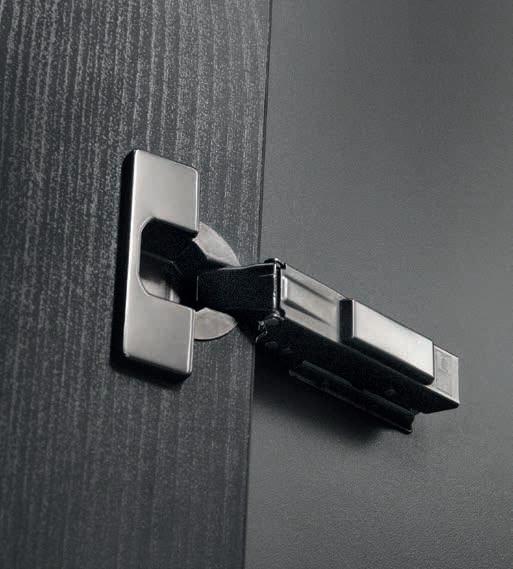

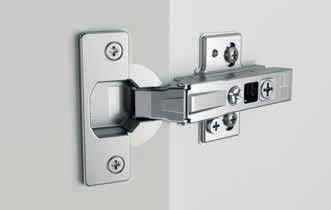

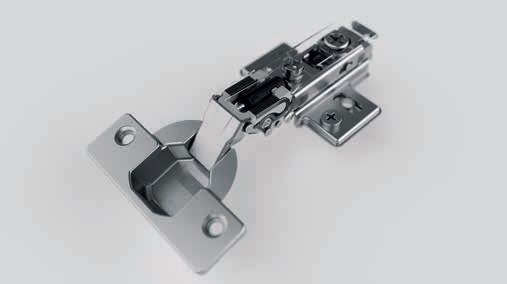

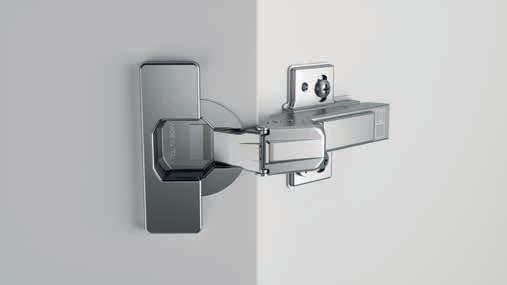

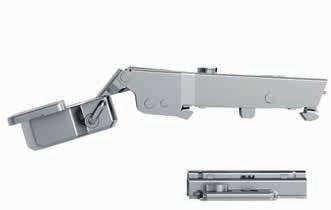

Omnia L
SLOWMOTION TECHNOLOGY INSIDE
IMPROVED MODERN DESIGN
STRENGTH AND HIGH PERFORMANCES
EASY CLICK FIXING SYSTEM
The Omnia L hinge, from old latin language: omnĭa, omnĭum. represents the perfect synthesis of all the best features.
All the best as concern the technical know-how.
All the must-have feautures for a premium hinge. All the FGV experience developed in 70 years on the Market.
All that a Customer can get from an hinge. Omnia L is really the best option on the market!
Reasons to choose Omnia L

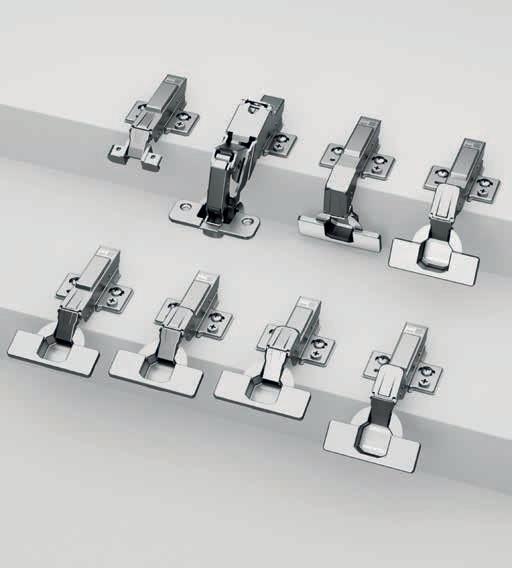

OMNIA L HINGE RANGE

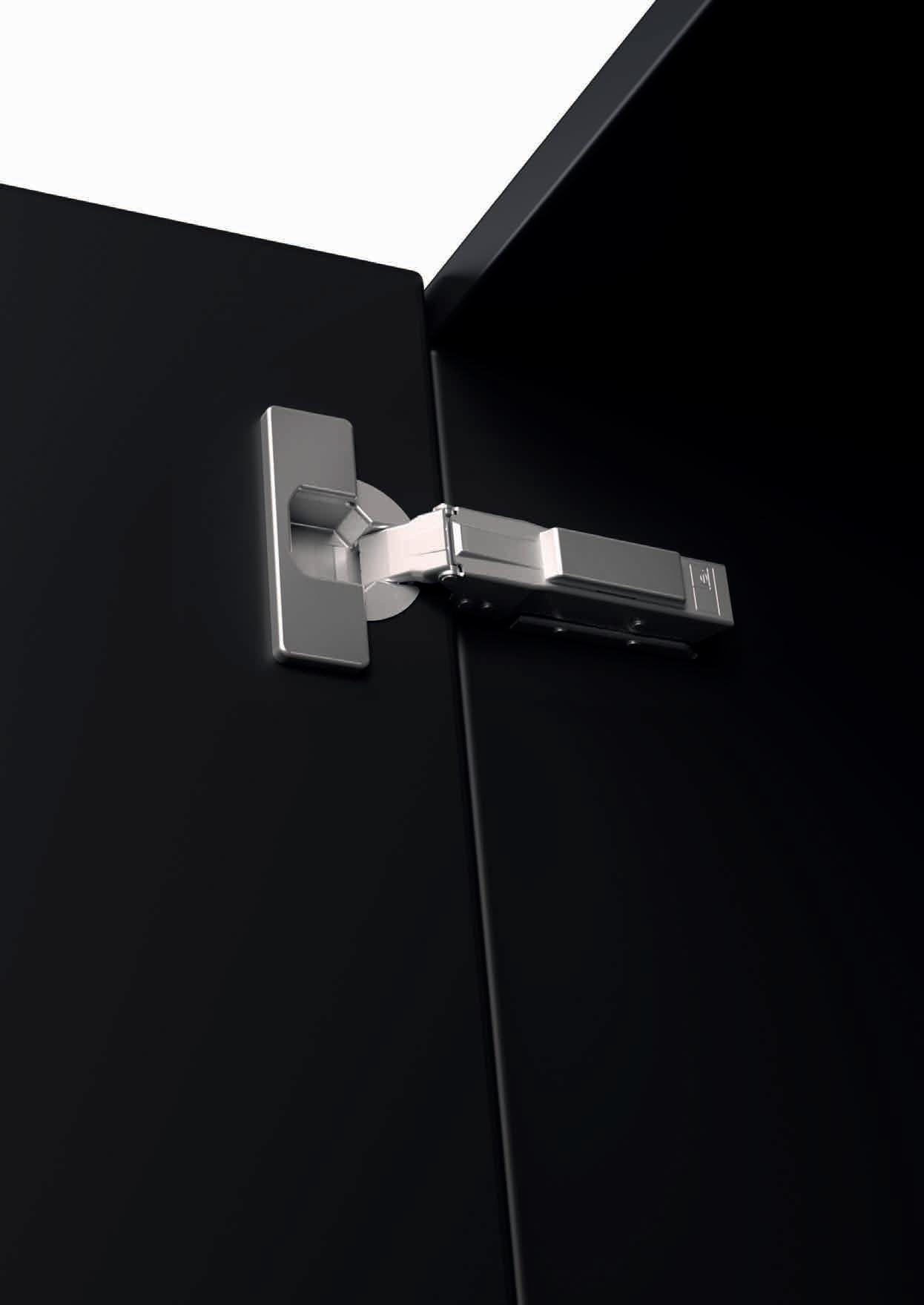

The Omnia L SlowMotion hinge is the new top product of the FGV’s offer originates from the research and the experience built up in over 70 years of presence in the field. Available both in standard Nickel and elegant Coffee Black metal finish it perfectly matches wood and modern design trend. Equipped with a state-of-the-art Linear SlowMotion Technology, it ensures stable and constant operation in all conditions of use. Produced in Italy it boosts all the best features and performances required by the market of damped systems.
NEVER SO EASY TO HANG A DOOR!
No limits to door dimensions and to hinge numbers. AnyClickSystem an intelligent and practical solution to fit the hinges in any position without any stress. A really fantastic simplification for the wardrobe doors.
ALL THE BENEFITS FROM THE LINEAR SLOWMOTION
State-of-the-art Linear SlowMotion Technology, for a perfect damped closure in every condition, based on stable shock absorber at all high and low temperatures, adaptive controlled movement without manual adjustments, 25° of smooth braking to avoid door rebound.
A TECHNOLOGY TO COVER EVERY APPLICATION
Full range of cranks and angle solutions; full choice of fixing systems, included the Velofix version. Range of reversible mounting plates with 3D independent adjustment: fast, simple, precise and intuitive.

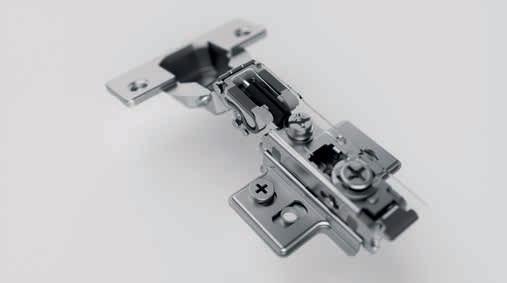

Omnia L
PERFORMANCE AnyClickSystem

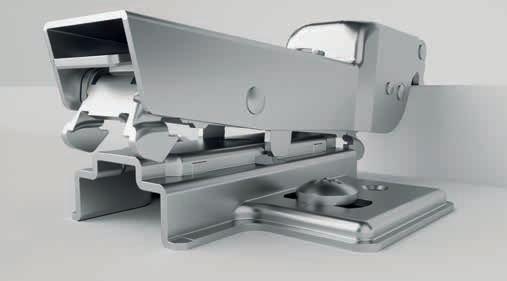

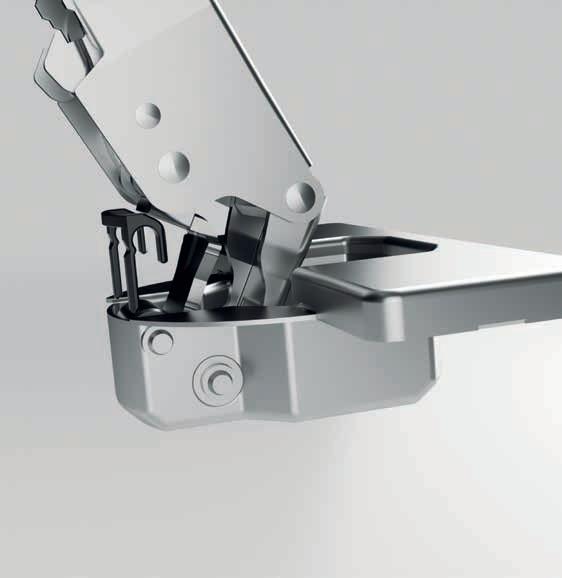

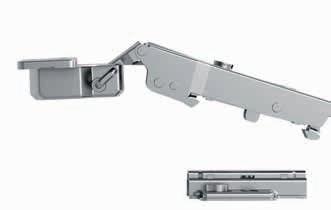

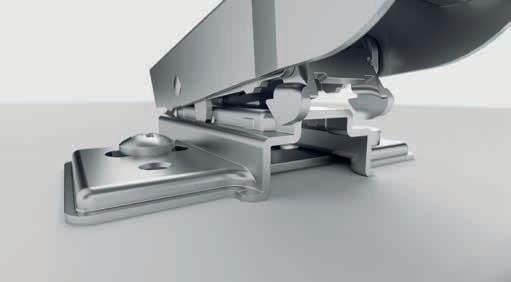

Linear SlowMotion Damper hidden into the hinge arm Modern and elegant design patented
Plate

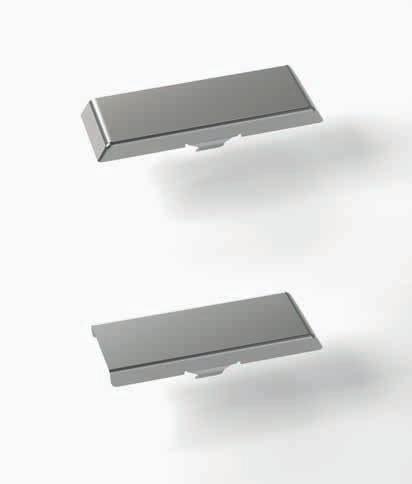

Box and Arm cover caps Linear Mounting
A practical test is recommended to verify the best hinges combination
ANYCLICKSYSTEM
For an easy and quick fitting in any position.
ADJUSTING SYSTEM
Depth adjustment
Acting on the “A” screw it is possible to adjust the distance between the side of the cabinet and the door.
Independent side adjustment
Acting on the “B” screw it is possible to change the amount of the door covering on the side of the cabinet.
Vertical adjustment
Acting on the “C” screw of the mounting plate it is possible to adjust the door vertically.
Colour finishes
= M9 Nickel

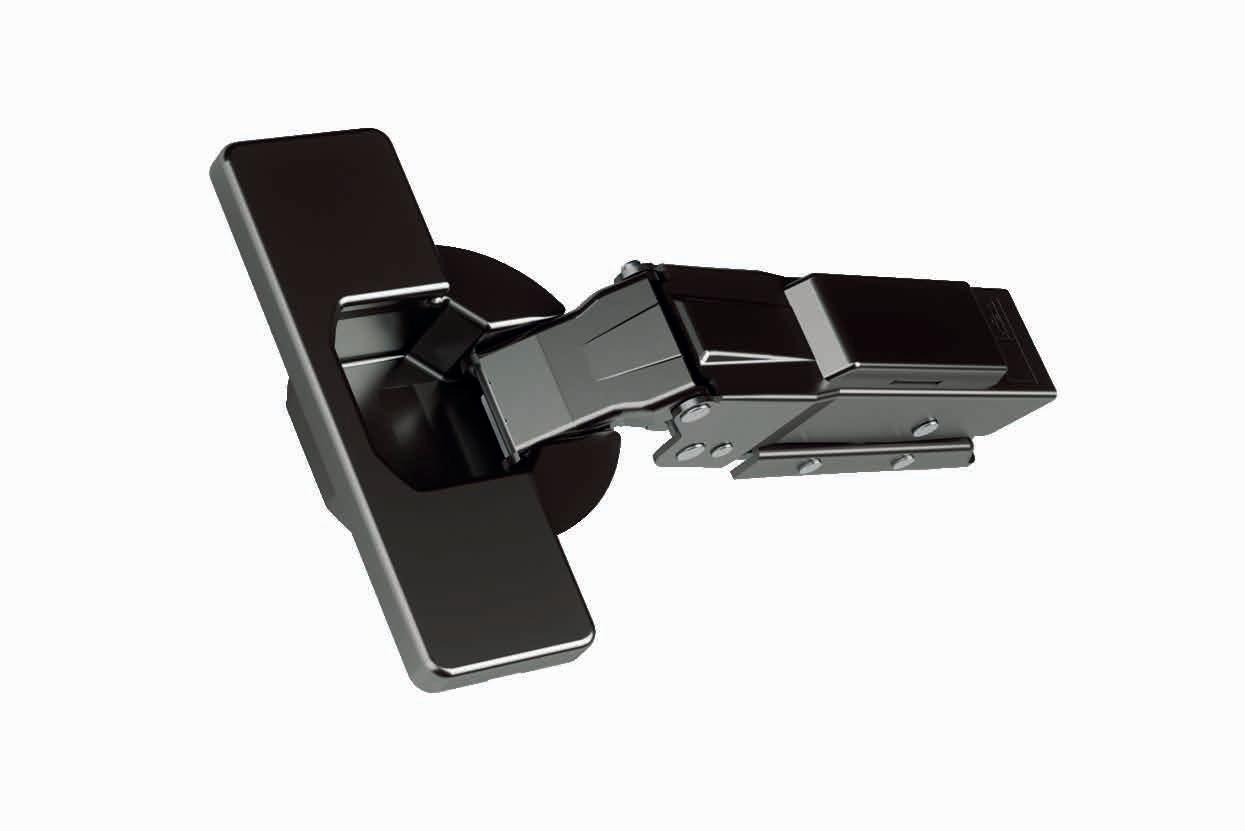

= M2 Coffee Black
51.LSW0.**.00.IX000
51.LSW0.**.00.AX000
51.LSW0.**.00.DX000
Technical Specifications:
•Depth of the metal cup 11.4 mm
•Cup diameter 35 mm
•Opening 105°
•Possibility of door drilling (K) from 3 to 7 mm
•Thickness of the door (T) from 14 to 26 mm
•Available with cup hole distance I.48, A.45, D.52
•Complete program of fixing systems with Selftapping and Euro screw; Expanding, EasyFix and knock-in Dowel
51.LSW0.**.08.IX000
51.LSW0.**.08.AX000
51.LSW0.**.08.DX000
51.LSW0.**.15.IX000
51.LSW0.**.15.AX000
51.LSW0.**.15.DX000
Available also with premounted selftapping screw (sample code 51.LSWP.M9.00.IX000)
51.LSEP.**.00.IX000
51.LSEP.**.00.AX000
51.LSEP.**.00.DX000
51.LSD0.**.00.IX000
51.LSD8.**.00.AX000
51.LSD0.**.00.DX000
51.LSV0.**.00.IX000
51.LSV8.**.00.AX000
51.LSV0.**.00.DX000
51.LSX0.**.00.IX000
51.LSX8.**.00.AX000
51.LSX0.**.00.DX000
For mounting plates and fittings see pages 18 - 25.
51.LSEP.**.08.IX000
51.LSEP.**.08.AX000
51.LSEP.**.08.DX000
Available also without euro screw (sample code 51.LSE0.M9.00.IX000) D0 = dowels Ø10 / D8 = dowels Ø8 V0 = dowels Ø10 / V8 = dowels Ø8 X0 = dowels Ø10 / X8 = dowels Ø8
51.LSD0.**.08.IX000
51.LSD8.**.08.AX000
51.LSD0.**.08.DX000
51.LSV0.**.08.IX000
51.LSV8.**.08.AX000
51.LSV0.**.08.DX000
51.LSX0.**.08.IX000
51.LSX8.**.08.AX000
51.LSX0.**.08.DX000
Versions not damped available for all applications in the above table (sample code 51.LSW0.M9.00.I0000)
51.LSEP.**.15.IX000
51.LSEP.**.15.AX000
51.LSEP.**.15.DX000
51.LSD0.**.15.IX000
51.LSD8.**.15.AX000
51.LSD0.**.15.DX000
51.LSV0.**.15.IX000
51.LSV8.**.15.AX000
51.LSV0.**.15.DX000
51.LSX0.**.15.IX000
51.LSX8.**.15.AX000
51.LSX0.**.15.DX000
CRANK 0
CRANK 8
CRANK 15
CRANK 0 For lay-on doors
CRANK 8 For partial lay-on doors
Drilling distance (k)
CRANK 15 For inset doors
Drilling distance (k)
* = with H between two values get the lower one * = with H between two values get the lower one * = with H between two values get the lower one
Table to determinate the minimum distance A so that a door with T thickness can open without protrusion from the cabinet and without interfering with adjacent doors.
Versions not damped available for all applications in the above table (sample code 51.LSW0.M9.30.I0000)
51.LSEP.**.90.IX000
51.LSEP.**.90.AX000
51.LSEP.**.90.DX000
51.LSD0.**.90.IX000
51.LSD8.**.90.AX000
51.LSD0.**.90.DX000
51.LSV0.**.90.IX000
51.LSV8.**.90.AX000
51.LSV0.**.90.DX000
51.LSX0.**.90.IX000
51.LSX8.**.90.AX000
51.LSX0.**.90.DX000
ANGLE 24° / 30°
ANGLE 45°
ANGLE 90°
Omnia L 105° for corner doors
Table to determinate the minimum distance A so that a door with T thickness can open without protrusion from the cabinet and without interfering with adjacent doors. 14151617181920212223242526
Colour finishes
** = M9 Nickel
** = M2 Coffee Black
51.LWW0.**.00.IX000
51.LWW0.**.00.AX000
51.LWW0.**.00.DX000
51.LWEP.**.00.IX000
51.LWEP.**.00.AX000
51.LWEP.**.00.DX000
51.LWD0.**.00.IX000
51.LWD8.**.00.AX000
51.LWD0.**.00.DX000
Technical Specifications:
•Depth of the metal cup 11.3 mm
•Cup diameter 35 mm
•Opening 155°
•Possibility of door drilling (K) from 3 to 7 mm
•Thickness of the door (T) from 14 to 26 mm
•Available with cup hole distance I.48, A.45, D.52
•Complete program of fixing systems with Selftapping and Euro screw; EasyFix and knock-in Dowel
For mounting plates and fittings see pages 18 - 25.
51.LWV0.**.00.IX000
51.LWV0.**.00.DX000
51.LWW0.**.08.IX000
51.LWW0.**.08.AX000
51.LWW0.**.08.DX000
51.LWEP.**.08.IX000
51.LWEP.**.08.AX000
51.LWEP.**.08.DX000
51.LWD0.**.08.IX000
51.LWD8.**.08.AX000
51.LWD0.**.08.DX000
51.LWV0.**.08.IX000
Available also without euro screw (sample code 51.LWE0.M9.00.IX000) D0 = dowels Ø10 / D8 = dowels Ø8 V0 = dowels Ø10
51.LWV0.**.08.DX000
51.LWX0.**.00.DX000
51.LWX0.**.08.DX000
Versions not damped available for all applications in the above table (sample code 51.LWW0.M9.00.I0000)
CRANK 0
CRANK 8
CRANK 0 For lay-on doors
CRANK 8 For partial lay-on doors
Table to determinate the minimum distance A so that a door with T thickness can open without protrusion from the cabinet and without interfering with adjacent doors.
Colour finishes
** = M9 Nickel
** = M2 Coffee Black
51.LPW0.**.00.I0000
51.LPW0.**.00.A0000
51.LPW0.**.00.D0000
Available also with premounted selftapping screw (sample code 51.LPWP.M9.00.I0000)
51.LPEP.**.00.I0000
51.LPEP.**.00.A0000
51.LPEP.**.00.D0000
Available also without euro screw (sample code 51.LPE0.M9.00.I0000)
51.LPD0.**.00.I0000
51.LPD8.**.00.A0000
51.LPD0.**.00.D0000
D0 = dowels Ø10 / D8 = dowels Ø8
51.LPV0.**.00.I0000
51.LPV8.**.00.A0000
51.LPV0.**.00.D0000
V0 = dowels Ø10 / V8 = dowels Ø8
51.LPX0.**.00.I0000
51.LPX8.**.00.A0000
51.LPX0.**.00.D0000
Technical Specifications:
•Depth of the metal cup 11.4 mm
•Cup diameter 35 mm
•Opening 50°
•Possibility of door drilling (K) from 3 to 7 mm
•Thickness of the door (T) from 14 to 26 mm
•Available with cup hole distance I.48, A.45, D.52
•Complete program of fixing systems with Selftapping and Euro screw; Expanding, EasyFix and knock-in Dowel
For mounting plates and fittings see pages 18 - 25.
X0 = dowels Ø10 / X8 = dowels Ø8
For all applications in the above table available only versions not damped
Technical Specifications:
•Depth of the zamak cup 9.9 mm
•Cup drilling 28x7 mm
•Opening 105°
•Aluminium frame from min. 19 to max 26 mm
•Available with cup hole distance I.48, A.45, D.52
•Complete program of fixing systems with Selftapping and Euro screw; Expanding, EasyFix and knock-in Dowel Omnia
Colour finishes
** = M9 Nickel
** = M2 Coffee Black
Versions not damped available for all applications in the above table (sample code
Drilling holes
The two laterals drillings are Ø4 mm and are countersunk with 120°. Screws Ø3.5x12 mm supplied on demand under code 1A05512105000.
51.LSA0.**.08.0X000
Assembly instructions
For mounting plates and fittings see pages 18 - 25.
CRANK 0 51.LSA0.**.00.0X000
CRANK 8
CRANK 15
51.LSA0.**.15.0X000

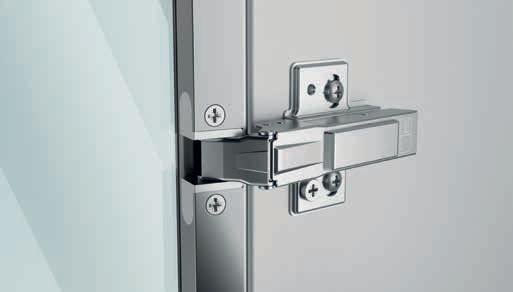

Omnia L 105° for doors with aluminium frame
CRANK 0 For lay-on doors
CRANK 8 For partial lay-on doors
CRANK 15 For inset doors
Table to determinate the minimum distance A so that a door with T thickness can open without protrusion from the cabinet and without interfering with adjacent doors.
Mounting Plates
Series Omnia L

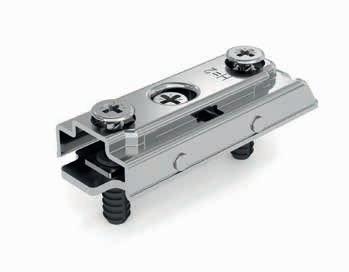

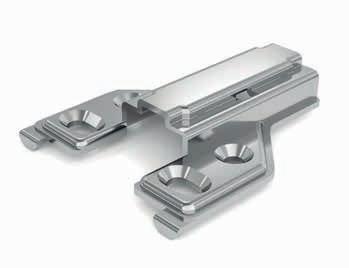

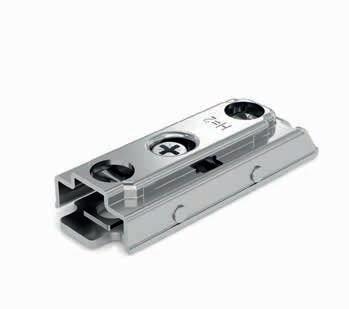

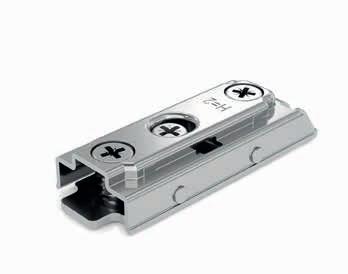

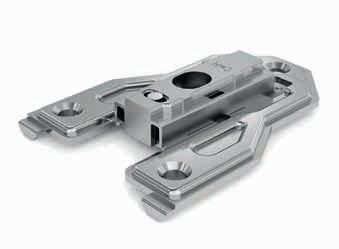

Linear mounting plates
Metal linear mounting plate. Fixing by Selftapping screw. Independent vertical adjustment with CAM. (For screws see page 25)
Height Material Code

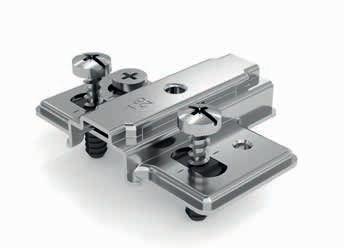

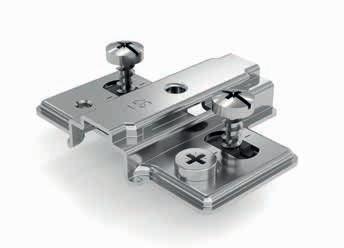

Metal linear mounting plate. Fixing by premounted Euro screws. Independent vertical adjustment with CAM.
Height Material Code

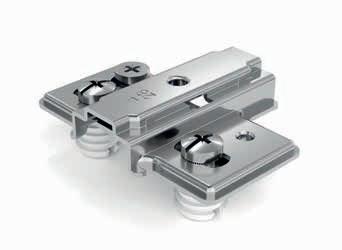

Metal linear mounting plate. Fixing by Expanding dowels Ø5mm. Independent vertical adjustment with CAM.
Height Material Code

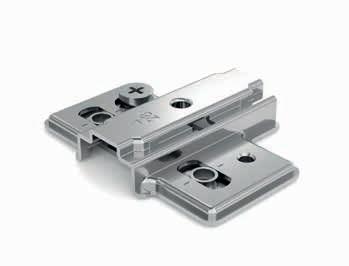

Metal linear mounting plate. Fixing by Knock-in dowels Ø10mm. Independent vertical adjustment with CAM.
Code

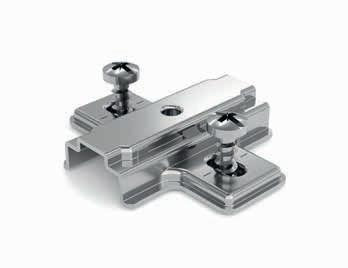

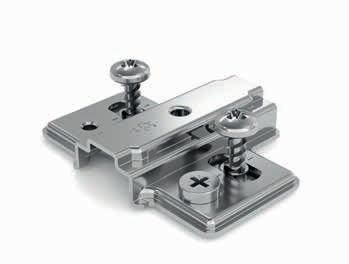

Cruciform mounting plates

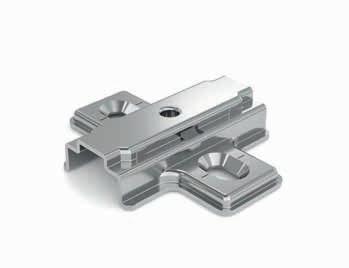

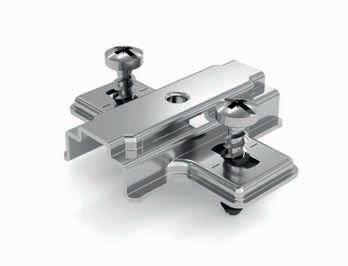

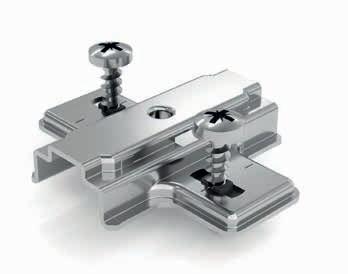

Metal cruciform mounting plate. Fixing by Selftapping screw. Vertical adjustment. (For screws see page 25)
Height Material Code H0

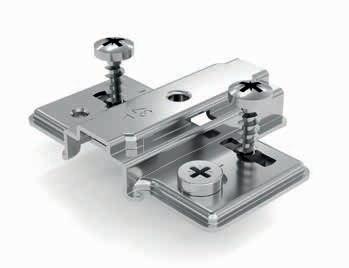

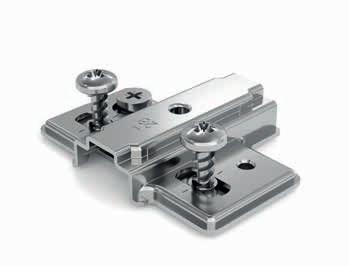

Metal cruciform mounting plate. Fixing by premounted Selftapping screws Ø4.7mm. Vertical adjustment.
Height Material Code
H0

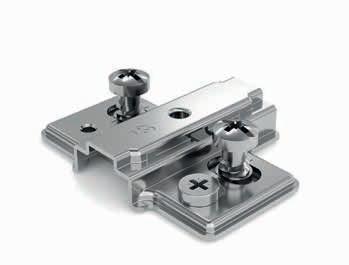

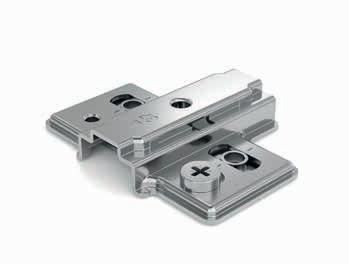

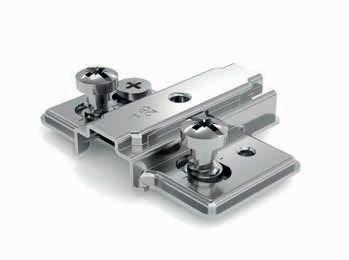

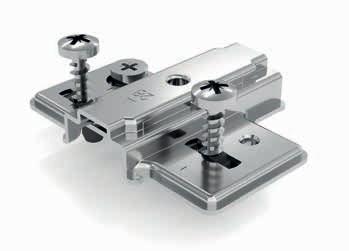

Metal cruciform mounting plate. Fixing by premounted Euro screws. Vertical adjustment.
Height Material Code H0

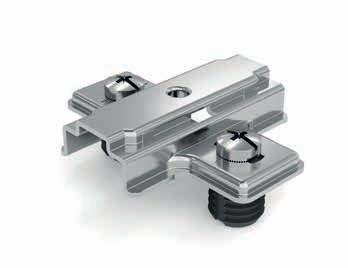

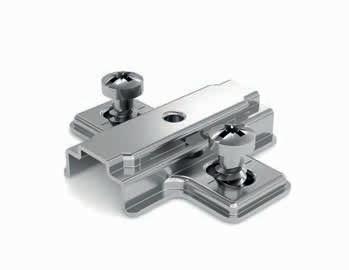

Metal cruciform mounting plate. Fixing by Expanding dowels Ø5mm. Vertical adjustment.
Height Material Code
Metal cruciform mounting plate. Fixing by Knock-in dowels Ø10mm. Vertical adjustment.
Height Material Code
Cruciform
Metal cruciform mounting plate. Fixing by Selftapping screw. Independent vertical adjustment with CAM. (For screws see page 25)
HeightMaterialCode
H0Metal52.LDW0.**.00.00000
H2Metal52.LDW0.**.02.00000
H4Metal52.LDW0.**.04.00000
H6Metal52.LDW0.**.06.00000
Metal cruciform mounting plate. Fixing by premouned Selftapping screw. Independent vertical adjustment with CAM.
HeightMaterialCode
H0Metal52.LDWP.**.00.00000
H2Metal52.LDWP.**.02.00000
H4Metal52.LDWP.**.04.00000
H6Metal52.LDWP.**.06.00000
Metal cruciform mounting plate. Fixing by premouned Euro screws. Independent vertical adjustment with CAM.
HeightMaterialCode
H0Metal52.LD.^^.**.00.00000
H2Metal52.LD.^^.**.02.00000
H4Metal52.LD.^^.**.04.00000
H6Metal52.LD.^^.**.06.00000
Metal cruciform mounting plate. Fixing by Expanding dowels Ø5mm. Independent vertical adjustment with CAM.
HeightMaterialCode
H0Metal52.LD.^^.**.00.00000
H2Metal52.LD.^^.**.02.00000
H4Metal52.LD.^^.**.04.00000
H6Metal52.LD.^^.**.06.00000
Metal cruciform mounting plate. Fixing by Selftapping screw. Independent vertical adjustment with CAM. (For screws see page 25)
Height Material Code
H0
52.LBW0.**.00.00000
Metal cruciform mounting plate. Fixing by premouned Selftapping screw. Independent vertical adjustment with CAM.
Height Material Code H0
Metal cruciform mounting plate. Fixing by premouned Euro screws. Independent vertical adjustment with CAM.
Height Material Code
Metal cruciform mounting plate. Fixing by Expanding dowels Ø5mm. Independent vertical adjustment with CAM.
Height Material Code H0
Metal cruciform mounting plate. Fixing by Knock-in dowels Ø10mm. Independent vertical adjustment with CAM.
Height Material Code
finishes
= M9 Nickel
= M2 Coffee Black

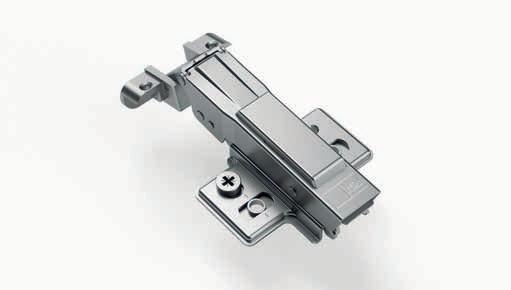

Metal face frame mounting plate. Fixing by Selftapping screw. Vertical adjustment. (For screws see page 25)
Height Material Code
Metal face frame mounting plate. Fixing by Selftapping screw. Vertical adjustment. (For screws see page 25)
Height Material Code
Metal face frame mounting plate. Fixing by Selftapping screw. Independent vertical adjustment with CAM. (For screws see page 25)
Material Code
Metal face frame mounting plate. Fixing by Selftapping screw. Independent vertical adjustment with CAM. (For screws see page 25)
Metal asymmetric mounting plate for central panel. Fixing by Expanding dowels Ø5mm. Vertical adjustment.
Metal asymmetric mounting plate for central panel. Fixing by Expanding dowels Ø5mm. Independent vertical adjustment with CAM.
Metal asymmetric mounting plate for central panel. Fixing by Expanding dowels Ø5mm. Independent vertical adjustment with CAM.

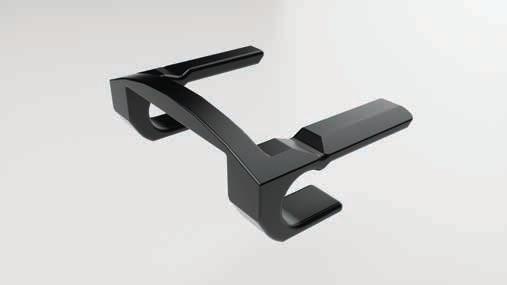

Technical Specifications:
•Stopper device 85° and 95°
•Application with Omnia L hinge Crank 0, 8, 15 and Angle 24°÷30°, 45°, 90°
Table to determinate the minimum distance A so that a door with T thickness can open without protrusion from the cabinet and without interfering with adjacent doors.
0.10.20.30.30.50.60.811.21.41.61.92.32.93.64.45.2
0.10.20.30.30.50.60.811.21.41.61.92.12.73.44.14.8
Selftapping screws with countersunk and Pozi drive head, nickel finish, for hinge and mounting plate fixing.
Ø Length Material Code
4 12.5 Steel 1A035034150CF
4 15.5 Steel 1A035034250CF
Selftapping screws with Flat and Pozi drive head, nickel finish, for hinge and mounting plate fixing.
Ø Length Material Code
4 12.5 Steel 1A0L0030760202C
4 15.5 Steel 1A0L0030760205C
Euro screws with Pozi drive head, nickel finish, for mounting plate fixing.
Ø Length Material Code
6.3 10 Steel 1A075029350CF
6.3 12 Steel 1A075108250CF
6.3 14 Steel 1A075108150CF
Euro screws with Pozi drive head, nickel finish, for hinge fixing.
Ø Length Material Code
6.3 13 Steel 1A011216009IKCF
Dowel in nylon for hinge fixing.
Ø Height Material Code
10 12 Nylon
2H011070530CF
8 11 Nylon 2H000449003CF

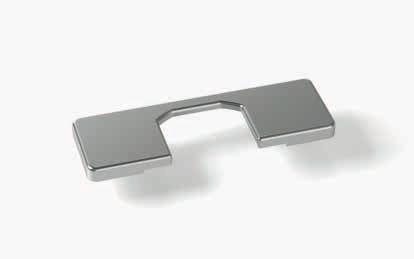

Hinge box cover cap. with Customer logo upon request Colour finishes ** = M9 Nickel ** = M2 Coffee Black
Hinge Arm cover cap.
Application Material Code
For Crank 0 and Angles Steel 51LM00**0000000 For Crank 8 - 15 Steel 51LM00**0100000
Cup hole distance Material Code I.48 / A.45 / D.52 Steel 51LC00**0000000
