THE HANGING CABINET RELIABLE SOLUTIONS

FGV PROVIDES FUNCTIONAL SOLUTIONS FOR FURNITURE TO MEET THE REAL NEEDS OF A LARGE NUMBER OF CUSTOMERS.

All products are conceived and supplied with care and quality and are offered to the market at a competitive price. In this way, FGV contributes globally to increase the satisfaction of the customers buying furniture, giving access to pleasing features and improving the quality of life of the consumers.

Leva 723-725-729

Leva 719

Leva 715

Leva 701

Leva 703

Plates & Bars

WALL HANGING BRACKETS

WALL HANGING SOLUTIONS COVERING EVERY APPLICATION WITH A COMPLETE RANGE OF FIXING METHODS, AN EXHAUSTIVE PROGRAM OF TECHNICAL SPECIFICATIONS, A WIDE OFFER OF COLOUR FINISHES FOR A NOT INVASIVE COVERS LOOK.

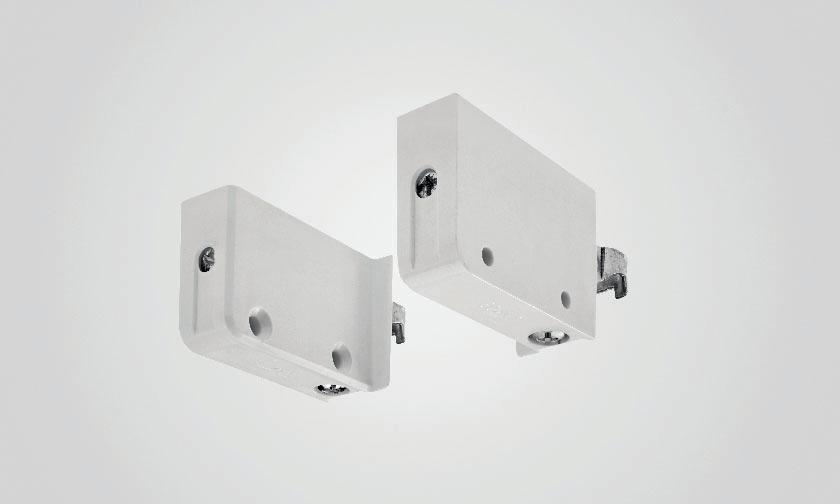

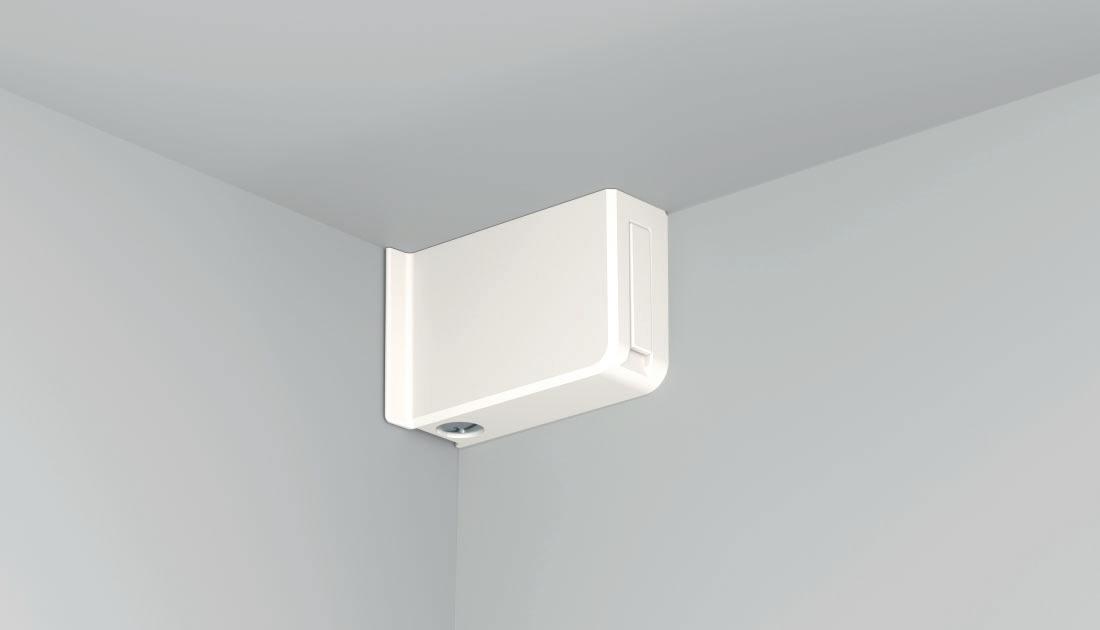

Leva, the FGV wall hanging brackets line, offers simplicity and immediacy, harmony and functionality: all the characteristics of a reliable solution for fixing a cabinet. The range differs according to the fixing system: with screws or dowels; to the assembling system: hidden or visible (also available cover plates in a large range of colours and finishes); and to a wide range of adjustments allowing an ideal use in any condition and furniture.

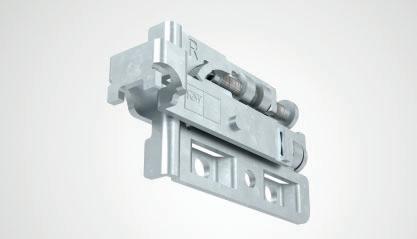

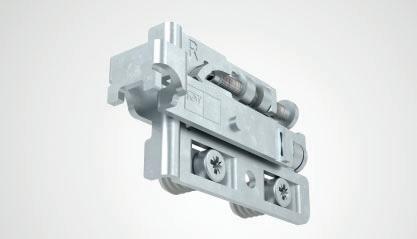

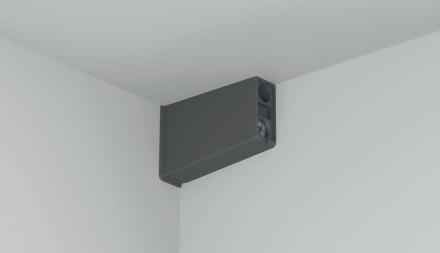

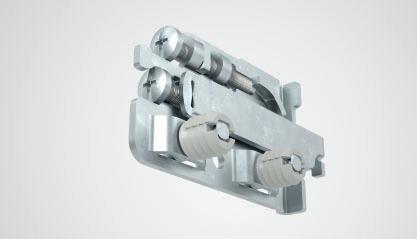

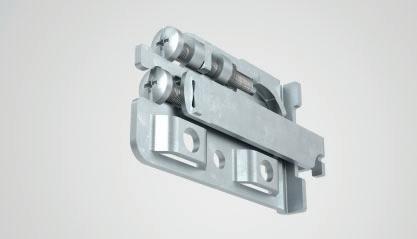

Leva 723-725-729

TechnicalSpecifications:

• Complete range of fixing systems: Leva 723 fixing with Euro Screws (included) Leva 725 fixinng with Selftapping Screws (included) Leva 729 fixing with Ø10 Knock-in Dowels (premounted) for automatic machine

• Made in metal, zinc finish

• Asymmetrical hook

• Adjustment screw easy to access

• In&Out adjustment with special screw to avoid accidental dismounting

• 45kg static load UNI EN 15939

• Cover available in modern colours: Coffee Black, Storm Grey and Polar White

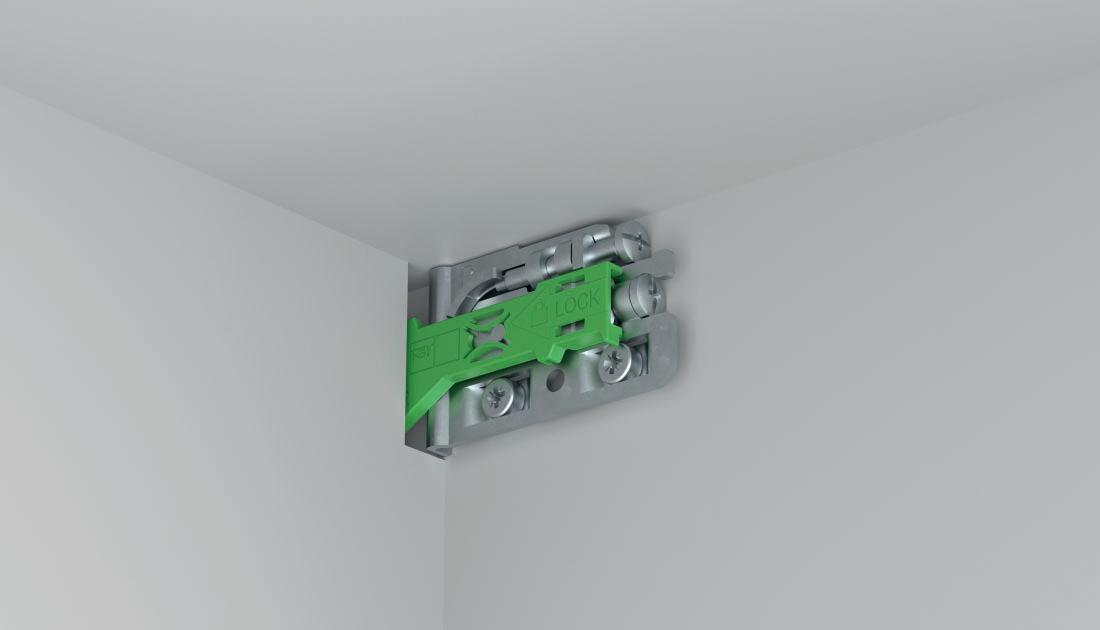

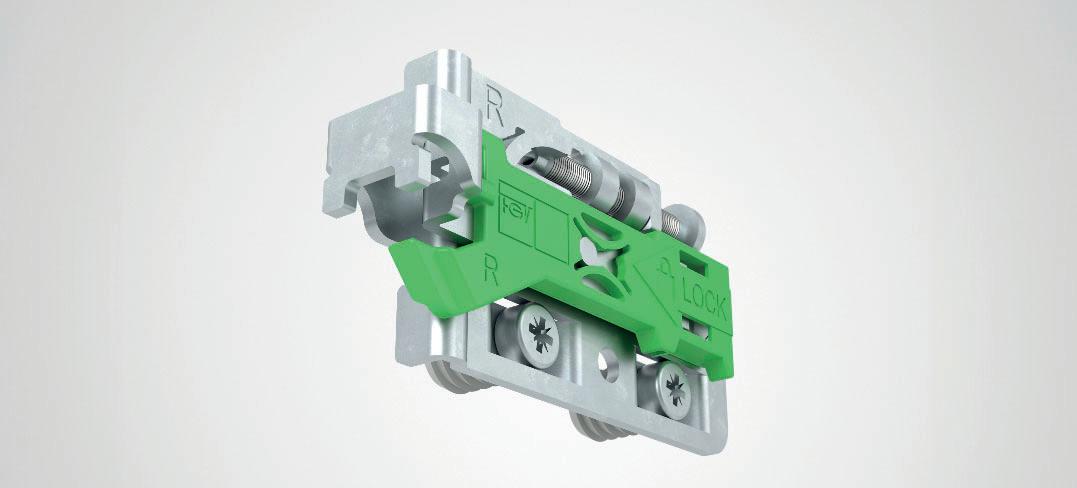

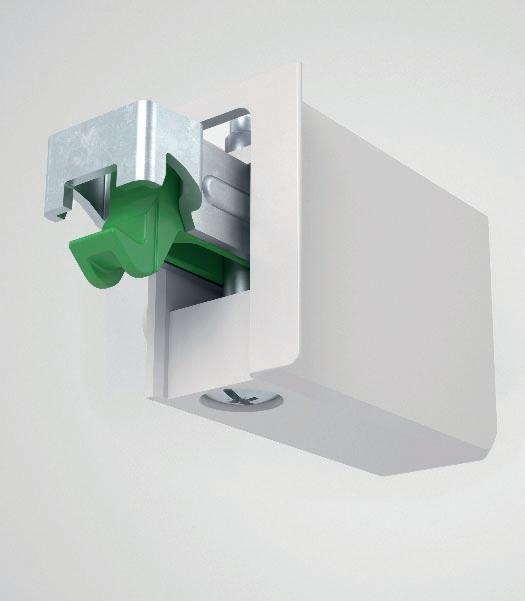

• Optional Anti-Lift device in green plastic to be ordered separately

• Full program of fixing plates & bars (page 13)

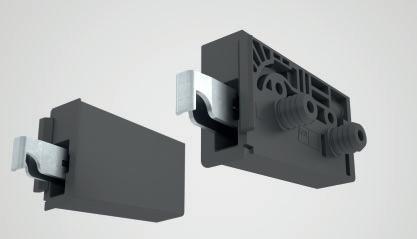

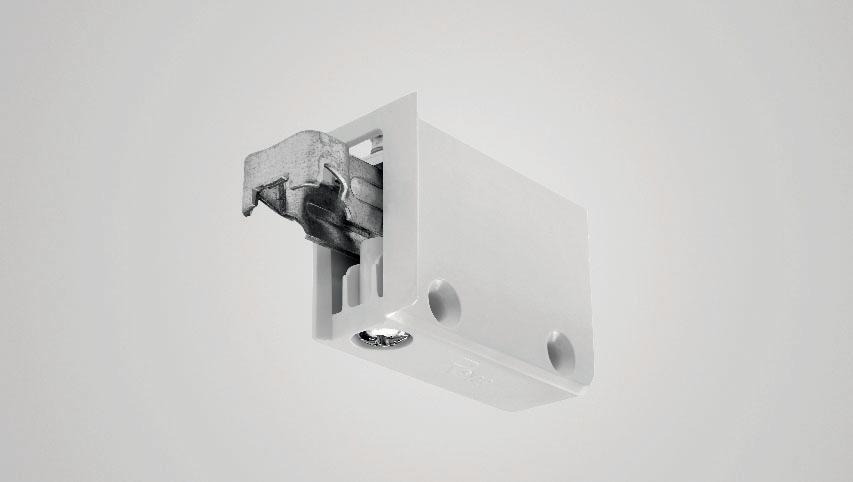

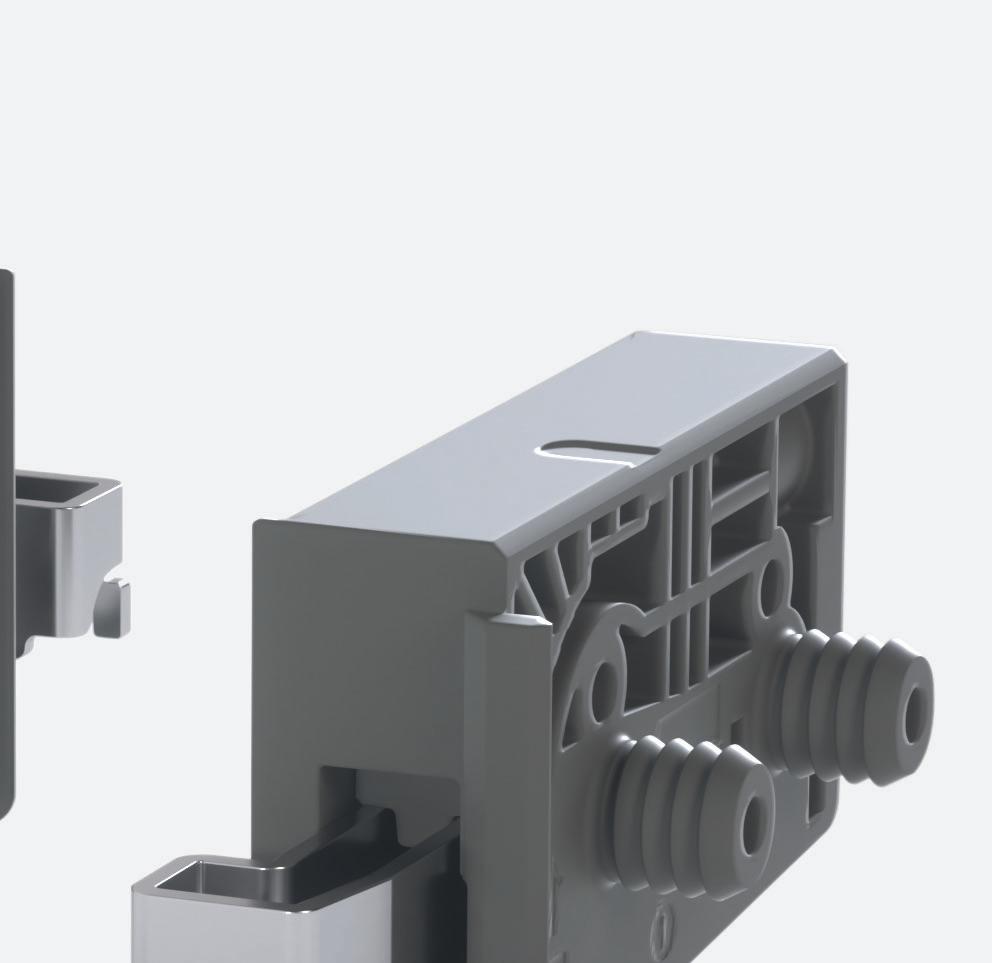

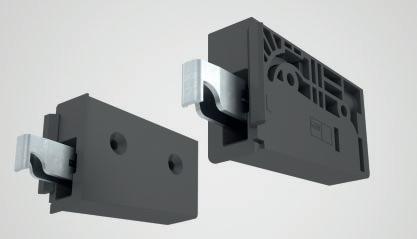

TechnicalSpecifications:

• Fixing with Ø10 Dowels for automatic machine

• Housing made in ABS

• Available with symmetrical or asymmetrical hook

• Version with lip for back milled cabinet and version without lip for cabinet without back milled

• Adjustment screw easy to access

• In&Out adjustment with special screw to avoid accidental dismounting

• 35-40kg static load UNI EN 15939

• Small cover cap available in modern colours:

Coffee Black, Storm Grey and Polar White

• Full program of fixing plates & bars (page 13)

Leva719–WithsymmetricalhookCover

CodeDescriptionPacking

53.719.°.**.S0R.0000 Wall hanging bracket Leva 719 – right 200 pcs

53.719.°.**.S0L.0000

Leva719–Withasymmetricalhook

CodeDescriptionPacking

53.719.°.**.A0R.0000 Wall hanging bracket Leva 719 – right 200 pcs

53.719.°.**.A0L.0000 Wall hanging bracket Leva 719 – left 200 pcs

DrillingpositionandAdjustment

CodeDescriptionPacking

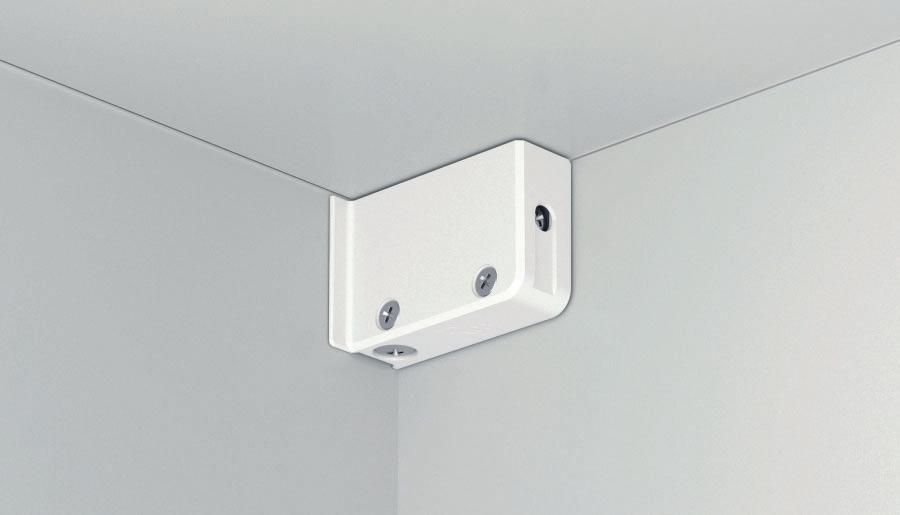

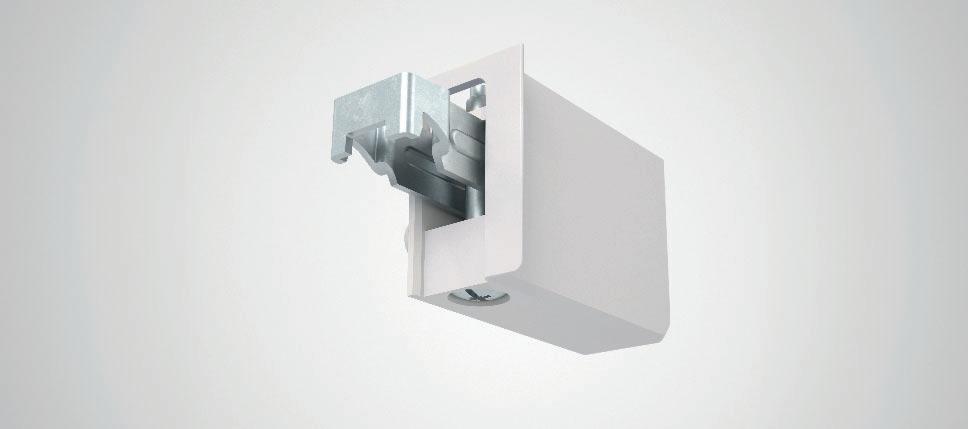

TechnicalSpecifications:

• Fixing with Selftapping Screws

• Housing made in ABS

• Available with symmetrical or asymmetrical hook

• Version with lip for back milled cabinet and version without lip for cabinet without back milled

• Adjustment screw easy to access

• In&Out adjustment with special screw to avoid accidental dismounting

• 30-35kg static load UNI EN 15939

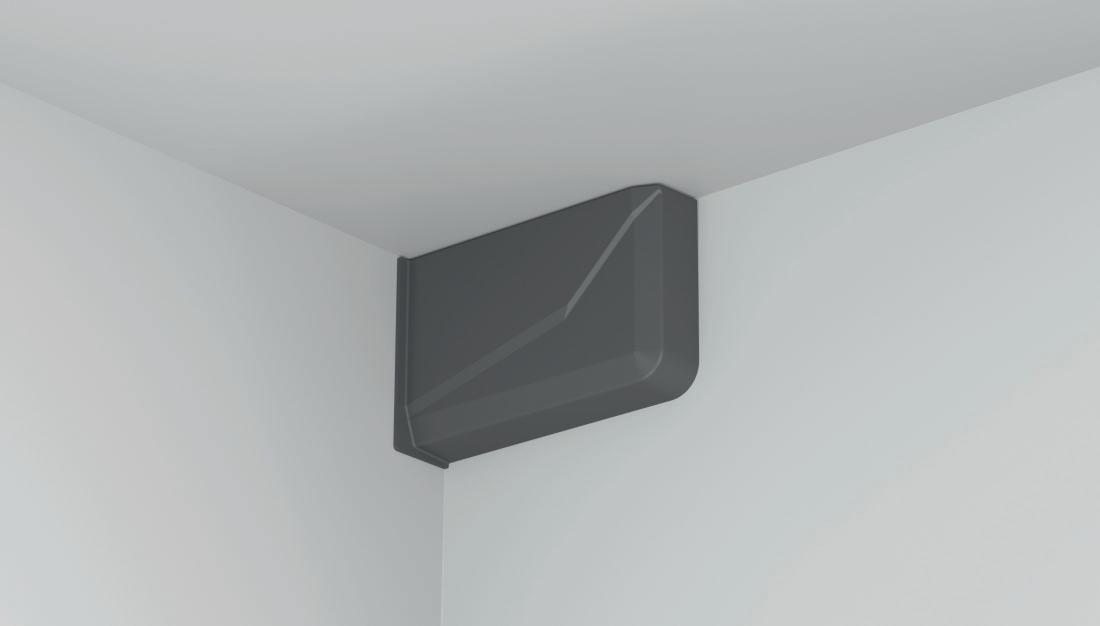

• Cover available in modern colours: Coffee Black, Storm Grey and Polar White

• Full program or fixing plates & bars (page 13)

LevaCover 715–Withsymmetricalhook

CodeDescriptionPacking

53.715.°.**.S0R.0000 Wall hanging bracket Leva 715 – right 200 pcs

53.715.°.**.S0L.0000

Leva715–Withasymmetricalhook

CodeDescriptionPacking

53.715.°.**.A0R.0000 Wall hanging bracket Leva 715 – right 200 pcs

53.715.°.**.A0L.0000 Wall hanging bracket Leva 715 – left 200 pcs

DrillingpositionandAdjustment

CodeDescriptionPacking

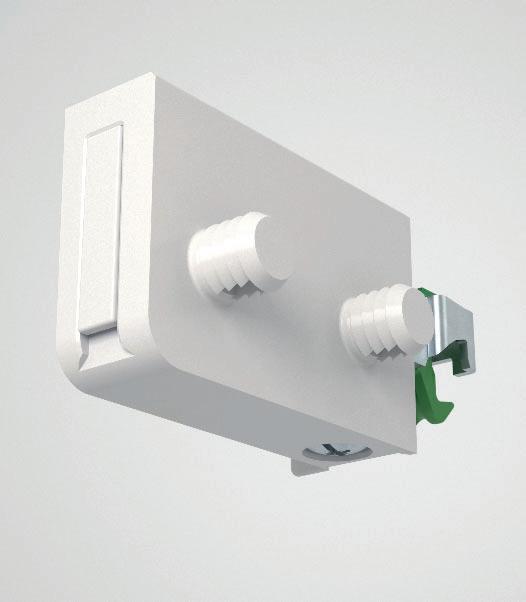

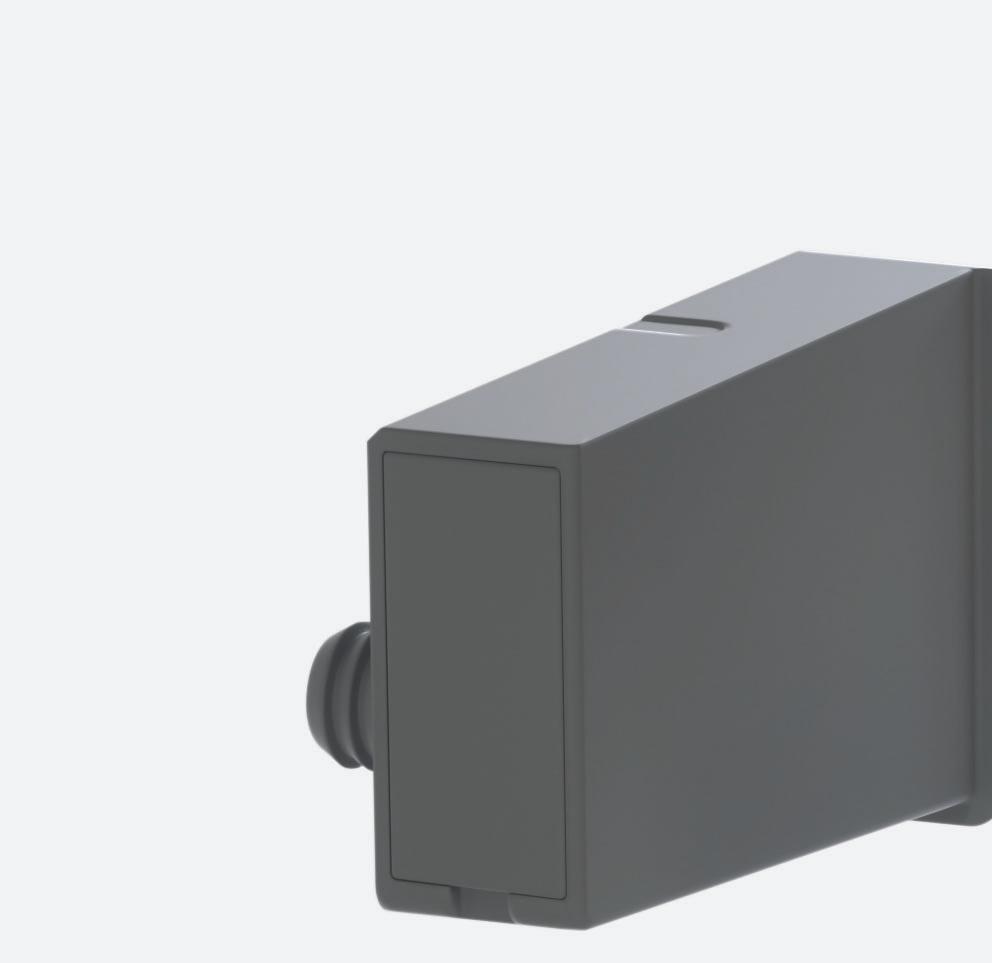

TechnicalSpecifications:

•Fixing with Ø10 Dowels for automatic machine

•Housing made in ABS

•Symmetrical hook

•Adjustment screws to avoid accidental dismounting

•40kg static load UNI EN 15939

•Full program or fixingplates&bars(page13)

53.701.0.**.S0R.0.000

** Colour code: N2 = Coffee Black /S8 = Storm Grey /F1 = Polar White

DrillingpositionandAdjustment

CodeDescriptionPacking

53.C703.**.01.N00

TechnicalSpecifications:

• Fixing with Selftapping Screws

• Housing made in ABS

• Symmetrical hook

• Adjustment screws to avoid accidental dismounting

• 40kg static load UNI EN 15939

• Full program or fixing plates & bars (page 13)

DrillingpositionandAdjustment

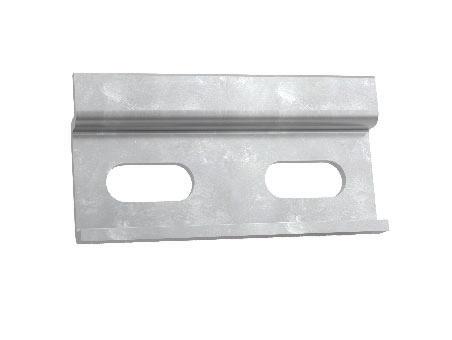

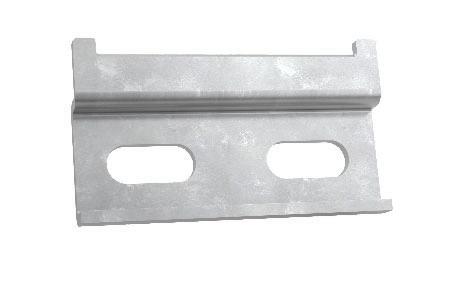

Plate301

Wall hanging bracket plate of 50mm. 1.8mm of thickness. EN15939 Certification.

CodeDescriptionPacking

53.301.0.M70000000 301 wall hanging bracket plate 500 pcs

Finish: zincate

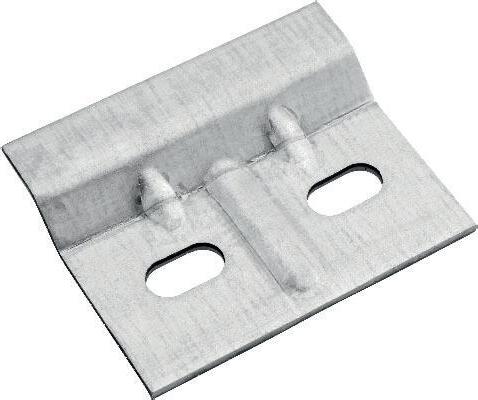

Plate301A

Wall hanging bracket plate of 50mm. 1.8mm of thickness. With lateral anti-fall pins. EN15939 Certification.

CodeDescriptionPacking

53.301.A.M70000000 301A wall hanging bracket plate 500 pcs

Finish: zincate

Plate027

Wall hanging bracket plate of 50mm. 1.8mm of thickness. EN15939 Certification.

CodeDescriptionPacking

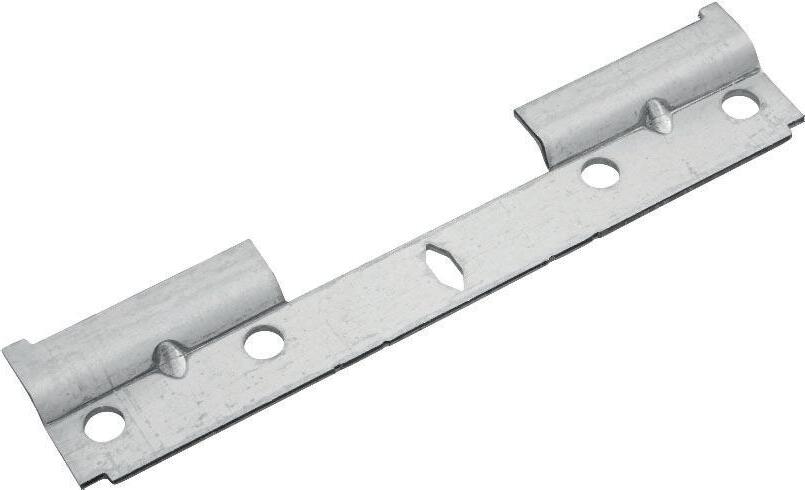

Plate028

Wall hanging bracket double plate of 130mm. 1.8mm of thickness. Precut for application with side cabinets. EN15939 Certification.

CodeDescriptionPacking

53.0700.70.13000028 wall hanging bracket plate 500 pcs

Finish: zincate

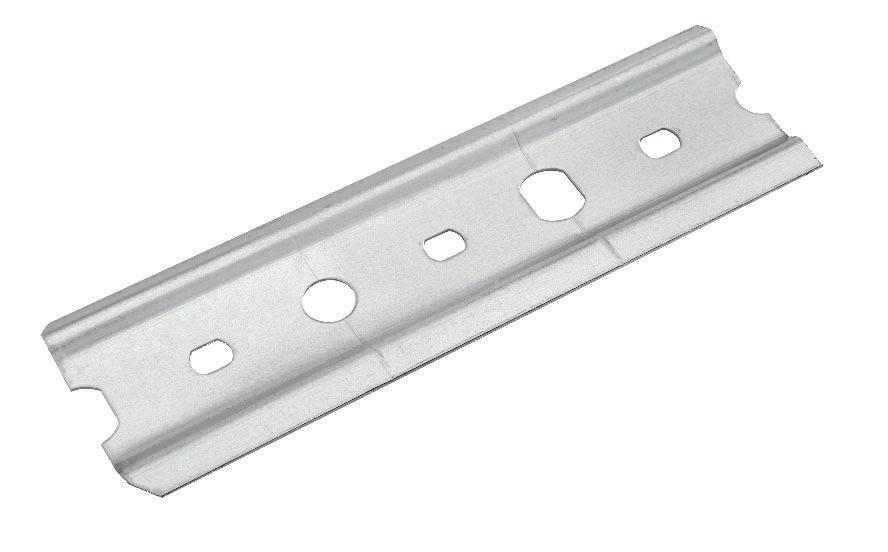

Bar029

Wall hanging bracket bar. Drilling and pre-cutting arrangement with 50mm pitch. UNI10768 Certification. Available different lengths.

CodeDescriptionPacking

53.0029.07.02000 Wall hanging bracket bar 200mm 200 pcs

53.0029.07.10000 Wall hanging bracket bar 1000mm 10 pcs

53.0029.07.15000 Wall hanging bracket bar 1500mm 10 pcs

53.0029.07.20000 Wall hanging bracket bar 2000mm 10 pcs

53.0029.07.30000 Wall hanging bracket bar 3000mm 10 pcs

Finish: zincate
