SPEAK PENDANT + SURFACE
An expression of form and purpose.
Evolved, with intent.

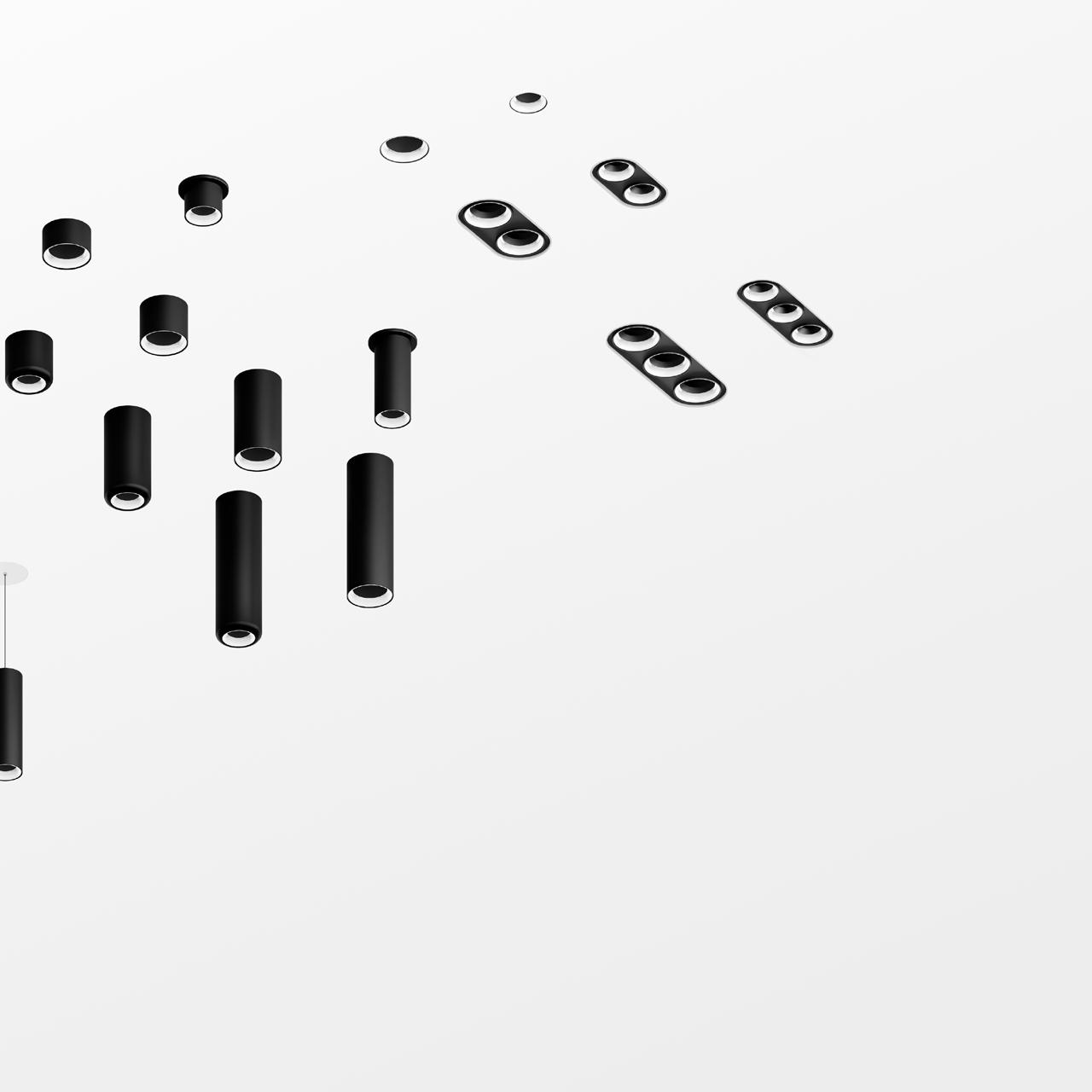

SPEAK

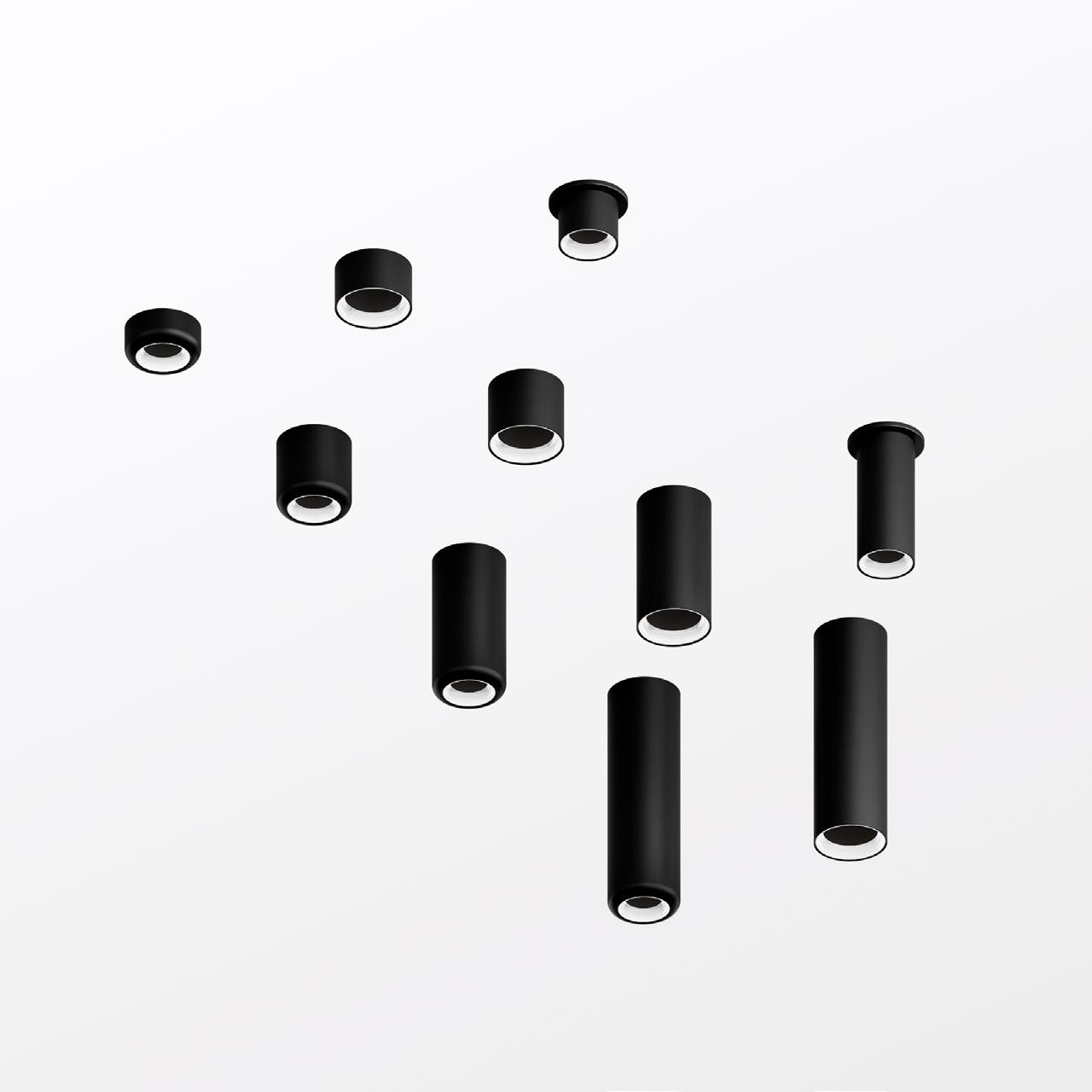

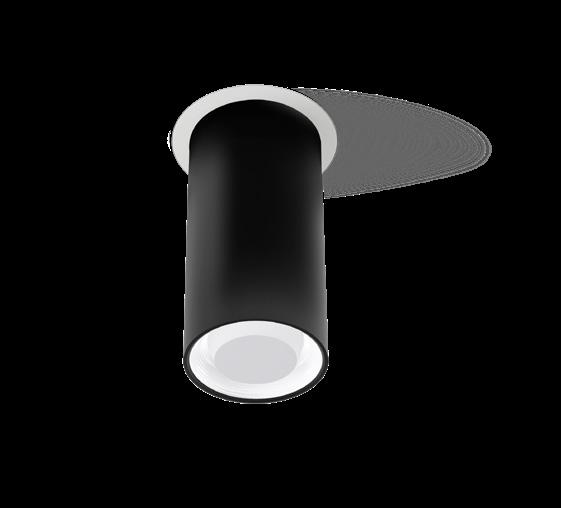

Pendant | Surface | Recessed
Directional and general area illumination, defined within one cohesive family.

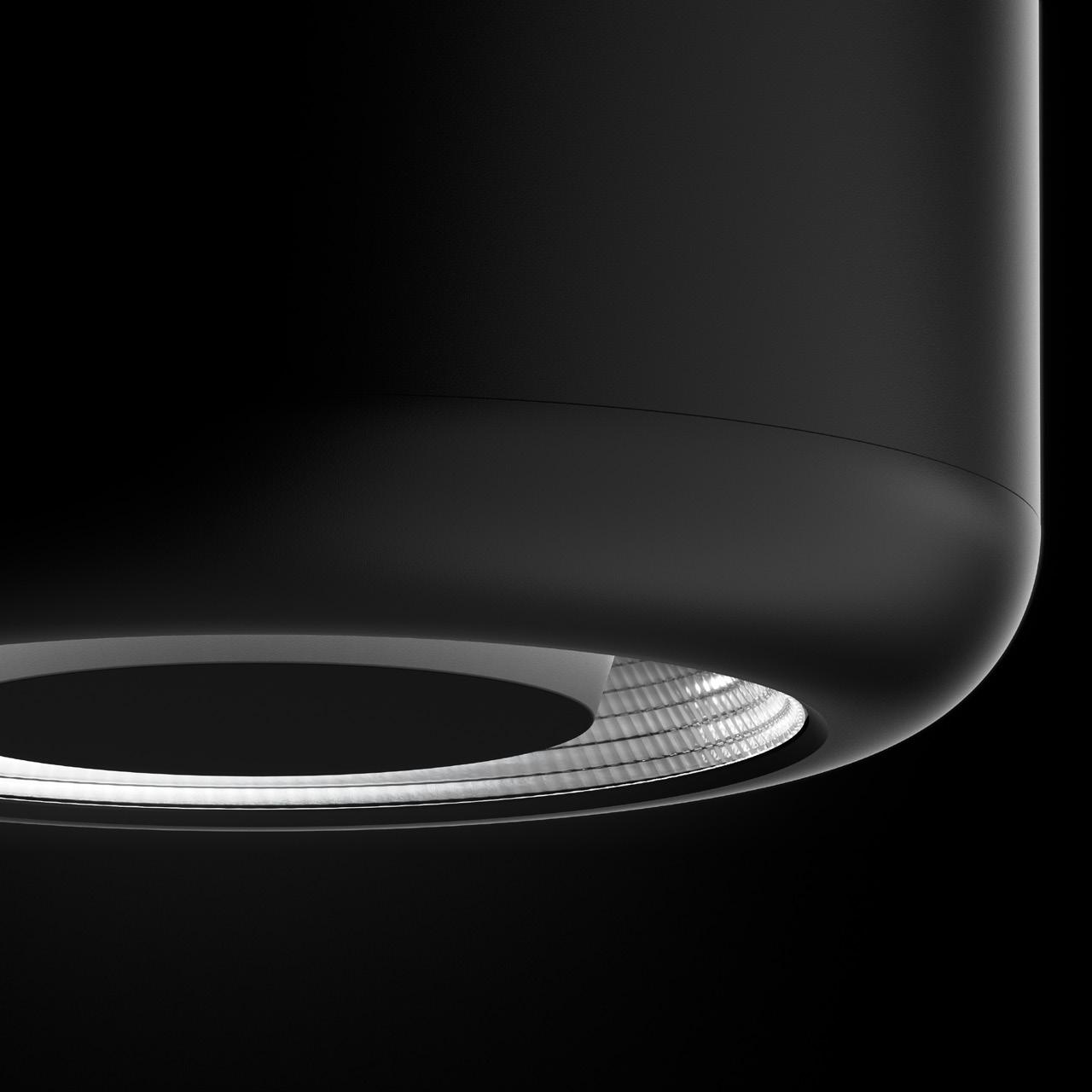

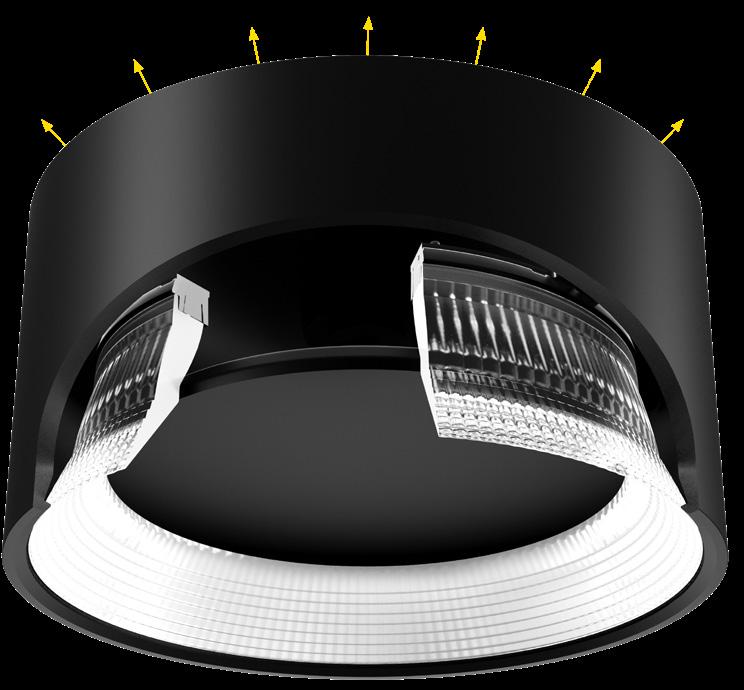

Direct and indirect optics transcend typical point source applications

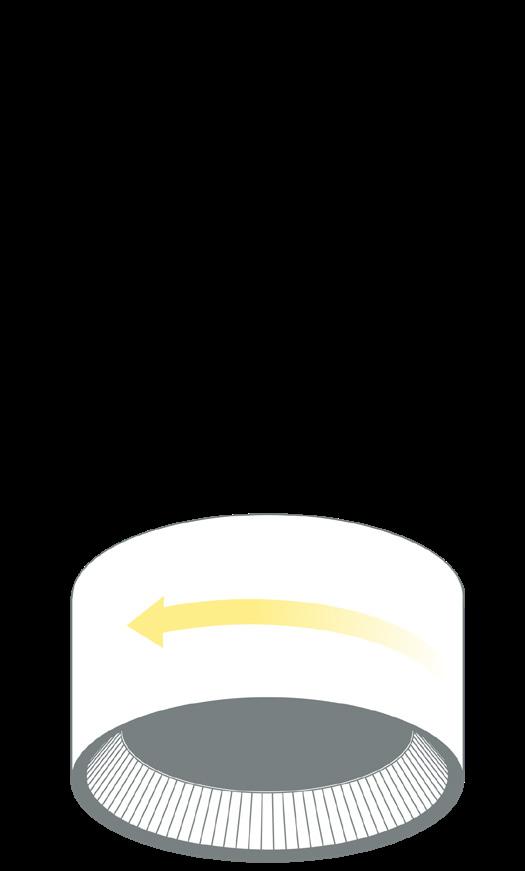

Refract, reflect and mix light to transform individual bright point sources into a homogenized circumference of light
High performance distributions with superior efficacies and uniformity plus maximum visual comfort

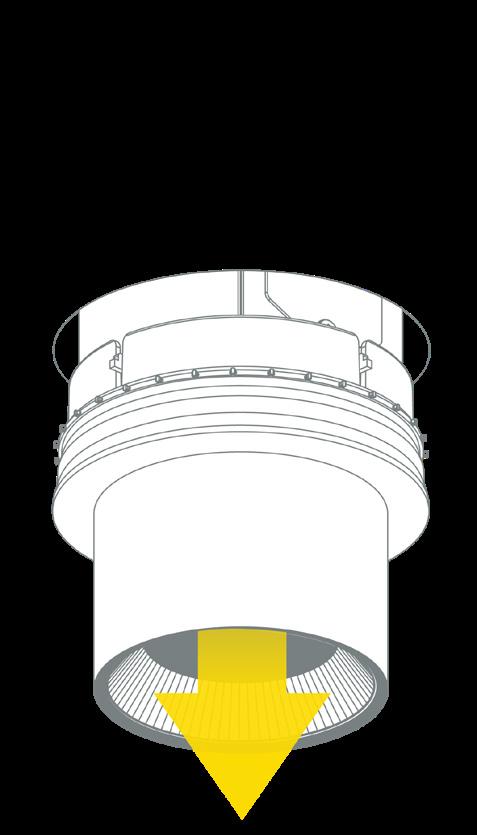

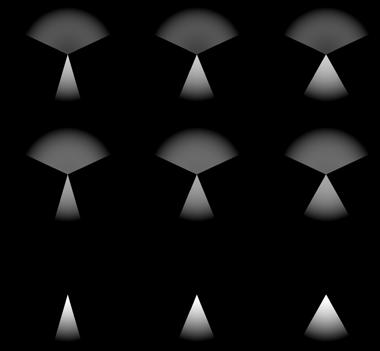

DISTRIBUTIONS

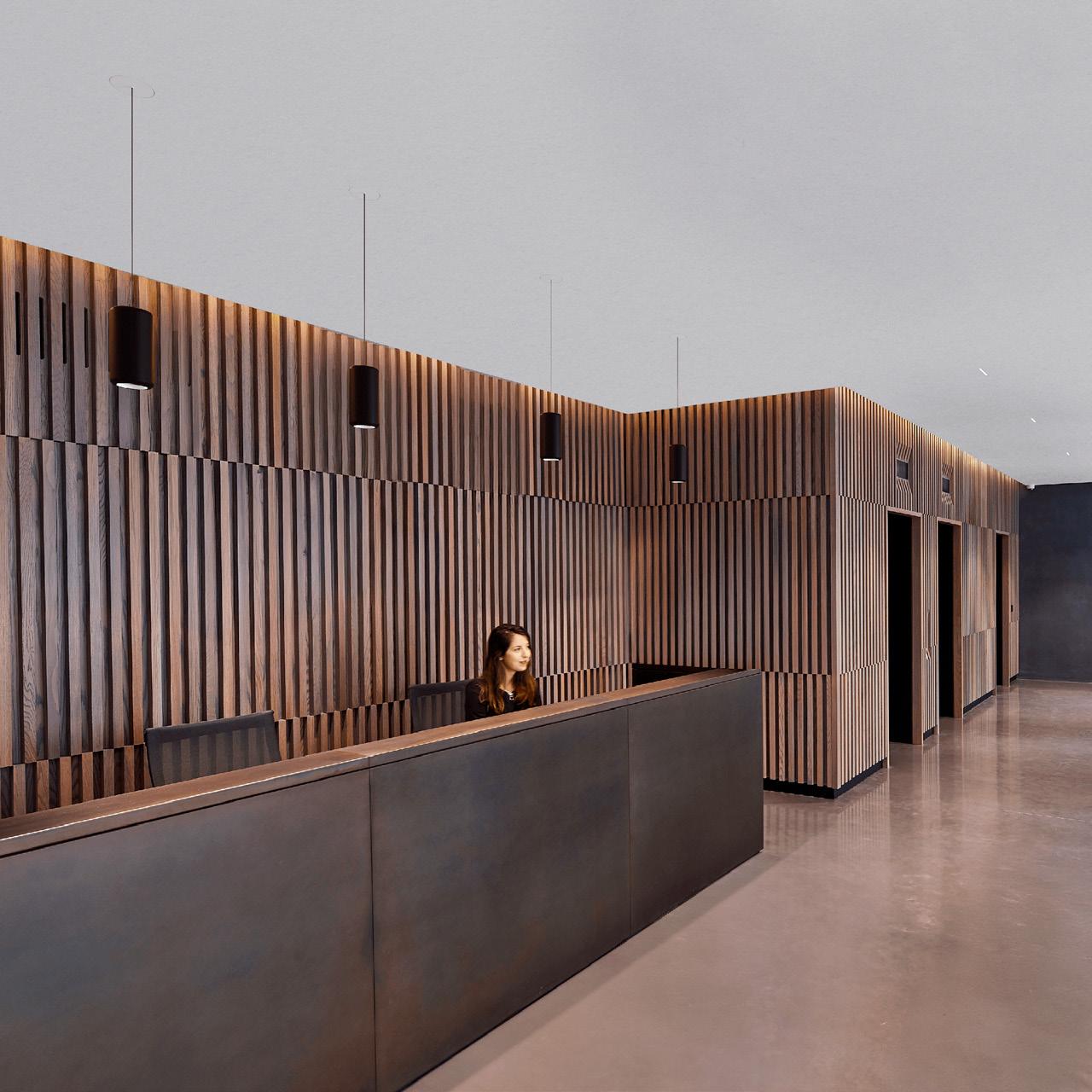

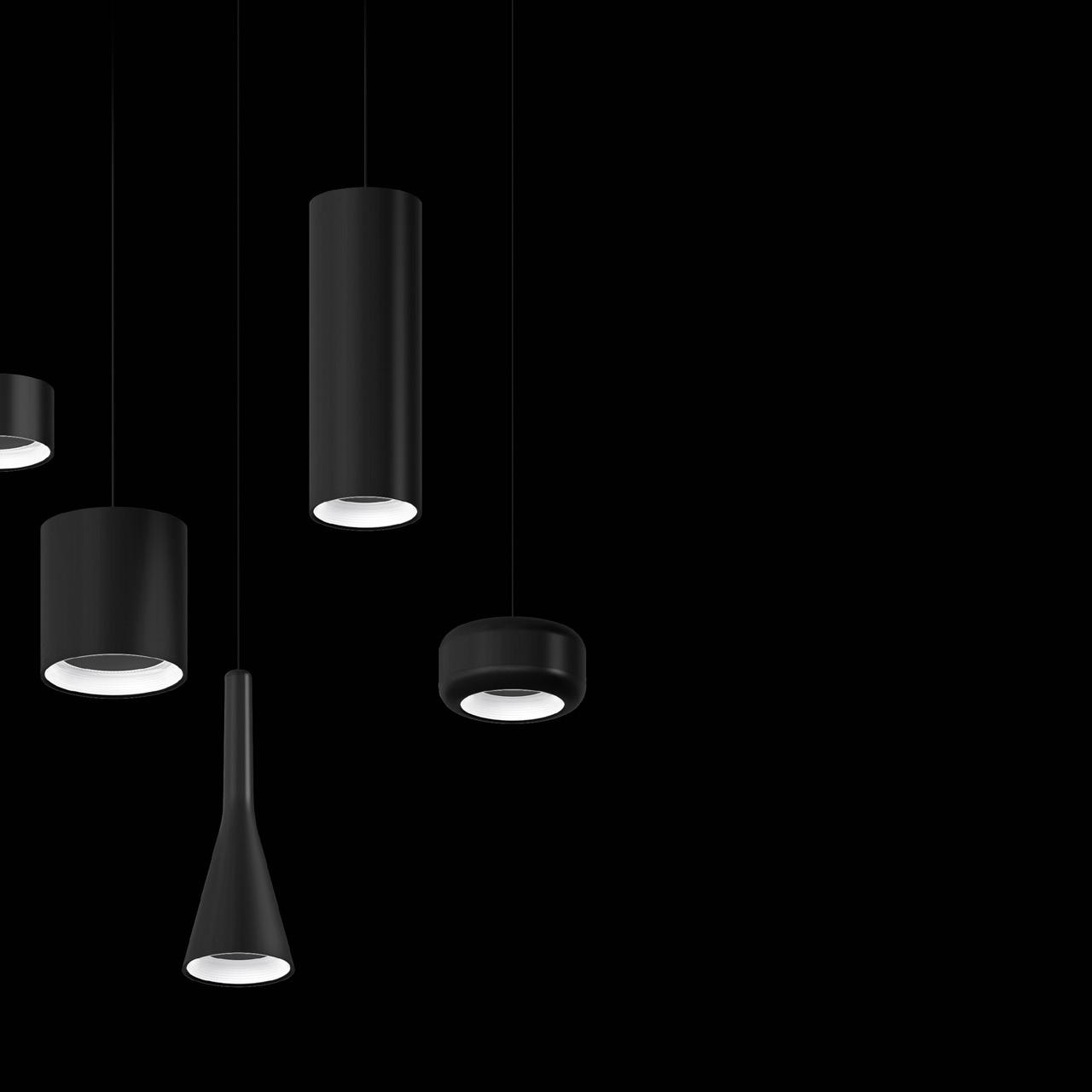

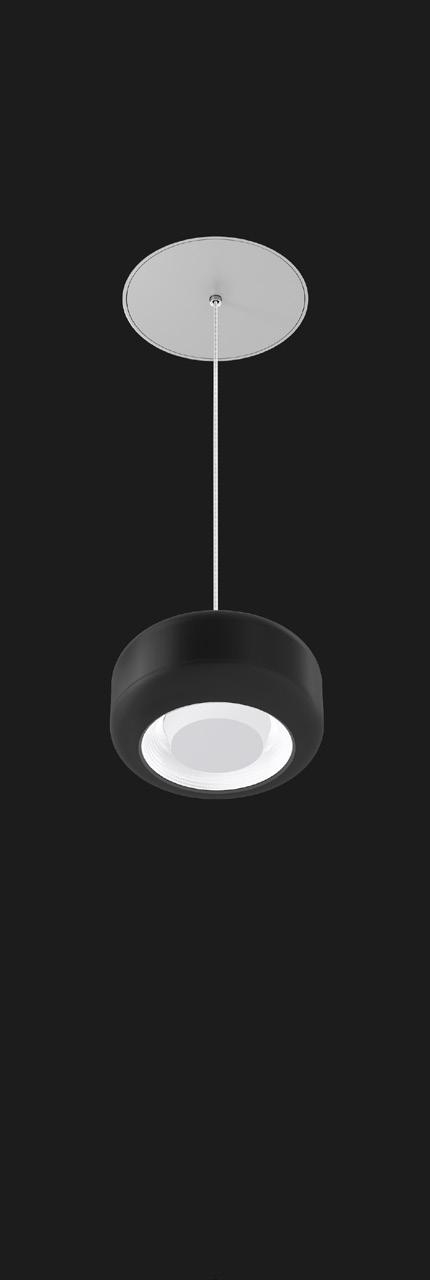

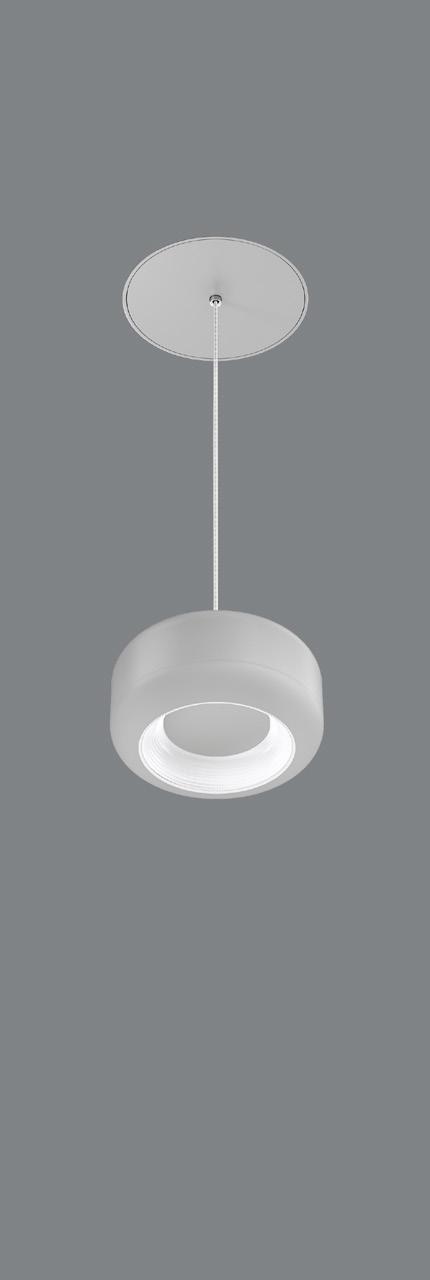

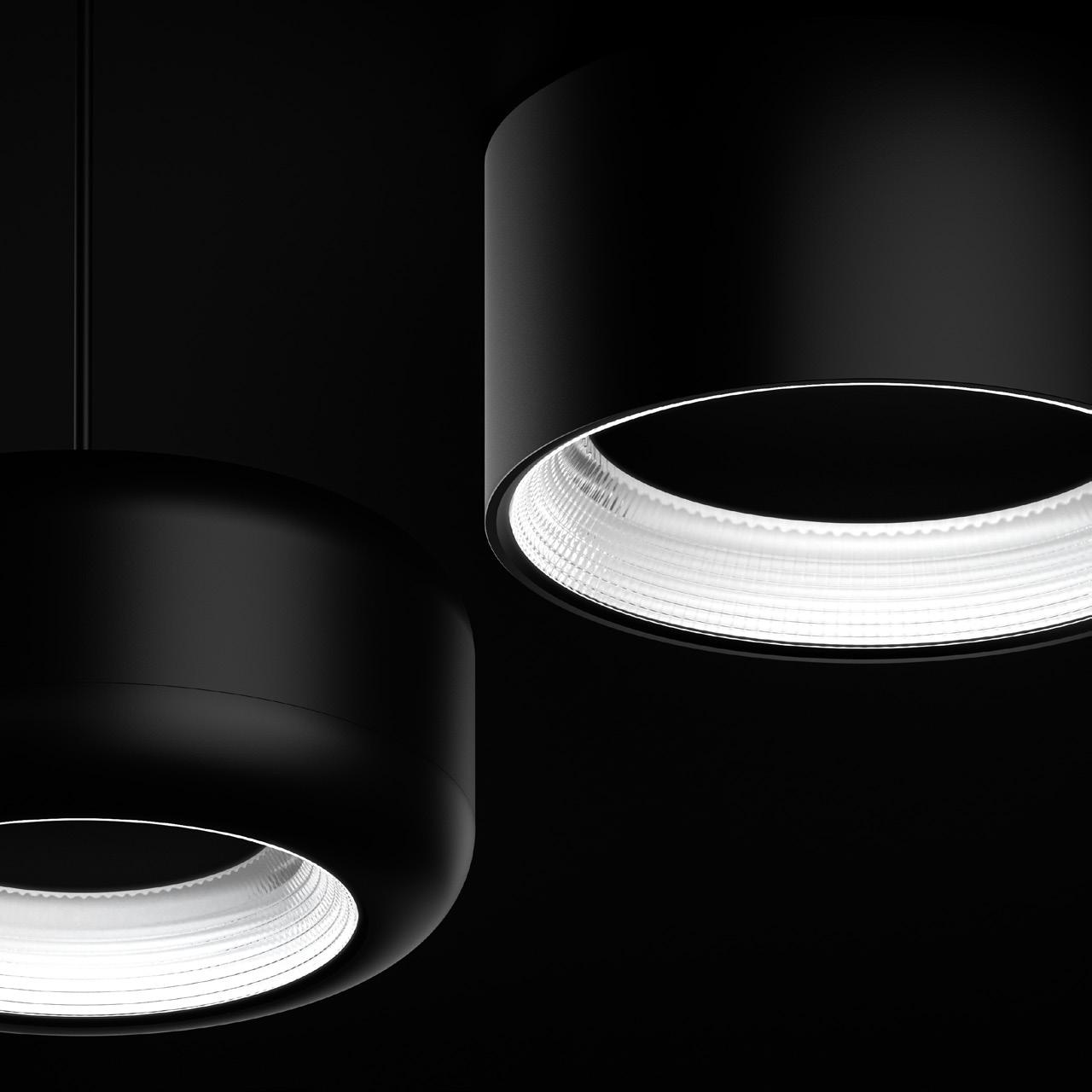

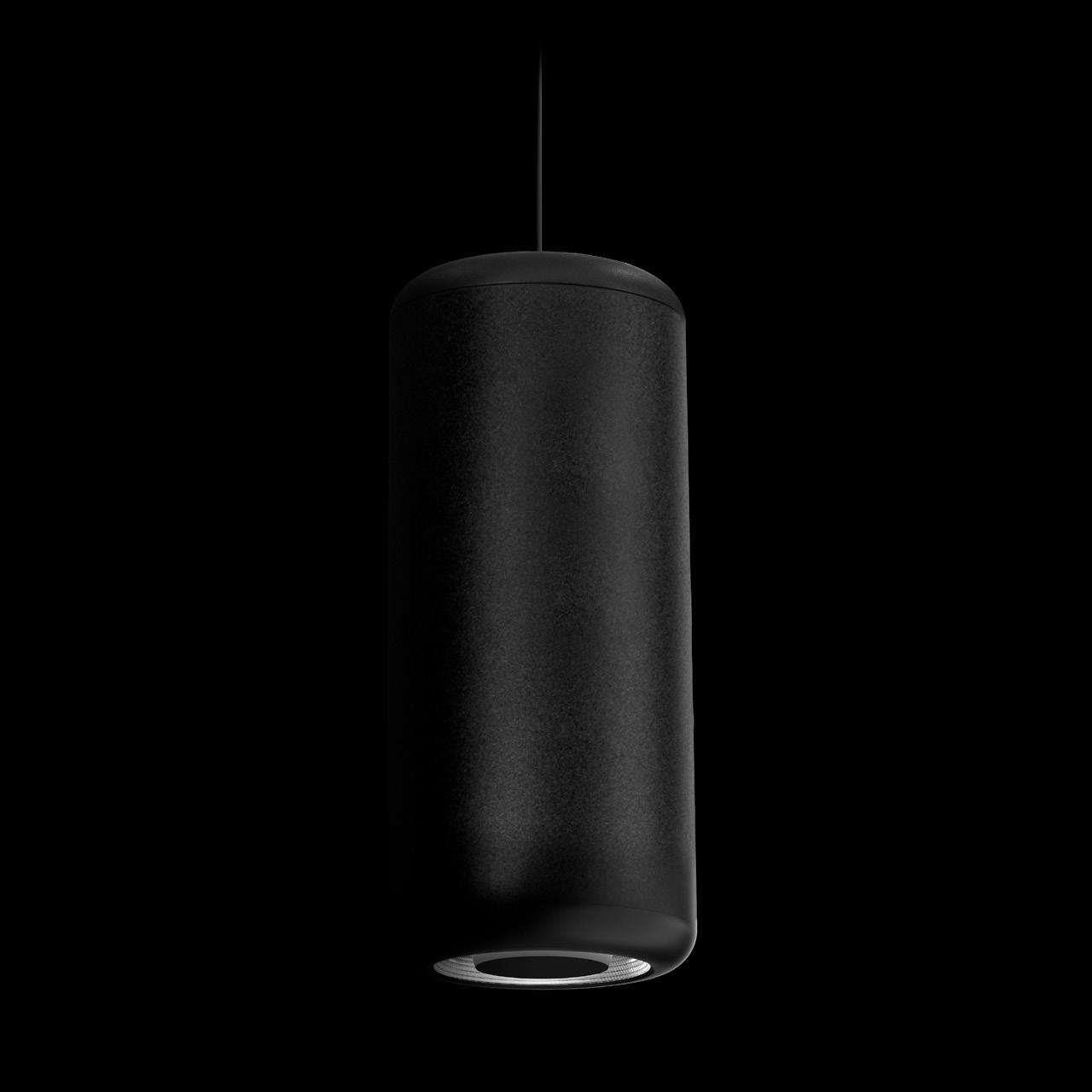

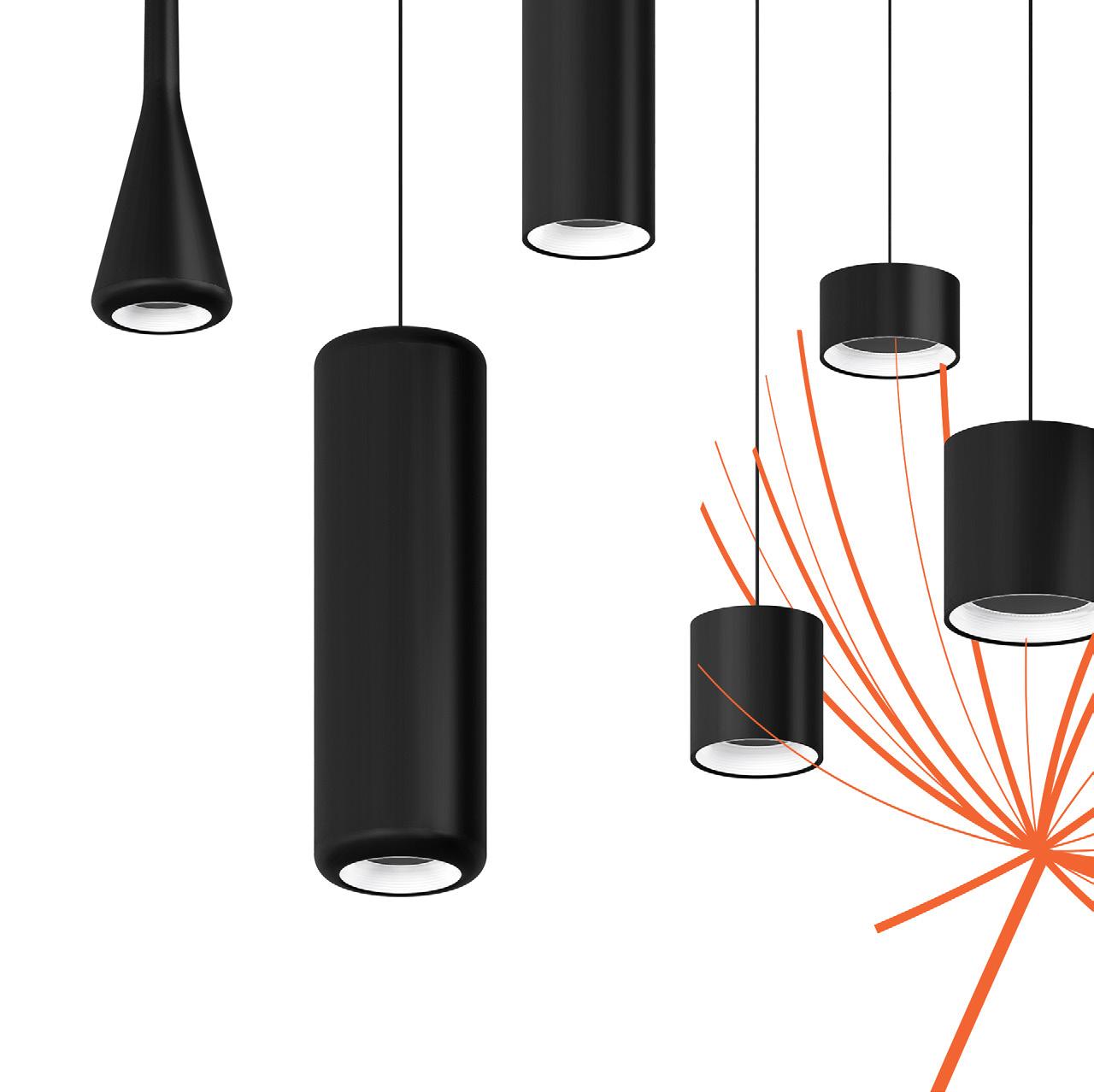

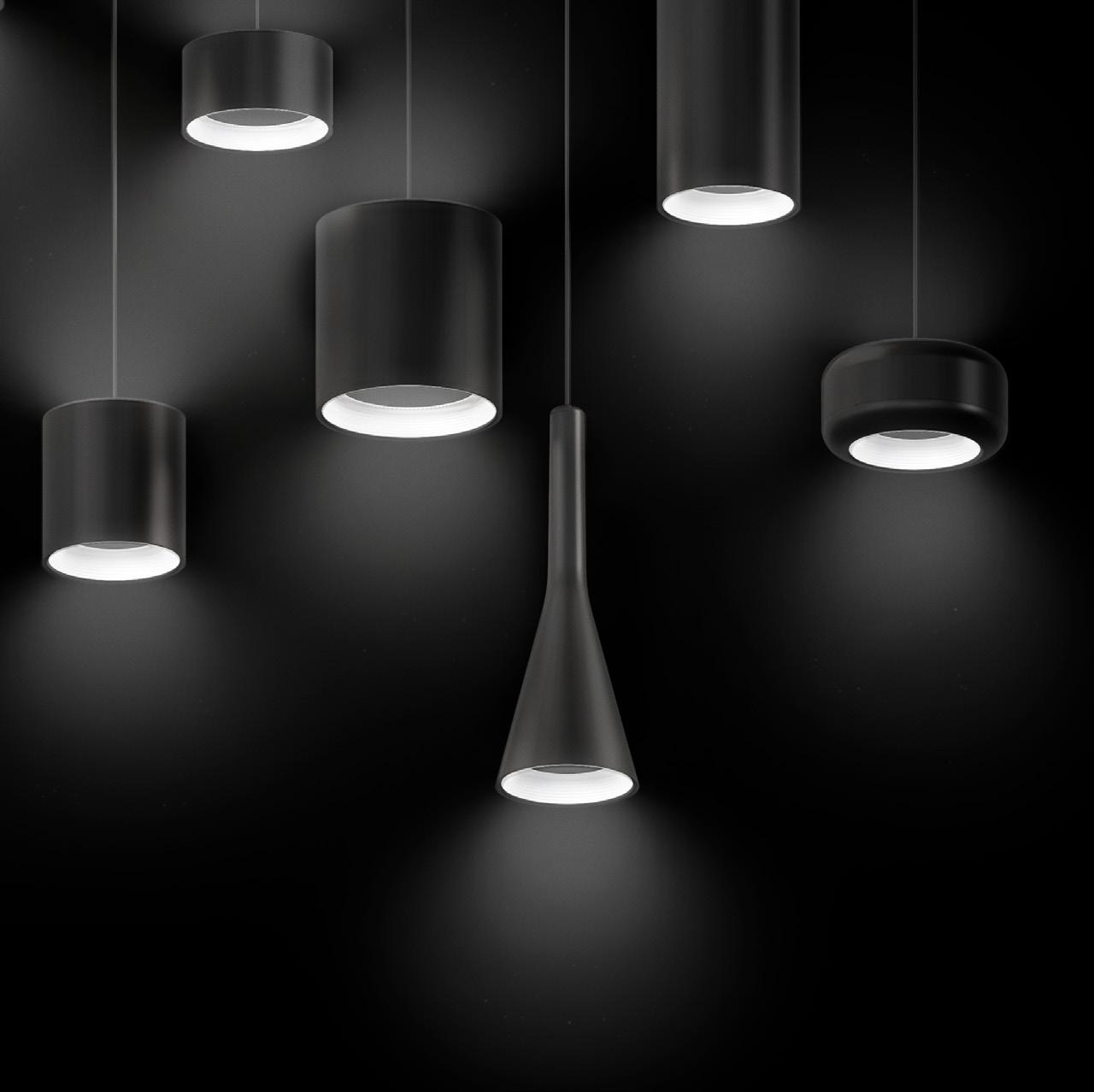

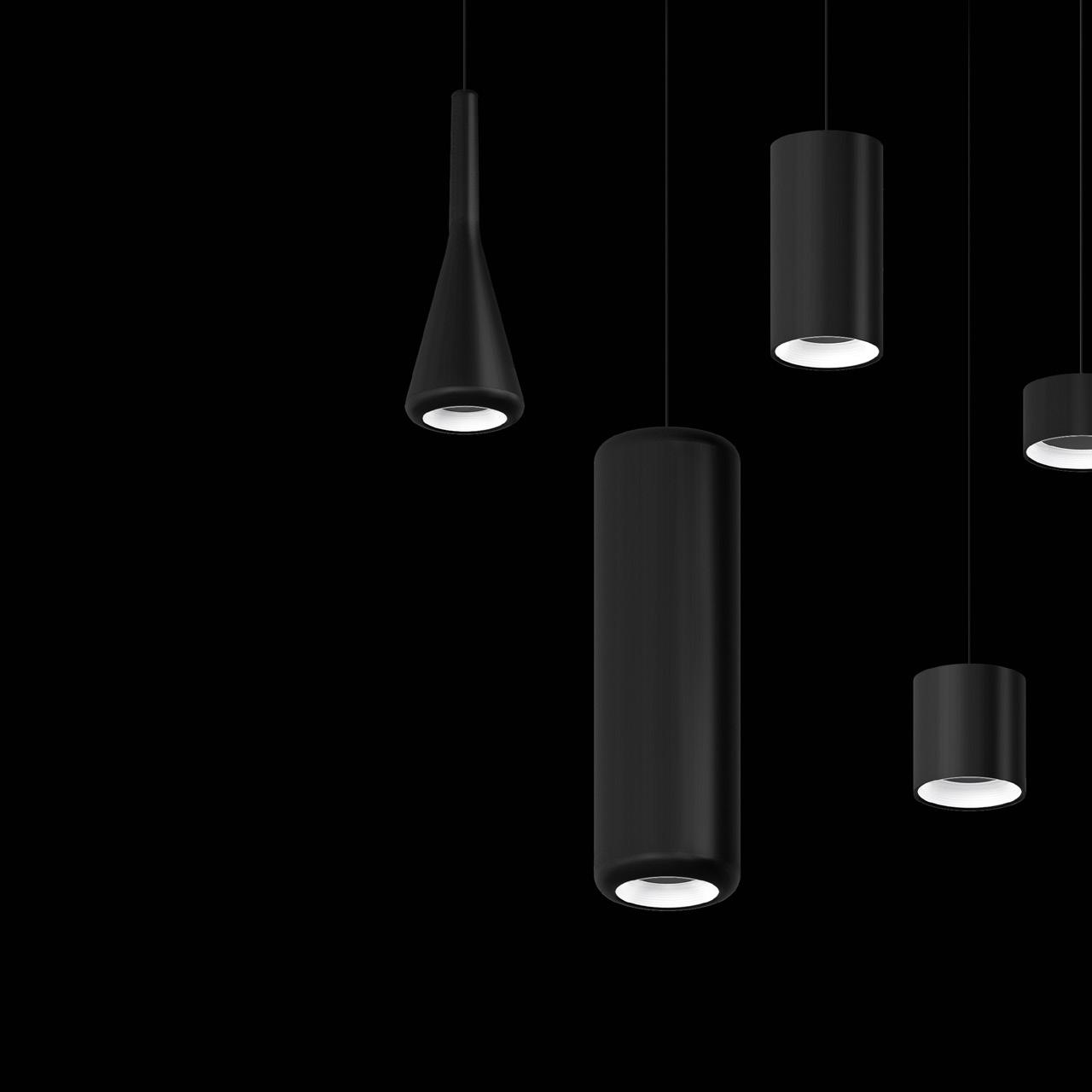

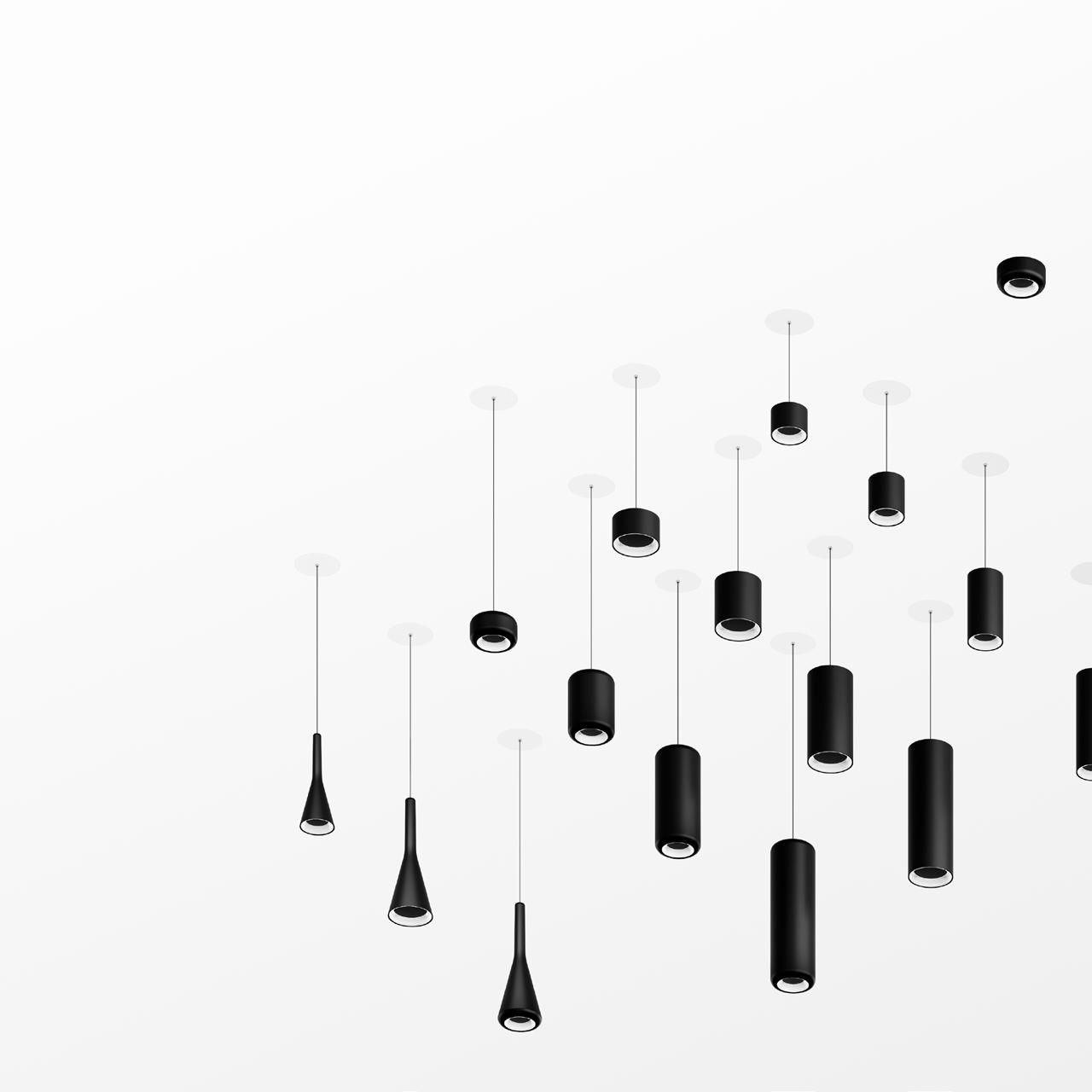

PENDANT

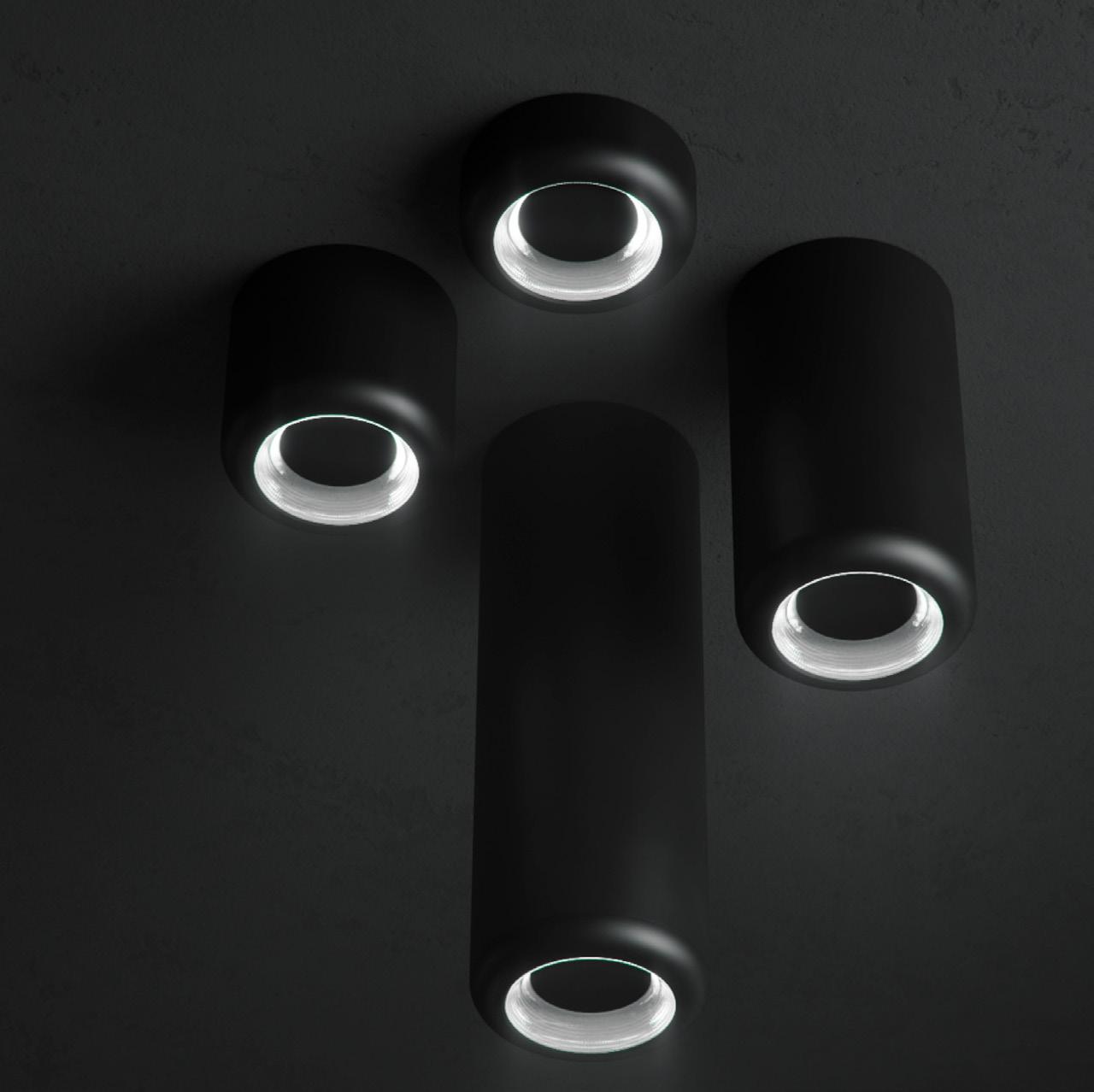

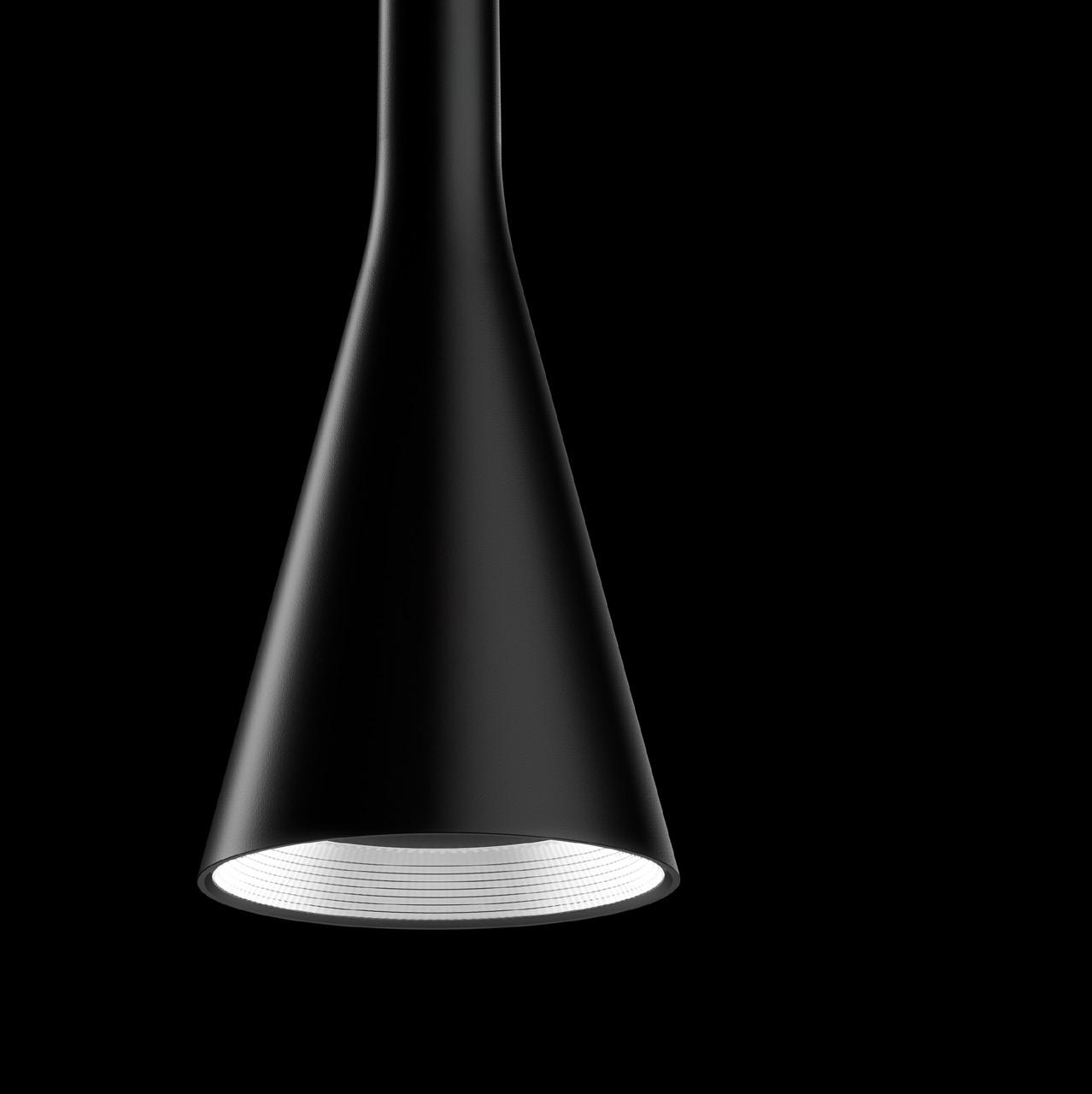

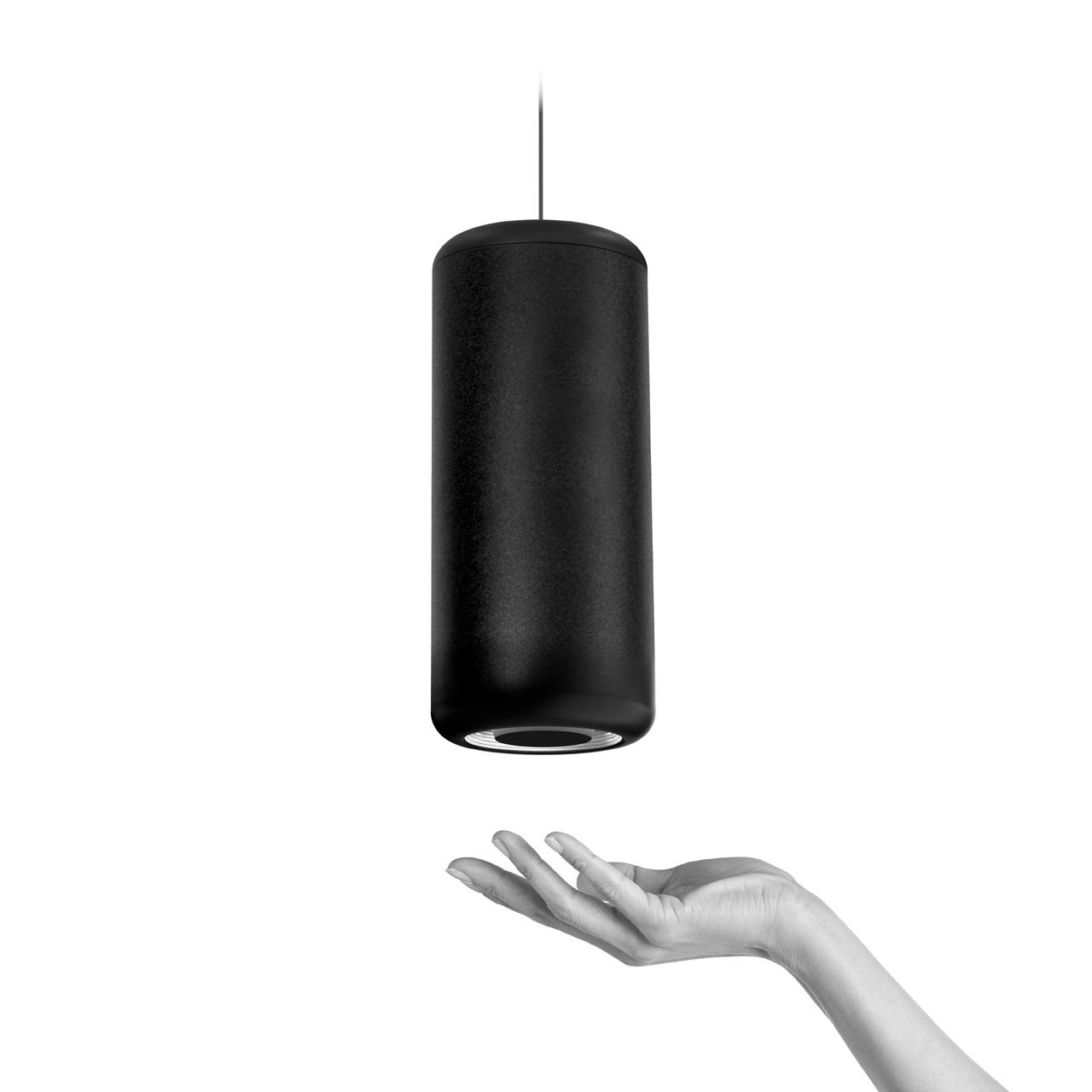

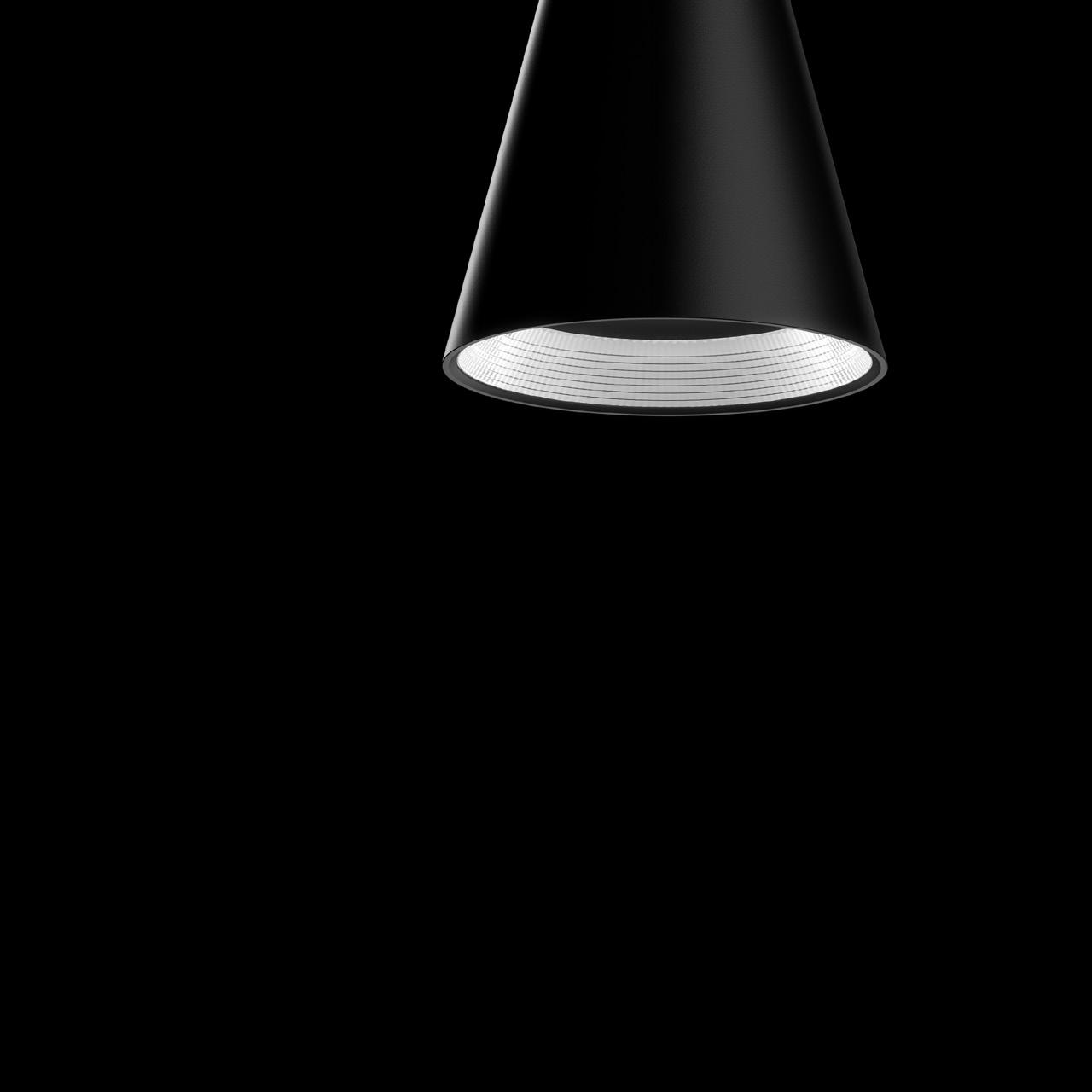

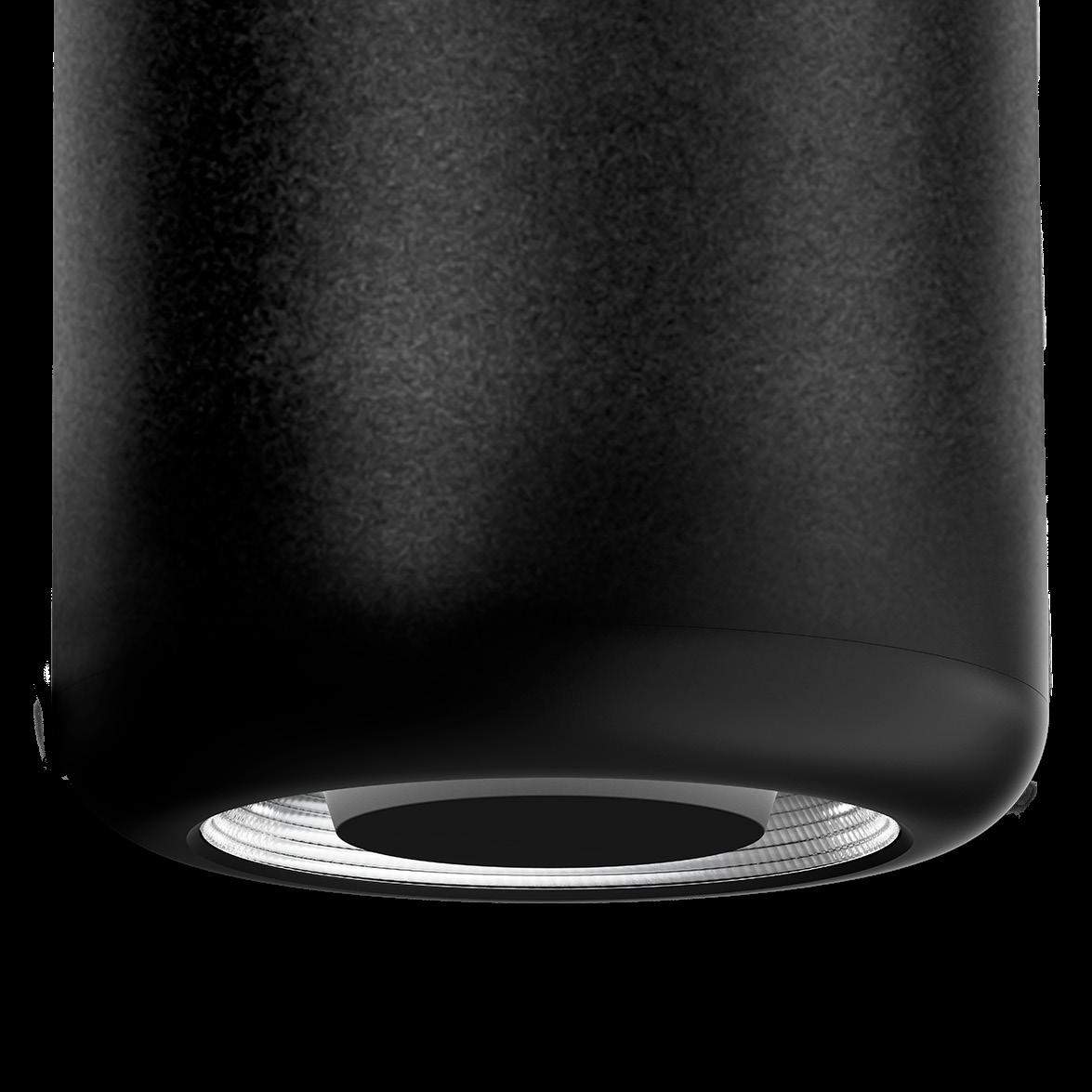

CYLINDER + TAPER
POWDERCOAT FINISHES
CANOPY
FIXTURE
DROP CENTER
FINISH SELECTABLE BY COMPONENT
CEILING INTEGRATIONS + CABLES

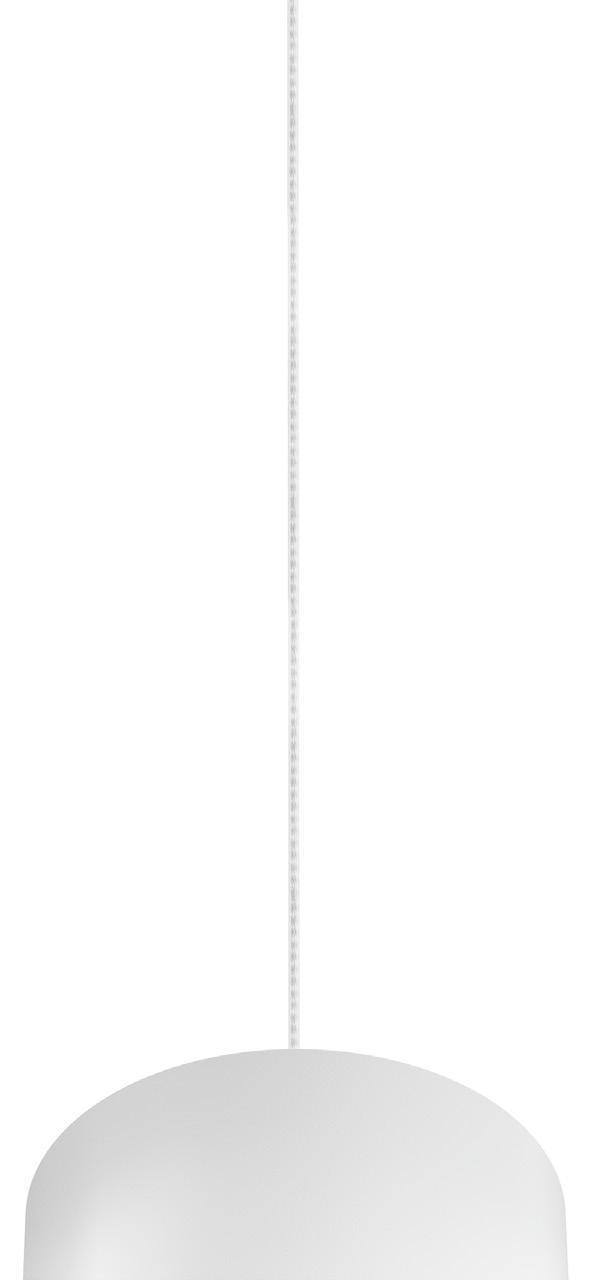

Narrow-gauge integrated power and suspension under 1/8" in diameter.

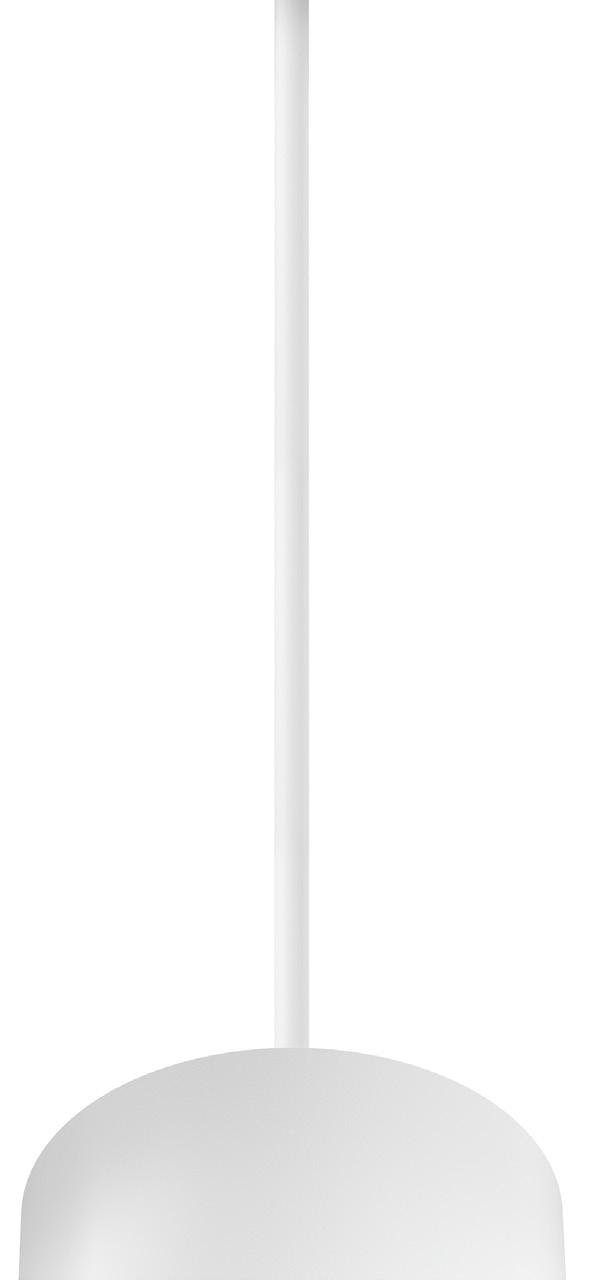

Stem length options from 6" to 96".
POWDERCOAT FINISHES
Optional Drop Center
Four height variations
Two diameters + end details
2700K, 3000K, 3500K, 4000K
CHROMATICITY
CRI ≥ 80 | R9 ≥ 0
CRI ≥ 90 | R9 ≥ 50
EFFICACY
3 IN: UP TO 116 LM/W
4 IN: UP TO 115 LM/W
UGR
WIDE <19
NARROW < 16 COLOR ACCURACY < 2 SDCM
LONGEVITY
L80 @ 54,000H PER TM21
L70 @ 140,000H
OUTPUTS
3 IN: 4 OPTIONS, UP TO 2400 LM
4 IN: 6 OPTIONS, UP TO 3200 LM
DIM TO WARM
2700-2200K | 3000-2200K
3500-2200K

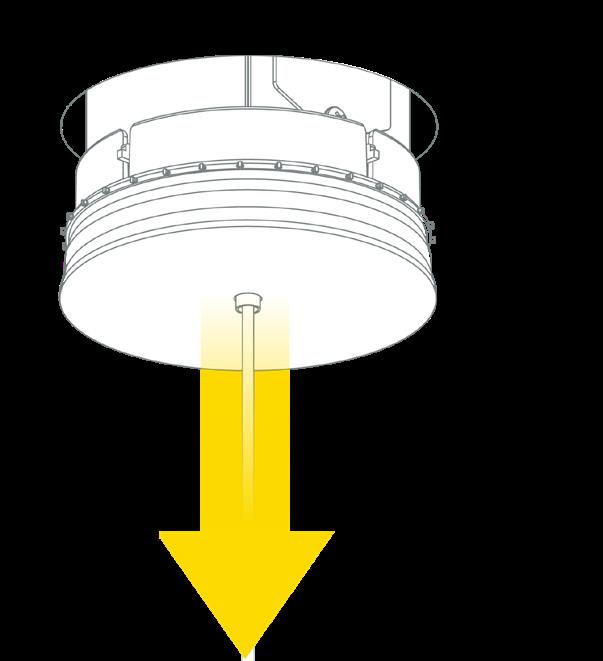

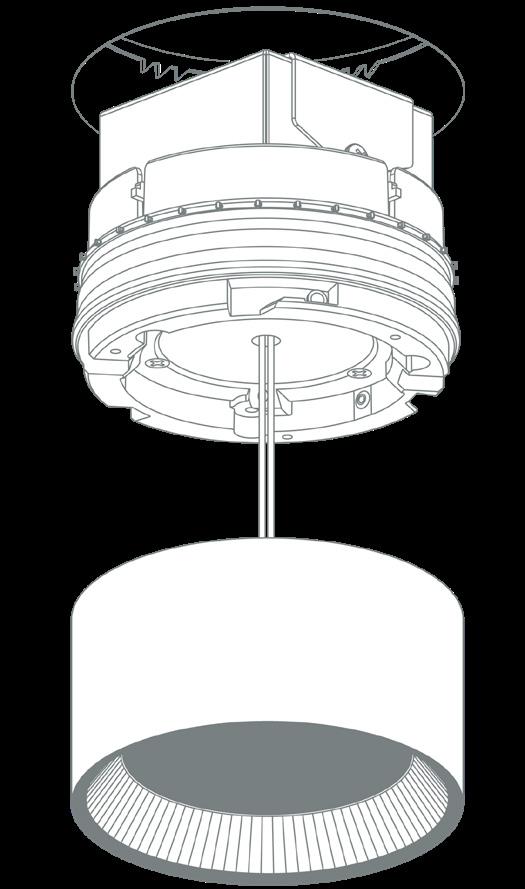

DRIVER ACCESS

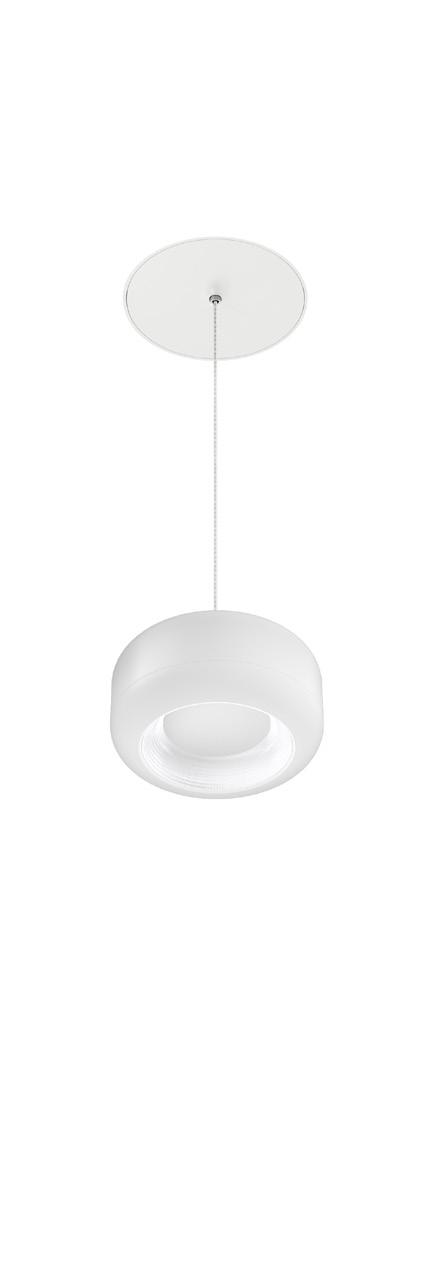

Speak Pendant flush canopy | drywall + millwork

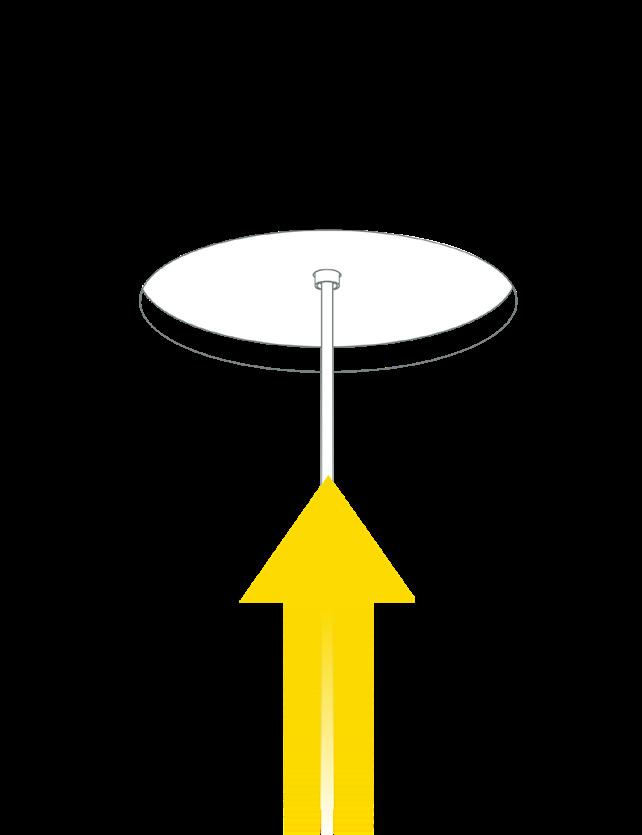

Press up on the flush canopy to release
Allow the canopy to drop down to access wiring

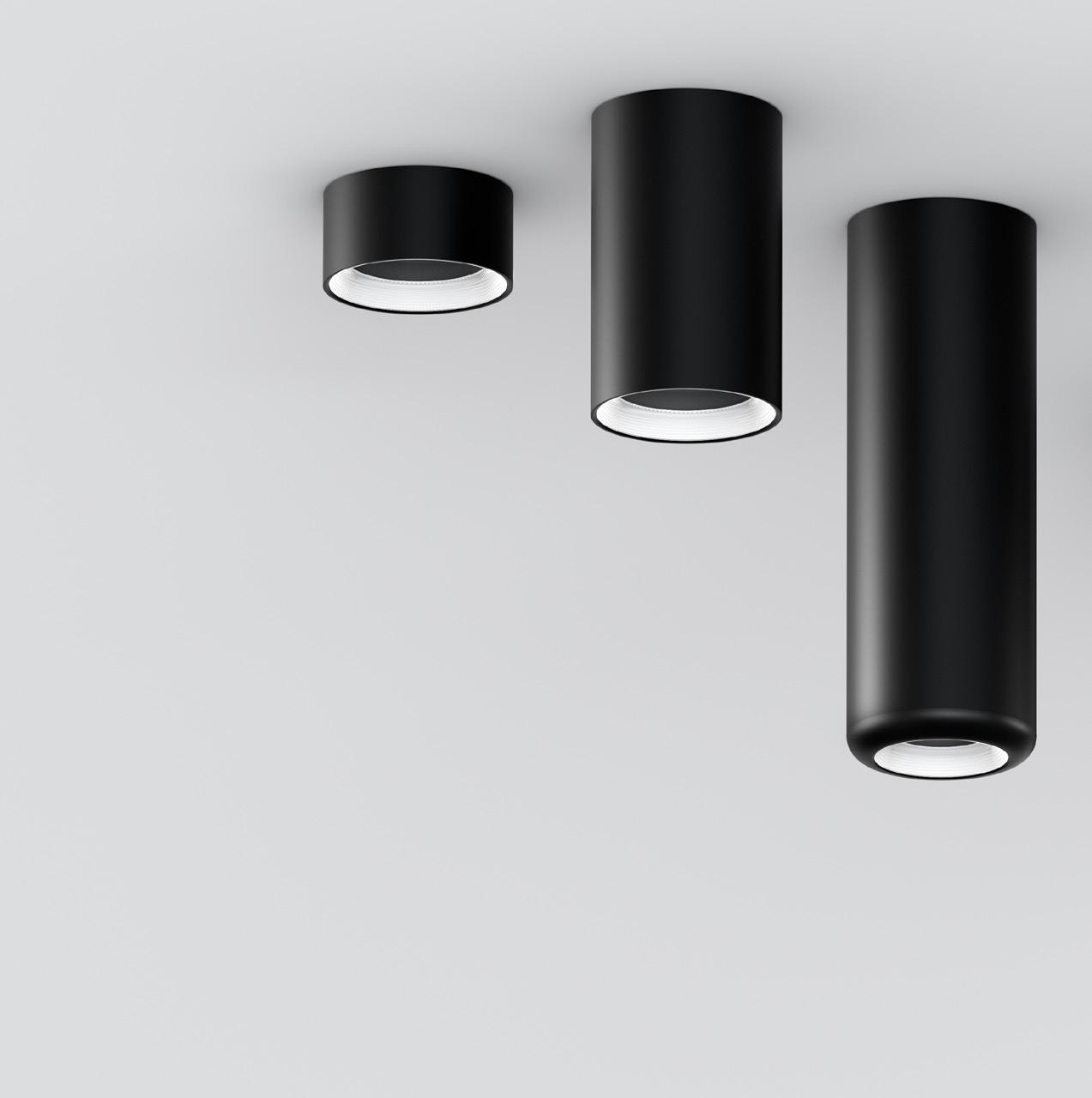

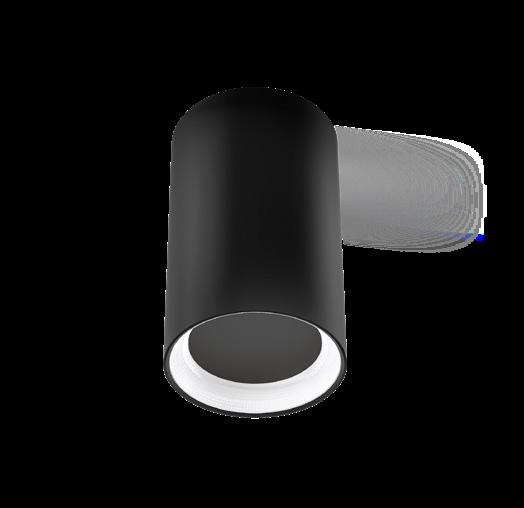

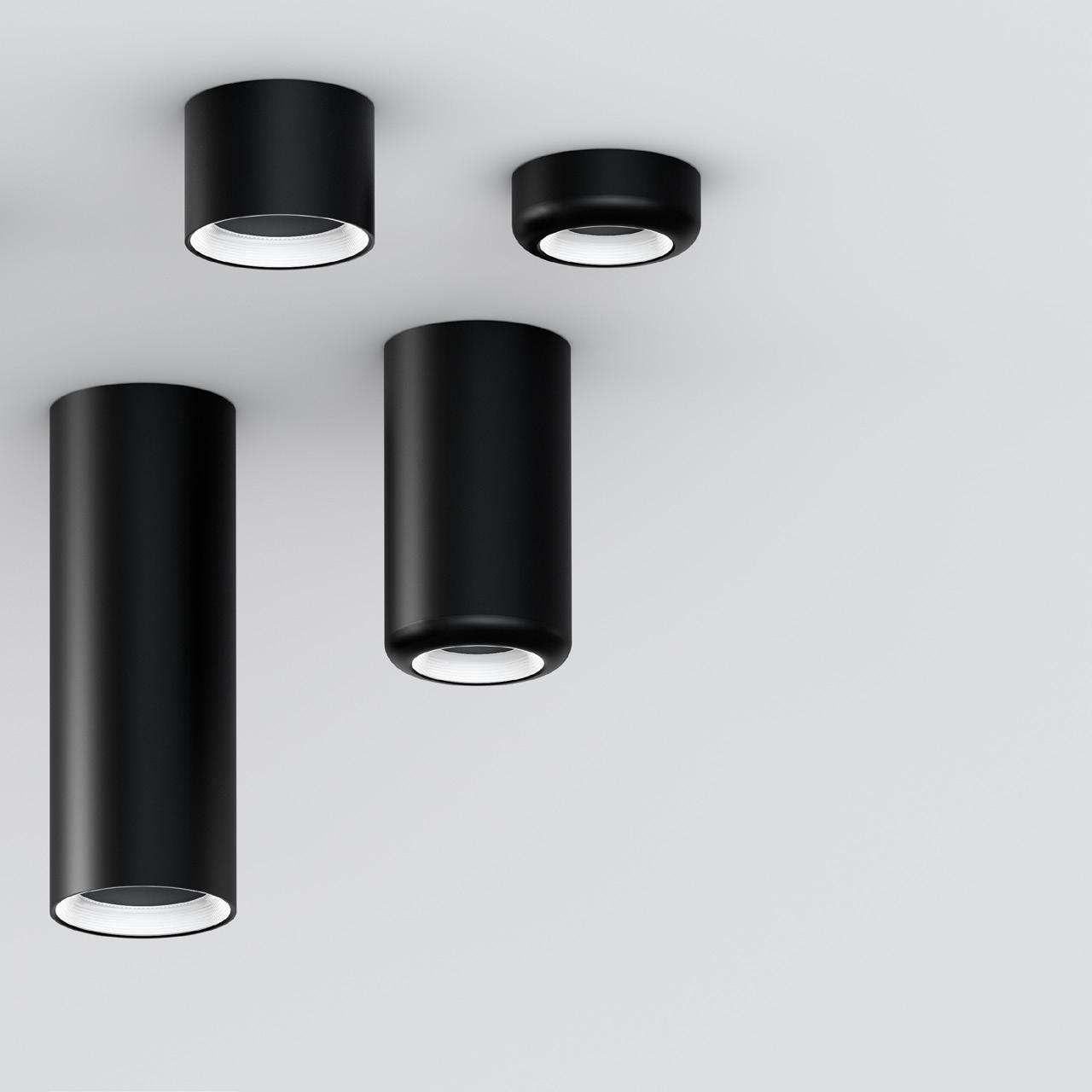

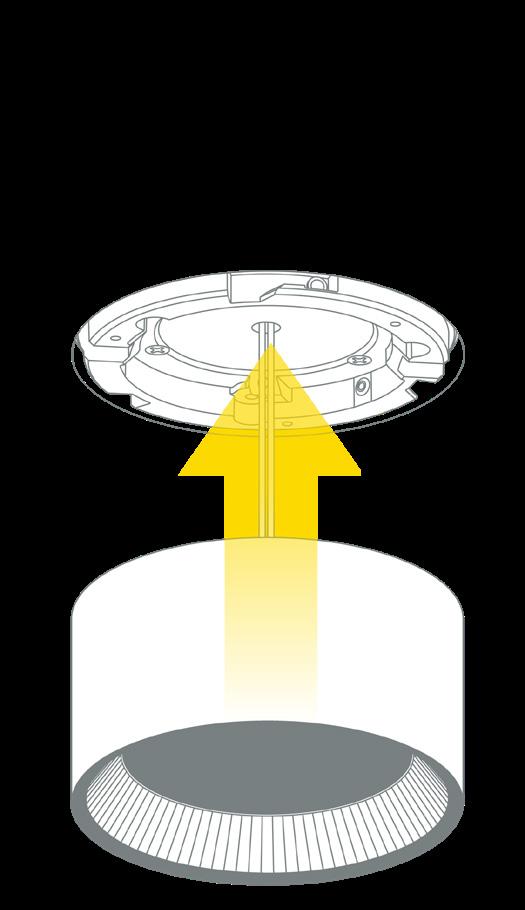

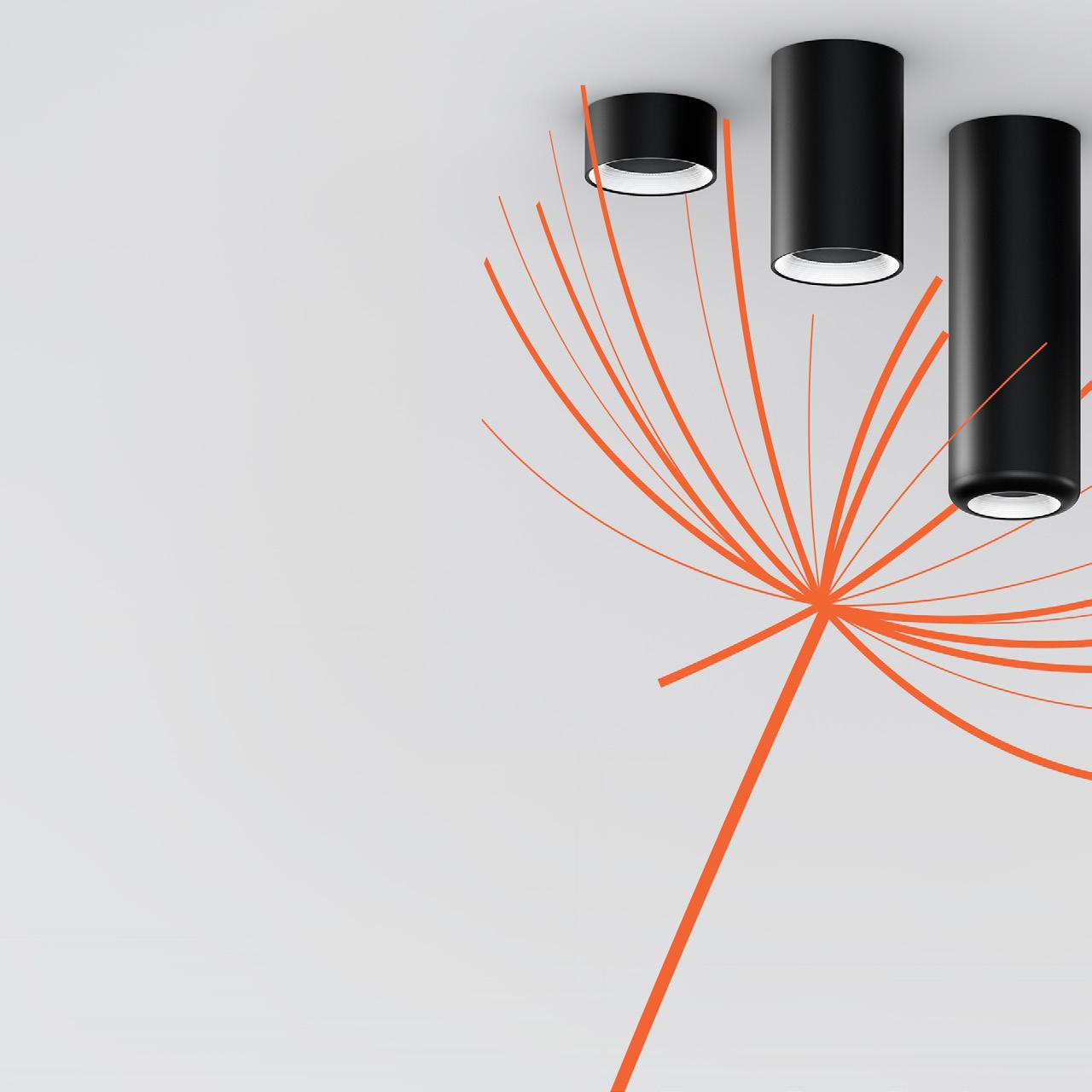

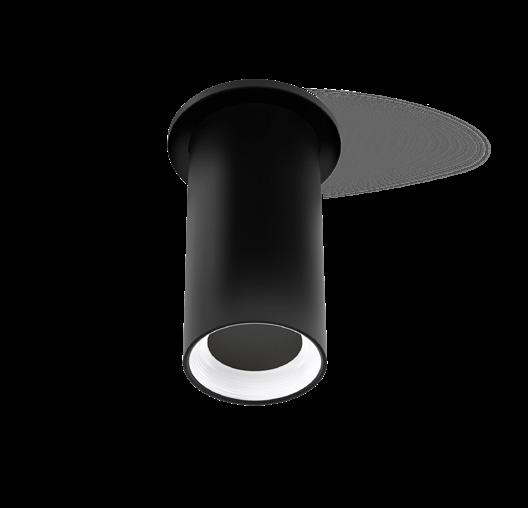

Speak Surface | 3"

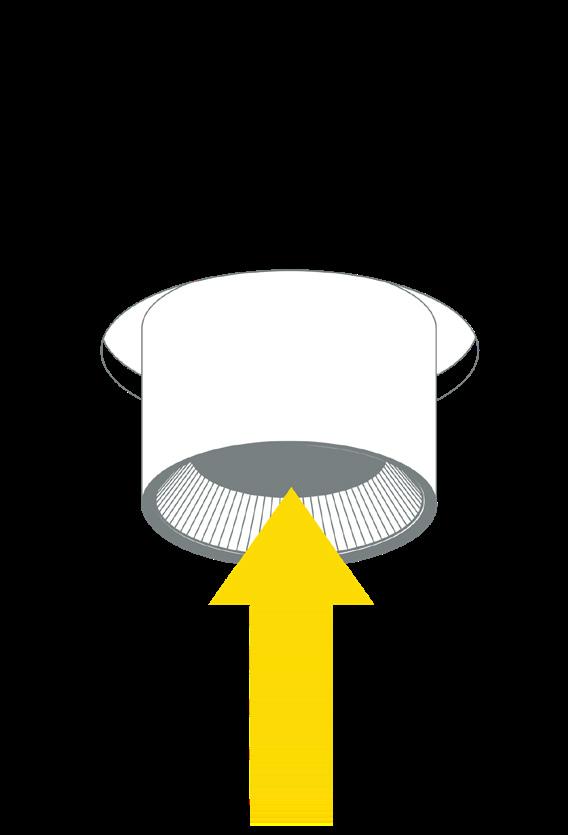

Push up on center cap to release
Grasp the fixture body and pull straight down
DRIVER ACCESS
Speak Surface | 4"
Grasp the fixture body and pull straight down 1 2
Push up on center cap to release
Allow the canopy to drop down to access wiring 3 4
Push up on canopy to release

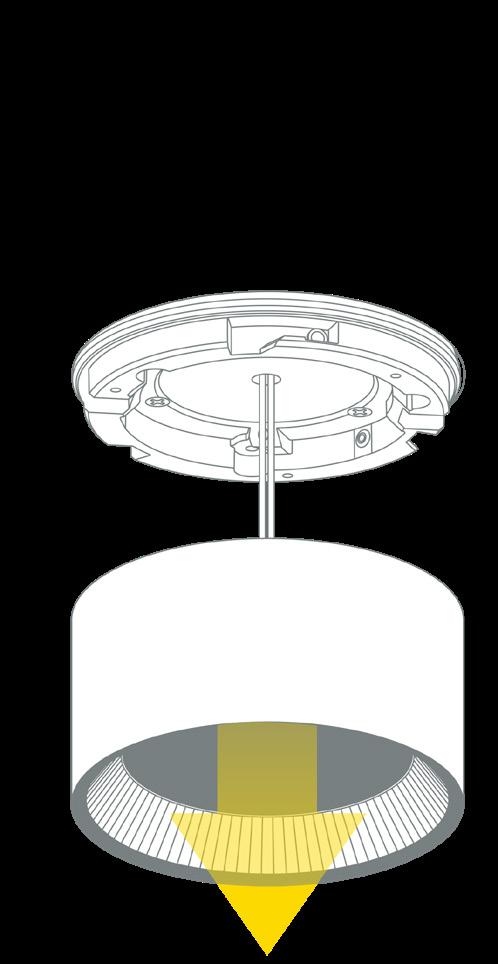

DRIVER + CEILING INTEGRATION | SPEAK PENDANT
Parallel or perpendicular orientation
Parallel or perpendicular orientation
(M1) Millwork Edge
(AM1) Canopy Driver
(RM1) Remote Driver
For GWB or panel ceiling <7/8” thick. Plenum side installation.
DRIVER + CEILING INTEGRATION | SPEAK PENDANT
(S1) Structure
For exposed ceiling with conduit or recessed junction box. Horizontal or sloped ceiling up to 45°.
Flat 4.5" canopy (120-277V) + suspension
(S2) Structure - Extended
For (L1, L3) Lutron or (E2-E4) eldoLED 0.1% Dim/DALI drivers.
5.5" Driver canopy (120-277V) + suspension
(G1) Grid
(R|1) Remote Slim J-Box Canopy - Structure / Drywall
DRIVER + CEILING INTEGRATION | SPEAK SURFACE
(J1) J-Box Canopy - Drywall, T-Grid, Structure
Attach to flush or surface mount 4" octagon J-Box. Horizontal, angled or vertical surface.
(A|1) INTEGRATED DRIVER
(D2) Drywall - Flush Canopy
For GWB or panel ceilling <7/8" (22 mm) thick. Horizontal tiling only. octagon J-Box. Horizontal, angled or vertical surface.
(AD2) CANOPY DRIVER
(M1) Millwork Edge
For Millwork panels 3/8 - 1 1/2" thick (10 - 38 mm). Horizontal ceiling only. Minimum plenum height 4" (10 mm).
(B) Battery Pack Or (H) Emergency Switch Driver Enclosure
For all Remote Ceiling options.
LONGEVITY + LIFETIME
Lumen Maintenance
INDUSTRY STANDARD L80 @ 12 h /day = 12 years
@ 10 h /day = 15 years L70 @ 12 h /day = 32 years
@ 10 h /day = 38 years

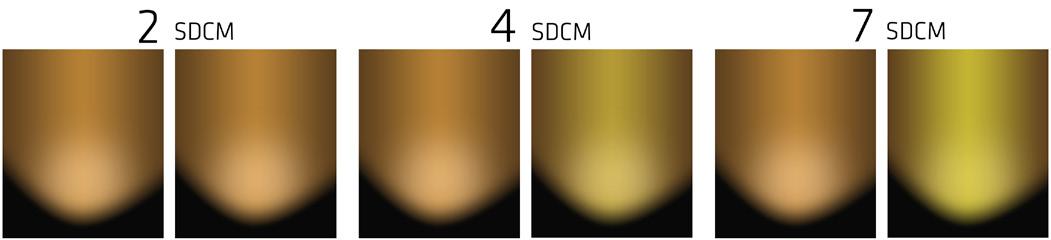

COLOR + CONSISTENCY
Color accuracy between products is with a 2-step MacAdam ellipse (< 2 SDCM) and available in multiple correlated color temperatures (CCT) with high R9 and color rendering values (CRI >80).
K 3000 K
4000 K
ANSI C78.377 ~7 STEP SDCM
< 2 STEP SDCM
… light connects architecture + humanity
