Healthy air. Smarter homes. Better living—the future of home health technology.
Modern homes are sealed tight—trapping CO₂, allergens, humidity, toxins, and mold inside. Standard HVAC systems just recirculate the same stale air. No sensors. Weak filters. Often no fresh air at all.
That’s why your family ends up tired, congested, and uncomfortable — while your HVAC burns energy trying to keep up.

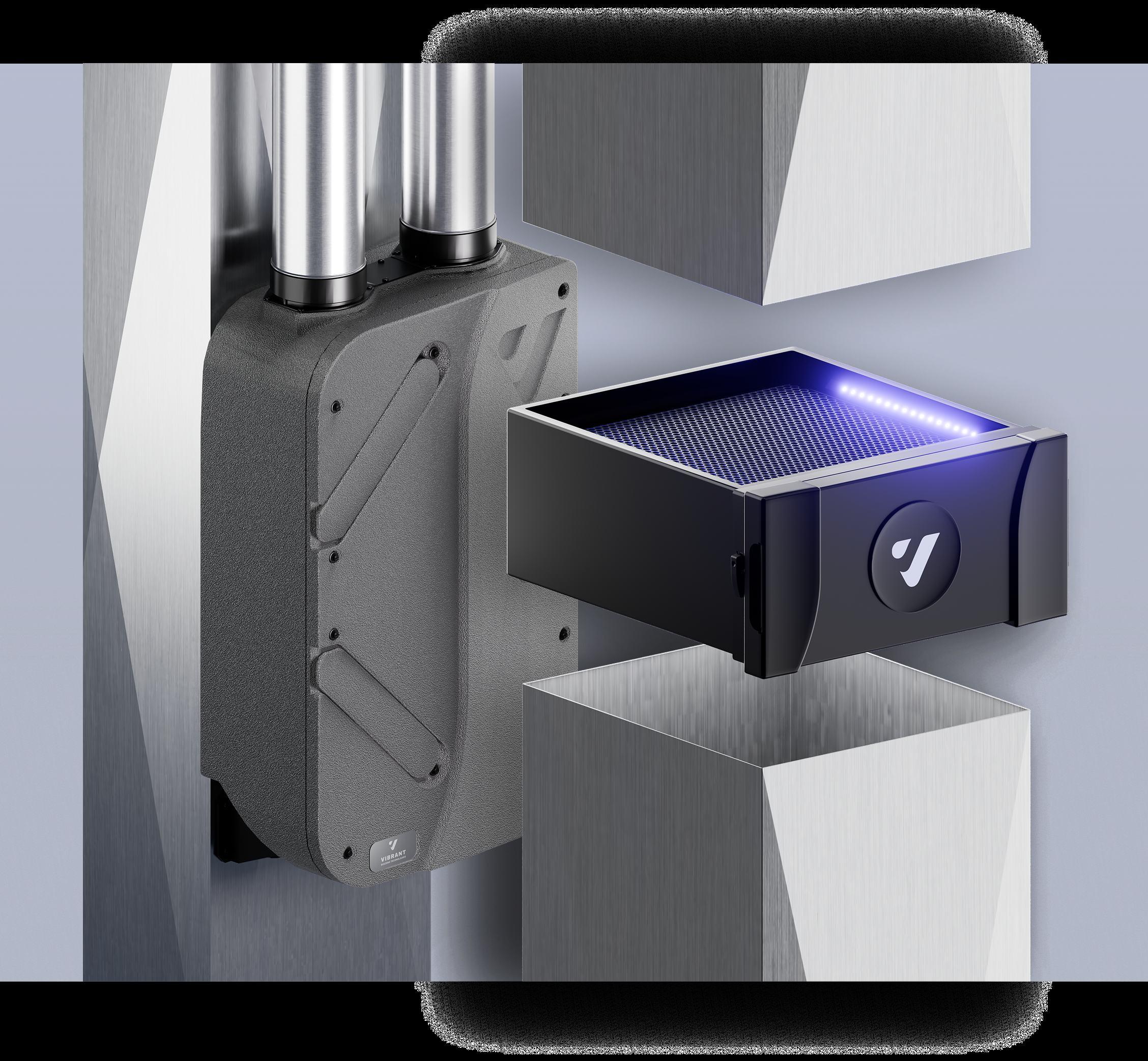

Vibrant sees what your HVAC can’t — and fixes it instantly with intelligent software and high-performance hardware, that react to real time conditions. You get cleaner, healthier air, more comfort, and lower energy bills around the clock.
Healthier air for your family
Captures 99% of allergens, dust, and pet dander that aggravate asthma and allergies helping reduce flare-ups.
Protection from outdoor air threats
Blocks 95% of wildfire smoke, car fumes, and ultrafine toxins that slip through standard filters and damage your lungs.
Smarter HVAC, lower bills, better comfort
Save up to 20% on HVAC energy use with smart controls, and energy recovery—less waste, less expense.
No more surprise HVAC breakdowns
Catch issues early with sensors before they turn into a sweltering weekend breakdown or a $1,000 service call.
Mold, radon, and toxins don’t belong
Removes harmful gases and airborne mold with 99% efficiency for safer, healthier indoor air.
$
Higher home resale value
A data backed record of performance and maintenance give your home an edge when it hits the market.
What’s working for you in the background
See what standard HVAC systems can’t: allergens, smoke, toxins, CO₂, mold, equipment issues, and more.

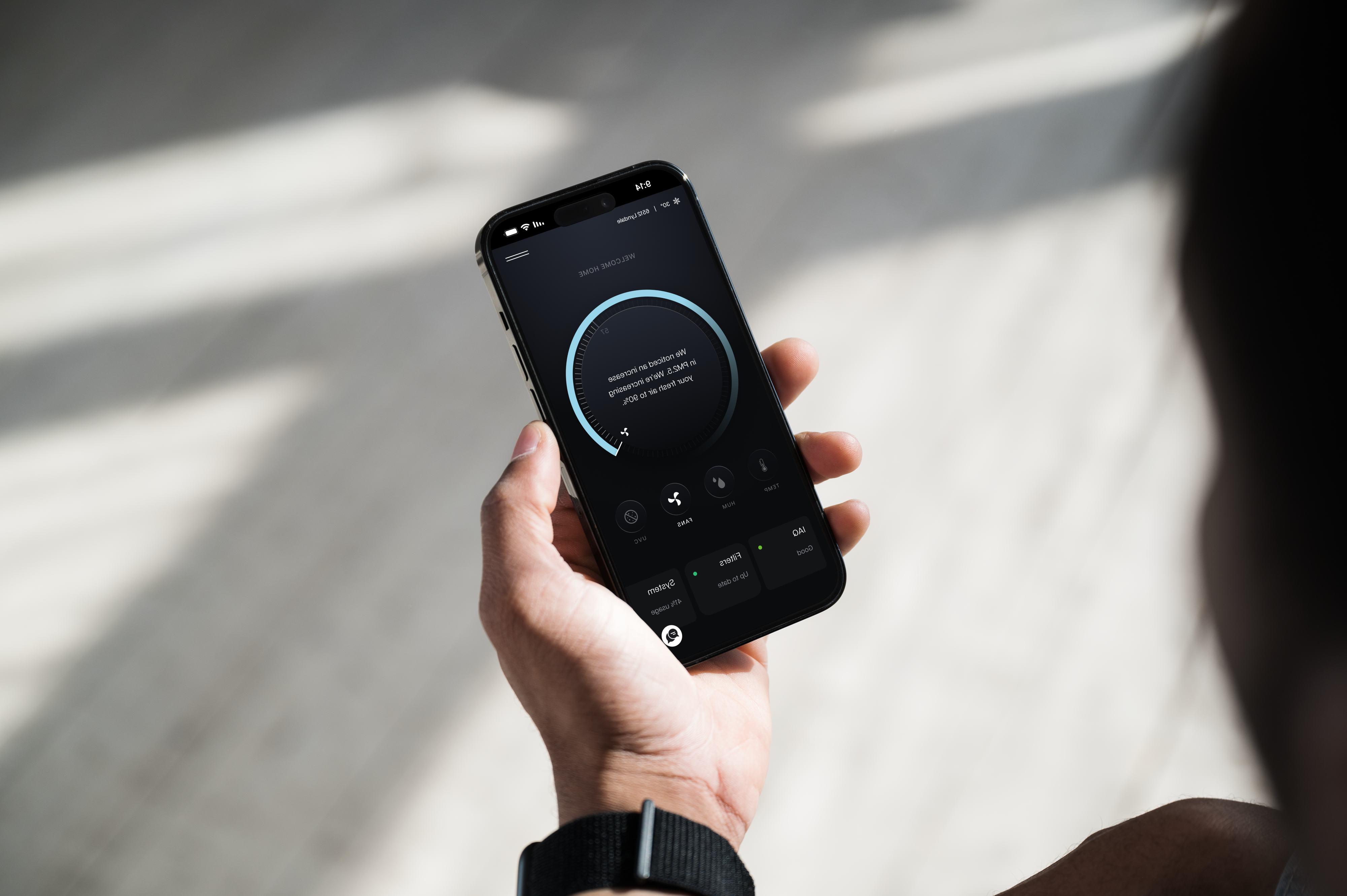

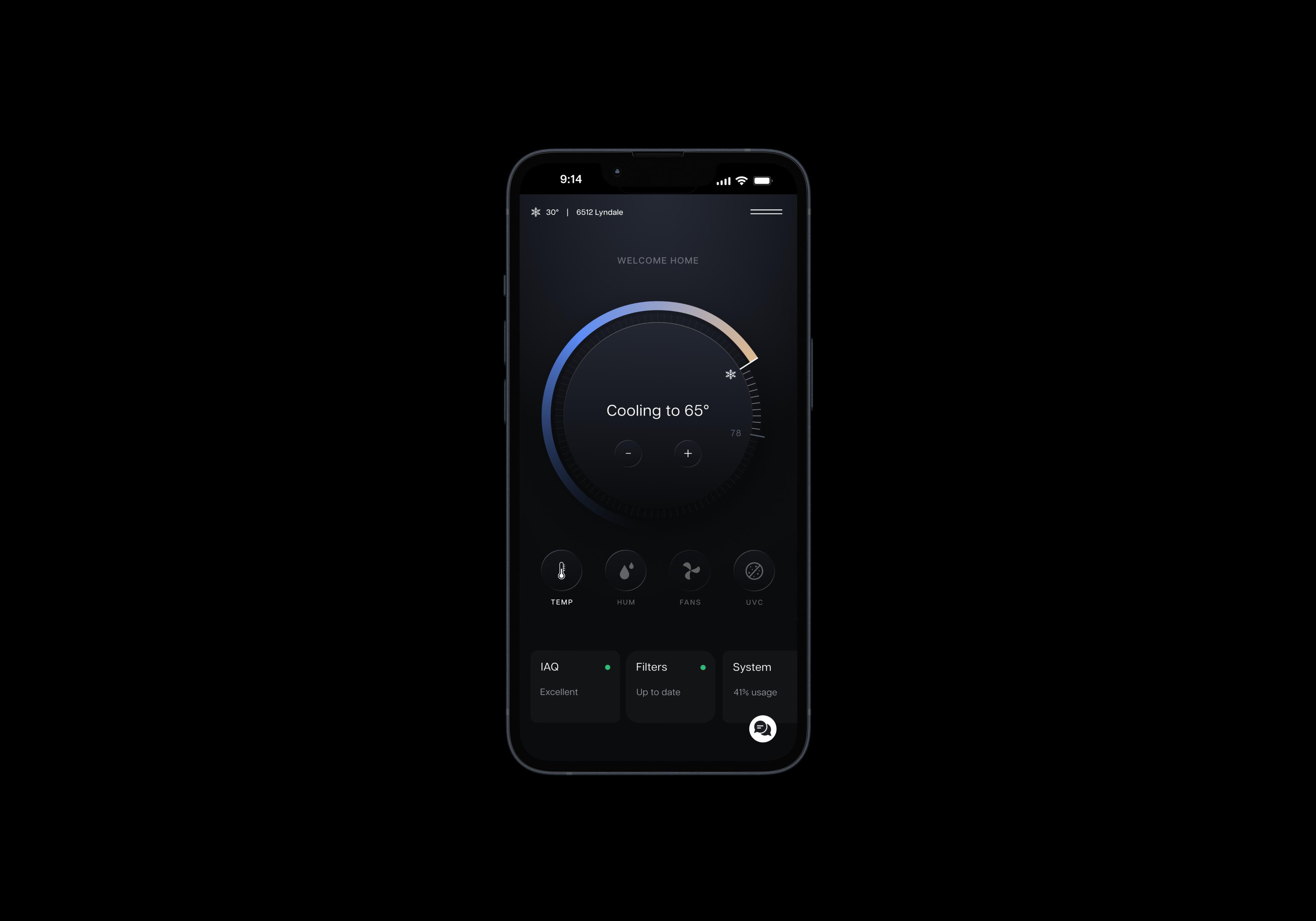

Room-by-room air + comfort insights—with app control like WHOOP, turning your home into a personalized wellness zone.
Live sensors and intelligent software command our powerful hardware to purify air in real time and catch HVAC issues early.
Unlike static HVAC systems, our AI learns your home’s rhythms to deliver cleaner air, better comfort, and the future of HVAC.
The only system on the market built to do it all
FEATURE/BENEFIT
Removes allergens
Neutralizes viruses/mold
Lowers indoor CO₂ and toxic gases
Whole-home purification
Wildfire smoke protection
Smart IAQ sensors + app control and insights
ERV technology saves energy with fresh air
Smart HVAC software that maximizes comfort + efficiency
Boost home value with homefax record
Prevents expensive system failures before they happen
Continuous learning / AI

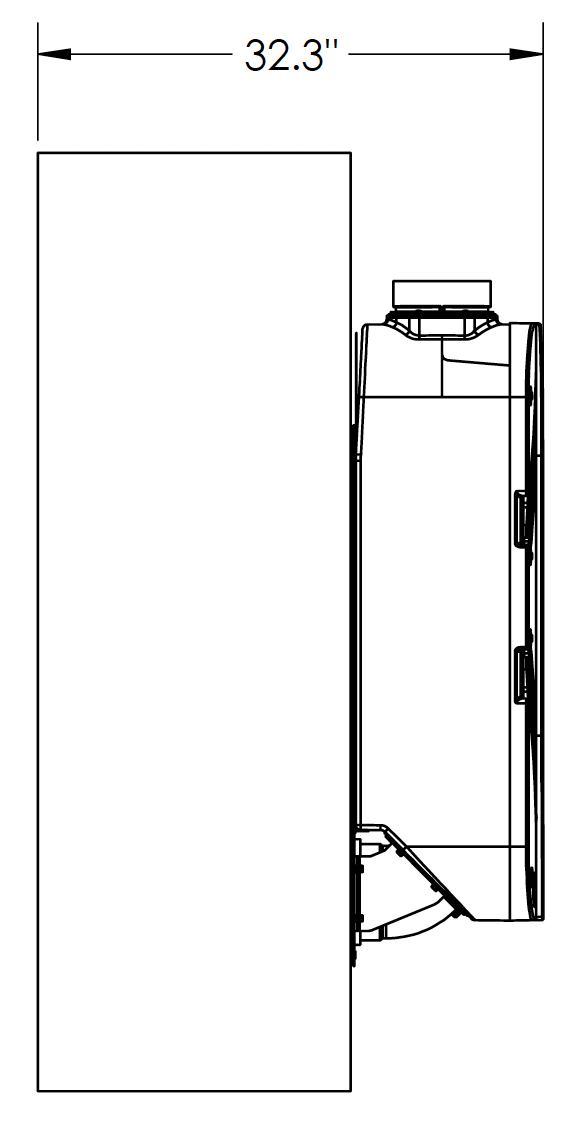

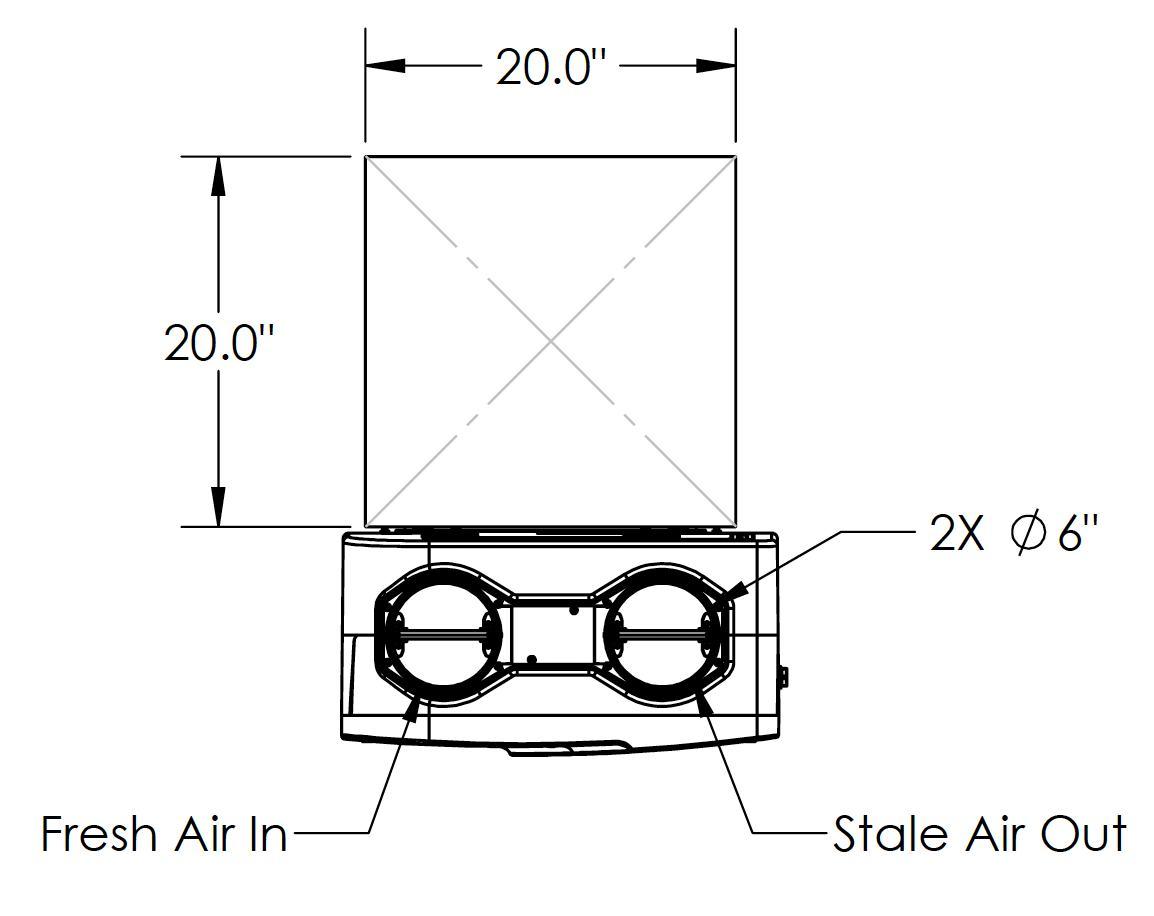

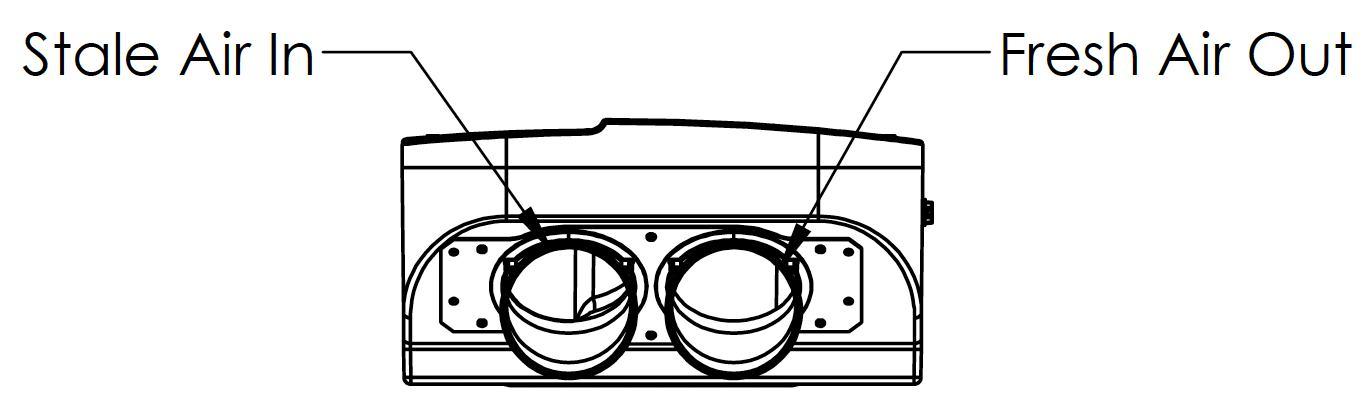

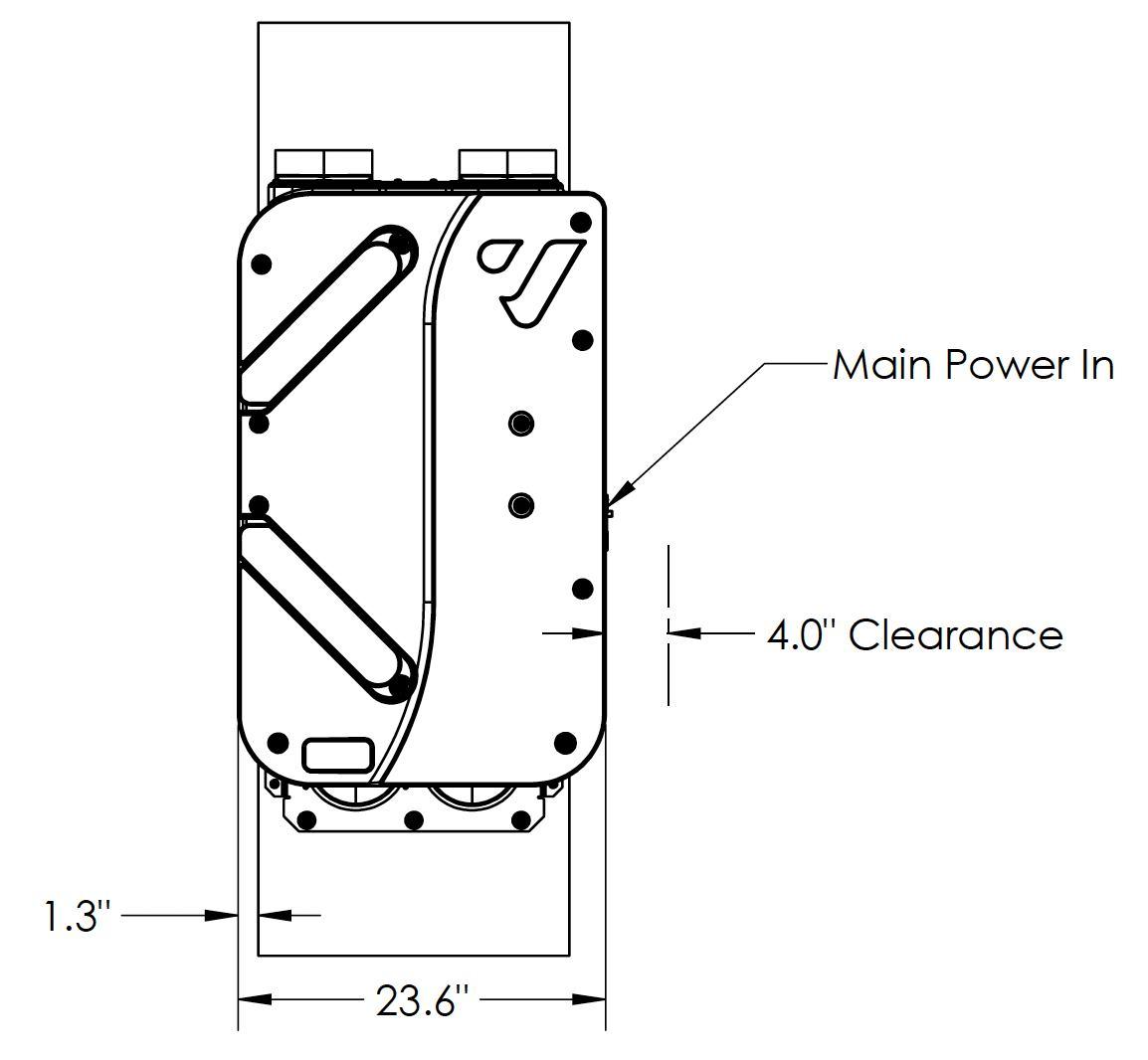

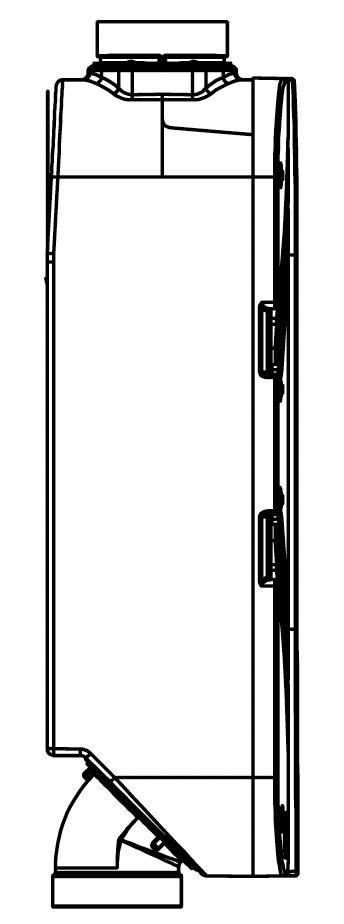

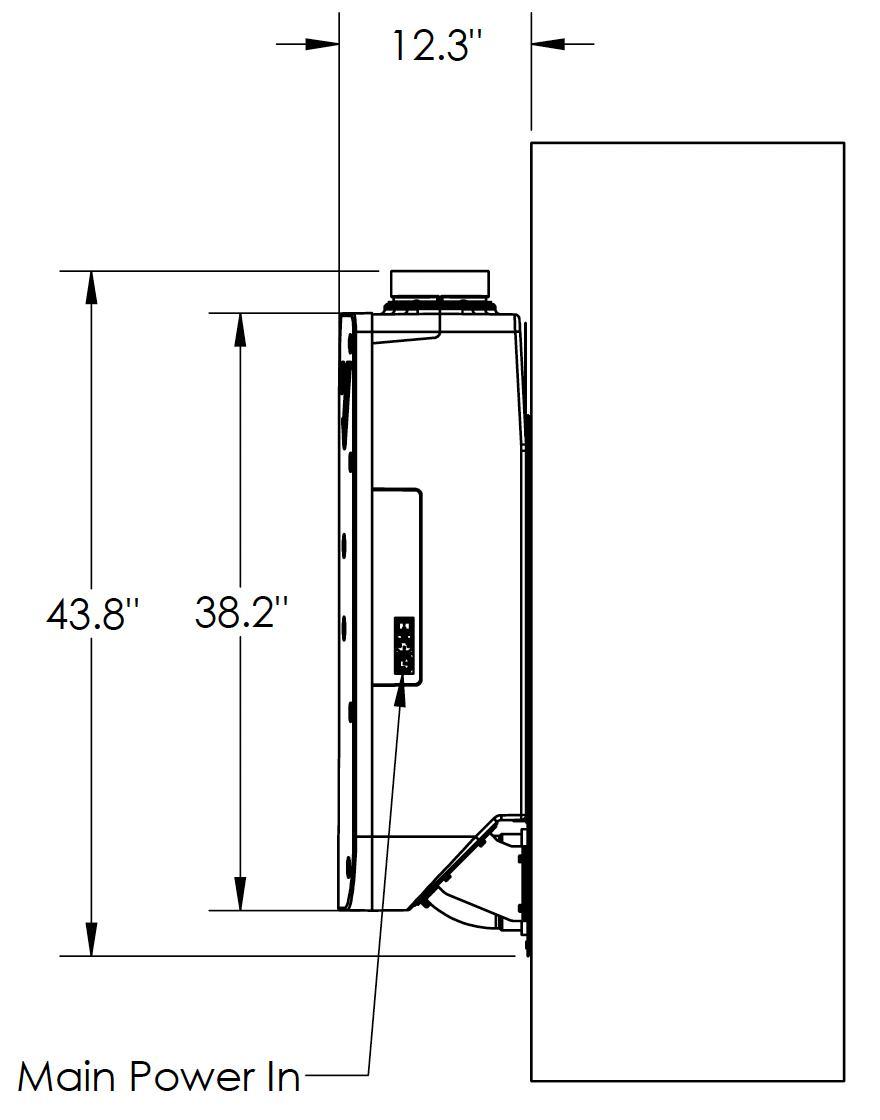

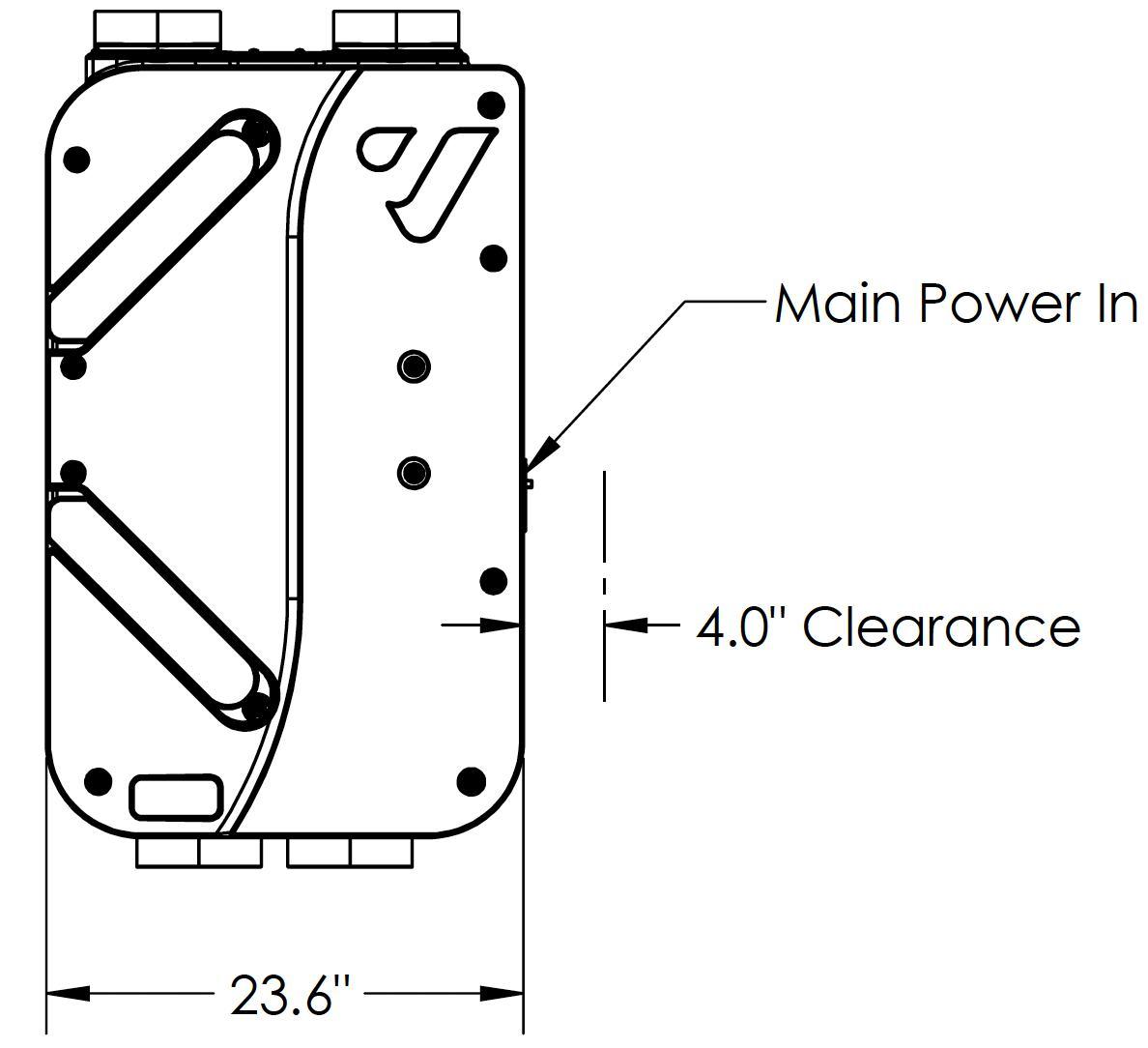

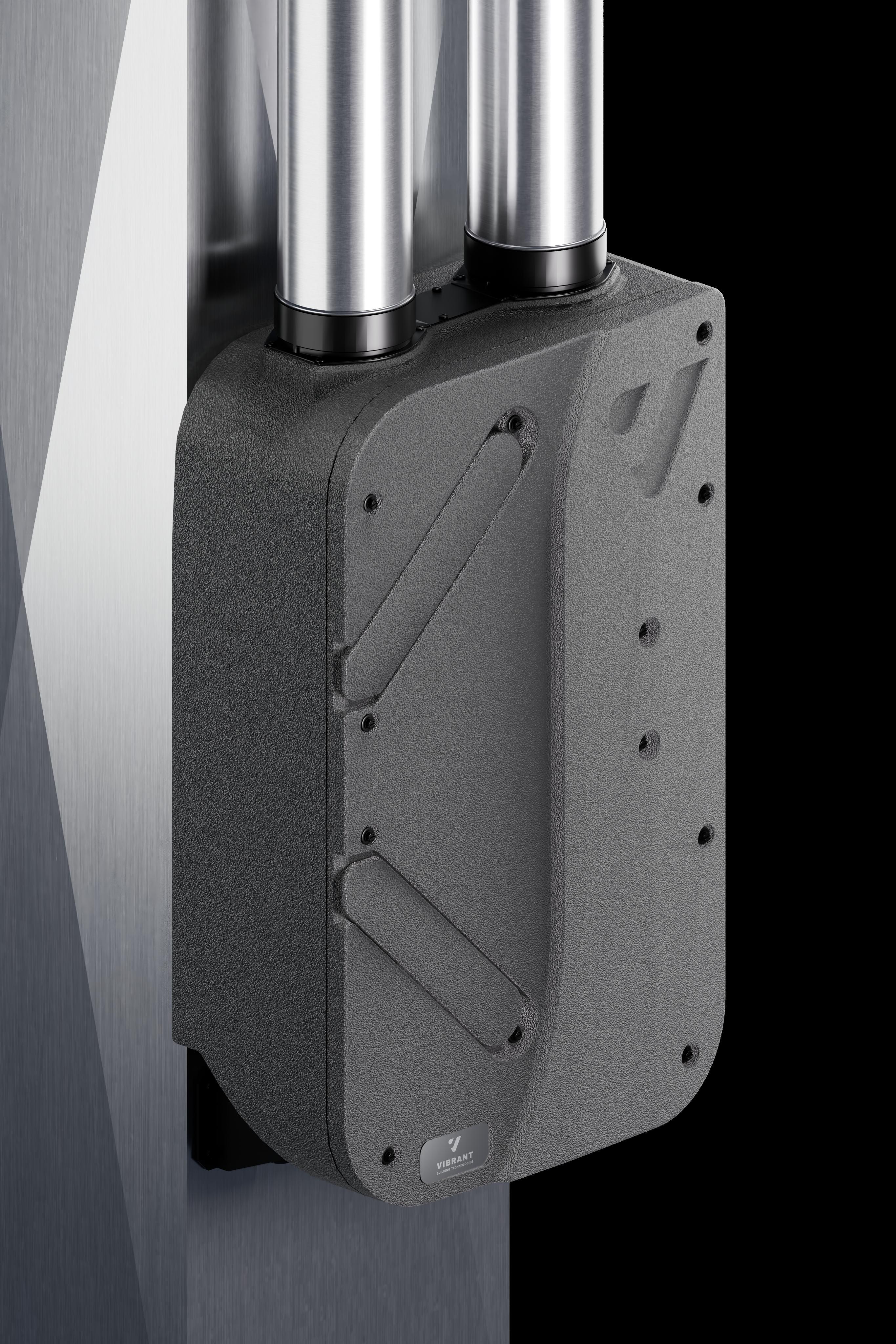

Energy Recovery Ventilator Specifications
Product D escription

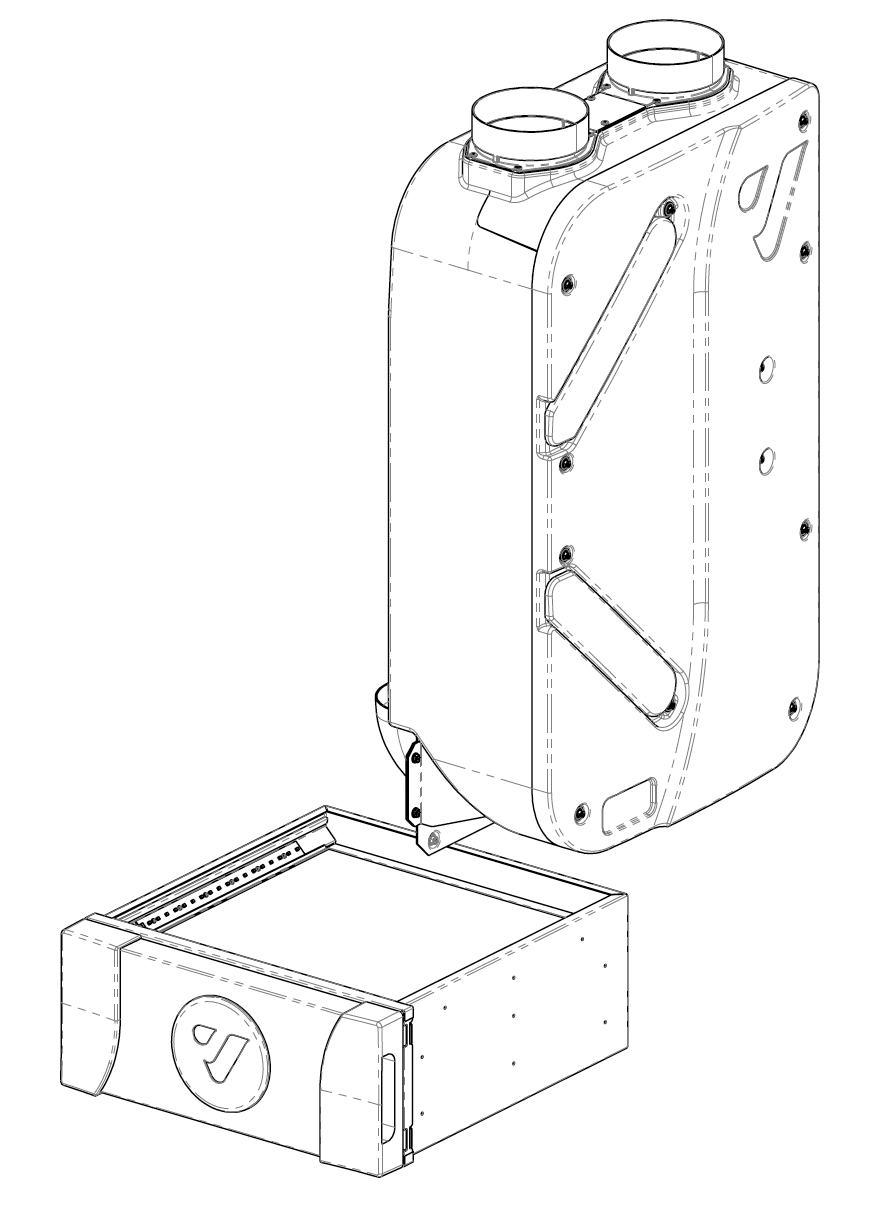

Vibrant Air Smart ERV is a next generation Energy Recovery Ventilator that combines air quality sensing with an adaptive AI control system Instead of running on fixed duty cycles, it continuously monitors building behavior and modulates airflow based on IAQ, pressure, and outdoor conditions delivering optimal ventilation while reducing load on heating/cooling equipment
Service Part List
Electronics Assembly and Enclosure
Lightweight, Insulated, Durable EPP Envelope
Motorized Digitally Controlled Dampers
1- inch MERV 13 Pre filter Counterflow Energy Recovery Core
Specifications
Lightweight insulated EPP cabinet
IAQ monitoring (CO2, VOC, CO, PM1-10)
Auto balancing with built-in DP sensors
Motorized dampers with remote control
Modulating fan speed from 35-300CFM
Duct-mounted chassis option

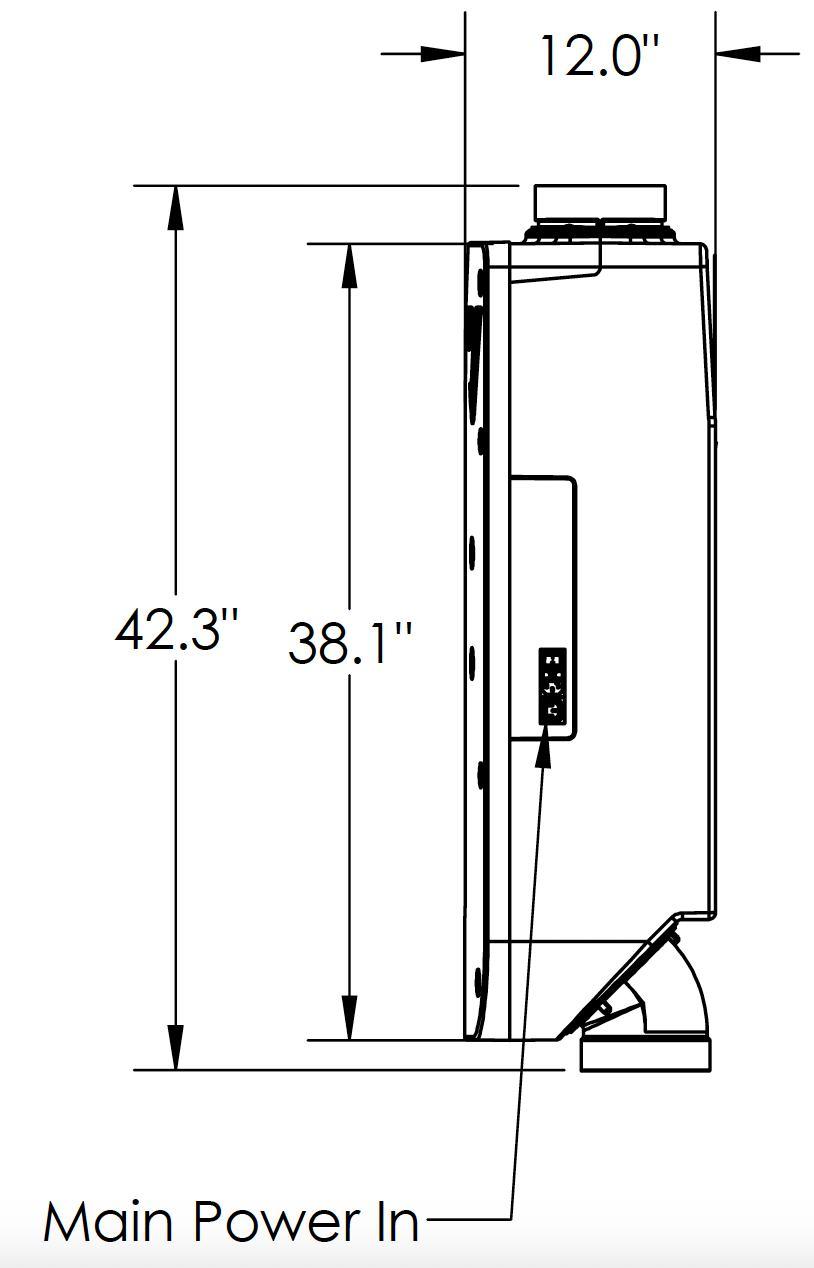

Line-cord power supply
Fully onboard digital control system no wired wall controls required. Commissioned through the Vibrant app with guided setup.
Modulates airflow based on core temperature to prevent icing without electric preheat.
upgrade optional. Tool-free access.
R e q uirements and Standards
All certifications and testing are pending for Vibrant ClimaCore. Includes UL 1812, CSA C22.2 No. 113, HVI 2100 and CSA F326.
Warranty
5-Year Limited Warranty on cabinet, electronics, and power supply.
Extended 10-Year coverage available with Vibrant Smart Monitoring and subscription enrollment.
Core Performance and Constant-Volume Airflow Profiles
Germicidal Air Purifier Specifications
Product Description

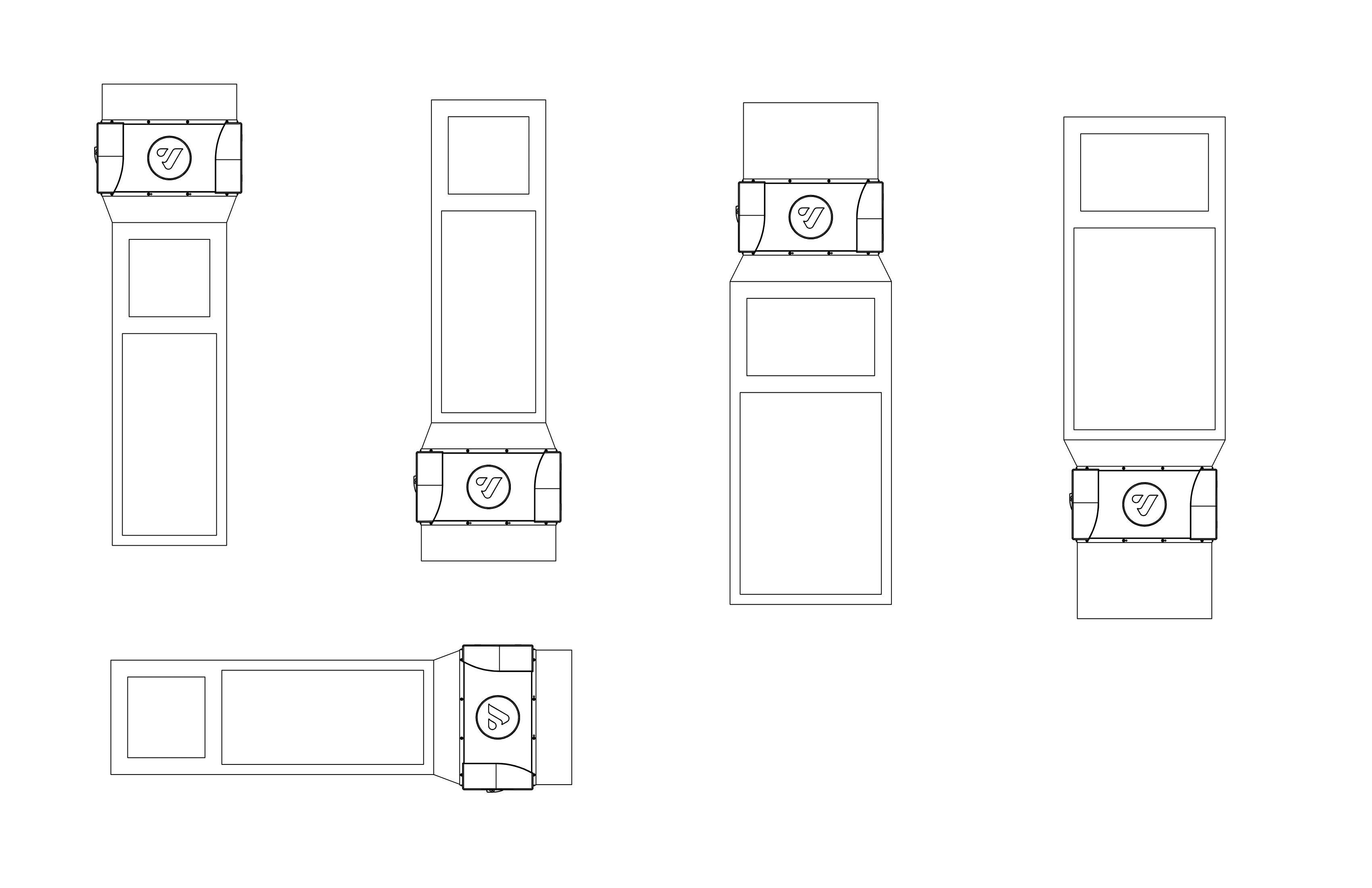

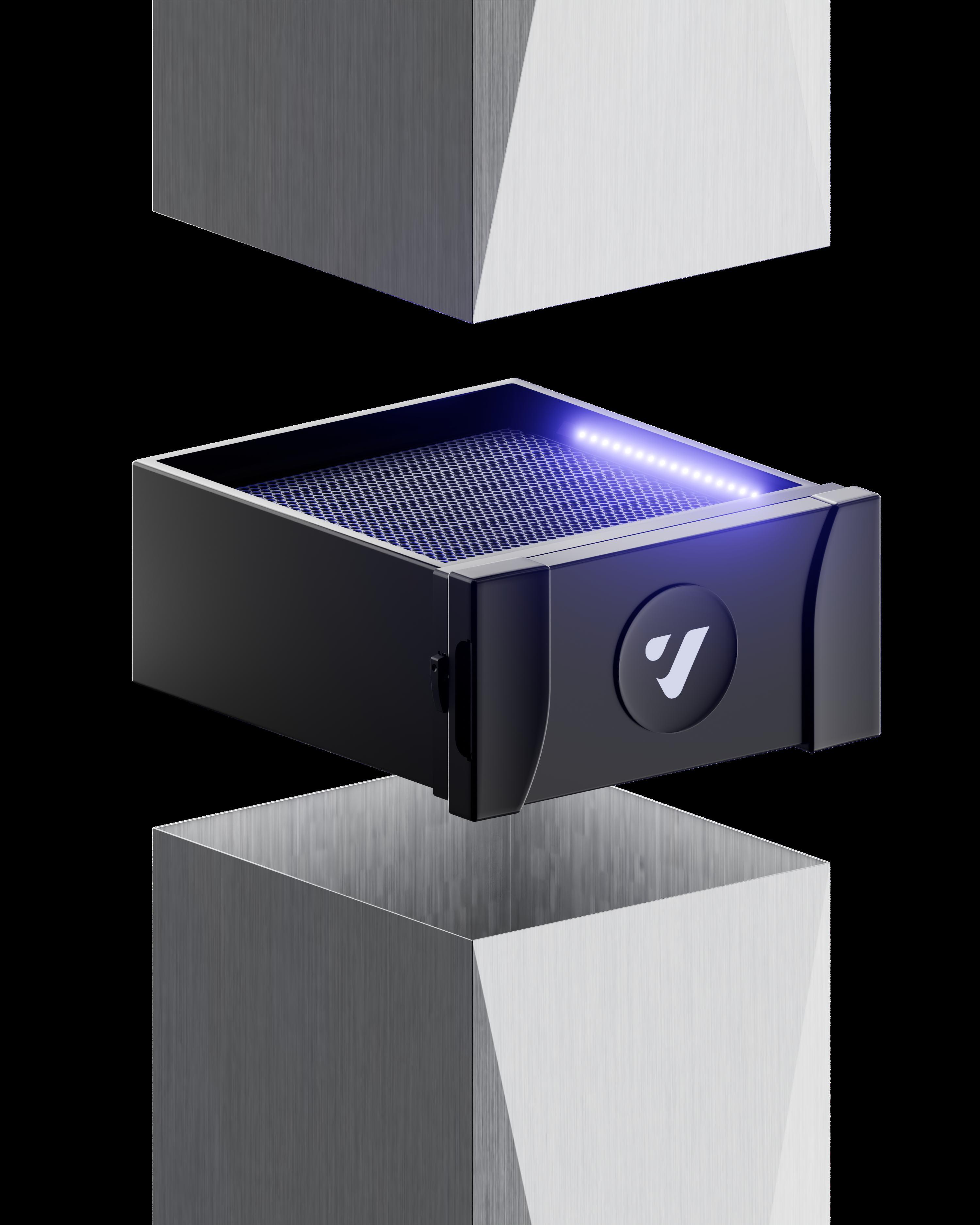

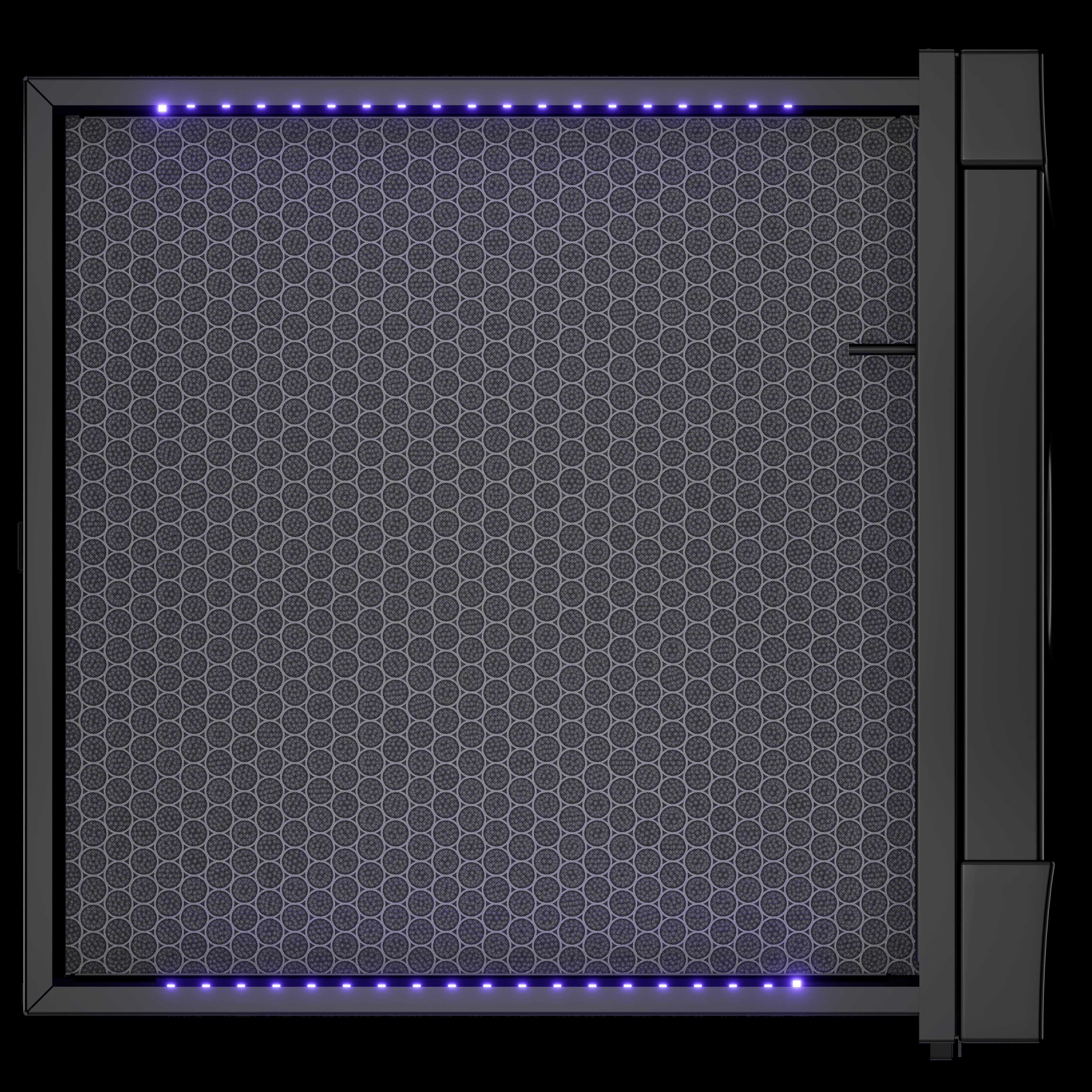

The Vibrant Air Smart Filter Box is a next-generation purification module designed for installation in the return duct of any forced-air system. It combines Nano-Fiber MERV 16 filtration, UVC germicidal LEDs, and activated carbon pre-filtration to remove fine particulates, pathogens, ozone, VOCs, odors and more. Integrated velocity, ΔP, and IAQ sensors provide remote airflow visibility, smart filter-life prediction, and real-time system performance diagnostics.
Service Part List
Control Board
Multi-color LED indicator on housing shows system status, fault codes, and connectivity state
5V Power Supply
24V Power Supply
UVC LED Germicidal Purification Strips X2
VOC IAQ Sensor Flow Sensor
Differential Pressure Sensor (for filter health)
4” MERV 16 Filter
1" MERV-8 powder-bonded carbon pre-filter Pogo Pin Contact Set
Technical Specifications
Airflow Capacity: Filtration Efficiency: Very low: Technology Type: Germicidal Function: Power Requirements:
Sizes:
800-2000 CFM (depending on size)
Nano Fiber MERV 13 or MERV 16
0.03–0.26 in wg @ 1,000–2,000 CFM
High performance UVC LED
Ozone-free UVC purification
5VDC, for sensors and diagnostics, 24 VDC, 4.2A, 100W (during LED on cycle)
20” x 20”, 16” x 25”, 16” x 20”, 25” x 25”
23.9 to 26.2 Lbs (depending on size)
40°F to 125°F
Black powder coat or galvanized steel
Galvanized steel
Weight (without filter): Operating Temp Range: Cabinet Color: Cabinet Material: Connectivity:
Thread + BLE 5.0 + Wi-Fi 2.4 GHz for mobile and cloud connection
Firmware Updates: Vibrant Mobile App:
Over-the-air (OTA)
Purification control and remote diagnostics dashboard
Features and B enefits
Nano-Fiber MERV 16 Filtration:
Captures particles down to 0.3 microns with minimal static pressure for unrestricted airflow.
UVC LED Purification:
Destroys airborne pathogens at 265 nm without producing ozone or by-products.
Activated Carbon Pre-Filter:
Removes odors, VOCs, and residual ozone for fresher indoor air.
Air Quality Monitoring:
Senses for VOCs, NOx, smoke, fumes, gas stove pollution, and chemicals.
Smart Diagnostics:
Onboard velocity + pressure sensors show airflow health in real time — diagnose issues before you even roll a truck.
Installation & Durability:
UVC Control:

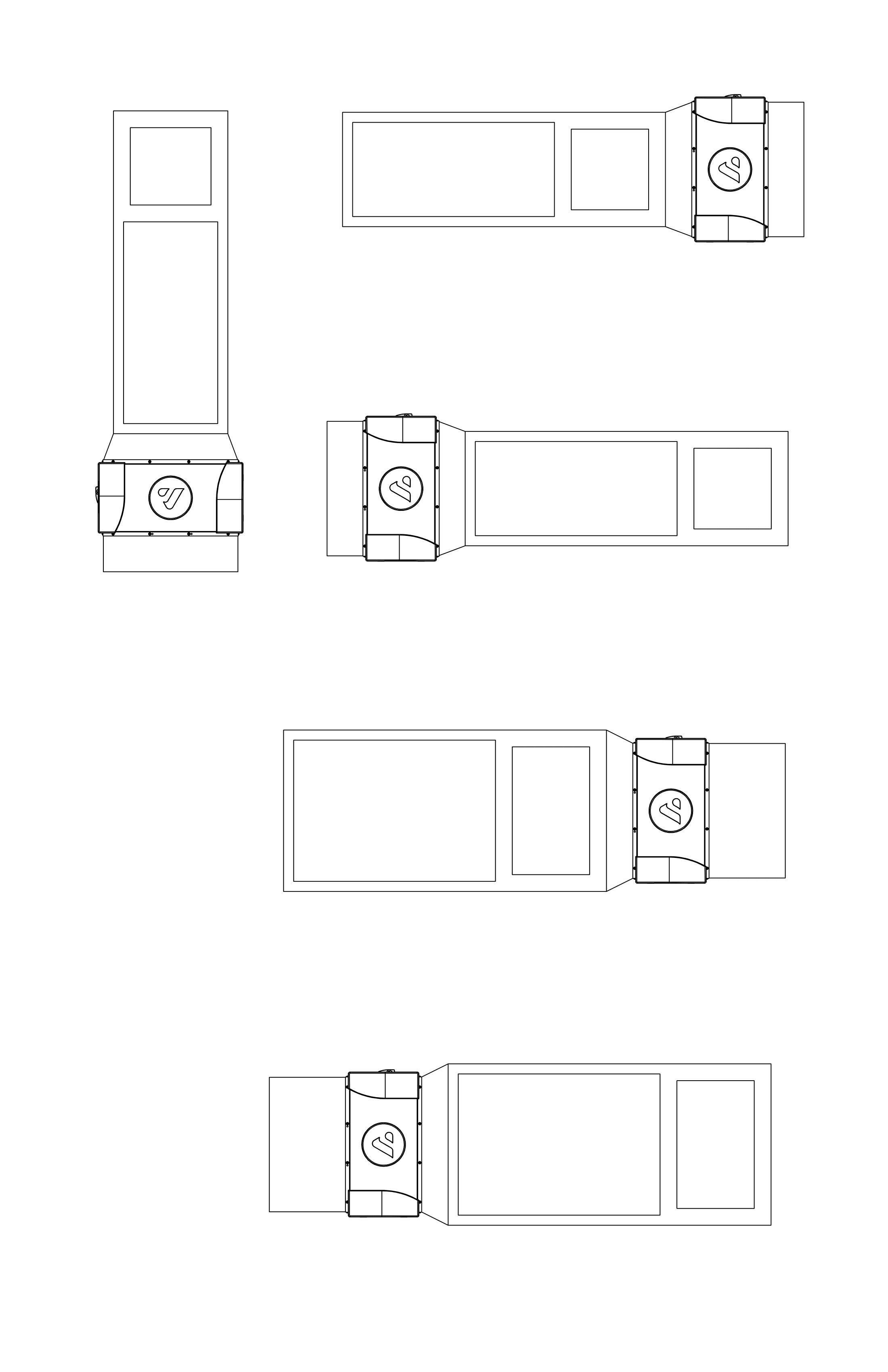

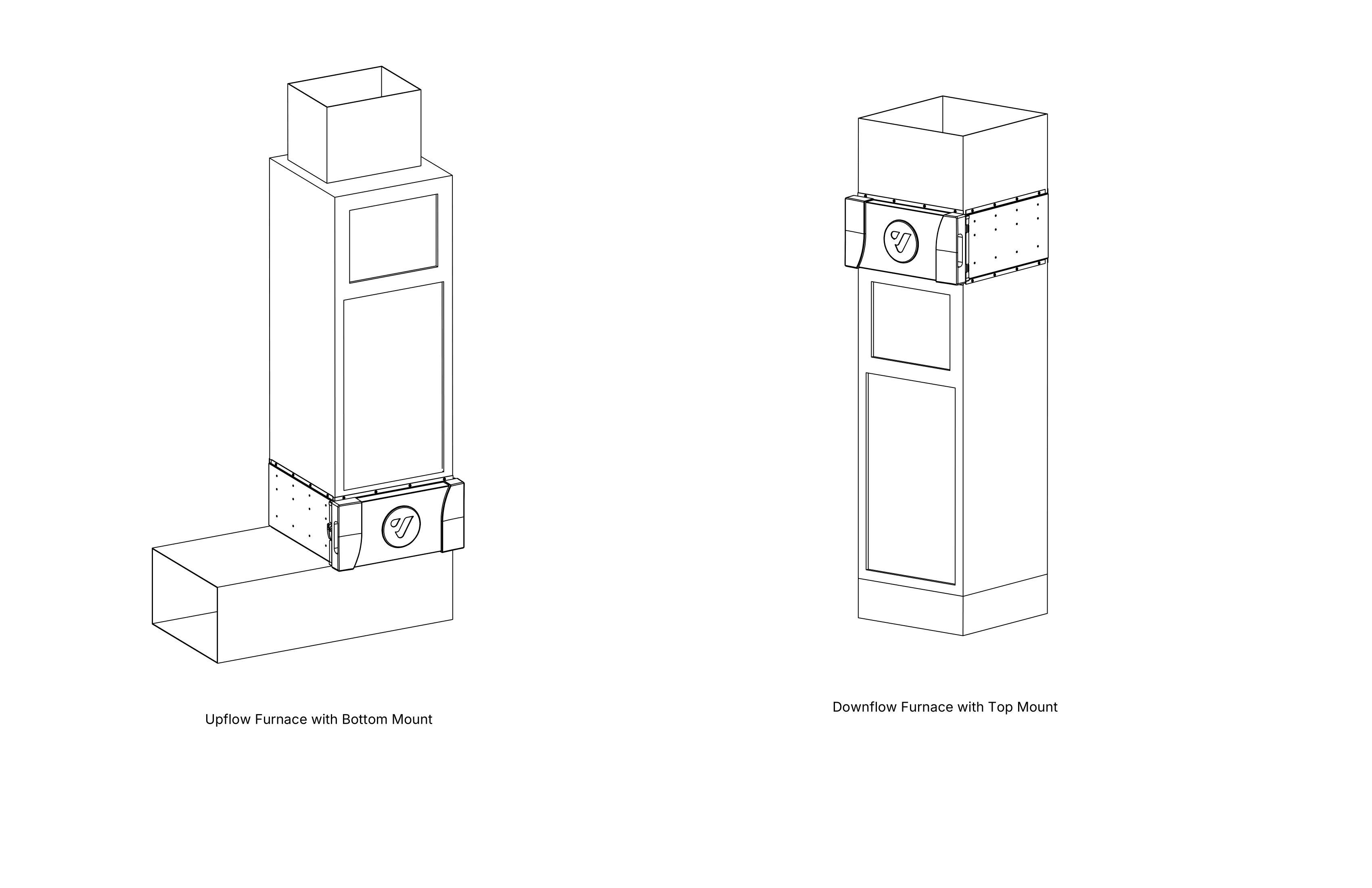

16-gauge steel housing mounts in any orientation (upflow/downflow/horizontal) and resists corrosion.
Adjust and monitor germ-killing UVC power remotely.
S yste m M aintenance
Smart Alerts:
Tool-Free Access:
Quick-latch door for easy filter and component replacement.
Self-Monitoring:
Sensors detect clogging, reduced airflow, or abnormal pressure.
Rated for 10,000 hours
Long-Life UVC LEDs: Filters: App notifications for filter changes, airflow faults, and service reminders.
Replace filters quarterly, or as indicated by onboard diagnostics when full.
Safet y and Co m pliance
Safety & Compliance Designed and tested to meet UL 1812, CSA C22.2 No. 11 3 UL 9 4 V- 0, and UL 2 99 8 Zero Ozone. Ozone-free by design, with a UVC safety interloc k that physically prevents the UVC LEDs from ever powering on when the access door is open
Warrant y
5-Year Limited Warranty on cabinet, electronics, and power supply.
1-Year Limited Warranty on UVC LEDs
Extended 10-Year coverage available with Vibrant Smart Monitoring and subscription enrollment.
Vibrant Nanofiber Filters
0.3-0.4
0.4-0.55
0.55-0.7
0.7-1.0
1.0-1.3
1.3-1.6
1.6-2.2
2.2-3.0
3.0-4.0
4.0-5.5
5.5-7.0
7.0-10.0
