Care, craftsmanship and quality since 1952 in the everyday.

Flair have been designing showering solutions for over 70 years and perfecting them since. Our products are beautifully designed by our team of designers in Dublin and expertly engineered to stand the test of time in the busiest of bathrooms. From humble beginnings in Cavan, Ireland we are now a leader in creating quality showering solutions for the European market.

Attention to detail is seen in Flair’s design language and careful consideration is given to every aspect of our shower enclosure and wetroom designs. Customer care is a core value for us - a happy customer is at the heart of everything we do.

Flair are proud recipients of several international design awards and hold numerous patents for our Harmony Collections. In recent years, our ORO, ETO, ILI and AYO product collections have all been recognised for their excellence in design, innovation and product quality.

SURROUND YOURSELF WITH BEAUTY.

WATCH THE VIDEO

HARMONY COLLECTIONS

At Flair our vision is to produce beautifully designed, expertly crafted showering solutions for everyone and every space so that you can surround yourself with beauty and savour those precious moments in your everyday. We do this by pushing the frontiers of shower design, with every little detail carefully considered to make the daily routine as harmonious as possible.

For many, showering has the power to lift spirits, calm the mind and invigorate. As you step into a Flair Shower, we encourage you to savour those precious moments in your sacred daily rituals.

Surround yourself with beauty.

FIND YOUR FLAIR. CAPTURE THE MOMENT.

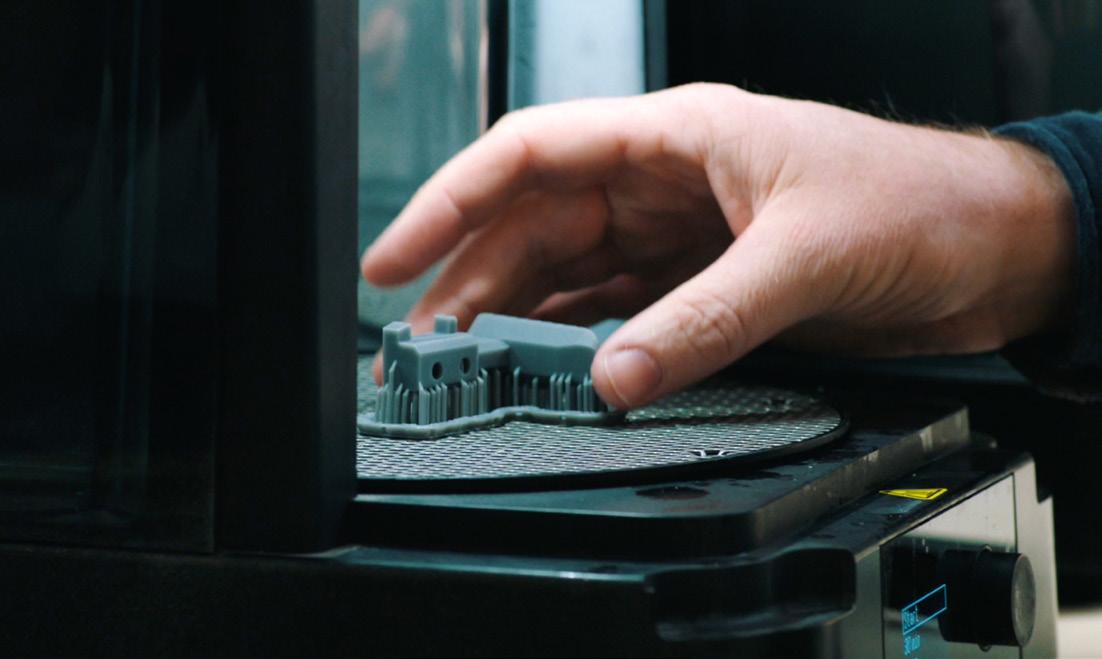

NEW PRODUCT DEVELOPMENT.

IDEA CONCEPT PROTOTYPE

With over 70 years of design and innovation behind us, at Flair we know that quality always stands above all.

Our local design team, driven by passion, pushes the boundaries of innovationalways discovering, evolving, and learning.

Every detail is a deliberate choice, carefully crafted to reflect beautiful design in every line and finish.

This is where innovation and quality come together in perfect balance.

DESIGN AWARDS

Flair are proud to have received three design accolades in recognition of the ORO shower door collection.

The Good Design Award, RedDot Award, and iF Design Award are seals of global design excellence and a testimony to our passion for product quality and innovation.

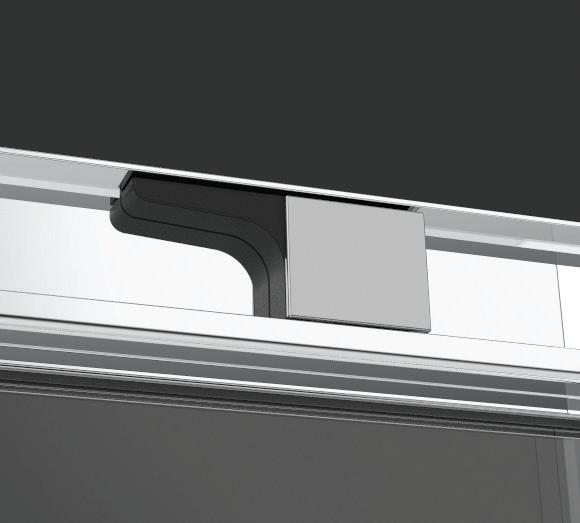

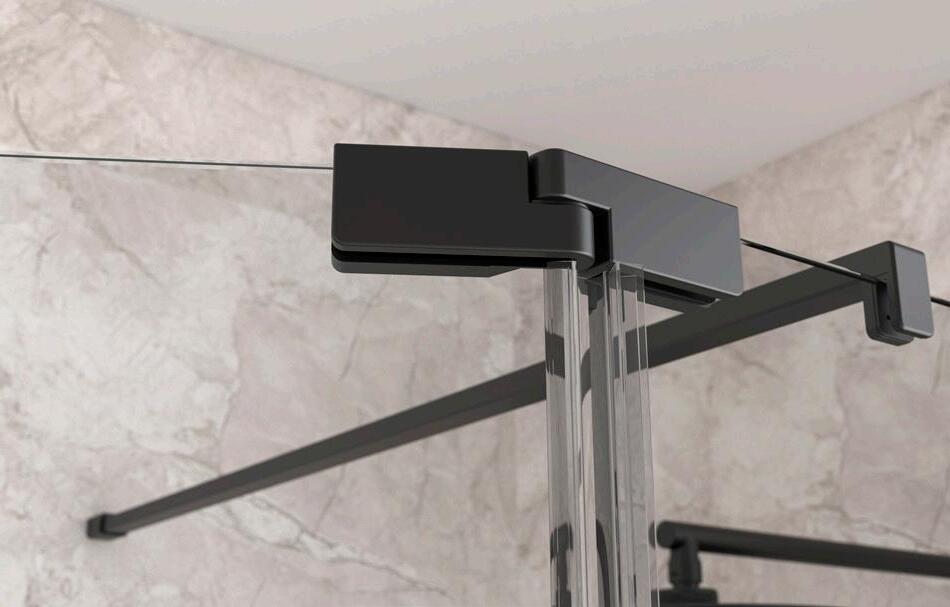

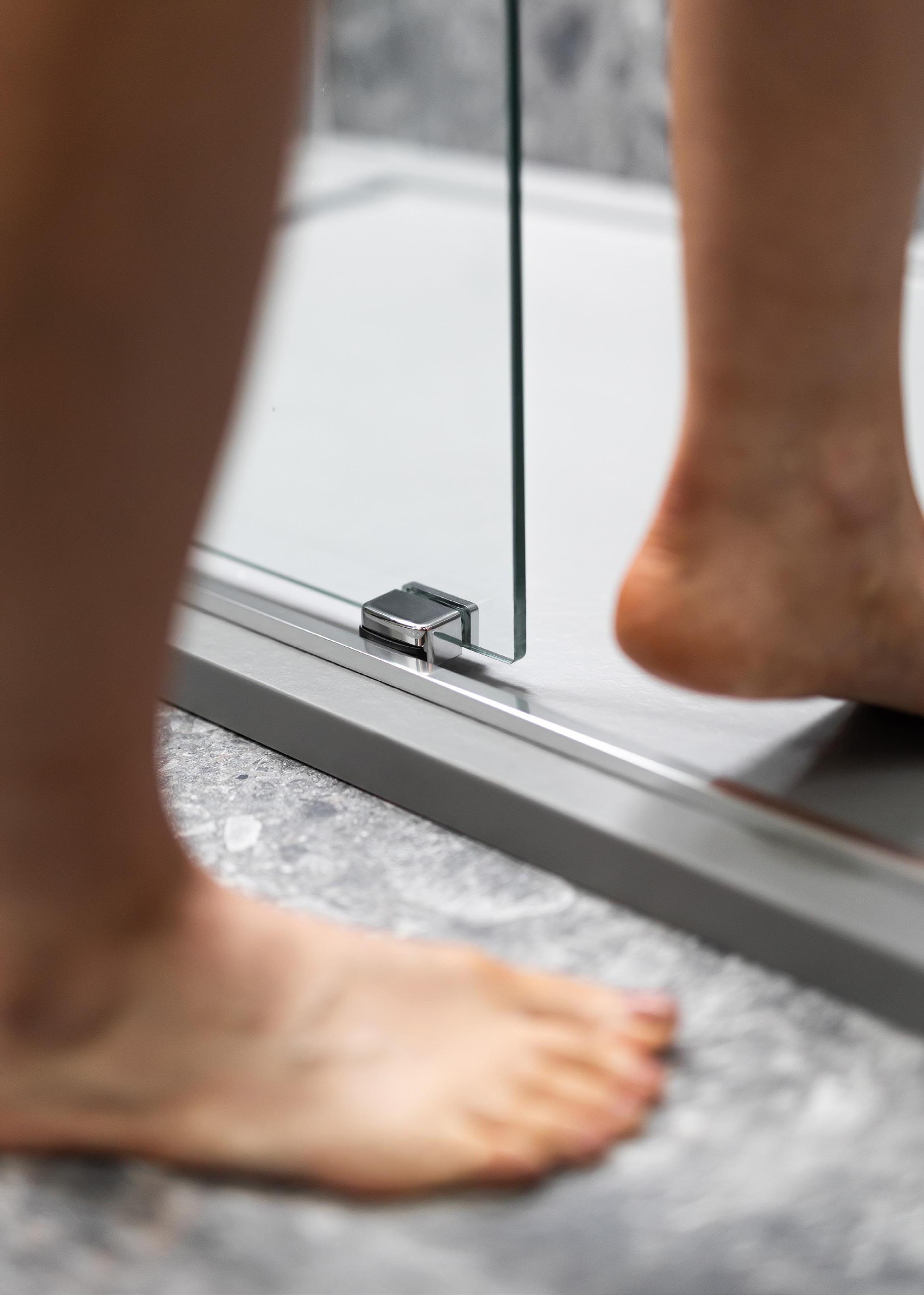

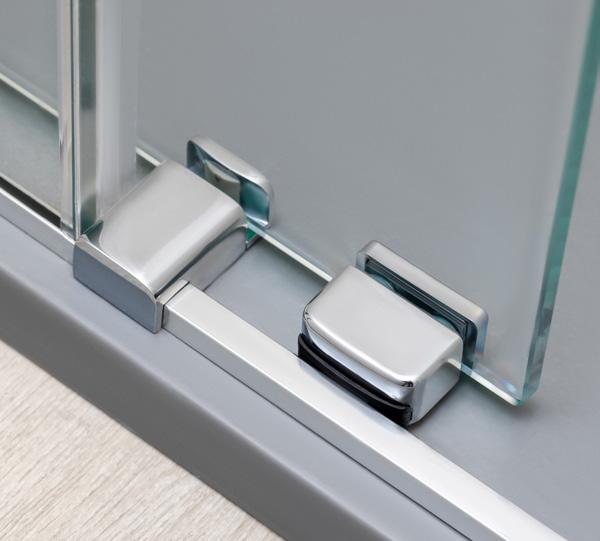

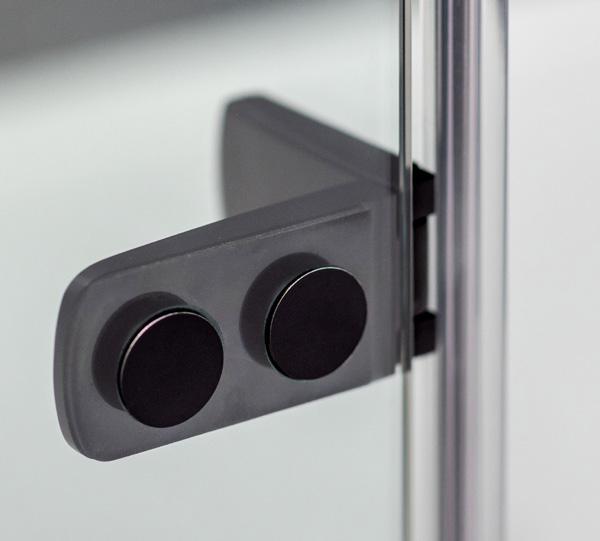

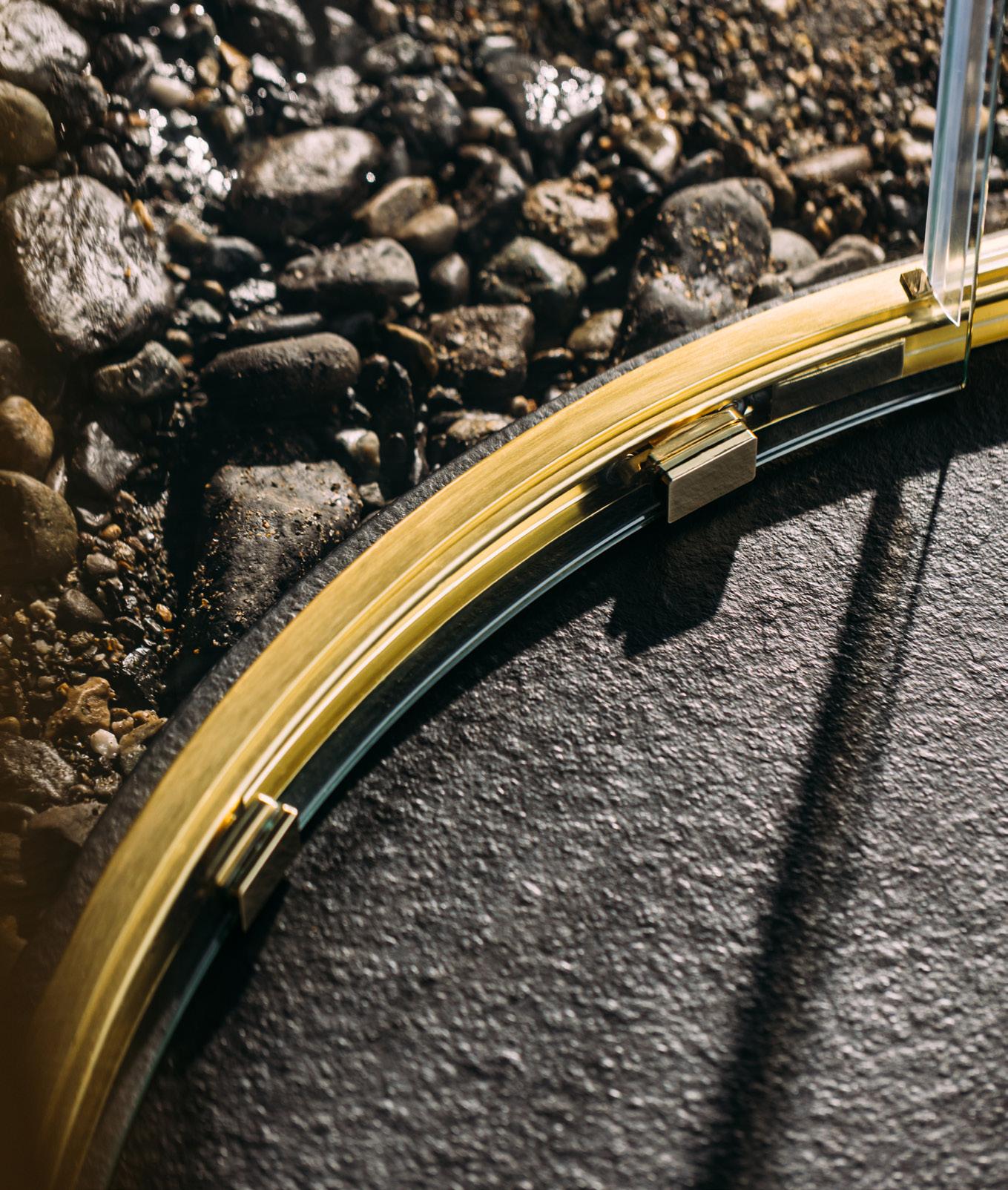

PATENTED MAGNETIC GUIDE

The patented Magnetic Guide System is the first of the kind in the industry. It ensures the smoothest of motion for each sliding door as it glides along the bottom rail.

THE ORO COLLECTION ®

ORO - the epitome of grace & beauty.

With a graceful aesthetic, the award winning ORO collection is a union of design innovation and functional perfection. This signature collection sets the standard in frameless shower door design.

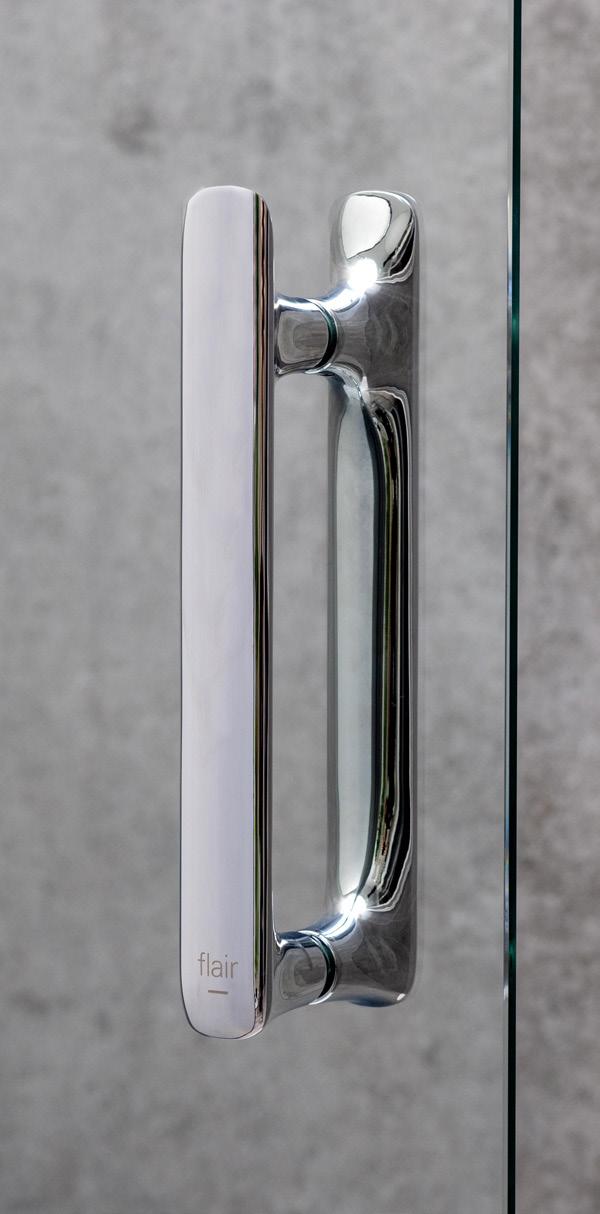

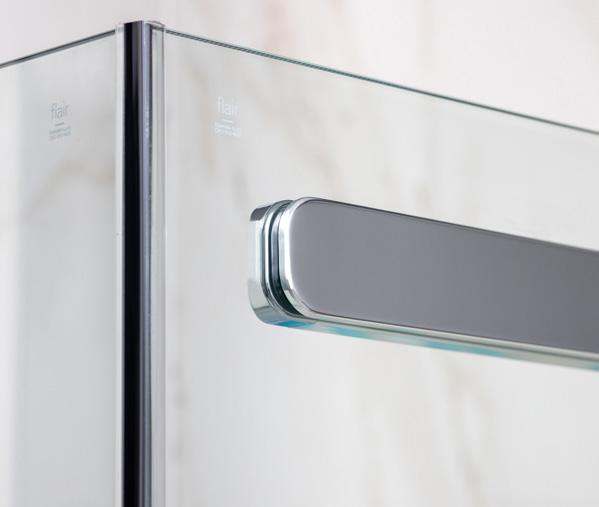

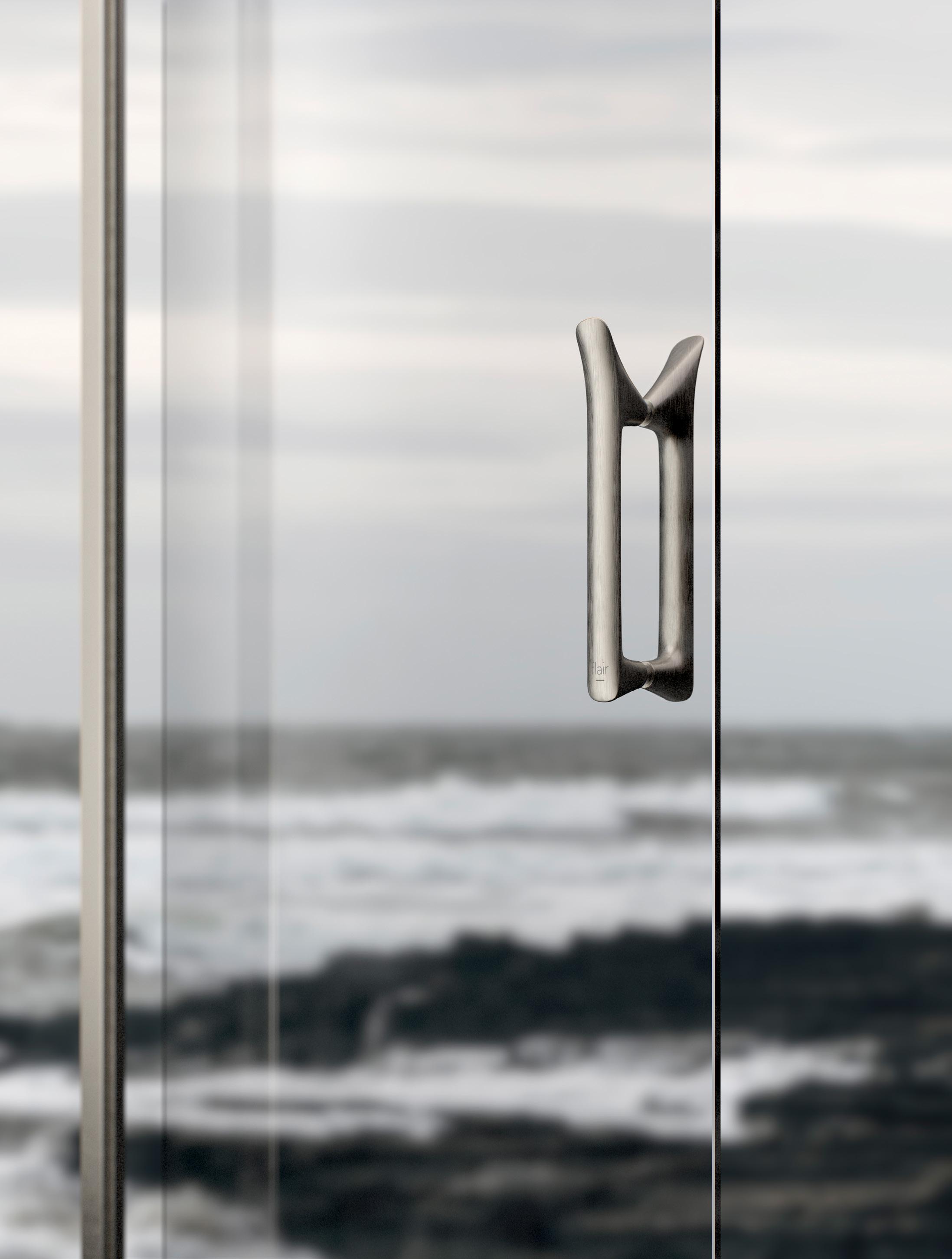

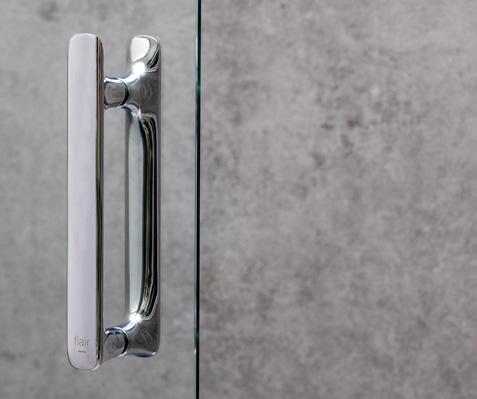

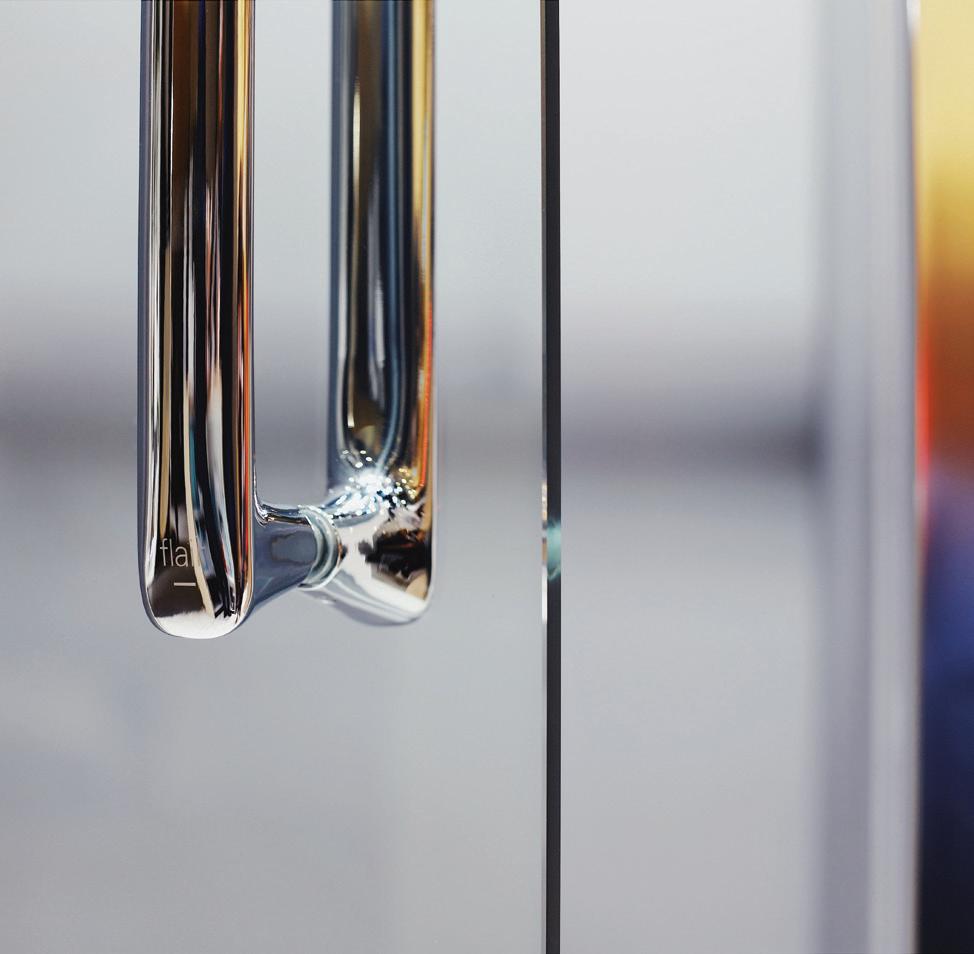

The hand crafted ORO door handles are one of a kind and distinctly individual. The patented magnetic guide system provides a smooth and effortless gliding action for each sliding door. Elegance shines through the curved profile and hinge detailing.

Each ORO detail is carefully considered to enhance your experience every day.

FRAMELESS & ULTRA FRAMELESS 8mm SHOWER ENCLOSURE

COLLECTION

SLIDING

20

24

28 BIFOLD

36 ULTRA FRAMELESS COLLECTION

26 SLIDING QUADRANT & OFFSET QUADRANT HINGED QUADRANT & OFFSET QUADRANT HINGE & HINGE AND INLINE

38

SILVER MATTE BLACK

FINISHES

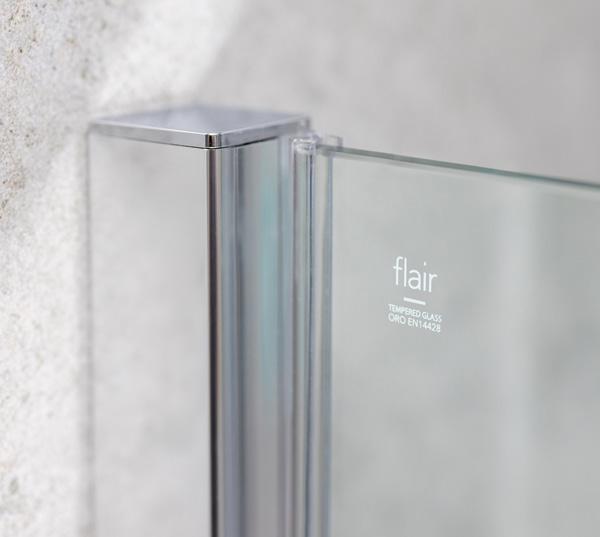

FUNCTIONAL DETAILS

VISIONARY INNOVATIONS

SLIDING DOOR

FINISHES:

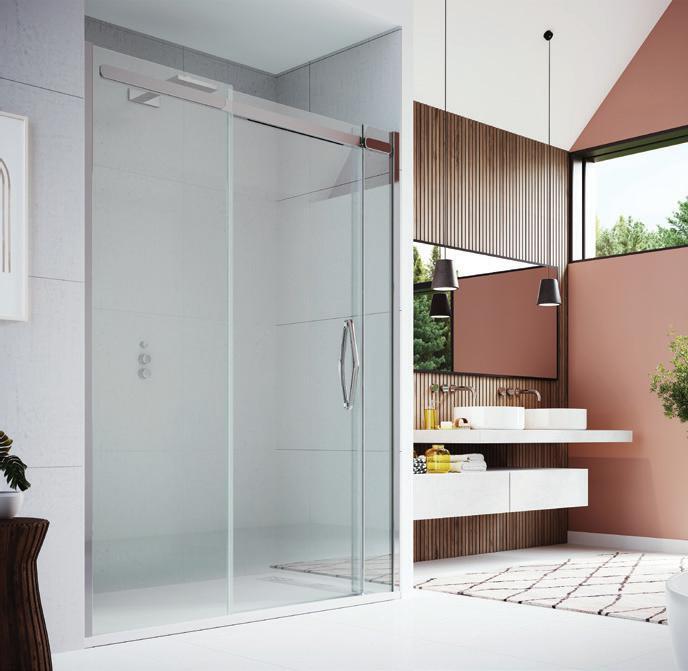

The ORO Sliding Door glides effortlessly with patented magnetic guidance, 8mm toughened glass, a floating top rail, and a uniquely designed handle for a seamless experience.

DOOR SIZE OPTIONS

SEMI FRAMED SIDE PANEL OPTIONS

(Includes Corner Profile)

ACCESSORIES

SLIDING DOOR WITH TWO INLINE PANELS

FINISHES:

SILVER MATTE BLACK

The sliding door with two inline panels can be installed in an alcove or with a frameless side panel option and is the perfect choice for a large, luxurious showering zone.

LEFT HAND SLIDING DOOR WITH TWO INLINE PANELS IN ALCOVESILVER

DOOR SIZE OPTIONS

1400 - Left Hand 1360 1400 493

1400 - Right Hand 1360 1400 493

1500 - Left Hand 1460 1500 542

1500 - Right Hand 1460 1500 542

1600 - Left Hand 1560 1600 542

1600 - Right Hand 1560 1600 542

1700 - Left Hand 1660 1700 614

1700 - Right Hand 1660 1700 614

1800 - Left Hand* 1760 1800 614

1800 - Right Hand* 1760 1800 614

1900 - Left Hand 1860 1900 614

1900 - Right Hand 1860 1900 614

2000 - Left Hand* 1960 2000 614

2000 - Right Hand* 1960 2000 614

FRAMELESS

SIDE PANEL

700 (SA2IL specific) 660 680

800 (SA2IL specific) 760 780

900 (SA2IL specific) 860 880

OROSA2IL140LSC

OROSA2IL140RSC

OROSA2IL150LSC*

OROSA2IL150RSC*

OROSA2IL160LSC

OROSA2IL160RSC

OROSA2IL170LSC

OROSA2IL170RSC

OROSA2IL180LSC*

OROSA2IL180RSC*

OROSA2IL190LSC*

OROSA2IL190RSC*

OROSA2IL200LSC*

OROSA2IL200RSC*

OPTIONS *To suit sliding door with two inline panels only

1000 (SA2IL specific) 960 980 OROSA2ILSP100SC

1200 (SA2IL specific) 1160 1180 OROSA2ILSP120SC

- Two side panels can be made used to make a three sided enclosure.

OROSA2IL140LBC

OROSA2IL140RBC

OROSA2IL150LBC

OROSA2IL150RBC

OROSA2IL160LBC

OROSA2IL160RBC

OROSA2IL170LBC

OROSA2IL170RBC

OROSA2IL180LBC*

OROSA2IL180RBC*

OROSA2IL200LBC*

OROSA2IL200RBC*

SLIDING QUADRANT & OFFSET QUADRANT DOOR

The ORO Sliding Quadrant blends creative engineering with a floating top rail, concealed rollers, and a patented magnetic guide for effortless gliding and a sleek, polished look.

The ORO Sliding Offset Quadrant impresses with a floating rail, concealed rollers, a patented magnetic guide for smooth gliding, and perfectly symmetrical chrome handle.

1000 x 800 - Left Hand 770-970

x 800 - Right Hand* 770-1170 790-1190

x 900 - Right Hand 870-1170 890-1190

OFFSET QUADRANT (LEFT HAND) - SILVER (To suit left hand offset quadrant shower tray)

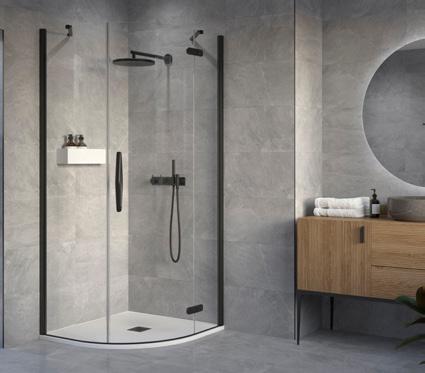

HINGED QUADRANT & OFFSET QUADRANT DOOR

FINISHES:

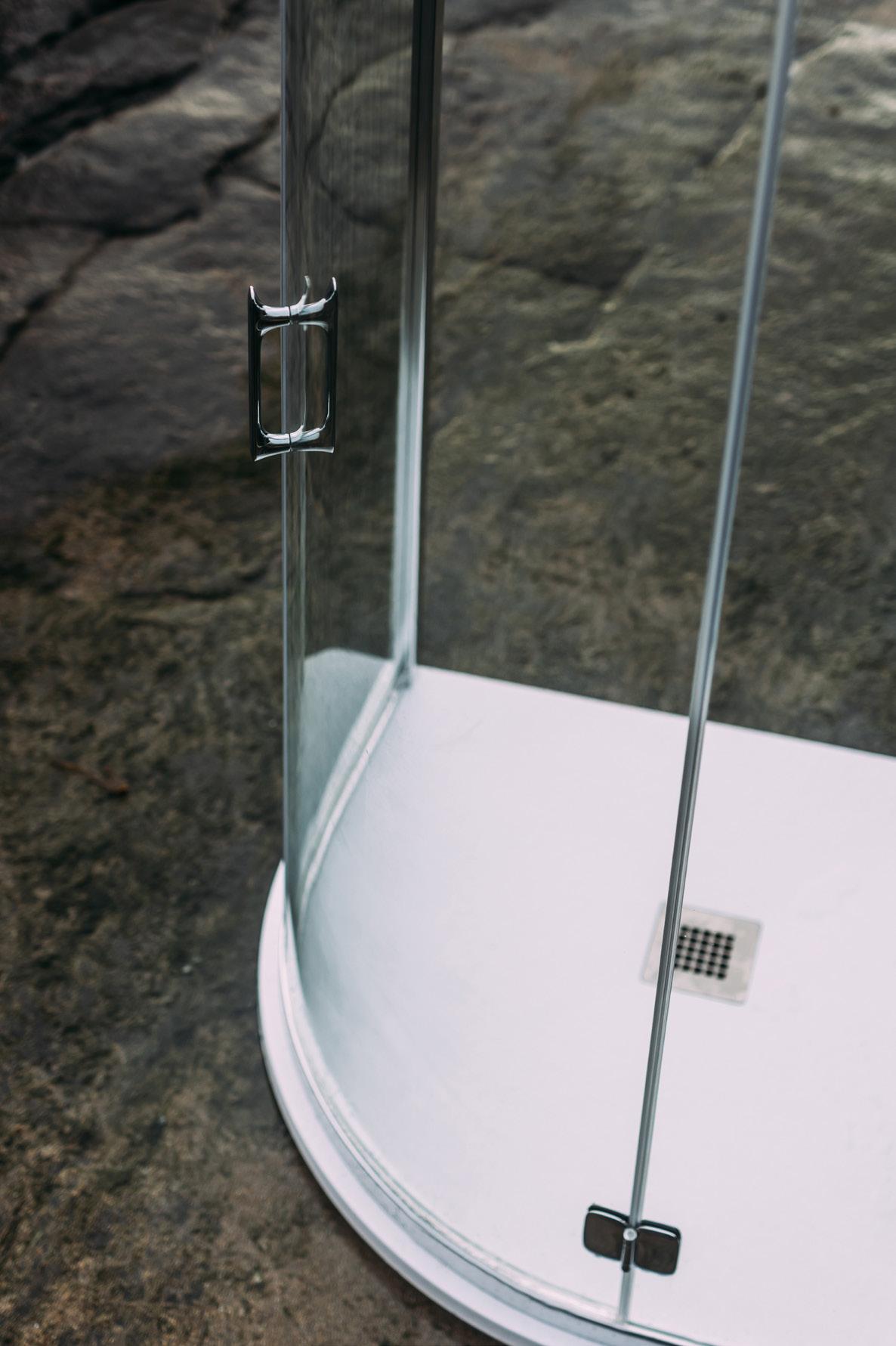

The ORO Hinged Quadrant exudes elegance with frameless curved glass, seamless stabilising bars, flush hinges for easy cleaning, and ultra-clear magnetic seals for a perfect close.

The ORO Offset Hinged Quadrant sets the standard in frameless design with curved glass, minimalist stabilising bars, flush hinges for easy cleaning, and ultra-clear magnetic seals for a perfect close.

x 900 - Right Hand 870-970 890-990

x 800 - Left Hand 770-1170

OROHQ90X100LSC*

OROHQ90X100RSC*

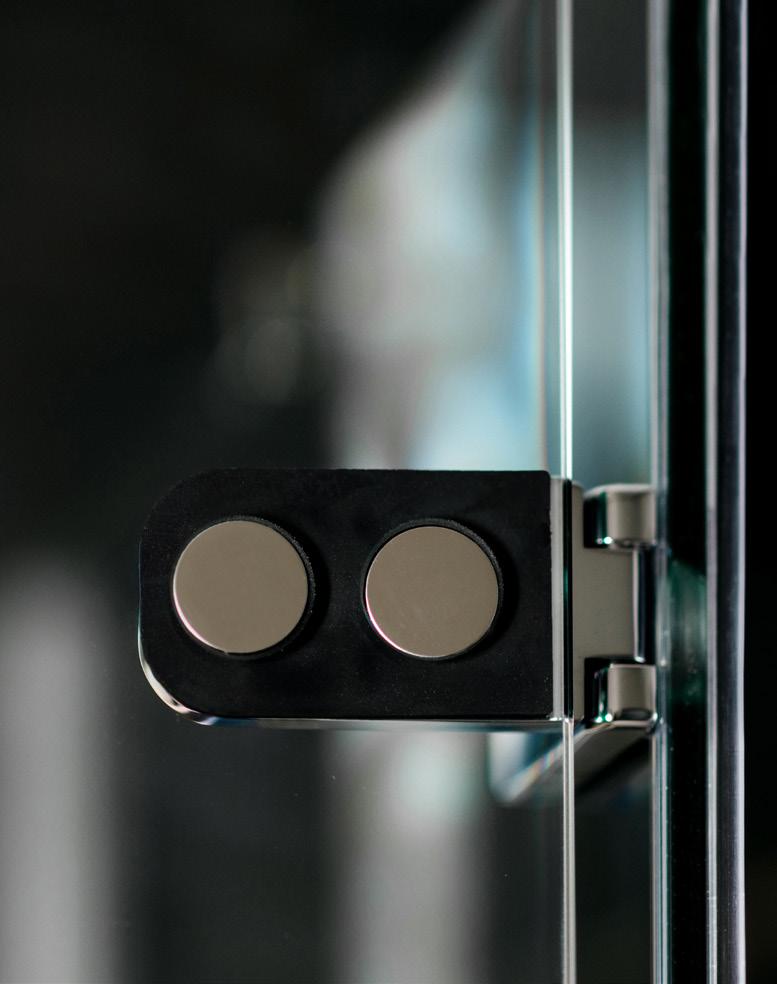

HINGE DOOR

FINISHES:

SILVER MATTE BLACK

The 8mm ORO Hinged Door is perfect for small spaces, with frameless curved detailing, concealed fixings, flush hinges for easy cleaning, and ultra-clear magnetic seals for a smooth, precise close.

SEMI FRAMED SIDE PANEL OPTIONS (Includes

INLINE PANEL TO SUIT HINGE DOOR

FINISHES:

The ORO hinge door with an inline panel offers a sleek, frameless design for alcove installation, combining elegance with flexible sizing.

INLINE PANEL OPTIONS

(No Stabilising Bar Required)

200 (No Stabilising Bar Required)

300 (450mm Stabilising Bar Included)

400 (450mm Stabilising Bar Included)

(450mm Stabilising Bar Included)

(450mm Stabilising Bar Included)

DOOR SIZE OPTIONS

BOTTOM BARRIER BAR –TO SUIT HINGE DOOR WITH INLINE PANEL APPLICATION

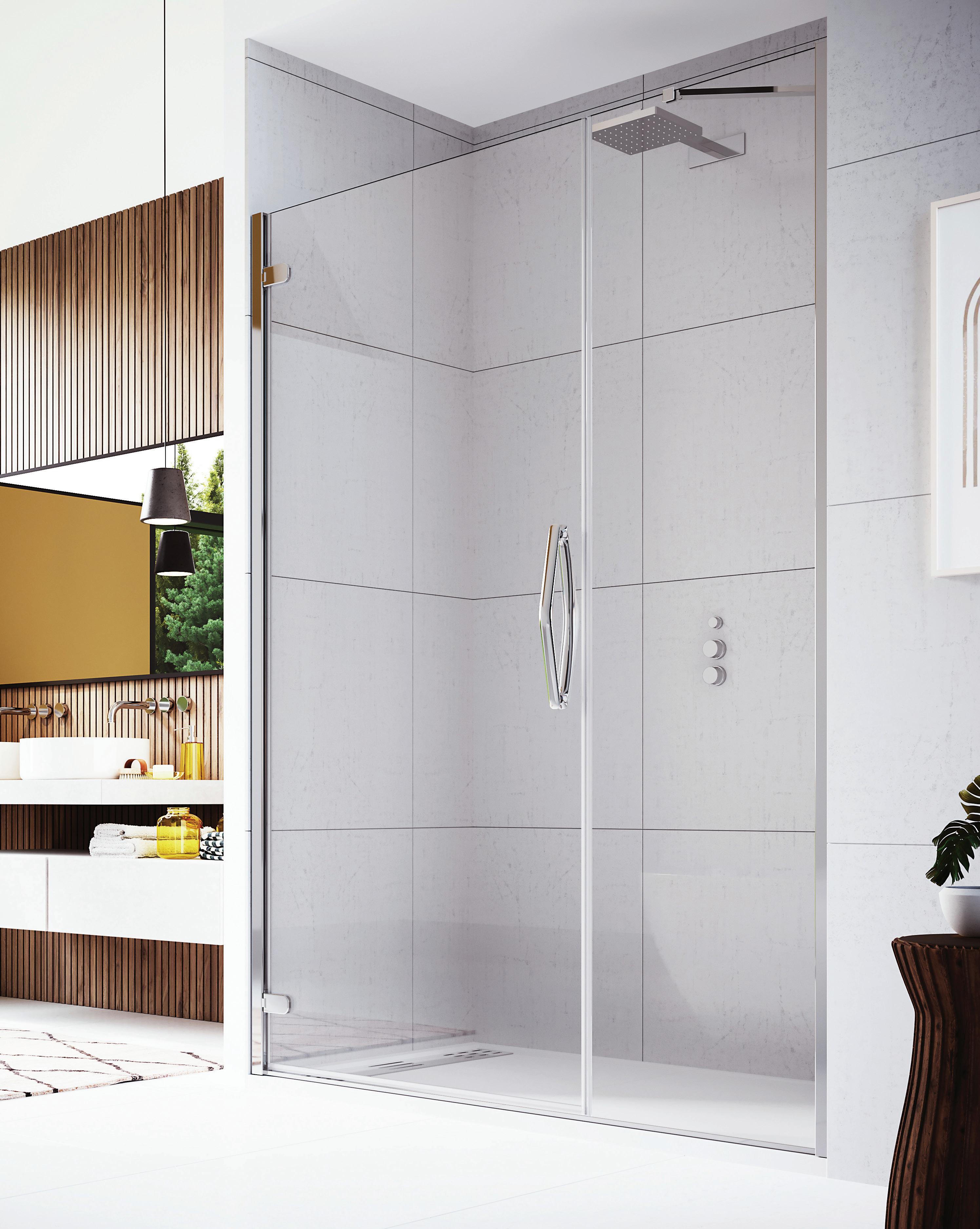

HINGE & INLINE DOOR

FINISHES:

SILVER MATTE BLACK

The ORO Hinge & Inline Door makes a bold statement with curved flush hinges, a sleek T-bar stabiliser, ultra-clear magnetic seals, and perfectly symmetrical chrome handles for effortless elegance.

DOOR SIZE OPTIONS

1100 - Left Hand 1060 1100 740

1100 - Right Hand 1060 1100 740

1200 - Left Hand 1160 1200 740

1200 - Right Hand 1160 1200 740

1400 - Left Hand 1360 1400 740

1400 - Right Hand 1360 1400 740

1600 - Left Hand* 1560 1600 740

1600 - Right Hand* 1560 1600 740

SEMI

OROHD110LSC

OROHD110RSC

OROHD120LSC

OROHD120RSC

OROHD140LSC

OROHD140RSC

OROHD160LSC*

OROHD160RSC*

FRAMED SIDE PANEL OPTIONS (Includes Corner Profile)

700 670 690 OROSP70SC

760 730 750 OROSP76SC

800 770 790

900 870 890 OROSP90SC

970 990

1170 1190

ACCESSORIES

OROHD120LBC

OROHD120RBC

INLINE PANEL TO SUIT HINGE & INLINE DOOR

FINISHES:

The ORO Hinge & Inline Door pairs frameless elegance with 8mm Clearvue-coated glass and flush hinges, offering a spacious feel and effortless cleaning without compromising functionality.

INLINE PANEL OPTIONS

100 (No Stabilising Bar Required)

200 (No Stabilising Bar Required)

300 (450mm Stabilising Bar Included)

400 (450mm Stabilising Bar Included)

500 (450mm Stabilising Bar Included)

600 (450mm Stabilising Bar Included)

BOTTOM BARRIER BAR –TO SUIT HINGE DOOR WITH

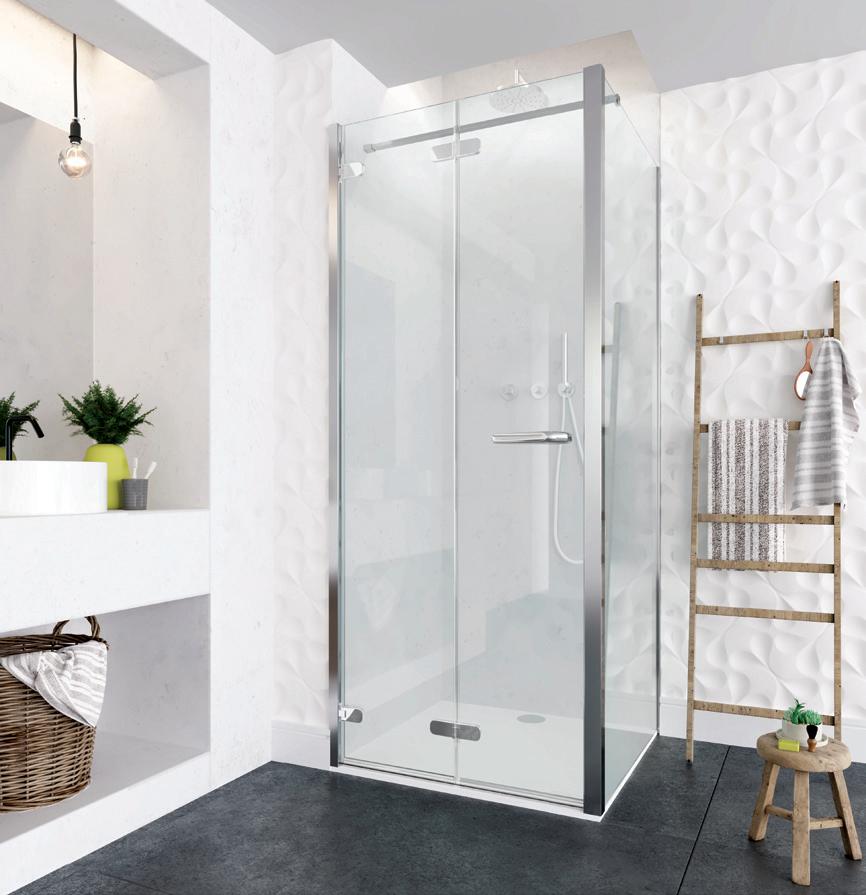

BIFOLD DOOR

FINISHES:

SILVER MATTE BLACK

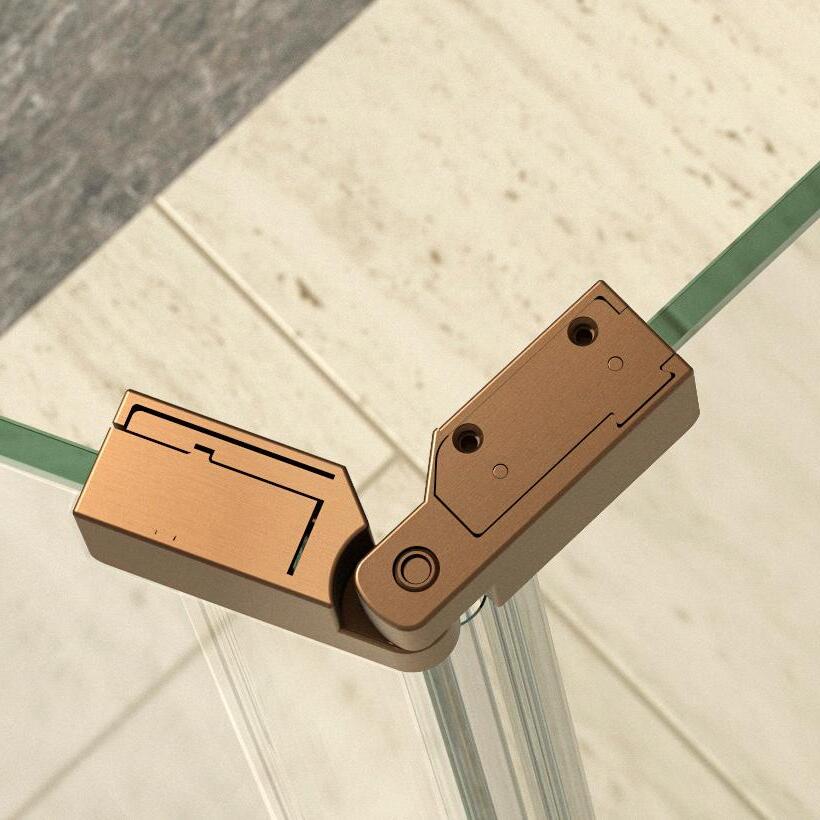

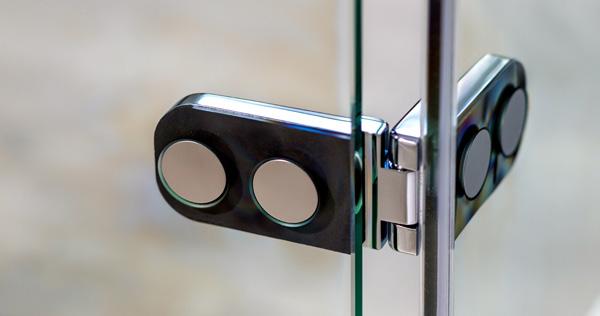

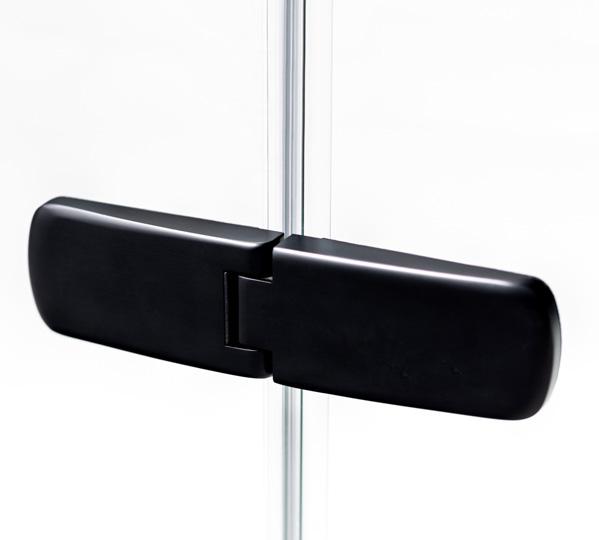

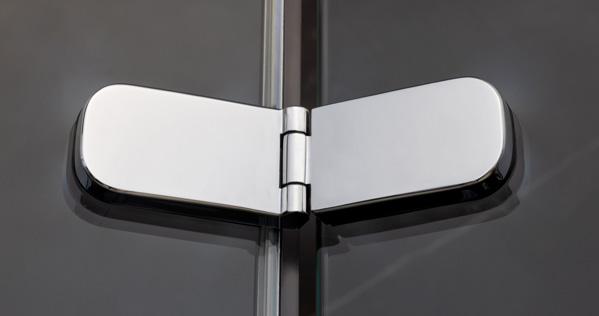

The ORO Bifold Door features an innovative 180˚ hinge for flexible inwards and outwards opening, self-stop action, and exceptional stability, all complemented by its signature handle design.

DOOR SIZE OPTIONS

SEMI FRAMED SIDE PANEL OPTIONS

(Includes Corner Profile)

ACCESSORIES

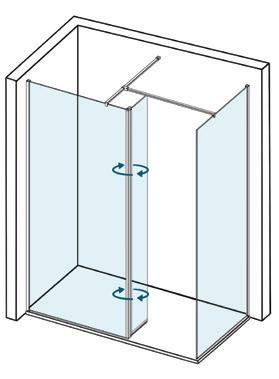

HINGE DOOR WITH ULTRA FRAMELESS CORNER SIDE PANEL

FINISHES:

The ORO Hinge Door and ultra-frameless corner side panel offer modular flexibility, sleek styling, and durable support with a minimalist chrome stabilising bar.

STEP 1 - SELECT SIZE OF ULTRA FRAMELESS CORNER SIDE PANEL

STEP 2 - SELECT SIZE OF DOOR

STEP 3 - CHOOSE CORNER INLINE PANEL KIT SIZE

HINGE AND INLINE DOOR

WITH ULTRA FRAMELESS

SIDE PANEL

FINISHES:

The ORO Hinge and Inline door with an ultra-frameless corner panel creates a bold style statement, ideal for spacious showers with durable, minimalist support.

BIFOLD DOOR WITH ULTRA FRAMELESS

CORNER SIDE PANEL

FINISHES:

SILVER MATTE BLACK

The ORO Bifold with an ultra-frameless corner panel offers versatile two-way opening, featuring a self-stop hinge and a raised stabilising bar for seamless functionality.

STEP 1 - SELECT SIZE OF ULTRA FRAMELESS CORNER SIDE PANEL

STEP 2 - SELECT SIZE OF DOOR

STEP 3 - CHOOSE CORNER INLINE PANEL KIT SIZE

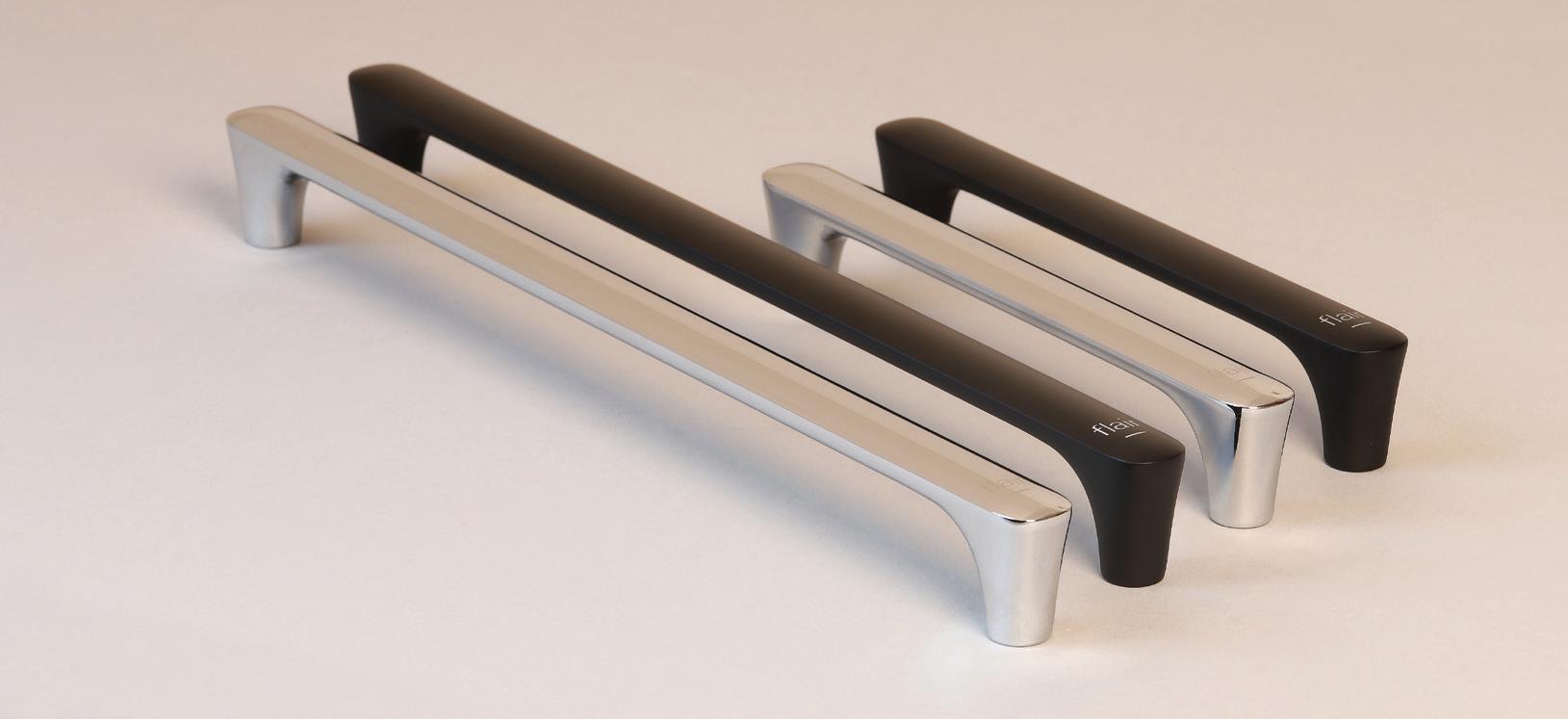

ALTERNATIVE HANDLES

FINISHES:

CHROME MATTE BLACK

An alternative choice of ORO handle design is available.

Created to deliver a sleek and contemporary aesthetic, these additional handle options are available in a Polished Chrome or Matte Black finish.

ORO Alternative Handle (Compatible with all ORO doors except bifold)

ORO Alternative Handle for Bifold

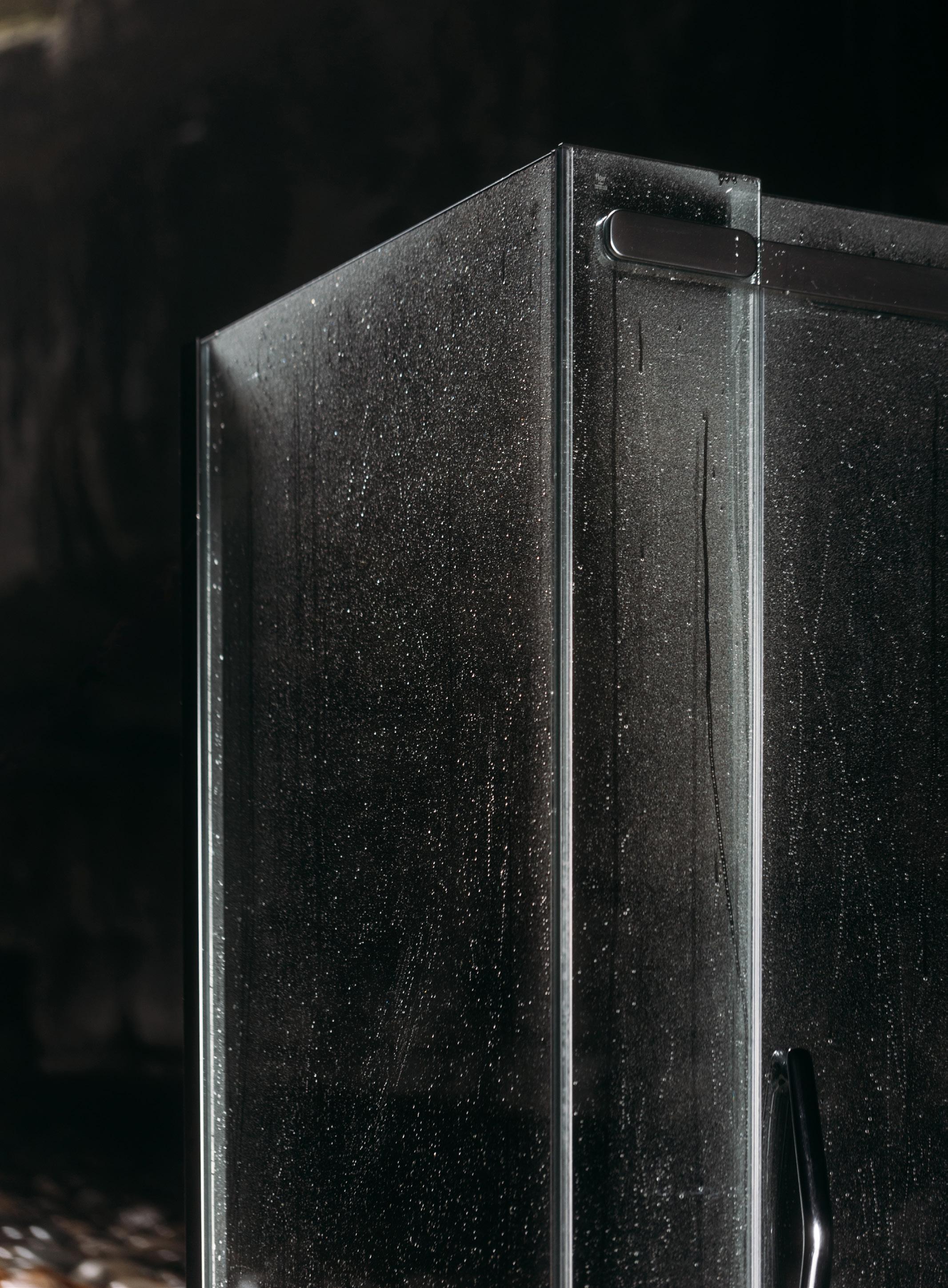

WATER RETENTION

For detailed information on water retention and recommended installation options, scan the QR code to access our Water Retention Guide.

DESIGN AWARD

Flair are proud to have received the Good Design Award accolade in recognition of the ETO shower door collection.

The Good Design Award is a seal of global design excellence and a testimony to our passion for product quality and innovation.

PATENTED CLICK FIT ASSEMBLY SYSTEM

This screw free assembly mechanism revolutionises the way ETO shower doors are fitted, reducing assembly time dramatically for installers.

EXPLORE ETO

THE ETO COLLECTION ®

Experience elegant practicality with ETO.

Crafted to seamlessly integrate into your daily routine, the ETO shower door collection combines robust design with clever functional innovations.

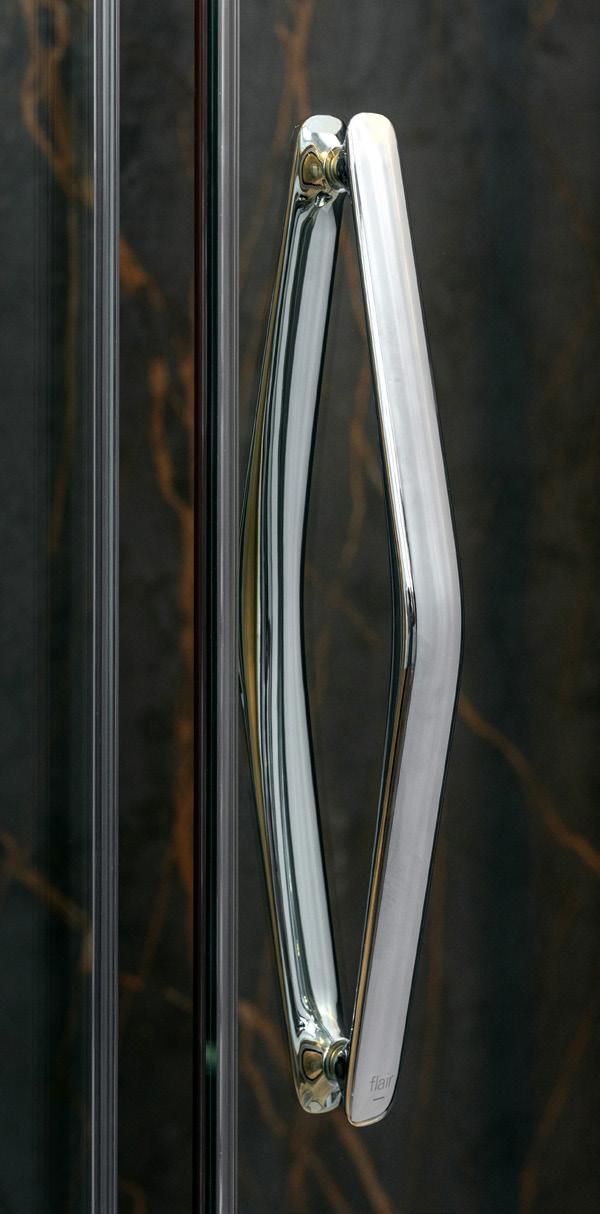

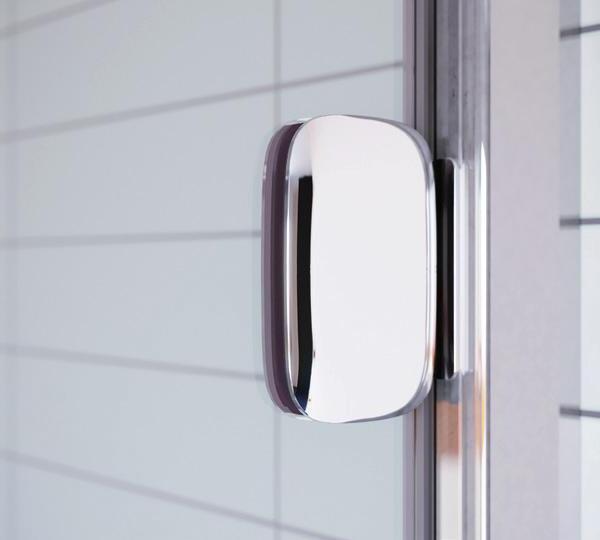

The uniquely shaped handle is beautifully precise and features a cleverly integrated towel hook. Softly curved hinges with a countersunk finish and a slim profile design create a refined shower door aesthetic.

The stylish yet functional simplicity of the ETO collection embodies Design with Purpose, a concept which lies at the heart of this collection.

FRAMED 8mm SHOWER ENCLOSURE COLLECTION

SILVER MATTE BLACK

GUNMETAL GREY

BRUSHED BRASS

BRUSHED NICKEL

BRUSHED BRONZE

FINISHES

FUNCTIONAL DETAILS

VISIONARY INNOVATIONS

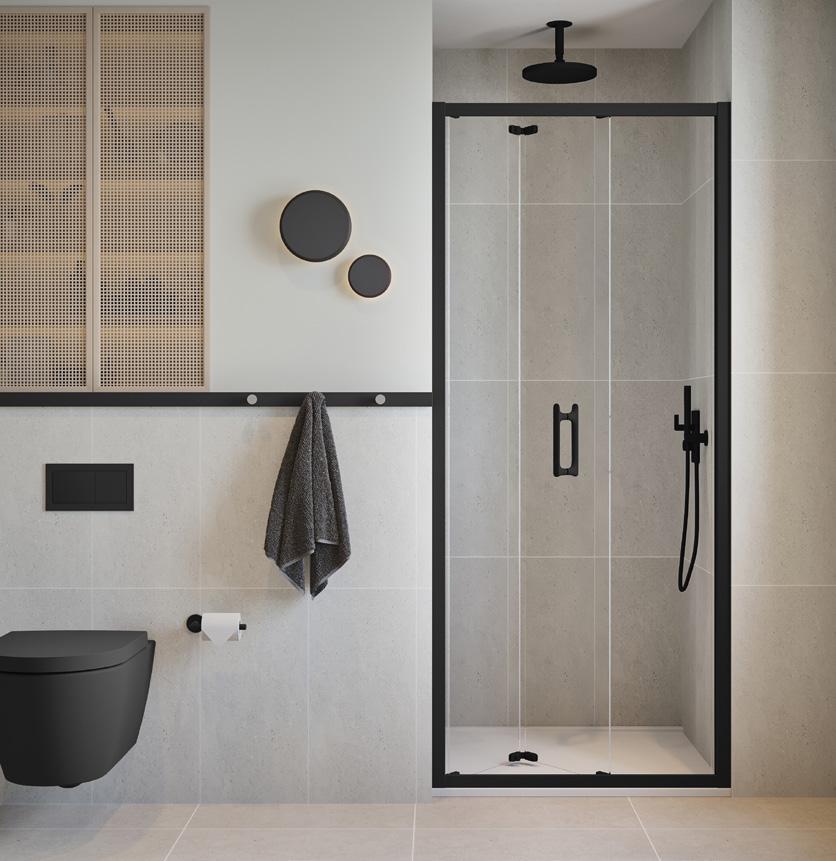

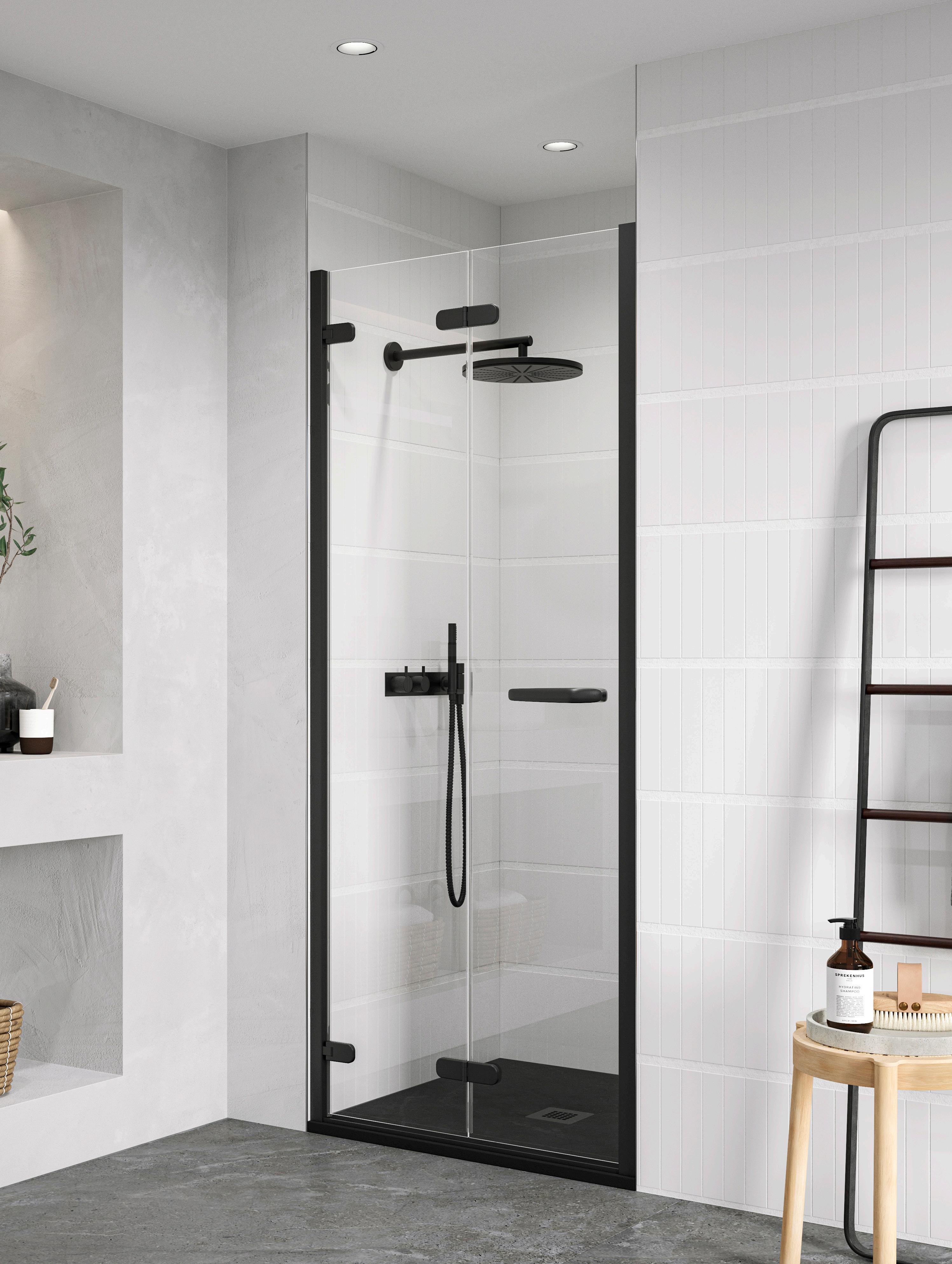

INFOLD DOOR

GUNMETAL GREY

The ETO Infold blends elegance with practicality, featuring a space-saving outward-opening design, smooth magnetic linkage for seamless glass edges, and 8mm toughened safety glass with ClearVue coating.

DOOR SIZE OPTIONS

FRAMED SIDE PANEL OPTIONS (Includes

ACCESSORIES

INFOLD DOOR

The ETO Infold blends elegance with practicality, featuring a space-saving outward-opening design, smooth magnetic linkage for seamless glass edges, and 8mm toughened safety glass with ClearVue coating.

DOOR SIZE OPTIONS

FRAMED SIDE PANEL OPTIONS (Includes Corner Profile)

ACCESSORIES

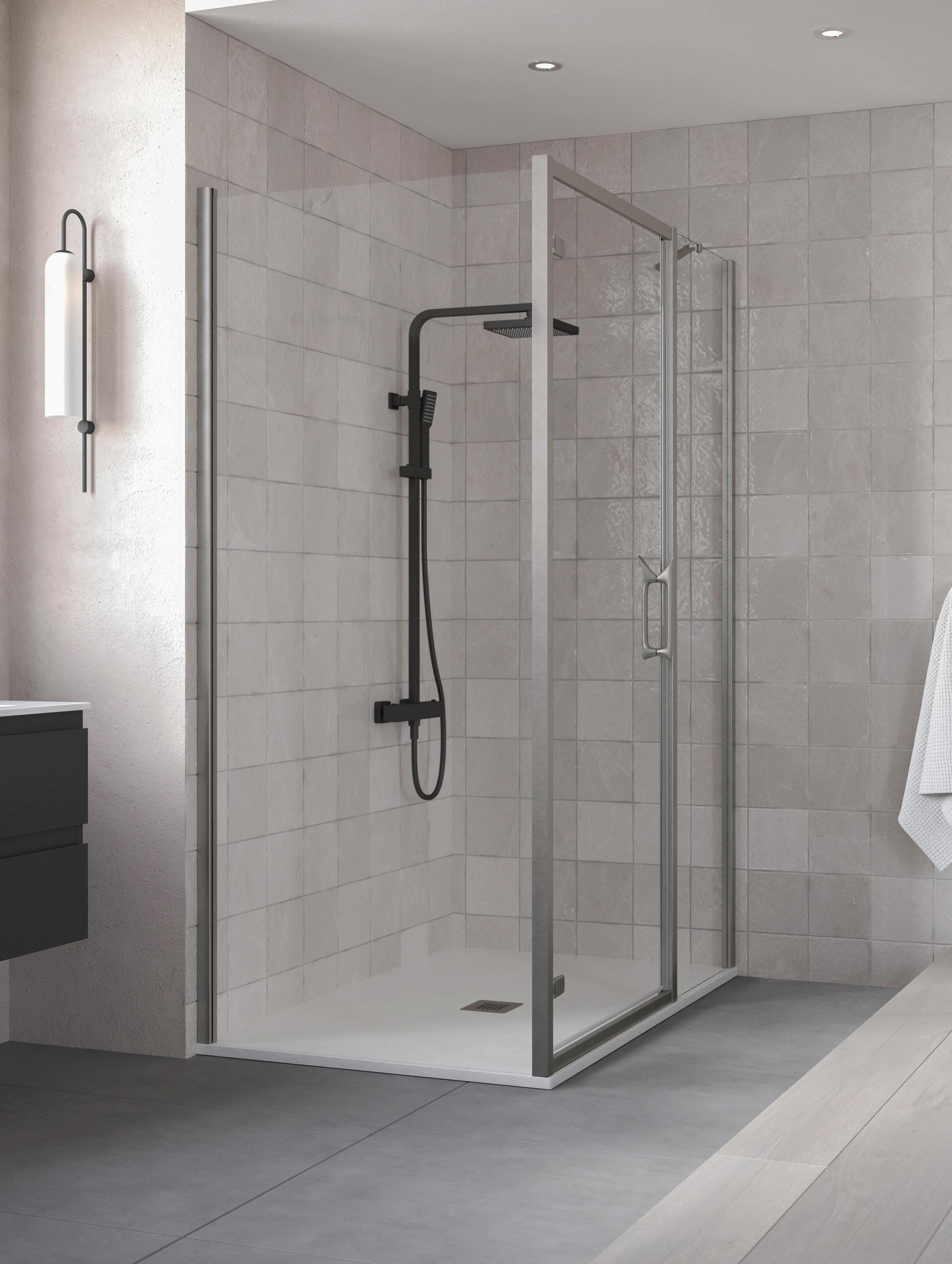

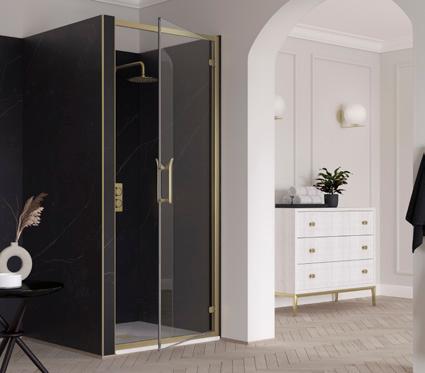

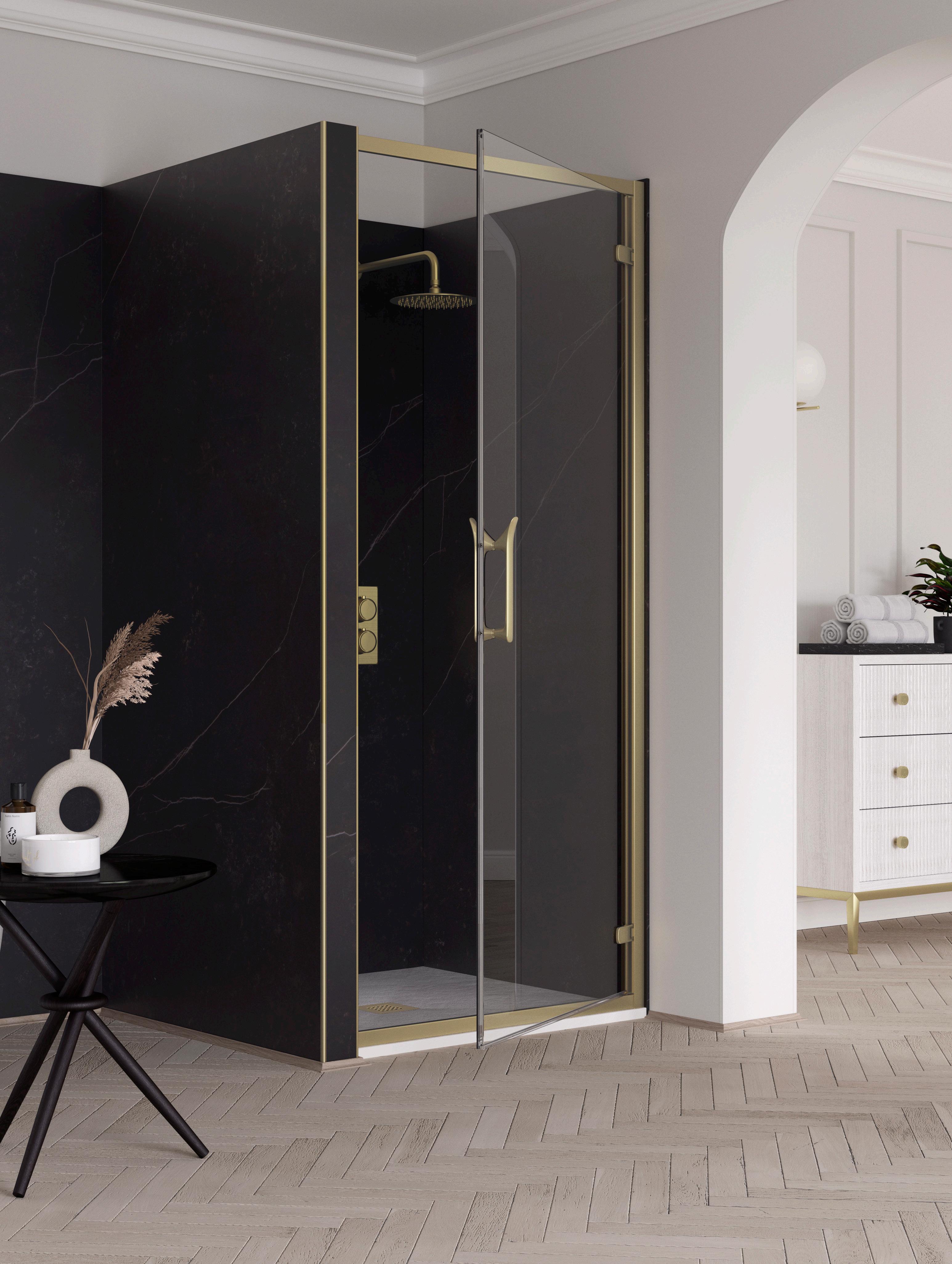

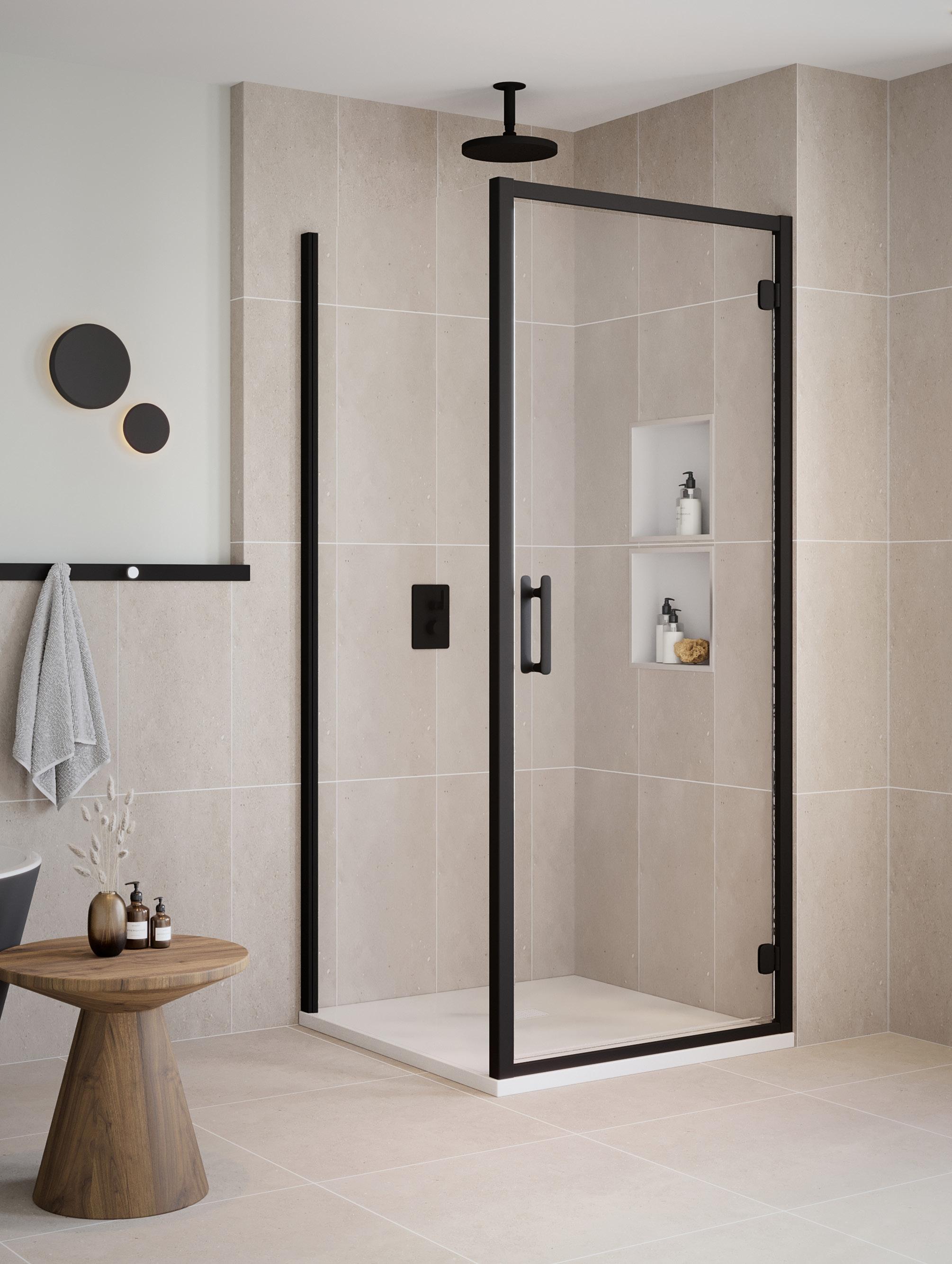

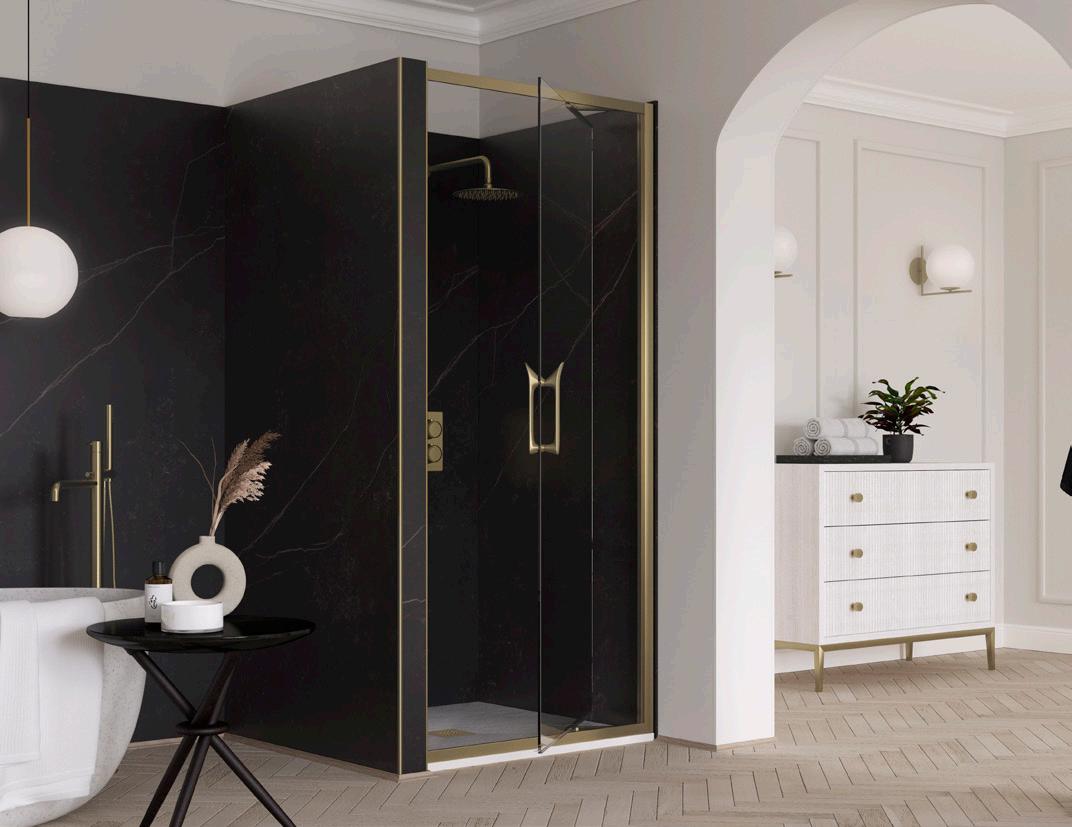

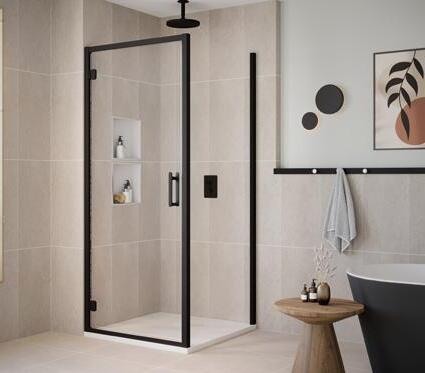

HINGE DOOR

The ETO Hinge door combines stylish simplicity with functionality, featuring flush-to-glass hinges for easy cleaning, 8mm ClearVue-coated safety glass, and versatile installation options.

DOOR SIZE OPTIONS

HINGE DOOR

The ETO Hinge door combines stylish simplicity with functionality, featuring flush-to-glass hinges for easy cleaning, 8mm ClearVue-coated safety glass, and versatile installation options.

DOOR SIZE OPTIONS

HINGE & INLINE DOOR

The ETO Hinge and Inline door is a luxurious choice for spacious bathrooms, featuring semi-framed profiles, a functional ETO handle with an integrated towel hook, and flush countersunk hinges for easy cleaning, all with ClearVue-coated glass.

HINGE & INLINE DOOR WITH SEMI FRAMED SIDE PANEL - SILVER

DOOR SIZE OPTIONS

ACCESSORIES

NOTE: An ETO Hinge & Inline Door installed with a side panel must be installed with the 10mm compensating profile supplied Hinge & Inline Door is also suitable to be installed with an Inline Panel - For size options, please see page 70.

HINGE & INLINE DOOR

The ETO Hinge and Inline door is a luxurious choice for spacious bathrooms, featuring semi-framed profiles, a functional ETO handle with an integrated towel hook, and flush countersunk hinges for easy cleaning, all with ClearVue-coated glass. FINISHES:

DOOR

HINGED DOOR CLOSING ONTO AN INLINE PANEL WITH SEMI-FRAMED SIDE PANEL - BRUSHED NICKEL

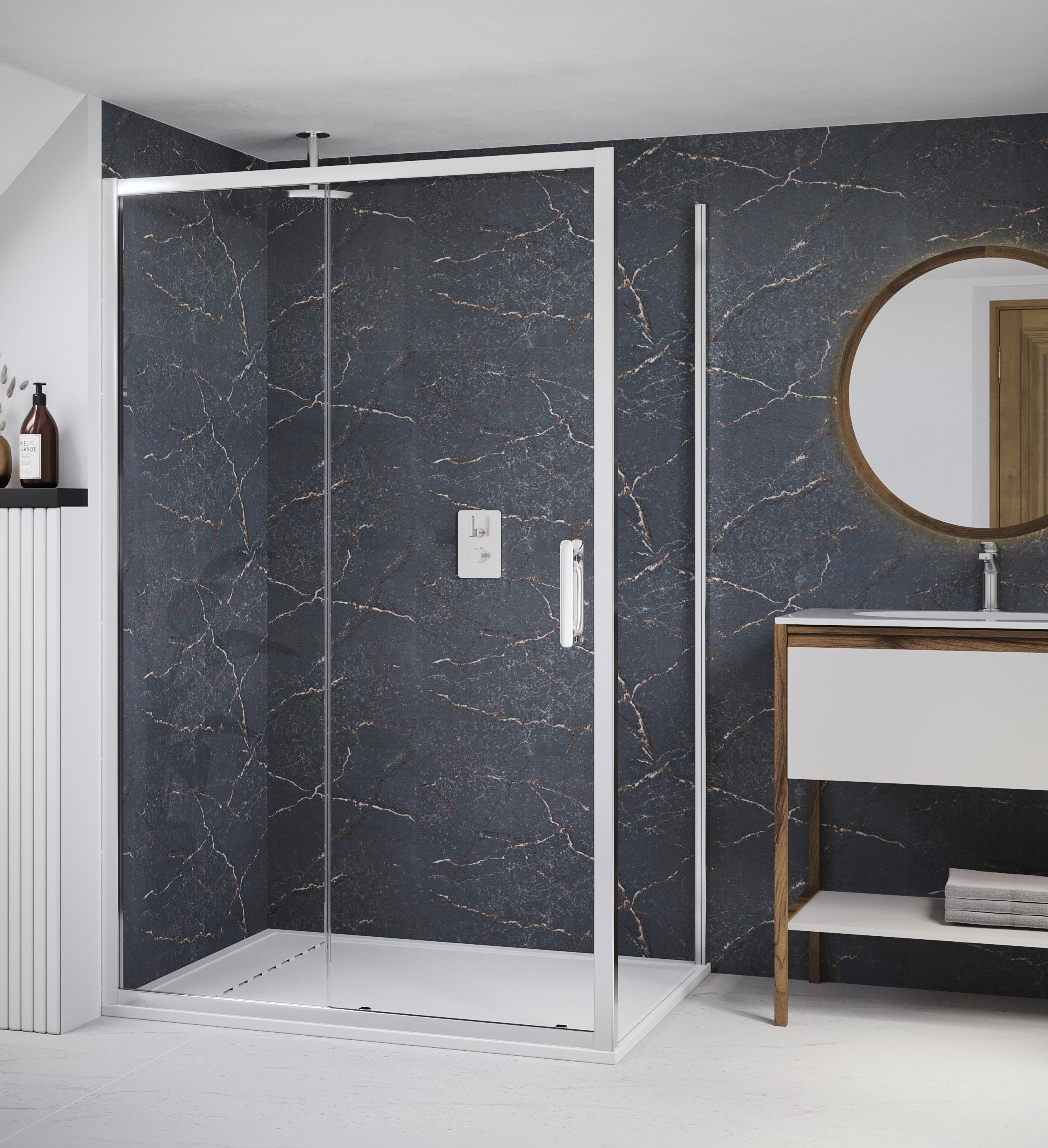

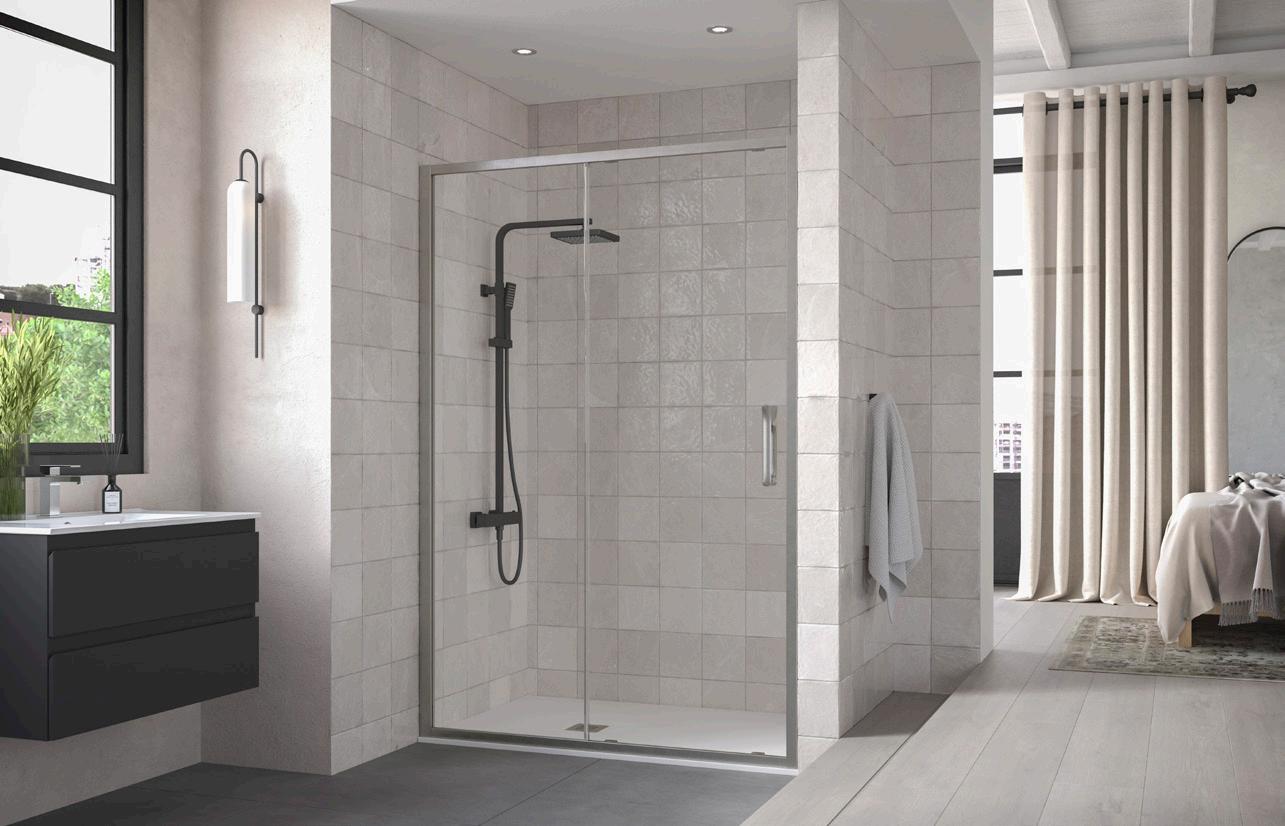

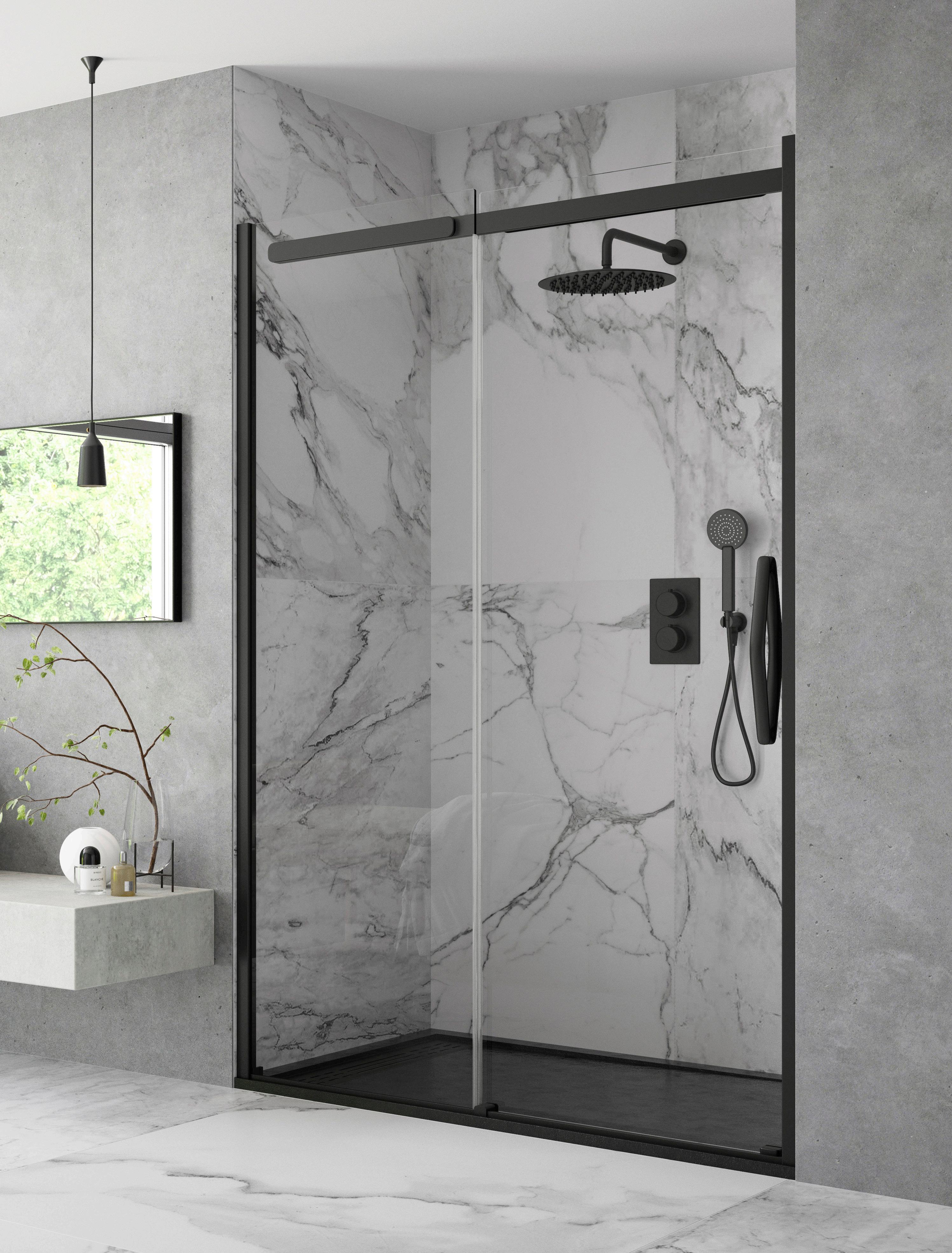

SLIDING DOOR

GUNMETAL GREY

The ETO Sliding Door combines minimalist profiles with durable 8mm toughened glass, smooth stainless steel wheel brackets, a magnetic cushion close, and a precisioncrafted handle with an integrated towel hook.

DOOR SIZE OPTIONS

1000 950 990

1050 1090

1150 1190 470 ETOSA120SC

ETOSA120GMC 1300 1250 1290 520 ETOSA130SC

1400 1350 1390 520 ETOSA140SC ETOSA140BC ETOSA140GMC 1500 1450 1490 570 ETOSA150SC

1550 1590

1650 1690

1750 1790

FRAMELESS SIDE PANELS OPTIONS* (Suitable only for Sliding Door)

700* 660 680 ETOFSP70SC* ETOFSP70BC*

760* 720 740

ETOFSP76SC*

ETOFSP76BC*

900* 860 880 ETOFSP90SC* ETOFSP90BC*

1200* 1160 1180 ETOFSP120SC* ETOFSP120BC*

SLIDING DOOR

The ETO Sliding Door combines minimalist profiles with durable 8mm toughened glass, smooth stainless steel wheel brackets, a magnetic cushion close, and a precision-crafted handle with an integrated towel hook.

DOOR SIZE OPTIONS

INLINE PANELS

FINISHES:

GUNMETAL

ETO Inline Panels provide flexible installation with various ETO door types, making them a versatile solution for a wide range of bathroom designs.

For Infold Door size options, please see pages 54-57.

For Hinge Door size options, please see pages 58-61.

For Hinge and Inline Door size options, please see pages 62-65.

For Sliding Door size options, please see pages 66-69.

INLINE PANEL OPTIONS

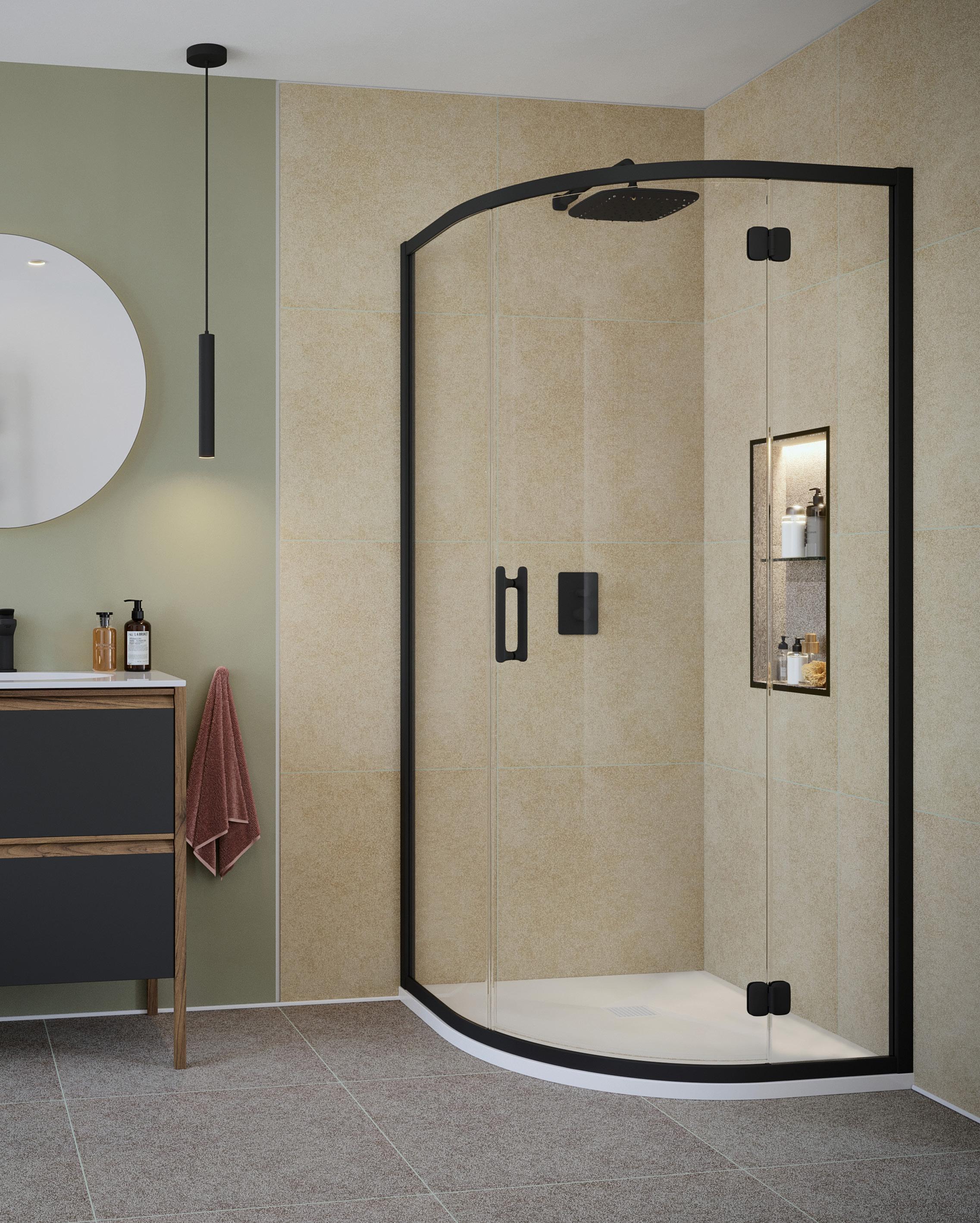

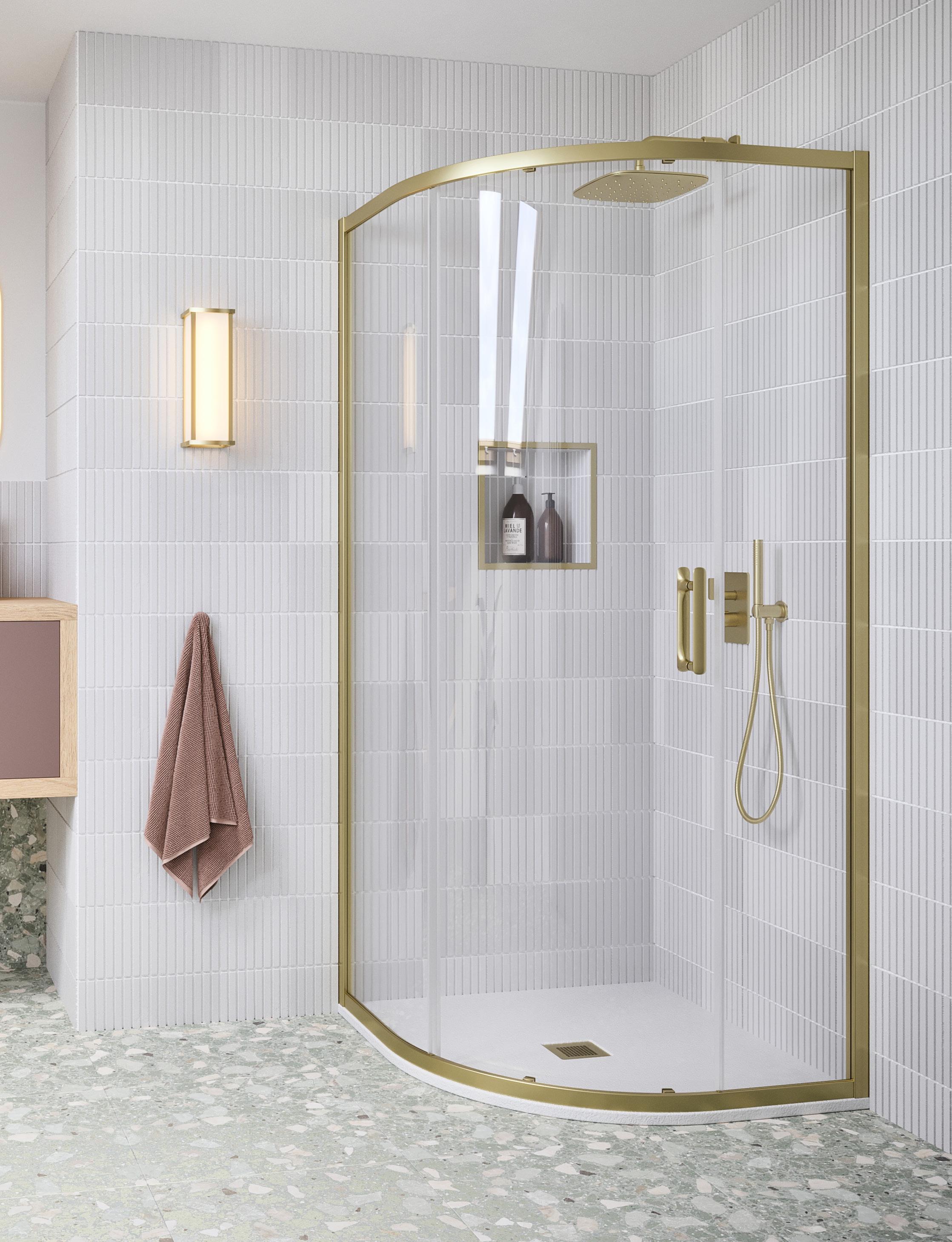

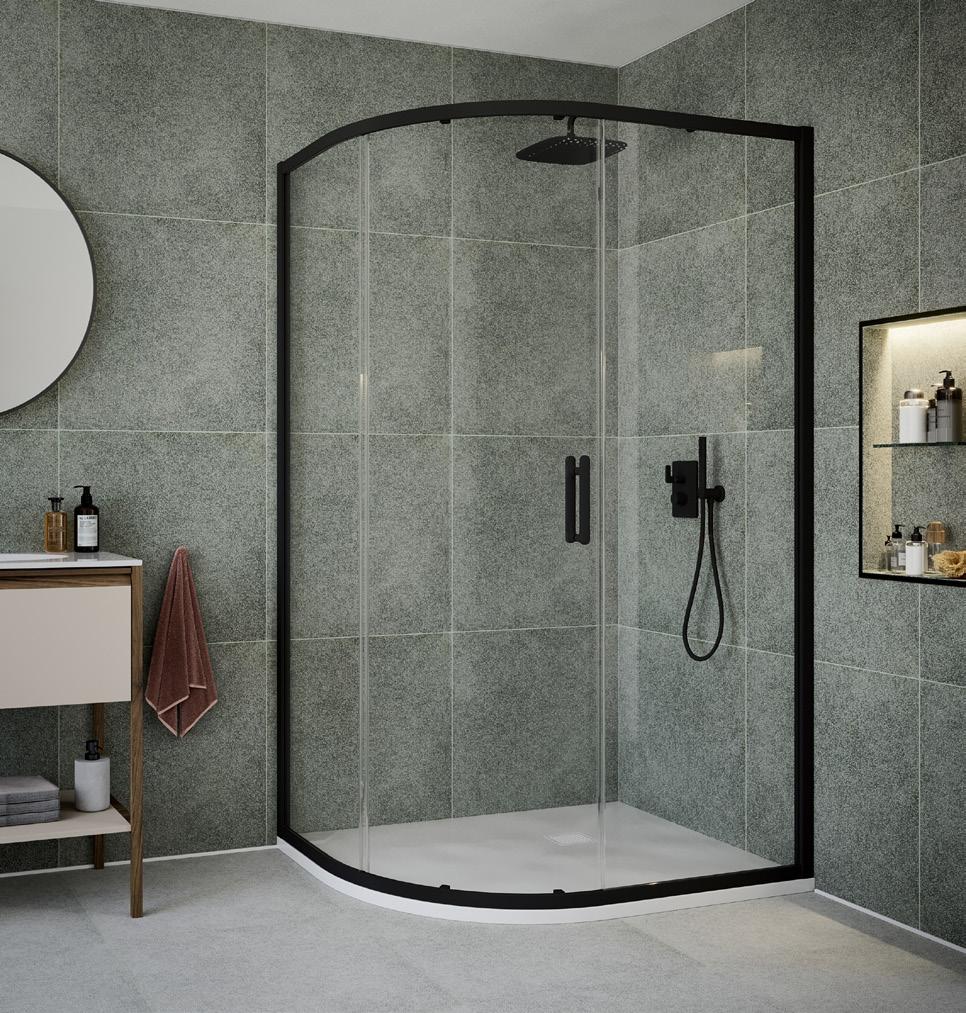

ONE DOOR QUADRANT & OFFSET QUADRANT

The ETO One Door Quadrant and Offset Quadrant maximises corner space with a smooth magnetic cushion close, durable stainless steel quick-release rollers, and 8mm ClearVue-coated glass. The central door opening ensures easy access while accommodating your bathroom layout.

ONE DOOR QUADRANT & OFFSET QUADRANT

The ETO One Door Quadrant and Offset Quadrant optimises corner space with a smooth magnetic cushion close, durable stainless steel quick-release rollers, and 8mm ClearVue-coated glass. Its centrally positioned door ensures easy access while accommodating your bathroom layout.

DOOR SIZE OPTIONS

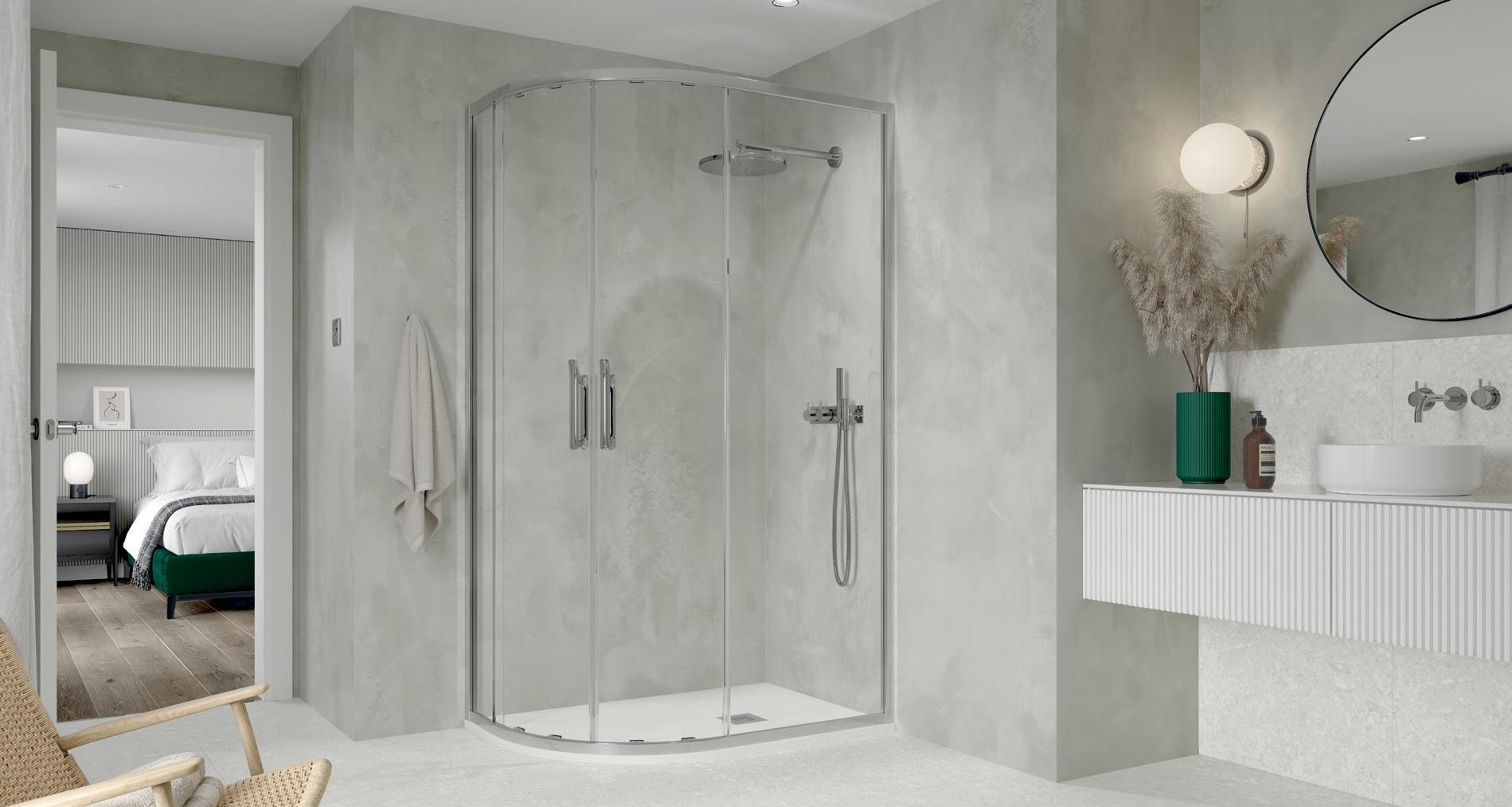

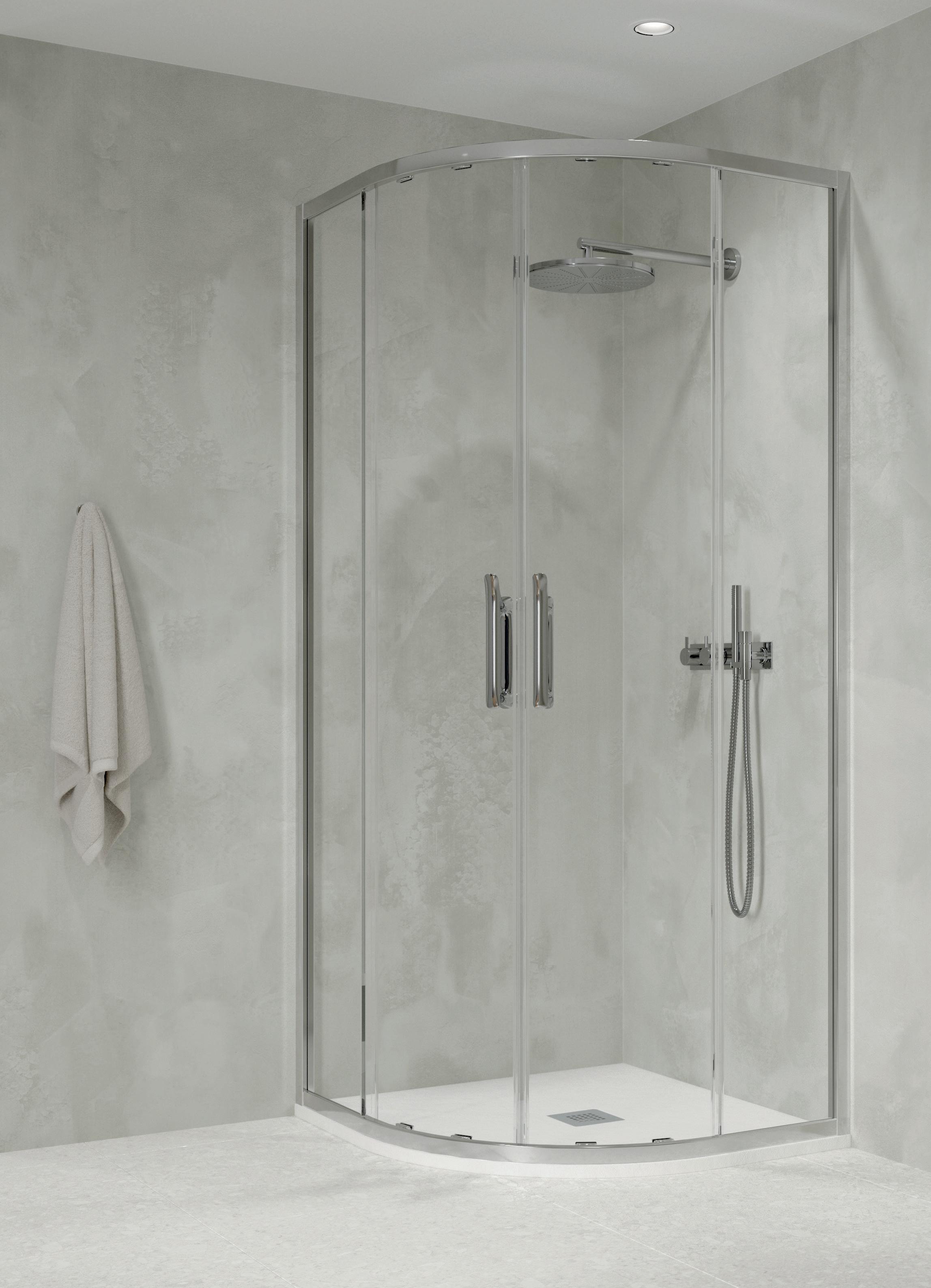

TWO DOOR QUADRANT & OFFSET QUADRANT

FINISH: SILVER

The Two Door Quadrant and Offset Quadrant offer contemporary elegance with smooth magnetic cushion close, 8mm ClearVue-coated glass, and durable quick-release double wheel rollers for lasting performance.

DOOR SIZE OPTIONS

NOTE: Dedicated

CORNER ENTRY

FINISH: SILVER

The ETO Corner Entry features a sleek semi-frameless design with space-saving corner sliding doors, flush-finish brackets, and quick-release double rollers for easy cleaning. The magnetic cushion close ensures a smooth stop, while superior magnetic seals provide a secure, watertight closure.

DOOR SIZE OPTIONS

ALTERNATIVE HANDLES

FINISHES:

CHROME MATTE BLACK

BRUSHED BRASS

An alternative choice of ETO handle design is available.

Created to deliver a sleek and contemporary aesthetic, these additional handle options are available in a Polished Chrome, Matte Black or Brushed Brass finish.

ACCESSORIES

PATENTED CLICK FIT ASSEMBLY SYSTEM

This screw free assembly mechanism revolutionises the way ILI shower doors are fitted, reducing assembly time dramatically for installers.

EXPLORE ILI

THE ILI COLLECTION ®

Embrace everyday adventure with ILI.

ILI is a fusion of original style and practical affordability. Crafted from 6mm glass, the unique handle features a cleverly integrated towel hook. The minimalist profiles and neatly curved hinges give simple, clean lines to the door aesthetic.

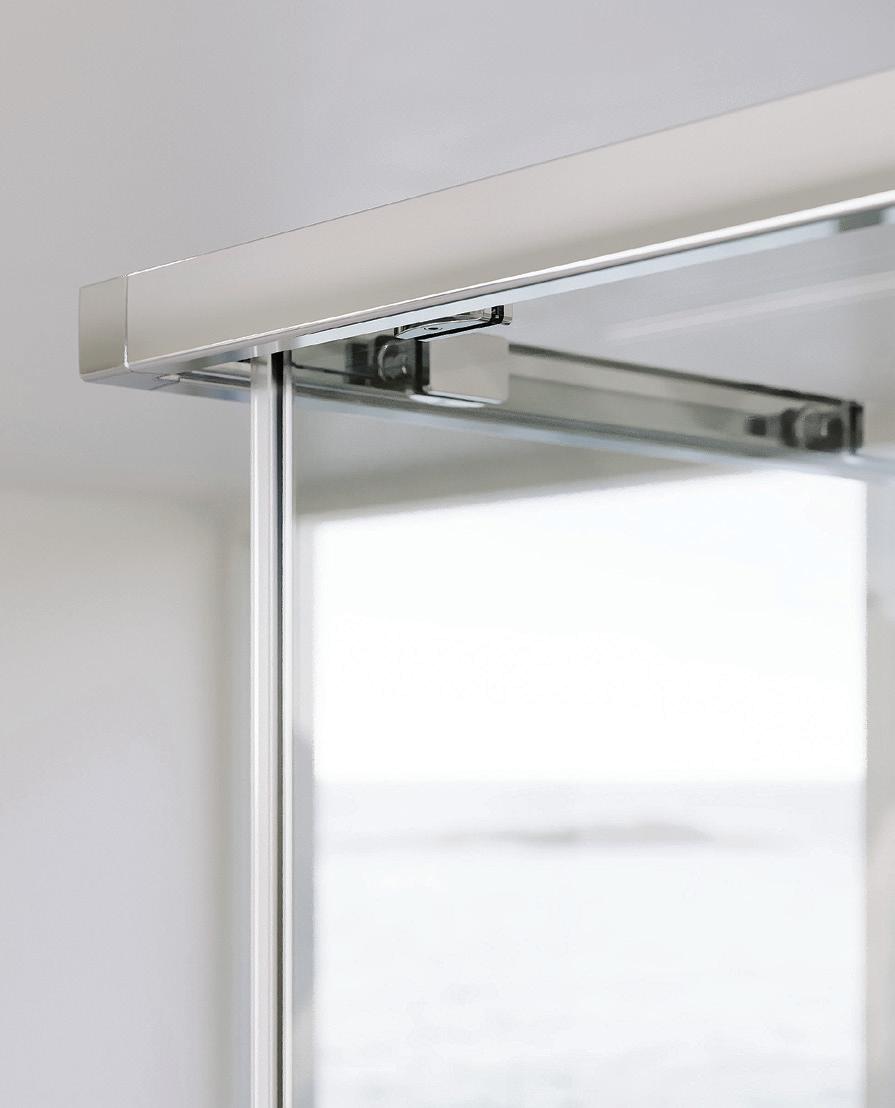

Each sliding door features a silent wheel track system while clearvue coating ensuring the shower door glass remains sparkling clean.

FRAMED 6mm SHOWER ENCLOSURE COLLECTION

90

92

94 SLIDING HINGE

96

98 BABY ILI COLLECTION

101 HINGED QUADRANT & OFFSET QUADRANT SLIDING QUADRANT & OFFSET QUADRANT

SILVER* MATTE BLACK BRUSHED BRASS

FINISHES

ILI available in Silver only, see page 100.

FUNCTIONAL DETAILS

VISIONARY INNOVATIONS

BIFOLD DOOR

FINISHES:

The space-saving ILI Bifold door is ideal for smaller bathrooms, featuring an inward-opening design, seamless magnetic hinge functionality, and a lifetime guarantee for peace of mind.

DOOR SIZE OPTIONS

SEMI FRAMED SIDE PANEL OPTIONS (Includes Corner Profile)

ACCESSORIES

SLIDING DOOR

FINISHES:

The ILI Sliding Door combines a silent wheel track system for smooth operation with ultra-slim profiles and 6mm toughened glass, offering a sleek design in eight size options.

DOOR SIZE OPTIONS

SEMI FRAMED SIDE PANEL OPTIONS

(Includes Corner Profile)

FRAMELESS

SIDE PANELS

(Suitable only for Sliding Door)

ACCESSORIES

HINGE DOOR

FINISHES:

SILVER MATTE BLACK

The ILI Hinge Door is perfect for compact spaces, featuring an outward-opening design, firm magnetic closure, ultra-clear bottom seal for water retention, and concealed hinges for a sleek finish inside and out.

DOOR SIZE OPTIONS

SEMI FRAMED SIDE PANEL OPTIONS (Includes Corner Profile)

ACCESSORIES

ONE DOOR SLIDING QUADRANT & OFFSET QUADRANT

FINISHES:

The ILI One Door Quadrant and Offset Quadrant maximises corner shower space with a smooth silent wheel mechanism, quick-release stainless steel rollers for easy cleaning, and ClearVue-coated glass to resist grime and limescale.

DOOR SIZE OPTIONS

HINGED QUADRANT & HINGED OFFSET QUADRANT

FINISHES:

The Hinged Quadrant and Hinged Offset Quadrant offer a unique corner shower solution, featuring vertical magnetic seals for a secure close, concealed fixings for a sleek interior, and ClearVue-coated 6mm glass for easy cleaning.

DOOR SIZE OPTIONS

PATENTED CLICK FIT ASSEMBLY SYSTEM

This screw free assembly mechanism revolutionises the way ILI shower doors are fitted, reducing assembly time dramatically for installers.

EXPLORE ILI

THE BABY ILI COLLECTION ®

Born out of the ingenuity of the ILI collection, BABY ILI is a reduced height offering that is the perfect fit where ceiling height is restricted.

At 1800mm high, Baby ILI fits seamlessly under low ceilings. An ideal solution for attic or loft style bathrooms.

FRAMED 6mm, 1800mm HIGH SHOWER ENCLOSURE COLLECTION

BABY ILI

1800mm HEIGHT ON ALL BABY ILI SHOWER DOORS

HINGE DOOR – SIZE OPTIONS

BABY ILI

1800mm HEIGHT ON ALL BABY ILI SHOWER DOORS

FINISHES:

BIFOLD DOOR – SIZE OPTIONS

700 650 700 472

ILI180BF70SC

800 750 800 512 ILI180BF80SC

900 850 900 571 ILI180BF90SC 1000 950 1000 671 ILI180BF100SC

SEMI

FRAMED SIDE PANEL (INCLUDES CORNER PROFILE) – SIZE OPTIONS

700 665 690 ILI180SP70SC

800 765 790 ILI180SP80SC

900 865 890 ILI180SP90SC 1000 965 990 ILI180SP100SC

ONE

DOOR SLIDING QUADRANT – SIZE OPTIONS

800 770 795 436 ILI180COQ80SC

900 870 895 485 ILI180COQ90SC

BIFOLD - DOOR OPEN POSITION MEASUREMENTS

BIFOLD DOOR WITH SEMI FRAMED SIDE PANEL CRAFTED ILI HANDLE WITH INTEGRATED ROBE HOOK FEATURE

Flair are proud to have received the Good Design Award accolade in recognition of the AYO wetroom collection.

The Good Design Award is a seal of global design excellence and a testimony to our passion for product quality and innovation.

DESIGN AWARD EXPLORE

AYO

THE AYO COLLECTION ®

The AYO modular wetroom collection is crafted to create a truly personal shower experience.

Standing tall at a height of 2 metres, AYO comes in 8mm and 10mm glass which is treated with a hydrophobic coating that resists the build up of grime and lime scale.

With an abundance of configurations and fixture innovations such as recessed channels, fixed and rotating panels, ultra-clear seals and stylish stabilising bar options, makes this a truly versatile modular wetroom system. AYO boasts 3 glass options - clear, fluted and opaque.

Now available in 9 high quality colour finishes, AYO will pair perfectly with other signature elements in any bathroom.

MODULAR WETROOM COLLECTION

8mm & 10mm

ENHANCE YOUR SHOWERING EXPERIENCE EVERYDAY. FIND YOUR AYO

CHOOSE YOUR AYO YOUR WAY

116

8mm CLEAR, FLUTED & OPAQUE GLASS COLLECTION

118

8mm BABY AYO 1800mm HIGH COLLECTION

129

8mm FRAMED BLACK COLLECTION

132

10mm WETROOM COLLECTION

138

146 8mm BATHSCREENS

162 mODULAR

SILVER STAINLESS STEEL*

WHITE MATTE BLACK BRUSHED BRASS POLISHED GOLD

MATTE NICKEL BRUSHED NICKEL COUNTRY BRONZE

FINISHES PVD

EXPLORE AYO

PERSONALISE YOUR SHOWERING SPACE

Choose your finish. Choose your glass. Make it yours.

AYO SILVER & MATTE BLACK - 8mm or 10mm

AYO COLOUR - 8mm or 10mm

AYO FLUTED - 8mm

AYO FRAMED - 8mm (Clear & Fluted Glass)

PVD Finish –Built to Last, Made to Endure

PVD (Physical Vapour Deposition) offers a premium finish that’s not only beautiful but engineered for long-term performance.

– Highly Resilient – Fade & Wear Resistant

Long-Lasting Colour

Timeless Aesthetic

CHOOSE YOUR AYO YOUR WAY ®

FIND YOUR PERFECT AYO WETROOM

AYO WETROOMS

(FROM PAGE 118 (8mm) OR PAGE 140 (10mm)

Discover our three most popular wetroom configurations - designed to make choosing and ordering quick and easy.

AYO MODULAR

(FROM PAGE 146)

A step-by-step process that will help bring your dream shower space to life and is tailored to create a unique shower enclosure design that suits your style. Choose from a variety of materials, colours and finishes to create the perfect ambiance.

AYO SINGLE WETROOM PANEL

A classic and simple option. Ideal for minimalist, modern wetrooms.

AYO WETROOM PANEL WITH ROTATING PANEL

Looking for extra splash protection?

A stylish solution that maintains an open, flexible showering space.

Start by picking your front panel size on page 120 (for 8mm glass) or page 140 (for 10mm glass), then select your rotating panel.

Note - All rotating panels can be retro fitted.

FOR A CORNER SPACE

AYO CORNER WETROOM

Creating a corner shower?

Designed to maximise space and minimise splash.

Pick two panels in your required sizes.

For an optional rotating panel, see page 122 (for 8mm glass) or page 142 (for 10mm glass).

Pick three panels in your required size for a straight space.

FOR A CORNER SPACE

AYO 8mm CLEAR, FLUTED & OPAQUE GLASS COLLECTION ®

Designed for style-conscious spaces, AYO offers wetroom panel configurations in clear, fluted, and opaque glass.

Each setup includes a premium glass panel, a 15mm wall profile, and a stabilising bar, making it easy to achieve a sleek, minimalist shower space that blends functionality with contemporary design.

WETROOM

8mm CLEAR GLASS ®

FINISHES:

SILVER MATTE BLACK

MATTE NICKEL

COUNTRY BRONZE

BRUSHED BRASS

BRUSHED NICKEL

Straight Stabilising Bar** WHITE*

Includes an 8mm clear glass panel, a 15mm wall profile and a suitable stabilising bar solution.

AYO – 8mm WETROOM

300 AYO8MWR30SC AYO8MWR30BC

400 AYO8MWR40SC AYO8MWR40BC

450 AYO8MWR45SC AYO8MWR45BC

AYO8MWR45-CBRB

500 AYO8MWR50SC AYO8MWR50BC AYO8MWR50-CBRB

600 AYO8MWR60SC AYO8MWR60BC AYO8MWR60-CBRB

700 AYO8MWR70SC AYO8MWR70BC AYO8MWR70-CBRB

760 AYO8MWR76SC AYO8MWR76BC AYO8MWR76-CBRB

800 AYO8MWR80SC AYO8MWR80BC AYO8MWR80-CBRB

900 AYO8MWR90SC AYO8MWR90BC AYO8MWR90-CBRB

1000 AYO8MWR100SC AYO8MWR100BC AYO8MWR100-CBRB

1100 AYO8MWR110SC AYO8MWR110BC AYO8MWR110-CBRB

1200 AYO8MWR120SC AYO8MWR120BC AYO8MWR120-CBRB

1400 AYO8MWR140SC AYO8MWR140BC AYO8MWR140-CBRB

1500 AYO8MWR150SC AYO8MWR150BC AYO8MWR150-CBRB

1600 AYO8MWR160SC AYO8MWR160BC AYO8MWR160-CBRB

1200mm Straight Stabilising Bar included with wetrooms 700mm and over. 350mm Angled Stabilising Bar included with 300 & 400mm wetrooms. 650mm Angled Stabilising Bar included with 450, 500 & 600mm wetrooms.

Angled Stabilising Bar*

AYO – 8mm WETROOM

450

500

600

700 AYO8MWR70-CBRMN

760

800 AYO8MWR80-CBRMN

900 AYO8MWR90-CBRMN

1000 AYO8MWR100-CBRMN

1100 AYO8MWR110-CBRMN

1200 AYO8MWR120-CBRMN

1400 AYO8MWR140-CBRMN

1500

1600

700* AYO8MWR70WC*

800* AYO8MWR80WC*

900* AYO8MWR90WC*

AYO8MWR100WC* 1100* AYO8MWR110WC* 1200* AYO8MWR120WC*

AYO8MWR140WC*

AYO8MWR70-CBRN

AYO8MWR80-CBRN

AYO8MWR90-CBRN

AYO8MWR100-CBRN

AYO8MWR110-CBRN

AYO8MWR120-CBRN

AYO8MWR140-CBRN

AYO8MWR45-CCTRYBRZ

AYO8MWR50-CCTRYBRZ

AYO8MWR60-CCTRYBRZ

AYO8MWR70-CCTRYBRZ

AYO8MWR76-CCTRYBRZ

AYO8MWR80-CCTRYBRZ

AYO8MWR90-CCTRYBRZ

AYO8MWR100-CCTRYBRZ

AYO8MWR110-CCTRYBRZ

AYO8MWR120-CCTRYBRZ

AYO8MWR140-CCTRYBRZ

AYO8MWR150-CCTRYBRZ

AYO8MWR160-CCTRYBRZ

ROTATING PANEL

8mm CLEAR GLASS

FINISHES: SILVER MATTE BLACK BRUSHED NICKEL

MATTE NICKEL

COUNTRY BRONZE BRUSHED BRASS WHITE*

Rotating panels help reduce water spray while keeping your space open.

Rotating Panel: Swings in and out for flexible access.

Hinge Rotating Panel: Opens in one direction, ideal for more defined spaces.

Note: Please order your front wetroom panel in the required size from page 120.

HINGE ROTATING PANEL

AYO – 8mm ROTATING PANELS - RISE & FALL HINGE MECHANISM**

**Rotating Panels can be retrofitted.

ROTATING PANELMATTE BLACK RISE & FALL ROTATING PANEL

*Discontinued once stock is sold.

CLEARGLASS

AYO – 8mm HINGE ROTATING PANELS

450 AYO8HRP45SSC

AYO – 8mm PLATED FINISH - HANDED HINGE ROTATING PANELS

300 – Right Hand

450 – Right Hand

500 – Right Hand

300 – Left Hand

450 – Left Hand

500 – Left Hand

AYO8HRPR30SC

AYO8HRPR45SC

AYO8HRPR50SC

AYO8HRPL30SC

AYO8HRPL45SC

AYO8HRPL50SC

AYO8HRPR30BC

AYO8HRPR45BC

AYO8HRPR50BC

AYO8HRPL30BC

AYO8HRPL45BC

AYO8HRPL50BC

AYO CORNER WETROOM

8mm CLEAR GLASS

FINISHES: SILVER MATTE BLACK BRUSHED NICKEL

MATTE NICKEL

COUNTRY BRONZE BRUSHED BRASS WHITE*

Note: Order your front panel in the size you need from page 120. This page 124, shows some of our most popular sizes for corner configurations, but any size can be used to create your ideal layout.

Start by choosing your front wetroom panel from page 120, then select your side panel size from the options below. You must also order a T-Piece to complete the corner installation.

Create a spacious, stylish corner wetroom with a sleek two-panel layout supported by stainless steel stabilising bars. Add a matching T-piece for enhanced stability and a seamless, modern finish.

AYO – 8mm CORNER WETROOMS

700 AYO8MWR70SC

760 AYO8MWR76SC

800 AYO8MWR80SC

900 AYO8MWR90SC

AYO8MWR70BC

AYO8MWR76BC

AYO8MWR80BC

AYO8MWR90BC

AYO8MWR70-CBRB

AYO8MWR76-CBRB

AYO8MWR80-CBRB

AYO8MWR90-CBRB

700 AYO8MWR70-CBRMN

760

800 AYO8MWR80-CBRMN

900 AYO8MWR90-CBRMN

SIZE CODE (mm) WHITE*

700* AYO8MWR70WC*

800* AYO8MWR80WC*

900* AYO8MWR90WC*

*Discontinued once stock is sold.

Choose your optional rotating panel from page 122.

AYO8MWR70-CBRN

AYO8MWR80-CBRN

AYO8MWR90-CBRN

AYO8MWR70-CCTRYBRZ

AYO8MWR76-CCTRYBRZ

AYO8MWR80-CCTRYBRZ

AYO8MWR90-CCTRYBRZ

STRAIGHT WETROOM WITH T-PIECE - COUNTRY BRONZE

CORNER WETROOM WITH T-PIECE - MATTE BLACK

T-PIECE - SILVER

AYO – T-PIECES

T-Piece

T-Piece

AYO WETROOM

8mm FLUTED GLASS ®

FINISHES:

Each item below includes an 8mm fluted glass panel, a 15mm wall profile and a straight stabilising bar.

AYO – 8mm WETROOMS - FLUTED GLASS

700 AYO8MWR70SFC

AYO8MWR70BFC

800 AYO8MWR80SFC AYO8MWR80BFC

900 AYO8MWR90SFC

1000 AYO8MWR100SFC

1200 AYO8MWR120SFC

AYO8MWR90BFC

AYO8MWR100BFC

AYO8MWR120BFC

1400 AYO8MWR140SFC AYO8MWR140BFC

8mm

HINGE ROTATING PANEL - FLUTED GLASS

300 AYO8HRP30SSFC AYO8HRP30BFC

SIZE

700 AYO8MWR70F-CPG*

800 AYO8MWR80F-CPG*

900 AYO8MWR90F-CPG*

1000 AYO8MWR100F-CPG*

1200 AYO8MWR120F-CPG*

1400 AYO8MWR140F-CPG*

AYO8MWR70F-CBRMN

AYO8MWR80F-CBRMN

AYO8MWR90F-CBRMN

AYO8MWR100F-CBRMN

AYO8MWR120F-CBRMN

AYO8MWR140F-CBRMN

8mm HINGE ROTATING PANEL - FLUTED GLASS

300 AYO8HRP30PGFC

SIZE CODE (mm) COUNTRY BRONZE

700 AYO8MWR70F-CCTRYBRZ

800 AYO8MWR80F-CCTRYBRZ

900 AYO8MWR90F-CCTRYBRZ

1000 AYO8MWR100F-CCTRYBRZ

1200 AYO8MWR120F-CCTRYBRZ

1400 AYO8MWR140F-CCTRYBRZ

AYO8HRP30BRMNFC

8mm HINGE ROTATING PANEL - FLUTED GLASS

300 AYO8HRP30CCTRYBRZFC

Note: To create a corner wetroom, order two panels in your required sizes along with a T-piece connector (T-piece codes available on page 125). Add a rotating panel if you would like extra splash protection.

AYO8MWR70F-CBRB

AYO8MWR80F-CBRB

AYO8MWR90F-CBRB

AYO8MWR100F-CBRB

AYO8MWR120F-CBRB

AYO8MWR140F-CBRB

AYO8HRP30BBFC

Straight Stabilising Bar

AYO8MWR70F-CBRN

AYO8MWR80F-CBRN

AYO8MWR90F-CBRN

AYO8MWR100F-CBRN

AYO8MWR120F-CBRN

AYO8MWR140F-CBRN

AYO8HRP30BRNFC

FLUTED GLASS WITH HINGE ROTATING PANELMATTE BLACK

AYO WETROOM

8mm OPAQUE GLASS

Each item below includes an 8mm opaque glass panel, a 15mm wall profile and a straight stabilising bar.

AYO – 8mm WETROOMS - OPAQUE GLASS

800 AYO8MWR80SPC AYO8MWR80BPC

900 AYO8MWR90SPC AYO8MWR90BPC

1000 AYO8MWR100SPC AYO8MWR100BPC

1200 AYO8MWR120SPC AYO8MWR120BPC

1400 AYO8MWR140SPC AYO8MWR140BPC

EXPLORE AYO

THE BABY AYO COLLECTION ®

BABY AYO brings the versatility of the AYO modular wetroom collection into a reduced height format, making it ideal for spaces where ceiling height is restricted.

Standing at 1800mm high, it fits seamlessly beneath lower ceilings, making it perfect for attic, loft-style and compact bathrooms.

Crafted from 8mm toughened clear glass with a hydrophobic coating to resist grime and limescale, BABY AYO offers a wide range of configurations and fixture innovations, including recessed channels, fixed and rotating panels, ultra-clear seals and stylish stabilising bar options.

Available in Silver, Matte Black and Brushed Brass finishes, BABY AYO delivers a clean, contemporary wetroom solution without compromise.

1800mm HIGH WETROOM COLLECTION

FINISHES

BABY AYO

WETROOM

8mm CLEAR GLASS ®

FINISHES:

BABY AYO – 8mm WETROOM / 1800mm HEIGHT

700

800

AYO8180MWR70SC

AYO8180MWR80SC

900 AYO8180MWR90SC

1000 AYO8180MWR100SC

1200 AYO8180MWR120SC

1400 AYO8180MWR140SC

AYO8180MWR70BC

AYO8180MWR80BC

AYO8180MWR90BC

AYO8180MWR100BC

AYO8180MWR120BC

AYO8180MWR140BC

BABY AYO – 8mm ROTATING PANELS 1800mm HEIGHT

AYO – T-PIECES

1800mm HEIGHT

WETROOM PANELBRUSHED BRASS

CORNER WALK-IN WETROOM WITH T-PIECE - SILVER

AYO8180MWR70BRBC

AYO8180MWR80BRBC

AYO8180MWR90BRBC

AYO8180MWR100BRBC

AYO8180MWR120BRBC

AYO8180MWR140BRBC

AYO 8mm FRAMED BLACK COLLECTION ®

AVAILABLE IN

Bold and beautifully engineered, AYO Framed brings industrial-inspired style to the modern bathroom.

Each 2-metre high panel features 8mm toughened glass with a flush, easy-clean interior, a protective hydrophobic coating, and a striking black metal frame bonded to the exterior for stand-out design and lasting durability.

AYO FRAMED WETROOM

8mm CLEAR GLASS ®

FINISH:

MATTE BLACK

Comes complete with 8mm Framed Wetroom Panel (clear glass) with 15mm Wall profile and 1200mm Straight Stabilising Bar.

AYO – 8mm FRAMED WETROOM

AYO8MWRFB80BC

AYO8MWRFB70TBC

Two Piece Floor to Ceiling Stabilising Bar AYOF2CSBB 8mm FRAMED WETROOM 8mm FRAMED CORNER WALK-IN WETROOM WITH T-PIECE

AYO – 8mm FRAMED CORNER WALK-IN**

AYO8MWRFB100TBC

**Includes T-Piece

AYO – FRAMED ROTATING PANEL

8mm FRAMED WETROOM WITH ROTATING PANEL

ACCESSORIES

L Shape Stabilising BarLength 1410mm / Height 220mm

Top of Glass to Ceiling Bar - 600mm AYOCSBB

FINISH:

MATTE BLACK

Comes complete with 8mm Linear Wetroom Panel (clear glass) with 15mm Wall profile and 1200mm Straight Stabilising Bar.

8mm LINEAR WETROOM

AYO – 8mm LINEAR WETROOM

AYO8MWRFHB76BC

AYO8MWRFHB80BC

AYO8MWRFHB90BC

8mm LINEAR CORNER WALK-IN WETROOM WITH T-PIECE

AYO – 8mm LINEAR CORNER WALK-IN**

AYO8MWRFHB76TBC 800

8mm LINEAR WETROOM WITH ROTATING PANEL

AYO8MWRFHB80TBC 900

AYO8MWRFHB90TBC

AYO8MWRFHB100TBC **Includes T-Piece

AYO – LINEAR ROTATING PANEL

ACCESSORIES

L Shape Stabilising BarLength 1410mm / Height 220mm AYOLSSBB

Top of Glass to Ceiling Bar - 600mm AYOCSBB

Two Piece Floor to Ceiling Stabilising Bar AYOF2CSBB

AYO FRAMED WETROOM

8mm FLUTED GLASS

FINISH:

MATTE BLACK

Comes complete with 8mm Framed Wetroom Panel (fluted glass) with 15mm Wall profile and 1200mm Straight Stabilising Bar.

AYO – 8mm FRAMED WETROOM

SIZE

700 AYO8MWRFB70BFC

800 AYO8MWRFB80BFC

900 AYO8MWRFB90BFC

1000 AYO8MWRFB100BFC

1100 AYO8MWRFB110BFC

1200 AYO8MWRFB120BFC

1400 AYO8MWRFB140BFC

AYO – 8mm FRAMED CORNER WALK-IN*

700 AYO8MWRFB70TBFC

800 AYO8MWRFB80TBFC

900 AYO8MWRFB90TBFC

1000 AYO8MWRFB100TBFC

ACCESSORIES

Straight Stabilising Bar

8mm FRAMED WETROOM

T-Piece Stabilising Bar

8mm FRAMED WETROOM WITH SIDE PANEL AND T-PIECE

Note: To create a Corner Walk-In Wetroom, order a second Framed Wetroom in your desired size of Side Panel as above and separate T-Piece.

AYO 10mm WETROOM COLLECTION ®

Designed for style-conscious spaces, AYO offers complete wetroom panels with 10mm glass.

Includes a 2m glass panel, 15mm wall profile, and a stabilising bar, making it easy to achieve a beautifully minimalist showering solution.

WETROOM

10mm CLEAR GLASS ®

FINISHES:

Angled Stabilising Bar*

Straight Stabilising Bar**

Includes a 10mm clear glass panel, a 15mm wall profile and a suitable stabilising bar solution.

AYO

– 10mm WETROOMS

300 AYO10MWR30SC AYO10MWR30BC –

400 AYO10MWR40SC AYO10MWR40BC

450 AYO10MWR45SC AYO10MWR45BC AYO10MWR45-CBRB

500 AYO10MWR50SC AYO10MWR50BC AYO10MWR50-CBRB

600 AYO10MWR60SC AYO10MWR60BC AYO10MWR60-CBRB

700 AYO10MWR70SC AYO10MWR70BC AYO10MWR70-CBRB

760 AYO10MWR76SC AYO10MWR76BC AYO10MWR76-CBRB

800 AYO10MWR80SC AYO10MWR80BC AYO10MWR80-CBRB

900 AYO10MWR90SC AYO10MWR90BC AYO10MWR90-CBRB

1000 AYO10MWR100SC AYO10MWR100BC AYO10MWR100-CBRB

1100 AYO10MWR110SC AYO10MWR110BC AYO10MWR110-CBRB

1200 AYO10MWR120SC AYO10MWR120BC AYO10MWR120-CBRB

1400 AYO10MWR140SC AYO10MWR140BC AYO10MWR140-CBRB

1200mm Straight Stabilising Bar included with wetrooms 700mm and over. 350mm Angled Stabilising Bar included with 300 & 400mm wetrooms.

650mm Angled Stabilising Bar included with 450, 500 & 600mm wetrooms.

AYO – 10mm WETROOMS

450

AYO10MWR45-CPG*

500 AYO10MWR50-CPG*

600 AYO10MWR60-CPG*

700 AYO10MWR70-CPG*

760 AYO10MWR76-CPG*

800 AYO10MWR80-CPG*

900 AYO10MWR90-CPG*

1000 AYO10MWR100-CPG*

1100 AYO10MWR110-CPG*

1200 AYO10MWR120-CPG*

1400 AYO10MWR140-CPG*

SIZE

450 AYO10MWR45-CCTRYBRZ

500 AYO10MWR50-CCTRYBRZ

600 AYO10MWR60-CCTRYBRZ

700 AYO10MWR70-CCTRYBRZ

760 AYO10MWR76-CCTRYBRZ

AYO10MWR45-CBRMN

AYO10MWR50-CBRMN

AYO10MWR60-CBRMN

AYO10MWR70-CBRMN

AYO10MWR76-CBRMN

AYO10MWR80-CBRMN

AYO10MWR90-CBRMN

AYO10MWR100-CBRMN

AYO10MWR110-CBRMN

AYO10MWR120-CBRMN

AYO10MWR140-CBRMN

AYO10MWR45-CBRN

AYO10MWR50-CBRN

AYO10MWR60-CBRN

AYO10MWR70-CBRN

AYO10MWR76-CBRN

AYO10MWR80-CBRN

AYO10MWR90-CBRN

AYO10MWR100-CBRN

AYO10MWR110-CBRN

AYO10MWR120-CBRN

AYO10MWR140-CBRN

AYO10MWR45-SS

AYO10MWR50-SS

AYO10MWR60-SS

AYO10MWR70-SS

AYO10MWR76-SS

AYO10MWR45WC*

AYO10MWR50WC*

AYO10MWR60WC*

AYO10MWR70WC*

AYO10MWR76WC*

800 AYO10MWR80-CCTRYBRZ AYO10MWR80-SS AYO10MWR80WC*

900 AYO10MWR90-CCTRYBRZ

1000 AYO10MWR100-CCTRYBRZ

1100 AYO10MWR110-CCTRYBRZ

1200 AYO10MWR120-CCTRYBRZ

1400 AYO10MWR140-CCTRYBRZ

*Discontinued once stock is sold.

AYO10MWR90-SS

AYO10MWR100-SS

AYO10MWR110-SS

AYO10MWR90WC*

AYO10MWR100WC*

AYO10MWR110WC*

AYO10MWR120-SS AYO10MWR120WC*

AYO10MWR140-SS

AYO10MWR140WC*

ROTATING PANEL

10mm CLEAR GLASS ®

FINISHES: SILVER MATTE BLACK BRUSHED NICKEL

POLISHED GOLD*

NICKEL COUNTRY BRONZE BRUSHED BRASS

Rotating panels help reduce water spray while keeping your space open.

Rotating Panel: Swings in and out for flexible access.

Hinge Rotating Panel: Opens in one direction, ideal for more defined spaces.

AYO – 10mm ROTATING PANELS - RISE & FALL HINGE

300

Note: Please order your front wetroom panel in the required size from page 140.

MECHANISM**

450 AYO10RP45SC AYO10RP45BC AYO10RP45WC*

500 AYO10RP50SC

**Rotating Panels can be retrofitted.

AYO10RP50BC

ROTATING PANEL - MATTE BLACK

HINGE ROTATING PANEL - BRUSHED BRASS (PVD)

AYO – 10mm HINGE ROTATING PANEL 300

CORNER WETROOM 10mm CLEAR GLASS

FINISHES:

POLISHED GOLD*

Note: Order your front panel in the size you need from page 140. This page 144, shows some of our most popular sizes for corner configurations, but any size can be used to create your ideal layout.

Start by choosing your front wetroom panel from page 140, then select your side panel size from the options below. You must also order a T-Piece to complete the corner installation.

Create a spacious, stylish corner wetroom with a sleek two-panel layout supported by stainless steel stabilising bars. Add a matching T-piece for enhanced stability and a seamless, modern finish.

AYO – 10mm CORNER WETROOMS

700 AYO10MWR70SC AYO10MWR70BC AYO10MWR70-CBRB

760 AYO10MWR76SC AYO10MWR76BC AYO10MWR76-CBRB

800 AYO10MWR80SC AYO10MWR80BC AYO10MWR80-CBRB

900 AYO10MWR90SC AYO10MWR90BC AYO10MWR90-CBRB

700 AYO10MWR70-CPG*

760 AYO10MWR76-CPG*

800 AYO10MWR80-CPG*

900 AYO10MWR90-CPG*

AYO10MWR70-CBRMN

AYO10MWR76-CBRMN

AYO10MWR80-CBRMN

AYO10MWR90-CBRMN

700 AYO10MWR70-CCTRYBRZ AYO10MWR70-SS

760 AYO10MWR76-CCTRYBRZ AYO10MWR76-SS

800 AYO10MWR80-CCTRYBRZ AYO10MWR80-SS

900 AYO10MWR90-CCTRYBRZ AYO10MWR90-SS

1200mm Straight Stabilising Bar included with wetrooms 700mm and over.

*Discontinued once stock is sold.

Choose your optional rotating panel

AYO10MWR70-CBRN

AYO10MWR76-CBRN

AYO10MWR80-CBRN

AYO10MWR90-CBRN

CORNER WALK-IN WITH

AYO – T-PIECES

SIZE

T-Piece

AYO MODULAR YOUR SHOWER YOUR WAY

Elevate your showering experience with the flexibility and style of AYO Modular.

AYO Modular creates a step-by-step process that will help bring your dream shower space to life and is tailored to create a unique shower enclosure design that suits your style.

Choose from a variety of materials, colours and finishes to create the perfect ambiance.

THE PERFECT SHOWER MADE FOR YOU

CHOOSE & MEASURE YOUR SPACE

First things first, analyse the area you have allowed for your shower, and get your measurements correct.

Then simply follow our 5 step process of selecting the components you need to create your personal shower sanctuary.

FOR A STRAIGHT OPEN SPACE FOR A CORNER SPACE FOR AN ALCOVE SPACE

Please note: It is suggested to leave a minimum of 500mm wide access when measuring for your wetroom panel.

FOLLOW OUR SIMPLE 5 STEP PROCESS

CHOOSE YOUR LAYOUT

From page 150; Have a look at our configuration guide on the following pages to help you design your ideal shower space.

From page 160; Add a rotating panel for added splash protection and a more versatile showering experience. 1 2 3 4

CHOOSE YOUR GLASS

From page 152; Choose from an 8mm or 10mm thickness, and also if you’d prefer clear, fluted* or opaque * glass. *8mm only

CHOOSE YOUR WALL PROFILE & STABILISING SOLUTION

From page 154; Pick from a range of 9 finishes and a selection of stabilising solutions to suit your space and preference.

CHOOSE YOUR ACCESSORIES

From page 158; If needed finish your shower space with one of our accessoriesavailable in a range of finishes.

CHOOSE YOUR ROTATING PANEL

STEP 1 CHOOSE YOUR LAYOUT

ENDLESS SHOWERING POSSIBILITIES

With an almost infinite choice of wetroom layouts, AYO provides maximum flexibility as you personalise your dream shower space. For ease of ordering, we have created the following layouts for the most popular wetroom configurations.

FOR A CORNER SPACE

LAYOUT A2

HINGED ROTATING PANEL DETAILBRUSHED BRASS

LAYOUT A2 HINGED ROTATING PANEL DETAILMATTE BLACK

FOR A ALCOVE SPACE

LAYOUT A1 x1

LAYOUT A2

x1

LAYOUT S2 WITH 10mm CLEAR GLASSCOUNTRY BRONZE

FOR A STRAIGHT OPEN SPACE

LAYOUT S1

x1

LAYOUT S2

x2

LAYOUT S3 x2

STEP 2 CHOOSE YOUR GLASS

8mm Glass Wetroom Panel / 2000mm High

Suitable for use on wetroom floor or tray. 10mm

AYO8MW40C

AYO8MW45C

AYO8MW76C

AYO8MW100C

1100 AYO8MW110C

1200 AYO8MW120C AYO8MW120FC AYO8MW120PC

1400 AYO8MW140C AYO8MW140FC AYO8MW140PC

1500 AYO8MW150C

1600 AYO8MW160C

*Discontinued once stock is sold.

10mm Glass Wetroom Panel / 2000mm High

Suitable for use on wetroom floor or tray.

SIZE

300 AYO10MW30C

400 AYO10MW40C

450 AYO10MW45C

500 AYO10MW50C

600 AYO10MW60C

700 AYO10MW70C

760 AYO10MW76C

800 AYO10MW80C

900 AYO10MW90C

1000 AYO10MW100C

1100 AYO10MW110C

1200 AYO10MW120C

1400 AYO10MW140C

STEP 3

CHOOSE YOUR WALL PROFILE & STABILISING SOLUTION

WALL PROFILES

WALL PROFILES

15mm Wall Profile AYOMW15WJS AYOMW15WJB AYOMW15WJSS-CBRB

35mm Wall Profile AYOMW35WJS

Recessed Channel Wall & Floor Profile 2000mm

15mm Anodised Brushed Brass Wall Profile

Recessed Channel Wall & Floor

Channel Wall & Floor

*Discontinued once stock is sold.

STABILISING SOLUTIONS

FINISHES:

STRAIGHT STABILISING BARS

once stock is sold.

ANGLED STABILISING BARS

350mm Angled

Short Stabilising Bar for 300 & 400mm Panels

650mm

Angled Stabilising Bar

350mm Angled

Short Stabilising Bar for 300 & 400mm Panels

650mm

Angled Stabilising Bar

350mm Angled

Short Stabilising Bar for 300 & 400mm Panels

650mm Angled

CEILING STABILISING BARS

to Ceiling Stabilising Bar - 2600mm

Two Piece Floor to Ceiling Stabilising Bar - 3000mm

OTHER STABILISING BARS

STEP 4 CHOOSE YOUR ACCESSORIES

Required depending on your configuration.

Profile solutions

An array of wall profile solutions provides maximum versatility as each AYO wetroom aspiration becomes the reality.

All profile solutions are available in the standard Silver and Black options.

AYO COLOUR

Note: 15mm Wall Profile is available the premium colours - White, Brushed Brass, Matte Nickel, Stainless Steel and Polished Gold.

35mm WALL PROFILE

Seal solutions

AYO maximises your shower’s visual appeal by offering an extensive selection of discreet ultra clear seal options.

SEALS – 2000mm HEIGHT

8mm Black Corner Seal

8mm Ultra Clear Corner Seal

8mm Ultra Clear H Joining Seal

10mm Black Corner Seal

10mm Ultra Clear Corner Seal

10mm Ultra Clear H Joining Seal

VARIOUS ACCESSORIES

8mm U Channel -

8mm U Channel -

10mm U Channel - 1000mm

10mm U Channel - 2000mm

Corner Profile - 2000mm Height

once stock is sold.

STEP 5

CHOOSE YOUR ROTATING PANEL

8mm ROTATING PANEL**

300 AYO8RP30SC AYO8RP30BC AYO8RP30WC*

450 AYO8RP45SC

500 AYO8RP50SC

8mm PLATED FINISH - HANDED HINGE DEFLECTOR PANEL

300 – Right Hand

450 – Right Hand

500 – Right Hand

300 – Left Hand

450 – Left Hand

500 – Left Hand

AYO8HRPR30SC

AYO8HRPR45SC

AYO8HRPR50SC

AYO8HRPL30SC

AYO8HRPL45SC

AYO8HRPL50SC

8mm HINGE ROTATING DEFLECTOR PANEL

300

**Rotating Panels can be retrofitted. 300

AYO8HRPR30BC

AYO8HRPR45BC

AYO8HRPR50BC

AYO8HRPL30BC

AYO8HRPL45BC

AYO8HRPL50BC

10mm ROTATING PANEL* - RISE & FALL HINGE MECHANISM 300

500 AYO10RP50SC

*Rotating Panels can be retrofitted. 300

10mm HINGE ROTATING DEFLECTOR PANEL 300

AYO 8mm BATHSCREENS

AVAILABLE IN CLEAR GLASS & FLUTED GLASS

Elevate your over-bath showering with the 8mm AYO Bathscreens, available in both clear and fluted glass for a clean or textured look.

Finished in your choice of Matte Black, Silver, or Brushed Brass, each screen combines modern style with robust performance to complement any contemporary bathroom design.

8mm BATHSCREENS ®

FINISHES:

SILVER MATTE BLACK BRUSHED BRASS

8mm FRAMED BATHSCREEN

8mm FRAMELESS BATHSCREEN

8mm FRAMED LINEAR BATHSCREEN

AYO 8mm BATHSCREENS - CLEAR GLASS

1500 x 800mm Frameless Bathscreen

Includes 15mm Wall Profile & 350mm Angled Stabilising Bar Silver AYO8MBSSC

1500 x 800mm Frameless Bathscreen

Includes 15mm Wall Profile & 350mm Angled Stabilising Bar Black AYO8MBSBC

1500 x 800mm Frameless Bathscreen

Includes 15mm Wall Profile & 350mm Angled Stabilising Bar Brushed Brass AYO8MBSBRBC

1500 x 800mm Frameless Bathscreen

Includes 15mm Wall Profile & 350mm Angled Stabilising Bar Brushed Nickel AYO8MBSBRNC

1500 x 800mm Framed Bathscreen

Includes 15mm Wall Profile & 350mm Angled Stabilising Bar Black AYO8FBSBBC

1500 x 800mm Linear Bathscreen

Includes 15mm Wall Profile & 350mm Angled Stabilising Bar Black AYO8FHBSBBC

8mm FRAMELESS BATHSCREEN WITH FLUTED GLASSMATTE BLACK

8mm FRAMELESS BATHSCREEN WITH FLUTED GLASSBRUSHED BRASS

8mm FRAMELESS BATHSCREEN WITH FLUTED GLASSSILVER

AYO 8mm BATHSCREENS - FLUTED GLASS

1500 x 800mm Frameless Bathscreen

Includes 15mm Wall Profile & 350mm Angled Stabilising Bar Silver AYO8BSFSC

1500 x 800mm Frameless Bathscreen

Includes 15mm Wall Profile & 350mm Angled Stabilising Bar Black AYO8BSFBC

1500 x 800mm Frameless Bathscreen

Includes 15mm Wall Profile & 350mm Angled Stabilising Bar Brushed Brass AYO8BSFBRBC

1500 x 800mm Frameless Bathscreen

Includes 15mm Wall Profile & 350mm Angled Stabilising Bar Brushed Nickel AYO8MBSBRNC

1500 x 800mm Frameless Bathscreen

Includes 15mm Wall Profile & 350mm Angled Stabilising Bar Country Bronze AYO8BSFCCTRYBRZ

1500 x 800mm Framed Bathscreen

Includes 15mm Wall Profile & 350mm Angled Stabilising Bar Black AYO8FBSBBFC

The Gemstone brand is synonymous with quality and style. This extensive selection of slate textured shower trays compliment the most beautiful of bathroom designs. With an ultra minimal height of 25 to 30mm, each tray is anti-slip rated and available in 4 colour options White, Graphite Black, Flint Grey and Onyx Black.

Choose from square or linear shape shower drain options. Both visually appealing and sensual to touch, a Gemstone shower tray will work perfectly in a wide variety of bathroom applications, be they classic, modern or contemporary in design.

SHOWER TRAY COLLECTION

TEXTURED SLATE, SLIMLINE, ANTI-SLIP & ULTRA SLIM

KEY FEATURES

Slate texture – a natural stone resin composite with gel coat finish

Anti slip rated – Grade 3 Rating UNE ENV 12633:2003

Available in 4 colours – Onyx Black, White, Graphite Black & Flint Grey

Minimalist stainless steel waste cover in Square versions

Stone resin linear cover standard on all linear trays

Colour matched interior waste trap (Onyx Black, Graphite Black or Flint Grey = Grey interior waste / White tray - White interior waste)

Supplied with 90mm McAlpine high flow waste

mm 25mm or 30mm

GEMSTONE TRAY COLOUR OPTIONS

GEMSTONE SLATE TRAY RANGE

RECTANGULAR TRAYS

1000 x 800 GEM10080RWS

1000 x 900 GEM10090RWS

1100 x 800 GEM11080RWS

1100 x 900 GEM11090RWS

1200 x 800 GEM12080RWS

1200 x 900 GEM12090RWS

1200 x 1000 –

1400 x 800 GEM14080RWS

1400 x 900 GEM14090RWS

1400 x 1000 GEM140100RWS

1500 x 800 GEM15080RWS

1500 x 900 GEM15090RWS

1600 x 800 GEM16080RWS

1600 x 900 GEM16090RWS

1700 x 700 GEM17070RWS

1700 x 800 GEM17080RWS

1700 x 900 GEM17090RWS

1800 x 800 GEM18080RWS

1800 x 900 GEM18090RWS

2000 x 800 –

2000 x 900 GEM20090RWS

GEM10080RBS

GEM10090RBS

GEM11080RBS

GEM11090RBS

GEM12080RBS

GEM12090RBS

GEM120100RBS

GEM14080RBS

GEM14090RBS

GEM15080RBS

GEM15090RBS

GEM16080RBS

GEM16090RBS

GEM17070RBS

GEM17080RBS

GEM17090RBS

GEM18080RBS

GEM18090RBS

GEM20080RBS

GEM20090RBS

WASTE

GEM10080RGS

GEM10090RGS

GEM11080RGS

GEM11090RGS

GEM12080RGS

GEM12090RGS

GEM14080RGS

GEM14090RGS

GEM15080RGS

GEM15090RGS

GEM16080RGS

GEM16090RGS

GEM17070RGS

GEM17080RGS

GEM17090RGS

GEM18080RGS

GEM18090RGS

GEM10080ROS

GEM10090ROS

GEM12080ROS

GEM12090ROS

GEM14080ROS

GEM14090ROS

GEM16080ROS

GEM16090ROS

GEM17080ROS

GEM17090ROS

GEM20080ROS

GEM20090ROS

COLOUR MATCHED METAL GRILLES – SQUARE

Square Grille White GEMGSW

Square Grille Chrome GEMGSC

Square Grille Flint Grey GEMGSG

Square Grille Graphite Black GEMGSB

Square Grille Onyx Black GEMGSOB

RECTANGULAR TRAYS – INCLUDES STONE RESIN LINEAR GRILLE COVER

1200 x 800 GEM12080RWL

1200 x 900 GEM12090RWL

1400 x 800 GEM14080RWL GEM14080RBL

1400 x 900 GEM14090RWL

1500 x 800 GEM15080RWL GEM15080RBL GEM15080RGL

1500 x 900 GEM15090RWL GEM15090RBL GEM15090RGL

1600 x 800 GEM16080RWL GEM16080RBL GEM16080RGL

1600 x 900 GEM16090RWL GEM16090RBL GEM16090RGL

1700 x 700 GEM17070RWL GEM17070RBL

1700 x 800 GEM17080RWL

1700 x 900 GEM17090RWL

COLOUR MATCHED METAL GRILLES – LINEAR (STAINLESS STEEL MATERIAL)

GEMSTONE INFORMATION

GUARANTEE

Your Gemstone tray must be inspected 100% before installation. Fitting of tray is acceptance of quality. Please read fitting instructions fully before installation.

Before tiling and placing the screen or any other fixed material on the shower tray, please make sure that the perimeters of your tray are 100% level in all directions.

The guarantee only covers the replacement or repair of the product and excludes any other compensation, assembly or travel costs.

Gemstone Trays are guaranteed for 2 years, in accordance with current European regulations.

The following are excluded from the guarantee:

- Damage caused by misuse.

- Damage caused by the use of unsuitable cleaning. materials (do not use products containing acids, alcohol, chlorine or solvents, do not spill drain cleaners onto the shower tray, do not use metallic or scouring pads).

- Damage caused by improper installation.

- Damage caused by the improper handling of the product.

Our products must be installed by qualified personnel to be eligible for the product guarantee. An installation guide will be delivered with the tray for its proper placement.

Before installing the tray you should make sure that:

- The tray drains well and is 100% level.

- It has no anomalies.

- The tray has been stored in a horizontal position on a flat surface until installation.

CLEANING

- Routine: rinse and leave to dry.

- Thorough: rub with a soft cloth with neutral liquid detergent; for limescale prevention use an anti-lime product.

Please note, Gemstone Trays are manufactured from a natural stone resin composition.You must allow for a tray thickness tolerance of 2 - 3mm.

CHEMICAL TESTS

Chemical resistance tested in accordance with UNE-EN 12527 - No deterioration.

CHEMICAL TESTING COMPOSITION

Acetyl acid (10%), sodium hydroxide (10%), ethanol (70%), bleach, methylene blue (1%).

Don Limpio Neutral PH 4 No Visible Effect

Perfumed Home Bleach 4 Slight Bleaching

Ace 4 Slight Bleaching

Perfumed Ammonia 4 No Visible Effect

Viakal 4 Slight Bleaching

Cillit Bang 4 No Visible Effect

KH-7 Anti-lime 4 No Visible Effect

White Wine Vinegar 4 No Visible Effect

Povidone Iodine 4 No Visible Effect

Hydrochloric Acid 4 No Visible Effect

Hydrogen Peroxide 4 No Visible Effect

Cleaning Solvent 4 No Visible Effect

Methylated Spirits 4 No Visible Effect

Acetone 4 No Visible Effect

Nail Polish Remover 4 No Visible Effect

PACKAGING AND STORAGE

The products are delivered packed in individual boxes with expanded polystyrene reinforcements, including the drainage grate. Gemstone trays must be stored in a horizontal position on a flat surface until installation. This prevents the tray from losing shape.

FAQ

Can it be cut?

Yes, with a diamond cutting wheel.

Please note, Maximum trim of 200mm on rectangular waste trays. Maximum trim of 100mm on linear waste trays, with the cut applied to opposite end to the linear drain.

Can it be repaired?

Although they are highly resistant to any impact, we have a repair kit available to the customer. Please contact us on 01279 443 644 to order your Gemstone Tray repair kit. Lead time applies.

How should the product be cleaned?

We recommend cleaning with water and neutral soap, applied with a sponge, never with scouring products or tools.

What material should I use to install the products?

Your Gemstone tray must be installed on a fully level glue-cement or mortar base. For sealing the product, it is recommended to use MS flexible polyurethane sealant and / or a neutral silicone.

SLIMLINE

40mm high stone resin tray with waste.

HEIGHT 40mm

SLIMLINE PROFILE DESIGN

90mm HIGH FLOW WASTE

AVAILABLE WITH ANTI-SLIP SURFACE

RECTANGLE TRAY

SQUARE TRAY

OFFSET QUADRANT TRAY

ULTRA SLIM

25mm high stone resin tray with waste and White grille.

RECTANGLE TRAY

SQUARE TRAY

QUADRANT TRAY

HEIGHT 25mm

ULTRA SLIM PROFILE DESIGN

QUADRANT TRAY

Brushed Brass and Matte Black grilles available with Ultra Slim trays.

90mm HIGH FLOW WASTE

AVAILABLE WITH ANTI-SLIP SURFACE

OFFSET QUADRANT TRAY

SLIMLINE SHOWER TRAYS

HEIGHT – 40mm (INCLUDES WASTE)

Note. There is a tolerance of up to 10mm in tray sizes above the nominal dimensions. This is to allow for potential shrinkage during the manufacturing process.

RECTANGULAR TRAYS

800 x 700 TSL8070R

900 x 700 TSL9070R

900 x 760 TSL9076R

900 x 800 TSL9080R

1000 x 700 TSL10070R

1000 x 760 TSL10076R

1000 x 800 TSL10080R

1000 x 900 TSL10090R

1100 x 700 TSL11070R

1100 x 760 TSL11076R

1100 x 800 TSL11080R

1100 x 900 TSL11090R

1200 x 700 TSL12070R

1200 x 760 TSL12076R

1200 x 800 TSL12080R

1200 x 900 TSL12090R

1200 x 1000 TSL120100R*

1300 x 800 TSL13080R

1300 x 900 TSL13090R

1400 x 700 TSL14070R

1400 x 760 TSL14076R

1400 x 800 TSL14080R

1400 x 900 TSL14090R

1500 x 700 TSL15070R

1500 x 760 TSL15076R

1500 x 800 TSL15080R

1500 x 900 TSL15090R

1600 x 700 TSL16070R

1600 x 800 TSL16080R

1600 x 900 TSL16090R

1700 x 700 TSL17070R

1700 x 750 TSL17075R

1700 x 800 TSL17080R

1700 x 900 TSL17090R

1800 x 800 TSL18080R

1800 x 900 TSL18090R

2000 x 900 TSL20090R

*1200 x 1000mm slimline rectangle tray is acrylic only.

SQUARE TRAYS

700 x 700 TSL70S

760 x 760 TSL76S

800 x 800 TSL80S

x 900 TSL90S

x 1000 TSL100S

x 1200 TSL120S

QUADRANT TRAYS

800 x 800 TSL80Q

x 900 TSL90Q

x 1000 TSL100Q

OFFSET QUADRANT TRAYS

900 x 760 - Left

TSL9076LOQ

900 x 760 - Right TSL9076ROQ

900 x 800 - Left TSL9080LOQ

900 x 800 - Right TSL9080ROQ

1000 x 800 - Left TSL10080LOQ

1000 x 800 - Right TSL10080ROQ

1000 x 900 - Left TSL10090LOQ

1000 x 900 - Right TSL10090ROQ

1100 x 800 - Left TSL11080LOQ

1100 x 800 - Right TSL11080ROQ

1100 x 900 - Left TSL11090LOQ

1100 x 900 - Right TSL11090ROQ

1200 x 800 - Left TSL12080LOQ

1200 x 800 - Right TSL12080ROQ

1200 x 900 - Left TSL12090LOQ

1200 x 900 - Right TSL12090ROQ

SLIMLINE ANTI-SLIP SHOWER TRAYS

HEIGHT – 40mm (INCLUDES WASTE)

Note. There is a tolerance of up to 10mm in tray sizes above the nominal dimensions. This is to allow for potential shrinkage during the manufacturing process.

RECTANGULAR TRAYS

1000 x 800 ASTSL10080R

1000 x 900 ASTSL10090R

1100 x 800 ASTSL11080R

1100 x 900 ASTSL11090R

1200 x 700 ASTSL12070R

1200 x 760 ASTSL12076R

1200 x 800 ASTSL12080R

1200 x 900 ASTSL12090R

1400 x 700 ASTSL14070R

1400 x 800 ASTSL14080R

1400 x 900 ASTSL14090R

1500 x 700 ASTSL15070R

1500 x 800 ASTSL15080R

1500 x 900 ASTSL15090R

1600 x 700 ASTSL16070R

1600 x 800 ASTSL16080R

1600 x 900 ASTSL16090R

1700 x 700 ASTSL17070R

1700 x 800 ASTSL17080R

1700 x 900 ASTSL17090R

SQUARE TRAYS

ASTSL80S

ASTSL90S

ASTSL100S

QUADRANT TRAYS

800 ASTSL80Q

ASTSL90Q

OFFSET QUADRANT TRAYS

1000 x 800 - Left ASTSL10080LOQ

1000 x 800 - Right ASTSL10080ROQ

1000 x 900 - Left ASTSL10090LOQ

1000 x 900 - Right ASTSL10090ROQ

1200 x 800 - Left ASTSL12080LOQ

1200 x 800 - Right ASTSL12080ROQ

1200 x 900 - Left ASTSL12090LOQ

1200 x 900 - Right ASTSL12090ROQ

TRAYS WITH CORNER WASTE

900 x 900 - Quadrant CASTSL90Q

1000 x 1000 - Quadrant CASTSL100Q

800 x 800 - Square CASTSL80S

900 x 900 - Square CASTSL90S

1000 x 1000 - Square CASTSL100S

1000 x 800 - Rectangle CASTSL10080R

1200 x 800 - Rectangle CASTSL12080R

1200 x 900 - Rectangle CASTSL12090R ANTI-SLIP SURFACE

ULTRA SLIM SHOWER TRAYS*

HEIGHT – 25mm (INCLUDES WASTE & WHITE GRILLE)

Note. There is a tolerance of up to 10mm in tray sizes above the nominal dimensions. This is to allow for potential shrinkage during the manufacturing process.

RECTANGULAR TRAYS*

1000 x 800

USL10080R

1000 x 900 USL10090R

1200 x 800 USL12080R

1200 x 900 USL12090R

1400 x 800 USL14080R

1400 x 900 USL14090R

1500 x 800 USL15080R

1500 x 900 USL15090R

1600 x 800 USL16080R

1600 x 900 USL16090R

1700 x 800 USL17080R

1700 x 900 USL17090R

1800 x 800 USL18080R

1800 x 900 USL18090R

ULTRA SLIM TRAY GRILLS

SQUARE TRAYS*

800 x 800 USL80S

900 x 900 USL90S

*Discontinued once stock is sold.

1000 x 1000 USL100S

QUADRANT TRAYS*

800 x 800 USL80Q

900 x 900 USL90Q

OFFSET QUADRANT TRAYS*

1000 x 800 - Left

USL10080LOQ

1000 x 800 - Right USL10080ROQ

1200 x 800 - Left USL12080LOQ

1200 x 800 - Right USL12080ROQ

1200 x 900 - Left USL12090LOQ

1200 x 900 - Right USL12090ROQ

ULTRA SLIM ANTI-SLIP SHOWER TRAYS*

HEIGHT – 25mm (INCLUDES WASTE & WHITE GRILLE)

Note. There is a tolerance of up to 10mm in tray sizes above the nominal dimensions. This is to allow for potential shrinkage during the manufacturing process.

RECTANGULAR TRAYS*

1000 x 800 AUSL10080R

1200 x 800 AUSL12080R

1200 x 900 AUSL12090R

1400 x 800 AUSL14080R

1400 x 900 AUSL14090R

1500 x 800 AUSL15080R

1600 x 800 AUSL16080R

1600 x 900 AUSL16090R

1700 x 800 AUSL17080R

1700 x 900 AUSL17090R

The Benefits of using Anti-Slip Technology:

SQUARE TRAYS*

*Discontinued once stock is sold.

ANTI-SLIP SURFACE

Clever Anti-Slip surface technology for a lifetime of showering confidence. Ideally suited to families with young children and those who just want to feel confident on their feet while in the shower, this unique patented technology ensures a lifetime of underfoot confidence when showering.

Unlike other Anti-Slip technologies which are applied on top of the surface of the tray after manufacture and wear away over time, our patented Anti-Slip surface is integrated directly into the shower tray at time of manufacture, meaning it never wears away and will last as long as the shower tray.

The Anti-Slip range offers a permanent guaranteed solution. When independently tested to the British standard 7976-2 test, the patent protected surface provided almost twice the bathroom industry standard of slip resistance.

Smart Water Management Control

Our unique Smart Water Management Technology clears water instantly from the tray’s surface. This greatly reduced the slip hazard of surplus water and soap deposits.

Although the tray surface appears almost flat, it combines perfectly with the vortex technology of the waste unit to create a vacuum effect beneath the surface.

The result is that almost all surplus water is actually drawn from the tray’s surface instantly. In addition, no moving parts or hair traps means no maintenance and no risk of flooding.

SLIM RECTANGLE TRAY INCLUDING WASTE AND WHITE GRILLE

ULTRA SLIM SQUARE TRAY INCLUDING WASTE AND WHITE GRILLE

ULTRA SLIM QUADRANT TRAY INCLUDING WASTE AND WHITE GRILLE

ULTRA SLIM OFFSET QUADRANT TRAY INCLUDING WASTE AND WHITE GRILLE

SHOWER ACCESSORIES

FLAIR EASY PLUMB KIT

Slimline Easy Plumb shower kits have adjustable legs for compliant installation and future waste access without compromising style. Any Flair slimline tray can be used with the kit, increasing tray height by 95mm.

Accessories are not to scale - for visual representation only.

Easy Plumb Riser Kit for all Square Trays & Rectangle Trays

(Suitable for maximum tray size of 1200mm) 2kg WD3

Easy Plumb Riser Kit for all Quadrant Trays (Suitable for maximum tray size of 1200 x 900mm) 3kg WD4

Easy Plumb Kit for all Square & Rectangle Trays (Up to 2000mm in size) 2kg WD5

PROSEAL WATERPROOF BARRIER SEAL

2.0 metre

PROS2.0M

2.5 metre PROS2.5M

3.0 metre PROS3.0M

3.5 metre PROS3.5M

4.0 metre PROS4.0M

10 metre PROS10.0M

20 metre PROS20.0M

SHOWER WASTE

Tourbillion 90mm Shower

Trap & Waste - Chrome WIRCHROME

McAlpine 90mm Shower Waste

Matte Black Plastic Dome.

90mm SLIM TRAY WASTES

Flexible up-stand seal installed onto shower trays, baths and worktops eliminating the risk of water leakage.

McALPINE WASTES

McAlpine 90mm

Shower Waste Matte

Black Plastic Dome

McAlpine 90mm

Shower Waste Matte

White Plastic Dome

ST90MB10-70

ST90WH10-70

Further enhance the look of your shower tray with our 90mm High Flow Shower Waste featuring a modern and stylish finish. Constructed from brass and plated in the following colours; Brushed Brass, Brushed Copper, Brushed Nickel, Matte Black and Matte White.

QUALITY GUARANTEED

QUALITY GUARANTEED

Please consult the relevant consumer product brochure to view the Guarantee terms offered on each Flair product range.

At Flair we have an unwavering commitment to product quality.

All Flair products are CE approved. All glass is toughened safety glass and produced to EN12150. Flair products are performance tested to EN14428, ensuring the highest industry criteria is met.

Note: Proof of purchase is necessary to validate your guarantee so retain purchase receipt for your Flair product.

If a Flair shower enclosure is defective in materials or manufacture, please contact us on (Ireland & Northern Ireland) +353 42 966 8000 or (UK) 0800 1800 8050.

AFTERSALES & SPARE PARTS SERVICE

Flair is 100% committed to customer service excellence.

We carry a full range of spare parts for each product range and have dedicated aftersales specialists to deal with any issues you may have.

If you have any queries, please contact Flair on 00353 42 966 8000.

RETURN POLICY

Flair will not accept return of any product that has been opened.

We do not accept return of any product if the packaging has been damaged.

If the product is unopened and not damaged, we will accept the return of the product but a handling fee of 25% of the invoice will be charged.

SHOWER DOOR INSTALLATION ADVICE

BEFORE YOU INSTALL YOUR SHOWER ENCLOSURE PLEASE READ ALL INSTRUCTIONS. FAILURE TO DO SO MAY LEAD TO INVALIDATION OF YOUR GUARANTEE.

Flair Showers Ltd will not accept responsibility for any loss or damage, however caused, if the shower enclosure has not been installed as per the instructions.

– The shower tray MUST be fitted 100% level. The shower tray must be sealed correctly to prevent any water leakage.

– Glass edges are vulnerable and should be treated with care at all times. Contact with hard surfaces may result in glass breakage if due care is not taken.

– Check walls for electrical cabling or water pipes before drilling.

– Your shower enclosure, bath screen or wetroom must be inspected before installation. Check for all visual defects on the product before installation. Once the enclosure has been installed no claims of damage or defect will be accepted. Fitting of shower enclosure is acceptance of quality.

– The wall plugs supplied with the shower door are for use in solid walls. Timber frame, stud partition walls will require alternative fixings.

– Ensure vertical wall profiles are level and are an equal distance in from the tray.

– Shower Doors, Wetroom Screens, Bath Screens and Side Panels are adjustable between the dimensions stated. All dimensions are approximate.

– Ensure adjustment at wall profiles are equal at both sides and that all screws are fully tightened.

– Ensure hinges are level and securely fitted to the glass.

– Ensure magnets are the right orientation and are attracting rather than repelling.

– The shower enclosure should be sealed on the outside only using silicone sealant.

– Care must be taken during assembly. Flair will not accept responsibility where incorrect assembly results in undue stress being put on any components in this product.

– If there are any manufacturer defects, please contact us on (Ireland & Northern Ireland) +353 42 966 8000 or (UK) 0800 1800 8050.

– Note: If a problem has been caused by incorrect installation, a call-out charge will apply for the Flair technical engineer’s time. Subsequent charges will apply “to fix” a problem caused by incorrect installation.

BATH SCREEN INSTALLATION

The bath screen must be installed on a 100% level surface with the bath edge free from obstructions.

Bath screens should not be used on a bath with roll top rim, stepped edge rim or where the bath handle void meets the bath screen seal. This will impact on the performance of the bathscreen and the guarantee will be void. The Bath screen should be fitted to the inside edge of the bath only.

A bath screen acts as a water deflector and is not 100% waterproof. If used appropriately under normal showering conditions and installed to the inside edge of the bath, water will be deflected into the showering area. Bath Screens are not suitable for power showers.

SHOWER TRAY INSTALLATION

All shower trays must be installed as per instructions supplied. Install on a base of fine sand, cement and cement additive Please note: Silicone sealants, foams, mastics, installation compound adhesive or similar must not be used as a substitute for cement. Ensure shower tray is 100% level and water test to ensure water is draining correctly. If not satisfied at any stage do not proceed with fitting. Fitting of Shower Tray is acceptance of quality.

NOTE: It is normal for a small amount of localised water to be retained on a shower tray surface after use. This should be wiped dry to prevent any build up of residue.

CLEANING GUIDELINES

– Glass: Use a soft cloth and mild detergent, rinse off thoroughly.

– Metallic Surfaces: Use a soft cloth and warm soapy water. Rinse off thoroughly.

– Do not use “Spray & leave” cleaning products on the metal surface as these will cause damage to your product. These include acidic based cleaning products, bleaches, solvents or abrasive pads. Only use detergents, cleaners and limescale removers with a pH of 5-8.

– The constant use of detergents will degrade the finish of the product over time if not thoroughly rinsed off.

– In hard water areas, regular cleaning of your Flair door will help to prevent the build-up of limescale. Stubborn deposits of limescale can be removed with the use of a mild limescale remover.

– Check your shower door for functionality periodically. Ensure that the wheel track is free from any grit / dirt which may have collected over time.

CONDITIONS OF SALE

Unless otherwise stated, all quotations are subject to acceptance within 30 days of date of issue. Other than in the case of faulty goods / incorrect despatch, Flair will not accept the return of any product.

As part of our continuing policy of product improvement, we reserve the right to amend specifications, colours and s without prior notice. Images are for illustrated purposes only. The colours and finishes shown in the catalogue are as accurate as possible within the limits of the printing process. The positioning of all shower heads and shower wastes in the brochure is for illustrative purposes only.

*Errors and Omissions Exempt.

BEHIND THE SCENES
